Product Type	Automatic Voltage Regulator (AVR)
Brand	nJoy
Model	Alvis AVRL-10001AL-CS01B (1000VA)
Power Rating	1000 VA / 800 W (typical at 0.8 power factor)
Input Voltage Range	140–280 V (typical; see datasheet for exact)
Output Voltage	Stable 230 V (regulated)
Frequency	45–65 Hz (automatic detection)
Microprocessor Control	High reliability and precise regulation
Time Delay Function	Selectable 6 seconds (undelay) or 3 minutes (delay) to protect motorized appliances
Protection Features	Under-voltage, over-voltage, over-temperature, short circuit, overload (smart protection)
Overload Protection	Cutoff at >110% load within 30s; >120% within 6s; auto-restart 3 times then locks
LED Indicators	Power On (green), Time Delay (yellow flashing), Abnormal (red)
Output Sockets	Multiple AVR-protected outlets (specific count per model)
Input Cord	Attached power cord
Package Contents	AVR unit, user manual, power cord, warranty card
Operating Environment	Indoor, temperature 0–40°C, humidity <95% non-condensing
Placement Clearance	At least 20 cm from other devices, do not block vents
Surge Suppression	Provides surge and spike protection
Safety Mechanisms	Circuit breaker, overheat protection, automatic cutoff
Disposal	Recycle per WEEE directive; do not dispose as household waste
Warranty	Included warranty card (standard manufacturer warranty)

Frequently Asked Questions - Alvis AVRL-10001AL-CS01B nJoy

How do I connect my computer to the nJoy Alvis AVR?

First, ensure the AVR is turned off and all connected devices are off. Plug your computer and monitor into the AVR-protected output sockets. Then, turn on the AVR using the power switch. The green LED will light up, indicating normal operation.

What is the time delay function and when should I use it?

The delay function delays the output after power-on or after a protection event. Use Delay (3 minutes) for appliances with motors or compressors (fans, refrigerators, air conditioners) to prevent damage from frequent switching. Use Undelay (6 seconds) for electronics like computers.

What does the letter H mean on the display?

The letter H indicates over-voltage protection. The input voltage is too high, so the output has been cut off automatically. The unit will restore output when the mains voltage returns to normal.

Why does my AVR turn off automatically and the red LED is lit?

This is a protective shutdown. Possible causes: over-voltage (H), under-voltage (L), over-temperature (flashing c), or overload (E1/E2). Check the display for error codes and refer to the manual. Remove any overload or let the unit cool down.

How do I reset the circuit breaker if it trips?

First, disconnect some loads to reduce the total power. Press the circuit breaker button back in. If it trips again, the unit is still overloaded or there is a short circuit. Remove all loads and try again. If persistent, contact support.

Can I use this AVR with a UPS?

Yes. Connect the UPS to the AVR's output socket, then plug the AVR into the wall outlet. This provides stable voltage to the UPS.

What appliances are suitable for the nJoy Alvis AVR?

It is designed for voltage-sensitive equipment such as computers, medical devices, laboratory equipment, and hydrophore pumps. Do not exceed the rated power (1000 VA). For motor appliances, enable the delay function.

How should I clean and maintain the AVR?

Disconnect the unit from power before cleaning. Use a dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Ensure ventilation slots are free of dust.

What is the maximum load I can connect?

The maximum continuous load is 1000 VA (about 800 W). Do not exceed this. The unit will overload if >110% of rated load, causing automatic cutoff.

How to dispose of the AVR at end of life?

Do not dispose of it with household waste. According to the WEEE directive, take it to a designated collection point for recycling of electrical and electronic equipment to protect the environment.

USER MANUAL Alvis AVRL-10001AL-CS01B nJoy

Thank you for purchasing our products!

Please read this manual before using the product.

nJoy is a brand of power and backup protection products that create solutions for multiple levels of environment complexity, residential to industrial.

The nJoy Alvis Series is the ideal protection for computers or other electronic equipment. With its AVR-protected sockets regulates the input voltage and eliminates the problems created by under-voltage or over-voltage fluctuations. Besides, it is provided with selection for delay time that eliminates transients that can affect connected equipment. This high performance AVR Series comes with the versatility to fit all kinds of equipment with its input voltage range selection.

The following models belong to the Series:

1 Package Contents

√ AVR Unit.
√ User Manual.
√ Power Cord (attached).
√ Warranty Card.

2 Product Overview

Front View

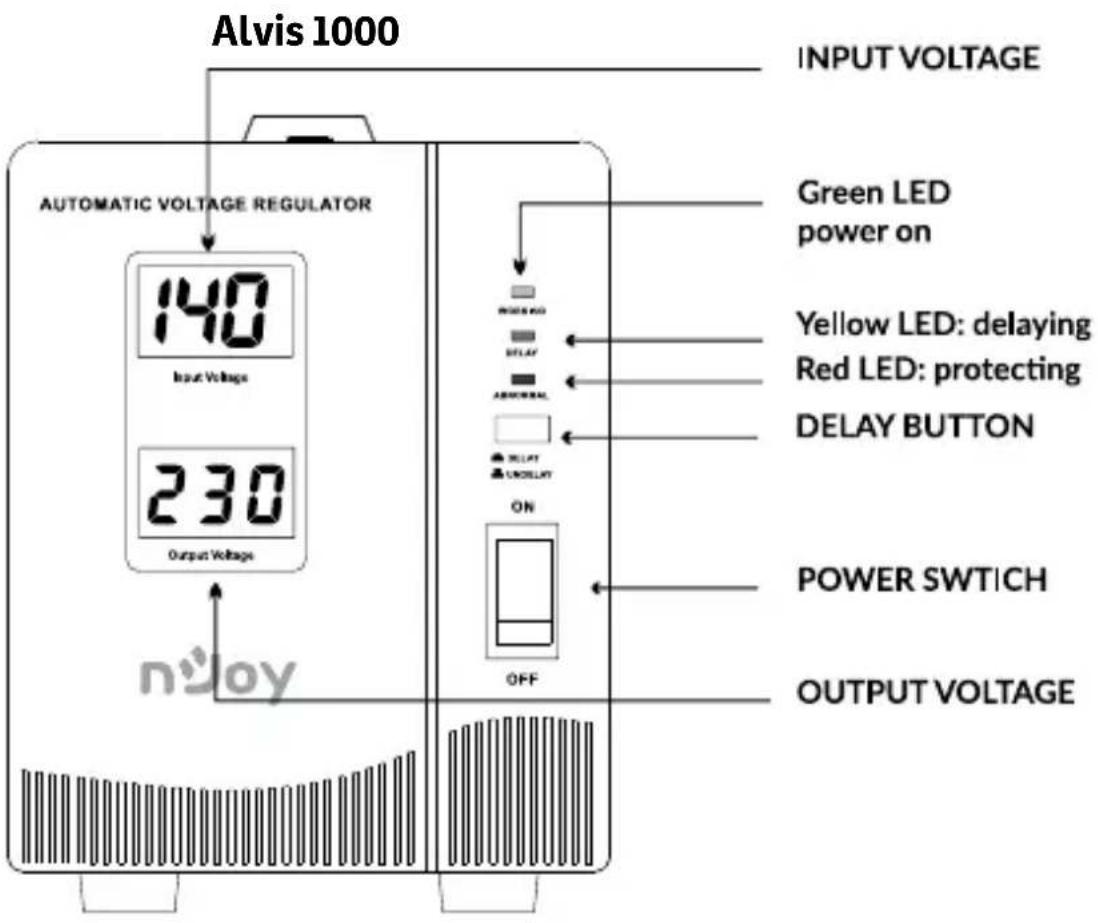

Alvis 1000

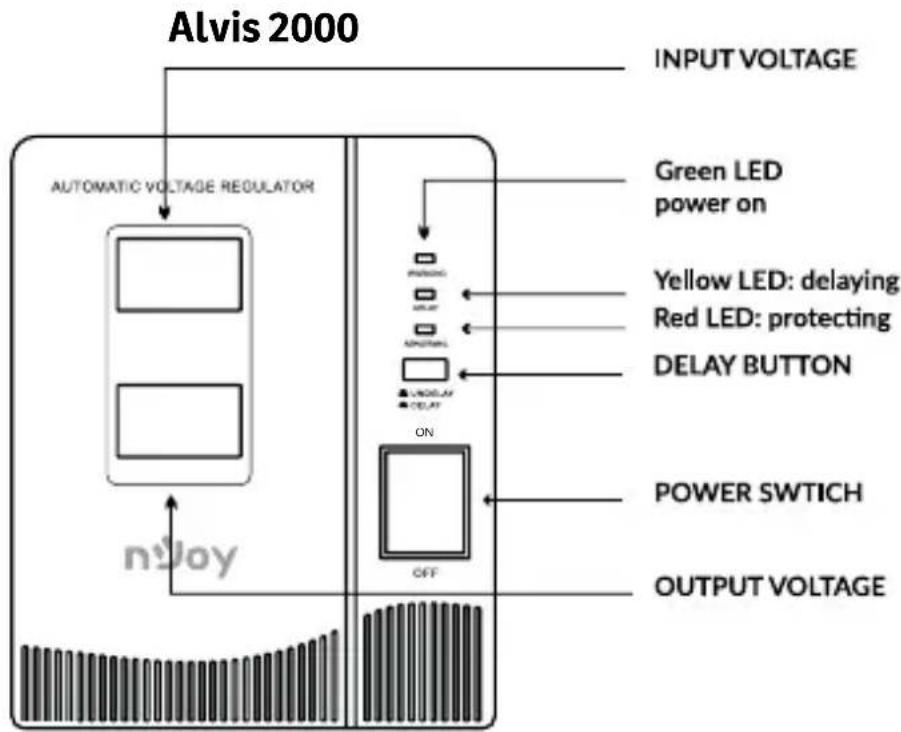

Alvis 2000

Alvis 3000/ Alvis 5000

OUTPUT PHASE CABLE OUTPUT NEUTRAL CABLE EARTH CABLE INPUT NEUTRAL CABLE INPUT PHASE CABLE

General Specifications3

Microprocessor control guarantees high reliability
Time delay function eliminates transients that can affect connected equipment
Under-voltage, over-voltage, over-heat and over current protection
◆ Provides stable output voltage
Provide surge and spike suppression

NOTE: For the full list of technical specifications please see the AlvisSeries datasheet found at www.nJoy.global

Important Safety Warnings4

The unit is designed only for use within 45Hz to 65Hz (depending on the model) input frequency and pure sine wave environment. Any other input frequency or wave form will affect the voltage range and load capability.
Please DO NOT connect the unit to the environment with direct current or simulated sine wave.
To prevent the risk of fire or electric shock, install the device in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications in the product's datasheet for the acceptable temperature and humidity range.)
Don't connect any appliances to AVR, which exceeds its rated power capacity.

Instalation and Initial Startup5

Step 1. Inspection

Remove the unit from the shipping package and inspect it for damage that might have occurred during transportation. Notify the carrier and place of purchase if any damage is found.

Step 2. Placement & Storage Conditions

Install the unit in a protected area that is free of excessive dust and has adequate air flow. Please place the unit away from other units at least 20cm to avoid interference. Do NOT block the top or side air vents on the unit. Do not use the unit in an environment where the ambient temperature or humidity is outside the limits listed in the specifications. Operate the unit in an environment free of excessive dust, mechanical vibration, inflammable gases and explosive or corrosive atmospheres.

Step 3. Connect the Loads

The AVR-protected receptacles will provide stable power to connected devices by boosting and bucking the input power. Therefore simply connect sensitive loads to AVR-protected receptacles in order to secure them.

3.1 Make sure all appliances are turned "OFF", and put the POWER SWITCH of AVR to "OFF" position.

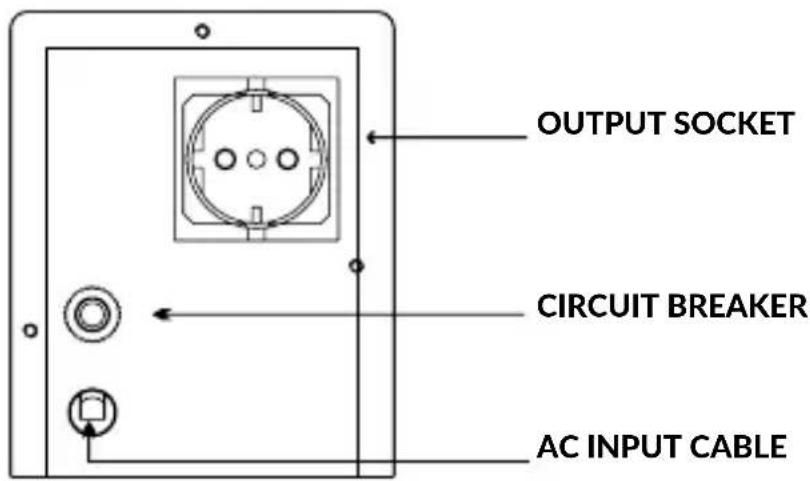

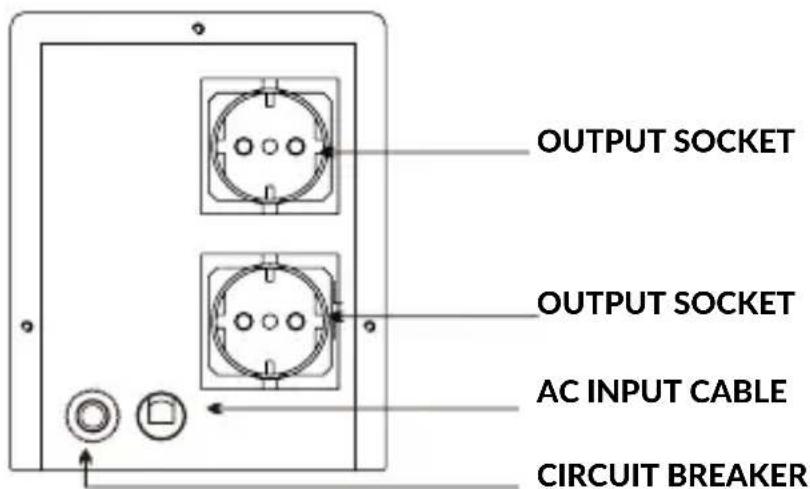

3.2 For Alvis 1000 and 2000, plug the appliances into the OUTPUT SOCKET of the AVR
3.3 For Alvis 3000 and 5000 make wiring connection as shown in Figure 1.

FIGURE 1

OUTPUT PHASE CABLE OUTPUT NEUTRAL CABLE EARTH CABLE INPUT NEUTRAL CABLE INPUT PHASE CABLE

Step 4. Turn On/Off the Unit

Turn on the unit by pressing the power switch to "ON" position. Then, all connected devices will be powered on.

6 Operation

6.1 Delay Operation

The "DELAY" means the output of the AVR will be delayed for a specific time, after switching on the AVR or the output is restored from a protecting status.

It will prevent the appliances from being damaged due to frequent switching on and off.

Undelay

Delay

The default delay time is 6 seconds (UNDELAY) or 3 minutes (DELAY). Press down the DELAY BUTTON to select the "DELAY", or press it up to select the "UNDELAY".

For the appliances with motors and compressors, like fans, refrigerators, cooler, freezers, air-conditioners, pumps, small motors, please select □ Delay.

6.2 Over Voltage (High Voltage) Protection

In case that input voltage is over the normal range, the output will be cut off automatically and a letter "H" will be shown in the display.

When input mains power returns to normal range, the AVR will restore the output automatically.

6.3 Under Voltage (Low Voltage) Protection

In case that input voltage is below the normal range, the output will be cut off automatically and a letter "L" will be shown in the display.

When input mains power returns to normal range, the AVR will restore the output automatically.

6.4 Over Temperature Protection

In case that the temperature of transformer windings is beyond the normal range, the output will be cut off automatically and letter "c" will be flashing in the display.

When temperature of transformer windings returns to normal range, the AVR will restore the output automatically.

6.5 Short Circuit Protection

In case a short circuit happens to the AVR or appliances, the AIR BREAKER or CIRCUIT BREAKER will trip off to cut off the input power supply.

Check if the appliances have been short circuited, if so, please remove them.

If the AVR is short circuited, do not use it! Please turn to the authorized dealer or service center.

6.6 Smart Overload Protection

Once it is overloaded, the AVR will give display warning to inform the user to reduce the connected appliances.

When load is >110%±8%: output will be cut off within 30s if overload is not removed

When load is >120%±8%: output will be cut off within 6s if overload is not removed

Once it's protected, the AVR will retry to restore output for 3 times, if overload is still not removed during this period, the AVR will stop retrying to restore output, at this time a letter "E1" or "E2" will be flashing in the display.

When letter "E1" or "E2" is flashing, even if the overload is removed, the output won't be restored. In this case, please conduct below steps:

(a) Put the "POWER SWITCH" to "OFF" position to disconnect mains power.
(b) Switch off all the connected appliances, and remove the exceeding load.
(c) Switch on AVR and then switch on the appliance.

7 LED Indicators

Mode LED Indication
Normal Green led lighting
Time Delay	Yellow flashing & Green led lighting
Abnormal(output cutoff) Red	& Green led lighting

8 Applications

The Alvis Series is design for use with voltage sensitive equipment such as: computers, hydrophore, medical and laboratory equipment.

When using the voltage regulator with an Uninterruptible Power Supply (UPS) connect the UPS to the output receptacle of the Series unit then connect it (the AVR) to the wall outlet.

Troubles and solutions9

Problem/ error code	Possible Cause Solutions
Power LED is not ON.	Power switch isn't ON. AC plug connection failed. AC socket without power or power failure.	Check if the mains is normal.
		Check if the power cord is connected firmly.
		Check if the connected devices are connected to the unit firmly.
		Check if the unit is turned on. Use the below table to solve the minor problems
Circuit breaker is"tripped".	The unit is overload.	Remove some loads first. Reset the circuit breaker by pressing the button again.
The unit is turned off automatically and the Power LED is not lit.	The unit is overheated. It's internal protected function.	Remove some loads and wait until the unit cool down. Then turn on the unit again.
Output Voltage	Overload protecting when load is >110%, but less than120%	Remove unnecessary appliances connected; if still not solved, contact the dealer
Output Voltage	Overload protecting when load is >120%	Remove unnecessary appliances connected; if still not solved, contact the dealer
Output Voltage	Under voltage protection	Wait till input voltage increases to normal range
Output Voltage	Over voltage protection	Wait till input voltage decreases to normal range
Output Voltage	Over temperature protection for Transformer windings	Wait till the temperature of Transformer windings decreases to normal range

Disposal of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources.
