USER MANUAL L61470WDBI AEG-ELECTROLUX

21 HELPFUL HINTS AND TIPS

23 CARE AND CLEANING

27 TROUBLESHOOTING 31 INSTALLATION 37 BUILDING IN ENVIRONMENT CONCERNS Recycle the materials with the symbol & . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol Æ with the household waste. Return the product to your local recycling facility or contact your municipal office. VISIT OUR WEBSITE FOR: - Products - Brochures - User manuals - Trouble shooter - Service information WWW.aeg.com LEGEND A Warning - Important Safety information () General information and tips Environmental information Subject to change without notice

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler - features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags. SÉIBIE Visit the webshop at: wuw.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model PNC Serial Number

4 www.aeg.com /\ SAFETY INFORMATION Before the installation and use, read this manual carefully: + For your safety and the safety of your property + To help the environment + For the correct operation of the appli- ance. Always keep these instructions with the appliance also if you move or give itto a different person. The manufacturer is not responsible if an incorrect installation and use causes dam- age.

CHILDREN AND VULNERABLE

PERSON SAFETY Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a per- son who is responsible for their safety. Do not let children play with the appli- ance. Keep all packaging away from children There is the risk of suffocation or injury. Keep all detergents away from children. Keep children and pets away from the appliance when the door is open. Before you close the appliance door, make sure that children and pets are not into the drum. Hthe appliance has a child safety de- vice, we recommend to activate it.

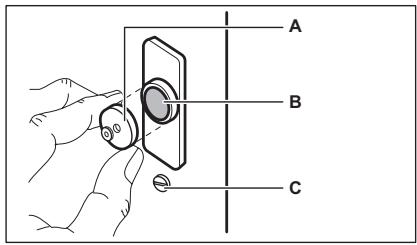

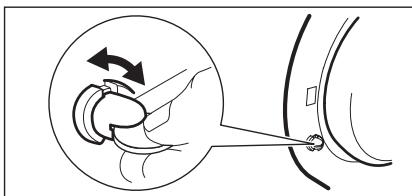

+ When you activate this device, you can- not close the door. This prevents chil- dren or pets to be closed in the drum To activate the device, turn it clockwise, until the groove is horizontal. To deacti- vate the device, turn it counterclock- wise, until the groove is vertical. GENERAL SAFETY Do not use the appliance for professio- nal use. The appliance is only for do- mestic use. Do not change the specifications of this appliance. There is the risk of injury and damage to the appliance Do not put flammable products or items that are wet with flammable products in, near or on the appliance Risk of explosion or fire. Obey the safety instructions on the de- tergent packaging to prevent burns to eyes, mouth and throat. Make sure that you remove all metal objects from the laundry. Hard and sharp material can cause damage to the appliance. Do not touch the glass of the door while a programme operates. The glass can be hot Plastic items are not heat resistant. — lf you use a detergent ball, remove it before you set the drying pro- gramme — Do not use a detergent ball when you set a non-stop programme Before you set the drying programme, fully rinse items cleaned with flammable products. There is a risk of explosion:

+ Deactivate the appliance and discon- nect the mains plug from the mains socket. + Do not use the appliance without the filters. Make sure that the installation of the filters is correct. An incorrect instal- lation causes water leakages

INSTALLATION The appliance is heavy, be careful when you move it. Do not transport your appliance with- out the transit bolts, you can damage internal components and cause leak- ages or malfunctions. Do not install and connect a damaged appliance. Make sure to remove all packaging and transport bolts. Make sure that the mains plug is dis- connected from the mains socket dur- ing installation Only a qualified person must do the electrical installation, the plumbing and the installation of the appliance. This to prevent the risks of structural damage or injury. Do not install or use the appliance where the temperature is less than O °C When you install the appliance on a carpet floor, make sure that there is air circulation between the appliance and the carpet. Adjust the feet to have the necessary space between the appliance and the carpet. Water connection + Do not connect the appliance with old hoses already used. Only use new ho- ses. Make sure not to cause damage to the water hoses. Do not connect the appliance to new pipes or pipes not used for a long time. Let the water flow for some minutes, then connect the inlet hose. The first time you use the appliance, make sure that the water hoses and the couplings do not have leakages. Electrical connection + Make sure that the appliance is earth-

TECHNICAL INFORMATION ENGLISH 5 Make sure that the electrical informa- tion on the rating plate agrees with the power supply. Always use a correctly installed shock- proof socket. Do not use multiple plugs and exten- sion cables. There is a risk of fire. Do not replace or change the mains ca- ble. Contact the service centre. Make sure not to cause damage to the mains plug and cable. Connect the mains plug to the mains socket only at the end of the installa- tion. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to discon- nect the appliance. Always pull the mains plug, Only for UK and Ireland. The appliance has à 13 amp mains plug. fit is neces- sary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse. Permanent connection. To connect the appliance permanently, install à double-pole isolating switch between the appliance and the electricity supply. It must have a minimum distance of 3 mm between the switch contacts and it must be the correct type for the neces- sary load. It must agree with the last electrical legislation. The switch must not break the yellow and green ground cable. Only a qualified electrician must install this type of device.

DISCARD THE APPLIANCE

1. Disconnect the mains plug from the

2. Cut offthe mains cable and discard it

3. Discard the door catch. This prevents

children or pets to be closed in the appliance. There is a risk of suffoca- tion (only for front-loading applian- ces). Dimensions Width / Height / Depth 600 / 820 / 630 mm Total depth 640 mm

www.aeg.com Electrical connection: Voltage 230-240 V Overall power 2050 W Fuse 13A Frequency 50 Hz Level of protection against ingress of solid particles IPX4 and moisture ensured by the protective cover, ex- cept where the low voltage equipment has no pro- tection against moisture Water supply pressure Minimum 0,5 bar (0,05 MPa) Maximum 8 bar (0,8 MPa) Water supply D Cold water Maximum wash load Cotton 7kg Maximum dry load Cotton 3kg Cotton big capacity 4kg Synthetics 2kg Spin speed Maximum 1400 rpm

1) Connect the water inlet hose to a water tap with a 3/4" thread

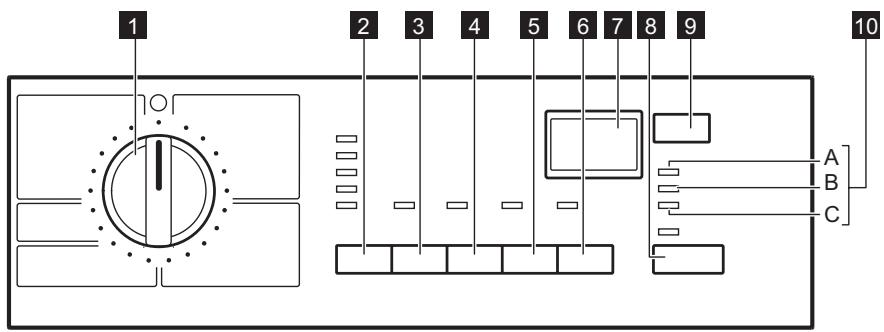

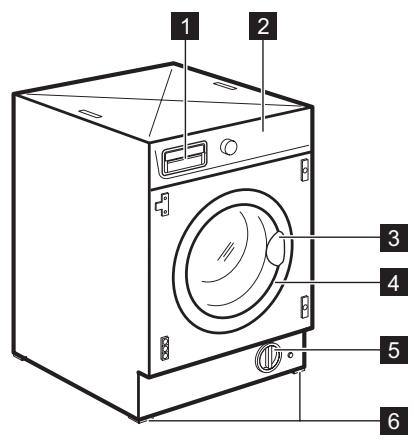

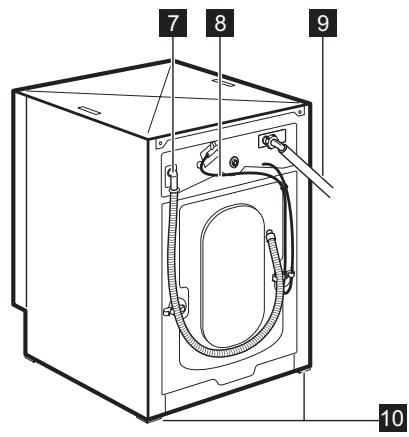

PRODUCT DESCRIPTION ENGLISH 7 E Detergent dispenser Acc pcrel En 0c herde Rating plate Hosnecre ACCESSORIES Feet for the appliance level Water drain hose E Mains cable Water inlet hose EM Fest for the appliance level EE serre To remove the transit bolts. Bi Pestic cps To close the holes on the rear side of the cabinet after the removal of the transit bolts. E Anti-flood inlet hose To prevent possible leakage Plastic hose guide To connect the drain hose on the edge of a sink.

Duration of the set programme When you set a programme, the display shows the duration in hours and minutes (for example 2.05) The duration is calculated automatically on the maximum load for each type of fabric. After the programme has started, the time remaining is updated every minute: Set drying time when you set a drying programme, the display shows the drying time in minutes and/or hours (see paragraph «Drying») After the programme has started, the appliance updates the re- maining time every minute.

Alarm codes ENGLISH 9 In the event of operating problems, some alarm codes can be dis- played, for example E2{] (see chapter «Troubleshooting) End of programme When the programme has finished, the display shows a blinking zero (J. The DOOR light C, the WASHING light A (or the DRYING light B) and the light of button 8 go out The door can be opened incorrect option selection If you set an option which is not compatible with the wash pro- gramme, the display shows the message Err for some seconds. The yellow pilot light of button 8 light starts blinking. Delay Start When you press the relevant button to set the delay (20 hours max), it appears for some seconds, then the display shows the du- ration of the set programme. The delay time value decreases by one unit every hour. When only 1 hour remains, the time decreases every minute. Delay Start symbol

This symbol comes on when you set the delay time. Child safety lock oi) This symbol comes on when you activate the child lock function

After you have pressed the button 8, the WASHING light (A) comes on The machine is operating. When you set a drying programme, the DRYING light (B) illuminate and stays on during the drying phase: The DOOR light (C) indicates when the door can be opened: + light on: the door cannot be opened + light blinking: the door is opening in some minutes +_ light off: the door can be opened ACOUSTIC SIGNALS The machine is provided with an acoustic device, which soundk in the following ca- ses: + atthe end ofthe cycle + in the event of operating problems. By pressing the 3 and 4 buttons simulta- neously for some seconds, the acoustic signal is deactivated (except for the events of operating problems). By press- ing these two buttons again, the acoustic signal is reactivated.

This device permits you to leave the ap- pliance unsupervised and not to worry that children might be injured by or cause damage to the appliance. This function remains able also when the washing machine is not working. There are two different ways to set this option: + Before pressing button 8: it will be im- possible to start the machine.

10 www.2eg.com +_after pressing button 8: it will be impos- sible to change any other programme or option To enable or disable this option press si- multaneously for about 6 seconds buttons 4 and 5 until the symbol FF] comes on or disappears from the display.

ENGLISH 11 WASHING PROGRAMMES Programme Maximum and Minimum Temperature Cycle De- Gi Type of Laundry scription ptions Maximum Load Cottons Main wash SPIN REDUCTION 95° - 30° Rinses RINSE HOLD Max. load 7 kg - Reduced load 3 kg Long spin at STAIN1) esse ma" TIME SAVE? : EXTRA RINSE Cotton Economy Main wash SPIN REDUCTION 40° Rinses RINSE HOLD Max. load 7 kg Long spin at STAIN White and fast coloured cotton maximum EXTRA RINSE Slightly or normally soiled cotton items speed The appliance decreases the temperature and extends the washing time to obtain a good washing efficiency so saving energy. Cottons + Prewash3) Prewash SPIN REDUCTION 95° - 40° Main wash RINSE HOLD Max. load 7 kg - Reduced load 3 kg Rinses STAIN White and coloured cotton Long spin at TIME SAVE2) (Very soiled items) maximum EXTRA RINSE speed Synthetics Main wash SPIN REDUCTION 60° - 30° Rinses RINSE HOLD Max. load 3 kg - Reduced load 2 kg Short spin at STAIN 1) Se een an Dee APM TIME SAVE 5 b b : EXTRA RINSE Easy lron Main wash SPIN REDUCTION 40° Rinses RINSE HOLD Max. load 1 kg Short spin EXTRA RINSE Synthetic fabrics to be gentle washed and Spin at 1200 spun. rpm The laundry is gently washed and spun to avoid any creasing. Furthermore the machine will perform additional rinses. Delicates Main wash SPIN REDUCTION 40° - 30° Rinses RINSE HOLD Max. load kg 3 - Reduced load kg 2 Short spin at STAIN1) Delicate fabrics: acrylics, viscose, polyester. 1200pm He SAVE?) EXTRA RINSE

Programme Maximum and Minimum Temperature Cycle De- Opti Type of Laundry scription ptions Maximum Load AL Main wash SPIN REDUCTION MoopSie le Rinses RINSE HOLD 30° - Cold Short spin at pin à Max. load 2 kg 1200 rpm Machine washable wool as well as for hand washable woollens and delicate fabrics. Note: À single or bulky item may cause im- balance. lf the appliance doesn't perform the final spin phase, add more items, redistribute the load manually and then select the spin- ning programme. Delicate Rinses Rinses SPIN REDUCTION Max. load 7 kg Long spin RINSE HOLD Programme for rinsing and spinningitems Spin at 1200 EXTRA RINSE which have been washed by hand. The ma- rpm chine performs some rinses, followed by a fi- nal spin. The spin speed can be reduced Drain Draining of Max. load 7 kg water For emptying out the water of the last rinse in programmes with the Rinse hold option set. Spin Drain SPIN REDUCTION Max. load 7 kg Long spin Separate spin for hand washed cotton gar- Spin at the ments and after programmes with the Rinse maximum Hold option set. speed Turn the programme dial to Off before set- ting this programme. Reduce the spin speed if needed. Drying — Syntetics DRYING TIME se- Drying synthetic programme lection Drying — Cottons DRYING TIME se- Drying cotton programme. lection Refresh Main wash SPIN REDUCTION 30° Rinses Max. load 3 kg Short spin Quick wash for sport items, or cotton and Spin at 1200 synthetic items lightly soiled or worn once. rpm

ENGLISH 13 Programme Maximum and Minimum Temperature Cycle De- Opti Type of Laundry scription ptions Maximum Load Cotton Economy Main wash SPIN REDUCTION 60° Rinses RINSE HOLD Max. load 7 kg Long spin STAIN White and fast coloured cotton. Spin atthe EXTRA RINSE Slightly or normally soiled cotton items maximum The appliance decreases the temperature speed and extends the washing time to obtain a good washing efficiency so saving energy. For cancelling the running programme or to switch the machine off

1) Stain option can be selected only at the temperature of 40°C or higher.

2) you select the Super Quick option by pressing button 4, we recommend that you reduce

the maximum load as indicated. Full loading is possible however with somewhat reduced cleaning results. 3 If using liquid detergents, a programme without PREWASH must be selected. DRYING PROGRAMMES Timed programmes Sugges- Drying Spin ed Degree of Drying Type of Fabric au speed ÉoIE Minutes EXTRA DRY Cotton and linen <K9 HEC EDEN Ideal for towelling mate- (bathrobes, bath 3kg 1400 110 - 120 rials towels, etc) T5kg 1400 758 Cotton andlinen 4kg 1400 150 - 170 CRE bath kg 1400 100-110. CUPBOARD DRY!) towels, etc) ——— — Suitable for items to put 1.5 kg 1400 65-75 away without ironing Synthetics and 2kg 1200 90-100 Suitable for items to put mixed fabrics ES away without ironing (jumpers, blouses, underwear, house- 1 kg 1200 S5-65 hold linen) CNE Cotton andlinen +K9 Wen mort & : (sheets, table- 3kg 1400 80 -90 Suitable for ironing cloths, shirts, ete) PÉRE) 1.5 kg 1400 50-60

1) In compliance with EC directive EN 50229 the cotton reference programme for the data

entered in the Energy Label must be tested dividing the maximum washing load by two equal parts and drying with DRYING TIME each of them.

14 www.aeg.com CONSUMPTION VALUES Programme Energy con- Water con- Programme sumption sumption duration (KWh) litres) (minutes) White Cottons 95° 22 72 Cottons 60° 1.35 67 For the dura- Cotton Energy Saving Pro- 105 49 tion of the Le programmes, gramme 60 please refer Cottons 40° 0.85 67 Ee the ce = play on the Synthetics 40 0.55 42 control pan- Delicates 40° 0.55 63 el. Wool/ Handwash 30° 0.25 55

7) «Cotton Energy Saving programme » at 60°C with a load of 7 kg is the reference

programme for the data entered in the energy label, in compliance with EEC 92/75 standards ΠThe consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature FIRST USE

1. To activate the drain system, put 2 li- detergent dispenser. Set and start a

tre of water in the main wash com- programme for cotton at the highest partment of the detergent dispenser. temperature without laundry. This re-

2. Put a small quantity of detergent in moves all possible dirt from the drum

the main wash compartment of the andthe tub

1. Open the appliance door not to put too much laundry in the

2. Putthe laundry in the drum, one item drum

at a time. Shake the items before you 3. Close the door. put them in the appliance. Make sure

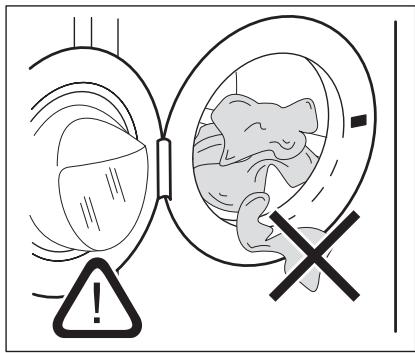

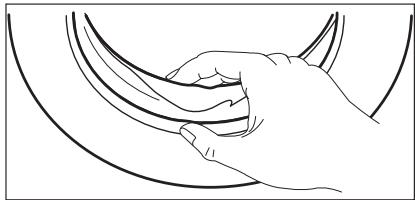

ENGLISH 15 Make sure that no laundry stays between the seal and the door. There is a risk of water leakage or damage to the laundry.

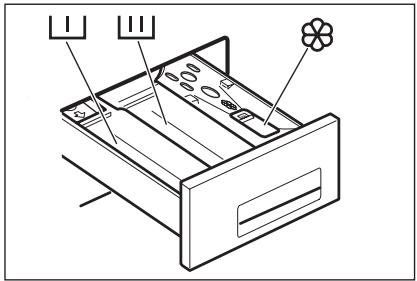

FILLING THE DETERGENT AND ADDITIVES

LI Li @ The detergent compartment for the prewash phase, the soak pro- gramme and for the stain function Add the detergent for prewash, soak and stain remover before the start of the programme. The detergent compartment for the washing phase. If you use a liquid detergent, put it immediately before you start the programme. 8 E Liquid additives compartment (fabric conditioner, starch). Put the product in the compartment before you start the pro- gramme. MAX This is the maximum level for the quantity of liquid additives. G) Always obey the instructions that you find on the packaging of the deter- gent products.

SETTING AND STARTING A PROGRAMME

SETTING THE PROGRAMME movement, number of rinses) and the (KNOB 1) washing temperature according to the type of laundry. Turn the programme selector dial to the The pilot light of button 8 starts blinking. required programme. The programme dial can be tumed either The programme dial determines the type Clockwise or anticlockwise. of washing cycle (e.g. water level, drum

16 www.aeg.com Off = Reset programme / switching OFF ofthe machine Gi) If you turn the programme dial to another programme when the ap- pliance is working, the yellow pilot light of button 8 blinks 3 times. The display shows the message Err to indicate a wrong selection The machine will not perform the new set programme

SETTING THE SPIN SPEED

(BUTTON 2) When you set the programme, the appli- ance automatically proposes the maxi- mum spin speed allowed by that pro- gramme. Press this button repeatedly to change the spin speed, The relevant light will light up. RINSE HOLD : the water of the last rinse is not emptied out to prevent the fabrics from creasing. When the programme has finished the display shows a blinking The DOOR pilot light goes on. The pilot light of button 8 is off. The door is blocked to indicate that the water must be emptied out. To empty the water out please read chapter «At the end of the pro- gramme».

SETTING THE STAIN OPTION

(BUTTON 3) Set this option to treat heavily soiled or stained laundry with stain remover The appliance extends the main wash phase and intensifies the stain action phase. The relevant light illuminates. This option is not available with temperature lower than 40°C. If you wish to perform a programme with the stain option, pour stain remover into compartment | 1}.

SETTING THE TIME SAVING

OPTION (BUTTON 4) This option allows you to modify the washing time, automatically proposed by the appliance Press button 4 once DAILY The relative pilot light comes on. The washing duration will be reduced to wash daily soiled laundry. Press button 4 twice SUPER QUICK The relative pilot light re- mains lit. The washing duration will be reduced to wash lightly soiled laundry or items used or worn for a short time. The display shows the decreased washing time.

SETTING THE EXTRA RINSE

OPTION (BUTTON 5) This appliance is designed for saving wa- ter. However, for people with a very delicate skin (allergic to detergents) it may be nec- essary to rinse the laundry using an extra quantity of water (extra rinse). The appliance will perform some addi- tional rinses.

STARTING THE PROGRAMME

(BUTTON 8) Press the button 8 to start the pro- gramme. The corresponding red pilot light stops blinking. The pilot light A is on to indicate that the appliance starts operating. The pilot light € is on to indicate the door is locked Press the button 8 to interrupt a pro- gramme which is running. The corre- sponding red pilot light starts blinking Press the button 8 again to restart the programme from the point at which it was interrupted If you have chosen a delayed start with button 9, the machine will begin the countdown. If you set an incorrect option, the yellow pilot light of the button 8 blinks for 3 times. The display shows the message Err for some secondks.

(BUTTON 9) Press this button again an again to set the required delay. The display shows the set delay time val ue (up to 20 hours) for some seconds, then it shows the duration of the pro- gramme again. Set the delay before you press the button

You can delay the wash programme can be delayed from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maxi- mum of 20 hours. Adding items after you have set the de- lay (throughout the delay time the door will be locked) + Press the button 8 to put the machine in pause + Add the laundry, close the door + Press the button 8 again. Setting the delayed start: + Set the programme and the required options. + Setthe delay start. + Press the button 8: the appliance starts its hourly countdown. The programme will start after the se- lected delay has expired. Cancelling the delayed start: + Press the button 8 to set the washing machine to PAUSE; + Press the button 9 once until the dis- play shows the symbol Î'; + Press the button 8 again to start the programme. You can change the set delay only after you set the washing pro- gramme again. The Delay Start can not be selected with DRAIN programme.

ALTERING AN OPTION OR A

RUNNING PROGRAMME It is possible to change some options be- fore the programme carries it out. Before you make any change, you must press the button 8 to pause the appliance Changing a running programme is possi- ble only by resetting it. ENGLISH 17 Turn the programme dial to Off and then to the new programme position. Press the 8 button again to start the new programme. The washing water in the tub will not emptied out. INTERRUPTING A PROGRAMME Press the button 8 to interrupt a pro- gramme which is running, the corre- sponding light starts blinking. Press the button again to restart the programme: CANCELLING À PROGRAMME Turn the selector dial to Off to cancel a programme which is running. Now you can select a new programme

When the machine is working and through the delay time, the door is locked. If, for any reason, it is necessary to open it, firstly press the button 8 to set the ma- chine to pause Ifthe light C after a few minutes goes off, the door can be opened the light € stays on and the door re- mains locked, this means that the ma- chine is already heating or that the water level is too high. In this case the door can not be opened. If you cannot open the door but you need to open it, turn the programme dial to ©) to switch the machine off. After a few mi- nutes the door can be opened (pay at- tention to the water level and tempera- ture !) After closing the door, it is necessary to set the programme and the options again. Press button 8 to start the pro- gramme again.

PROGRAMME The machine stops automatically. The pi- lot light of button 8, the pilot lights À and € go off. À blinking {} will appear on the display. If you have set a programme or an option that ends with water in the tub, the light C remains lit. The door is locked. The water

18 www.2eg.com must be emptied out before opening the door. During this time the drum continues to turn at regular intervals until water drain. Follow the below instructions to empty out the water:

• Turn the programme selector dial to ©) + Set the DRAIN or SPIN programme + Reduce the spin speed, ifneeded + Press the button 8 + When the programme has finished the display shows a blinking {7 . The pilot Stand by : once the programme has fin- ished after a few minutes the energy sav- ing system will be enabled. The bright- ness of the display is reduced. By pressing any button the appliance will come out of the energy saving status. light € goes off. The door can be opened. Turn the programme selector dial to ©) to switch the machine off. Remove the laundry from the drum and carefully check that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells.

DRYING ONLY The recommended load size is 3 kg for cottons and linen, and 2 kg for synthetic items. Œ It is also possible to dry up to 4 kg of cotton items (see the «Drying Programme » table) The water tap must be open and the drain hose must be positioned in the sink or connected to the drain pipe.

1. Load the laundry.

2. Select a spin cycle at the maximum

spin speed allowed for the type of laundry in order to obtain the best drying performances:

3. Setthe drying programme for Cot-

tons or Synthetic in the Drying sector ofthe programme dial.

4. Press button 6 to set the drying time.

Press this button again and again un- til the time you want appears on the display. For Cottons you can set a drying time from 10 minutes to 250 minutes {hours 4.10). For Synthetic you can select a drying time from 10 minutes to 130 minutes (hours 2.10). Every time you press this button the drying time increases by 5 minutes Notel The programme time will auto- matically increase by a few minutes.

5. Press button 8 to start the pro-

gramme. After the programme has started, the time remaining is updated every mi- nute. G) H you set only 10 minutes of dry- ing phase with the timed drying button, the appliance performs only a cooling phase.

6. Atthe end of the drying programme,

some acoustic signals sound, À blink- ing L] appears on the display. The pilot light B, and C and the light ofthe button 8 go off. Atthis point, begins an anti-crease phase, which lasts for about 10 mi- ENGLISH 19 nutes. During this time the light C is on. The door cannot be opened,.

If you need to open the door be- fore or during the anti-crease phase or to interrupt it, press any button or turn the programme di- alto any programme position (ex- cept O The door can be opened after some minutes. (In any case do not try to open the doorifitis lockedi)

7. Turn the selector dial to the O posi-

tion to switch the machine off.

8. Remove the laundry.

Note! The different type of cottons (towelling, sheets, shirts, and so on) or any laundry items rolling up during the spinning phase may result in partial dryness. In the exceptional case that at the end of the cycle the laundry remains slightly wet, we suggest that you unfold the rolled up items, redistribute them evenly in the drum and select an additional drying cy- cle of 20-30 minutes. NON-STOP PROGRAMME:

DRYING The recommended load size is 3 kg for cotton and 2 kg for synthetic. (&) "ss possible to dy up to 4 kg of cotton items (see the «Drying Programme » table). AN CAUTION! Do not use a dosing device/ball when carrying out a washing and drying programme.

1. Load the laundry.

2. Add detergent and fabric softener.

3. Switch the machine on: turn the selec-

tor dial to the required washing pro- gramme/fabric.

4. Press the relevant buttons to set the

required options. If possible, do not set a spin speed lower than that proposed by the appliance to avoid too long

20 www.aeg.com a drying time therefore saving en- ergy. In any case the lowest values you can select are 900 r.p.m. for cottons and synthetics and 700 r.p.m. for delicate fabrics. The re- duction of the spin speed is only possible after selecting drying.

5. Press the button 6 to set the drying

time. When selecting a «non-stop programmes» the pilot lights À and B illuminate. The DRYING TIME value appears on the display for some seconds, then the entire duration of the washing and drying cycle appears.

If you set a washing programme and only 10 minutes of drying cy- cle by pressing the button 6, the total duration of the cycles dis- played includes also the unrolling and the cooling phase

6. Press the button 8 to start the pro-

gramme. After the programme has started, the time remaining is upda- ted every minute.

7. Atthe end ofthe programme, follow

the indications given in the previous chapter. Then, turn the selector to the © position to switch the machine off.

8. Remove the laundry.

FLUFF IN THE GARMENTS

During the WASHING AND/OR DRYING PHASE, certain types of fabric, as sponge- cloth, wool, sweatshirt, could release fluff. The released fluff could stick to the fabrics during the next cycle. This drawback increases with technical fabrics. To prevent the lint in your clothes, it is recommended: + To do not wash dark fabrics after you washed and dried light colored fabrics {new sponge, wool, sweatshirt especial- ly) and vice versa. To air-dry this type of fabrics when they are washed the first time. To clean the filter. Perform one or more rinse cycles to wash the drum between the washing and drying of fabrics with different col- os. + After the drying phase, thoroughly clean the empty drum, the gasket and the door with a wet rag

Divide the laundry in: white, coloured, synthetics, delicates and wool Obey the washing instructions that are on the laundry care labels. Do not wash together white and col- oured items. Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first times. Button up pillowcases, close zippers, hooks and poppers. Tie up belts Empty the pockets and unfold the items. Turn inside out multilayered fabrics, wool and items with painted illustra- tions. Remove hard stains. Wash with a special detergent heavy soil stains. Be careful with the curtains. Remove the hooks or put the curtains in a wash- ing bag or pillowcase Do not wash in the appliance — Laundry without hems or with cuts — Underwired bras. — Use a washing bag to wash small items. A very small load can cause balance problems with the spin phase. lfthis oc- curs, adjust manually the items in the tub and start the spin phase again. STUBBORN STAINS For some stains, water and detergent is not sufficient. We recommend that you remove these stains before you put the items in the ap- pliance. Special stain removers are available. Use the special stain remover that is applica- ble to the type of stain and fabric. Water hardness table ENGLISH 21

DETERGENTS AND ADDITIVES

Only use detergents and additives spe- cially made for washing machines. Do not mix different types of deter- gents. To help the environment, do not use more than the correct quantity of deter- gent. Obey the instructions that you find on the on packaging of these products. Use the correct products for the type and colour of the fabric, the pro- gramme temperature and the level of soil. If you use liquid detergents, do not set the prewash phase If your appliance has not the detergent dispenser with the flap device, add the liquid detergents with a dosing ball WATER HARDNESS the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener. To know the water hardness in your area, contact your local water authority. Obey the instructions that you find on the packaging of the products. Equivalent scales measure the water hard- ness: + German degrees (°dH). + French degrees (°TH) + mmol/l (millimol for each litre - interna- tional unit for the hardness of water). + Clarke degrees. Level Water hardness Tpe °dH TH. mmol/l Clarke 1 soft 0-7 0-15 0-15 0-9

Prepare the drying cycle + Open the water tap. + Do a check if the connection of the drain hose is correct. Refer to installa- tion chapter for more information. + Forthe maximum laundry load of the drying programmes, refer to the drying programmes table Do no not set a drying programme for this laundry: — Very delicate items. — Synthetic curtains. — Woollen and silk items. — Pieces of clothing with metal inserts. — Nylon stockings — Quilts. — Bed covers. — Duvets. — Anoraks. — Sleeping bags — Fabrics with residue of hair sprays, nail solvents or similar. Garments with foam-rubber or materi- als similar to foam-rubber. GARMENT LABELS When you dry ther laundry, obey the indi- cations on the labels of the manufactur- ers + [= The item can be tumble dried = The drying cycle is at high tem- perature + ©- The dying cycle is at reduced temperature

• [3 - The item can not be tumble dried. The drying time can change depending on: + speed ofthe last spin + dryness level + type of laundry + weight ofthe load size GENERAL TIPS Refer to the «Drying programmes» table to find the average drying times. The experience will help you to dry the laundry in a more correct way. Take note of the duration drying time ofthe cycles done before. To avoid the static charge at the end of the drying cycle + Use fabric conditioner in the washing cycle + Use special fabric conditioner for tum- ble dryers. When the drying programme is comple- ted remove the laundry in a short time. ADDITIONAL DRYING If, at the end of the drying programme, the laundry is still damp, set a short drying cycle again. AN WARNING! To avoid creases of fabrics or shrinks of the clothing do not over dry the laundry.

AN WARNING! Disconnect the appliance from the mains supply before you clean it. DESCALING The water we use contains limescale. If it becomes necessary, use a water softener to remove limescales. Use a special product made for washing machines. Obey the instructions that you DOOR SEAL ENGLISH 23 find on the packaging of the manufactur- er. Do this separately from the laundry wash. EXTERNAL CLEANING Clean the appliance only with soap and warm water. Fully dry allthe surfaces CAUTION! Do not use alcohol, solvents or chemical products. Regularly examine the seal and remove all objects from the inner part. DRUM Regularly examine the drum to prevent limescale and rust particles. Only use special products to remove rust particles from the drum. To do this: DETERGENT DISPENSER + Clean the drum with special product for stainless steel. + Start a short programme for cotton at the maximum temperature with a small quantity of detergent. To clean the dispenser:

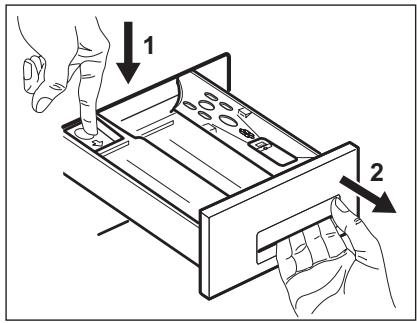

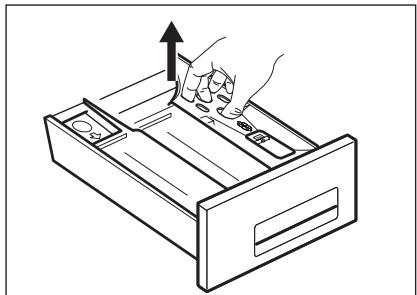

2. Pull the dispenser out

3. Remove the top part of the liquid ad-

4. Clean allthe parts with water.

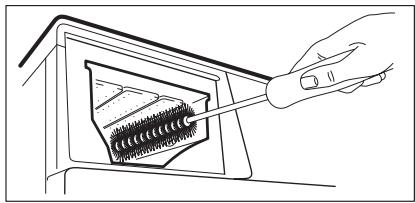

5. Clean the dispenser recess with a

6. Putback the dispenser in the recess.

DRAIN PUMP AN WARNING! Before unscrewing the pump cov- The pump should be inspected regularly er, switch the appliance off and and particularly if remove the mains plug from the +_the appliance does not empty and/or socket. spin; Proceed as follows: the appliance makes an unusual noise during draining due to objects such as 1- Unplug the appliance safety pins, coins etc. blocking the 2. lfitis necessary, wait until the water pump: has cooled down à problem with water draining is detec- ted (see chapter "Troubleshooting” for more details).

3. Place a container close to the pump

to collect any spillage.

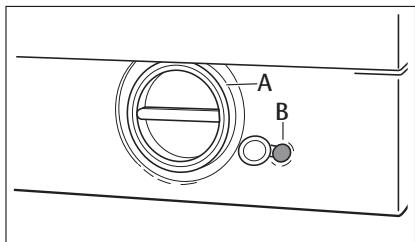

4. Release the emergency emptying

hose (B), place it in the container and remove its cap cover.

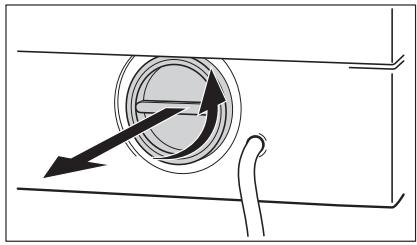

5. When no more water comes out, un-

screw the pump cover (A) by turning it anti-clockwise and remove the fil- ter. Use pliers, if necessary. Always keep a rag nearby to dry up any water spillages when removing the cover. Clean the filter under a tap, to remove any traces of fluff.

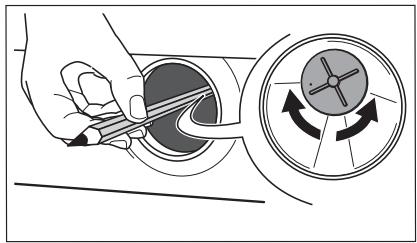

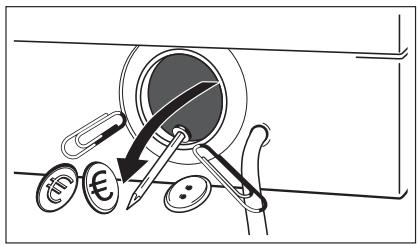

6. Remove foreign bodies and fluff rom

the filter seat and from the pump im- peller. 7... Check caretully whether the pump impeller rotates (it rotates jerkily). If it doesn't rotate, please contact your Service Centre. Put the cap back on the emergency emptying hose and place the latter back in its seat. Replace the filter into the pump by inserting it correctly into the special guides. Screw the pump cover firmly by turning it clockwise. AN WARNING! When the appliance is in use and depend- ing on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When refitting the pump cover, ensure it is securely re-tightened so as to stop leaks and young children being able to re- move it.

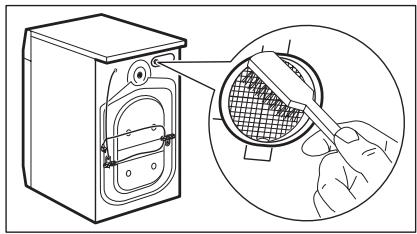

THE INLET HOSE FILTER AND

It could be necessary to clean the filters when: + The appliance does not fill with water. + The appliance fills with the water for a long time + The indicator of button ME flashes and the display shows the related alarm. Re- fer to Troubleshooting'. WARNING! Disconnect the mains plug from the mains socket.

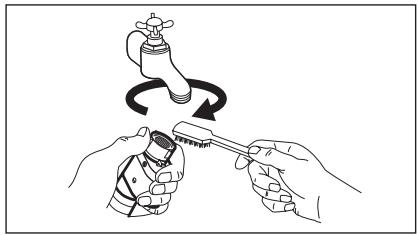

Close the water tap. Remove the water inlet hose from the water tap. Clean the filter in the inlet hose with a stiff brush Remove the inlet hose behind the appliance Clean the filter in the valve with a stiff brush or a towel. Install again the inlet hose. Make sure that the couplings are tight to pre- vent leakages. Open the water tap.

EMERGENCY EMPTYING OUT

Ifthe water is not discharged, proceed as follows to empty out the appliance:

1. pull out the plug from the power

3. ifnecessary, wait until the water has

4. place a bowl on the floor:

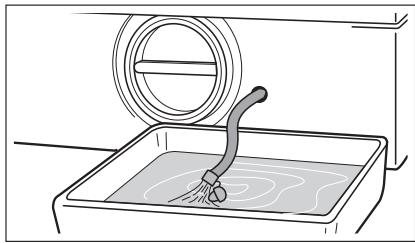

5. place the end of the emergency emp-

tying hose into the boul;

6. Remove its cap. The water should

drain by gravity into the bowl. When the bowl is full, put the cap back on the hose. Empty the bowl; Repeat the procedure until water stops flowing out;

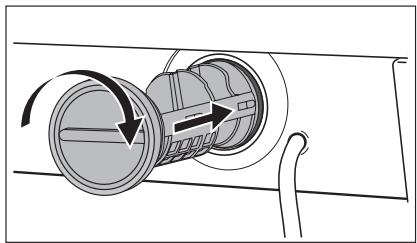

7. clean the pump if necessary as previ-

hose in its seat after having plugged it,

9. screwthe pump again

FROST PRECAUTIONS the machine is installed in a place where the temperature could drop below 0°C, proceed as follows:

1. close the water tap;

2. unscrew the water inlet hose from the

3. place the end of the emergency emp-

tying hose and that of the inlet hose in a bowl placed on the floor. Let wa- ter drain out;

4. screw the water inlet hose back on;

5. put the cap on the emergency empty-

hose. By doing this, any water remaining in the machine is removed, avoiding ice forming and consequently damage to the appli- ance When you use the machine again, make sure that the ambient temperature is above 0°C.

TROUBLESHOOTING Certain problems are due to lack of sim- ple maintenance or oversights, which can be solved easily without calling out an en- gineer. Before contacting your local Serv- ice Centre, please carry outthe checks lis- ted below. During machine operation it is possible that the yellow pilot light of button 8 blinks, one of the following alarm codes appears on the display and at the same time some acoustic signals sound every 20 secondk to indicate that the machine is ENGLISH 27 + E0 : problem with the water supply + E20 : problem with the water draining + EU : door open + EF : anti-flooding system has activa- ted Once the problem has been eliminated, press the button 8 to restart the pro- gramme. If after all checks, the problem persists, contact your local Service Centre. not working: Problem Possible cause/Solution The washing machine does not start: The door has not been closed. Et/{} + Close the door firmly The plug is not properly inserted in the power socket. °_Insert the plug into the power socket. There is no power at the socket. + Please check your domestic electrical installation: The main fuse has blown. + Replace the fuse The programme dial is not correctly positioned and the button 8 has not been pressed. + Please turn the programme dial and press the but- ton 8 again. The delay start has been set. +_Ifthe laundhy is to be washed immediately, cancel the delay start. The Child safety lock has been activated. + Deactivate this device. The machine does not fill: The water tap is closed. E7{] + Open the water tap. The inlet hose is squashed or kinked. F7{ + Check the inlet hose connection. The filter in the inlet hose or the inlet valve filter are blocked. E7{ + Clean the water inlet filters. (See "Cleaning the wa- ter inlet filters" for more details) The door is not properly closed. E4f + Close the door firmly The machine fills then empties immediately: The end of the drain hose is too low. + Refer to relevant paragraph in «Water drainage» section

28 www.2eg.com Problem Possible cause/Solution The machine does not ‘empty and/or does not spin: The drain hose is squashed or kinked. E2{ + Checkthe drain hose connection: The drain filter is clogged. E?{ + Clean the drain filter. You have set an option or a programme that ends with the water still in the tub or a that eliminates all the spinning phases. + Set the draining or the spinning programme. The laundry is not evenly distributed in the drum. + Redistribute the laundry. There is water on the floor: Too much detergent or unsuitable detergent (creates too much foam) has been used + Reduce the detergent quantity or use another one. Check whether there are any leaks from one of the in- let hose fittings. It is not always easy to see this as the water runs down the hose:; check to see if it is damp. + Check the water inlet hose connection The drain or the inlet hose is damaged + Replace it with a newone The cap on the emergency emptying hose has not been replaced or the filter has not been properly screwed in after cleaning action. + Refitthe cap on the emergency emptying hose or screw the filter fully in. Unsatisfactory washing Too little detergent or unsuitable detergent has been used. + Increase the detergent quantity or use another one. Stubborn stains have not been treated prior to wash- ing. + Use commercial products to treat the stubborn stains. The correct temperature was not selected. + Check if you have selected the correct temperature Excessive laundry load + Reduce the laundry load The door will not open: The programme is still running. + Wait the end of washing cycle. The door lock has not been released. + Wait until the DOOR light has gone off. There is water in the drum. + Select drain or spin programme to empty out the water.

ENGLISH 29 Problem Possible cause/Solution The machine vibrates or is noisy: The transit bolts and packing have not been removed + Checkthe correct installation of the appliance. The support feet have not been adjusted + Check the correct levelling ofthe appliance. The laundry is not evenly distributed in the drum. + Redistribute the laundry. Maybe there is very little laundry in the drum. + Load more laundry Spinning starts late or the machine does not spin: The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can re- sume. |f, after some minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. + The laundry load is perhaps to little, add more items, redistribute the load manually and then se- lect the spinning programme. The machine does not dry or does not dry properly: The drying time has not been selected. + Selectthe drying time. The water tap is not turned on. E]{ + Open the water tap. The drain filter is clogged. FE? + Clean the drain filter. The machine is overloaded + Reduce the laundry load The selected drying time or dryness degree was not suitable for the laundry. + Select the suitable drying time or the dryness de- gree for the laundiry The machine makes an unusual noise: The machine is fitted with a type of motor which makes an unusual noise compared with other tradi- tional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the ma- chine. No water is visible in the drum: Machines based on modern technology operate very economically using very little water without affecting performance. The display shows the alarm code EF: Anti-flooding system has activated. + Pull out the plug from the power socket, close the water tap and contact the Service Force Centre.

30 www.2eg.com Problem Possible cause/Solution The laundry is full of different colored fluff: The fabrics washed in the previous cycle released fluff of a different colour. + The diying phase helps to eliminate some fluff + Clean the clothes with a fluff remover. In case of an excessive amount of fluff in the drum repeat the following procedure twice: Thoroughly clean the empty drum, the gasket and the door with a wet rag Perform a rinse cycle. Put a wool or piled fabric rag inside the drum Perform a drying cycle of 10 minutes Remove the old wool cloth Now you can wash other garments.

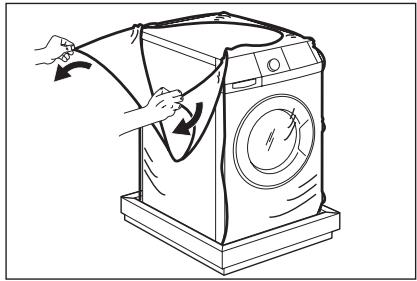

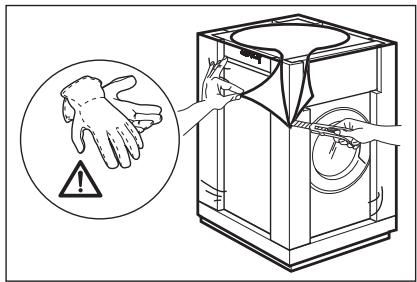

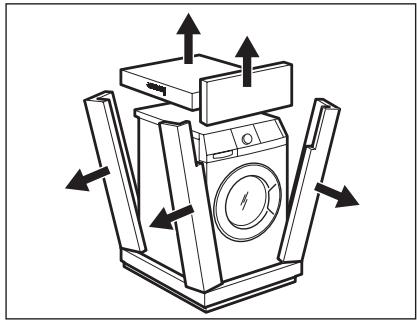

4. Remove the internal film.

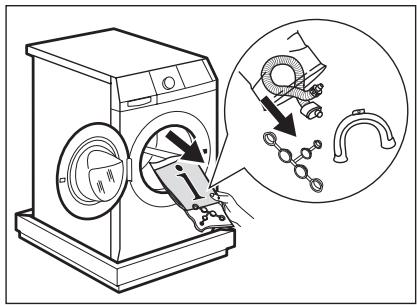

5. Open the door. Remove the polystyr-

ene piece from the door seal and all the items from the drum

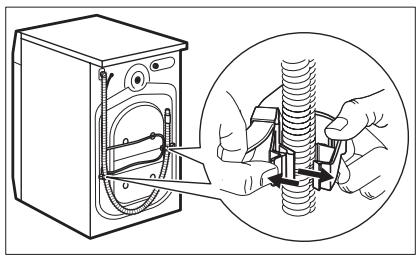

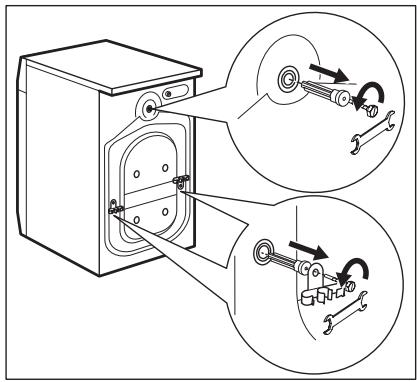

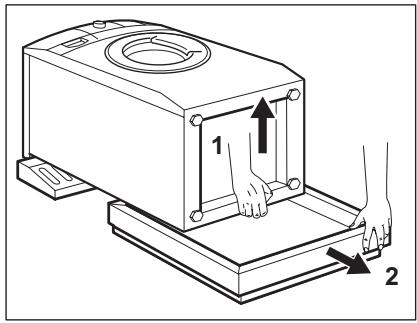

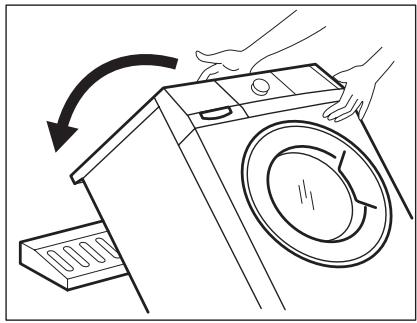

Put one of the polystyrene packaging elements on the floor behind the ap- pliance. Carefully put down the appli- ance with the rear side on it. Make sure not to damage the hoses. Remove the polystyrene protection from the bottom. Pull up the appliance in vertical posi- tion Remove the power supply cable and the drain hose from the hose holders Remove the three bolts. Use the key supplied with the appliance. Pull out the plastic spacers.

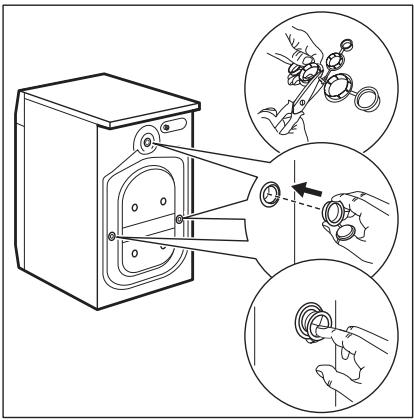

12. Putthe plastic caps in the holes. You

can find these caps in the user man- ual bag, WARNING! Remove all the packaging and the transit bolts before you install the appliance.

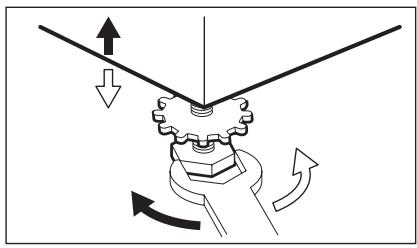

We recommend that you keep the packaging and the transit bolts for when you move the appliance + Install the machine on a flat hard floor. + Make sure that air circulation around the machine is not impeded by carpets, rugs etc. + Carefully level by screwing the adjusta- ble feet in or out. + After having levelled the appliance, tighten the lock nuts + The appliance must be level and stable. Never place cardboard, wood or similar materials under the ma- chine to compensate for any un- evenness in the floor.

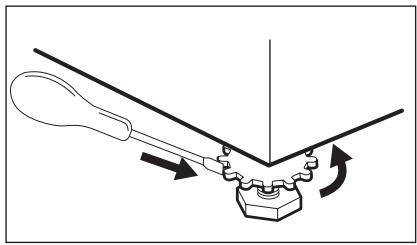

I#it is impossible to avoid positioning the machine next to a gas cooker or coalburn- ing stove, an insulating panel covered with aluminium foil on the side facing the cooker or stove, must be inserted be- tween the two appliances. Before placing it on small tiles, apply à rubber coating The water inlet hose and the drain hose must not be kinked AN CAUTION! The machine must not be installed in rooms where the temperature can drop below 0°C.

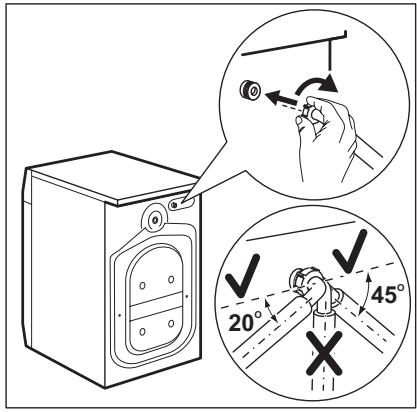

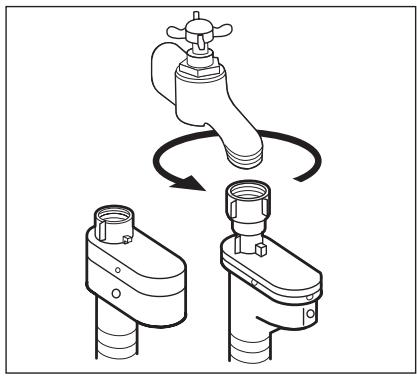

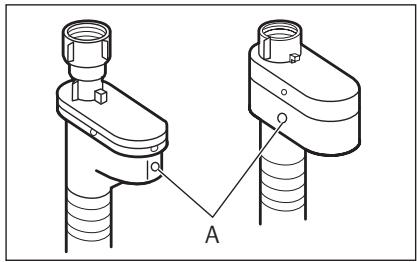

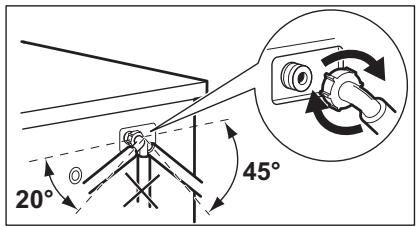

+ Connect the hose to the appliance. Turn the inlet hose only left or right. Loose the ring nut to set it in the cor- rect position. + Connect the water inlet hose to the cold water tap with 3/4 thread. CAUTION! Make sure that there are no leaks from the couplings. (à) Do not use an extension hose if the inlet hose is too short. Contact the service centre for the replace- ment of the inlet hose. Water-stop device The inlet hose has a water stop device. This device prevents water leaks in the hose because of its natural ageing. The red sector in the window «A» shows this fault. lthis occur, close the water tap and con- tact the service centre to replace the hose. WATER DRAINAGE There are different procedures to connect the drain hose:

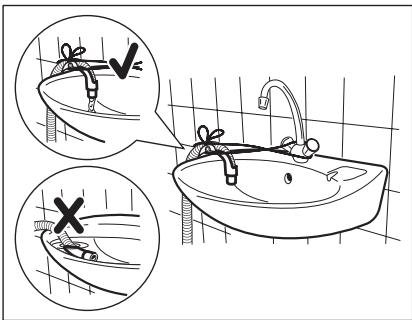

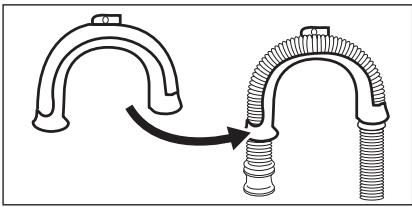

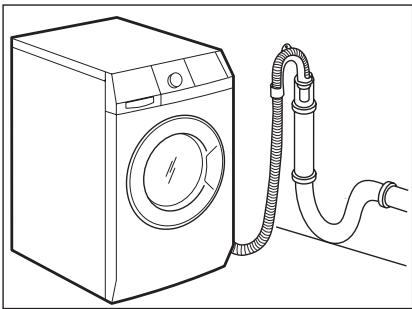

ENGLISH 35 With the plastic hose guide. + Onthe edge of a sink. + Make sure that the plastic guide cannot move when the appliance drains. At- tach the guide to the water tap or the wall To a stand pipe with vent-hole Refer to the illustration. Directly into a drain pipe at a height of not less than 60 cm (23.6") and not more than 100 cm (39.3"). The end of the drain hose must always be ventilated , i.e. the inner di- ameter of the drainpipe (min. 38 mm — min. 1.5") must be larger than the ex- ternal diameter of the drain hose: If the end of the drain hose is this (see the drawing), you can push it directly in- to the stand pipe.

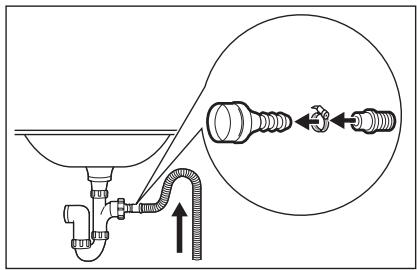

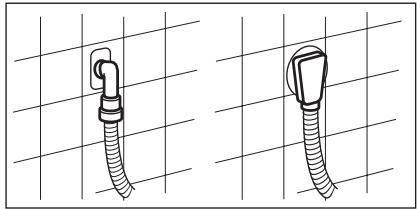

36 www.2eg.com Without the plastic hose guide. + To a sink spigot. Refer to the illustration. Put the drain hose in the spigot and tighten it with a clip. Make sure that the drain hose makes a loop to prevent that remaining particles go in the appliance from the sink. Directly to a built-in drain pipe in the room wall and tighten it with a clip (i) You can extend the drain hose to maximum 400 cm. Contact the service centre for the other drain hose and the extension.

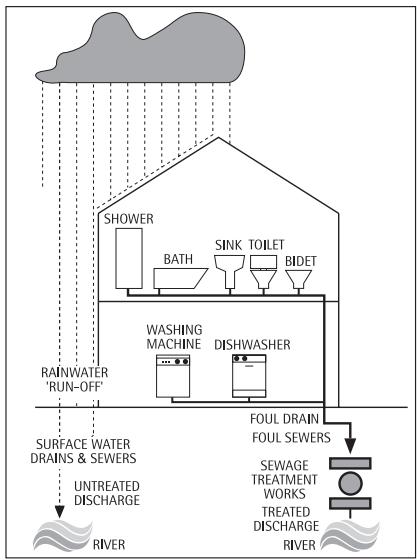

IN THE INTEREST OF THE ENVIRONMENT

+ Connect the appliance to the FOUL sys- tem for the drain water. The sewage works keeps the drain water for the treatment before to release safely it in- 40 a river. Do not connect this appliance to the surface drain system of the water because it releases the drain water di- rectly into a river or stream without a SHOWER treatment and this can cause of pollu- SK Tour aan PME tion. Contact your local water authority A YA to have more information Wash MACHINE DISHASHER RAÏNMATER RUN-OF î FOUL ORAN suñfacE Water FOULSENES DRAIRS & SEERS sauce À uymenren TEMAT © DISCHARGE. L » 2 onenAee AVR RNER

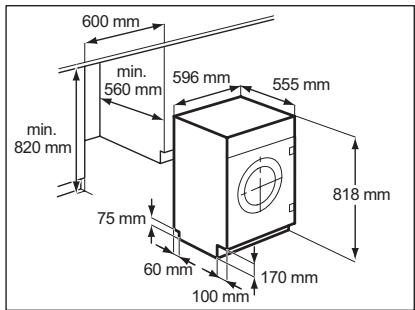

ENGLISH 37 BUILDING IN OVERVIEW ES = + This appliance has been designed to be built into the kitchen furniture. The Zn | 506 mm recess should have the dimensions 1560 mm 555 mm shown in Fig 1 min 820 mm 170 mm 100 Du Fig. Preparation and assembly of the door + The machine is originally pre-arranged for the assembly of a door opening from right to left (Fig. 2). + Door The dimensions of the door should be: — width 595-598 mm — thickness 16-22 mm — the height X depends on the height of the adjacent furniture's base (Fig. 3). Fig. 3

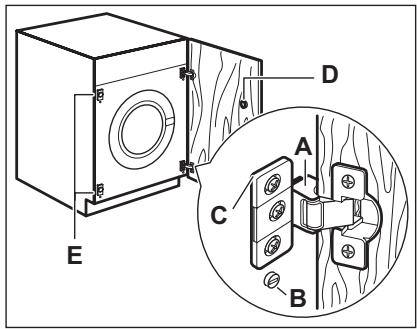

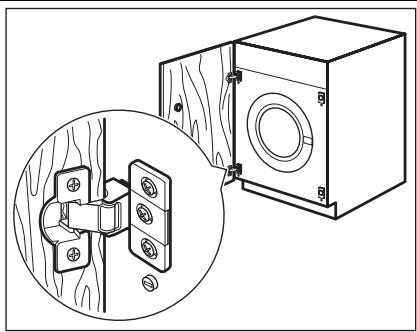

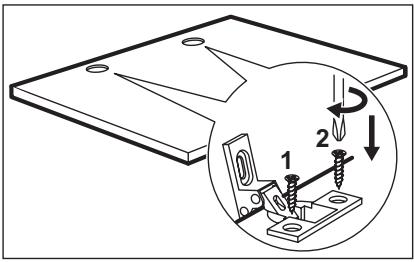

38 www.2eg.com Fig. 4 + Hinges To mount the hinges it is necessary to drill two holes (dia. 35 mm, depth 12.5-14 mm depending on the depth of door furniture) on the inner side of the door. The distance between the holes hobs fixing centres must be 416 mm. The distance from upper edge of the door to the centre ofthe hole depends on the adjacent furniture's dimensions. The hinges will be fixed to the door by means of screws for wood 1 and 2 (Fig.

4) supplied with the appliance

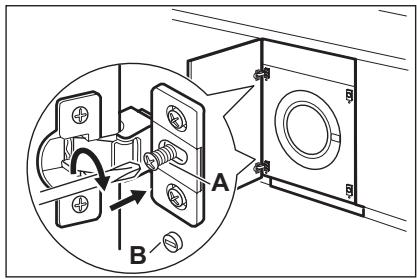

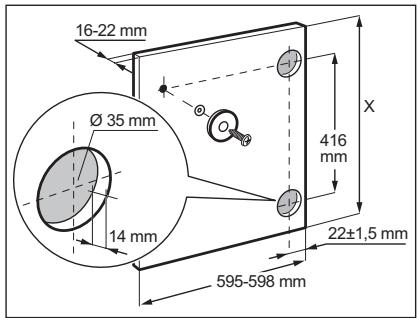

+ Mounting the door Fixthe hinges to the appliance by means of the M5x15 screws . The hing- es can be adjusted to compensate for possible uneven thickness of the door. To align the door perfectly it is necessa- ry to loosen the screw , adjust the door and tighten the screw À again (Fig. 5). Do not remove the screw B (Fig.

Counter-magnet The appliance is prearranged for à magnetic closure of the door. To ena- ble a correct operation of this device, it is necessary to screw the counter-mag- net A (steel disk + rubber ring) into the inner side of the door. Its position must correspond to the magnet B on the appliance (Fig. 6). À Do not remove the screw C. lfthe door has to be opened from left to right, invert the position ofthe platesE , the magnet D and the plate C. Mount the counter-magnet D and the hinges À as previously described (Fig. 7 } CAUTION! Do not remove the screw B.
