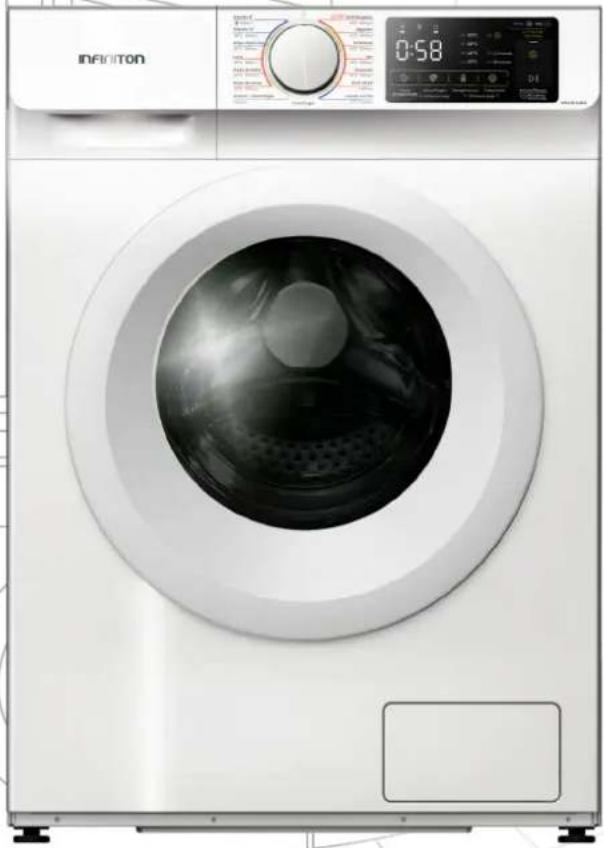

Front view of a white infinity washing machine with a circular vent and digital display (no visible text or symbols on the device itself)

Exterior view of a modern stainless steel water heater with a circular vent and digital display (no visible text or symbols)

WM-NL14BAL WM-NL14DAN

ean: 8445639003855 ean: 8445639003862

Index	English
Installation	25
Safety information	28
Before use	30
How to use	35
Maintenance & Cleaning	41

Location

Before installing this Infiniton appliance, you must choose a location that meets the following requirements:

1. Rigid, dry and level surface

2. Avoid direct sunlight

3. Sufficient ventilation

4. The ambient temperature must be above 0°C

5. Keep the appliance away from any heat source (cookers, boilers, radiators, etc.).

6. Install the appliance in a clean place, where there is no accumulation of dirt. Do not obstruct the air inlets of the product.

WARNING! Stability is important to prevent the appliance from moving. Ensure that the product is level and stable. To ensure that the vibration and noise levels emitted by the appliance during operation are normal, the appliance should be placed on a firm and level surface.

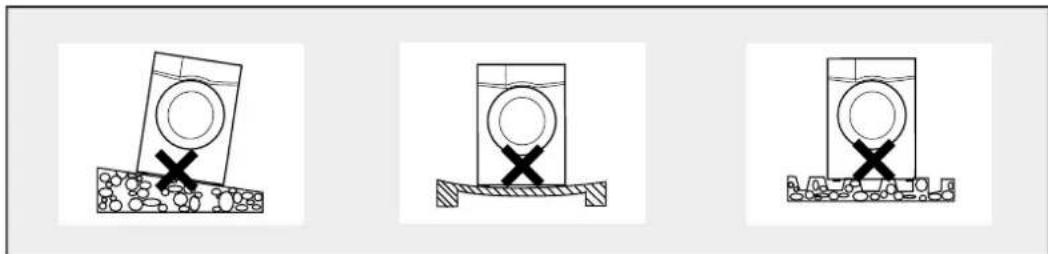

Three diagrams showing a container with cross marks placed on a surface, no text or symbols present.

WARNING! Make sure the power cable is not trapped or damaged is not trapped or damaged.

WARNING! Be sure to maintain the minimum distances from the walls, as shown in the picture on the right.

om the W W≥20mm

Transport

Move the appliance with extreme care. Do not grip any protruding parts of the product. The door of the product must not be used as a carrying handle under any circumstances. If the appliance cannot be transported in an upright position, it can be tilted to the right less than 30^ .

Risk of damage and injury! Improper handling of the appliance may cause injury.

⚠️ Important! The appliance is very heavy, please never carry the appliance alone;

always do so with the help of another person.

Remove all obstacles from the transport route and the installation site:

- Open doors and remove objects on the floor.

Do not use the open door as a support point.

Remove all packing materials before using the appliance.

Before installing the product, check it for externally visible damage.

Do not install or use the appliance if it is damaged.

Two stick figures pulling a large gray rectangular object (no text or symbols)

Do not install the appliance in a room where there is a risk of frost. At temperatures close to freezing point, the product may not operate properly. There is a risk of damage if condensed water is allowed to freeze in the pump and hoses.

Remove the transport bolts

You must remove all the transport bolts from the rear before using your appliance for the first time. Otherwise, the product may produce unusual movement and vibration, as these transport bolts are used to prevent the appliance drum from being damaged during transportation.

Note: Once all transport bolts have been removed, please store them in a safe place for re-installation in case the appliance is transported again.

Technical line drawing of a washing machine casing with internal compartments and mounting points (no text or symbols)

Close-up of a mechanical component with a wrench and circular head (no visible text or symbols)

Loosen the transport bolts with a spanner.

Close-up of a mechanical component with a metallic shaft and threaded end (no visible text or symbols)

Remove the bolts, including the rubber parts, and save them for possible future use.

Close-up of a white mechanical component with a circular hole and a striped pattern (no text or symbols visible)

Plug the holes with the rubber plugs.

Levelling

Once you have positioned the appliance in its normal place of operation, make sure that it is completely level. To do this, you should use a spirit level. If the appliance is not completely level, you should adjust the legs according to the following figure:

Close-up of a mechanical component with a tool inserted, no visible text or symbols

1. Loosen the counter nut
2. Turn the foot until it reaches the floor
3. Adjust the feet and lock the nuts with a spanner.

Electrical connection

This appliance must be grounded for safety. The power cord of this appliance is equipped with a three-prong plug that fits into a standard three-prong outlet to minimize the possibility of electric shock. Do not, under any circumstances, cut or remove the third grounding prong from the supplied power cord.

Do not cut or remove the third grounding prong of the supplied power cord under any circumstances. This appliance requires a standard 220-240V-50/60Hz three-prong grounded outlet. The cord must be secured behind the appliance and must not be left unattended. appliance and should not be left exposed or dangling, thus avoiding accidents and/or injuries.

Never unplug the appliance by pulling on the power cord. Always grasp the plug firmly and pull it out. Do not use an extension cord with this appliance. If the power cord is If the power cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. The use of an extension cord may adversely affect the performance of the unit.

Water supply connection

To avoid water leaks, please read these instructions carefully.

! WARNING!

Do not kink, crush or modify the supplied water inlet hose on the appliance.

1. Connect the water supply hose to the water inlet valve and to the cold water tap.

2. Tighten all hose nuts by hand. Never use a tool to tighten the nuts.

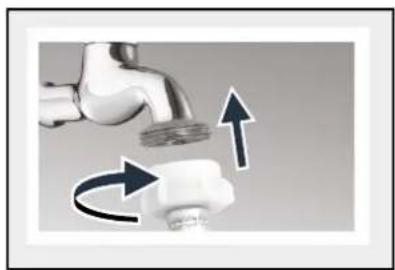

Close-up of a white object with arrows indicating motion, next to a droplet on a surface (no text or symbols)

Close-up of a faucet with a pipe fitting and a valve, showing directional arrows indicating movement (no text or symbols)

IMPORTANT! Models with a single water inlet must not be connected to the hot water tap. This will damage the laundry in the appliance or may cause a general failure of the appliance.

When you have finished connecting the water connections, please pay special attention to check for leaks at the connection points by opening the taps as much as possible. check for leaks at the connection points by opening the taps as far as possible. If a leak is visible, close the tap and remove the nut. Replace the nut carefully after checking the seal.

Note: Do not use old or used water hoses in your new washing machine, as they may cause stains on your clothes.

Drain hose connection

The end of the drain hose must be connected directly to the drain or sink.

WARNING! Do not kink or lengthen the drain hose, otherwise it may be damaged due to possible water leakage.

If the drain hose comes out of its housing during water drainage, your home could be flooded and you could suffer burns due to the high water temperatures during the washing process. during the washing process. Securely fix the drain hose to avoid these situations and to ensure that the drainage situations and ensure that the water intake and drainage processes take place safely.

There are two ways of attaching the intake end of the drain hose:

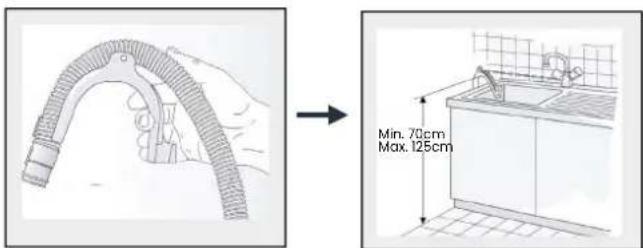

Min. 70cm Max. 125cm

Option 1. Place the end of the drain hose into the sink, using the clamp provided, as shown in the picture.

Max 100cm Min. 60cm

Option 2. Connect the end of the drain hose directly to the sink drain socket, as illustrated in the picture.

Note: In case you connect the drain hose as option 1, To prevent backflow of dirty water into the machine and to facilitate draining, do not immerse the end of the hose into the dirty water and do not insert it into the drain more than 15 cm.

General security information

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are properly informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

Safety of children and vulnerable people

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children up to 8 years of age can charge and discharge this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are 8 years of age or older and supervised.
• Keep all containers away from children. There is a risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the power cord (as close to the appliance as possible) and remove the door to prevent children from getting an electric shock if it falls or closes.

Electrical connections

- Make sure that the power cord is not trapped by the appliance, as this could damage it.

- Connect the appliance to a grounded socket outlet protected by a fuse that complies with the values in the "Technical specifications" table.

- The installation of the earth connection must be carried out by a qualified electrician.

- Ensure that the machine is installed in accordance with local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

NING! Do not use multiple plugs or extension cords.

WARNING! The product must not have an external switching device, such as a timer or be connected to a circuit timer or connected to a circuit that switches on and off regularly.

WARNING!

Do not disconnect the plug from the socket if there are flammable gases nearby.

WARNING!

Never pull out the plug with wet hands.

WARNING!

Always pull the plug, not the cable.

WARNING!

Always unplug the product when not in use.

Unpacking the appliance

WARNING! Packaging material (e.g. film, polystyrene foam) can be dangerous for children.

Risk of suffocation! Keep all packaging out of the reach of children.

1. Remove the cardboard box and the Styrofoam packaging.
2. Lift the washer and remove the packaging from the base.
3. Make sure to remove the small triangular foam (A) together with the bottom packaging. Otherwise, place the unit on a side surface and remove it manually.
4. Remove the tape securing the power cord and drain hose.
5. Remove the inlet hose from the drum.

Illustration of a box with an arrow pointing upward, and a magnified inset showing a small circular diagram labeled 'A' (no text or symbols present)

Service & Disposal

• Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🙏 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.
2. Cut the power cord and discard it.

Before first wash cycle

We strongly recommend that before starting a wash cycle for the first time, you remove any residual water that may remain in the washing machine as a result of the tests and quality controls carried out by the manufacturer. From Infiniton we recommend that you start a short wash cycle are clothes.

To do so:

1. Open the water inlet tap to the washing machine.
2. Close the door.
3. Put some detergent, approximately 30 ml. In the detergent compartment.
4. Select and start a short programme.

Before each wash

The ambient temperature of the washing machine should be between 5 - 40°C. If used below 0°C, the inlet valve and drain system may freeze and cause damage to the appliance.

If the machine is installed in conditions where there is a risk of freezing, it must be installed immediately in a new location where the ambient temperature is above 5^ C, thus ensuring that the water supply and drain hoses can be thawed before use.

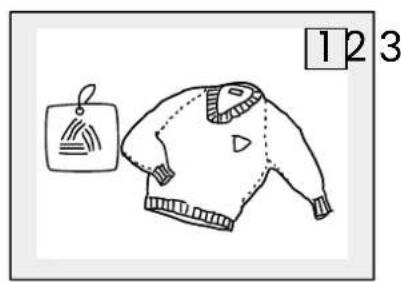

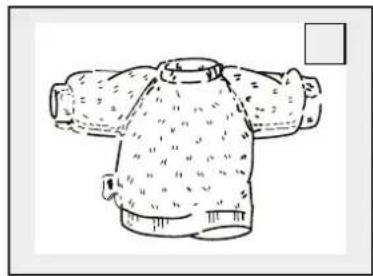

Simple line drawing of a sweater with a tag and label (no text or symbols on the clothing itself)

Check clothing care labels.

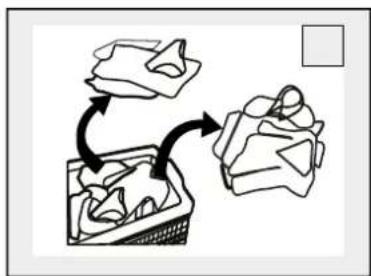

Sort clothes by colour and type of fabric.

Diagram illustrating clothing item movement with arrows indicating changes in size, size, and accessories around a garment.

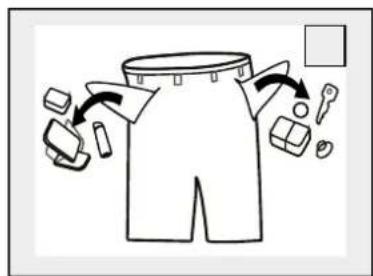

Remove all items that may be contained in pockets of clothing.

Two handbags with bow and circular designs, one closed and one open, both drawn in line drawing style (no text or symbols)

Close the zips, buttons and hooks. Loose belts and ties should be tied.

Simple line drawing of a bag with a rope tied around it, no text or symbols present.

Place small garments (stockings, belts...) and garments with hooks (bras) in a special fabric bag.

Line drawing of a knitted sweater with shoulder-length sleeves (no text or symbols)

Wash long-haired garments and garments that are susceptible to susceptible to pilling, inside out.

WARNING! Do not put clothes that have been in contact with combustible or flammable substances such as wax, oil, paint, petrol, alcohol, paraffin and other flammable materials into the washing machine.

WARNING! Washing loose laundry can create an imbalance in the drum. Always wash more than one laundry item to make the spinning run smoothly.

Note: Refer to the laundry care labels and detergent usage instructions before washing. Use a non-foaming or low sudsing detergent suitable for machine washing properly.

Clothing care labels

The following icons provide care instructions for each garment. The garment label contains symbols for washing, bleaching, drying and ironing, or dry cleaning if necessary. Follow the instructions on the label to prolong the life of the garment and reduce laundry problems.

Washing

Boil wash at 95°C

Colour wash at 60°C

Colour and delicate wash at 60°C

Colour wash at 40°C

Gentle wash at 40°C

Very gentle wash at 40°C

Delicate wash at 30°C

Gentle delicate wash at 30°C

Very gentle delicate wash at 30°C

Hand wash

Do not wash

Note: The number shown in the drawing specifies the maximum wash temperature in degrees Celsius which must not be exceeded.

Ironing

lrring at a max. temperature of 200°C.

Ironing at a max. temperature of 150^ C.

Ironing at a max. temperature of 100^ C.

Do not iron

Note: The dots indicate the ranges of ironing temperature ranges (regulator, steam, travel irons and ironing machines)

Drying

Tangible drying/drying at 80°C normal

Tumble dry/ tumble dry at 60°C gentle

Do not tumble dry

Line drying

Line drip dry

Flat tumble drying

F□drip-drying

Line drying in the shade

Imine drip-drying in the shade

Horizontal shade drying

Horizontal drip-drying in the shade

Note: The dots indicate the drying level of the tumble dryer and the lines indicate the type and position of drying.

Bleach

Any type of bleach

Oxygen bleach only

Do not use bleach

Note: Do not use more detergent than recommended by the product manufacturer.

Note: Use stain and bleach removers before the washing cycle and only when necessary.

Note: Save water and electricity by always loading the washing machine to the maximum load (the exact amount of laundry depends on the depends on the programme used).

Prepare the laundry

The first step to be taken before starting the washing process is to separate the laundry as follows as follows:

- Fabric type. Pay attention to clothing labels:

Cotton, blended fibres, delicate fabrics, synthetics, wool and hand-washed garments.

• Color

Separate coloured and white linen. Wash new coloured linen separately.

- Loading clothes into the washing machine

Wash clothes of different sizes in the same load, distributing all the laundry evenly inside the drum, thus improving washing efficiency.

- Delicate clothing

Wash small garments (nylon stockings, belts...) and garments containing any kind of hooks, e.g. bras, in a cloth bag or a pillowcase with a zip. In case you want to wash curtains, always remove the rings and hooks.

• Empty all pockets

Coins, safety catches... They can damage clothing and the inside of the appliance.

- Locks

Close zips, buttons and hooks. Loose belts and ties should be tied.

- Remove stubborn stains

Stains such as egg, blood, milk, coffee, etc. can be removed with the help of a product which should be applied to the stained area before putting into the washing machine. Stain remover can also be added to the detergent dispenser.

• Tints

Use only dyes suitable for use in washing machines and follow the manufacturer's instructions carefully. There are parts of the washing machine that can be stained by dyes.

- Put the laundry inside the washing machine.

Adding detergents and additives

Use low sudsing and efficient detergents in front-loading washing machines.

The choice of detergent will depend on:

type of fabric (cotton, silk, mixed fabrics, wool...), colour, washing temperature and degrees and types of soiling.

Detergent dispenser (normal)

Prelwash

Detergent

Softener

Press this button to remove the dispenser

Technical diagram showing mechanical assembly with labeled components and symbols

Note: It is only necessary to add detergent in "compartment I" after selecting the prewash function.

Programme Programme					I	II	✿
Cotton	○	●	○	Bed linen	○	●	○
Synthetic	○	●	○	Baby clothes	○	●	○
Mix	○	●	○	Wool		●	○
Jeans	○	●	○	Sportswear	○	●	○
Centrifuge				Quick 45' '		●	○
Rinse and spin			○	Quick 15'		●	○
ECO 40-60		●	○	Steam Care	○	●	○
Cold

- Must have Optional

Recommendations for a good use of detergent

Reccomended detergent Wash cycles Wash Temp. Fabric type
Intensive use with bleaching agents and optical brighteners.	Cotton, ECO 40-60. 40/60	White clothes made	of boil-proof cotton or linen.
Coloured detergent without bleach and optical brighteners.	Cotton. 20/40 Coloured clothes made	of cotton or linen.
Coloured or mild detergent without optical brighteners.	Cotton synthetic. 20/40 Colourful garments	made of easy-care fibres or synthetic materials.
Mild washing detergent. Synthetic 20 Delicate clothes, silk		viscose.
Specially designed for wool. Wool 20/40 Wool

Note: The detergent or additive can be diluted in a little water before pouring it into the detergent dispenser to avoid blocking the detergent inlet and causing water overflow. Choose the right type of detergent for optimal washing performance and minimum water and energy consumption. To achieve the best result, proper detergent dosage is important. Use a reduced amount of detergent if the drum is not completely full.

Always adjust the amount of detergent to the hardness of the water, if the tap water is soft, use less detergent. Dose according to how dirty your laundry is, less dirty laundry requires less detergent.

The following symptoms are a sign of detergent overdose:

• Foaming.
• Poor washing and rinsing results.

The following symptoms are a sign of insufficient detergent dosage:

- Grey linen.

- build-up of limescale deposits on the drum, heating element and/or laundry.

Remarks:

White stains on dark fabrics are caused by insoluble compounds currently used in some phosphate-free powder detergents. If this occurs, shake or brush the fabric or use liquid detergents. Use only detergents and additives specifically manufactured for household washing machines.

When using descalers, dyes or bleaches during prewashing, make sure that they are suitable for domestic washing machines. Descalers may contain components that can damage your washing machine. Do not use solvents (turpentine, benzine...). Do not wash fabrics that have been treated with solvents or flammable liquids.

Dosing:

Follow the detergent manufacturer's dosage recommendations carefully.

It will depend on:

• Degree and type of soiling.
- Amount of laundry. Follow the detergent manufacturer's instructions for full loads; half load: 3/4 of a full load; minimum load (approx. 1 kg): 1/2 of a full load.
• Water hardness in your area. Soft water requires less detergent than hard water.

Twist and go!

Normally washing machines come with dozens of programmes, and Infiniton does too, but the reality is that we only use 3 of them. Synthetic, cotton and 30/40 degrees. That's why simplifying things is thinking about the customer. We assure you that our seniors will appreciate the efficiency and simplicity. Put Easy Play in your life. Turn the wheel, press play and that's it. Your clothes will be washed to perfection depending on the time you have available.

Colorful play button logo with triangular design and 'easyplay' text (no additional symbols or text)

What's Easy play technology?

Introducing the easiest to use Infiniton washing machines. Infiniton washing machines with Easy Play technology are essentially the solution to do the laundry quickly and optimally.

At Infiniton we have a clear philosophy; technology should be within everyone's reach to improve our lives. An accessible and non-exclusive good.

Easy Play, a child's game!

With Easy Play technology in Infiniton washing machines, doing the laundry will be easier than ever. This technology helps you to program the washing machine in an intuitive way so that you don't have any problems in your day-to-day life. Select the temperature and type of fabric depending on the clothes you are going to wash, so you can be sure that your clothes will be perfect.

1

Turn on Select the

the right programme

8:88 3

Select the function or keep the default settings

Hand icon showing a finger pressing a play button with vertical double arrow, labeled with number 4

Press Start/Pause to start the programme

Why Easy Play is essential?

Infiniton simplifies your life with our washing machines. These washing machines develop the best technology to make your life much easier.

Doing the laundry is no longer a chore. Make Easy Play and spend your time on the things that really matter. These washers not only take care of your most delicate clothes, they also protect everyday fabrics and textures.

Product parts

Due to technological innovations, the product description in this manual may not completely match your appliance. More detailed information corresponds to the final product.

Diagram of a washing machine with numbered parts labeled 1 to 6 for identification.

Technical diagram of a device with labeled parts, showing internal tubing and mounting points

1 Drum
2 Dispenser
3 Control panel

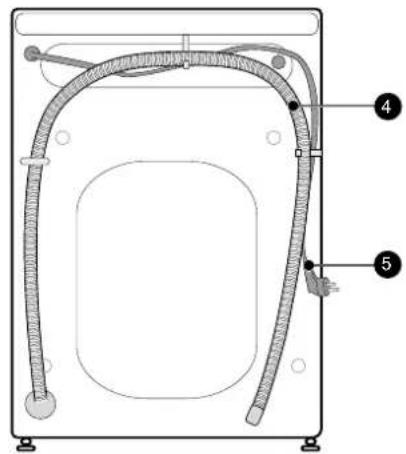

4	Drain hose
5 Power cable
6 Pump filter cover

Product dimensions (height x width x depth) 850 x 595 x 535mm
Maximum load capacity (Kg) 10
Rated voltage and frequency 220-240V ~ 50Hz
Rated current 10A
Total power (W) 2000
Water pressure (Mpa) Máxima (1Mpa) Mínima (0.05Mpa)
Number of programmes 16
Spin speed (rpm) 1400rpm

Control panel description

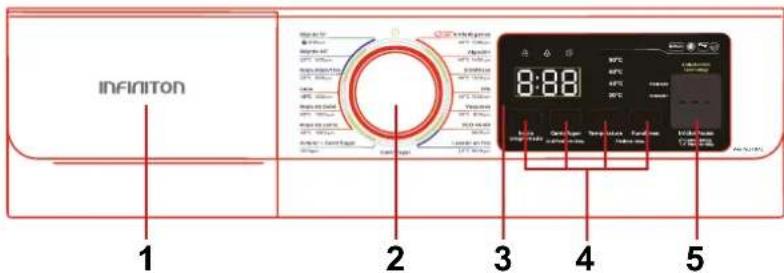

INFINITION 1 2 3 4 5

1	Detergent compartment
2	Programme selector
3	Control panel
4	Additional functions button
5	Start / pause button

Programme selector

• To select the desired programme, turn the programme selector clockwise or anticlockwise until the marker on the programme selector is on the desired programme.
• Make sure that the programme selector is set to the desired programme.

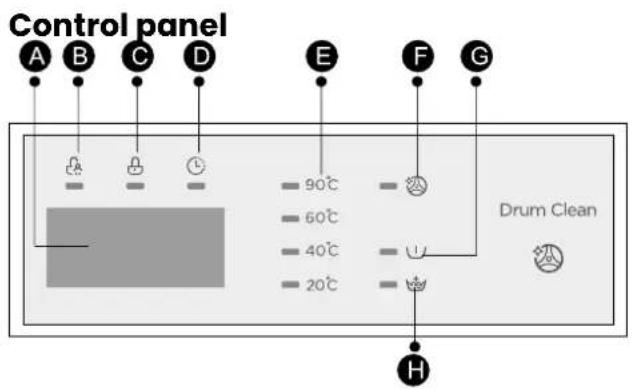

Control panel A B C D E F G - 90°C - - 60°C - - 40°C - - 20°C - Drum Clean H

A	Display
B	Child lock
C	Door lock
D	Programmed start
E	Temperature
F	Drum cleaning (Antimicrobic Technology)
G	Prewash
H	Extra rinse

*LED panel shows delayed start of washing (if set), selected temperature, spin speed. --" is displayed after the selected programme is finished. The panel also indicates if a fault has occurred in the machine.

1	Switching On / OffTurn the washing machine on or off
2	Start / PauseStart or pause the selected programme
3	OptionsAllows selection of additional functions and illuminates when selected.
4	ProgrammesProgrammes available according to the type of laundry to be washed
5	DisplayThe display shows the settings, estimated time remaining, options and status messages.
6	Drum cleaning (Antimicrobic Technology)Specially designed to clean the drum of dirt, germs and bacteria.

Programme's Table

Programme W	Washing Temp.(°C)	Centrif.(rpm)	Max.laundry load	Additional functions	Pro-grammeduration(h:min)	Type of laundry
Cotton 40 1400 10	0 3:39					Wear and heat resistant fabrics, cotton or linen.
Eco 40-60 *40-60	1400 10.0 3	59		[C386]		Washing of bright coloured laundry, this can better protect the colours. Default 40°C, which is not adjustable, suitable for laundry washing at about 40°C-60°C.
Anti-allergen 40	1000 5.0 1:48			[4672]		Thanks to steam washing, which penetrates deep into the fibre, bacteria and germs are effectively eliminated, odours are prevented and health is protected.
Cold wash 20 1000	5.0 1:01			[3P03]		Washing of brightly coloured clothes. This can protect the colours better.
Synthetics 40 120	0 5.0 3:18			[TY488]		For washing synthetic items, e.g. shirts, coats, blends.When washing knitted fabrics, the amount of detergent will be reduced due to their loose yarn structure and the ease with which bubbles are formed.
Jeans 40 800	10.0 1:40			[1847]		Specially for denim fabrics.
Mix	40 1000 10.0 1:20			[1970]		Mixed load composed of cotton and synthetic fabrics.
Sportswear	20	800	10.0	[38C4]	0:47	Sportswear
Wool	40	600	2.0	[TY238]	1:07	Wool or new wool fabrics can be hand or machine washed. Particularly gentle washing programme to prevent shrinkage of the fabrics, with longer programme breaks (fabrics rest in the wash tank).
Baby clothes	60 1000 10.0 2:01			[37V16]		For washing baby clothes. This way, baby clothes will be cleaner and rinsing will be more effective to protect baby's skin.
Bed linen 40 1000	10.0 1:48					This programme is specially designed for high volume laundry.
**Fast 15	Cold	800	2.0	[22V46]	0:15	Extra short programme, suitable for light soiling or small quantities of laundry. Time is approximate.
**Fast 45' 20 800	2.0			[S7X9]		Quick washing of little and not very dirty clothes.Time is approximate.
Rinse and spin	--	1000	10.0	[X4450]	0:20	Extra rinse with spin.
Centrifuge	--	1000	10.0	[26696]	0:12	Spinning only.
Antimicrobic Technology	90 --	0		[18V9]		This programme applies a high temperature sterilisation of 90°C to make the laundry more environmentally friendly. When running this programme, laundry and other washing products cannot be added. If the right amount of bleach is added, the cleaning effect of the drum will be better. You can use this programme regularly according to your needs.

NOTE: PROGRAMME DURATION MAY VARY DEPENDING ON THE LOAD VOLUME, WATER SUPPLY, AMBIENT TEMPERATURE AND ADDITIONAL FUNCTIONS SELECTED.

Wash water temperature of the programme is factory preset.

(**) Due to the short washing time of this programme, we recommend using less detergent. The programme may take more than 15 minutes if the machine detects uneven load. You can open the door of the machine once two minutes have elapsed after a washing operation has been completed (the two-minute period is not included in the programme duration).

Eco 40–60 programme allows washing of normally soiled cotton laundry considered washable at 40^ C or 60^ C, in the same cycle, and this programme is used to assess compliance with EU legislation on eco-design.

Consumption

Programme Rated capacity Kg.	Temperature setting °C	Duration of the programme Hours: Minutes	Water consumption in litres/operating cycle	Maximum Temperature ^^(1)	Residual moisture in % /centrifugation in rpm ^(2)
Cotton	10.0 3:59	1.708 69.6 38 53.9%/1350
Mix	10.0 1:20	0.871 85 40 65%/1000
20°C	5.0 1:01	0.195 51 20 65%/1000
Baby clothes	10.0 2:01	1.528 85	60 65%/1000
Quick 15	2.0	0:15	0.03	31	Frío
ECO 40-60 ^(3)	10.0 3:59	1.015		69.6 38 53.9%/1350
	5.0 3:00	0.635		54.3 35 53.9%/1350
	2.5	3:00	0.286	38.9	22

The above data are for guidance only and may vary depending on actual conditions of use.

- The valves indicated for programmes other than the ECO 40-60 programme are merely indicative.

- With respect to EN 60456:2016/prA2019 Con (EU)2019/2014, (EU)2019/2023, EU energy efficiency class is: B

Energy test programme: ECO 40-60. Other default.

Half load for 10.0kg machine: 5,0kg.

Quarter load for 10.0kg machine: 2.5kg.

1) Maximum temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in percentage of water content and the spin speed at which it was reached.
3) ECO 40-60 programme is capable of washing cotton laundry with normal soiling declared washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess compliance with regulation (EU) 2019/2023.

The most energy efficient programmes are generally those that run at lower temperatures and for longer durations.

Loading the domestic washing machine to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spin speed: the higher the spin speed in the spin phase, the higher the noise and the lower the remaining moisture content.

Additional functions

Spin

When required, the spin speed can be adjusted by pressing this button in the following steps: 0-400-600-800-800-1000-1200-1400

Programmed start

1. Select a programme
2. Press the Programmed Start button to choose the time from 0-24h.
3. Press [Start/Pause] to start the operation.

Cancel the function:

Press the [Programmed Start] button before starting the programme. If the programme has already started,

you need to turn off the unit to restart.

Prewash

Additional washing function before the main wash cycle starts to increase the washing performance.

Note: Detergent must be added to compartment I.

Extra Rinse

Laundry will undergo extra rinse after selecting this function.

Antimicrobic Technology

Once the washing machine has reached the set running period (the running cycle is 25 times), the indicator light will flash at the end of the last programme, reminding the user to run the programme;

Unlock mode:

1. Press and hold the button for 3 seconds, and the drum cleaning reminder will be cancelled; the wash cycles will be re-counted for another 25 cycles.
2. The counted wash cycles will be counted again at the end of the drum cleaning programme.

Temperature

When required, the washing temperature can be adjusted by pressing the temperature button in the following steps:

Cold - 20°C - 40°C - 40°C - 60°C - 90°C.

Note:

Usage counter

1. Switch off the unit for 10s and switch it on again.
2. Switch on the unit and, for 10 seconds, press "Programmed start" and "Antimicrobic Technology" on the control panel simultaneously and continuously for about 5 seconds until the device display shows digits: the value can indicate the usage time of the equipment.
3. Repeat step 1 again and you can resume normal operation.

Child Lock

To prevent misuse by children.

Press [Temp] and [Function] simultaneously for 3 sec.

until a beep sounds. The child lock indicator will illuminate.

CAUTION:

When the child lock is activated, the display will alternately show "CL" and the remaining time.

When any other button is pressed, the Child Lock indicator will flash for 3 sec.

The child lock can only be deactivated by pressing both [Temp] and [Function] buttons simultaneously.

Deactivate the child lock before selecting a new programme.

Muting the beeps

1. Select a programme

2. Press the [Spin] button for 3 seconds, to temporarily mute the beeps.

To reactivate the sound, press the button again for 3 seconds. The setting will be maintained until the next reset.

CAUTION:

After muting this function, the sounds will no longer be activated.

ADD CLOTHING

This operation can be executed during the washing process when the drum is still rolling and there is a large amount of water with high temperature in the drum.

The operation mode is dangerous and the door cannot be opened with force. Press the Start/Pause button 3sec. to restart the washing, and start loading the laundry in the intermediate function.

Follow the steps below:

1. Wait until the drum stops rotating.

2. The door lock unlocks.

3. Close the door when the laundry is loaded and press the [Start/Pause] button.

WARNING! Before cleaning, unplug the power plug first; do not connect or disconnect the power plug with wet hands, as there is a risk of electric shock and injury.

Do not spill water directly on the appliance, thus avoiding rust, electricity leakage and accidents.

Regular cleaning of this appliance helps to prolong its life.

External cleaning

Clean dust accumulated on the surface of the appliance frequently.

After using detergent, be sure to rinse it with clean water and then wipe it dry with a cloth.

Note: Never use metal scouring pads as this may damage painted, chrome and plastic surfaces.

WARNING! Do not use bristle brushes, wire brushes, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot water and other corrosive or soluble elements to clean the surface of the appliance, door gasket, plastic decorative parts, etc. to avoid damage. Carefully dry the door gasket, clean the groove with a wooden stick wrapped with cotton thread.

Cleaning the door

Clean the glass and door gasket after each wash to remove possible lint and/or detergent/softener residues, as leaks may occur.

If any rust stains are found inside the drum, they should be removed with non-chlorine detergent.

Close-up of a hand holding a transparent circular object with a metallic rod, partially enclosed in a metal frame (no text or symbols visible)

Cleaning of the detergent dispenser

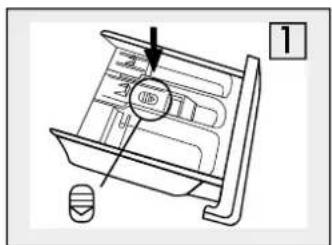

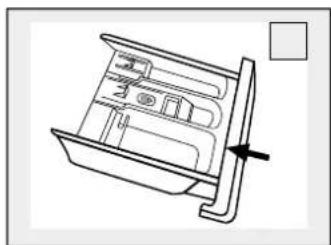

1. Open the detergent dispenser, press the locking mechanism and pull out the dispenser completely from the opening.
2. Clean the dispenser with plenty of water to remove detergent and fabric softener residues.
3. Clean the dispenser shaft with a soft brush.

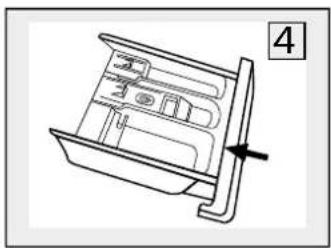

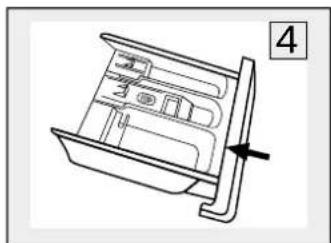

4. Insert the dispenser into the recess until the locking mechanism clicks.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Illustration of a hand inserting a component into a device (no text or symbols visible)

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Important! Depending on the model, the locking mechanism of the detergent dispenser may vary in symbol and location. The above figure is for reference only.

Note: Do not use abrasive or caustic type agents to clean the plastic parts.

Note: Perform a thorough cleaning of the detergent dispenser, following the above steps, at least once a month to ensure normal operation of the appliance.

Cleaning the inlet water filter

Note: If you notice a decrease in water flow, this is a sign that the filter needs to be cleaned.

1. Close the tap and remove the water supply hose from the tap.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the back of the machine. Remove the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter in the water inlet and reconnect the water supply hose.
6. Clean the inlet filter every 3 months to ensure normal operation of the appliance.

Four-step diagram illustrating a mechanical assembly process with labeled steps 1 to 4.

Cleaning the drain pump filter

Note: Make sure that the machine has finished the washing cycle and is empty. Turn off the machine and unplug it before cleaning the drain pump filter.

Important! Be careful with hot water. Let the water cool down. Risk of scalding.

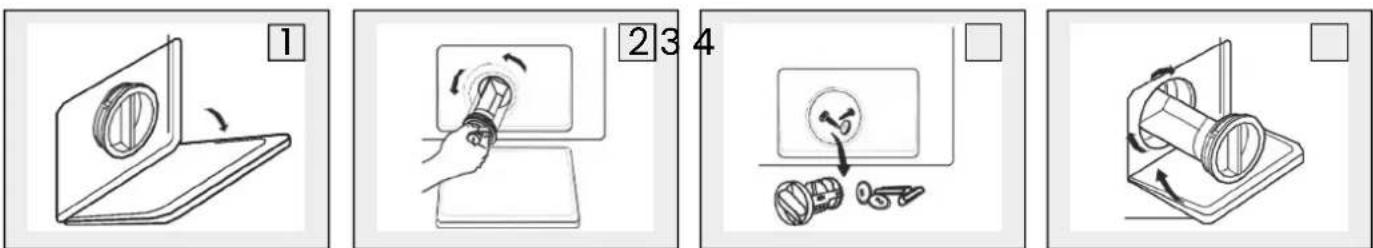

1. Open the bottom cover, located on the front of the washing machine.
2. Open the filter by turning it anticlockwise.
3. Carefully remove all foreign bodies inside.
4. Reinsert the filter by turning clockwise and close the lid.

Note: Clean the filter periodically every 3 months to ensure normal operation of the appliance.

Important! When the appliance is in use and depending on the selected programme, there may be hot water in the pump.

Never remove the pump cover during a washing cycle. always wait until the appliance has finished the cycle and is empty. When replacing the lid, make sure that it is tightened securely.

Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it by following the tables below. If the problem persists, contact customer service.

DESCRIPTION POSSIBLE CAUSE SOLUTION
Washing machine does not start	The door is not closed properly. Clothes get stuck	Check if the laundry is not correctly positioned. Close the door tightly and restart the machine.
Door does not open	The child lock may be activated (if available)	Disconnect from the mains and restart.
Small water leaks Water connections and drain hose		Check and secure the hose to the water inlet hose and water inlet hose and clean the water outlet hose.
Detergent residue in the dispenser	The detergent is wet and/or coagulated. In most cases this is usually due to the use of powder detergent.	Clean the detergent dispenser
Display does not work (If the model has a display)	Connection problem with the main board.	Disconnect from the mains and check that the mains plug is connected correctly.
Abnormal noise	The transport bolts have not been removed. The floor is unlevel .	Check whether all transport bolts have been correctly removed. Make sure that the appliance is level with the help of a level.
La ropa tiene restos de detergente.	Puede que con algunos deter- gentes aparezcan en la ropa partículas de detergente no disueltas en forma de puntos blancos.	Realice un aclarado adicional o limpie la ropa con un cepillo una vez que se haya secado.
Hay puntos grises en la colada. Hay aceite no tratado, crema o ungüento en la colada.		En el próximo lavado utilice la cantidad de detergente indica- da en el envase.
El ciclo de centrifugado no se realiza o se realiza después de lo esperado.	No es un fallo. Se ha activado el sistema de control de carga no homogénea.	El sistema de control de carga no homogénea intentará distribuir la ropa. El ciclo de centrifugado comenzará una vez que la ropa se haya distribuido. En el próximo lavado distribuya la ropa de forma homogénea en el interior del tambor.

Error code list

DESCRIPTION POSSIBLE CAUSE SOLUTION
E30	The door has not closed properly Close the	door tightly and restart.
E10	Problem with water injection during wash cycle.	Check if the water pressure is high enough. Straighten the water pipe. Clean the filter of the inlet valve.
E21	Excessive time spent on drain water. Check if the drain filter is not blocked.
E12	Water overflow. Reset the unit.
EXX Other		Restart the unit. If the message persists, please contact your service centre.

INFINITON

Máquina de lavar roupa

Front view of a white infinity washing machine with a circular vent and digital display (no visible text or symbols on the device itself)

Exterior view of a modern stainless steel water heater with a circular vent and digital display (no visible text or symbols on the device itself)

WM-NL14BAL WM-NL14DAN

ean: 8445639003855 ean: 8445639003862

Indice

Português

Instalação 47

Simple line drawing of a mechanical setup with a block, cross mark, and granular base (no text or symbols)

Simple line drawing of a container with a cross mark on a base, no text or symbols present.

Simple line drawing of a washing machine with a circular component and cross symbol, placed on a surface (no text or labels)

do mas W W≥20mm

Transporte

Two stylized human figures carrying a large gray block, no text or symbols present

Technical line drawing of a front-loading washing machine with internal chambers and mounting feet (no text or labels)

Close-up of a car wheel with a wrench tool beside it (no visible text or symbols)

Close-up of a mechanical knob or knob component with a metallic handle and textured grip (no visible text or symbols)

Close-up of a white mechanical component with a circular hole and a striped pattern (no text or symbols visible)

Close-up of a white object with two arrows pointing to a droplet and a small sphere, no text or symbols visible.

Close-up of a faucet with a pipe fitting and directional arrows indicating flow or movement (no text or symbols)

Illustration of a box with an arrow pointing upward, next to a magnified inset showing a building labeled 'A' (no text or symbols on the main diagram)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Simple line drawing of a sweater with a tag and label '12 3' (no text or symbols on the sweater itself)

Diagram illustrating clothing item selection with arrows indicating movement from a shirt to accessories and parts.

Two handbags with circular designs, one wrapped in a bow tie and the other in a segmented pattern (no text or symbols)

Line drawing of a money bag with a hand holding an object inside, no text or symbols present

Line drawing of a knitted sweater with shoulder-length sleeves (no text or symbols)

Technical diagram showing mechanical components with labeled parts I, II, and symbol symbols

Logo of 'easyplay' play button with red triangle and multicolored segments (no text beyond logo design)

Diagram of a washing machine with numbered parts labeled 1, 2, 3, and 6 pointing to different components.

Technical diagram of a device with labeled parts, showing internal tubing and mounting points

Control panel description

INFINITION 1 2 3 4 5

Programme Rated capacity Kg.	Temperature setting °C	Duration of the programme Hours: Minutes	Water consumption in litres/operating cycle	Maximum Temperature ^^(1)	Residual moisture in % /centrifugation in rpm ^(2)
Algodão	10.0 3:59	1.708 69.6 38 53.9%/1350
Mistura	10.0 1:20	0.871 85 40 65%/1000
20°C	5.0 1:01	0.195 51 20 65%/1000
Roupa de bebé	10.0 2:01	1.528 85	60 65%/1000
Rápido 15	2.0	0:15	0.03	31	Frío
ECO 40-60(3)	10.0 3:59	1.015		69.6 38 53.9%/1350
	5.0 3:00	0.635		54.3 35 53.9%/1350
	2.5	3:00	0.286	38.9	22

Additional functions

Centrifugação

Antimicrobic Technology

Close-up of a metallic ring component with a hand inserting a small circular component (no text or symbols visible)

Technical diagram showing a mechanical component with labeled parts and an arrow indicating direction, marked as '1'.

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

3

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a faucet with rotating valve mechanism (no text or symbols)

Illustration of a hand holding a tool with a brush and a circular component, labeled with numbers 2 and 3 (no text or symbols on the diagram itself)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Simple line drawing of a hand inserting a plug into a device (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Hand holding a light bulb with rotating button, placed on a device (no text or symbols visible)

4

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Model Name		WM-NL14DAN
Colour		Dark Inox
Features
Rated Power Supply V 220-240 V
Rated Frequency Hz 50 Hz
Rated Washing Capacity kg 10 Kg
Rated Spinning Capacity kg 10 Kg
Rated Power W 2000 W
Rated Current A 10 A
Max. Spin Speed RPM 1400 RPM
Standard Water Pressure Mpa 0.05~1 Mpa
Display Type		LED
Door Lock		Electromagnetic Lock
Motor		BLDC Motor
Plug type		Euro Plug
Power cord length	mm	1,5 M
Water Inlet Hose Length	mm	1,0 M
Energy Rating
Energy Efficiency Class(New)		A
Spin-drying Efficiency Class		B
Moisture Ratio		53,9%
Washing efficiency index		1,031
Energy efficiency index		51,9
Power consumption left-on mode	W	1,0
Power consumption off-mode	W	0,5
Weighted energy consumption per 100 cycles (kW·h/100 cycles)		51
Energy consumption in kWh per cycle	kW·h/cycle	0,513
Energy consumption at rated capacity	kW·h/cycle	0,890
Energy consumption at half rated capacity	kW·h/cycle	0,549
Energy consumption at quarter rated capacity	kW·h/cycle	0,242
Weighted water consumption (Ww)	L/cycle	52
Water consumption at rated capacity	L/cycle	67,0
Water consumption at half rated capacity	L/cycle	52,0
Water consumption at quarter rated capacity	L/cycle	41,
Program duration at rated capacity	min	239
Program duration at half rated capacity	min	180
Program duration at quarter rated capacity	min	180
Spinning noise level	dB	73
Spinning noise class		B
Programmes and Performance
Number Of Program		15
Knob selection	Steam Wash yes
	Cotton yes
	Synthetic yes
	Mix yes
	Jeans yes
	ECO 40-60 yes
	20°C yes
	Spin Only yes
	Rinse & Spin yes
	Bulky yes
	Baby Care yes
	Wool yes
	Sport Wear yes
	Rapid 45' yes
	Quick 15' yes
Button Function	Delay yes (24 hours)
	Temp	cold-20-40-60-90
	Speed	0-400-600-800-1000-1200-1400
	Extra Rinse	yes
	Prewash	yes
	Drum Clean reminde	yes
	Mute (Press 3s)	yes
	Child Lock (Combine	yes
Specifications
Volume Of Inner Tub	L	64,0 L
Diameter Of Inner Tub	mm	510 mm
Door Diameter	mm	290 mm
Door Outer Frame Diameter (outer)	mm	480 mm
Net Dimensions (W×D×H)	mm	595 × 535 × 850
Max Dimensions (W×D×H)	mm	595 × 589 × 850
Gross Dimensions (W×D×H)	mm	680 × 660 × 875
Net Weight	kg	61 Kg
Gross Weight	kg	66 Kg
Loading Q'ty	20 ft	48
	40 ft Normal 102
	40 ft High	159

Product Fiche

Model Name		WM-NL14BAL
Colour		White
Features
Rated Power Supply V 220-240 V
Rated Frequency Hz 50 Hz
Rated Washing Capacity kg 10 Kg
Rated Spinning Capacity kg 10 Kg
Rated Power W 2000 W
Rated Current A 10 A
Max. Spin Speed RPM 1400 RPM
Standard Water Pressure Mpa 0.05~1 Mpa
Display Type		LED
Door Lock		Electromagnetic Lock
Motor		BLDC Motor
Plug type		Euro Plug
Power cord length	mm	1,5 M
Water Inlet Hose Length	mm	1,0 M
Energy Rating
Energy Efficiency Class(New)		A
Spin-drying Efficiency Class		B
Moisture Ratio		53,9%
Washing efficiency index		1,031
Energy efficiency index		51,9
Power consumption left-on mode	W	1,0
Power consumption off-mode	W	0,5
Weighted energy consumption per 100 cycles (kW·h/100 cycles)		51
Energy consumption in kWh per cycle	kW·h/cycle	0,513
Energy consumption at rated capacity	kW·h/cycle	0,890
Energy consumption at half rated capacity	kW·h/cycle	0,549
Energy consumption at quarter rated capacity	kW·h/cycle	0,242
Weighted water consumption (Ww)	L/cycle	52
Water consumption at rated capacity	L/cycle	67,0
Water consumption at half rated capacity	L/cycle	52,0
Water consumption at quarter rated capacity	L/cycle	41,
Program duration at rated capacity	min	239
Program duration at half rated capacity	min	180
Program duration at quarter rated capacity	min	180
Spinning noise level	dB	73
Spinning noise class		B
Programmes and Performance
Number Of Program		15
Knob selection	Steam Wash yes
	Cotton yes
	Synthetic yes
	Mix yes
	Jeans yes
	ECO 40-60 yes
	20°C yes
	Spin Only yes
	Rinse & Spin yes
	Bulky yes
	Baby Care yes
	Wool yes
	Sport Wear yes
	Rapid 45' yes
	Quick 15' yes
Button Function	Delay yes (24 hours)
	Temp	cold-20-40-60-90
	Speed	0-400-600-800-1000-1200-1400
	Extra Rinse	yes
	Prewash	yes
	Drum Clean reminde	yes
	Mute (Press 3s)	yes
	Child Lock (Combine	yes
Specifications
Volume Of Inner Tub	L	64,0 L
Diameter Of Inner Tub	mm	510 mm
Door Diameter	mm	290 mm
Door Outer Frame Diameter (outer)	mm	480 mm
Net Dimensions (W×D×H)	mm	595 × 535 × 850
Max Dimensions (W×D×H)	mm	595 × 589 × 850
Gross Dimensions (W×D×H)	mm	680 × 660 × 875
Net Weight	kg	61 Kg
Gross Weight	kg	66 Kg
Loading Q'ty	20 ft	48
	40 ft Normal 102
	40 ft High	159

INFINITON

Soporte y contacto

QR code image with a central logo, likely linking to a digital resource or website.

¿Necesitas ayuda?

QR code image containing encoded data, with a central logo or watermark

QR code image with a central logo, likely linking to a digital resource or website.

Silhouette icon of a person wearing a headset with a wrench inside (no text or symbols)

QR code image containing encoded data and a central logo, likely for digital scanning and linking.

QR code image with a central logo, likely linking to a digital resource or website.

QR code with central Facebook logo, likely linking to a digital resource or website

INFINITON

QR code image with a central logo, likely linking to a website or digital content.

TÉRMINOS Y REGISTRO DE GARANTÍA

QR code image containing encoded data, with a central logo or watermark
