USER MANUAL WM-IN94B Infiniton

Line drawing of a washing machine with circular vent and side panel (no text or symbols)

WM-K10IN

WM-DG9IN

WM-IN94B

User's manual

Manual de usuario

Manual de usuário

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a faucet with a valve and pipe, showing fluid flow direction (no text or labels)

Diagram of a pipe fitting with directional arrows indicating movement (no text or symbols)

Warning sign with cartoon character and 'X' symbol indicating incorrect safety or hazard

65cm 100cm

30cm

Illustration of a utility box with a coiled hose attached to its side (no text or symbols)

Instalar lavadora

■ Enchúfela a la corriente

Safety warning illustration showing a hand using a switch to clean electrical outlets, with a cross symbol indicating failure.

Illustration showing a garment with labeled parts and directional arrows indicating movement or processing steps.

Line drawing of a sleeveless sweater with pleated collar (no text or symbols)

Technical line drawing of a mechanical device with internal components and labeled parts (no text or symbols)

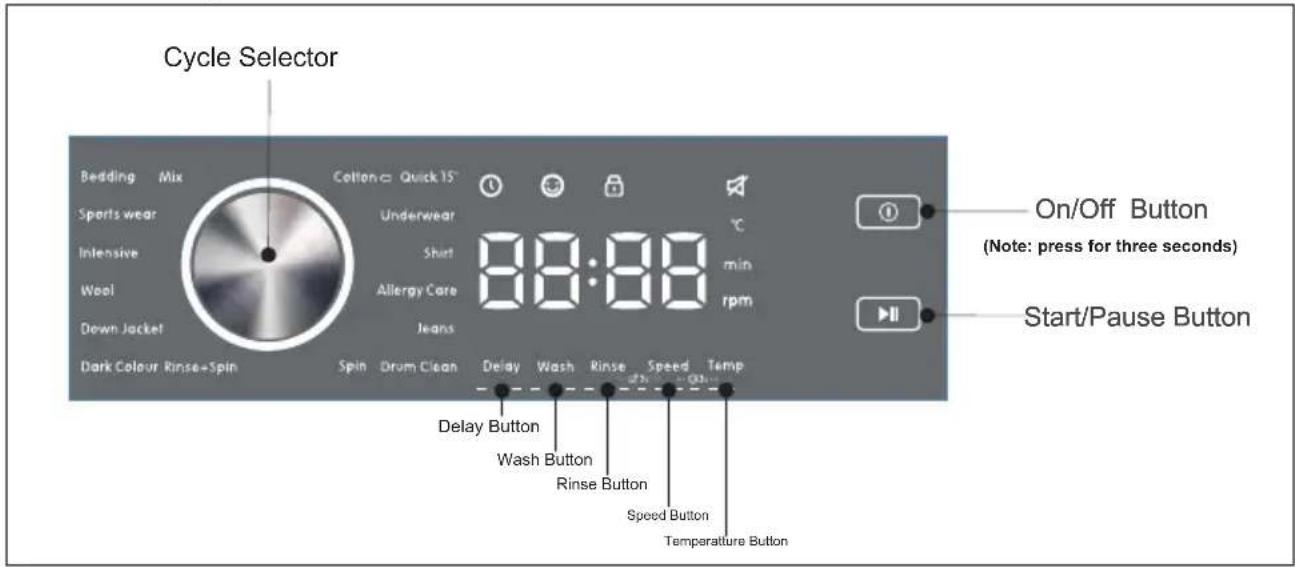

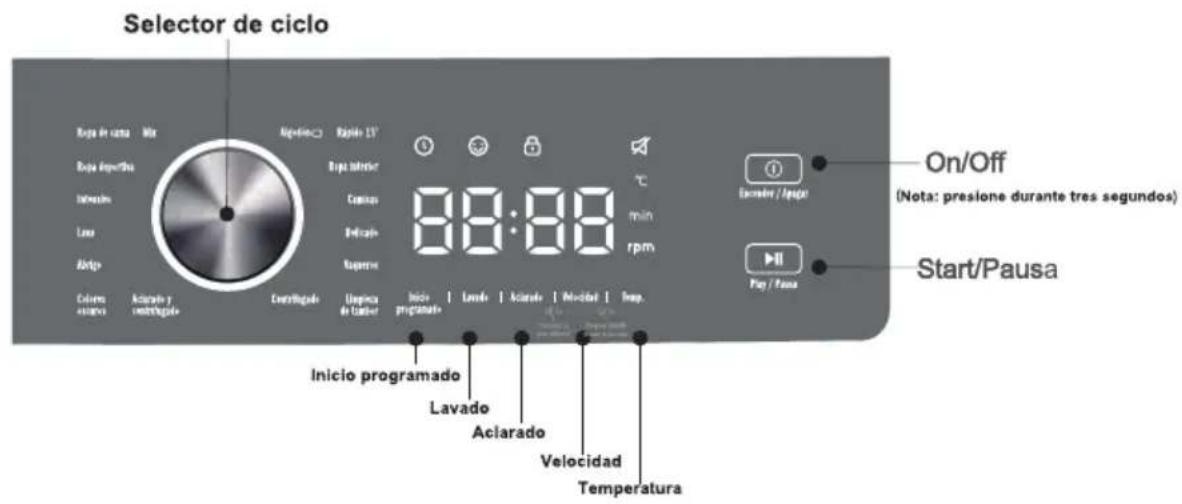

- Vista del panel de control

■ Table of Washing Procedures

Procedure\Parameter	Carga Máx.(kg)		Temperatura (°C;--= cold)	Velocidad (r/min;0=no spin)
	9.0kg	10kg
Mix	4	5	---40	0~1000
ALGODÓN	9	10	---Max	0~Max
RÁPIDO 15'	2.5	2	-	0~1000
ROPA INTERIOR	4	3.5	---40	0~1000
CAMISAS	3	5	---40	0~1000
DELICADO	5	5	---60	0~1200
VAQUEROS	5	8	---40	0~1000
LIMPIEZA TAMBOR	-	-	60/Max	-
CENTRIFUGADO	9	10	-	0~1200
ACLARADO + CENTRIFUGADO	9	10	-	0~1200
OSCUROS	4	4.5	---40	0~1000
ABRIGOS	4	4.5	---40	0~800
LANA	2.5	3.5	---40	0~600
INTENSIVO	9	10	---60	0~Max
DEPORTIVA	4	4.5	---40	0~800
ROPA DE CAMA	6	6	---60	0~1200

NOTA

Illustration of a hand holding a tool with an arrow indicating rotation (no text or symbols)

Hand inserting a circular component into a wall, no text or symbols visible

Hand inserting a cable into a device (no text or symbols visible)

Hand connecting cables to a device panel (no text or symbols visible)

Diagram of two pipes with directional arrows indicating movement or force (no text or symbols)

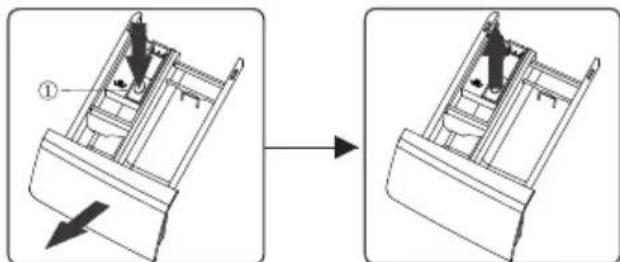

■ Cajón de detergente limpio

Technical diagram showing a mechanical assembly before and after transformation, with labeled component (①) and directional arrow.

Rated capacity: 9.0kg

Energy efficiency class: A+++

EU Ecolabel: N/A

Standard Programme	Load	Energy consumption	Water consumption	Programme time
Cotton 60°C	9.0kg	1.10kWh	59.3L	261min
Cotton 60°C	4.5kg	0.94kWh	48L	237min
Cotton 40°C	4.5kg	0.79kWh	46L	242min

Nota:

Rated capacity: 10.0kg

Energy efficiency class: A+++

EU Ecolabel: N/A

Standard Programme	Load	Energy consumption	Water consumption	Remaining moisture content	Programme time
Cotton 60°C	10kg	0.99kWh	53.0L	51%	305min
Cotton 60°C	5kg	0.86kWh	35.0L	49%	271min
Cotton 40°C	5kg	0.82kWh	41.0L	52%	268min

Nota:

Line drawing of a washing machine with circular frame and side panel (no text or symbols)

WM-K10IN

WM-DG9IN

WM-IN94B

User's manual

Manual de usuario

Manual de usuário

■ Before using your washing machine, please read this manual carefully and keep it far future reference.
■ This manual shall also be available on www.infiniton.es
■ The drawings in this manual are far instruction only, it may be vary from the model you buy

Contents

Products Specification.... 1

Safety Precaution.... 2

Important Hints 4

Overview of Washing Machine 5

Install Washing Machine 6

Operate Washing Machine 10

Maintenance 14

Troubleshooting 16

Appendix.... 18

Products Fiche 20

PRODUCT REGISTRATION

Thank you for purchasing our INFINITON product. This easy-to-use manual will guide you in getting the best use of your washer. Inside you will find many helpful hints on how to use and maintain your washing machine properly. You/1 find many answers to common problems in the chart of troubleshooting tips. Remember to record the model and serial numbers. They are on the back of the unit.

Products Specification

Parameter/Capacity	Inverter Motor Series
	9kg	10kg
Model	WM-IN94BWM-DG9IN	WM-K10IN
Voltage	220-240V~/50Hz
Rated Power	1900W	1950W
Water Pressure	0.05-0.8MPa
Outer Dim ension (W*D*H)mm	595*570*850	595*625*850

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following

• If the power cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid the hazard.
• The new hose-sets supplied with the washer are to be used and that old hose-sets should not be reused.
• This appliance is not intended for use by persons(including children)with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children should be supervised to ensure that they do not play with the appliance.(This warning is not for EUROPEAN market)
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (This warning is for EUROPEAN market)
• Carpet does not obstruct the opening for washing machine with ventilation openings in the base.
• Children of less than 3 years should be keep away unless continuously supervised.
• This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments; -farm houses

-by clients in hotels, motels and other residential type environments; -bed and breakfast type environments;

-areas for communal use in blocks of flats or launderettes.

• Take care that power voltage and frequency shall be identical to those of washing machine.
- To ensure your safety, power cord plug must be inserted into an earthed socket. Check carefully and make sure that your socket is proper and earthed reliably.
- Do not use any socket with rated current less than that of washing machine.
- Do not operate your washer when parts are missed or broken.
- Never pull out power plug with wet hands.

Safety Precaution

• Replace immediately worn power cord, loose plugs/power sockets.
• Unplug your washer before cleaning or making any repair.
• Please check whether the water inside the drum has been drained before opening the door. Please do not open the door if there is any water visible.
• Glass door may be very hot during the operation. Keep kids and pets far away from the washer during the operation.
• Make sure that the water and electrical device must be connected by a qualified technician in accordance with the manufacturer's instruction and local safety regulations.
• Before operating this machine, all packages and transit bolts must be removed. Otherwise, the washing machine may be seriously damaged while washing the clothes.
• Flammable and explosive or toxic sovents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing.
• Be careful of scald while the washer draining hot washing water.
• Never unplug your washer by pulling on the supply cord. Always grasp the plug firmly and pull straight out from the outlet.
• If your old appliance is not being used anymore, we recommend that you remove the door and cut off the supply cord.
• Packing materials may be dangerous to the kids. Please keep all packing materials(plastic bags,foams etc)far away from the kids.
• Do not climb up and sit on top cover of the machine.
• Pets and kids may climb into the machine. Check the machine before every operation.
• Do not lean against the door of the washer.

Important Hints

- The household washing machine isn't intended to be built-in.

• This washing machine is for indoor using only.

- Make sure that all pockets are empty.Sharp and rigid items such as coin,brooch,nail,screw or stone etc.May cause serious damages to the washer.

- Please remember to disconnect water and power supply immediately after the clothes are washed.

•The washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.

- Before washing the clothes at first time, the washing machine shall be operated in one round of the whole procedures without the clothes inside.

- Do not repair or replace any part of the washer unless you have been specifically recommended in the user-repair instructions and you have the knowledge and skills to make it.

- It is forbidden to wash carpets and bras inset with steel wire.

- Never refill water by hand during washing.

• After the program is completed, please wait for two minutes to open the door.

- When handing the machine, the accumulated water shall be drained out of the machine firstly. Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.

- The washing machine with single inlet valve only can be connected to the cold water supply. The washing machine with double inlet valves can be connected to the hot water and cold water supply.

SAVE THESE INSTRUCTIONS

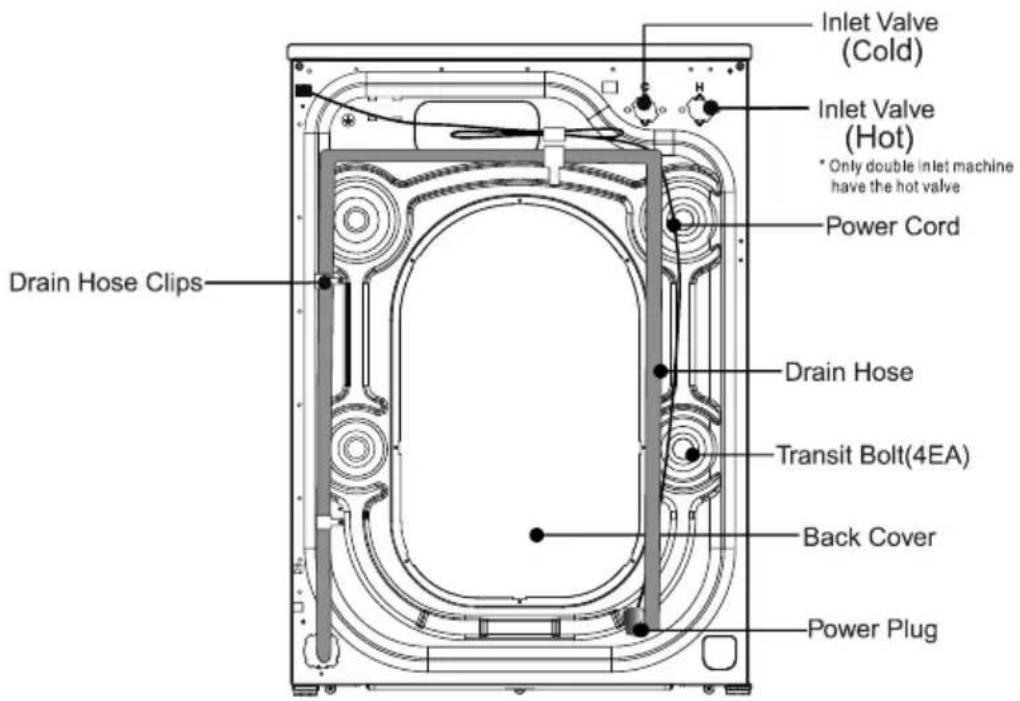

Drawer Handle Control Panel Assembly Door Assembly Pump Case Cover Leg Assembly (4EA)

Inlet Valve (Cold) Inlet Valve (Hot) * Only double inlet machine have the hot valve Power Cord Drain Hose Clips Drain Hose Transit Bolt(4EA) Back Cover Power Plug

NOTE

We recommend that your new washer should to installed by a qualified appliance technician. If you feel that you have the skills to install the washer, please read the installation instructions carefully before installing.

■ Tools needed

You may need to have the following tools to help you in the installation of your washer:

- Scissors

- Pliers

- Gloves

- Spanner

• Standard Screwdriver

■ Unpacking the washing machine

Unpacking your washing machine and check if is there any damage during the transportation. Also make sure that all the the items (as shown below) in the attached bag are received. If there is any damage to the washing machine during the transportation, or any item is missing or damaged, please contact the local dealer immediately. If your washing machine is not double inlet, you do not have the hot inlet hose.

Inlet Hose(Connect to cold water supply)	Hot Inlet Hose(Connect to Hot water supply)	Hole Cover (4EA)(Used to plug transit bolt holes)	Drain HoseSupport Bracket(Used to loop the end of drain hose)	Spanner(1.Used to adjust the bottom of the machine,2.Remove the transport bolt on the back of the machine)

*If washing machine is not double inlet, the machine does not have the hot inlet hose.

■ Select the location

Before installing the washer, the location characterized as follows shall be selected:

-Rigid,dry,and level surface(if not level,please make it level with reference to the following figure'Adjustable Leg').

-Avoid direct sun light.

-Sufficient ventilation.

-The ambient temperature shall be between 0-40°C.

-The ambient humidity shall be below 95%(When the temperature is 25°C).

-Keep far away from the heat resources such as coal or gas.Make sure that the washer will not stand on power cord.Do not install the washer on the carpet floor.

Install Washing Machine

■ Remove transit bolts

Before using this washing machine, transit bolts must be removed from the backside of this machine. Please take the following steps to remove the bolts:

Keep the transit bolts properly for further use.

Simple diagram showing a door with a curved arrow and a circular component, no text or symbols present.

1. Loosen the four transit bolts with a spanner

1. Take each bolt head and pull it through the wide part of the hole. Repeat for each bolt.


Simple line drawing of a door with a double-headed arrow pointing to the right side (no text or symbols)

Simple line drawing of a door with a hanging object and directional arrow (no text or symbols)

1. Fill the holes with the supplied plastic covers.

■ Level the washing machine

Install or place the washing machine under the environmental temperature of not less than 0^ C but not outdoors, for it may damage the programming controller.

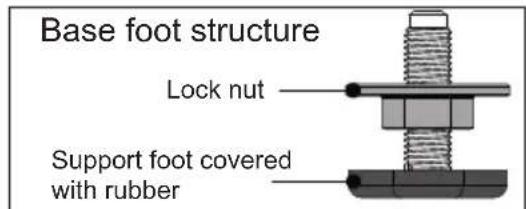

Base foot structure Lock nut Support foot covered with rubber

Factory status

■ Lockingnut close to bottom of box
■ Supporting foot close to locking nut

Technical line drawing of a mechanical assembly with a central component and curved components (no text or symbols)

Note: in order to facilitate installation, the factory status of the foot may not be all locked, please be sure to lock all four feet before adjusting the level!

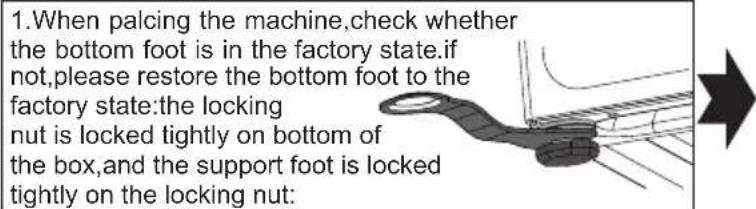

1. When palcing the machine, check whether the bottom foot is in the factory state. If not, please restore the bottom foot to the factory state: the locking nut is locked tightly on bottom of the box, and the support foot is locked tightly on the locking nut:

1. To ensure that the machine is placed in the right state, loosen the locking nut according to the direction shown in the diagram with the attached spanner to the appropriate height until the supporting footisclosetothegroundand themachineisfreefromshaking

Support base is close to the ground

1. After the machine is placed, press the opposite corner of the top cover plate of the washing machine with both hands in turn and shake it vertically downward to check whether the supporting foot is close to the ground and whether the machine is shaken

1. Finally, use the spanner to turn the lock nut back to the bottom of the box to lock it (you can also slightly fix the support foot by hand to avoid the support foot moving again)

Ensure that the supporting feet do not move again

CAUTION

1. The machine must be perfectly leveled and stabilized when the four supporting feet are close to the ground. Lower the feet as much as possible on the basis that the machine is leveled.
2. Improper leveling adjustment may cause loud noise, machine vibrating, machine displacement and other abnormal phenomena.
3. Air-vent is designed on the bottom of the machine (prevent blockage). Install the washing machine on solid, smooth and skid-proof ground. Do not place the washing machine on soft blanket or wooden floor, or various desktops and stands, in case of unnecessary injury.

Install Washing Machine

■ Connect the inlet hose

1. Connect the inlet hose to tap and fasten it anticlockwise.

Illustration of a faucet with a valve and arrow indicating flow or movement (no text or symbols)

Diagram of a pipe fitting with directional arrows indicating movement or force (no text or symbols)

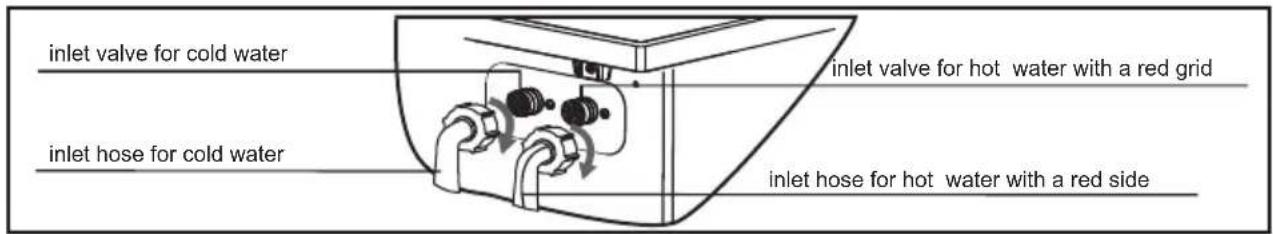

1. Connect the other end of the inlet hose to the inlet valve at the backside of the washing machine and fasten the hose tightly clockwise. when there is a inlet at the back of the machine, it must be connected to a cold water supply. If there are two inlet valve, one is connected to a cold water supply and the other is connected to a hot water supply. Follow the indication of the picture below to complete the connection.

inlet valve for cold water inlet valve for hot water with a red grid inlet hose for cold water inlet hose for hot water with a red side

NOTE

• If there is any leakage with hose after the connection, then repeat the steps to connect inlet hose.
• Do not bend the hose.
• Check for inlet hose connection carefully before using the washer each time.

■ Connect the drain hose

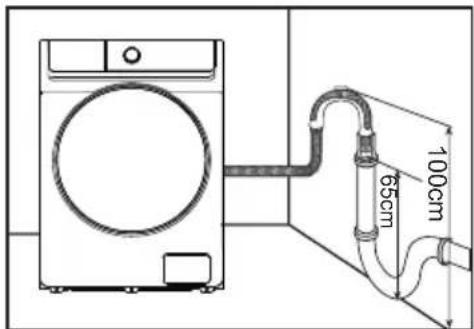

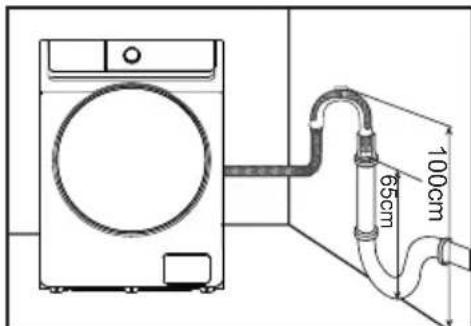

• The drain hose shall be placed at a height of 65-100cm above the floor, otherwise, it can cause poor drainage
• You can use the supplied drain hose support bracket to loop the drain hose down into the wall, standpipe or laundry tub.
  • Take care to ensure all hose connections are tight.

NOTE

- The end of the drain hose cannot be immersed in water for the washer to work properly.

Warning sign with cartoon character and 'X' symbol, indicating a hazard or accident

65cm 100cm

30cm

Illustration of a utility box connected to a coiled cable (no text or symbols)

Install Washing Machine

■ Connect the power

• As the maximum current through the unit is 10A when you are using its heating function, please make sure the power supply system (current, power voltage and wire) at your home can meet the normal loading requirements of the electrical appliances.
• Please connect the power to a socket which is correctly installed and properly earthed.
• Make sure the power voltage at your plate is same to that in the machine's rated voltage.
  • Power plug must match the socket.
• Do not use multi-purpose plug or socket as extension cord.
• Do not connect and pull out plug with wet hands.
• When pulling out the plug, hold the plug tightly and then pull it out. Do not pull power cord forcibly.
• If power cord is damaged or has any sign of being broken, special power cord must be selected or purchased from its manufacturer or service center for replacement.

WARNING

1. This machine must be earthed properly. If there is any short circuit, earthing can reduce the danger of electrical shock.
2. Washing machine shall be operated in a circuit separate from other electrical appliances. Otherwise, power protector may be tripped or fuse may be burned out.

Operate Washing Machine

NOTE

Ensure your machine is installed properly before use.

Before washing clothes for the first time, you must run a complete cycle without clothes. To do this:

1. Connect power source and water.
2. Put a little detergent (about 10g) into the drawer and close it.
3. Press the On/Off button "①".
4. Turn the knob to the "Cotton".
   5.5. Press the Start/Pause button "▶||".

This will remove any water from the manufacturer's test run remaining in the machine.

Safety warning illustration showing electrical shock hazard with hand, fuse, and plug symbols

Operate Washing Machine

- Sort clothes

Please, read this recommendation carefully to avoid the troubles of washing machine and damages of clothes.

1. Do not put clothes over load the rated capacity.

2. Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

3. Make sure all the pockets are empty. Foreign objects (e.g. nails, coins, paper clips, etc.) can cause damage to garments and components in the machine.

4. Close any zips, fasten hooks, etc. before washing.

5. For clothes to be washed, they should be sorted according to colour. Dark clothes should not be washed with light clothes specially.

6. Badly soiled areas, stains, etc. should be pre-treated with liquid detergent, stain removers, etc.

7. Turn over the clothes wich pill easily and is with woolen surface before putting them into the machine

Illustration showing a garment with labeled parts and directional arrows indicating movement or processing steps.

Line drawing of a sleeveless sweater with a strap (no text or symbols)

NOTE: Make sure that no clothes is caught between the door and the seal.

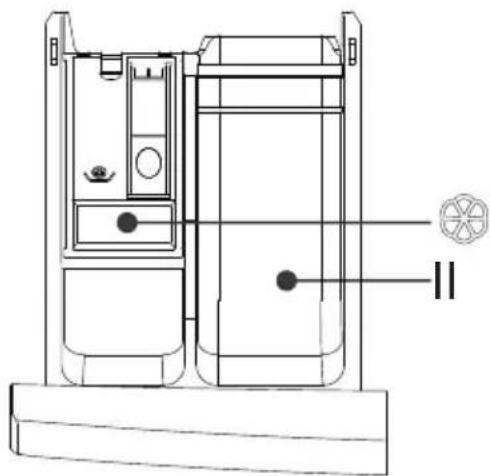

- Put detergent

1. Pull out the detergent drawer.

2. Add detergent for main wash into compartment II.

option1:detergent that is solid; option 2:detergent that is liquid.

3.Add fabric softener into compartment ✿.

1. Please choose suitable type of detergent for the various washing temperature to get the best washing effect with less water and energy consumption.

Technical diagram of a mechanical device with labeled components and directional arrows

• View of control panel


Cycle Selector Bedding Mix Sports wear Intensive Wool Down Jacket Dark Colour Rinse+Spin Cotton C Quick 15° Underwear Shet Allergy Care Jeans Spin Drum Clean Delay Wash Rinse Speed Temp Delay Button Wash Button Rinse Button Speed Button Temperature Button On/Off Button (Note: press for three seconds) Start/Pause Button

- Function

• On/Off Button: Press once to turn the washing machine on, press again to turn the washing machine off. If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off.
• Start/Pause Button: Press the button once to start a cycle. Press the button a second time will pause the operating cycle. During a pause, setting and options can be modified and selected again if it is permit. Pressing the button again will resume the active cycle.
• Cycle Selector: The knob can be turned in either direction to choose a cycle.
• Temperature Button: Use the button to select a water temperature. Available selections (from cold to max °C) vary for each cycle. The targeted setting will blink on the screen during the selection process.
• Speed Button: Use the button to select a spin speed. Available selections (from 0 to max rpm) vary for each cycle. The targeted setting will blink on the screen during the selection process.
• Delay Button: Press the button repeatedly to cycle through the available delayed start options (from 3 to 24 hours in one hour increments).
• Wash Button: Use this button to select a wash time (from 0 to max min). Available selections vary for each cycle. The targeted setting will appear on the screen during the selection process.
• Rinse Button: Use this button to select time for rinsing. Available selections(from 0 to max times) vary for each cycle. The targeted setting will appear on the screen during the selection process.

- Indicators

When the indicator appears, it means the Delay function has been selected.
😊:When the indicator appears, it means the "Child Lock" function has been selected.
The indicator will keep on when the door is locked normally, otherwise, it can not appear.
:When the indicator appears, it means the "mute" function has been selected.

- Programe

• Cotton: You can select this procedure to wash the daily washable clothes. It is recommended to wash the hard-wearing fabrics, heat-resistant fabrics made of cotton or linen.
• Quick 15': This procedure is suitable for wasing not very dirty clothes quickly.
• Underwear: This procedure is suitable for wasing
• Shirt: You can select this procedure to wash shirts made of cotton, linen, synthetic fibers or blended fabrics.
• Jeans: This procedure is quite suitable for jeans or fabrics made of denim.
• Allergy care: The procedure can quite make clothes rinse to more clean, avoid the laundry detergent for skin allergy.
• Drum clean: This cycle is specially set in this machine to clean the drum and tube. It applies 60/90°C high temperature sterilization to make the drum and tube more green. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. When you run this program, we suggest not to put any clothes, you can use this procedure regularly according to the need.
• Spin: This cycle is use to extract water from clothes.
• Rinse+Spin: This cycle is use to clean remaining detergent in clothes and extract water from clothes.
• Dark colour: You can select this procedure to wash the dark-coloured fabrics made of cotton and dark easy-care fabrics.
• Down Jacket: The procedure is quite suitable for down jacket.
• Wool: You can select this procedure to wash the wool textiles labeled with "Machine Wash". Please select the proper washing temperature according to the label on the articles to be washed.
• Intensive: You can select this procedure to wash the tough clothes, that need much more strength.
• Bedding: You can select this procedure to wash heavy clothes. It is recommended to wash jeans, bedding, etc.

Operate Washing Machine

• Sportswear:Suitable for sports clothes washing
  • Mix:

You can select this procedure to wash clothes that are different kinds, except for colors. Dark clothes should not be washed with clothes that are light especially.

■ Table of Washing Procedures

Procedure\Parameter	Max Load(kg)		Temp. Range (°C;--= cold)	Speed Range (r/min;0=no spin)
	9.0kg	10kg
Mix	4	5	---40	0~1000
Cotton	9	10	---Max	0~Max
Quick 15'	2.5	2	-	0~1000
Underwear	4	3.5	---40	0~1000
Shirt	3	5	---40	0~1000
AllergyCare	5	5	---60	0~1200
Jeans	5	8	---40	0~1000
DrumClean	-	-	60/Max	-
Spin	9	10	-	0~1200
Rinse+Spin	9	10	-	0~1200
Dark Colour	4	4.5	---40	0~1000
DownJacket	4	4.5	---40	0~800
Wool	2.5	3.5	---40	0~600
Intensive	9	10	---60	0~Max
Sports wear	4	4.5	---40	0~800
Bedding	6	6	---60	0~1200

NOTE

The “standard cotton 60°C/40°C with max speed” programme are the standard washing programs, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry, that the actual water temperature may differ from the declared cycle temperature.

Features

1. Power-off memory: In case of power failure during the cycle, the settings will be saved, and operation will resume when the power is restored.
2. Child lock: Press the "Speed" and "Temp." button simultaneously for 3 seconds can activate or cancel the "Child lock" feature to avoid mis- operations. When the feature is activated, all buttons cannot be set until the operation is over or it is canceled.

Features

1. Unbalance protection: When the machine is ready to spin, The washer may take a few time to balance clothes due to great unbalance. If clothes is still unbalance in the drum after that, the spinning speed can be slow down to avoid great vibration. If clothes in drum is too less, the machine may not to spin due to the unbalance protection, then you should add more clothes in the machine to make it to spin.
2. Reload: If you want to add clothes in the washer during the procedure, press the "Start/Pause" button for 3s, when you sound two beeps, it means the reload feature has been activated. Please wait for the indicator 🔒' disappears then open the door. Press the "Start/Pause" button to resume the procedure after reload.

Maintenance

Proper maintenance on the washing machine can extend its work life.

WARNING

Before your maintenance starts, please do pull out the power plug or disconnect power and close the tap.

■ Clean internal drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. Never use steel wool.

■ Clean surface

1. If there is any water overflow, use the dry cloth to wipe it off immediately. No sharp items are allowed to strike the washer.
2. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.

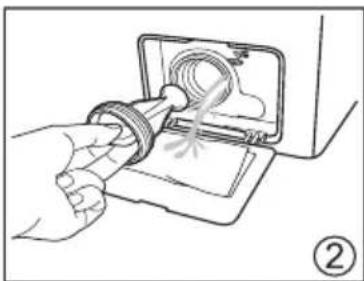

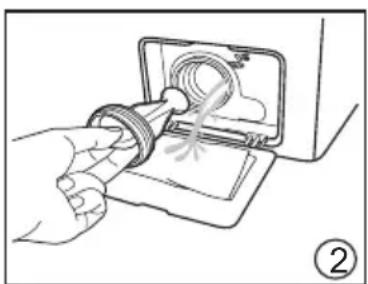

■ Clean the drain pump

1. Disconnect the washing machine;
2. Open the Pump case cover with a coin or a key;

3. Unscrew the pump cover anticlockwise, Always keep a rag nearby to dry up water when unscrewing the pump cover;

4. Clean the inner of the pump;

5. Replace the pump cover and screw it tightly;

6. Replace the Pump case cover.

Hand holding a card with a black arrow indicating rotation (no text or symbols)

Hand inserting a circular component into a device (no text or symbols visible)

Illustration of a hand inserting a cable into a device (no text or symbols visible)

■ Clean Inlet valve filter

The inlet filter shall be cleaned if there is not any or insufficient water in when the tap is opened.

1. Lower the water pressure:

a. Close the tap.

b. Select any procedure except "Spin" procedure.

c. Press the button "Start/Pause" and keep the procedure running for about 40 seconds.

d.Pull out the power plug.

1. Remove the inlet hose from the tap.

2. Use water to wash the filter.

3. Reconnect the inlet hose.

Close-up of hands connecting a cable to a plug with connectors (no text or symbols visible)

Illustration of two hoses connected to a wall-mounted device (no text or symbols visible)

■ Clean detergent drawer

1. Press down the part ① inside the drawer and take out the detergent drawer.

2. Lift the clip up and take out softener cover and wash all grooves with water.

3.Restore the softener cover and push the drawer into positon.

Technical diagram showing a mechanical assembly before and after assembly, with labeled component (①) and directional arrow.

■ Dispose an easily get frozen washer

If the washer is exposed to temperature below 0 C, certain precaution should be taken.

1. turn off the tap.

2. Unscrew the inlet hose.

3. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl. Run the spin programme.

4. Disconnect the washer.

5. Screw the inlet hose and reposition the drain hose.

NOTE

1. When the washing machine is reused, make sure the ambient temperature is above 0 C.
2. If your washing machine is located in the room where it can get frozen easily, please drain the remaining water inside drain hose and inlet hose thoroughly.
3. Please contact a technician if your washer is frozen.

TROUBLES SOLUTIONS

There is some remaining water in the machine		This is normal and is the result of water tests performed at the factory
The washer does not run		Check if the power plug is inserted well.Check if the tap is opened.Check if the button “Power” is pressed.Check if the button “Start/Pause” is pressed.Check if the delay feature is activated.
Water leakage		Check and fasten inlet hose.Clean up drain hose and ask a specialized person to repair it when necessary.
Abnormal noise and great vibration		Check if the transit bolts has been removed.Check if the adjustable legs are adjusted level.Check if the washer is installed on the solid and level floor.Check if there are any barrettes or metal articles inside.
Washing efficiency is not satisfied		Select a proper procedure.Add the proper detergent quantity according to the instructions in detergent package.
The machine take no answer after press buttons		Check if the “Child-lock” feature has beenactivate.Press button “Start/Pause” first then press other buttons.
Actually running time of procedures is not corresponded to the display time		Check if clothes in the drum is dispersive enough.Check if the water is drain out or inflow well.
The washer fills while draining		Check if the max height of the drain hose is lower than 65cmCheck if the drain hose is immersed.

Troubleshooting

Display	Meaning Solution
		The washer fills over time	Check if the tap is open.Check if the water pressure is too low.Check if the inlet hose is blocked.
		Water drainage over time	Check if the drain pump is blocked.Contact a technician if necessary.
		Door lock is breakdown	Close the door well again.Check if the clothes are caught between the door and seal.Contact a technician if necessary.
		Water is overflowed	Let the machine drain out water automatically until the water level is suitable for wash procedure.Contact a technician if necessary.
		The electrical motor is breakdown	Please contact a technician
		The heater does not work	Please contact a technician
		There is a temperature sensor fault	Please contact a technician
		Communication failures	Please contact a technician
		Inverter Motor failures	Please contact a technician
		The procedure running is not corresponded to the cycle that the knob points	Turn the cycle selector to the cycle corresponded to the procedure working on.

NOTE

Please refer to the actually purchased model for fault display here. Different models have different fault displays

■ Fabric Care Lable

Resistant material

Can be ironed at 100 C max

Delicate fabric

Do not iron

Item may be washed at 90 C

Can be dry cleaned using any solvent

Item may be washed at 60 C

Dry clean with perchloride, lighter fuel, pure alcohol or R113 only

Item may be washed at 40 C

Dry clean with aviation fuel, pure alcohol or R113 only

Item may be washed at 30 C

Do not dry clean

Item may be hand washed

Dry flat

Dry clean only

Can be hung to dry

Can be bleached in cold water

Dry on clothes hanger

Do not bleach

Tumble dry, normal heat

Can be ironed at 200 C max

Tumble dry, reduced heat

Can be ironed at 150 C max

Do not tumble dry

- Electrical Warning

To avoid fire, electrical shock and other accidents, please remember the following reminding:

-Only the voltage indicated in power label can be used. If you are not clear of the voltage at home, please contact the local power bureau.
-When you are using the heating function, the maximum current through the washing machine will reach 10A. Therefore, please make sure the power supply units(current, voltage and cable) can meet the normal load requirements for the machine.
-Protect the power cord properly. Power cord shall be fixed well so that it will not trip the people or other things and be damaged. Special attention shall be paid to the plug location.
-Do not make the wall-mounted socket overloaded or cable extended. Over loading of the wiring may cause fire or electrical shock. Do not pull out power plug with wet hand.
-To ensure your safety, power plug shall be inserted into an earthed socket. Carefully check and ensure that your socket is properly and reliably earthed.

Appendix

■ Protecting the environment

• The washer is manufactured by recyclable materials. If you decide to dispose of this washer, please observe the local waste disposal regulations. Cut off the power cord so that the washer cannot be connected to power. Remove the door so that small animals and children cannot get trapped inside the washer.
• Do not exceed the detergent quantities recommended in the detergent manufactures' instruction.
• Correct Disposal of this Product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Products Fiche

Brand: INFINITON

Model: WM-IN94B

WM-DG9IN

Rated capacity: 9.0kg

Energy efficiency class: A+++

EU Ecolabel: N/A

Energy consumption 215 kWh per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

Water consumption 11500 litres per year, based on 220 standard washing cycle for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient).

Maximum spin speed: 1400rpm

The moisture content:53%

Consumption values:

Standard Programme	Load	Energy consumption	Water consumption	Programme time
Cotton 60°C	9.0kg	1.10kWh	59.3L	261min
Cotton 60°C	4.5kg	0.94kWh	48L	237min
Cotton 40°C	4.5kg	0.79kWh	46L	242min

Note:

The actual parameters will depend on how the appliance is used, and maybe different with the parameters in above mentioned table.

The household washing machine is equipped with a power manager system.

The duration of the left-on mode is: 10min

Power consumption of offmode: 0.5W

Power consumption of left-on mode: 1.0W

Airborne acoustical noise (washing): 62dB

Airborne acoustical noise (spinning): 75dB

Note:

The airborne acoustical noise emissions during washing/spining for the standard 60°C cotton programme at full load.

Products Fiche

Brand: INFINITON

Model: WM-K10IN

Rated capacity: 10.0kg

Energy efficiency class: A+++

EU Ecolabel: N/A

Energy consumption 237 kWh per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

Water consumption 12000 litres per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient).

Maximum spin speed: 1400rpm

Consumption values:

Standard Programme	Load	Energy consumption	Water consumption	Remaining moisture content	Programme time
Cotton 60°C	10kg	0.99kWh	53.0L	51%	305min
Cotton 60°C	5kg	0.86kWh	35.0L	49%	271min
Cotton 40°C	5kg	0.82kWh	41.0L	52%	268min

Note:

The actual parameters will depend on how the appliance is used, and maybe different with the parameters in above mentioned table.

The household washing machine is equipped with a power manager system.

The duration of the left-on mode is: 10min

Power consumption of offmode: 0.5W

Power consumption of left-on mode: 1.0W

Airborne acoustical noise (washing): 62dB

Airborne acoustical noise (spinning): 75dB

Note:

The airborne acoustical noise emissions during washing/spining for the standard 60°C cotton programme at full load.

INFINITON

Line drawing of a washing machine with circular vent and side panel (no text or symbols)

WM-K10IN

WM-DG9IN

WM-IN94B

User's manual

Manual de usuario

Manual de usuário

Illustration of a faucet with a valve and handle, showing fluid flow direction (no text or symbols)

Diagram of a pipe fitting with directional arrows indicating movement or force (no text or symbols)

Warning sign with cartoon character and 'X' symbol indicating incorrect safety or hazard

100cm 65cm

30cm

Illustration of a utility box connected to a coiled cable (no text or symbols)

Instalar máquina de lavar

- Conecte o poder

Safety warning illustration showing electrical shock hazard with hand, fuse, and plug symbols

ATENÇÃO

Illustration of a pair of shorts with accessories and a tool, no text or symbols present

Line drawing of a sleeveless sweater with pleated collar (no text or symbols)

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

• Vista do painel de controle


Cycle Selector Bedding Mix Sports wear Intensive Wool Down Jacket Dark Colour Rinse+Spin Cotton C Quick 15° Underwear Shet Allergy Care Jeans 88:88 min rpm On/Off Button (Note: press for three seconds) Start/Pause Button Spin Drum Clean Delay Wash Rinse Speed Temp Delay Button Wash Button Rinse Button Speed Button Temperature Button

■ Função

Hand holding a tool interacting with a device, showing a curved arrow indicating rotation (no text or symbols present)

Hand inserting a circular component into a device (no text or symbols visible)

Illustration of a hand inserting a cable into a device (no text or symbols visible)

Manutenção

■ Limpe o filtro da válvula de entrada

Hand connecting a cable to a car's side panel (no text or symbols visible)

Diagram of two pipes with directional arrows indicating flow or movement (no text or symbols)

Technical diagram showing a mechanical assembly before and after transformation, with labeled components and directional arrows.

Rated capacity: 9.0kg

Energy efficiency class: A+++

EU Ecolabel: N/A

Standard Programme	Load	Energy consumption	Water consumption	Programme time
Cotton 60°C	9.0kg	1.10kWh	59.3L	261min
Cotton 60°C	4.5kg	0.94kWh	48L	237min
Cotton 40°C	4.5kg	0.79kWh	46L	242min

Nota:

Rated capacity: 10.0kg

Energy efficiency class: A+++

EU Ecolabel: N/A

Standard Programme	Load	Energy consumption	Water consumption	Remaining moisture content	Programme time
Cotton 60°C	10kg	0.99kWh	53.0L	51%	305min
Cotton 60°C	5kg	0.86kWh	35.0L	49%	271min
Cotton 40°C	5kg	0.82kWh	41.0L	52%	268min

Nota:
