2415530 - Food processor Kooper - Free user manual and instructions

USER MANUAL 2415530 Kooper

Modern kitchen appliance with dual kitchen enclosures and a black stand mixer (no visible text or symbols)

White/Black Moon plus

2415530 Planetaria | 2415531

POTENZA MAX. ASSORBITA 1000 W • 220/240 V • 50/60 HZ

UNICAMENTE AD USO DOMESTICO

Ancient Egyptian hieroglyphic illustration showing food items including bread, onion, bowl, and fruit (no readable text or symbols)

Silhouette of a mechanical device with an open lid and rotating arrow (no text or symbols)

ATTENTION! READ THE INSTRUCTIONS GIVEN IN THIS HANDBOOK VERY CAREFULLY.

IT SHOULD BE PUT ASIDE FOR FURTHER CONSULTATION DURING THE ENTIRE LIFE-CYCLE OF THE PRODUCT SINCE

IT GIVES IMPORTANT INDICATIONS ON THE PRODUCT'S FUNCTIONS AND SAFETY DURING INSTALLATION,

USE AND MAINTENANCE.

PRODUCT IMPORTED BY GALILEO SPA - STRADA GALLI N. 27 - 00019 VILLA ADRIANA (RM) - MADE OUTSIDE THE EU

GENERAL SAFETY INDICATIONS

DANGER FOR CHILDREN

• A POWER DEVICE IS NOT A TOY. AFTER USE, STORE IT OUT OF REACH OF CHILDREN. KEEP PACKING MATERIAL (PLASTIC BAGS, CARTON, ETC.) OUT OF REACH OF CHILDREN.
• THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.
• CHILDREN SHOULD BE SUPERVISED TO MAKE SURE THEY DO NOT PLAY WITH THE APPLIANCE.

RISK OF INJURY!

• PAY UTMOST ATTENTION IN CASE THE APPLIANCE IS USED IN THE PRESENCE OF CHILDREN.
• NEVER LEAVE THE APPLIANCE UNATTENDED WHILE WORKING.
  • TO AVOID INJURIES, DO NOT INTRODUCE YOUR HANDS IN THE MACHINE WHILE IT IS OPERATING AND KEEP AWAY CLOTHES AND OTHER OBJECTS.
• SWITCH OFF AND UNPLUG THE APPLIANCE BEFORE CHANGING THE ACCESSORIES! DO NOT CONNECT THE PLUG TO THE POWER SOCKET IF THE NECESSARY ACCESSORIES ARE NOT INSTALLED.
• NEVER TOUCH THE MOVING PARTS OF THE APPLIANCE AND ALWAYS WAIT FOR THE APPLIANCE TO STOP COMPLETELY.
• DISCONNECT THE PLUG FROM THE OUTLET WHEN THE APPLIANCE IS NO LONGER IN USE.
• DO NOT CLEAN WHILE THE APPLIANCE IS WORKING. DO NOT USE ANY SHARP OBJECT TO REMOVE POSSIBLE FOREIGN OBJECTS
• THE CLEANING MUST NOT BE CARRIED OUT BY UNSUPERVISED CHILDREN

RISK OF ELECTRICAL SHOK!

- THIS APPLIANCE IS DESIGNED TO OPERATE ONLY WITH ALTERNATING CURRENT. BEFORE OPERATING, MAKE SURE THAT THE VOLTAGE CORRESPONDS TO THE ONE INDICATED ON THE DATA PLATE.

- ONLY CONNECT THE APPLIANCE TO THE POWER OUTLETS WITH A MINIMUM CAPACITY OF 10 AM-PERES.

• DO NOT PULL THE POWER CORD OR THE AP-PLIANCE ITSELF TO REMOVE THE PLUG FROM THE WALL SOCKET.
• FULLY UNWIND THE POWER CORD BEFORE OPERATING THE APPLIANCE.
• NEVER LET THE POWER CORD RUN THROUGH SHARP EDGES; AVOID CRUSHING IT.
  • DO NOT LEAVE THE APPLIANCE EXPOSED TO ATMOSPHERIC AGENTS (RAIN, FROST, SUN, ETC.).

• NEVER USE THE APPLIANCE:

• WITH WET OR MOIST HANDS;

• IF IT HAS FALLEN AND HAS OBVIOUS RUPTURES OR MALFUNCTIONS;
• IF THE PLUG OR POWER CORD DEFECTIVE;
• IN HUMID OR GAS SATURATED ENVIRONMENTS.
• DO NOT COVER THE APPLIANCE WITH TOWELS, CLOTHING, ETC.
• PLACE THE APPLIANCE ONLY ON HORIZONTAL AND STABLE SURFACES, AWAY FROM SHOWERS, BATHTUB, SINKS, ETC.
• IF THE APPLIANCE IS WET OF GETS IN CONTACT WITH WATER, DO NOT USE IT AND HAVE IT CHECKED BY A SPECIALISED LABORATORY.
• ALWAYS REMOVE THE MAINS PLUG FROM THE POWER SUPPLY IMMEDIATELY AFTER USE AND BEFORE PERFORMING ANY CLEANING OR MAINTENANCE WORK.
• REPAIRS SHOULD ONLY BE CARRIED OUT BY A QUALIFIED TECHNICIAN.
• REPAIRING THE APPLIANCE BY YOURSELF CAN

- CLEAN THE APPLIANCE USING A DAMP CLOTH. DO NOT USE SOLVENTS OR ABRASIVE DETERGENTS.

- THE APPLIANCE IS DESIGNED FOR DOMESTIC USE.

- DON'T USE THIS DEVICE NEAR ANY SOURCE OF WATER

- PAY PARTICULAR ATTENTION TO THE HANDS DURING THE ASSEMBLY OPERATIONS OF THE VARIOUS ACCESSORIES AND THE BOWL

- DO NOT USE OTHER ACCESSORIES BESIDES THOSE SUPPLIED

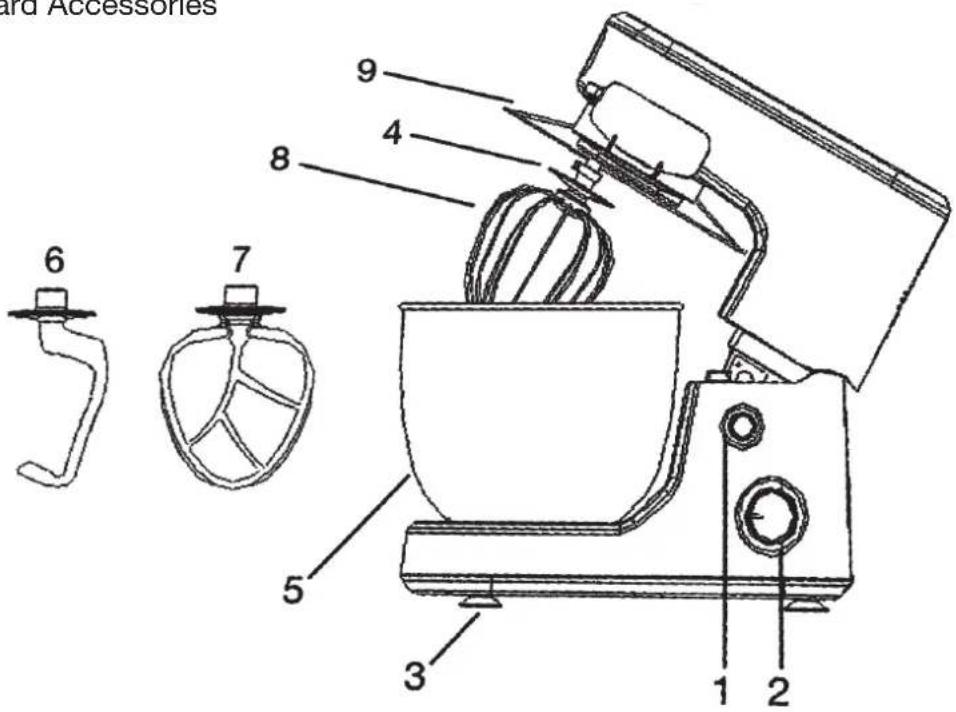

OVERVIEW OF THE COMPONENTS

Main Components and Standard Accessories

1. Lock switch knob
2. Speed knob
   1-Min-Mid-Max
3. Skid resistance foot
4. Blade connector
5. Stainless steel bowl
6. Dough hook
7. Beater
8. Egg whisk
9. Anti-spurt lid

BEFORE FIRST USE

Before assembling Stand Mixer, remove and safely put away any packaging material. Wash the mixing bowl, the beater, the dough hook and the whisk attachments in warm water with a soft cloth. Rinse and dry thoroughly.

ATTACHING THE MIXING BOWL

1. Place one hand on top of the Mixer Head and with the other hand turn the lock switch to lift the Mixer Head up until it stops. Release the switch. The Mixer Head will lock into the elevated position. It is now easy to place the mixing bowl.
2. Fit the bowl so that it aligns with the grooves in the appliance.
3. To lock the mixing bowl turn it as indicated: Make sure that the mixing bowl is securely locked in place.

INSERTING DOUGH HOOK/BEATER/WHISK

1. Align the chosen attachment so that the grooves on attachment align with the Attachment Shaft loca-ted under the Mixer Head. With some pressure, push the attachment towards the Mixer Head, compres-sing the Attachment Shaft spring upwards and turn the attachment. Make sure that the attachment is surely locked in place.

NOTE: It is important that the Dough Hook, the Beater or the Whisk attachment is securely locked into place on the Attachment Shaft or your Stand Mixer will not operate correctly.

REMOVING THE DOUGH HOOK/BEATER/WHISK

1. Lifting up the Mixer Head, then hold onto the assembled attachment. With some pressure, push the attachment towards the Mixer Head, compressing the Attachment Shaft spring upwards and turn the attachment. Pull the attachment out from the Attachment Shaft to remove it from the Mixer Head.

ATTACHING AND REMOVING THE ANTI-SPURT LID

1. Lift up the upper part of the Mixer Head until it locks into position.
2. Insert the anti-spurt lid onto the attachment holder.
3. Insert other attachment into the upper side of the mixer only after having fixed the lid.
4. Remove first the attachment and then the anti-spurt lid from the mixer after use.

OPERATION GUIDE

To mix or Knead dough:

• Flour and water at a ratio of 5:3.
  • Dry flour max: 600 g
• Speed MIN-MID (60/95 rpm) for minimum 60 seconds, until 5 minutes until the dough forms.

- When filling the mixing bowl, do not exceed the maximum quantity.

Whisking egg whites or cream

• Speed MAX (180 rpm), whisk the egg whites for about 5 minutes, according to the size of the eggs until solidification, at last 2 minutes.
  • Maximum quantity: 12 eggs.
  • Minimum quantity: 3 eggs.
• For whipping cream, whip 250ml fresh cream at speed MAX (180 rpm) for about 5 minutes.
• Do not exceed the maximum mixture quantity.

Mixing shakes, cocktails or other liquids

• Mix the ingredients according to the available recipe, speed MIN-MID (60/95 rpm) for about 5 minutes.
• Do not exceed the maximum quantity in the mixing bowl.
  • Maximum operating time 5 minutes.

ELECTRICAL REQUIREMENTS

Voltage/frequency: 220—240V \~50/60Hz 1000W

• Bowl capacity: 5 litres
• Never use this appliance constantly for more than 10 minutes!
• Re-Mark: The machine has 10 minutes automatically stop protection.
• The max operation time per time shall not exceed 10 minutes and minimum 40 minutes rest time must be maintained between 2 consecutive cycles

The wattage rating for your stand mixer is printed on a tag under the mixer base. It is also listed on the trim band. If the power cord is too short, have a qualified electrician or serviceman install an outlet near the appliance. The maximum rating is based on the attachment that draws the greatest load (power). Other recommended attachments may draw scanty less power.

CLEANING

Before cleaning, please ensure that the Switch knob is at the "0" position and that the plug has been disconnected from the socket.

After use, allow the appliance to cool down before you start to clean it. To clean the exterior of the appliance, use a soft cloth and soapy water.

When cleaning the interior and exterior cover do not use any abrasive detergents or alcohol-based cle-aning products.

To clean the appliance, never immerse it in water.

The dough beater and mixer beater are not dishwasher safe.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

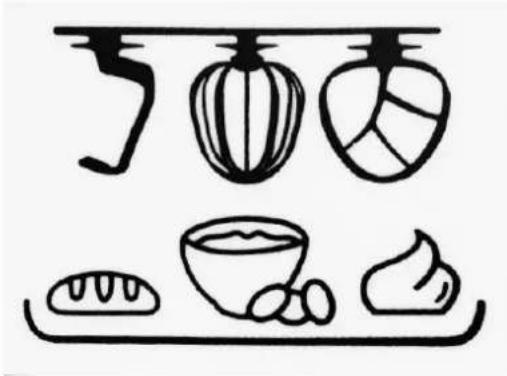

SYMBOLS ON PRODUCT

1 2 3

Ancient food icons including bread, onion, and fruit on a tray (no text or symbols)

1 Dough Hook

2 Egg Whisk

3 Beater

Silhouette of a mechanical device with an arrow indicating rotation or motion (no text or symbols)

Lock/Switch knob

Lock Bowl

TRATTAMENTO DEL DISPOSITIVO ELETTRICO ED ELETTRONICO A FINE VITA

Information for users about the correct disposal of the product according to the European Directive 2012/19/EU and to the Legislative Decree N. 49/2014.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to "separate collection".

Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product. The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!
