2415783 - Steam cleaner Kooper - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Kooper
Model	2415783
Dimensions (approx.)	30 x 20 x 15 cm
Weight	2 kg
Power Supply	220-240V ~ 50/60Hz
Power Consumption	1500W
Water Tank Capacity	1 liter
Heating Time	Approx. 30 seconds
Max Steam Pressure	3 bar
Steam Temperature	Up to 100°C
Main Functions	Floor cleaning, upholstery, window cleaning, kitchen degreasing
Accessories Included	Floor nozzle, detail nozzle, brush set, extension hose
Maintenance	Regular descaling with recommended descaler
Safety Features	Auto shut-off, pressure safety valve, lockable handle
Spare Parts Availability	Yes, through authorized service centers
Manual Availability	Free PDF download at notice-facile.com
Warranty	2 years (standard)
Country of Origin	China

Frequently Asked Questions - 2415783 Kooper

What type of water should I use in my Kooper 2415783 steam cleaner?

For best performance and to prevent limescale buildup, use distilled or demineralized water. Avoid using tap water if it is hard.

How do I descale the steam cleaner?

Descaling should be done every 3 months or as needed. Mix a descaling solution (vinegar or a commercial descaler) with water, fill the tank, heat, and run steam through until empty. Rinse thoroughly.

Can I use the steam cleaner on all floor types?

The steam cleaner is safe for sealed hardwood, tile, laminate, and vinyl floors. Do not use on unsealed wood or delicate surfaces.

What accessories come with the Kooper 2415783?

The package includes a floor nozzle, detail nozzle, brush set, extension hose, and a measuring cup.

How long does it take to heat up?

The steam cleaner heats up in approximately 30 seconds. The indicator light will turn on when ready.

Can I use cleaning chemicals in the steam cleaner?

No, only water. Adding chemicals may damage the unit and void the warranty. Steam alone is sufficient for most cleaning tasks.

How do I clean the nozzles?

After use, allow the nozzles to cool. Remove any debris with a soft brush. Soak in warm water if needed, then rinse and dry thoroughly.

What should I do if steam output is low?

First, check that the water tank is properly filled. Descale the unit if limescale is blocking the steam path. Ensure the nozzle is not clogged.

How do I store the steam cleaner?

Allow the device to cool completely. Empty the water tank. Store in a dry place, preferably with the attachments secured and the cord wrapped.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in multiple languages, including English, French, Italian, and more.

USER MANUAL 2415783 Kooper

Vaporix

FIG. 4

FIG. 5 FIG. 6 FIG. 7

FIG. 8 FIG. 9 FIG. 10

GENERAL SAFETY INSTRUCTIONS

RISK FOR CHILDREN!

• A POWER DEVICE IS NOT A TOY. AFTER USE, STORE IT OUT OF REACH OF CHILDREN. KEEP PACKING MATERIAL (PLASTIC BAGS, CARTON, ETC.) OUT OF REACH OF CHILDREN.
• THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED. KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.
• CHILDREN SHOULD BE SUPERVISED TO MAKE SURE THEY DO NOT PLAY WITH THE APPLIANCE.

RISK OF INJURY!

• TO AVOID INJURIES, DO NOT INTRODUCE YOUR HANDS IN THE MACHINE WHILE IT IS OPERATING AND KEEP AWAY HAIR, CLOTHES AND OTHER OBJECTS.
• SWITCH OFF AND UNPLUG THE APPLIANCE BEFORE CHANGING THE ACCESSORIES! DO NOT CONNECT THE PLUG TO THE POWER SOCKET IF THE NECESSARY ACCESSORIES ARE NOT INSTALLED.
• NEVER TOUCH THE MOVING PARTS OF THE APPLIANCE AND ALWAYS WAIT FOR THE APPLIANCE TO STOP COMPLETELY.

RISK OF ELECTRIC SHOCK!

• THIS APPLIANCE IS INTENDED TO WORK ONLY WITH AC. BEFORE OPERATING, MAKE SURE THAT MAINS VOLTAGE RATING CORRESPONDS TO THE VALUE INDICATED ON THE RATING PLATE OF THE PRODUCT.
• CONNECT THE APPLIANCE ONLY TO OUTLETS WITH A MINIMUM ELECTRIC

CURRENT OF 10 AMPERE.

• DO NOT PULL THE POWER CORD OR THE APPLIANCE ITSELF IN ORDER TO UNPLUG IT FROM THE OUTLET.
• UNWIND COMPLETELY THE POWER CORD BEFORE SWITCHING ON THE APPLIANCE.
• USE AN EXTENSION CORD ONLY IF IT IS IN PERFECT CONDITIONS.
• DO NOT LET THE CORD HANG OVER SHARP EDGES. DO NOT SQUASH IT.
• DO NOT LET THE APPLIANCE EXPOSED TO THE WEATHER (RAIN, FREE-ZING, SUN, ETC).
  • NEVER USE THE APPLIANCE:

O WITH WET OR DAMP HANDS;

O IF IT HAS FALLEN AND IT CLEARLY BROKE OR DOESN'T WORK PROPERLY;

O IN CASE OF FAULTY PLUG OR POWER CORD;

O IN PRESENCE OF HUMIDITY OR GAS.

• NEVER COVER THE APPLIANCE WITH TOWELS, CLOTHES, ETC.
• PLACE THE APPLIANCE ONLY ON HORIZONTAL AND STABLE SURFACES, FAR FROM SHOWERS, BATHTUBS, SINKS, ETC.
• HOWEVER, IF THE APPLIANCE FALLS INTO THE WATER, UNPLUG IT IMMEDIATELY AND TAKE IT ONLY AFTERWARDS. IN THIS CASE, STOP USING THE APPLIANCE AND HAVE IT CHECKED BY QUALIFI ED PERSONNEL.
• ONLY OPERATE THE APPLIANCE IN VERTICAL POSITION.
• ALWAYS UNPLUG FROM THE MAINS SUPPLY IMMEDIATELY AFTER THE USE AND BEFORE ANY CLEANING OR MAINTENANCE OPERATION.
• THE APPLIANCE MAY ONLY BE REPAIRED BY A SPECIALIZED TECHNICIAN.
• REPAIRING THE APPLIANCE BY YOURSELF MIGHT BE EXTREMELY DANGEROUS.
• ALWAYS CUT THE POWER CORD OF A BROKEN UNIT IN ORDER TO MAKE IT UNUSABLE BEFORE THROWING IT AWAY.
• CLEAN THE APPLIANCE WITH A DAMP CLOTH AFTER IT COOLED DOWN. DO NOT USE SOLVENTS OR ABRASIVE PRODUCTS.
• THE APPLIANCE IS INTENDED ONLY FOR HOME USE. IT CAN ONLY BE USED INDOOR.
• THIS APPLIANCE CANNOT BE USED FOR COMMERCIAL PURPOSES.

Your Carrefour steam generator is distinguished by an innovative design and several key features added an enjoyable use.

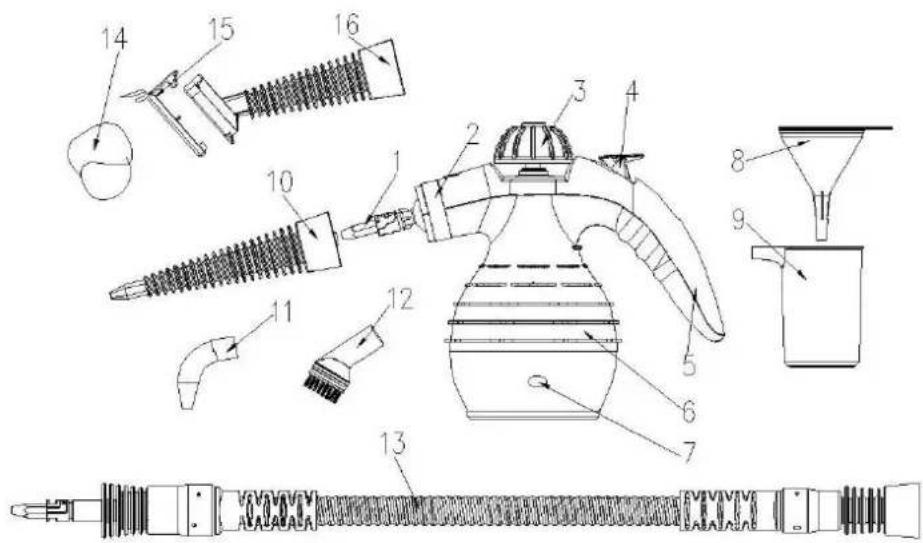

1. Cardan Joint

2. Lock Ring

3. Safety valve

4. Button

5. Handle

6. Body Cover

7. Indicator light

8. Funnel

9. Measuring cup

10. Long spray nozzle

11. Bent Spray nozzle

12. Round brush nozzle

13. Extended spray nozzle

14. Towel sleeve

15. Window spray nozzle

16. General spray nozzle

WARNINGS AND SAFETY PRECAUTIONS

This icon represents "Prohibition"

This icon represents "Warning"

	1. Do not allow children to use this machine independently or little children to be too near to this machine when no adults attend to them.
	2. To prevent electrical shock, do not immerse power cord or power plug in water or other liquids.
	3. The power cord and power plug should be in good condition and must not be damaged. Damaged or defective power cord and power plug must not be used and should be repaired at appointed service center.
	4. This product is for only use in households and must not be used for industrial applications.
	5. Do not turn on power supply until the tank is full of water.
	6. Used power supply should comply with the product requirements of the manufacturer.
	7. During operation, the tank mouth must be plugged hermetically and safety cap should be tightened in position.
	8. A socket with special earthed wire must be used.
	9. In use, the machine body must not be inclined at more than 45 degrees, otherwise boiling water will be sprayed out together with steam.
	10. Do not direct the steam towards persons, animals or other electrical products.
	11. Before refilling water, ensure to unplug the power cord to disconnect power supply. It is necessary to unplug the power cord after the machine is used, before it is cleaned and while it is repaired.
	12. Do not add any rust remover, odor-counteracting agent, alcohol and detergent into the tank, which will possibly cause damage to the tank.

IMPORTANT: never overfill the tank, otherwise the steam generation will be affected or too high steam pressure will be caused.

1. The appliance in not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
2. Children should be supervised to ensure that they do not play with the appliance. The filling aperture must not be opened during use.
3. WARNING: Danger of scalding.

QUICK START GUIDE

The steam cleaner is designed for cleaning bathrooms, toilets, kitchens, glass and mirrors, as well as most other smooth surfaces. Hot steam cleans as it dissolves oily and greasy substances. Before first use, the unit should be cleaned as described in General care and cleaning.

FUNZIONAMENTO

Accessories

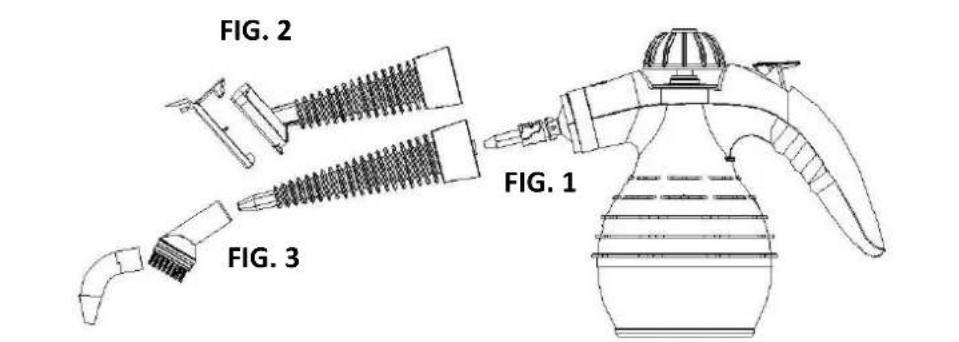

1. Take out the long spray nozzle, general spray nozzle and extended spray nozzle on [Fig 1].
2. Install the round brush nozzle and bent spray nozzle onto [Fig 3].
3. The window spray nozzle shall be installed on [Fig 2].

USE

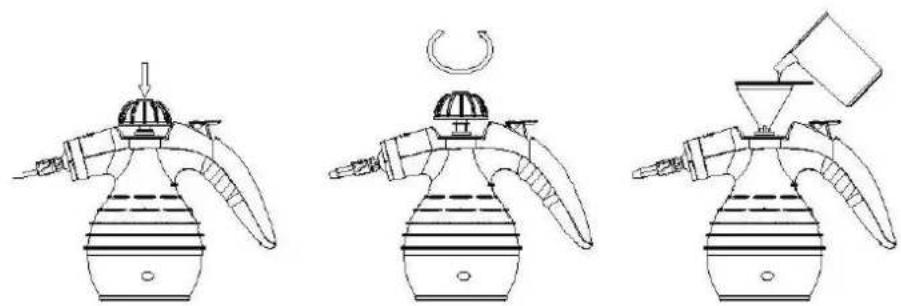

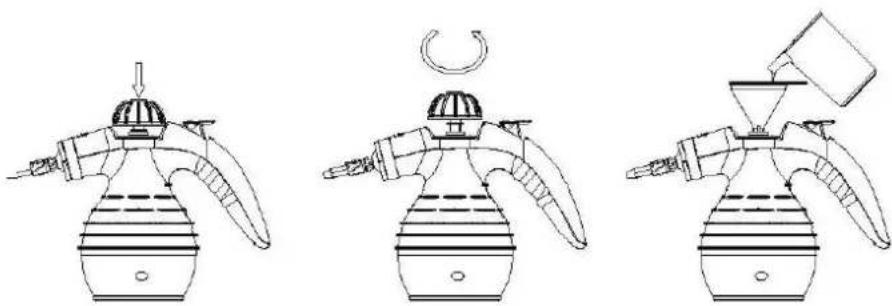

1. Unscrew the safety valve (3), and then add water by funnel (we advice to use pure water), the max capacity is 175ml. Finally, screw on the safety valve. Do not open the safety valve when using the appliance. You could only turn on the safety valve when power is cut and the appliance is completely cooled down. [Fig 5] [Fig 6] [Fig 7].
2. Switch on power supply, the indicator light (7) turns on and the machine immediately starts heating process. When it heats to specified temperature (about 3 min), the indicator light (7) will turn off, press the steam button, and steam will be sprayed out slowly. So the machine is easy to operate.

With complete cleaning accessories supplied, the machine can be assembled and disassembled easily. It can be used to clean the doors, windows, floor boards and clothes, and thus is applicable widely.

AFTER USE

After your use, please put rest water out of boiler and unplug the power cable.

MAINTENANCE AND CLEANING

According to the functions of various series of steam cleaner, in order to increase its life-span, users must follow the daily maintenance and maintenance way.

1. Correctly use the product according to the instruction. After each use, pick up the power cord.

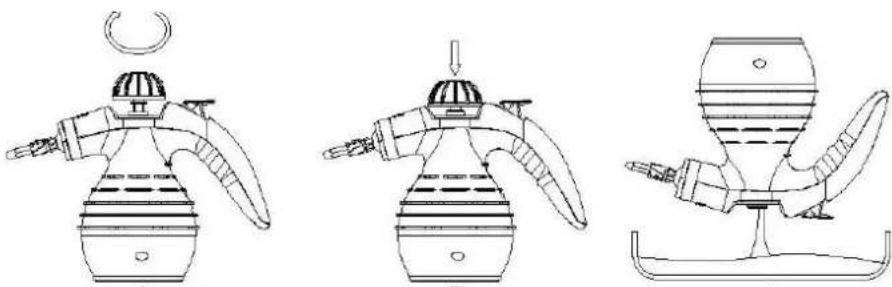

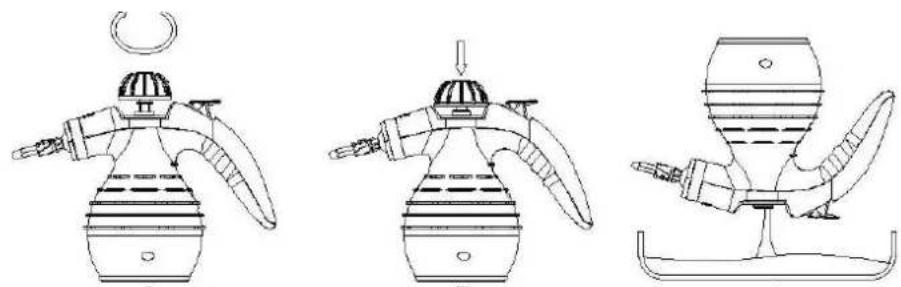

2. After the appliance has completely cooled down, unscrew the safety valve and pour rest water out of the boiler. Clean and dry the boiler [Fig 10].
3. Put all components which had been cleaned into the carton in sequence. Then store it in a ventilated and dry place.

ECO-ADVICES

Type of water to use

You can use normal tap water to fill the tank. However, especially if the water of your city is very hard, we advise you to mix it with distilled water or use distilled water only. We advise you to empty the boiler after use in order to not create limestone inside the boiler. Do not add anything to the contents of the boiler and do not use water from clothes dryers, scented or softened water, water from refrigerators, batteries or air conditioners and rain water. These contain organic waste or mineral elements that become concentrated when heated and cause spitting, brown staining or premature wear to the boiler. The Use of these types of water will negate the guarantee provided with the product.

Steam cleaner cleaning

Clean often the steam cleaner following the instructions of the Maintenance and cleaning chapter.in order to keep the function performance. We advise you to never use abrasive sponge to clean your steam cleaner. Clean fully your steam cleaner after every 10 uses.

FIG. 4

FIG. 5 FIG. 6 FIG. 7

FIG. 8 FIG. 9 FIG. 10

TROUBLE SHOOTING

N° PROBLEM POSSIBLE REASONS SOLUTIONS
1 There is no steam	1) No power2) Use the unit without water filled	1) Verify that the socket outlet is operating and if plug in already2) Fill water (see USE)
2 There is not enough steam	1) Voltage is too low or not stable enough2) Water level may be low	1) Verify that the socket outlet is operating and if plug in already2) Fill water (see USE)
3 Straight nozzle drips water	1) Fill too much water2) Unit incline too much	1) Pour out some water.The max capacity is 350ml2) Don't incline unit too much when operation
4 Pre-heating time is too long	Voltage is too low or not stable enough	Verify that the socket outlet is operating and if plug in already

TECHNICAL SPECIFICATIONS

Input voltage : 220-240V\~ 50Hz

Power : 1050W

Water capacity: 350 ml

Steam rate : 25-30 g/min

Pressure : 3.5 bars

TRATTAMENTO DEL DISPOSITIVO ELETTRICO ED ELETTRONICO A FINE VITA

Information for users about the correct disposal of the product according to the European Directive 2012/19/EU and to the Legislative Decree N. 49/2014.

Dear Customer,

It is important to remind you that, as a good citizen, you cannot dispose of this product as municipal waste; you have to do a separate collection.

The symbol labelled on the appliance indicates that the rubbish is subject to “separate collection”.

Electrical and electronic appliance cannot be considered as domestic waste. Therefore, at the end of its useful life, this product should not be disposed with municipal wastes. The user must therefore assign or (have collected) the rubbish to a treatment facility under local administration, or hand it over to the reseller in exchange for an equivalent new product. The separate collection of the rubbish and the successive treatment, recycling and disposal operations promote production of appliances made with recycled materials and reduce negative effects on health and the environment caused by improper treatment of rubbish.

Thank you!
