USER MANUAL ORP 65 VG Orima

Black-and-white photo of a young girl holding a small object with a glowing light (no text or symbols visible)

Black-and-white portrait of a person with short hair and headband, no visible text or symbols

Woman pointing with a smoke trail, wearing a white shirt (no text or symbols visible)

Black-and-white photo of a smiling woman holding a glass, no visible text or symbols

Black-and-white close-up of a smiling person with hands clasped in front of fluffy white foam bubbles (no text or symbols visible)

desde 1970 A Crescer Consigo!

Black-and-white photo of a woman sitting on a bench outdoors under a cloudy sky (no text or symbols visible)

Orima®

electrodomésticos

MANUAL DE INSTRUÇÕES INSTRUCTION MANUAL

PLACA DE ENCASTRE

Built-in Hob

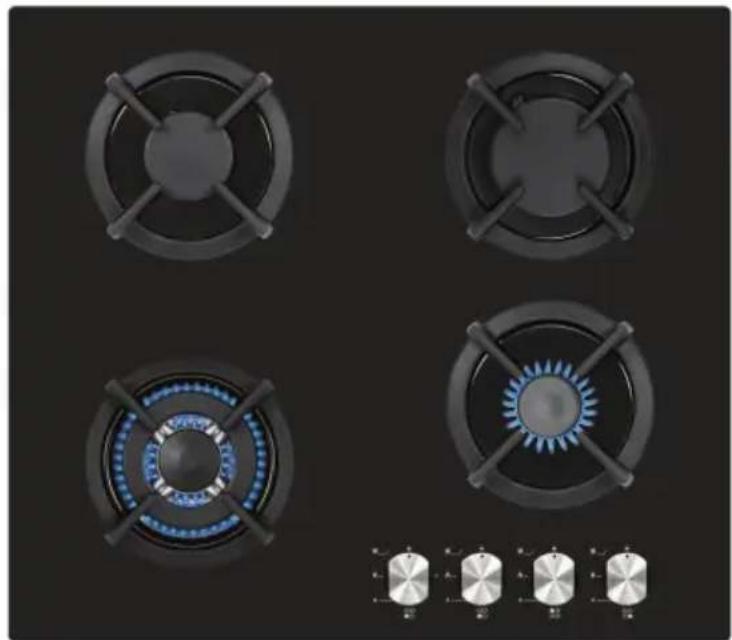

Four identical gas stove flares with blue flames and cross-shaped cutouts, shown from top-down perspective (no text or symbols on the flares themselves)

ORP 65 VG

Our objective is to make this product provide you with the best output which is manufactured in our modern facilities in a careful working environment, in compliance with total quality concept.

Therefore, we suggest you to read the user manual carefully before using the product and, keep it permanently at your disposal.

Note: This user manual is prepared for more than one model. Some of the features specified in the Manual may not be available in your appliance.

All our appliances are only for domestic use, not for commercial use.

"Conforms with the WEEE Regulations."

CONTENTS

Important Warnings 4

Introduction Of The Appliance 6

Control Panel 7

Electrical Connection Scheme 7

Important Warnings 8

Setting Gas Cooktops As Per Gas Type 10

If Built-In Oven Is Placed Under Cooktop 11

Installation Of Cookstop 11

Counter Cutting Sizes And Installation Of Your Cooktop 13

Correct Place For Installation 14

Ventilation Of Room 14

Transformation From Natural Gas To Lpg And

From Lpg To Natural Gas 15

Gas Breaking Safety Appliance (Ffd) 15

Usage Of Your Cooktop 16

Maintenance And Cleaning 18

Troubles And Solution Proposals 19

Environmentally-Friendly Disposal And

Package Information 20

IMPORTANT WARNINGS

1. WARNING: Before touching the connection terminals, all supply circuit should be disconnected.
2. WARNING: Any inadvertent cooking made with fats and oils can be dangerous and cause fire.
3. WARNING: Risk of fire; do not store the food materials on the cooking surface.
4. WARNING: During usage the reachable sections can be hot. Keep the small children away.
5. WARNING: The appliance and its reachable sections become hot during usage.
6. The setting conditions of this appliance is indicated on the label. (Or data tag)
7. This appliance is not connected to a combustion product discharge system. This appliance shall be connected and installed as per the applicable installation legislation. Consider the requirements related with ventilation.
8. Using a gas hob will release humidity and combustion products in the room where it resides. Especially during when the appliance in use, ensure that the kitchen is well ventilated and retain the natural ventilation holes or install a mechanical ventilation system. (Hood on top of the oven) Sustained usage of the appliance may require additional ventilation. For example opening a window or if available, increasing the ventilation level of a mechanical ventilation system.
9. WARNING: The appliance is intended for cooking only. It must not be used for other purposes like room heating.

GB

1. This appliance should be installed as per regulations and in well-ventilated location only. Read the instructions before installing or operating the appliance."
2. Before placing the appliance check the local conditions (gas type and gas pressure) and ensure that the settings of the appliance is appropriate.
3. These instructions are applicable for countries of which symbols are indicated on the appliance. If the country symbol is not available on the appliance, in order to adapt the appliance to the conditions of such country, the technical instructions should be read.”
4. Do not operate the system for more that 15 seconds. If the burner does not ignite at the end of 15 seconds stop the operation of the system and open the section door and/or wait for at least 1 minute before igniting the burner.
5. Do not use steam cleaners to clean the appliance.
6. NEVER try to extinguish a fire with water, first disconnect the mains supply and then using, for example a lid or blanket, cover the fire.
7. Unless continuous supervision is provided, the children of age 8 or below should be kept away.
8. Pay attention for not to touch the heating elements.
9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

INTRODUCTION OF THE APPLIANCE

1 2 3 4 5 6 7

8

Pure geometric X-shaped line drawing without any text, numbers, or symbols

9

Pure line drawing of two decorative or ornamental shapes with no text, numbers, or symbols

10

Isometric line drawing of a mechanical or architectural component with symmetrical slots and protrusions (no text or symbols)

Technical line drawing of a rectangular metal tray with multiple slots and handles (no text or symbols)

12

1 - Burner positions
2- Glass or Metal Surface
3- Control Buttons
4- Small Burner
5- Medium Burner
6- Large Burner

7 - WOK Burner
8- Hotplate
9- Coffee Adaptor
10-Wok Burner Adaptor

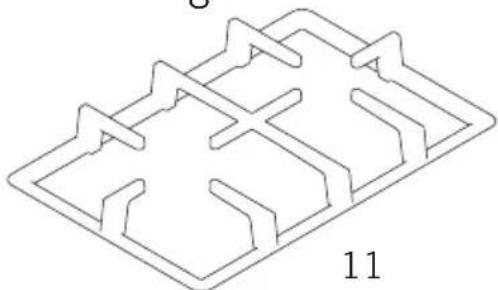

11- Cast Grill

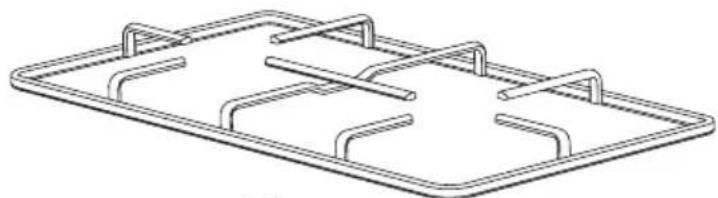

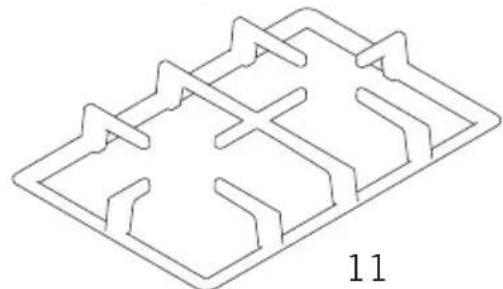

12- Enamel Grill

CONTROL PANEL


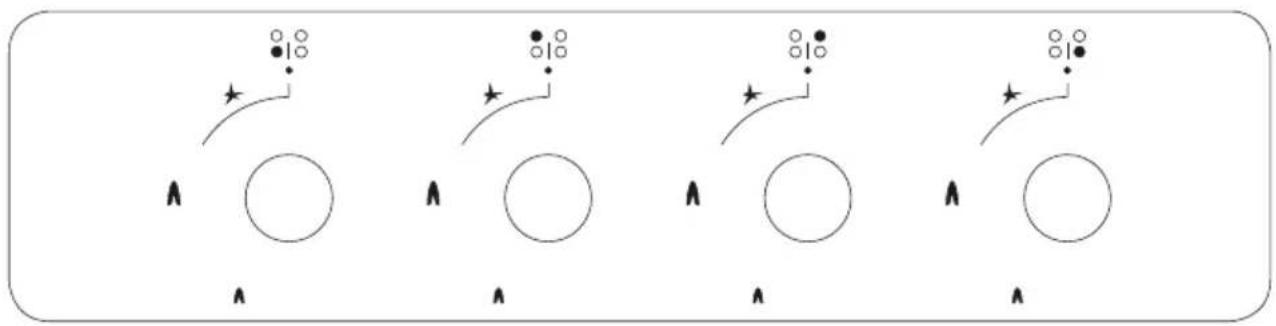

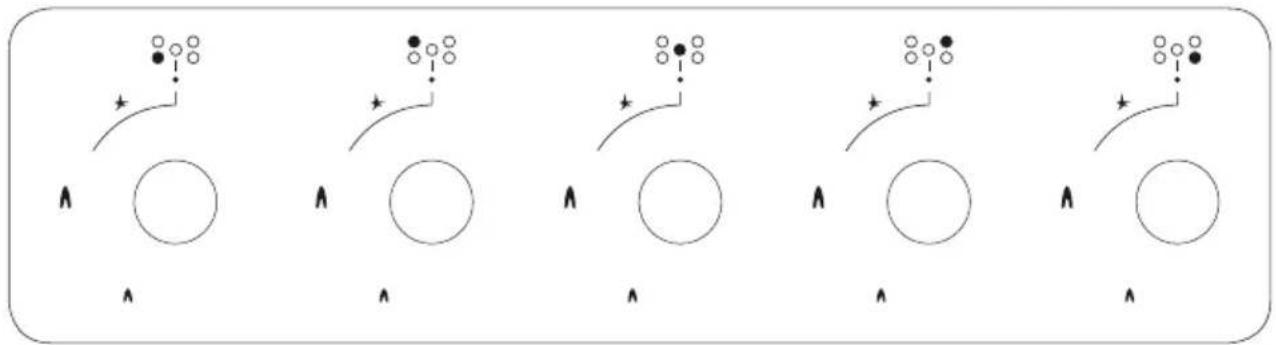

Cooktop Panel Visual of 70-90 cm and 100 cm

Four identical diagrams showing circular shapes with arrows and dots, no text or symbols present

Cooktop Panel Visual of 60 cm

Three identical diagrams showing circles with arrows and dots, no text or symbols present

Cooktop Panel Visual of 45 cm

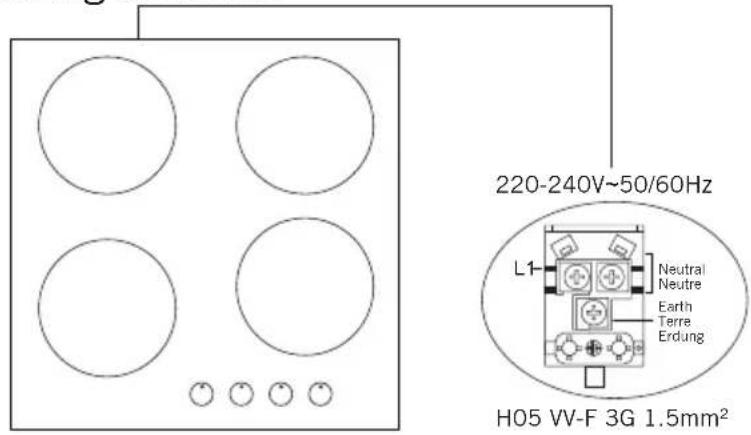

ELECTRICAL CONNECTION SCHEME

Get electrical connection of your appliance done to authorized person in line with the following scheme.

220-240V~50/60Hz L1- Neutral Neutre Earth Terre Erdung H05 VV-F 3G 1.5mm²

IMPORTANT WARNINGS

Electrical Connection and Safety

1. Setting conditions of this appliance is indicated in tag or data plate.
2. This appliance is not connected to any discharging apparatus of burning products. It should be connected and installed according to applicable assembly regulation.
3. Great attention should be paid on ventilation related conditions.
4. Your appliance should be connected to an appropriate fuse according to electric power. If necessary, it is recommended that connection is made by authorized service.
5. Your appliance is configured in accordance with electrical supply of 220-240V AC/380-415V3N AC 50/60Hz.
6. If main electrical network is different from these values, contact with your authorized service.
7. Electrical connections of your appliance should only be made to the fuses having suitably wired grounding (grounded) system. If no convenient fuse is available in the place where your appliance is to be installed, contact with authorized service immediately. Manufacturing firm is not responsible definitely for the damages that fuses whose grounding is not made and connected to the appliance can cause.
8. Plug of the appliance should be close to be accessed easily to the fuse whose grounding is made without use of extension cord.
9. Do not allow contacting the power cable of your appliance with hot regions. Similarly, keep away it from sharp edges and corners.
10. If feeder cord is damaged, this cord should be replaced either by manufacturer or its service agency or same degree qualified personnel in order to hinder a dangerous situation.
11. Wrong electrical connection may give damage to the appliance. In this case, your appliance will remain out of guarantee scope. Electrical connection of your appliance should be done by authorized service.
12. During operation of cooktop, some parts may be hot. When you also bring switches closed position, it may remain hot for a while. Children should be kept away every time and not be left without observation. Do not touch surface of cooktop while warning lights flashes. When you bring your appliance closed position, hot parts being still dangerous are stated with warning lights. (Vitroceran models).

Gas Connection and Safety

1. For LPG (cylinder) connection, affix metal clamp on the hose coming from LPG cylinder. Affix an edge of the hose on hose inlet connector behind the appliance by pushing to end through heating the hose in boiled water. Afterward, bring the clamp towards end section of the hose and tighten it with screwdriver. The gasket and hose inlet connector required for connection is as the picture shown below.

Main Gas Pipe Gasket Hose Inlet Connector Metal Clamp Lpg Connection Hose

NOTE: The regulator to be affixed on LPG cylinder should have 300 mmSS feature.

Main Gas Pipe Gasket Nut Natural Gas Connection Hose

1. Natural gas connection should be done by authorized service. For natural gas connection, place gasket in the nut at the edge of natural gas connection hose. To install the hose on main gas pipe, turn the nut. Complete the connection by making gas leakage control.

Warning symbol image with exclamation mark inside triangle

Gas hose and electric connection of the appliance should not pass next to hot areas such as back of the appliance. Gas hose should be connected by making wide angle turns against breaking possibility. Movement of appliance whose gas connection is made may cause gas leakage.

Diagram showing four different U-shaped pipe fittings with checkmarks indicating correct and incorrect states.

True False True True

GB

1. Connect your appliance to gas cock from the shortest way and in a manner to prevent any leakage. For safety, the hose used should be maximum 125 cm and minimum 40 cm.
2. While making gas leakage control; never use lighter, match, glowing cigarette or similar inflammable matter.
3. Apply soap bubble on connection point. If any leak/leakage exists, foaming will occur on soaped region.
4. If the cooktop is to be mounted on a cabinet or openable drawer, a heat protection panel having 15 mm minimum opening should be mounted under the cooktop.

Gas type (LPG or natural gas) that your appliance is manufactured for is stated in the label found behind the product and that show technical features. If gas setting of your appliance is not the same as gas setting of your network, it should be adjusted by making change by an expert person. In the following table, injector, gas flow and power values of appliance is given according to gas type.

		LPG (Cylinder)G30-30 mbar		Natural gasG20-20 mbar
Large Burner	Injector mm	0.85 mm	1.15
	Gas Flow g/h	198 g/h	0.263
	Power kW	2.75 kW	2.75
Wok Burner	Injector mm	0.96 mm	1.30
	Gas Flow g/h	259.20 g/h	0.300
	Power kW	3.60 kW	3.35
Medium Burner	Injector mm	0.65 mm	0.97
	Gas Flow g/h	115.20 g/h	0.165
	Power kW	1.60 kW	1.70
Small Burner	Injector mm	0.50 mm	0.72
	Gas Flow g/h	64.80 g/h	0.086
	Power kW	0.90 kW	0.90

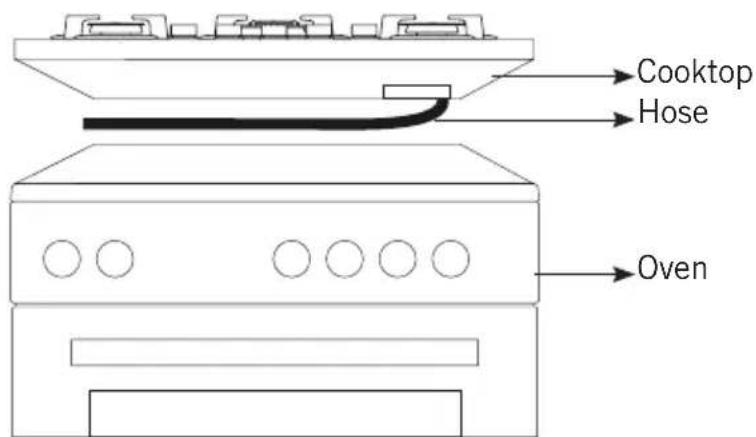

IF BUILT-IN OVEN IS PLACED UNDER COOKTOP;

Cooktop Hose Oven

Figure 1

Gas pipe should be affixed in a way not to touch the oven below, sharp edges and corners, not to be pulled in a manner to be twisted and strained. Make gas connection from right part of the cooktop, fasten the hose by use of clamp.

INSTALLATION OF COOKSTOP

1. Detach the burners, burner hoods and grills from the product.
2. Turn the cooktop down and place on smooth ground.
3. In order to prevent entrance of foreign substances and liquids between cooktop and counter, apply the paste given in package to the sides of lower guard of counter. For corners, curl paste and increase curls till filling corner gaps.
4. Turn cooktop again and align with and place on counter.

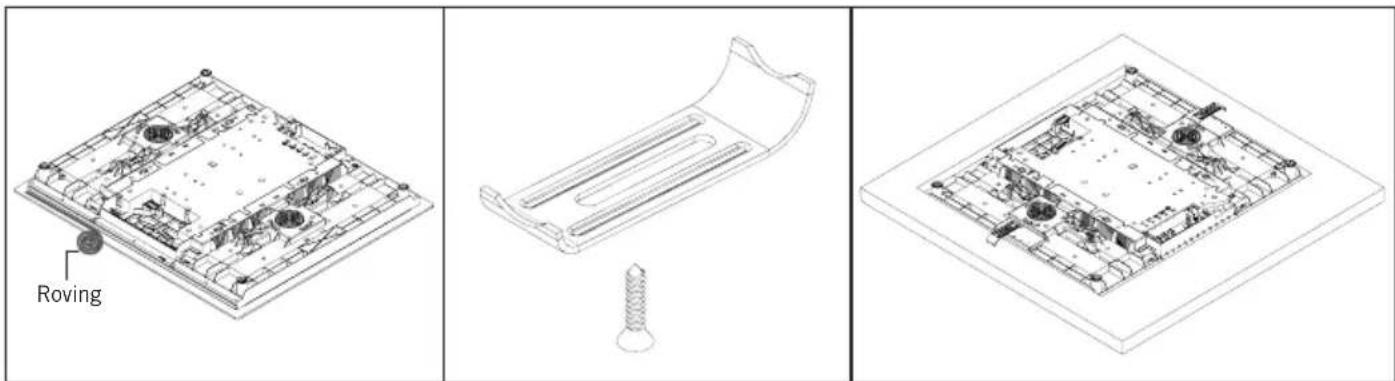

5. Fasten up your cooktop on counter by using the clamp and screws supplied.

On the assembly chart given in next page, it is shown how to assemble your cooktop.

GB

Roving

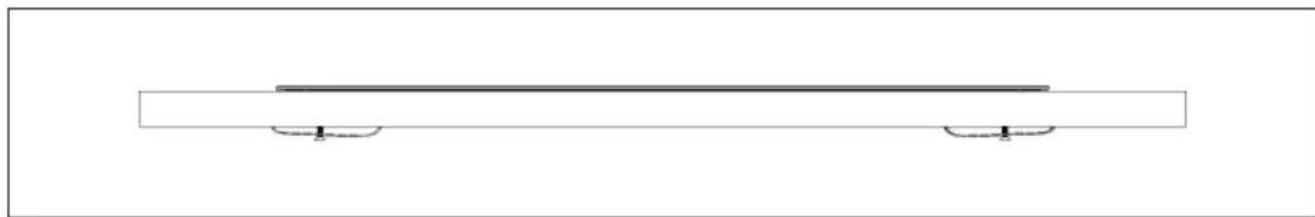

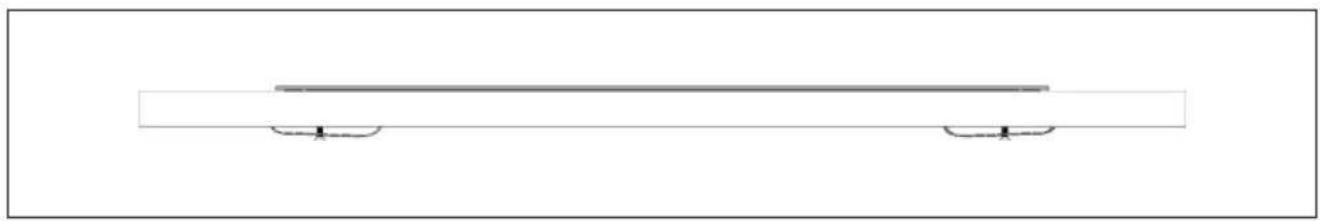

Technical line drawings of a heating appliance assembly, showing internal components and exterior view (no text or symbols)

Pure diagram of a horizontal beam with two supports at one end, no text or symbols present

Figure 2

1. When product is mounted on a drawer, if it is possible to touch lower side of product, this section should be separated with a wooden shelf.

min. 30 cm Figure 3

1. While mounting cooktop on a closet, as shown in the figure above, in order to separate between closet and cooktop, a shelf should be mounted. If it is mounted on a built-in oven, there is no need to do that.
2. If your cooktop will be mounted next to right or left wall, the minimum distance between wall and cooktop should be 50 mm.

COUNTER CUTTING SIZES AND INSTALLATION OF YOUR COOKTOP

Pay attention to the drawings and dimensions given below while making cooktop installation and adjusting counter cutting sizes.

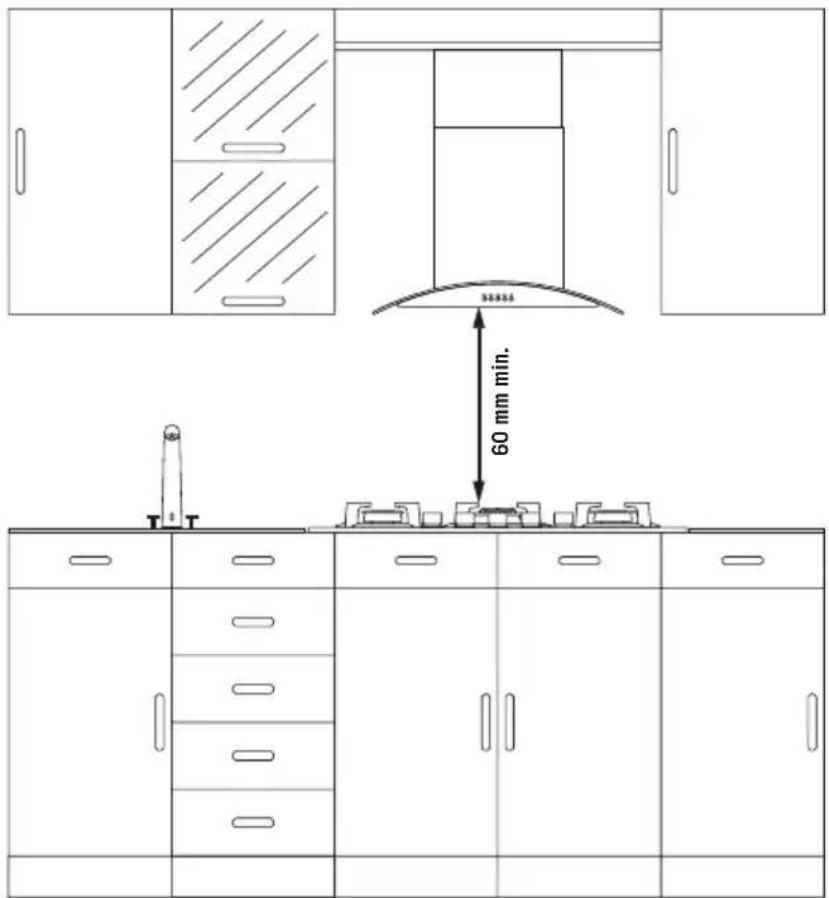

CORRECT PLACE FOR INSTALLATION

60 mm min.

Product is designed in accordance with the kitchen counters supplied from market. A safe distance should be left between the product and kitchen walls and furniture.

If hood/aspirator will be installed over your appliance, obey to the recommendation of hood/aspirator manufacturer for assembly height. (min. 60 cm)

The gap that cooktop is to be placed on the counter should be cut in line with cooktop installation dimensions.

For installation of the product, the rules specified in local standards related to electricity should be complied.

VENTILATION OF ROOM

The air needed for burning is received from room air and the gases emitted are given directly in room. For safe operation of your product, good room ventilation is a precondition. If no window or room to be utilized for room ventilation is available, additional ventilation should be installed. However, room has a door opening outside, it is no needed to vent holes.

Room Size Ventilating Opening

Smaller than 5m3 min. 100 cm2

Between 5 m3- 10 m3 min. 50 cm2

Bigger than 10m3 no need

In basement or cellar min. 65 cm2

TRANSFORMATION FROM NATURAL GAS TO LPG AND FROM LPG TO NATURAL GAS

1. Turn off gas and electricity of the cooktop. If your cooktop is hot, wait for cooling down.
2. For injector change, use a screwdriver whose edge is as the Figure 4.
3. As seen in Figure 5, demount burner lid and burner of the cooktop and ensure visibility of injector.
4. Remove injector by turning as shown in Figure 6 with screwdriver and replace it with a new one.

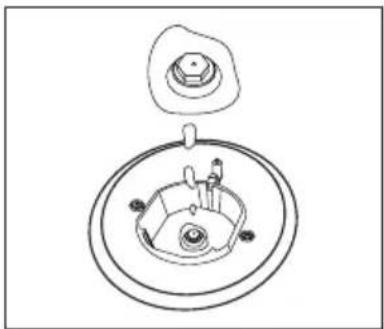

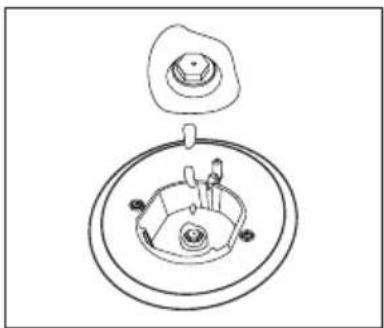

Technical line drawings of a mechanical component with three views: top view, side view, and bottom view (no text or symbols)

Figure 4 Figure 5 Figure 6

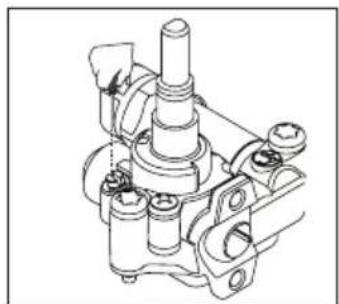

1. After that, detach control switches of the cooktop. Make setting by turning the screw in the middle of gas cocks with a small screwdriver in the manner shown in the following picture. To adjust flow rate screw, use a screwdriver having suitable dimension. For LPG, turn the screw clockwise. For natural gas, turn the screw one time counter clockwise. At low position, length of normal flame should be 6-7 mm. For the last control, check out whether flame is open or closed.

Setting of your appliance may differ according to the type of gas cock used.

Technical line drawing of a mechanical component with three cylindrical parts and a lever (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 7 Figure 8

GAS BREAKING SAFETY APPLIANCE (FFD)

Against putting out to be taken place as a result of liquid overflow at upper burners, safety appliance steps in and cut gas immediately.

FFD

Figure 9

USAGE OF YOUR COOKTOP Usage of Gas Cooktop

1. Before starting to use your cooktop, be sure burner hoods are at correct position. Correct placement of burner hoods are shown in the following figure.

gure 11

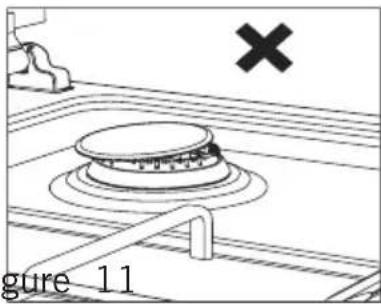

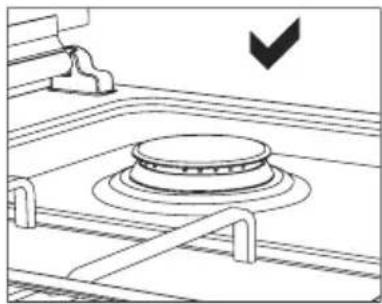

Figure 10 Figure 11

Line drawing of a gas stove interior with a circular vent and a downward arrow indicating cooling (no text or symbols)

1. Gas cocks have a special locking mechanism. Therefore, to operate cooktop zone, press button by pushing ahead and while opening or closing the cock, hold down the button.

- Closed

Fully open

Half open

1. For automatic igniting models, igniting is realized via electricity. Therefore, before operating appliance, be sure that appliance has electric connection. Igniting for these models is as follows.

Cooktop cock is at closed position.

Line drawing of a hand holding a circular object with directional arrows indicating motion (no text or symbols)

To ignite cook- top, firstly press the button towards ahead.

Hand holding a circular object with motion arrows indicating rotation (no text or symbols)

While holding down the button, lighter steps in and starts to ignition.

Hand holding a circular object with motion arrows indicating rotation (no text or symbols)

By turning the button right while holding down, you can provide ignition at flame length you want.

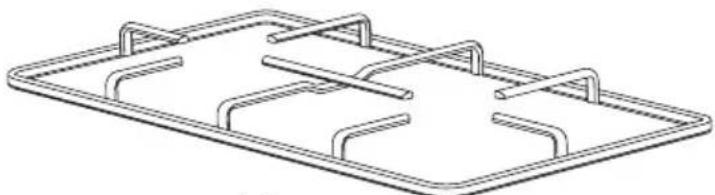

1. Pay attention that cooktop grills are placed on cooktop table completely. In case of failure about this matter can cause pouring of the materials to be put on that.

2. For the models having gas putting out safety, following realizing ignition procedure according to the guidelines above, wait for 5-10 seconds by pushing button ahead without keeping your hands off. Safety mechanism will step in this duration and ensures operation of the cooktop. With regard to gas putting out appliance, gas cock cuts the gas going to cooktop zone in case of putting out of cooktop flame due to any reason.

3. While using coffee pot apparatus supplied along with the cooktop, be sure that foots of apparatus are placed on cooktop grill exactly and remain on cooktop zone in centred way. Use the apparatus only on small burner.
4. While utilizing gas cooktops, use saucepan, placed on cooktop surface as far as possible. Thanks to that, you can save energy. In the following table, cooking pot diameters recommended to be used as per burners are given. Characteristic of Wok cooktop zone is to cook quickly.

WOK Burner 24-28cm

Big Burner 22-26cm

Middle Burner 28-22cm

Small Burner 12-18cm

Cooking pot to be used with products should have minimum 120 mm. diameter.

Wok Burner

Technical line drawing of a mechanical component with concentric rings and mounting brackets (no text or symbols)

Figure 12

As it possesses double ring flame system, it gives homogenous heat distribution at the bottom of cooking pot at high temperature. It is ideal for short term and high temperature cooking. When you want to use regular cooking pot on wok burner, it is necessary that you remove wok cooking pot carrier from cooktop.

Usage of Hotplate

You can operate electric cooktops by turning the button on control panel you want to use to the level you desire. Cooktop powers as per levels are given in the following table.

	LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6
80mm	200W 250W 450W --- --- ---
145mm	250W 750W 1000W --- --- ---
180mm	500W 750W 1500W --- --- ---
145mm Rapid	500W 1000W 1500W --- --- ---
180mm Rapid	850W 1150W 2000W --- --- ---
145mm	95W 155W 250W 400W 750W 1000W
180mm	115W 175W 250W 600W 850W 1500W
145mm Rapid	135W 165W 250W 500W 750W 1500W
180mm Rapid	175W 220W 300W 850W 1150W 2000W

MAINTENANCE AND CLEANING

Before starting to maintenance or cleaning, firstly unplug the plug supplying electricity to cooktop and turn off gas valve. If cooktop is hot, wait for cooling down.

1. For the purpose that your cooktop has long and economic life, regular cleaning and maintenance should be performed on your cooktop.
2. Do not clean your cooktop with scratching tools such as bristle brush, wire wool or knife. Do not use abrasive, scratching, acid materials or detergent.
3. Following mopping parts of your cooktop with soapy cloth, rinse it, later rinse well with a soft cloth.
4. Clean glass surfaces with special glass cleaning substances. As scratching of glass surfaces leads to breaking, while cleaning glass surfaces, do not use abrasive cleaners or sharp metal scrapers.
5. Do not clean your cooktop with steamy cleaners.

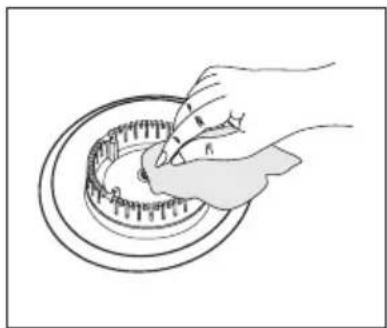

6. Clean channels and lids of cooktop zones with soapy water and clean gas channels with a brush.
7. In the course of cleaning your cooktop, never use flammable materials such as acid, thinner and gas.
8. Do not wash plastic and aluminium parts of your cooktop in dishwasher.

GB

1. Clean vinegar, lemon, salt, coke and similar acid and alkaline containing substances poured on your cooktop immediately.
2. In time, cooktop buttons turns hard or never turn any more, in such circumstances, it may be necessary that buttons are changed. The change should only be done by authorized service.

Illustration of a hand pressing down on a circular mechanical component (no text or symbols)

Figure 13 Figure 14

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Illustration of a hand turning a circular mechanical component with teeth (no text or symbols)

Figure 15

TROUBLES AND SOLUTION PROPOSALS

You can solve the troubles you can encounter at your product by checking the following points before calling technical service.

If cooktop does not operate;

• Check if power cable of cooktop is plugged in
• Examine with safe ways if electric exists on network
• Audit fuses.
  • Control whether damage is available on power cable.
• Check if main gas valve in your network is open
• Go through existence of breaking or twisting on gas pipe
• See over if suitable gas valve is used for your cooktop (Get periodical maintenance done.)

- Be sure that gasp pipe is connected to cooktop in appropriate way.

If starter does not operate;

• be sure that electric power cable of product is plugged in
• clean the edge and body sections of ignition spark plugs found on burners with a wet and dirt remover materials thoroughly. Be sure that the channels present on burners are open and clean.

ENVIRONMENTALLY-FRIENDLY DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or labels present

1. Dispose of packaging in an environmentally-friendly manner.
2. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Isometric line drawing of a mechanical or architectural component with symmetrical slots and protrusions (no text or symbols)

Pure geometric X-shaped line drawing without any text, numbers, or symbols

9

Pure decorative line drawing of a circular frame with symmetrical cutouts and a horizontal bar above (no text or symbols)

10

Pure technical line drawing of a rectangular frame with internal slots and connectors (no text or symbols)

12

Warning symbol image with exclamation mark inside triangle

Technical line drawings of a kitchen appliance assembly, showing exploded view and side view (no text or symbols)

Pure diagram of a horizontal beam with two supports at both ends, no text or symbols present

Figura 12

Technical line drawings of a mechanical component with three views: top view, side view, and bottom view (no text or symbols)

Figura 4 Figura 5 Figura 6

Simple line drawing of a mechanical component with no text or symbols

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

SEGURIDAD DE RUPTURA DEL APARATO DE GAS (FFD)

Line drawing of a kitchen appliance with a circular lid and handle, no text or symbols present

Line drawing of a hand holding a small object with directional arrows indicating motion or force (no text or symbols)

Hand holding a circular object with motion lines indicating rotation (no text or symbols)

Hand holding a circular object with motion lines indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting brackets (no text or symbols)

Figura 12

	NIVEL 1 NIVEL 2 NIVEL 3 NIVEL 4 NIVEL 5 NIVEL 6
80mm	200W 250W 450W --- --- ---
145mm	250W 750W 1000W --- --- ---
180mm	500W 750W 1500W --- --- ---
145mm Rápido	500W 1000W 1500W --- --- ---
180mm Rápido	850W 1150W 2000W --- --- ---
145mm	95W 155W 250W 400W 750W 1000W
180mm	115W 175W 250W 600W 850W 1500W
145mm Rápido	135W 165W 250W 500W 750W 1500W
180mm Rápido	175W 220W 300W 850W 1150W 2000W

MANTENIMIENTO Y LIMPIEZA

Illustration of a hand pressing down on a circular component with a handle (no text or symbols)

Figura 13 Figura 14

Simple line drawing of a mechanical component with a top view and circular base (no text or symbols)

Line drawing of a hand pressing down on a circular mechanical component (no text or symbols)

Figura 15

PROBLEMAS Y SOLUCIONES PROPUESTAS

Symbol of a trash bin with crossed lines indicating no waste or restriction, no text present

Pure geometric X-shaped line drawing without any text, numbers, or symbols

9

Simple line drawing of a decorative frame with a horizontal bar and circular base (no text or symbols)

10

Isometric line drawing of a mechanical or architectural component with symmetrical slots and supports (no text or symbols)

Technical line drawing of a rectangular metal tray with multiple side supports (no text or symbols)

12

Four identical diagrams showing circular shapes with arrows and dots, no text or symbols present

Visor da Placa de 60 cm

Three identical diagrams showing circles with arrows and dots, no text or symbols present

Visor da Placa de 45 cm

Warning symbol image with exclamation mark inside triangle

Diagram showing four different U-shaped pipe fittings with checkmark indicators, indicating correct and incorrect positioning.

Technical line drawings of a kitchen appliance assembly, showing front, top, and side views (no text or symbols)

Simple line drawing of a horizontal beam with two supports at both ends (no text or symbols)

Figura 2

Technical line drawings of a mechanical component with three views: top view, side view, and bottom view (no text or symbols)

Figura 4 Figura 5 Figura 6

Technical line drawing of a mechanical component with cylindrical parts and a central shaft (no text or symbols)

Figura 7

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 8

Diagram of a kitchen sink with a circular component and a cross symbol, labeled 'gura 11' (no readable text or symbols beyond label)

Line drawing of a gas stove with a circular vent and cooling fins (no text or symbols)

Figura 10 Figura 11

Line drawing of a hand holding a circular object with directional arrows indicating motion (no text or symbols)

Hand holding a circular object with motion lines indicating rotation (no text or symbols)

Hand holding a circular object with motion arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and mounting brackets (no text or symbols)

Figura 12

Illustration of a hand pressing down on a circular component with a small object inside (no text or symbols)

Figura 13 Figura 14

Simple line drawing of a mechanical component with a top view and circular base (no text or symbols)

Illustration of a hand turning a circular component with teeth, no text or symbols present

Figura 15

PROBLEMAS E PROPOSTAS DE SOLUÇÃO

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
