USER MANUAL EFP60202W AEG-ELECTROLUX

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine. We promise that it will provide a superior user experience delivering ease of mind. Good luck!

Contents

Safety warnings. 57
Description of the Appliance 59
Control Panel 60
Maintenance and Care 61
Special accessories 65
Something Not Working 65
Installation 66

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips.

Environmental information.

Safety warnings

• Any installation work must be undertaken by a qualified electrician or a competent person.
• This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.
• When used as an extractor unit, the hood must be fitted with a hose having preferably the same diameter as the outlet hole.

Attention: The hose is not supplied and must be purchased separately.

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 43cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

• The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervi

sion or have been trained in the use of the appliance by a person responsible for their safety.

• This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.
• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
• Never use the hood without effectively mounted grating!
• The hood must NEVER be used as a support surface unless specifically indicated.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.
• The flaming of foods beneath the hood itself is severely prohibited.
• The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
• Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

• Accessible parts may become hot when used with cooking appliances.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the authorised authorities.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority.

Description of the Appliance

• The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.
• The hood is supplied in recirculation filter version (activated charcoal filter supplied) but it can be used, removing the activated charcoal filter, in the venting version.

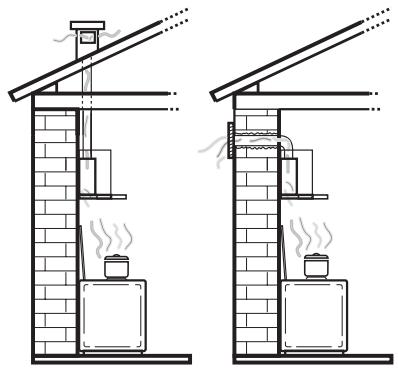

Extraction mode

• In this mode fumes are extracted to the outside via a hose connected to the coupling ring.
• In order to obtain the best performance the hose should have a diameter equal to the outlet hole.

Extraction mode

Recirculation mode

• The air is filtered through a charcoal filter and returned to the kitchen.
• You will need an original charcoal filter for the recirculation mode. (See Special Accessories).

Recirculation mode

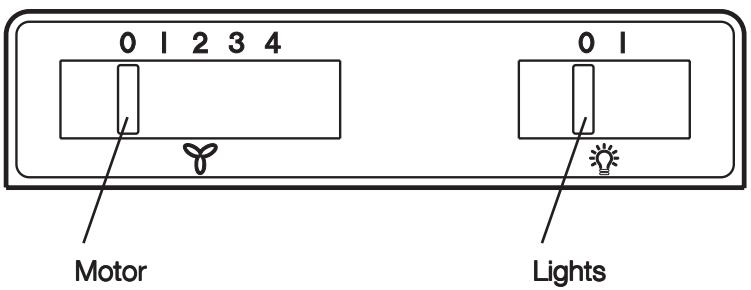

Control Panel

• Best results are obtained by using a low speed for normal conditions and a high speed when odours are more concentrated.

Turn the hood on a few minutes before you start cooking.

The hood should be left on after cooking for about 15 minutes or until all the odours have disappeared.

Maintenance and Care

• Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Metal grease filter

• The purpose of the grease filters is to absorb grease particles which form during cooking and it must always be used, either in the external extraction or internal re-circulation function.

Attention: the metal grease filters must be removed and washed, either by hand or in the dishwasher, every four weeks.

Removing the metal grease filter

• Use the spring handle and remove the filter downward.

Hand washing

Soak grease filters for about one hour in hot water with a grease-loosening cleaner, then rinse off thoroughly with hot water. Repeat the process if necessary. Refit the grease filters when they are dry.

Dishwasher

Place grease filters in the dishwasher. Select most powerful washing programme and highest temperature, at least 65^ . Repeat the process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight discolouration of the filter can occur, this does not have any impact on its performance.

• Never use corrosive, abrasive or flammable cleaning products or products containing bleach.

Charcoal filter

• The charcoal filter should only be used if you want to use the hood in recirculation mode.
• To do this you will need an original charcoal filter (available from your local Service Force Centre).
• Replacing the charcoal filter

The charcoal filter cannot be washed nor regenerated.

The charcoal filter should be replaced every 4 months under normal use.

Replacement filters are available from your local Service Force Centre.

Unlike other charcoal filters, the LONGLIFE charcoal filter can be cleaned and reactivated.

With normal use the filter should be cleaned every second month (when using the hood 2,5 hours per day, on averaging). The best way to clean the filter is in the dishwasher. Use normal detergent and choose the highest temperature (65^) . Wash the filter separately so that no food parts gets stuck on the filter and later causes bad odours. To reactivate the charcoal, the filter should be dried in an oven for 10 minutes with a maximum temperature of 100^ .

After approximately three years of use, the charcoal filter should be replaced with a new one, as the odour reduction capacity will be reduced.

Fitting

1. Insert the holding frame for the charcoal filter in the shaft of the hood with the 2 lugs facing upwards and then clip into the lower holes.
2. Fix the holding frame on the lower part of the housing of the hood with the 2 screws supplied.
3. Fit the charcoal filter (see paragraph "Charcoal filter")

4. Refit the grease filters. Push-in the visor.

5. To remove proceed in the reverse order.

• Always specify the hood model number, serial number and product number code when ordering replacement filters. This information is shown on the rating plate located on the inside of the unit.
• The charcoal filter can be ordered from your local Service Force Centre.

Warning

• Failure to observe the instructions on cleaning the unit and changing the filters will cause a fire hazard. You are therefore strongly recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

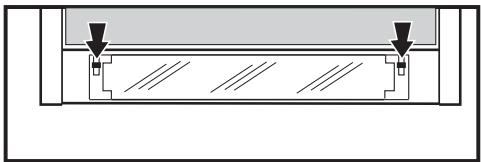

Changing the light bulb(s)

• Disconnect the cooker hood from the mains supply.
• Prior to touching the light bulbs ensure they have cooled down.
• Remove the lamp cover.
• Remove the damaged lamp.
• Replace the old bulb with a new one of the same type.
• Re-close the lamp cover.

• If the light does not come on, make sure the bulb has been inserted in correctly before contacting your local Service Force Centre.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a solution of water and mild washing up liquid.
• Never use corrosive, abrasive or flammable cleaning products or products containing bleach.
• Never insert pointed objects in the motor's protective grid.
• Only ever clean the switch panel and filter grill using a damp cloth and mild washing up liquid.
• Clean all the plastic parts with a soft cloth soaked in warm water and neutral soap.
• It is extremely important to clean the unit and change the filters at the recommended intervals. Failure to do so will cause grease deposits to build up that could constitute a fire hazard.

Special accessories

Charcoal filter Type 150

Charcoal filter Type 150 LONG LIFE

Something Not Working

If your appliance fails to work properly please carry out the following checks.

Symptom	Solution
The cooker hood will not start...	Check that: The hood is connected to the electricity supply. Check that a fan speed has been selected.
The cooker hood is not working	Check that: The fan speed is set high enough for the task. The grease filters are clean. The kitchen is adequately vented to allow the entry of fresh air. If set up for recirculation, check that the charcoal filter is still effective. If set up for extraction, check that the ducting and outlets are not blocked.
The cooker hood has switched off during operation...	The safety cut-out device has been tripped. Turn off the hob and then wait for the device to reset. If the hood has been installed below the heights indicated in the installation instructions the motor will cut-out frequently which will damage the hood.

If after all these checks, the problem persists, contact your local Service Centre, quoting the model number, serial number and product number code.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Installation

Technical Details

	EFP 60202	EFP 90202
Dimensions (in cm):
Height:	39,5	39,5
Width:	59,8	89,8
Depth:	27,5	27,5
Max. absorb. power:	235 W	235 W
Motor:	2x110 W	2x110 W
Lighting:	11 W (PL)	11 W (PL)
Length of the cable:	150 cm	150 cm
Electrical connection:	220-240 V	220-240 V
Fuse rating:	5At	5At

Mounting accessories included

1 allen spanner for torx screws
1 deflector
4 spacers for 16mm side walls
2 screws 2,9x13 to fix flange or deflector
4 screws 4,5 × 16 mm for fixing to side walls
1 flange 120mm
1 charcoal filter frame + 2 screws 3,5x9,5

Electrical connection

Safety warnings for the electrician

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Installation

Warning! Do not connect the appliance to the mains until the installation is fully complete.

• Preparing the wall unit - Extractor version
• The hood is supplied as an extractor unit.

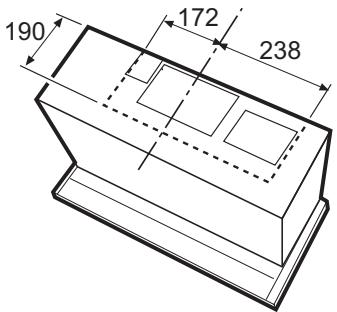

Before installing the hood, drill a hole in the roof of the wall unit. This hole is to allow passage of the outlet pipe and the power cable, and to facilitate servicing.

• The wall unit must have a minimum body depth (without door) of 280 ~mm .

The unobstructed internal height must be at least 370~mm

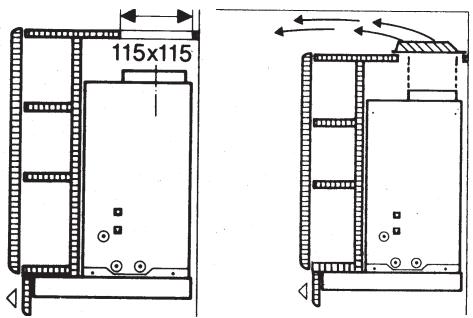

Preparing the wall unit - Filter version

• Before installation of the hood in the wall unit, a 115 × 115 ~mm hole for the deflector should be cut in the ceiling of the wall unit.
• Depending on the wall unit height, you need for return air operation a pipe union or additionally a non-flammable length of pipe ( 100/115/120 mm) as far as the ceiling of the wall unit.

Outlet hole Extractor

• When used as an extractor unit, the hood must be fitted with a 120mm diameter hose.
  Fix the flange supplied as kit onto the exit hole (bayonet fixture).

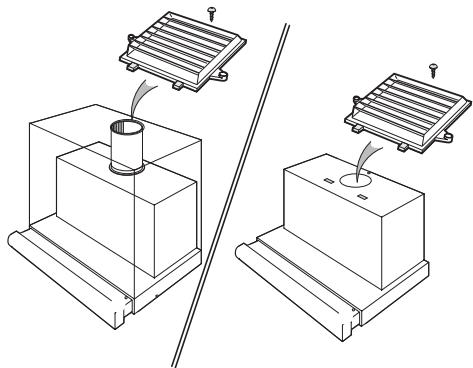

Filter version

Fix the deflector to the flange.

Spice rack

• If a spice rack is to be incorporated in front of the hood, a minimum distance of 5mm must be provided between the front edge of the fume extractor hood and the spice rack wall (this air gap being necessary for air circulation).
• The upper part of the spice rack rear wall should be detachable (access for exhaust air hose or adjustment of furniture housing).

Installing the extractor hood in the wall unit - extraction version (Recirculation version with charcoal filter)

• Fix the drilling template to the inside wall of the wall unit on the right and left sides, and mark out and predrill 2 mm mounting holes as well as 2 × 6 mm - 5 mm depth holes for the mounting claws (installation aids).
• Fully withdraw the visor of the hood.
• Important: Detach and insert the grease filters only when the visor is fully withdrawn.

Remove the grease filters. First remove the rear and then the front grease filter.

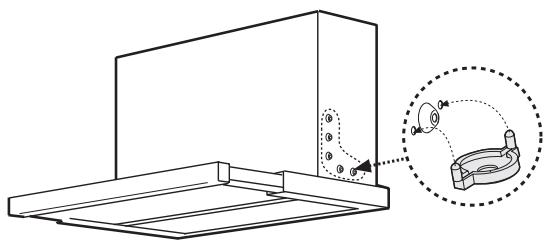

• For 16mm side walls, the spacer discs clipped in on the appliance body must be taken out. Mount the hood with 4 or 6 × 0.4mm screws.

• Insert the hood in the furniture housing and engage both mounting claws (installation aids) on the right and left sides in the side wall of the wall unit and firmly hold the hood for further mounting.
  Then fix the hood with the 4 or 6 × 0.4 mm screws supplied.
• Refit the grease filters. Push-in the visor.

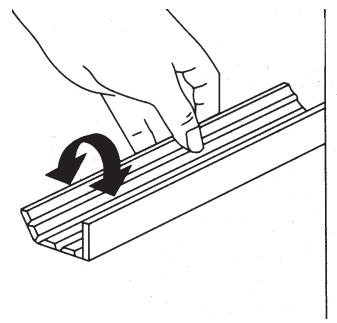

• If the cupboard is deeper than 300 ~mm , cover the gap between the hood and the wall with a finishing strip (special accessory).

To install it, proceed as follows:

Measure the wall distance and apply the covenng strip over the necessary width (wall distance plus 5 to 8mm ), kinking the covering strip at the appropriate notches and tearing off the surplus material (removing the protective foil).

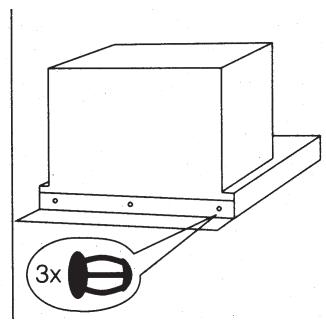

Then fasten the strip to the bottom part of the hood with three clips (special accessories).

Apply pressure.

Fitting the charcoal filter for recirculation version

If the extractor hood is installed as a return air appliance (Recirculation version - air outlet above the wall unit), the charcoal filter (available from your local Service Force Centre) must be fitted before the grease filters are fitted.

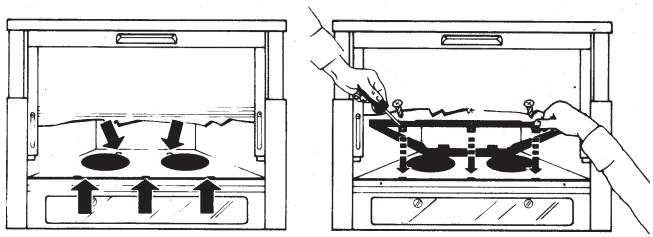

Installation sequence:

1. Insert the holding frame for the charcoal filter in the shaft of the hood with the 2 lugs facing upwards and then clip into the lower holes.
2. Fix the holding frame on the lower part of the housing of the hood with the 2 screws supplied.
3. Fit the charcoal filter (see paragraph "Charcoal filter")
4. Refit the grease filters. Push-in the visor.

Removing the hood from the wall unit

If, for technical reasons (extraction version/recirculation version conversion) the extractor hood has to be removed from the wall unit, proceed as follows:

• Fully withdraw the visor and remove the grease filter.
• Loosen the 4 or 6 mounting screws of the hood (wall unit mounting).
• To loosen both mounting claws (installation aids), place a max 3 mm dia. Phillips screw-driver in the spring opening and simultaneously press the springs inwards (towards the appliance housing).

Important: Hold the hood firmly!

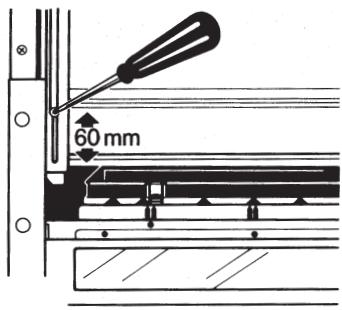

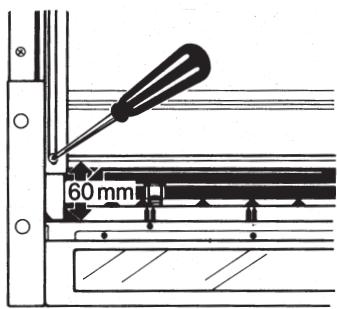

Adjusting the extractor part.

On wall units with a body depth of 275mm to 335mm , the visor depth can be adjusted as follows:

• Remove both grease filters.
• Loosen the screws on both end-stop brackets and set the visor depth (min. 275 mm, max. 335 mm).
• Refit the screws.
• Refit the grease filters.
