DF 7190 - Dishwasher AEG-ELECTROLUX - Free user manual and instructions

Product Type	Decorative Range Hood
Brand	AEG-ELECTROLUX
Model	DF 7190
Use	Domestic, kitchen odor elimination
Evacuation modes	External evacuation or recirculation (with charcoal filter)
Motor speeds	3 speeds + turbo
Lighting	Fluorescent lamp 11 W
Grease filters	Self-supporting metal, dishwasher safe
Anti-odor filter (recirculation)	Activated charcoal, non-washable, replace every 3-4 months
Minimum distance to cooking surface	650 mm (some models can be installed lower)
Air outlet diameter	120 mm or 150 mm depending on installed flange
Power supply	220-240 V (check on nameplate)
Grounding mandatory	Yes (class I)
Installation	Under wall cabinet or with mounting brackets
Supplied material	Hood body, adjustable grille, flanges 120/150 mm, connecting ring, closing profile, screws, manual
Grease filter maintenance	Every 2 months of use, dishwasher safe
Charcoal filter replacement	Every 3-4 months, depending on usage intensity
Lamp replacement	Fluorescent lamp 11 W, disassemble glass ceiling light

Frequently Asked Questions - DF 7190 AEG-ELECTROLUX

How to install the DF 7190 hood?

Installation must be carried out by a professional. The hood can be mounted under a wall cabinet or with brackets. The minimum distance from the cooking surface is 650 mm. Follow the steps in the manual: drilling, fixing supports, mounting the body, and electrical and air connections.

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm for electric hobs. For gas hobs, this distance may be reduced according to model specifications (refer to the manual).

How to clean the grease filters?

The metal grease filters are dishwasher safe or can be washed by hand. It is recommended to clean them every 2 months of use. Remove them by releasing the hooks, wash without bending, dry, and reassemble with the handle facing outwards.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced every 3 to 4 months, or more often with heavy use. It is only used in recirculation mode.

How to replace the hood lamp?

Remove the metal clips from the glass ceiling light, slide the glass to one side to release it, then replace the fluorescent 11 W lamp. Reassemble in reverse order.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode. You must install an activated charcoal filter and drill a 125 mm hole in the upper shelf for the recirculated air outlet. Use the provided adjustable grille.

What to do if the hood does not turn on?

First check the power supply and the bipolar switch. Ensure the hood drawer is open (functions activate automatically). If the problem persists, contact an authorized service.

How to adjust the motor speed?

The hood has 3 speeds (1, 2, 3) and a turbo speed. Use the buttons on the control panel. Speed 1 is for silent air exchange, speed 2 for normal use, speed 3 for strong vapors, and turbo for intense emissions.

Are the grease filters dishwasher safe?

Yes, the self-supporting metal grease filters are dishwasher safe. They should be cleaned every 2 months. Their color may change over time, but this does not affect efficiency.

What components are supplied with the hood?

The kit includes: the hood body with controls, lighting, fan and filters, an adjustable grille, flanges of 120 and 150 mm, a connecting ring, a closing profile, fixing screws, and the instruction manual.

USER MANUAL DF 7190 AEG-ELECTROLUX

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incor-rect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with re-duced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard)
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CHARACTERISTICS

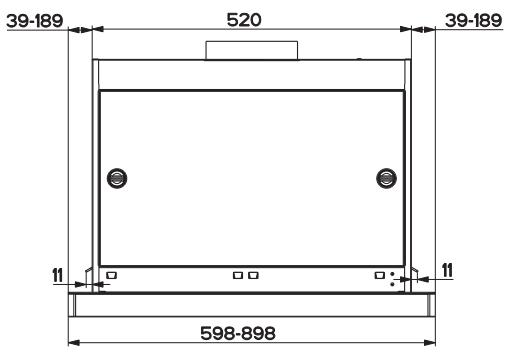

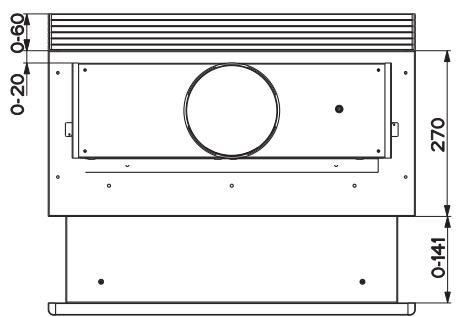

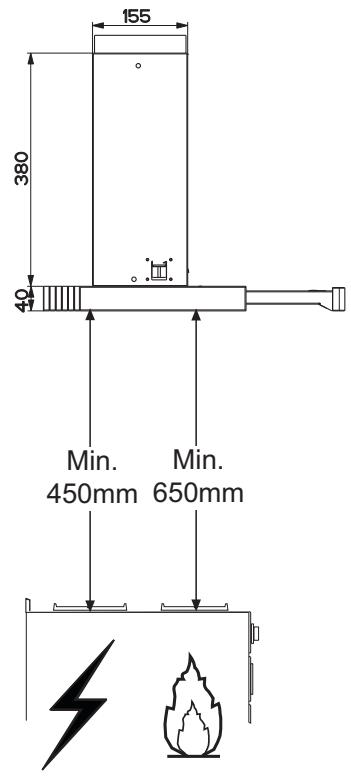

Dimensions

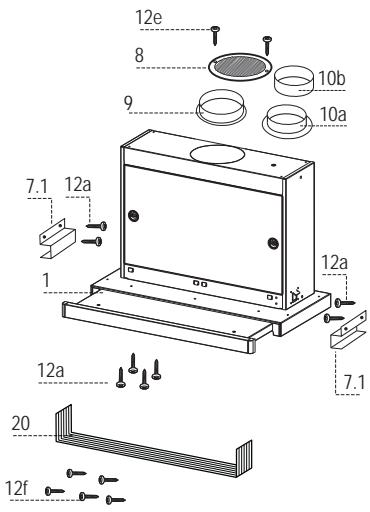

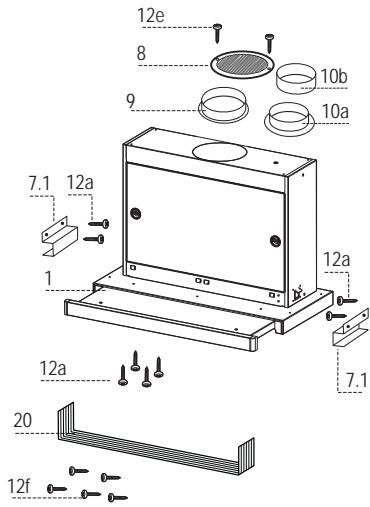

Components

Ref. Q.ty Product Components

1	1	Hood Body, complete with: Controls, Light, Blower, Filters
8	1	Directional Air Outlet grille
9	1	Flange ø 150 mm
10a	1	Flange ø 120 mm
10b	1	Adapting ring ø 120-125 mm
20	1	Closing element
Ref. Q.ty		Installation Components
7.1	2	Hood Body Fixing Brackets
12a	8	Screws 3,5 x 16
12e	2	Screws 2,9 x 12,7
12f	5	Screws 2,9 x 9,5
Q.ty		Documentation
1		Instruction Manual

INSTALLATION

Drilling the Support surface and Fitting the Hood

• The Hood can be fitted directly on the lower surface of the Wall Units (650 mm min. above the Cooker Top) using the snap-on Side Supports.

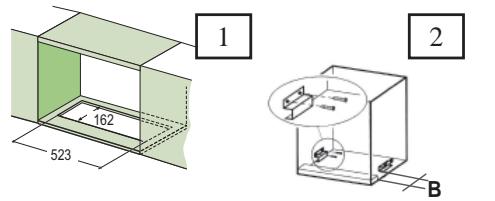

• Make an opening on the lower surface of the Wall Unit, as indicated. (fig.1)
• If the cabinet is without bottom, fix the two brackets at a distance B of minimum 30mm and maximum 60mm . (fig.2)

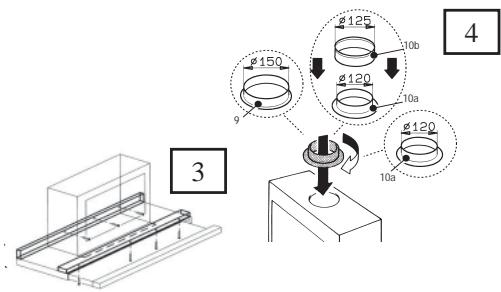

  Before carrying out the installation, the wooden transportation protections screwed on the visor and on the canopy body must be removed. (fig.3)
• Choose the correct flange measure basing on the air outlet diameter and insert it to the upper air outlet opening. (fig.4)
• Screw the closing profile 20 onto the rear part of the hood, using the screws 12f (2.9 x 9.5) provided. (fig.5)
• Open the sliding suction panel.
• Remove the metal grease filters one by one after having disconnected the relative fas-tening elements.
• Close the sliding suction panel again.

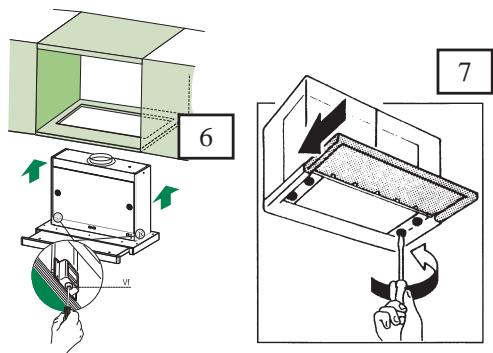

• Insert the Hood until the snap-on side sup-ports click into place. (fig.6)
• Open the sliding suction panel.
• Lock in position by tightening the screws Vf from underneath the Hood. (fig.6)
• If necessary, adjust the whole filter holder unit and proceed as follows:
• Loosen the four adjustment screws Vr and close the sliding panel again. (fig.7)

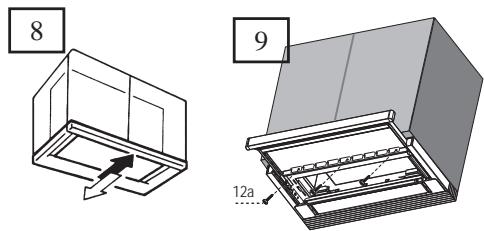

• Move the entire filter holder unit until it is properly aligned with the wall unit. (fig.8)
• Keeping the hood canopy still, remove the sliding panel and lock the adjustment screws again. (fig.7)
• The hood can now be fastened to the wall unit using the four screws 12a (3.5 x 16) provided. (fig.9)
• Replace the metal grease filters.
• Close the sliding suction panel again.

CONNECTIONS

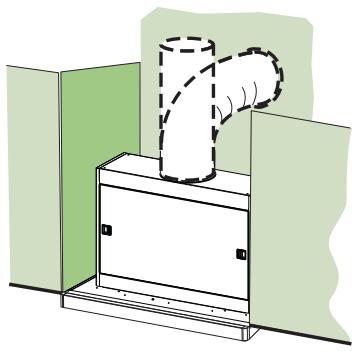

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the hood in ducting version, a rigid or a flexible pipe with the diameter corresponding to the flange diameter is used in order to connect the hood to the air outlet piping.

Fix the pipe with an adequate quantity of pipe clamps (not supplied).
- Remove possible charcoal filters.

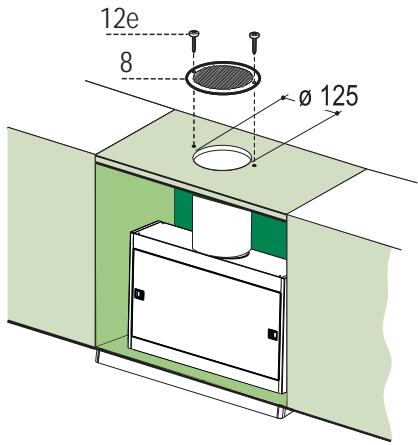

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125mm in any shelf that may be positioned over the hood.
• Insert the flange 10a on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120mm .
  Fix the pipe in position using sufficient pipe clamps (not supplied).
  Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 12,7) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USO

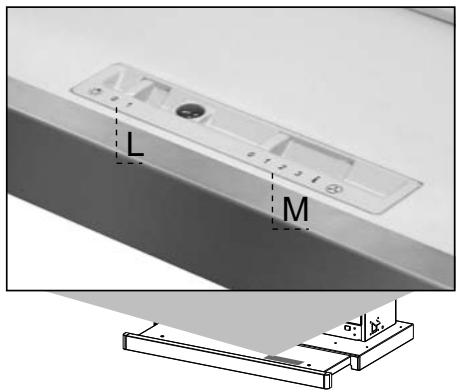

By pulling out the sliding panel it is possible to automatically activate all the hood functions. By simply closing the sliding panel all the functions are switched off.

SWITCH		FUNCTIONS
L Light		Switches the lighting system on and off
M Motor		Switches the extractor motor on and off
		1.	Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
		2.	Medium speed, suitable for most operating conditions, thanks to an optimum relation between hood performance and noise.
		3.	Maximum speed, suitable when the highest cooking vapour emission has to be eliminated for longer periods.
		i.	Intensive speed, suitable for the strongest cooking vapours and odours.

MAINTENANCE

GREASE FILTERS

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
  Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

CHARCOAL FILTER (RECYCLING VERSION))

REPLACING CHARCOAL FILTERS

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.
  Pull out the sliding suction panel.
• Remove the grease filters.
• Remove the saturated carbon filter by releasing the fixing hooks
• Fit the new filter by hooking it into its seating.
• Replace the grease filters.
• Close the sliding suction panel.

LIGHTING

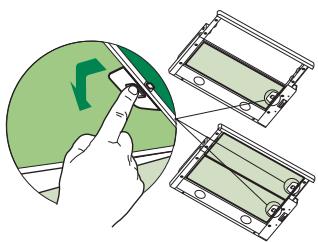

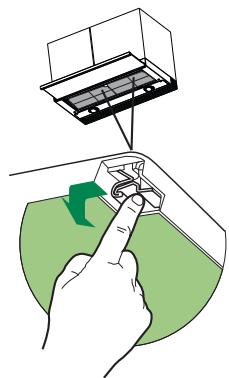

LIGHT REPLACEMENT

11 W fluorescent light

• Remove the metal terminals fixing the glass.
• Slide the glass cover out of one of the fastening clips. Lower the unfastened part of the glass cover slightly, so that the cover can be completely removed.
• Replace the light with a new one of the same type and rating.
• Replace the glass cover in reverse order.
