USER MANUAL 86731 K-MN AEG-ELECTROLUX

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating instructions	2
Safety instructions	2
Description of the appliance	4
Operating the appliance	6
Tips on cooking and frying	11
Cleaning and care	13

What to do if...	14
Disposal	15
Installation Instructions	15
Safety information	15
Service	17

Subject to change without notice

Operating instructions

Safety instructions

WARNING!

Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

Correct use

• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.

• Only let bigger children work on the appliance under supervision.

• To avoid small children and pets unintentionally switching the appliance on, we recommend activation of the child safety device.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
- There is the risk of burns from the appliance if used carelessly.
- Remove stickers and film from the glass ceramic.
- Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
- Switch the cooking zones off after each use.
- Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and saucepan lids on the cooking surface, as they can get hot.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or highpressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.

Description of the appliance

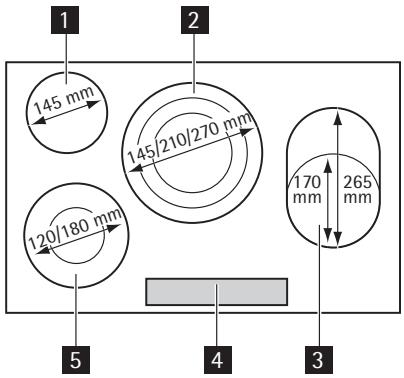

Cooking surface layout

1 Single zone 1200W
2 Triple ring zone 1050/1950/2700W
3 Multi-purpose zone 1400/2200W
4 Control panel
5 Double ring zone 700/1700W

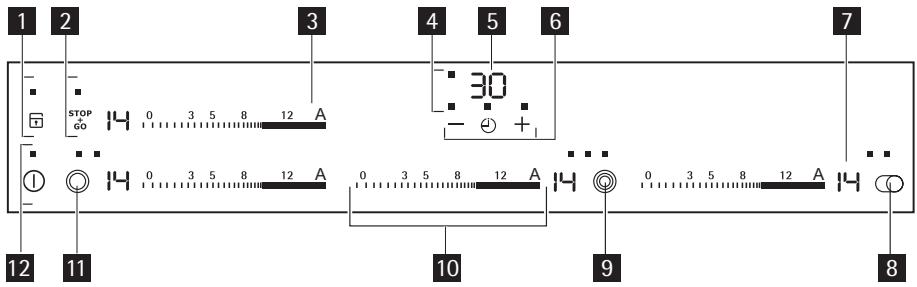

Control panel layout

1 Child lock with a pilot light
2 Stop+Go with a pilot light
3 Automatic warm-up function
4 Cooking zones' indicators of Timer
5 Timer display
6 Timer
Heat setting indicator
8 Multi-purpose zone with pilot lights
9 Triple ring zone with pilot lights
10 Heat setting selection
11 Double ring zone with pilot lights
12 On/Off with indicator

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Only touch the sensor fields which activate a desired function. Do not cover other sensor fields.

If the control bar is touched for longer than 6 seconds, a signal sounds and the appliance switches itself off.

Sensor field		Function
①	On / Off	Switches appliance on and off
	Child lock	Locking control panel for children
	Triple ring	To switch outer rings on and off
	Double ring	To switch outer rings on and off
CO	Multi-purpose zone	To switch outer rings on and off
STOP GO	STOP+GO	To switch the Keep Warm setting on/ off
A	Automatic warm-up	To switch the automatic warm-up function on and off
	Timer	Timer selection
+	Increase settings	To increase Timer time
-	Reduce settings	To reduce Timer time

Control bar

The control bar is a special Touch Control field. The control bar is touched where the desired heat setting is positioned. The heat setting is shown in the display. Correct to the left or the right, if necessary. Do not release before the desired heat setting is reached.

If the control bar is touched for longer than 6 seconds, a signal sounds and the appliance switches itself off.

Displays

Display		Description
0		The cooking zone is switched off
/	Keep Warm settings	Keep Warm / STOP+GO function is switched on
-	Heat settings	To set heat settings
R	Automatic Warm-up	The Automatic Warm-up function is switched on
E	Fault	Malfunction has occurred
H	Residual heat	Cooking zone is still hot
L	Child safety device	Lock/Child safety device is set
-	Automatic Switch off	Switch off is active

Residual heat indicator

The residual heat indicator lights up, as soon as one cooking zone is hot.

WARNING!

Risk of burns from residual heat! After you switch the appliance off, the cooking zones need some time to cool down. Look at the residual heat indicator.

Use residual heat for melting and keeping food warm.

Operating the appliance

Switching the appliance on and off

	Control panel	Display	Pilot light
Switch on	Touch ① for 1 second	D/ H	lights up.
Switch off	Touch ① for 1 second	H/none	goes out.

After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

	Control panel	Display
To set the heat setting	Touch the desired heat setting, if necessary, correct up or down	1/14 to 8
Switch off	Touch 0	0

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware.

Before an outside ring can be switched on, the inside ring must be switched on

Double ring zone	Sensor field	Pilot light
To switch on outside ring	Touch Ⓞ for 1-2 seconds	Second pilot light lights up
To switch off outside ring	Touch Ⓞ for 1-2 seconds	Second pilot light goes out
Triple cooking zone	Sensor panel	Pilot light
To switch on the central ring	Touch Ⓞ for 1-2 seconds.	Second pilot light lights up
To switch on the outside ring	Touch Ⓞ for 1-2 seconds.	Third pilot light lights up
To switch off the outside ring	Touch Ⓞ for 1-2 seconds.	Third pilot light goes out
To switch off the central ring	Touch Ⓞ for 1-2 seconds.	Second pilot light goes out
Multi-purpose zone	Sensor field	Pilot light
To switch on outside ring	Touch Ⓞ for 1-2 seconds	Second pilot light lights up
To switch off outside ring	Touch Ⓞ for 1-2 seconds	Pilot light goes out

Locking/unlocking the control panel

The control panel, with the exception of the "On/Off" sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.

	Control panel	Display
To switch on	Touch	(for 4 seconds)
To switch off	Touch	previously set heat setting

When you switch the appliance off, the locking function is automatically switched off.

Turning the STOP+GO function on and off

The STOP+GO function simultaneously toggles all active cooking zones to keep-warm mode then back to the heat setting they were at before

	Control panel	Display
To switch on	Touch STOP GO	U
To switch off	Touch STOP GO	Previous heat setting (not automatic warm-up or power function)

STOP+GO does not stop timer functions.
STOP+GO controls the entire control panel apart from the sensor field ①.

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm-up function. When setting a heat setting using the automatic warm-up function, the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.

Step	Control Panel	Display
1.	Touch A	R
2.	Move your finger down from A to select the desired heat setting between 1 and 13	13 / 1 after 5 seconds 8 . As long as 8 is displayed, the appliance works at full power. After the automatic warm up is completed, the heat setting 13 / 1 is displayed again.

The length of time that the automatic warm up function operates depends on the heat setting selected.

Heat setting	Length of the automatic warm up [min:sec]
1	1:00
2	1:40
3	2:40
4	4:50
5	5:30
6	6:30
7	8:10
8	10:10
9	12:20
10	2:30
11	2:30
12	3:30
13	4:30
14	---

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Switching on the child safety device

Step	Control panel	Display/Signal
1.	① Switch on appliance. Do not set a heat setting.	□
2.	Touch for 4 seconds	L
The child safety device is switched on.

Switching off the child safety device

Step	Control panel	Display/Signal
1.	① Switch on appliance. Do not set a heat setting.	L
2.	Touch for 4 seconds	lights up
3.	① Switch appliance off.
The child safety device is switched off.

The child safety device can only be switched on and off if no heat setting is set.

Overriding the child safety device

The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards.

Step	Control panel	Display/Signal
1.	① Switch appliance on	L
2.	Touch for 4 seconds	lights up

Until the appliance is next switched off, it can be used as normal. After switching off the appliance, the child safety device is active again.

After overriding the child safety device, a heat setting or a function must be set within approx. 10 seconds, otherwise the appliance automatically switches itself off.

Using the timer

Function	Condition	Outcome after the time has elapsed
Automatic cut-out	a heat setting is set	acoustic signal 00 flashes Cooking zone switches off
Countdown timer	cooking zones not in use	acoustic signal 00 flashes

If just one countdown value is set you can change it only when the appliance is switched on.

If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed.

If a cooking zone is switched off, the timer function set is also switched off.

Selecting a cooking zone

Step	Control panel	Display
1.	Touch once	Pilot light of the first cooking zone flashes	.00
2.	Touch once	Pilot light of the second cooking zone flashes	.00
3.	Touch once	Pilot light of the third cooking zone flashes	.00

Step	Control panel	Display
4.	Touch once	Pilot light of the fourth cooking zone flashes	00.

If other timer functions are set, after a few seconds the shortest remaining time of all the timer functions is displayed and the corresponding pilot light flashes.

Setting the time

Step	Control panel	Display
1.	Select cooking zone	Pilot light for the cooking zone selected flashes
2.	Touch or +/−	00 to 99 minutes
After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.

Switching off the timer function

Step	Control panel	Display
1.	Select cooking zone	Pilot light of cooking zone selected flashes faster Time remaining is displayed
2.	Touch —	The time remaining counts backwards to 00 .
The pilot light goes out. The Timer function for the selected cooking zone is switched off.

Changing the time

Step	Control panel	Display
1.	Selecting a cooking zone	Pilot light of the selected cooking zone flashes more quickly Remaining time is displayed
2.	Touch + or -	01 to 99 minutes
After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.

Displaying the time remaining for a cooking zone

Step	Control panel field	Display
1.	Select cooking zone	Pilot light of the cooking zone selected flashes faster The time remaining is displayed
After a few seconds the pilot light flashes more slowly.

Switching off the acoustic signal

Step	Control panel field	Acoustic signal
1.	Touch	Acoustic signal to acknowledge.
Acoustic signal stops.

Automatic switch off

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered by objects (a pan, etc.) for longer than approx. 10 seconds, a signal sounds and the cooking surface switches off automatically.
• If all cooking zones are switched off, the cooking surface automatically switches itself off after approx. 10 seconds.

Control panel

• When the appliance is switched off, if one or more of the sensor fields on the control panel are covered for more than 10 seconds, an acoustic signal sounds. The acoustic signal switches itself off automatically when the sensor fields are no longer covered.

Cooking zones

• If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically. is displayed. Before being used again, the cooking zone must be set to .

Heat setting	Switches off after
1 - 3	6 hours
4 - 7	5 hours
8 - 9	4 hours
10 - 14	1.5 hours

Tips on cooking and frying

Information about acrylamides

According to the latest scientific research, intensive browning of food, especially in products containing starch, may present a health risk due to acrylamide. Therefore we recommend cooking at low temperatures and not browning foods too much.

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.

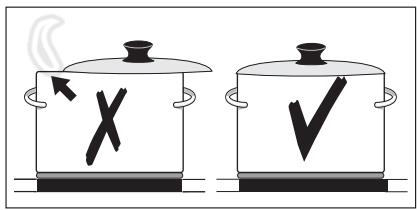

If possible, always place lids on the pans.

Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

Bottom of pans and cooking zones should be the same size.

Examples of cooking applications

The information given in the following table is for guidance only.

Heat setting	Cooking process	suitable for	Cook time	Tips/Hints
0		Off position
1	Keeping food warm	Keeping cooked foods warm	as required	Cover
1-3	Melting	Hollandaise sauce, melting butter, chocolate, gelatine	5-25 mins.	Stir occasionally
1-3	Solidifying	Fluffy omelettes, baked eggs	10-40 mins.	Cook with lid on
3-5	Simmering	Simmering rice and milkbased dishes Heating up ready-cooked meals	25-50 mins.	Add at least twice as much liquid as rice, stir milk dishes part way through cooking
5-7	Steaming Braising	Steaming vegeta-bles, fish Braising meat	20-45 mins.	With vegetables add only a little liq-uid (a few table-spoons)
7-9	Boiling	Steaming potatoes	20-60 mins.	Use only a little liq-uid, e. g.: max. 1/4 l water for 750 g of potatoes
7-9	Boiling	Cooking larger quantities of food, stews and soups	60-150 mins.	Up to 3 l liquid plus ingredients
9-12	Gentle frying	Frying escalope, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pan-cakes, doughnuts	as required	Turn halfway through cooking
12-13	Heavy frying	Hash browns, loin steaks, steaks, Flä-dle (pancakes for garnishing soup)	5-15 mins. per pan	Turn halfway through cooking
14	Boiling Searing Deep frying	Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips

Cleaning and care

WARNING!

Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and washing up liquid after each use. Remove also the remnants of the cleaning agents!

Scratches or dark stains on the glass ceramic that cannot be removed do not affect the functioning of the appliance.

Cleaning the appliance after each use

1. Food containing sugar, plastics, tin foil residues should be removed at once using a scraper. Place a scraper on the glass ceramic surface at an angle and remove residues by sliding the blade over the surface. Wipe the appliance with a damp cloth and a little washing up liquid. Finally, rub the appliance dry using a clean cloth.

2. Limescale rings, water rings, fat splashes, shiny metallic discolorations should be removed after the appliance has cooled down using cleaner for glass ceramic or stainless steel.

What to do if...

Problem	Possible cause	Remedy
The cooking zones will not switch on or are not function-ing	More than 10 seconds have passed since the appliance was switched on	Switch the appliance on again.
	The child safety device is switched on	Deactivate child safety device (See the section "Child safety device")
	Several sensor fields were touched at the same time	Only touch one sensor field
	Automatic switch off has been triggered	Remove any objects (pan,cloths,etc.) that are lying on the control panel.Switch the appliance on again
	There is water on the control panel,or the control panel is covered with splashes	Wipe the control panel
	STOP+is active -	Switch off STOP+
	is active -
Acoustic signal sounds when appliance is switched off	The control panel is wholly or partly covered by objects.	Remove objects.
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.
The automatic warm up func-tion is not switching itself on	There is still residual heat on the cooking zone	Let the cooking zone cool down
	The highest heat setting is set	The highest heat setting has the same power as the automatic warm up function
Acoustic signal sounds and ap-pliance switches itself on and then off again; after 5 seconds another acoustic signal sounds	The On/Off sensor field has been covered up,e.g.by a cloth	Do not place any objects on the control panel
- is lit	Overheating protection for the cooking zone has been trig-gered	Switch off the cooking zone.Switch the cooking zone on again
E and number are displayed	Electronics fault	Disconnect the appliance from the electrical supply for a few minutes (Take the fuse out of the house's wiring system) If after switching on again,E is displayed again,call the customer service department

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

WARNING!

Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Installation Instructions

! Safety information

Safety instructions

WARNING!

This must be read!

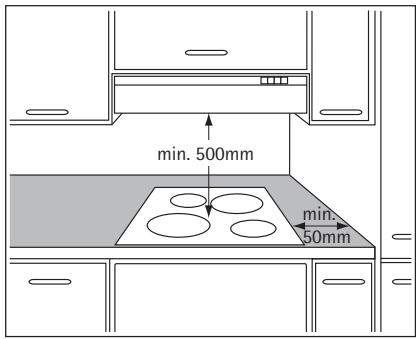

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed.

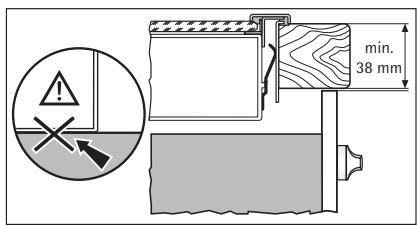

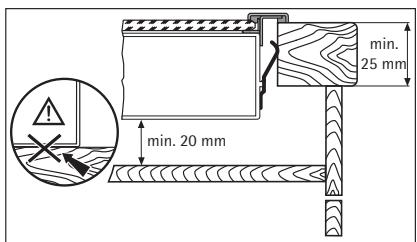

Anti-shock protection must be provided by the installation, for example drawers may only be installed with a protective floor directly underneath the appliance. The cut surfaces of the worktop are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap. When building in, protect the underside of the appliance from steam and moisture, e.g. from a dishwasher or oven.

Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

WARNING!

Risk of injury from electrical current.

The electrical mains terminal is live.
- Make electrical mains terminal free of voltage.
- Follow connection schematic.
- Observe electrical safety rules.
- Ensure anti-shock protection by installing correctly.
- The appliance must be connected to the electrical supply by a qualified electrician.
- Loose and inappropriate plug and socket connections can make the terminal overheat.
- Have the clamping connections correctly installed by a qualified electrician.
- Use strain relief clamp on cable.
- In the event of single-phase or two-phase connection, the appropriate mains cable of type H05BB-F Tmax 90^ (or higher) must be used.
- If this appliance's mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90^ ; or higher). Please contact your local Service Force Center for further advice.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3mm . Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

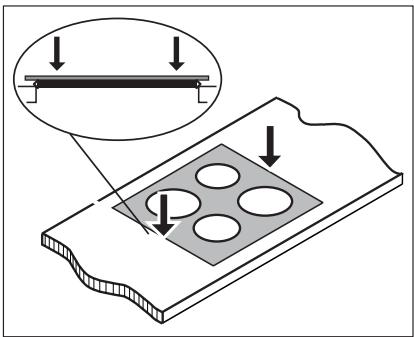

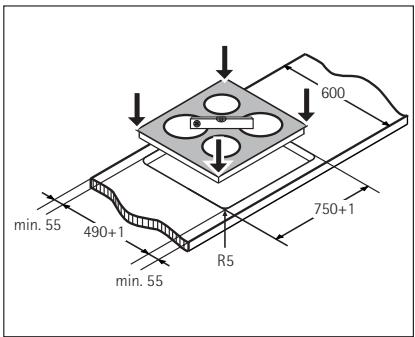

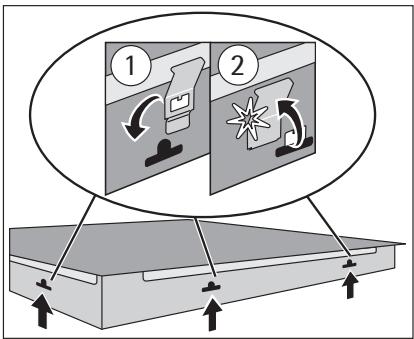

Assembly

Model 86731K-MN		Prod.Nr. 949593121
Typ 55HBD68AO	230 V 50 Hz
Made in Germany	Ser,Nr.	7,8 kW
AEG-ELECTROLUX

Service

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if...").

If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

In order to be able to assist you quickly, we require the following information:

• Three-digit-letter combination

for glass ceramic

• Model description
• Product number (PNC)
• Serial number

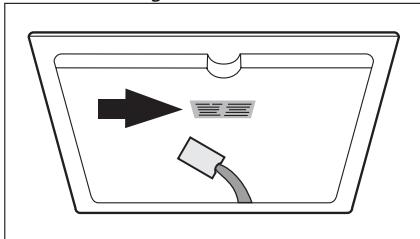

(S No. - see the rating plate)

• Type of fault
• Any error messages displayed by

the appliance
