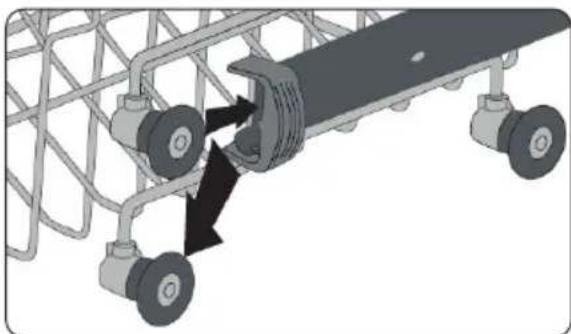

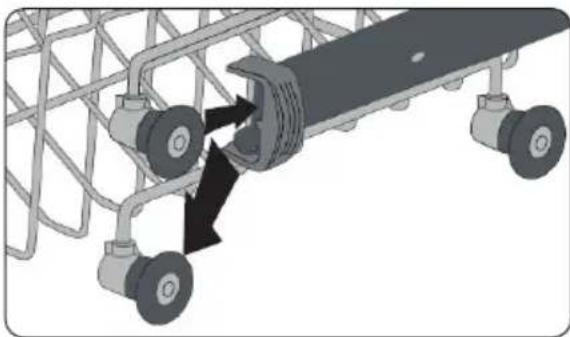

Regulacja wysokości

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

Mechanical assembly diagram showing a vehicle chassis with wheels and a mounted component (no text or symbols)

3D wireframe diagram of a structural grid with highlighted arrows indicating flow or movement (no text or symbols)

Close-up of a mechanical device with internal compartments and white cylindrical components (no visible text or symbols)

3D rendering of a mechanical assembly with layered components and internal structure (no visible text or symbols)

Interior view of a kitchen appliance with multiple kitchenware and a rack (no visible text or labels)

Interior view of a stainless steel kitchen drawer with metal grilles and white cylindrical containers (no text or symbols visible)

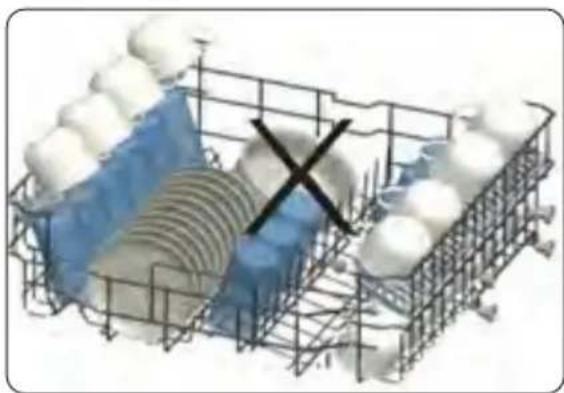

OSTRZEŻENIE:

Two 3D-rendered product photos showing various kitchen utensils and dishes in a grid (no text or symbols visible)

3D diagram of a grid-based mechanical or electrical component assembly with no visible text, numbers, or symbols.

Diagram of industrial equipment components including tanks, rollers, and a rack with no visible text or symbols

3D wireframe model of a grid structure with embedded spheres and a central X mark (no text or symbols)

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

ROZDZIAŁ 6. TABELA PROGRAMÓW

Diagram of a mechanical component with a central hub and internal structure, no visible text or symbols

② b a

Diagram of a piston-cylinder system with labeled parts and directional arrow

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

POMPA ODPLYWOWA

Simple geometric diagram with a rectangle and horizontal line inside a rectangle (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Serious injury or death risk
	Risk of electric shock Dangerous voltage risk
	Fire	Warning; Risk of fire / flammable materials
	Caution Injury or property damage risk
	Important/Note Operating the system correctly
	Read the instructions
	Hot surface

CONTENTS

CHAPTER 1. Safety instructions....37

General safety warnings....37
During Usage....38

CHAPTER 2. Installation ....40

Machine Positioning....40
Water Connection 40
Water Inlet Hose 40
Drain Hose (Model Depending)....41
Electrical Connection 42

CHAPTER 3. Technical specifications....43

General Appearance....43
Technical Specifications....43
Recycling....44
Packing and the environment 44

CHAPTER 4. Before using the appliance....45

Preparing Your Dishwasher For First Use....45
Salt Usage (Iif available)....45
Fill The Salt (if available)....45
Test Strip....46
Water Hardness Table....46
Water Softener System 47
Setting....47
Detergent usage....47

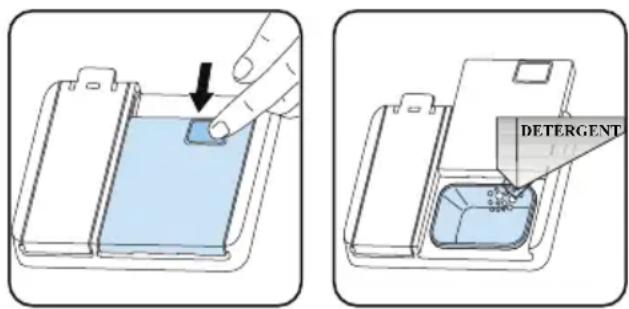

Filling the detergent....47
Using combined detergents 48
Rinse-aid usage....48
Filling the rinse-aid and setting....48

CHAPTER 5. Loading your dishwasher....49

Recommendations 49

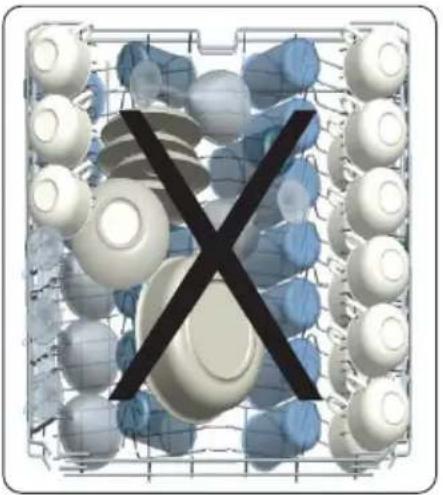

Alternative Basket Loads 52

CHAPTER 6. Programme table....53

ROZDZIAL 7. The control panel....55

Buzzer Sound Control 58
Save Power Mode....58
Natural Ion Tech (Model Depending) 58
PureBeam & PureBeam+(Model Depending)....58

CHAPTER 8. Cleaning and maintenance ....59

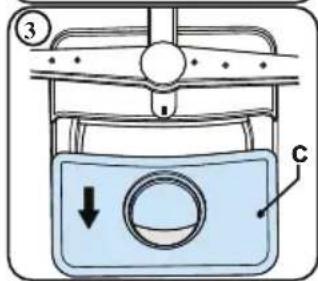

Filters....59
Spray Arms....60
Drain Pump....60

CHAPTER 9. Troubleshooting....61

Automatic fault warning and what to do....63

CHAPTER 10. Disposal of used equipment....64

CHAPTER 1. SAFETY INSTRUCTIONS

GENERAL SAFETY WARNINGS

- Read these instructions carefully before using your appliance and keep this manual for future reference.

CAUTION

Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

CAUTION

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

WARNING

Remove packaging and keep it out of reach of children.

CAUTION

Keep children away from detergents and rinse aids.

CAUTION

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

INSTALLATION WARNINGS

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

RISK OD ELECTRIC SHOCK / CAUTION

Unplug the machine before installation.

CAUTION

Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

CAUTION

Check that the indoor electrical fuse system is connected in line with safety regulations.

CAUTION

All electrical connections must match the values on the plate.

RISK OD ELECTRIC SHOCK / CAUTION

Ensure the machine does not stand on the electrical supply cable.

FIRE

Never use an extension cord or a multiple socket connection.

CAUTION

The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

RISK OD ELECTRIC SHOCK / CAUTION

The machine must not be plugged in during positioning.

CAUTION

Always use the coated plug supplied with your machine.

RISK OD ELECTRIC SHOCK / CAUTION

If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection

DURING USAGE

• This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee.

CAUTION

Do not stand, sit or place loads on the open door the dishwasher.

CAUTION

Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

CAUTION

Do not drink water from the machine.

WARNING

Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.

- Check the heat-resistance of plastic items before washing them in the machine.

CAUTION

Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.

CAUTION

Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

CAUTION

The machine door should not be left open. It may cause accidents.

CAUTION

Place knives and other sharp objects in the cutlery basket in a blade-down position.

RISK OD ELECTRIC SHOCK / CAUTION

For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

CAUTION

In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

RISK OD ELECTRIC SHOCK / CAUTION

Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

IMPORTANT

Operation at a low voltage will cause a decline in performance levels.

CAUTION

For safety, disconnect the plug once a program has finished.

RISK OD ELECTRIC SHOCK

To avoid an electric shock, do not unplug the machine with wet hands.

FIRE / CAUTION

Pull the plug to disconnect the machine from the mains, never pull on the cord.

CHAPTER 2. INSTALLATION

MACHINE POSITIONING

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C. Read all warnings located on the packaging before removing the packaging and positioning the machine. Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position. Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

RISK OD ELECTRIC SHOCK

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand on the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly

CAUTION

Please install the decorative panel as indicated on the assembly sheet. Otherwise, the door may not open properly and steam leakage problem may occur.

WATER CONNECTION

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

Note printing on the water inlet hose! If models are marked with 25^ , the water temperature may be max. 25^ C (cold water). For all other models: Cold water preferred; hot water max. temperature 60^ C.

WATER INLET HOSE

Illustration of a hand holding a faucet with a valve, showing a right-hand rule for lifting the handle (no text or symbols present)

WARNING

Use the new water inlet hose supplied with your machine, do not use an old machine's hose.

WARNING

Run water through the new hose before connecting.

WARNING

Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING

After the connections are made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished.

Diagram of a pipe valve with a valve and base, showing fluid flow (no text or symbols)

RISK OD ELECTRIC SHOCK

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted.

DRAIN HOSE (MODEL DEPENDING)

max 110cm min 50cm min 4cm

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed.

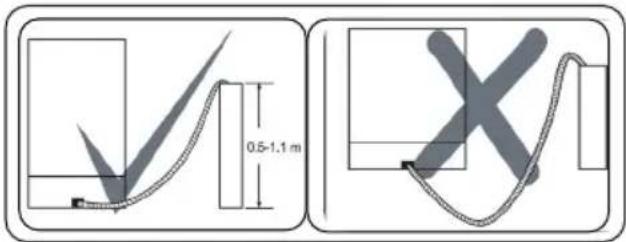

IMPORTANT

Items will not wash properly if a drain hose longer than 4 m is used.

0.5-1.1 m

ELECTRICAL CONNECTION

WARNING

Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

RISK OD ELECTRIC SHOCK / CAUTION

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

RISK OD ELECTRIC SHOCK / CAUTION

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

RISK OD ELECTRIC SHOCK / CAUTION

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur

RISK OD ELECTRIC SHOCK / CAUTION

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia)

CHAPTER 3. TECHNICAL SPECIFICATIONS

Labeled diagram of a multi-chamber kitchen appliance with numbered parts for identification

Close-up of a mechanical component with a labeled dimension '12' pointing to a circular component (no text or symbols beyond the number)

GENERAL APPEARANCE

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Salt dispenser
11. Upper basket track latch
12. Turbo Drying Unit: This system enhances the drying performance of your dishes

TECHNICAL SPECIFICATIONS

Capacity 15 place settings
DimensionsHeightWidthDepth	820-870 (mm)598 (mm)570 (mm)
Net weight 39,6 kg
Operating voltage / frequency 220–240 V / 50 Hz
Total current 10 (A)
Total power 1900 (W)
Water supply pressure Maximum: 1 (Mpa) Minimum: 0.03 (Mpa)

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<,>PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of Your Old Machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased.

CHAPTER 4. BEFORE USING THE APPLIANCE

PREPARING YOUR DISHWASHER FOR FIRST USE

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
- Remove all packaging material inside the machine.
- Set the water softener level.
• Fill the rinse aid compartment.

SALT USAGE (IIF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used. Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

FILL THE SALT (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Four-step diagram illustrating a chemical experiment with a salt being added to a mechanical component, labeled 1 to 4.

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine. If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

TEST STRIP

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip	Wait (1min.)	Set the hardness level of your machine
				123456

NOTE

The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

WATER HARDNESS TABLE

Level German dH French dF British dE Indicator
1 0–5	0–9 0–6 L1 is shown on the display.
2 6–11	10–20 7–14 L2 is shown on the display
3 12–	7 21–30 15–21	L3 is shown on the display
4 18–	22 31–40 22–28	L4 is shown on the display
5	23-31	41-55	29-39	L5 is shown on the display
6	32-50	56-90	40-63	L6 is shown on the display

WATER SOFTENER SYSTEM

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

SETTING

In order to change the salt level, follow the below steps:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until "SL" disappears.
• The machine will display the last setting.
• Set the level by pressing the Programme button.
• Turn off the machine to save the setting.

DETERGENT USAGE

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance.

The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaksin hard water.

See the detergent manufacturer's instructions for a further information.

FILLING THE DETERGENT

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

DETERGENT 0.125g 0.08g 0.06g

USING COMBINED DETERGENTS

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level..

RINSE-AID USAGE

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean.

If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

FILLING THE RINSE-AID AND SETTING

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until “rA” disappears. Rinse aid setting follows water hardness setting.
• The machine will display the last setting.
• Change the level by pressing the Programme button.
• Turn off the machine to save the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand using a tool to press or install a device, showing a blue panel and a blank cover (no text or symbols)

Line drawing of a hand inserting a key into a device (no text or symbols)

Level Brightener Dose Indicator
1 Rinse-aid not dispensed r1 is shown on the display.
2 1 dose is dispensed r2 is shown on the display.
3 2 doses are dispensed r3 is shown on the display.
4 3 doses dispensed r4 is shown on the display.
5 4 doses dispensed r5 is shown on the display.

CHAPTER 5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING

Take care not to obstruct the rotation of spray arms.

WARNING

Make sure after loading the dishes do not prevent opening the detergent dispenser.

RECOMMENDATIONS

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

IMPORTANT

Do not overload the drawers or place dishes in the wrong basket.

WARNING

To avoid any possible injuries, place long-handle and sharppointed knives with their sharp points facing down or horizontally on the baskets.

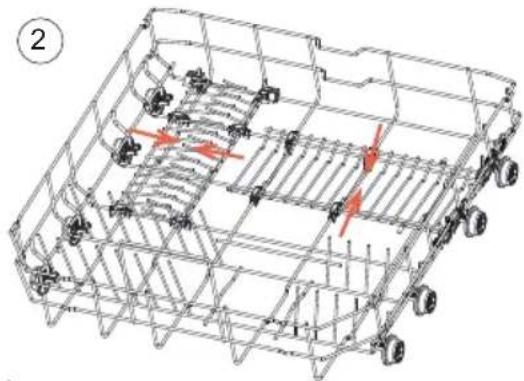

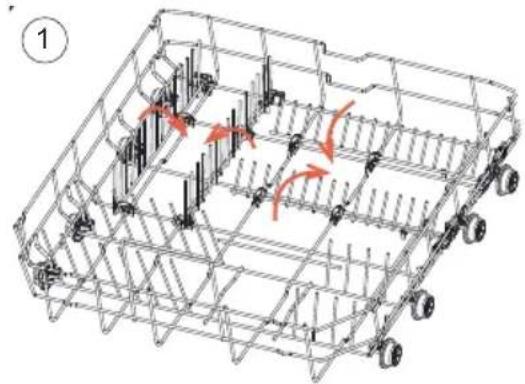

Four Folding Racks

The folding racks allow easier placement of larger items, such as pots and pans. Each section can be folded separately. The racks can be raised up, or folded down, as shown in the images.

Technical line drawing of a mechanical frame structure with no visible text or symbols

3D wireframe model of a mechanical chassis with visible components and red directional arrows indicating motion or force (no text or symbols)

Upper Basket

Height Adjustment

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

Mechanical assembly diagram showing a conveyor belt system with two wheels and a central shaft (no text or symbols)

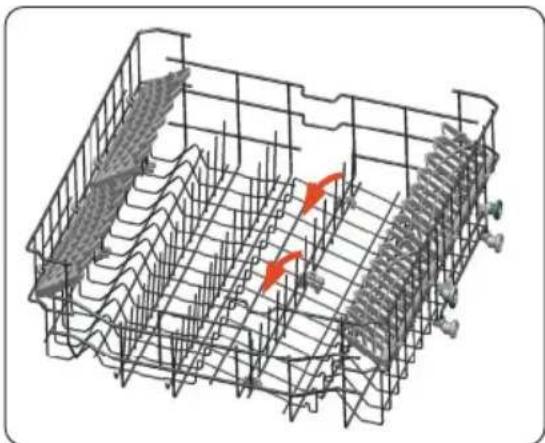

Height Adjustable Rack (peg type)

The foldable racks in the upper basket enable the placement of large items such as pots and pans. Each section can be folded separately. The foldable racks can be either raised up or folded down.

3D wireframe model of a mechanical or structural assembly with no visible text or symbols

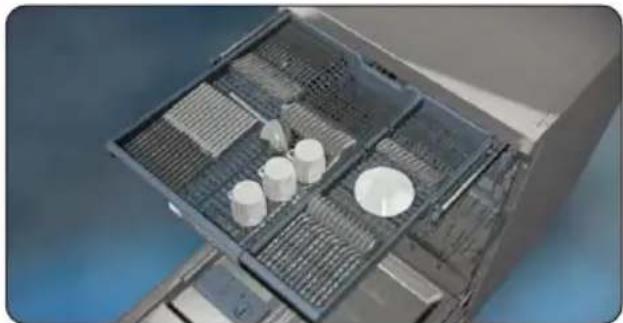

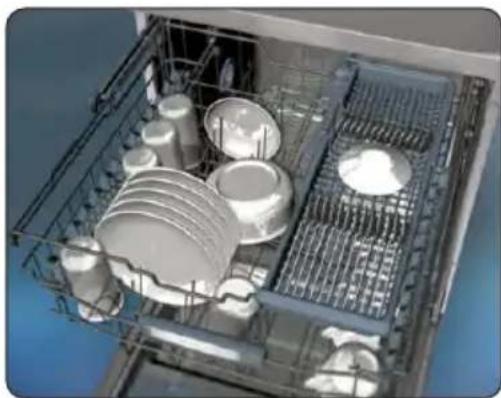

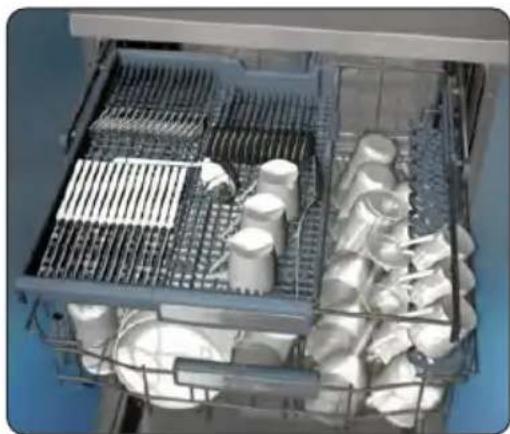

Upper Cutlery Basket

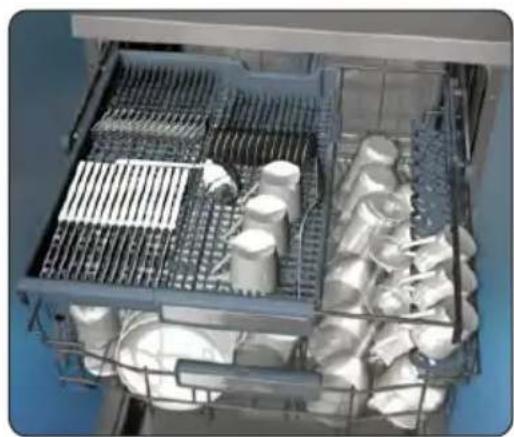

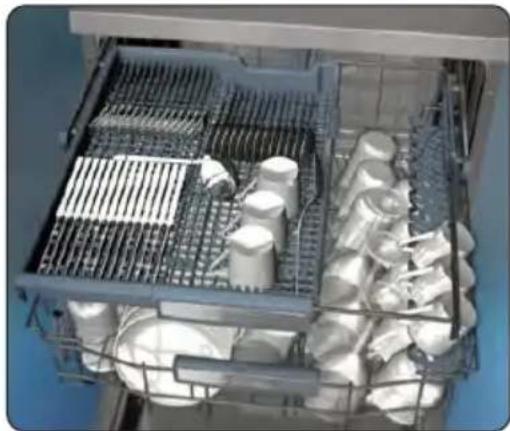

The upper cutlery basket is designed for the placement of large and small cutlery and utensils.

Interior view of a multi-level industrial machine with mesh compartments and white cylindrical components (no visible text or symbols)

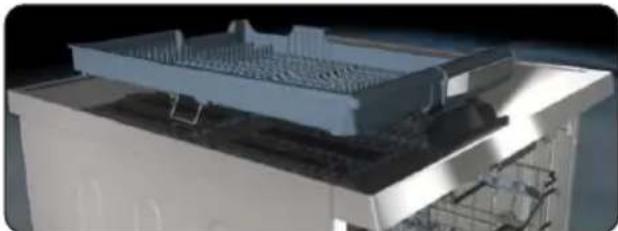

The basket is easily removed from the dishwasher, therefore allows ease of use when removing your items, along with the basket, after washing.

3D architectural rendering of a modern building with a grid-like structure on top, showing structural elements and lighting (no text or symbols visible)

The upper cutlery basket is composed of two pieces that can be separately removed. Remove the left or right section of the cutlery basket in order to obtain more space for items in the upper basket.

Interior view of a kitchen appliance with multiple dish units and a rack (no visible text or labels)

Interior view of a stainless steel kitchen drawer with metal grilles and white cylindrical containers (no text or symbols visible)

WARNING:

Knives and other sharp objects must be placed horizontally in the cutlery basket.

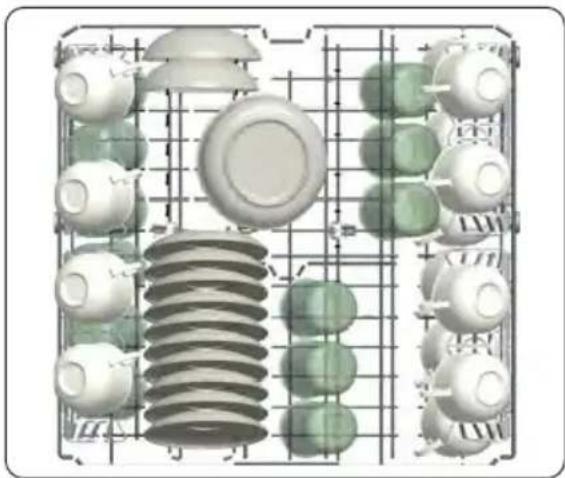

ALTERNATIVE BASKET LOADS

Lower Basket Top Basket

Two 3D-rendered product photos showing various kitchen utensils and kitchenware in a grid (no text or symbols visible)

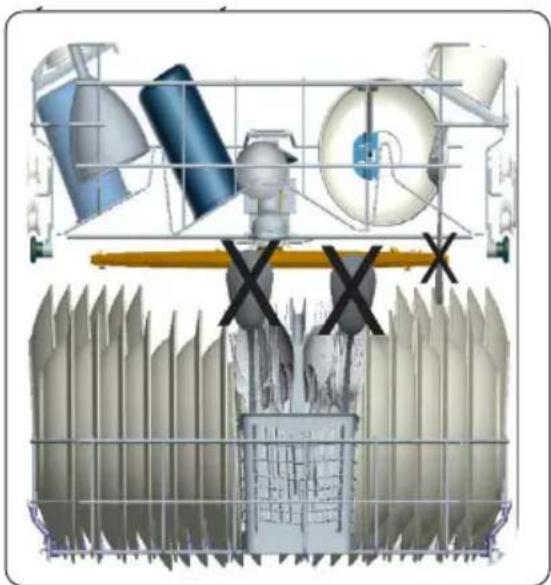

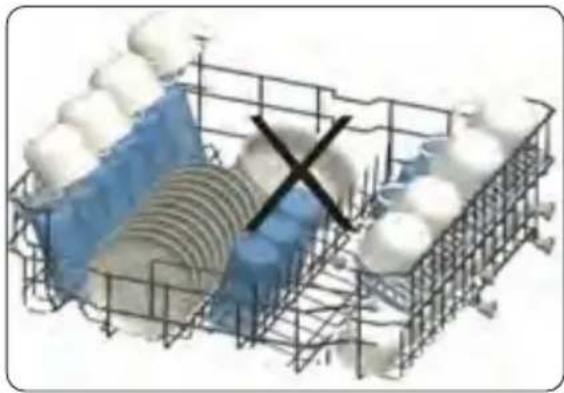

Incorrect Loads

3D diagram of industrial equipment layout with insulators, coils, and housing (no text or labels)

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result

3D rendered image of white and blue spherical objects with a black 'X' symbol overlay (no text or symbols present)

Technical diagram of a mechanical assembly with multiple components and a central structure (no visible text or labels)

3D wireframe model of a grid structure with embedded components and a black X mark (no text or symbols)

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

CHAPTER 6. PROGRAMME TABLE

	P1 P2 P3	P4 P5 P6 P7	P8 P9
Program Name:	Eco	Smart 60°C - 70°C	Smart 50°C - 60°C	Smart 30°C - 50°C	Hygiene 70°C	Super 50'	Dual Pro Wash 60°C	Quick 30'	Mini 14'
Type of Soil:	Standard program for normally soiled daily with reduced using dishes energy and water consumptions.	Auto program for heavily soiled dishes.	Auto program for normally soiled dishes.	Auto program for normally soiled delicate dishes.	Suitable for heavily soiled dishes requiring hygienic washing.	Suitable for normally soiled daily dishes with faster program.	Suitable for both lightly soiled delicate glassware on upper rack and heavily soiled crockery on lower rack.	Suitable for lightly soiled dishes and quick wash.	Fastest . program for lightly soiled and recently used dishes and suitable for 4 place settings.
Level of Soil:	Medium	Heavy	Medium	Medium	Heavy	Medium	Heavy	Light	Light
Amount of Detergent: A: 25 cm3 B: 15 cm3"	A	A	A	A	A	A	A	A	B
Program Duration (h:min)	04:14	01:49 - 02:59	01:47 - 02:02	01:12 - 01:31	02:07	00:50	01:53	00:30	00:14
Electricity consumption (kWh/cycle)	0.861	1.250 - 1.900	1.050 - 1.325	0.650 - 0.850	1.700	1.100	1.600	0.650	0.340
Water consumption (l/cycle)	9.0	11.8 - 24.0	10.9 - 18.5	10.6 - 17.7	16.0	9.5	15.4	10.9	6,6

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE:

According to regulations 1016/2010 and 1059/2010, Eco program energy consumption values may differ. This table is in line with regulations 2019/2022 and 2017/2022.

ROZDZIAŁ 7. THE CONTROL PANEL

I II III 7 3 1 2 4 5 6 iv 8

1. On/Off button
2. Programme button
3. Display
4. Half Load button
   i. Upper Basket - Half Load led
   ii. Lower Basket - Half Load led

5. Delay button

6. Options button
   iii. Energy Save led
   iv. Extra Dry led
   v. Extra Silent led

7. Salt lack warning indicator
8. Rinse Aid lack warning indicator

1. On/Off Button

Turn the machine on by pressing On/Off button. When machine is on, „--” will be shown on the Display (3).

2. Programme Button

Select a suitable programme for your dishes by pressing Programme button. The programme will start automatically when the door is closed.

3. Display

The Display shows the number and duration of the selected programme alternately and the remaining time during operation.

4. Half Load Button

Press the Half Load button to select the area of the dishwasher that contains the dishes to be washed. You can select both baskets, the upper basket only, or the lower basket only. Press the button until the led (i,ii) corresponding to the basket containing the dishes to be washed illuminates. Dishes in other areas will not be washed.

5. Delay Button

Press the Delay Start button to delay the start time of a programme for 1 hour up to 19 hours. Pressing once will delay the start time for 1 hour, and continuing to press the button will increase the delay duration. Press the Delay button to change or cancel the delayed start. If you turn off the machine after activating the delay time, the delayed time is cancelled.

6. Options Button

Press the Options button once to activate the Energy Save option. Select the Energy Save option to enable the door of the machine to open at the end of the programme to increase drying efficiency. This function also saves energy by operating at a lower temperature. Energy Save led (iii) will illuminate. Press the Options button twice to activate the Extra Dry option. Select Extra Dry option to add extra drying steps to a programme in order to obtain drier dishes.

This option increases water temperature of the final rinse step and duration of the drying step. Extra Dry led (iv) will illuminate.

Press the Options button three times to activate the Extra Silent option. Select Extra Silent option to decrease the water pressure, therefore providing a more sensitive and silent wash. This option can only be selected at the beginning of a programme. Extra Silent led (v) will illuminate.

NOTE:

If an extra feature has been used on the most recent wash programme, this feature will remain active on the next selected programme. To cancel this feature on the newly selected wash programme, press the feature button until the light on the button switches off.

7. Salt Lack Warning Indicator

When there is insufficient softening salt, the Salt Lack Warning Indicator will illuminate to indicate the salt chamber needs filling.

8. Rinse Aid Lack Warning Indicator

When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator will illuminate to indicate the rinse aid chamber needs filling.

NOTE:

If you decide not to start the selected programme, please see the „Changing a Programme” and „Cancelling a Programme” sections.

Changing a Programme

Follow the steps below to change a programme while in operation.

Open the door and press the Programme Selection button to select a new programme. After closing the door, the new programme will resume the course of the old programme.

NOTE:

Open the door slightly at first to stop a programme before it is complete in order to avoid water spillage.

Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

When the door of your machine is opened, the most recently selected programme will be shown on the display. Press and hold the Programme Selection button for 3 seconds. At the end of 3 seconds, '1' will be shown on the Display. The water discharge process will start after the door of the machine is closed and will continue for 30 seconds. A buzzer will sound 5 times when a programme is cancelled.

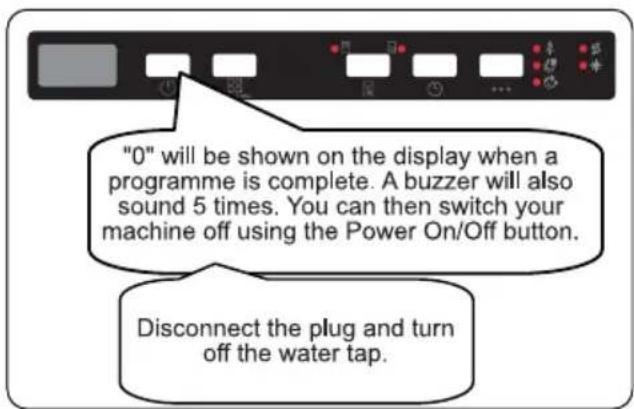

Switching The Machine Of

"0" will be shown on the display when a programme is complete. A buzzer will also sound 5 times. You can then switch your machine off using the Power On/Off button. Disconnect the plug and turn off the water tap.

NOTE:

Do not open the door before a programme is complete.

NOTE:

Leave the door slightly open at the end of a wash programme to speed up drying.

NOTE:

If the door of the machine is opened or the power is cut during operation, the program will continue when the door is closed or the power returns.

NOTE:

Buzzer sounds 5 times each at 5 minutes intervals (in 0, 5, 10 and 15th minutes) in total 4 different times at the end of the program.

To change the buzzer sound level, follow the below steps:

1. Open the door and press Delay (5) And Options (6) buttons simultaneously for 3 seconds.
2. When sound setting is recognized, buzzer gives a long sound and machine will display last set level, from "S0" to "S3".
3. To decrease sound level press Delay button (5). To increase sound level, press Options button (6).
4. To save the selected sound level, turn off the machine.
   "S0" level means all voices are off. Factory setting is "S3".

SAVE POWER MODE

To activate or deactivate Save Power Mode, follow the below steps:

1. Open the door and press Half Load (4) and Delay (5) buttons simultaneously for 3 seconds.
2. After 3 seconds, the machine will display last Setting, "IL1" or "IL0".
3. When Save Power Mode is activated, "IL1" will be displayed. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy.
4. When Save Power Mode is deactivated "IL0" will be displayed. If Save Power Mode is deactive, interior lights will be on as long as the door is open, and the machine will always be on unless it is turned off by user.
5. To save the selected setting, turn off the machine.
   In factory setting, Save Power Mode is active.

NATURAL ION TECH (MODEL DEPENDING)

This function provides extra hygiene to the machine thanks to Ion Technology It operates as an independent program. This function is activated by pressing Half Load (4) button for 3 seconds in ready state. At the end of 3 seconds, “Ion” will be displayed which indicates Natural Ion Tech function is activated. The button is released after “Ion” is displayed. If no intervention by user, 24 hour after activation of Natural Ion Tech function, it is automatically cancelled.

NOTE:

If machine is turned off, Natural Ion Tech function is cancelled.

NOTE:

Natural Ion Tech function does not work with any program.

This technology which have Ion and Light Technology together, provides to extra hygiene. It prevents bad odor during a washing program that includes a drying step.

PureBeam function is activated or deactivated before starting program in ready state by pressing Half Load (4) button for 6 seconds. At the end of 6 seconds, "UV1" will be displayed which indicates

PureBeam function is activated. When it is deactivated, at the end of 6 seconds, "UV0" will be displayed.

PureBeam setting follows Natural Ion Tech setting. Default set is "UO".

NOTE:

If user do not deactivate PureBeam function at the end of program, it will remain active until the machine turns off.

NOTE:

If PureBeam or Natural Ion Tech function is active, Natural Ion Tech led lights up like dimming during door is open.

Infoled 2.1 (Model Dependent)

LED Indicator State of the Machine
Red, continuous The machine is running a program
Red, flashing A program is cancelled
Red, flashing rapidly	The machine has a fault. Refer to section „Automatic fault warnings and what to do”
Green, continuous A program is finished

CHAPTER 8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life

Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on. Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
• To extend the life of your dishwasher, clean the appliance regularly on each month
- Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

FILTERS

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter
b) Coarse Filter
c) Metal Filter

Diagram of a mechanical component with a central rotating knob and a circular head, no text or symbols present

② b a

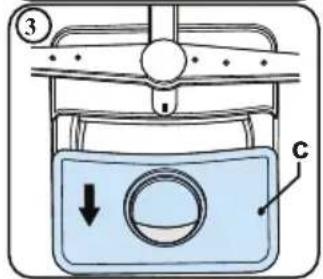

Diagram of a piston-cylinder system with labeled component C and directional arrow indicating flow or movement

Diagram of a mechanical component with a central hub and internal structure (no text or symbols)

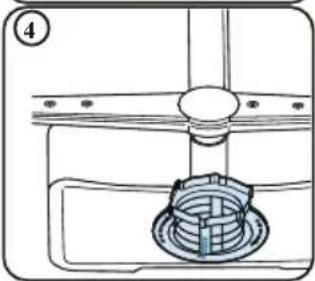

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

SPRAY ARMS

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

DRAIN PUMP

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

WARNING RISK OF CUTS!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

CHAPTER 9. TROUBLESHOOTING

FAULT POSSIBLE	CAUSE TROUBLESHOOTING
The programme does not start	Your Dishwasher is not plugged in	Plug your Dishwasher in
	Your Dishwasher is not switched on	Switch your Dishwasher on by pressing the On/Off button
	Fuse blown Check your indoor fuses
	Water inlet tap is closed Turn	on the water inlet tap
	Your Dishwasher door is open Close the Dishwasher door
	Water inlet hose and machine filters are clogged	Check the water inlet hose and machine filters and make sure they are not clogged
Water remains inside the machine	Water drain hose is clogged or twisted	Check the drain hose, then either clean or untwist it
	The filters are clogged Clean the filters
	The programme is not finished yet	Wait until the programme is finished
Machine stops during washing	Power failure Check mains power
	Water inlet failure Check water tap
Shaking and hitting noises are heard during a wash operation	The spray arm is hitting the dishes in the lower basket	Move or remove items blocking the spray arm
Partial food wastes remain on the dishes	Dishes placed incorrectly, sprayed water not reaching affected dishes	Do not overload baskets
	Dishes leaning each another	Place dishes as instructed in the section on loading your dishwasher
	Not enough detergent used	Use the correct amount of detergent, as instructed in the programme table
	Wrong wash programme selected	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste	Clean the holes in the spray arms with thin objects
	Filters or water drain pump clogged or filter misplaced	Check the drain hose and filters are correctly fitted
Whitish stains remains on dishes	Not enough detergent used	Use the correct amount of detergent, as instructed in the programme table
	Rinse aid dosage and/or water softener setting set too low	Increase rinse aid and/or water softener level
	High water hardness level	Increase water softerner level and add salt
	Salt compartment cap not closed properly	Check that the salt compartment cap is closed properly
Dishes do not dry	Drying option is not selected	Select a programme with a drying option
	Rinse aid dosage set too low Increase rinse aid dosage setting
Rust stains form on the dishes	Stainless-steel quality of the dishes is insufficient	Use only dishwasher-proof sets
	High level of salt in wash water	Adjust the water hardness level using water hardness table
	Salt compartment cap not closed properly	Check that the salt compartment cap is closed properly
	Too much salt spilled in the Dishwasher while filling it with salt	Use funnel while filling salt to the compartment to avoid spillage
	A poor mains grounding	Consult a qualified electrician immediately
Detergent remains in the detergent compartment	Detergent was added when the detergent compartment was wet	Make sure detergent compartment is dry before use

AUTOMATIC FAULT WARNING AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
FF Water	inlet system failure	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F5 Pressure	system failure Contact for service.
F3 Continuous water input Close the tap and contact for service.
F2 Inability to discharge water		Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Heater	error Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
FE Faulty	electronic card Contact for service.
F7 Overheating		Contact for service.
F9	Divisor position error Contact for service.
F6	Faulty heater sensor	Contact for service.
HI	High voltage failure	Contact for service.
LO	Low voltage failure	Contact for service.

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document.

Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

CHAPTER 10. DISPOSAL OF USED EQUIPMENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

5XXXX

KERNAU

NÁVOD K POUŽITÍ

MYČKA

KDI 6754 AD

Simple geometric diagram with a rectangle and top border (no text or symbols)

Illustration of a hand holding a faucet with a valve, showing a right-hand rule for lifting the valve (no text or symbols present)

VAROVÁNÍ

Diagram of a pipe valve assembly with a fuse and cooling element (no text or labels)

NEBEZPEČÍ ZASAŽENÍ ELEKTRICKÝM PROUDEM

Close-up of a mechanical component with a labeled dimension '12' pointing to a circular component (no text or symbols beyond the number)

OBECNÝ VZHLED

Four-step diagram illustrating a chemical experiment with labeled steps: stirring, heating, drying, and pouring liquid.

Illustration of a hand using a tool to press or install a device into a notebook (no text or symbols visible)

Line drawing of a tool inserting a key into a device (no text or symbols)

Technical line drawing of a mechanical frame structure with no visible text or symbols

Technical line drawing of a multi-wheeled vehicle chassis frame with visible structural components and red directional arrows indicating motion or movement (no text or symbols)

Horní koš

Úprava výšky

Illustration of a hand holding a black tool inside a wire cage (no text or symbols visible)

Mechanical assembly diagram showing a conveyor belt system with two wheels and directional arrows indicating motion (no text or symbols)

3D wireframe model of a structural grid with red directional arrows indicating movement or force (no text or symbols)

Close-up of a mechanical device with a grid-like structure and several white cylindrical components (no visible text or symbols)

3D rendering of a mechanical assembly with layered components and mounting base (no visible text or symbols)

Interior view of a kitchen appliance with multiple circular kitchen units and metal grilles (no visible text or labels)

Interior view of a stainless steel kitchen appliance with shelves, storage tanks, and a rack (no visible text or symbols)

VAROVÁNÍ:

Two 3D-rendered kitchen utensils in a grid, one with a coiled lid and the other with a pan (no text or symbols visible)

3D diagram of industrial equipment layout with white and green components arranged in a grid (no text or labels)

Nesprávné plnění

3D rendered image of a grid with white and blue spherical objects, featuring a black 'X' symbol overlay (no text or symbols present)

3D structural model of a grid with embedded components and a black X mark (no text or symbols)

Technical diagram of industrial equipment with grid lines and a fence structure (no visible text or symbols)

3D wireframe model of a grid with white and blue components, no text or symbols visible

KAPITOLA 6. TABULKA PROGRAMÜ

Technical diagram of a mechanical assembly with a central component and base plate (no text or symbols)

② b a

Diagram of a car air vent with labeled components and directional arrow

Technical diagram of a mechanical assembly with a central component and a base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

VYPOUŠTĚCÍ ČERPADLO

Simple geometric diagram with a rectangle and a horizontal line inside a larger rectangle (no text or symbols)

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

УВАГА!

Diagram of a pipe valve with a valve and base, showing internal components (no text or labels)

Labeled diagram of a multi-chamber kitchen appliance with numbered parts for identification

Close-up of mechanical components with a numbered arrow pointing to a circular component (no text or symbols visible)

ЗАГАЛЬНИЙ ВИГЛЯД

DETERGENT

Illustration of a hand inserting a card into a device (no text or symbols visible)

Line drawing of a hand holding a tool over a device (no text or symbols)

Technical line drawing of a multi-level industrial container with structural supports and red arrows indicating motion or flow (no text or symbols)

3D wireframe model of a mechanical chassis with visible components and red directional arrows indicating motion (no text or symbols)

Верхній кошик

Регулювання висоти

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

Mechanical assembly diagram showing a conveyor belt system with two wheels and a central shaft (no text or symbols)

3D wireframe model of a mechanical or structural assembly with no visible text or symbols

Close-up of a mechanical device with internal compartments and cylindrical components (no visible text or symbols)

3D architectural model of a building complex with structural elements and lighting (no visible text or symbols)

Interior view of a kitchen appliance with multiple kitchenware and a rack (no visible text or labels)

Interior view of a multi-level kitchen appliance with grilles, cups, and storage units (no visible text or labels)

УВАГА!

Two 3D-rendered kitchen utensils in a grid, one with a fan and plate, the other with a pot and spoon (no text or symbols)

3D diagram of a grid-based mechanical or electrical component assembly with no visible text, numbers, or symbols.

3D rendered diagram of a grid with scattered white and blue spherical objects and a black 'X' symbol overlay (no text or labels)

3D wireframe model of a warehouse or storage unit with internal components and a central X mark (no text or symbols)

Technical diagram of a mechanical assembly with components and a grid structure (no visible text or labels)

3D wireframe model of a mechanical assembly with blue and white components, no text or symbols visible

РОЗДІЛ 6. ТАБЛИЦЯ ВИБОРУ ПРОГРАМ

Diagram of a mechanical component with a central housing and a curved internal structure, no visible text or symbols.

② b a

③ C

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)
