IK1601 - Waffle Maker IDEAL - Free user manual and instructions

Product Type	Waffle Maker
Model	IK1601
Brand	IDEAL
Power Consumption	800 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	25 cm x 25 cm x 10 cm
Weight	2.5 kg
Cooking Surface	Non-stick coated plates
Waffle Capacity	2 waffles at a time
Indicator Lights	Power and ready lights
Temperature Control	Adjustable thermostat
Cool-Touch Handle	Yes
Non-Slip Feet	Yes
Drip Tray	Removable drip tray
Cord Storage	Cord wrap under base
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Automatic shut-off, overheat protection
Accessories	User manual
Repairability	Spare parts available; professional repair recommended

Frequently Asked Questions - IK1601 IDEAL

How do I use the IDEAL IK1601 waffle maker for the first time?

Before first use, wipe the plates with a damp cloth. Preheat the waffle maker for about 5 minutes with the lid closed, then discard the first waffle.

Can I adjust the temperature?

Yes, the IK1601 features an adjustable thermostat to control browning. Turn the knob to your desired setting.

What type of batter is recommended?

Any standard waffle batter works. Avoid overfilling to prevent overflow. Start with 1/2 cup per waffle.

How do I clean the waffle maker?

Unplug and let cool. Wipe plates with a damp cloth or paper towel. Do not immerse in water or use abrasive cleaners. The drip tray is removable for cleaning.

Why is my waffle sticking?

Ensure the plates are properly preheated and lightly greased. The non-stick coating may degrade over time; consider using a non-stick spray.

Does it have an automatic shut-off?

Yes, the IK1601 includes automatic shut-off and overheat protection for safety.

Can I store the waffle maker upright?

No, store it flat on its base. The cord can be wrapped under the base for compact storage.

What is the warranty period?

IDEAL typically offers a 1-year warranty. Check your local retailer for specific terms.

Where can I find spare parts?

Spare parts are available through IDEAL customer service or authorized retailers. Contact support for specific part orders.

Is the lid lockable?

The lid closes securely with a latch but does not lock during operation. It can be opened safely using the cool-touch handle.

USER MANUAL IK1601 IDEAL

Line drawing of a portable electronic device with a circular opening and handle (no text or symbols)

_

| _

一

1

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

WSKAZÓWKI BEZPIECZEŃSTWA

Read the content of this manual carefully before first use. It is recommended to keep this instructions manual for future reference.

1. Connect the connection cord to a socket which complies with the specification provided in the manual.
2. Always disconnect the appliance from the mains by pulling the plug, not the power cord.
3. Disconnect the appliance from the mains whenever it is not used or before cleaning it.
4. Do not immerse the cord or the appliance in water.
5. Do not hang the cord on sharp edges and do not let it touch hot surfaces.
6. Do not use in open air.
7. Do not use nearby inflammable materials such as furniture, bedding, paper, clothes, lace curtains, linings etc.
8. Do not leave children without care nearby the appliance parts of the appliance become hot when the appliance is being used.
9. You should hold the appliance only by the handgrip.
10. Be careful when taking out the sandwiches. Ready made sandwiches are hot and can burn.
11. Do not leave the appliance unattended when it is being used.
12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
13. Pay attention to make sure that the appliance is not played with by children.

14. Do not carry or move the appliance when it is being used.

15. Do not cover the appliance when it is being used.

16. Do not put any products in metal foils into the appliance.
17. Do not grasp the appliance with wet hands.
18. The appliance is intended for household use only.
19. A very hot stream of steam may come out of the appliance when the cover is being opened do not use the appliance.
20. If the power cord has been damages or when the appliance has fallen down or was damaged in another way.
21. The Appliance should be repaired by an authorized service shop.
22. The appliance may be repaired only by an authorized service outlet.
23. Modernizing the appliance or using other spare parts or components for the appliance with the genuine ones is forbidden and threatens the safety of use.
24. Eldom Sp. z o. o. is not responsible for any potential damages caused by improper use of the appliance.

WARNING: Improper use of the appliance may cause injury

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

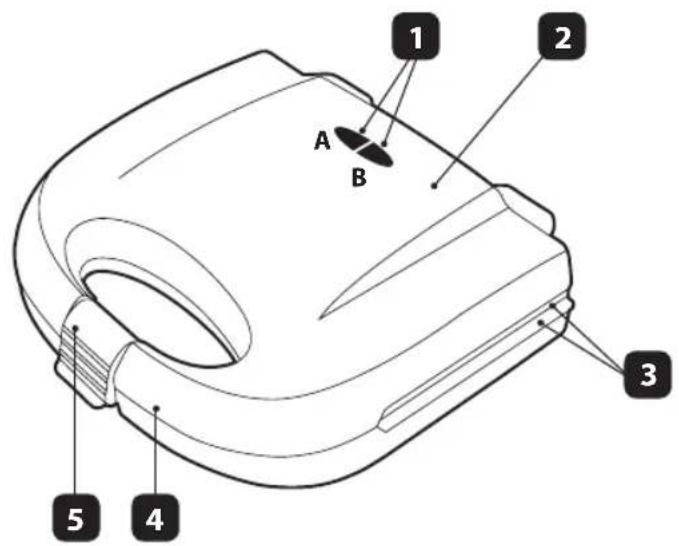

EN

1. Indicator lights A and B
2. Lid
3. Heating plate
4. Handgrip
5. Interlock handle

TECHNICAL DATA

• power: 750W
• peak power: 1400W
• mains voltage: 220-240V\~ 50-60Hz

1 2 A B 3 4 5

SETTING UP THE APPLIANCE

• Before using the appliance, make sure that the appliance, the plug and the power cable are in good technical order and whether all parts of the package were removed.
• Before the first use, all parts of the appliance that are in contact with food must be thoroughly washed (see: Cleaning and maintenance).
• Specific smell may be sensed during the first use, which results from the production process. It is a normal process and it will go away after a time. Ensure the proper ventilation in the room, e.g. opening the window.
• The first use of the appliance should be without products.

USE

• Position the device on a level, stable and high-temperature resistant surface.
• Wipe the heating plates (3) with a damp cloth.
• Oil the plates (3) slightly with butter, margarine or oil to make them ready for making waffles.
• Close the lid (2) and secure the handle with interlock (5).
• Plug in the appliance - operation of the appliance is signalled by the light (1A)
  • Control light (1B) signals when the waffle maker is heated and ready for operation.
• Open the lid (3) and pour the batter so that it does not pour out of the heating plate (2).

Warning.

When placing the dough on the bottom heating plate make sure the baking mould is completely filled.

During baking process the excess dough may flow out of the appliance.

• lose the lid gently and secure the handle with interlock (5).
• Bake waffles for 2-6 minutes. The baking time is dependant on:

- the type of cake,

- expected baking level of waffles and the number of waffles in the waffle maker.

• It can happen that, during the baking process, the operating lamp (1B) goes out briefly and then lights up again. This indicates that the adjusted temperature had fallen, causing the appliance to automatically heat itself back up to the programmed temperature.
• Open the waffle iron to check if the waffles are sufficiently baked resp. brown. If the waffles are not yet ready, re-close the waffle iron and let them bake for a little longer.

Warning.

Steam escapes from the sides of the appliance during cooking - risk of burns.

• Before preparation of the next waffles, always close the cover in order to maintain required temperature.
• After baking the last waffle, remove the plug from the mains power socket and allow the appliance to cool down, with the lid up.

Note:

When removing the waffles, be sure not to accidentally damage the coating of the baking surfaces. To avoid this, use only wooden or heat-resistant plastic implements.

USEFUL TIPS

• Mix all ingredients together uniformly, this will ensure a constant level of browning.
• Never lay crisply baked waffles on top of each other. This causes them to become soft quickly. To keep them crispy, lay them next to each other on a kitchen grill.

CLEANING AND MAINTENANCE

• Disconnect the appliance from the mains and let it cool down before cleaning it.
• Do not immerse any part of the appliance in water or other liquids.
• First, rub the cooking plates with paper towels in order to remove grease.
• Then, clean the appliance and the cord gently with a wet cloth.
