USER MANUAL 2270 IDEAL

White industrial paper<|im_start|> Puerto Rico printer with open lid and control panel (no visible text or symbols)

1. This document shredder is intended for shredding paper.
2. The hardened solid steel blade shafts are insensitive to small amounts of paper clips and staples. This does not apply to models with 0.8 x 12 mm and smaller particle cut. In this case, the paper to be shred must not contain any paper clips or staples.
3. Depending on the device model, small amounts of CDs, credit and customer cards as well as discs can also be shred. Visit www.ideal.de to find out whether your device, because of the output and cutting geometry, is also suitable for shredding these data carriers

لهذه الآلة (آلة إفناء الملفقات) تضمن شركة كروج و Libyaستر المساهمة المحدودة Priester & Krug و ب ر ي س ت ر ا ل م س ا ه م ة ا ل م ح و د و ة ب A b i n g e n ف ي م د ي ن ة ب ا ل ي ن ج ي ن ف ق ط ع ا ل غ ي ا ر ل م د ة ل ا ت ق ل ع ن 15 ع ا م آ إ ب ت د ا ء م ن ت ا ر ي خ ال إ ن ت ا ج . ب ا ل ن س ب ة ل أ ص ن ا ف ا ل ح م ا ي ة 1 P-1 و ح ت ى (ح س ب الم ع ي ا ر 66399 (DIN 66399) ف إ ن ش ر ك ر و ب ر ي س ت ر ت ق د م ك ف ة ة ض د إ ن ك س ا ر ال ق و ا ط ع ع ل ي ط و ل م د ة ا ل إ س ت خ د ا م م ا د ا م ا ل إ س ت خ د ا م م و ا ف ق ً ل ل ق و ا ع د (أ ن ظ ر ص ف ح ة ر ق م 3. ف ي ح ة ة أ ص ن ا ف ا ل ح م ا ي ة 6 P-7 و P-7 (ح س ب

Krug & Priester GmbH & Co. KG, Balingen warrants for at least 15 years, from date of production, the availability of spare parts for this paper shredder. For security levels P-1 to P 5 (according to DIN 66399) Krug & Priester grant a lifelong warranty against any breakage on the cutting shafts (see page 3) definition of normal use. For the security levels P-6 and P-7 (according to DIN 66339) grant Krug & Priester a 2 year warranty against any breakage on the cutting shafts see definition of normal use.

Simple line icon of an open book with an information symbol (no text or numbers present)

Please ensure to read this operating manual before starting the machine for the first time and please strictly follow the safety instructions mentioned herein. This manual must be available at any time.

Warning symbol with exclamation mark inside a triangle

Take care of long hair!

Prohibition sign with a figure crossed out of the diagonal line, indicating no prohibition or exclusion.

Warning symbol with exclamation mark inside a triangle

Do not grasp into the cutting mechanism!

Prohibition sign with crossed hand and chain symbol, indicating no liability or prohibition

Warning symbol with exclamation mark inside a triangle

Take care of ties and other loose pieces of clothing!

Prohibition sign with a crossed-timble tie symbol and diagonal line, indicating no prohibition or exclusion.

Warning symbol with exclamation mark inside a triangle

Be careful of loose jewellery!

Prohibition sign with a circular diagram and diagonal line, indicating no prohibition or disapproval.

Warning symbol with exclamation mark inside a triangle

No operation by children!

Prohibition sign with pictograms of two human figures separated by a diagonal line, indicating no movement or prohibition.

Warning symbol with exclamation mark inside triangle

Do not destroy accumulators/batteries!

Prohibition sign with battery and switch symbols, indicating no prohibition or resistance

Warning symbol with exclamation mark inside a triangle

لَبْبَاقُلَا داوُمْلَا عَمٍ ذادُرْلَا مَادُخْتَسَا مَدَعِ نِي عَتِي！ قَىئَاثُولَا فَالَكْتِ إِلَّاً نَم بَرْقَلَاب لَاعَتَشَالْ

Do not use any spray cans with fl ammable content near to the document shredder!

Prohibition sign with no crossed lines and a spray can icon, indicating no smoking or disinfection.

Warning symbol with exclamation mark inside a triangle

Do not use any fl ammable cleaning agents.

Black and white symbolic image of a flame inside a diamond border (no text or numbers)

Diagram showing a washing machine connected to a plug, with warning symbol and arrows indicating electrical hazard.

Remove the plug before cleaning the machine!

Do not perform any repairs on the document shredder! (See page 18).

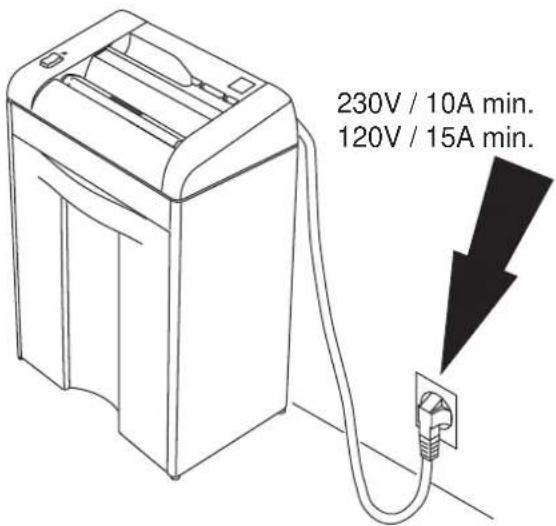

230V / 10A min. 120V / 15A min.

Ensure free access to mains

I O R

When not in use for a longer time switch off.

There will be no power consumption any more.

Line drawing of a mechanical device with labeled component A (no text or symbols on the device itself)

Line drawing showing a hand using a device to press down an open drawer into a rectangular basin (no text or symbols)

كان ثابتقم بوضع 1

Place machine onto the cabinet.

Line drawing of a washing machine connected to a plug, with a black lightning bolt symbol indicating the power line (no text or labels present)

، المقبس قم بتوصيل

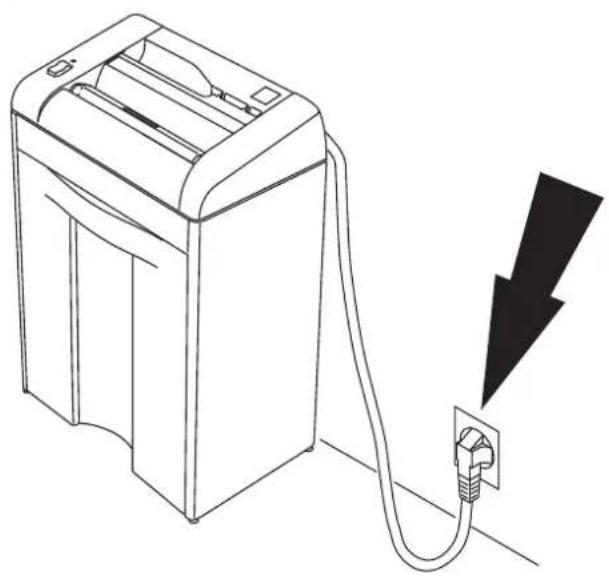

Plug into the wall socket

1. I O R 2.

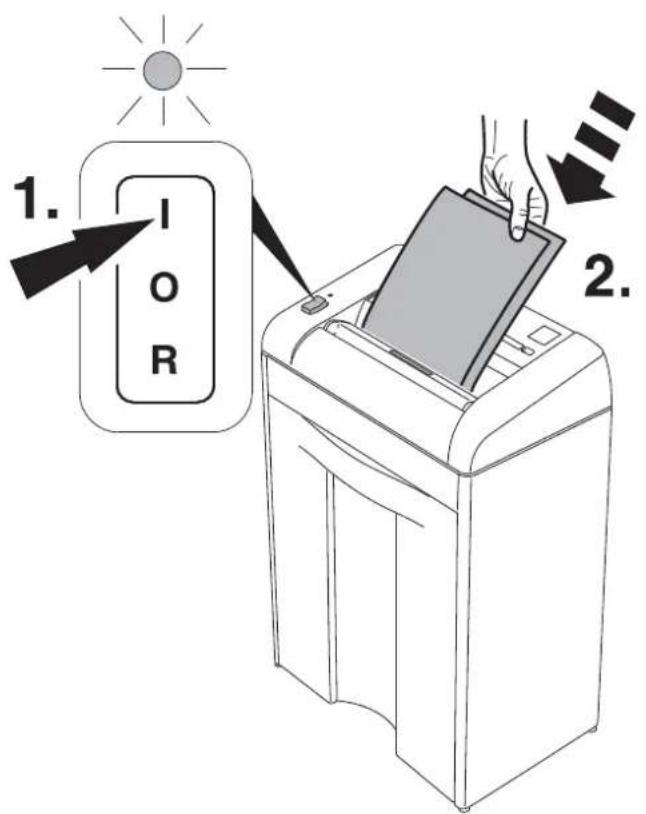

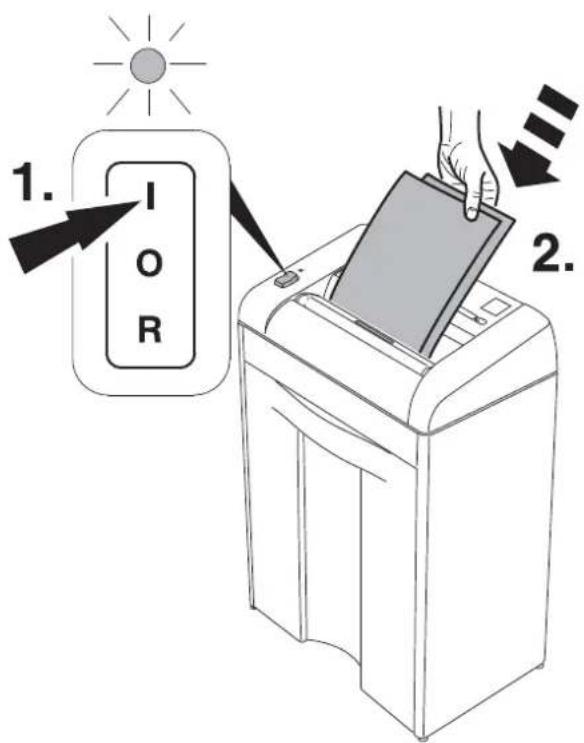

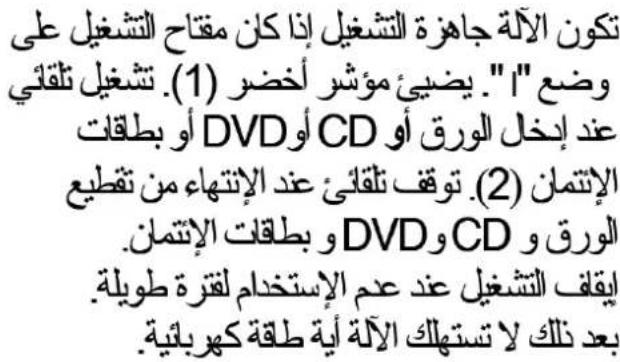

Turn the main switch to position "I": The green control light will light (1.).

Ready for operation.

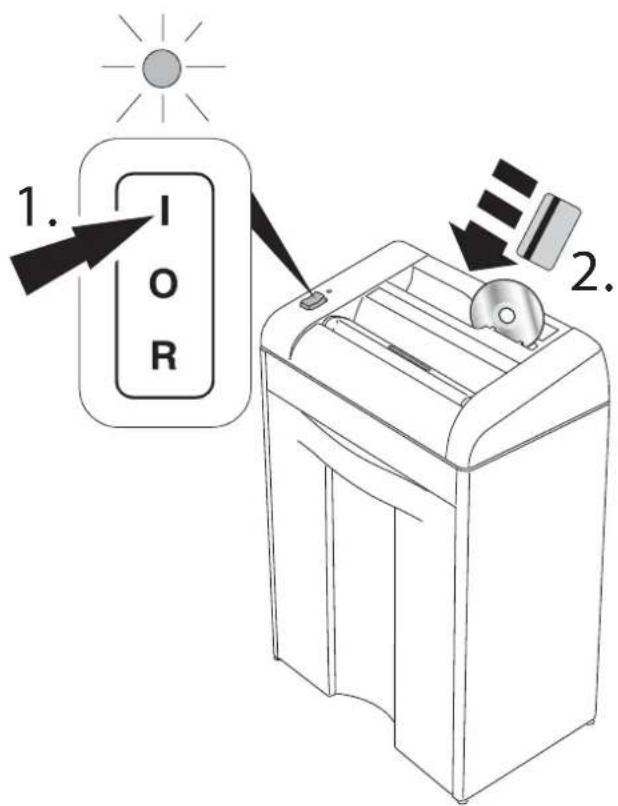

Starts automatically when paper, CD/DVD credit cards are inserted (2.). Stops automatically when no further paper, CD

DVD/credit cards are inserted. When not in use for a longer time switch off. There will be no power consumption any more.

1. I O R 2.

I O R

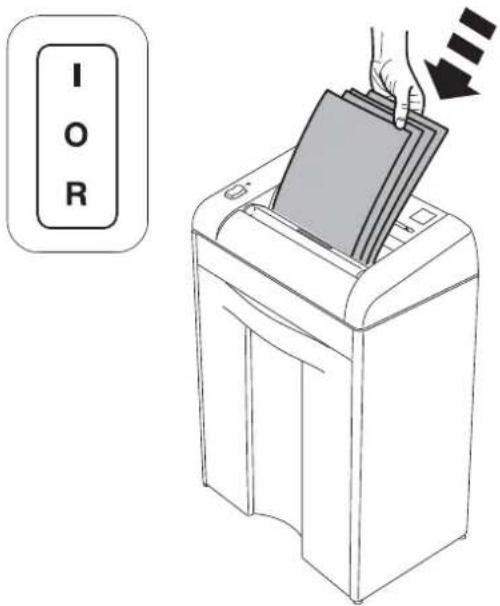

Stops automatically if too much paper is inserted. (Machine blocks).

1. I O R 2.

3. I O R 4.

Press reverse button (1.) and remove paper (2.). Reset by pressing the rocker switch to position "I" (3.). Re-feed the paper in smaller quantities (4.).

CD/DVD:

Should a CD/DVD cause a jam when being destroyed, press the reverse button "R"

A B

Empty the shred bin when it is full. Level can be seen in the window (A). Remove and empty the shred bin for CD DVD (B).

If the sheet capacity reduces or after the shred bin is emptied oil the shredding mechanism! (see picture)

With straight cut use the oiler (A) With particle cut use the oiler or oil sheets (B)

Order no. see page 19.

Line drawing of a hand using a tool to insert or install a component with a grid-like structure (no text or symbols)

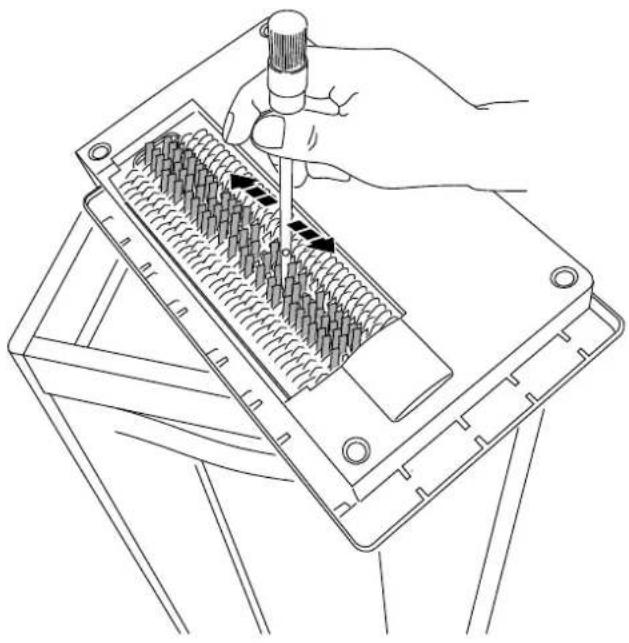

From time to time clean the output area of the cutting head.

- Disconnect from the mains.

- Remove paper debries with a brush.

Danger of injury!

IOR

لا تعمل

Machine will not start

Line drawing of a portable printer connected to a plug with a black lightning bolt symbol (no text or labels)

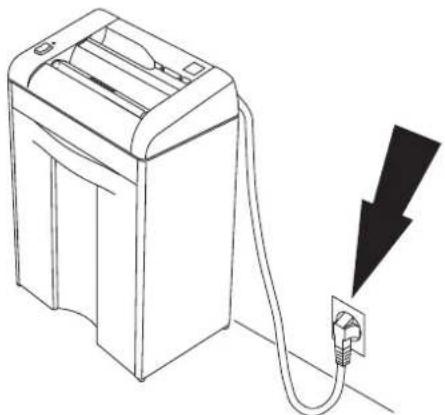

Is the machine plugged in?

Two technical line drawings of a device casing with a crossed-out black X mark, labeled 'A' (no text or symbols on the diagrams themselves)

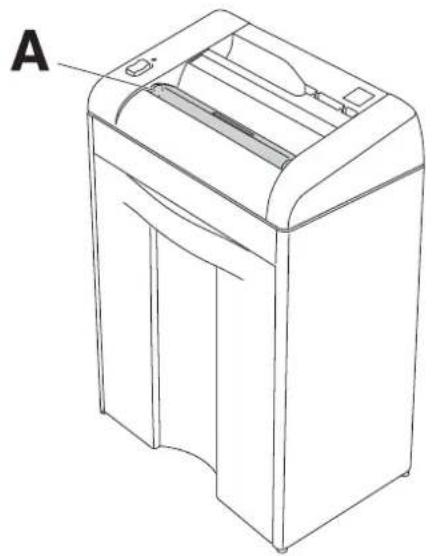

Machine is placed correctly in the cabinet? (A)

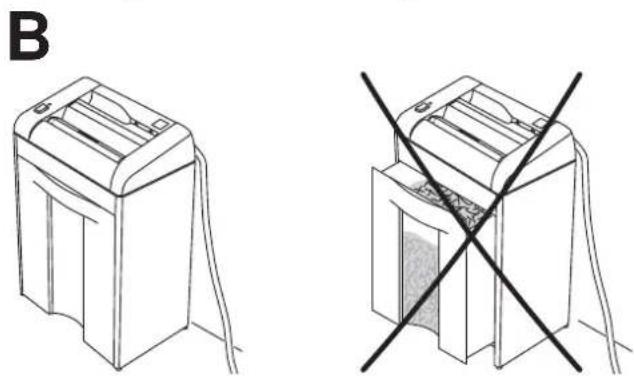

Shred bin is pushed in? (B)

Line drawings of two household appliances with a diagonal line crossing (no text or symbols)

1. I O R 2.

Is the switch in position "I"? Green LED lamp lights up? (1.) Insert paper (2.).

IOR A

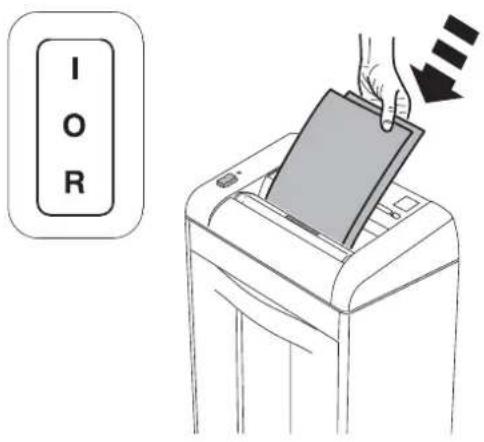

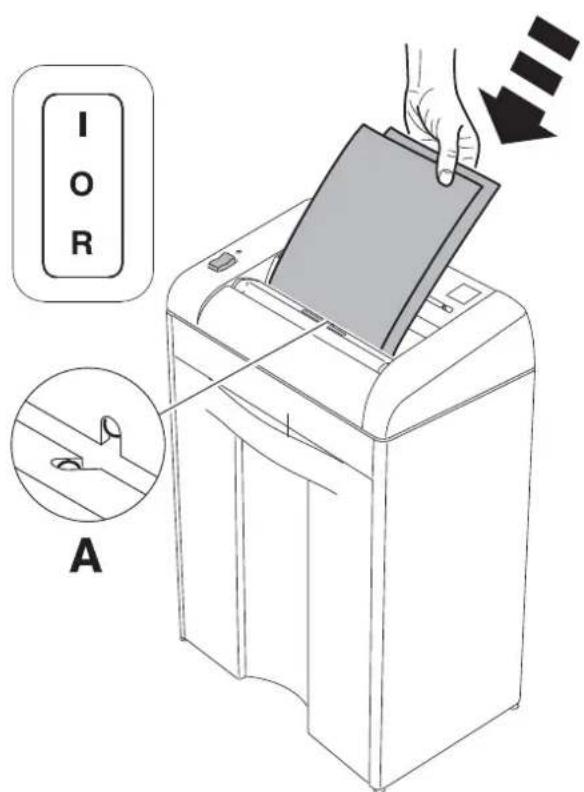

Feed the paper into the centre of the feed opening? (photo cell) (A)

Line drawing of a hand using a tool to press down a washing machine component, with an inset showing the same part (no text or symbols present)

Machine will not stop.

Remove plug. Clean the photo cell (A) with a small brush.

IOR

في حالة توقف الآلة

Overload protection. Please let the machine cool down.

Warning symbol with exclamation mark inside a triangle

Empty the shmed bounds in sufficient time at least daily, so that no interference is caused to the cutting heads.

If a paper jam, as described on page 111, cannot be corrected, because of an over filled shmed bin, the shmed bin must be emptied (see page 12).

? Service

Did none of the specified solutions help you with your problem?

→ Contact: Service
• www.krug-priester.com
• [e-mail]

Recommended accessories

IDEAL 2270

Environmentally friendly oil (10 x 0,2 litre).

No. 9000 611

SPAD PROVEGET If shell / shell / button

IDEAL 2270 CC

Oil sheets (18 Sheets)

No. 9000 631

CE

This machine is approved by independent safety laboratories and is in compliance with the EC-regulations 2014/35/EU and 2014/30/EU.

Sound level information:

The sound level at the work place is less than the ISO 7779 standard's maximum permissible level of < 70 db (A) (L PA ). Exact value in iding running, L PA and L _WAd (guaranteed A-rated sound power level) see page 22 for the exact level.

The exact technical specifications can be found on the technical specifications sticker on the machine.

To claim under guarantee, the machine must still carry its original identification label.

Subject to alterations without notice.

The company Krug + Priester has the following certifications:

• Quality management system according to DIN EN ISO 9001:2015
• Environmental management system according to DIN EN ISO 14001:2009
• Energy management system according to DIN EN ISO 50001:2011

Simple line drawing of a trash bin with two crossed x-axes and a blank base (no text or symbols)

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre. The packaging material is recyclable.

Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

Please think off the environment and dispose shredded CDs, cards and other data medium separately from shredder paper. Thank you!

EC-declaration of conformity

- Herewith we declare that

GS- IDENT. No. UL-IDENT. No.

2270; 2270 CC; ID No. 11227001 ID No. 10227001

- complies with the following provisions applying to it

2014/30/EU:

EMV Electromagnetic compatibility directive,

2014/35/EU

Low voltage directive

2011/65/EU

RoHS directive

-Applied harmonised standards in particular

IEC 60950-1; IEC 61000-3-2; IEC 61000-3-3;

EN 60950-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3;

EN ISO 12100; EN ISO 13857; EN ISO 7779

01.03.2014

Datum

M. Pioter

- Geschäftsführer -

Authorized representative for technical documentation

D-72336 Balingen (Germany)
