Product type	Belt sander
Brand	AEG-ELECTROLUX
Model	BBSE 1100
Power consumption	1100 W
No-load belt speed	230–400 m/min (variable)
Belt width	100 mm
Belt length	560 mm
Sanding surface	100 × 140 mm
Weight	5.0 kg
Power supply	Single-phase 230 V, 50 Hz
Speed adjustment	Yes (dial 1–6)
Continuous operation function	Yes (with lock button)
Dust extraction system	Dust bag or external vacuum
Double insulation	Yes
Noise level	101 dB(A) (sound pressure 88 dB(A))
Vibration	< 2.5 m/s²
Maintenance	Clean ventilation openings regularly
Spare parts	Use only AEG parts
Warranty	Refer to the Warranty brochure
Accessories	See AEG catalog

Frequently Asked Questions - BBSE 1100 AEG-ELECTROLUX

How to replace the abrasive belt?

Unplug the machine. Turn the adjustment screw to the right to loosen the belt. Pull the lever forward, remove the belt and replace it following the direction of the arrows. Push the lever back and adjust the belt with the screw.

How to adjust the speed on the BBSE 1100 model?

Turn the adjustment dial: position 1 for reduced speed, position 6 for high speed. The variable speed allows adapting the sanding to the material.

What are the essential safety instructions?

Wear protective goggles, a mask and gloves. Never work without dust extraction when sanding wood. Unplug the machine before any adjustment. Keep the cable at the back of the machine.

Can I use the dust extraction for sanding metal?

No, due to the risk of fire from sparks. For metal, do not use the dust bag or a vacuum.

How to maintain the sander?

Keep the ventilation openings clean. Use only AEG spare parts. For repairs, contact an AEG after-sales service.

What is the required supply voltage?

The machine operates on single-phase alternating current 230 V, 50 Hz. Check that the mains voltage matches the voltage on the rating plate.

How to use the continuous operation function?

Press the on/off switch then the lock button, then release the switch. To stop, press the switch again.

What is the size of the abrasive belt?

The belt is 100 mm wide and 560 mm long. Make sure to use belts compatible with these dimensions.

How to improve dust extraction?

Use the supplied dust bag. If suction decreases, empty the bag. For large volumes, you can connect a vacuum to the extraction nozzle.

Where to find accessories and spare parts?

Consult the AEG catalog or visit the AEG Electrolux website. For parts not described in the manual, contact AEG after-sales service.

USER MANUAL BBSE 1100 AEG-ELECTROLUX

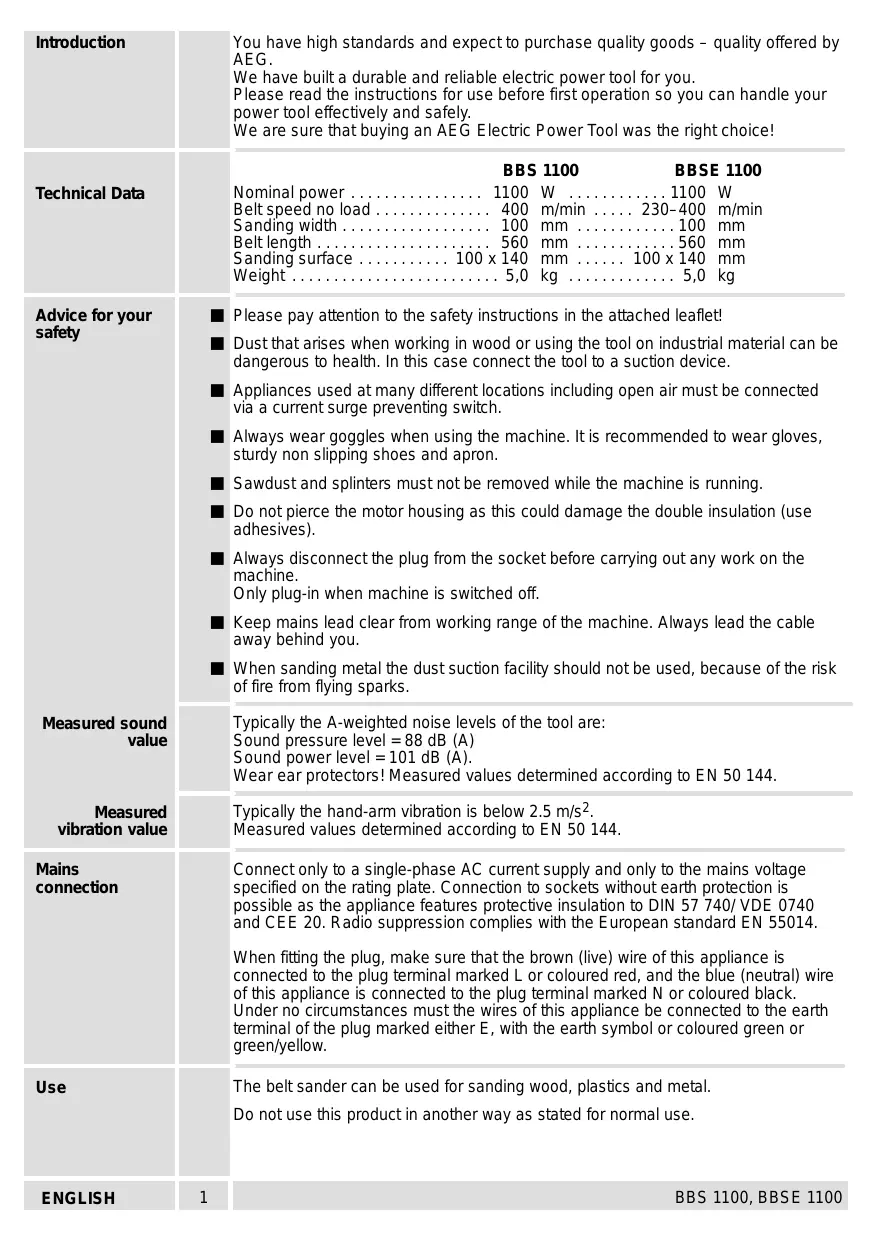

Introduction	You have high standards and expect to purchase quality goods - quality offered by AEG. We have built a durable and reliable electric power tool for you. Please read the instructions for use before first operation so you can handle your power tool effectively and safely. We are sure that buying an AEG Electric Power Tool was the right choice!
Technical Data	BBS 1100 BBSE 1100Nominal power 1100 W 1100 WBelt speed no load 400 m/min 230-400 m/minSanding width 100 mm 100 mmBelt length 560 mm 560 mmSanding surface 100 x 140 mm 100 x 140 mmWeight 5,0 kg 5,0 kg
Advice for your safety	Please pay attention to the safety instructions in the attached leaflet! Dust that arises when working in wood or using the tool on industrial material can be dangerous to health. In this case connect the tool to a suction device. Appliances used at many different locations including open air must be connected via a current surge preventing switch. Always wear goggles when using the machine. It is recommended to wear gloves, sturdy non slipping shoes and apron. Sawdust and splinters must not be removed while the machine is running. Do not pierce the motor housing as this could damage the double insulation (use adhesives). Always disconnect the plug from the socket before carrying out any work on the machine. Only plug-in when machine is switched off. Keep mains lead clear from working range of the machine. Always lead the cable away behind you. When sanding metal the dust suction facility should not be used, because of the risk of fire from flying sparks.
Measured sound value	Typically the A-weighted noise levels of the tool are: Sound pressure level = 88 dB (A) Sound power level = 101 dB (A). Wear ear protectors! Measured values determined according to EN 50 144.
Measured vibration value	Typically the hand-arm vibration is below 2.5 m/s². Measured values determined according to EN 50 144.
Mains connection	Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Connection to sockets without earth protection is possible as the appliance features protective insulation to DIN 57 740/ VDE 0740 and CEE 20. Radio suppression complies with the European standard EN 55014. When fitting the plug, make sure that the brown (live) wire of this appliance is connected to the plug terminal marked L or coloured red, and the blue (neutral) wire of this appliance is connected to the plug terminal marked N or coloured black. Under no circumstances must the wires of this appliance be connected to the earth terminal of the plug marked either E, with the earth symbol or coloured green or green/yellow.
Use	The belt sander can be used for sanding wood, plastics and metal. Do not use this product in another way as stated for normal use.
ENGLISH	1 BBS 1100, BBSE 1100

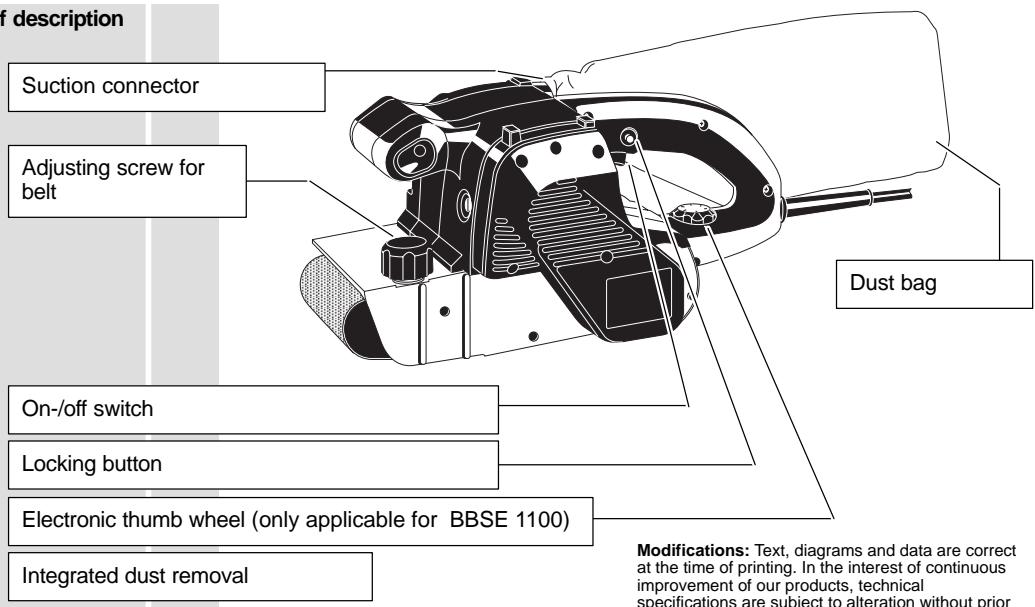

Brief description

Modifications: Text, diagrams and data are correct at the time of printing. In the interest of continuous improvement of our products, technical specifications are subject to alteration without prior notice.

Changing the belt

Always disconnect the plug from the socket before carrying out any work on the machine.

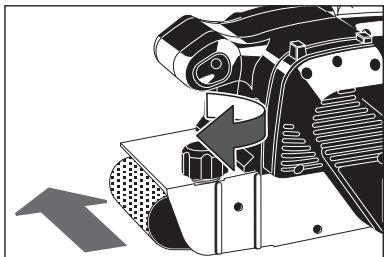

Prior the changing belt, adjust sanding belt by turning the belt adjusting screw approx. 2 - 3cm in the direction of the open side of the machine beyond the rollers, whilst the machine is running, as the new sanding belt can sometimes brush against the machine housing.

1. Pull the clamping lever forwards

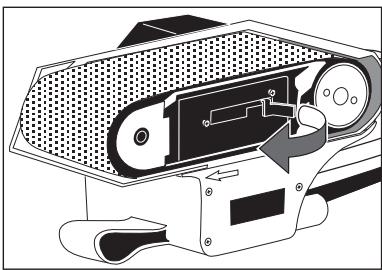

2. Remove the worn belt and fit the inside of the belt is pointing in the same direction as the arrow on the machine.
3. Push the clamping lever back again
4. Taking a test run, position the sanding belt with the aid of the belt adjusting screw so that it is flush with the outer edge of the sanding belt support.

Setting speed of rotation

(only applicable for

BBSE 1100

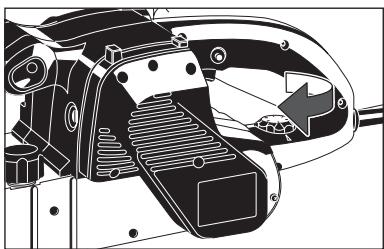

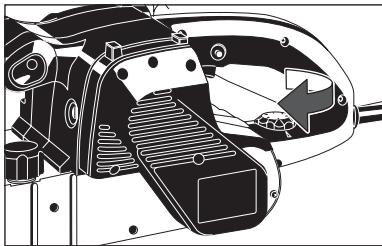

The speed is adjusted by means of the electronic thumb wheel.

1 = lowest speed

6 = highest speed

Switching the machine on and off	Intermittent use Switching on: Press On-/off switch Switching off: Release On-/off switch	Continuous use Switching on: Press the On-/off switch and then the locking button, after that release on-off switch. Switching off: Press the On-/off switch and then release. Always hold machine firmly with both hand prior to switching on. Only switch on in raised position.
Advice for operation	When sanding, guide the machine without applying special pressure. The weight of the machine itself is quite sufficient for good sanding results.
Dust extraction	When sanding wood, the dust bag should be used. When suction performance becomes less effective empty dust bag. If large quantities of dust are being produced, a hose-pipe can be connected to the dustbag connector. When sanding metal the dust suction facility should not be used, because of the risk of fire from flying sparks.
Maintenance	The ventilation slots of the machine must be kept clear at all times. Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the ten-digit No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: AEG Elektrowerkzeuge, Max-Eyth-Strasse 10, D-71364 Winnenden, Germany.
Accessories	The range of accessories with part numbers is shown in our catalogue.
ENGLISH	3	BBS 1100, BBSE 1100

PergunpoBouHbI BnHT dJIeHTbl

BbIJIIOuATEbOn-Off("BKn./BbIKJ."

Блokуюа кнока

3JIeKToHbI DnCKOBbl nepeKIOUaTeJIb (TolbKO y MoJeJIeB BBSE 1100)

BCTpoehna CnCTema nblneOTcoca

3aMeHaJIeHTbI

Ipeed BbInOJIHeHnEM KaKnx-Jin6o pa60T NO O6ClyXnBaHNIO INCTpyMeHTa BcERdaBbIHMaIte BNIKy I3 p03eTKN.

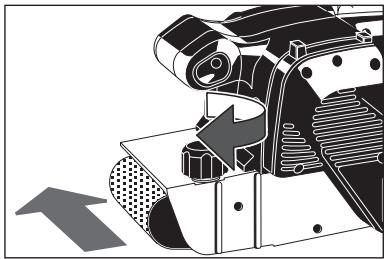

Ipepe3aMeHoiJIeHTbOTpEryIpuyTe ee Ha BkIIOUeHHoMaINHepeYrNPOBOOCHbIM BnHTOM TaK,QTOb6JIeHTa NepEMeCTuNaCb PnIMepHO Ha2-3 CMB HAnpabLeHmOTKpbITOn CTOpOHb MaunHb 3a PoJnKi,NOCKOBky HOBa JEAHTa MOKeT MHOgDa TepeTbc O KOPNc MaunHbI.

1. OTTЯнITE 3axmHNoI pyuHaR Bnepei.

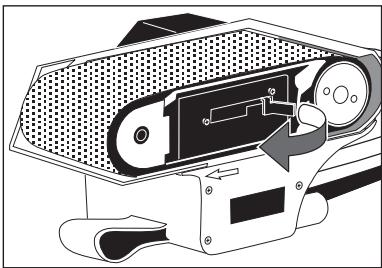

2. YdaJIte N3HOUeHHyIO JeHTy IN BCTaBbTe HOBYIO TAKIM O6pazOM, YTO6bl HaNPaBHeHne CTpeJIK Na BYHTpeHHeI CTOpOHe JENTb COBNaJaAICA HaNpaBHeHem CTpeJIK Na MaJInHe.
