PSC-80 - Blender Sam Cook - Free user manual and instructions

Product Type	Blender
Brand	Sam Cook
Model	PSC-80
Dimensions (H x W x D)	40 cm x 20 cm x 20 cm
Weight	3 kg
Power Consumption	500 W
Voltage	220-240 V, 50-60 Hz
Jug Capacity	1.5 liters
Jug Material	Tritan plastic
Blade Material	Stainless steel
Number of Speed Settings	2 plus pulse
Functions	Blending, crushing ice, smoothies, soups
Safety Features	Overload protection, non-slip feet, lid lock
Cleaning	Dishwasher-safe removable parts
Spare Parts Availability	Jug, blades, lid, seal ring available
Warranty	2 years

Frequently Asked Questions - PSC-80 Sam Cook

How do I clean the blender properly?

Disassemble the removable parts and wash them with warm soapy water or place them on the top rack of a dishwasher. Wipe the motor base with a damp cloth. Avoid immersing the base in water.

Can I crush ice with this blender?

Yes, the PSC-80 is designed for crushing ice. Use the pulse function for best results and ensure the lid is securely locked.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 60°C to avoid pressure buildup. Allow liquids to cool before blending.

How do I replace the blender blade?

Unplug the blender. The blade assembly is attached to the jug. Unscrew the locking ring (counterclockwise) and remove the old blade. Install the new blade and tighten the ring.

Why does the blender stop during operation?

The blender has an overload protection feature. If it stops, unplug it, let it cool for 15 minutes, and reduce the load before restarting.

Is the blender BPA-free?

Yes, the Tritan plastic jug is BPA-free.

Can I use the blender to make dough?

This blender is not intended for kneading dough. Use it for liquids and semi-solids only.

What is the warranty period?

The Sam Cook PSC-80 comes with a 2-year warranty against manufacturing defects. Keep your receipt.

How do I use the pulse function?

Press and hold the pulse button for short bursts. Release to stop. Useful for controlled chopping.

Are spare parts available for purchase?

Yes, you can order replacement jugs, blades, lids, and seal rings from Sam Cook's website or authorized retailers.

USER MANUAL PSC-80 Sam Cook

Black and white photo of a modern candlelight with a glass lid, no visible text or symbols on the device itself.

INSTRUKCJA OBSŁUGI

PL

INSTRUKCJA OBSŁUGI 5

GB

USER MANUAL 14

OPIS URZĄDZENIA/DEVICE DESCRIPTION:

Black-and-white photo of a man in a white shirt gesturing with his hand, against a black background (no text or symbols visible)

Sam Cook

MASTERCHEF LINE

EXECUTIVE

Cooking today has become an art. In preparing food, art means experimenting and breaking stereotypes. Nevertheless, achieving great art requires us to combine the artist's talent with excellent equipment. That is the case with Sam Cook.

Sam Cook products are designed for demanding people, based on the efforts of many professionals who consider cooking a living passion. Their arti stry in cooking is characterized by risk-taking and the courage to experiment with taste. Try our superb cookware and become a master chef in your own kitchen.

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA:

. . .

●
●
•
-
.
-
[Non-Text]
●
[Non-Text]
•
[Non-Text]
. . .

PRZED PIERWSZYM UŻYCIEM

Diagram of a mechanical component with a yellow arrow indicating downward motion, labeled 'rys. 2' (no text or symbols on the diagram itself)

Diagram of a mechanical component with a yellow arrow indicating direction, labeled 'rys. 3' (no text or symbols on the diagram itself)

Black-and-white portrait of a man sitting on a stool, wearing a white shirt and black pants (no visible text or symbols)

Kuchnia jutra

3. GWARANCJA NIE SĄ OBJĘTE:

• Before use thoroughly read the operati on manual.
• Do not touch the appliance with wet hands.
• Extreme care is required in case of children presence in vicinity of the appliance!
• Do not use your appliance for any other purpose except of its assignment.
• Do not immerse the appliance, its cord and plug in water or any other fluids.
• Do not leave the appliance without supervision in course of its operation.
  • Always pull out the plug from the socket unless the appliance is used or before its cleaning.
• Do not use the appliance in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

• Do not use the appliance outdoors.

• Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

• Do not place the appliance on hot surfaces.
• Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc.
• Place the appliance on a dry, flat and stable surface.
• The device is intended for domestic use only.
• Before use always make sure that all parts of the appliance are properly installed.
  • To avoid the risk of damage, fire or injury, always use the att achments recommended by the manufacturer.
• Do not use the appliance for the purposes different than it was designed for.
  • This appliance is not intended for use by children under

8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructi on concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

• Ensure that children do not play with the appliance.
• Store the appliance and its cord out of reach of children under 8 years of age.
• Do not remove the plug from the mains by pulling by the cord.
• The appliance is not intended to be operated by means of an external ti mer or separate remote-control system.

- Do not plug the power cord with wet hands.

• In order to ensure your children's safety, please keep all packaging (plasti c bags,

boxes, polystyrene etc.) out of their reach.

• WARNING! Do not allow small children to play with the foil as there is a danger of suff ocati on!
• Turn off and unplug the appliance before changing the accessories or handling any moving parts.
• Always wait until I the rotating parts come to a halt before removing any part from the appliance.
• WARNING! The cutting blades are very sharp, avoid touching them while emptying or cleaning the appliance it may result in serious injury.

• During operati on keep your hands away from moving parts.

• Clean all att achments and containers before using the appliance for the first time.

• Wait until I hot ingredients cool down before processing them.
  • Take extreme care when touching cutting blades, especially when removing them for cleaning.
• Before disassembly wait until the motor stops completely.
• Before use always make sure that no tool (e.g. spoon, spatula) is left in the bott le, because it may cause damage to the appliance or body injury.
  • Periodically inspect the power cord for damage.

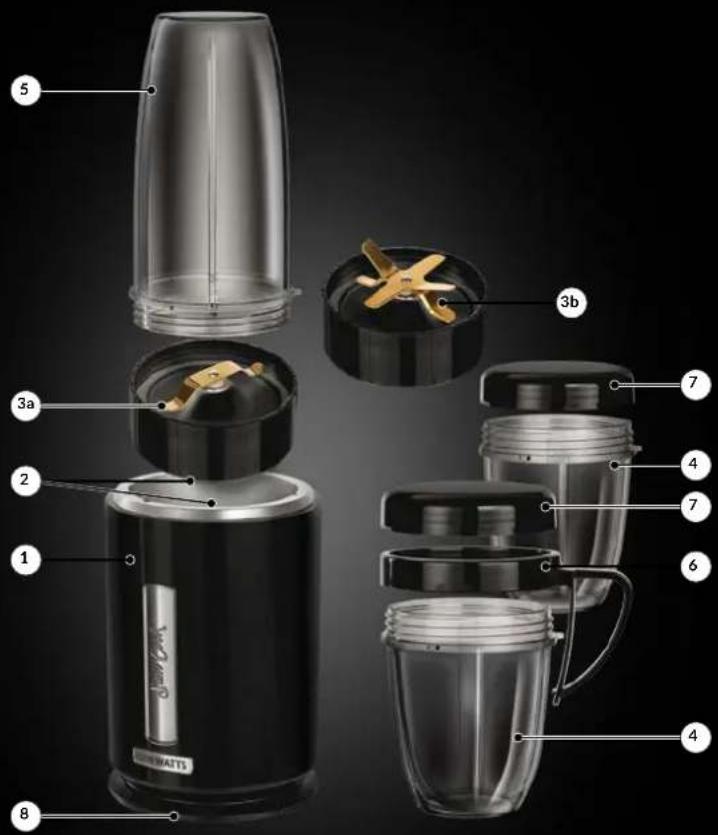

APPLIANCE OVERVIEW

The PSC-80 Nutri Blender is your great way of blending fresh fruit or vegetable juice, milk-shakes, creams, sauces, and baby food. The Nutri Blender comes with a 2-blade rotor and a 6-blade rotor for different processing demands, and three drinking bott les with twist-caps for convenient storage and carrying. The Nutri Blender also features a twist-on handle ring. The Nutri Blender bott les are made of superior-quality BPA-free plasti c. The Nutri Blender has been designed to prevent accidental and hazardous operati on. The non-slip feet keep the Nutri Blender in place when processing.

1. Nutri Blender housing
2. Blade rotor ring seat
3. Blade rotor ring with:

A. 2 blades

B. 6 blades

1. 2 max 700 ml bott les
2. Max 1200 ml bott le
3. Twist-on handle ring
4. Twist-cap
5. Non-slip feet

The stainless steel blades are coated with ti tani- um (and do not require resharpening) to prevent loss of valuable enzymes and vitamins and oxidati on of nutriti ous smoothies.

BEFORE FIRST USE

1. Remove the Nutri Blender from the box. Discard all bags, stickers and polystyrene fillers.
2. Inspect the Nutri Blender for damage which may have been caused in transport. Contact the seller when in doubt.
3. Verify that your power mains match the nameplate ratings of the Nutri Blender.
4. Wash all Nutri Blender parts that are in- lended for contact with food (see Secti on: CLEANING AND MAINTENANCE).

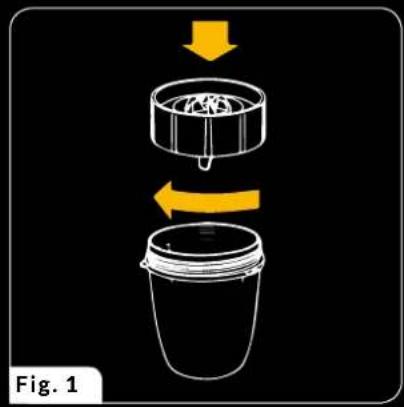

ASSEMBLING AND DISASSEMBLING THE NUTRI BLENDER BOTTLES

1. Choose the bott le you need, ④ or ⑤, and place it upright, with the mouth up.
2. Place the blade rotor ring you need, 3A or 3B on the threaded edge of the bottle ④ or ⑤ with the blades toward the bottom. Next, twist the blade rotor ring to stop with the thread Fig.1 properly aligned. Before installing the blade rotor ring, check that its sealing ring is clean and seated properly.

CAUTION! The blades are very sharp. Proceed with care to avoid injury.

1. Each blender bottle is disassembled by reversing the order of assembly.

Diagram showing a container being lifted by an arrow, with no text or symbols present.

USING THE NUTRI BLENDER

1. Place the Nutri Blender housing ① on a dry, stable and flat surface.
2. Before operating the Nutri Blender, check that the scaling rings inside the blade rotor ring 3A and 3B the drinking mouthpiece cap and the twist-caps 7 are clean and properly seated.
3. Cut the products into smaller pieces to facilitate crushing. Keep the cuts 2 cm or smaller in length.
4. Place the products into a bottle of choice, ④ or ⑤, and close it tight with a blade rotor ring, 3A or 3B, by properly aligning the thread (Fig. 1). The 2-blade rotor ring 3A is for grinding hard products, like coffee beans, pepper beans and other seeds, stones or cereals. The

6-blade rotor ring 3B is for processing other products.

CAUTION! Do not overfill the bott les. Leave at least 1 cm of headspace below the bott le thread when upright. If the products are foaming a lot when blended, the headspace should be increased.

CAUTION! To achieve the opti mum processing efficiency, put the products into the bott le in the following order: liquids, fresh products, yoghurt and ice cream.

CAUTION! Do not use the Nutri Blender with an empty bott le.

1. Plug in the Nutri Blender to the mains.

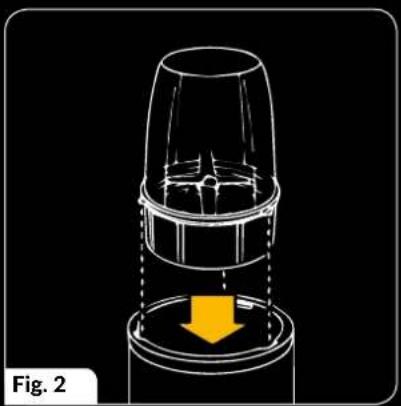

2. Turn the bott le sealed with a blade rotor ring upside down and mount the blade rotor ring in the seat ② Fig. 2 inside the Nutri Blender housing. The three bosses around the bott le, ④ or ⑤, must engage the respective three recesses in the Nutri Blender housing. Next, press down the bott le - the Nutri Blender will start processing - and gently turn the bott le clockwise to stop Fig. 3

3. Operate the Nutri Blender by holding the housing ① with one hand and the bott le with the processed product with the other hand. Do not exceed the maximum operating time.
4. With the products blended in the bottle, stop the Nutri Blender by releasing the

Diagram of a mechanical component with a yellow arrow indicating downward motion, labeled 'Fig. 2' (no text or symbols on the diagram itself)

Diagram of a mechanical component with a yellow arrow indicating direction, labeled 'Fig. 3' (no text or symbols on the diagram itself)

bottle, ④ or ⑤, with the blade rotor ring, ③A or ③B from the seat ②. This is done by gently rotating the bott le counterclockwise.

1. Unplug the Nutri Blender from the mains.

2. Remove the bott le, ④ or ⑤, with the blade rotor ring, 3A or 3B, from the Nutri Blender housing ①. Turn the bott le upright.

3. Remove the blade rotor ring from the bott le. Empty the bott le to a container of choice. You may also equip the bott le with the processed food with:

4. a twist-cap ⑦ to carry the bott le without a risk or spilling the contents;

5. the twist-on handle ring ⑥ to turn the bott le into a handy mug for comfortable drinking.

NOTES ON USE

1. Cool down cooked vegetables and stock before pouring them into a Nutri Blender bottle.
2. The Nutri Blender is not intended for: -grating potatoes

-beating eggs or dairy substi lutes -mincing raw meat

- beating or mixing thick dough (as these products tend to form heavy lumps that can damage the Nutri Blender) -draining juice off fruits and vegetables

1. Check the consistency of the products being blended every few seconds.
2. Do not exceed the maximum operating time of the Nutri Blender specified in the Operating Manual.
3. If the motor stalls, immediately stop blending and remove a part of the bottle contents.

The motor is very efficient and runs fast. Use short blender pulses to prevent the food products from being broken up to finely.

To improve blending/cutting of cheese, chocolate, nuts, and similar products, refrigerate them before processing.

If the food products tend to stick during processing, remove the bott le with the blade rotor ring, shake the bott le vigorously to free up the contents, and conti nue processing.

CLEANING AND MAINTENANCE

CAUTION! Do not submerge the Nutri Blender housing in water or other liquids!

1. Unplug the power cord from the mains before cleaning or maintaining the Nutri Blender.
2. Clean the Nutri Blender directly after use.
3. Wipe clean the Nutri Blender housing with a damp cloth. If water enters the Nutri Blender, it will leave it through the drain underneath the housing.
4. Wash the blade rotor ring ③ in water with a detergent, rinse it clean and leave to dry. Do not use water hotter than 45^ C.

CAUTION! The blades are sharp. Handle with care.

1. The bottles ④ and ⑤, the twist caps ⑦ and the twist-on handle ring ⑥ are dish-washer safe.

2. Periodically inspect all processing parts of the Nutri Blender for wear and tear before assembly. If the blender blades stall or do not rotate smoothly, do not use the Nutri Blender. Check the blade rotor ring by rotating it clockwise. Do this carefully, as you may cut yourself. The blades should rotate freely.

3. If a Nutri Blender bott le is damaged, leaks, or shows cracks, chipping or scratches, do not use the Nutri Blender. Otherwise the bott le will burst during blending.

4. The Nutri Blender motor is maintenance-free. Never use abrasive or corrosive cleaning agents, scrubbing utensils or steel wool (pot scourers) to clean the Nutri Blender; otherwise the Nutri Blender will be damaged.

TECHNICAL SPECIFICATIONS

See the product's nameplate for technical specifi cati ons.

Maximum time of operation: KB Max = 30 sek.

Noise level: L_WA = 81 dB

Length of the power cord: 1.4 m

CAUTION! MPM agd S.A. may change the technical features of the product without notice.

Black-and-white portrait of a man with long hair sitting on a stool, wearing a white shirt and black pants (no text or symbols visible)

The kitchen of tomorrow

The kitchen is the best place to make your culinary dreams come true, and allow your cooking prowess to grow.

Test out new ideas and find better ways of doing things!

Never be afraid of new challenges, of fusing the old

with the new, or of innovative tastes and ingredients.

New opportuniti es

Plan your culinary success with the right appliances.

Choosing the Sam Cook household brand is like enlisting professional help in your kitchen.

Surprise yourself with how easy it is to make something new and feel like a professional chef!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland

This symbol on the product indicates that the product, after its lifeti me, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information on about the location

and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.
