Product Type	Subwoofer
Brand	Deaf Bonce
Model	Hannibal HSS-2810 D2
Size	10 inches
Impedance	Dual 2 Ohm (configurable to 1 or 4 Ohm)
Power Handling (RMS)	600 Watts
Peak Power	1200 Watts
Sensitivity	85 dB
Frequency Response	25 - 300 Hz
Voice Coil	Dual 2 Ohm, 2.5" diameter
Magnet	Ferrite, 120 oz
Cone Material	Paper with reinforced edge
Surround	Foam
Basket	Steel, stamped
Mounting Depth	5.6 inches
Mounting Hole Diameter	9.1 inches
Weight	12.5 lbs (approx)
Recommended Enclosure	Sealed: 0.6-1.0 ft³; Ported: 1.2-1.8 ft³
Voice Coil Configuration	Dual 2 Ohm
Maintenance	Keep clean, avoid moisture; check mounting screws periodically
Safety	Use in correct impedance load; ensure adequate ventilation
Spare Parts & Repairability	Contact Deaf Bonce for recone kits and spare parts

Frequently Asked Questions - Hannibal HSS-2810 D2 Deaf Bonce

What is the recommended box size for the Hannibal HSS-2810 D2?

For a sealed enclosure, use 0.6 to 1.0 cubic feet. For a ported enclosure, use 1.2 to 1.8 cubic feet tuned to 35 Hz. Always verify with the owner's manual.

How do I wire this subwoofer to achieve a 1 ohm load?

Since it has dual 2-ohm voice coils, wire both coils in parallel to get a 1 ohm load. Connect the positive of one coil to the positive of the amplifier and the negative of the same coil to the positive of the other coil, then negative of the second coil to amplifier negative.

What is the RMS power handling?

The RMS power handling is 600 watts. It can handle up to 1200 watts peak for short durations.

Can I use this subwoofer in a home theater system?

Yes, but you will need a suitable amplifier and enclosure. It is designed for car audio but can work in home setups with proper power.

What is the mounting depth?

The mounting depth is approximately 5.6 inches. Ensure there is enough clearance in your enclosure.

How do I break in the subwoofer?

Play music at low volume (25% of RMS) for 10-20 hours to loosen the suspension. Avoid heavy bass during break-in.

What type of enclosure is best for sound quality?

A sealed enclosure provides tighter, more accurate bass. For louder output, choose a ported enclosure.

What is the sensitivity rating?

The sensitivity is 85 dB (1W/1m). This means it requires moderate power to produce sound.

Is this subwoofer compatible with a bridged amplifier?

Yes, but ensure the amplifier's final load matches the subwoofer's configuration. For a dual 2-ohm sub, you can wire to 1 or 4 ohms.

How can I clean the subwoofer cone?

Gently wipe with a soft, dry cloth. Do not use water or chemical cleaners.

USER MANUAL Hannibal HSS-2810 D2 Deaf Bonce

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Hannibal SERIES

HSS-2810 D2 HSS

L812 D2 HSS-3212 D2 H

5-3215 D2

CONTENTS

1. Introduction
2. Safety instructions
3. Wiring diagrams
4. Recommended enclosure parameters
5. How to use
6. Specifications
7. Dimensions
8. Box contents

9. Warranty and maintenance info

10. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection)

1. INTRODUCTION

Thank you for purchasing this Deaf Bonce product of Hannibal series! Our company is committed to the creation of extremely loud systems with no loss of quality

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution's in this manual. Please keep the manual in a safe and accessible place for future reference.

2. SAFETY INSTRUCTIONS

1. Fasten the subwoofer properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the vehicle or another vehicle.
2. Before installing the components, if possible store the product in its original package to avoid accidental damage to the product.
3. Be careful when installing and dismantling the subwoofer! Do not let the subwoofer drop to avoid damage of its moving parts.
4. When working with tools follow safety rules.
5. Before the installation switch off the head unit and all other audio devices to avoid their damage.
6. Make sure that the location of the subwoofer does not hinder the proper operation of mechanical and electrical devices of the vehicle.
7. Do not install components in places exposed to water, excessive humidity, high or low temperature, dust or dirt. ATTENTION!!! The product may be operated at +5 °C (41F) to +40 °C (104F). In case of moisture condensation, let the product to dry.
8. When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.
9. When stretching back the speaker cables make sure that they are not in contact with sharp edges or moving mechanical devices. Make sure that they are firmly fixed and protected over the entire length.
10. The diameter of the speaker cables must be selected in accordance with the length and applied power.
11. Never stretch the cables outside of the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.
12. To protect the cables use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.

CAUTION!!! High sound pressure can damage your health!

Please use the common sense when controlling volume!

3. WIRING DIAGRAMS

Attention! You need to connect both voice coils of the subwoofer.

Do not expose your amplifier to loads below the value predetermined by the manufacturer.

Various examples of connection types are given at the pages below. Use these examples to determine the required load impedance of your connection.

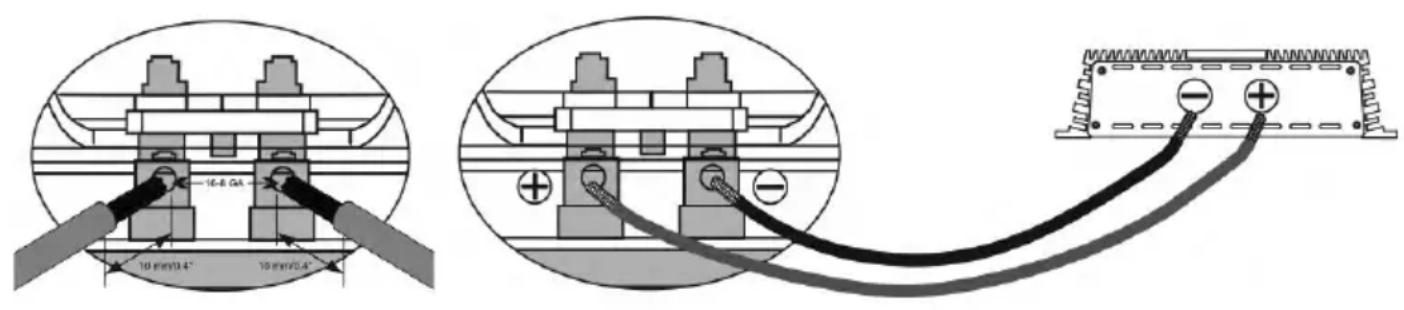

Connection of terminals

Serial connection

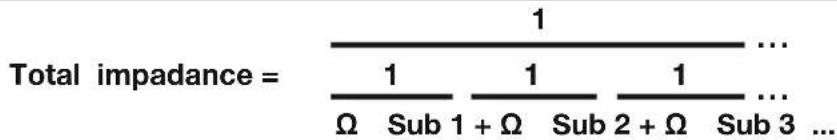

Total impedance = ΩSub 1 + ΩSub 2 + ΩSub 3 ...

Parallel connection

EN

Schemes of enabling the load of the subwoofer

In any case do not expose the amplifier to the loads lower than specified by the manufacturer. Use these schematics to calculate load impedance of different connection types.

Voice coils 2+2 Ohm

The subwoofer has voice coils D2.

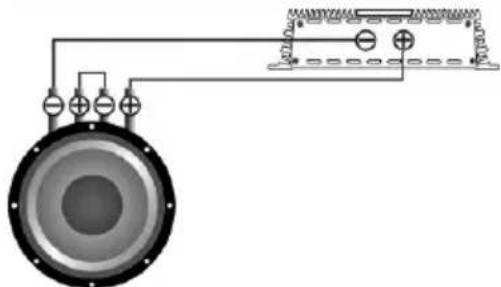

One subwoofer, coils in series

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	4 Ohm

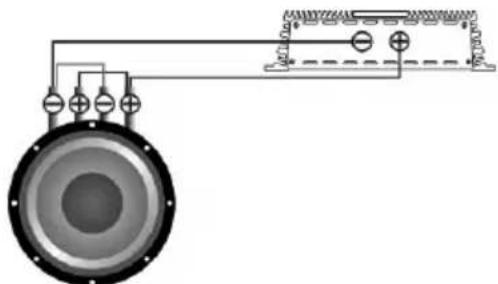

One subwoofer, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	1 Ohm

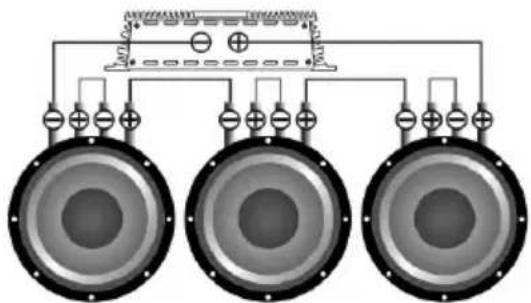

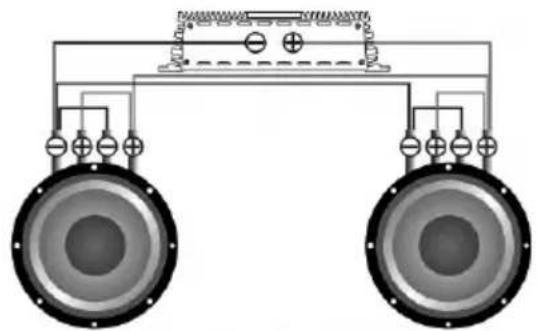

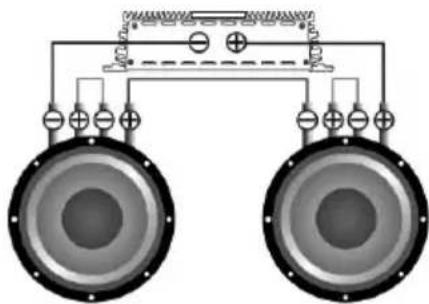

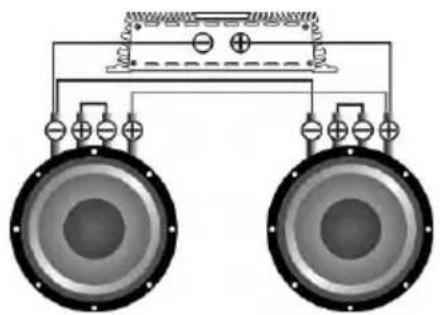

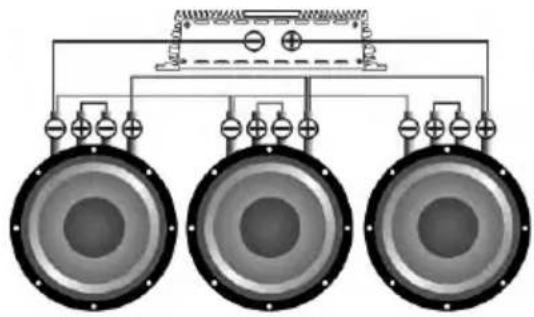

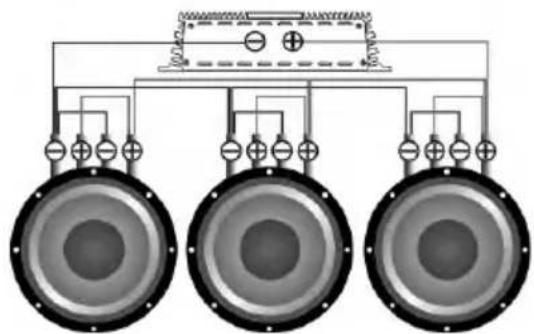

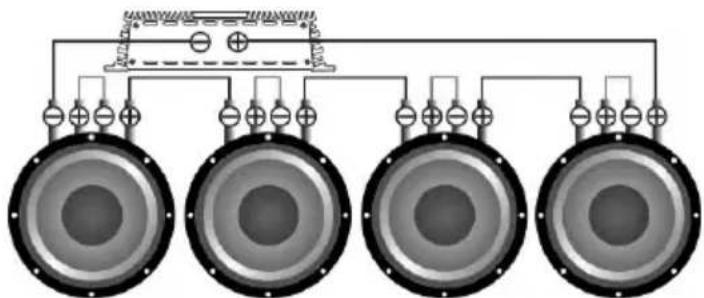

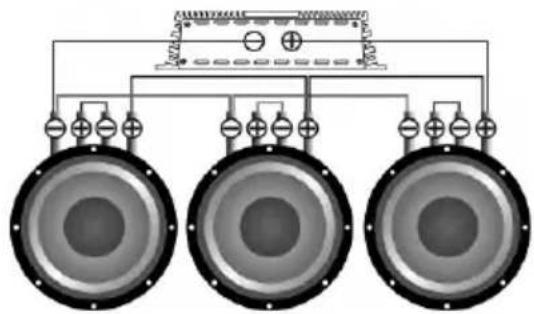

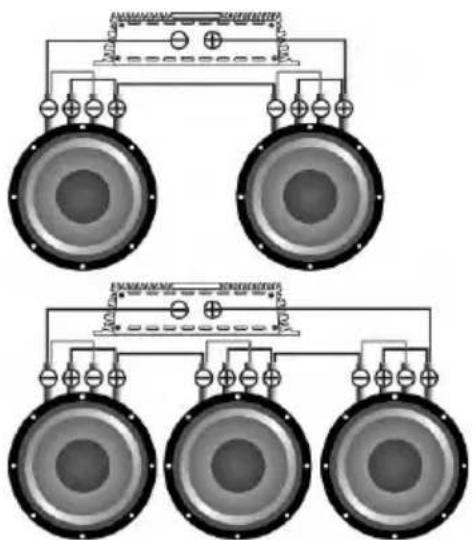

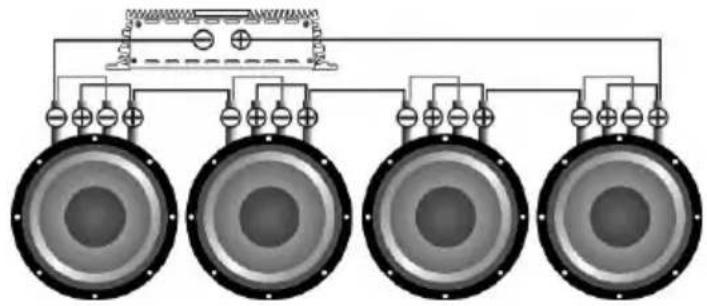

Subwoofers in series, coils in parallel

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	2 Ohm

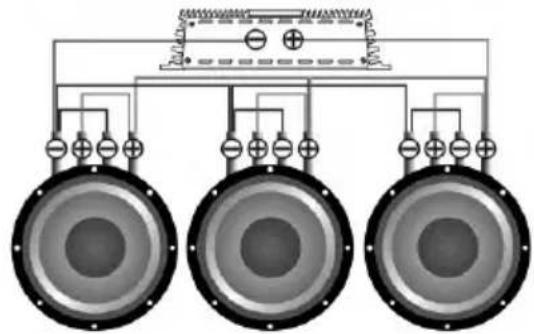

Voice coils	Total impedance
2+2 Ohm	3 Ohm

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	4 Ohm

EN

Subwoofers in series, coils in series

Diagram of a dual speakers with speaker holes and wiring (no text or labels)

Voice coils	Total impedance
2+2 Ohm	8 Ohm

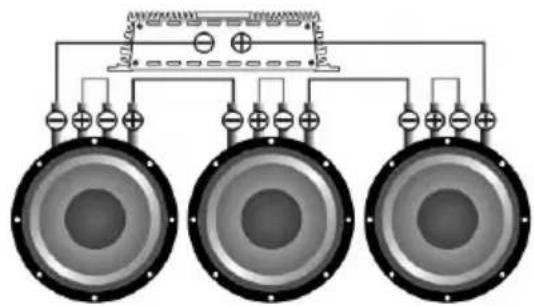

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	12 Ohm

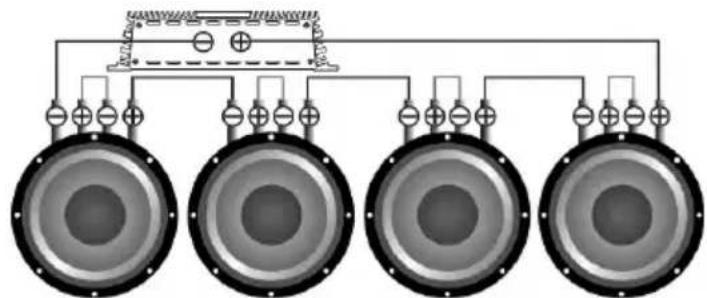

Pure electrical circuit lines without any symbols

Voice coils	Total impedance
2+2 Ohm	16 Ohm

Subwoofers in parallel, coils in series

Diagram of two speakers with circuit connections and a top-mounted device (no text or symbols)

Voice coils	Total impedance
2+2 Ohm	2 Ohm

Pure electrical circuit lines without any symbols

Diagram of four speakers arranged in a row connected to a central speaker block (no text or labels)

Voice coils	Total impedance
2+2 Ohm	1.33 Ohm

Voice coils	Total impedance
2+2 Ohm	1 Ohm

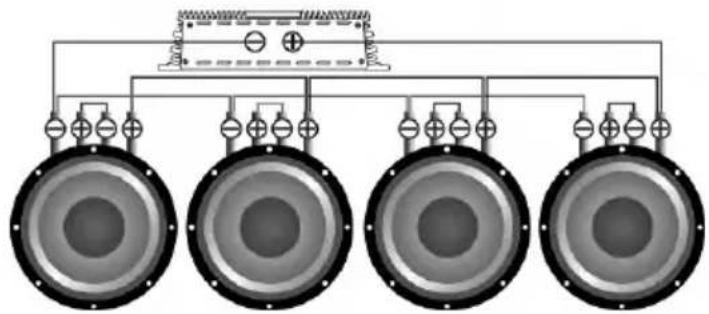

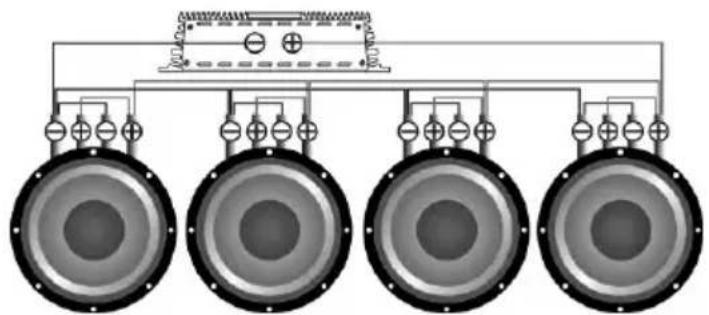

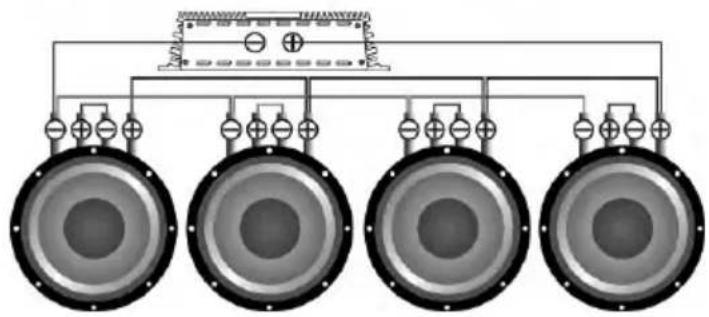

Subwoofers in parallel, coils in parallel

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of four speakers arranged in a row with an overhead power supply unit (no text or symbols)

Voice coils	Total impedance
2+2 Ohm	0.5 Ohm

Voice coils	Total impedance
2+2 Ohm	0.33 Ohm

Voice coils	Total impedance
2+2 Ohm	0.25 Ohm

CAUTION! High sound pressure can damage your health!

Please use the common sense when controlling volume!

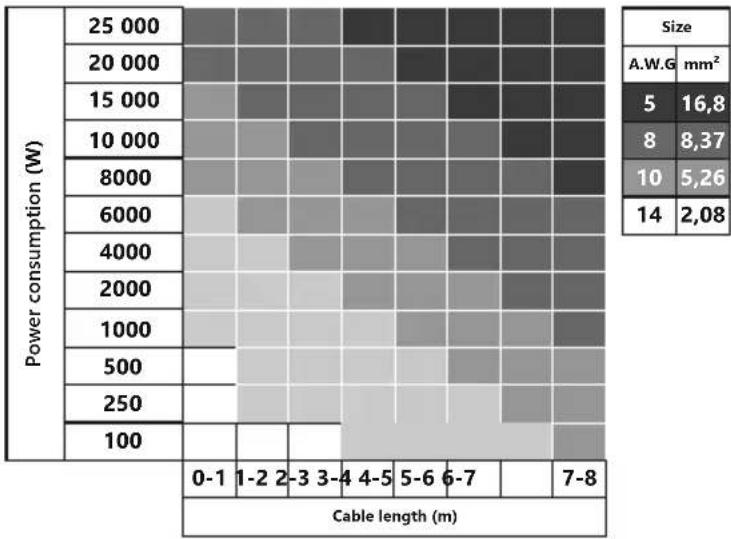

Use the table below to select the desired diameter based on the length and the power consumption.

4. RE COM MEN DED E NCL OSU RE PAR AME TER S

Bass reflex box

3D diagram of a rectangular box with an oval recess and labeled dimensions H, W, L (no text or symbols beyond labels)

L*W*H = body volume

Parameters/Model
HSS-2810 HSS-2812 HSS-3212 HSS-3215

The recommended volume, liters / ft3	40 / 1.4	50 / 1.7	50 / 1.7	90 / 3.1
Port area, cm2 / inch2	80 / 13	150 / 24	150 / 24	200 / 30
Port length, cm / inch	35 / 13.7	62 / 24.4	62 / 24.4	40 / 15.7

Hz setting

37 35 35 35

5. HO W TO US E

The correct choice of the amplifier, its settings and enclosure design prolongs the lifetime of your subwoofer. You should select an amplifier with a nominal power below the nominal power of the subwoofer. Proper coordination of the head unit (HU) with the amplifier will provide a clean, undistorted signal fed to the subwoofer, which prevents overheating and voice coil damage. Like any other speaker the subwoofer has moving and stationary parts. We strongly recommend that the moving parts of the subwoofer should be warmed up at the beginning of operation. Be extra careful when warming up the parts. Warm up the subwoofer using musical material for 40 hours at medium power. If, during operation at maximum volume you feel strange smell, you should lower the volume of the subwoofer and let the device to cool down at a low volume.

Recommended settings of the amplifier and HU: Volume of HU should not exceed 80%. The amplifier sensitivity should be set to 50%, subsonic filter frequency (Subsonic) should be set to 5 Hz below the port settings. For example, if you configure the port at 30 Hz, Subsonic should be set to 25 Hz. The low pass filter LPF (the filter that cuts all frequencies above those set for the filter) should be set to 63-80 Hz, bassboost should be set to 0.

1. SPECIFICATIONS
   EN

Model	HSS-2810 HSS-2812 HSS-3212 HSS-3215
Size (inch)	10 12 12 15
Surround	Foam Foam Foam Foam
Cone	Paper Paper Paper Paper
Frame	Stamped Steel Stamped Steel Stamped Steel Stamped Steel
Magnet type	Ferrite Ferrite Ferrite Ferrite
Power RMS (W)	600 600 1000 1000
Power MAX (W)	1200 1200 2000 2000
Voice coil size (inch)	2.75 2.75 3.15 3.15
Voice coil wire	EISV EISV	EISV	EISV

THIELE-SMALL PARAMETERS

Impedance (Ohm)	2+2	2+2	2+2	2+2
Re (Ohm)	2+2	2+2	2+2	2+2
SPL (dB)	81.8 83.2 84.5 86.3
Xmax (mm)	11 11 11 11
Fs (Hz)	37.8 35.3 34.5 32.2
Vas (L)	22.35 36.7 41.5 84.1
Qts	0.72 0.89 0.69 0.81
BL	14.2 12.8 17.7 14.7

This specified sensitivity is not directly connected with the sound pressure in the vehicle and therefore should not be used as the sole indicator for comparison with other subwoofers.

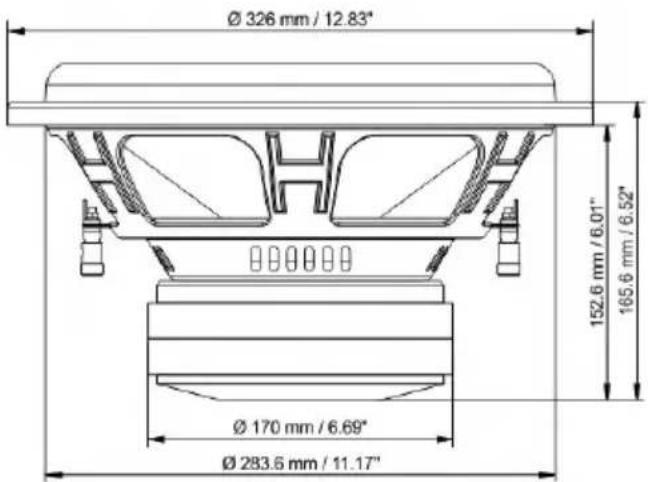

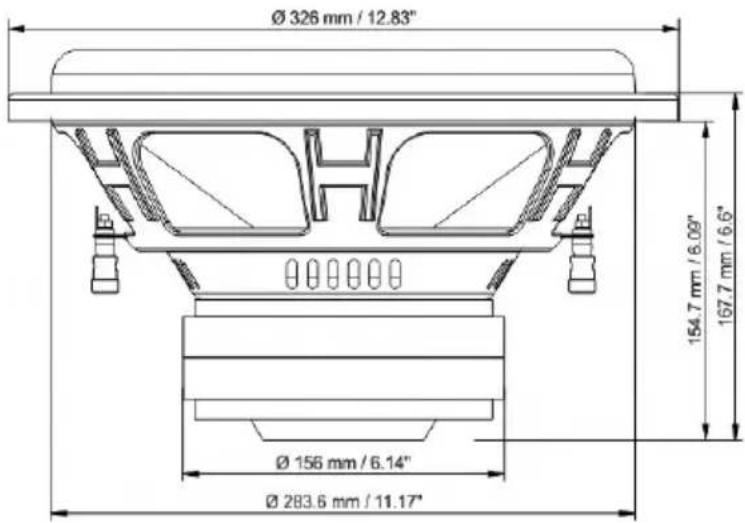

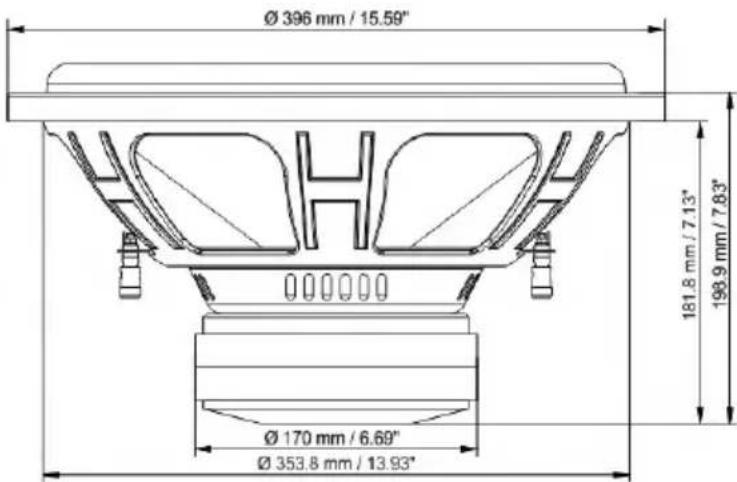

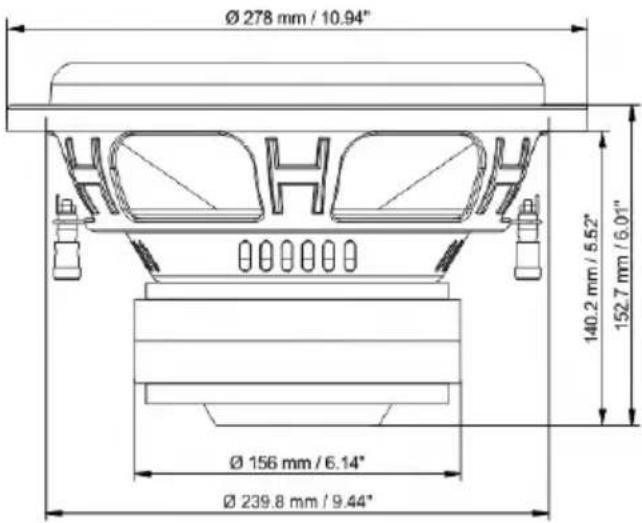

7. DI MEN SIO NS

EN

HSS-2810

HSS-2812

HSS-3212 HSS-3215

8. BOX CON TEN TS

1. Subwoofer - 1 pcs.
2. Owner's Manual - 1 pcs.
3. Warranty card - 1 pcs.

9. WARRANTY AND MAINTENANCE INFO

EN

Deaf Bonce product of Hannibal series are warranted against defects concerning materials and their manufacturing under normal functioning conditions.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.

Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read warranty card. The manufacturer reserves the right to change design and specification without prior notice.

10. INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION)

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.

Manufacturer: Ningbo Sound Solution I&E Trading Co., Ltd Made in China
