EHC 650 X

Dear Customer,

Please read these user instructions carefully and keep them to refer to later.

Please pass the user instructions on to any future owner of the appliance.

The following symbols are used in the text:

Safety instructions

Warning! Information that affects your personal safety.

Important! Information that prevents damage to the appliance.

Useful tips and hints

Environmental information

Contents

Operating Instructions 4

Safety instructions 4

Description of the Appliance 5

Cooking surface layout....5 Residual heat indicator....5

Operating the hob 5

Tips on Cooking and Frying 6

Cookware 6

Energy saving 6

Cleaning and Care 6

Installation Instructions 8

Service....8

Assembly 26

Operating Instructions

⚠️ Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

This appliance conforms with the following EU Directives:

• 73/23/EEC dated 19.02.1973 Low Voltage Directive
• 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC
  – 93/68/EEC dated 22.07.1993 CE Marking Directive

Correct use

• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
  • Overheated fats and oils can ignite quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended.
• Switch the cooking zones off after each use.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.

How to avoid damage to the appli- ance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance

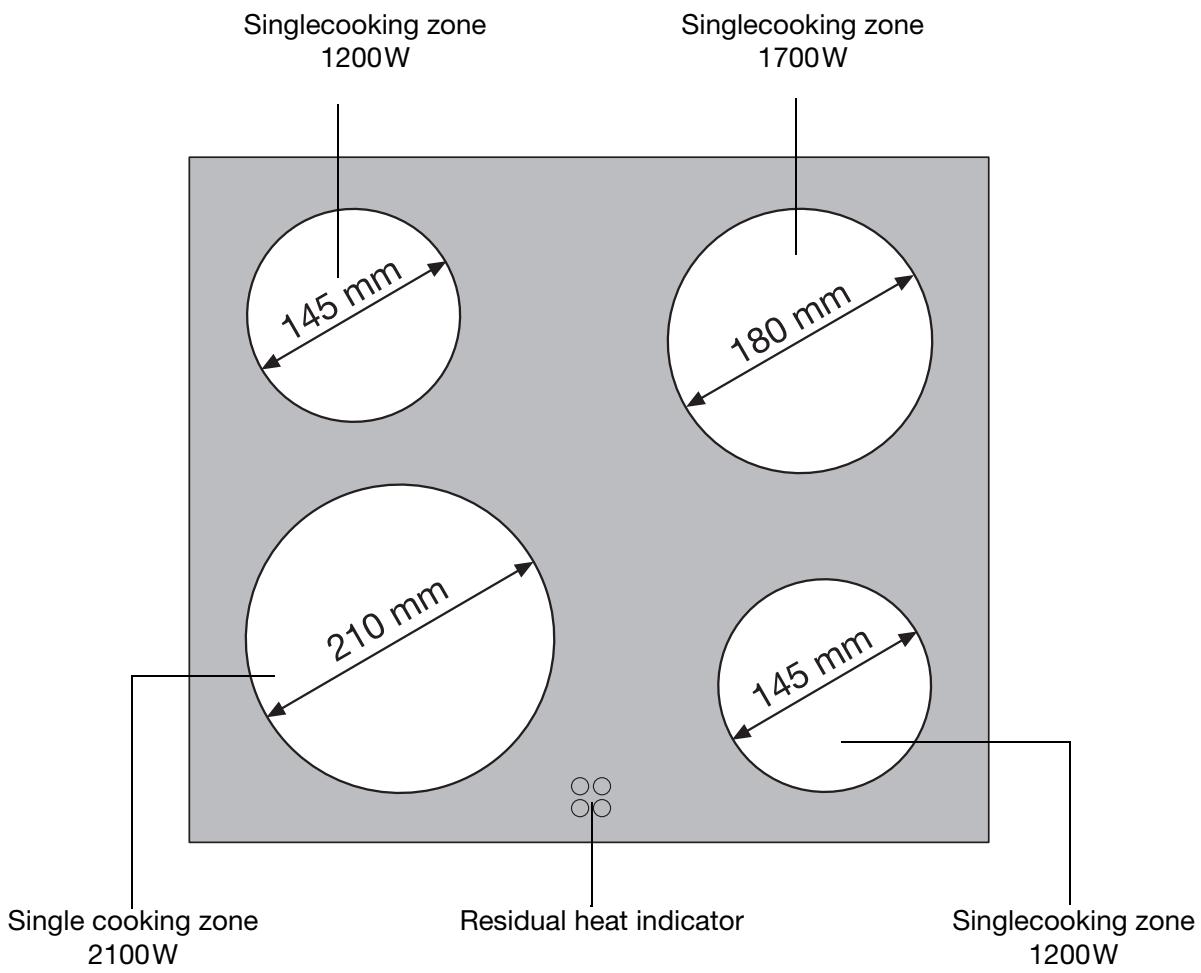

Cooking surface layout

Residual heat indicator

The residual heat indicator lights up, as soon as the corresponding cooking zone is hot.

Danger! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator.

Residual heat can be used for melting and keeping food warm.

Operating the hob

You operate the appliance with the combination appliance's ring switches. The operation and the function of the ring switches is described in the Operating Instructions for the combination appliance.

When a cooking zone is switched on, it may hum briefly. This is a characteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance.

Tips on Cooking and Frying

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.

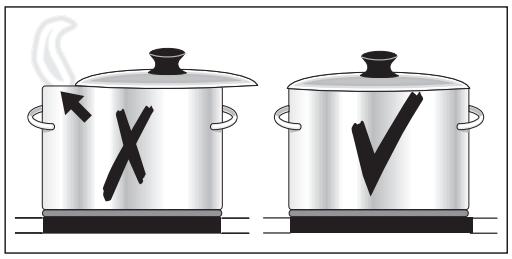

If possible, always place lids on the pans.

Illustration showing two cooking pots with checkmarks and crossed-out X symbols, likely indicating cooking or cooking process.

Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

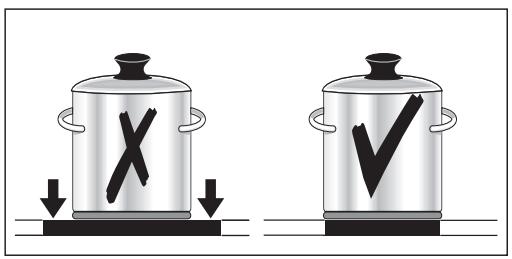

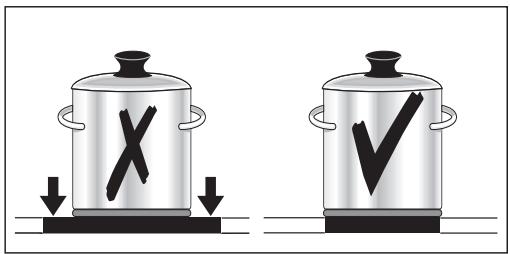

Bottom of pans and cooking zones should be the same size.

Illustration showing two cooking pots with X and ✓ symbols indicating cooking process or inspection, each marked with downward arrows.

Cleaning and Care

Take care! Risk of burns from residual heat.

Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.

Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.

	Remove
Type of dirt	immediately	when the appliance has cooled down	using
sugar, food containing sugar	yes	---	a scraper*
plastics, tin foil	yes	---
limescale and water rings	---	yes	cleaner for glass ceramic or stainless steel*
fat splashes	---	yes
shiny metallic discolorations	---	yes

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops

Remove stubborn residues with a cleaner for glass ceramic or stainless steel.

Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance.

What to do if ...

Problem	Possible cause	Remedy
The cooking zones are not functioning.	The desired heat setting is not set.	Set the heat setting.
	The fuse in the house's electrical wiring (fuse box) has been tripped.	Check the fuse.If the fuses trip a number of times, please call an authorised electrician.
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol 📋 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Installation Instructions

Safety instructions

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

Installation may only be carried out by a qualified electrician.

The minimum distances to other appliances are to be observed.

Drawers may only be installed with a with protective board directly under the appliance.

The cut surfaces of the work top are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap.

Do not use silicon sealant between the appliance and the work top.

Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

Warning!

Risk of injury from electrical current.

The combination appliance is live.

• Observe electrical safety rules.
• Ensure anti-shock protection through correct installation by a qualified electrician.
• Rated voltage of the combined appliances must match.

Important!

Risk of injury from electrical current.

Loose and inappropriate plug and socket connections can lead to overheating of the plug.

- Fit plug and socket connections together properly.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm.

Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

Service

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if...").

If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

In order to be able to assist you quickly, we require the following information:

• Model description
  – Product number (PNC)
• Serial number (S No.)

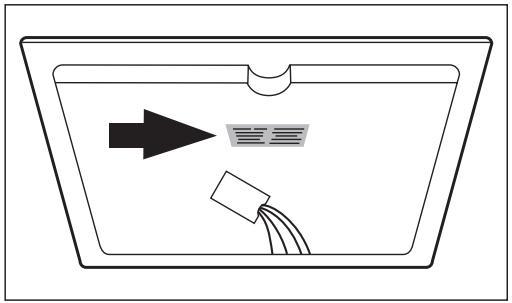

(for numbers see rating plate)

• Type of fault
  – Any error messages displayed by the appliance
  – three digit letter-number combination for glass ceramic

So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:

Model description:

PNC:

S No:

Diagram of a device with an arrow pointing to a screen and cable, no text or symbols present

Chère cliente, cher client,

Illustration showing two cooking pots with checkmarks and crossed-out symbols, likely indicating cooking or cooking process.

Illustration showing two cooking pots with checkmarks and X marks, indicating a cooking step or inspection.

Simple line drawing of a container with an arrow pointing to a slot and a paper clip attached (no text or symbols)

Geachte klant,

Illustration of two cooking pots with checkmarks and crossed-out X symbols, likely indicating cooking or cooking process.

Illustration showing two cooking pots with X and ✓ symbols indicating cooking methods or actions, each marked with downward arrows.

Simple line drawing of a device with an arrow pointing to a screen and cable, no text or symbols present.

Assembly/Montage

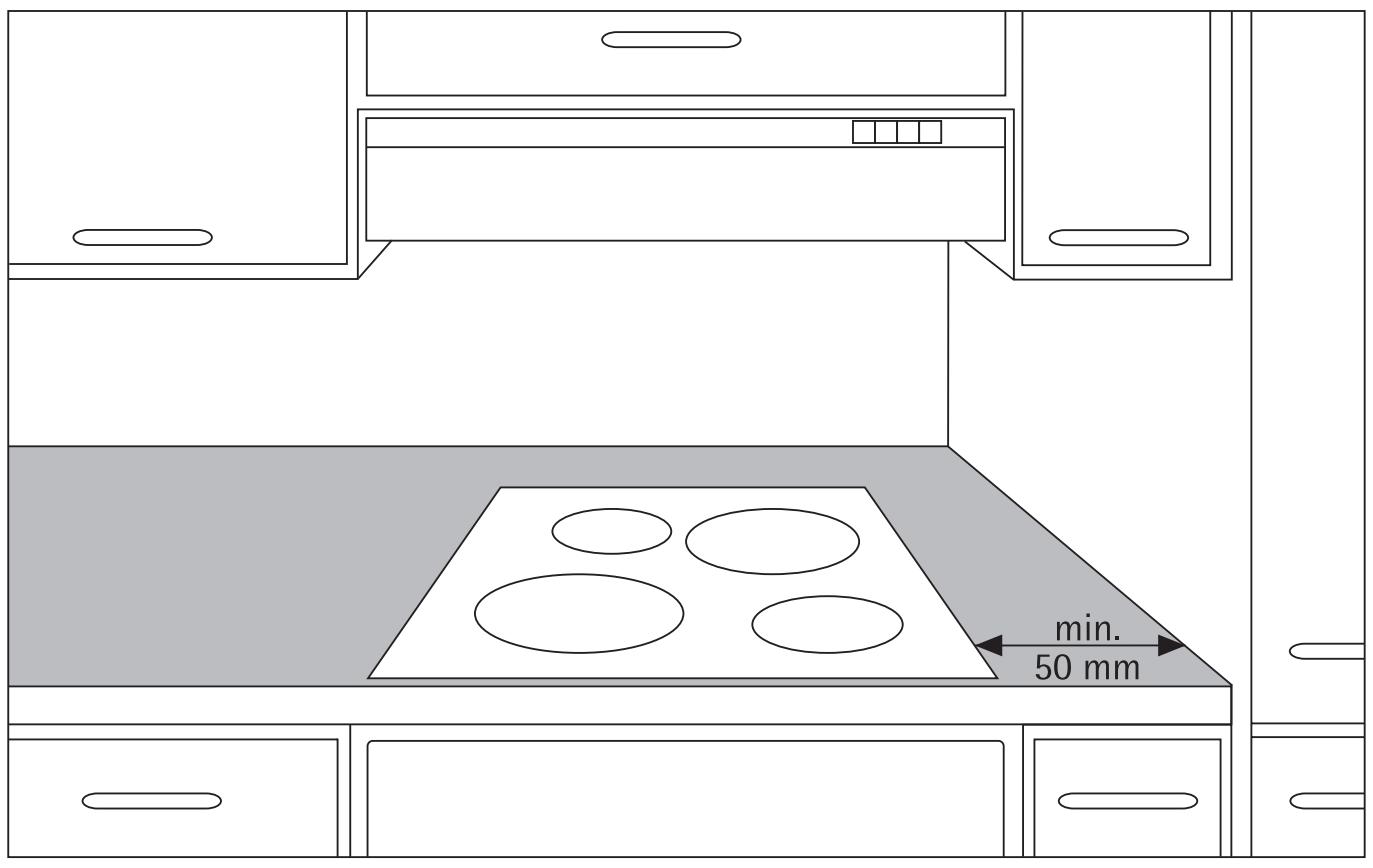

min. 50 mm

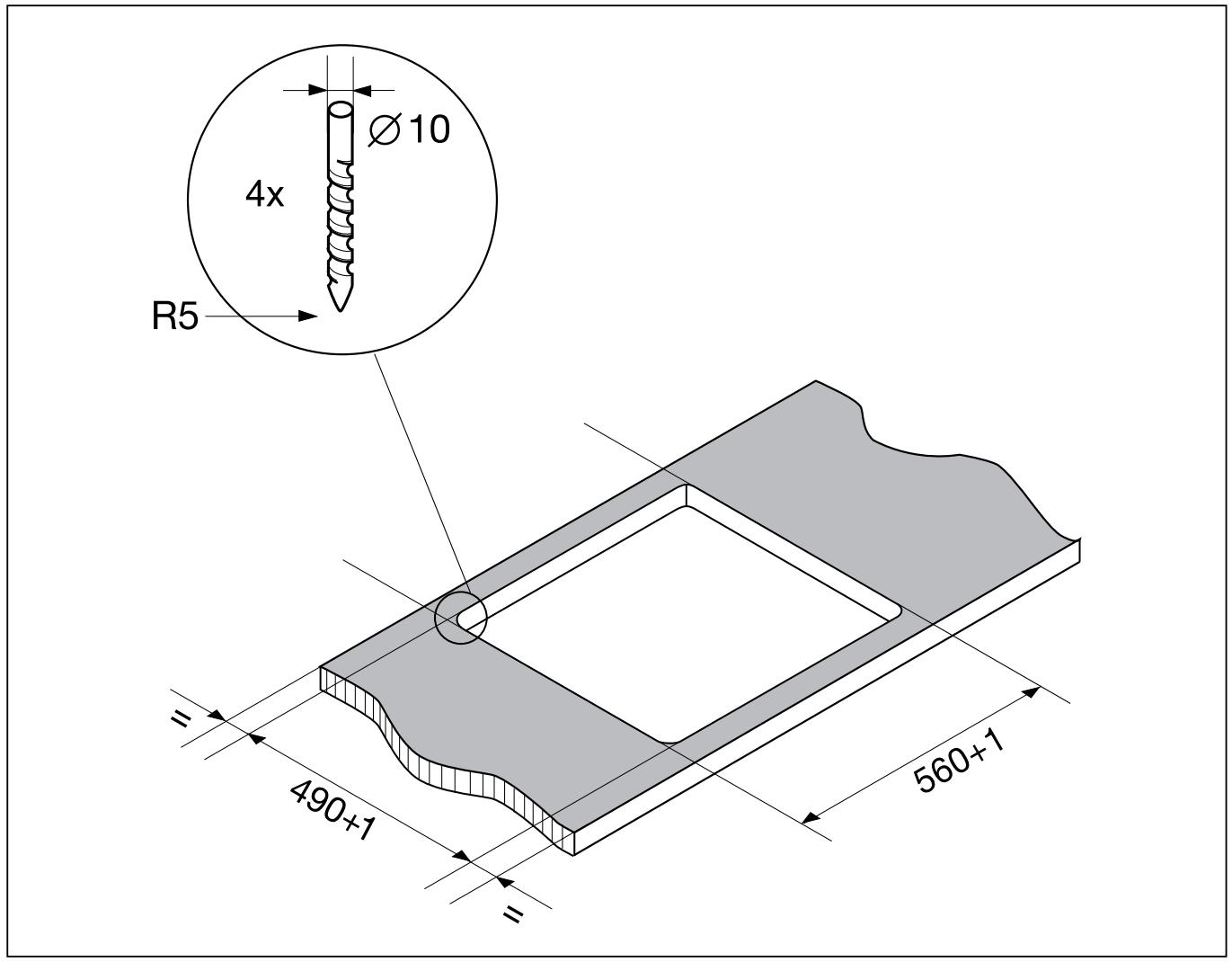

Ø10 4x R5 = 490+1 560+1 =

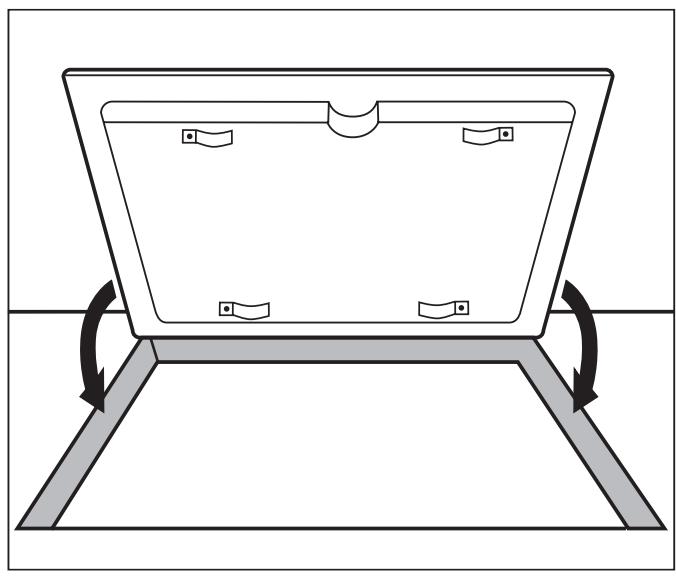

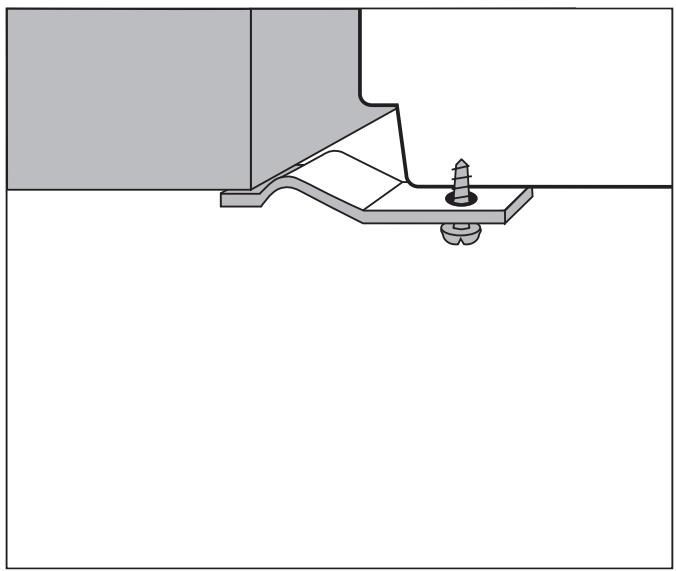

Diagram of a folding table with arrows indicating rotation or movement (no text or symbols)

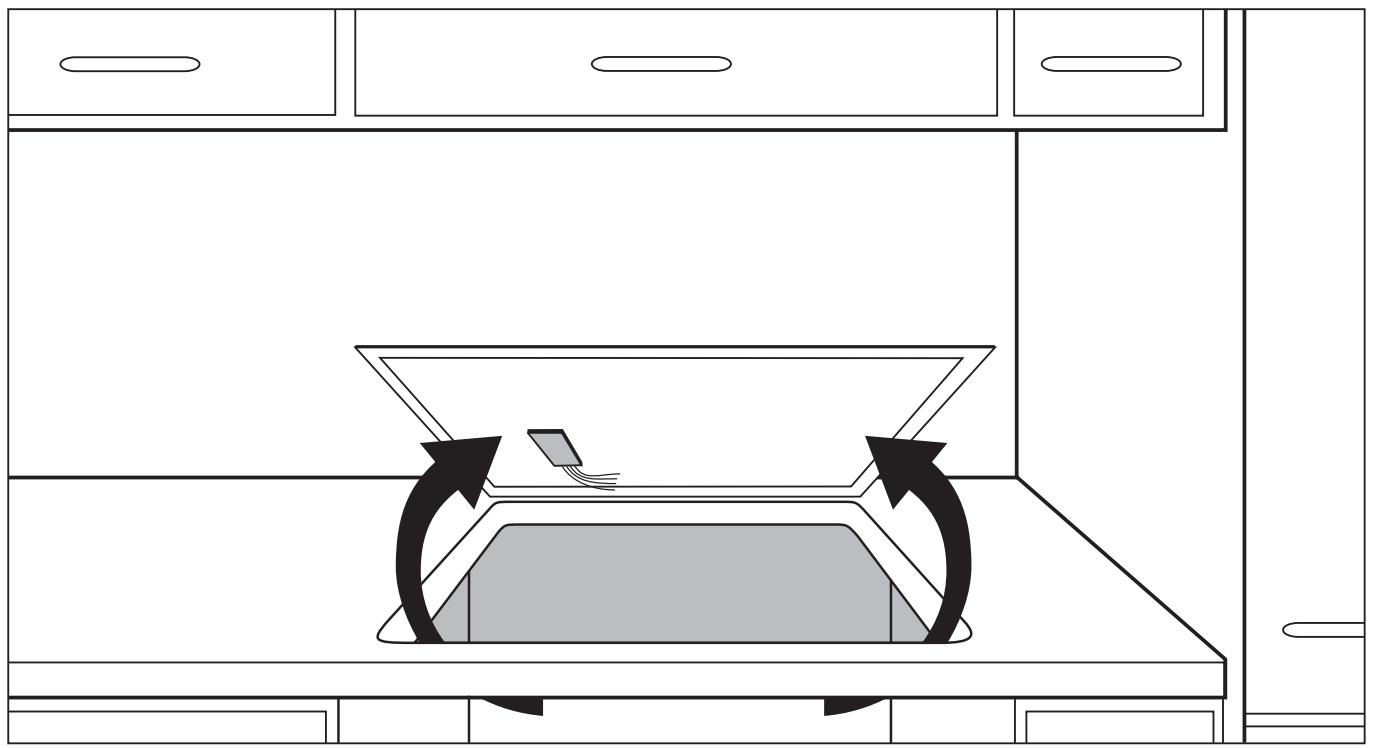

Pure technical diagram showing a mechanical assembly with a downward arrow, no text or symbols present

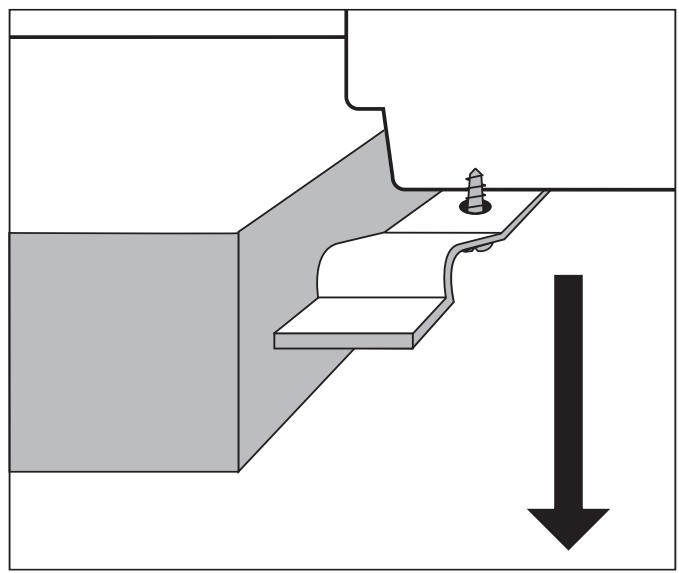

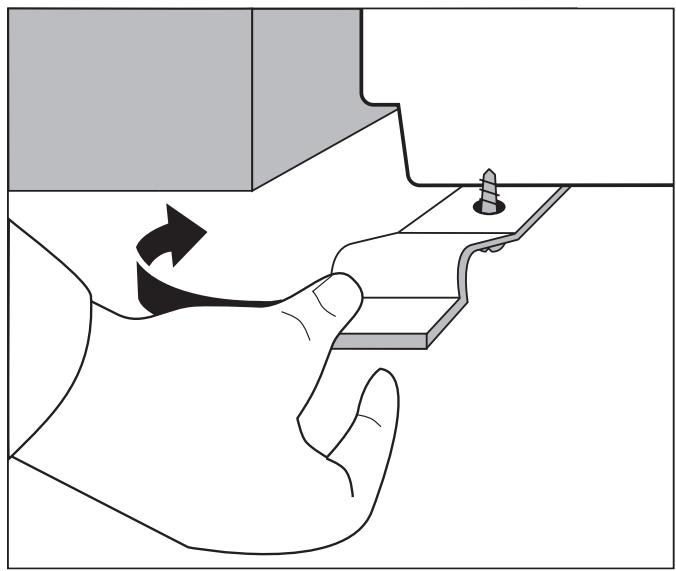

Diagram showing a hand pressing a component with a screw and directional arrow indicating motion (no text or symbols)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

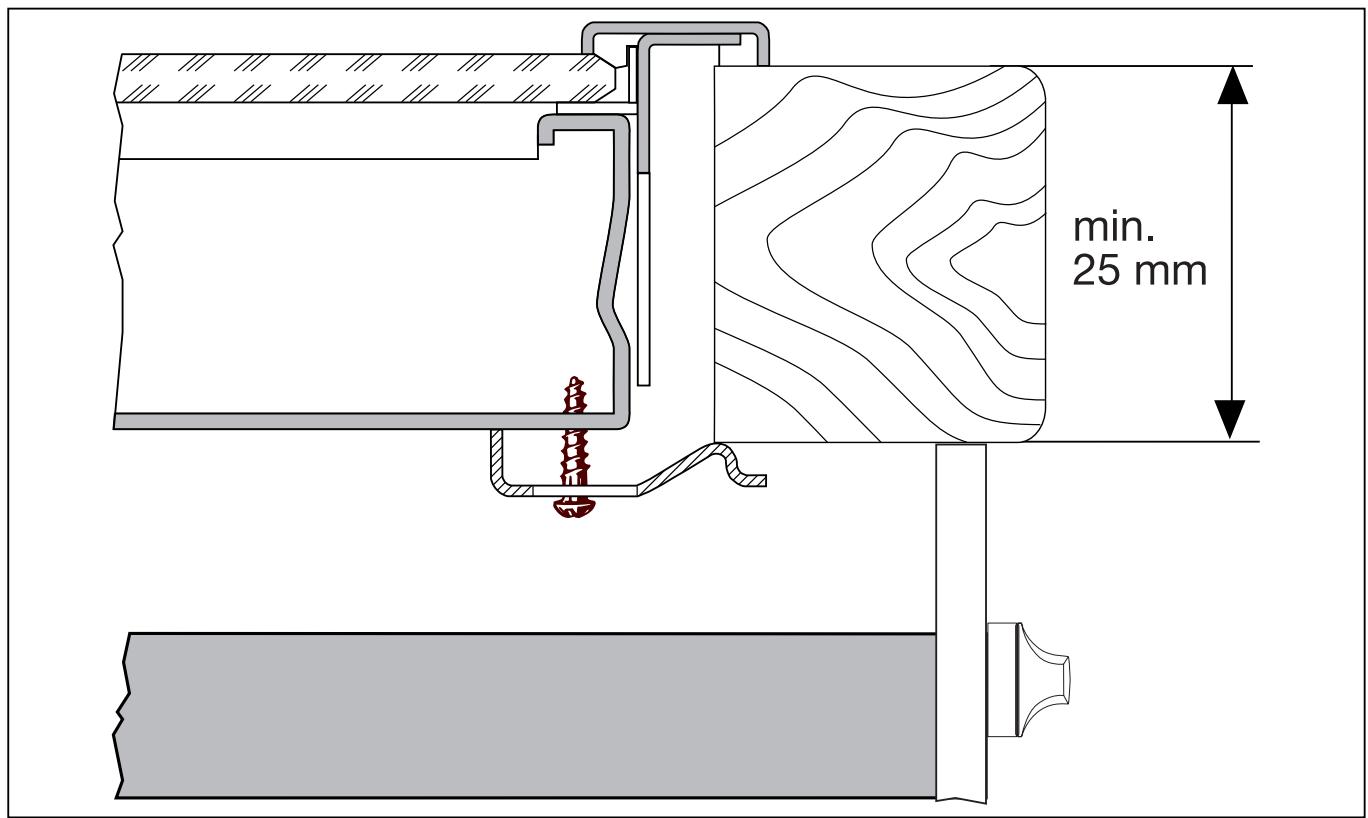

min. 25 mm

Removal/Démontage/Demontage

Diagram of a device with directional arrows indicating motion or flow, no text or symbols present

Rating Plate

Plaque signalétique

Typeplaatje

Modell EHC 650 X		Prod.Nr. 949 590 932
Typ KEE2001	230 V 50 Hz
Made in Germany	Ser.Nr. ......		6,2 kW
ELECTROLUX			CE D' E

822 925 177-A-240305-01

Subject to change without notice
