USER MANUAL DWX555-GS Christie

The CD included with this printed manual contains an electronic copy in English. Please read all instructions before using or servicing this product.

All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

REGULATORY

The product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a commercial environment. The product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of the product in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at the user's own expense.

WARNING! Changes or modifications not expressly approved by Christie could void the user's authority to operate the product.

FOR COMMERCIAL USE ONLY - POUR USAGE COMMERCIAL UNIQUEMENT

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING 2 CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

CET APPAREIL NUMÉRIQUE DE CLASSE A EST CONFORME AUX NORMES DÉFINIES DANS LES RÉGLEMENTATIONS CANADIENNES SUR LES APPAREILS CAUSANT DES INTERFÉRENCES RADIO (CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS, ICES-003, CLASS A).

Every effort has been made to ensure accuracy, however in some cases changes in the products or availability could occur which may not be reflected in this document. Christie reserves the right to make changes to specifications at any time without notice. Performance specifications are typical, but may vary depending on conditions beyond Christie's control such as maintenance of the product in proper working conditions. Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose. Christie will not be liable for errors contained herein or for incidental or consequential damages in connection with the performance or use of this material.

The product is designed and manufactured with high-quality materials and components that can be recycled and reused. This symbol 📀 means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from regular waste. Please dispose of the product appropriately and according to local regulations. In the European Union, there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

Canadian manufacturing facility is ISO 9001 and 14001 certified.

GENERAL WARRANTY STATEMENTS

For complete information about Christie's limited warranty, please contact your Christie dealer. In addition to the other limitations that may be specified in Christie's limited warranty, the warranty does not cover:

a. Damage occurring during shipment, in either direction.
b. Problems caused by combination of the product with non-Christie equipment, such as distribution systems, cameras, video tape recorders, etc., or use of the product with any non-Christie interface device.
c. Damage caused by misuse, improper power source, accident, fire, flood, lightening, earthquake or other natural disaster.
d. Damage caused by improper installation/alignment, or by product modification, if by other than a Christie authorized repair service provider.
e. For LCD projectors, the warranty period specified applies only where the LCD projector is in "normal use". "Normal use" means the LCD projector is not used more than 8 hours a day, 5 days a week. For any LCD projector where "normal use" is exceeded, warranty coverage under this warranty terminates after 6000 hours of operation.

f. Failure due to normal wear and tear.

PREVENTATIVE MAINTENANCE

Preventative maintenance is an important part of the continued and proper operation of your product. Please see the Maintenance section for specific maintenance items as they relate to your product. Failure to perform maintenance as required, and in accordance with the maintenance schedule specified by Christie, will void the warranty.

1. SAFETY

2. INTRODUCTION

2.1 Projector Components 2-1
2.2 Built-in Keypad 2-4
2.3 Input/Output (I/O) Panel 2-5
2.4 Remote Control.... 2-6
2.5 LED Status Indicators 2-8

3. INSTALLATION

3.1 Connect to Computer.... 3-1
3.2 Connect to Video Equipment 3-2
3.3 Turn the Projector On 3-3
3.4 Turn the Projector Off 3-3

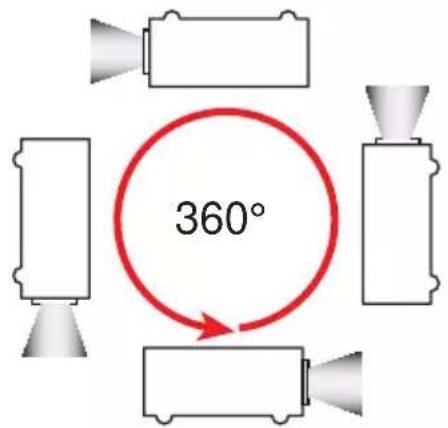

3.5 Adjust the Projector Position.... 3-4

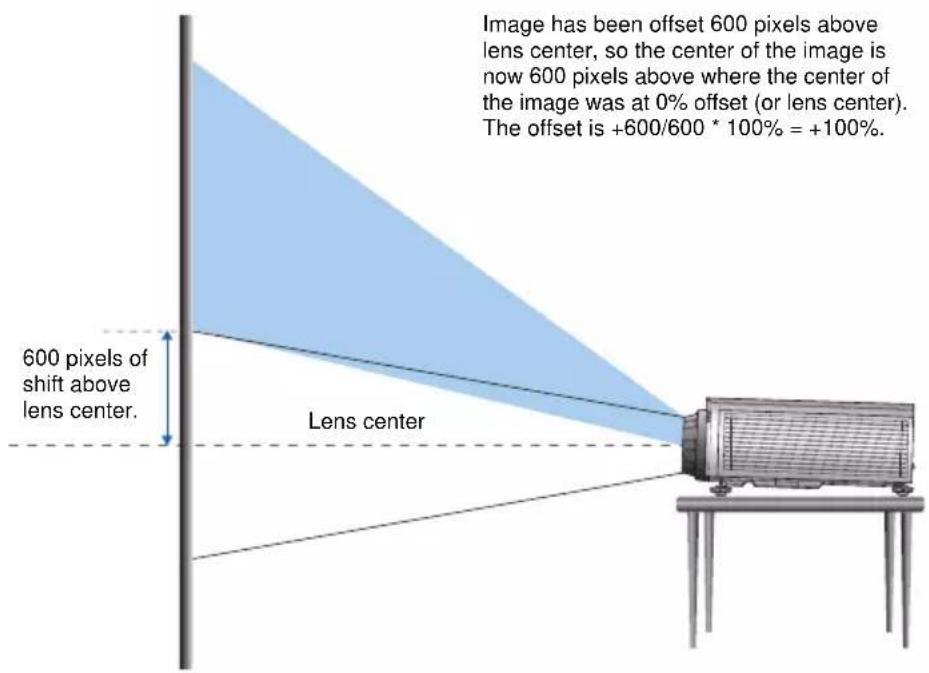

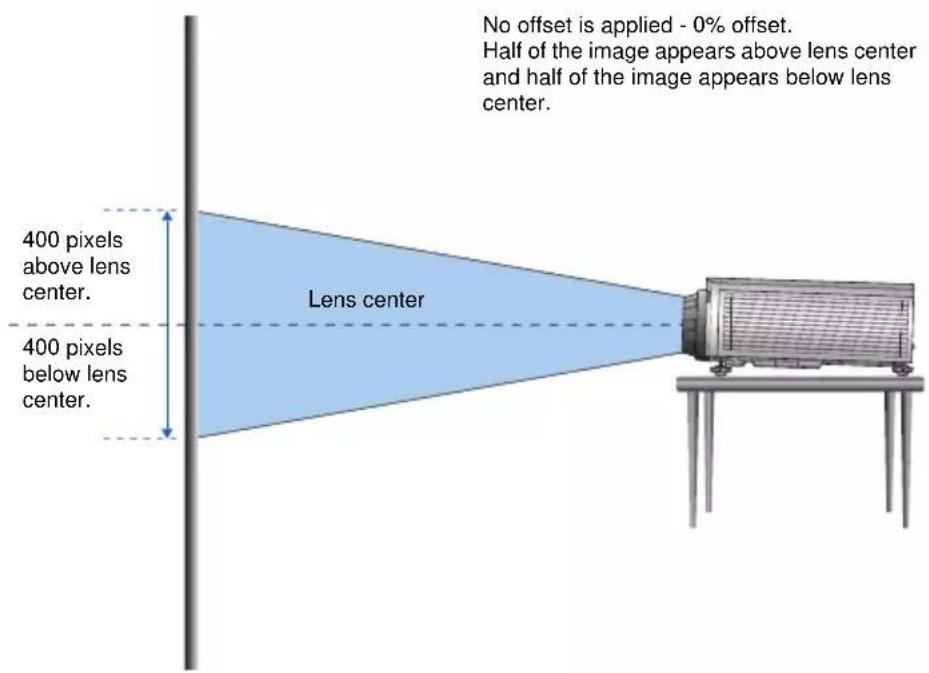

3.6 Calculate Lens Offset 3-7
3.7 Removing and Installing the Lens.... 3-13
3.8 Cable Cover Installation.... 3-14

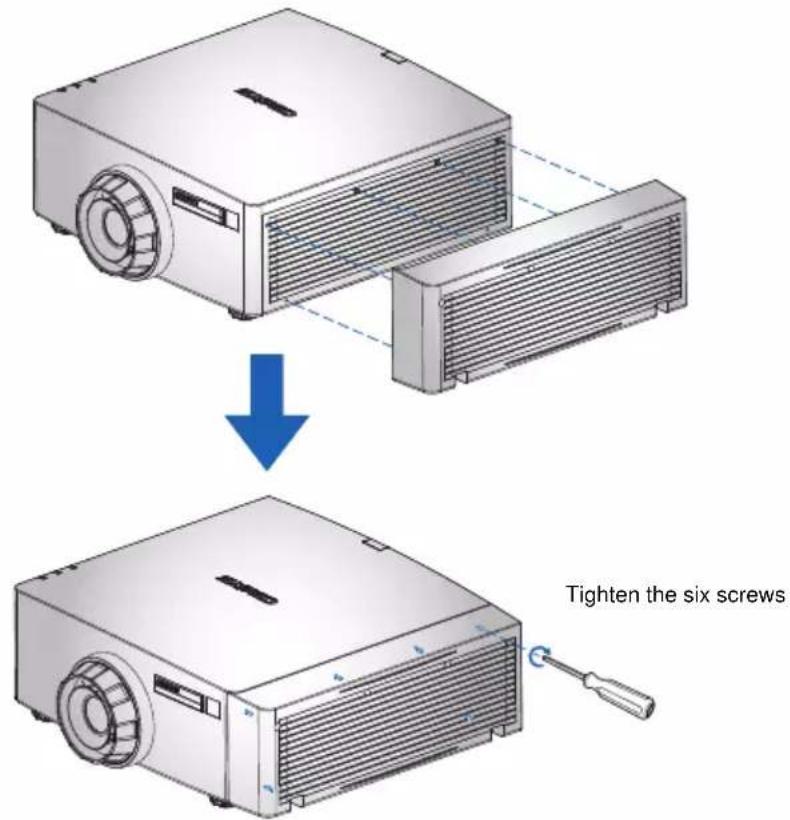

3.9 Portrait Cover Installation 3-15
3.10 Ceiling Mount Installation.... 3-16

4. OPERATION

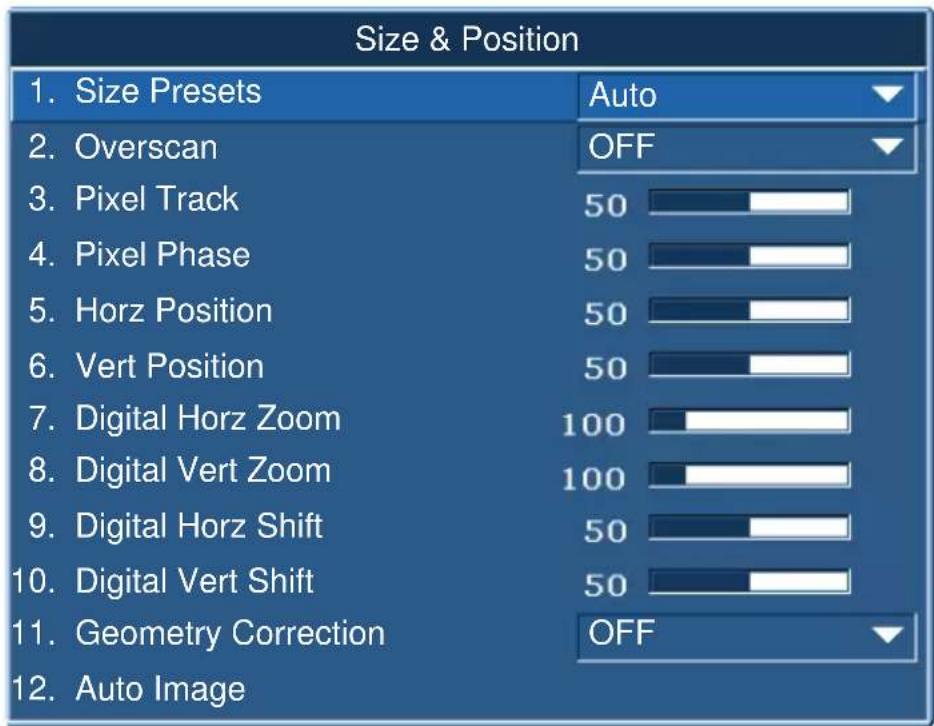

4.1 Size and Position Menu 4-2
4.2 Image Settings Menu 4-7

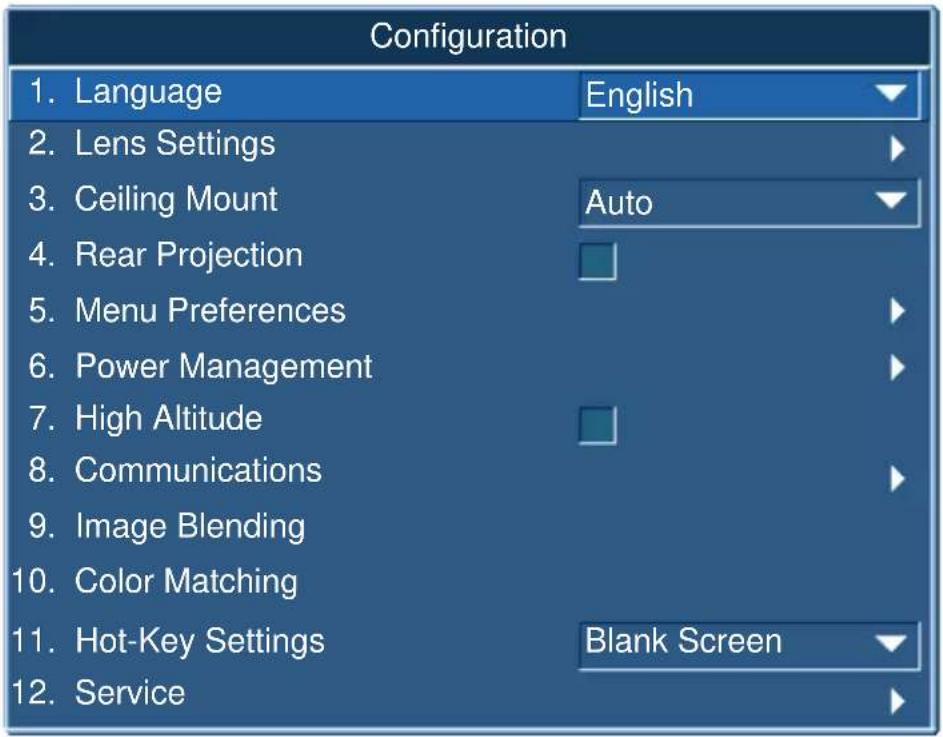

4.3 Configuration Menu 4-9

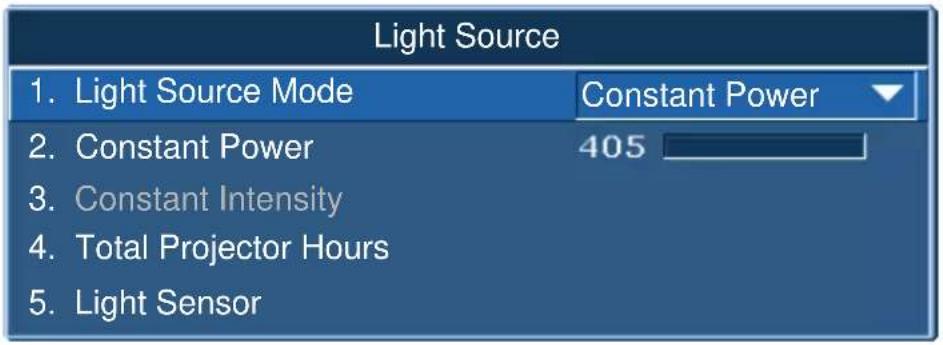

4.4 Light Source 4-14
4.5 Status Menu 4-15

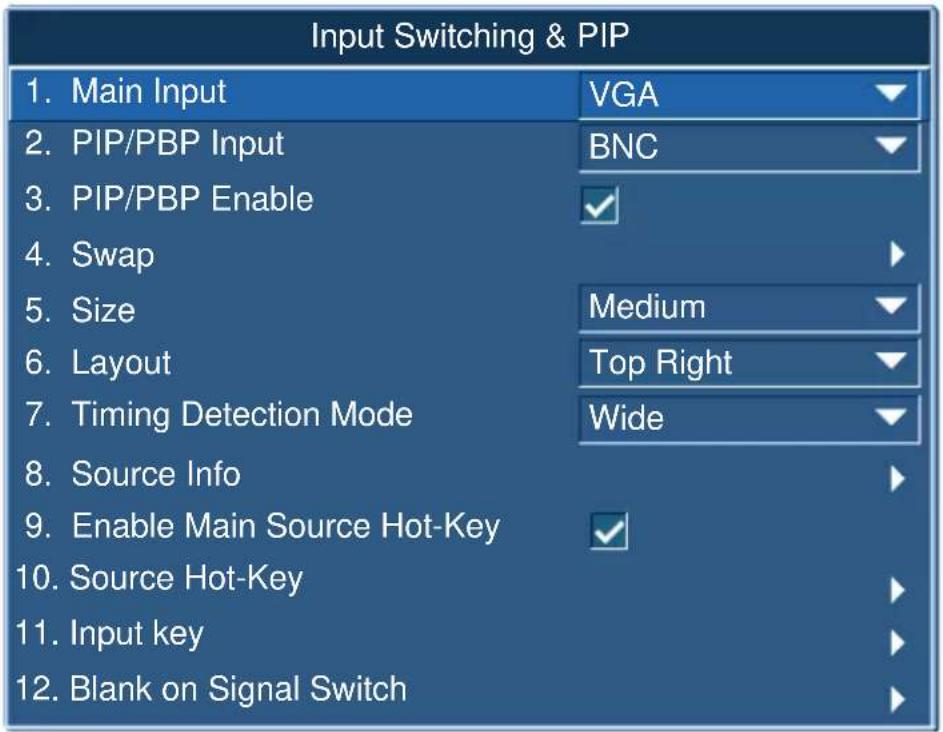

4.6 Input Switching & PIP Menu 4-18
4.7 Language Menu 4-20
4.8 Test Pattern Menu 4-20
4.9 Web User Interface 4-21

4.9.1 Logging On 4-21
4.9.2 Main Tabbed Page - General 4-21
4.9.3 Main Tabbed Page - Status 4-22

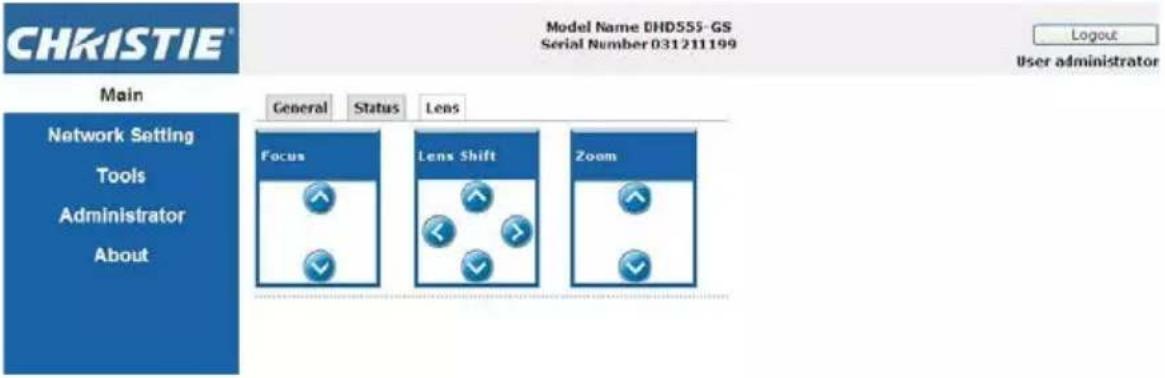

4.9.4 Main Tabbed Page - Lens.... 4-23
4.9.5 Network 4-24
4.9.6 Tools 4-27
4.9.7 Administrator Page 4-27
4.9.8 About Page 4-28

4.10 Christie Presenter 4-29
4.10.1 Connect to the Projector 4-29
4.10.2 Install Christie Presenter software 4-30
4.10.3 Use Christie Presenter.... 4-31

4.11 Card Reader Operation 4-37

5. TROUBLESHOOTING

6. SPECIFICATIONS

6.1 Inputs 6-1
6.2 PIP/PBP Compatibility 6-6

6.3 Key Features 6-7
6.4 List of Components.... 6-8
6.5 Optional Accessories 6-8
6.6 REGULATORY 6-9
6.7 Federal Communications Commission (FCC) Warning 6-10
6.8 OSD Tree....6-11
6.9 Preset Mode tables 6-19

1. SAFETY

Read through this document in its entirety and understand all warnings and precautions before attempting to operate the projector.

WARNING

- Do not look into the projector lens when the laser is on. The bright light may result in permanent eye damage.

- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.

- Do not open or disassemble the projector as this may cause electric shock.

- All installation and maintenance procedures must be performed by a Christie accredited service technician.

- Keep all combustible material away from the concentrated light beam of the projector.

- Position all cables where they cannot contact hot surfaces or be pulled or tripped over.

- Always power down the projector and disconnect all power sources before servicing or cleaning.

- Use a soft cloth moistened with a mild detergent to clean the display housing.

- Disconnect the power plug from the AC outlet if the product is not being used for an extended period of time.

- Operate the projector under the following conditions:

• Operating temperature range: 5°C to 35°C
• Storage temperature range: -10°C to 60°C
• Humidity range: 5% to 80 % RH (Max.), non condensing
• Operating altitude: 10,000 ft. maximum

- Use only the AC power cord supplied. Do not attempt operation if the AC supply and cord are not within the specified voltage and power range for your region.

- Remove the lens plug from the lens opening in the projector before installing the lens. Retain the lens plug to protect the optical components from dust and debris during transport.

- Do not block the ventilation slots and openings on the projector.

- Do not use abrasive cleaners, waxes or solvents to clean the projector.

- Do not allow anything to rest on the power cord.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Important Laser Notice

CAUTION LASER RADIATION DO NOT STARE INTO BEAM MAX OUTPUT: 8.0mW WAVE LENGTH: 440-455nm CLASS 2 LASER PRODUCT LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT

CAUTION: Class 4 laser radiation when open. Avoid eye or skin exposure to direct or scattered radiation. DANGER: Laser radiation when open. Avoid eye or skin exposure to direct or scattered radiation. 警告: 打开时会产生4类激光辐射“避免 眼睛或皮肤直接暴露于散射辐射 Compliance: 21CFR 1040.70 and 1040.71 except for indications pursuant to Laser Notice No.36, Date: June 24, 2007; EC00825-1:2907.

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

IEC 60825-1:2007

WARNING

• This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR 1040.10 and 1040.11
  • Class 2 laser product, Do Not Stare Into Beam
• This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation.

2. INTRODUCTION

The product specified in this document is a high brightness, high-resolution video/graphics 1-chip laser based projector. The projector is available in WXGA, HD and WUXGA resolutions. The projector utilizes Digital Light Processing (DLP®) technology from Texas Instruments. It is primarily designed for fixed installation markets.

2.1 Projector Components

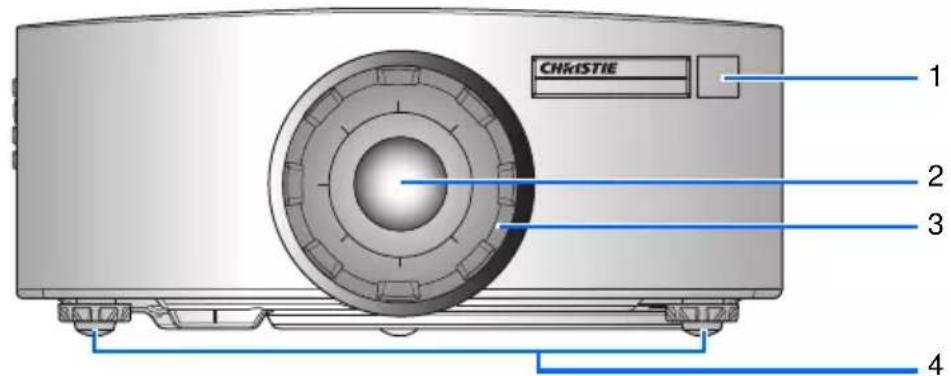

Front View

CHRISTIE 1 2 3 4

Ind. Part Name Description
1 Front IR Sensor		Receives signals from the IR remote. Keep the signal path to the sensor unobstructed for uninterrupted communication with the projector.
2 Projection Lens		Allows automated lens control and adjustment: vertical and horizontal offsets, zoom and focus.

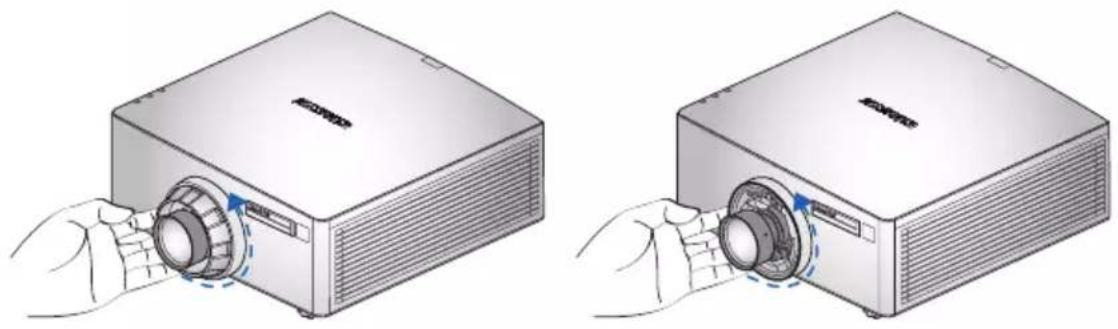

3 Lens Ring		Protects the lens motors and mechanism. Remove in order to insert or remove the lens.
4 Adjustable Feet Raise or lower the feet to level the projector.

Rear View

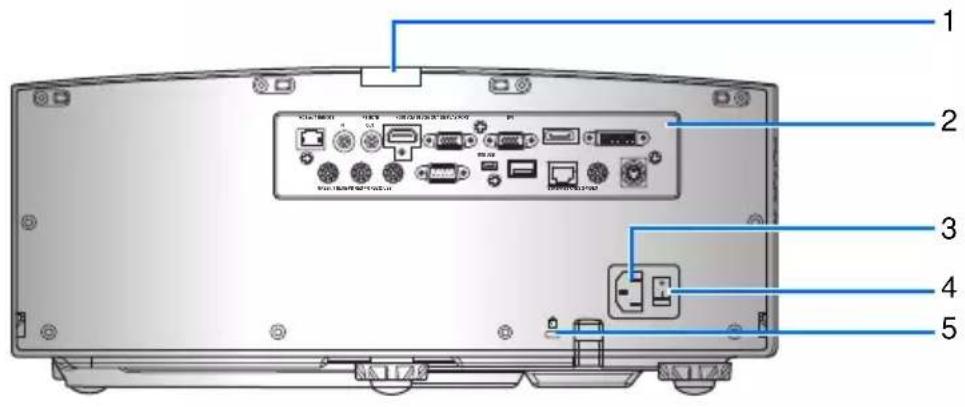

1 2 3 4 5

Ind. Part Name Description
1 Rear IR Sensor		Receives signals from the IR remote. Keep the signal path unobstructed for uninterrupted communication with the projector.
2 Input/Output (I/O) Panel Connects the projector to external devices.
3 AC Input Connect to the supplied power adapter.
4 Power Button Switch the power button to turn on the power source.
5	Kensington Lock	Use to secure the projector to countertops, tables, etc.

Left View

Illustration of a rectangular industrial machine with ventilation grilles and a blue indicator line pointing to component 1 (no text or symbols on the device itself)

Right View

Diagram of a portable air conditioner unit with labeled ports and ventilation slots

Ind. Part Name Description

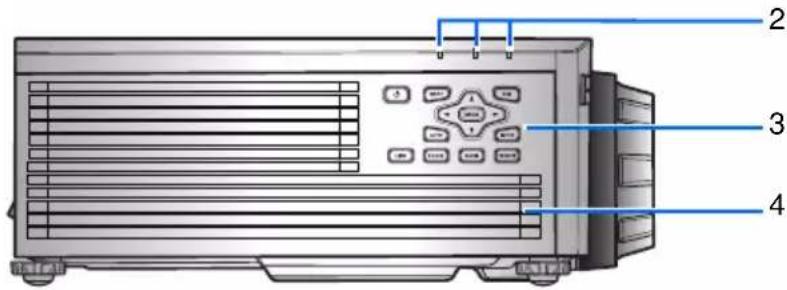

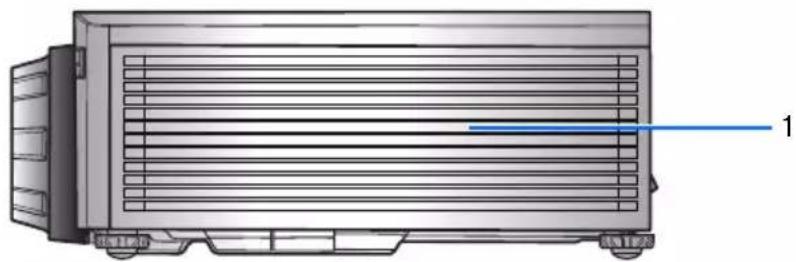

1	Cooling Air Vents (Intake)	Keep these vents unobstructed to prevent the projector from overheating.
2	LED Status Indicators	Displays the status of the projector. They are (from left to right): LIGHT, STATUS, and PIC MUTE.
3	Built-in Keypad Controls the projector.
4	Cooling Air Vents (Exhaust)	Keep these vents unobstructed to prevent the projector from overheating.

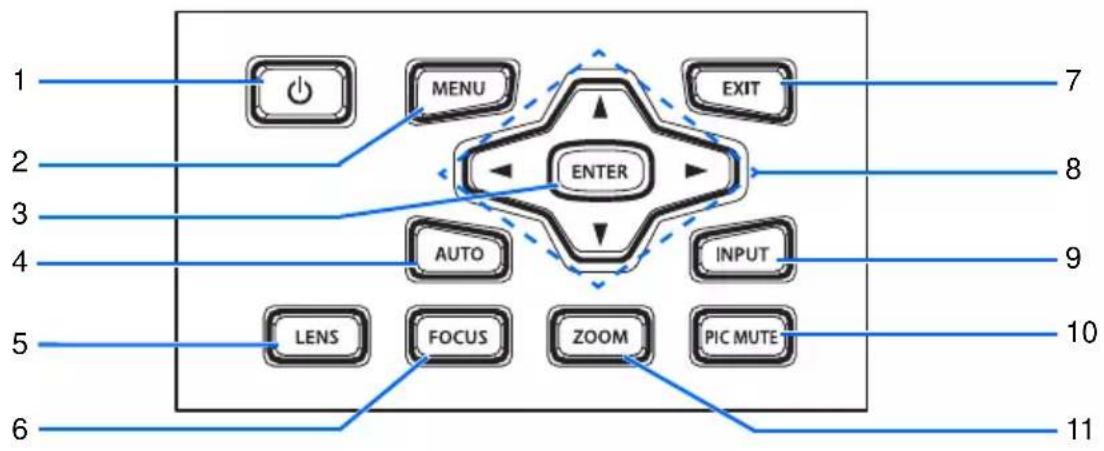

2.2 Built-in Keypad

Ind. Part Name Description
1 Power Turn the projector on or off
2 Menu Display menus
3 Enter Confirm a selection
4 Auto Automatically optimize image
5 Lens Adjust the lens vertical or horizontal offset setting
6 Focus Adjust focus
7 Exit Return to previous level or exit menus if at top level
8 Arrow Keys • Adjust a setting UP or DOWN• Navigate within a menu
9 Input Select an input for the main or PIP/PBP image
10 Picture Mute Display or blank the video image.
11 Zoom		Adjust zoom

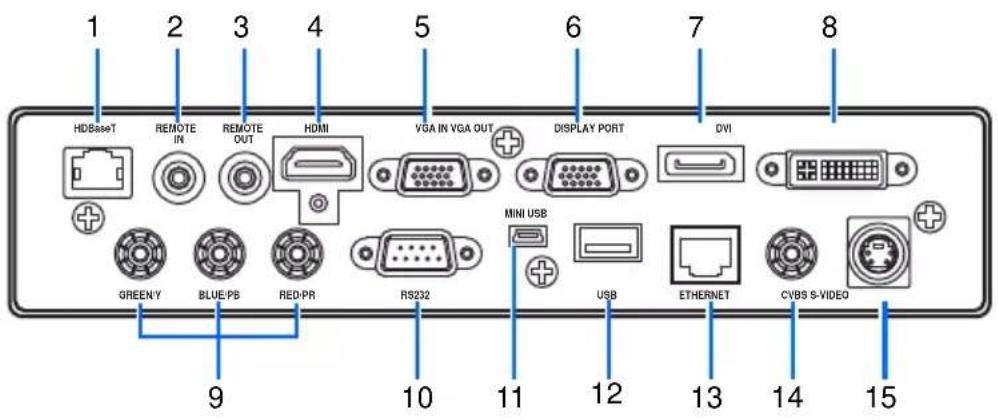

2.3 Input/Output (I/O) Panel

1 HDBaseT 2 REMOTE IN 3 REMOTE OUT 4 HDMI 5 VGA IN VGA OUT 6 DISPLAY PORT 7 DVI GREENY BLUE/PB RED-PR RS232 MINI USB USB ETHERNET CVBS S-VIDEO 9 10 11 12 13 14 15

Ind. Connector Name Ind. Connector Name
1 HDBaseT 9 Component IN
2 Remote IN 10 RS232
3 Remote OUT 11 Mini USB
4 HDMI 12 USB Type A
5 VGA-IN 13 Ethernet
6	V	G	A	O	U	T	1	4	C	V
7	Display Port				15	S-Video
8	DVI

2.4 Remote Control

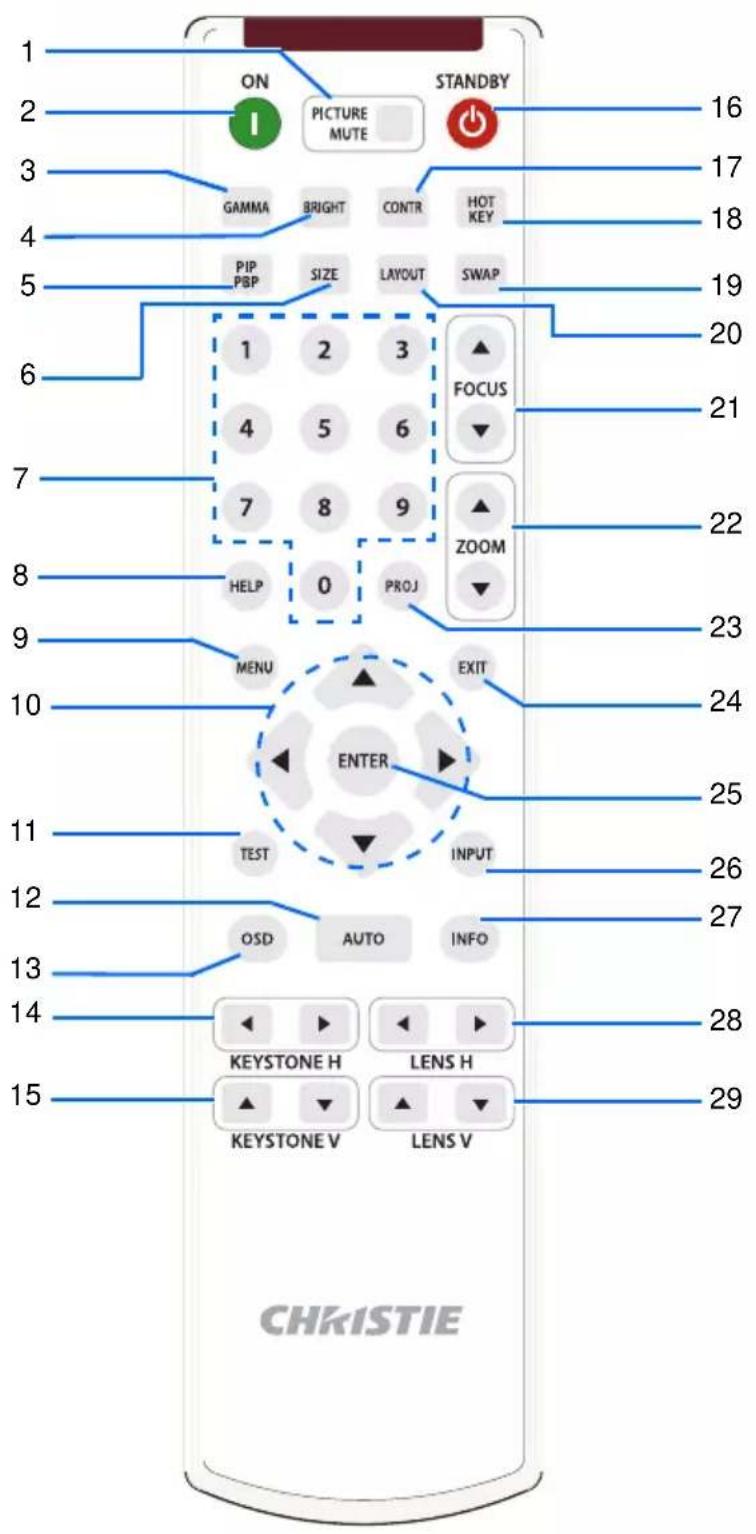

ON PICTURE MUTE STANDBY 16 2 3 GAMMA BRIGHT CONTR HOT KEY 4 5 PIP SIZE LAYOUT SWAP 6 1 2 3 ▲ 4 5 6 FOCUS 7 8 9 ▲ HELP 0 PROJ ZOOM 8 9 MENU EXIT 10 ENTER 25 TEST INPUT 11 OSD AUTO INFO 12 13 14 28 15 KEYSTONE H LENS H KEystone V LENS V 29 CHRISTIE

Ind. Part Name Description
1 Picture Mute Display or blank the video image.
2 Power on Turn projector ON.
3 Gamma Adjust mid-range levels.
4 Bright Adjust amount of light in the image.
5 PIP/PBP Turn PIP/PBP ON/OFF.
6 Size Adjust the PIP/PBP size
7 Number Keys Enter a number, such as a channel, value, etc.
8 Help Display context-sensitive help.
9 Menu Display menus.
10	Arrow Keys	Adjust a setting UP or DOWN.Navigate within a menu.
11	Test	Display a test pattern.
12	Auto Automatically optimize image.
13	OSD	Use to hide or show menus.
14	Keystone H	Adjust the horizontal keystone.
15	Keystone V	Adjust the vertical keystone.
16	Standby Turn projector OFF.
17	Contrast	Adjust difference between dark and light.
18	Hot-key	Select your preset keys quickly.
19	Swap	Swap the main and PIP/PBP images.
20	Layout	Adjust the PIP/PBP layout.
21	Focus	Adjust focus to improve image clarity as desired.
22	Zoom	Adjust zoom to achieve a desired image size.
23	Proj Key	Change the remote ID. Press Proj Key then a number between 1 and 9 to assign an ID. Press PROJ then number 0 to return to the universal remote ID.
24	Exit	Return to previous level or exit menus if at top level.
25	Enter	Select a highlighted menu item.Change or accept a value.
26	Input	Select an input for the main or PIP/PBP image.
27	Info	Display source image information.
28	Lens H	Horizontal Lens Shift - Adjust the position of the image horizontally.
29	Lens V	Vertical Lens Shift - Adjust the position of the image vertically.

2.5 LED Status Indicators

The LED status indicators are located on the right side of the projector. Each LED is defined below.

- LIGHT LED

LED Status Projector State

Red (flashing) When projector has lost over 60% initial luminance

Orange (solid) Laser diode time has expired

Green (solid) Laser diode is on and operating correctly

Off Laser diode is off

- STATUS LED

LED Status Projector State
Off AC power is off (without AC plug in)
Off, but keypad LED is on	AC has been applied, projector is in standby mode
Green (solid) Projector is powered up and operating normally
Green (flashing) Projector communications

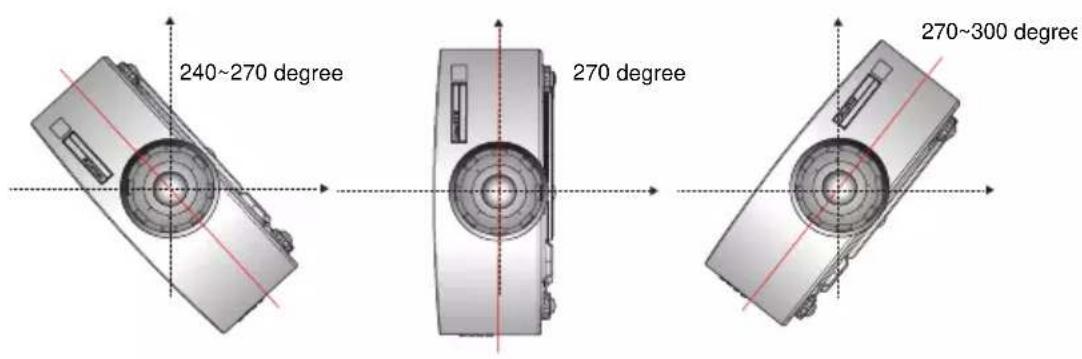

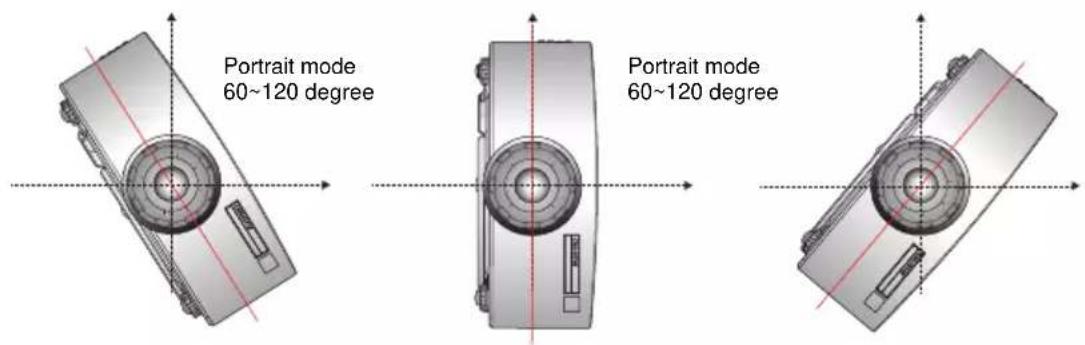

Orange (solid)	Non-portrait mode usedNOTE: Please refer to section 3.5.
Orange (flashing) Projector is in cool down mode or startup mode
Green (flashing) / Red (flashing)	Projector is in flash (LAN) update state
Red (solid) Over-temperature
Red (flashing) Fan failure

• PICTURE MUTE LED

LED Status Projector State

Green (solid) Light is on - image is displayed

Orange (solid) Light is on - image is blank

3. INSTALLATION

3.1 Connect to Computer

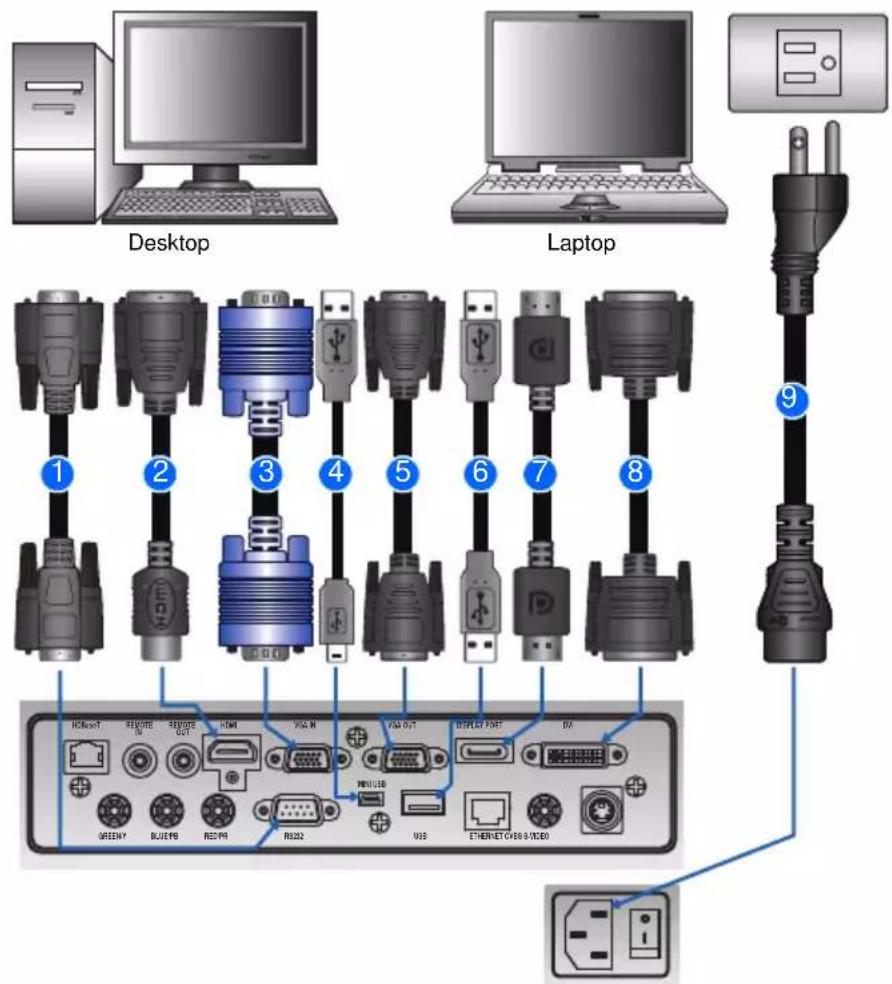

Desktop Laptop 1 2 3 4 5 6 7 8 9 HD/Host REVOKE OUT HDMI VASM VASM OUT DISPLAY PORT DIF GREENY BLUEPB RED PB R022 USB ETHERNET CHS 8/10/00

Ind.	Connector Name	Ind.	Connector Name	Ind.	Connector Name
1	RS232 Cable	4	USB Type B Mini Cable	7	DisplayPort Cable
2	HDMI Cable 5 VGA out Cable	8 DVI Cable
3	VGA in Cable	6	USB Type A Cable	9	Power Cord

NOTE:
The diagram shows the cables/connectors that may be used to connect to various devices.
Due to the difference in applications for each country, the accessories required in some regions may be different from those shown.
This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.

3.2 Connect to Video Equipment

Component video output equipment

DVD player

Video cassette recorder

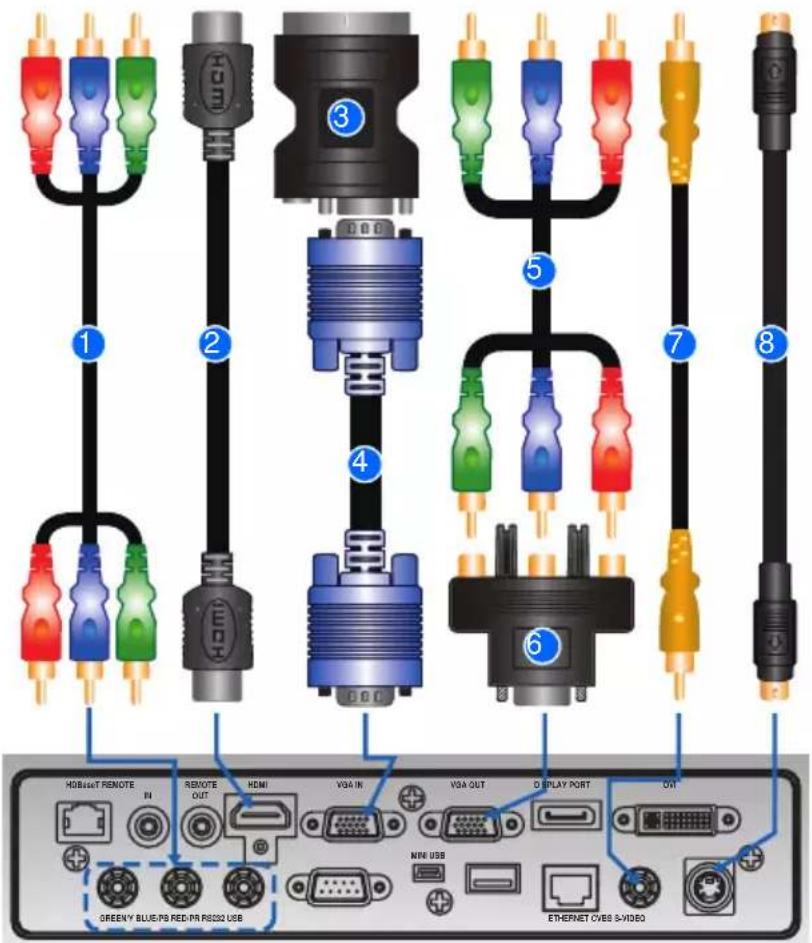

H08/45T REMOTE IN REMOTE OUT HDMI VGA IN VGA OUT O DISPLAY PORT OUT GREENY BLUE/PB RED/PA RS32 USB NMI USB ETHERNET OVERS 6/VIDEO

Ind.	Connector Name	Ind.	Connector Name	Ind.	Connector Name
1	Component (YPbPr) Cable	4 VGA in Cable 7 CVBS Cable
2	HDMI Cable 5		3 RCA Component Cable	8 S-Video Cable
3	VGA to RBG SCART	6	15-pin to 3 RCA Component/HDTV Adapter

NOTE:

The diagram shows the cables/connectors that may be used to connect to various devices.

Due to the difference in applications for each country, the accessories required in some regions may be different from those shown.

This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.

3.3 Turn the Projector On

1. Ensure that the power cord and signal cable are securely connected. The Power button on the built in keypad is illuminated.

2. Turn on the projector by pressing " " on the remote control or press " " on the built-in keypad. The Status LED is Orange with a long blink.

3. Turn on the source. Select Input Key on the remote control to select an input source (VGA, BNC, HDMI, Component, S-Video or Composite Video).

4. The projector detects the source you selected and displays the image.

NOTE:

The first time the projector is used, the preferred language may be selected from the main menu after the startup screen is displayed.

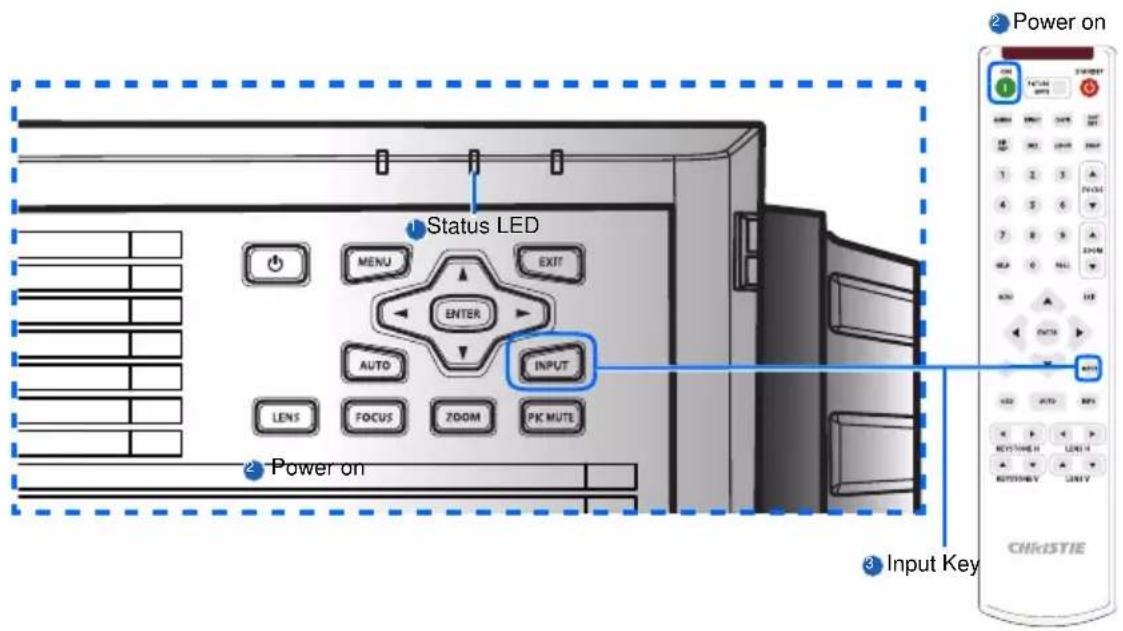

Status LED MENU EXIT ENTER AUTO INPUT LENS FOCUS ZOOM PIC MUTE Power on Power on Input Key Christie

3.4 Turn the Projector Off

1. Press " " on the built-in keypad or on the remote control to turn off the projector. A warning message will appear on the displayed image.

2. Press "⏻" again to confirm your selection. If you do not press "⏻" again, the warning message will disappear after 10 seconds.

3.5 Adjust the Projector Position

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

• Position the projector on a flat surface at a right angle to the screen. The projector (with the standard lens) must be at least 3 feet (0.9m) from the projection screen.
• Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
• For the fixed short lens, the image exits at a default angle. However, the lens shift feature makes the image offset variable.

- Lens throw ratio:

• Lens 1.22\~1.53 (WU/HD)
• Lens 0.95\~1.22 (WU/HD)
• Lens 1.52\~2.92 (WU/HD)
• Lens 1.28-1.61 (WX)
• Lens 1.0-1.28 (WX)
• Lens 1.6-3.07 (WX)

• 360 degree operation (alone the widest axis)

360°

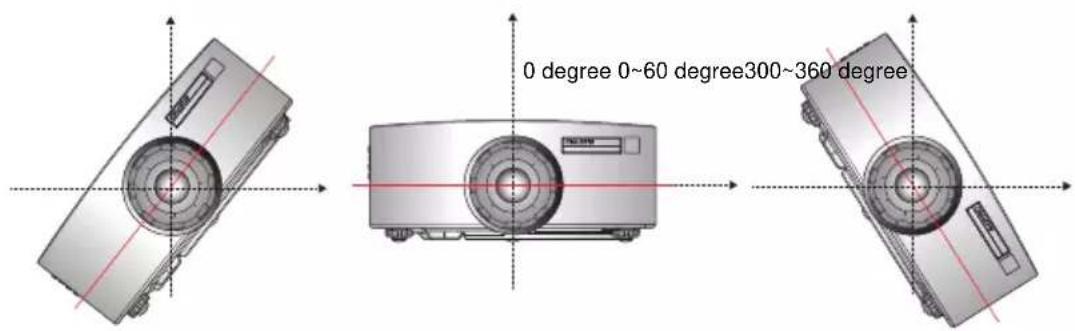

Table Top Mode

- The projector is in table top mode when the viewing angle is from 0^ to <60^ and from >300^ to 360^ as illustrated below.

0 degree 0~60 degree300~360 degree

Portrait Mode

- The projector is in portrait mode when the viewing angle is from 60^ to 120^ as illustrated below.

Portrait mode 60~120 degree Portrait mode 60~120 degree

WARNING

- In portrait orientation, the Portrait Side Cover must be installed on the side of the projector which is now the lower side. Refer to section 3.9.

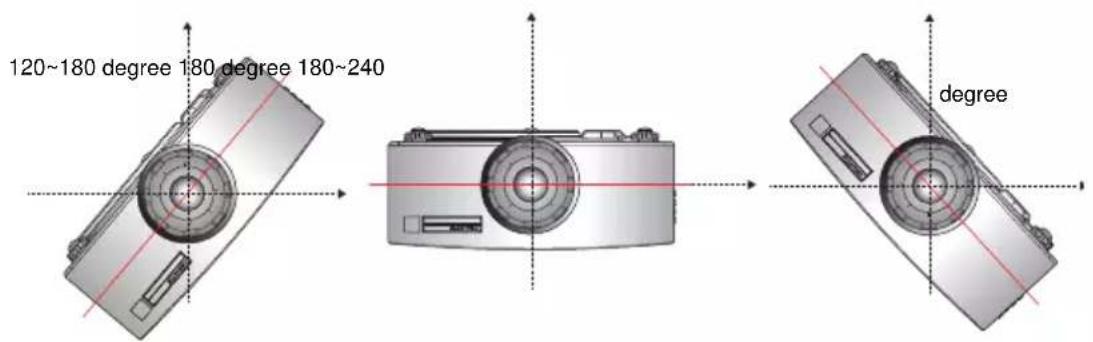

Inverted Mode

- The projector is in Inverted/Ceiling Mount Mode when the viewing angle is from >120^ to <240^ as illustrated below.

120~180 degree 180 degree 180~240 degree

Non-Supported Modes

• The projector is in non-portrait mode when the viewing angle is 240^ to 300^ as illustrated below.
• The "orange" status LED on projector lights on.

240~270 degree 270 degree 270~300 degree

WARNING

- The projector should not be operated in Non-Portrait Mode.

3.6 Calculate Lens Offset

- The vertical image offset (shift) ranges for the projector are +/-100% (WXGA/WUXGA) and +/-120% (HD). The horizontal image offset (shift) range for the projector are +/-30% (WXGA/HD/WUXGA).

- The method for calculating lens offset complies with Industry standards. Example for Vertical lens offset:

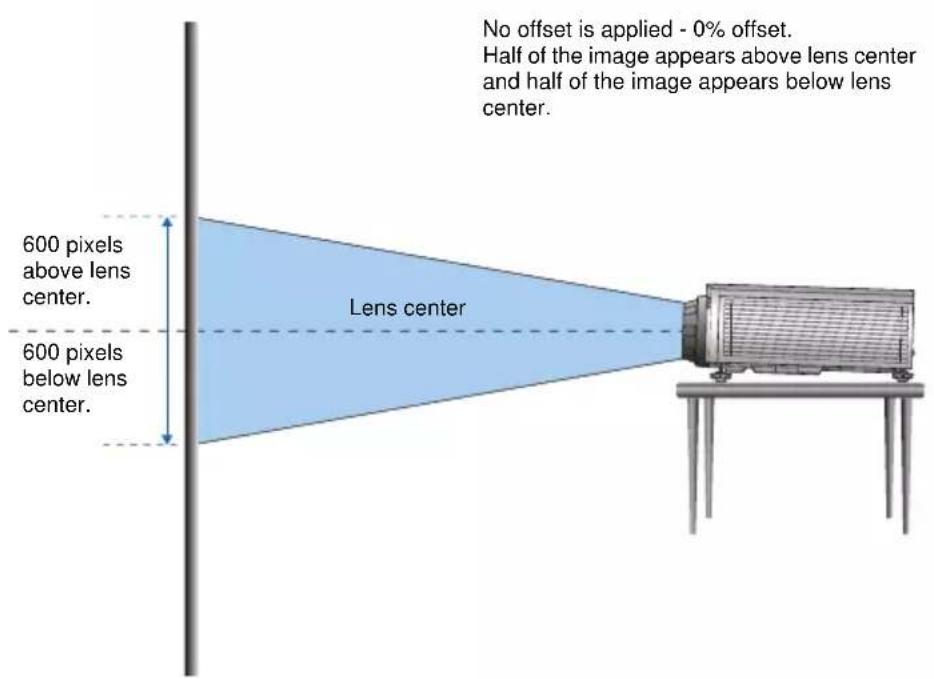

- At 0% offset (or on axis), the center of the image is on the lens center, so that half of the image appears above and half appears below the lens center.

- At +100% offset, all (or 100%) of the image will appear above the lens center.

- The % offset is calculated as the ratio of the number of pixels shifted up/ down to half the image size. Examples for WUXGA:

▶ Shifting up 600 pixels gives offset of 600/600 * 100% = 100%
▶ Shifting down 600 pixels gives offset of -600/600 * 100% = -100%
▶ Shifting up 720 pixels gives offset of 720/600 * 100% = 120%
▶ Shifting up 240 pixels gives offset of 240/600 * 100% = 40%

WUXGA Projectors:

Vertical Image Offset: 0% Offset (WUXGA)

No offset is applied - 0% offset. Half of the image appears above lens center and half of the image appears below lens center. 600 pixels above lens center. 600 pixels below lens center. Lens center

Vertical Image Offset: 100% Offset (WUXGA)

Image has been offset 600 pixels above lens center, so the center of the image is now 600 pixels above where the center of the image was at 0% offset (or lens center). The offset is +600/600 * 100% = +100%. 600 pixels of shift above lens center. Lens center

Vertical Image Offset: -100% Offset (WUXGA)

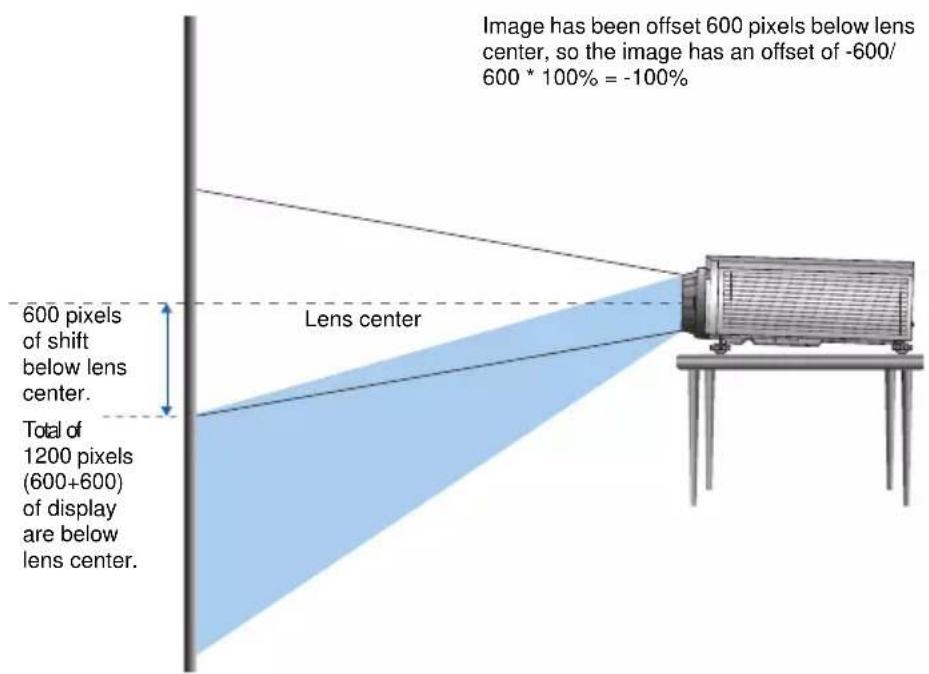

Image has been offset 600 pixels below lens center, so the image has an offset of -600/600 * 100% = -100% 600 pixels of shift below lens center. Lens center Total of 1200 pixels (600+600) of display are below lens center.

HD Projectors:

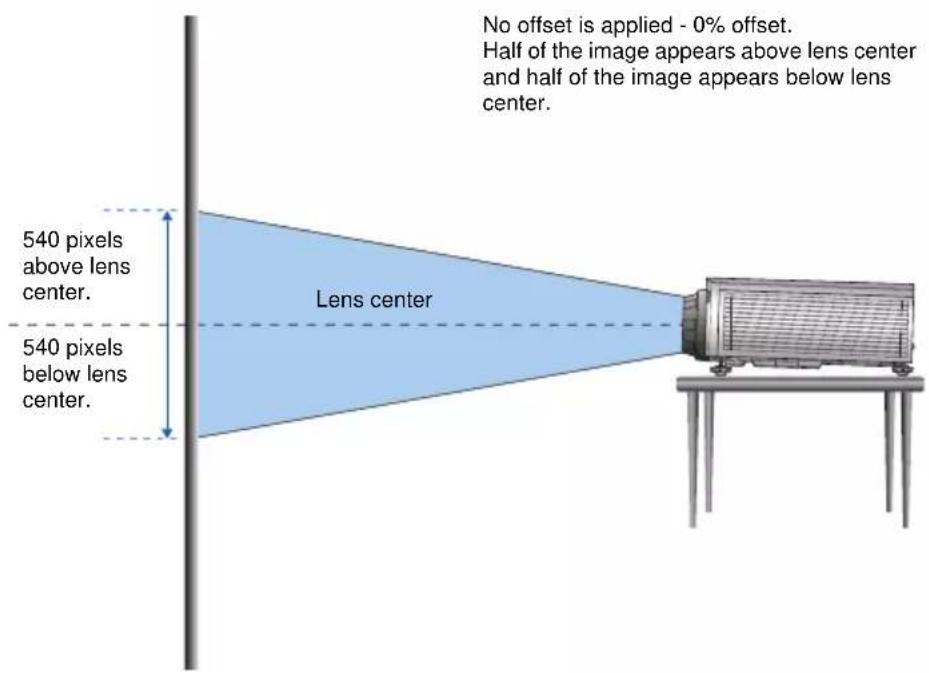

Vertical Image Offset: 0% Offset (HD)

No offset is applied - 0% offset. Half of the image appears above lens center and half of the image appears below lens center. 540 pixels above lens center. 540 pixels below lens center. Lens center

Vertical Image Offset: 120% Offset (HD)

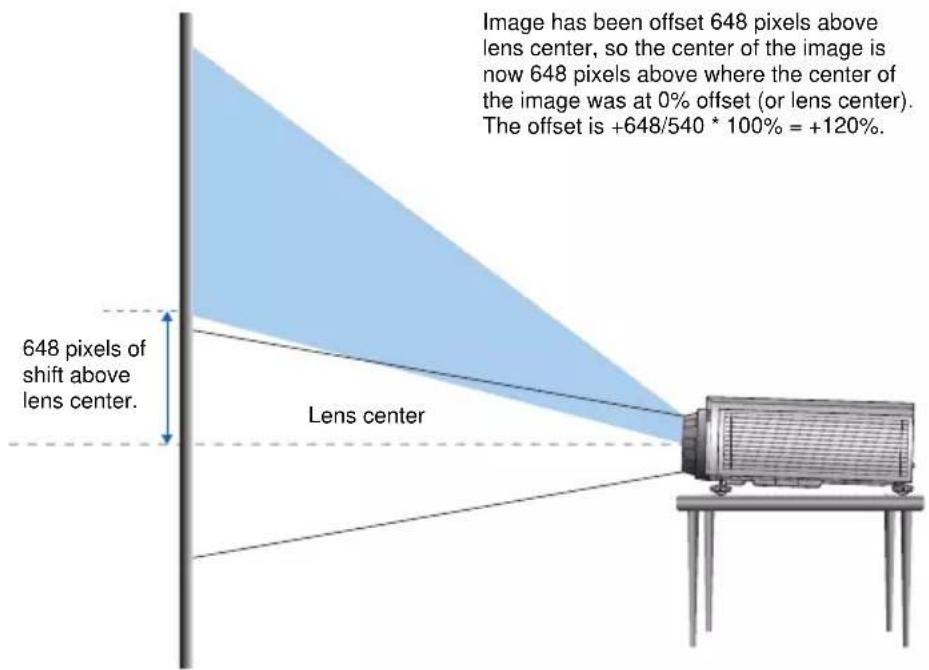

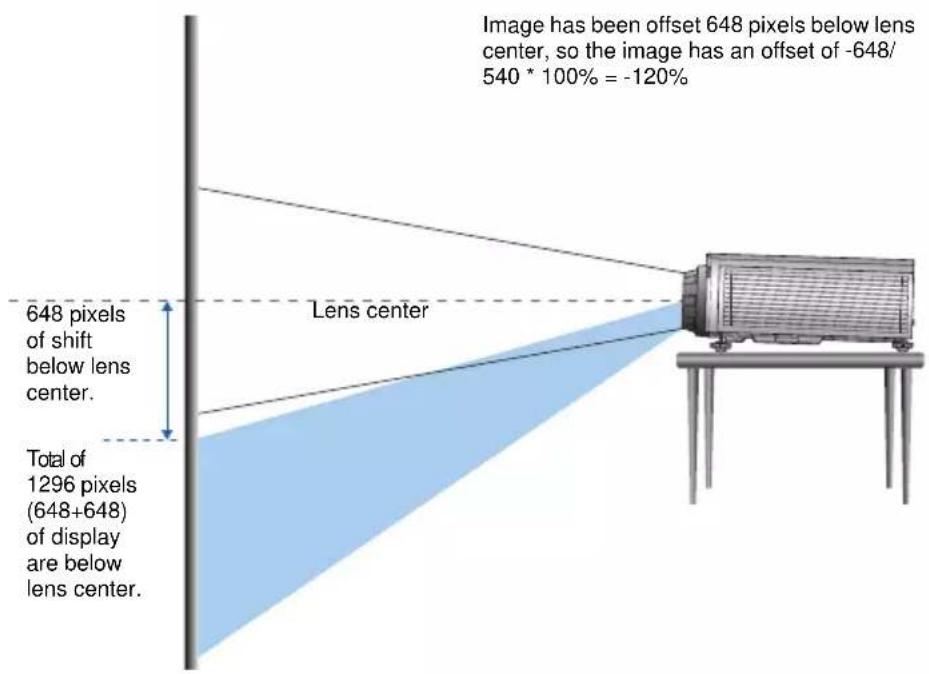

Image has been offset 648 pixels above lens center, so the center of the image is now 648 pixels above where the center of the image was at 0% offset (or lens center). The offset is +648/540 * 100% = +120%. 648 pixels of shift above lens center. Lens center

Vertical Image Offset: -120% Offset (HD)

Image has been offset 648 pixels below lens center, so the image has an offset of -648/540 * 100% = -120% 648 pixels of shift below lens center. Lens center Total of 1296 pixels (648+648) of display are below lens center.

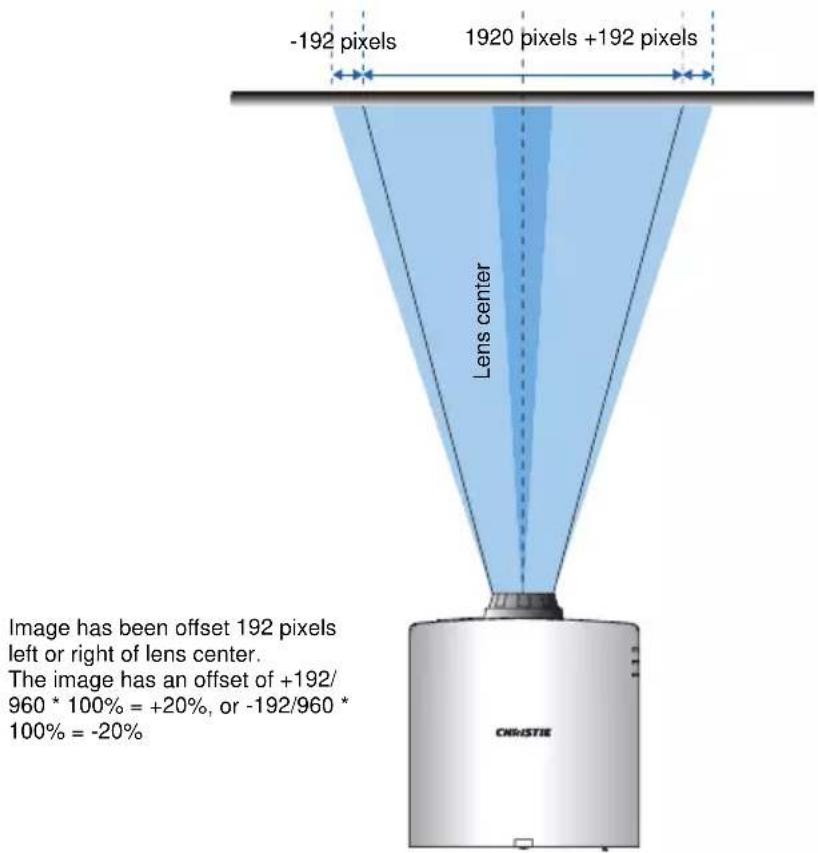

Horizontal Image Offset: +/-30% Offset

-192 pixels 1920 pixels +192 pixels Lens center Image has been offset 192 pixels left or right of lens center. The image has an offset of +192/960 * 100% = +20%, or -192/960 * 100% = -20% CHRISTIE

WXGA Projectors:

Vertical Image Offset: 0% Offset (WXGA)

No offset is applied - 0% offset. Half of the image appears above lens center and half of the image appears below lens center. 400 pixels above lens center. 400 pixels below lens center. Lens center

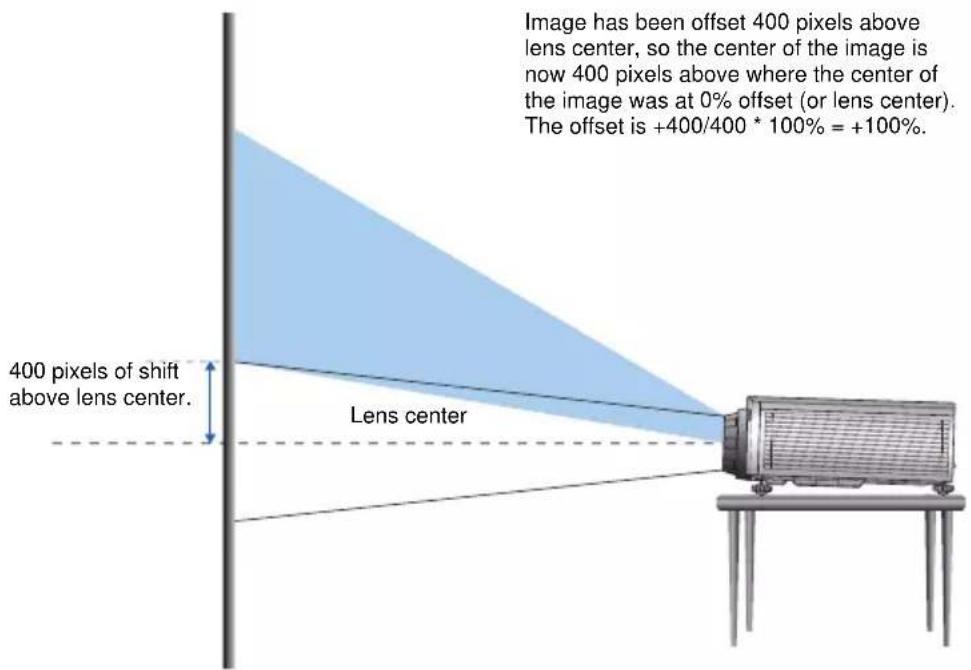

Vertical Image Offset: 100% Offset (WXGA)

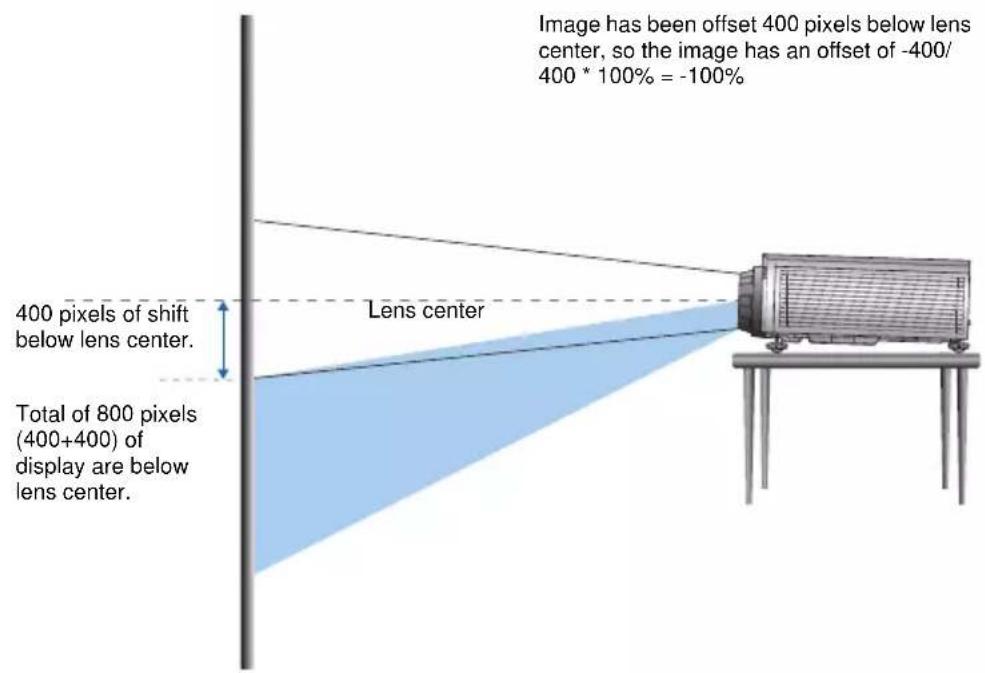

Image has been offset 400 pixels above lens center, so the center of the image is now 400 pixels above where the center of the image was at 0% offset (or lens center). The offset is +400/400 * 100% = +100%. 400 pixels of shift above lens center. Lens center

Vertical Image Offset: -100% Offset (WXGA)

Image has been offset 400 pixels below lens center, so the image has an offset of -400/400 * 100% = -100% 400 pixels of shift below lens center. Lens center Total of 800 pixels (400+400) of display are below lens center.

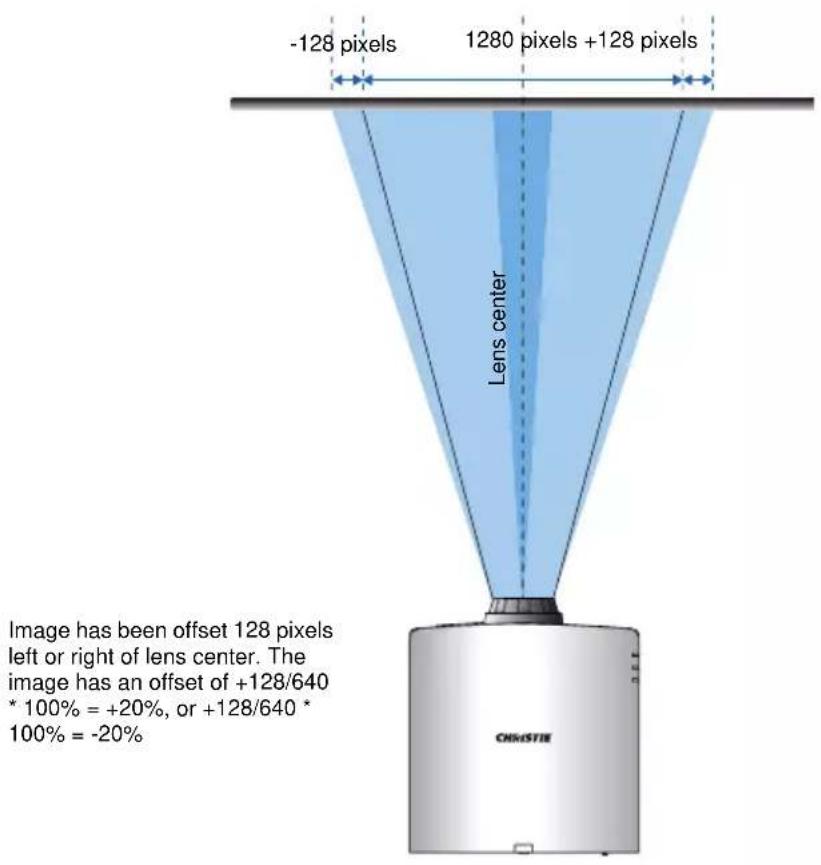

Horizontal Image Offset: +/-30% Offset

-128 pixels 1280 pixels +128 pixels Lens center Image has been offset 128 pixels left or right of lens center. The image has an offset of +128/640 * 100% = +20%, or +128/640 * 100% = -20% CHISTIE

3.7 Removing and Installing the Lens

When handling the projector after lens installation, make sure the front lens cap is placed on the lens to protect the lens surface from potential damage. When carrying or moving the projector, do not handle by the lens. This may damage the lens, the chassis or other mechanical parts within the projector.

Installation Steps:

1. Center the lens: Ensure that the lens is at or near its center position. Attempting to remove the lens when at a large offset may cause damage to the lens assembly. Center the lens while the projector is switched on by pressing the lens horizontal or vertical button and then pressing Enter.

2. Turn Off the projector: Turn the projector OFF.

3. Wait for projector to cool down: Allow the projector to cool down into standby mode before replacing the lens. Remove power cord after the projector has cooled down and prior to replacing the lens.

4. Remove the lens: Remove the lens ring cover.

Rotate the lens counter-clockwise by a quarter to release the lock. Remove the lens through the front of the projector.

Two illustrations of a projector with hands operating the lens (no text or symbols visible)

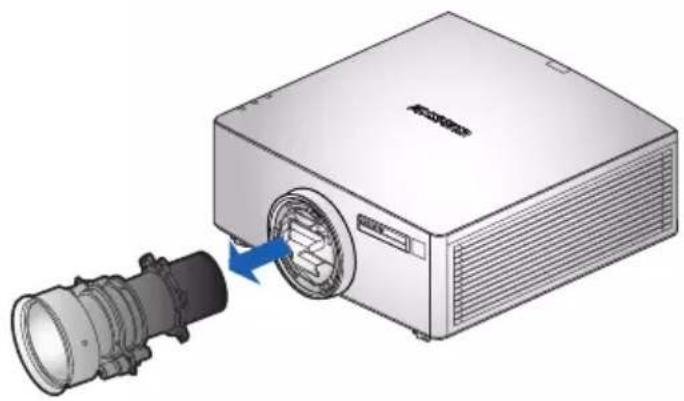

1. Install the new lens: Fully insert the lens assembly straight into the lens mount without turning. Rotate the lens cap clockwise to lock the lens in place.

Illustration of a projector unit with a cylindrical component inserted, showing no text or symbols.

3.8 Cable Cover Installation

1. Rotate the cable cover and insert the two guide pins into the guide holes.
2. Press and hold both lower corners of the cable cover while inserting the sheet clips into the projector casing.

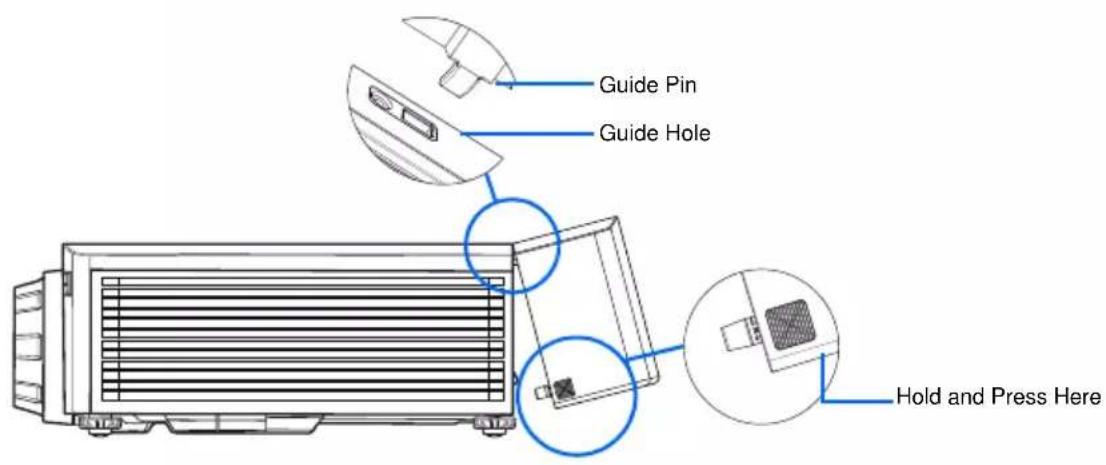

Guide Pin Guide Hole Hold and Press Here

3.9 Portrait Cover Installation

1. Attach the Portrait cover to the left side of the projector and secure with the 6 step screws.

Tighten the six screws

1. Mount the projector in an appropriate mounting kit, using the 4 mounting points on the underside of the projector.

Pure diagram of a cylindrical mechanical component with mounting holes and cross marks (no text or symbols)

WARNING

• Mount with the portrait cover side facing downwards.
• The projector must not stand on a table top on the portrait cover

3.10 Ceiling Mount Installation

Mount the projector with an appropriate mounting kit, using the 4 mounting points on the underside of the projector.

Pure mechanical component diagram without any text, numbers, or symbols

- When not mounted properly, the projector may fall, causing hazards or injury. The warranty on this projector does not cover any damage caused by the use of any non-recommended ceiling mount kit or installation of the ceiling mount kit in an improper location.

- Refer to the installation instructions and safety guidelines provided in the kit.

4. OPERATION

The projector has multilingual On-Screen Display (OSD) menus that allow you to make image adjustments and change a variety of settings.

• Most of the projector controls are accessed from within the projector menu system. There are several groups of related functions, with each group selectable from the Main menu as shown below. Press the MENU button on the remote control or on the built-in keypad on the rear of the projector to display the main menu.
• Use the arrow keys to navigate within the menu and adjust a setting up or down.
• Press ENTER to select a highlighted menu item or use it to change or accept a value.
• Select the next item that you want to adjust in the menu and adjust it as described above.
• Press EXIT to return to the previous menu or exit menus if at top level.

Main Menu
1. Size & Position
2. Image settings
3. Configuration
4. Light Source
5. Status
6. Input Switching & PIP
7. Language	English
8. Test pattern	OFF

4.1 Size and Position Menu

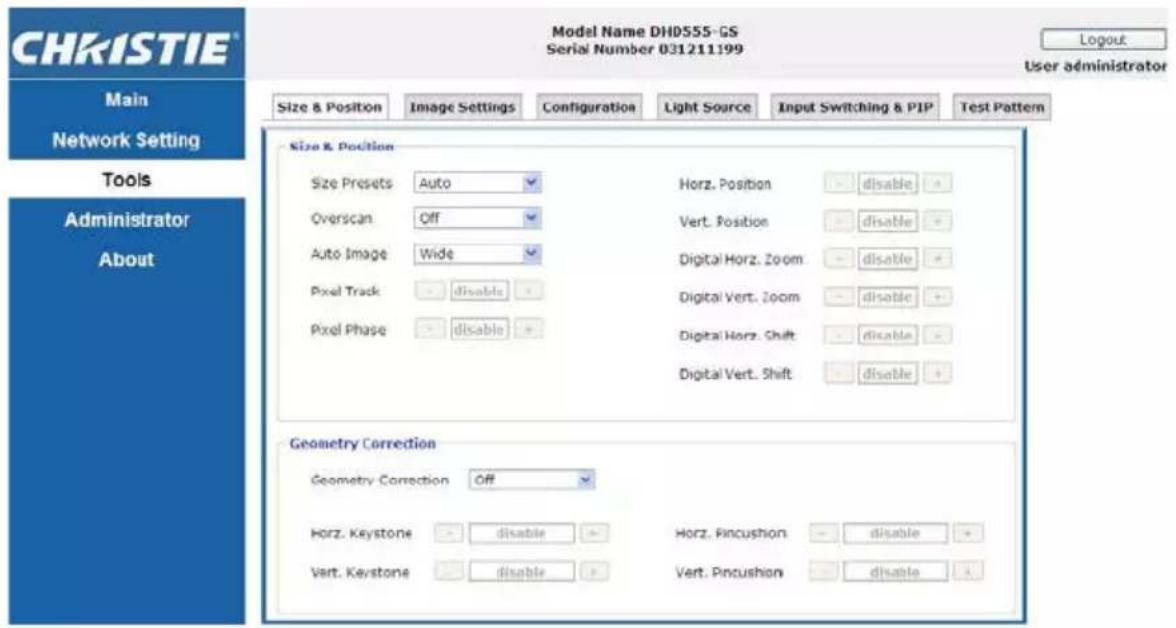

Size & Position 1. Size Presets Auto 2. Overscan OFF 3. Pixel Track 50 4. Pixel Phase 50 5. Horz Position 50 6. Vert Position 50 7. Digital Horz Zoom 100 8. Digital Vert Zoom 100 9. Digital Horz Shift 50 10. Digital Vert Shift 50 11. Geometry Correction OFF 12. Auto Image

Size Presets

Display an image with the detected size, or resize the image by maximizing either the height, width or both, or resize to the maximum size possible while keeping the original aspect ratio.

• Auto: Display with the detected size.
- Native: Display in its native resolution.
• 4:3: Retain 4:3 aspect ratio.
- Letterbox: Display with the black borders on the top and bottom.
• Full Size: Fill the screen (regardless of the source).
• Full Width: Fill display width and keep aspect ratio.
• Full Height: Fill display height and keep aspect ratio.
- Custom: Stretch the display horizontally or vertically without cutting the image display

Overscan

Remove noise around the image. Overscan Zoom enlarges image 6% from original size. Overscan Crop cuts 6% of active pixels in four edges of original image.

Pixel Track

Analog RGB signals only. Steady flickering or several soft vertical stripes or bands across the entire image indicates poor pixel tracking. Proper pixel tracking ensures that the image quality is consistent across the screen, the aspect ratio is maintained, and that the pixel phase can be optimized.

Pixel Phase

Analog RGB Signals only. Adjust pixel phase when the image still shows shimmer or noise after pixel tracking is optimized. Pixel phase can adjust the phase of the pixel-sampling clock relative to the incoming signal.

Horz Position

Move the image right or left within the area of available pixels.

Vert Position

Move the image up or down within the area of available pixels.

Digital Horz Zoom

Change the size of projector's display area horizontally. If the display area has been resized by this setting, it can be moved by changing the Digital Horz Shift and Digital Vert Shift settings.

Digital Vert Zoom

Change the size of projector's display area vertically. If the display area has been resized by this setting, it can be moved by changing the Digital Horz Shift and Digital Vert Shift settings.

Digital Horz Shift

Move the display area horizontally if its size has been changed by the Digital Zoom setting.

Digital Vert Shift

Move the display area vertically if its size has been changed by the Digital Zoom setting.

Geometry Correction

The "Geometry Correction" can be controlled with the options in the dropdown list:"OFF/Basic" when optional Dual Processor Warp Module is not installed, and "OFF/Basic/Curve/Rotate" when optional Dual Processor Warp Module is installed.

Geometry Correction Feature Compatibility

Warp Function	4-Corner	Curved Surface(2x2)	Keystone	Pincushion and Barrel	Rotation
4-Corner -- √	√ √ √
Curved Surface(2x2)	√ -- XXX
Keystone	√	X	--	√	X
Pincushion and Barrel	√ X √	-- X
Rotation √	XXX --

• OFF: No Geometric correction is applied to the image.
- Horz Keystone: Adjust the keystone horizontally and make a more square image. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length, and the top and bottom are slanted to one of the sides. This is intended for use with horizontally on-axis applications. For horizontally offset applications, you must use 4 Corner correction using the optional Dual Processor Warp Module.

B A

A B

Ind. WXGA 1080P WUXGA
A	12.3%	10.2% 7.1%
B	7.7%	6.4% 5.2%

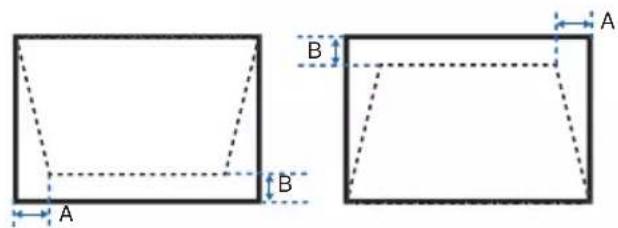

- Vert Keystone: Adjust the keystone vertically and make a more square image. Vertical keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length, and the top and bottom are slanted to one of the sides. This is intended when for use with horizontally on-axis applications. For horizontally offset images, you must use 4 Corner correction using the optional Dual Processor Warp Module.

A B A B

Ind. WXGA 1080P WUXGA
A 5.4% 4.4% 3.3%
B 10.4% 8.7% 5.4%

- Horz Pincushion: Adjust the pincushion horizontally and make a more square image.

Pure geometric diagram of a rectangle with dashed curved lines and an arrow labeled 'A' (no text or symbols beyond the label)

Simple geometric diagram showing a rectangle with a dashed circular arc and labeled point B (no text or symbols beyond labels)

Ind. WXGA 1080P WUXGA
A 16.0% 13.3%	8.0%
B 16.0% 13.2%	7.9%

- Vert Pincushion: Adjust the pincushion vertically and make a more square image.

Pure geometric diagram of a rectangle with dashed curved lines and a labeled point A (no text or symbols beyond the label)

Simple geometric diagram showing a rectangle with dashed inner lines and an outer oval, labeled with dimension 'B' (no text or symbols within the shape)

Ind.	WXGA	1080P	WUXGA
A	14.7%	12.3%	11.4%
B	14.7%	12.1%	11.4%

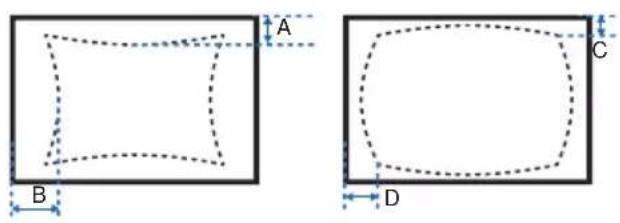

- Pincushion/Barrel: Allow for correction for slight curved distortion from the lens or projection surface

A B C D

Ind. WXGA 1080P WUXGA
A 8.38% 8.35%	8.37%
B 3.5% 3.98%	4.59%
C 6.4% 6.4% 6	5%
D 6.4% 6.4% 6	5%

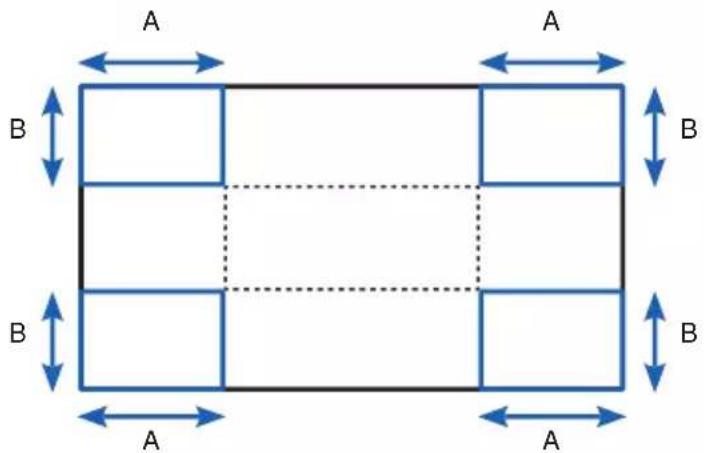

• 4-Corner: Allow the image to be squeezed to fit an area defined by moving each of the four corners' x and y position.

Ind. WXGA 1080P WUXGA
A	10.0%	8.4%
B	9.5%	7.9%

- Rotation: Allow an image to be rotated - most commonly to level the image. While the image is rotated, the software can crop any content that begins to fall off the panel. The function will not automatically scale the image down to prevent cropping. If scaling is required, the digital zoom function can be used, independently of the rotation function.

Simple geometric diagram of a rectangle with dashed red lines and an arrow labeled 'A' (no text or symbols beyond the label)

Ind. WXGA 1080P WUXGA
A	10.0%	8.4% 8.3%

Auto Image

Force the projector to reacquire and lock to the input signal. This is useful when signal quality is marginal. "Normal mode" can support all of the 4:3 input sources.

"Wide mode" can support all of the 16:9 input source & most of the 4:3 input source. For those 4:3 input sources not recognized by "Wide mode" (example 1400 x 1050), perform Auto Image using "normal mode".

4.2 Image Settings Menu

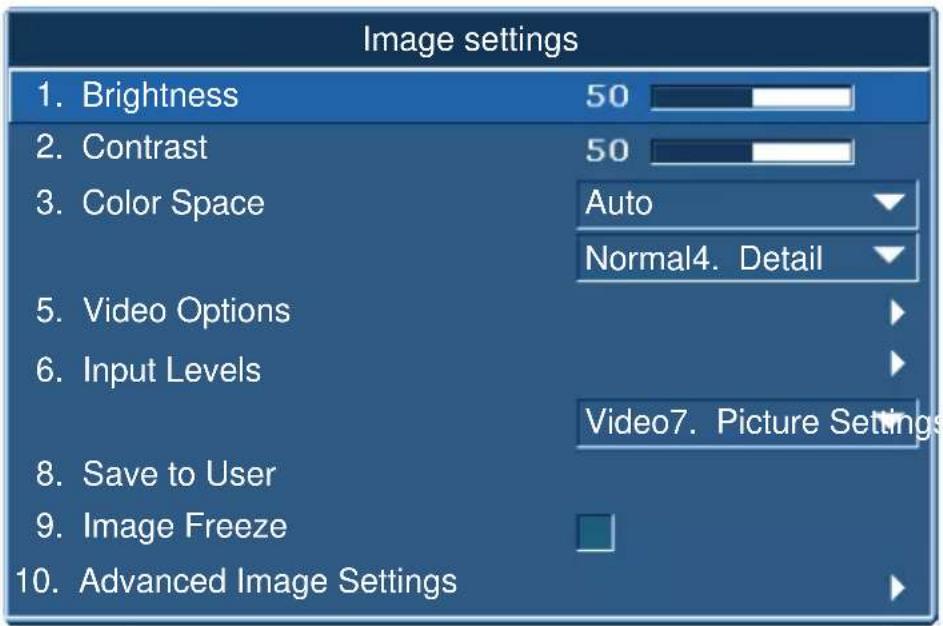

Image settings 1. Brightness 50 2. Contrast 50 3. Color Space Auto Normal4. Detail 5. Video Options 6. Input Levels Video7. Picture Settings 8. Save to User 9. Image Freeze 10. Advanced Image Settings

Brightness

Adjust the intensity of the image.

Contrast

Adjust the degree of difference between the lightest and darkest parts of the picture and change the amount of black and white in the image.

Color Space

Select a color space that has been specifically tuned for the input signal.

Useful only for analog signals and certain digital sources.

Detail

Select the edge clarity of the image.

Video Options

This function is used with video sources only.

• Color: Adjust a video image from black and white to fully saturated color. The color setting applies to video sources only.
- Tint: Adjust the red-green color balance in the image of NTSC video images. The tint setting applies to NTSC video sources only.
- Noise Reduction: Reduce temporal or spatial noise in the image.
- Flesh Tone Correction: Control the amount of flesh tone correction applied to the image.

• Video Black Level: Analyze the current input image and calculate an offset value which is then added to the analog to digital converter black level value. This ensures optimum black level for each analog source.
• Detect Film: Control film mode detection and determine whether the original source of the input video was film or video.
• Closed Captions: Control closed caption display while audio is not muted.
• If this setting is not off, audio is not muted, the source is NTSC and contains captions on the selected channel, then the projector must display caption text overlaid on the image.

Input Levels

VGA / Component signals only.

• Adjust the gain of the red, green, or blue channel of the image. It will affect the black and white.
• Adjust the offset of the red, green, or blue channel of the image. It will affect the black and white.
• Sync Threshold: (progressive signals only) If a hardware device, such as a DVD player, is not syncing properly with the projector, select this option to help it to sync when connected to the projector.

Picture Settings

Optimize the projector for displaying images under certain conditions, such as presentation, video, bright, real, dicom sim, and user-definable preset. It will affect Gamma, Sharpness, White Peaking, Overscan, Brightness, Contrast, Color, Tint, Red Gain, Green Gain, Blue Gain, Red Offset, Green Offset, Blue Offset.

Save to User

Adjust the image settings and select Save to User as a picture setting. You can recall these settings in the future by selecting the User in the Picture Settings menu. The setting of Brightness, Contrast, Color, Tint, Red Gain, Green Gain, Blue Gain, Red Offset, Green Offset, Blue Offset, Color Temperature, Gamma, Detail, White Peaking and Overscan will be saved.

Image Freeze

Pause the screen image.

Advanced Image Settings

• Gamma: Select the appropriate gamma from Video, Film, Bright, CRT, and DICOM.
• White Peaking: (video source only) Increase the brightness of whites that are near 100%.
• Color Temperature: Change the intensity of the colors. Select a listed relative warmth value.
• Edge Enhancement: Apply the edge enhancement process.

4.3 Configuration Menu

Configuration 1. Language English 2. Lens Settings 3. Ceiling Mount Auto 4. Rear Projection 5. Menu Preferences 6. Power Management 7. High Altitude 8. Communications 9. Image Blending 10. Color Matching 11. Hot-Key Settings Blank Screen 12. Service

Language

Allows you to select an available language for the OSD display, from English, French, German, Italian, Spanish, Chinese(simplified), Japanese, Korean, and Russian.

Lens Settings

• Focus and Zoom: Adjust the focus and zoom the image in or out.
• Lens Shift: Shift the lens up and down or left and right.
• Lock all Lens Motors: Select this function to prevent all lens motors from moving. It will disable the Zoom, Focus, Horizontal and Vertical Position settings, effectively locking out any changes and overriding all other lens features. This is particularly useful to prevent accidental lens position changes in multi-projector installations.
• Lens Calibration: Calibrate the lens center

Ceiling Mount

Turn the image upside down for ceiling-mounted projection.

Rear Projection

Reverse the image so you can project from behind a translucent screen.

Menu Preferences

- Menu Horz Offset: Change the horizontal position of the OSD.

- Menu Vert Offset: Change the vertical position of the OSD.

• Show Messages: Display status messages on the screen.

- Menu Transparency: Change OSD menu background to be transparent. NOTE:

As the value increases, more of the image behind the menu is visible.

- Splash Screen Setup: Choose which splash screen is to be used.

- PIN Protect: The PIN (personal identification number) feature allows you to password protect your projector. Once you enable the PIN feature, you must enter the PIN before you can project an image.

- Change PIN: Allows you to change the PIN.

Power Management

- Standby Mode: The projector is in standby mode when connected to AC power. (<0.5W)

- AC Power On: The projector automatically turns on when electrical power is connected.

- Auto Shutdown: Automatically turns the projector off after no signals are detected for a preset number of minutes. If an active signal is received before the projector powers down, the image will be displayed.

- Sleep Timer: Allows the projector to automatically power off after it has been on for a specified amount of time.

High Altitude

Set high altitude mode ON/OFF. When ON, the fan will operate at high speed to ensure sufficient air flow for high altitudes.

Communications

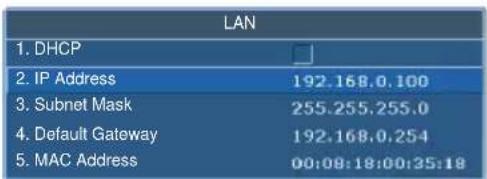

• Network: Allow you to setup network settings.

- DHCP: Turn the DHCP ON/OFF.

- IP Address: Assign Network IP Address.

- Subnet Mask: Assign Network Subnet Mask.

- Default Gateway: Assign Network Default Gateway.

- Host Name: Display the host name.

- MAC Address: Displays network MAC Address value.

- Show Network Messages: Turn network messages ON/OFF.

- Restart Network: Restart the network.

- Network Factory Reset: Perform factory reset on the network settings. The Projector Name, LAN IP, WLAN IP, and SNMP settings will be reset.

- Serial Port Baud Rate: Select the serial port and baud rate.

• Serial Port Echo: Control whether the serial port echoes characters.
• Serial Port Path: Select the serial port path from either RS232 or HDBaseT.
• Projector Address: Set the projector address (0-9). The projector will respond to IR remotes set either at the same address as the projector or to IR remotes set to address 0.

Image Blending

Adjust blend widths and settings to left, right, top and/or bottom sides to create a seamless multi-projector stitched image. (Available only when optional Dual Processor Warp Module is installed.)

What is a Blend?

In simple terms, a blend appears as a gradient strip along an edge of a projected image. It is darkest along the extreme edge of the image, and lightens nearer to the rest of the image(see below).

Blend

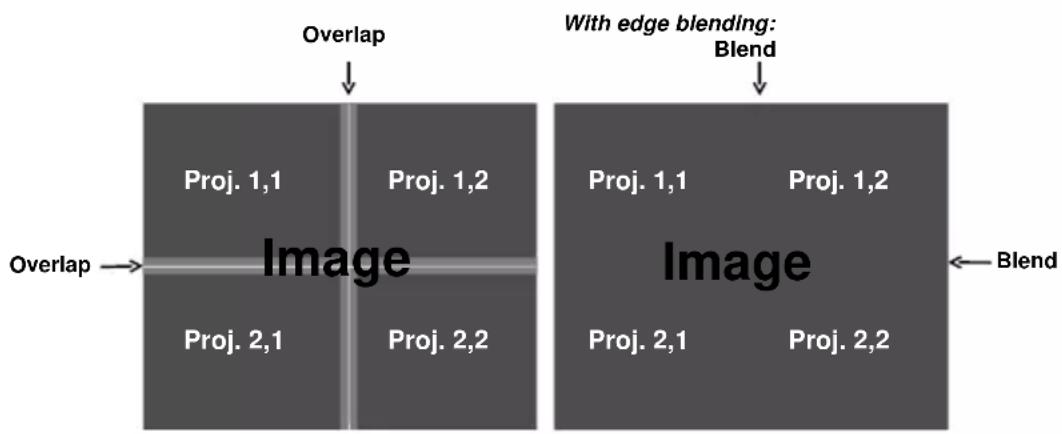

How are Blends used?

In multiple-projector wall, complementary blends between neighboring images can compensate for the extra "brightness" or intensity where these edges overlap. By controlling blend width and other properties, you can achieve uniformity across the group of images. "Visible overlaps will disappear, as shown below"

Blending regions can be defined on all sides - left, right, top and bottom. The same gamma curve is used for all blending regions.

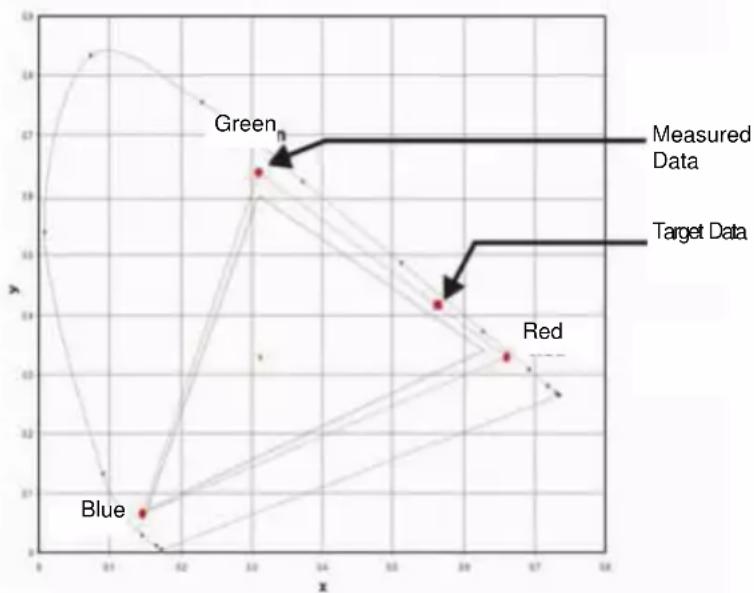

Color Matching

You may require a unique color gamut (range) for a single projector or application, or you may need to precisely match colors across multiple adjacent displays. Use Color Matching by Meter Adjustment or by Manual Adjustment to define the precise hue of each primary color component (red, green, blue and white).

The x/y coordinates for each color define its location on the standard CIE chromaticity graph. Changing either or both of these numbers will change the hue of the color, and modify the range of possible colors. For example, changing the x/y coordinates for red may move the color closer to orange or closer to violet, which will in turn affect all displayed colors having a red component. Adjust the slide bars or enter new specific coordinates as desired to define or change the color gamuts needed for your environment and applications.

Enable the selected method (Meter or Manual Adjustment)- this will automatically disable the other method. For both methods, if Auto Test Pattern is enabled, the solid colored test pattern will be displayed according to the menu item on which you are positioned.

- Meter Adjustment

1 Using a color meter, enter the current x and y co-ordinates of Red, Green, Blue and White for the projector image into the Measured Data menu. This is the reference point for the projector. The default values in the menu are based on the average for all projectors.
2 After measuring the values for all the projectors to be matched, calculate the target values.
3 Enter the target values for x, y and gain for each color into the Target Data menu.

- Manual Adjustment

1 Adjust color slide bars and judge image color by eye or meter. A user-defined color "adjustment" can be applied.

2 Use this submenu if you do not have specific color coordinates in mind and will judge color performance by eye or meter. As for Meter Adjustment, each color control actually defines new x/y coordinates for that color and changes its hue. The main colors (red part of red, green part of green and blue part of blue) adjust the intensity of that color component, while the modifying colors (e.g. green part of red and blue part of red) modify the x and y value and change the hue of that color. At the same time the main colors also are used to control the color of the white point.

Hot-Key Settings

Assign a different function to the hot-key on the remote control by highlighting the function in the list and pressing ENTER. Choose a function that does not already have a dedicated button, and assign the hot-key to that function, allowing you to quickly and easily use the chosen function.

Service

- Projector Info: Display current projector settings (read-only).

- Factory Reset: Restore all settings to their default value. It will not reset network but it will reset RS232.

- Test Pattern: Choose the desired internal test pattern to display, or select OFF to turn off a test pattern.

- Phosphor Index: The Phosphor index synchronizes the phosphor wheel with the filter wheel and DMD. The index defines the delay between the wheel and the DMD. When the Phosphor index is adjusted, it will impact the smoothness and contouring of the R/G/B gray level.

- Filter Index: The Filter index synchronizes the filter wheel with the phosphor wheel and DMD. The index defines the delay between the wheel and the DMD. When the filter index is adjusted, it will impact the smoothness of the white color space without contouring, similar to the phosphor index behavior.

- Error log: Show the projector error log for debug.

- Mode Adjustment: Fine tune the H and V start position for a signal in the EDID timing table and record the values in the system to override the timing table. The settings must be "Saved to Record" before exiting the menu, or they will be lost. To revert to original timing table settings, each setting must be manually cleared. Factory Defaults will not clear these override settings.

- Laser Diode Info: Display current laser banks status and temperature information.

- High temperature warning: Show the warning message the when the ambient temperature is over 35°C.

4.4 Light Source

Light Source 1. Light Source Mode Constant Power 2. Constant Power 405 3. Constant Intensity 4. Total Projector Hours 5. Light Sensor

Light Source Mode

Select Constant Power, Constant Intensity or ECO mode. When in ECO mode, the projector will adjust to the lowest fan speed and switch the laser diode power to the minimum setting.

Constant Power

Set the value of the laser diode power (in Watts).

Constant Intensity

Set the value for the Constant Intensity to maintain constant brightness.

The light sensor will monitor the light level and will apply more power as the laser brightness decays naturally over time. When the laser setting reaches maximum power of 405W, it will remain at this setting. Note that the light sensor needs to be calibrated for Constant Intensity mode to work properly.

Calibration should be performed again after every lamp change.

Total Projector Hours

Display current total hours the projector used.

Light Sensor

Calibrate light sensor.

4.5 Status Menu

The read-only Status menu lists a variety of details about the standard and optional components currently detected in the projector.

For DHD Models

Status
Model Name	DHD555-GS
Serial Number	G7YYWW000
Native Resolution	1920 x 1080
Firmware	V03, A01, N01
Main Input	VGA
Main Signal Format	720p
Main Pixel Clock	74.256MHz
Main Sync Type	Sync on Green
Main Horz Refresh	45.10kHz
Main Vert Refresh	60.0Hz
PIP/PBP Input	-
PIP/PBP Signal Format	-
PIP/PBP Pixel Clock	-
PIP/PBP Sync Type	-
PIP/PBP Horz Refresh	-
PIP/PBP Vert Refresh	-
Light Source Power	405 W
Total Projector Hours	70
Standby Mode	0.5 W Mode
Lens Lock Settings	Allow
IP Address	192.168.0.100
DHCP	No
System Temperature	38°C

For DWU Models

Status
Model Name	DWU555-GS
Serial Number	G8YYWW000
Native Resolution	1920 x 1200
Firmware	V03, A01, N01
Main Input	VGA
Main Signal Format	720p
Main Pixel Clock	74.256MHz
Main Sync Type	Sync on Green
Main Horz Refresh	45.10kHz
Main Vert Refresh	60.0Hz
PIP/PBP Input	-
PIP/PBP Signal Format	-
PIP/PBP Pixel Clock	-
PIP/PBP Sync Type	-
PIP/PBP Horz Refresh	-
PIP/PBP Vert Refresh	-
Light Source Power	405 W
Total Projector Hours	70
Standby Mode	0.5 W Mode
Lens Lock Settings	Allow
IP Address	192.168.0.100
DHCP	No
System Temperature	38°C

For DWX Models

Status
Model Name	DWX555-GS
Serial Number	G6YYWW000
Native Resolution	1280 x 800
Firmware	V03, A01, N01
Main Input	VGA
Main Signal Format	720p
Main Pixel Clock	74.256MHz
Main Sync Type	Sync on Green
Main Horz Refresh	45.10kHz
Main Vert Refresh	60.0Hz
PIP/PBP Input	-
PIP/PBP Signal Format	-
PIP/PBP Pixel Clock	-
PIP/PBP Sync Type	-
PIP/PBP Horz Refresh	-
PIP/PBP Vert Refresh	-
Light Source Power	405 W
Total Projector Hours	70
Standby Mode	0.5 W Mode
Lens Lock Settings	Allow
IP Address	192.168.0.100
DHCP	No
System Temperature	38°C

4.6 Input Switching & PIP Menu

Input Switching & PIP 1. Main Input VGA 2. PIP/PBP Input BNC 3. PIP/PBP Enable ✓ 4. Swap 5. Size Medium 6. Layout Top Right 7. Timing Detection Mode Wide 8. Source Info 9. Enable Main Source Hot-Key ✓ 10. Source Hot-Key 11. Input key 12. Blank on Signal Switch

Main Input

From the list of active inputs, select one to be used as the main image.

PIP/PBP Input

From the list of active inputs, select one to be used as the PIP/PBP.

PIP/PBP Enable

Toggle between displaying two sources at once (Main and PIP/PBP images) or one source only. The check box turns the PIP/PBP source ON and OFF. Refer to Section 6.2 for the Main and PIP/PBP compatibility table.

Swap

Change the main image to PIP/PBP, and the PIP/PBP to main image.

Swapping is available only when PIP/PBP is enabled.

Size

Select the PIP/PBP size to small, medium or large.

Layout

Set the location of the PIP/PBP image on the screen.

NOTE:

• PIP/PBP layout and size table as described below.
  ❖ P : indicates primary source region (lighter color).
  * : Both source regions are the same size.

PIP/PBP Layout	PIP/PBP Size
	Small Medium Large
PBP, Bigger Left
Over-Under, Bigger Upper
PBP, Bigger Right
Over-Under, Bigger Lower
PIP-Bottom Right
PIP-Bottom Left
PIP-Top Left
PIP-Top Right

Timing Detection Mode

Select timing detection mode to wide or normal. It is used to support additional PC timings. When the projected picture is not completed, this function is used to adjust the picture. "Normal mode" can support all of the 4:3 input sources. "Wide mode" can support all of the 16:9 input source & most of the 4:3 input source. For those 4:3 input sources not recognized by "Wide mode" (example 1400 x 1050), perform Auto Image using "normal mode".

Source Info

Display current source settings (read-only).

Enable Main Source Hot-Key

Toggle the check box to enable or disable the main source hot-key.

Source Hot-Key

Allows you to assign a different source to the hot-key. Highlight an input and press ENTER to choose a different one.

Input key

Use it to list all of the sources or change the sources.

Blank on Signal Switch

When the function is enabled, the projector will blank the screen before timing is stable when change source.

4.7 Language Menu

Allows you to select an available language for the OSD display.

Language

1. English

2. 简体中文

3. Français

4. Deutsch

5. Italiano

6. 日本語

7. 한국어

8. Русский

9. Español

4.8 Test Pattern Menu

Choose the desired internal test pattern to display, or select OFF to turn off a test pattern.

• OFF
- Black
- White
- Checkerboard
- Grid
- Color Bars

Test pattern

1. OFF

2. Grid

3. White

4. Black

5. Checkerboard

6. Color Bars

4.9 Web User Interface

4.9.1 Logging On

Open your web browser and type the IP address (in the address bar) assigned to your projector.

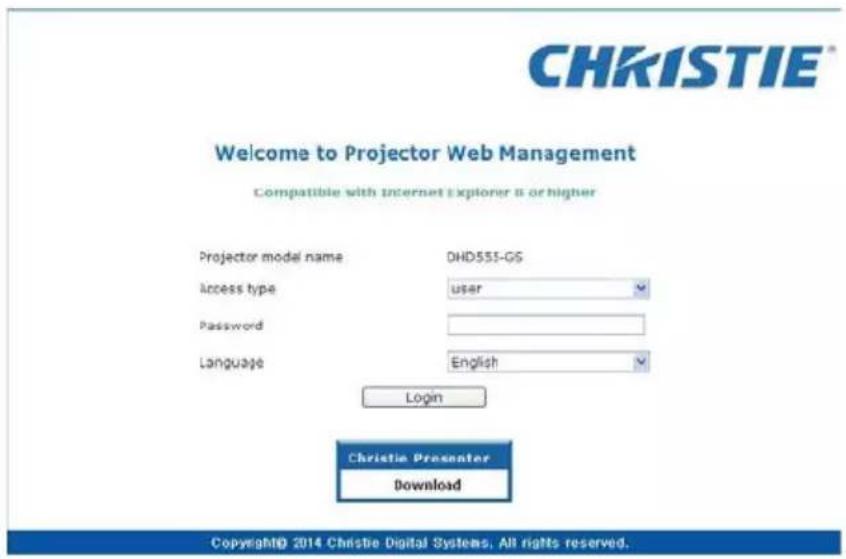

CHRISTIE® Welcome to Projector Web Management Compatible with Internet Explorer 8 or higher Projector model name DHD535-GS Access type=user Password Language English Login Christie Presenter Download Copyright© 2014 Christie Digital Systems. All rights reserved.

1 Select the log in level from the Access type drop-down list
2 Enter the Password in the Password field
3 Select the appropriate language from the Language drop-down list.
4 Click the Press login button. The Main window appears.

4.9.2 Main Tabbed Page - General

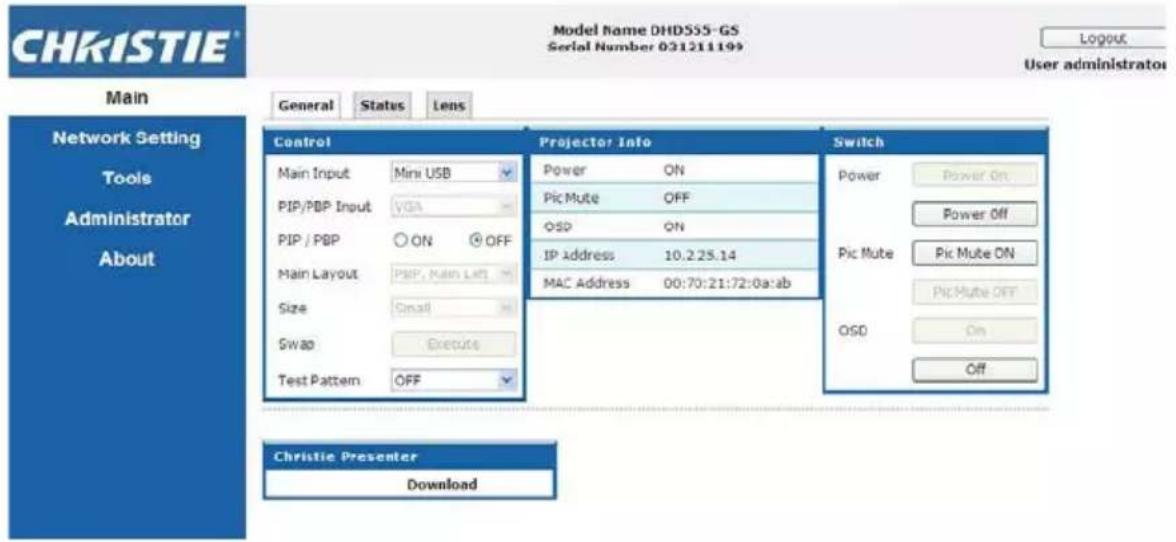

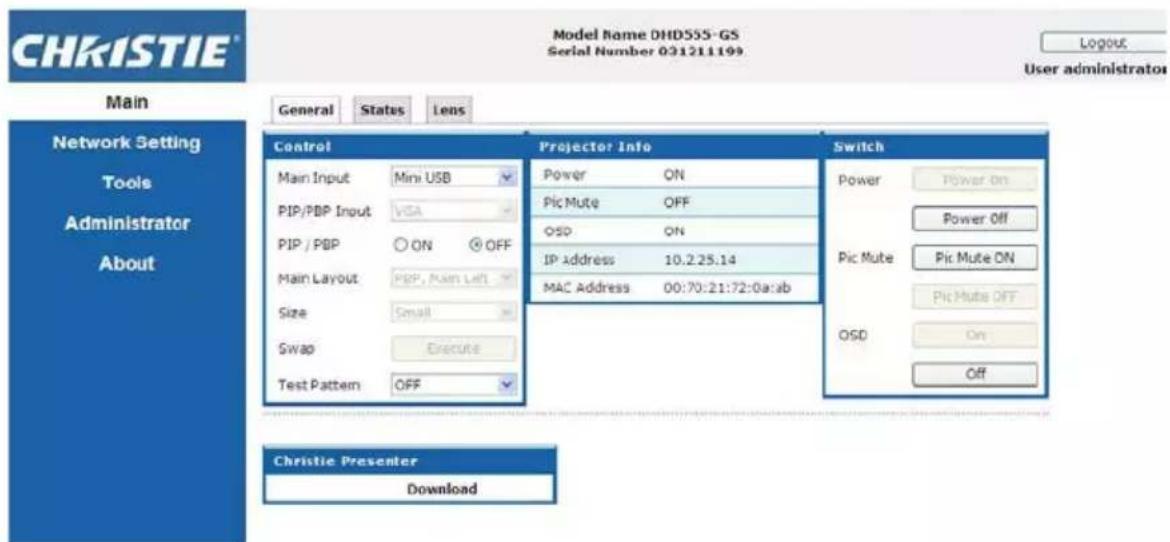

CHRISTIE® Model Name DHDS55-GS Serial Number 031211199 Login User administrator Main General States Lens Control Projector Info Switch Main Input Mini USB Power ON Power On PIP/PBP Input VGA Pic Mute OFF Power Off PIP / PBP ○ ON ○ OFF Pic Mute Main Layout PSP, Main Left IP Address 10.2.25.14 Pic Mute ON Size Cmall MAC Address 00:70:21:72:6a:ab Pic Mute OFF Swap Execute On Test Pattern OFF Off Christie Presenter Download

• Control Panel Select main source / PIP source, enable/disable PIP/PBP, change the layout / PIP size, swap, and change the test pattern.
• Projector Information Panel Check the projector information for power status, Pic mute status, OSD status, IP address and Mac address.
• Switch Panel Switch the on/off status of power, Pic mute, and OSD.

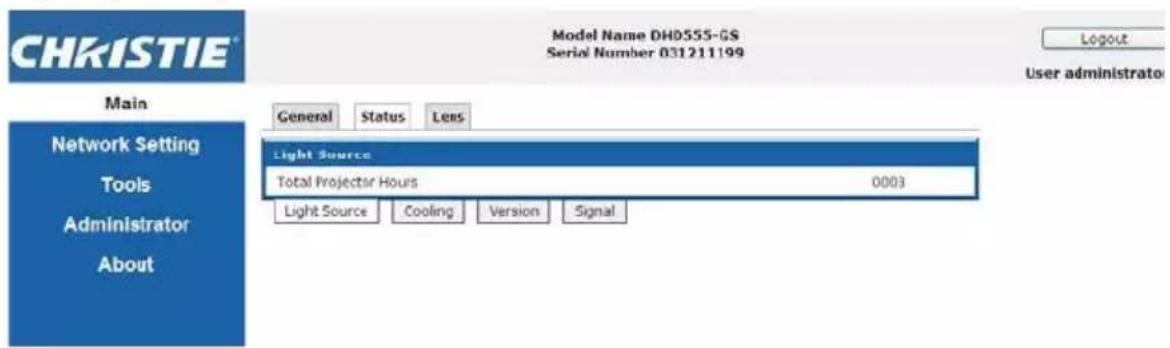

4.9.3 Main Tabbed Page - Status

Display the current status of light source, cooling (fans), version numbers and signal (source) information

CHRISTIE® Model Name DH0555-GS Serial Number 031211199 Login User administrator Main Network Setting Tools Administrator About General Status Lees Light Source Total Projector Hours 0003 Light Source Cooling Version Signal

4.9.4 Main Tabbed Page - Lens

Control the focus, lens shift and zoom adjustments for the lens.

CHRISTIE® Model Name DHD555-GS Serial Number 031211199 Login User administrator Main Network Setting Tools Administrator About General Status Lens Focus Lens Shift Zoom

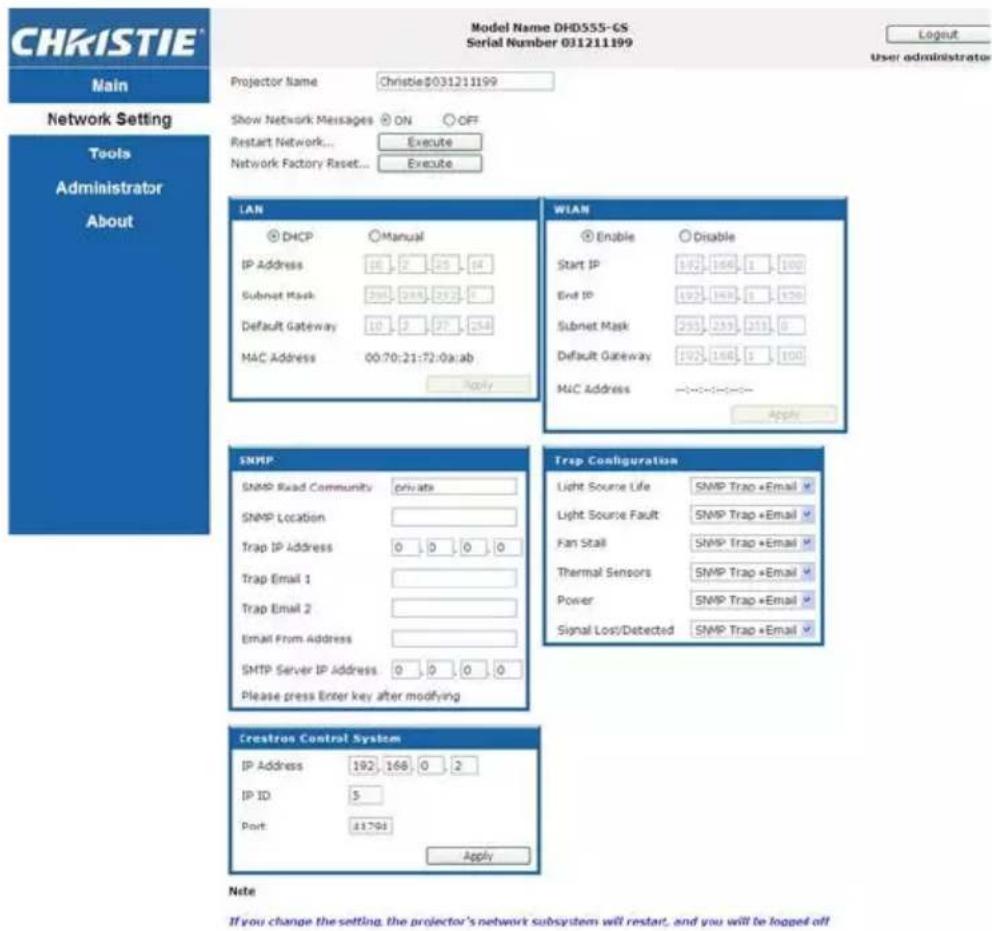

4.9.5 Network

CHRISTIE® Main Network Setting Tools Administrator About Model Name DHDS555-CS Serial Number 031211199 Projector Name Christie2031211199 Show Network Messages ON OFF Restart Network... Execute Network Factory Reset... Execute LAN DHCP Manual IP Address 16 2 25 44 Subnet Mask 200 200 200 0 Default Gateway 10 3 27 154 MAC Address 00:70:21:72:0a:ab Apply WLAN Enable Disable Start IP 1/2 168 1 100 End IP 1/2 168 1 100 Subnet Mask 2/3 2/3 2/3 0 Default Gateway 1/2 168 1 100 MAC Address ———————— Apply SNMP SNMP Read Community Private SNMP Location Trap IP Address 0 0 0 0 Trap Email 1 Trap Email 2 Email From Address SMTP Server IP Address 0 0 0 0 Please press Enter key after modifying Trap Configuration Light Source Life SMP Trap +Email Light Source Fault SMP Trap +Email Fan Stall SMP Trap +Email Thermal Sensors SMP Trap +Email Power SMP Trap +Email Signal Lost/Detected SMP Trap +Email Crestros Control System IP Address 102 168 0 2 IP ID 5 Port 41794 Apply Note If you change the setting, the projector's network subsystem will restart, and you will be logged off

- Restart Network

Execute a Network restart. This will not change any of the network settings.

• Network Factory Reset

Execute a network factory reset. Network settings will be reset to the following default values:

• Projector Name = Christie@ + Serial Number
• Show Network Messages = ON

• LAN Settings:

• Manual

• IP Address = 192.168.0.100
• Subnet Mask = 255.255.255.0
• Default Gateway = 192.168.0.100

- WLAN Settings:

• Enabled
• Start IP = 192.168.1.100
• End IP = 192.168.1.120
• Subnet Mask = 255.255.255.0
• Default Gateway = 192.168.1.100

- SNMP Settings:

• SNMP Read Communication = private
• Trap IP Address = 0.0.0.0
• SMTP IP Address = 0.0.0.0
• All other settings are cleared/blanked

- Trap Configuration:

- All items = SNMP Trap + Email

• LAN Setting Panel

• Select if the projector must obtain an automatically assigned IP address through DHCP or if the user will set the address manually.
• Enter the IP address, netmask, and default gateway address for the TCP/IP setting.

- WLAN Setting Panel

- Select if the wireless LAN of the projector is enabled or disabled.

- Enter the IP address range, netmask and default gateway for the wireless LAN.

- SNMP Panel

- The SNMP (Simple Network Management Protocol) interface provides network administrators with a common way to manage their network devices from a single remote location. SNMP allows an administrator to query a number of devices to see their current status/ configuration. It also allows operators to change configuration values and configure trap notifications to be sent when certain events occur. (eg. Loss of signal, power state change, etc)

• Emails are sent to the mail server configured in the projector settings. Up to 2 user email accounts can be selected. Any important information regarding the event will be located in the body content of the email.
  ▶ SNMP Traps are notifications that are sent from the projector. They are only received by a trap receiver (MIB Browser) in the computer.

• SNMP Read Community (default setting: private) - this is a plain-text password. This must also be entered in the MIB browser. This password allows the various settings in the projector to be queried.

• SNMP Location (default setting: blank) - This field can be used as a description to where a projector is located in a building. SNMP emails sent will specify this location.
• Trap IP Address (default setting: 0.0.0.0) - This field must be filled in to receive Traps from the projector. The Trap IP Address should be filled in with the IP Address of the computer on which you would like to view received traps.
• Trap Email 1/2 (default setting: Blank) - The Trap Email 1 and 2 must be set to an email address that is configured under the mail server that you will enter in the "SMTP Server IP Address" field.
• Email from Address (default setting: blank) - the "Email from Address" that will appear as the source of the SNMP emails.
• SMTP Server IP Address (default setting: 0.0.0.0) - Enter your mail server's IP address.

- Trap Configuration Panel

Set the SNMP actions for the system events. The dropdown options are: SNMP Trap + Email, Email, SNMP Trap, and Disabled.

- Crestron Control System Panel

Enter the IP address, IP ID, and Port of Crestron device for connection.

4.9.6 Tools

To Use the Tools tabbed pages to control "Size & Position", "Image Settings", "Configuration", "Light Source", "Input Switching & PIP" and "Test Pattern.

CHRISTIE Model Name DHD555-GS Serial Number 031211199 Login User administrator Size & Position Image Settings Configuration Light Source Input Switching & PIP Test Pattern Size & Position Size Presets Auto Overscan Off Auto Image Wide Pixel Track Disable Pixel Phase Disable Horz. Position disable Vert. Position disable Digital Horz. Zoom disable Digital Vert. Zoom disable Digital Horz. Shift disable Digital Vert. Shift disable Geometry Correction Geometry Correction Off Horz. Keystone Disable Horz. Pincushion Disable Vert. Keystone Disable Vert. Pincushion Disable

4.9.7 Administrator Page

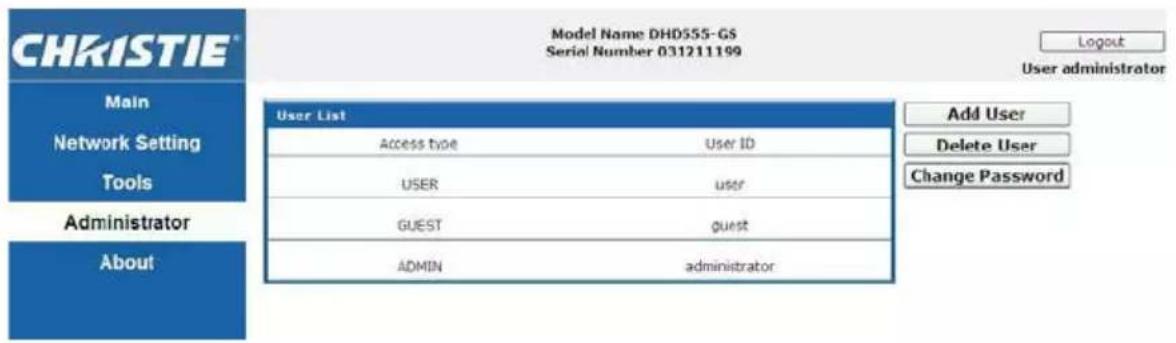

Add or delete a user or change password

CHRISTIE® Model Name DHD555-GS Serial Number 031211199 Login User administrator Main Network Setting Tools Administrator About User List Access type User ID USER user GUEST guest ADMIN administrator Add User Delete User Change Password

4.9.8 About Page

CHRISTIE® Model Name DHD555-GS Serial Number 031211199 Login User administrator Main Network Setting Tools Administrator About Version License Version Information Main Firmware V03.68 Network Firmware N00.45 Projector model name DHD555-GS Projector serial number 031211199

• Version Tab

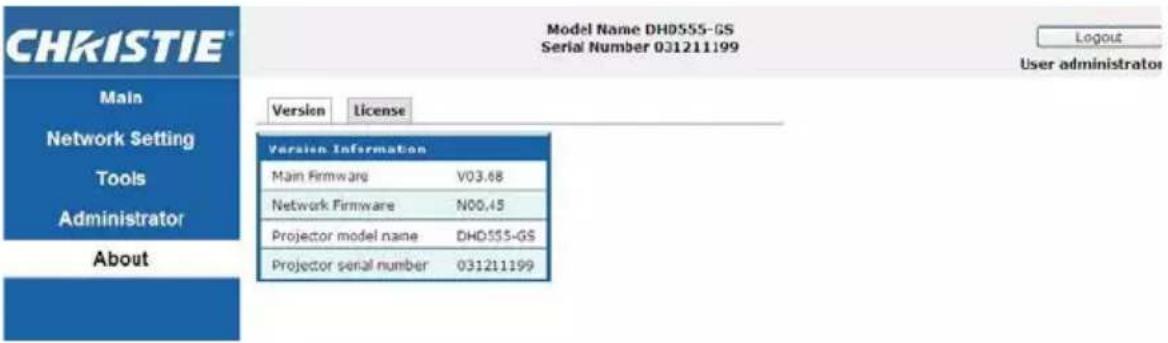

  View the main firmware version, network firmware version, projector model name, and projector serial number.
• License Tab
  The license information of the computer program is displayed.

4.10 Christie Presenter

The Christie Presenter application allows a remote desktop from a host PC to be displayed on the network display through Ethernet, USB, or wireless transports. It can adapt to different network settings (DHCP, fixed IP, and direct link by USB/Ethernet cable).

Christie Presenter can be downloaded from the Christie website or from the web page of the projector.

4.10.1 Connect to the Projector

1. Connect to the projector using WiFi or Ethernet

- Ethernet connection:

▶ Determine the projector's IP address from the menu Main Menu > Configuration > Communications > LAN

LAN 1. DHCP 2. IP Address 192.168.0.100 3. Subnet Mask 255.255.255.0 4. Default Gateway 192.168.0.254 5. MAC Address 00:08:18:00:35:18

Configure your PC IP address to be on the same network as the projector.
The projector and computer must be connected directly or over the network via Ethernet.

- WiFi Wireless connection:

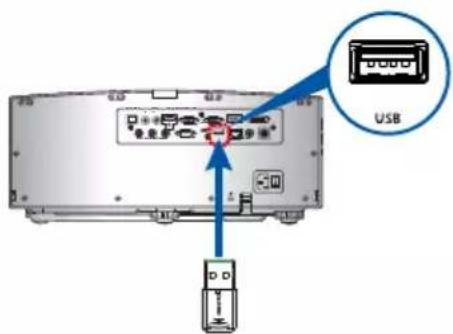

Insert the WiFi USB dongle (1DWUSB-BGN) into the USB port on the projector input panel.

USB

Insert the WiFi USB dongle

▶ Power on the Projector.
▶ Obtain the WiFi SSID from the OSD menu Main Menu > Configuration > Communications > WLAN

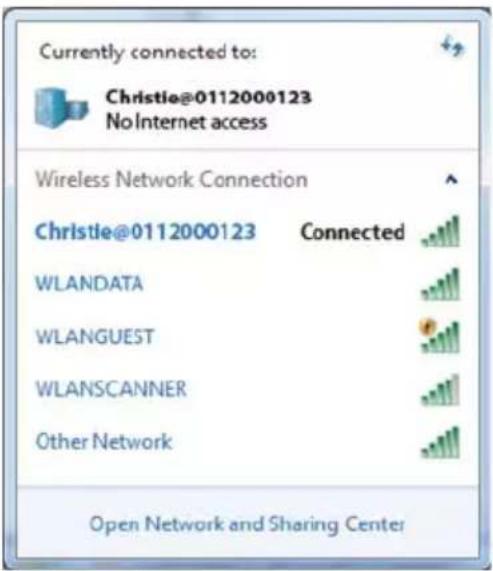

Connect your PC device to the wireless SSID for the selected projector. Example: "Christie@0111000123".

Currently connected to: Christie@0112000123 No Internet access Wireless Network Connection Christie@0112000123 Connected WLANDATA WLANGUEST WLANSCANNER Other Network Open Network and Sharing Center

4.10.2 Install Christie Presenter software

1. Use a web browser to connect to the projector's network address (Default address 192.168.1.100)
2. Download and install the Christie Presenter Software

CHRISTIE Model Name OHDS55-GS Serial Number 031211199 Login User administrator Main Network Setting Tools Administrator About General Status Lens Control Projector Info Switch Main Input Mini USB Power ON Power On PIP/PBP Input VSA Pic Mute OFF Power Off PIP / PBP ○ ON ○ OFF OSD ON Main Layout PBP, Main Left IP Address 10.2.25.14 Pic Mute ON Size Small MAC Address 00:70:21:72:0a:ab Pic Mute OFF Swap Execute OSD On Test Pattern OFF Off Off Christie Presenter Download

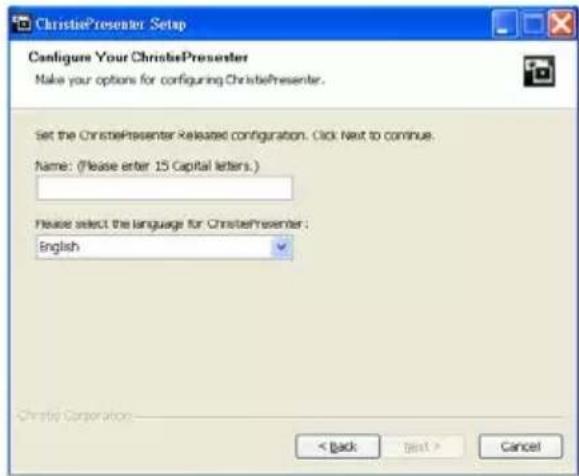

1. Configure the Christie Presenter Software. The name entered is used to identify all computers connected to the projector via the Christie Presenter software via either wired or wireless connections. The Network Display Management -> Device Management tab will show all current connections.

ChristiePresenter Setup Configure Your ChristiePresenter Make your options for configuring ChristiePresenter. Set the ChristiePresenter Released configuration. Click Next to continue. Name: (Please enter 15 Capital letters.) Please select the language for ChristiePresenter: English < Back Next > Cancel

4.10.3 Use Christie Presenter

1. Press the autorun icon in the system tray to pause or play the USB display.

Play Pause EN 上午 11:25

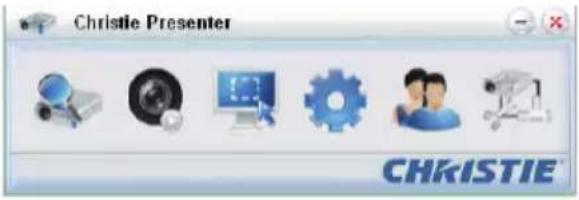

1. After starting the Christie Presenter application, the main window can be seen (shown below).

Christie Presenter CHRISTIE

Icon Description
	Connect and search network display
	Stop/start displaying desktop contents to connected network display
	Select display region
	Configure Christie Presenter
	Manage all connected network displays
	Disconnect all connections

Connect and search network display

1 Click the button to enter into the connection menu section.

2 If the IP address of the projector is known, enter the IP address and click the "Connect" button. If the IP address is not known, click the "Search" button to search for the projector on the network and select the projector to which you want to connect. Select the option "Directly" in order to proceed to the log in interface.

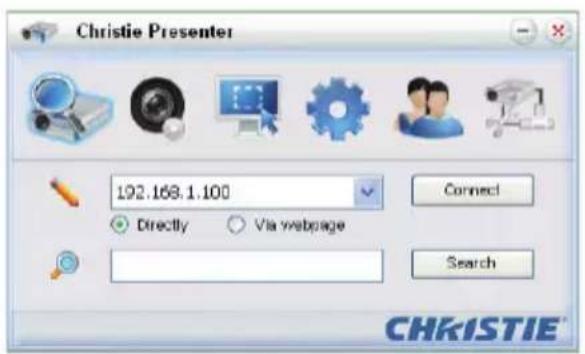

Christie Presenter 192.168.1.100 Directly Via webpage Connect Search CHKISTIE®

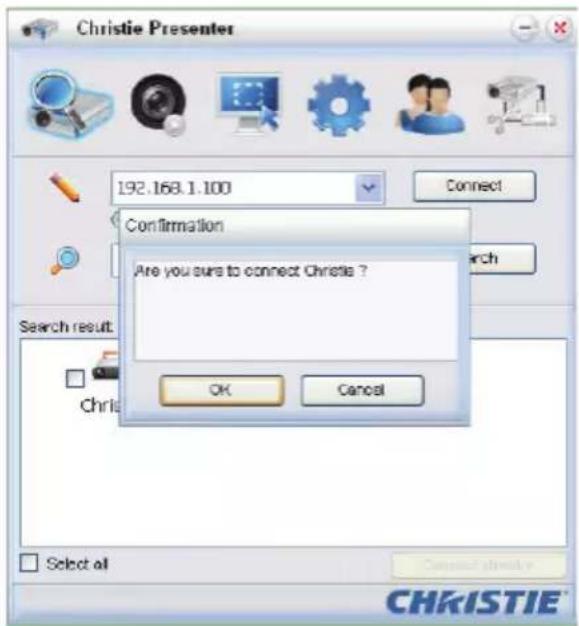

Christie Presenter 192.168.1.100 Confirmation Are you sure to connect Christie ? OK Cancel Search result: Christie Select all Christie®

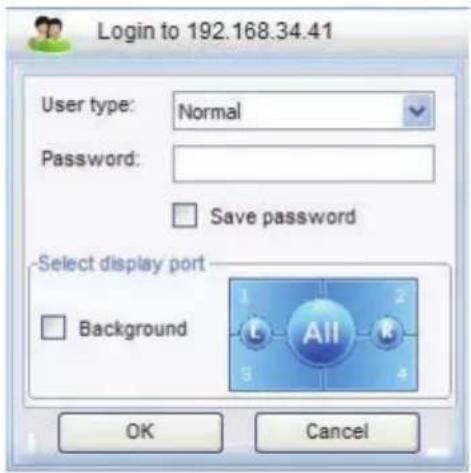

3 Input "User type" and "Password" in the log-in interface. Select the display port (the default is full screen). Obtain the "Normal" user's password from the OSD menu Main Menu > Configuration > Communications > WLAN.

Login to 192.168.34.41 User type: Normal Password: Save password Select display port Background OK Cancel

Select display region

Once the connection is set up, click the button to select the size of the projection region: FullScreen, FixedSize, or Alterable.

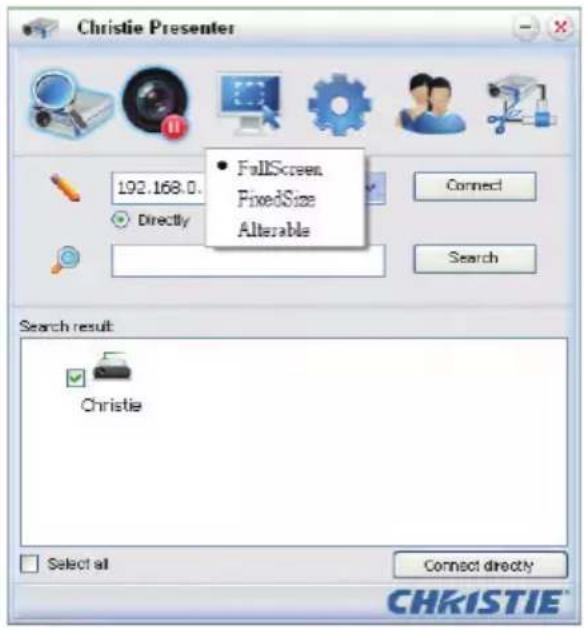

Christie Presenter 192.168.0. Directly FullScreen FixedSize Alterable Connect Search Search result Christie Select all Connect directly CHRISTIE®

• FullScreen: The default capture mode turns to Full screen when the program is launched. At that time, if screen capture starts, the image of the whole screen is transferred to a remote network display.
• FixedSize: FixedSize mode allows the users to place a frame on the desktop. Only the image enclosed inside the frame is transferred to remote network display.
• Alterable: In Alterable mode the only region captured is the one enclosed by the frame. The region can be enlarged or downsized by dragging the eight small black squares scattered on eight edges of the frame.

Configure Christie Presenter

Click the button to configure Christie Presenter for Basic Setting and Advanced Setting.

Christie Presenter Basic Setting Advanced Setting Language select: English Region size of fixed size capture mode: 800 x 592 (pixels) Enable mirror driver when startup if there is. Allow notification message popup: Yes No Software Information Version number: ChristiePresenter 2.1.4 Manufacturer: Christie OK Cancel Default CHRISTIE®

Christie Presenter Basic Setting Advanced Setting Jpeg image setting Quality: High YUV sample format YUV444 YUV420 Network port setting Fixed Manual 5900 OK Cancel Default CHRISTIE®

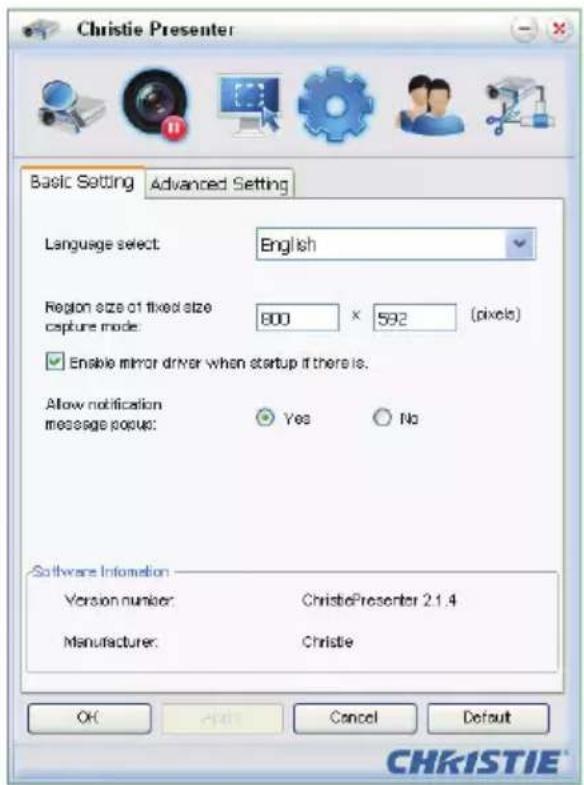

• Basic Setting: Select language, change the region size of fixed size capture mode, and select if notification message popup is allowed.

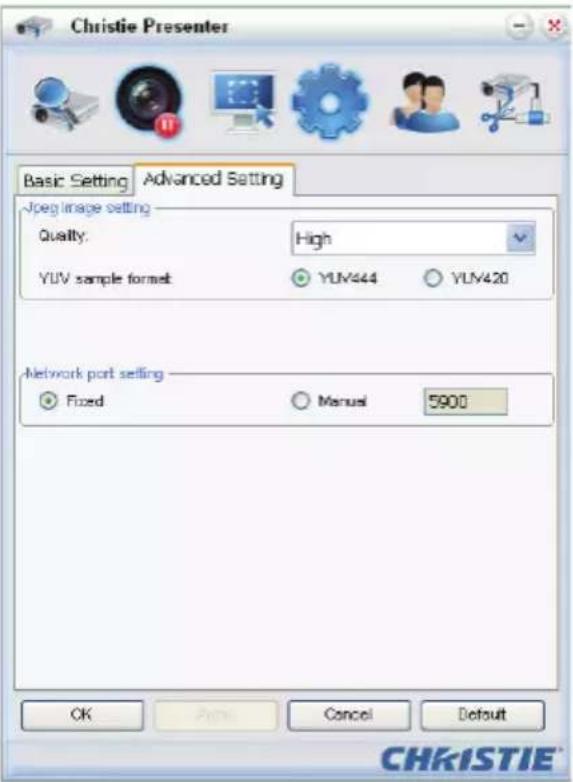

• Advanced Setting: Select the quality of JPEG image, YUV sample format and network port setting. (The "Fixed" port is Port 5900)

Manage all connected network displays

Click the button to control all the users and all the projectors connector to the same projector.

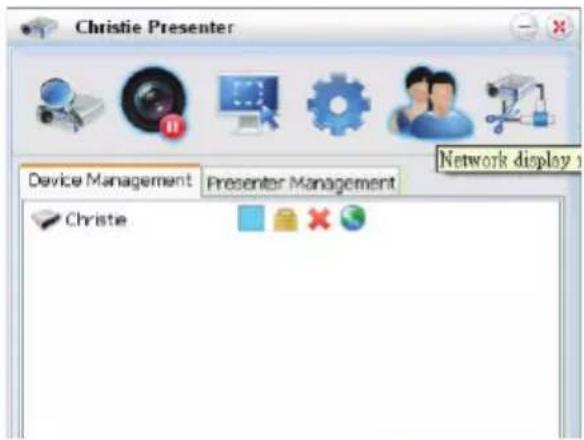

Christie Presenter Device Management Presenter Management Network display Christie

Icon Description
	Administrator log in.
	Normal user log in.
	Device is connected.
	Device is not connected.
	The icon shows the current status and display position of the local screen on the network display. Click on the icon to change the display position. A dialog box will appear.
	Click this unlock icon to change the password. (Password change to target network display. Only an Administrator user can change the password.)
	No response is expected when this icon is clicked. If user log in as "Admin", the key icon can be seen and the Presenter password can be changed. If user log in as "Normal", the lock icon can be seen and the Presenter password can't be changed.
	Disconnect from target network display.
	Link for connecting to a target network display via a webpage.

4.11 Card Reader Operation

There are four operation modes in the Card Reader application:

• USB Flash Devices Detection Screen
• Thumbnail Display Mode
• Images Display Mode
• Images Slide Show Mode

1. USB Flash Device Detection Screen:

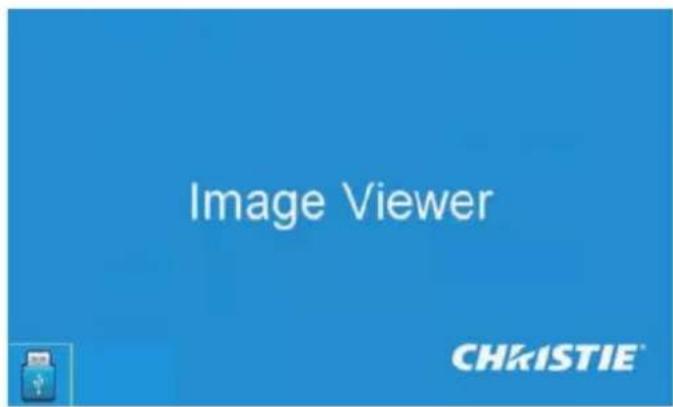

In this mode, the Card Reader application detects any USB flash devices hot-plug events and displays the flash device icon. When the flash device is removed from USB, the icon disappears. It is suggested that USB flash devices should be removed only when the Card Reader is changed to the USB Flash Devices Detection Screen state.

Image Viewer CHKISTIE™

2. Thumbnail Display Mode:

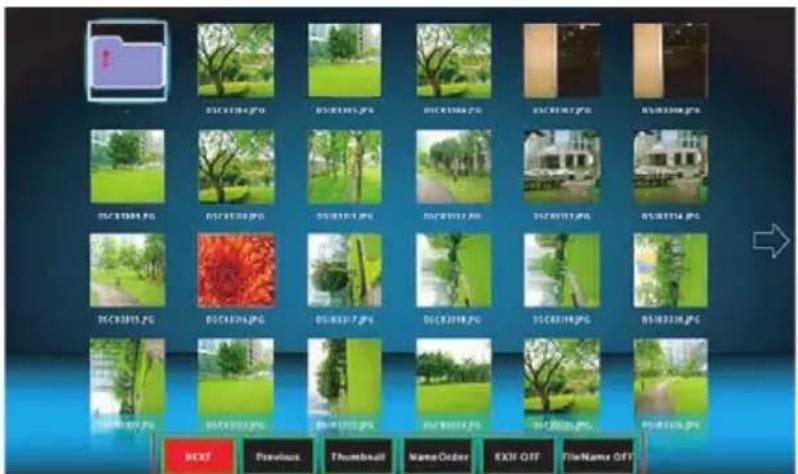

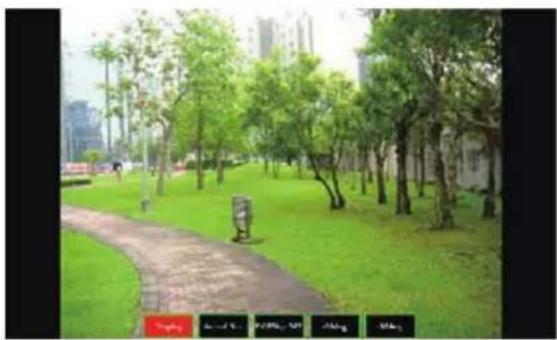

Press the Enter key to enter the Thumbnail Display Mode. Different photos in different folders can be chosen. Press the Menu key to bring up the Card Reader operation UI.

NEXT Previous Thumbnail NameOrder EXIT OFF FileName OFF

The user interface is designed to operate the card reader application with a few keys (Enter/Left/Right/Up/Down).

The following buttons are supported in the user interface:

- Previous: Move the selected item left. (Go to previous page when this is the leftmost item)

- Next: Move the selected item right. (Go to next page when this is the rightmost item.)

- Display: Display the selected image or display the selected folder.

- Thumbnail: Enter the Thumbnail Display Mode.

- SlideShow: Enter the Slide Show Mode.

- NameOrder: Sort files/folders in name order.

- ExtendOrder: Sort files/folders in extended order.

- SizeOrder: Sort files/folders in size order.

• TimeOrder: Sort files/folders in time order.

- EXIF ON/OFF: Enable/Disable auto image rotate accordingly to EXIF information.

- FileName ON/OFF: Enable/Disable filename display in Thumbnail Display Mode.

1. Image Display Mode:

Press the ENTER key in the Thumbnail Display Mode to enter the Image Display Mode; press the SlideShow key to enter the Slide Show Mode. The Left/Right key is used to display the last/next image in the Image Display Mode. In the Image Display Mode, press the ENTER key to quit from the Image Display Mode and enter the Thumbnail Display Mode.

In the Slide Show Mode, press the ENTER key to enter the Image Display Mode.

Park pathway lined with green grass and trees, no visible text or symbols

The alternative way to display image in the Image Display Mode or Slide Show Mode is using the operation UI.

The following operations are supported in the operation UI.

• Display: Enter the Image Display Mode.
- Thumbnail: Enter the Thumbnail Display Mode.
- SlideShow: Enter the Slide Show Mode.
• Actual Size: Display in actual size of the image.
- Best Fit: Display the image in best fit to the screen.
- EXIFDisp OFF/On: Enable/Disable EXIF information display.
• +90deg: Rotate 90 degree.
- -90deg: Rotate -90 degree.

Park pathway with trees and grass, no visible text or symbols

1. Image Slide Show Mode:

The following operations are supported in the Slide Show Mode operation UI.

• Stop: Stop Slide Show Mode.
• Next: Display next image.
  • Previous: Display previous image.
• Delay 3/4/5: Slide Show delay in seconds.

• Slide Effect: Following modes are supported.

• Slide Right

• B l o c k s
• RightDown
• XLines
• Slide Up
• Ylines

- Repeat ON/OFF: Enable/Disable Slide Show Repeat Mode.

Close-up of a vibrant orange flower with dense petals and a central bud, displayed in a software interface (no text on the flower itself)

When the image can NOT be displayed due to memory limitation or can NOT support image format, the specific image is displayed on the center of the screen.

A small white square with a red and white symbol on a black background, no text or symbols present.

5. TROUBLESHOOTING

If you are unable to resolve an issue using the information provided in this section, contact your reseller or service center.

Problem Solution
- No image appears on-screen	- Make sure all the cables and power connections are correctly and securely connected See "INSTALLATION".- Check if the Light Status LED is in Green.- Make sure you have removed the lens cap and the projector is switched ON.
• Partial, scrolling or incorrectly displayed image	- Press "AUTO" on control panel or on remote control.- If you are using a PC (for Windows 95, 98, 2000, XP, Windows 7):1. Click the "My Computer" > "Control Panel" and then double - click "Display".2. Select the "Settings" tab.3. Verify that your display resolution setting is lower than or equal to WUXGA (1920 × 1200).4. Click on the "Advanced Properties" button. If the projector is still not projecting the whole image, change the monitor display:4.1 Verify the resolution setting is lower than or equal to WUXGA (1920 × 1200).4.2 Select the "Change" button under the "Monitor" tab.4.3 Click on "Show all devices". Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.4.4 Verify that the resolution setting of the monitor display is lower than or equal to WUXGA (1920 × 1200).

Problem Solution

- Partial, scrolling or incorrectly displayed image

- If you are using a Notebook:

1. Adjust resolution of the computer.
2. Press the keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Notebook Brand Function Keys

Acer [Fn]+[F5]
Asus [Fn]+[F8]
Dell [Fn]+[F8]
Gateway [Fn]+[F4]
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC [Fn]+[F3]
Toshiba	[Fn]+[F5]
Mac Apple	System Preference ⇒ Display ⇒ Arrangement ⇒ Mirror display

- If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

• The screen of the Notebook or PowerBook computer is not displaying your presentation

- If you are using a Notebook PC Some Notebook PCs may deactivate their own screens when a second display device is in use. Each of them has a different method of reactivation. Please refer to your computer manual for detailed information.

• Image is unstable or flickering

- Use "Pixel Track" and "Pixel Phase" to correct it.

- Change the monitor color setting on your computer.

• Image has vertical flickering bar

- Use "Auto Image" to make an adjustment.

- Check and reconfigure the display mode of your graphic card to make it compatible with the projector.

Problem Solution
• Image is out of focus	- Make sure both lens caps (front and back) are removed.- Adjust lens focus to fit.- Make sure the projection screen is between the required distance.
• The image is stretched when displaying 16:9 DVD title	- When you play anamorphic DVD or 16:9 DVD, the projector will show the best image when the projector display mode is set to 16:9 in the OSD.- If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.- If the image is still stretched, you will also need to adjust the aspect ratio by setting the display format as 16:9 (wide) aspect ratio type on your DVD player.
• Image is too small or too large	- Adjust lens zoom to fit.- If it does not fill the screen properly, verify that the correct lens is in use or change the position of the projector.

6. SPECIFICATIONS

6.1 Inputs

NOTE: ✿ "RB" means "reduced blanking".

Signal Type	Resolution	Frame Rate (Hz)	HDMI	VGA	DisplayPort	DVI	Component	S- video	CVBS
PC	960x600 85 •
	1024x768 60 •	•		•	•
	1024x768 75 •	• • •
	1024x768 85 •	•		•	•
	1064x600 50 •
	1064x600 60 •
	1064x600 75 •		•
	1064x600 85 •		•
	1152x720 50 •
	1152x720 60 •
	1152x720 75 •
	1152x720 85 •		•
	1152x864 60 •	•		•
	1152x864 70 •	•			•
	1152x864 75 •	•		•
	1152x864 85 •	•			•
	1280x720 50 •		•
	1280x720 60 •	•		•	•
	1280x720 75 •	• • •
	1280x720 85 •	•		•	•
	1280x768 60 •	•		•
	1280x768 75 •	•			•
	1280x768 85 •	•		•
	1280x800 50 •	•		•	•
	1280x800 60 •	• • •
	1280x800 75 •	•			•
	1280x800 85 •	•		•
PC	1280x960 60 ●	●		●
	1280x960 75 ●	● ●
	1280x960 85 ●	●		●
	1280x1024 50 ●	●
	1280x1024 60 ●	●	●		●
	1280x1024 75 ●	●	●	●
	1280x1024 85 ●	●	●		●
	1360x768 50 ●
	1360x768 60 ●
	1360x768 75 ●
	1360x768 85 ●
	1366x768 60 ●	●	●	●
	1400x900 60 ●	●	●		●
	1400x1050 50 ●	●
	1400x1050 60 ●	●	●		●
	1400x1050 75 ●	● ●
	1440x900 60 ●	●		●
	1440x900 75 ●
	1600x900 60 ●
	1600x1200 50 ●
	1600x1200 60 ●	●	●		●
	1680x1050 50 ●	●
	1680x1050 60 ●	●	●		●
	1680x1050 75 ●
	1704x960 50 ●
	1704x960 60 ●
	1728x1080 50 ●
	1728x1080 60 •
	1864x1050 50 •
	1864x1050 60 •
PC	1920X1080 50 •		•
	1920X1080 60 •	• •
	1920X1200RB 60 •	•		•		•
	1920X1200RB	50	•	•	•	•
NTSC NTSC (M, 4.43)		60						•	•
PAL	PAL (B,G,H,I)	50						•	•
	PAL (N)	50						•	•
	PAL (M)	60						•	•
SECAM	SECAM (M)	50						•	•
EDTV	480i	60 • •	•	•
	576i	50 •	•		•		•
	480p	60 • •	•	•
	576p	50 •	•		•		•
	1080i 25 •	• • •
	1080i 29 •	•		•	•
	1080i 30 •	• • •
	720p 50 •	•		•	•
	720p 59 •	• • •
	720p 60 •	•		•	•
HDTV	1080s 23 •				•
	1080s 24 •				•
	1080p 23 •	• • •
	1080p 24 •	•		•	•
	1080p 25 •	• • •
	1080p 29 •	•		•	•
	1080p 30 •	• • •
	1080p 50 •	•		•	•
	1080p 59 •	• • •
	1080p 60 •	•		•	•

6.2 PIP/PBP Compatibility

MainPIP/PBP	HDMI	VGA	Component	CVBS	S-Video	HDBaseT	Display-Port	USB A	USB MINI-B	RJ45 DVI-D
HDMI----●	●●	●	●
VGA	-	-	-	-	-	-	●	●	●	●
Component----●	●●	●●	●	●
CVBS----●		●	●	●	●	●
S-Video----●●	●●	●●	●
HDBaseT	-	-	-	-	-	-	●	●	●	●
DisplayPort	●	●	●	●	●	●	-	-	-	-
USB A	●	●	●	●	●	●	-	-	-	-
USB MINI-B	●	●	●	●	●	●	-	-	-	-
RJ45	●	●	●	●	●	●	-	-	-	-
DVI-D	●	●	●	●	●	●	-	-	-	-

• : PIP/PBP combinations are enabled

- : PIP/PBP combinations are disabled

6.3 Key Features

- WXGA 0.65" 1280 x 800 or HD 0.65" 1920 x 1080 resolution or WUXGA 0.67" 1920 x 1200 resolution

• Projection lens compatibility:

• Horizontal offset ranges: +/-30%
• Vertical offset ranges: +/-100% (WUXGA/WXGA) and +/-120% (HD)

NOTE:

Measurements are based on industry standards where offset is calculated as a ratio of the number of pixels shifted up/down to half the image size.

• Dual Processing Warp Module for edge blending and geometric correction. (Optional)
• Wireless desktop display using wireless dongle (optional)
  • SNMP traps and e-mail notifications
  • 10-bit image processor electronics with modular design
• All video formats can be resized to full screen either horizontally or vertically while maintaining aspect ratio
• The projector can be operated using any of the following:

- The built-in keypad, an infrared (IR) remote control, a wired remote control, a PC/device using serial communications (Ethernet or RS232)

- A Web page via Ethernet or from a PC/device via a wireless USB dongle. (Optional)

• Weight:
- Maximum product weight (with lens removed): 15kg (33lb.)
- Built-In keypad

6.4 List of Components

This projector comes with all the items shown below. Check to make sure your package is complete. Contact your dealer if anything is missing.

• IR remote control 003-004468-01
- Power cord x 4

- UK/Korea/Russia

- North America

- Europe

- J a p a n

- User manual (CD)

NOTE:

✿ Due to the difference in applications for each country, some regions may have different accessories.

6.5 Optional Accessories

• Lens 0.75-0.95 Zoom G (140-119102-01)
• Lens 0.95-1.22 Zoom G (140-101103-01)
• Lens 1.22-1.52 Zoom G (140-100102-01)
• Lens 1.52-2.89 Zoom G (140-102104-01)
• Lens 2.90-5.50 Zoom G (140-107109-01)
  • Cable Cover GS White (140-106108-01)
  • Cable Cover GS Black (140-106119-01)
  • Portrait Side Cover White (140-108100-01)
  • Portrait Side Cover Black (140-108111-01)
  • 1DWUSB-BGN / Wireless dongle (optional accessory) (133-113106-01)
• Dual Processor Warp Module (optional accessory) (133-111104-01)

6.6 REGULATORY

- Safety

• CSA C22.2 No. 60950-1
• UL 60950-1
• IEC 60950-1
• EN 60950-1

• Electro-Magnetic Compatibility

Emissions

• FCC CFR47, Part 15, Subpart B/ANSI C63.4, Class A - Unintentional Radiators
• CISPR 22/EN55022 Class A - Information Technology Equipment
• ICES/NMB003 (A) - Information Technology Equipment
• CISPR 24/EN55024 EMC Requirements - Information Technology Equipment

Immunity

- Environmental

• The product conforms to:

• EU Directive (2011/65/EU) on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment and the applicable official amendment(s).
• EU Regulation (EC) No. 1907/2006 on the registration, evaluation, authorization and restriction of chemicals (REACH) and the applicable official amendment(s).
• EU Directive (2012/19/EU) on waste and electrical and electronic equipment (WEEE) and the applicable official amendment(s).
• China Ministry of Information Industry Order No.39 (02/2006) on the control of pollution caused by electronic information products, the hazardous substances concentration limits (SJ/T11363-2006), and the applicable product marking requirement (SJ/T11364-2006).

- Marking

- This product conforms to all relevant Canadian, US, and European directives, standards, safety, health and environmental concerns. International packaging recycling marks conform to:

▶ EU Directive (2012/19/EU) on waste and electrical and electronic equipment (WEEE).
▶ EU Directive (94/62/EC) on packaging and packaging waste
▶ China packaging recycling mark standard (GB18455-2001)

6.7 Federal Communications Commission (FCC) Warning

WARNING

• A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used.
• Use only shielded signal cables to connect I/O devices to this equipment.

6.8 OSD Tree

Level 1	Level 2	Level 3(Or List)	Level 4(Or List)	Level 5(Or List)	Level 6(Or List)	Default
Size & Position	Size Presets	Auto				Auto
		Native
		4:3
		Letterbox
		Full Size
		Full Width
		Full Height
		Custom
	Overscan	Off				By source setZoom
		Crop
	Pixel Track 0 - 100 50
	Pixel Phase 0 - 100 50
	Horz Position 0 - 100 50
	Vert Position	0 - 100 50
	Digital Horz Zoom	50%~400%				100
	Digital Vert Zoom 50%~400%					100
	Digital Horz Shift	0 - 100 50
	Digital Vert Shift 0 - 100 50
	Geometry Correction	Off				Off
		Basic	Horz Keystone	0 - 100(0-20 for GEO model)		50(10 for GEO model)
			Vert Keystone	0 - 100(0-20 for GEO model)		50(10 for GEO model)
			Horz Pincushion	0 - 100		50
			Vert Pincushion	0 - 100		50
			Pincushion/Barrel	0-20		10
			4-Corner	Top Left Horz adjust.	0-140	0
				Top Left Vert adjust.	0-80	0
				Top Right Horz adjust.	0-140	0
				Top Right Vert adjust.	0-80	0
				Bottom Left Horz adjust.	0-140	0
				Bottom Left Vert adjust.	0-80	0
				Bottom Right Horz adjust.	0-140	0
				Bottom Right Vert adjust.	0-80	0
		Curve	Curve	Top Arc	0-300	150
				Bottom Arc	0-300	150
				Left Arc	0-300	150
				Right Arc	0-300	150
			4-Corner	Top Left Horz adjust.	0-140	0
				Top Left Vert adjust.	0-80	0
				Top Right Horz adjust.	0-140	0
				Top Right Vert adjust.	0-80	0
Size & Position	Geometry Correction	Curve 4-Corner		Bottom Left Horz adjust.	0-140 0
				Bottom Left Vert adjust.	0-80 0
				Bottom Right Horz adjust.	0-140 0
				Bottom Right Vert adjust.	0-80 0
		Rotate	Rotation 0-16 8
			4-Corner	Top Left Horz adjust.	0-140 0
				Top Left Vert adjust.	0-80 0
				Top Right Horz adjust.	0-140 0
				Top Right Vert adjust.	0-80 0
				Bottom Left Horz adjust.	0-140 0
				Bottom Left Vert adjust.	0-80 0
				Bottom Right Horz adjust.	0-140 0
				Bottom Right Vert adjust.	0-80 0
	Auto Image
Image settings	Brightness 0 - 100 50
	Contrast 0 - 100 By source set
	Color Space	Auto Auto
		RGB	RGB			RGBRGB Video
			REC709
		YUV	REC709			REC709
			REC601
	Detail	Maximum				By source set
		High
		Normal
		Low
		Minimum
	Video Options	Color 0 - 100 50
		Tint	0 - 100 50
		Noise Reduction	0 - 100			0
		Flesh Tone Cor-rection	0 - 100			0
		Video Black Level
		Detect Film	Off/On Off
		Closed captions	Off			Off
			cc1
			cc2
	Input Levels	Red Gain	0 - 100 50
		Green Gain	0 - 100 50
		Blue Gain	0 - 100 50
		Red Offset	0 - 100 50
		Green Offset	0 - 100 50
		Blue Offset	0 - 100 50
		Sync Threshold	0 - 100 50
		Reset RGB Gain/Offset
Image settings	Picture Settings	Presentation				By source set
		Video
		Bright
		Real
		DICOM SIM
		User
	Save to User
	Image Freeze Off / On Off
	Advanced Image Settings	Gamma	Video			By source set
			Film
			Bright
			CRT
			DICOM
		White Peaking 0 - 100 By source set
		Color Temperature	Warmest			By source set
			Warm
			Cool
			Bright
		Edge Enhancement	Off			OffNormal
			Maximum
		Color Enhancement	Off			OffCE 1
			CE 2
Configuration	Language English
	Lens Settings	Focus command
		Zoom command
		Lens Shift command
		Lock all Lens Motors	Allow			Allow
			Locked
		Lens center calibration	command
	Ceiling Mount Off/On/Auto Auto
	Rear Projection Off/On				Off
	Menu Preferences	Menu Horz Offset	0 - 100			0
		Menu Vert Offset	0 - 100			0
		Show Messages	Off/On
		Menu Transparency	0 - 90			0
		Splash Screen Setup	Factory Logo			Factory Logo
			Blue
			Black
			White
		PIN Protect command
		Change PIN	command
Configuration	Power Manage-ment	Standby Mode	0.5 W Mode			Communication mode
			Communication mode
		AC Power On Off/On Off
		Auto Shutdown	Never			20 Mins
			5 Mins
			10 Mins
			15 Mins
			20 Mins
			25 Mins
			30 Mins
		Sleep Timer	Off			Off
			2 Hrs
			4 Hrs
			6 Hrs
	High Altitude Off/On Off
	Communications	LAN	DHCP			by set
			IP Address
			Subnet Mask
			Default Gateway
			MAC Address
		WLAN	Enable			by set
			Start IP
			End IP
			Subnet Mask
			Default Gateway
			MAC Address
			SSID
			Password
		Network	Projector Name			by set
			Show Network Messages
			Restart Network...
			Network Factory Reset...
		Serial Port Baud Rate	2400			115200
			4800
			9600
			14400
			19200
			38400
			57600
			115200
			1200
		Serial Port Echo Off/On Off
		Serial Port Path	RS232			RS232
			HDBaseT
		Projector Address 0 - 9 0
	Image Blending	Blending On/Off Off
		Marker On/Off Off
		Grid	Off/White/Red/Green/Blue			Off
		Solid Color	Off/White/Red/Green/Blue			Off
Configuration	Image Blending	Overlap	TOP	0... 1⁄2 Output Height (Pixel)		0
			Bottom	0... 1⁄2 Output Height		0
			Left	0... 1⁄2 Output Width		0
			Right	0... 1⁄2 Output Width		0
		Bright Adj.	Blending Area off-set	0-2000 1000
			non-Blending Area Offset	0-2000 1000
		Drop Off Curve 70-300 100
		Image Gamma 1.8/2.0/2.2/2.4/2.6 2.2
	Color Matching	Meter Adjustment	Enable On/Off Off
			Auto Test Pattern On/Off On
			Measured Data	Intensity of Red 100 - 10000 544
				x of Red 0.300 - 0.700 0.590
				y of Red 0.300 - 0.500 0.383
				Intensity of Green 100 - 10000		2103
				x of Green	0.300 - 0.400 0.314
				y of Green	0.400 - 0.700 0.620
				Intensity of Blue	100 - 10000 124
				x of Blue	0.100 - 0.300 0.146
				y of Blue	0.030 - 0.400 0.030
				Intensity of White	100 - 10000	6772
				x of White	0.200 - 0.400 0.305
				y of White	0.200 - 0.400 0.333
				Reset to Default	Yes/No
			Target Data	Gain of Red 0.200 - 1.000 1.000
				x of Red 0.300 - 0.700 0.615
				y of Red 0.300 - 0.500 0.381
				Gain of Green	0.200 - 1.000 1.000
				x of Green	0.300 - 0.400 0.308
				y of Green	0.400 - 0.700 0.633
				Gain of Blue	0.200 - 1.000 1.000
				x of Blue	0.100 - 0.300 0.142
				y of Blue	0.030 - 0.400 0.030
				Gain of White 0.200 - 1.000 1.000
				x of White	0.200 - 0.400 0.328
				y of White	0.200 - 0.400 0.380
				Reset to Default	Yes/No
		Manual Adjustment	Enable On/Off Off
			Auto Test Pattern On/Off On
			Red Part of Red	0 - 1000		1000
			Green Part of Red	0 - 1000 0
			Blue Part of Red 0 - 1000			0
			Green Part of Green	0 - 1000		1000
			Red Part of Green	0 - 1000 0
			Blue Part of Green	0 - 1000 0
			Blue Part of Blue	0 - 1000		1000
			Red Part of Blue 0 - 1000			0
			Green Part of Blue	0 - 1000		0
Configuration	Color Matching	Manual Adjustment	Red Part of White 0 - 1000 1000
			Green Part of White	0 - 1000 1000
			Blue Part of White 0 - 1000 1000
			Reset to Default Yes/No
	Hot-Key Settings	Blank Screen
		Aspect Ratio
		Freeze Screen
		Projector Info
		Overscan
		Closed Captions
	Service	Projector Info	Model Name
			Serial Number
			Native Resolution
			Firmware
			Configuration
			Boot Code
			Standby Mode
			Lens Lock Set-tings
			Wheel Index
		Factory Reset...
		Test Pattern	Off
			Grid
			White
			Black
			Checkerboard
			Color Bars
			Red
			Green
			Blue
			Yellow
			Magenta
			Cyan
			Boresight
		Phosphor Index
		Filter Index
		Error log	Show log
			Clear log
		Mode Adjustment
		Laser Diode Info	LD1 Voltage
			LD2 Voltage
			LD3 Voltage
			LD4 Voltage
			LD5 Voltage
			Bank1 tempera-ture
			Bank2 tempera-ture
		High temperature warning	On/Off On
Light Source	Light Source Mode	Constant Power/ Constant Inten- sity/ECO mode				Constant Power
	Constant Power 243 - 405					243, 259, 275, 292, 308, 324, 340, 356, 373, 389, 405
	Constant Intensity 0 - 10 7
	Total Projector Hours
	Light Sensor	Light Sensor Cali- bration
		Calibrated? (display Yes/No)
Status	Model Name
	Serial Number
	Native Resolution
	Firmware Vxx, Ayy, Bzz
	Main Input
	Main Signal Format
	Main Pixel Clock
	Main Sync Type
	Main Horz Refresh
	Main Vert Refresh
	PIP/PBP Input
	PIP/PBP Signal Format
	PIP/PBP Pixel Clock
	PIP/PBP Sync Type
	PIP/PBP Horz Refresh
	PIP/PBP Vert Refresh
	Light Source Power
	Total Projector Hours
	Standby Mode
	Lens Lock Settings
	IP Address
	DHCP
	System Tempera- ture
Input Switching & PIP	Main Input SPEC define
	PIP/PBP Input SPEC define
	PIP/PBP Enable	OFF				OFF
		ON
	Swap
	Size	(Small/Medium/Large)
	Layout	(PBP, Main Left / PBP, Main Top / PBP, Main Right / PBP, Main Bottom / PIP-Bottom Right / PIP-Bottom Left / PIP-Top Left / PIP-Top Right)
	Timing Detection Mode	Normal				Wide
		Wide
	Source Info	Active Source
		Signal Format
		Aspect Ratio
		Resolution
		Vert Refresh
		Horz Refresh
		Pixel Clock
		Sync Type
		Color Space
		PIP/PBP	(When PIP/PBP active)
			(When PIP/PBP active)
	Enable Main Source Hot-Key	ON				ON
		OFF
	Source Hot-Key	VGA Key number 1
		HDMI Key number 2
		DVI-D Key number 3
		Display Port Key number 4
		Component Key number 5
		S-Video Key number 6
		Composite Key number 7
		Christie Presenter Key number 8
		Card Reader Key number 9
		Mini USB Key number 0
		HDBaseT
	Input key	Change Sources				Auto SourceList all Sources
		Auto Source
	Blank on Signal Switch	OFF				OFF
		ON
Language						English
Test Pattern	Off
	Grid
	White
	Black
	Checkerboard
	Color Bars

6.9 Preset Mode tables

Orion-Laser projector
Description	Bright	Presentation	Video	Dicom	Real
PW 2X 2X 2X	2X 2X
CW 2X 2X 2X	2X 2X
Syt. mode number 0	6 6 6 6
color temperature	Warm	Bright Warm Warm	Warm
Bright	Please see below table for DWU/DHD & DWX
Warm
Warmest
Cool
Gamma Video	Video	Video Dicom	FILM
White peaking	100	100	100	100	100

Mode NO.	SQ	CT mode	OSD mode	CT
0	Bright 2X-Native	Bright Warm
0	Bright 2X-D55	Bright Warmest
0	Bright 2X-D70	Bright Bright
0	Bright 2X-D80	Bright Cool
1	Presentation	2X-Native	Presentation	Bright
1	Presentation	2X-D65	Presentation	Warm
1	Presentation	2X-D55	Presentation	Warmest
1	Presentation	2X-D85	Presentation	Cool
2	Video	2X-Native Video Warm
2	Video 2X-D55	Video Warmest
2	Video 2X-D75	Video Bright
2	Video 2X-D85	Video Cool
3 Real	2X-Native Real		Warm
3 Real	2X-D55 Real		Warmest
3 Real	2X-D75 Real		Bright
3 Real	2X-D85 Real		Cool

OSD	Gamma index
CRT	6
VIDEO	5
FILM	0
BRIGHT	4
DICOM	13

SIGNAL	Default Mode	IMAGE Mode		Brightness	Contrast	Default Mode	IMAGE Mode Brightness Contrast
Composite	Video Mode	PAL	Presentation Mode	50 50			NTSC	Presentation Mode	50 50
			Video Mode 50	50 Video	Mode 50	50 Video
			Bright Mode 50	50 Bright	Mode 50	50 Mode
			Real Mode 50	50 Real	Mode 50	50
			Dicom Mode	50 50			Dicom Mode	50 50
S-video	Video Mode	PAL	Presentation Mode	50 50			NTSC	Presentation Mode	50 50
			Video Mode 50	50 Video	Mode 50	50 Video
			Bright Mode 50	50 Bright	Mode 50	50 Mode
			Real Mode 50	50 Real	Mode	50
			Dicom Mode	50 50			Dicom Mode	50 50
VGA/PC	Presentation Mode	PC Signal	Presentation Mode	50 50			Component/Video(720p,576p/l,1080p/i...)	Presentation Mode	50 50
			Video Mode 50	50 Video	Mode 50	50 Video
			Bright Mode 50	50 Bright	Mode 50	50 Mode
			Real Mode 50	50 Real	Mode 50	50
			Dicom Mode	50 50			Dicom Mode	50 50
HDMI/DVI/HDBaseT	Presentation Mode	PC Signal	Presentation Mode	50 50			HDMI/DVI(SD/HD)	Presentation Mode	50 50
			Video Mode 50	50 Video	Mode 50	Presentation Mode
			Bright Mode 50	50 Bright	Mode 50	50 Mode
			Real Mode 50	50 Real	Mode 50	50
			Dicom Mode	50 50			Dicom Mode	50 50

Corporate offices

USA-Cypress

ph:714-236-8610

Canada - Kitchener

ph:519-744-8005

Consultant offices

Italy

ph:[phone]

Worldwide offices

Australia

ph:[phone]

Brazil

ph:[phone]

China(Beijing)

ph:[phone]

China (Shanghai)

ph:[phone]

Eastern Europe and

Russian Federation

ph:[phone]

France

ph:[phone]

Germany

ph:[phone]

India

ph:[phone]

Japan

ph:81-3-3599-74£1

Korea (Seoul)

ph:[phone]

Republic of South Africa

ph:[phone]

Singapore

ph:[phone]

Spain

ph:[phone]

United Arab Emirates

ph:[phone]

United Kingdom

ph:[phone]
