USER MANUAL LW502 Christie

User's Manual (detailed) Operating Guide - Technical

020-001099-01

LW502/LWU502

User's Manual (detailed)

Operating Guide – Technical

Supported signals for COMPUTER IN

Resolution (H x V) Signal mode H. frequency		(kHz)	V. frequency (Hz)	Rating
720 x 400 TEXT	37.9 85 VESA
640 x 480 VGA	(60Hz) 31.5 59.9 VESA
	VGA (72Hz) 37.9 72.8 VESA
	VGA (75Hz) 37.5 75 VESA
	VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA	(56Hz) 35.2 56.3 VESA
	SVGA (60Hz) 37.9 60.3 VESA
	SVGA (72Hz) 48.1 72.2 VESA
	SVGA (75Hz) 46.9 75 VESA
	SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac	16" mode 49.7 74.5
1024 x 768 XGA	(60Hz) 48.4 60 VESA
	XGA (70Hz) 56.5 70.1 VESA
	XGA (75Hz) 60 75 VESA
	XGA (85Hz) 68.7 85 VESA
1152 x 864	1152 x 864 (75Hz)	67.5 75 VESA
1280 x 768 W-XGA	(60Hz)	47.7 60 VESA
1280 x 800 1280	x 800 (60Hz)	49.7 60 VESA
1280 x 1024	SXGA (60Hz)	64 60 VESA
	SXGA (75Hz)	80 75 VESA
	SXGA (85Hz) 91.1 85 VESA
*1) 1366 x 768	WXGA (60Hz)	47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz)		55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz)		60 60 VESA
1680 x 1050	WSXGA+ (60Hz)	65.3 60 VESA
1600 x 1200	UXGA (60Hz)	75 60 VESA
1920 x 1080	Full HD (60Hz)	67.5 60 VESA
*2) 1920 x 1200	W-UXGA (60Hz)Reduced Blanking	74 60 VESA

*1) Only for [WXGA Model]
*2) Only for [WUXGA Model]
(continued on next page)

Supported signals for HDMI / HDBaseT

Resolution (H x V) Signal mode H. frequency		(kHz)	V. frequency (Hz)	Rating
720 x 400 TEXT	37.9 85 VESA
640 x 480 VGA	(60Hz) 31.5 59.9 VESA
	VGA (72Hz) 37.9 72.8 VESA
	VGA (75Hz) 37.5 75 VESA
	VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA	(56Hz) 35.2 56.3 VESA
	SVGA (60Hz) 37.9 60.3 VESA
	SVGA (72Hz) 48.1 72.2 VESA
	SVGA (75Hz) 46.9 75 VESA
	SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac	16" mode 49.7 74.5
1024 x 768 XGA	(60Hz) 48.4 60 VESA
	XGA (70Hz) 56.5 70.1 VESA
	XGA (75Hz) 60	75 VESA
	XGA (85Hz) 68.7 85 VESA
1152 x 864	1152 x 864 (75Hz)	67.5 75 VESA
1280 x 768 W-XGA	(60Hz)	47.7 60 VESA
1280 x 800 1280 x 800 (60Hz)		49.7 60 VESA
1280 x 1024	SXGA (60Hz)	64	60 VESA
	SXGA (75Hz)	80	75 VESA
	SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA	(60Hz)	47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz)		55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz)		60	60 VESA
1400 x 1050	SXGA+ (60Hz)	65.2 60 VESA
1680 x 1050	WSXGA+ (60Hz)	65.3 60 VESA
1600 x 1200	UXGA (60Hz)	75	60 VESA
*1) 1920 x 1200	W-UXGA (60Hz)Reduced Blanking	74	60 VESA

*1) Only for [WUXGA Model]
(continued on next page)

Resolution (H x V) Signal mode H. frequency	(kHz)	V. frequency (Hz)	Rating
720(1440) x 480i 480i 15.7 60 CEA
720 x 480p 480p 31.5 60 CEA
1280 x 720p 720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (60Hz)	67.5 60 CEA

NOTE • Check jack type, signal level, timing and resolution before connecting this projector to a PC.

- Some PCs may have multiple display screen modes. Use of some of these modes is not possible with this projector.

- Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.

- LW502 and LWU502 are not recommended for use with 50Hz signal inputs.

- The signal is converted to the projector's panel resolution before being displayed. The best display performance is achieved if the resolutions of the input signal and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

- The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

- The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

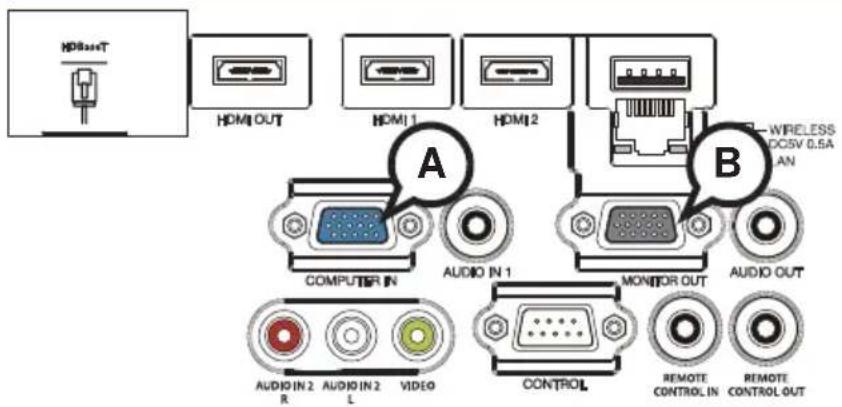

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

▶ Only the signal that is input from the COMPUTER IN can be output from the MONITOR OUT port.

HDMIOUT HDMI1 HDMI2 A B WIRELESS DC5V 0.5A AN COMPUTER IN AUDIO IN 1 AUDIO OUT AUDIO IN 2 AUDIO IN 2 R L VIDEO CONTROL REMOTE CONTROL IN REMOTE CONTROL OUT

ⒶCOMPUTER IN, ⒷMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

- Composite sync. signal: TTL level

• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated

Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

- System: 480i@60, 480p@60, 720p@60, 1080i@60, 1080p@60

Pin	Signal Pin Signal
1	Video Red, Cr/Pr 9 (No connection)
2	Video Green, Y 10 Ground
3	Video Blue, Cb/Pb 11 (No connection)
4	(No connection) 12		A: SDA (DDC data) B: (No connection)
5	Ground 13 H. sync / Composite sync.
6	Ground Red, Ground Cr/Pr 14 V. sync.
7	Ground Green, Ground Y	15	A: SCL (DDC clock) B: (No connection)
8	Ground Blue, Ground Cb/Pb

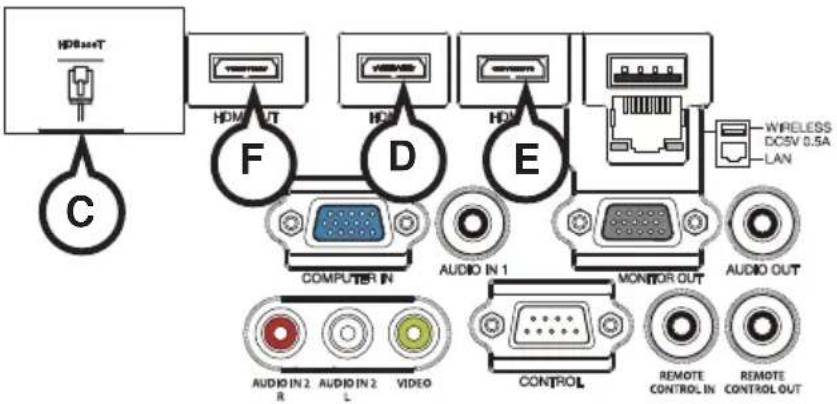

HD8setT C HDMI/UT F HDMI D HDMI E WIRELESS DC5V 0.5A LAN COMPUTER IN AUDIO IN 1 MONITOR OUT AUDIO OUT AUDIO IN 2 AUDIO IN 2 VIDEO CONTROL REMOTE CONTROL IN REMOTE CONTROL OUT

HDBaseT

RJ-45 jack

Pin Signal Pin Signal Pin Signal
1 HDBaseT0+ 4 HDBaseT2+ 7 HDBaseT3+
2 HDBaseT0- 5 HDBaseT2-				8 HDBaseT3-
3 HDBaseT1+ 6 HDBaseT1-

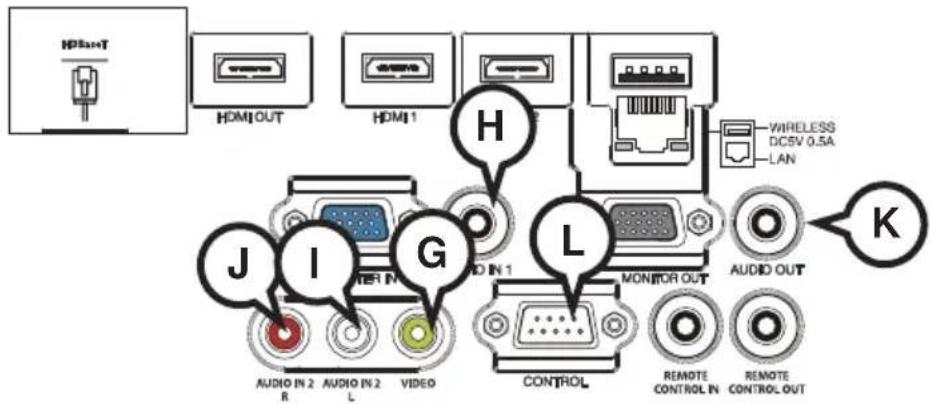

HDMI 1, ⒺHDMI 2, ⒻHDMI OUT

• Type :Digital audio/video connector
  • Audio signal: Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin	Signal Pin Signal Pin Signal
1	T.M.D.S. Data2 + N.C.	8 T	M.D.S. Data0 Shield 15		SCLCD PULLUP
2	T.M.D.S. Data2 Shield CD_SENSE	9 T	M.D.S. Data0 - 16		SDAN.C.
3	T.M.D.S. Data2 - N.C.	10	T.M.D.S. Clock + N.C.	17	DDC/CEC Ground VBUS CBUS GND
4	T.M.D.S. Data1 + N.C.	11	T.M.D.S. Clock Shield TMDS GND	18	+5V Power VBUS
5	T.M.D.S. Data1 Shield TMDS_GND	12	T.M.D.S. Clock - N.C.	19	Hot Plug Detect CBUS
6	T.M.D.S. Data1 - N.C.	13	CECN.C.
7 T	M.D.S. Data0 + 14		Reserved (N.C. on device) N.C.

HDMI HDMI OUT HDMI 1 H WIRELESS DCSV 0.5A LAN J I G L AUDIO IN 2 AUDIO IN 2 VIDEO R L MONITOR OUT AUDIO OUT CONTROL REMOTE CONTROL IN REMOTE CONTROL OUT K

©VIDEO

RCA jack

• Composite video signal, Analog, 1.0±0.1Vp-p, 75Ω terminator
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

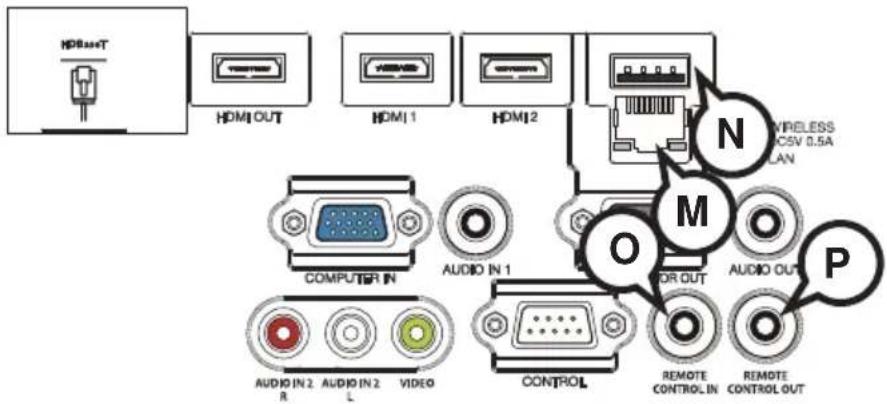

H AUDIO IN1

* About the details of RS-232C communication, refer to the next section.

⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

HDB6x8T HDMI OUT HDMI 1 HDMI 2 N WIRELESS CSV 0.5A CAN COMPUTER IN AUDIO IN 1 M O DR OUT AUDIO OUT P AUDIO IN 2 AUDIO IN 2 VIDEO R L CONTROL REMOTE CONTROL IN REMOTE REMOTE CONTROL OUT

©LAN

RJ-45 jack

* About the details of network communication, refer to the Network Guide.

Pin Signal Pin Signal Pin Signal
1 TX+ 4 - 7 -
2 TX- 5 -				8	-
3 RX+ 6 RX-

©WIRELESS

Only for USB wireless adapter.

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

REMOTE CONTROL ⒷIN, ⓅOUT

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

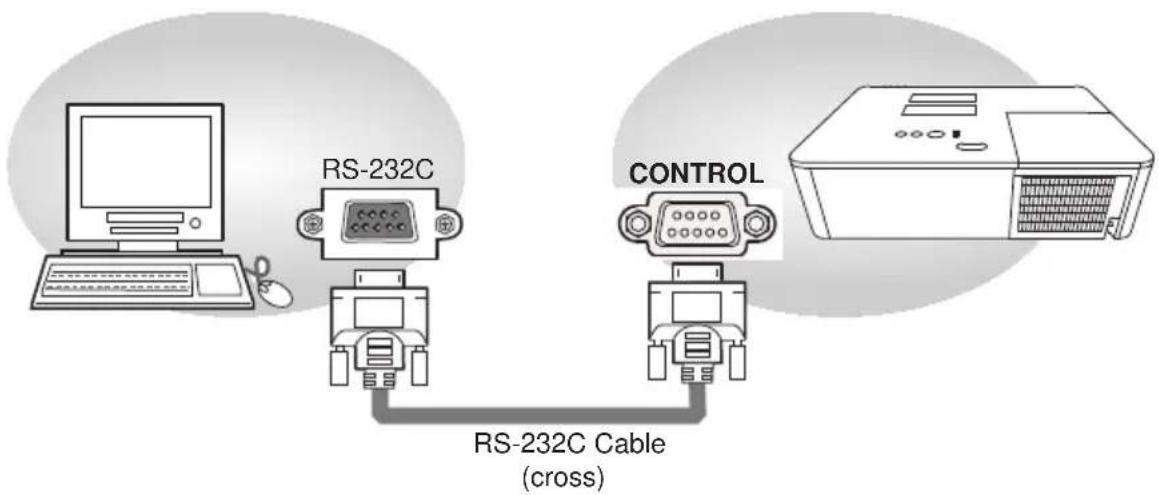

Connection

1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfi Ils the specifi cation shown in fi gure.
3. Turn the computer on, and after the computer has started up turn the projector on.
4. Set the COMMUNICATION TYPE to OFF in the COMMUNICATION menu of the OPTION - SERVICE menu.


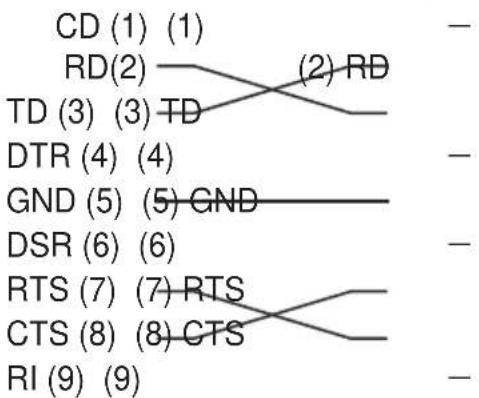

RS-232C port of the computer

CONTROL port of the projector

Communication settings

1. Protocol

19200bps, 8N1

1. Command format ("h" shows hexadecimal)

Byte Number

0 1

2 3 4

5 6

7 8

9 10

11

12

CommandAction

Header Data

Header code

Packet

Data size

CRC flag

Action Type

Setting code

L H

L H L H

L H L H

L H

Change setting to desired value [(cL)(cH)] by [(bL)(bH)].

BEh

EFh 03h

06h

00h

(aL)

(aH)

01h

00h

(bL)

(bH)

Read projector internal setup value [(bL) (bH)].

(aL)

(aH)

02h

00h

(bL)

(bH)

Increment setup value [(bL)(bH)] by 1.

(aL)

(aH)

04h

00h

(bL)

(bH)

Decrement setup value [(bL)(bH)] by 1.

(aL)

(aH)

05h

00h

(bL)

(bH)

Run a command [(bL)(bH)].

(aL)

(aH)

06h

00h

(bL)

(bH)

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 to 4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (17).

[Action]

Set functional code to byte number 7, 8.

= [01h, 00h], = [02h, 00h], = [04h, 00h]

= [05h, 00h], = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number 9 to 12, refer to RS-232C Communication / Network command table (17).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply: 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply: 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply: 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply: 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, read the manual for each devices, and connect them correctly with suitable cables.

• Operation cannot be guaranteed when the projector receives an undefined command or data.
• Provide an interval of at least 40ms between the response code and any other code.
• The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

NOTE • If data is transferred using wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

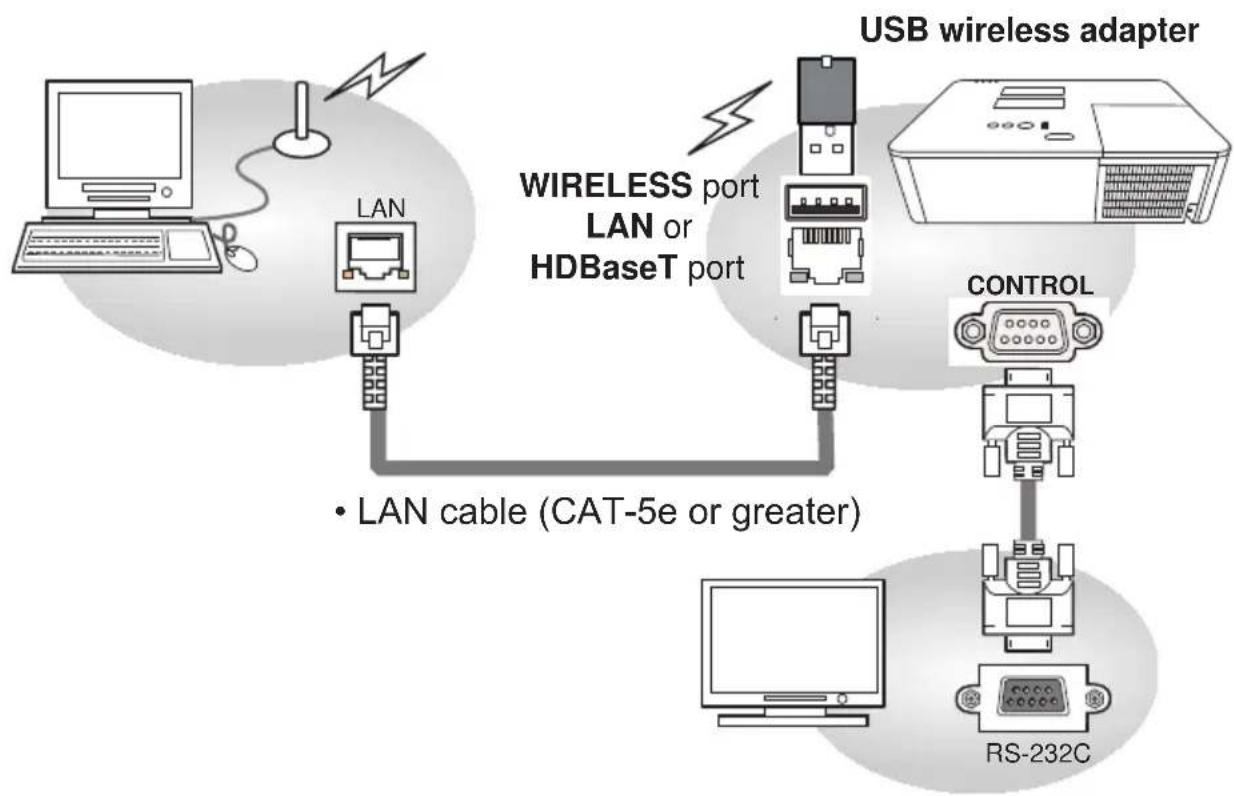

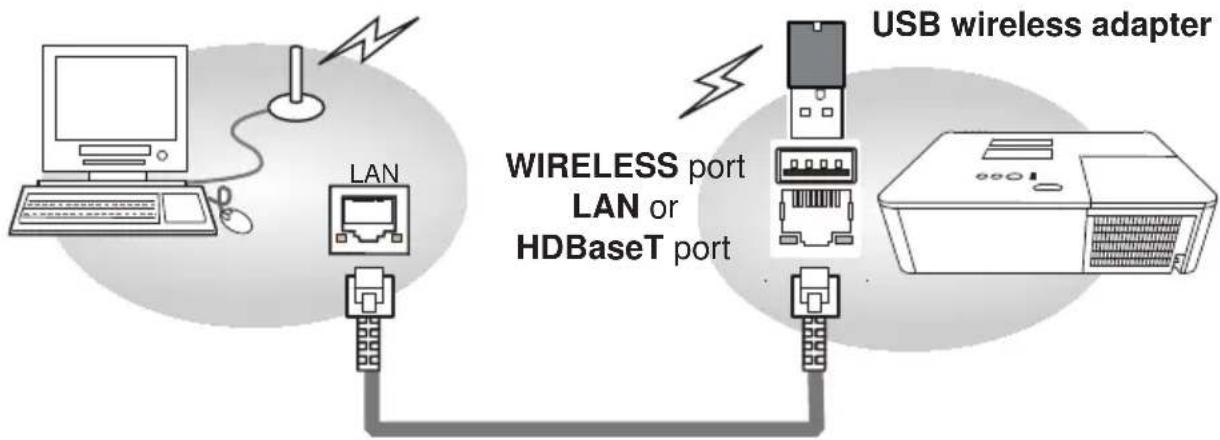

Connection

1. Turn off the projector and the computer.
2. If you use wired LAN, connect the projector's LAN or HDBaseT™ port to the computer's LAN or HDBaseT™ port with a LAN cable. Use the cable that fulfi IIs the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into the WIRELESS port of the projector.
3. Turn the computer on, and after the computer has started up turn the projector on.

• LAN cable (CAT-5e or greater) or
- For HDBaseT connection

• CAT-5e or greater
• shielded type (connectors included)
• straight cable
• single cable

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items from a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)	Port open	Click the [Enable] checkbox to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is Enable.
	Authentication	Click the [Enable] checkbox for the [Authentication] setting when authentication is required. Default setting is Disable.
Network Control Port2 (Port: 9715)	Port open	Click the [Enable] checkbox to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is Enable.
	Authentication	Click the [Enable] checkbox for the [Authentication] setting when authentication is required. Default setting is Enable.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the required authentication password. Confirm this setting is the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communication command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h
Refer to RS-232C communication (8).

(2) NAK reply : 15h Refer to RS-232C communication (8).

(3) Error reply : 1Ch + 0000h Refer to RS-232C communication (8).

(4) Data reply : 1Dh + xxxxh Refer to RS-232C communication (8).

(5) Authentication error reply : 1Fh + 0400h When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Data	length RS-232C	command Check sum	Connection ID
0×02 0×0D	13 bytes 1 byte	1 byte

[Header]

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (9).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

• Provide an interval of at least 40ms between the response code and any other code.
• Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(1) ACK reply: 06h + xxh
(××h : connection ID)
(2) NAK reply: 15h + xxh
(3) Error reply: 1Ch + 0000h + xxh
(4) Data reply: 1Dh + xxxxh + xxh
(5) Authentication error reply: 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection is automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm.

When the projector is connected to a LAN, a random 8 bytes is returned if authentication is enabled. Bind this received 8 bytes and the authentication password, and digest the data with the MD5 algorithm, and add it in front of the commands to send.

The following is a sample of authentication process.

Authentication password: password (example)

Random 8 bytes: a572f60c (example)

1) Select a projector and receive the random 8 bytes from the projector.

→ "a572f60c"

2) Bind the random 8 bytes and the authentication password.

→ "a572f60cpassword"

3) Digest this bound with MD5 algorithm.

→ "e3d97429adffa11bce1f7275813d4bde"

4) Add this code in front of the commands and send the data.

→ "e3d97429adffa11bce1f7275813d4bde" + [command].

5) When the sent data is correct, the command is performed and the reply data is returned. Otherwise, an authentication error is returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted for the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by wired or wireless LAN communication, an external device connected with this projector by RS-232C communication can be controlled from the computer as a network terminal.

For details, see the 7. Network Bridge function in the Network Guide.

NOTE • If data is transferred using wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

1. If you use wired LAN, connect the computer's LAN port and the projector's LAN port with a LAN cable. Use the cable that fulfi lls the specifi cation shown in fi gure. If you use wireless LAN, insert the USB wireless adapter into the projector's LAN port.
2. Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
3. Turn the computer on, and after the computer has started up turn the projector on.
4. Set the COMMUNICATION TYPE to NETWORK BRIDGE in the COMMUNICATION menu of the OPTION - SERVICE menu.

Communication settings

For communication setting, use the COMMUNICATION menu in the OPTION - SERVICE menu.

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, read the manual for each devices, and connect them correctly with suitable cables.

- Turn off the power and unplug both the projector and other devices before connecting them.

- For details of Transmission method, refer to 7.4 Transmission method in the Network Guide.

RS-232C Communication / Network command table

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
Power	Set	Turn off BE E	F 03 06 00 2A	D3 01 00	00 60 00	00
		Turn on BE E	F 03 06 00 BA	D2 01 00	00 60 01	00
	Get		BE EF 03 06	00 19 D3	02 00 00	60 00 00
			[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input Source	Set	COMPUTER IN BE EF 03 06 00	FE D2 01	00 00 20	00 00
		LAN BE EF	03 06 00 CE D	5 01 00	00 20	0B 00
		HDMI 1 BE EF	F 03 06 00 0E	D2 01 00	00 20	03 00
		HDMI 2 BE EF	F 03 06 00 6E	D6 01 00	00 20	0D 00
		HDBaseT	BE EF 03	06 00	AE DE	01 00	00 20	11 00
		VIDEO	BE EF 03 06	00 6E D3	01 00	00 20 01	00
	Get		BE EF 03	06 00	CD D2	02 00	00 20	00 00
Error Status	Get		BE EF 03 06	00 D9 D8	02 00	20 60	00 00
			[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]0F 00 60 00[Shutter error] [AC blackout error]
MAGNIFY	Get		BE EF 03	06 00	7C D2	02 00	07 30	00 00
	Increment		BE EF 03	06 00	1A D2	04 00	07 30	00 00
	Decrement		BE EF 03 06	00 CB D3	05 00	07 30 00	00
MAGNIFY Position H	Get		BE EF 03	06 00	C8 D7	02 00	10 30	00 00
	Increment		BE EF 03 06	00 AE D7	04 00	10 30 00	00
	Decrement		BE EF 03	06 00	7F D6	05 00	10 30	00 00
MAGNIFY Position V	Get		BE EF 03 06	00 34 D6	02 00 11	30 00 00
	Increment		BE EF 03 06	00 52 D6	04 00 11	30 00 00
	Decrement		BE EF 03 06	00 83 D7	05 00 11	30 00 00
FREEZE	Set	NORMAL	BE EF 03	06 00	83 D2	01 00	02 30	00 00
		FREEZE	BE EF 03 06	00 13 D3	01 00	02 30 01	00
	Get		BE EF 03 06	00 B0 D2	02 00	02 30 00	00
SHUTTER	Set	OFF BE EF	03 06 00 F3	93 01 00	05 24 00	00
		ON	BE EF 03	06 00	63 92	01 00	05 24	01 00
	Get		BE EF 03 06	00 C0 93	02 00	05 24 00	00
PbyP/PIP	Set	OFF BE EF	03 06 00 3E 26	01 00	10 23	00 00
		PbyP	BE EF 03	06 00	AE 27	01 00	10 23	01 00
		PIP	BE EF 03 06	00 5E 27	01 00	10 23 02	00
	Get		BE EF 03 06	00 0D 26	02 00	10 23 00	00
PbyP MAIN SIZE	Set	SMALL BE EF	03 06 00 F2	07 01	1 00 11	23 7F 00
		MIDDLE	BE EF 03	06 00	02 46	01 00	11 23	80 00
		LARGE BE EF	F3 03 06 00 92	47 01	00 11 23	81 00
	Get		BE EF 03	06 00	F1 27	02 00	11 23	00 00

Names Operation Type Header								CRC	Command Data
									Action Type Setting code
PbyPRIGHT SOURCE	Set	COMPUTER IN BE EF 03 06 00 86 27 01 00 12 23 00 00
		HDMI 1 BE EF 03 06 00 76 27 01 00 12 23 03 00
		HDMI 2 BE EF 03 06 00 16 23 01 00 12 23 0D 00
		HDBaseT BE EF 03 06 00 D6 2B 01 00 12 23 11 00
		VIDEO BE EF 03 06 00 16 26 01 00 12 23 01 00
	Get BE EF 03 06 00 B5 27 02 00 12 23 00 00
PbyPMAIN AREA	Set	LEFT BE EF 03 06 00 86 00 7A 26 01 00 13 23 00 00
		RIGHT BE EF 03 06 00 EA 27 01 00 13 23 01 00
	Get BE EF 03 06 00 49 26 02 00 13 23 00 00
PbyPLEFT SOURCE	Set	COMPUTER IN BE EF 03 06 00 F2 26 01 00 15 23 00 00
		HDMI 1 BE EF 03 06 00 02 26 01 00 15 23 03 00
		HDMI 2 BE EF 03 06 00 62 22 01 00 15 23 0D 00
		HDBaseT BE EF 03 06 00 A2 2A 01 00 15 23 11 00
		VIDEO BE EF 03 06 00 62 27 01 00 15 23 01 00
	Get BE EF 03 06 00 C1 26 02 00 15 23 00 00
PIP POSITION	Set	TOP LEFT BE EF 03 06 00 02 23 01 00 01 23 00 00
		TOP RIGHT BE EF 03 06 00 92 22 01 00 01 23 01 00
		BOTTOM LEFT BE EF 03 06 00 62 22 01 00 01 23 02 00
		BOTTOM RIGHT BE EF 03 06 00 F2 23 01 00 01 23 03 00
	Get BE EF 03 06 00 31 23 02 00 01 23 00 00
PIPMAIN AREA	Set	PRIMARY BE EF 03 06 00 32 22 01 00 05 23 00 00
		SECONDARY BE EF 03 06 00 06 00 A2 23 01 00 05 23 00 00
	Get BE EF 03 06 00 01 22 02 00 05 23 00 00
PIP PRIMARYSOURCE	Set	COMPUTER IN BE EF 03 06 00 CE 23 01 00 04 23 00 00
		HDMI 1 BE EF 03 06 00 3E 23 01 00 04 23 03 00
		HDMI 2 BE EF 03 06 00 5E 27 01 00 04 23 0D 00
		HDBaseT BE EF 03 06 00 03 06 00 06 00 9E 2F 01 00 04 23 11 00
		VIDEO BE EF 03 06 00 5E 22 01 00 04 23 01 00
	Get BE EF 03 06 00 FD 23 02 00 04 23 00 00
PIPSECONDARYSOURCE	Set	COMPUTER IN BE EF 03 06 00 46 23 01 00 02 23 00 00
		HDMI 1 BE EF 03 06 00 E6 23 01 00 02 23 03 00
		HDMI 2 BE EF 03 06 00 D6 27 01 00 02 23 0D 00
		HDBaseT BE EF 03 06 00 16 2F 01 00 02 23 11 00
		VIDEO BE EF 03 06 00 D6 22 01 00 02 23 01 00
	Get BE EF 03 06 00 75 23 02 00 02 23 00 00
PbyP SWAP	Execute BE EF 03 06 00 01 27 06 00 16 23 00 00
PbyP / PIPFRAME LOCK	Set	LEFT / PRIMARY BE EF 03 06 00 03 06 00 06 00 4A 27 01 00 17 23 01 00
		RIGHT / SECONDARY BE EF 03 06 00 DA 26 01 00 17 23 01 00
	Get BE EF 03 06 00 79 27 02 00 17 23 00 00
PICTURE MODE	Set	STANDARD BE	EF 03 06	00 83	F5 01 00	0 BA 30 06 00
		NATURAL BE	EF 03 06	00 23	F6 01 00	BA 30 00 00
		CINEMA BE	EF 03 06	00 B3	F7 01 00	BA 30 01 00
		DYNAMIC BE	EF 03 06	00 E3	F4 01 00	BA 30 04 00
		BOARD(BLACK)	BE EF 03	06 00	E3 EF 01	00 BA 30 20 00
		BOARD(GREEN)	BE EF 03	06 00	73 EE 01	00 BA 30 21 00
		WHITEBOARD	BE EF	03 06	00 83 EE	01 00 BA 30 22 00
		DAYTIME	BE EF	03 06	00 E3 C7	01 00 BA 30 40 00
		DICOM SIM.	BE EF	03 06	00 73 C6	01 00 BA 30 41 00
		USER-1	BE EF	03 06	00 E3 FB	01 00 BA 30 10 00
		USER-2	BE EF	03 06	00 73 FA	01 00 BA 30 11 00
		USER-3	BE EF	03 06	00 83 FA	01 00 BA 30 12 00
	Get		BE EF	03 06	00 10 F6	02 00 BA 30 00 00
BRIGHTNESS	Get		BE EF	03 06	00 89 D2	02 00 03 20 00 00
	Increment		BE EF	03 06	00 EF D2	04 00 03 20 00 00
	Decrement		BE EF	03 06	00 3E D3	05 00 03 20 00 00
BRIGHTNESS Reset	Execute BE EF		03 06 00	58 D3	06 00 00	70 00 00
CONTRAST	Get		BE EF	03 06	00 FD D3	02 00 04 20 00 00
	Increment		BE EF	03 06	00 9B D3	04 00 04 20 00 00
	Decrement		BE EF	03 06	00 4A D2	05 00 04 20 00 00
CONTRAST Reset	Execute BE EF		03 06 00	A4 D2	06 00 01	70 00 00
GAMMA	Set	1 DEFAULT	BE EF	03 06	00 07 E9	01 00 A1	30 20 00
		1 CUSTOM	BE EF	03 06	00 07 FD	01 00 A1	30 10 00
		2 DEFAULT	BE EF	03 06	00 97 E8	01 00 A1	30 21 00
		2 CUSTOM	BE EF	03 06	00 97 FC	01 00 A1	30 11 00
		3 DEFAULT	BE EF	03 06	00 67 E8	01 00 A1	30 22 00
		3 CUSTOM	BE EF	03 06	00 67 FC	01 00 A1	30 12 00
		4 DEFAULT	BE EF	03 06	00 F7 E9	01 00 A1	30 23 00
		4 CUSTOM	BE EF	03 06	00 F7 FD	01 00 A1	30 13 00
		5 DEFAULT	BE EF	03 06	00 C7 EB	01 00 A1	30 24 00
		5 CUSTOM	BE EF	03 06	00 C7 FF	01 00 A1	30 14 00
		6 DEFAULT	BE EF	03 06	00 57 EA	01 00 A1	30 25 00
		6 CUSTOM	BE EF	03 06	00 57 FE	01 00 A1	30 15 00
		7 DEFAULT	BE EF	03 06	00 A7 EA	01 00 A1	30 26 00
		7 CUSTOM	BE EF	03 06	00 A7 FE	01 00 A1	30 16 00
		8 DEFAULT	BE EF	03 06	00 37 EB	01 00 A1	30 27 00
		8 CUSTOM	BE EF	03 06	00 37 FF	01 00 A1	30 17 00
	Get		BE EF	03 06	00 F4 F0	02 00 A1	30 00 00
User GAMMA Point 1	Get BE EF 03	06 00 08	FE 02	00 90 3	0 00 00
	Increment BE EF	03 06 00	6E FE	04 00 90	30 00 00
	Decrement BE EF	03 06 00	BF FF	05 00 90	30 00 00
User GAMMA Point 1 Reset	Execute BE EF	03 06 00	58 C2	06 00 50	70 00 00
User GAMMA Point 2	Get BE EF 03	06 00 F4	FF 02	00 91 30	00 00
	Increment BE EF	03 06 00	92 FF	04 00 91	30 00 00
	Decrement BE EF	03 06 00	43 FE	05 00 91	30 00 00
User GAMMA Point 2 Reset	Execute BE EF	03 06 00	A4 C3	06 00 51	70 00 00
User GAMMA Point 3	Get BE EF 03	06 00 B0	FF 02	00 92 30	00 00
	Increment BE EF	03 06 00	D6 FF	04 00 92	30 00 00
	Decrement BE EF	03 06 00	07 FE	05 00 92	30 00 00
User GAMMA Point 3 Reset	Execute BE EF	03 06 00	E0 C3	06 00 52	70 00 00
User GAMMA Point 4	Get BE EF 03	06 00 4C	FE 02	00 93 30	00 00
	Increment BE EF	03 06 00	2A FE	04 00 93	30 00 00
	Decrement BE EF	03 06 00	FB FF	05 00 93	30 00 00
User GAMMA Point 4 Reset	Execute BE EF	03 06 00	1C C2	06 00 53	70 00 00
User GAMMA Point 5	Get BE EF 03	06 00 38	FF 02	00 94 30	00 00
	Increment BE EF	03 06 00	5E FF	04 00 94	30 00 00
	Decrement BE EF	03 06 00	8F FE	05 00 94	30 00 00
User GAMMA Point 5 Reset	Execute BE EF	03 06 00	68 C3	06 00 54	70 00 00
User GAMMA Point 6	Get BE EF 03	06 00 C4	FE 02	00 95 30	00 00
	Increment BE EF	03 06 00	A2 FE	04 00 95	30 00 00
	Decrement BE EF	03 06 00	73 FF	05 00 95	30 00 00
User GAMMA Point 6 Reset	Execute BE EF	03 06 00	94 C2	06 00 55	70 00 00
User GAMMA Point 7	Get BE EF 03	06 00 80	FE 02	00 96 30	00 00
	Increment BE EF	03 06 00	E6 FE	04 00 96	30 00 00
	Decrement BE EF	03 06 00	37 FF	05 00 96	30 00 00
User GAMMA Point 7 Reset	Execute BE EF	03 06 00	D0 C2	06 00 56	70 00 00
User GAMMA Point 8	Get BE EF 03	06 00 7C	FF 02	00 97 30	00 00
	Increment BE EF	03 06 00	1A FF	04 00 97	30 00 00
	Decrement BE EF	03 06 00	CB FE	05 00 97	30 00 00
User GAMMA Point 8 Reset	Execute BE EF	03 06 00	2C C3	06 00 57	70 00 00
COLOR TEMP	Set	1 HIGH BE	EF 03 06	00 0B	F5 01 00	B0 30 03	00
		1 CUSTOM (HIGH)	BE EF	03 06	00 CB F8	01 00 B0	30 13 00
		2 MID-1 BE	EF 03 06	00 9B	F4 01 00	B0 30 02	00
		2 CUSTOM (MID-1)	BE EF	03 06	00 5B F9	01 00 B0	30 12 00
		3 MID-2 BE	EF 03 06	00 3B	F7 01 00	B0 30 04	00
		3 CUSTOM (MID-2)	BE EF	03 06	00 FB FA	01 00 B0	30 14 00
		3 LOW BE	EF 03 06	00 6B	F4 01 00	B0 30 01	00
		4 CUSTOM(LOW)	BE EF	03 06 00	AB F9 01	00 B0	30 11 00
		4 Hi-BRIGHT-1 BE	BE EF	03 06 00	3B F2 01	00 B0 30	08 00
		5 CUSTOM	BE EF	03 06	00 FB FF	01 00 B0	30 18 00
		5 Hi-BRIGHT-2 BE	BE EF	03 06 00	AB F3 01	00 B0 30	09 00
		6 CUSTOM	BE EF	03 06	00 6B FE	01 00 B0	30 19 00
		6 Hi-BRIGHT-3 BE	BE EF	03 06 00	5B F3 01	00 B0 30	0A 00
		7 CUSTOM	BE EF	03 06	00 9B FE	01 00 B0	30	1A 00
	Get		BE EF	03 06	00 C8 F5	02 00 B0	30 00 00
COLOR TEMP GAIN R	Get		BE EF	03 06	00 34 F4	02 00 B1	30	00 00
	Increment		BE EF	03 06	00 52 F4	04 00 B1	30	00 00
	Decrement		BE EF	03 06	00 83 F5	05 00 B1	30	00 00
COLOR TEMP GAIN R Reset	Execute BE EF		03 06 00	10 C6	06 00 46	70	00 00
COLOR TEMP GAIN G	Get		BE EF	03 06	00 70 F4	02 00 B2	30	00 00
	Increment		BE EF	03 06	00 16 F4	04 00 B2	30	00 00
	Decrement		BE EF	03 06	00 C7 F5	05 00 B2	30 00 00
COLOR TEMP GAIN G Reset	Execute BE EF		03 06 00	EC	C7 06	00 47 70	00 00
COLOR TEMP GAIN B	Get		BE EF	03 06	00 8C F5	02 00 B3	30 00 00
	Increment		BE EF	03 06	00 EA F5	04 00 B3	30	00 00
	Decrement		BE EF	03 06	00 3B F4	05 00 B3	30 00 00
COLOR TEMP GAIN B Reset	Execute BE EF		03 06 00	F8 C4	06 00 48	70	00 00
COLOR TEMP OFFSET R	Get		BE EF	03 06	00 04 F5	02 00 B5	30	00 00
	Increment		BE EF	03 06	00 62 F5	04 00 B5	30	00 00
	Decrement		BE EF	03 06	00 B3 F4	05 00 B5	30 00 00
COLOR TEMP OFFSET R Reset	Execute BE EF		03 06 00	40 C5	06 00 4A	70	00 00
COLOR TEMP OFFSET G	Get		BE EF	03 06	00 40 F5	02 00 B6	30	00 00
	Increment		BE EF	03 06	00 26 F5	04 00 B6	30	00 00
	Decrement		BE EF	03 06	00 F7 F4	05 00 B6	30	00 00
COLOR TEMP OFFSET G Reset	Execute		BE EF	03	06 00	BC C4	06 00	4B 70	00 00
COLOR TEMP OFFSET B	Get		BE EF	03 06	00 BC F4	02 00 B7	30 00 00
	Increment		BE EF	03 06	00 DA F4	04 00 B7	30 00 00
	Decrement		BE EF	03 06	00 0B F5	05 00 B7	30 00 00
COLOR TEMP OFFSET B Reset	Execute BE EF		03 06 00	C8 C5	06 00 4C	70	00 00

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
COLOR	Get BE EF 03	06 00 B5	72 02	00 02	22 00 00
	Increment BE EF	03 06 00	D3 72	04 00 02	22 00 00
	Decrement BE EF	03 06 00	02 73	05 00 02	22 00 00
COLOR Reset	Execute BE EF	03 06 00	80 D0	06 00 0A	70 00 00
TINT	Get BE EF 03	06 00 49	73 02	00 03	22 00 00
	Increment BE EF	03 06 00	2F 73	04 00 03	22 00 00
	Decrement BE EF	03 06 00	FE 72	05 00 03	22 00 00
TINT Reset	Execute	BE EF	03	06 00	7C D1	06 00	0B 70	00 00
SHARPNESS	Get BE EF 03	06 00 F1	72 02	00 01	22 00 00
	Increment BE EF	03 06 00	97 72	04 00 01	22 00 00
	Decrement BE EF	03 06 00	46 73	05 00 01	22 00 00
SHARPNESS Reset	Execute BE EF	03 06 00	C4	D0 06 00	09 70 00	00
eClarity	Get BE EF 03	06 00 5D	70 02	00 00	0C 22	00 00
	Increment BE EF	03 06 00	3B 70	04 00	0C 22	00 00
	Decrement BE EF	03 06 00	EA 71	05 00	0C 22	00 00
eClarity Reset	Execute	BE EF	03	06 00	C8 DB	06 00	2C 70	00 00
HDCR	Get BE EF 03	06 00 A1	71 02	00 00	D 22	00 00
	Increment BE EF	03 06 00	C7 71	04 00	0D 22	00 00
	Decrement BE EF	03 06 00	16 70	05 00	0D 22	00 00
HDCR Reset	Execute	BE EF	03	06 00	34 DA	06 00	2D 70	00 00
DYNAMIC IRIS	Set	OFF	BE EF	03 06	00 0B 22	01 00 04	33 00 00
		THEATER	BE EF	03 06	00 CB 2F	01 00	04 33 10	00
		PRESENTATION	BE EF	03 06	00 5B 2E	01 00 04	33	11 00
	Get BE EF 03		06 00 38	22 02	00 04	33 00 00
MY MEMORY Load	Set	1	BE EF	03	06 00	0E D7	01 00	14 20	00 00
		2	BE EF	03	06 00	9E D6	01 00	14 20	01 00
		3	BE EF	03	06 00	6E D6	01 00	14 20	02 00
		4	BE EF	03 06	00 FE D7	01 00	14 20 03	00
MY MEMORY Save	Set	1	BE EF	03 06	00 F2 D6	01 00 15	20 00 00
		2	BE EF	03 06	00 62 D7	01 00 15	20 01 00
		3	BE EF	03 06	00 92 D7	01 00 15	20 02 00
		4	BE EF	03 06	00 02 D6	01 00 15	20 03 00
ASPECT	Set	NORMAL	BE EF	03	06 00	5E DD	01 00	08 20	10 00
		4:3	BE EF	03	06 00	9E D0	01 00	08 20	00 00
		16:9	BE EF	03	06 00	0E D1	01 00	08 20	01 00
		16:10	BE EF	03	06 00	3E D6	01 00	08 20	0A 00
		14:9	BE EF	03	06 00	CE D6	01 00	08 20	09 00
		NATIVE	BE EF	03	06 00	5E D7	01 00	08 20	08 00
		ZOOM	BE EF	03	06 00	9E C4	01 00	08 20	30 00
	Get BE EF 03		06 00	AD D0	02 00	08 20 00	00
OVER SCAN	Get BE EF 03		06 00 91	70 02	00 09	22 00 00
	Increment BE EF		03 06 00	F7 70	04 00 09	22 00 00
	Decrement BE EF		03 06 00	26 71	05 00 09	22 00 00
OVER SCAN Reset	Execute BE EF		03 06 00	EC	D9 06 00	27 70 00	00
V POSITION	Get BE EF 03	06 00 0D	83 02	00 00 2	1 00 00
	Increment BE EF	03 06 00	6B 83	04 00 00	21 00 00
	Decrement BE EF	03 06 00	BA 82	05 00 00	21 00 00
V POSITION Reset	Execute BE EF	03 06 00	E0 D2	06 00 02	70 00 00
H POSITION	Get BE EF 03	06 00 F1	82 02	00 01 2	1 00 00
	Increment BE EF	03 06 00	97 82	04 00 01	21 00 00
	Decrement BE EF	03 06 00	46 83	05 00 01	21 00 00
H POSITION Reset	Execute BE EF	03 06 00	1C D3	06 00 03	70 00 00
H PHASE	Get BE EF 03	06 00 49	83 02	00 03 2	1 00 00
	Increment BE EF	03 06 00	2F 83	04 00 03	21 00 00
	Decrement BE EF	03 06 00	FE 82	05 00 03	21 00 00
H SIZE	Get BE EF 03	06 00 B5	82 02	00 02 2	1 00 00
	Increment BE EF	03 06 00	D3 82	04 00 02	21 00 00
	Decrement BE EF	03 06 00	02 83	05 00 02	21 00 00
H SIZE Reset	Execute BE EF	03 06 00	68 D2	06 00 04	70 00 00
AUTO IMAGE	Execute BE EF	03 06 00	91 D0	06 00 0A	20 00 00
PROGRESSIVE	Set	OFF BE EF	03 06 00	4A 72	01 00 07	22 00 00
		TV	BE EF	03 06	00 DA 73	01 00 07	22 01 00
		FILM BE EF	03 06 00	2A 73	01 00 07	22 02 00
	Get BE EF 03		06 00 79	72 02	00 07	22 00 00
VIDEO NR	Set	LOW BE EF	03 06 00	26 72	01 00 06	22 01 00
		MID	BE EF	03 06	00 D6 72	01 00 06	22 02 00
		HIGH	BE EF	03 06	00 46 73	01 00 06	22 03 00
	Get BE EF 03		06 00 85	73 02	00 06	22 00 00
COLOR SPACE	Set	AUTO	BE EF	03 06	00 0E 72	01 00 04	22 00 00
		RGB BE EF	03 06 00	9E 73	01 00 04	22 01 00
		SMPTE240	BE EF	03 06	00 6E 73	01 00 04	22 02 00
		REC709	BE EF	03 06	00 FE 72	01 00 04	22 03 00
		REC601	BE EF	03 06	00 CE 70	01 00 04	22 04 00
	Get BE EF 03		06 00 3D	72 02	00 04	22 00 00
C-VIDEO FORMAT	Set	AUTO	BE EF	03 06	00 A2 70	01 00 11	22 0A 00
		NTSC BE EF	03 06 00	C2 74	01 00 1	1 22	04 00
		PAL	BE EF	03	06 00	52 75	01 00	11 22	05 00
		SECAM	BE EF	03 06	00 52 70	01 00 11	22 09 00
		NTSC4.43	BE EF	03 06	00 62 77	01 00 11	22 02 00
		M-PAL	BE EF	03 06	00 C2 71	01 00 11	22 08 00
		N-PAL	BE EF	03 06	00 32 74	01 00 11	22 07 00
	Get BE EF 03		06 00 31	76 02	00 11	22 00 00
HDMI 1 FORMAT	Set	AUTO	BE EF	03 06	00 BA 77	01 00 13	22 00 00
		VIDEO	BE EF	03 06	00 2A 76	01 00 13	22 01 00
		COMPUTER	BE EF	03 06	00 DA 76	01 00 13	22 02 00
	Get BE EF 03		06 00 89	77 02	00 13	22 00 00
HDMI 2 FORMAT	Set	AUTO	BE EF	03 06	00 52 75	01 00 1D	22 00 00
		VIDEO	BE EF	03 06	00 C2 74	01 00 1D	22 01 00
		COMPUTER	BE EF	03 06	00 32 74	01 00 1D	22 02 00
	Get BE EF 03		06 00 61	75 02	00 1D	22 00 00
HDBaseT FORMAT	Set	AUTO BE EF 03 06 00 7A EA 01 00 D3 20 00 00
		VIDEO BE EF 03 06 00 EA EB 01 00 D3 20 01 00
		COMPUTER BE EF 03 06 00 1A EB 01 00 D3 20 02 00
	Get BE EF 03 06 00 49 EA 02 00 D3 20 00 00
HDMI 1 RANGE	Set	AUTO BE EF 03 06 00 86 D8 01 00 22 20 00 00
		NORMAL	BE EF 03 06 00 16 D9 01 00 22 20 01 00
		ENHANCED	BE EF 03 06 00 E6 D9 01 00 22 20 02 00
	Get BE EF 03 06 00 B5 D8 02 00 22 20 00 00
HDMI 2 RANGE	Set	AUTO BE EF 03 06 00 7A D9 01 00 23 20 00 00
		NORMAL	BE EF 03 06 00 EA D8 01 00 23 20 01 00
		ENHANCED	BE EF 03 06 00 1A D8 01 00 23 20 02 00
	Get BE EF 03 06 00 49 D9 02 00 23 20 00 00
HDBaseT RANGE	Set	AUTO BE EF 03 06 00 86 EB 01 00 D2 20 00 00
		NORMAL	BE EF 03 06 00 16 EA 01 00 D2 20 01 00
		ENHANCED	BE EF 03 06 00 E6 EA 01 00 D2 20 02 00
	Get BE EF 03 06 00 B5 EB 02 00 D2 20 00 00
COMPUTER IN	Set	AUTO	BE EF	03	06 00	CE D6	01 00	10 20	03 00
		SYNC ON G OFF	BE EF	03 06	00 5E D7	01 00 10	20 02 00
	Get BE EF 03 06 00 0D D6 02 00 10 20 00 00
FRAME LOCK - COMPUTER IN	Set	OFF	BE EF	03 06	00 3B C2	01 00 50	30 00 00
		ON	BE EF	03 06	00 AB C3	01 00	50 30 01	00
	Get BE EF 03 06 00 08 C2 02 00 50 30 00 00
FRAME LOCK - HDMI 1	Set	OFF	BE EF	03	06 00	7F C2	01 00	53 30	00 00
		ON	BE EF	03 06	00 EF C3	01 00 53	30 01 00
	Get BE EF 03 06 00 4C C2 02 00 53 30 00 00
FRAME LOCK - HDMI 2	Set	OFF	BE EF	03 06	00 97 C0	01 00 5D	30 00 00
		ON	BE EF	03 06	00 07 C1	01 00 5D	30 01 00
	Get BE EF 03 06 00 A4 C0 02 00 5D 30 00 00
FRAME LOCK - HDBaseT	Set	OFF	BE EF	03 06	00 C2 EB	01 00 D1	20 00 00
		ON	BE EF	03 06	00 52 EA	01 00 D1	20 01 00
	Get BE EF 03 06 00 F1 EB 02 00 D1 20 00 00

Names Operation Type Header									CRC	Command Data
										Action Type Setting code
PICTURE POSITION V	Set	TOP BE EF	03 06 00	02 D0	01 00 09	20 02 00
		MIDDLE BE EF	03 06 00	062	D1 01 00	09 20 00				00
		BOTTOM BE	EF 03 06	00 F2	D0 01 00	09 20 01				00
	Get BE EF 03		06 00 51	D1 02	00 09 2	0 00 00
PICTURE POSITION H	Set	RIGHT	BE EF	03 06	00 46 D5	01 00 1E				20 01 00
		MIDDLE BE EF	03 06 00	D6	D4 01 00	1E 20				00 00
		LEFT	BE EF	03 06	00 B6 D5	01 00 1E				20 02 00
	Get BE EF 03		06 00 E5	D4 02	00 1E 20	00				00
GEOMETRIC MODE	Set	KEYSTONE	BE EF	03 06	00 6B 8C	01 00 30				31 01 00
		3D KEYSTONE BE	EF 03	06 00	9B 8C 01	00 30 31				02 00
		WARPING	BE EF	03 06	00 3B 8F	01 00 30				31 04 00
	Get BE EF 03		06 00 C8	8D 02	00 30 31	00				00
KEYSTONE V	Get BE EF 03		06 00 B9	D3 02	00 07 20	00				00
	Increment		BE EF	03 06	00 DF D3	04 00 07				20 00 00
	Decrement		BE EF	03 06	00 0E D2	05 00 07				20 00 00
KEYSTONE V Reset	Execute BE EF		03 06 00	08 D0	06 00 0C	70				00 00
KEYSTONE H	Get BE EF 03		06 00 E9	D0 02	00 0B 20	00				00
	Increment		BE EF	03 06	00 8F D0	04 00 0B				20 00 00
	Decrement		BE EF	03 06	00 5E D1	05 00 0B				20 00 00
KEYSTONE H Reset	Execute BE EF		03 06 00	98 D8	06 00 20	70 00 00
3D KEYSTONE Left Top - H	Get BE EF 03		06 00 31	89 02	00 21 21	100 00
	Increment		BE EF	03 06	00 57 89	04 00 21				21 00 00
	Decrement		BE EF	03 06	00 86 88	05 00 21				21 00 00
3D KEYSTONE Left Top - V	Get BE EF 03		06 00 75	89 02	00 22 21	100 00
	Increment		BE EF	03 06	00 13 89	04 00 22				21 00 00
	Decrement		BE EF	03 06	00 C2 88	05 00 22				21 00 00
3D KEYSTONE Right Top - H	Get BE EF 03		06 00 89	88 02	00 23 21	100 00
	Increment		BE EF	03 06	00 EF 88	04 00 23				21 00 00
	Decrement		BE EF	03 06	00 3E 89	05 00 23				21 00 00
3D KEYSTONE Right Top - V	Get BE EF 03		06 00 FD	89 02	00 24 21	100 00
	Increment		BE EF	03 06	00 9B 89	04 00 24				21 00 00
	Decrement		BE EF	03 06	00 4A 88	05 00 24				21 00 00
3D KEYSTONE Left Bottom - H	Get BE EF 03	06 00 01		88 02	00 25	21	00 00
	Increment BE EF	03 06 00		67 88	04 00 25		21 00 00
	Decrement BE EF	03 06 00		B6 89	05 00 25		21 00 00
3D KEYSTONE Left Bottom - V	Get BE EF 03	06 00 45		88 02	00 26	21	00 00
	Increment BE EF	03 06 00		23 88	04 00 26		21 00 00
	Decrement BE EF	03 06 00		F2 89	05 00 26		21 00 00
3D KEYSTONE Right Bottom - H	Get BE EF 03	06 00 B9		89 02	00 27	21	00 00
	Increment BE EF	03 06 00		DF 89	04 00 27		21 00 00
	Decrement BE EF	03 06 00		OE 88	05 00 27		21 00 00
3D KEYSTONE Right Bottom - V	Get BE EF 03	06 00 AD		8A 02	00 28	21	00 00
	Increment BE EF	03 06 00		CB 8A	04 00 28		21 00 00
	Decrement BE EF	03 06 00		1A 8B	05 00 28		21 00 00
3D KEYSTONE All Corners Reset	Execute BE EF	03 06 00		D5 8A	06 00 29		21 00 00
3D KEYSTONE Left Side Distortion	Get BE EF 03	06 00 31		97 02	00 41	21	00 00
	Increment BE EF	03 06 00		57 97	04 00 41		21 00 00
	Decrement BE EF	03 06 00		86 96	05 00 41		21 00 00
3D KEYSTONE Right Side Distortion	Get BE EF 03	06 00 75		97 02	00 42	21	00 00
	Increment BE EF	03 06 00		13 97	04 00 42		21 00 00
	Decrement BE EF	03 06 00		C2 96	05 00 42		21 00 00
3D KEYSTONE Top Side Distortion	Get BE EF 03	06 00 FD		97 02	00 44	21	00 00
	Increment BE EF	03 06 00		9B 97	04 00 44		21 00 00
	Decrement BE EF	03 06 00		4A 96	05 00 44		21 00 00
3D KEYSTONE Bottom Side Distortion	Get BE EF 03	06 00 01		96 02	00 45	21	00 00
	Increment BE EF	03 06 00		67 96	04 00 45		21 00 00
	Decrement BE EF	03 06 00		B6 97	05 00 45		21 00 00
3D KEYSTONE All Sides Reset	Execute BE EF	03 06 00		3D 96	06 00 47		21 00 00
3D KEYSTONE Memory Save-1	Execute BE EF	03 06 00		29 95	06 00 48		21 00 00
3D KEYSTONE Memory Save-2	Execute BE EF	03 06 00		D5 94	06 00 49		21 00 00
3D KEYSTONE Memory Save-3	Execute BE EF	03 06 00		91 94	06 00 4A		21 00 00
3D KEYSTONE Memory Load-1	Execute BE EF	03 06 00		6D 95	06 00 4B		21	00 00
3D KEYSTONE Memory Load-2	Execute BE EF	03 06 00		19 94	06 00 4C		21	00 00
3D KEYSTONE Memory Load-3	Execute BE EF	03 06 00		E5 95	06 00 4D		21	00 00

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
EDGE BLENDING MODE	Set	OFF BE EF 03 06	00 6B 94	01 00	04C 31 00	0 00
		MANUAL BE EF 03	06 00 F8	95	01 00 4C	31 01 00
	Get BE EF 03		06 00 58	94 02	00 4C 31	100 00
EDGE BLENDING REGION Reset	Execute		BE EF	03	06 00	8C 96	06 00	40 31	00 00
EDGE BLENDING LEVEL	Increment		BE EF	03 06	00 92 96	04 00 41	31 00 00
	Decrement		BE EF	03 06	00 43 97	05 00 41	31 00 00
	Get BE EF 03		06 00 F4	96 02	00 41 31	00	00
EDGE BLENDING LEFT	Get BE EF 03		06 00 68	95 02	00 48 31	00	00
	Increment		BE EF	03 06	00 0E 95	04 00 48	31 00 00
	Decrement		BE EF	03 06	00 DF 94	05 00 48	31 00 00
EDGE BLENDING RIGHT	Get BE EF 03		06 00 94	94 02	00 49 31	00	00
	Increment		BE EF	03 06	00 F2 94	04 00 49	31 00 00
	Decrement		BE EF	03 06	00 23 95	05 00 49	31 00 00
EDGE BLENDING TOP	Get BE EF 03		06 00 D0	94 02	00 4A 31	100 00
	Increment		BE EF	03 06	00 B6 94	04 00 4A	31 00 00
	Decrement		BE EF	03 06	00 67 95	05 00 4A	31 00 00
EDGE BLENDING BOTTOM	Get BE EF 03		06 00 2C	95 02	00 4B 31	100 00
	Increment		BE EF	03 06	00 4A 95	04 00 4B	31 00 00
	Decrement		BE EF	03 06	00 9B 94	05 00 4B	31 00 00
CROPPING MODE	Set	OFF	BE EF	03 06	00 FB 93	01 00 50	31 00 00
		ON	BE EF	03 06	00 6B 92	01 00 50	31 01 00
	Get BE EF 03		06 00 C8	93 02	00 50 31	00	00
CROPPING SETUP X	Get BE EF 03		06 00 A8	91 02	00 58 31	00	00
	Increment		BE EF	03 06	00 CE 91	04 00 58	31 00 00
	Decrement		BE EF	03 06	00 1F 90	05 00 58	31 00 00
CROPPING SETUP Y	Get BE EF 03		06 00 54	90 02	00 59 31	00	00
	Increment		BE EF	03 06	00 32 90	04 00 59	31 00 00
	Decrement		BE EF	03 06	00 E3 91	05 00 59	31 00 00
CROPPING SETUP W	Get BE EF 03		06 00 10	90 02	00 5A 31	100 00
	Increment		BE EF	03 06	00 76 90	04 00 5A	31 00 00
	Decrement		BE EF	03 06	00 A7 91	05 00 5A	31 00 00
CROPPING SETUP H	Get BE EF 03		06 00 EC	91 02	00 5B 31	100 00
	Increment		BE EF	03 06	00 8A 91	04 00 5B	31 00 00
	Decrement		BE EF	03 06	00 5B 90	05 00 5B	31 00 00
CROPPING Apply	Execute BE EF		03 06 00	80 93	06 00 51	31 00 00
CROPPING Reset	Execute BE EF		03 06 00	F4 93	06 00 52	31 00 00
WARPING MODE	Set	OFF	BE EF	03 06	00 FB 9C	01 00 60	31 00 00
		MODE-1	BE EF	03 06	00 6B 9D	01 00 60	31 01 00
		MODE-2	BE EF	03 06	00 9B 9D	01 00 60	31 02 00
		MODE-3	BE EF	03 06	00 0B 9C	01 00 60	31 03 00
	Get BE EF 03		06 00 C8	9C	02 00 60	31	00 00
Dimming Level	Get BE EF 03		06 00 7C	22 02	00 07 33	00	00
	Increment		BE EF	03 06	00 1A 22	04 00 07	33 00 00
	Decrement		BE EF	03	06 00	CB 23	05 00	07 33	00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
WHITE BALANCE OFFSET R	Get BE EF 03	06 00 0C	72 02	00 50 27	00 00
	Increment BE EF	03 06 00	6A 72	04 00 50	27 00 00
	Decrement BE EF	03 06 00	BB 73	05 00 50	27 00 00
WHITE BALANCE OFFSET R Reset	Execute BE EF	03 06 00 3	8 E2	06 00 F8	70 00 00
WHITE BALANCE OFFSET G	Get BE EF 03	06 00 F0	73 02	00 51 27	00 00
	Increment BE EF	03 06 00	96 73	04 00 51	27 00 00
	Decrement BE EF	03 06 00	47 72	05 00 51	27 00 00
WHITE BALANCE OFFSET G REset	Execute BE EF	03 06 00 C4	E3	06 00 F9	70 00 00
WHITE BALANCE OFFSET B	Get BE EF 03	06 00 B4	73 02	00 52 27	00 00
	Increment BE EF	03 06 00	D2 73	04 00 52	27 00 00
	Decrement BE EF	03 06 00	03 72	05 00 52	27 00 00
WHITE BALANCE OFFSET B Reset	Execute BE EF	03 06 00 8	0 E3	06 00 FA	70 00 00
WHITE BALANCE GAIN R	Get BE EF 03	06 00 3C	73 02	00 54 27	00 00
	Increment BE EF	03 06 00	5A 73	04 00 54	27 00 00
	Decrement BE EF	03 06 00	8B 72	05 00 54	27 00 00
WHITE BALANCE GAIN R Reset	Execute BE EF	03 06 00 0	8 E3	06 00 FC	70 00 00
WHITE BALANCE GAIN G	Get BE EF 03	06 00 C0	72 02	00 55 27	00 00
	Increment BE EF	03 06 00	A6 72	04 00 55	27 00 00
	Decrement BE EF	03 06 00	77 73	05 00 55	27 00 00
WHITE BALANCE GAIN G Reset	Execute BE EF	03 06 00 F4	E2	06 00 FD	70 00 00
WHITE BALANCE GAIN B	Get BE EF 03	06 00 84	72 02	00 56 27	00 00
	Increment BE EF	03 06 00	E2 72	04 00 56	27 00 00
	Decrement BE EF	03 06 00	33 73	05 00 56	27 00 00
WHITE BALANCE GAIN B Reset	Execute BE EF	03 06 00 B0	E2	06 00 FE	70 00 00

Names Operation Type Header							CRC	Command Data
								Action Type Setting code
HDCR LiteLoc	Set	OFF BE EF	03 06 00	D6 71	01 00 0E	22 00 00
		ON BE EF	03 06 00	46 70	01 00 0E	22 01 00
	Get BE EF 03		06 00 E5	71 02	00 0E 2	2 00 00
ECO MODE	Set	NORMAL BE	EF 03 06	00 3B	23 01 00	00 33 00	00
		ECO BE EF	03 06 00	AB 22	01 00	00 00 33 01	00
	Get BE EF 03		06 00 08	23 02	00 00 3	3 00 00
INSTALLATION	Set	FRONT / DESKTOP	BE EF	03 06	00 C7 D2	01 00	01 30 00	00
		REAR / DESKTOP	BE EF	03 06	00 57 D3	01 00 01	30 01 00
		REAR / CEILING	BE EF	03 06	00 A7	D3 01	00 01 30	02 00
		FRONT / CEILING	BE EF	03 06	00 37 D2	01 00 01	30 03 00
	Get BE EF 03		06 00	F4 D2	02 00 01	30 00 00
STANDBY MODE	Set	NORMAL BE	EF 03 06	00 D6	D2 01	00 01 60	00 00
		POWER SAVE	BE EF	03 06	00 46 D3	01 00 01	60 01 00
	Get BE EF 03		06 00	E5 D2	02 00	01 60 00	00
COLOR UNIFORMITY LEVEL	Set	1	BE EF	03 06	00 AF 6D	01 00	30 27 01	00
		2	BE EF	03 06	00 5F	6D 01 00	30 27 02	00
		3	BE EF	03 06	00 CF 6C	01 00 30	27 03 00
		4	BE EF	03 06	00 FF	6E 01 00	30 27 04	00
	Get BE EF 03		06 00 0C	6C	02 00 30	27 00 00
COLOR UNIFORMITY AREA	Set	Top Left	BE EF	03 06	00 C3 6D	01 00	31 27 00	00
		Top	BE EF	03 06	00 53 6C	01 00 31	27 01 00
		Top Right	BE EF	03 06	00 A3	6C 01	00 31 27	02 00
		Left	BE EF	03	06 00	03 AC	01 00	31 27	00 01
		All	BE EF	03	06 00	93 AD	01 00	31 27	01 01
		Right	BE EF	03	06 00	63 AD	01 00	31 27	02 01
		Bottom Left	BE EF	03 06	00 02	EC 01	00 31 27	00 02
		Bottom	BE EF	03 06	00 92	ED 01	00 31 27	01 02
		Bottom Right	BE EF	03 06	00 62	ED 01	00 31 27	02 02
	Get BE EF 03		06 00	F0 6D	02 00 31	27 00 00
COLOR UNIFORMITY R	Get BE EF 03		06 00	B4 6D	02 00	32 27 00	00
	Increment BE EF		03 06 00	D2	6D 04 00	32 27 00	00
	Decrement		BE EF	03 06	00 03 6C	05 00 32	27 00 00
COLOR UNIFORMITY R Reset	Execute BE EF		03 06 00	58	E0 06 00	F0 70 00	00
COLOR UNIFORMITY G	Get BE EF 03		06 00 48	6C 02	00 33 27	00 00
	Increment		BE EF	03	06 00	2E 6C	04 00	33 27	00 00
	Decrement		BE EF	03	06 00	FF 6D	05 00	33 27	00 00
COLOR UNIFORMITY G Reset	Execute BE EF		03 06 00	A4 E1	06 00	F1 70	00 00
COLOR UNIFORMITY B	Get		BE EF	03	06 00	3C 6D	02 00	34 27	00 00
	Increment BE EF		03 06 00	5A 6D	04 00	34 27	00 00
	Decrement		BE EF	03	06 00	8B 6C	05 00	34 27	00 00
COLOR UNIFORMITY B Reset	Execute BE EF		03 06 00	E0 E1	06 00	F2 70	00 00
COLOR UNIFORMITY ALL Reset	Execute BE EF		03 06 00	1C E0	06 00 F3	70 00 00
COLOR UNIFORMITY PATTERN	Set	OFF BE EF	03 06 00	B7 6C	01 00 36	27 00 00
		ON BE EF	03 06 00	27 6D	01 00 36	27 01 00
	Get BE EF 03		06 00 84	6C 02	00 36 27	00 00
VOLUME - COMPUTER IN	Get BE EF 03		06 00	CD CC	02 00	60 20 00 00
	Increment		BE EF	03	06 00	AB CC	04 00	60 20	00 00
	Decrement		BE EF	03 06	00 7A CD	05 00 60	20	00 00
VOLUME - LAN	Get BE EF 03		06 00 E9	CE 02	00 6B	20 00	00
	Increment		BE EF	03 06	00 8F CE	04 00 6B	20	00 00
	Decrement		BE EF	03 06	00 5E CF	05 00 6B	20	00 00
VOLUME - HDMI 1	Get BE EF 03		06 00 89	CC 02	00 63	20 00 00
	Increment		BE EF	03	06 00	EF CC	04 00	63 20	00 00
	Decrement		BE EF	03 06	00 3E CD	05 00	63 20 00	00
VOLUME - HDMI 2	Get BE EF 03		06 00 61	CE 02	00 6D	20 00	00
	Increment		BE EF	03 06	00 07 CE	04 00 6D	20	00 00
	Decrement		BE EF	03 06	00 D6 CF	05 00 6D	20	00 00
VOLUME - HDBaseT	Get BE EF 03		06 00 C1	EA	02 00 D5	20	00 00
	Increment		BE EF	03 06	00 A7 EA	04 00 D5	20	00 00
	Decrement		BE EF	03 06	00 76 EB	05 00 D5	20	00 00
VOLUME - VIDEO	Get BE EF 03		06 00 31	CD 02	00 61	20 00 00
	Increment		BE EF	03 06	00 57 CD	04 00 61	20 00 00
	Decrement		BE EF	03 06	00 86 CC	05 00 61	20 00 00
VOLUME - STANDBY	Get BE EF 03		06 00 D9	CF 02	00 6F	20 00 00
	Increment		BE EF	03 06	00 BF CF	04 00 6F	20 00 00
	Decrement		BE EF	03 06	00 6E CE	05 00 6F	20 00 00
VOLUME - ALL	Get		BE EF	03	06 00	CD C3	02 00	50 20	00 00
	Increment		BE EF	03 06	00 AB C3	04 00 50	20 00 00
	Decrement		BE EF	03 06	00 7A C2	05 00 50	20	00 00
MUTE	Set	OFF BE EF	03 06 00	46 D3	01 00 02	20	00 00
		ON BE EF	03 06 00	D6 D2	01 00 02	20 01 00
	Get BE EF 03		06 00 75	D3 02	00 02 20	00	00
AV MUTE	Set	OFF BE EF	03 06 00	FE F0	01 00 A0	20	00 00
		ON BE EF	03 06 00	6E F1	01 00 A0	20	01 00
	Get BE EF 03		06 00 CD	F0 02	2 00 A0	20	00
SPEAKER	Set	OFF BE EF	03 06 00	6E D5	01 00 1C	20	00 00
		ON BE EF	03 06 00	FE D4	01 00 1C	20	01 00
	Get BE EF 03		06 00 5D	D5 02	2 00 1C	20	00

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
AUDIO SOURCE - COMPUTER IN	Set	AUDIO IN1 BE	EF 03 06	00 6E	DC 01 00	0 30 20 01 00
		AUDIO IN2 BE	EF 03 06	00 9E	DC 01 00	0 30 20 02 00
		OFF BE EF	03 06 00	FE DD	01 00 30	20 00 00
	Get BE EF 03		06 00 CD	DD 02	00 30	20 00 00
AUDIO SOURCE - LAN	Set	AUDIO IN1 BE	EF 03 06	00 4A	DE 01 00	3B 20	01 00
		AUDIO IN2 BE	EF 03 06	00 BA	DE 01 00	3B 20	02 00
		AUDIO LAN	BE EF	03	06 00	8A D3	01 00	3B 20
		OFF BE EF	03 06 00	DA DF	01 00 3B 20	00 00
	Get BE EF 03		06 00 E9	DF	02 00 3B 20	00 00
AUDIO SOURCE - HDMI 1	Set	AUDIO IN1 BE	EF 03 06	00 2A	DC 01 00	33 20 01 00
		AUDIO IN2 BE	EF 03 06	00 DA	DC 01 00	33 20 02 00
		AUDIO HDMI 1	BE EF	03	06 00	7A C4	01 00	33 20
		OFF BE EF	03 06 00	BA DD	01 00 33	20 00 00
	Get BE EF 03		06 00 89	DD	02 00 33	20 00 00
AUDIO SOURCE - HDMI 2	Set	AUDIO IN1 BE	EF 03 06	00 C2	DE 01 00	3D 20	01 00
		AUDIO IN2	BE EF	03	06 00	32 DE	01 00	3D 20
		AUDIO HDMI 2	BE EF	03	06 00	02 C7	01 00	3D 20
		OFF BE EF	03 06 00	52	DF 01 00	3D 20	00 00
	Get BE EF 03		06 00	61 DF	02 00 3D 20	00 00
AUDIO SOURCE - HDBaseT	Set	AUDIO IN1 BE	EF 03 06	00	9E EA 01	00 D4 20	01 00
		AUDIO IN2 BE	EF 03 06	00	6E EA 01	00 D4 20	02 00
		AUDIO HDBaseT BE	EF 03	06 00	0E F0 01	00 D4 20	24 00
		OFF BE EF	03 06 00	0E EB	01 00	D4 20	00 00
	Get BE EF 03		06 00 3D	EB 02	00 D4	20 00	00
AUDIO SOURCE - VIDEO	Set	AUDIO IN1 BE	EF 03 06	00 92	DD 01	00 31 20	01 00
		AUDIO IN2 BE	EF 03 06	00 62	DD 01	00 31 20	02 00
		OFF BE EF	03 06 00	02 DC	01 00	31 20 00	00
	Get BE EF 03		06 00 31	DC	02 00 31	20 00 00
LAN SOUND ENABLE	Set	Disable	BE EF	03	06 00	BA F0	01 00	A3 20
		Enable	BE EF	03	06 00	2A F1	01 00	A3 20
	Get BE EF 03		06 00 89	F0 02	00 A3 20	00	00

RS-232C Communication / Network command table (continued)

Names Operation Type Header								CRC	Command Data
									Action Type Setting code
LANGUAGE	Set	ENGLISH BE EF	03 06 00 F7	D3 01	00 05 30	00 00
		FRANÇAIS BE EF	03 06 00 67	D2 01	00 05 30	01 00
		DEUTSCH BE EF	03 06 00 97	D2 01	00 05 30	02 00
		ESPAÑOL	BE EF 03	06 00	07 D3 01	00 05 30 03	00
		ITALIANO BE EF	03 06 00 37	D1 01	00 05 30	04 00
		NORSK	BE EF 03	06 00	A7 D0 01	00 05 30 05	00
		NEDERLANDS	BE EF 03	06 00	57 D0 01	00 05 30 06	00
		PORTUGUÊS	BE EF 03	06 00	C7 D1 01	00 05 30 07	00
		日本語	BE EF 03	06 00	37 D4 01	00 05 30 08	00
		简体中文	BE EF 03	06 00	A7 D5 01	00 05 30 09	00
		繁體中文	BE EF 03	06 00	37 DE 01	00 05 30 10	00
		한글	BE EF 03	06 00	57 D5 01	00 05 30 0A	00
		SVENSKA BE EF	03 06 00 C7	D4 01	00 05 30	0B	00
		РУССКИЙ BE EF	03 06 00 F7	D6 01	00 05 30	0C	00
		SUOMI	BE EF 03	06 00	67 D7 01	00 05 30	0D	00
		POLSKI	BE EF 03	06 00	97 D7 01	00 05 30	0E	00
		TÜRKÇE	BE EF 03	06 00	07 D6 01	00 05 30	0F	00
	Get		BE EF 03	06 00	C4 D3 02	00 05 30 00	00
MENU POSITION V	Get BE EF 03	06 00 40	D7 02	00 16	3	00 00
	Increment BE EF	03 06 00	26 D7	04 00 16	30 00 00
	Decrement BE EF	03 06 00	F7 D6	05 00 16	30 00 00
MENU POSITION V Reset	Execute BE EF	03 06 00	A8 C7	06 00 44	70 00 00
MENU POSITION H	Get BE EF 03	06 00 04	D7 02	00 15	3	00 00
	Increment BE EF	03 06 00	62 D7	04 00 15	30 00 00
	Decrement BE EF	03 06 00	B3 D6	05 00 15	30 00 00
MENU POSITION H Reset	Execute BE EF	03 06 00	DC C6	06 00 43	70 00 00
BLANK	Set	My Screen	BE EF	03 06	00 FB CA	01 00 00	30 20 00
		ORIGINAL	BE EF	03 06	00 FB E2	01 00 00	30 40 00
		BLUE BE EF	03 06 00	CB D3	01 00 00	00 30 03	00
		WHITE	BE EF	03 06	00 6B D0	01 00 00	30 05 00
		BLACK	BE EF	03 06	00 9B D0	01 00 00	30 06 00
	Get BE EF 03	06 00 08	D3 02	00 00 3	00 00 00
BLANK On/Off	Set	OFF	BE EF	03 06	00 FB D8	01 00 20	30 00 00
		ON	BE EF	03 06	00 6B D9	01 00 20	30 01 00
	Get BE EF 03	06 00 C8	D8 02	00 20	30 00 00
AUTO BLANK	Set	BLUE BE EF	03 06 00	67 D1	01 00 00	D 30	03 00
		WHITE	BE EF	03 06	00 C7 D2	01 00 0D	30	05 00
		BLACK	BE EF	03	06 00	37 D2	01 00	0D 30	06 00
	Get BE EF 03	06 00 A4	D1 02	00 0D	30 00	00
START UP	Set	My Screen	BE EF	03	06 00	CB CB	01 00	04 30	20 00
		ORIGINAL	BE EF	03 06	00 0B D2	01 00 04	30 00 00
		OFF	BE EF	03 06	00 9B D3	01 00 04	30 01 00
	Get BE EF 03	06 00 38	D2 02	00 04	30 00 00
My Screen Lock	Set	OFF	BE EF	03 06	00 3B EF	01 00 C0	30	00 00
		ON	BE EF	03 06	00 AB EE	01 00 C0	30	01 00
	Get BE EF 03	06 00 08	EF 02	00 C0	30 00	00
OSD MESSAGE	Set	OFF	BE EF	03 06	00 8F	D6 01	00 17	30 00	00
		ON	BE EF	03 06	00 1F	D7 01	00 17	30 01	00
		HIDE	BE EF	03 06	00 EF	D7 01	00 17	30 02	00
	Get BE		EF 03 06		00 BC	D6 02	00 17	30 00	00
TEMPLATE	Set	TEST PATTERN	BE EF	03 06	43 D9 01	00 22	30 00	00
		DOT-LINE 1	BE EF	03 06	00 D3 D8	01 00 22	30	01 00
		DOT-LINE 2	BE EF	03 06	00 23 D8	01 00 22	30	02 00
		DOT-LINE 3	BE EF	03 06	00 B3 D9	01 00 22	30	03 00
		DOT-LINE 4	BE EF	03 06	00 83 DB	01 00 22	30	04 00
		CIRCLE 1	BE EF	03 06	00 13 DA	01 00 22	30	05 00
		CIRCLE 2	BE EF	03 06	00 E3 DA	01 00 22	30	06 00
		MAP 1	BE EF	03 06	00 83 D4	01 00 22	30	10 00
		MAP 2	BE EF	03 06	00 13 D5	01 00 22	30	11 00
		STACK	BE EF	03	06 00	83 C0	01 00	22 30	20 00
	Get		BE EF	03 06	00 70 D9	02 00 22	30	00 00
TEMPLATE On/Off	Set	OFF BE EF	03 06 00	BF D8 01 00 23			30 00 00
		ON BE EF	03 06 00	2F D9 01 00 23			30 01 00
	Get BE EF 03		06 00 8C	D8 02 00 23			30 00 00
Closed Caption C.C. - DISPLAY	Set	OFF BE EF	03 06 00	FA 62 01 00 00			37 00 00
		ON BE EF	03 06 00	6A 63 01 00 00			37 01 00
		AUTO	BE EF	03 06 00 9A 63			01 00 00	37 02 00
	Get BE EF 03		06 00 C9	62 02 00 00 3			7 00 00
Closed Caption C.C. - MODE	Set	CAPTIONS	BE EF	03 06 00 06 63			01 00 01	37 00 00
		TEXT	BE EF	03 06 00 96 62			01 00 01	37 01 00
	Get BE EF 03		06 00 35	63 02 00 01 3			7 00 00
Closed Caption C.C. - CHANNEL	Set	1	BE EF	03 06 00 D2 62			01 00 02	37 01 00
		2	BE EF	03 06 00 22 62			01 00 02	37 02 00
		3	BE EF	03 06 00 B2 63			01 00 02	37 03 00
		4	BE EF	03 06 00 82 61			01 00 02	37 04 00
	Get BE EF 03		06 00 71	63 02 00 02 3			7 00 00
SOURCE SKIP - COMPUTER IN	Set	NORMAL	BE EF	03 06 00 FE 78			01 00 20	22 00 00
		SKIP	BE EF	03 06 00 6E 79			01 00 20	22 01 00
	Get BE EF 03		06 00 CD	78 02 00 20			22 00 00
SOURCE SKIP - LAN	Set	NORMAL	BE EF	03 06 00 DA 7A			01 00 2B	22	00 00
		SKIP	BE EF	03 06 00 00			4A 7B	01 00	2B 22	01 00
	Get BE EF 03		06 00 E9	7A 02 00 2B			22 00	00
SOURCE SKIP - HDMI 1	Set	NORMAL	BE EF	03 06 00 BA 78			01 00 23	22 00 00
		SKIP	BE EF	03 06 00			2A 79	01 00	23 22	01 00
	Get BE EF 03		06 00 89	78 02 00 23			22 00 00
SOURCE SKIP - HDMI 2	Set	NORMAL	BE EF	03 06 00			52 7A	01 00	2D 22	00 00
		SKIP	BE EF	03 06 00			C2 7B	01 00	2D 22	01 00
	Get BE EF 03		06 00	61 7A 02 00 2D			22	00 00
SOURCE SKIP - HDBaseT	Set	NORMAL	BE EF	03 06 00 B6 EA			01 00 D6	20	00 00
		SKIP	BE EF	03 06 00			26 EB	01 00	D6 20	01 00
	Get BE EF 03		06 00 85	EA 02 00 D6			20 00	00
SOURCE SKIP - VIDEO	Set	NORMAL	BE EF	03 06 00 02 79			01 00 21	22 00 00
		SKIP	BE EF	03 06 00 92 78			01 00 21	22 01 00
	Get BE EF 03		06 00 31	79 02 00 21			22 00 00
AUTO SEARCH	Set	OFF BE EF	03 06 00	B6 D6 01 00 16			20 00 00
		ON BE EF	03 06 00	26 D7 01 00			16 20 01	00
	Get BE EF 03		06 00 85	D6 02 00 16			20 00 00
DIRECT POWER ON	Set	OFF BE EF	03 06 00	3B 89 01 00			20 31 00	00
		ON BE EF	03 06 00	AB 88 01 00 20			31 01 00
	Get BE EF 03		06 00 08	89 02 00 20			1 00 00
AUTO POWER OFF	Get BE EF 03		06 00 08	86 02 00 10			1 00 00
	Increment		BE EF	03 06 00 6E 86			04 00	10 31 00	00
	Decrement		BE EF	03 06 00 BF 87			05 00	10 31 00	00
SHUTTER TIMER	Set	1h	BE EF	03 06 00 27 92			01 00 06	24 01 00
		3h	BE EF	03 06 00 47 93			01 00 06	24 03 00
		6h	BE EF	03 06 00 17 90			01 00 06	24 06 00
	Get BE EF 03		06 00 84	93 02 00 06			24 00 00

Names Operation Type Header						CRC	Command Data
							Action Type Setting code
LAMP HOURS Lower Bytes	Get BE EF 03	06 00 C2	FF 02	00 90	10 00 00
LAMP HOURS Higher Bytes	Get BE EF 03	06 00 2A	FD 02	00 9E	10 00 00
LAMP HOURS Reset	Execute BE EF	03 06 00	58 DC	06 00 30	70 00 00
FILTER HOURS Lower Bytes	Get BE EF 03	06 00 C2	F0 02	00 A0	10 00 00
FILTER HOURS Higher Bytes	Get BE EF 03	06 00 D6	FC 02	00 9F	10 00 00
FILTER HOURS Reset	Execute BE EF	03 06 00	98 C6	06 00 40	70 00 00
MY BUTTON-1	Set	MY IMAGE BE	EF 03 06	00 5A	3D 01 00	00 36 16	00
		MESSENGER BE	EF 03 06	00 AA	29 01	00 00 36	25 00
		SHUTTER	BE EF 03	06 00	00 5A 26	01 00 00	36 32 00
		INFORMATION	BE EF 03	06	00 FA 3E	01 00 00	36 10 00
		MY MEMORY	BE EF 03	06	00 9A 3F	01 00 00	36 12 00
		DYNAMIC IRIS	BE EF 03	06	00 AA 3D	01 00 00	36 15 00
		PICTURE MODE	BE EF 03	06	00 0A 3E	01 00 00	36 13 00
		FILTER RESET BE	EF 03	06 00	3A 3C 01	00 00 36	14 00
		TEMPLATE	BE EF 03	06	00 CA 39	01 00 00	36 1B 00
		MUTE	BE EF 03	06	00 FA 20	01 00 00	36 38 00
		PbyP/PIP SWAP BE	BE EF 03	06 00	5A 38 01	00 00 36	1A 00
		PIP POSITION	BE EF 03	06	00 3A 22	01 00 00	36 3C 00
		BLANK	BE EF	03	06 00	FA 02	01 00	00 36	40 00
		RESOLUTION BE	EF 03	06 00	9A 3A 01	00 00 36	1E 00
		ECO MODE BE	EF 03	06	25 01 00	00 36 37	00
		eClarity	BE EF	03	06 00 9A 21	01 00 00	36 3A 00
		HDCR	BE EF	03	06 00 5A 23	01 00 00	36 3E 00
	Get BE EF 03		06 00 09	33 02	00 00 36	00 00
MY BUTTON-2	Set	MY IMAGE BE	EF 03	06	3C 01 00	01 36 16	00
		MESSENGER BE	EF 03	06	56 28 01	00 01 36	25 00
		SHUTTER	BE EF	03	06 A6 27	01 00 01	36 32 00
		INFORMATION	BE EF	03	06 00 66 3E	01 00 01	36 10 00
		MY MEMORY	BE EF	03	06 00 56 3C	01 00 01	36 12 00
		DYNAMIC IRIS	BE EF	03	06 F6 3F	01 00 01	36 15 00
		PICTURE MODE	BE EF	03	06 C6 3D 01	00 01 36	14 00
		FILTER RESET BE	EF 03	06	00 36 38	01 00 01	36 1B 00
		TEMPLATE	BE EF	03	06 00 66 21	01 00 01	36 38 00
		MUTE	BE EF	03	06 A6 39 01	00 01 36	1A 00
		PbyP/PIP SWAP BE	EF 03	06	00 C6 23	01 00 01	36 3C 00
		PIP POSITION	BE EF	03	06 00 66 3B 01	01 00 01	36 40 00
		BLANK	BE EF	03	06 24 01	00 01 36	1E 00
		RESOLUTION BE	EF 03	06	00 66 22	01 00 01	36 3A 00
		ECO MODE BE	EF 03	06	00 A6 22	01 00 01	36 3E 00
		eClarity	BE EF	03	06 00 01	36 00 00
		HDCR	BE EF	03	06 00 01	36 00 00
	Get BE EF 03		06 00 F5	32 02	00 01 36	00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header								CRC	Command Data
									Action Type Setting code
MY BUTTON-3	Set	MY IMAGE BE	EF 03 06	00 E2	3C 01	00	02 36 16	00
		MESSENGER BE	EF 03 06	00 1	2 28 01	00	02 36	25 00
		SHUTTER BE	EF 03 06	00 E2	27 01	00	02 36 32	00
		INFORMATION BE	EF 03 06	00	42 3F 01	00	02 36	10 00
		MY MEMORY BE	EF 03 06	00 2	2 3E 01	00	02 36	12 00
		DYNAMIC IRIS BE	EF 03 06	00	12 3C 01	00	02 36	15 00
		PICTURE MODE	BE EF	03 06	00 B2 3F	01	00 02	36 13 00
		FILTER RESET BE	BE EF	03 06	82 3D 01	00	02 36	14 00
		TEMPLATE	BE EF	03 06	00 72 38	01	00 02	36	1B 00
		MUTE	BE EF	03 06	00 42 21	01	00 02	36 38 00
		PbyP/PIP SWAP BE	BE EF	03 06	00 82 23	01	00 02	36	1A 00
		PIP POSITION	BE EF	03 06	00 42 03	01	00 02	36	3C 00
		BLANK	BE EF	03 06	00 42 03	01	00 02	36 40 00
		RESOLUTION BE	BE EF	03 06	22 3B 01	00	02 36	1E 00
		ECO MODE	BE EF	03 06	00 B2 24	01	00 02	36 37 00
		eClarity	BE EF	03 06	00 22 20	01	00 02	36	3A 00
		HDCR	BE EF	03 06	00 E2 22	01	00 02	36	3E 00
	Get		BE EF	03 06	00 B1 32	02	00 02	36 00 00
MY BUTTON-4	Set	MY IMAGE BE	EF 03 06	00 1E	3D 01	00	03 36 16	00
		MESSENGER BE	EF 03 06	00 EE	29 01	00	03 36	25 00
		SHUTTER BE	EF 03 06	00 1E	26 01	00	03 36 32	00
		INFORMATION BE	EF 03 06	00	BE 3E 01	00	03 36	10 00
		MY MEMORY BE	EF 03 06	00 DE	3F 01	00	03 36	12 00
		DYNAMIC IRIS BE	EF 03 06	00 EE	3D 01	00	03 36	15 00
		PICTURE MODE	BE EF	03 06	00 4E 3E	01	00 03	36 13 00
		FILTER RESET BE	BE EF	03 06	7E 3C 01	00	03 36	14 00
		TEMPLATE	BE EF	03 06	00 8E 39	01	00 03	36	1B 00
		MUTE	BE EF	03 06	00 BE 20	01	00 03	36 38 00
		PbyP/PIP SWAP BE	BE EF	03 06	1E 38 01	00	03 36	1A 00
		PIP POSITION	BE EF	03 06	00 7E 22	01	00 03	36	3C 00
		BLANK	BE EF	03 06	00 BE 02	01	00 03	36 40 00
		RESOLUTION BE	BE EF	03 06	DE 3A 01	00	03 36	1E 00
		ECO MODE	BE EF	03 06	00 4E 25	01	00 03	36 37 00
		eClarity	BE EF	03 06	00 DE 21	01	00 03	36	3A 00
		HDCR	BE EF	03 06	00 1E 23	01	00 03	36	3E 00
	Get		BE EF	03 06	00 4D 33	02	00 03	36 00 00
REMOTE RECEIV. HDBaseT	Set	OFF BE EF	03 06 00	BB 32	01 00 08	26 00 00
		ON BE EF	03 06 00	2B 33	01 00 03	26 01 00
	Get BE EF 03		06 00 88	32 02	00 03 26	00 00
REMOTE FREQ. NORMAL	Set	OFF BE EF	03 06 00	FF 3D	01 00 30	26 00 00
		ON BE EF	03 06 00	6F 3C	01 00 30	26 01 00
	Get BE EF 03		06 00 CC	3D 02	00 30	26 00 00
REMOTE FREQ. HIGH	Set	OFF BE EF	03 06 00	03 3C	01 00 31	26 00 00
		ON BE EF	03 06 00	93 3D	01 00 31	26 01 00
	Get BE EF 03		06 00 30	3C 02	00 31 26	00 00
REMOTE ID	Set	ALL	BE EF 03	06	00 9F 30	01 00 08	26 00 00
		1	BE EF 03	06	00 0F 31	01 00 08	26 01 00
		2	BE EF 03	06	00 FF 31	01 00 08	26 02 00
		3	BE EF 03	06	00 6F 30	01 00 08	26 03 00
		4	BE EF 03	06	00 5F 32	01 00 08	26 04 00
	Get BE EF 03		06 00 AC	30 02	00 08 26	00 00
MY IMAGE	Set	OFF BE EF	03 06 00	3A C3	01 00 00	35 00 00
		IMAGE-1	BE EF	03 06	00 AA C2	01 00 00	35 01 00
		IMAGE-2	BE EF	03 06	00 5A C2	01 00 00	35 02 00
		IMAGE-3	BE EF	03 06	00 CA C3	01 00 00	35 03 00
		IMAGE-4	BE EF	03 06	00 FA C1	01 00 00	35 04 00
	Get BE EF 03		06 00 09	C3 02	00 00 35	00 00
MY IMAGE IMAGE-1 Delete	Execute BE EF		03 06 00	71 C3	06 00 01	35 00 00
MY IMAGE IMAGE-2 Delete	Execute BE EF		03 06 00	35 C3	06 00 02	35 00 00
MY IMAGE IMAGE-3 Delete	Execute BE EF		03 06 00	C9	C2 06 00	03 35 00	00
MY IMAGE IMAGE-4 Delete	Execute BE EF		03 06 00	BD C3	06 00 04	35 00 00
AMX for LAN	Set	OFF BE EF	03 06 00	33 AC	01 00 30	1B	00 00
		ON	BE EF	03	06 00	A3 AD	01 00	30 1B	01 00
	Get BE EF 03		06 00 00	AC 02	00 30 1B	00	00
CRESTRON	Set	OFF BE EF	03 06 00	33 B2	01 00 50	1B	00 00
		ON BE EF	03 06 00	A3 B3	01 00 50	1B	01 00
	Get BE EF 03		06 00 00	B2 02	00 50 1B	00	00
EXTRON for HDBaseT	Set	OFF	BE EF	03	06 00	33 BD	01 00	60 1B	00 00
		ON BE EF	03 06 00	A3 BC	01 00 60	1B	01 00
	Get		BE EF	03	06 00	00 BD	02 00	60 1B	00 00
HDMI OUT RESOLUTION	Set	EXTERNAL DEVICE	BE EF 03 06	00 46 EF	01 00 C2		20 00 00
		PROJECTOR BE EF 03 06 00 D6 EE 01			00 C2 20		01 00
	Get BE EF 03 06 00 75 EF 02 00 C2 20 00 00
STANDBY OUTPUT - AUDIO OUT	Set	OFF BE EF 03 06 00 EA DE 01 00 3F 20 00					00
		AUDIO IN1	BE EF	03	06 00		7A DF	01 00	3F 20	01 00
		AUDIO IN2	BE EF	03	06 00		8A DF	01 00	3F 20	02 00
		HDMI 1	BE EF	03	06 00		2A C7	01 00	3F 20	20 00
		HDMI 2	BE EF 03 06	00 BA C6			01 00 3F	20 21 00
		HDBaseT	BE EF 03 06	00 EA C5			01 00 3F	20 24 00
	Get BE EF 03 06 00 D9 DE 02 00 3F 20 00 00
STANDBY OUTPUT - MONITOR OUT	Set	COMPUTER IN	BE EF 03 06	00 2A F7			01 00 BF	20 00 00
		OFF BE EF 03 06 00 DA B6 01 00 BF 20					FF 00
	Get BE EF 03 06 00 19 F7 02 00 BF 20 00 00
STANDBY OUTPUT - HDMI OUT	Set	HDMI 1	BE EF 03 06	00 F2			EF 01 00	C1 20 03	00
		HDBaseT	BE EF 03 06	00 52 E3			01 00 C1	20 11 00
		OFF	BE EF	03	06 00		F2 AE	01 00	C1 20	FF 00
	Get BE EF 03 06 00 31 EF 02 00 C1 20 00 00
HDMI OUTPUT Enable	Set	OFF BE EF 03 06 00 02 2C 01 00 31 23					00 00
		ON	BE EF 03 06	00 92 2D			01 00 31	23 01 00
	Get BE EF 03 06 00 31 2C 02 00 31 23 00						00
HDMI OUTPUT - COMPUTER IN	Set	HDMI 1	BE EF	03	06 00		CE 37	01 00	40 23	03 00
		HDBaseT	BE EF	03	06 00		6E 3B	01 00	40 23	11 00
	Get BE EF 03 06 00 0D 37 02 00 40 23 00						00
HDMI OUTPUT - VIDEO	Set	HDMI 1	BE EF 03 06	00 32 36			01 00 41	23 03 00
		HDBaseT	BE EF 03 06	00 92 3A			01 00 41	23 11 00
	Get BE EF 03 06 00 F1 36 02 00 41 23 00						00
HDMI OUTPUT - HDMI 1	Get BE EF 03 06 00 49 37 02 00 43 23 00						00
HDMI OUTPUT - LAN	Set	HDMI 1	BE EF 03 06	00 EA 35			01 00 4B	23 03 00
		HDBaseT	BE EF 03 06	00 4A 39			01 00 4B	23 11 00
	Get BE EF 03 06 00 29 35 02 00 4B 23 00 00
HDMI OUTPUT - HDMI 2	Set	HDMI 1	BE EF 03 06	00 62 35			01 00 4D	23 03 00
		HDBaseT	BE EF 03 06	00 C2 39			01 00 4D	23 11 00
	Get BE EF 03 06 00 A1 35 02 00 4D 23 00 00
HDMI OUTPUT - HDBaseT	Get BE EF 03 06 00 31 32 02 00 51 23 00						00

PJLink command

Commands	Control Description Parameter	or Response
POWR Power Control		0 = Standby1 = Power On
POWR ? Power Status inquiry		0 = Standby1 = Power On2 = Cool Down
INPT Input Source selection		11 = COMPUTER IN23 = VIDEO31 = HDMI 133 = HDMI 236 = HDBaseT51 = LAN
INPT ? Input Source inquiry		11 = COMPUTER IN23 = VIDEO31 = HDMI 133 = HDMI 236 = HDBaseT51 = LAN
AVMT AV	Mute	10 = BLANK off11 = BLANK on20 = Mute off21 = Mute on30 = AV Mute off31 = AV Mute on
AVMT ? AV	Mute inquiry	10 = BLANK off11 = BLANK on20 = Mute off21 = Mute on30 = AV Mute off31 = AV Mute on

(continued on next page)

Commands	Control Description Parameter or Response
ERST ? Error Status inquiry		1st byte: Refers to Fan error; one of 0 to 22nd byte: Refers to Lamp error; one of 0 to 23rd byte: Refers to Temperature error; one of 0 to 24th byte: Refers to Cover error; one of 0 to 25th byte: Refers to Filter error; one of 0 to 26th byte: Refers to Other error; one of 0 to 2The meaning of 0 to 2 is as given below0 = Error is not detected1 = Warning 2 = Error
LAMP ? Lamp Status inquiry		1st number (digits 1 to 5): Lamp Time2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 23		31 33 36 51
NAME ? Projector Name inquiry		Responds with the name set in the itemPROJECTOR NAME of the NETWORK -NETWORK SETUP menu
INF1 ?	Manufacturer's Nameinquiry	CHRISTIE
INF2 ? Model Name inquiry		LWU502LW502
INFO ? Other Information inquiry		Responds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Web Control. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

PJLink™

Corporate offices

USA-Cypress

ph:714-236-8610

Canada - Kitchener

ph:519-744-8005

Consultant offices

Italy

ph:[phone]

Worldwide offices

Australia

ph:[phone]

Brazil

ph:[phone]

China(Beijing)

ph:[phone]

China(Shanghai)

ph:[phone]

Eastern Europe and

Russian Federation

ph:[phone]

France

ph:[phone]

Germany

ph:[phone]

India

ph:[phone]

Japan

ph:81-3-3599-7481

Korea (Seoul)

ph:[phone]

Republic of South Africa

ph:[phone]

Singapore

ph:[phone]

Spain

ph:[phone]

United Arab Emirates

ph:[phone]

United Kingdom

ph:[phone]
