USER MANUAL KCH 1861 NP W OAK Kernau

INSTRUKCJA MONTAŻU I OBŁSUGI OKAPU KCH 1861 NP / KCH 1861 NP OAK KCH 1891 NP / KCH 1891 NP OAK

Exterior view of a beige kitchen range hood with wooden trim (no text or symbols)

KERNAU

www.kernau.com

KERNAU

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

S1

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

S2

S3
S4

Technical line drawing of a mechanical component with no visible text or symbols

S5

KERNAU

SZANOWNI KLIENCI,

Illustration of a beige kitchen range hood with wooden trim and a curved base (no text or symbols)

KERNAU

www.kernau.com

KERNAU

Pure technical line drawing of a mechanical component or bracket with no visible text, numbers, or symbols

S1

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

S2

S3
S4

Technical line drawing of a mechanical component with no visible text or symbols

S5

VÁŽENÍ ZÁKAZNÍCI,

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

MANUAL INSTRUCTION OF KITCHEN HOOD

KCH 1861 NP / KCH 1861 NP OAK

KCH 1891 NP / KCH 1891 NP OAK

Exterior view of a beige kitchen range hood with wooden trim (no text or symbols)

KERNAU

www.kernau.com

KERNAU

Abstract geometric pattern with overlapping rectangular shapes and a diagonal line (no text or symbols)

S1

Simple line drawing of a mechanical or fluid system with two curved arrows pointing downward, no text or symbols present.

S2

Technical line drawing of a mechanical component with no visible text or symbols

S5

KERNAU

Dear Customer,

You have become users of the latest generation kitchen hood type KCH 1861 NP, KCH 1861 NP OAK, KCH 1891 NP, KCH 1891 NP OAK This hood was designed and made especially for fulfillment of yours expectations and it will certainly be part of a modern equipped kitchen. Modern constructions and new technology used in it ensure high functionality and aesthetics.

Please read this manual carefully before installation of kitchen hood. Thanks to this You will avoid incorrect installation and maintenance of the kitchen hood.

We wish You satisfaction with the choice of our company's hood.

Contents:

Technical parameters.... 31

Operation conditions.... 31

Purpose and type of work.... 32

Power connection.... 32

Hood installation.... 33

Maintenance and cleaning.... 33

Grease filter.... 33

Carbon filter.... 34

Replacement of lightening.... 34

Mechanical control.... 35

Removing used appliances.... 35

Efficiency 375m3/h

Rated voltage 220-240V \~50Hz

Total power 112,4 W

Lightbulb power 2x1,2 W (Max 1,2W, GU10)

Air outlet ∅150mm

Operation conditions

1. When installing the device, comply with the conditions and guidelines contained in these instructions for use.
2. The manufacturer declines all responsibility for damages resulting from the installation inconsistent with the information given in this manual.
3. The hood may differ in appearance from the hood shown in the drawings of this manual, but the recommendations for operation, maintenance and assembly remain unchanged.
4. The device is intended for home use. The warranty conditions change when used for the catering business.
5. Keep the operating instructions in order to be able to use them at any time. If you sell the device or move out from your residency, make sure that the operating instructions are included with appliance.
6. Carefully read the operating instructions, which provide accurate information regarding installation, use and care of the device.
7. Do not make any electrical or mechanical changes to the device or the drain lines.
8. Do not pull the plug out of the socket by pulling the cord.
9. The power cord must not touch a hot surface.
10. Do not operate the device if the power cord is damaged.
11. Any changes made to the construction of the hood by persons without the appropriate permissions result in exclusion of the manufacturer's liability for the product.
12. The hood should never be used as a support surface, unless such possibility has been clearly indicated.
13. The kitchen hood is used to remove kitchen vapors outside, it should be connected to adequate ventilation duct (do not connect it to chimney, smoke, flue ducts in use).

14. If, in addition to the hood, other non-electric devices are used in the room (e.g. liquid fuel stoves, flow heaters, thermostats), sufficient ventilation should be ensured.

15. Unplug the appliance from the socket before each cleaning operation, filter change or before carrying out any repair work.

16. Do not connect the device to the mains before completing assembly.
17. All assembly and maintenance operations should be carried out using protective gloves.
18. Before connecting the hood to the mains power supply and checking its proper operation, always check that the power cable has been correctly installed and that it has not been crushed by the hood during installation.
19. Never use the hood without properly installed filters.
20. To the range necessary for the application of technical and safety measures regarding the discharge of flue gases, the regulations issued by the competent local authorities must be strictly observed.
21. The kitchen hood should be cleaned inside and outside (min once at month, according with maintenance tips given in these manual), overheated fat is flammable.
22. Under the kitchen hood do not leave the open fire. Set the minimum flame when removing dishes from the burner.
23. The use of open fire is dangerous to filters and creates the risk of fire, so do not under any circumstances. When frying, be careful not to overheat the oil so that it does not ignite. Available parts can become very hot if used together with cooking appliances.
24. Damaged the power cord should be replaced with special cord available at manufacturer or specialist repair shop.
25. The vapors cannot be discharged in the chimney duct used to remove flue gas from appliances burning gas or other fules (do not apply to closed circulation).
26. If the cleaning process is not carried out according to the instructions, there is a risk of fire.
27. To aviod electric shock, do not use or leave the hood without correctly installed lightbulbs.

CAUTION!

The device is wrapped in foil, which may cause a danger situation. To avoid the risk of an accident, keep the foil away from children. Also do not allow children to play nearby or use the hood.

Purpose and type of work

This hood is intended to work in filtering mode with internal recirculation, closed circuit.

Hood installation

The minimum distance between the surface on which the dishes on the heating device are located and the lowest part of the kitchen hood should be not less than 45cm in the case of electric cookers and not less than 65cm in the case of gas or electric-gas cookres. If the heating appliance manual instruction indicates a grater installation distance for the kitchen hood, please follow these indications.

Assembly the hood is shown in Figure S3. When installing the hood, the general applicable regulations must be observed exhaust air from the room. It should be taken into account that use spiral aluminum pipes limits the hood's performance and increases the volume flowing air.

Power connection

The mains voltage should comply with the conditions specified on the rating plate located inside the hood. If the hood is equipped with plug, it should be placed in a socket that meets the requirements of applicable regulations and located in easily accessible place. If the hood is not equipped with plug, installation of the hood entrust to the qualified technician.

CAUTION!

Before reconnection the hood circiut to the power supply and checking if works correctly, should always make sure if the cord is properly mounted. The hood is equipped with special power cord. In case of damage this power cord, please order it in service center.

Maintenance and cleaning

Before undertaking any operations related to the maintenance of the device, disconnect the hood from the power supply network. The device should be washed with specialized agents for surfaces made of stainless steel. The hood should be cleaned with mild agents, do not use abrasives. Regular maintenance will improve the operation of the hood.

DO NOT USE ALCOHOL!

CAUTION!

Failure to comply with the regulations regarding cleaning of the device and replacement of filters creates the risk of fire. It is therefore recommended to follow the given instructions.

The manufacturer is not responsible for any damage to the engine or fires resulting from non-compliance with the maintenance rules and the instructions mentioned above.

Grease filter

The hood is equipped with an aluminum filter. The filter is removed by moving the locks in the direction shown by the arrow (figure S1). The filter should be washed by hands as follow: by immersing it in water with a liquid at a temperature of 40-50^ C for 15 minutes. After the 15 minutes, start washing and rinse

the filter thoroughly. The filter must be completely dry before placed in the hood again. A filter that is not cleaned regularly reduces hood efficiency an can cause fire. When washing in the dishwasher, filter may change color or discolor, but this does not affect its filtering properties.

Carbon filter

(only for closed circuit)

The hood may be equipped with the carbon filters. Carbon filters are use only when the hood is not connected to the ventilation duct. Filters should be installed on turbin housing as shown figure S5. In this case, the purified air is forwarded back to the room. The hood should not be connected to the ventilation ducts. In order to ensure proper hood operation and effective odor absorption, the carbon filters should be repalced regularly (every 3 to 6 months) depending on the intensity of use of the hood. The carbon filter is not a standard equipment of the hood, this is an additional paid option.

Replacement of lightening

Before undertaking any operations related to the replacement of lightbulbs, the hood should be disconnected from the power supply network. If the hood was corectly disconnected from the power supply, please wait a few minutes, and after the cooling the lightbulb, it can be replaced.

CAUTION!

Do not touch light bulbs as long as they are hot. Be careful not to touch directly the halogen bulb with bare hands.

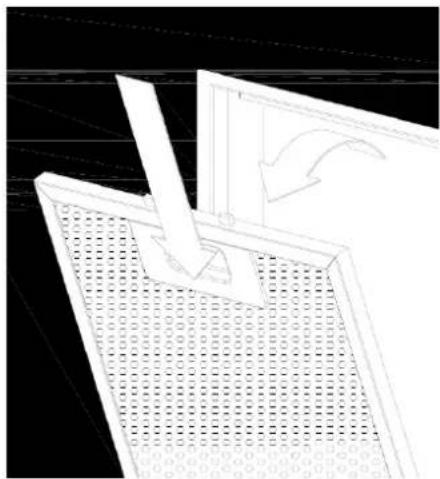

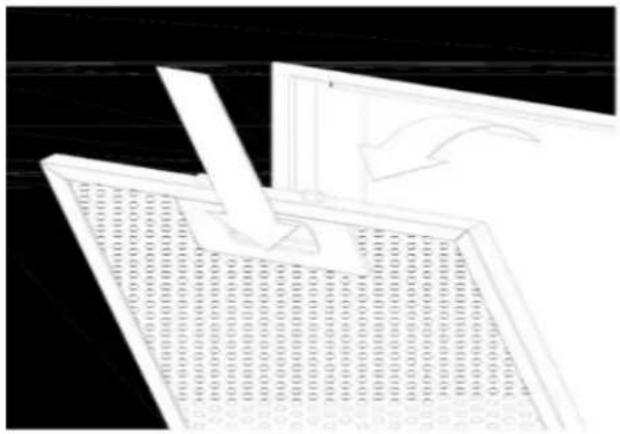

Replacement aluminium filter - fig. S1

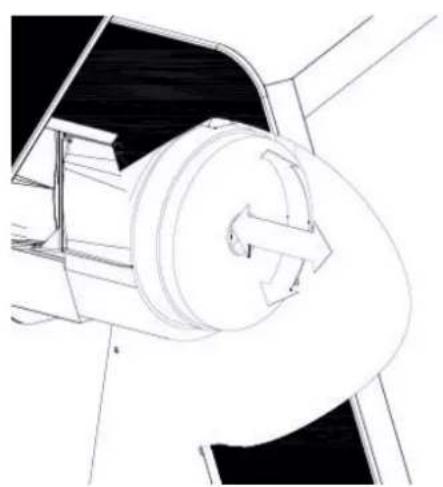

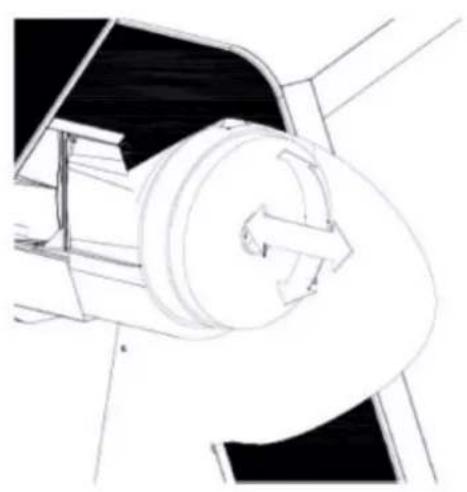

Replacement of lightening - fig. S2

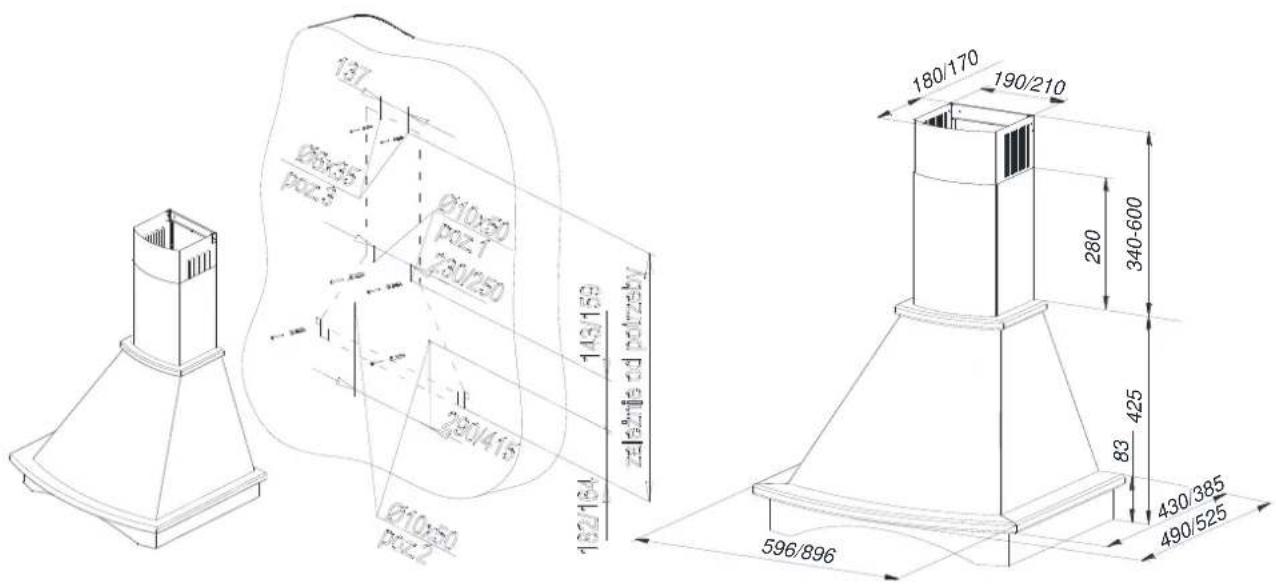

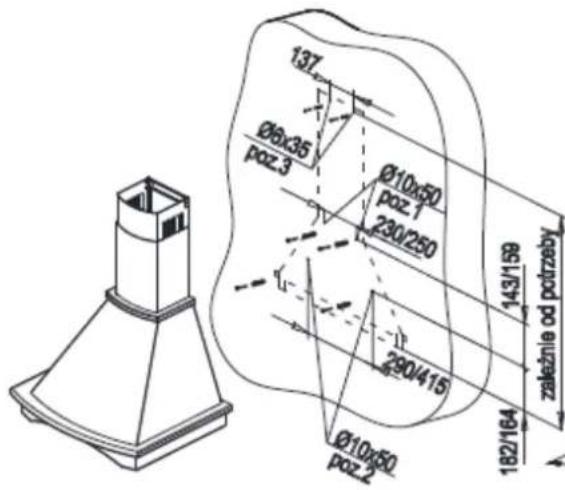

Installation of the kitchen hood - fig. S3

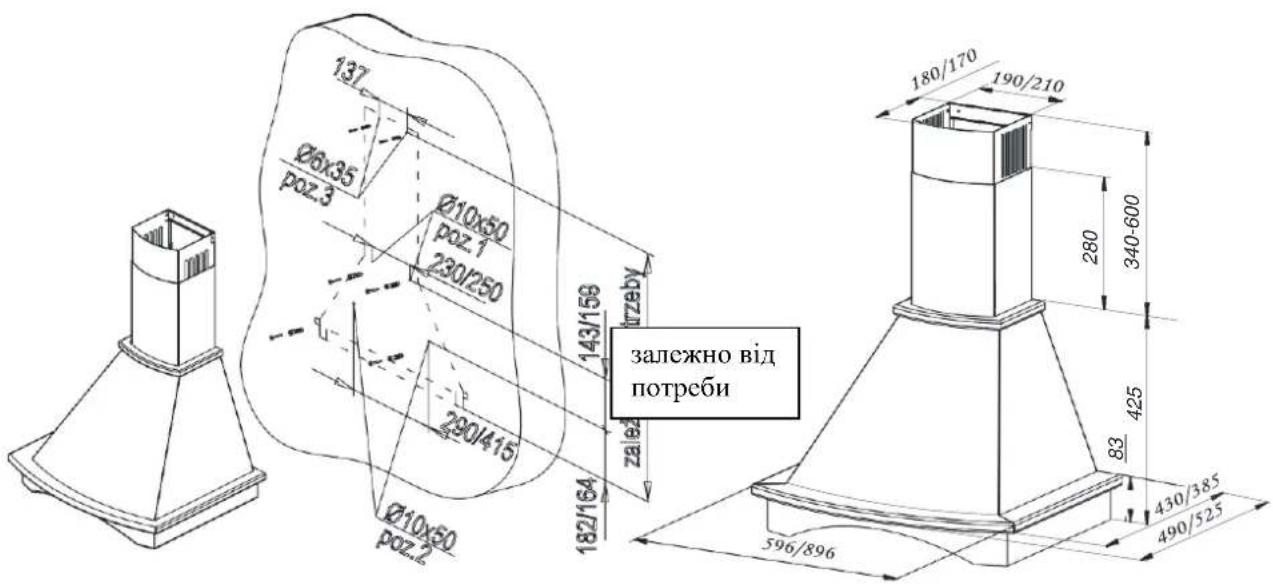

Dimensions of the kitchen hood - fig. S4

Ways to reduce impact of cooking on environment

To reduce the consumption of the energy should prepare the meals in the dishes under the lid. The aluminium filters need to be kept clean. Recommended working time of the aluminium filter between its cleanings is 35h of the hood's work.

Keep ventilation ducts clear on regular basis. The turbine operating level during cooking should always be set to the minimum gear that will allow the removal of vendors at the current cooking intensity.

The technical data in this manual and on the attached labels were obtained by carrying out measurements and calculations in accordance with the requirements of EU Regulations No. 65/2014 and 66/2014.

Mechanical control

The switch located next to the fan symbol serves to turning on the fan and regulates the motor speed as a consequence, the amount of sucked air:

Position 0 – fan is not working

Position I – low speed

Position II - medium speed

Position III - high speed

The switch located next to the lightbulb symbol serves to turning on the lightning:

Position 0 – light is OFF

Position I - light is ON

The control is done by moving the slider to the right or left.

Removing used appliances

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

After finishing using the equipment the product must not be disposed of with household waste. It should be taken to the collection and recycling point for electrical and electronic equipment. This is indicated by the symbol placed on the product, in the manual instructions or on the packaging. The plastics used in the device can be reused according with their designations. Thanks to re-use, use of materials or other forms of used equipment, you make a significant impact to environmental protection. For information on the appropriate point of disposal of used devices, please contact your commune administrator.

Exterior view of a beige kitchen chimney with a curved base (no text or symbols visible)

KERNAU

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

S1 S2

Simple line drawing of a curved object with an arrow indicating direction, no text or symbols present

S3
S4

Technical line drawing of a mechanical component with no visible text or symbols

S5

KERNAU

ШАНОВНІ КЛІЄНТИ!
