Product Type	Refrigerator with freezer compartment
Brand	Menuett
Model	006-587
Energy Class	A++
Noise Level	39 dB
Power	70 W
Voltage / Frequency	230 V ~ 50 Hz
Fridge Volume	97 L
Freezer Volume	16 L
Total Dimensions (W x H x D)	553 x 845 x 574 mm
Weight	27.3 kg
Climate Class	ST/N (16°C – 38°C)
Defrost Type	Manual (static)
Thermostat Control	Dial, from Cold to Colder
Shelves	2 adjustable glass shelves
Vegetable Drawer	1 crisper box
Door Reversibility	Yes, user-reversible
Accessories Included	Egg holder, ice tray, plastic scraper
Freezing Capacity	2 kg/24h
Power Cut Safety	Temperature rise time 15 hours
Required Clearance (side/back/top)	200 mm / 200 mm / 300 mm
Refrigerant	Not specified, but circuit must not be damaged
Child Safety	Door removal recommended before disposal
Warranty	Refer to manufacturer

Frequently Asked Questions - 006-587 Menuett

How do I set the temperature on my Menuett 006-587 fridge?

Use the thermostat dial on the front of the fridge. Turn it between Cold and Colder to adjust the temperature. The exact temperature depends on ambient conditions; check and adjust as needed.

How do I defrost the freezer?

Unplug the fridge, open the door, and remove all food. Wait until the ice melts naturally. Use the provided plastic scraper to loosen ice if needed. Never use sharp objects. Wipe dry, close the door, and plug back in.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow steps in the manual: remove top plate, undo hinges, move components to the opposite side, adjust levelling foot, and refit. It's easier with two people.

Why is my fridge making noise?

Common causes: the fridge is not level, or touching other objects. Ensure it is level using the adjustable feet and that there is adequate clearance (200 mm sides/back, 300 mm top). Also, a gurgling sound from refrigerant flow is normal.

What should I do if the fridge is not cooling properly?

Check if the plug is properly connected. Ensure the door closes fully and the seal is clean and undamaged. Verify the fridge is level. Also allow 2 hours after first use or defrosting before adding food. If the problem persists, contact service.

How much clearance is needed around the fridge?

Leave at least 200 mm on each side, 200 mm behind, and 300 mm above for proper ventilation. Do not place near heat sources or in direct sunlight.

Can I use an extension cord?

No. The fridge must be directly connected to a correctly earthed wall outlet. Do not use an extension cord, power strip, or adapter.

How should I clean the fridge?

Unplug the fridge first. Clean with a cloth moistened with water and a mild detergent. Wipe dry. Do not use abrasive, strong detergents, bleach, or petroleum-based products, especially on plastic or rubber parts.

What should I do if the fridge will not be used for a long time?

Unplug, empty and defrost the fridge, clean and dry inside, then leave the door slightly open to prevent odors.

Where can I find the energy label and technical data?

The energy efficiency class is A++. Annual energy consumption is 136 kWh/year. Full specifications are on the product data sheet and type plate.

USER MANUAL 006-587 Menuett

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

SE KYLSKÅP

Bruksanvisning i original

Operating instructions

(Translation of the original instructions)

Important! Read the user instructions carefully before use.

Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

Exterior view of a large industrial refrigerator with visible internal components and wiring (no text or symbols)

3

Technical diagram of a mechanical assembly with a highlighted green component and mounting holes (no text or symbols)

4

3D mechanical assembly diagram showing internal components and a rotating arrow (no text or symbols)

5

Simple line drawing of a rectangular frame with a curved arrow indicating rotation or motion (no text or symbols)

6

3D CAD model of a mechanical assembly with green PCB and curved internal structure (no text or symbols)

3D diagram of a mechanical assembly with layered components and a curved arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular frame with grid top and bottom base, no text or symbols present

SÄKERHETSANVISNINGAR

- Packaging materials and products that have reached the end of their useful life must be recycled in accordance with local regulations.

- Use the product only for its intended purpose.

- The product is intended for household use, or for use in staff rooms, hotel rooms or other similar places.

- If the power cord or plug are damaged they must be replaced by an authorised service center to ensure safe use.

- Do not store explosive or flammable substances or objects in the product, such as spray cans with propellant gas.

- Switch off the product, pull out the plug, and wait until the product has completely cooled before cleaning and/or maintenance.

- Do not use an extension cord or plug adapter, or the equivalent.

• Pull out the plug before fitting accessories.

- This product can be used by children from 8 years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the product and understand the risks involved. Keep children under supervision to make sure they do not play with the product. Do not allow children to use, clean or maintain the product without supervision.

WARNING!

- Fire risk – flammable material.

• Always keep the ventilation openings clean.

- Never use other objects or methods than those recommended by the manufacturer to defrost the product.

• Make sure that the refrigerant circuit is not damaged.

• Do not use electrical devices in the product, unless recommended by the manufacturer.
• Route the power cord so that it cannot be driven over, trod on or pinched, or tripped over.
• Do not connect the product to a power strip or portable power supply unit.
• DANGER: Risk of child getting trapped. Before discarding, lift off the door. Leave the shelves in place, this makes it more difficult for children to climb in.

SYMBOLS

	Read the instructions.
	Approved as per applicable directives/regulations.
	Recycle discarded product in accordance with local regulations.
	Warning! Risk of fire

TECHNICAL DATA

Rated voltage 230 V	~ 50 Hz
Size 553 x 845 x 574 mm
Volume fridge 97 L
Volume freezer 16 L
Noise level 39 dB
Energy class A++
Output	70 W
Weight 27.3 kg

DESCRIPTION

1. Freezer compartment
2. Thermostat
3. Shelves 2x
4. Vegetables box
5. Levelling foot
6. Reversible door

Accessory

1. Egg holder
2. Ice tray
3. Plastic scraper

FIG. 1

INSTALLATION

UNPACKING

• Remove tape and any stickers from the fridge before use (except for type plate).
• Rub off any residual glue with your fingers, or with a little detergent. Wipe with warm water and then wipe dry.
• Do not use sharp objects or flammable or abrasive detergent, this can damage the surface the fridge.
• Do not tilt the fridge more than 45^ when moving.

WARNING!

At least two persons are needed to lift the fridge, otherwise there is a risk of personal injury.

SPACE REQUIREMENT

• Leave at least 200 mm of free space on each side, 200 mm behind and 300 mm above the fridge, to ensure adequate ventilation.
• If the fridge is placed adjacent to a wall, leave enough space to open the door.
• Do not put the fridge near a source of heat, or in direct sunlight.

ELECTRICAL CONNECTION

• The fridge must only be connected to a correctly earthed power point, 220–240 VAC, 50 Hz, with a mains fuse of 10 A.
• The fridge should be connected to a separate circuit.
• Do not connect the fridge to a power point that can be switched off.
• Do not use an extension cord.

NOTE:

Pull out the plug before installation. When ready, plug in the plug and adjust the settings.

ELECTRICAL DATA

• Failure to follow all the instructions and safety instructions can lead to the risk of electric shock, fire, serious personal injury and/or material damage.
• Check that the mains voltage corresponds to the rated voltage on the type plate.

WARNING!

The plug must be plugged into a correctly installed earthed power point. Never modify the plug in any way. Do not use an extension cord or plug adapter, or the equivalent.

LEVELLING

• It is very important that the fridge is levelled on installation, otherwise the door might not close properly which can cause inadequate cooling or problems with frosting or moisture.
• Turn the levelling foot clockwise to raise the level or anticlockwise to lower it.

NOTE:

It is easier to adjust the levelling foot if someone lifts the fridge slightly to relieve the levelling foot.

Put on the door.

1. Pull out the plug and empty the fridge.
2. Adjust the two levelling feet to the highest position.
3. Undo the screws that hold the top plate with a Phillips screwdriver and lift off the top plate.

FIG. 2

1. Undo the screws that hold the top hinge with a Phillips screwdriver.

FIG. 3

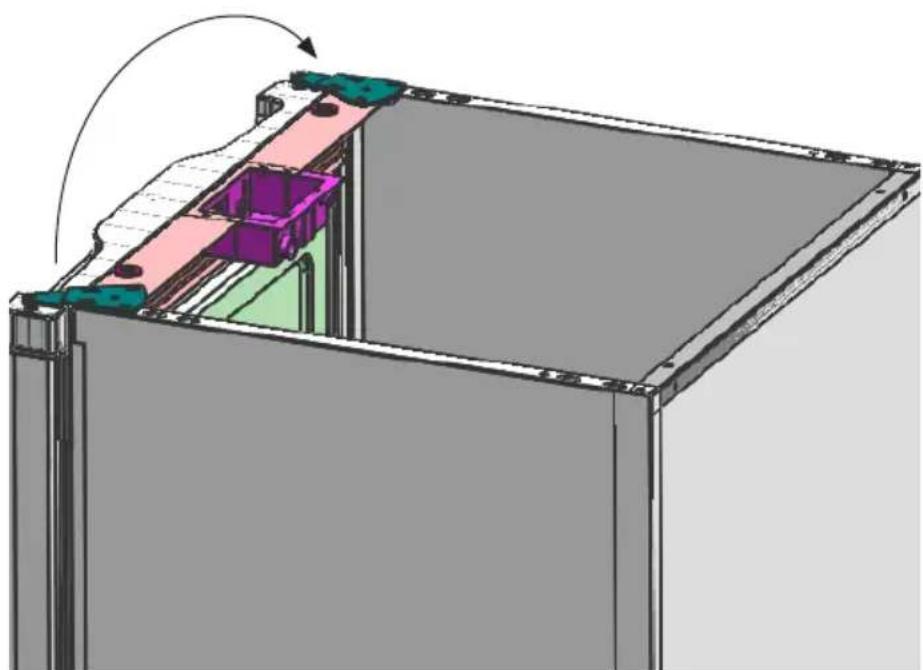

1. Move the top hinge, doorstop and bushing to the other side.

A. Fit the top hinge.

FIG. 4

B. Fit the bushing and doorstop.

FIG. 5

1. Undo the screws that hold the bottom hinge with a Phillips screwdriver and fit the hinge on the other side with the screws.

FIG. 6

1. Move the levelling foot to the other side and adjust so that the fridge is level.

FIG. 7

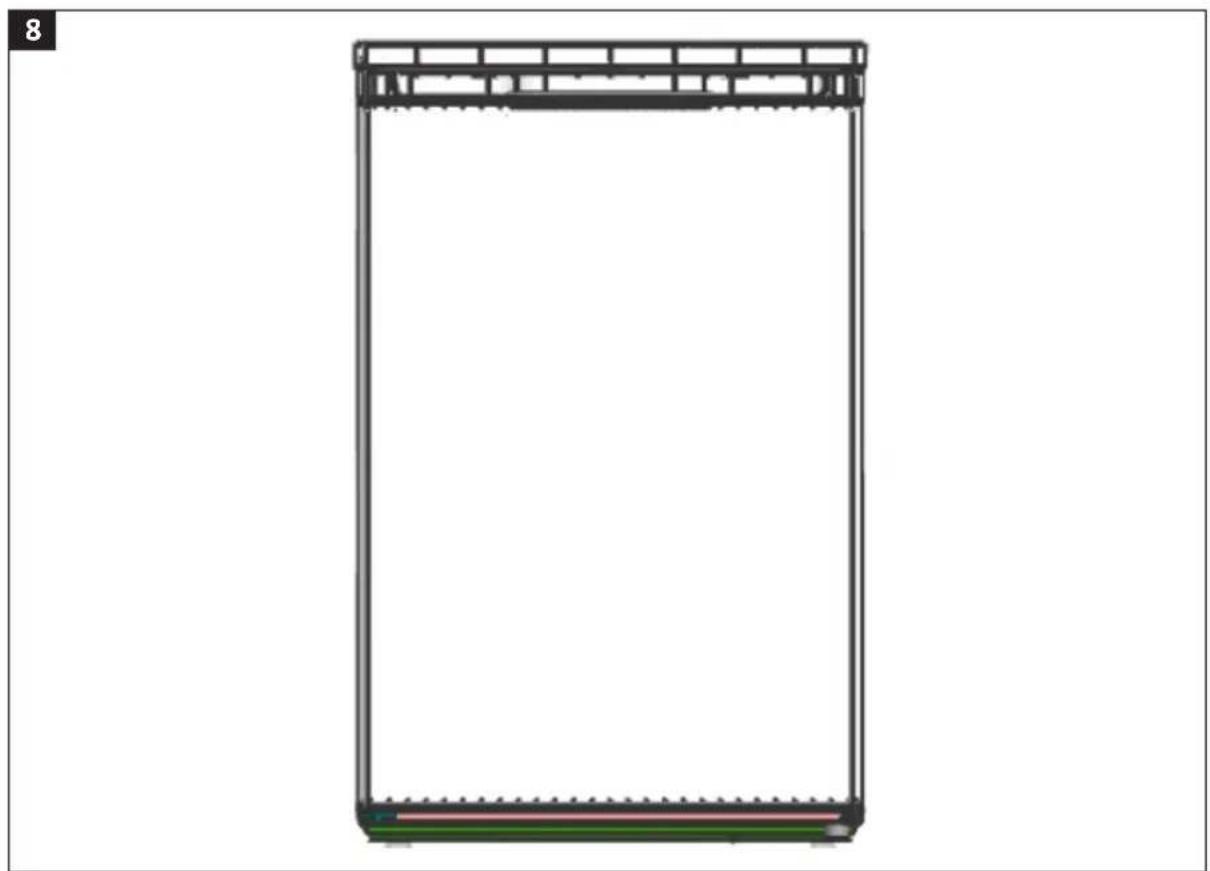

1. Put the door in place, fit the top hinge, and replace the top plate.

FIG. 8

NOTE:

• Do not tilt the fridge more than 45^ .
  • This is most easily done by two persons.

USE

BEFORE USE

Remove all packaging materials and any transport protection, especially between the condenser and the cubicle. Clean the inside of the cubicle.

HOW TO USE

Temperature setting

1. Set the required temperature with the thermostat dial on the front of the fridge. The thermostat can be set between Cold and Colder.
2. The exact temperature inside the deepfreeze depends on the ambient temperature. Check the temperature, and adjust if necessary.

Freezing food

1. The first time the fridge is used, or after defrosting, turn the thermostat to the coldest position and wait at least 2 hours before putting in any food.

2. Frozen food should be put in the freezer as soon as possible after purchasing to avoid thawing.

NOTE:

• Always follow the recommendations of the food manufacturer.
• Be careful to make sure the drawers do not damage the refrigerant tubes.

Freezing fresh food.

• Pay attention to food hygiene – freezing does not sterilise food.
• Divide up and prepack the food in suitable portions before freezing.
• Never put warm food in the freezer.
• Pack the food in plastic bags, foil, or containers intended for deep-freezing, before freezing.
• For best results leave free space so that the air can circulate between the food in the freezer.

NOTE:

Never put food or drinks in bottles in the freezer.

DEFROSTING

1. Pull out the plug, open the door, and take out all the food.
2. Store the food in a cool place.
3. Wait until all the ice in the freezer has melted. Some off the ice can be loosened with a plastic scraper.
4. Wipe dry, close the door, and plug in the plug.

NOTE:

Never use sharp objects to remove ice or separate or loosen frozen food.

ENERGY SAVING TIPS

• Place the fridge in a cool place, at a distance from sources of heat and protected from direct sunlight.
• Warm food should cool before it is put in. The compressor will work harder if the fridge is overloaded. The food can deteriorate if the freezing takes a long time.
• Pack food in a suitable way and make sure that packs and containers are dry on the outside before putting them in. This

EN

reduces frosting in the fridge.

• Never line the inside of the fridge with foil, paper, or the equivalent. This reduces the circulation of air and the efficiency of the fridge.
• Label and arrange the food so that it is easy to find, to reduce the time the door is open. Take out all the required food at once and close the door as quickly as possible.

MAINTENANCE

CLEANING

• Pull out the plug before cleaning.
• Clean with a cloth moistened with water and a mild detergent. Do not use abrasive or strong detergents.
• Wipe dry.
• Do not use wax, strong detergent, bleach or detergents that contain petroleum on plastic or rubber parts.
• Do not use paper, window cleaner, abrasive or flammable detergent on plastic parts to avoid damaging the fridge.

LONG-TERM STORAGE

Follow the instructions below if the fridge is not going to be used for a long time.

1. Pull out the plug.
2. Empty and defrost the fridge and clean the inside according to the instructions.
3. Leave the door ajar to prevent it smelling.

TROUBLESHOOTING

The troubleshooting guide is used to identify the causes of common problems and how they can be rectified.

The fridge is not working

Check that the plug is plugged in.

The door will not close properly

• Check that the drawers are correctly positioned.
• Check that the door seal is clean and undamaged.
• Check that the fridge is levelled.

The fridge is making a lot of noise

Check that the fridge is levelled and is not touching any other product or furniture.

The deepfreeze in the fridge is not very cold.

• If the door is opened frequently or held open it takes a while for the deepfreeze to reach the set temperature.
• Check that there is enough free space behind the fridge to ensure the circulation of air.

The following are not a sign of problems

• Purling sound, cause by the flow of refrigerant in the tubes.
• Compressor working at high temperature.

PRODUCT DATA SHEET(EU) 1060/2010

a Brand. MENUETT
b Model. 006587
c Category for fridge or freezer for domestic use . 7
d	Energy efficiency class A+++ (highest energy class) to D (lowest energy class).	A++
f	Energy consumption in kWh per year, based on the results from standardised tests during 24 hours. The actual energy consumption depends on how the appliance is used and where it is placed.	136 kWh/y
g1Fridge storage volume (l) and star marking. 16
g2 Freezer storage volume (l) and star marking. 97
g3	Capacity in number of standard bottles of 75cl that fit in the appliance.	n/a
h1Lowest storage temperature for wine storage part (°C). n/a
h2 Design temperature for other areas (°C). n/a
i Frost-free. Static
j Safety during power-cut, temperature rise time in hours. 900min/15h
k Refrigeration capacity (kg/24 hours).		2
l1	Climate class.	ST/N
l2	This appliance is intended to be used at an ambient temperature between (°C).	16°C-38 °C
m Airborne acoustic noise (dB(A) re 1 pW).		39dB
n Intended for recessing.		N
o	This appliance is only intended to be used to store wine.	N
