002-277 - Headphones Marquant - Free user manual and instructions

Product Type	Over-Ear Wireless Headphones
Brand	Marquant
Model	002-277
Dimensions	Approx. 7.5 x 6.3 x 3.5 inches (190 x 160 x 90 mm)
Weight	Approx. 8.8 oz (250 g)
Driver Size	40 mm
Impedance	32 Ohms
Frequency Response	20 Hz - 20 kHz
Connectivity	Bluetooth 5.0, 3.5 mm aux input
Battery Life	Up to 20 hours
Charging Time	Approx. 2 hours (USB-C)
Standby Time	Up to 200 hours
Main Functions	Play/Pause, Volume Control, Track Skip, Voice Assistant, Noise Isolation
Microphone	Built-in for calls
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or solvents.
Safety Warnings	Do not use at high volume for extended periods. Keep away from water.
Spare Parts & Repairability	Replacement ear pads and cable available for self-replacement.
Compatible Devices	Smartphones, tablets, laptops, audio players with Bluetooth or 3.5 mm jack
Warranty	1 year from date of purchase

Frequently Asked Questions - 002-277 Marquant

How do I pair the headphones with my phone?

Turn on the headphones, activate Bluetooth on your phone, and select 'Marquant 002-277' from the list. If prompted, enter PIN 0000.

How long does the battery last?

The battery lasts up to 20 hours of continuous playback at moderate volume.

How do I charge the headphones?

Use the included USB-C cable to connect to a USB power adapter (5V/1A). Charging takes about 2 hours.

Can I use the headphones while charging?

Yes, you can use the headphones passively via the 3.5 mm cable while charging, but not wirelessly.

What do I do if the sound is distorted?

First, lower the volume on your device. Ensure the headphones are fully charged and not near wireless interference. Also check that the audio source is clean.

Are the headphones noise-cancelling?

These headphones feature passive noise isolation from the over-ear design, but not active noise cancellation.

How do I clean the ear pads?

Remove the ear pads if possible and wipe with a damp cloth. Let them dry completely before reattaching. Do not soak.

Can I replace the ear pads?

Yes, replacement ear pads are available for purchase. They are designed to be easily snapped on and off.

Why is the microphone not working?

Make sure the headphones are properly connected and the microphone is not muted. Check device settings to select the headset as input device.

Is the headphone cable detachable?

Yes, the 3.5 mm audio cable is detachable and can be replaced if damaged.

USER MANUAL 002-277 Marquant

Two black earbuds with attached wires, no visible text or symbols

SE TRÅDLÖSA IN EAR-HÖLURAR

Bruksanvisning i original

Operating instructions

(Translation of the original instructions)

Important! Read the user instructions carefully before use.

Save them for future reference.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

This product was CE marked in year -17

Skara 2017-04-21

###

MATTIAS LIF BUSINESS AREA MANAGER

1

1 2 3 4

SÄKERHETSANVISNINGAR

• Avoid damaging your hearing by limiting the use of the headphones with high volume, and adjust the volume to a safe level. The higher the volume, the less time you can listen safely.
• Listen at reasonable sound levels for a reasonable amount of time.
• Do not increase the volume as your hearing adapts to the level.
• Do not increase the volume so much that you cannot hear your surroundings.
• Exercise care or temporarily stop using the headphones in potentially dangerous situations.
• Very high sound pressure from headphones and a headset can result in impaired hearing.
  • We recommend that you do not have the headset over both ears while driving. It may also be illegal in some areas.

EN

• For reasons of safety, avoid being distracted by telephone calls when in traffic or in other potentially dangerous environments.
• Do not expose the headphones to the cold, heat or direct sunlight.
• Do not expose the headphones to impact, blows or vibration.
• The headphones must no be exposed to dripping water of splashing.
• Do not immerse the headphones in water.
• Do not use detergent that contains alcohol, ammonia, petrol or abrasives.
• If cleaning is necessary, use a soft cloth, if necessary moistened with a little water or diluted mild soap, on the product.
• The supplied battery must not be exposed to excessive heat, for example sunlight, fire or the like.
• The service life of the battery can be shortened by high or low temperatures.

TECHNICAL DATA

Bluetooth 4.0

Operating time ≤ 4 hours

Standby time ≤ 150 hours

Range ≤ 10 m

Charging time approx. 2 hours

Battery technique Li-poly (120 mAh)

Operating temperature -20 to 40°C

DESCRIPTION

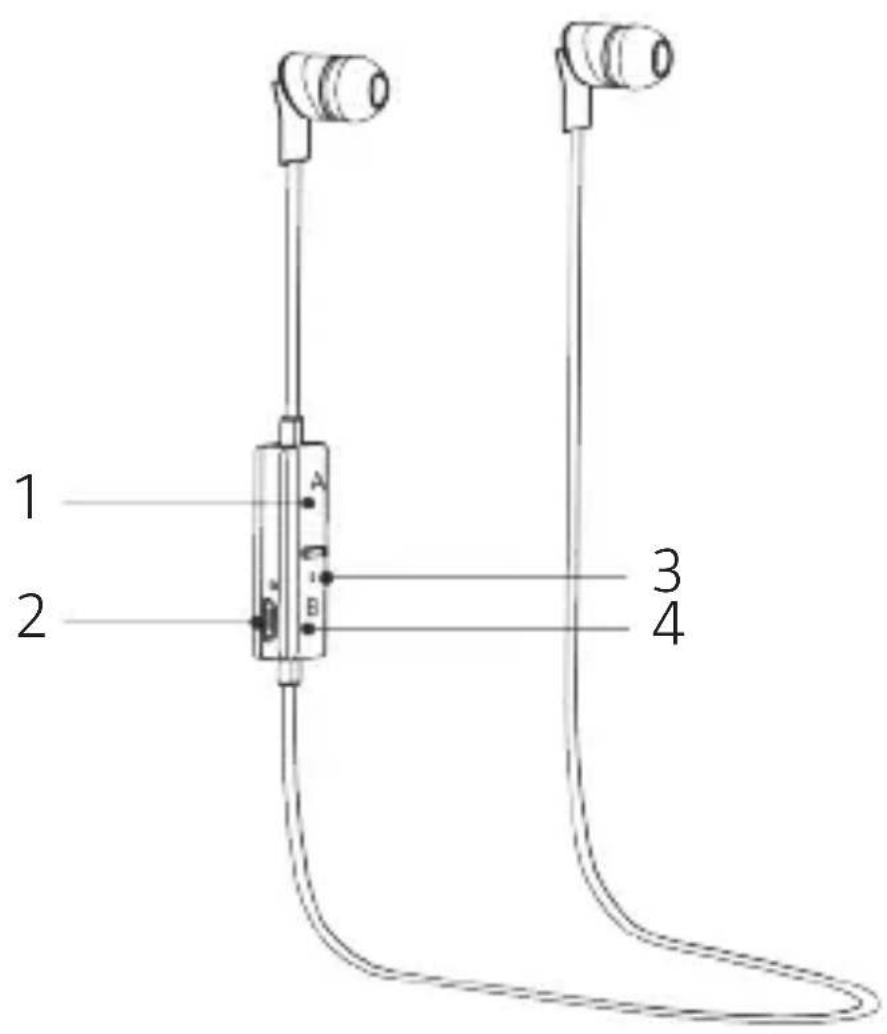

FIG. 1

1. Volume/track control
2. Micro USB port
3. Switch/pause/call control
4. Volume/track control
   Charging cable included

USE

STARTING/SWITCHING OFF

NOTE:

The headphones switch off automatically after five minutes of inactivity to save the battery.

1. Start the headphones by pressing and holding the switch for about five seconds. The headphones flash blue.
2. Switch off the headphones by pressing the switch for about five seconds and the light stops flashing.

CONNECTION

NOTE:

A previously paired device connects automatically.

1. Start the headphones and wait until the red and blue lights flash.

2. Activate Bluetooth on your mobile telephone and connect to "002277".

3. When the mobile telephone is connected the headphones flash blue.

CALLS

• Press the centre button (3) once to answer. Press once again to end the call.
• Press the centre button (3) twice to redial the last number dialled.
• Press and hold the centre button (3) to dismiss the call.

MUSIC PLAYBACK

Change track

Press and hold + or - to change track.

Pause

Briefly press the centre button (3) once.

Adjust the sound volume

Briefly press + or minus to increase or lower the volume.

CHARGE

1. Connect the charge cable to the micro USB port on the headphones and to the computer's USB port.

2. The headphones light red while charging.

3. The headphones light blue when charging is complete.
