Product Type	Centrifuge Juicer
Brand	Moulinex
Model	Granny JU59953E
Speed Settings	2 speeds (1 for soft fruits, 2 for hard vegetables)
Feed Tube Diameter	Up to 74.5 mm (Direct Fruit System)
Safety System	Safety clamp; appliance stops when cover is opened
Dishwasher Safe Parts	Removable parts (pusher, cover, sieve, juice collector, pulp collector, etc.)
Cord Storage	Yes, adjustable length
Included Accessories	Pusher, feed tube, cover, sieve, juice collector, pulp collector, safety clamp, control switch, drive shaft, motor unit, juice jug cover, foam separator, juice jug, brush, cord storage
Material	Plastic and stainless steel sieve
Voltage	Check rating plate; typical 220-240V
Frequency	50/60 Hz
Power Consumption	Not specified in manual; typical ~800W

Frequently Asked Questions - Granny JU59953E MOULINEX

How do I assemble the Moulinex Granny JU59953E juicer?

Follow these steps: 1. Fit the juice collector onto the drive shaft. 2. Place the sieve into the collector, ensuring it clicks onto the shaft. 3. Fit the cover and secure it with the safety clamp. 4. Attach the pulp collector to the rear. 5. Insert the pusher into the feed tube. 6. Place the juice jug under the spout. Refer to the manual for detailed illustrations.

What speed should I use for apples?

Use speed 2 for apples. The manual recommends speed 2 for apples, pears, carrots, cucumbers, pineapple, and celery. Use speed 1 for grapes and tomatoes.

Can I juice whole fruits without cutting them?

Yes, thanks to the Direct Fruit System, fruits up to 74.5 mm in diameter can be inserted whole. For larger fruits, cut them into pieces.

How do I clean the sieve?

Clean the sieve immediately after use. Use the provided brush to gently remove pulp. All removable parts are dishwasher safe. Avoid using scouring pads or abrasive cleaners.

What should I do if the juice flow slows down?

This usually means the sieve is blocked. Switch off the appliance, unplug it, and clean the feed tube and sieve thoroughly. Also empty the pulp collector if full.

Is the juicer safe to use?

Yes, it has a safety clamp that must be locked for operation. Opening the clamp stops the motor immediately. Always wait for the sieve to stop completely before removing the cover.

Can I juice bananas or avocados?

The manual states that it is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines, and strawberries. These fruits are not recommended.

How do I store the power cord?

The appliance has a cord storage feature. You can adjust the length of the cord by winding part of it under the base (see Fig. 8 in the manual).

What if the appliance does not start?

Check that the plug is inserted correctly and the control switch is set to speed 1 or 2. Ensure the cover is properly secured with the safety clamp. If it still doesn't work, contact an Approved Service Centre.

Can I wash the motor unit under water?

No, never immerse the motor unit in water or put it under running water. Clean it with a damp cloth and dry thoroughly.

USER MANUAL Granny JU59953E MOULINEX

GB

DESCRIPTION

APusher

BFeed tube

cCover

DSieve

EJuice collector

FPouring spout

GPulp collector

HSafety clamp

IControl switch (2 speeds)

JDrive shaft

KMotor unit

LJuice jug cover

MFoam separator

NJuice jug

Brush

PCord storage

SAFETYINSTRUCTIONS

- Always check the sieve (D) before use.

- Never use the appliance if the sieve is broken or damaged or if there is visible cracking or crazing or the sieve is torn. If there is any evident damage to the sieve, contact an Approved Service Centre. Handle the sieve with care (sharp edges).

- For your safety, this appliance is compliant with applicable' standards and regulations:

• Low Voltage Directive

• Electromagnetic Compatibility Directive

•Regulations governing materials in contact with food.

- Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

- Never place or use this appliance on a hotplate or near an open flame (gas cooker).

- Do not immerse the motor unit or put it under running water.

- If the supply cord is damaged, it must be replaced by the manufacturer, an approved after-sales service or a similarly qualified person, in order to avoid any danger.

- Always use this appliance on a solid, stable work surface that is not subject to water splashes. Do not turn it over.

- Never dismantle your appliance. Apart from the usual care and cleaning, the appliance requires no maintenance on your part.

- The appliance must be unplugged:

- if there is a problem or fault during operation

- before assembly, disassembly or cleaning.

- Never pull on the supply cord to unplug the appliance.

- Only use an extension after checking that it is in perfect condition.

- A domestic appliance must not be used:

- if it has fallen on the floor

- if it is damaged or incomplete.

- In such cases, or for any other repair YOU MUST contact an Approved Service Centre.

- This product has been designed for domestic used only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Only use original accessories and components. We cannot accept any responsibility if this is not the case.

- Never put your fingers or any other object in the feed tube while the appliance is in operation. Always use the pusher provided for this purpose.

- Never open the cover until the sieve (D) has ceased rotating.

- Do not remove the pulp collector (G) while the appliance is in use.

- Always unplug the appliance from the mains after use.

- Do not operate the juice machine for more than 30 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.

SAFETYSYSTEM

This appliance is fitted with a safety mechanism. To start the juice machine the cover (C) must be properly secured by the safety clamp (H). Opening the safety clamp (H) will stop the

juice machine. At the end of a cycle, place the control switch (I) to 0 and wait until the sieve (D) stops completely before removing the cover.

BEFOREUSE

- We recommend that you wash all the - Unpack the appliance and then place it on removable parts (A, C, D, E, G, L, M, N) in hota solid, stable work surface. soapy water (see cleaning §). Rinse and dry - Ensure that all packaging has been them carefully. removed before starting the appliance.

USINGTHEAPPLIANCE

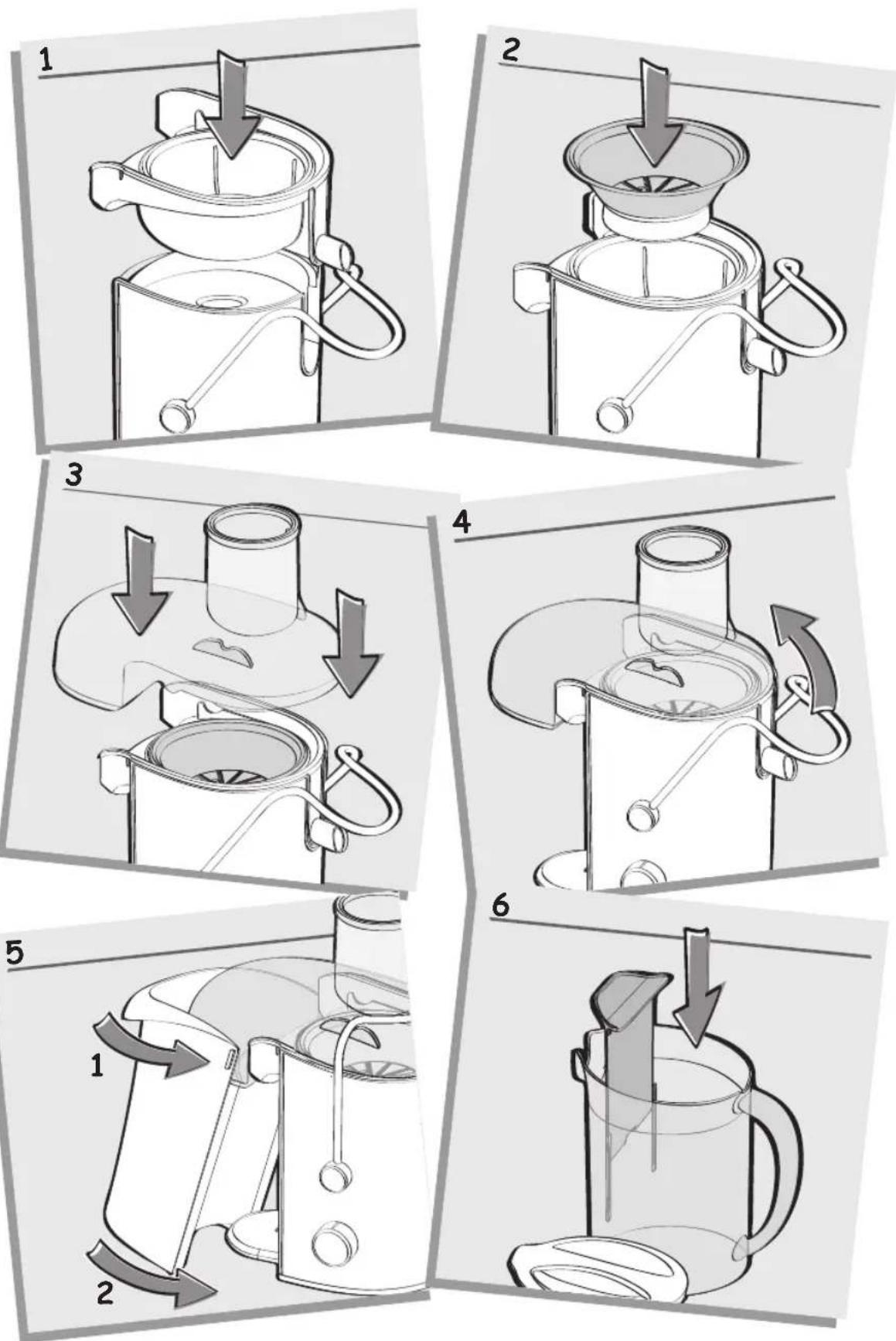

• Fit the juice collector (E) on the drive shaft (J) (see Fig. 1)
• Place the sieve (D) in the juice collector (E). Ensure that the sieve is correctly clipped onto the drive shaft (J). You can hear an audible click (see Fig. 2)
• Fit the cover (C) on the appliance, ejection spout to the rear (see Fig. 3)
• Click the safety clamp (H) into place over the cover (C) (see Fig. 4)
• Fit the pulp collector (G) on the rear of the appliance (see Fig. 5).
• Slide the pusher (A) into the feed tube (B), aligning the groove on the pusher with the

small ridge in the feed tube.
- If you wish to separate the juice from the froth, slide the foam separator (M) in the juice jug (N) and fit the cover onto the juice jug (see Fig. 6). The foam separator allows you to keep the froth into the juice collector when you pour the juice into a glass.
- Position the juice jug (N) under the pouring spout in front of the appliance as shown on Fig. 7
- Plug in the appliance. You can use the cord storage (P) to adjust the length of the cord (see Fig. 8)

WHICH SPEED TO USE?

Ingredients Speed	Approx. weight (in kg)		Quantity of juice obtained in cl (*)
Apples 2 l	65
Pears	2 l	60
Carrots	2 l	60
Cucumbers	2	1 (about 2 cucumbers)	60
Pineapple	2 l	30
Grapes	1 l	45
Tomatoes	1	1,5	90
Celery	2	1,5	35
Uncorrect choice of speed can induce abnormal vibrations of the appliance

* The quality and quantity of juice varies greatly according to the date of harvest and the particular variety of fruits or vegetables. The quantities of juice indicated above are given as an indication.

• Start the appliance using the control switch (I).
• Insert the fruits or vegetables through the feed tube (B).

• The fruits and vegetables must be inserted while the motor is running.

• Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push with your fingers.

• When you have finished, stop the appliance, turning the control switch (I) to 0 and wait until the sieve (D) has stopped completely.
• When the pulp collector (G) is full, or the juice flow slows, empty the pulp collector and clean the sieve.

USEFULADVICE

• Wash the fruits carefully before stoning.
• You do not need to remove the skin or peel. You only need to peel fruits with thick (and bitter) skin: citrus fruits, pineapple (remove the stalk).
• Certain types of apples, pears, tomatoes, etc. will fit in the feed tube whole, thanks to the "Direct Fruit System" (74.5 mm maximum diameter), so choose the appropriate size of fruits or vegetables.
• It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries.
• The appliance should not be used for sugar cane and excessively hard or fibrous fruits.
• Choose fresh, ripe fruits and vegetables, they will yield more juice. This appliance is

suitable for such fruits as apples, pears, oranges, grapes, pomegranates and pineapple; for vegetables such as carrots, cucumbers, tomatoes, beetroot and celery.

• If you juice over-ripe fruit, the sieve will be blocked more quickly.
• Important: All juice must be consumed immediately. On contact with air, the juice quickly oxidises which can change the taste, colour and the nutritional value. Apple and pear juices quickly turn brown. Add a few drops of lemon juice to slow this discoloration.

CLEANINGANDMAINTENANCE

• All removable parts (A, C, D, E, G, L, M, N) can be cleaned in the dishwasher.
• This appliance is easier to clean immediately after use.
• Do not use scouring pads, acetone, alcohol (spirit) etc. to clean the appliance.
• The sieve must be handled with care. Avoid any mishandling that may damage it as it

will alter the performance. The sieve can be cleaned with the aid of the brush (O).

Change your sieve at the first sign of wear or damage.

• Wipe the motor unit down with a damp cloth. Dry carefully.
• Never plunge the motor unit under running water.

WHATTODOIFYOURAPPLIANCEDOESNOTWORK?

PROBLEM CAUSES SOLUTIONS
The appliance does not work.	The plug is not inserted correctly, the control switch (I) not on speed "1" or "2".	Connect the appliance to a socket with the correct voltage.Turn the control switch to speed "1" or "2".
	The cover (C) is not properly secured.	Check that the cover (C) is properly fitted and secured by the safety clamp (H).
The appliance is giving off a smell or is very hot to touch, is making an abnormal noise or smoking.	The sieve (D) is not properly fitted.	Check that the sieve (D) has been fitted properly onto the drive shaft (J).
	The quantity of food being processed is too great.	Leave the appliance to cool down and reduce the quantity of food to be processed.
Juice flow decreases. The sieve	(D) is blocked.	Switch off the appliance, clean the feed tube (B) and the sieve (D).
For any other problem or abnormality, please contact your nearest Approved Service Centre

RECYCLING

Environnement protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point so that it can be recycled.
