Product Type	35mm autofocus SLR camera with built-in motor
Brand	Nikon
Model	F65 / F65D (with date imprint function)
Dimensions (W x H x D)	F65: 139.5 × 92.5 × 65.5 mm; F65D: 139.5 × 92.5 × 68 mm
Weight	F65: 395 g; F65D: 400 g (without batteries)
Power Supply	2 CR2 lithium batteries (3 V); optional: MB-17 battery pack for 4 AA batteries
Lens mount	Nikon F mount (with AF coupling, CPU contacts)
Lens compatibility	AF Nikkor and AI-P Nikkor lenses (except AF Nikkor for F3AF and IX-Nikkor)
Shutter	Vertical-travel focal plane shutter, electronic control; speeds: 30 s to 1/2000 s (1/2 steps), Bulb
Built-in flash	Auto pop-up Speedlight, guide number 12 (ISO 100, meters); sync up to 1/90 s
Flash modes	First-curtain sync, slow sync, second-curtain sync, red-eye reduction, flash cancellation
Autofocus system	TTL phase detection, Nikon Multi-CAM900 module, 5 focus points; detection range EV -1 to 19
AF modes	Single servo AF, continuous servo AF, dynamic AF with closest subject priority, Lock-On™ focus tracking
Light metering	TTL full-aperture: 3D Matrix (6 segments) with D/G lens, Matrix 6 segments with other CPU, center-weighted
Exposure modes	Auto (A), Program Auto (P), Shutter Priority (S), Aperture Priority (A), Manual (M), Vari-Program (Portrait, Landscape, Close-up, Sports Continuous, Night Scene)
Exposure compensation	±2 EV in 1/2 EV steps; auto bracketing: 3 frames, 0.5 to 2 EV steps
Film speed	Automatic via DX code (ISO 25 to 5000); non-DX: ISO 100
Viewfinder	Fixed eye-level pentamirror, diopter adjustment -1.5 to +0.8 m⁻¹, coverage approx. 89%, magnification approx. 0.68-0.60x
Continuous shooting	Approx. 2.5 fps (with new batteries, no flash)
Self-timer	10 s (electronic)
Optional remote control	Infrared (ML-L3): immediate or 2s delay, range approx. 5 m, CR2025 battery
Accessories	MB-17 battery pack, SB-80DX/SB-50DX flashes, SC-17 remote cord, close-up lenses, filters, etc.
Special functions	Depth-of-field preview, multiple exposure, date imprint (F65D), AF illuminator

Frequently Asked Questions - F65 NIKON

How to choose the appropriate exposure mode?

The Nikon F65 offers several modes: Auto (fully automatic), Vari-Program (Portrait, Landscape, Close-up, Sports Continuous, Night Scene), P (Program), S (Shutter Priority), A (Aperture Priority) and M (Manual). Select according to the subject: use Sports Continuous for moving subjects, Portrait for people, etc.

How to use the built-in flash?

The flash pops up automatically in Auto or Vari-Program mode when light is insufficient. You can also fire it manually by pressing the flash release button. To change the sync mode, use the Flash sync mode button (front, slow, rear, red-eye reduction).

How to change the lens?

Turn off the camera. Press the lens release button (reference 17 on the diagram) and turn the lens counterclockwise to remove it. To mount a new lens, align the lens index with the mount index and turn until it clicks.

How to activate continuous shooting mode?

Continuous shooting (2.5 fps) is available in Sports Continuous mode (Vari-Program) or Continuous Servo AF mode. Keep the shutter button pressed to take multiple shots in succession. Note that the built-in flash cannot be used in continuous shooting.

How to adjust exposure compensation?

Press the Aperture/Exposure compensation button (reference 1) while turning the command dial to adjust compensation by ±2 EV in 1/2 EV steps. The compensation level is displayed in the viewfinder and on the LCD screen.

How to use the self-timer?

Press the Self-timer/Remote control button (reference 6) to activate the self-timer (10 s). The self-timer icon appears on the LCD screen. Press the shutter, the countdown begins and the photo is taken automatically.

How to clean the SLR camera?

Use a blower to remove dust from the camera body and lens. For the mirror and focusing screen, use a soft brush or a contact-free blower. Avoid direct contact with fingers. Clean the electrical contacts with a dry cloth if necessary.

What types of batteries to use?

The camera uses two CR2 lithium batteries (3V). You can also use the optional MB-17 battery pack that accepts four AA batteries (alkaline, lithium, NiCd or Ni-MH).
Check the battery level on the LCD screen.

How to use the remote control?

The optional ML-L3 (infrared) remote control allows remote triggering. Insert the CR2025 battery, point the remote toward the front sensor of the camera (reference 10) and press the button. Use immediate or 2-second delay mode.

How to interpret viewfinder information?

The viewfinder displays: AF focus points (5 zones), shutter speed, aperture, focus indicator, flash ready, exposure compensation, and analog exposure display. Refer to the manual for detailed meanings of each symbol.

USER MANUAL F65 NIKON

Close-up of a smiling adult holding a camera, surrounded by two children (no text or symbols visible)

Close-up of a smiling man holding a Nikon DSLR camera outdoors, with another person and a yellow shirt in the background (no visible text or symbols)

Woman wearing a cowboy hat and holding a camera, outdoors with blurred green background (no text or symbols visible)

Woman smiling while holding a DSLR camera (no visible text or symbols)

Portrait of a smiling man with a beard and mustache, wearing formal attire (no visible text or symbols)

Close-up of a man holding a camera with sparklers, against a blue sky background (no text or symbols visible)

Nikon

Meet a Nikon SLR photographer.

F65

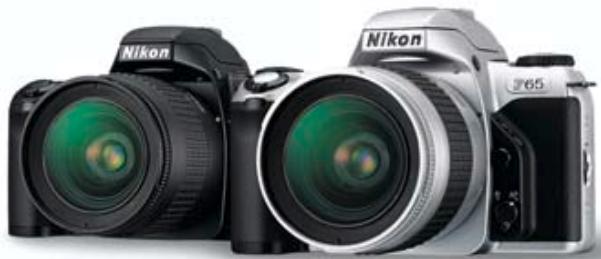

Two Nikon DSLR cameras shown from front and back angles, no visible text or symbols on the body.

The F65

can do it all.

Great potential is wonderful. Great results are even better.

Are you ready to take the step from imagining more stunning photos to shooting them?

With a Nikon F65 in your hands, taking better pictures has never been easier.

Simply select a desired mode for the type of photo you want to shoot.

Trust Nikon's Dynamic AF system, 3D Matrix Metering, Matrix Balanced Fill-Flash, and

other features of superior performance renowned among the world's finest professional photographers.

And capture more magic of unforgettable moments and everyday fun.

Every opportunity is yours for the taking when you've got the right camera to do it all.

Just apply your vision and start experiencing the joy of being a Nikon SLR photographer.

The big, high-visibility LCD

lets you check camera settings at a glance.

Woman holding a camera, smiling at the camera (no visible text or symbols)

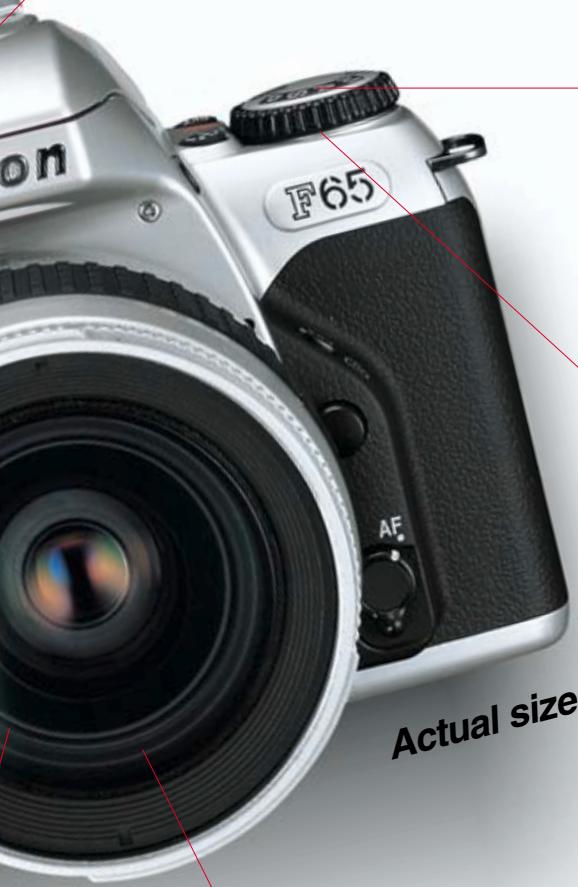

This Nikon SLR is so compact and lightweight (395g),

anyone can handle it.

Wide-coverage

Five-Area

Dynamic AF system

keeps subjects in clear focus and eliminates

unintended blurring.

Simple diagram with a circle containing three horizontal lines and three vertical arrows, no text or symbols present.

Crisp, precise film advance and shutter release make

2.5-frames-per-second continuous shooting

supremely assured.

Nik

The auto pop-up Speedlight, featuring Matrix Balanced Fill-Flash

throws just the right light on a scene to make the shot look beautiful and natural.

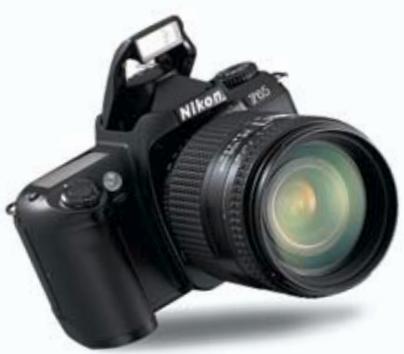

Black Nikon 705 DSLR camera with lens and external frame (no visible text or symbols on body)

Mode Dial makes operation simple and intuitive, so great pictures are a snap in every shooting situation.

Close-up of hands holding a black DSLR camera with a digital display (no visible text or symbols)

With fully automatic MODE and five Vari-Program modes ( ),

you don't have to be a pro to take better pictures—just press the shutter button.

Two shirtless boys playing in a grassy field with water spray (no text or symbols visible)

Scenic landscape photo at sunset with rolling hills and golden sky (no text or symbols)

3D Matrix Metering

can read atmosphere as well as brightness and contrast, for recording the scene in all its nuanced detail.

Other features include:

• AF-Assist Illuminator
- Multiple exposure
- Exposure compensation
• Auto Exposure Bracketing
- Versatile flash modes including Slow Sync, Rear-Curtain Sync and Red-Eye Reduction
• Durable metallic lens mount
- Self-timer and optional remote controller
- Dioptre adjustment
- Depth-of-field preview function
• F65D offers data imprinting

So can you.

Natural movement.

Two children playing in water, one shouting with arms raised and the other wading down (no text or symbols visible)

As a parent, you keep your eye out for what makes a precious moment shine. It's good to get to the essence of things at a moment's notice without a fuss. Life's pleasures should be as simple and satisfying as child's play. Like a photo shot in AUTO mode. The key is to take it easy and stay true to your vision.

Won't let you miss a shot

The F65's Dynamic AF system with Five Focus Areas covers various “sweet spots” to keep the subject sharp, even when it’s not in centre frame. It’s all so automatic and easy, you hardly have to think about a thing. Just enjoy capturing the moment!

Dynamic AF keeps the F65 focused as intended, regardless of position of the subject (in red shirt, below) in the frame, using five AF sensors (centre, top, bottom, right, and left).

Two people swinging on ropes at night, surrounded by trees and rocks (no visible text or symbols)

Two children sitting on a playground swing, surrounded by trees and foliage (no visible text or symbols)

People enjoying a playground swing in a forest, one person on the swing and another on the ground (no visible text or symbols)

Portrait of a young boy in striped shirt sitting inside a purple-tinted tunnel (no text or symbols visible)

It takes a smart AF-Assist Illuminator to keep focus on a subject when light is low or you're shooting in total darkness. The F65 keeps your subject looking natural because it doesn't use a harsh pre-flash that can daze or distract your subject.

That's what the F65's AF system lets you capture.

A dog leaping out of the ocean with a pink frisbee, while a person in a yellow coat stands nearby (no text or symbols visible)

Action is spontaneous. No stopping, no posing, no holds barred. And to go with the flow, it helps to be totally free, far from the routine, and within comfortable reach of what catches your eye. Shooting in Sports Continuous mode is fantastic for freezing sports and other movement on the fly, knowing that you can capture fleeting moments for posterity.

Stays focused at every crucial moment

The F65's Focus Tracking with Lock-On™ feature keeps a moving subject—even as quick and unpredictable as an animal or a child—in clear focus, as long as the shutter release button is pressed. It’s foolproof and automatic!

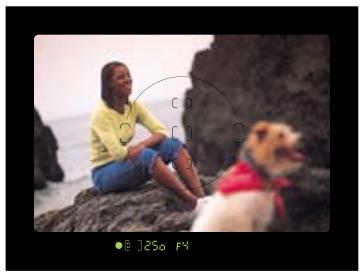

Woman sitting on rocky shore with a dog nearby, no visible text or symbols

You can select one of Five Focus Areas to activate, according to how you intend to compose the shot. The focus area select button is easy to reach and intuitive to operate without taking your eye off of the viewfinder.

A woman and a child playing with a dog on a sandy beach, no visible text or symbols.

Back view of a person and two children walking on a beach with waves in the background (no text or symbols visible)

Two people walking on a beach near the ocean, one in gray jacket and one in yellow jacket (no text or symbols visible)

Lock-On™ AF keeps focus firmly on a main subject even if some other object momentarily blocks it in the viewfinder.

Intricacies of light.

Sunset over a golden pasture with grazing horses, two people observing from the shore (no text or symbols visible)

Being a stranger in a strange land is like a journey to enlightenment that changes your outlook forever. You start seeing the big picture from a fresher perspective. Like a shot taken with Landscape mode—living details, near or far, come alive in a new way. Then you realise that you're in the middle of it all.

Capturing the mood of the situation

3D Matrix Metering accounts for the entire image to analyse and preserve the special ambience of a scene. The F65 relies on over 30,000 pieces of data in its built-in database referring to every type of shooting situation, in order to capture a particular moment with its mood intact.

Sunset over a golden grassy hillside with distant trees and no visible text or symbols

3D Matrix Metering also reads camera-to-subject Distance Information from D-type and G-type Nikkor lenses. This enhances accuracy for every kind of exposure, from close-ups to distant landscapes.

The four exposure modes—Auto-Multi Program (P), Shutter-Priority Auto (S), Aperture-Priority Auto (A), and Manual (M)—offer precise control of shutter speed and aperture setting combinations, for flexibility in

People feeding giraffes in a savanna setting (no visible text or symbols)

Two people running in motion on a sandy field, no visible text or symbols

Aperture-Priority Auto
Shutter-Priority Auto

That's what F65 metering lets you explore.

Close-up of ornate jewelry items including blue gemstones and gold rings displayed on a red fabric background (no text or symbols visible)

The closer you look, the more art looks like life. Sometimes you want to take a clear look at every detail. At other times you want to make a single outstanding point. Whatever finer things in life you want to focus on, Close-Up mode provides more choice in achieving the right perspective in appropriate depth.

Exposure control at your command

Versatile Vari-Program modes give you all the automatic picture-taking latitude you need.

Each of the five modes ( Portrait, Landscape, Close-Up, Sports Continuous

and 📄 Night Scene) are specifically geared for optimal results in certain situations.

For shooting with complicated lighting or experimenting with various exposure levels, an exposure compensation button lets you compensate exposure within a range of ±2 EV in 1/2 increments.

Person standing under a large arched window with glass panels, holding an object (no visible text or symbols)

Metered value

Silhouette of a person standing in front of an arched window with large windows (no text or symbols visible)

-1 EV

Person working under a large arched window with glass panels (no visible text or symbols)

+1 EV

Or you can apply exposure bracketing to three frames in steps ranging from 0.5 to 2.0 EV in P, S, A and M modes (Auto Exposure Bracketing).

An electronic depth-of-field preview button lets you confirm the zone of sharpest focus before shooting in any exposure mode.

A multiple exposure button lets you shoot more than once on a single frame.

Brilliance of colour.

Wedding couple posing on a boat deck, including a bride in wedding attire and groom in tuxedo, with no visible text or symbols.

We've been together as long as she can remember. But it's clearly her moment to shine, so we're leaving everything in good hands and nothing to chance. The F65's built-in Speedlight catches the sparkle in those eyes, and Portrait mode makes her stand out as pretty as a picture right where she deserves to be—at the heart of the action.

Enhancing quality of light in a flash

Flash isn't just for nighttime shooting. It can enhance the look of daylight and twilight shots. The F65's built-in Speedlight automatically controls flash in order to add just the right light to keep the scene looking natural and create catchlight in a subject's eyes—not wash out the subject's face. (Matrix Balanced Fill-Flash)

Black Nikon DSLR camera with green lens and beige head (no visible text or symbols)

A built-in Speedlight quietly pops up and fires automatically when light is low or subject is backlit in AUTO and Vari-Program modes.

Bride receiving makeup with a makeup brush, wearing a white lace dress and veil (no visible text or symbols)

Two young girls in wedding dress with floral hairpins, smiling and posing together (no visible text or symbols)

A Red-Eye Reduction lamp is precision-timed to contract the subject's eye pupils right before shutter release, minimising "red eye" from the final picture.

That's what the F65's flash system lets you reveal.

Man riding a bicycle on a hillside at sunset, with misty hills and trees in the background (no text or symbols visible)

Nature gives you every opportunity to wonder how light can create such drama in its shifting moods. Night Scene mode makes it especially rewarding to catch the sun's slow-burning beauty at the end of a long day—even as it illuminates the down-to-earth details that make the scene really worth remembering.

Combining flash and ambient light enhances detail all around

Slow Sync is activated when flash is used in Night Scene mode, automatically slowing the shutter speed to provide enough exposure of background detail, while throwing natural-looking illumination on the foreground subject.

Man in outdoor gear holding a camera, wearing a blue backpack and patterned shorts (no visible text or symbols)

Person riding a bicycle at dusk with purple and orange sky background (no text or symbols visible)

Rear-Curtain Sync fires the flash just before the second (or rear) curtain of the shutter starts to move. The photographic effect is an action-enhancing stream of light trailing the flash-illuminated subject.

Man standing on a red beach at sunset with ocean and sky in background (no text or symbols visible)

Attach an optional Nikon Speedlight unit with TTL Remote Cord SC-17 to perform remote flash functions. Hold a remote flash off to the side to cast proper light on the subject without casting harsh background shadows.

Complete SLR control easily at hand

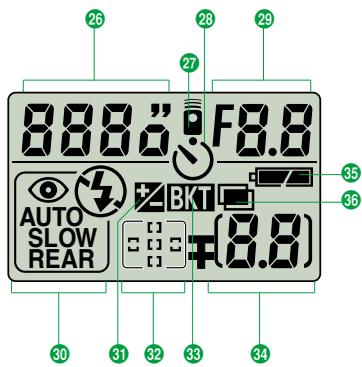

Top deck LCD panel The easy-to-see LCD panel provides vital information at a glance.

Viewfinder LCD information Most data on the upper LCD panel also appears in the viewfinder LCD, for setting adjustment without taking your eye from the viewfinder.

Focus area select button Simply use your left thumb to select a desired focus area, even as you shoot. The button can be used to cancel AF-Assist Illuminator operation, too.

Command Dial Designed for easy selection of exposure, focus area, and a range of other settings.

Aperture/Exposure compensation button Press this button while rotating the Command Dial to select aperture in Manual exposure mode.

Close-up of a camera dial with icons and labels (no readable text or symbols beyond basic design)

Exposure mode dial For simple control of F65 exposure modes.

Close-up of a white electronic device with visible ports and buttons, no text or symbols present

Dioptre Adjustment Enables near- or far- sighted photographers to adjust the eyepiece dioptre to any setting from -1.5 to +0.8m ^-1 .

Close-up of pale yellow calla lilies with green stems against a blurred blue background (no text or symbols)

AF Micro-Nikkor 60mm f/2.8D

Auto Exposure Bracketing/Multiple exposure button This button lets you activate Auto Exposure Bracketing or multiple exposure function.

Close-up of a power button with an icon, no visible text or symbols

Self-timer/Remote control button Use the self-timer and it's easy to put yourself in the photo. The optional remote controller can be used for a similar purpose.

Optional remote controller

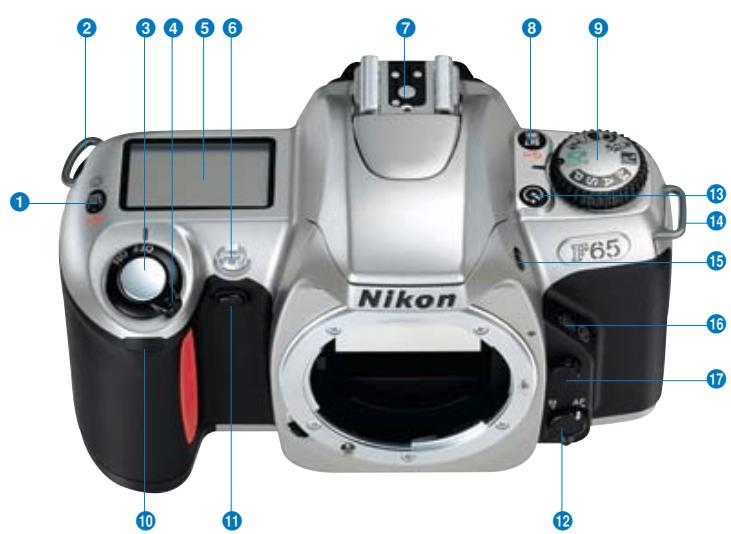

1 Aperture/Exposure compensation/Film rewind button
2 Camera strap eyelet
3 Shutter release button
4 Power switch
5 LCD panel
6 Self-timer/AF-Assist Illuminator/Red-Eye Reduction lamp
7 Accessory shoe
8 Auto Exposure Bracketing/Multiple exposure/Film rewind button

9 Exposure mode dial
10 Remote control sensor
11 Depth-of-field preview button
12 Focus mode selector
13 Self-timer/Remote control button
14 Camera strap eyelet
15 Flash lock-release/Flash sync mode button
16 Focus area/AF-Assist Illuminator cancel button
17 Lens release button

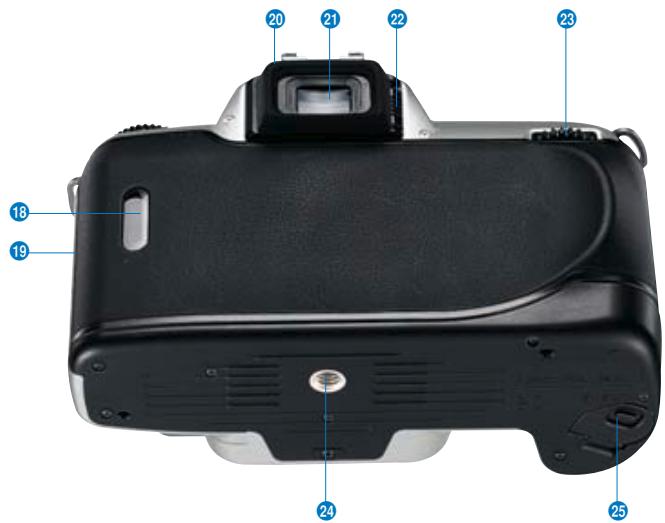

18 Film confirmation window

19 Camera back lock release lever
20 Rubber eyecup
21 Viewfinder eyepiece
22 Dioptre adjustment lever
23 Command Dial
24 Tripod socket
25 Battery chamber cover lock lever

LCD Panel

26 Shutter speed

27 Remote control

28 Self-timer
29 Aperture
30 Flash sync mode
31 Exposure compensation
32 Focus area
33 Auto Exposure Bracketing
34 Frame counter/Exposure compensation value
35 Battery power
36 Multiple exposure

Nikkor lenses & accessories

AF Nikkor lenses

The extensive Nikkor range includes Zoom, Micro, Defocus Control, Perspective Control, Super Wide and Telephoto Nikkor lenses, AF-S Nikkors with SWMs (Silent Wave Motors) for ultra-quiet, highly precise operation, and a VR Nikkor lens with Vibration Reduction System to minimise image blur that results from camera shake. Every one of these lenses provides consistently sharp results in autofocus and manual shooting.

D-type and G-type AF Nikkor lenses

These lenses send subject-to-camera Distance Information to the F65 for enhanced exposure control.

Close-up of a black and white DSLR camera with visible lens and control panel (no text or symbols)

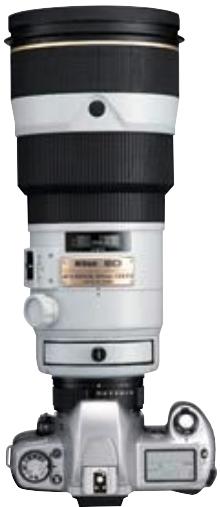

AF-S Nikkor 300mm f/2.8D
IF-ED II, equipped with an
SWM, attached to
the Nikon F65.

AF-S Nikkor
300mm f/2.8D
IF-ED II

AF Nikkors

AF-S 17-35mm f/2.8D IF-ED

AF 18-35mm f/3.5-4.5D IF-ED

AF 24-50mm f/3.3-4.5D

AF 24-85mm f/2.8-4D IF

AF-S 24-85mm f/3.5-4.5G IF-ED

AF 24-120mm f/3.5-5.6D IF

AF-S 28-70mm f/2.8D IF-ED

AF 28-80mm f/3.3-5.6G

AF 28-100mm f/3.5-5.6G

AF 28-105mm f/3.5-4.5D IF

AF 28-200mm f/3.5-5.6D IF

AF 35-70mm f/2.8D

AF-S VR 70-200mm f/2.8G IF-ED

AF 70-300mm f/4-5.6D ED

AF 70-300mm f/4-5.6G

AF-S 80-200mm f/2.8D IF-ED

AF 80-200mm f/2.8D ED

AF VR 80-400mm f/4.5-5.6D ED

AF 14mm f/2.8D ED

AF Fisheye 16mm f/2.8D

AF 18mm f/2.8D

AF 20mm f/2.8D

AF 24mm f/2.8D

AF 28mm f/1.4D

AF 28mm f/2.8D

AF 35mm f/2D

AF 50mm f/1.4D

AF 50mm f/1.8D

AF 85mm f/1.4D IF

AF 85mm f/1.8D

AF DC 105mm f/2D

AF DC 135mm f/2D

AF 180mm f/2.8D IF-ED

AF 300mm f/2.8 IF-ED

AF-S 300mm f/2.8D IF-ED II

AF-S 300mm f/4D IF-ED

AF-S 400mm f/2.8D IF-ED II

AF-S 500mm f/4D IF-ED II

AF-S 600mm f/4D IF-ED II

AF-I Teleconverter TC-14E

AF-S Teleconverter TC-14E II

AF-I Teleconverter TC-20E

AF-S Teleconverter TC-20E II

AF Micro 60mm f/2.8D

AF Micro 105mm f/2.8D

AF Micro 200mm f/4D IF-ED

AF Micro 70-180mm f/4.5-5.6D ED

Usable lenses with built-in Speedlight

- 28 to 200mm CPU lenses except AF-S 17-35mm f/2.8D IF-ED and AF 18-35mm f/3.5-4.5D IF-ED

• AF-S 300mm f/4D IF-ED

• Make sure to remove the lens hood.

- The built-in Speedlight cannot be used at shooting distance less than 0.6m.

Vignetting occurs at the edges of the frame resulting in underexposure with the following AF zoom lenses, which have limitations in usable focal length or shooting distance.

AF 24-50mm f/3.3-4.5D: 35mm or longer focal length; AF 24-85mm f/2.8-4D IF: 50mm or longer focal length — 50mm focal length at 1m or longer shooting distance, 70-85mm at 0.7m or longer; AF-S 24-85mm f/3.5-4.5G IF-ED: 28mm or longer focal length — 28mm focal length at 1m or longer shooting distance; AF 24-120mm f/3.5-5.6D IF: 35mm or longer focal length — 35mm focal length at 3m or longer shooting distance, 50mm at 1m or longer, 70mm at 0.7m or longer; AF-S 28-70mm f/2.8D IF-ED: 70mm focal length at 1.5m or longer shooting distance; AF 28-80mm f/3.3-5.6G: 28mm focal length at 1.8m or longer shooting distance; AF 28-100mm f/3.5-5.6G: 35mm or longer focal length — 35mm focal length at 1m or longer shooting distance; AF 28-200mm f/3.5-5.6D IF: 50mm or longer focal length; AF 35-70mm f/2.8D: 50mm or longer focal length; AF Micro 70-180mm f/4.5-5.6D ED: 70mm focal length at 1.7m or longer shooting distance or 85mm at 1.3m or longer, 105-135mm at 0.8m or longer; AF-S VR 70-200mm f/2.8G IF-ED: 135mm or longer focal length — 105mm focal length at 1.8m or longer shooting distance; AF 80-200mm f/2.8D IF-ED: 80mm focal length at 3m or longer shooting distance; AF-S 80-200mm f/2.8D IF-ED: 105mm or longer focal length.

Note: The data above relates to positive films. The amount of vignetting decreases when the images are viewed in regular colour prints, the edges of which are cropped during photo processing.

Dedicated Accessories

• Power Pack MB-17

Accepts four AA-type batteries.

- Camera case

The CF-61 houses the F65 plus AF 28-80mm f/3.3-5.6G, AF 28-105mm f/3.5-4.5D IF or any smaller lens.

Nikon Speedlights

For more flash power, add as an option a Nikon Speedlight like the SB-80DX or SB-50DX. These extend shooting range, and feature bounce flash, auto zoom and more. The SB-50DX even offers double-flash bounce operation and Wireless Slave Flash function. Only Nikon Speedlights can communicate with the F65 to transmit data like film speed, zoom, aperture, etc.

Wireless Slave Flash Controller SU-4

When connected to an accessory Nikon Speedlight, the SU-4 enables wireless TTL multiple flash control while using the F65's built-in Speedlight as a master unit. You can use several SU-4 Flash Controllers simultaneously, too.

TTL Remote Cord SC-17

Used with an accessory Nikon Speedlight, this offers easy off-camera TTL flash control capability.

Eyepiece Correction Lenses

Nine optional eyepiece correction lenses let you adjust the dioptre beyond its standard range of -1.5 to +0.8m ^-1 .

Close-Up Attachment Lenses

For a simple way to try your hand at close-up photography. Seven types available: 0, 1, 2, 3T, 4T, 5T, 6T.

Nikon Filters

Nikon offers a full line of filters, including Circular Polarising filters, Soft Focus filters, and Skylight filters, that can add a colourful, exciting dimension to your pictures. For consistently superior results, use only Nikon filters with Nikon lenses.

Front view of a Nikon L255 camera with black body and silver bezel (no visible text or symbols beyond brand name)

MB-17

CF-61

SB-50DX

SB-80DX

SU-4 attached to

the SB-27

Exterior view of a modern digital camera with black lens and silver body (no visible text or symbols)

SC-17

Abstract arrangement of black rectangular shapes on white background (no text or symbols)

Eyepiece Correction Lenses

Seven identical black circular objects arranged in a row, no text or symbols visible

Close-Up Attachment Lenses

Nikon Filters

Nikon Film Scanners

Nikon 35mm/IX240 film scanners SUPER COOLSCAN 4000 ED and COOLSCAN IV ED offer superior-resolution scanning to deliver exceptionally sharp digital images. A new optical system that features the SCANNER NIKKOR ED lens and image correction functions enables easy access to the exciting world of digital images.

SUPER COOLSCAN 4000 ED

COOLSCAN IV ED

Type of camera:	Integral-motor autofocus 35mm single-lens reflex with electronically controlled focal-plane shutter and built-in Speedlight
Exposure modes:	AUTO mode; Auto-Program modes (Portrait, Landscape, Close-Up, Sports Continuous, Night Scene); Sport Continuous; Sports Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Continuous; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate, Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate;Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; SportCoordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate: Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Sport Coordinate; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool;Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool; Tool;
Picture format:	24 x 36mm (standard 35mm film format)
Lens mount:	Nikon F mount (with AF coupling, AF contacts)
Lens:	AF Nikkor and Al-P Nikkor lenses (except AF Nikkor for F3AF and IX-Nikkor)
Viewfinder:	Fixed eye-level penta-Dach-mirror type, built-in dioptre adjustment (-1.5 to +0.8m-1)
Eyepoint:	17mm (at -1.0m-1)
Focusing screen:	B-type Clear Matte Screen V with focus brackets
Viewfinder frame coverage:	Approx. 89%
Finder magnification:	Approx. 0.68-0.60x with 50mm lens set to infinity (at -1.5 to +0.8m-1)
Viewfinder information:	Focus indications, focus area, shutter speed, aperture, electronic analogue exposure display/exposure compensation value display, exposure compensation, ready-light/flash recommended/full flash output; Five sets of focus brackets (area)/ø12mm reference circle for Centre-Weighted metering
Reflex mirror:	Automatic, instant-return type
Lens aperture:	Instant-return type, with depth-of-field preview button
Autofocus:	TTL phase detection, Nikon Multi-CAM900 autofocus module with AF-Assist Illuminator (approx. 0.5-3m); Detection range: EV -1 to EV 19 (ISO 100, at normal temperature)
Lens servo:	AF: Auto-Servo AF: camera automatically chooses Single Servo AF or Continuous Servo AF operation according to the subject status, i.e. stationary or moving (including directional information); Single Servo AF (focus is locked when the subject is in-focus); Continuous Servo AF (camera continues to focus on a moving subject), Focus Tracking with Lock-OnTM automatically activated by subject's statusM: Manual focus
Focus area:	One of five focus areas can be selected
Focus Area mode:	Dynamic AF Mode with Closest-Subject Priority; Dynamic AF Mode; Single Area Mode with M (manual focus)
Metering system:	TTL full-aperture exposure metering system; Three metering systems selectable (limitations with lens used) — 3D six-segment Matrix Metering: with D-/G-type AF Nikkor; Six-segment Matrix Metering: with AF Nikkor other than D-/G-type (except AF Nikkor for F3AF and IX-Nikkor), Al-P Nikkor; Centre-Weighted Metering: automatically selected with Manual exposure mode
Metering range:	3D Matrix Metering: EV 1-20; Centre-Weighted Metering: EV 1-20 (at normal temperature, ISO 100, f/1.4 lens)
Exposure meter coupling:	CPU
Exposure compensation:	Exposure compensated in ±2 EV range, in 1/2 steps (except in M or AU)
Auto Exposure Bracketing:	Bracketing range: ±2 EV; number of shots: three; bracketing steps: 0.5, 1, 1.5 or 2 EV (except in AU or Vari-Program mode)
Film speed setting:	Automatically set to ISO film speed of DX-coded film in use (manual not selectable); Film speed range: DX: ISO 25-5000, automatically set to ISO 100 with non-DX-coded film
Shutter:	Electronically controlled vertical-travel focal-plane shutter
Shutter speeds:	In AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU
Sync contact:	X-contact only; flash synchronisation up to 1/90 sec.
Built-in Speedlight:	In AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, Au, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, AU, Au, AU	Automatically set between 30 to 1/2000 sec.; In S: 30 to 1/2000 sec. (in 1/2 steps); In M: 30 to 1/2000 sec. (in 1/2 steps), Time
Flash control:	Controlled by TTL Sensor; Matrix Balanced Fill-Flash: Built-in Speedlight or optional Speedlight and CPU Nikkor lens (except in Manual exposure mode); Standard TTL: In Manual exposure mode

Flash sync mode:	Front-Curtain Sync (normal sync), Slow Sync, Rear-Curtain Sync, Red-Eye Reduction, Red-Eye Reduction with Slow Sync, Flash Cancel
Ready-light:	Flash fully charged: light in green; Full output warning: blinks in green
Flash recommended indication:	Blinks when the subject is dark or backlit and Speedlight is recommended in P, S, A and M
Accessory shoe:	Standard ISO-type hot-shoe contact (sync contact, ready-light contact, TTL auto flash contact, monitor contact, GND), safety lock provided
Self-timer:	Electronically controlled; timer duration: 10 sec.
Remote control (optional):	Infrared, activated by pressing the shutter release button; Immediate release mode and 2 sec. delay mode; Operating distance: approx. 5m directly in front of the camera; Battery: One 3V CR2025 lithium battery; Battery life: Approx. 5 years (may differ with usage amount or other operating conditions); Dimensions: Approx. 60 × 28 × 7 mm (W x H x D); Weight: Approx. 10g including battery
Depth-of-field preview button:	Stop-down lens aperture by pressing depth-of-field preview button; electronically controlled
Film loading:	Film automatically advances to first frame when camera back is closed (shutter and reflection mirror not activated)
Film advance:	Automatic advance with built-in motor; Continuous shooting possible in Sports Continuous mode (built-in Speedlight cannot be used); Film advance speed: Approx. 2.5 fps (fresh batteries)
Film rewind:	Automatic rewind with built-in motor; Rewind speed with fresh batteries: Approx. 16 sec. with 36-exposure film, Approx. 13 sec. with 24-exposure film
Multiple exposure:	Selectable in P, S, A, M
LCD panel information:	Shutter speed, aperture, exposure compensation, exposure compensation value, Auto Exposure Bracketing, Multiple exposure, flash sync mode, focus area, battery power, frame counter, self-timer, remote control
Date/time imprint function (F65D only):	Built-in clock: 24-hour type with timing accuracy within ± 90 seconds a month; leap year adjustment until December 31, 2049; Usable film: ISO 32 to 3200 DX-coded film; Display mode: Year/Month/Day, Day/Hour/Minute, No Imprint, Month/Day/Year and Day/Month/Year; Power source: One 3V CR2025 lithium battery, battery life; approx. three years (depending upon use of data imprint function and other operating conditions)
Camera back:	Hinged back with film confirmation window; F65D: Data imprint LCD panel/buttons
Power source:	Two 3V CR2 lithium batteries; optional Battery Pack MB-17 is also available (for four LR6/AA-size alkaline, lithium, NiCd or Ni-MH batteries)
Power switch:	Power ON and OFF position
Exposure meter:	Auto meter shut-off 5 sec. after power turned on if no operations are performed; activated by lightly pressing shutter release button after power is turned on
Battery power confirmation:	In LCD panel, with exposure meter on; for sufficient power; indicates batteries are nearing exhaustion; Blinking indicates batteries are just about exhausted

Usable number of 36-exposure (24-exposure) film rolls per set of two fresh 3V lithium batteries:		At 20°C	At -10°C
	Without flash	Approx. 50 (75)	Approx. 25 (37)
	With flash and AF-Assist Illuminator for half of all exposures	Approx. 10 (15)	Approx. 7 (10)

Autofocus operation using an AF Zoom-Nikkor 28-80mm f/3.5-5.6D lens, covering the full range from infinity ( ) to the closest distance and back to infinity ( ) before each shot, with a shutter speed of 1/90 sec. or faster. 1/4 (ISO 1222)
Dimensions (W x H x D): F65: Approx. 139.5 x 92.5 x 65.5mm; F65D: Approx. 139.5 x 92.5 x 68mm Weight: F65: 395g; F65D: 400g

All specifications apply when fresh CR2-type batteries are used at normal temperature ( 20^ C). Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

© 2000-2002 Nikon Corporation

NPCI 2002-2003 Since 1969

YAHOO! JAPAN

Application period:

Print/Slide Division: May 1, 2002 - Oct. 31, 2002

Web Entry Division: July 1, 2002 - Oct. 31, 2002

http://www.nikon-image.com/eng/npci

ING TO ENSURE CORRECT USAGE, READ MANUALS CAREFULLY BEFORE USING YOUR EQUIPMENT.

Nikon® We take the world's greatest pictures®

NIKON CORPORATION FUJI BLDG., 2-3, MARUNOUCHI 3-CHOME, CHIYODA-KU, TOKYO 100-8331, JAPAN www.nikon-image.com/eng/

British Open Official Camera

ISO 9001 Certified

NIKON CORPORATION Imaging Company
