(9) Prises video composite et audio analogue (BD/DVD IN, VCR/DVR IN et OUT, CBL/SAT IN, GAME IN, TV/CD IN)
10 MONITOR OUT V prize

TP (Traffic Program)

Types de programmes RDS (PTY)

• Ambient noise is too high.

COAXIAL, OPTICAL1, OPTICAL2:

Left, Center, Right, Surround Right, Surround Left, Subwoofer

Left, Center ^+1 , Right, Surround Right, Surround Left

-12dBa0dBa+12dBparpasde1dB.

Subwoofer

1 V p-p/75 Ω (Composite)

87.5 MHz - 108,0 MHz, RDS

522/530 kHz - 1611/1710 kHz

Stations programmables

40

Généralités

Alimentation

CA 230V - 50Hz

Consommation

300 W

Consommation electrique insonore

40W

3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, CEC (RIHD)

Entres videos

Composantes IN1,IN2

Composite BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX

Sorties video

Composantes OUT

Composite MONITOR OUT, VCR/DVR OUT

Entres audio

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: [phone] Fax: [phone]

http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: [phone] Fax: [phone]

http://www.eu.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK

Tel: [phone] Fax: [phone]

ONKYO CHINA LIMITED

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: [phone] Fax: [phone]

http://www.onkyochina.com/

ONKYO CHINA PRC

1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai,

China 200041, Tel: [phone] Fax: [phone]

http://www.cn.onkyo.com/

ONKYO

5.1ch Home Cinema Package

HTP-558

Supplied Accessories

Make sure you have the following accessories.

Front speaker (SKF-558)

Front speakers

(White)
(Red)
Speaker cables 3.0m

20 thin rubber stoppers*1
(For Front/Center/ Surround speakers)

8 thick rubber stoppers*1
(For Front/
Surround speakers)

*1 Configuration of the rubber stoppers may be different from the figure, such as being 2 sheets instead of 1 sheet, but the total number will be same.

Center speaker (SKC-391/SKC-391C)

Center speaker

Speaker cable 3.0m

SKC-391 (European and Australian)

SKC-391C (Asian)

Surround speaker (SKR-558)

Surround speakers

(Blue)

Speaker cables 8.0 m

Powered subwoofer (SKW-558)

Subwoofer

4 floor pads

RCA cable 3.0m

Part Names

Keyhole slot
Speaker terminals
SKF-558/SKR-558

Speaker terminals
SKC-391/ SKC-391C
Keyhole slots

Caution

• The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.

To AC outlet

STATUS INDICATOR

Off: Subwoofer in standby mode or disconnected from power source

Blue: Subwoofer on

With the Auto Standby function, the SKW-558 automatically turns on when an input signal is detected in standby mode. When there's no input signal for a while, the SKW-558 automatically enters standby mode.

OUTPUT LEVEL control

This control is used to adjust the volume of the subwoofer.

LINE INPUT

This RCA input should be connected to the subwoofer pre out on your AV receiver with supplied RCA cable.

Note

• The Auto Standby function turns the subwoofer on when the input signal exceeds a certain level. If the Auto Standby function does not work reliably, try slightly increasing or decreasing the subwoofer output level on your receiver.

Before Using the Home Cinema Package

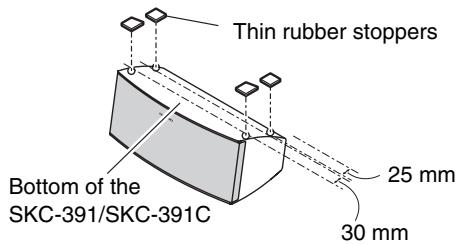

Using the Rubber Stoppers for a More Stable Platform

We recommend using the supplied rubber stoppers to achieve the best possible sound from your speakers. The rubber stoppers prevent the speakers from moving, providing a more stable platform.

Thin rubber stoppers

Bottom of the

SKF-558/

SKR-558

Using the Floor Pads for Subwoofer

If the subwoofer is placed on a hard floor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer's feet may damage the flooring. To prevent this, place the supplied pads underneath the subwoofer's feet. The pads also provide a stable base for the subwoofer.

Setting the Subwoofer Level

To set the level of the subwoofer, use the OUTPUT LEVEL control. Set it so that bass sounds are evenly balanced with the treble sounds from the other speakers. Because our ears are less sensitive to very low bass sounds, there's a temptation to set the level of subwoofer too high. As a rule of thumb, set the level to what you think is the optimal level, at it off slightly.

OUTPUT LEVEL

Wall Mounting

To mount the front/surround speakers vertically, use the keyhole slot shown to hang each speaker on a screw that's securely screwed into the wall.

Keyhole slot for wall mounting

Thick rubber stoppers

SKF-558/SKR-558

To mount the center speaker horizontally, use the two keyhole slots shown to hang the speaker on two screws that are securely screwed into the wall.

Keyhole slots for wall mounting
160 mm

SKC-391/ SKC-391C

Tip

• If the center speaker is tilted, loosen the screw on the declined side to move upward so that the speaker could be adjusted vertically.

Caution

• A mounting screw's ability to support a speaker depends on how well it's anchored to the wall. If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors. Use screws with a head diameter of 9mm or less and a shank d or less. With hollow walls, use a cable/ check for any power cables or water pip any holes.

• Leave a gap of between 5mm and 10mm between the wall and the base of the screw head, as shown (We recommend that you consult a home installation professional).

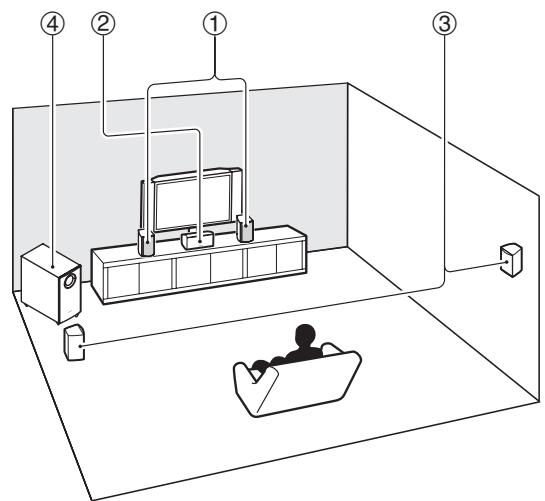

Enjoying Home Cinema

The Home Cinema means that you can enjoy surround sound with a real sense of movement in your own home — just like being in a movie theater or concert hall.

① Front left and right speakers (SKF-558)

They should be positioned facing the listener at about ear level, and equally spaced from the TV. Angle them inward slightly so as to create a triangle, with the listener at the apex.

② Center speaker (SKC-391/SKC-391C)

Position it close to your TV (preferably on top) facing forward at about ear level, or at the same height as the front left and right speakers.

③ Surround left and right speakers (SKR-558)

Position them at the sides of the listener, or slightly behind, about 60 to 100cm above ear level. Ideally they should be equally spaced from the listener.

④ Subwoofer (SKW-558)

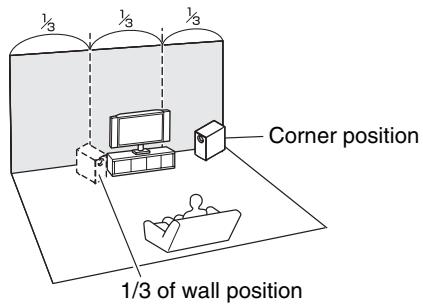

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel and bass from the satellite speakers when a crossover is specified. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the way along the front wall, as shown.

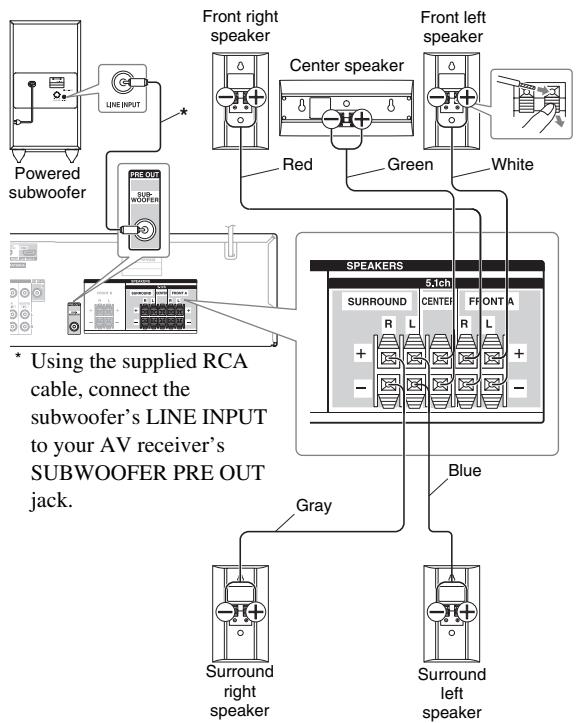

Connecting the Speakers

Speaker Connection Precautions

Read the following before connecting your speakers:

• Turn off your receiver before making any connections.
• Pay close attention to speaker wiring polarity. Connect positive (+) terminals to only positive (+) terminals, and negative (-)

terminals to only negative (-) terminals. If the speakers are wired incorrectly, the sound will phase and will sound unnatural.

• Be careful not to short the positive and negative wires. Doing so may damage your amp.

Specifications

■ Powered Subwoofer (SKW-558)

Type Bass-reflex

Input sensitivity/impedance 300mV / 20k

Rated output Power (IEC)

80 watts minimum continuous power,

4 ohms, driven at 100Hz with a maximum total harmonic distortion of 1%

Frequency response 27Hz to 150Hz

Cabinet capacity 24 L

Dimensions (W× H× D) 211mm× 425mm× 391mm (incl. projection)

Weight 6.1 kg

Audio Input 1 (RCA analog mono)

Drivers unit 16 cm Cone × 1

Power supply AC 220-240V,50/60Hz

Power consumption 20 W

Other Auto Standby function Non-magnetic shielding

■ Front Speakers (SKF-558)

Type Full Range Bass-reflex

Impedance 6Ω

Maximum input power 120 W

Sensitivity 81 dB/W/m

Frequency response 80Hz to 20kHz

Cabinet capacity 1.1 L

Dimensions (W× H× D) 101mm× 175mm× 116mm (incl. grille and projection)

Weight 0.7kg

Drivers unit 8 cm Cone × 1

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Non-magnetic shielding

Center Speaker

SKC-391 (European and Australian)

Type Full Range Bass-reflex

Impedance 6Ω

Maximum input power 120 W

Sensitivity 80 dB/W/m

Frequency response 80Hz to 20kHz

Cabinet capacity 1.8 L

Dimensions (W× H× D) 240mm× 102mm× 121mm (incl. grille and projection)

Weight 0.8kg

Drivers unit 8 cm Cone × 1

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Non-magnetic shielding

SKC-391C (Asian)

Type Full Range Closed Box

Impedance 6Ω

Maximum input power 120 W

Sensitivity 84.5 dB/W/m

Frequency response 80Hz to 20kHz

Cabinet capacity 1.8 L

Dimensions (W× H× D) 240mm× 102mm× 121mm (incl. grille and projection)

Weight 0.8kg

Drivers unit 8 cm Cone × 2

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Magnetic shielding

Surround Speakers (SKR-558)

Type Full Range Bass-reflex

Impedance 6Ω

Maximum input power 120 W

Sensitivity 81 dB/W/m

Frequency response 80Hz to 20kHz

Cabinet capacity 1.1 L

Dimensions (W× H× D) 101mm× 175mm× 116mm (incl. grille and projection)

Weight 0.7kg

Drivers unit 8 cm Cone × 1

Terminal Spring type color coded

Keyhole slot Available

Grille Fixed

Other Non-magnetic shielding

Specifications and appearance are subject to change without prior notice.

Note

For non-magnetic shielded speakers:

Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects.
