USER MANUAL CP-WX410WF HITACHI

CONTRAST, KLEUR, TINT, SCHERPTE,

STIL FUNCTIE., SPIEGEL, RESET, FILTERTIJD,

STILZETTEN, COMPUTER-IN, RESOLUTIE

INSTELLING Menu .....34

AUTO KEYSTONE ↗ UITVOEREN,

KEYSTONE ☐, STIL FUNCTIE., SPIEGEL,

UIT(STANDBY), MONITOR UITGANG

AUDIO Menu ....36

VOLUME, LUIDSPREKER, AUDIO, HDMI AUDIO

SCHERM Menu ....37

TAAL, POSITIE MENU, BLANK, OPSTARTEN,

Specifications....6 6

Projectorfuncties

-Video signaal :480i@60,480p@60,576i@50,720p@50/60,1080i@50/60,1080p@50/60

-PC signalen : Zie de Operating Guide - Technical

-Audio signaal : Formaat Lineair PCM

Proef Frequentie 48kHz / 44,1kHz / 32kHz

User's Manual (detailed)

Operating Guide – Technical

Example of PC signal

Resolution (H x V)H. frequency (kHz)V. frequency (Hz)Rating Signal mode
720 x 400 37.985.0 VESA TEXT
640 x 480 31.559.9 VESA VGA (60Hz)
640 x 480 37.972.8 VESA VGA (72Hz)
640 x 480 37.575.0 VESA VGA (75Hz)
640 x 480 43.385.0 VESA VGA (85Hz)
800 x 600 35.256.3 VESA SVGA (56Hz)
800 x 600 37.960.3 VESA SVGA (60Hz)
800 x 600 48.172.2 VESA SVGA (72Hz)
800 x 600 46.975.0 VESA SVGA (75Hz)
800 x 600 53.785.1 VESA SVGA (85Hz)
832 x 624 49.774.5 Mac 16" mode
1024 x 768 48.460.0 VESA XGA (60Hz)
1024 x 768 56.570.1 VESA XGA (70Hz)
1024 x 768 60.075.0 VESA XGA (75Hz)
1024 x 768 68.785.0 VESA XGA (85Hz)
1152 x 864 67.575.0 VESA
1280 x 960 60.060.0 VESA
1280 x 1024 64.060.0 VESA SXGA (60Hz)
1280 x 1024 80.075.0 VESA SXGA (75Hz)
*1280 x 102491.1 85.0 VESA SXGA (85Hz)
*1600 x 120075.0 60.0 VESA UXGA (60Hz)
1280 x 768 47.760.0 VESA W-XGA (60Hz)
1400 x 1050 65.260.0 VESA $XGA+ (60Hz)
1280 x 800 83.560.0 VESA

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

  • Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
  • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
  • Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
  • Automatic adjustment may not function correctly with some input signals.
  • The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.
  • The HDMI input does not support the signals marked with *.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in IMAGE menu.

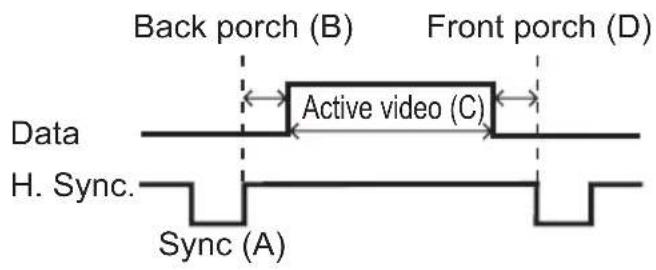

Back porch (B) Front porch (D) Active video (C) Data H. Sync. Sync (A)

Back porch (b) Front porch (d) Active video (c) Data V. Sync. Sync (a)

computer SignalHorizontal signal timing (μs)
(A) (B) (C) (D) (a) (b) (c) (d)
TEXT 2.03.020.31.0TEXT 3.4
VGA (60Hz)3.81.925.40.6
VGA (72Hz)1.34.120.30.8
VGA (75Hz)2.03.820.30.5
VGA (85Hz)1.62.217.81.6
SVGA (56Hz)2.03.622.20.7
SVGA (60Hz)3.22.220.01.0
SVGA (72Hz)2.41.316.01.1
SVGA (75Hz)1.63.216.20.3
SVGA (85Hz)1.12.714.20.6
Mac 16" mode1.13.914.50.6
XGA (60Hz)2.12.515.80.4
XGA (70Hz)1.81.913.70.3
XGA (75Hz)1.22.213.00.2
XGA (85Hz)1.02.210.80.5
1152 x 864 (75Hz)1.22.410.70.6
1280 x 960 (60Hz)1.02.911.90.9
SXGA (60Hz)1.02.311.90.4
SXGA (75Hz)1.11.89.50.1
SXGA (85Hz)1.01.48.10.4
UXGA (60Hz)1.21.99.90.4
W-XGA (60Hz)1.72.516.00.8
SXGA+ (60Hz)1.22.011.40.7
1280 x 800 (60Hz)1.62.415.30.8
computer SignalVertical signal timing (lines)
1
(z) 2 33 48010
VGA (72Hz)3284809
VGA (75Hz)3164801
VGA (85Hz)3254801
SVGA (56Hz)2226001
SVGA (60Hz)4236001
(72Hz) 6 23 60037
SVGA (75Hz)3216001
SVGA (85Hz)3276001
Mac 16" mode3396241
XGA (60Hz)6297683
XGA (70Hz)6297683
XGA (75Hz)3287681
XGA (85Hz)3367681
1152 x 864 (75Hz)3 328641
1280 x 960 (60Hz)3 369601
SXGA(60Hz)33810241
SXGA (75Hz)33810241
SXGA (85Hz)34410241
UXGA (60Hz)34612001
W-XGA (60Hz)3237681
SXGA+ (60Hz)33310501
1280 x 800 (60Hz)3 248001

Connection to the ports

A COMPUTER IN1 B COMPUTER IN2 C MONITOR OUT D HDMI CONTROL USB S-VIDEO 1 AUDIO OUT Y Cb/Pb Cr/Pr VIDEO L R AUDIO IN3 AUDIO IN

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level

PinSignal Pin Signal
1Video Red9(No connection)
2Video Green 10 Ground
3Video Blue 11 (No connection)
4(No connection) 12A: SDA (DDC data) / B, C: (No connection)
5Ground 13 H. sync / Composite sync.
6Ground Red 14 V. sync.
7Ground Green 15A: SCL (DDC clock) / B, C: (No connection)
8Ground Blue - -

①⑫⑬⑬⑭⑮ ⑥⑦⑧⑨⑩ ①②③④⑤

DHDMI

HDMI connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

18 16 14 12 10 8 6 4 2 19 17 15 13 11 9 7 5 3 1

PinSignalPinSignalPinSignal
1T.M.D.S. Data2 +8T.M.D.S. Data0 Shield15SCL
2T.M.D.S. Data2 Shield9T.M.D.S. Data0 -16SDA
3T.M.D.S. Data2 -10T.M.D.S. Clock +17DDC/CEC Ground
4T.M.D.S. Data1 +11T.M.D.S. Clock Shield18+5V Power
5T.M.D.S. Data1 Shield12T.M.D.S. Clock -19Hot Plug Detect
6T.M.D.S. Data1 -13CEC
7 TT.M.D.S. Data0 +14Reserved(N.C. on device)

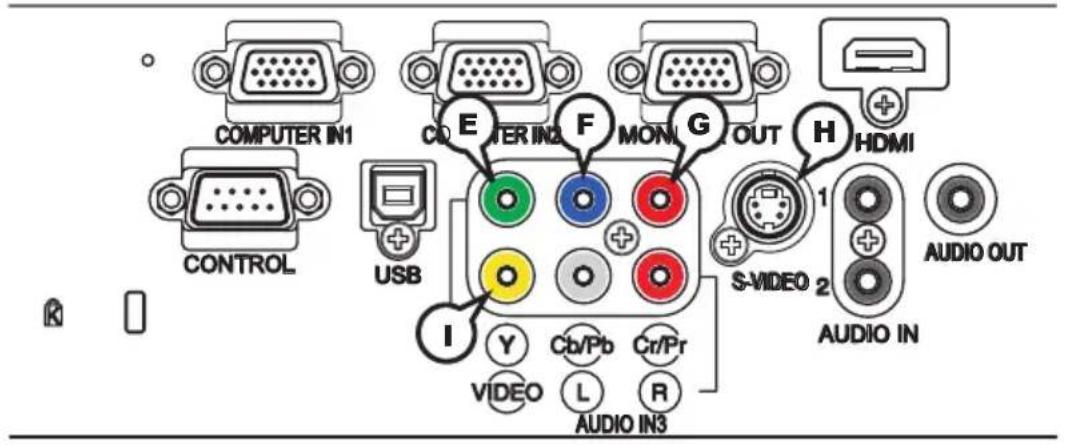

COMPUTER IN1 CONTROL USB E CO TER IN2 F MON G OUT H HDMI S-VIDEO 2 AUDIO OUT AUDIO IN I Y Cb/Pb Cr/Pr VIDEO L R AUDIO IN3

COMPONENT Ⓔ Y, Ⓕ Cb/Pb, Ⓖ Cr/Pr

RCA jack x3

• System: 480i@60, 480p@60, 576i@50, 720p@60, 1080i@60

Port Signal
Y Component video Y, 1.0±0.1Vp-p, 75Ω terminator with composite sync
Cb/Pb Component video Cb/Pb, 0.7±0.1Vp-p, 75Ω terminator
Cr/Pr Component video Cr/Pr, 0.7±0.1Vp-p, 75Ω terminator

HS-VIDEO

Mini DIN 4pin jack

HITACHI CP-WX410WF - HS-VIDEO - 1

Pin Signal
1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

①VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
• 1.0±0.1Vp-p, 75Ω terminator

COMPUTER IN1 COMPUTER IN2 MONITOR OUT CONTROL USB L Cb/Pb Cr/Pr M S-VIDEO 2 J MI N AUDIO OUT K AUDIO IN VIDEO L R AUDIO IN3

JAUDIO IN1, KAUDIO IN2

To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex.. For more reference, please consult your dealer.

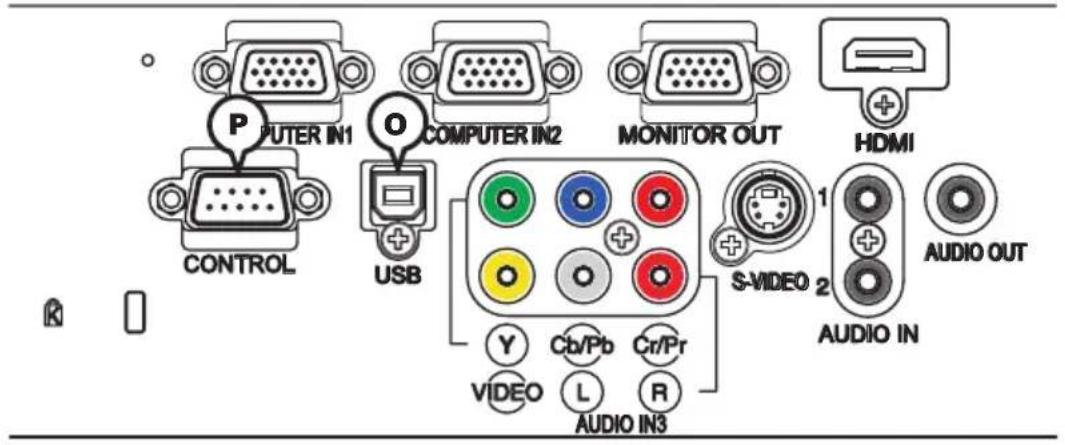

P PUTER IN1 O COMPUTER IN2 MONITOR OUT HDMI CONTROL USB S-VIDEO 1 AUDIO OUT Y Cb/Pb Cr/Pr VIDEO L R AUDIO IN3 AUDIO IN

©USB

USB B type jack

Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground

HITACHI CP-WX410WF - ©USB - 1

©CONTROL

D-sub 9pin plug

- About the details of RS-232C communication, please refer to the following page.

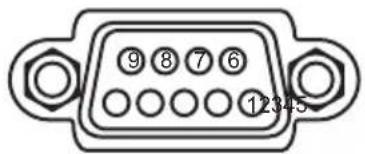

⑨⑧⑦⑥ 12345

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

RS-232C Communication

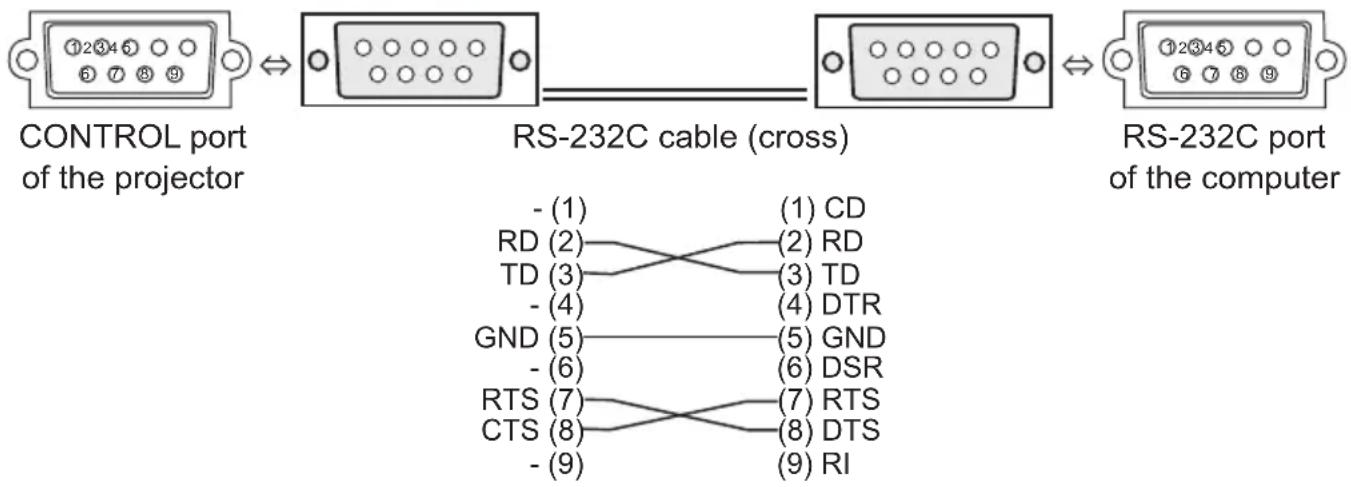

CONTROL port of the projector RS-232C cable (cross) RS-232C port of the computer -(1) CD RD (2) (2) RD TD (3) (3) TD -(4) DTR GND (5) (5) GND -(6) DSR RTS (7) (7) RTS CTS (8) (8) DTS -(9) RI

Connecting the cable

  1. Turn off the projector and the computer.
  2. Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable (cross). Use the cable that fulfills the specification shown in the previous page.
  3. Turn the computer on, and after the computer has started up turn the projector on.

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high CRC_low: Lower byte of CRC flag for command data CRC_high: Upper byte of CRC flag for command data

3. Command data

Command data chart

byte_0 byte_1 byte2 byte_3 byte_4 byte_5
Action Type Setting code
low high low high low high

Action (byte_0 - 1)

Action Classification Content
1 Set Change setting to desired value.
2 Get Read projector internal setup value.
4 Increment Increment setup value by 1.
5 Decrement Decrement setup value by 1.
6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.
(2) The projector returns the response code '1DH' + data (2 bytes) to the PC.

Header + Command data (^ 0 2 H ^ + ^ 0 0 H ^ + type (2 bytes) + ^ 0 0 H ^ + ^ 0 0 H ^ )

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.
(2) The projector changes the setting based on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Header + Command data (^ 0 1 H ^ + ^ 0 0 H ^ + type (2 bytes) + setting code (2 bytes))

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.
(2) The projector changes the specified setting to the default value.
(3) The projector returns the response code '06H' to the PC.

Header + Command data (^ 0 6 H ^ + ^ 0 0 H ^ + type (2 bytes ) + ^ 0 0 H ^ + ^ 0 0 H ^ )

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.
(2) The projector increases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Header + Command data (^ 0 4 H ^ + ^ 0 0 H ^ + type (2 bytes) + ^ 0 0 H ^ + ^ 0 0 H ^ )

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.
(2) The projector decreases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Header + Command data (^ 0 5 H ^ + ^ 0 0 H ^ + type (2 bytes ) + ^ 0 0 H ^ + ^ 0 0 H ^ )

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code '15H' is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case, the command is not executed and the error code '15H' is sent back to the PC. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code '1CH' + 'xxxxH' is sent back to the PC.

When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, an error code will be returned to the PC.

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

  • Provide an interval of at least 40ms between the response code and any other code.
  • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
  • Commands are not accepted during warm-up.

RS-232C Communication command table

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
Power Set Turnoff BEEF 03 06 00 2A D3 0100 00 60 00 00
Turn on BE EF03 06 00 BA D2 0100 00 60 01 00
Get BE EF 03 0600 19 D3 02 00 00 60 00 00
[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input SourceSetCOMPUTER1BE EF0306 00FE D201 0000 2000 00
COMPUTER2BE EF 03 06 003E D0 0100 00 20 0400
HDMIBE EF 03 06 000E D2 0100 00 20 0300
COMPONENTBE EF 03 06 00AE D1 0100 00 20 0500
S-VIDEOBE EF 03 06 009E D3 0100 00 20 0200
VIDEOBE EF 03 06 006E D3 0100 00 20 0100
Get BE EF 03 0600 CD D20200 00 20 00 00
Error StatusGet BE EF 03 0600 D9 D802 00 2060 00 00
[Example return]00 00 01 00 02 00 03 00 04 00[Normal] [Cover error] [Fan error] [Lamp error] [Temp error]05 00 06 00 07 00 08 00[Air flow error] [Lamp time error] [Cold error] [Filter error]
BRIGHTNESSGet BE EF 03 0600 89 D202 00 03 2000 00
IncrementBE EF 03 06 00EF D2 0400 03 20 0000
DecrementBE EF 03 06 003E D3 0500 03 2000 00
BRIGHTNESS ResetExecuteBE EF0306 0058 D306 0000 7000 00
CONTRASTGet BE EF 03 0600 FD D30200 04 20 00 00
IncrementBE EF 03 06 009B D3 0400 04 20 0000
DecrementBE EF 03 06 004A D2 0500 04 20 0000
CONTRAST ResetExecuteBE EF0306 00A4 D206 0001 7000 00
PICTURE MODESetNORMALBE EF0306 0023 F601 00BA 3000 00
CINEMA BE EF03 06 00 B3 F7 0100 BA 3001 00
DYNAMICBE EF 03 06 00E3 F4 0100 BA 3004 00
BOARD(BLACK) BEEF 03 06 00 B3EF 01 00BA 3020 00
BOARD(GREEN) BEEF 03 06 00 73 EE 01 00 BA3021 00
WHITEBOARDBE EF 03 06 0083 EE 0100 BA 3022 00
DAYTIME BE EF03 06 00 E3 C7 0100 BA 3040 00
Get BE EF 03 0600 10 F602 00 BA 3000 00
[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)] [BOARD(GREEN)] [WHITEBOARD] [DAY TIME]

RS-232C Communication (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
GAMMA Set #1DEFAULT BE EF 03 06 00 07E9 01 00 A1 30 2000
#1 CUSTOM BEEF 03 06 0007 FD01 00 A1 3010 00
#2 DEFAULT BEEF 03 06 0097 E801 00 A1 3021 00
#2 CUSTOM BEEF 03 06 0097 FC01 00 A1 3011 00
#3 DEFAULT BEEF 03 06 0067 E801 00 A1 3022 00
#3 CUSTOM BEEF 03 06 0067 FC01 00 A1 3012 00
#4 DEFAULT BEEF 03 06 00F7 E901 00 A1 3023 00
#4 CUSTOM BEEF 03 06 00F7 FD01 00 A1 3013 00
#5 DEFAULT BEEF 03 06 00C7 EB01 00 A1 3024 00
#5 CUSTOM BEEF 03 06 00C7 FF01 00 A1 3014 00
#6 DEFAULT BEEF 03 06 0057 EA01 00 A1 3025 00
#6 CUSTOM BEEF 03 06 0057 FE01 00 A1 3015 00
Get BE EF 03 0600 F4 F002 00 A130 00 00
User Gamma PatternSetOffBE EF0306 00FB FA01 0080 3000 00
9 steps gray scale BEEF 03 0600 6BFB 01 00 803001 00
15 steps gray scaleBE EF0306 009B FB01 0080 3002 00
RampBE EF0306 000B FA01 0080 3003 00
GetBE EF0306 00C8 FA02 0080 3000 00
User Gamma Point 1GetBE EF0306 0008 FE02 0090 3000 00
IncrementBE EF0306 006E FE04 0090 3000 00
DecrementBE EF0306 00BF FF05 0090 3000 00
User Gamma Point 2GetBE EF0306 00F4 FF02 0091 3000 00
IncrementBE EF 030600 92 FF04 00 9130 00 00
DecrementBE EF 030600 43 FE05 00 9130 00 00
User Gamma Point 3GetBE EF0306 00B0 FF02 0092 3000 00
IncrementBE EF0306 00D6 FF04 0092 3000 00
DecrementBE EF 030600 07 FE05 00 9230 00 00
User Gamma Point 4GetBE EF0306 004C FE02 0093 3000 00
IncrementBE EF0306 002A FE04 0093 3000 00
DecrementBE EF0306 00FB FF05 0093 3000 00
User Gamma Point 5GetBE EF0306 0038 FF02 0094 3000 00
IncrementBE EF0306 005E FF04 0094 3000 00
DecrementBE EF0306 008F FE05 0094 3000 00
User Gamma Point 6GetBE EF0306 00C4 FE02 0095 3000 00
IncrementBE EF0306 00A2 FE04 0095 3000 00
DecrementBE EF 030600 73 FF05 00 9530 00 00
User Gamma Point 7GetBE EF0306 0080 FE02 0096 3000 00
IncrementBE EF0306 00E6 FE04 0096 3000 00
DecrementBE EF 030600 37 FF05 00 9630 00 00
User Gamma Point 8GetBE EF0306 007C FF02 0097 3000 00
IncrementBE EF0306 001A FF04 0097 3000 00
DecrementBE EF0306 00CB FE05 0097 3000 00

(continued on next page)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
COLOR TEMP SetHIGHBE EF 03 06 00 0B F501 00 B0 30 03 00
CUSTOM-1 (HIGH) BEEF 03 06 00 CBF8 01 00 B0 30 13 00
MID BE EF 0306 00 9B F4 01 000 B0 30 02 00
CUSTOM-2 (MID) BEEF 03 06 00 5B FF9 01 00 B0 30 12 00
LOW BE EF 0306 00 6B F4 01 000 B0 30 01 00
CUSTOM-3 (LOW) BEEF 03 06 00 ABF9 01 00 B0 3011 00
Hi-BRIGHT-1BE EF 03 06 003B F2 01 00 B0 30 0800
CUSTOM-4 (Hi-BRIGHT-1)BE EF 03 06 00FB FF 01 00 B0 30 1800
Hi-BRIGHT-2BE EF 03 06 00AB F3 01 00 B0 30 0900
CUSTOM-5 (Hi-BRIGHT-2)BE EF 03 06 006B FE 01 00 B0 30 1900
Hi-BRIGHT-3BE EF 03 06 005B F3 01 00 B0 30 0A00
CUSTOM-6 (Hi-BRIGHT-3)BE EF 03 06 009B FE 01 00 B0 30 1A00
GetBE EF 03 06 00C8 F5 02 00 B0 30 0000
COLOR TEMP GAIN RGetBE EF 03 06 0034 F4 02 00 B1 30 0000
IncrementBE EF 03 06 0052 F4 04 00 B1 30 0000
DecrementBE EF 03 06 0083 F5 05 00 B1 30 0000
COLOR TEMP GAIN GGetBE EF 0306 0070 F402 00B2 3000 00
IncrementBE EF 03 06 0016 F4 04 00 B2 30 0000
DecrementBE EF 03 06 00C7 F5 05 00 B230 00 00
COLOR TEMP GAIN BGetBE EF 03 06 008C F5 02 00 B3 30 0000
IncrementBE EF 03 06 00EA F5 04 00 B330 00 00
DecrementBE EF 03 06 003B F4 05 00 B3 30 0000
COLOR TEMP OFFSET RGetBE EF 0306 0004 F502 00B5 3000 00
IncrementBE EF 0306 0062 F504 00B5 3000 00
DecrementBE EF 03 06 00B3 F4 05 00 B5 30 0000
COLOR TEMP OFFSET GGetBE EF 0306 0040 F502 00B6 3000 00
IncrementBE EF 0306 0026 F504 00B6 3000 00
DecrementBE EF 03 06 00F7 F4 05 00 B630 00 00
COLOR TEMP OFFSET BGetBE EF 03 06 00BC F4 02 00 B7 30 0000
IncrementBE EF 03 06 00DA F4 04 00 B7 30 0000
DecrementBE EF 03 06 00OB F5 05 00 B7 30 0000
COLORGetBE EF 0306 00B5 7202 0002 2200 00
IncrementBE EF 0306 00D3 7204 0002 2200 00
DecrementBE EF 03 06 0002 7305 00 02 2220 00 00
COLOR ResetExecuteBE EF 0306 0080 D006 000A 7000 00
TINTGetBE EF 0306 0049 7302 0003 2200 00
IncrementBE EF 0306 002F 7304 0003 2200 00
DecrementBE EF 0306 00FE 7205 0003 2200 00
TINT ResetExecuteBE EF 03 06 007C D1 06 00 0B 70 0000
SHARPNESSGetBE EF 0306 00F1 7202 0001 2200 00
IncrementBE EF 03 06 0097 7204 00 01 2220 00 00
DecrementBE EF 03 06 0046 7305 00 01 2220 00 00
SHARPNESS ResetExecuteBE EF 0306 00C4 D006 0009 7000 00
MY MEMORY LoadSet1BE EF 0306 00OE D701 0014 2000 00
2BE EF 03 06 009E D6 01 001420 01 00
3BE EF 03 06 006E D6 01 001420 02 00
4BE EF 0306 00FE D701 0014 2003 00

(continued on next page)

RS-232C Communication (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
MY MEMORY Save SetSet 1 BEEF 03 06 00 F2 D6 000 15 20 00 00
2 BE EF 0306 00 62 D7 01 0015 20 01 00
3 BE EF 0306 00 92 D7 01 0015 20 02 00
4 BE EF 0306 00 02 D6 01 0015 20 03 00
PROGRESSIVE SetTURNOFF BE EF 03 06 00 4A 72 01 00 07 22 00 00
TV BE EF 0306 00 DA 73 01 00 07 22 01 00
FILM BE EF 0306 00 2A 73 01 00 07 22 02 00
GetBE EF 03 06 00 79 72 02 00 07 22 00 00
VIDEO NR SetLOW BE EF 03 06 0026 72 01 00 06 22 01 00
MIDBE EF 03 06 00 D6 72 01 00 06 22 02 00
HIGHBE EF 03 06 00 46 73 01 00 06 22 03 00
GetBE EF 03 06 00 85 73 02 00 06 22 00 00
ASPECTSet4:3BE EF0306 009E D001 0008 2000 00
16:9BE EF 0306 00 0E D101 00 08 2001 00
14:9BE EF0306 00CE D601 0008 2009 00
16:10BE EF 0306 00 3E D601 00 0820 0A 00
REALBE EF 0306 00 5E D701 00 0820 08 00
NORMALBE EF0306 005E DD01 0008 2010 00
GetBE EF0306 00AD D002 0008 2000 00
OVER SCANGetBE EF0306 0091 7002 0009 2200 00
IncrementBE EF 0306 00 F7 7004 00 09 2200 00
DecrementBE EF 0306 00 26 7105 00 09 2200 00
OVER SCAN ResetExecuteBE EF0306 00EC D906 0027 7000 00
V POSITIONGetBE EF0306 000D 8302 0000 2100 00
IncrementBE EF 0306 00 6B 8304 00 00 2100 00
DecrementBE EF 0306 00 BA 8205 00 00 2100 00
V POSITION ResetExecuteBE EF0306 00E0 D206 0002 7000 00
H POSITIONGetBE EF0306 00F1 8202 0001 2100 00
IncrementBE EF 0306 00 97 8204 00 01 2100 00
DecrementBE EF 0306 00 46 8305 00 01 2100 00
H POSITION ResetExecuteBE EF0306 001C D306 0003 7000 00
H PHASEGetBE EF0306 0049 8302 0003 2100 00
IncrementBE EF 0306 00 2F 8304 00 03 2100 00
DecrementBE EF 0306 00 FE 8205 00 03 2100 00
H SIZEGetBE EF0306 00B5 8202 0002 2100 00
IncrementBE EF 0306 00 D3 8204 00 02 2100 00
DecrementBE EF 0306 00 02 8305 00 02 2100 00
H SIZE ResetExecuteBE EF0306 0068 D206 0004 7000 00
AUTO ADJUST ExecuteBE EF 03 0600 91 D0 06 00 0A 20 00 00
COLOR SPACESetAUTOBE EF0306 000E 7201 0004 2200 00
RGBBE EF 0306 00 9E 7301 00 04 2201 00
SMPTE240BE EF 0306 00 SE 73 01 0004 22 02 00
REC709BE EF 0306 00 FE 7201 00 04 2203 00
REC601BE EF 0306 00 CE 7001 00 04 2204 00
GetBE EF 0306 00 3D 7202 00 04 2200 00
COMPONENTSetCOMPONENTBE EF0306 004A D701 0017 2000 00
SCART RGBBE EF0306 00DA D601 0017 2001 00
GetBE EF0306 00 79D702 00 17 2000 00

(continued on next page)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
C-VIDEO FORMAT Set AUTO BE EF 03 06 00 A270 01 00 1122 0A00
NTSC BE EF 03 06 00 C274 0100 11 22 0400
PAL BE EF 03 06 00 5275 01 0000 11 22 0500
SECAM BE EF 03 06 00 5270 0100 11 22 0900
NTSC4.43 BE EF 03 06 00 6277 0100 11 22 0200
M-PALBE EF 03 06 00C2 71 0100 11 22 0800
N-PALBE EF 03 06 0032 74 0100 11 22 0700
GetBE EF 03 06 0031 76 02 0000 11 22 0000
S-VIDEO FORMAT Set AUTO BE EF 03 06 00 E670 01 00 1222 0A00
NTSC BE EF 03 06 00 8674 01 0000 12 22 0400
PAL BE EF 03 06 00 1675 01 0000 12 22 0500
SECAM BE EF 03 06 00 1670 0100 12 22 0900
NTSC4.43 BE EF 03 06 00 2677 0100 12 22 0200
M-PALBE EF 03 06 0086 71 0100 12 22 0800
N-PALBE EF 03 06 0076 74 0100 12 22 0700
GetBE EF 03 06 0075 76 02 0000 12 22 0000
HDMISetAUTO BE EF 03 06 00 86D8 01 0022 2000 00
NORMALBE EF 0306 0016 D9 0100 22 20 0100
ENHANCEDBE EF 0306 00E6 D901 00 22 2002 00
GetBE EF 030600 B5 D802 00 22 2000 00
FRAME LOCK-COMPUTER1SetTURN OFF BE EF 030600 3BC2 01 0050 30 00 00
TURN ONBE EF0306 00AB C301 0050 3001 00
GetBE EF 030600 08 C202 00 50 3000 00
FRAME LOCK-COMPUTER2SetTURN OFF BE EF 030600 7FC2 01 0054 30 00 00
TURN ONBE EF0306 00EF C301 0054 3001 00
GetBE EF0306 004C C202 0054 3000 00
COMPUTER IN1SetAUTOBE EF0306 00CE D601 0010 2003 00
SYNC ON G OFF BEEF 0306 00E D7 0100 10 20 0200
GetBE EF0306 000D D602 0010 2000 00
COMPUTER IN2SetAUTO BE EF 030600 1120 03 00
SYNC ON G OFF BEEF 0306 00A2 D6 0100 11 20 0200
GetBE EF0306 00F1 D702 0011 2000 00
AUTO KEYSTONE EXECUTEExecuteBE EF0306 00E5 D106 000D 2000 00
KEYSTONE VGetBE EF0306 00B9 D302 0007 2000 00
IncrementBE EF0306 00DF D304 0007 2000 00
DecrementBE EF 030600 0E D205 00 0720 00 00
KEYSTONE V ResetExecuteBE EF0306 0008 D006 000C 7000 00
WHISPERSetNORMALBE EF0306 003B 2301 0000 3300 00
WHISPER BE EF030600 AB22 01 00 0033 01 00
GetBE EF 030600 08 2302 00 00 3800 00
MIRRORSetNORMALBE EF0306 00C7 D201 0001 3000 00
H:INVERT BE EF030600 5703 01 00 0130 01 00
V:INVERTBE EF0306 00A7 D301 0001 3002 00
H&V:INVERTBE EF 0306 0037 D2 0100 01 3003 00
GetBE EF 030600 F4 D202 00 01 3000 00
STANDBY MODE SetNORNORMAL BE EF 03 06 00 D6D2 01 0001 6000 00
SAVING BE EF03 06 00 46D3 0100 01 60 0100
Get BE EF 03 0600 E5 D202 00 0160 00 00
MONITOR OUT - COMPUTER1SetCOMPUTER1 BEEF 03 0600 3E F4 01 00 B020 00 00
TURN OFFBE EF 0306 00CE B5 0100 B0 20FF 00
Get BE EF 03 0600 0D F402 00 B02000 00
MONITOR OUT - COMPUTER2SetCOMPUTER2 BEEF 03 0600 CE F7 01 00 B42004 00
TURN OFFBE EF 0306 00FE B4 0100 B4 20FF 00
Get BE EF 03 0600 3D F502 00 B42000 00
MONITOR OUT - HDMISetCOMPUTER1 BEEF 03 0600 7A F4 01 00 B320 00 00
COMPUTER2BE EF 0306 00BA F6 0100 B3 2004 00
TURN OFFBE EF 0306 008A B5 0100 B3 20FF 00
Get BE EF 03 0600 49 F402 00 B32000 00
MONITOR OUT - COMPONENTSetCOMPUTER1 BEEF 03 0600 F2 F4 01 00 B52000 00
COMPUTER2BE EF 0306 0032 F6 0100 B5 2004 00
TURN OFFBE EF 0306 0002 B5 0100 B5 20FF 00
Get BE EF 03 0600 C1 F402 00 B52000 00
MONITOR OUT - VIDEOSetCOMPUTER1 BEEF 03 0600 C2 F5 01 00 B12000 00
COMPUTER2BE EF 0306 0002 F7 0100 B1 2004 00
TURN OFFBE EF 0306 0032 B4 0100 B1 20FF 00
Get BE EF 03 0600 F1 F502 00 B12000 00
MONITOR OUT - S-VIDEOSetCOMPUTER1 BEEF 03 0600 86 F5 01 00 B22000 00
COMPUTER2BE EF 0306 0046 F7 0100 B2 2004 00
TURN OFFBE EF 0306 0076 B4 0100 B2 20FF 00
Get BE EF 03 0600 B5 F502 00 B220 00 00
MONITOR OUT - STANDBYSetCOMPUTER1 BEEF 03 0600 F2 F4 01 00 BF2000 00
COMPUTER2BE EF 0306 0032 F6 0100 BF 2004 00
TURN OFFBE EF 0306 0002 B5 0100 BF 20FF 00
Get BE EF 03 0600 C1 F402 00 BF2000 00
VOLUME- COMPUTER1Get BE EF 03 0600 CDCC 0200 60 2000 00
IncrementBE EF 0306 00AB CC 0400 60 20 0000
DecrementBE EF 0306 007A CD 0500 60 20 0000
VOLUME- COMPUTER2Get BE EF 03 0600 FD CD02 0064 20 00 00
IncrementBE EF 0306 009B CD 0400 64 20 0000
DecrementBE EF 0306 004A CC 0500 64 20 0000
VOLUME - HDMIGet BE EF 03 0600 89 CC02 00 6320 00 00
IncrementBE EF 0306 00EF CC04 00 6320 00 00
DecrementBE EF 0306 003E CD 0500 63 20 0000
VOLUME- COMPONENTGet BE EF 03 0600 01 CC02 00 6520 00 00
IncrementBE EF 0306 0067 CC 0400 65 20 0000
DecrementBE EF 0306 00B6 CD 0500 65 20 0000
VOLUME-S-VIDEOGet BE EF 03 0600 75 CD02 00 6220 00 00
IncrementBE EF 0306 0013 CD 0400 62 20 0000
DecrementBE EF 0306 00C2 CC05 00 6220 00 00

(continued on next page)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
VOLUME-VIDEO GeBE EF 03 06 00 31 CD 02 000 61 20 0000
Increment BE EF 0306 00 57CD 0400 61 20 0000
Decrement BE EF 0306 00 86CC 0500 61 20 0000
VOLUME-AUDIO OUT STANDBYGet BE EF 03 0600 D9 CF02 006F 20 00 00
Increment BE EF 0306 00 BFCF 0400 6F 20 0000
Decrement BE EF 0306 00 6ECE 0500 6F 20 0000
MUTE Set TURN OFFBE EF 03 06 0046 D3 01 0002 2000 00
TURN ONBE EF 0306 00D6 D2 0100 02 20 0100
Get BE EF 03 0600 75D3 0200 02 20 0000
SPEAKERSetTURN ONBE EF0306 00FE D401 001C 2001 00
TURN OFF BE EF03 06 006E D5 011 001C 2000 00
Get BE EF 03 0600 5D D502 001C 2000 00
AUDIO-COMPUTER1SetAUDIO1BE EF0306 006E DC01 0030 2001 00
AUDIO2BE EF 0306 009E DC 0100 3020 02 00
AUDIO3BE EF 0306 000E DD 0100 3020 03 00
Turn offBE EF0306 00FE DD01 0030 2000 00
Get BE EF 03 0600 CDDD 0200 3020 00 00
AUDIO-COMPUTER2SetAUDIO1BE EF0306 005E DD01 0034 2001 00
AUDIO2BE EF0306 00AE DD01 0034 2002 00
AUDIO3BE EF 0306 003E DC 0100 3420 03 00
Turn offBE EF 0306 00CE DC01 00 3420 00 00
Get BE EF 03 0600 FDDC02 00 3420 00 00
AUDIO-HDMISetTURN OFFBE EF0306 00BA DD01 0033 2000 00
AUDIO1BE EF 0306 002A DC 0100 3320 01 00
AUDIO2BE EF 0306 00DA DC01 00 3320 02 00
AUDIO3BE EF 0306 004A DD 0100 3320 03 00
AUDIO_HDMIBE EF 0306 007A C4 0100 3320 20 00
Get BE EF 03 0600 89 DD02 00 3320 00 00
AUDIO-COMPONENTSetAUDIO1BE EF0306 00A2 DC01 0035 2001 00
AUDIO2BE EF 0306 0052 DC 0100 35 20 0200
AUDIO3BE EF0306 00C2 DD01 0035 2003 00
Turn offBE EF 0306 0032 DD 0100 35 20 0000
Get BE EF 03 0600 01 DD02 00 3520 00 00
AUDIO-S-VIDEOSetAUDIO1BE EF0306 00D6 DD01 0032 2001 00
AUDIO2BE EF 0306 0026 DD 0100 32 20 0200
AUDIO3BE EF 0306 00B6 DC 0100 3220 03 00
Turn offBE EF 0306 0046 DC 0100 32 20 0000
Get BE EF 03 0600 75 DC02 00 3220 00 00
AUDIO-VIDEOSetAUDIO1BE EF0306 0092 DD01 0031 2001 00
AUDIO2BE EF 0306 0062 DD 0100 31 20 0200
AUDIO3BE EF 0306 00F2 DC 0100 31 20 0300
Turn offBE EF 0306 0002 DC 0100 31 20 0000
Get BE EF 03 0600 31 DC02 00 3120 00 00
AUDIO OUT STANDBYSetAUDIO1BE EF0306 007A DF01 003F 2001 00
AUDIO2BE EF 0306 008A DF 0100 3F20 02 00
AUDIO3BE EF 0306 001A DE 0100 3F20 03 00
Turn offBE EF0306 00EA DE01 003F 2000 00
Get BE EF03 0600 D9 DE02 003F 20 00 00

(continued on next page)

RS-232C Communication (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
REMOTE FREQ. NORMALSetOff BE EF 03 06 00 FFBD 01 00 3026 0000
On BE EF 0306 00 6F3C 01 000 30 26 0100
Get BE EF 03 0600 CC 3D02 00 3026 00 00
REMOTE FREQ. HIGHSetOff BE EF 03 06 00 03BC 01 00 3126 0000
On BE EF 0306 00 933D 01 0031 26 0100
Get BE EF 03 0600 30 3C02 00 3126 00 00
LANGUAGE Set ENGLISHENGLISHBE EF 03 06 00 F703 01 00 0530 0000
FRANÇAISBE EF 0306 0067 D2 0100 05 30 0100
DEUTSCHBE EF 0306 0097 D2 0100 05 30 0200
ESPAÑOLBE EF 0306 0007 D3 0100 05 30 0300
ITALIANOBE EF 0306 0037 D1 0100 05 30 0400
NORSKBE EF 0306 00A7 D0 0100 05 30 0500
NEDERLANDSBE EF 0306 0057 D0 0100 05 30 0600
PORTUGUÊSBE EF 0306 00C7 D1 0100 05 30 0700
日本語BE EF 0306 0037 D4 0100 05 30 0800
简体中文BE EF 0306 00A7 D5 0100 05 30 0900
繁體中文BE EF 0306 0037 DE 0100 05 30 1000
한글BE EF 0306 0057 D5 0100 05 30 0A00
SVENSKABE EF 0306 00C7 D4 0100 05 30 0B00
PYCCKINBE EF0306 00F7 D601 0005 300C 00
SUOMIBE EF 0306 0067 D7 0100 05 300D 00
POLSKIBE EF 0306 0097 D7 0100 05 30 0E00
TÜRKÇEBE EF 0306 0007 D6 0100 05 30 0F00
Get BE EF 03 0600 C4 D302 00 0530 00 00
MENU POSITION H GGet BE EF 03 06 00 04 D7 0200 15 30 0000
IncrementBE EF 0306 0062 D7 0400 15 30 0000
DecrementBE EF 0306 00B3 D6 0500 15 30 0000
MENU POSITION H ResetExecuteBE EF 0306 00DC C606 00 430 00 00
MENU POSITION V GGet BE EF 03 06 00 40 D7 0200 16 30 0000
IncrementBE EF 0306 0026 D7 0400 16 30 0000
DecrementBE EF 0306 00F7 D6 0500 16 30 0000
MENU POSITION V ResetExecuteBE EF 0306 00A8 C7 0600 44 70 0000
BLANKSetMyScreenBE EF0306 00FB CA01 0000 3020 00
ORIGINALBE EF 0306 00FB E2 0100 00 30 4000
BLUEBE EF 0306 00CB D301 00 000 03 00
WHITEBE EF 0306 006B D0 0100 00 30 0500
BLACKBE EF 0306 009B D0 0100 00 30 0600
Get BE EF 03 0600 08 D302 00 0030 00 00
BLANK On/OffSetTURN OFFBE EF0306 00FB D801 0020 3000 00
TURN ONBE EF 0306 006B D9 0100 20 30 0100
Get BE EF 03 0600 C8 D802 00 2030 00 00
START UPSetMyScreenBE EF0306 00CB CB01 0004 3020 00
ORIGINALBE EF 0306 00OB D2 0100 04 30 0000
TURN OFFBE EF 0306 009B D3 0100 04 30 0100
Get BE EF 03 0600 38 D202 00 0430 00 00

(continued on next page)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
MyScreen LOCK SetTURNOFF BE EF 03 06 00B EF 01 00C0 3000 00
TURN ON BE EF03 06 00AB EE 0100 C0 3001 00
Get BE EF 03 0600 08 EF02 0000 30 00 00
MESSAGE Set TTURNOFF BE EF 03 06 00 8FD6 01 00 1730 0000
TURN ON BE EF03 06 001F D7 0100 17 3001 00
Get BE EF 03 0600 BC D602 0017 30 00 00
TEMPLATE Set TEST PPATTERNBE EF 03 06 00 43D9 0100 22 30 0000
DOT-LINE1 BE EF03 06 00D3 D801 00 22 3001 00
DOT-LINE2 BE EF03 06 0023 D801 00 22 3002 00
DOT-LINE3 BE EF03 06 00B3 D901 00 22 3003 00
DOT-LINE4 BE EF03 06 00B3 DB01 00 22 3004 00
Get BE EF 03 0600 70 D902 00 2230 00 00
TEMPLATE On/OffSetTURN OFF BE EF 03 0600 BF D801 00 2330 00 00
TURN ON BE EF03 06 002F D9 0100 23 3001 00
Get BE EF 03 0600 8C D802 00 2330 00 00
AUTO SEARCH SetTURNOFF BE EF 03 06 00 ED6 D6 01 0016 2000 00
TURN ON BE EF03 06 0026 D7 0100 16 2001 00
Get BE EF 03 0600 85 D602 00 1620 00 00
AUTO KEYSTONESetTURN OFF BE EF 03 0600 EA D101 00 0F20 00 00
TURN ON BE EF03 06 007A D0 0100 0F 2001 00
Get BE EF 03 0600 D9 D102 00 0F20 00 00
AUTO ONSetTURN OFFBE EF0306 003B 8901 0020 3100 00
TURN ONBE EF0306 00AB 8801 0020 3101 00
GetBE EF0306 0008 8902 0020 3100 00
AUTO OFFGet BE EF 03 0600 08 8602 00 1031 00 00
IncrementBE EF 03 06 006E 86 0400 10 31 0000
DecrementBE EF 03 06 00BF 87 0500 10 31 0000
LAMP TIMEGet BE EF 03 0600 C2 FF02 00 9010 00 00
LAMP TIME ResetExecuteBE EF0306 0058 DC06 0030 7000 00
FILTER TIMEGet BE EF 03 0600 C2 F002 00 A010 00 00
FILER TIME ResetExecuteBE EF0306 0098 C606 0040 7000 00
MY BUTTON-1SetCOMPUTER1BE EF0306 003A 3301 0000 3600 00
COMPUTER2 BE EF03 06 00FA 3101 00 00 3604 00
HDMIBE EF 03 06 00CA 33 0100 00 36 0300
COMPONENTBE EF 03 06 006A 30 0100 00 36 0500
S-VIDEOBE EF 03 06 005A 32 0100 00 36 0200
VIDEOBE EF 03 06 00AA 32 0100 00 36 0100
INFORMATIONBE EF 03 06 00FA 3E 0100 00 36 1000
AUTO KEYSTONE VBE EF 03 06 006A 3F 0100 00 36 1100
MY MEMORY BE EF03 06 009A 3F01 00 00 3612 00
PICTURE MODEBE EF 03 06 000A 3E 0100 00 36 1300
FILTER RESETBE EF 03 06 003A 3C 0100 00 36 1400
AV MUTEBE EF 03 06 00AA 38 0100 00 36 1900
TEMPLATEBE EF 03 06 00CA 39 0100 00 361B 00
Get BE EF 03 0600 09 3302 00 0036 00 00
MY BUTTON-2 SetCOMPUTER1 BE EF 03 06 00 C6 32 01 00 01 36 00 00
COMPUTER2 BE EF 03 06 00 06 30 01 00 01 36 04 00
HDMI BE EF 03 06 00 36 32 01 00 01 36 03 00
COMPONENT BE EF 03 06 00 96 31 01 00 01 36 05 00
S-VIDEO BE EF 03 06 00 A6 33 01 00 01 36 02 00
VIDEO BE EF 03 06 00 56 33 01 00 01 36 01 00
INFORMATION BE EF 03 06 00 06 3F 01 00 01 36 10 00
AUTO KEYSTONE V BE EF 03 06 00 96 3E 01 00 01 36 11 00
MY MEMORY BE EF 03 06 00 66 3E 01 00 01 36 12 00
PICTURE MODE BE EF 03 06 00 F6 3F 01 00 01 36 13 00
FILTER RESET BE EF 03 06 00 06 00 C6 3D 01 00 01 36 19 00
AV MUTE BE EF 03 06 00 56 39 01 00 01 36 19 00
TEMPLATE BE EF 03 06 00 36 38 01 00 01 36 1B 00
GetBE EF 03 06 00 F5 32 02 00 01 36 00 00
MY SOURCESetCOMPUTER1BE EF0306 00FA 3001 0020 3600 00
COMPUTER2 BE EF 03 06 00 3A 3A 01 00 20 36 04 00
HDMI BE EF 03 06 00 0A 38 01 00 20 36 03 00
COMPONENT BE EF 03 06 00 AA 3B 01 00 20 36 05 00
S-VIDEO BE EF 03 06 00 9A 89 01 00 20 36 02 00
VIDEO BE EF 03 06 00 6A 39 01 00 20 36 01 00
GetBE EF 03 06 00 C9 38 02 00 20 36 00 00
MAGNIFYGetBE EF0306 007C D202 0007 3000 00
IncrementBE EF 03 06 00 1A D2 04 00 07 30 00 00
DecrementBE EF0306 00CB D305 0007 3000 00
FREEZESetNORMALBE EF0306 0083 D201 0002 3000 00
FREEZEBE EF 03 06 00 13 D3 01 00 02 30 01 00
GetBE EF 03 06 00 B0 D2 02 00 02 30 00 00
CLOSED CAPTION DISPLAYSetTURN OFFBE EF0306 00FA 6201 0000 3700 00
TURN ONBE EF 03 06 00 6A 63 01 00 00 37 01 00
AUTOBE EF 03 06 00 9A 63 01 00 00 37 02 00
GetBE EF 03 06 00 C9 62 02 00 00 37 00 00
CLOSED CAPTION MODESetCAPTIONSBE EF 03 06 00 06 63 01 00 01 37 00 00
TEXT BE EF 03 06 00 96 62 01 00 01 37 01 00
GetBE EF 03 06 00 35 63 02 00 01 37 00 00
CLOSED CAPTION CHANNELSet1BE EF0306 00D2 6201 0002 3701 00
2BE EF 03 06 00 22 62 01 00 02 37 02 00
3BE EF 03 06 00 B2 63 01 00 02 37 03 00
4BE EF 03 06 00 82 61 01 00 02 37 04 00
GetBE EF 03 06 00 71 63 02 00 02 37 00 00

HITACHI

Inspire the Next

Hitachi, Ltd. Japan

292 Yoshida-cho

Totsuka-ku, Yokohama-city

Kanagawa 244-0817

HITACHI EUROPE LTD.

Consumer Affairs Department

PO Box 3007

Maidenhead

SL6 8ZE

UNITED KINGDOM

Tel: 0844 481 0297

Email:consumer.mail @Hitachi-eu.com

HITACHI EUROPE GmbH

Munich Office

Dornacher Strasse 3

Tel: +49 -89-991 80-0

Fax: +49 - 89 - 991 80 -224

Hotline: +49 - 180 - 551 25 51 (12ct/min.)

Email: HSE-DUS.Service@Hitachi-eu.com

HITACHI EUROPE SRL

Via T. Gulli n.39

20147 MILAN

ITALY

Tel: 02 487861

Fax: 02 48786381

Servizio Clienti

Tel. 02 38073415

Email: customerservice.italy@hitachi-eu.com

HITACHI EUROPE S.A.S

Lyon Office

B.P.45, 4 Allée des Sorbiers 69671 Bron Cedex

FRANCE

Tel: 04 72 14 29 70

Fax: 04 72 14 29 99

Norwegian Branch Office

Strandveien 18

1366 Lysaker

NORWAY

Tel: 02205 9060

Fax: 02205 9061

Email:csgnor@hitachi-eu.com

HITACHI EUROPE LTD.

BENELUX BRANCHE OFFICE

BERGENSESTEENWEG 421

1600 SINT-PIETERS-LEEUW

BELGIUM

Tel:0032/2 363 99 01

Fax:0032/2 363 99 00

Email:info@hitachi.be

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HITACHI

Model : CP-WX410WF

Category : Projector
