Notice HITACHI CP-WX3015WNEF - page 208
208 / 259
View the manual : English EN Nederlands NL
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type LCD Projector
Model CP-WX3015WNEF
Brand Hitachi
Display Technology 3LCD
Native Resolution WXGA (1280 x 800)
Brightness 3000 ANSI Lumens (estimated)
Contrast Ratio 2000:1 (typical)
Projection Lens Manual zoom and focus
Lamp Life Up to 5000 hours (Eco mode)
Input Ports HDMI x1, VGA (D-Sub) x2, S-Video x1, Composite Video x1, Audio (3.5mm) x3, LAN (RJ-45) x1, USB Type A x2, USB Type B x1, RS-232C (D-Sub) x1
Output Ports Monitor Out (VGA) x1, Audio Out (3.5mm) x1
Wireless Connectivity Optional USB wireless adapter
Keystone Correction Vertical (manual) with Auto Keystone function
Aspect Ratios Supported 4:3, 16:9, 16:10, 14:9, Normal, Native (for WX models)
Picture Modes Normal, Cinema, Dynamic, Board (Black/Green), Whiteboard, Daytime, Photo, Custom
Network Control PJLink, RS-232C, Web browser, SNMP
Noise Level 32 dB (Eco mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 350 W (typical), 1 W (standby)
Dimensions (W x H x D) 345 x 85 x 303 mm (13.6 x 3.3 x 11.9 in)
Weight 3.5 kg (7.7 lb)
Package Contents Projector, Remote control, Batteries, Power cord, VGA cable, User manual

Frequently Asked Questions - CP-WX3015WNEF HITACHI

How do I turn on the projector?
Press the POWER button on the projector or remote control. Wait for the lamp to warm up; the status indicator will turn green.
Can I connect my laptop wirelessly?
Yes, insert an optional USB wireless adapter into the USB Type A port and configure the wireless settings in the NETWORK menu. Alternatively, use a wired LAN connection.
How do I adjust the picture shape?
Use the KEYSTONE setting in the INSTALLATION menu to correct vertical distortion. The AUTO KEYSTONE feature can adjust automatically when the projector is tilted.
What is the maximum projection size?
The projector can project up to 300 inches diagonal. Refer to the installation tables in the manual for exact distances.
How do I clean the air filter?
Turn off and unplug the projector. Remove the filter cover, take out the filter, and clean it with a vacuum cleaner or rinse with water. Dry completely before reinserting. Reset the filter timer in the OPTION menu.
Can I control the projector via a computer?
Yes, use RS-232C communication (serial cable) or LAN (TCP/IP) with commands. The manual provides a full command table for remote control.
What lamp type does this projector use?
It uses a UHP lamp with a typical life of 5000 hours in Eco mode. Replace only with authorized Hitachi lamps.
How do I switch between input sources?
Press the INPUT button on the remote or projector to cycle through sources. You can also assign a MY SOURCE button for quick access.
Can I use the projector on a ceiling?
Yes, select FRONT/CEILING or REAR/CEILING in the INSTALLATION menu. Use a certified ceiling mount and ensure proper ventilation.
What should I do if the projector overheats?
Check for blocked ventilation, clean the air filter, and ensure the ambient temperature is below 35°C (95°F). If the problem persists, contact Hitachi support.

User questions about CP-WX3015WNEF HITACHI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Projector in PDF format for free! Find your manual CP-WX3015WNEF - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CP-WX3015WNEF by HITACHI.

USER MANUAL CP-WX3015WNEF HITACHI

CP-X2015WN/CP-X2515WN/CP-X3015WN/ CP-X4015WN/CP-WX2515WN/CP-WX3015WN

COMPUTER-IN, STILZETTEN, RESOLUTIE

INSTELLING menu ..... 4 6

AUTO KEYSTONE, KEystone, AUTO ECO STAND,

Eco stand, INSTALLATIE, UIT(STANDBY),

MONITOR UITGANG

AUDIO menu ..... 4 9

VOLUME, LUIDSPREKER, AUDIOBRON,

MIC NIVEAU, MIC VOLUME

SCHERM menu 50

TAAL, POSITIE MENU, BLANK, OPSTARTEN,

NAAM VAN BRON, PATROON, G.B.

OPTIE menu 56

AUTOM. ZOEKEN, AUTO KEYSTONE, DIRECT AAN,

AUTOM. UIT, LAMPTIJD, FILTERTIJD,

MIJN KNOP, SIGNAALBRON, SERVICE

NETWERK menu 67

DRAADLOZE INSTELLING, DRAADLOZE INFORMATIE,

BEDRADE INSTELLING, BEDRADE INFORMATIE,

PROJECTORNAAM, MIJN BEELD, AMX D.D.,

PRESENTATIE, SERVICE

VEILIGHEID menu .....7 8

VEILIGH. PASW. VERANDEREN,

MIJN TEKST WEERG., MIJN TEKST BIJW.,

KLOONVERGRENDELING

Opstellen

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:

NORMAAL → 4:3 → 16:9 → 16:10

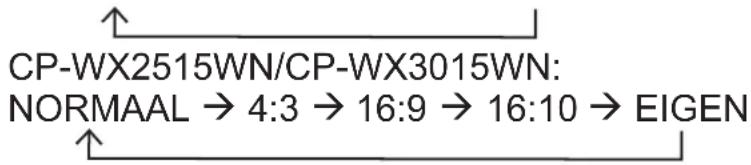


CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:

NORMAAL → 4:3 → 16:9 → 16:10 → 14:9

ASPECT-knop
VIDEO COMPUTER MICROCIER ASSEMBLY AUTO SELECTION AGRIC FLOW FREE CASH UP KEYSTONE WITH SWITCH MUTE

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:

4:3 → 16:9 → 14:9

↑

CP-WX2515WN/CP-WX3015WN:

4:3 → 16:9 → 16:10 → 14:9 → EIGEN

↑

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN: 4:3 (fixed) CP-WX2515WN/CP-WX3015WN: 16:10 (fixed)

4 GEHEUGEN_OPENEN-4 TIJDELIJKE CONDITIE WEET U ZEKER DAT U WILT DOORGAAN MET LADEN? NEE JA

CP-X2015WN, CP-X2515WN, CP-X3015WN, CP-X4015WN: 3892 CP-WX2515WN, CP-WX3015WN: 2292

CP-X2015WN, CP-X2515WN, CP-X3015WN, CP-X4015WN:

1024 x 768 (Stilstaand beeld), 768 x 576 (Film)

CP-WX2515WN, CP-WX3015WN: 1280 x 800 (Stilstaand beeld), 768 x 576 (Film)

Bedient de projector.

HITACHI CP-WX3015WNEF - Opstellen - 5

(continued on next page)

Screenshot of a software toolbar with icons for file operations, tools, and buttons

Transmission speed (Overbrengingsnelheid)

Transmission speed (Overbrengingsnelheid)

CP-X2015WN/CP-X2515WN/CP-X3015WN/ CP-X4015WN/CP-WX2515WN/CP-WX3015WN

Windows Vista ® Home Basic /Home Premium /Business /Ultimate /Enterprise (Service Pack 1 of later )

Windows ® 7 Starter /Home Basic /Home Premium /Professional /Ultimate /Enterprise

√ CPU: Pentium 4 (2,8 GHz of hoger)
√ Grafische kaart: 16 bit, XGA of hoger

(z.o.z.)

(z.o.z.)

(Network address: 192.168.10 in dit geval)

(Network address: 192.168.10 in dit geval)

N.B. • Internet Explorer® 6.0 of later is vereist.

Reset de netwerkverbinding van de projector.

IP Address <Projector

MAC Address <Projector

IP-adres>

MAC-ac

7.2 Projectorbeheer m.b.v. SNMP

CP-X2015WN/CP-X2515WN/CP-X3015WN/ CP-X4015WN/CP-WX2515WN/CP-WX3015WN User's Manual (detailed) Operating Guide – Technical

Example of PC signal

Resolution (H x V)H. frequency (kHz)V. frequency (Hz)Rating Signal mode
720 x 40037.9 85.0 VESA TEXT
640 x 480 31.559.9 VESA VGA (60Hz)
640 x 480 37.972.8 VESA VGA (72Hz)
640 x 480 37.575.0 VESA VGA (75Hz)
640 x 480 43.385.0 VESA VGA (85Hz)
800 x 600 35.256.3 VESA SVGA (56Hz)
800 x 600 37.960.3 VESA SVGA (60Hz)
800 x 600 48.172.2 VESA SVGA (72Hz)
800 x 600 46.975.0 VESA SVGA (75Hz)
800 x 600 53.785.1 VESA SVGA (85Hz)
832 x 624 49.774.5 Mac 16" mode
1024 x 768 48.460.0 VESA XGA (60Hz)
1024 x 768 56.570.1 VESA XGA (70Hz)
1024 x 768 60.075.0 VESA XGA (75Hz)
1024 x 768 68.785.0 VESA XGA (85Hz)
1152 x 86467.5 75.0 VESA1152 x 864 (75Hz)
1280 x 768 47.760.0 VESAWXGA (60Hz)
1280 x 800 49.760.0 VESA1280 x 800 (60Hz)
1280 x 960 60.060.0 VESA1280 x 960 (60Hz)
1280 x 102464.0 60.0 VESA SXGA (60Hz)
1280 x 102480.0 75.0 VESA SXGA (75Hz)
*1 1280 x 102491.1 85.0 VESA SXGA (85Hz)
*2 1400 x 105065.260.0VESASXGA+ (60Hz)
1440 x 90055.9 59.9 VESAWXGA+ (60Hz)
*3 1680 x 105065.360.0VESAWSXGA+ (60Hz)
*1 1600 x 120075.0 60.0 VESAUXGA (60Hz)

*1) Supported except for HDMI input.
*2) Only for CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN.
*3) Only for CP-WX2515WN/CP-WX3015WN.

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

  • Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
  • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
  • Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
  • Automatic adjustment may not function correctly with some input signals.
  • The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Active video (C) Data H. Sync. Sync (A)

Back porch (b) Front porch (d) Data Active video (c) V. Sync. Sync (a)

Resolution (H x V)Horizontal signal timing (μs)Vertical signal timing (lines)Signal mode
(A) (B)(C) (D)(a) (b)(c) (d)
720 x 4002.03.020.31.0342400TEXT
640 x 4803.81.925.40.623348010 VGA (60Hz)
640 x 4801.34.120.30.83284809
640 x 4802.03.820.30.53164801
640 x 4801.62.217.81.63254801
800 x 6002.03.622.20.72226001
800 x 6003.22.220.01.04236001
800 x 6002.41.316.01.162360037 S VGA (72Hz)
800 x 6001.63.216.20.33216001
800 x 6001.12.714.20.63276001
832 x 6241.13.914.50.63396241
1024 x 7682.12.515.80.46297683
1024 x 7681.81.913.70.36297683
1024 x 7681.22.213.00.23287681
1024 x 7681.02.210.80.53367681
1152 x 8641.22.410.70.6
1280 x 7681.72.516.00.83237681
1280 x 8001.62.415.30.83248001
1280 x 9601.02.911.90.9
1280 x 10241.02.311.90.4
1280 x 10241.11.89.50.1
1280 x 10241.01.48.10.4
1400 x 10501.22.011.40.7
1440 x 9001.42.213.50.8625903 W XGA+ (60Hz)
1680 x 10501.21.911.50.7
1600 x 12001.21.99.90.4

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

LAN USB TYPE B USB TYPE A DCSV 0.5A HDMI MIC COMPUTER IN1 R AUDIO OUT L S-VIDEO VIDEO CONTROL MONITOROUT COMPUTER IN2 R L 3 AUDIO IN ① ②

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
- Composite sync. signal: TTL level

- Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated
-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated
-Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

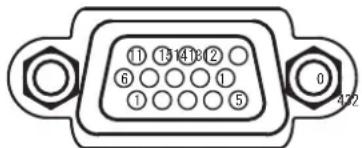

①⑬⑭⑮ ⑥⑦⑧⑨⑩ ①⑤⑥⑦⑧⑨⑪ 0 372

987

PinSignal Pin Signal
1Video Red, Cr/Pr9(No connection)
2Video Green, Y 10 Ground
3Video Blue, Cb/Pb11(No connection)
4(No connection)12A: SDA (DDC data), (No connection)B, C: (No connection)
5Ground
6Ground Red, Ground Cr/Pr13 H.sync / Composite sync., (No connection)
7Ground Green, Ground Y14 V.sync., (No connection)
8Ground Blue, Ground Cb/Pb15A: SCL (DDC clock), (No connection)B, C: (No connection)

F USB TYPEB USB TYPE A DC5V 0.5A HDMI COMPUTER IN1 R AUDIO OUT MIC D S-VIDEO VIDEO E RUN RUN 3 L R L AUDIO IN 1 2

DS-VIDEO

Mini DIN 4pin jack

HITACHI CP-WX3015WNEF - DS-VIDEO - 1

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

Pin Signal
1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

©EVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)
• 1.0±0.1Vp-p, 75Ω terminator

FHDMI

  • Type :HDMI TM connector
    • Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

18 16 14 12 10 8 6 4 2 19 17 15 13 11 9 7 5 3 1

PinSignal Pin Signal Pin Signal
1 T.M.D.S. Data2 + 8 T.M.D.S.Data0Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.D.S.Data0 - 16 SDA
3 T.M.D.S. Data2 -10 T.M.D.D.C. Clock +17 DDC/CEC Ground
4T.M.D.S. Data1 +11T.M.D.S. Clock Shield18+5V Power
5 T.M.D.S. Data1 Shield12 T.M.D.D.S. Clock -19 HotPlug Detect
6 T.M.D.S. Data1 -13 CEC
7 T.M.D.S. Data0 +14 Reserved(N.C. on device)

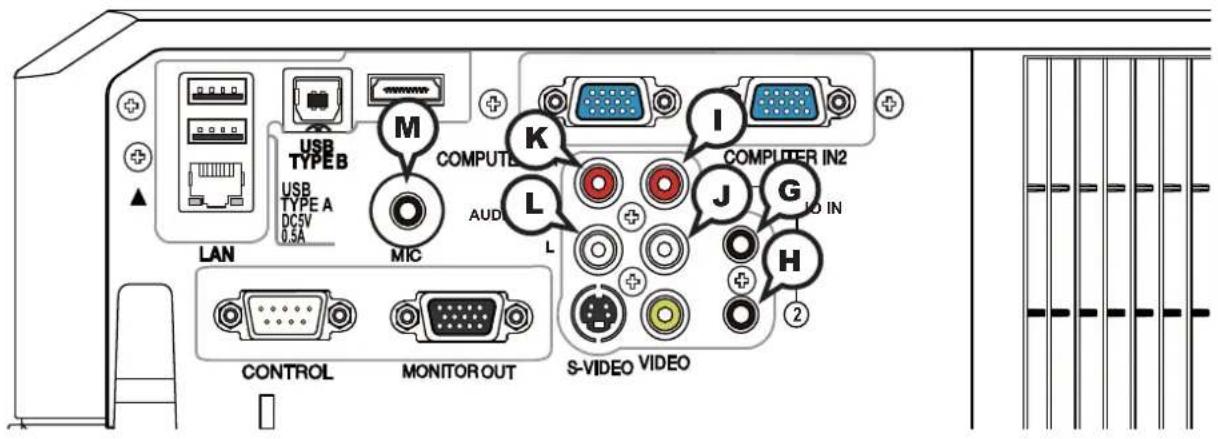

USB TYPE B USB TYPE A DC5V 0.5A LAN M MIC COMPUTER AUD K L L I COMP LITER IN2 J G IO IN H CONTROL MONITOR OUT S-VIDEO VIDEO

©AUDIO IN1, ©AUDIO IN2

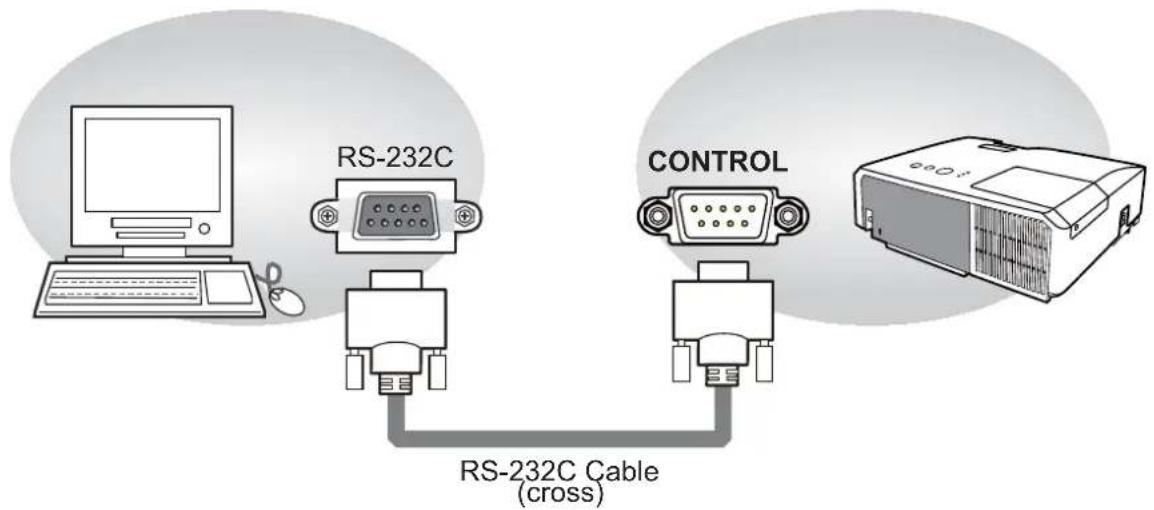

- About the details of RS-232C communication, please refer to the next chapter.

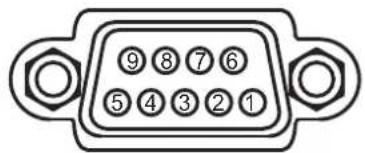

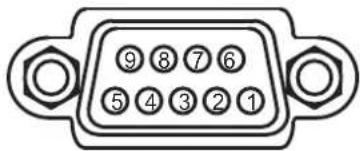

⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

©USB TYPE A (x2)

USB A type jack

Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground

HITACHI CP-WX3015WNEF - ©USB TYPE A (x2) - 1

©USB TYPE B

USB B type jack

Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground

HITACHI CP-WX3015WNEF - ©USB TYPE B - 1

©LAN

RJ-45 jack

PinSignalPinSignalPinSignal
1TX+4-7-
2TX-5-8-
3RX+6RX-

1 2 3 4 5 6 7 8

To input component video signal to COMPUTER IN ports

ex.

D-sub plug RCA plugs RCA connectors VCR/DVD/Blu-ray Disc player

To input component video signal to the COMPUTER IN1 or COMPUTER IN2 port of the projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 or COMPUTER IN2 port (3).

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

Connection

  1. Turn off the projector and the computer.
  2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfi lls the specifi cation shown in fi gure.
  3. Turn the computer on, and after the computer has started up turn the projector on.
  4. Set the COMMUNICATION TYPE to OFF. OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)

RS-232C CONTROL RS-232C Cable (cross)

RS-232C port of the computer
9 8 7 6 5 4 3 2 1

CONTROL port of the projector
⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

Communication settings

1. Protocol

19200bps,8N1

  1. Command format ("h" shows hexadecimal)
Byte Number01234589101
CommandActionHeader Data
Header codePacket LData sizeCRC flagAction TypeSetting code
LHLHLHLHLHLH
Change setting to desired value [(bL)(bH)] by [(cL)(cH)].03h06h00h(aL)(aH)01h00h(bL)(bH)(cL)(cH)
Read projector internal setup value [(bL) (bH)].(aL)(aH)02h00h(bL)(bH)00h00h
Increment setup value [(bL)(bH)] by 1.(aL)(aH)04h00h(bL)(bH)00h00h
Decrement setup value [(bL)(bH)] by 1.(aL)(aH)05h00h(bL)(bH)00h00h
Run a command [(bL)(bH)].(aL)(aH)06h00h(bL)(bH)00h00h

[Header code], [Packet], [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0\~4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (17).

[Action]

Set functional code to byte number 7, 8.

lt; SET gt; = [0 1 h, 0 0 h], lt; GET gt; = [0 2 h, 0 0 h], lt; INCREMENT gt; = [0 4 h, 0 0 h]

lt; DECREMENT gt; = [0 5 h, 0 0 h], lt; EXECUTE gt; = [0 6 h, 0 0 h]

Refer to the command table above.

[Type], [Setting code]

For byte number 9\~12, refer to RS-232C Communication / Network command table (17).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

  • Operation cannot be guaranteed when the projector receives an undefined command or data.
  • Provide an interval of at least 40ms between the response code and any other code.
  • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
  • Commands are not accepted during warm-up.
  • When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

  1. Turn off the projector and the computer.
  2. If you use wired LAN, connect the projector's LAN port to the computer's LAN port with a LAN cable. Use the cable that fulfi lls the specifi cation shown in fi gure. If you use wireless LAN, insert the USB wireless adapter into the projector's USB TYPE A port.
  3. Turn the computer on, and after the computer has started up turn the projector on.

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items form a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)Port openClick the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
AuthenticationClick the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)Port openClick the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
AuthenticationClick the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network ControlAuthentication PasswordEnter the desired authentication password. ConfirmThis setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communicaton command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h

Refer to RS-232C communication (10).

(2) NAK reply : 15h

Refer to RS-232C communication (10).

(3) Error reply : 1Ch + 0000h

Refer to RS-232C communication (10).

(4) Data reply : 1Dh + xxxxh

Refer to RS-232C communication (10).

(5) Authentication error reply : 1Fh + 0400h

When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Datalength RS-232C command Check summ Connection ID
0×02 0×0D13 bytes 1 byte1 byte

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (9).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

- Provide an interval of at least 40ms between the response code and any other code.

- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(××h : connection ID)

(1) ACK reply : 06h + xxh
(2) NAK reoly : 15h + xxh
(3) Error reply : 1Ch + 0000h + xxh
(4) Data reply : 1Dh + xxxxh + xxh
(5) Authentication error reply : 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to "password" and the random 8 bytes are "a572f60c".

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm.
It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data.
Send “e3d97429adffa11bce1f7275813d4bde”+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by wired or wireless LAN communicaton, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal. For details, see the 6. Network Bridge function in the Network Guide.

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

  1. If you use wired LAN, connect the computer's LAN port and the projector's LAN port with a LAN cable. Use the cable that fulfi lls the specifi cation shown in fi gure. If you use wireless LAN, insert the USB wireless adapter into the projector's USB TYPE A port.
  2. Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
  3. Turn the computer on, and after the computer has started up turn the projector on.
  4. Set the COMMUNICATION TYPE to NETWORK BRIDGE. (OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)

Communication settings

For communication setting, use the OPTION - SERVICE - COMMUNICATION menu. (OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

- Turn off (the power of) both the projector and other devices and unplug, beore connecting them.

- For details of Transmission method, refer to 6.4 Transmission method in the Network Guide.

RS-232C Communication / Network command table

NamesOperationTypeHeaderCommand Data
CRC Action Type Setting Code
PowerSetTurn off BE EF03 06 00 2AD3 0100 00 60 00 00
Turn on BE EF03 06 00 BAD2 0100 00 60 01 00
GetBE EF 03 06 0019 D3 02 00 00 60 0000
[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input SourceSetCOMPUTER IN1BE EF 03 06 00FE D2 01 00 00 20 0000
COMPUTER IN2BE EF 03 06 003E D0 01 00 00 20 0400
HDMIBE EF 03 06 000E D2 01 00 00 20 0300
S-VIDEOBE EF 03 06 009E D3 01 00 00 20 0200
VIDEOBE EF 03 06 006E D3 01 00 00 20 0100
LANBE EF0306 00CE D501 0000 200B 00
USB TYPE ABE EF0306 005E D101 0000 2006 00
USB TYPE BBE EF0306 00FE D701 0000 200C 00
GetBE EF0306 00CD D202 0000 2000 00
Error StatusGetBE EF 03 06 00D9 D8 02 00 20 60 00 00
[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
MAGNIFYGetBE EF 03 06 007C D2 02 00 07 30 00 00
Increment BE EF 0306 00 1A D2 04 00 07 30 00 00
DecrementBE EF0306 00CB D305 0007 3000 00
Magnify Position HGetBE EF 03 06 00C8 D7 02 00 10 30 00 00
Increment BE EF 0306 00 AE D7 04 00 10 30 00 00
DecrementBE EF 03 06 007F D6 05 00 10 30 00 00
Magnify Position VGetBE EF 03 06 0034 D6 02 00 11 30 00 00
Increment BE EF 0306 00 52 D6 04 00 11 30 00 00
DecrementBE EF 03 06 0083 D7 05 00 11 30 00 00
FREEZESetNORMALBE EF 03 06 0083 D2 01 00 02 30 00 00
FREEZEBE EF 03 06 0013 D3 01 00 02 30 01 00
GetBE EF 03 06 00B0 D2 02 00 02 30 00 00
PICTURE MODESetNORMALBE EF0306 0023 F601 00BA 3000 00
CINEMABE EF0306 00B3 F701 00BA 3001 00
DYNAMICBE EF0306 00E3 F401 00BA 3004 00
BOARD(BLACK)BE EF0306 00E3 EF01 00BA 3020 00
BOARD(GREEN) BEEF 03 06 00 73 EE 01 00 BA 30 21 00
WHITEBOARDBE EF0306 0083 EE01 00BA 3022 00
DAYTIMEBE EF0306 00E3 C701 00BA 3040 00
PHOTOBE EF0306 0073 F501 00BA 3005 00
GetBE EF0306 0010 F602 00BA 3000 00
[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)] [BOARD(GREEN)] [WHITEBOARD] [DAY TIME]

RS-232C Communication / Network command table (continued)

NamesOperationTypeHeaderCommand Data
CRC Action Type Setting Code
BRIGHTNESSGetBE EF 03060089D2 020003 20 0000
IncrementBE EF 030600EFD2 040003 20 0000
DecrementBE EF 0306003ED3 050003 20 0000
BRIGHTNESS Reset ExecuteBE EF 03060058D3 060000 70 0000
CONTRASTGetBE EF 030600FDD3 020004 20 0000
IncrementBE EF 0306009BD3 040004 20 0000
DecrementBE EF 0306004AD2 050004 20 0000
CONTRAST Reset ExecuteBE EF 030600A4D2 060001 70 0000
GAMMASetDEFAULT-1BE EF 03060007E9 0100A1 30 2000
CUSTOM-1BE EF 03060007FD 0100A1 30 1000
DEFAULT-2BE EF 03060097E8 0100A1 30 2100
CUSTOM-2BE EF 03060097FC 0100A1 3011 00
DEFAULT-3BE EF 03060067E8 0100A1 30 2200
CUSTOM-3BE EF 03060067FC 0100A1 30 1200
DEFAULT-4BE EF 030600F7E9 0100A1 30 2300
CUSTOM-4BE EF 030600F7FD 0100A1 30 1300
DEFAULT-5BE EF 030600C7EB 0100A1 3024 00
CUSTOM-5BE EF 030600C7FF 0100A1 30 1400
DEFAULT-6BE EF 03060057EA 0100A1 30 2500
CUSTOM-6BE EF 03060057FE 0100A1 30 1500
DEFAULT-7BE EF 030600A7EA 0100A1 30 2600
CUSTOM-7BE EF 030600A7FE 0100A1 3016 00
GetBE EF 030600F4F0 0200A1 30 0000
User Gamma PatternSetOffBE EF 030600FBFA 010080 30 0000
9 steps gray scaleBE EF 0306006BFB 010080 30 0100
15 steps gray scaleBE EF 0306009BFB 010080 30 0200
RampBE EF 030600OBFA 010080 30 0300
GetBE EF 030600C8FA 020080 30 0000
User Gamma Point 1GetBE EF 03060008FE 020090 30 0000
IncrementBE EF 0306006EFE 040090 30 0000
DecrementBE EF 030600BFFF 050090 30 0000
User Gamma Point 1 ResetExecuteBE EF 03060058C2 060050 70 0000
User Gamma Point 2GetBE EF 030600F4FF 020091 30 0000
IncrementBE EF 03060092FF 040091 30 0000
DecrementBE EF 03060043FE 050091 30 0000
User Gamma Point 2 ResetExecuteBE EF 030600A4C3 060051 70 0000
User Gamma Point 3GetBE EF 030600B0FF 020092 30 0000
IncrementBE EF 030600D6FF 040092 30 0000
DecrementBE EF 03060007FE 050092 30 0000
User Gamma Point 3 ResetExecuteBE EF 030600E0C3 060052 70 0000
User Gamma Point 4GetBE EF 0306004CFE 020093 30 0000
IncrementBE EF 0306002AFE 040093 30 0000
DecrementBE EF 030600FBFF 050093 30 0000
User Gamma Point 4 ResetExecuteBE EF 0306001CC2 060053 70 0000
User Gamma Point 5GetBE EF 03060038FF 020094 30 0000
IncrementBE EF 0306005EFF 040094 30 0000
DecrementBE EF 0306008FFE 050094 30 0000
User Gamma Point 5 ResetExecuteBE EF 03060068C3 060054 70 0000

(continued on next page)

RS-232C Communication / Network command table (continued)

NamesOperationTypeHeaderCommand Data
CRC Action Type Setting Code
User Gamma Point 6GetBE EF 0306 00C4 FE 0200 95 30 0000
IncrementBE EF 0306 00A2 FE 0400 95 30 0000
DecrementBE EF 0306 0073 FF 0500 95 30 0000
User Gamma Point 6 ResetExecuteBE EF 0306 0094 C2 0600 55 70 0000
User Gamma Point 7GetBE EF 0306 0080 FE 0200 96 30 0000
IncrementBE EF 0306 00E6 FE 0400 96 30 0000
DecrementBE EF 0306 0037 FF 0500 96 30 0000
User Gamma Point 7 ResetExecuteBE EF 0306 00D0 C2 0600 56 70 0000
User Gamma Point 8Get BE EF 03 0600 7C FF02 00 9730 00 00
Increment BE EF 0306 00 1AFF 0400 97 30 0000
Decrement BE EF 0306 00 CBFE 0500 97 30 0000
User Gamma Point 8 ResetExecuteBE EF 0306 002C C3 0600 57 70 0000
COLOR TEMPSet1 HIGHBE EF 0306 000B F5 0100 B0 3003 00
1 CUSTOMBE EF 0306 00CB F8 0100 B0 3013 00
2 MIDBE EF 0306 009B F4 0100 B0 3002 00
2 CUSTOMBE EF 0306 005B F9 0100 B0 3012 00
3 LOWBE EF 0306 006B F4 0100 B0 3001 00
3 CUSTOMBE EF 0306 00AB F9 0100 B0 30 1100
4 Hi-BRIGHT-1BE EF 0306 003B F2 0100 B0 3008 00
4 CUSTOMBE EF 0306 00FB FF 0100 B0 3018 00
5 Hi-BRIGHT-2BE EF 0306 00AB F3 0100 B0 3009 00
5 CUSTOMBE EF 0306 006B FE 0100 B0 3019 00
6 Hi-BRIGHT-3BE EF0306 005B F301 00B0 300A 00
6 CUSTOMBE EF0306 009B FE01 00B0 301A 00
7 Hi-BRIGHT-4BE EF0306 00CB F201 00B0 300B 00
7 CUSTOMBE EF0306 000B FF01 00B0 301B 00
Get BE EF 03 0600 C8 F502 00 B0 3000 00
COLOR TEMP GAIN RGet BE EF 03 0600 34 F402 00 B1 3000 00
Increment BE EF 0306 00 52F4 0400 B1 3000 00
Decrement BE EF 0306 00 83F5 0500 B1 3000 00
COLOR TEMP GAIN R ResetExecuteBE EF 0306 0010 C6 0600 46 70 0000
COLOR TEMP GAIN GGet BE EF 03 0600 70 F402 00 B2 3000 00
Increment BE EF 0306 00 16F4 0400 B2 3000 00
Decrement BE EF 0306 00 C7F5 0500 B2 3000 00
COLOR TEMP GAIN G ResetExecuteBE EF 0306 00EC C7 0600 47 70 0000
COLOR TEMP GAIN BGet BE EF 03 0600 8C F502 00 B3 3000 00
Increment BE EF 0306 00 EAF5 0400 B3 3000 00
Decrement BE EF 0306 00 3BF4 0500 B3 3000 00
COLOR TEMP GAIN B ResetExecuteBE EF 0306 00F8 C4 0600 48 70 0000
COLOR TEMP OFFSET RGet BE EF 03 0600 04 F502 00 B5 3000 00
Increment BE EF 0306 00 62F5 0400 B5 3000 00
Decrement BE EF 0306 00 B3F4 0500 B5 3000 00
COLOR TEMP OFFSET R ResetExecuteBE EF 0306 0040 C5 0600 4A 7000 00
COLOR TEMP OFFSET GGet BE EF 03 0600 40 F502 00 B6 30 00 00
Increment BE EF 0306 00 26F5 04 00B6 30 0000
Decrement BE EF 0306 00 F7F4 05 00B6 30 0000
COLOR TEMP OFFSET G ResetExecute BE EF 0306 00 BCC4 06 004B 70 0000
COLOR TEMP OFFSET BGet BE EF 03 0600 BC F40200 B7 30 0000
Increment BE EF 0306 00 DAF4 04 00B7 30 0000
Decrement BE EF 0306 00 0BF5 05 00B7 30 0000
COLOR TEMP OFFSET B ResetExecute BE EF 0306 00C8 C506 00 4C 7000 00
COLORGet BE EF 03 0600 B5 7202 00 022200 00
Increment BE EF 0306 00 D372 04 0002 2200 00
Decrement BE EF 0306 00 027305 0002 22 00 00
COLOR ResetExecute BE EF 0306 00 80 D00 06 000A 70 0000
TINTGet BE EF 03 0600 49 730200 0322 00 00
Increment BE EF 0306 00 2F73 04 0003 2200 00
Decrement BE EF 0306 00 FE72 05 0003 2200 00
TINT ResetExecute BE EF 0306 007C D106 00 0B 7000 00
SHARPNESSGet BE EF 03 0600 F1 7202 0001 22 0000
Increment BE EF 0306 00 977204 0001 22 00 00
Decrement BE EF 0306 00 467305 0001 22 00 00
SHARPNESS ResetExecuteBE EF0306 00C4 D006 0009 7000 00
MY MEMORY LoadSet1BE EF 0306 000E D7 010014 20 00 00
2BE EF 0306 009E D6 010014 20 01 00
3BE EF 0306 006E D6 010014 20 02 00
4BE EF0306 00FE D701 0014 2003 00
PRESETBE EF0306 00CE AD01 0014 2010 00
MY MEMORY SaveSet1BE EF0306 00F2 D601 0015 2000 00
2BE EF0306 0062 D701 0015 2001 00
3BE EF0306 0092 D701 0015 2002 00
4BE EF0306 0002 D601 0015 2003 00
ASPECTSet4:3BE EF 0306 009E D0 010008 20 00 00
16:9BE EF 0306 000E D1 010008 20 01 00
14:9BE EF 0306 00CE D6 010008 20 09 00
16:10BE EF 0306 003E D6 010008 20 0A 00
(*) NATIVEBE EF 0306 005E D7 010008 20 08 00
NORMALBE EF 0306 005E DD 010008 20 10 00
Get BE EF 03 0600 AD D002 0008 20 0000
OVER SCANGet BE EF 03 0600 91 700200 0922 00 00
Increment BE EF 0306 00 F770 04 0009 22 00 00
Decrement BE EF 0306 00 267105 0009 22 00 00
OVER SCAN Reset ExecuteBE EF 0306 00EC D9 060027 70 00 00
V POSITIONGet BE EF 03 0600 0D83 0200 0021 00 00
Increment BE EF 0306 00 6B83 04 0000 2100 00
DecrementBE EF0306 00BA 8205 0000 2100 00
V POSITION ResetExecuteBE EF 0306 00E0 D2 060002 70 00 00

(*) only for CP-WX2515WN/CP-WX3015WN
(continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
H POSITIONGetBE EF 03 06 00F1 82 02 00 01 21 0000
IncrementBE EF 03 06 0097 82 04 00 01 21 0000
DecrementBE EF 03 06 0046 83 05 00 01 21 0000
H POSITION Reset ExecuteBE EF 03 06 001C D3 06 00 03 70 0000
H PHASEGetBE EF 03 06 0049 83 02 00 03 21 0000
IncrementBE EF 03 06 002F 83 04 00 03 21 0000
DecrementBE EF 03 06 00FE 82 05 00 03 21 0000
H SIZEGetBE EF 03 06 00B5 82 02 00 02 21 0000
IncrementBE EF 03 06 00D3 82 04 00 02 21 0000
DecrementBE EF 03 06 0002 83 05 00 02 21 0000
H SIZE Reset ExecuteBE EF 03 06 0068 D2 06 00 04 70 0000
AUTO ADJUST EXECUTEExecute BE EF 03 06 00 91 D0 06 000A 20 00 00
PROGRESSIVESetOFFBE EF 03 06 004A 72 01 00 07 22 0000
TVBE EF 03 06 00DA 73 01 00 07 22 0100
FILMBE EF 03 06 002A 73 01 00 07 22 0200
GetBE EF 03 06 0079 72 02 00 07 22 0000
VIDEO NRSetLOWBE EF 03 06 0026 72 01 00 06 22 0100
MIDBE EF 03 06 00D6 72 01 00 06 22 0200
HIGHBE EF 03 06 0046 73 01 00 06 22 0300
GetBE EF 03 06 0085 73 02 00 06 22 0000
COLOR SPACESetAUTOBE EF 03 06 00OE 72 01 00 04 22 0000
RGBBE EF 03 06 009E 73 01 00 04 22 0100
SMPTE240BE EF 03 06 006E 73 01 00 04 22 0200
REC709BE EF 03 06 00FE 72 01 00 04 22 0300
REC601BE EF 03 06 00CE 70 01 00 04 22 0400
GetBE EF 03 06 003D 72 02 00 04 22 0000
S-VIDEO FORMATSetAUTOBE EF 03 06 00E6 70 01 00 12 22 0A00
NTSCBE EF 03 06 0086 74 01 00 12 22 0400
PALBE EF 03 06 0016 75 01 00 12 22 0500
SECAMBE EF 03 06 0016 70 01 00 12 22 0900
NTSC4.43BE EF 03 06 0026 77 01 00 12 22 0200
M-PALBE EF 03 06 0086 71 01 00 12 22 0800
N-PALBE EF 03 06 0076 74 01 00 12 22 0700
GetBE EF 03 06 0075 76 02 00 12 22 0000
C-VIDEO FORMATSetAUTOBE EF 03 06 00A2 70 01 00 11 22 0A 00
NTSCBE EF 03 06 00C2 74 01 00 11 22 0400
PALBE EF 03 06 0052 75 01 00 11 22 0500
SECAMBE EF 03 06 0052 70 01 00 11 22 0900
NTSC4.43BE EF 03 06 0062 77 01 00 11 22 0200
M-PALBE EF 03 06 00C2 71 01 00 11 22 0800
N-PALBE EF 03 06 0032 74 01 00 11 22 0700
GetBE EF 03 06 0031 76 02 00 11 22 0000
HDMI FORMATSetAUTOBE EF 03 06 00BA 77 01 00 13 22 0000
VIDEOBE EF 03 06 002A 76 01 00 13 22 0100
COMPUTERBE EF 03 06 00DA 76 01 00 13 22 0200
GetBE EF 03 06 0089 77 02 00 13 22 0000
HDMI RANGESetAUTOBE EF 03 06 0086 D8 0100 22 20 0000
NORMALBE EF 03 06 0016 D9 0100 22 20 0100
ENHANCEDBE EF 03 06 00E6 D9 0100 22 20 0200
GetBE EF 03 06 00B5 D8 0200 22 20 0000
COMPUTER IN1SetAUTOBE EF 03 06 00CE D6 0100 10 20 0300
SYNC ON G OFFBE EF 03 06 005E D7 0100 10 20 0200
GetBE EF 03 06 000D D6 0200 10 20 0000
COMPUTER IN2SetAUTO BE EF 03 06 00 32 D7 01 00 11 20 03 00
SYNC ON G OFF BEEF 03 06 00 A2 D6 01 00 11 20 02 00
Get BE EF 03 0600 F1 D7 02 00 11 20 00 00
FRAME LOCK-COMPUTER IN1SetOFFBE EF 03 06 003B C2 0100 50 30 0000
ONBE EF 03 06 00AB C3 0100 50 30 0100
GetBE EF 03 06 0008 C2 0200 50 30 0000
FRAME LOCK-COMPUTER IN2SetOFFBE EF 03 06 000B C3 0100 54 30 0000
ONBE EF 03 06 009B C2 0100 54 30 0100
Get BE EF 03 0600 38 C3 02 00 54 30 00 00
FRAME LOCK-HDMISetOFFBE EF 03 06 007F C2 0100 53 30 0000
ONBE EF 03 06 00EF C3 0100 53 30 0100
GetBE EF 03 06 004C C2 0200 53 30 0000
AUTO KEYSTONE EXECUTEExecuteBE EF 03 06 00E5 D1 0600 0D 2000 00
KEYSTONE VGetBE EF 03 06 00B9 D3 0200 07 20 0000
IncrementBE EF 03 06 00DF D3 0400 07 20 0000
DecrementBE EF 03 06 00OE D2 0500 07 20 0000
KEYSTONE V ResetExecuteBE EF 03 06 0008 D0 0600 0C 7000 00
AUTO ECO MODESetOFFBE EF 03 06 00FB 27 0100 10 33 0000
ONBE EF 03 06 006B 2601 0010 33 01 00
GetBE EF 03 06 00C8 27 0200 10 33 0000
ECO MODESetNORMALBE EF 03 06 003B 2301 0000 33 00 00
ECOBE EF 03 06 00AB 22 0100 00 33 0100
INTELLIGENT ECOBE EF 03 06 00FB 2E 0100 00 33 1000
SAVERBE EF 03 06 00FB 3A 0100 00 33 20 00
GetBE EF 03 06 0008 2302 00 00 33 00 00
INSTALLATIONSetFRONT / DESKTOPBE EF 03 06 00C7 D2 0100 01 30 00
REAR / DESKTOPBE EF 03 06 0057 D3 0100 01 30 0100
REAR / CEILINGBE EF 03 06 00A7 D3 0100 01 30 0200
FRONT / CEILINGBE EF 03 06 0037 D2 0100 01 30 0300
GetBE EF 03 06 00F4 D2 0200 01 30 0000
STANDBY MODESetNORMALBE EF 03 06 00D6 D2 0100 01 60 00 00
SAVINGBE EF 03 06 0046 D3 0100 01 60 0100
GetBE EF 03 06 00E5 D2 0200 01 60 0000
MONITOR OUT-COMPUTER IN1SetCOMPUTER IN1BE EF 03 06 003E F4 0100 B0 2000
OFFBE EF 03 06 00CE B5 0100 B0 20FF 00
GetBE EF 03 06 00OD F4 0200 B0 2000
MONITOR OUT-COMPUTER IN2SetCOMPUTER IN2BE EF0306 00CE F701 00B4 2004 00
OFFBE EF0306 00FE B401 00B4 20FF 00
Get BE EF 03 0600 3D F5 02 00B4 2000 00
MONITOR OUT - S-VIDEOSetCOMPUTER IN1BE EF 0306 0086 F5 0100 B2 20 0000
COMPUTER IN2 BEEF 03 0600 46 F701 00 B220 04 00
OFFBE EF 0306 0076 B4 0100 B2 20 FF00
GetBE EF 0306 00B5 F5 0200 B2 20 0000
MONITOR OUT - VIDEOSetCOMPUTER IN1BE EF 0306 00C2 F5 0100 B1 20 0000
COMPUTER IN2 BEEF 03 0600 02 F701 00 B120 04 00
OFFBE EF 0306 0032 B4 0100 B1 20 FF00
GetBE EF 0306 00F1 F5 0200 B1 20 0000
MONITOR OUT - HDMISetCOMPUTER IN1BE EF 0306 007A F4 0100 B3 20 0000
COMPUTER IN2 BEEF 03 0600 BA F601 00 B320 04 00
OFFBE EF 0306 008A B5 0100 B3 20 FF00
GetBE EF 0306 0049 F4 0200 B3 20 0000
MONITOR OUT - LANSetCOMPUTER IN1 BEEF 03 0600 1A F601 00 BB20 00 00
COMPUTER IN2 BEEF 03 0600 DA F401 00 BB20 04 00
OFF BE EF 0306 00 EAB7 0100 BB 20 FF00
Get BE EF 03 0600 29 F602 00 BB20 00 00
MONITOR OUT - USB TYPE ASetCOMPUTER IN1 BEEF 03 0600 B6 F401 00 B620 00 00
COMPUTER IN2 BEEF 03 0600 76 F601 00 B620 04 00
OFF BE EF 0306 00 46B5 0100 B6 20 FF00
Get BE EF 03 0600 85 F402 00 B620 00 00
MONITOR OUT - USB TYPE BSetCOMPUTER IN1 BEEF 03 0600 6E F701 00 BC20 00 00
COMPUTER IN2 BEEF 03 0600 AE F501 00 BC20 04 00
OFF BE EF 0306 00 9EB6 0100 BC 20FF 00
Get BE EF 03 0600 5D F702 00 BC20 00 00
MONITOR OUT - STANDBYSetCOMPUTER IN1BE EF 0306 002A F7 0100 BF 20 0000
COMPUTER IN2 BEEF 03 0600 EA F501 00 BF20 04 00
OFFBE EF 0306 00DA B601 00 BF20 FF 00
GetBE EF 0306 0019 F7 0200 BF 20 0000
VOLUME - COMPUTER IN1GetBE EF 0306 00CD CC 0200 6020 00 00
IncrementBE EF0306 00AB CC04 0060 2000 00
DecrementBE EF0306 007A CD05 0060 2000 00
VOLUME - COMPUTER IN2GetBE EF0306 00FD CD02 0064 2000 00
IncrementBE EF0306 009B CD04 0064 2000 00
DecrementBE EF0306 004A CC05 0064 2000 00
VOLUME - S-VIDEOGetBE EF 0306 0075 CD02 0062 20 0000
IncrementBE EF 0306 0013 CD04 0062 20 0000
DecrementBE EF0306 00C2 CC05 0062 2000 00
VOLUME - VIDEOGetBE EF 0306 0031 CD02 0061 20 0000
IncrementBE EF 0306 0057 CD04 0061 20 0000
DecrementBE EF 0306 0086 CC05 0061 20 0000
VOLUME - HDMIGetBE EF 0306 0089 CC02 0063 20 0000
IncrementBE EF0306 00EF CC04 0063 2000 00
DecrementBE EF0306 003E CD05 0063 2000 00
VOLUME - LANGet BE EF 03 0600 E9CE02 00 6B20 00 00
IncrementBE EF 0306 008F CE04 00 6B20 00 00
DecrementBE EF 0306 005E CF05 00 6B20 00 00

(continued on next page)

RS-232C Communication / Network command table (continued)

NamesOperationTypeHeaderCommand Data
CRC Action Type Setting Code
VOLUME - USB TYPE AGet BE EF 03 0600 45 CC02 00 66 20 00 00
Increment BE EF 0306 00 23CC 04 00 66 20 0000
Decrement BE EF 0306 00 F2CD 05 00 66 20 0000
VOLUME - USB TYPE BGet BE EF 03 0600 9D CF02 00 6C 20 00 00
Increment BE EF 0306 00 FBCF 04 00 6C 20 0000
Decrement BE EF 0306 00 2ACE 05 00 6C 20 0000
VOLUME - STANDBYGet BE EF 03 0600 D9 CF02 00 6F 20 00 00
Increment BE EF 0306 00 BFCF 04 00 6F 20 0000
Decrement BE EF 0306 00 6ECE 05 00 6F 20 0000
MUTESetOFFBE EF 03 06 0046 D3 01 0000 02 20 0000
ONBE EF 03 06 00D6 D2 01 0000 02 20 0100
Get BE EF 03 0600 75 D302 00 2 20 00 00
SPEAKERSetONBE EF 03 06 00FE D4 01 001C 20 0100
OFFBE EF 03 06 006E D5 01 001C 20 0000
Get BE EF 03 0600 5D D502 00 1C 20 00 00
AUDIO SOURCE - COMPUTER IN1SetAUDIO IN1BE EF0306 006E DC01 0030 2001 00
AUDIO IN2BE EF0306 009E DC01 0030 2002 00
AUDIO IN3BE EF0306 000E DD01 0030 2003 00
OFFBE EF0306 00FE DD01 0030 2000 00
Get BE EF 03 0600 CD DD02 00 30 20 00 00
AUDIO SOURCE - COMPUTER IN2SetAUDIO IN1BE EF0306 005E DD01 0034 2001 00
AUDIO IN2BE EF0306 00AE DD01 0034 2002 00
AUDIO IN3BE EF0306 003E DC01 0034 2003 00
OFFBE EF0306 00CE DC01 0034 2000 00
Get BE EF 03 0600 FDDC02 00 3420 00 00
AUDIO SOURCE - HDMISetOFFBE EF0306 00BA DD01 0033 2000 00
AUDIO IN1BE EF0306 002A DC01 0033 2001 00
AUDIO IN2BE EF0306 00DA DC01 0033 2002 00
AUDIO IN3BE EF0306 004A DD01 0033 2003 00
AUDIO_HDMIBE EF 03 06 007A C4 01 0033 20 2000
Get BE EF 03 0600 89 DD02 00 33 20 00 00
AUDIO SOURCE - S-VIDEOSetAUDIO IN1BE EF0306 00D6 DD01 0032 2001 00
AUDIO IN2BE EF 03 06 0026 DD 01 0032 20 0200
AUDIO IN3BE EF0306 00B6 DC01 0032 2003 00
OFFBE EF 03 06 0046 DC 01 0032 20 0000
Get BE EF 03 0600 75 DC02 00 32 20 00 00
AUDIO SOURCE - VIDEOSetAUDIO IN1BE EF 03 06 0092 DD 01 0031 20 0100
AUDIO IN2BE EF 03 06 0062 DD 01 0031 20 0200
AUDIO IN3BE EF0306 00F2 DC01 0031 2003 00
OFFBE EF 03 06 0002 DC 01 0031 20 0000
Get BE EF 03 0600 31 DC02 00 31 20 00 00
AUDIO SOURCE - LANSetOFF BE EF 0306 00 DA DF 01 003B 20 00 00
AUDIO IN1 BE EF03 06 00 4A DE 0100 3B 20 0100
AUDIO IN2 BE EF03 06 00 BA DE 0100 3B 20 0200
AUDIO IN3 BE EF03 06 00 2A DF 0100 3B 2003 00
AUDIO_LANBE EF0306 008A D301 003B 2011 00
GetBE EF 03 06 00E9 DF 02 003B 20 00 00
AUDIO SOURCE - USB TYPE ASetOFFBE EF 03 06 0076 DD 01 0036 20 00 00
AUDIO IN1 BE EF03 06 00 E6 DC 0100 36 20 0100
AUDIO IN2 BE EF03 06 00 16 DC 0100 36 20 0200
AUDIO IN3BE EF0306 0086 DD01 0036 2003 00
GetBE EF 03 06 0045 DD 02 0036 20 00 00
AUDIO SOURCE - USB TYPE BSetOFFBE EF0306 00AE DE01 003C 2000 00
AUDIO IN1 BE EF03 06 00 3E DF 0100 3C20 01 00
AUDIO IN2BE EF0306 00CE DF01 003C 2002 00
AUDIO IN3BE EF0306 005E DE01 003C 2003 00
AUDIO_USB TYPE BBE EF0306 000E D201 003C 2012 00
GetBE EF 03 06 009D DE 02 003C 20 00 00
AUDIO SOURCE - STANDBYSetAUDIO IN1 BE EF03 06 00 7A DF 0100 3F 2001 00
AUDIO IN2 BE EF03 06 00 8A DF 0100 3F 2002 00
AUDIO IN3 BE EF03 06 00 1A DE 0100 3F 2003 00
OFFBE EF0306 00EA DE01 003F 2000 00
GetBE EF0306 00D9 DE02 003F 2000 00
LAN SOUND ENABLESetDisableBE EF0306 00BA F001 00A3 2000 00
EnableBE EF 03 06 002A F1 01 00A3 20 01 00
GetBE EF 03 06 0089 F002 00 A3 2000 00
USB TYPE A SOUND ENABLESetDisableBE EF0306 00CE F101 00A4 2000 00
EnableBE EF 03 06 005E F001 00 A4 2001 00
GetBE EF0306 00FD F102 00A4 2000 00
USB TYPE B SOUND ENABLESetDisableBE EF0306 0032 F001 00A5 2000 00
EnableBE EF0306 00A2 F101 00A5 2001 00
GetBE EF0306 0001 F002 00A5 2000 00
MIC LEVELSetLOWBE EF0306 0002 F101 00A1 2000 00
HIGHBE EF0306 0092 F001 00A1 2001 00
GetBE EF0306 0031 F102 00A1 2000 00
MIC VOLUMEGetBE EF0306 0075 F102 00A2 2000 00
IncrementBE EF0306 0013 F104 00A2 2000 00
DecrementBE EF0306 00C2 F005 00A2 2000 00

(continued on next page)

RS-232C Communication / Network command table (continued)

NamesOperationTypeHeaderCommand Data
CRC Action Type Setting Code
LANGUAGE *SetENGLISH BE EF03 06 00 F7D3 0100 05 3000 00
FRANÇAIS BE EF03 06 00 67D2 0100 05 3001 00
DEUTSCH BE EF03 06 00 97D2 0100 05 3002 00
ESPAÑOL BE EF03 06 00 07D3 0100 05 3003 00
ITALIANO BE EF03 06 00 37D1 0100 05 3004 00
NORSK BE EF03 06 00 A7D0 0100 05 3005 00
NEDERLANDS BEEF 03 06 0057 D001 00 0530 06 00
PORTUGUÈSBE EF0306 00C7 D101 0005 3007 00
日本語BE EF 030600 37D4 01 0005 30 08 00
简体中文BE EF 030600 A7 D501 00 0530 09 00
繁體中文BE EF 030600 37 DE01 00 0530 10 00
한글BE EF 030600 57D5 01 0005 30 0A 00
SVENSKA BE EF03 06 00C7D4 01 00 05300B 00
PYCCKIЙ BE EF03 0600 F7D6 01 00 05300C 00
SUOMIBE EF0306 0067 D701 0005 300D 00
POLSKI BE EF03 0600 97 D701 00 05300E 00
TÜRKÇEBE EF0306 0007 D601 0005 300F 00
DANSKBE EF0306 00A7 DF01 0005 3011 00
ČESKYBE EF 0306 0057 DF 0100 05 30 1200
MAGYARBE EF0306 00C7 DE01 0005 3013 00
ROMÄNÄBE EF0306 00F7 DC01 0005 3014 00
SLOVENSKIBE EF0306 0067 DD01 0005 3015 00
HRVATSKIBE EF0306 0097 DD01 0005 3016 00
ΕΛΛΗΝΙΚΑ BE EF03 0600 07DC 0100 05 30 1700
LIETUVIU BE EF03 06 00 F7D9 0100 05 3018 00
EESTIBE EF0306 0067 D801 0005 3019 00
LATVIEŠUBE EF0306 0097 D801 0005 301A 00
IrtnuBE EF0306 0007 D901 0005 301B 00
قَبْرِعَلَا قَغْلَاBE EF 030600 37 DB01 00 05301C 00
كَسْرَافBE EF0306 00A7 DA01 0005 301D 00
PORTUGUÈS BRA BEEF 03 0600 57DA 0100 05 301E 00
BAHASA INDBE EF0306 00C7 DB01 0005 301F 00
TIENG VIETBE EF0306 0037 CA01 0005 3020 00
GetBE EF0306 00C4 D302 0005 3000 00
MENU POSITION HGetBE EF0306 0004 D702 0015 3000 00
IncrementBE EF0306 0062 D704 0015 3000 00
DecrementBE EF 030600 B3 D605 00 1530 00 00
MENU POSITION H ResetExecuteBE EF0306 00DC C606 0043 7000 00
MENU POSITION VGetBE EF0306 0040 D702 0016 3000 00
IncrementBE EF0306 0026 D704 0016 3000 00
DecrementBE EF 030600 F7 D605 00 1630 00 00
MENU POSITION V ResetExecuteBE EF 030600 A8 C706 00 4470 00 00
BLANKSetMyScreen BE EF03 06 00 FBCA 01 00 00 3020 00
ORIGINAL BE EF03 06 00 FBE2 01 00 00 3040 00
BLUE BE EF 0306 00 CBD3 0100 00 30 0800
WHITE BE EF03 06 00 6BD0 0100 00 30 0500
BLACK BE EF03 06 00 9BD0 0100 00 30 0600
Get BE EF 03 0600 08 D302 00 00 30 00 00
BLANK On/OffSetOFFBE EF 0306 00FB D8 0100 20 30 0000
ONBE EF 0306 006B D9 0100 20 30 0100
Get BE EF 03 0600 C8 D802 00 20 30 00 00
START UPSetMyScreen BE EF03 06 00CBCB 0100 04 30 2000
ORIGINAL BE EF03 06 00GB D2 01 00 04 3000 00
OFFBE EF 0306 009B D3 0100 04 30 0100
Get BE EF 03 0600 38 D202 00 04 30 00 00
MyScreen LockSetOFFBE EF 0306 003B EF 0100 C0 3000 00
ONBE EF 0306 00AB EE 0100 C0 3001 00
Get BE EF 03 0600 08 EF02 00 C0 3000 00
MESSAGESetOFFBE EF 0306 008F D6 0100 17 30 0000
ONBE EF 0306 001F D7 0100 17 30 0100
Get BE EF 03 0600 BC D602 00 17 30 00 00
TEMPLATESetTEST PATTERNBE EF0306 0043 D901 0022 3000 00
DOT-LINE1BE EF 0306 00D3 D8 0100 22 30 0100
DOT-LINE2BE EF 0306 0023 D8 0100 22 30 0200
DOT-LINE3BE EF 0306 00B3 D9 0100 22 30 0300
DOT-LINE4BE EF 0306 0083 DB 0100 22 30 0400
CIRCLE 1BE EF 0306 0013 DA 0100 22 30 0500
CIRCLE 2BE EF 0306 00E3 DA 0100 22 30 0600
MAP 1BE EF 0306 00B3 D4 0100 22 30 1000
MAP 2BE EF0306 0013 D501 0022 3011 00
Get BE EF 03 0600 70 D902 00 22 30 00 00
TEMPLATE On/OffSetOFFBE EF 0306 00BF D8 0100 23 30 0000
ONBE EF 0306 002F D9 0100 23 30 0100
Get BE EF 03 0600 8C D802 00 23 30 00 00
C. C. - DISPLAYSetOFFBE EF0306 00FA 6201 0000 3700 00
ONBE EF0306 006A 6301 0000 3701 00
AUTOBE EF 0306 009A 6301 00 0037 02 00
Get BE EF 03 0600 C9 6202 00 00 37 00 00
C. C. - MODESetCAPTIONSBE EF 0306 0006 63 0100 01 37 0000
TEXT BE EF 0306 00 9662 0100 01 37 0100
Get BE EF 03 0600 3563 0200 01 37 0000
C. C. - CHANNELSet1BE EF 0306 00D2 62 0100 02 37 0100
2BE EF 0306 0022 6201 00 02 3702 00
3BE EF 0306 00B2 6301 00 02 3703 00
4BE EF 0306 0082 6101 00 02 3704 00
Get BE EF 03 0600 7163 0200 02 37 0000
AUTO SEARCHSetOFF BE EF 0306 00 B6D6 0100 16 20 0000
ON BE EF 0306 00 26D7 0100 16 20 0100
Get BE EF 03 0600 85 D602 0016 20 00 00
AUTO KEYSTONESetOFF BE EF 0306 00 EAD1 0100 OF 20 0000
ON BE EF 0306 00 7AD0 0100 OF 20 0100
Get BE EF 03 0600 D9 D102 00OF 20 00 00
DIRECT POWER ONSetOFF BE EF 0306 00 3B89 0100 20 31 0000
ON BE EF 0306 00 AB88 0100 20 31 0100
Get BE EF 03 0600 08 8902 00 2031 00 00
AUTO POWER OFFGet BE EF 03 0600 08 8602 00 1031 00 00
Increment BE EF 0306 00 6E86 0400 10 31 0000
DecrementBE EF 0306 00BF 8705 00 10 3100 00
LAMP TIMEGet BE EF 03 0600 C2 FF02 00 9010 00 00
LAMP TIME ResetExecuteBE EF0306 0058 DC06 0030 7000 00
FILTER TIMEGet BE EF 03 0600 C2 F002 00A0 10 0000
FILTER TIME ResetExecuteBE EF0306 0098 C606 0040 7000 00
MY BUTTON-1SetCOMPUTER IN1BE EF0306 003A 3301 0000 3600 00
COMPUTER IN2BE EF0306 00FA 3101 0000 3604 00
HDMIBE EF 0306 00CA 33 0100 00 36 0300
S-VIDEOBE EF 0306 005A 3201 00 00 3602 00
VIDEOBE EF 0306 00AA 3201 00 00 3601 00
LANBE EF0306 000A 3401 0000 360B 00
USB TYPE ABE EF0306 009A 3001 0000 3606 00
USB TYPE BBE EF0306 003A 3601 0000 360C 00
INFORMATIONBE EF 0306 00FA 3E01 00 00 3610 00
AUTO KEYSTONEBE EF0306 006A 3F01 0000 3611 00
MY MEMORYBE EF 0306 009A 3F01 00 00 3612 00
ACTIVE IRISBE EF 0306 00AA 3D 0100 00 36 1500
PICTURE MODE BEEF 03 0600 0A 3E01 00 0036 13 00
FILTER RESETBE EF 0306 003A 3C 0100 00 36 1400
AV MUTEBE EF 0306 00AA 3801 00 00 3619 00
TEMPLATEBE EF 0306 00CA 39 0100 00 36 1B00
MIC VOLUMEBE EF 0306 009A 2401 00 00 3636 00
RESOLUTIONBE EF 0306 009A 3A01 00 00 361E 00
ECO MODEBE EF 0306 000A 2501 00 00 3637 00
SAVER MODEBE EF0306 006A 2101 0000 3639 00
MY IMAGEBE EF0306 005A 3D01 0000 3616 00
SLIDESHOWBE EF0306 009A 2B01 0000 3622 00
MESSENGERBE EF0306 00AA 2901 0000 3625 00
Get BE EF 03 0600 09 3302 00 0036 00 00
MY BUTTON-2SetCOMPUTER IN1 BEEF 03 06 00C6 3201 00 0136 00 00
COMPUTER IN2 BEEF 03 06 0006 3001 00 01 3604 00
HDMI BE EF 0306 00 3632 0100 01 36 0300
S-VIDEO BE EF03 06 00 A63301 0001 36 0200
VIDEOBE EF 0306 0056 3301 00 01 3601 00
LANBE EF0306 00F6 3501 0001 360B 00
USB TYPE ABE EF 030600 66 3101 00 01 3606 00
USB TYPE BBE EF0306 00C6 3701 0001 360C 00
INFORMATIONBE EF0306 0006 3F01 0001 3610 00
AUTO KEYSTONE BEEF 03 060096 3E 0100 01 3611 00
MY MEMORYBE EF0306 0066 3E01 0001 3612 00
ACTIVE IRISBE EF 0306 0056 3C 0100 01 36 1500
PICTURE MODEBE EF0306 00F6 3F01 0001 3613 00
FILTER RESETBE EF 0306 00C6 3D 0100 01 36 1400
AV MUTEBE EF 0306 0056 3901 00 01 3619 00
TEMPLATEBE EF0306 0036 3801 0001 361B 00
RESOLUTIONBE EF0306 0066 3B01 0001 361E 00
MIC VOLUMEBE EF 0306 0066 2501 00 01 3636 00
ECO MODE BE EF03 06 00F624 0100 01 36 3700
SAVER MODEBE EF 030600 96 2001 00 01 3639 00
MY IMAGEBE EF0306 00A6 3C01 0001 3616 00
SLIDESHOWBE EF0306 0066 2A01 0001 3622 00
MESSENGERBE EF 030600 56 2801 00 01 3625 00
GetBE EF0306 00F5 3202 0001 3600 00
MY SOURCESetCOMPUTER IN1 BEEF 03 06 00FA 3801 00 2036 00 00
COMPUTER IN2 BEEF 03 06 003A 3A01 00 20 3604 00
HDMI BE EF 0306 00 0A38 0100 20 36 0300
S-VIDEO BE EF03 06 00 9A39 0100 20 36 0200
VIDEOBE EF 0306 006A 39 0100 20 36 0100
LANBE EF 0306 00CA 3F 01 0020 360B 00
USB TYPE ABE EF0306 005A 3B01 0020 3606 00
USB TYPE BBE EF0306 00FA 3D01 0020 360C 00
GetBE EF0306 00C9 3802 0020 3600 00
REMOTE FREQ. NORMALSetOFFBE EF 0306 00FF 3D 0100 30 26 0000
ONBE EF 0306 006F 3C01 00 30 2601 00
GetBE EF0306 00CC 3D02 0030 2600 00
REMOTE FREQ. HIGHSetOFFBE EF0306 0003 3C01 0031 2600 00
ONBE EF0306 0093 3D01 0031 2601 00
GetBE EF0306 0030 3C02 0031 2600 00
MY IMAGESetOFFBE EF0306 003A C301 0000 3500 00
IMAGE-1BE EF 0306 00AA C201 00 00 3501 00
IMAGE-2BE EF 0306 005A C201 00 00 3502 00
IMAGE-3BE EF0306 00CA C301 0000 3503 00
IMAGE-4BE EF 0306 00FA C101 00 00 3504 00
GetBE EF0306 0009 C302 0000 3500 00
MY IMAGE IMAGE-1 DeleteExecuteBE EF0306 0071 C306 0001 3500 00
MY IMAGE IMAGE-2 DeleteExecuteBE EF0306 0035 C306 0002 3500 00
MY IMAGE IMAGE-3 DeleteExecuteBE EF 0306 00C9 C206 00 03 3500 00
MY IMAGE IMAGE-4 DeleteExecuteBE EF 0306 00BD C306 00 04 3500 00
VOLUME - ALLGetBE EF 0306 00CD C302 00 50 2000 00
IncrementBE EF0306 00AB C304 0050 2000 00
DecrementBE EF 0306 007A C205 00 50 2000 00

PJLink command

CommandsControl Description Parameter or Response
POWR Power ControlPower Contorol0 = Standby
1 = Power On
POWR ? Power Status inquiryPower Status inquiry0 = Standby
1 = Power On
2 = Cool Down
INPT Input Source selectionSource selection11 = COMPUTER IN 1
12 = COMPUTER IN 2
22 = S-VIDEO
23 = VIDEO
31 = HDMI
41 = USB TYPE A
51 = LAN
52 = USB TYPE B
INPT ? Input Source inquirySource inquiry11 = COMPUTER IN 1
12 = COMPUTER IN 2
22 = S-VIDEO
23 = VIDEO
31 = HDMI
41 = USB TYPE A
51 = LAN
52 = USB TYPE B
AVMT AVMute10 = BLANK off
11 = BLANK on
20 = Mute off
21 = Mute on
30 = AV Mute off
31 = AV Mute on
AVMT ? AVMute inquiry10 = BLANK off
11 = BLANK on
20 = Mute off
21 = Mute on
30 = AV Mute off
31 = AV Mute on

(continued on next page)

CommandsControl Description Parameter or Response
ERST ? Error Status inquiry1st byte: Refers to Fan error; one of 0 to 2
2nd byte: Refers to Lamp error; one of 0 to 2
3rd byte: Refers to Temptrature error; one of 0 to 2
4th byte: Refers to Cover error; one of 0 to 2
5th byte: Refers to Filter error; one of 0 to 2
6th byte: Refers to Other error; one of 0 to 2
The meaning of 0 to 2 is as given below
0 = Error is not detected; 1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry1st number (digits 1 to 5): Lamp Time
2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 1222 23 31 41 51 52
NAME ? Projector Name inquiryResponds with the name set in "PROJECTOR NAME" of "NETWORK"
INF1 ?Manufacturer's Name inquiryHITACHI
INF2 ? Model Name inquiryYour model name, "CP-X2015WN", "CP-X2515WN", "CP-X3015WN", "CP-X4015WN", "CP-WX2515WN" or "CP-WX3015WN".
INFO ? Other Information inquiryResponds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Web Browser Control. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

Model nummer CP-X2015WN, CP-X2515WN, CP-X3015WN,

CP-X4015WN, CP-WX2515WN, CP-WX3015WN

HITACHI CP-WX3015WNEF - Communication settings - 1
3

Line drawing of a projector with ventilation slots and a scroll wheel (no text or symbols)

Handvatten 4

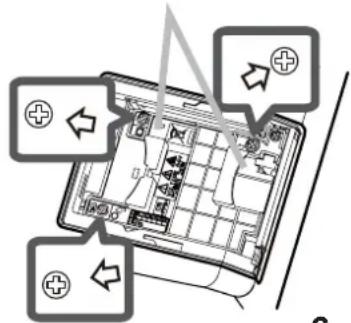

Diagram showing a device interior with labeled components and directional arrows indicating movement or flow.

6
Diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

HITACHI CP-WX3015WNEF - Communication settings - 5

HOOG VOLTAGE

HITACHI CP-WX3015WNEF - HOOG VOLTAGE - 1

HOGE TEMPERATUUR

HITACHI CP-WX3015WNEF - HOGE TEMPERATUUR - 1

HOGE DRUK

CP-X2015WN,X2515WN,3015WN

(1024 × 768) (±10%)

aScreen size (diagonal)4:3 screen 16:9 screen
bProjection distancec1Screen heightc2Screen heightbProjection distancec1Screen heightc2Screen height
min. max.x. min. max.
type (inch)m minch minch cminchcm inchm inchm inchcminch cminch
300.8 0.8321.0393915730.9351.14336141
401.0 1.1441.4545221931.2481.55949191
501.31.4561.76865261141.6611.975612411
601.5 1.7682.18278311351.9742.39073292
701.82.0802.59791361562.2872.7106853421
802.02.3922.8111105411772.61003.1121973821
902.32.61043.2125118462082.91133.51371094331
1002.52.91163.5140131512293.21263.91531224831
1203.03.51404.31681576226103.91524.71841465741
1503.84.51755.42111967733134.91915.92311827242
2005.16.02357.228326110344176.52567.83092439662
2506.47.52959.035532712954218.23219.838730412073
3007.69.035410.842639215465269.838611.846536514494

ENGLISH

0 0

1

T-2

CP-X4015WN

(1280 × 768) (±10%)

aScreen size (diagonal)4:3 screen 16:9 screen
bProjection distancec1Screen heightc2Screen heightbProjection distancec1Screen heightc2Screen height
min. max. min. max.
type (inch)m minch minch cminchcm inchm inchm inchcminch cminch
300.80.8321.0384116520.9351.1423915-10
401.01.1441.3525522621.2481.5575120-2-1
501.31.4561.7676927831.5611.9736425-2-1
601.51.7672.0818232941.9742.2887730-2-1
701.82.0792.49596381142.2872.61049035-3-1
802.02.3912.8109110431252.51003.011910341-3-1
902.32.61033.1123123491452.91133.413411646-4-1
1002.52.91153.5137137541563.21263.815012951-4-2
1203.03.51394.2165165651873.91524.618115461-5-2
1503.84.41755.3208206812394.81915.822719376-6-2
2005.16.02347.127827410830126.52567.7304257101-8-3
2506.47.52948.934934313538158.13219.7381322127-10-4
3007.69.035410.742041116246189.838611.6458386152-12-5

T-3

CP-WX2515WN, CP-WX3015WN

(1280 × 800) (±10%)

①Screen size (diagonal)16:10 screen 4:3 screen
⑥Projection distance①Screen height②Screen height⑥Projection distance①Screen height②Screen height
min. max. min. max.
type (inch)m inchm inchm inchm inchm inchm inchm inchm inchcm inchm inch
30 0.9351.1434016101.0401.249451810
401.2481.5585321101.4541.767602410
501.5611.9746626111.8692.184752921
601.9732.3897931212.1842.6102903521
702.2862.71059236212.5983.01191054121
802.5993.112110642212.91133.51371194721
902.81123.513611947213.21283.91551345331
1003.21253.915213252313.61424.41721495931
1203.81514.618315862314.41715.32071797141
1504.81905.822919878425.52156.62602248852
2006.52547.8307264104527.32888.834829911862
2508.13199.8385330130739.236111.143637314783
3009.738311.84633961568311.043413.352444817694

F-1

  • On a horizontal surface
    HITACHI CP-WX3015WNEF - F-1 - 1
  • Suspended from the ceiling
    HITACHI CP-WX3015WNEF - F-1 - 2

Computer
USB TYPE A HDMI AUDIO OUT RGB OUT USB TYPE B HDMI COMP UTER IN1 R AUDIO OUT S-VIDEO VIDEO COMPUTER IN2 L 3 R L 1 2 CONTROL MONITOR OUT

F-4

Computer External device
Access point USB wireless adapter (optional) USB storage device LAN USB TYPE A RS-232C RS-232C LAN USB TYPE B HDMI COMPUTER IN1 R AUDIO OUT L COMPUTER IN2 R AUDIO IN CONTROL MONITOROUT S-VIDEO VIDEO

VCR/DVD/Blu-ray Disc™ player HDMI COMPONENT Y Cb/Pb Cr/Pr S-VIDEO VIDEO AUDIO OUT R L LAN USB TYPEB USB TYPE A DCSV 0.5A HDMI MC COMPUTER IN1 R AUDIO OUT L S-VIDEO VIDEO 3 COMPUTER IN2 AUDIO IN CONTROL MONITOR OUT

Microphone Monitor Speakers (with an amplifi er) RGB OUT L R L R USB TYPE B HDMI COMPUTER IN1 R AUDIO OUT L COMPUTER IN2 R L 3 AUDIO IN CONTROL MONITOR OUT S-VIDEO VIDEO LAN MIC

Diagram of an electronic device front panel with labeled ports and connectors

Technical line drawing of a mechanical or electronic component with no visible text or symbols

288mm 317mm 98mm 113mm

[unit: mm]

NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Business Solutions Group

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: +1 -800-448-2244

http://www.hitachi-america.us/projectors

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Whitebrook Park, Lower Cookham Road,

Maidenhead

Berkshire SL6 8YA UNITED KINGDOM

Tel: 0844 481 0297

Email: consumer.mail@hitachi-eu.com

Hitachi Europe S.A.S., Digital Media Group

Email: customerservice.italy@hitachi-eu.com

Hitachi Europe S.A.

Gran Via Carles III, 86 Planta 5 a

Denmark Tel: +46 8 562 711 00

http://www.hitachidigitalmedia.com

Hitachi Australia Pty Ltd.

Level 3, 82 Waterloo Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: +61 -2-9888-4100

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street.,

Shatin, N.T. HONG KONG

Tel: +852 -2113-8883

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate,

43650 Bandar Baru Bangi, Selangor Darul Ehsan

MALAYSIA

Tel: +60 -3-8911-2670

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia (S) Pte. Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: +65 -6536-2520

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: +886-2-2516-0500

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, 996 Soi Thonglor, Sukhumvit 55 Rd.,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: +66 -2381-8381-98

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HITACHI

Model : CP-WX3015WNEF

Category : Projector
