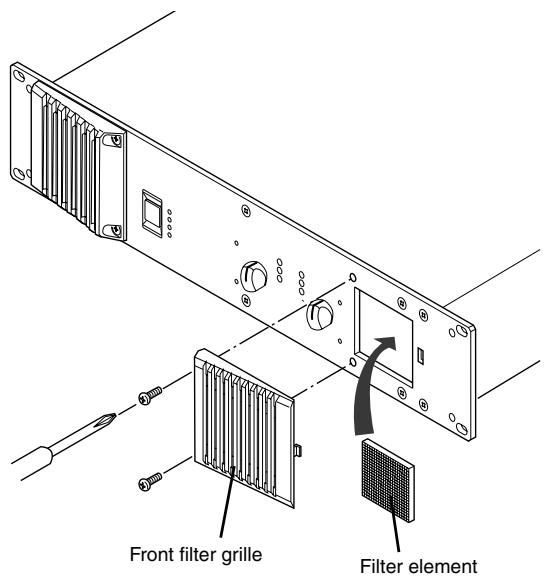

• Inspect the cooling fan air filter and clean it periodically (see page 11). Dust and dirt can seriously degrade the effectiveness of the cooling fan and result in malfunction or fire.
• Remove the power plug from the AC outlet when cleaning the device.

Handling caution

• When turning on the AC power in your audio system, always turn on the device LAST, to avoid speaker damage. When turning the power off, the device should be turned off FIRST for the same reason.
• Do not insert your fingers or hands in any gaps or openings on the device (vents).
• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings on the device (vents) If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Yamaha service personnel.
• Do not use the device for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.
• Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors.
• Do not use this device for any purpose other than driving loudspeakers.

XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-).

Use only Neutrik NL4 plugs for connecting Speakon connectors.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the device, or data that is lost or destroyed.

Always turn the power off when the device is not in use.

The performance of components with moving contacts, such as switches, volume controls, and connectors, deteriorates over time. Consult qualified Yamaha service personnel about replacing defective components.

Illustrations in this manual are for explanatory purposes only, and may not match the actual appearance of the product during operation.

The company names and product names in this Owner's Manual are the trademarks or registered trademarks of their respective companies.

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW	: EARTH
BLUE	: NEUTRAL
BROWN	: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol ⏻ or colored GREEN or GREEN-and-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

- This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd. (3 wires)

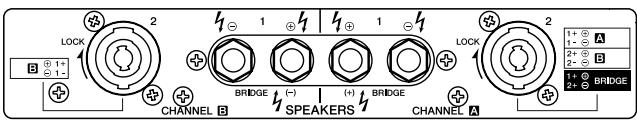

LOCK B 1 2 BRIDGE (-) SPEAKERS (+) BRIDGE CHANNEL B CHANNEL A 1+ - A 2+ - B + - BRIDGE + -

This mark indicates a dangerous electrically live terminal. When connecting an external wire to this terminal, it is necessary either to have “a person who have received appropriate guidance on handling” make the connection or to use leads or a cord that have been manufactured in such a way that the connection can be made simply and without problem.

Thank you for your purchase of the YAMAHA T5n, T4n, T3n Series Power Amplifier.

This series of power amplifiers was developed from Yamaha's wealth of experience in building PA equipment and its tradition of careful attention to every detail of circuit design. These power amplifiers feature high power — thanks to EEEngine (Energy Efficient Engine) technology — and superb quality together with superior reliability and stability, guaranteeing the highest possible audio performance.

Features:

• Three modes are provided to support a broad range of applications: STEREO mode which can be driven by two independent sources, PARALLEL mode in which a monaural source drives both channels, and BRIDGE mode in which the two internal amps function as a single high-power mono amp.
• Balanced XLR connector and Euroblock connector inputs, and Speakon connector and five-way binding post outputs are provided.
• SIGNAL indicator, CLIP indicator and MUTE indicator and sophisticated dB step Volume control are provided for each channel.
• PROTECTION indicator that shows the state of various protection systems (power On/Off detection, output protection, DC detection), a TEMP indicator that indicates heat sink overheating, and a POWER/STANBY indicator that indicates the power status are provided.
• Variable-speed low-noise fans ensure high reliability.
• The T5n enables parallel connection of multiple high-impedance speakers that support 100 V line output.
• The T3n enables parallel connection of multiple high-impedance speakers that support 70 V line output.
• An optional external amp control device, such as the ACD1 or ACU16-C, enables you to monitor or control the amplifier via a network. For the latest information about amp control units, please visit our website: http://www.yamahaproaudio.com/

This Owner's Manual applies to the three models: T5n, T4n and T3n power amplifiers.

Please read through this manual carefully before beginning use, so that you will be able to take full advantage of your power amp's superlative features and enjoy trouble-free operation for years to come.

Accessories

□ Owner's Manual
□ Two handles
☐ Four flat-head screws
□ Two Euroblock connectors

Index

Controls and Functions...... 6

Front Panel 6

Rear Panel 7

Speaker Connections 8

STEREO Mode 8

PARALLEL Mode 8

BRIDGE Mode 9

Wiring....9

Using a Euroblock connector 9

Speaker Connection 10

Filter Element Cleaning 11

Troubleshooting.... 11

Specifications.... 12

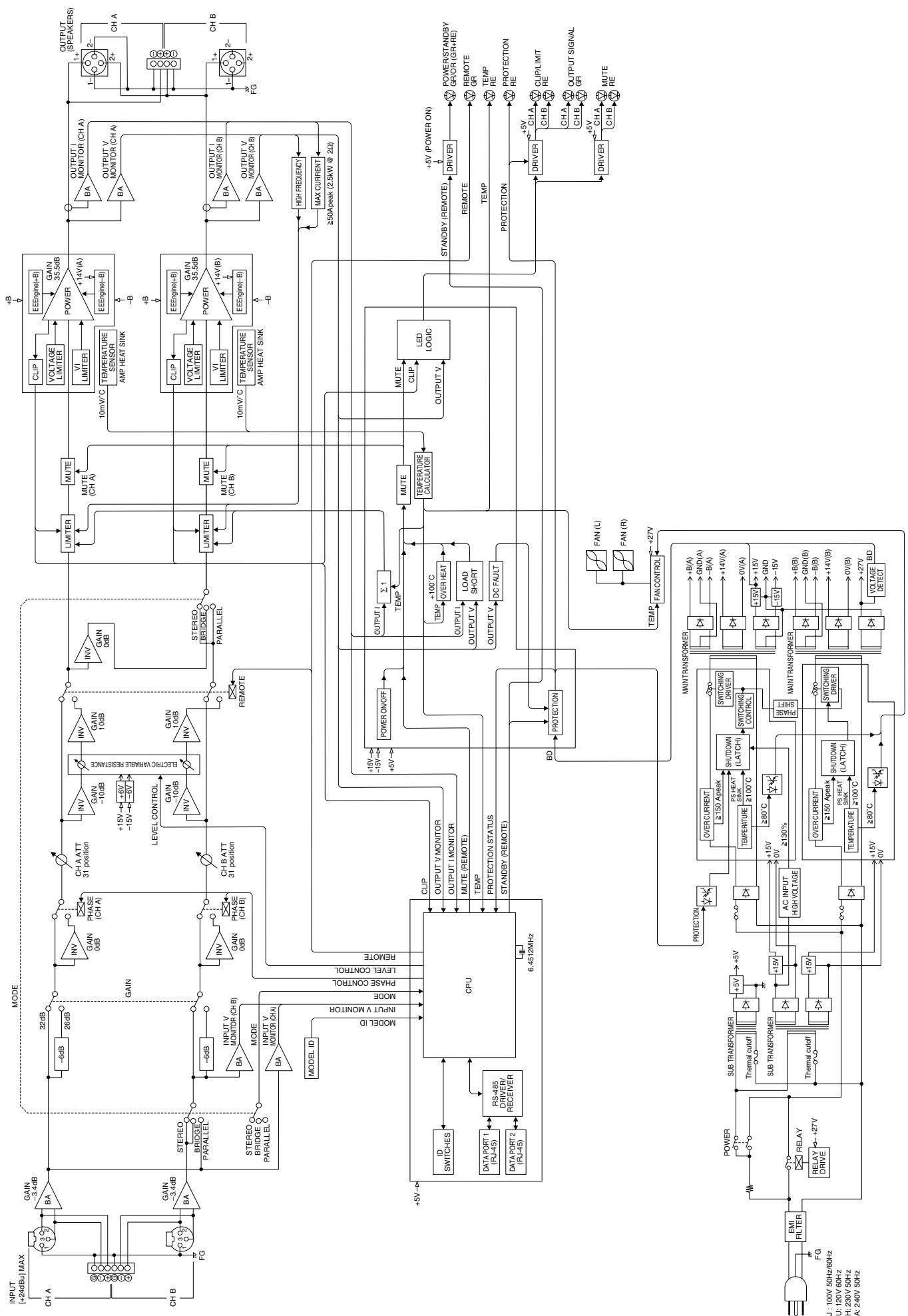

Block Diagram.... 71

Dimensions.... 72

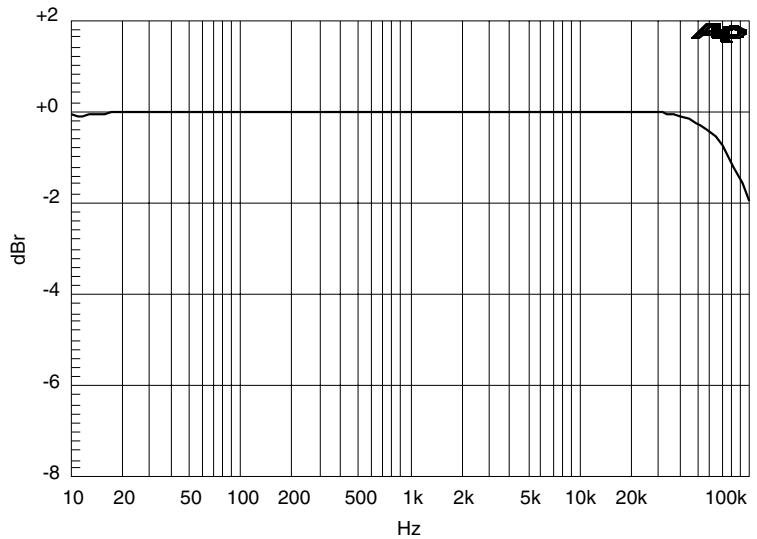

Performance Graph 73

Current Draw 73

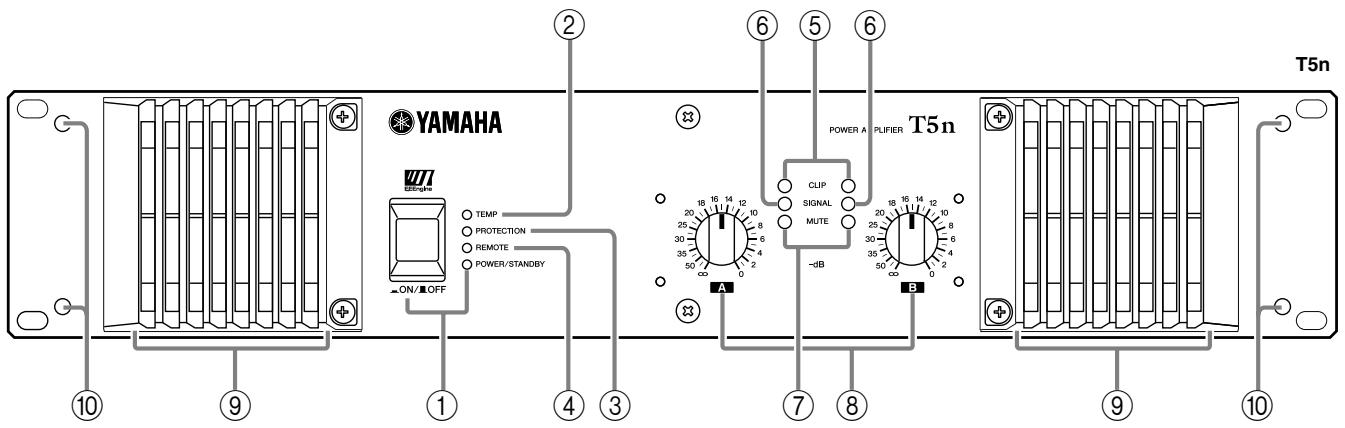

Front Panel

YAMAHA TEMP PROTECTION REMOTE POWER/STANDBY ON/OFF ① ② ③ ⑥ ⑤ ⑥ POWER A PLIFIER T5n CLIP SIGNAL MUTE -dB ⑦ ⑧ ⑨ ⑩ T5n

① POWER switch and indicator

Press to toggle the power on or off. The POWER indicator lights up green when the power is ON.

If the amplifier is connected to an amp control device such as the ACD1 or ACU16-C and the amplifier has been commanded to enter STANDBY mode, this indicator will light orange.

② TEMP indicator

Lights up red if the heat sink temperature exceeds 85^ C ( 185^ F).

③ PROTECTION indicator

When the protection system is active, the indicator lights in red. No sound will be output from the speakers, since the speakers are automatically disconnected from the amplifier's outputs.

The protection system actives in the following situations:

- When the amplifier is turned on

The protection system actives for approximately 10 seconds when the amplifier is turned on. After 10 seconds, the protection system deactivates automatically and the amplifier is ready for normal operation.

- If the amplifier overheats

The protection system activates if the heat sink temperature exceeds 85^ C ( 185^ F). The amplifier is muted if the heat sink temperature exceeds 90^ C ( 194^ F). The amplifier operates normally after the amplifier cools down.

④ REMOTE indicator

This indicator will light green if the amplifier is being controlled by an amp control device such as the ACD1 or ACU16-C.

⑤ CLIP indicator

Lights up red when the output signal distortion on the corresponding channel rises above 1% — indicating that “clipping” has occurred because the signal level is too high.

⑥ SIGNAL indicator

Lights up green when the corresponding channel's output level exceeds 1 Vrms (equivalent to 0.2W into an 8 ohms load, 0.4W into a 4 ohms load or 0.8W into a 2 ohms load).

⑦ MUTE indicator

This indicator will light red if the amplifier is muted by an amp control device such as the ACD1 or ACU16-C. This indicator will also light red while the PROTECTION indicator is ON.

⑧ Volume control knobs

Each control knob adjusts the volume of the corresponding channel, in 31 steps from - dB to 0 dB.

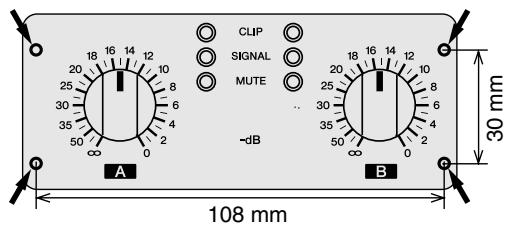

Note: Screw holes for security cover

These four screw holes are for attaching a security cover to protect the volume setting. Since a security cover and screws are not included in the amplifier, please prepare a security cover the same size as indicated below and four M3 screws.

CLIP SIGNAL MUTE -dB 30 mm 108 mm A B

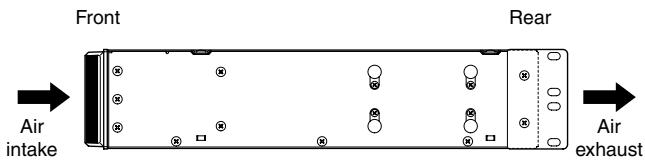

⑨ Air intakes

The amplifier uses forced-air cooling. The variable speed cooling fan draws air in from the front and exhausts it through the rear. The cooling fan speed varies depending on the heat sink temperature: It operates at low speed when it is below 40 °C ( 104 °F ), increases in speed according to increases in temperature, and operates at high speed when temperature exceeds 60 °C ( 140 °F ). Please be sure that you do not block the air intakes or exhaust vents. Also, clean the filter elements regularly. If the air intakes are clogged with dust or debris, the amplifier will overheat, which may result in the amplifier to shutting down.

Front Air intake Rear Air exhaust

⑩ Screw holes for handles

These four screw holes are for the included handles. Fix the handles to the amplifier, using the included flat-head screws.

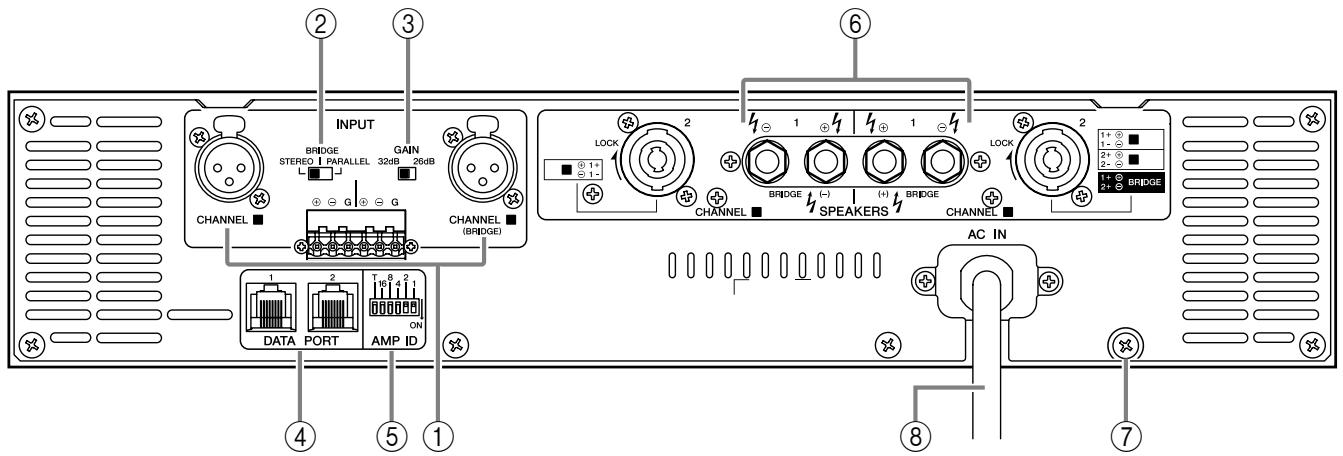

■ Rear Panel

INPUT BRIDGE STEREO | PARALLEL 32dB 26dB GAIN CHANNEL ■ CHANNEL (BRIDGE) 1 2 ON DATA PORT AMP ID ② ③ ④ ⑤ ① ⑥ ⑦ ⑧ AC IN ①+ - 1- + 2- 2+ 1+ - 1- + BRIDGE SPEAKERS BRIDGE CHANNEL ■ CHANNEL ■ CHANNEL ■ ①+ - 1- + 2- 2+ 1+ - 1- + BRIDGE CHANNEL ■ BRIDGE SPEAKERS CHANNEL ■ ①+ - 1- + 2- 2+ + 1+ - 1- + BRIDGE CHANNEL ■ BRIDGE SPEAKERS CHANNEL ■ ①+ - 1- + 2- 2+ + 1+ -

① Input connectors

• XLR3-31 type input connectors

The pins are wired as shown below (IEC 60268).

Hot 2 1 3 Ground Cold

- Euroblock input connectors

These are balanced input connectors. The included Euroblock connectors can be used to make connections here.

Note: In PARALLEL and BRIDGE mode, only the channel A connector is active. Make sure not to input an audio signal to an inactive input terminal (channel B).

② Mode switch

- STEREO mode

In STEREO mode, channels A and B are completely independent.

• PARALLEL mode

In PARALLEL mode, the channel A input signal is sent both to the channel A power amp and the channel B amp. The Channel B input connector does not function.

- BRIDGE mode

In BRIDGE mode, channels A and B operates simultaneously, functioning as a single mono amplifier.

③ GAIN switch

This switch is used when changing the Gain of the A and B channels simultaneously.

32 dB: Setting of 32 dB

26 dB: Setting of 26 dB

When monitoring or controlling from an amplifier control device such as the ACD1 or ACU16-C, set the GAIN switch to [26 dB] to avoid clipping if you plan to input signals with a maximum input level of +24 dBu.

When the power amplifier is connected to the ACD1 or ACU16-C, the electronic volume control inside the amplifier will become effective, and the maximum input level will become +18 dBu if the GAIN switch has been set to [32 dB].

④ DATA PORT jacks

An amp control device, such as the ACD1 or ACU16-C, can be connected to the DATA PORT jack for monitoring or controlling the amplifier from the external device.

⑤ AMP ID switch

When an amp control device, such as the ACD1 or ACU16-C, is connected to the DATA PORT jack ④, the AMP ID can be used to set the amplifier's ID.

⑥ SPEAKERS jacks

• 5-way binding post output jacks
• Speakon type output jacks

Speakon type cable plugs (Neutrik NL4) can be connected here.

⑦ Ground screw

If you are having a problem with hum or noise, use this terminal to connect to ground or connect to the chassis of the mixer, preamp, or other device in your system.

⑧ AC IN connector

Amplifiers purchased in the United States of America and Canada.

This amplifier uses a NEMA L5-30 outlet.

Connect the 30 A twist-lock connectors by orienting the locking L-shaped prong with the corresponding connector entry, then fully insert the three prongs. Twist the plug about 1/8 of a turn clockwise to lock the connector and plug.

CAUTION

The amplifier requires very high-power so that it can demand high current from the AC service. Connections must be properly rated for reliable operation.

CAUTION

If this device is to be rack mounted and transported frequently, be sure to support the rear end of the unit with mounting hardware that matches the size of the rack used.

Speakers can be connected to the amplifier as shown below. Note that actual speaker impedance varies according to the connection method and the number of speakers. Please be sure that your speakers' impedance is not less than the relevant minimum value indicated below.

STEREO Mode

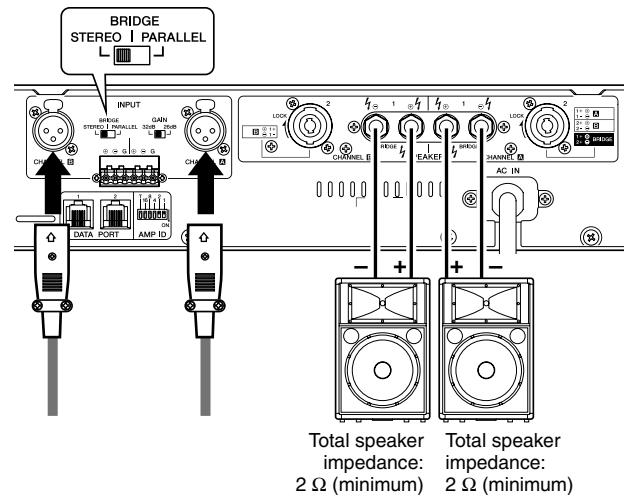

Set the MODE switch on the rear panel to “STEREO” to use the unit as a stereo amplifier. The volume controls on the front panel (A and B) let you control the volume of each channel independently.

● 5-way binding post

BRIDGE STEREO | PARALLEL INPUT BRIDGE STEREO | PARALLEL GAIN 1.0Ω (2.5) CHN DATA PORT AMP ID 2 1 1 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Total speaker impedance: 2 Ω (minimum) Total speaker impedance: 2 Ω (minimum)

● Speakon connector

BRIDGE STEREO | PARALLEL INPUT BRIDGE STREEL | PARALLEL SIZE 100 GAIN CHINA DATA PORT AMP ID 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 TOTAL SPEAKER IMPEDANCE: 2 Ω (minimum) TOTAL SPEAKER IMPEDANCE: 2 Ω (minimum)

PARALLEL Mode

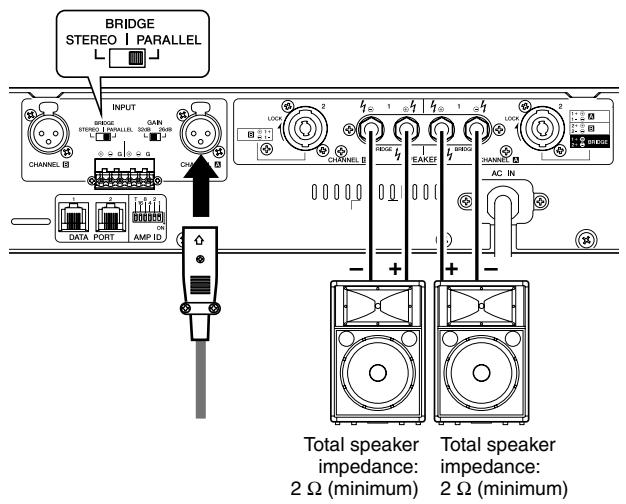

Set the MODE switch on the rear panel to “PARALLEL” to use the unit as a two-channel mono amplifier. The volume controls on the front panel (A and B) let you control the volume of each channel independently.

5-way binding post

BRIDGE STEREO | PARALLEL INPUT SINOC STREET | PARALLEL. 50Hz 100Hz GAIN SINOC CHANNEL B CHANNEL DATA PORT AMP 10 2 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

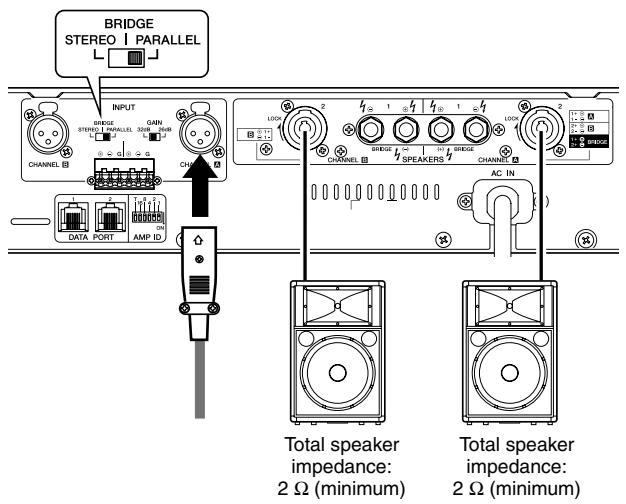

● Speakon connector

BRIDGE STEREO | PARALLEL INPUT BRIDGE STREET PERALLEL 320V GAIN GAIN CHANNEL CHANNEL DATA PORT AMP ID AC IN Total speaker impedance: 2 Ω (minimum) Total speaker impedance: 2 Ω (minimum)

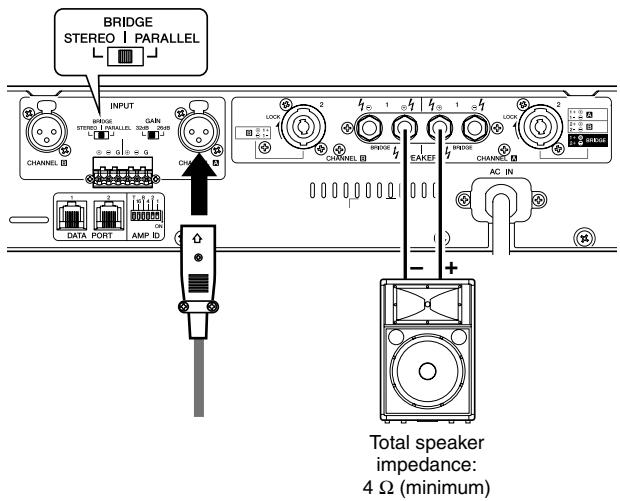

■ BRIDGE Mode (use as high-power mono amplifier)

Set the MODE switch on the rear panel to “BRIDGE” to use the unit as a high-power mono amplifier. The volume control A on the front panel lets you control the volume.

● 5-way binding post

BRIDGE STEREO | PARALLEL INPUT BRIDGE STREEL | INSTALLER 3200 0.05 GAIN CHANNEL | DATA PORT AMP ID CHAMP 2 1 1 1 2 2 CHANNEL BRIDGE EAKEF BRIDGE CHANNEL AC IN + - Total speaker impedance: 4 Ω (minimum)

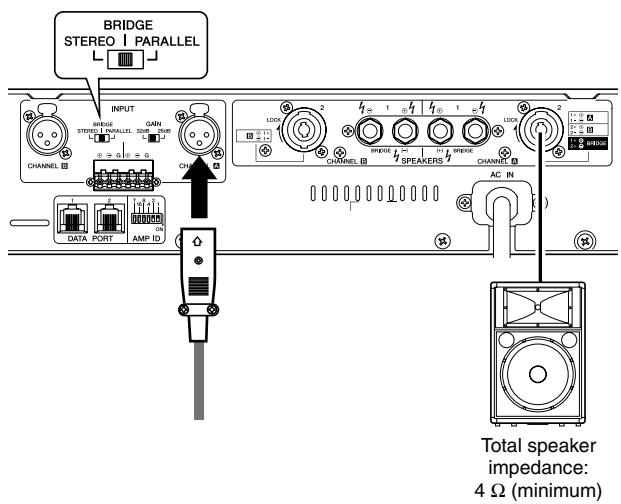

● Speakon connector

BRIDGE STEREO | PARALLEL INPUT BRIDGE STREET | PARALLEL 300 500 1000 GAIN SUB CHANNEL CHANNEL DATA PORT AMP ID AC IN Total speaker impedance: 4 Ω (minimum)

Wiring

Turn off the POWER switch before connecting external devices to the amplifier.

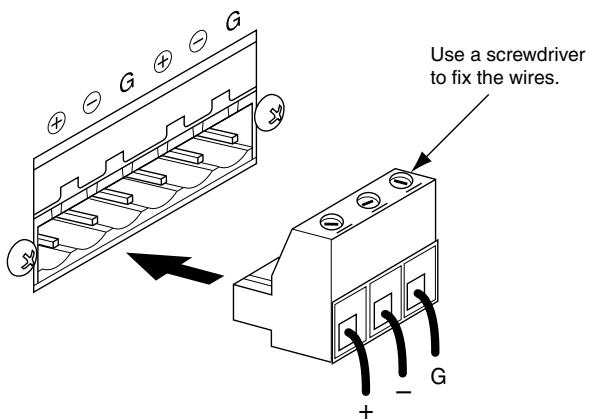

■ Using a Euroblock connector

● Cable preparation

- To prepare the cable for attachment to a Euroblock connector, strip the wire as shown in the illustration, and use stranded wire to make connections. With a Euroblock connection, the stranded wire may be prone to breakage because of metal fatigue due to the weight of the cable or due to vibration. When rack-mounting your equipment, use a lacing bar when possible to bundle and fasten the cables.

- If cables will be frequently connected and disconnected, as in the case of a portable installation, we recommend that you use ferrules with insulation sleeves. Use a ferrule whose conductor portion has an external diameter of 1.6 mm or less, and a length of approximately 7 mm (such as the AI0, 5-6WH made by the Phoenix Contact corporation).

1.6 mm or less approx. 7 mm

CAUTION

If you use stranded wire, do not tin (plate with solder) the exposed end.

1. If the wire insertion ports are closed, turn the screws on top of the connector counterclockwise to open the ports.
2. Insert the wires into the appropriate ports, following the indication of the pole on the input terminal, and turn the screws on top of the connector clockwise to fix the wires.
3. Attach the Euroblock connector to the input terminal on the amplifier.

■ Speaker Connection

● 5-way binding post

1. Remove the cover attachment screws and remove the protective cover from the speaker terminals.

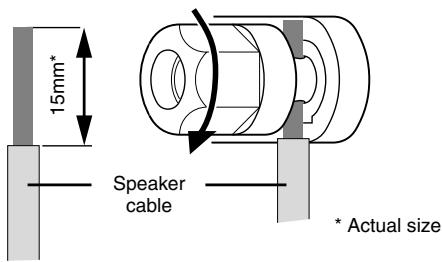

2. Remove about 15mm of insulation from the end of each speaker cable, and pass the bare wire through the holes in the appropriate speaker terminals. Tighten the terminals to securely clamp the wires.

Refer to page 8 for speaker polarities.

Be sure that the bare wire ends do not jut out from the terminals and touch the chassis. The illustration on the right shows how the cable should look when correctly attached.

1. Reattach the protective cover over the speaker terminals.

● Speakon connector

Insert the Neutrik NL4 plugs into the Speakon connector on the rear of the amplifier, and turn clockwise to lock.

CHANNEL A
STEREO or PARALLEL

Neutrik	Amplifier
1+	A+
1-	A-
2+	B+
2-	B-

BRIDGE

Neutrik	Amplifier
1+	+
1-
2+	-
2-

Use a screwdriver to fix the wires.

Screw

15mm* Speaker cable * Actual size

Chassis Bare wire

Neutrik NL4 plugs

CHANNEL B

Neutrik	Amplifier
1+	B+
1-	B-

To ensure adequate cooling air intake, the filter elements must be cleaned when they have become clogged. Follow the description below to clean the filter elements.

1. Make sure that the power to the amplifier is turned off.
2. Disconnect the power plug from the AC outlet.
3. Remove the two screws that secure the front filter grilles to the amplifier.
4. Remove the filter elements, and wash them in plain water. If the filter elements are exceptionally dirty, mild detergent may be used.
5. Dry the filter elements completely.

CAUTION

Never replace the filter elements while they are still wet.

1. Replace the filter elements on the air intakes, hook the front filter grilles on the amplifier, and secure them using the screws. (The replacement part number of the filter element is WH66270.)

Front filter grille Filter element

Troubleshooting

The following table lists the main causes of abnormal operation and the corrective measures required, as well as the protective circuit operation in each case.

Indicator(s)	Possible Cause	Remedy	Protection Circuit
CLIP indicator lights.	There is a short at a speaker terminal, amplifier terminal, or wire.	Locate and correct the cause of the short.	The PC limiter circuit operates to protect the power transistors.
	The amplifier load is excessive.	Use a speaker system with an impedance of at least 2 ohms (STEREO/PARALLEL mode) or 4 ohms (BRIDGE mode).
TEMP indicator lights.	The heat sink temperature has exceeded 85°C.	Check the ventilation slots and clean the filter elements to provide better airflow around the amplifier.	The TEMP indicator lights up to indicate temperature warning.
PROTECTION indicator lights.	The heat sink temperature has exceeded 85°C.	Check the amplifier ventilation conditions and take appropriate measures to improve the airflow around the amplifier. Also, clean the filter elements to ensure proper airflow.	The thermal protection circuit operates to protect the power transistors.
	A DC voltage is detected at the amplifier's output.	Consult your dealer or the nearest Yamaha service center.	The power supply shuts down to protect the speaker system.
MUTE indicator lights.	There is a short at a speaker terminal.	Locate and correct the cause of the short.	The MUTE circuit operates to protect the power transistors.

US: US & Canadian models EU: European models A: Australian models

T5n				120V(US)	230V(EU)	240V(A)
Output Power	1 kHzTHD + N = 1%	8 Ω per channel	MIN	1350 W	1350 W	1400 W
		4 Ω per channel		2200 W	2350 W	2500 W
		2 Ω per channel		2500 W	2500 W	2500 W
		8 Ω bridge		4400 W	4700 W	5000 W
		4 Ω bridge		5000 W	5000 W	5000 W
	20 ms burst	2 Ω per channel		3400 W	3400 W	3600 W
		4 Ω bridge		6800 W	6800 W	7200 W
	Constant voltage line			STEREO mode: 100 V line, 1250 W/8 ΩBRIDGE mode: 200 V line, 2500 W/16 Ω
SN Ratio	20 Hz-20 kHz	(DIN AUDIO)	MIN	107 dB
Power Consumption	Standby			5 W
	Idle			70 W
	1/8 power, 2 Ω/pink noise			1600 W
T4n				120V(US)	230V(EU)	240V(A)
Output Power	1 kHzTHD + N = 1%	8 Ω per channel	MIN	1150 W	1150 W	1250 W
		4 Ω per channel		1950 W	2050 W	2150 W
		2 Ω per channel		2200 W	2200 W	2200 W
		8 Ω bridge		3900 W	4100 W	4300 W
		4 Ω bridge		4400 W	4400 W	4400 W
	20 ms burst	2 Ω per channel		2900 W	3100 W	3300 W
		4 Ω bridge		5800 W	6200 W	6600 W
	Constant voltage line			—
SN Ratio	20 Hz-20 kHz	(DIN AUDIO)	MIN	106 dB
Power Consumption	Standby			5 W
	Idle			70 W
	1/8 power, 2 Ω/pink noise			1400 W
T3n				120V(US)	230V(EU)	240V(A)
Output Power	1 kHzTHD + N = 1%	8 Ω per channel	MIN	790 W	750 W	850 W
		4 Ω per channel		1400 W	1400 W	1500 W
		2 Ω per channel		1900 W	1900 W	1900 W
		8 Ω bridge		2800 W	2800 W	3000 W
		4 Ω bridge		3800 W	3800 W	3800 W
	20 ms burst	2 Ω per channel		2200 W	2150 W	2350 W
		4 Ω bridge		4400 W	4300 W	4700 W
	Constant voltage line		TYP	STEREO mode: 70.7 V line, 625 W/8 ΩBRIDGE mode: 141.4 V line, 1250 W/16 Ω
SN Ratio	20 Hz-20 kHz	(DIN AUDIO)	MIN	105 dB
Power Consumption	Standby			5 W
	Idle			70 W
	1/8 power, 2 Ω/pink noise			1200 W

All Models
THD + N	20 Hz-20 kHz, Half power, RL = 4 Ω, 8 Ω	MAX	0.1 %
Intermodulation Distortion	60 Hz:7 kHz, 4:1, Half power	MAX	0.1 %
Frequency Response	RL = 8 Ω, Po = 1 W20 Hz-20 kHz	MAX	0 dB
		TYP	0 dB
		MIN	-0.5 dB
Channel Separation	Half power, RL = 8 Ω, 1 kHzAtt. Max, input 600 Ω shunt	MIN	67 dB
Damping Factor	RL = 8 Ω, 1 kHz	MIN	800
Voltage Gain	Att. Max	TYP	32 dB/26 dB
Maximum Input Voltage		MIN	+24 dBu
Input Impedance		TYP	20 kΩ (balanced) 10 kΩ (unbalanced)
Controls	Front Panel		POWER switch (ON/OFF)
			Attenuator (31position) x 2
	Rear Panel		MODE switch (STEREO/BRIDGE/PARALLEL) x 1
			GAIN switch (32 dB/26 dB) x 1
			AMP ID switch (6P DIP) x 1
Connectors	Input		XLR-3-31 type x 2Euroblock connector (balanced) x 2
	Output		Speakon x 2, 5-way binding post x 2 pairs
	DATA PORT		RJ45 x 2
Indicators	POWER/STANDBY		x 1 (Green/Orange)
	REMOTE		x 1 (Green)
	PROTECTION		x 1 (Red)
	TEMP		x 1 (Red) heatsink temp ≥ 85 °C
	SIGNAL		x 2 (Green)
	MUTE		x 2 (Red)
	CLIP		x 2 (Red)
Load Protection			POWER switch ON/OFF mute
			DC-fault: Amplifier shuts down automatically.
			Clip limiting: THD ≥ 0.5 %
Amplifier Protection			Thermal: Mute the output (heatsink temp ≥ 90 °C)(return automatically.)
			VI limiter (RL ≤ 1 Ω): Limit the output.
Power Supply Protection			Thermal: Amplifier shuts down automatically.(heatsink temp ≥ 100 °C)
Cooling			Continuously variable-speed fan x 2
Power Requirements			US: 120 V/60 Hz
			EU: 230 V/50 Hz
			A: 240 V/50 Hz
Power Cord Length			1.5 m

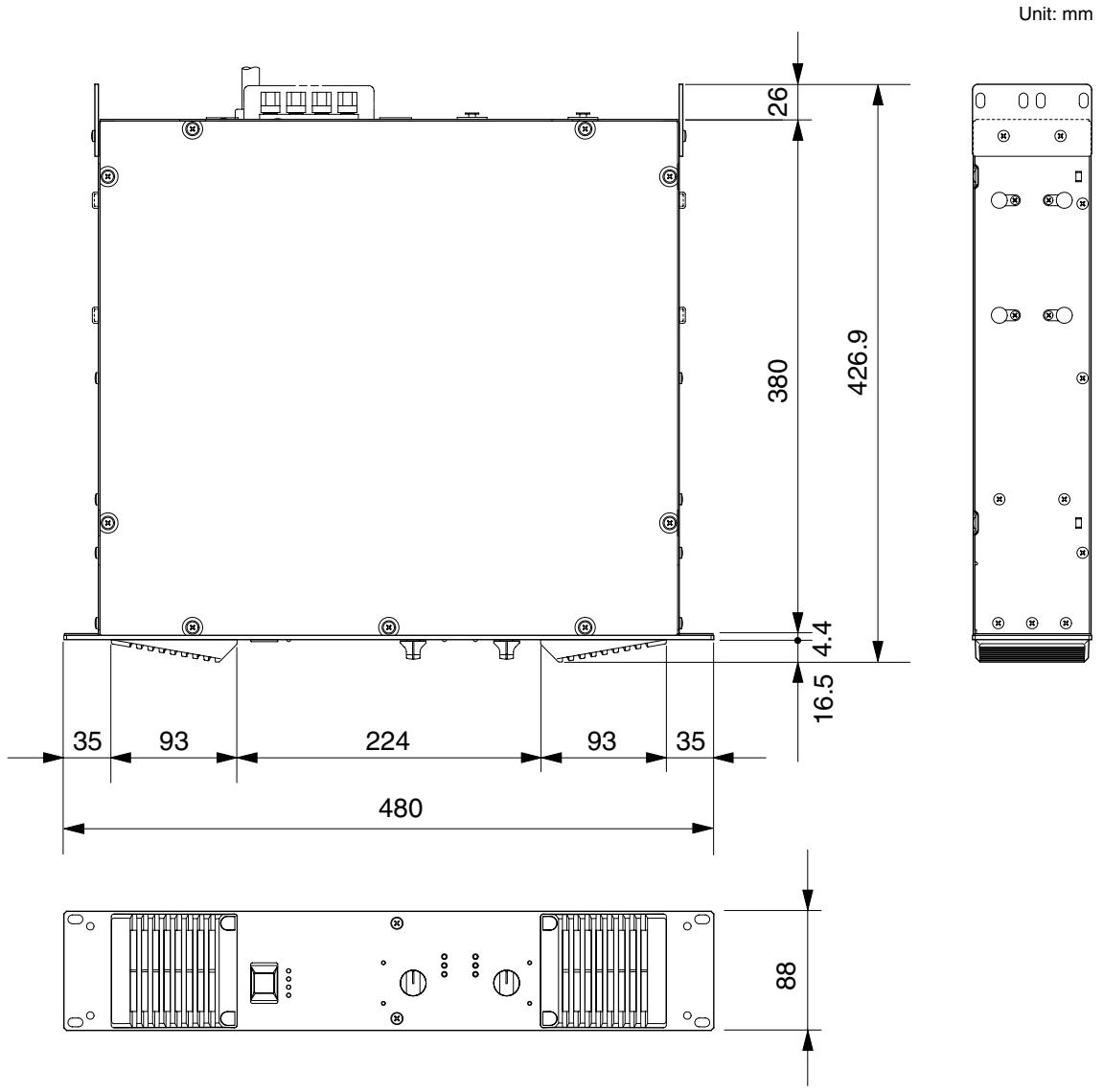

Dimensions (W x H x D)			480 x 88 x 447 mm
Weight			14.0 kg
Included Accessories			Handle x 2 (with flat-head screw x 4),Euroblock connector x 2, Owner's Manual

These specifications apply to rated power supplies of 120 V, 230 V and 240 V.
Half Power = 3 dB below rated power
1/8 Power = 9 dB below rated power
0 dBu = 0.775 Vrms

Specifications and descriptions in this owner's manual are for information purposes only.

Yamaha Corp. reserves the right to change or modify products of specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

European models

Purchaser/User Information specified in EN55103-1 and EN55103-2.

Inrush Current: 14A

Conforms to Environments: E1, E2, E3, E4
        C
        D
        E
        F
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        W
        X
        Y
        Z
        AA
        AB
        AC
        AD
        AE
        AF
        AG
        AH
    end

    subgraph Power Source
        B
        C
        D
        E
        F
        G
        H
        I
        J
        K
        L
        M
        N
        O
        P
        Q
        R
        S
        T
        U
        V
        W
        X
        Y
        Z
    end

    subgraph Power Source
        B
        C
        D
        E
        F
        G
        H
        I
        J
        K
        L
        M
        N
    end

    subgraph Power Source
        B
        C
        D
        E
        F
        G
        H
        I
        J
    end

    subgraph Power Source
        B
        C
    end

    subgraph Power Source
        D
    end

    subgraph Power Source
        E
    end

    subgraph Power Source
    F
    end

    subgraph Power Source
    G
    end

    subgraph Power Source
    H
    end

    subgraph Power Source
    I
    end

    subgraph Power Source
    J
    end

    subgraph Power Source
    K
    end

    subgraph Power Source
    L
    end

    subgraph Power Source
    M
    end

    subgraph Power Source
    N
    end

    subgraph Power Source
    O
    end

    subgraph Power Source
    P
    end

    subgraph Power Source
    Q
    end

    subgraph Power Source
    R
    end

    subgraph Power Source
    S
    end

    subgraph Power Source
    T
    end

    subgraph Power Source
    U
    end

    subgraph Power Source
    V
    end

    subgraph Power Source
    W
    end

    subgraph Power Source
    X
    end

    subgraph Power Source
    Y
    end

    subgraph Power Source
    Z
    end

    subgraph Power Source
    AA
    end

    subgraph Power Source
    AB
    end

    subgraph Power Source
    AC
    end

    subgraph Power Source
    AD
    end

    subgraph Power Source
    AE
    end

    subgraph Power Source
    AF
    end

    subgraph Power Source
    AG
    end

    subgraph Power Source
    AH
    end

    subgraph Power Source
    AI
    end

    subgraph Power Source
    AJ
    end

    subgraph Power Source
    AK
    end

    subgraph Power Source
    AL
    end

    subgraph Power Source
    AM1["+24dBu MAX"] --> ANG1["-6dB"]
    ANG1 --> BAG1["-6dB"]

    subgraph Power Source:
      BAG1 --> CAG1["-6dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6dB"]

    subgraph Power Source:
      FAG1 --> GAG1["-6dB"]

    subgraph Power Source:
      AH1 --> IAG1["-6dB"]

    subgraph Power Source:
      AJ1 --> AK1["-6dB"]

    subgraph Power Source:
      AK1 --> AL1["-6dB"]


    subgraph Power Source:
      BAG1 --> CAG1["-6dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6dB"]

    subgraph Power Source:
      FAG1 --> GAG1["-6dB"]

    subgraph Power Source:
      AH1 --> AH1["-6dB"]


    subgraph Power Source:
      AI1 --> AJ1["-6dB"]

    subgraph Power Source:
      AJ1 --> AK1["-6dB"]

    subgraph Power Source:
      AK1 --> AL1["-6dB"]


    subgraph Power Source:
      AL1 --> AM1["-6dB"]

    subgraph Power Source:
      AM1 --> ANG1["-6dB"]

    subgraph Power Source:
      ANG1 --> DAG1["-6dB"]

    subgraph Power Source:
      ANG1 --> EAG1["-6dB"]

    subgraph Power Source:
      BAG1 --> CAG1["-6dB"]

    subgraph Power Source:
      CAG1 --> DAG1["-6dB"]


    subgraph Power Source:
      EAG1 --> EAG1["-6dB"]

    subgraph Power Source:
      EAG1 --> AF1["-6dB"]

    subgraph Power Source:
      AF1 --> AG1["-6dB"]

    subgraph Power Source:
      AG1 --> AH1["-6dB"]


    subgraph Power Source:
      AH1 --> AI1["-6dB"]

    subgraph Power Source:
      AI1 --> ANG1["-6dB"]

    subgraph Power Source:
      ANG1 --> DAG1["-6dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6dB"]

    subgraph Power Source:
      EAG1 --> AF1["-6dB"]

    subgraph Power Source:
      AF1 --> AG1["-6dB"]


    subgraph Power Source:
      AG1 --> AH1["-6dB"]

    subgraph Power Source:
      AH1 --> AI1["-6dB"]

    subgraph Power Source:
      AI1 --> ANG1["-6dB"]

    subgraph Power Source:
      ANG1 --> DAG1["-6dB"]

    subgraph Power Source:
      ANG1 --> EAG1["-6dB"]

    subgraph Power Source:
      ANG1 --> AF1["-6dB"]

    subgraph Power Source:
      ANG1 --> AG1["-6dB"]

    subgraph Power Source:
      ANG1 --> AH1["-6dB"]


    subgraph Power Source:
      BAG1 --> CAG1["-6dB"]

    subgraph Power Source:
      CAG1 --> DAG1["-6dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6dB"]

    subgraph Power Source:
      EAG1 --> AF1["-6dB"]

    subgraph Power Source:
      AF1 --> AG1["-6dB"]

    subgraph Power Source:
      AG1 --> AH1["-6dB"]

    subgraph Power Source:
      AH1 --> AI1["-6dB"]

    subgraph Power Source:
      AI1 --> ANG1["-6dB"]

    subgraph Power Source:
      ANG1 --> DAG1["-6dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6dB"]

    subgraph Power Source:
      EAG1 --> AF1["-6dB"]

    subgraph Power Source:
      ANG1 --> AG1["-6dB"]

    subgraph Power Source:
      ANG1 --> AH1["-6dB"]


    subgraph Power Source:
      BAG1 --> CAG1["-6dB"]

    subgraph Power Source:
      CAG1 --> DAG1["-6dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6 dB"]

    subgraph Power Source:
      EAG1 --> AF1["-6 dB"]

    subgraph Power Source:
      AF1 --> AG1["-6 dB"]


    subgraph Power Source:
      AG1 --> AH1["-6 dB"]

    subgraph Power Source:
      AH1 --> AI1["-6 dB"]

    subgraph Power Source:
      AI1 --> ANG1["-6 dB"]

    subgraph Power Source:
      ANG1 --> DAG1["-6 dB"]

    subgraph Power Source:
      DAG1 --> EAG1["-6 dB"]


    subgraph Power Source:
      AF1 --> AG1["-6 dB"]

    subgraph Power Source:
      AG1 --> AH1["-6 dB"]

    subgraph Power Source:
      AH1 --> AI1["-6 dB"]

    subgraph Power Source:
      AI1 --> ANG1["-6 dB"]

    subgraph Power Source:
      ANG1 --> DAG1["-6 dB"]

    subgraph Power Source:
      ANG1 --> EAG1["-6 dB"]


    subgraph Power Source:
      BAG1 --> CAG2["-6 dB"]

    subgraph Power Source:
      CAG2 --> DAG2["-6 dB"]

    subgraph Power Source:
      DAG2 --> EAG2["-6 dB"]


    subgraph Power Source:
      BAG2 --> CAG3["-6 dB"]

    subgraph Power Source:
      CAG3 --> DAG3["-6 dB"]

    subgraph Power Source:
      DAG3 --> EAG3["-6 dB"]


    subgraph Power Source:
      BAG2 --> CAG4["-6 dB"]

    subgraph Power Source:
      CAG4 --> DAG4["-6 dB"]

    subgraph Power Source:
      DAG4 --> EAG4["-6 dB"]


    subgraph Power Source:
      BAG2 --> CAG5["-6 dB"]

    subgraph Power Source:
      CAG5 --> DAG5["-6 dB"]

     end

Unit: mm 26 380 426.9 4.4 16.5 35 93 224 93 35 480 88

FREQUENCY RESPONSE

INPUT: Ch A/B (XLR 150 ohm)

OUTPUT: Ch A/B (8 ohm) 0 dBr = 1 W

ATT: MAX

Current Draw

T5n

		Line Current (A)		Power (W)			Thermal Dissipation
		100 V/120 V	230 V/240 V	In	Out	Dissipated	Btu/h	kcal/h
standby		0.08	0.04	5	0	5	17	4
idle		1.0	0.5	70	0	70	239	60
1/8 power	8 Ω/ch	10.4	5.7	637	325	312	1070	269
	4 Ω/ch	14.7	8.1	955	525	430	1470	369
	2 Ω/ch	20.0	11.0	1302	625	677	2310	582
1/3 power	8 Ω/ch	20.6	11.3	1398	867	531	1810	457
	4 Ω/ch	30.9	17.0	2222	1400	822	2810	707
	2 Ω/ch	40.6	22.3	2924	1667	1257	4290	1080

T4n

		Line Current (A)		Power (W)			Thermal Dissipation
		100 V/120 V	230 V/240 V	In	Out	Dissipated	Btu/h	kcal/h
standby		0.08	0.04	5	0	5	17	4
idle		1.0	0.5	70	0	70	239	60
1/8 power	8 Ω/ch	8.4	4.6	515	263	252	861	217
	4 Ω/ch	12.2	6.7	795	438	358	1220	308
	2 Ω/ch	17.6	9.7	1146	550	596	2030	512
1/3 power	8 Ω/ch	16.6	9.1	1129	700	429	1460	369
	4 Ω/ch	25.7	14.1	1852	1167	685	2340	589
	2 Ω/ch	35.7	19.6	2573	1467	1106	3780	952

T3n

		Line Current (A)		Power (W)			Thermal Dissipation
		100 V/120 V	230 V/240 V	In	Out	Dissipated	Btu/h	kcal/h
standby		0.08	0.04	5	0	5	17	4
idle		1.0	0.5	70	0	70	239	60
1/8 power	8 Ω/ch	6.0	3.3	368	188	180	615	155
	4 Ω/ch	9.1	5.0	591	325	266	907	229
	2 Ω/ch	15.2	8.4	990	475	515	1760	443
1/3 power	8 Ω/ch	11.9	6.5	806	500	306	1050	264
	4 Ω/ch	19.1	10.5	1376	867	509	1740	438
	2 Ω/ch	30.9	17.0	2222	1267	956	3260	822

1/8 power is typical of program material with occasional clipping. Refer to these figures for most applications.

1/3 power represents program material with extremely heavy clipping.

Test signal: Pink Noise, bandwidth limited from 22Hz to 22kHz

1W = 0.860kcal / h, 1BTU = 0.252kcal

Note that Line Voltage [V] x Line Current [A] = [VA], not equals to [W].

Inrush current: 6A (100V), 7A (120V), 14A (240V)

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,

M1S 3R1, Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,

U.S.A.

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, England

Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

Branch Switzerland in Zürich

Seefeldstrasse 94, 8008 Zürich, Switzerland

Tel: [phone]

AUSTRIA

Yamaha Music Europe GmbH Branch Austria

Schleiergasse 20, A-1100 Wien, Austria

Tel: [phone]

CZECH REPUBLIC/SLOVAKIA/

HUNGARY/SLOVENIA

Yamaha Music Europe GmbH Branch Austria

Schleiergasse 20, A-1100 Wien, Austria

Tel: [phone]

POLAND

Yamaha Music Europe GmbH

YS Copenhagen Liaison Office

Generatorvej 6A, DK-2730 Herlev, Denmark

Tel: [phone]

NORWAY

Yamaha Music (Russia)

Office 4015, entrance 2, 21/5 Kuznetskii

Most street, Moscow, 107996, Russia

Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LOB 16-513, P.O.Box 17328, Jubel Ali,

Dubai, United Arab Emirates

Tel: [phone]

ASIA

THE PEOPLE'S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co., Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,

Shanghai, China

Tel: [phone]

INDIA

Yamaha Music India Pvt. Ltd.

5F Ambience Corporate Tower Ambience Mall Complex

Ambience Island, NH-8, Gurgaon-122001, Haryana, India

Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor)

PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,

Kangnam-Gu, Seoul, Korea

Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd.

03-11 A-Z Building

140 Paya Lebor Road, Singapore 409015

Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd.

3F, #6, Sec.2, Nan Jing E. Rd. Taipei.

Taiwan 104, R.O.C.

Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

4, 6, 15 and 16^th floor, Siam Motors Building,

891/1 Rama 1 Road, Wangmai,

Pathumwan, Bangkok 10330, Thailand

Tel: [phone]

OTHER ASIAN COUNTRIES

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,

Victoria 3006, Australia

Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,

Japan 430-8650

Tel: [phone]

YAMAHA

Yamaha Pro Audio global web site: http://www.yamahaproaudio.com/

Yamaha Manual Library http://www.yamaha.co.jp/manual/
