• Please keep this manual in a safe place for future reference. À WARNING Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following: Power supply/Power cord + Only use the voltage specified as correct for the device. The required voltage is printed on the name plate of the device. e Use only the included power cord < Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it < Be sure to connect to an appropriate outlet with a protective grounding connection. Improper grounding can result in electrical shock. < Do not open the device or attempt to disassemble the internal parts or modify them in any way. The device contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel. À cAUTION e Do not expose the device to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings. e Never insert or remove an electric plug with wet hands. If you notice any abnorm: e_lfthe power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the device, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the electric plug from the outlet, and have the device inspected by qualified Yamaha service personnel e_lfthis device should be dropped or damaged, immediately turn off the power switch, disconnect the electric plug from the outlet, and have the device inspected by qualified Yamaha service personnel Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following: Power supply/Power cord + Remove the electric plug from the outlet when the device is not to be used for extended periods of time, or during electrical storms. e When removing the electric plug from the device or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it. < Before moving the device, remove all connected cables. + When setting up the product, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet. Even when the power Switch is turned off, electricity is still flowing to the product at the minimum level. When you are not using the product for a long time, make sure to unplug the power cord from the wall AC outlet. + lfseveral of the devices are mounted in an ElA-compliant rack, carefully read the section “Rack Mounting” on page 10. e Do not use the device in a confined, poorly-ventilated location. If this device is to be used in a small space other than an ElA-standard rack, make sure that there is adequate space between the device and surrounding walls or other devices: at least 10cm at the sides, 20cm behind and 20cm above. Inadequate ventilation can result in overheating, possibly causing damage to the device(s), or even fire. Do not expose the device to excessive dust or vibrations, or extreme cold or heat {such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components. Do not place the device in an unstable position where it might accidentally fall over. Do not block the vents. This device has ventilation holes at the front and rear to prevent the internal temperature from becoming too high. In particular, do not place the device on its side or upside down. Inadequate ventilation can result in overheating, possibly causing damage to the device(s), or even fire. Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Doing so may result in noise, both in the device itself and in the TV or radio next to it Do not place the device in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction. (6)-2 1/2

< Before connecting the device to other devices, turn off the power for all devices. Before turning the power on or off for all devices, set all volume levels to minimum. < Use only speaker cables for connecting speakers to the speaker jacks. Use of other types of cables may result in fire. < Be sure to connect to a properly grounded power source. À ground screw is provided on the rear panel of this device for maximum safety and shock prevention. lf the mains outlet is not grounded, be sure to connect the ground screw to a confirmed ground point before plugging the device into the mains. Improper grounding can result in electrical shock. Handling caution + When turning on the AC power in your audio system, always turn on the device LAST, to avoid speaker damage. When turning the power off, the device should be turned off FIRST for the same reason. Do not insert your fingers or hands in any gaps or openings on the device (vents, etc.). Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings on the device (vents, etc.) If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Yamaha service personnel. Do not use the device for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician. Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors Do not use this device for any purpose other than driving loudspeakers. Use only Neutrik NL4FC plugs for connecting Speakon connectors. Yamaha cannot be held responsible for damage caused by improper use or modifications to the device. Always turn the power off when the device is not in use. The performance of components with moving contacts, such as switches, volume controls, and connectors, deteriorates over time. Consult qualified Yamaha service personnel about replacing defective components. Illustrations in this manual are for explanatory purposes only, and may not match the actual appearance of the product during operation. Company names and product names used in this Owner's Manual are trademarks or registered trademarks of their respective owners. ()-2 2/2

Introduction Thank you for purchasing a Yamaha PC9501N, PC6501N, PC480IN, PC3301IN, or PC200IN Series Power Amplifier. The PC Series of power amplifiers was developed from Yamaha's wealth of experience in building PA equipment and its tradition of careful attention to every detail of circuit design. These power amplifiers feature high power and superb quality together with superior reliability and stability, guaranteeing the highest possible audio performance. Main features include Three modes are provided to support a broad range of applications: STEREO mode which can be driven by No independent sources, PARALLEL mode in which a monaural source drives both channels, and BRIDGE mode in which the wo internal amps function as a single mono amp. Balanced XLR connector and Euroblock connector inputs, and Speakon connector and five-way binding post outputs are provided. À high pass filter switch that cuts frequencies below 20 Hz, and detented attenuators and level meters for channels À and B are provided. Metering and indicators include easily visible two-channel level meters, a PROTECTION indicator that shows the state of various protection systems (power onloff detection, output protection, DC detection), a TEMP indicator that indicates heat sink overheating, and a REMOTE indicator that indicates the external remote status. Variable-speed low-noise fans ensure high reliability. The PC3301N enables parallel connection of multiple high-impedance speakers that support 100 V line output. An optional external amp control device, such as the ACDI or ACU16-C, enable: the amplifier via a network. For the latest information about amp control devices http:llwww.yamahaproaudio.coml s you to monitor or control , please visit our website: This Owner’s Manual applies to the PCOSOIN, PC6SOIN, PC480IN, PC3301N, and PC2001N power amplifier. In order to take full advantage of your power amplifier and enjoy long and trouble-free operation, please read this Owner's Manual carefully before using your Power Amplifier. Contents Introduction ……. Controls and Functions…. Front Panel Rear Panel Speaker connections. Connection Using a Euroblock connecto Speaker Connection... Air Flow... mme 10 Rack Mounting mme 10 Specifications … General Specifications Block Diagram.....….. Dimensions Troubleshooting…. mens 14 Current Draw mme 14

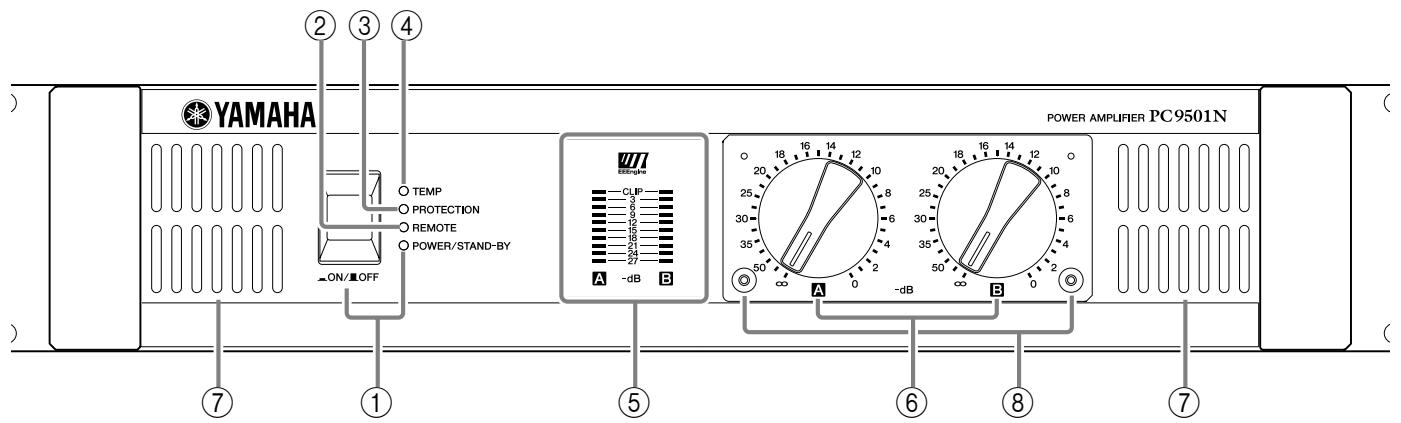

Controls and Functions H Front Panel rouen aururrer PC9SOLN

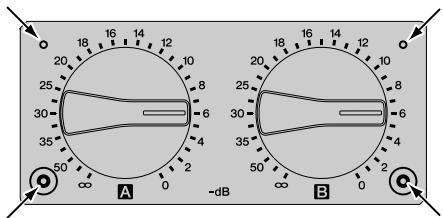

nid (D POWER/STAND-BY switch and indicator This turns the power of the amplifier on/off. When you press the switch to turn on the power, the indicator will light green. If the amplifier is connected to an amp control device ACDI or ACU16-C and the amplifier has been commanded to enter STAND-BY mode, this indicator will light orange. @) REMOTE indicator This indicator will light green if the amplifier is being controlled from an external device connected to the DATA port located on the rear panel. (8) PROTECTION indicator This indicator lights up red when the protection circuit is operating. During this time, the amp will be disconnected from the speaker system, and no sound will be output from the speaker. The protection system activates in the following situations: ‘When the amplifier is turned on The protection system activates for approximately ten seconds when the amplifier is turned on. After ten seconds, the protection system deactivates automatically and the amplifier is ready for normal operation. If a DC voltage is detected at the amplifier’s outputs Turn off the power, and then turn the power back on again. If the amplifier overheats ‘When this occurs, the TEMP indicator will be lit. You should turn off the amplifier and allow it time to cool down. See the Precautions section of this Owner’s Manual for ways to prevent the amplifier overheating. (@) TEMP indicator This indicator will light red if the heat sink temperature exceeds 85 degrees Celsius. ® Level meters These are nine-segment level meters that indicate the output level of output jacks A and B. If the distortion of the output signal exceeds 1%, the red CLIP indicator will light. @ Volume knobs These are detented volume knobs that attenuate the input signals of channels A and B over a range of -> —0 dB. In BRIDGE mode, only the channel A knob is used. (Q) Air intakes The amplifier has a forced-air cooling fan that takes in air from the front and exhausts it from the rear. You must make sure that these intakes are not obstructed. (@) Security cover If you want to keep the volume settings from being modified, attach the included security cover using the screw holes shown below, so that the volume controls

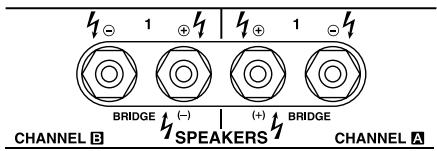

24 une ACIN 000000008000 &f-0 a 8 a) P (D XLR inputs @ SPEAKERS jacks These balanced XLR-3-31 type connectors are used to connect input signals. They are wired pin 1-ground, pin 2-hot (+), and pin 3-cold (-). In Bridge mode, only the XLR input of the channel A is active. @) MODE switch + STEREO mode Channels À and B will operate independently. PARALLEL mode In PARALLEL mode, the channel A input signal will be sent to the channel A power amp and to the channel B power amp. The channel B input jack is not used. BRIDGE mode In BRIDGE mode, channels A and B will operate simultaneously, functioning as a single mono amp. @) HPF/20 switches These switches are used to turn on and off the HPF (High Pass Filter) for each channel. When set to ON, frequencies below 20 Hz are filtered using a 12 dB/ octave high pass filter. + These are Speakon type output jacks. Speakon type cable plugs can be connected here. + These are five-way binding post output jacks. (6) DATA PORT jack An amp control device, such as the ACDI or ACU16-C, can be connected to the DATA PORT jack for monitoring or controlling the amplifier from the external device. (6) AMP ID switch When an amp control device, such as the ACDI or ACUI6-C, is connected to the DATA PORT jack (OX the AMP ID switch can be used to set the amplifier’s ID. ©) Euroblock connector This is a balanced input jack. The included Euroblock connector can be used to make connections here. AC inlet Connect the socket of the included AC cable to this inlet. Connect the plug of the AC cable to an AC outlet that meets the power supply conditions printed below this inlet. @) GROUND Screw terminal If you are having a problem with hum or noise, use this terminal to connect to ground or to connect to the chassis of the mixer, preamp, or other device in your system.

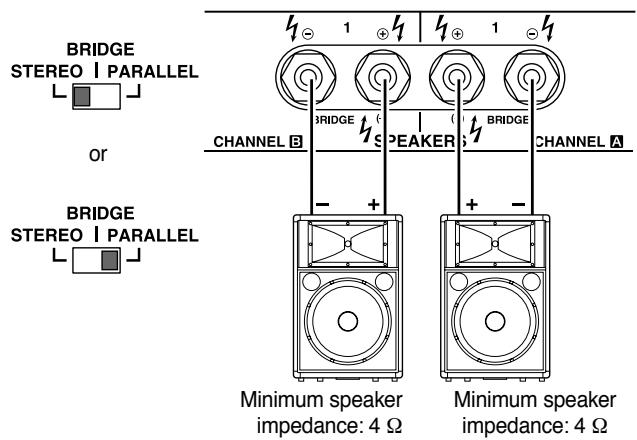

EH Speaker connections Speakers can be connected to the amplifier as shown below. Note that speaker impedance will vary according to the connection method and the number of speakers. Please be sure that your speaker’s impedance is not less than the relevant minimum value indicated below. Connection configurations for STEREO and PARALLEL modes When using 5-way binding post output jacks ‘When using the Speakon connector me GOO0O

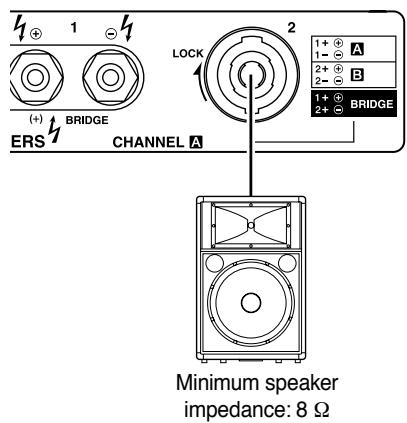

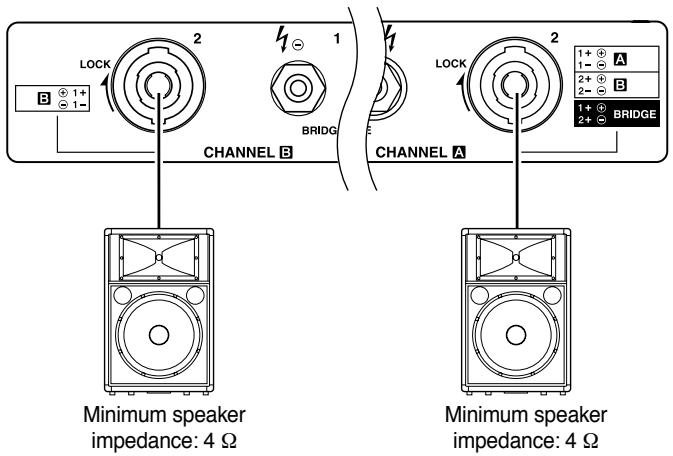

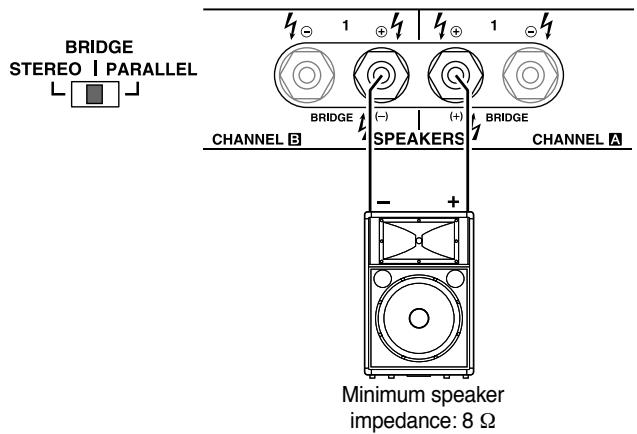

CHANNEL G or CHANNEL ES BRIDGE STEREO | PARALLEL L + Minimum speaker Minimum speaker Le à — impedance: 4 Q impedance: 4 Q Minimum speaker Minimum speaker impedance: 4 @ impedance: 4 Q Connection configurations for BRIDGE mode When using 5-way binding post output jacks ‘When using the Speakon connector BRIDGE STEREO | PARALLEL LCE j+ ST RRUTE CHANNEL EJ 1]SPEAKERS] CHANNEL EX "4h nes Minimum speaker Minimum speaker impedance: 8 impedance: 8 Q When connecting high-impedance speakers in parallel (PC3301N only) The number of speakers that can be connected varies depending on the rated input of the speakers. The PC3301N can be connected to speakers with a total rated input of up to 625 W. For example, if you connect five speakers with a rated input of 5 W (25 W), thirty speakers with a rated input of 10 W (300 W) and twenty speakers with a rated input of 15 W (300 W), the amplifier can be used with a total rated speaker input of 625 W as shown below: À CAUTION Be sure to use speakers that support the PC3301N's line-out voltage of 100 V.

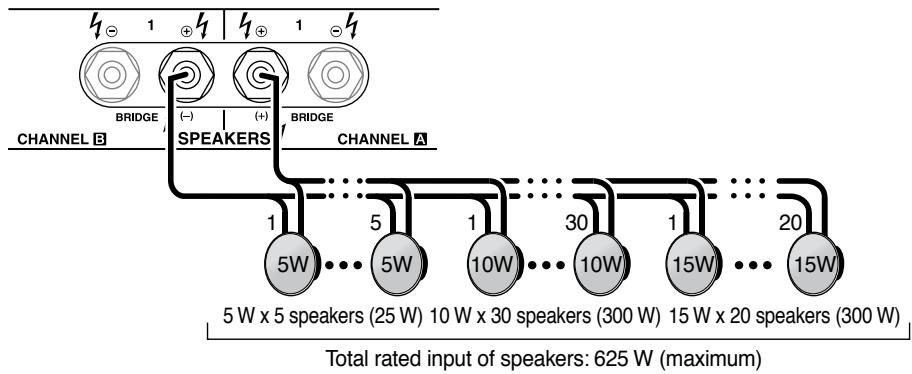

CHANNEL SPEAKERS]! channeL TT A. _SWx5 speakers (25 W) 10 W x 30 speakers (800 W) 15 x 20 speakers (800 W) | Total rated input of speakers: 625 W (maximum)

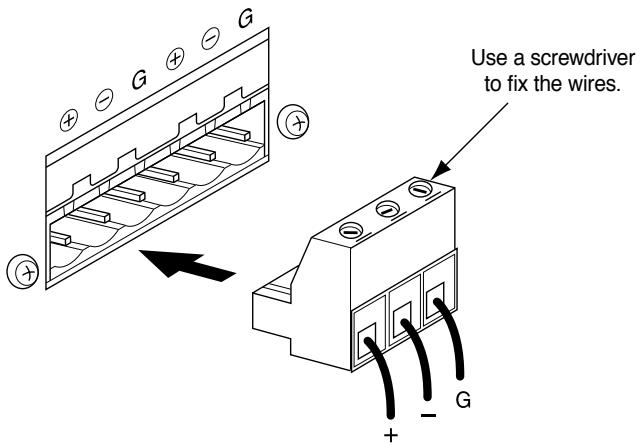

Connection E Using a Euroblock connector If cables will be frequently connected and disconnected, as in the case of a portable installation, we recommend that you use ferrules with insulation sleeves. Use a ferrule whose conductor portion has an external diameter of 1.6 mm or less, and a length of approximately 7 mm (such as the AI0,5-6WH made by the Phoenix Contact corporation).

1. Ifthe wire insertion ports are closed, turn the screws on top

of the connector counterclockwise to open the ports.

2. Insert the wires into the appropriate ports, following the

indication of the pole on the input terminal, turn the screws on top of the connector clockwise to fix the wires.

3. Attach the Euroblock connector to the input terminal on the

unit. MH Speaker Connection 5-way binding post

1. Turn off the POWER switch.

2. Remove the cover attachment screws and remove the

protective cover from the speaker terminals. ® G Screw

3. Remove about 15 mm of insulation from the end of each

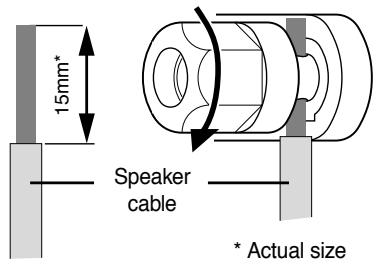

speaker cable, and pass the bare wire through the holes in the appropriate speaker terminals. Tighten the terminals to securely clamp the wires. Refer to page 8 for speaker polarities.

• Actual size Speakon connector

1. Turn off the POWER switch.

Use a screwdriver to fix the wires. Be sure that the bare wire ends do not jut out from the terminals and touch the chassis. The following shows how the cable should look when correctly attached. Chassis Bare wire.

Note to users in the USA: Please use Class 3 wiring. (PCOSOIN, PC6SO1N, PC4801N) Please use Class 2 wiring. (PC3301N, PC2001N)

4. Reattach the protective cover over the speaker

2. Insert the Neutrik NLAFC plugs into the Speakon connector on the rear of the amplifier, and turn clockwise to lock.

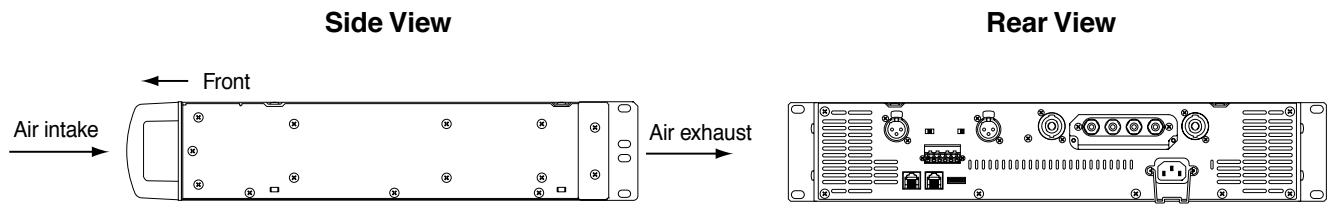

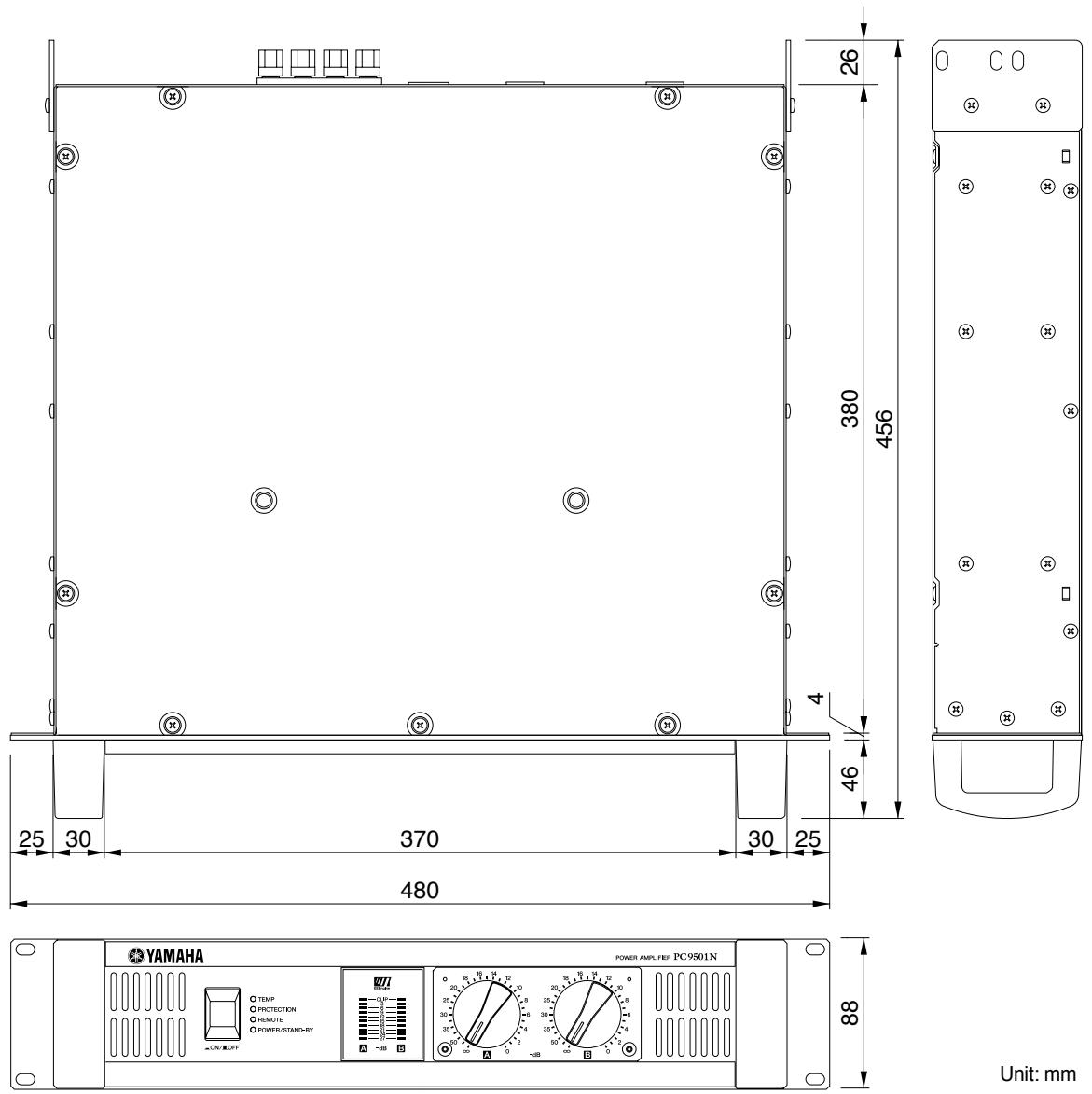

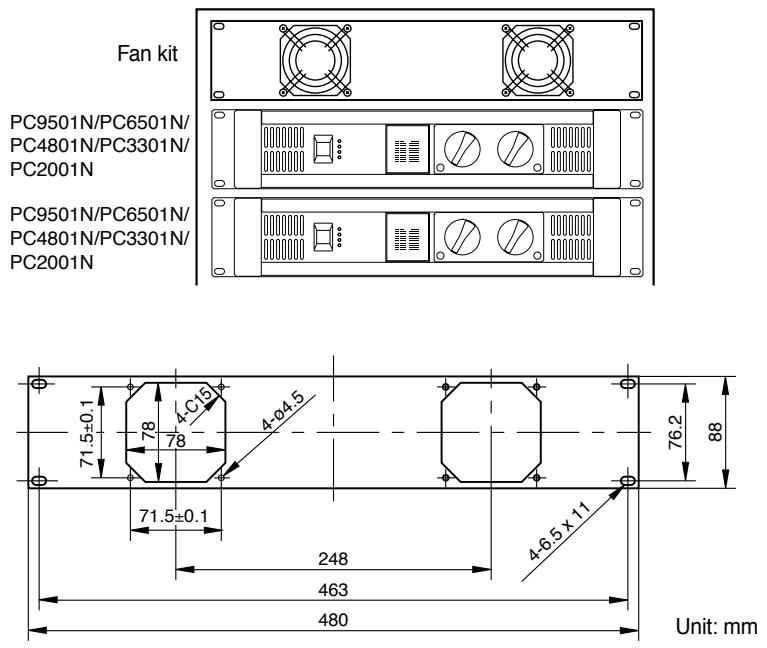

Air Flow This unit uses a forced cooling system in which air comes in through the front opening and goes out the rear. Side View Rear View <— Front F S = = Aïrintake {| ° e ° ° |e) | Arexhaust à - -6 .Qcseot | 2 le 8, mn go à e Ê e | L Ê elle se) 5 —=4 Rack Mounting If multiple high-power amp units are mounted in a rack with poor ventilation, the heat from the amps will cause the interior of the amp to become very hot, causing the performance of the amps to be impaired. In particular, when mounting in a rack whose back can not be left open, mount according to the following instructions. Rack: Leave a gap of 10 em or more between the rear panel of the rack and the rear panel of the amplifier. Fan: Use a fan with 1.5 m3/min or more maximum wind and 5 mmH20 or more maximum static pressure. Mounting: Install the fan kit on the top slot or the top panel of the rack and install a blanking panel between two amps. If the unit is rack mounted and transported frequently, we recommend that the rear of the unit be supported by fitting a pair of metal brackets, one each side. Example of mounting The top figure shows an example of a fan kit (panels and two fans) on the top slot of the rack. The fans are Minebea 3115PS- 12T-B30 (with 0.9 m3/min maximum wind and 5 mmH20 maximum static pressure). The bottom figure is a dimensional diagram of a panel on which two 3115PS-12T-B30 are installed. Fan kit (@) (C2) PC9501N/PC6501N/| 4 PC4801N/PC3301N/ PC2001N d PC9501N/PC6501N/| |? 1 PC4801N/PC3301N/ PC2001N LL LA ñ | L F7 Î [ mn: # 8 —- + -—+3 3

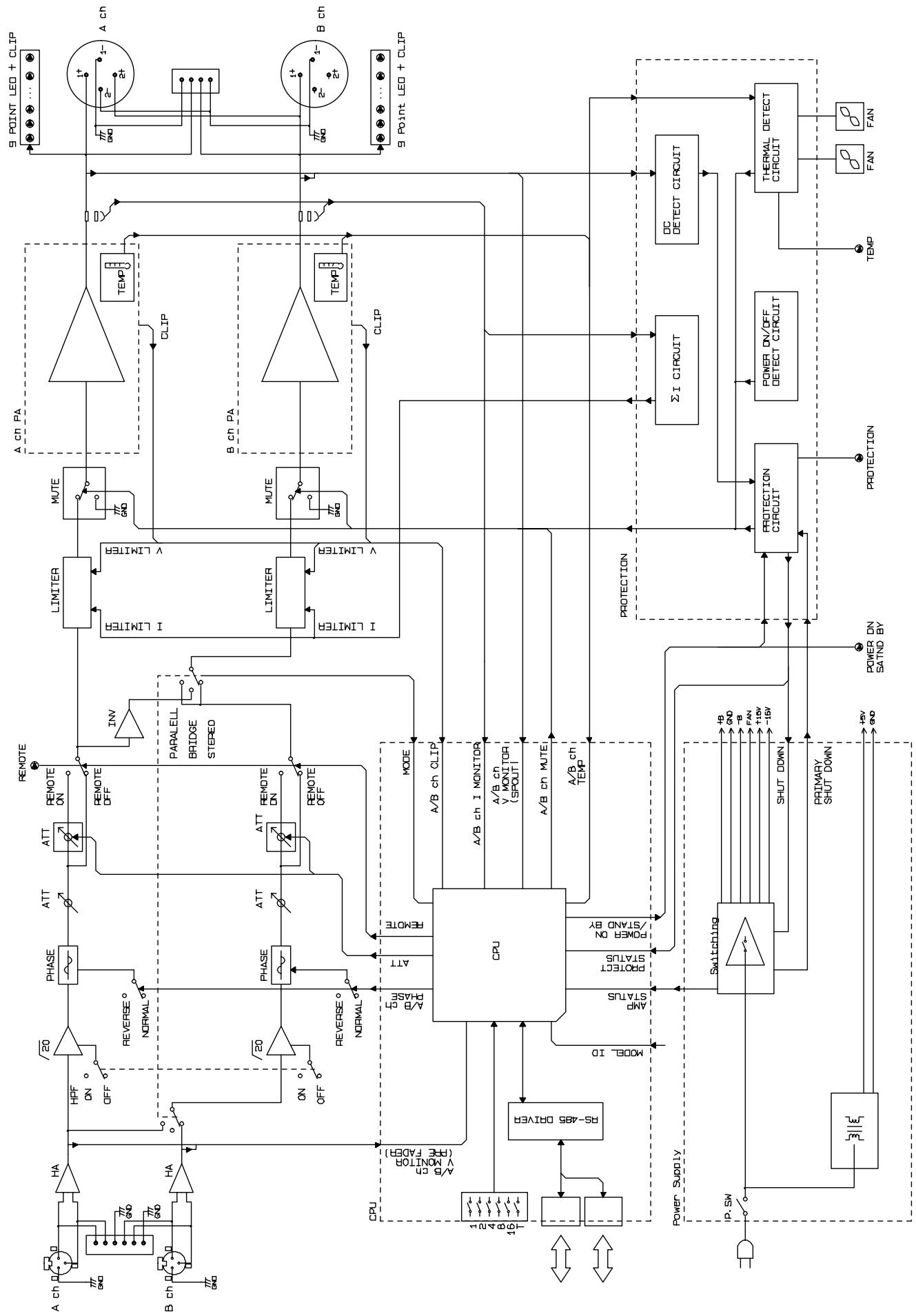

Troubleshooting The following table lis protective circuit operation in each case. s the main causes of abnormal operation and the corrective measures required as well as the Indicator Possible Cause Remedy Protection Circuit CLIP indicator lights up There is a short at the amplifier’s speaker outputs, the speaker's inputs, or in the wiring Locate and remove the short. The impedance of the connected speaker is 100 low. Use a speaker with a minimum impedance of 4Q (8Q in Bridge mode). The PC limiter circuit activates to protect the power transistors. PROTECTION indicator lights The heat sink temperature has exceeded 90°C. Check the ventilation around the amplifier and improve the airflow if necessary. The thermal protection circuit activates to protect the power transistors.
