HKS-BK10USB - Kitchen scale Heinner - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Heinner
Model	HKS-BK10USB
Dimensions (approx.)	20 x 15 x 2 cm
Net Weight	0.3 kg
Platform Material	Stainless Steel
Maximum Capacity	5 kg
Accuracy	1 g
Power Supply	2 x AAA batteries (included)
Units of Measurement	g, kg, oz, lb, ml (water based)
Functions	Tare, Zero, Unit Conversion, Auto-off, Overload Indicator, Low Battery Indicator
Display	LCD digital display
Auto-off Time	2 minutes of inactivity
Care and Cleaning	Wipe with a damp cloth, avoid immersion, do not use abrasive cleaners
Safety	Use on a flat, stable surface; avoid overloading; keep away from water and heat sources
Spare Parts	Batteries (user-replaceable); platform not replaceable
Warranty	2 years (excluding batteries)
Repairability	Not intended for user repair; contact authorized service
General Information	Suitable for domestic kitchen use, easy to operate, compact design

Frequently Asked Questions - HKS-BK10USB Heinner

What batteries does the Heinner HKS-BK10USB use?

The scale uses 2 x AAA batteries. Insert them into the battery compartment under the scale, observing polarity.

How do I change the unit of measurement?

Press the UNIT button to cycle between g, kg, oz, lb, and ml (for water). The current unit appears on the display.

Why does my scale turn off automatically?

This is a power-saving feature. The scale will auto-off after about 2 minutes of inactivity. Simply press any button to turn it back on.

What is the maximum weight the scale can measure?

The maximum capacity is 5 kg (11 lb). Exceeding that may damage the sensor or cause inaccurate readings.

How do I reset the scale to zero?

Place an empty container on the scale and press the TARE button. The display will show 0, allowing you to weigh only the contents.

Can I use this scale to measure liquids?

Yes, you can use the ml (milliliter) unit for water and other liquids with similar density. For accurate results, set the unit to ml and place your liquid container.

How should I clean the scale?

Wipe the stainless steel platform with a damp cloth and mild detergent. Do not immerse the scale in water or use abrasive cleaners.

What does 'Lo' or 'Err' mean on the display?

'Lo' indicates low battery – replace the batteries. 'Err' usually means overload – remove excess weight immediately.

Is the scale covered by warranty?

Yes, the Heinner HKS-BK10USB comes with a 2-year warranty against manufacturing defects. Batteries and normal wear are excluded.

Where can I find the manual for this product?

The user manual is available for free download in PDF format from notice-facile.com. You can also request a translated version by providing your email.

USER MANUAL HKS-BK10USB Heinner

Black digital kitchen scale with digital display showing 1/2 reading and 'HEIMMER' branding (no readable text beyond labels)

• Kitchen scale
• Capacity: 10 kg
• Type-C charging

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Kitchen scale
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. FEATURES

GENERAL

1. The item is waterproof designed, can be washable, immersed in water in a short time. Please wipe up the scale, especially the breathable membrane with cloth, and dry it in cool and ventilate place.

Breathable membrane

1. All plastics parts should be cleaned immediately after contacting fats, spices, vinegar and strongly flavored/colored foods. (Avoid contacting with acids citrus juice.) DO NOT clean the item with chemical / corrosive cleaner.
2. Always use the scale on a solid, flat surface, keep the scale unmoved when weighing.
3. This product is precise instrument, please handle with care; Do not strike, shake or drop the scale.
4. Keep away from high temperatures.
5. If fail to turn it on or can't work normally, please check whether the battery is low and needs to charge. If still not solved, please contact your distributor.
6. This product can't be discarded as household garbage and should be sent to collection points for electrical and electronic equipment. 8. Designed for family use only, not for commercial use.

4. USING THE APPLIANCE

BUTTONS FUNCTION

ON/OFF and TARE

MODE changing, UNIT changing

OPERATION

Place the scale on solid and flat surface.

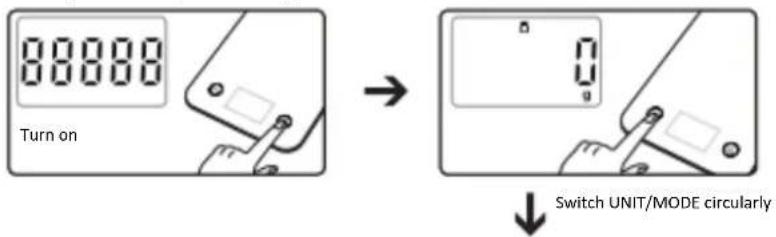

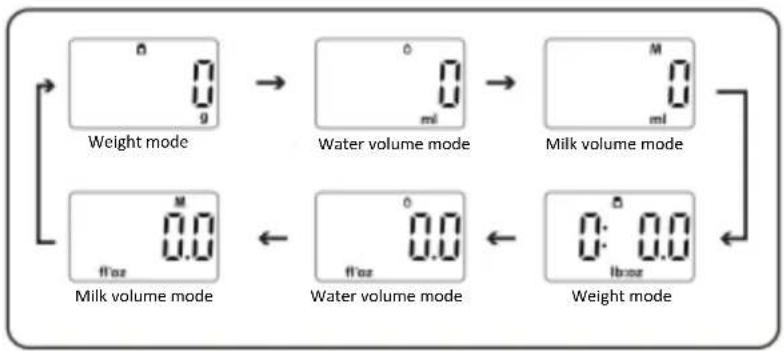

UNIT/MODE conversion (switching circularly)


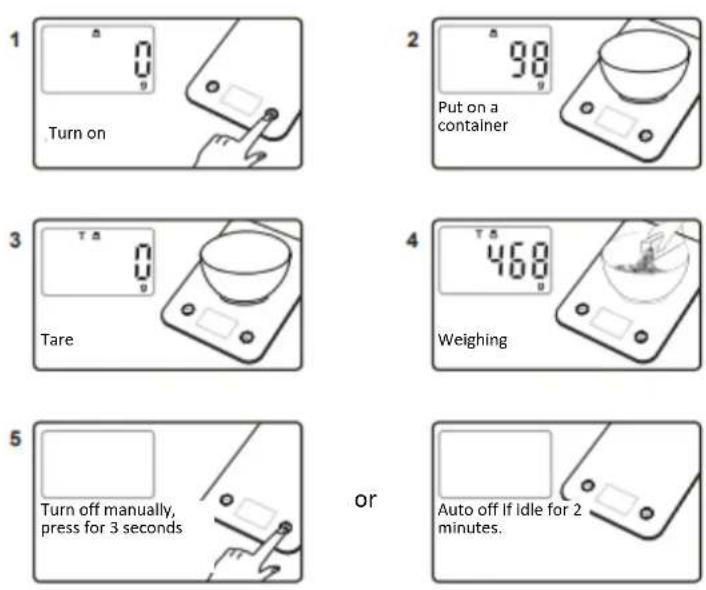

WEIGHING (with container)

WEIGHING (without container)

or

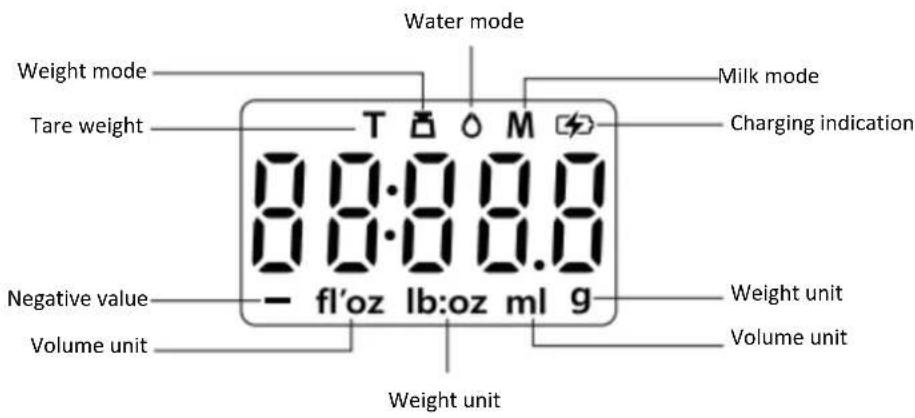

DISPLAY INDICATION

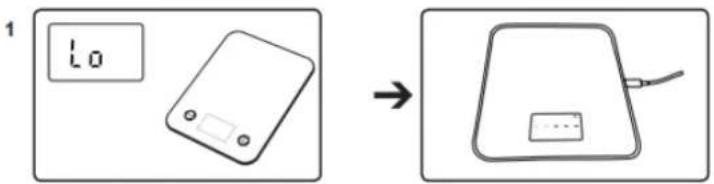

Low battery, Please charge in time.

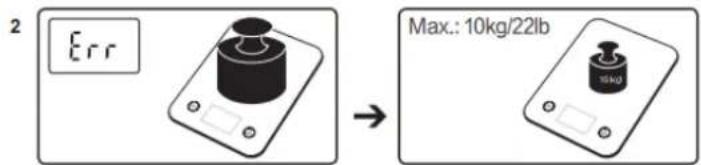

Over loaded (Max capacity is shown on product), please take off the object to prevent damage to the scale.

CHARGING

The scale is powered by 3.7V/200mAh chargeable polymer lithium battery.

Adapter: DC 5V、output current 0.5A or above.

Charging: indicators flash.

Fully charged: indicators all light up.

Time to charge fully: about 2 hours.

Note :

* When used for the first time or stored for long time, please charge the scale fully before use.

* To avoid damage to built-in lithium battery, please charge every 3 months if not used for long time.

* If the product can't work normally, please charge to reset.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

Capacity	10 kg
Power	Type-C charger

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

CÂNTAR DE BUCĂTĂRIE

Model:

HKS-BK10USB

Black digital kitchen scale with digital display showing 1/2 reading and 'HEIMMER' branding (no readable text beyond labels)

Two simple diagrams showing a cross symbol on the left and a checkmark on the right, both without any text or labels.

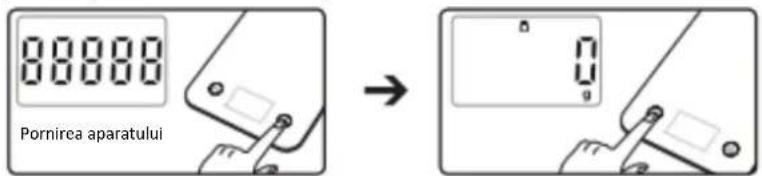

Comutare UNITATE/MOD (comutare succesivă)

CÂNTĂRIRE (cu recipient)

Simple line drawing of a rectangular device with a small rectangular component and a cable, no text or symbols present.

SERVICE ŞI ASISTENȚĂ PENTRU CLIENTI

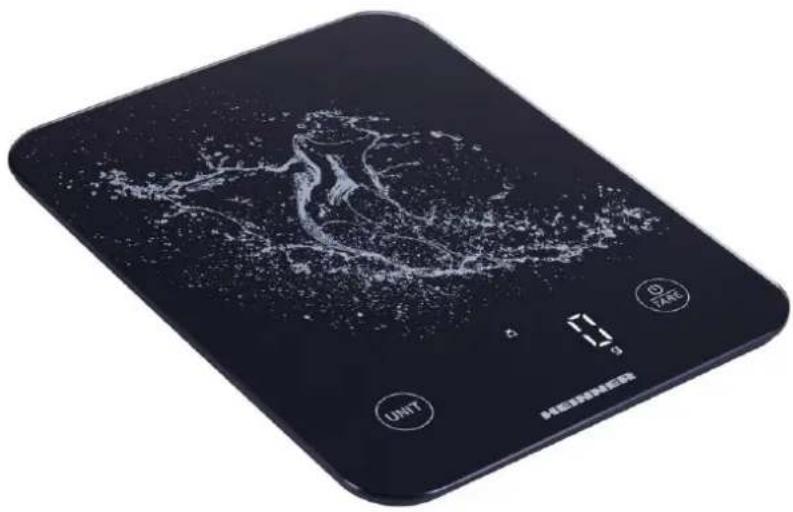

Black digital kitchen scale with water splash design and 'HEIMMER' branding (no readable text beyond branding)

• Кухненска везна

Two simple diagrams showing a cross symbol on a beam and a horizontal bar with a checkmark, both without any text or labels.

4

5

Simple line drawing of a rectangular device with a small rectangular cutout and cable (no text or symbols)

Black digital kitchen scale with digital display showing 1/2 reading and 'HEIMMER' branding (no readable text beyond labels)

- Konyhai mérleg

Simple line drawing of a rectangular device with a small rectangular cutout and cable (no text or symbols)
