HKS-BK5USB - Kitchen scale Heinner - Free user manual and instructions

Brand	Heinner
Model	HKS-BK5USB
Product Type	Digital Kitchen Scale
Maximum Capacity	5 kg
Power Supply	Built-in rechargeable 3.7V lithium battery
Charging	USB-C, 5V charger (≤2A), charging time approx. 90 minutes
Weight Units	g (kg) and lb:oz convertible
Volume Units	ml and fl'oz convertible
Volume Measurement	Water and milk volume mode
Sensor Type	High precision strain gauge sensor
Functions	Zero, tare, auto-off after 2 minutes inactivity, low battery and overload indication
Display	Digital LCD with weight and volume readout
Operation	Touch buttons for ON/OFF, unit conversion, tare
Cleaning	Wipe with a slightly damp cloth; do not immerse in water or use abrasive cleaners
Safety Precautions	Use on a hard, flat surface; do not strike, shake, or drop; avoid contact with acids and strong flavors
Auto Shut-off	Yes, after 2 minutes of inactivity
Overload Indication	Display shows "Err" when overloaded
Low Battery Indication	Display shows "Lo" when battery is low
Spare Parts and Repairability	Use only original spare parts; contact authorized service center with model and serial number
Storage	Store in a cool, dry place; charge every 3 months if not used
Intended Use	Household use only, not for commercial purposes
Environmental Disposal	Do not dispose as household waste; recycle at appropriate collection point for electrical equipment

Frequently Asked Questions - HKS-BK5USB Heinner

How do I charge the scale?

Use a USB-C cable with an Android 5V charger (≤2A). The battery symbol flashes during charging and disappears when fully charged. Charging takes about 90 minutes.

How do I use the tare function?

Place the container on the scale and press the ○/ZERO button to reset the display to '0'. Then add the item to be weighed. You can repeat this for multiple ingredients.

How do I switch between weight units?

Press the UNIT button to choose between weight (g/kg, lb:oz) and volume (ml, fl'oz) modes. Long press the UNIT button to convert between metric and imperial systems.

What does 'Err' on the display mean?

'Err' indicates overload. The maximum capacity is 5 kg. Remove the load immediately to prevent damage to the scale.

What does 'Lo' on the display mean?

'Lo' indicates low battery. Recharge the scale using the USB-C cable.

How do I clean the scale?

Wipe the scale with a slightly damp cloth. Do not immerse it in water or use chemical or abrasive cleaning agents. Clean plastic parts immediately after contact with fats, spices, or strong foods.

Can I measure liquid volume?

Yes, the scale can measure volume of water and milk. Press the UNIT button to select 'Water' or 'Milk' mode, place a container, tare, then pour liquid.

What is the maximum weight capacity?

The maximum capacity is 5 kg (11 lb).

Does the scale turn off automatically?

Yes, the scale auto-shuts off after 2 minutes of inactivity when the display shows '0' or the same weight reading. To manually turn off, press the ○/ZERO button when showing '0', or press and hold for 3 seconds when showing weight.

What should I do if the scale doesn't turn on?

Check if the battery is charged. The scale may have discharged during storage. Fully charge it using the USB-C cable before first use or after long storage.

USER MANUAL HKS-BK5USB Heinner

Digital kitchen digital counter with black and white design, showing digital display and control buttons (no readable text or symbols)

• Kitchen scale
• Capacity: 5 kg
• USB-C charging

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Kitchen scale
→ User manual
→ Certificate of warranty
→ Declaration of conformity

3. FEATURES

GENERAL

1. Indicate volume of water and milk
2. Two weight unit systems g(kg)、lb:oz convertible
3. Two volume unit systems ml、fl'oz convertible
4. Built-in rechargeable battery: 3.7V
5. Low battery power / Overload indication
6. With high precision strain gauge sensor
7. With zero, tare function
8. Auto off

DISPLAY INDICATIONS

OVERLOAD INDICATION

When LED shows "Err", it is overloaded (Max capacity is shown on the product), please take off the loads to prevent damage to the scale.

LOW BATTERY INDICATION

When LED shows "Lo", battery power is low, please replace with new battery.

AUTO OFF and MANUALLY SHUT OFF

Auto shut-off occurs if display shows '0' or shows the same weight reading for 2 minutes.

To maximize battery life, always press again to turn off the scale after using. Note: when display shows "0", press to turn off the scale; when display shows weight reading, press for 3 seconds to turn off the scale

4. USING THE APPLIANCE

BUTTONS FUNCTION

UNIT

Mode conversion, Unit conversion

/ZERO

Turn on / Turn off / Zero / Tare

WEIGHING

If the scale is with both unit systems of Metric (g, ml) or Imperial (lb:oz, fl'oz), press button to choose working mode (weight, milk volume, water volume), then long press button to convert between two systems. Take the conversion of weight unit for example:

When setting g as weight unit, the default volume unit is ml; When setting lb:oz as weight unit, the default volume unit is fl'oz

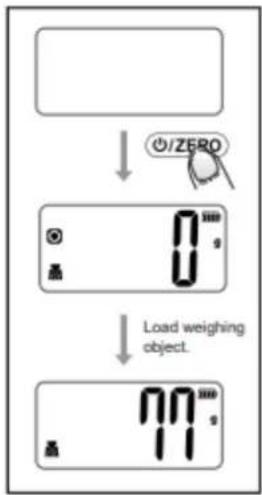

TO START WEIGHING

Weighing mode

A. Place the scale on a solid and flat surface.

B. Place bowl (if used) on the scale.

C. Press to turn on the scale.

D. Wait until LCD shows "0" to start weighing. Press to convert to weight mode if needed.

E. Load weighing object on to start weighing. LCD will show the weight reading.

F. If the weighing object is water or milk, press button to choose volume mode and view the volume of weighing object.


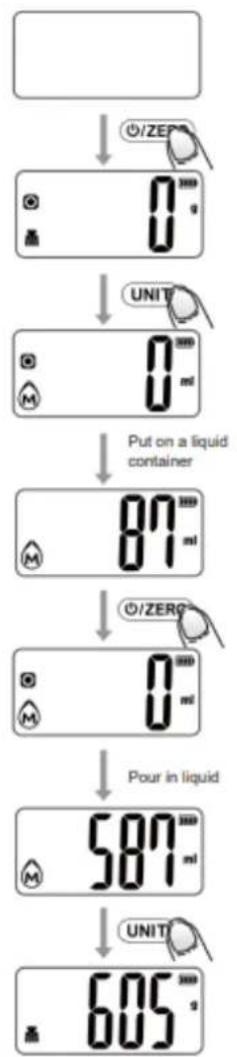

VOLUME MEASURING

A. Place the scale on a solid and flat surface.

B. Press to turn on the scale.

C. Wait until LCD shows "0", and press button to choose "Water" or "Milk" mode.

D. Put a liquid container onto the scale platform.

E. Press button to reset LCD to "0".

F. Pour liquid (water or milk) into the container, LCD shows the volume of the liquid.

G. Press button to choose "Weight" mode and view the weight of liquid.

TARE FUNCTION

To weigh different loads consecutively without removing loads from the scale. Put first Load on the scale, get weight reading.

Press button to reset the LCD reading to "0" before adding next load. You can repeat this operation.

Condition 1: "ZERO" function When total sum of all loads on scale ≤4% of scale's max. weight capacity. (4%=80g when capacity is 2000g; 200g when capacity is 5000g) LCD will show ---- or Og each time ○/ZERO is pressed. ---- means not stable, please wait for a moment. Og and meanwhile an icon o on the LCD mean ZERO function is activated. Max.weight capacity remains unchanged.

Condition 2: "TARE" function When total sum of all loads on scale >4% of scale's max. weight capacity. (4%=80g when capacity is 2000g; 200g when capacity is 5000g) LCD will show ---- or Og each time ©ZERO is pressed. ---- means not stable, please wait for a moment. Og and meanwhile an icon T on the LCD mean TARE function is activated. Max.Weight capacity is reduced by total weight of all loads.

Under this condition: By pressing, you can see the total weight of all loads on the scale. If you want to weigh more loads, just press to reset LCD reading to '0' again.

TO CHARGE

1. The product should be fully charged when firstly used or after long-time stored. Battery symbol flashes during charging and disappears when charging is finished. It takes about 90 minutes to finish.

2. Please use Android 5V charger with current less than or equal to 2A. charger with voltage greater than 5V is not allowed.

3. Suggest charging every 3 months if the product isn't used for a long time.

5. CLEAN AND CARE

1. Clean the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical / abrasive cleaning agents.

2. All plastic parts should be cleaned immediately after contact with fats, spices, vinegar, and strongly flavored / colored foods. Avoid contact with acids citrus juices.

3. Always use the scale on a hard, flat surface. DO NOT use it on carpet.

4. DO NOT strike, shake or drop the scale.

5. The scale is a high precision device. Please take care of it.

6. Store the product in a cool and dry place. Ventilated position is preferred for charging, because too high or too low temperature affects the battery function.

7. If the scale can't be turned on, please check whether the power is enough. It should be fully charged when first used or after long-time stored, because it may gradually discharges automatically.

8. Please use specified charger and approved accessory, including charging cable.

9. This product can't be discarded as household garbage and should be sent to collection points for electrical and electronic equipment.

10. The scale is for family use only, not for commercial purpose.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

Capacity	5 kg
Power	3.7V LI battery

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
