Product Type	Domestic Fan
Model	TF-100MD
Brand	Vivax
Fan Type	Pedestal/Tower Fan
Power Supply	220-240 V, 50 Hz
Power Consumption	45 W
Number of Speed Settings	3
Oscillation	Yes, 90°
Timer	Up to 7 hours
Remote Control	Included
Height Adjustable	Yes
Dimensions (H x W x D)	130 x 40 x 40 cm
Weight	4.2 kg
Cord Length	1.5 m
Blade Diameter	40 cm
Material	Plastic and metal
Safety Features	Overheat protection, tip-over switch
Cleaning	Unplug and wipe with damp cloth; do not immerse
Spare Parts Available	Yes, remote and screws
Repairability	User-replaceable parts: remote, fuse
Noise Level	≤ 65 dB(A)
Warranty	2 years

Frequently Asked Questions - TF-100MD Vivax

How do I clean the fan?

Always unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior and grille. Do not use harsh chemicals or immerse the fan in water. For the blades, you can gently vacuum or use a brush attachment.

Why is my fan making a rattling noise?

Rattling may be due to loose screws. Check and tighten all screws on the base, stand, and motor housing. Also ensure the fan is on a stable surface. If noise persists, contact support.

How do I replace the remote control?

The remote control uses CR2025 batteries. To replace, slide open the battery compartment, remove the old battery, and insert a new one with the correct polarity. If the remote still doesn't work, contact your retailer for a spare.

Can I use the fan continuously overnight?

Yes, the fan is designed for continuous use. The built-in overheat protection and timer allow safe operation. You can set the timer to auto-shut off after a desired period.

How do I enable oscillation?

Press the oscillation button on the control panel or remote control. The fan will oscillate left and right up to 90°. Press again to stop oscillation.

What do I do if the fan stops unexpectedly?

First, check if the power cord is plugged in and the outlet works. If the fan overheated, let it cool for 30 minutes before restarting. Also check if the tip-over safety switch activated; place the fan upright.

Is assembly required?

Yes, the fan requires minor assembly. Attach the base to the pole, then the motor unit to the pole. All necessary screws are included. Refer to the manual for step-by-step instructions.

How do I store the fan when not in use?

Clean the fan and allow it to dry completely. Disassemble if desired or fold the stand. Store in a cool, dry place away from direct sunlight. Use the original packaging if available.

Can I adjust the height?

Yes, the fan's height is adjustable. Loosen the height lock ring, adjust to the desired height, then tighten securely.

What spare parts are available?

Spare parts include the remote control, screws, and potentially the fan blade unit. Contact Vivax customer service or your retailer for genuine replacements.

USER MANUAL TF-100MD Vivax

Line drawing of a tall vertical electric fan with cooling fins and a top-mounted top (no text or symbols)

Važno je da prije uporabe uređaja u potpunosti pročitate ove upute te ih sačuvate na sigurnom mjestu za buduću potrebu.

SIGURNOST I UPOZORENJA

Labeled diagram of a cylindrical device with numbered parts, showing internal structure and wiring connections.

BR.	Opis
1	Kućište
2	Stražnji dio postolja
3	Prednji dio postolja
4	Plastična matica
5	Kabel za napajanje
6	Kontrolna ploča

OPASKA

Slike u ovim uputama služe samo za informaciju. Ukoliko ima odstupanja između stvarnog proizvoda i slika prilagodite se prema stvarnom proizvodu. Funkcionalnsot uređaja ostaje ista.

UPUTE ZA MONTAŽU

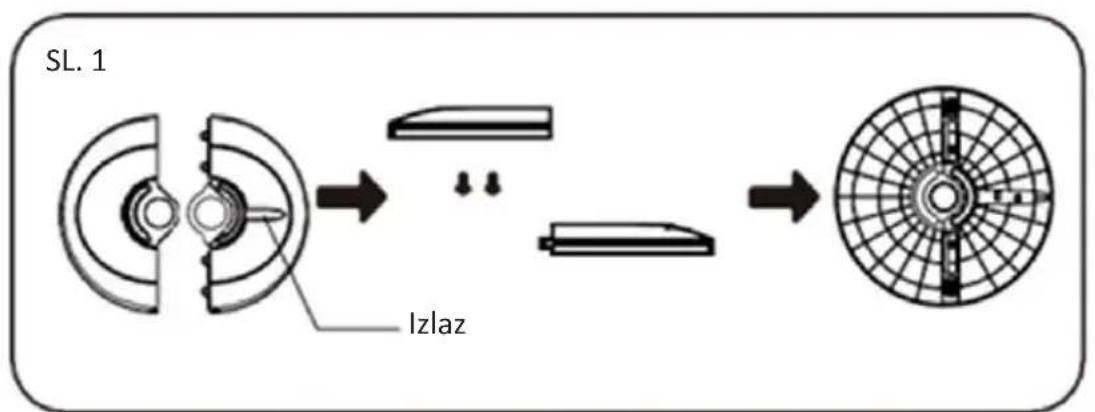

1. Izvadite kućište ventilatora i ostale dijelove iz kutije. Stavite prednje postolje na stražnje postolje i spojite ih zajedno (SL. 1)

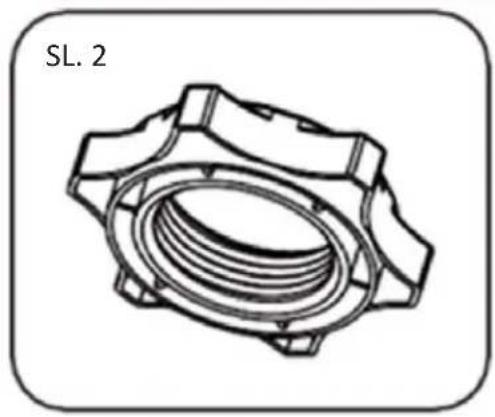

2. Odvijte plastičnu maticu s postolja (kućišta) ventilatora. (SL. 2)
3. Provucite kabel za napajanje kroz utor, zatim umetnite kućište ventilatora u postolje.

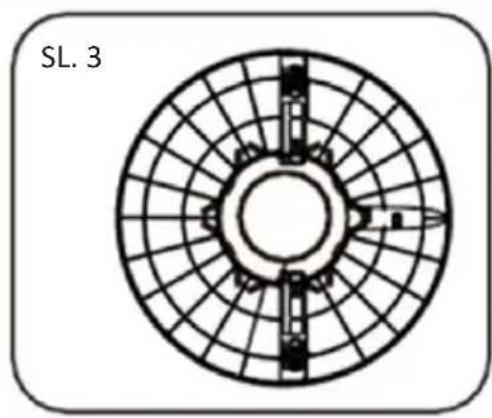

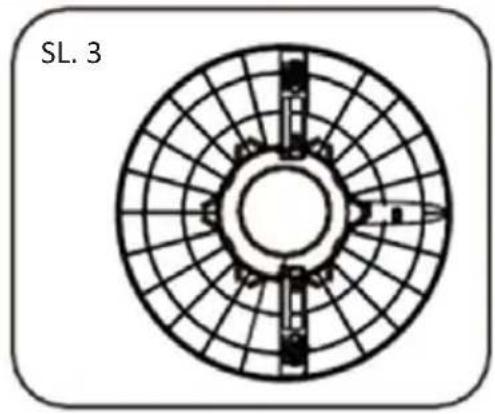

4. Uz pomoč plastične matice pričvrstite kućište na postolje (SL. 3)

Technical line drawing of a mechanical component with no visible text or symbols

Circular diagram with radial grid pattern and central axis, labeled 'SL. 3' (no text or symbols within the diagram itself)

UPUTE

Line drawing of a tall vertical electric fan with internal grid structure (no text or symbols)

Važno je da pre upotrebe uređaja u potpunosti pročitate ove uputstvo i da ga sačuvate na sigurnom mestu za buduću potrebu.

SIGURNOST I UPOZORENJA

Labeled diagram of a cylindrical device with numbered parts, showing internal structure and wiring connections.

BR.	Opis
1	Kućište
2	Zadnji deo postolja
3	Prednji deo postolja
4	Plastična matica
5	Kabl napajanja
6	Kontrolna ploča

NAPOMENA

Technical line drawing of a mechanical component with threaded flange and bolted end (no text or symbols)

Circular diagram with radial grid pattern and central arrow, labeled 'SL. 3' (no text or symbols within the diagram itself)

UPUTSTVA

Line drawing of a tall vertical electric fan with a grid-patterned base (no text or symbols)

Labeled diagram of a cylindrical device with numbered parts, showing internal structure and wiring connections.

Technical drawing of a mechanical component with threaded flange and bolted base (no text or symbols)

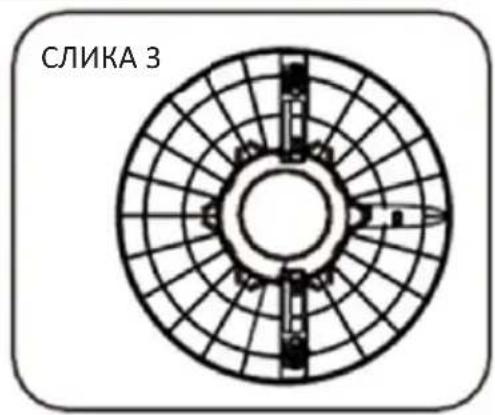

СЛИКА 3

ДАЛЕЧИНСКИ УПРАВУВАЧ

НАПОМЕНИ

Line drawing of a tall vertical electric fan with a grid-patterned base (no text or symbols)

PJESA E FIGURËS/ PART FIGURE

Labeled diagram of a cylindrical device with numbered parts, likely a scientific apparatus or sensor component.

NO.	Përshkrimi/Description
1 Trupi/ Body
2 Baza e pasme/ Rear base
3	Baza e përparme/ Front base
4	Mburoja plastike/ Plastic nut
5	Kordoni i fuqisë/ Power cord
6 Bordi i Kontrollit

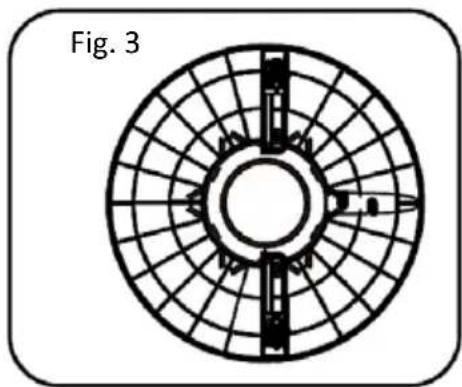

VËMENDJE

Technical line drawing of a mechanical component with concentric grooves and mounting holes (no text or symbols)

Circular diagram with radial grid pattern and central axis, labeled 'Fig. 3' (no text or symbols within the diagram itself)

UDHËZIMET/ INSTRUCTIONS

Line drawing of a tall vertical fan or tower with vertical blades and a grid-patterned interior (no text or symbols)

Labeled diagram of a cylindrical device with numbered parts, likely a scientific or technical apparatus.

Technical line drawing of a mechanical component with threaded and flanged sections (no text or symbols)

Circular mechanical component diagram with radial grid pattern and central hub (no text or symbols)

DALJINEC

Line drawing of a tall vertical electric fan with a grid-patterned side panel (no text or symbols)

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference.

SAFETY AND WARNINGS

IMPORTANT: Please retain your instruction booklet for future use.

We believe that safe performance is the first priority in any consumer product. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.

Important Safeguards for your Fan

When using any electrically powered appliance, basic safety precautions should always be followed.

Warning: To reduce the risk of fire, electrical shock or injury to person or property:

• Ensure all packing materials and labels or stickers are removed from the appliance before first use.
  ● Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should always be supervised to ensure that they do not play with the appliance.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  ● Children shall not play with the appliance

• Cleaning and user maintenance shall not be made by children without supervision.

• Close supervision is necessary when the product is used by or near children or incapacitated individuals. Do not allow children to use it as a toy.

• Do not operate the product with a damaged cord or plug, or after the product malfunctions, or has been dropped or appears damaged in any way. Return the complete product to the place of purchase for inspection or contact authorized Service centre.
• Unplug from the mains when not in use and before cleaning.
• Do not use any other accessories or attachments with this appliance.
  ● To protect against fire, electric shock or personal injury, do not immerse cord, plug or unit in water or any other liquids.
  ● Always place the unit on a flat level surface. Never leave the product unattended while in use.
• Do not use the appliance with an extension cord to avoid product overloading.
• Do not leave the cord hanging over the edge of a table or worktop.
  ● Avoid contact between the cord and hot surfaces.
  ● For indoor use only. For domestic use only.
• Do not use the appliance for any other than its intended use.
• This appliance should be used only as described within the instructions for use that accompany it. Please retain these instructions for future reference.
  ● Always ensure that your hands are dry before removing the plug from the main outlet. Never pull the plug out of the mains outlet by its cord. Close supervisions is necessary when this appliance is used by or near children and invalids.
• Keep the air intake cover free of dust or fluff.

- Do not allow the air inlet to become blocked or even partially blocked. This may cause the fan to overheat. If it does overheat, the safety cut-out will cause the fan to switch off and remain inoperable until the unit has sufficiently cooled down. In this event, switch off the appliance, unplug it and let it cool down. Remove any blockage to the air inlet or outlet before resuming use. If the fan should cut out again, even when there is no blockage, contact the approved service center for examination and repair.

• Do not cover the fan or place anything over it.
• Do not place anything through the grills or into the fan.
• Do not use the fan if it is not properly and completely assembled.
• Do not use the fan without the mesh guards, as this could lead to injury. Ensure that the fan is switched off from the supply mains before removing the guard.
• Do not use the fan within 1 meter of any other electrical or electronic appliance (e.g.TV,computer,etc.) as it may cause interference.
• The installation of a residual current-operated protective device with a nominal trip current of 30mAh offers additional protection. Contact your electrician.

Caution:

1. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. Make sure your hands are dry when plugging in and unplugging appliance.
3. Ensure all the parts are correctly mounted before switching on the appliance.
4. Do not immerse the appliance in water or any other liquid.
5. Always remove the plug after use.

Important Safeguards for all Electrical appliances

1. Carefully read all instructions before operating the appliance and save for future reference.
2. Remove and safely discard all packing materials and promotional labels before using the appliance for the first time.
3. Fully unwind the power cable before use.
4. Do not let the power cord hang over the edge of a bench or table, touch hot surface or become knotted.
5. To protect against electric shock, do not immerse the power cord, plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.
6. It is recommended to inspect the appliance regularly. Do not use the appliance if the supply cord, plug, connector or appliance becomes damaged in any way.
7. The appliance is for household use only. Do not use this appliance for any other than its intended use. Do not use in moving vehicles or boats. Do not use outdoor. Misuse may cause injury.
8. Always switch off at the power outlet and unplug at the power outlet when the appliance is not use.
9. Before cleaning, always turn the appliance to the OFF position. Switch off at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.
10. Do not place this appliance on or near a heart source, such as a hot plate or oven.

1. Never insert fingers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NO T use fan in window, rain may create electrical hazard.
5. Indoor use only.

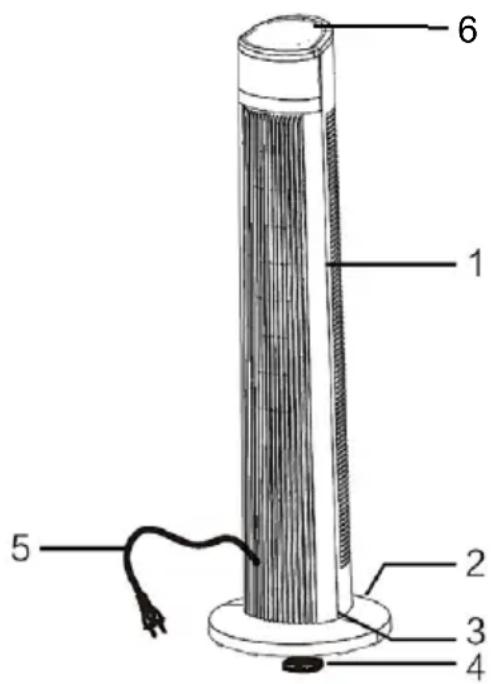

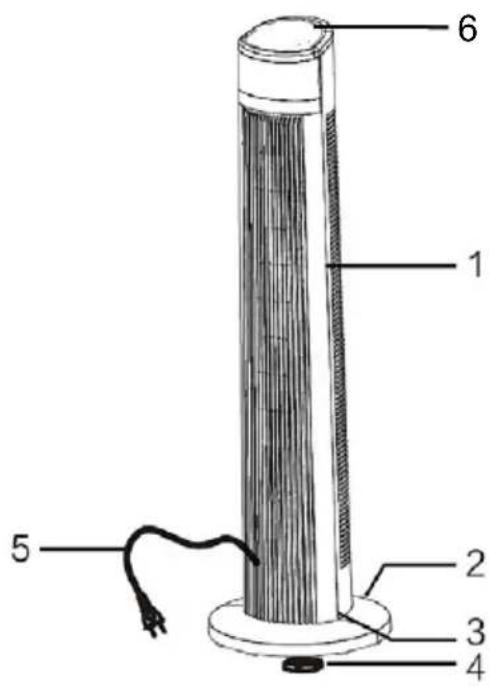

PART FIGURE

6 1 2 3 4 5

NO.	Description
1	Tower fan body
2	Rear base
3	Front base
4	Plastic nut
5	Power cord
6	Control panel

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

ASSEMBLY INSTRUCTIONS

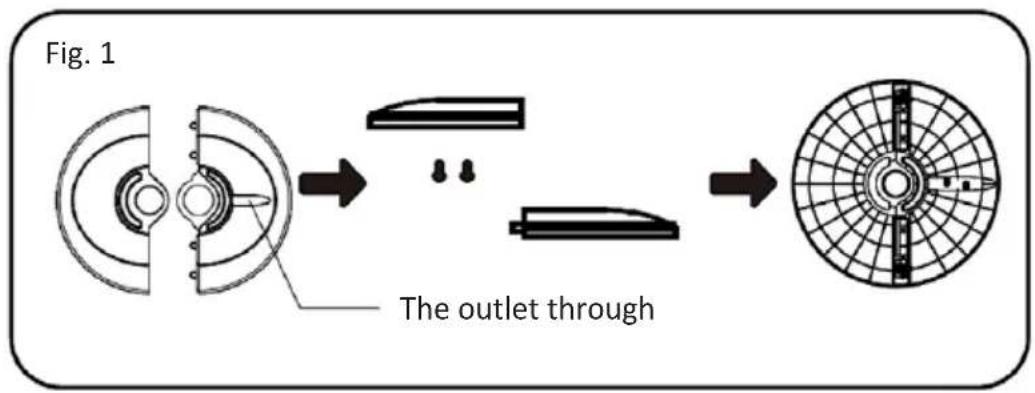

1. Take out the fan body and the parts from the box. Put the front base onto rear base and join them together. (See Fig. 1)
2. Unlock the plastic nut from the fan body. (See Fig. 2)
3. Pass the power cord through the flute, then insert the fan body into the base.

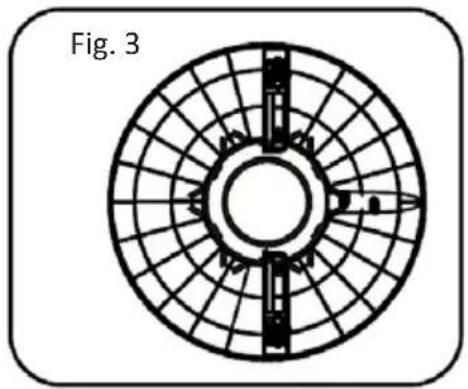

4. Fix the fan body on the base with the plastic nut. (See Fig. 3)

Technical line drawing of a mechanical component with concentric grooves and mounting holes (no text or symbols)

Circular diagram with radial grid pattern and central axis, labeled 'Fig. 3' (no text or symbols within the diagram itself)

INSTRUCTIONS

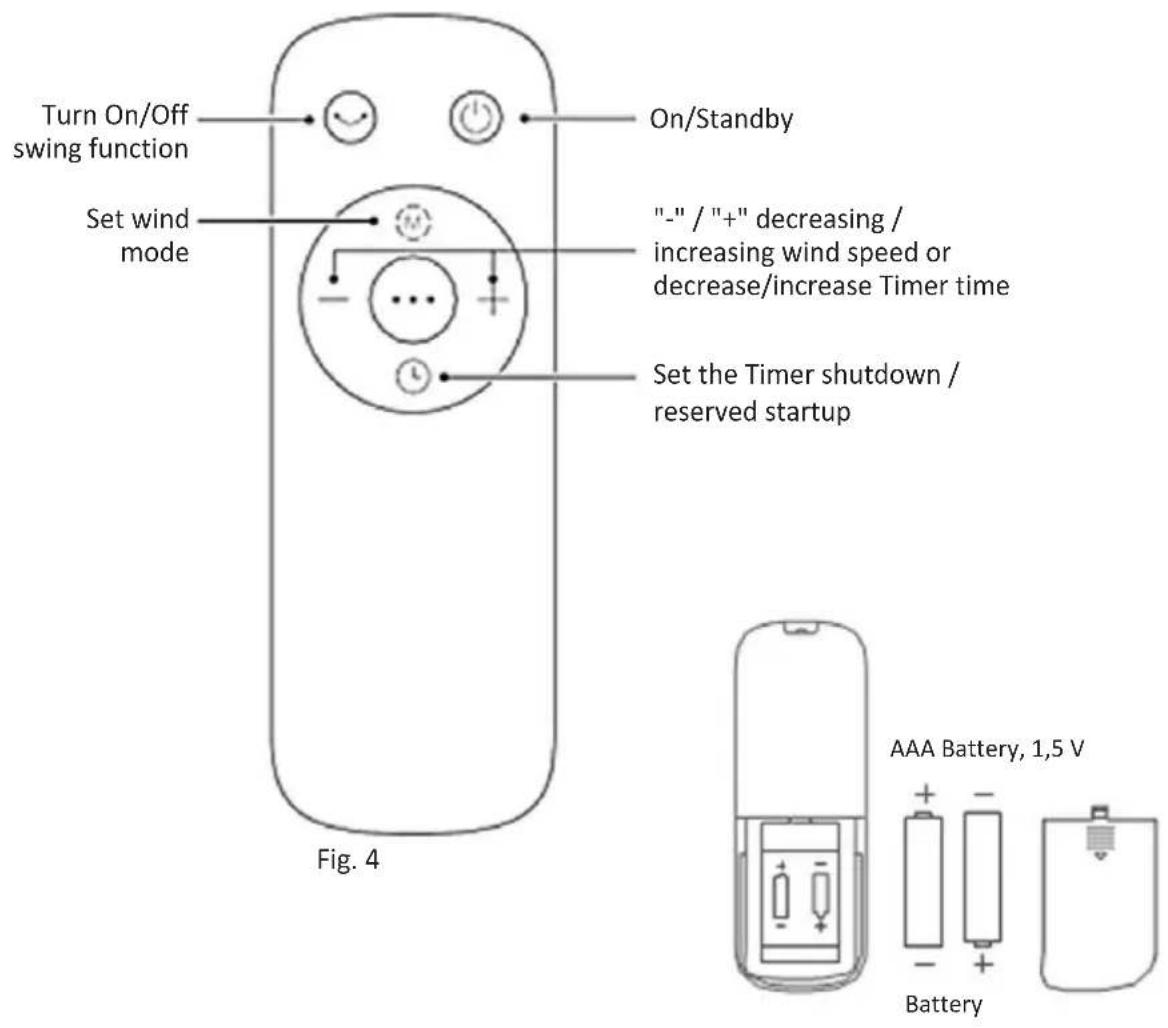

Remote control button description (Fig. 4)

NOTE

• The remote control should be normally used within 5 meters of the front of the product and 30 degrees of the deviation angle.
• The battery contains many heavy metals, acids and bases, etc., which may threaten human's health; Waste batteries should be recycled separately.

Turn On/Off swing function Set wind mode On/Standby "-" / "+" decreasing / increasing wind speed or decrease/increase Timer time Set the Timer shutdown / reserved startup Fig. 4 AAA Battery, 1,5 V Battery

NOTE

• Use manganese or alkaline batteries of type "AAA". Do not use rechargeable batteries.
  • Different type of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity
• Exhausted batteries are to be removed from the appliance and safely disposed of
• If the appliance is to be stored unused for a long period, the batteries are removed
• The supply terminals are not to be short-circuited

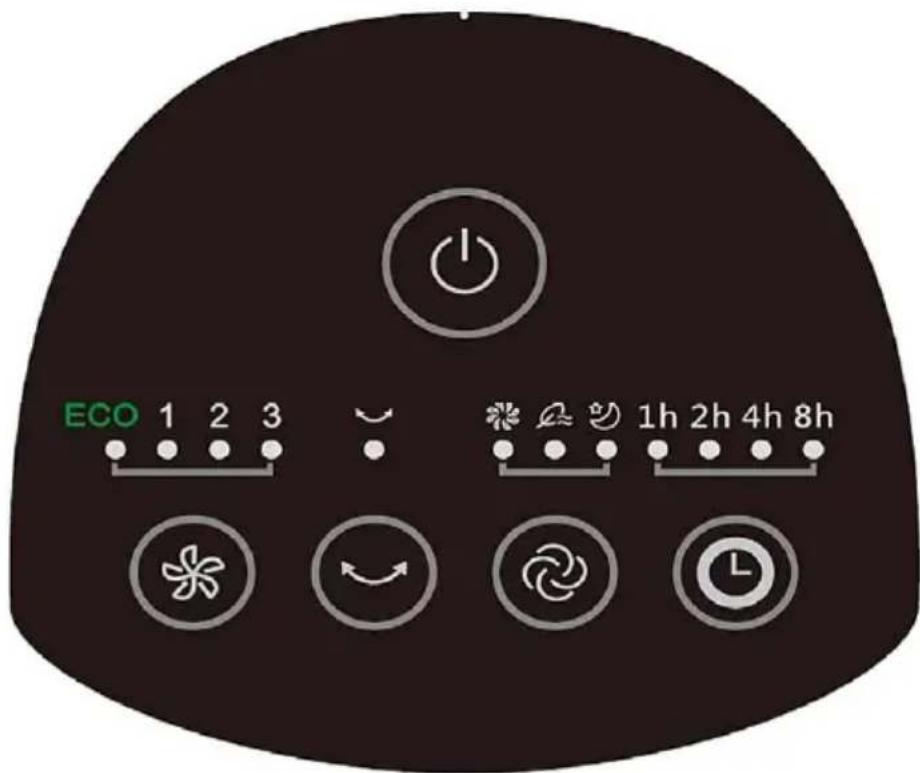

Control Panel (Fig. 5)

The buttons on the top of cabinet such as ON/OFF, SPEED, MODE, TIMER, OSCILLATION have the same functions as those of the corresponding keys on the remote controller.

ECO 1 2 3 1h 2h 4h 8h

Fig. 5

Button	Function Description
	Startup/Standby
	Touch this button to switch the wind mode among Normal, Natural and Sleep.
	Touch this button to start/stop the swing function.
	Touch this button to switch the wind speed (cycles among level 1-2-3-ECO
	Schedule to shut down in the power-on state, and schedule to start up in the standby state; Touch this button to set the timer (the display cycles among 1-2-4-8h); No light means that the timer is not active.
	Displays Normal wind mode
	Displays Natural wind mode (Automatic change wind speed, as natural wind)
	This indicator light is on in sleep wind mode. Start the sleep wind function, and the fan automatically adjusts the low level wind speed, according to the preset program; you can adjust the level of the sleep wind by pressing the wind speed button.
1h...8h	Displays Timer settings

The fan requires a little maintenance. Do not try to fix any damage by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface.
   Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.

CLEANING

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

TECHNICAL SPECIFICATIONS

Model Working Voltage Rated		power Noise Air circulation
TF-100MD 220-240V ~50Hz 45W		≤61dB		>31 m^3/min

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a horizontal bar below (no text or labels)

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic. The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa d.o.o. or the dealer where you purchased the product.

DISPOSAL OF WASTE BATTERIES

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old batteries in special places for disposal of used batteries that are found in all retail shops

where you can buy batteries.

EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu. Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

Information requirements (EN)
