Product Type	Vacuum Cleaner
Brand	ORION
Model	OVC-024
Body Dimensions	365 x 298 x 240 mm
Package Dimensions	495 x 315 x 287 mm
Net Weight (without accessories)	4.5 kg
Net Weight (with accessories)	5.8 kg
Gross Weight (with accessories)	6.4 kg
Max Power	1600 W
Suction Power	300 W
Rated Voltage	230 V~
Rated Frequency	50 Hz
Noise Level	74 dB(A)
Dust Bag Capacity	2.5 L
Power Cord Length	5 m
Filter Type	HEPA filter + additional filter piece
Accessories Included	Combination floor nozzle, crevice nozzle, small brush, adjustable tube, curved tube
Dust Full Indicator	Red indicator shows when dust bag is full
Protection Class	Class II (double insulation)
Approvals	CE, GS
Maintenance	Clean filter piece twice a year; clean HEPA twice a quarter
Safety Features	Automatic cord rewinder, overheating protection, do not use on hot/flammable materials

Frequently Asked Questions - OVC-024 ORION

What is the maximum power of the Orion OVC-024 vacuum cleaner?

The maximum power is 1600 W with a suction power of 300 W.

How do I know when the dust bag is full?

The vacuum cleaner has a dust full indicator: a red indicator moves into the middle of the window when the bag is full.

Can I vacuum hot ashes or flammable liquids?

No, never vacuum hot materials (ashes, cigarettes), flammable liquids (gasoline, alcohol), or corrosive substances. This can cause fire or damage.

How often should I clean the filter piece?

The filter piece should be cleaned twice a year or immediately if visibly dusty. Clean in water and let it dry naturally before reinserting.

How often should I clean the HEPA filter?

The HEPA filter should be cleaned twice a quarter (every 6 weeks) or when visibly dusty. Always ensure it is properly fitted and dry before use.

What should I do if the suction power decreases?

Check for blockages in the hose or tube, and clean the filters. If the problem persists, contact the maintenance service.

How do I rewind the power cord?

Press the rewinder switch while holding the plug to avoid injury. The cord will retract automatically.

Can I wash the dust bag?

No, the dust bag is disposable. Replace it with a new one when full. Do not wash.

What accessories are included with the vacuum cleaner?

Included accessories: combination floor nozzle (for carpets and bare floors), crevice nozzle, small brush, adjustable tube, and curved tube.

Is the vacuum cleaner safe to use on wet surfaces?

No, do not immerse in water or use on wet surfaces. The vacuum cleaner is for dry use only.

USER MANUAL OVC-024 ORION

Line drawing of a vacuum cleaner with coiled hose and handle (no text or symbols)

Please read it carefully before use and save it

Dear Customer,

Thank you for buying ORION products! Welcome to use!

Please read this User's Guide carefully before use and save it.

Best regards,

ORION ELECTRONICS Team

More details: http://www.orion.ua

Mail to us: [e-mail]

I. Importance & Safety

• Your vacuum cleaner is an electric appliance: it should be operated under normal conditions. Basic precautions should always be followed to reduce the risk of fire, electrical shock, and injure to person, including the following:

• Material listed as following should not be sucked in, otherwise it may damage the appliance (cause fire, or injure to persons).

• Hot material, such as ashes, flaming cigarette.

• Big piece of scraps, such as glass.
• Poison material (impregnant, corrosive), erosive material (acid material, detergent).

• Any flammable or volatile liquid as gasoline or alcohol goods.

• When not in used, cut off the power. Remove the plug from the wall socket before any service like clean, check or repair. Never switch off the appliances by pulling the plug.

• Avoid to pull or fold the hose, otherwise may cause deformation or damage.
• Make sure the rated voltage is conform with the supplied power.
• Do not let the power cord go through sharp material to avoid damage.
• Do not immerse the appliance into water, or never put the appliance directly in sun or near any heater or the like to avoid deforming of the plastic components or fire accident.
• Never move the appliances by pulling the power cord.
• Never let children play the appliance to avoid suddenness.
• Do not operate the vacuum cleaner if the appliance be drop down and operates abnormally obviously or the power cord is damaged. You should take the appliance to the authorized maintenance store if happen conditions listed above.
• Never operate the appliance when the inlet has been blocked to avoid heat or deforming of the plastic component or damage of the motor. If the power cord is damaged, it should be replaced by the manufacture or its service agent in order to avoid a hazard.

II. Structure and Components

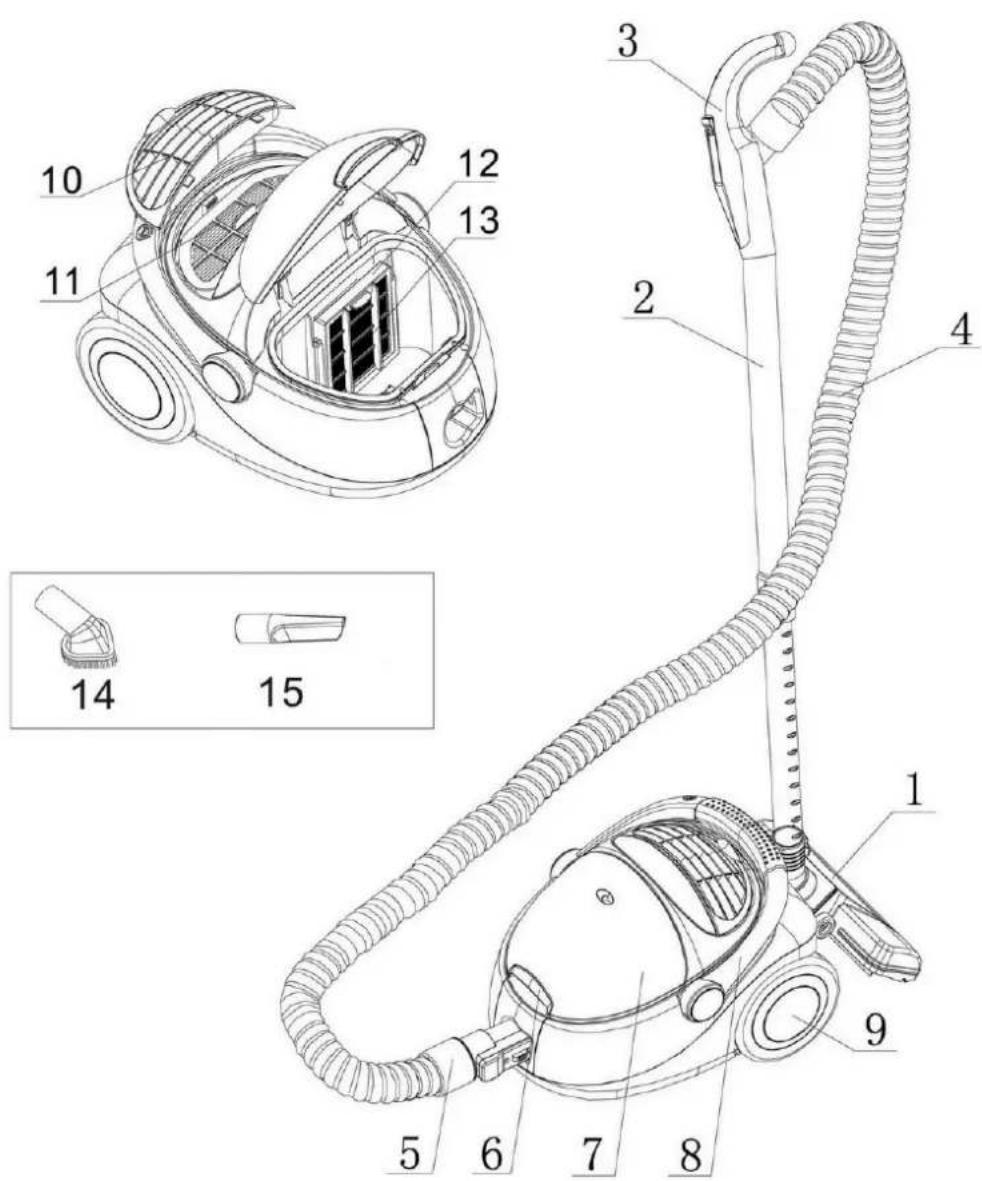

Structure figure

1. Double usage brush
2. Hose
3. Front cover
4. Wind outlet
   13.Filter piece

5. Crevice nozzle

6. Adjustable tube

7. In h a le plug
8. Handle
9. HEPA

10. Small brush

11. Curved tube handle

12. Front cover buckle

13. Big wheel
    12.Filter rack

14. Small Suction nozzle

Operation Guidance

Take out the Inhale plug by pressing the button according to the direction indicated in the figure at left side.

Open the front cover according to the direction indicated in the figure at left side.

After opening the front cover, check and make sure the filter piece is installed in place.

Insert the dust bag into the dust bag rack. Refer to the figure at the left side.

Close the front cover.

- Note: Please check whether installed the dust bag if you can't close the front cover.

Use of accessories

When use the accessories in follow figure, take out the accessory and insert it into the telescopic tube.

Combination nozzle is use for cleaning gap, corner, baseboard and liner gap. The nozzle head can be rotate to the mode of nozzle and brush.

Use the small brush can avoid to injuring surface of furniture and carpet.

Line drawing of a robotic vacuum cleaner with attached plug (no text or symbols)

Stop working of the machine

Press the power switch, pull out the plug from the socket, rewind the power cord by pressing the rewinder switch and hold the plug at the mean time to avoid being injured.

Line drawings of a vacuum cleaner with attached tubing, shown in two sequential poses (no text or symbols)

Disposal

Dispose the hose around the telescopic tube, park the floor nozzle onto the rear side or the bottom of the machine body by a hook on the floor nozzle.

- Note: Avoid to putting the machine under rain or sun.

III. Dust Empty and Maintenance

Line drawing of a vacuum cleaner with airflow and exhaust, showing internal components and airflow direction (no text or symbols)

A. Empty Dust

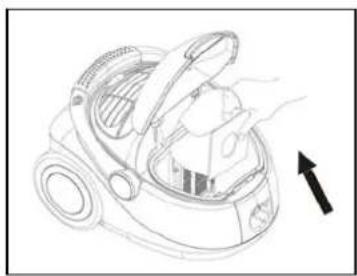

Open the front cover, take out the dust bag referring to the left figure. Then put it into the wastebin.

Line drawing of a hand opening the interior of a mechanical device with an arrow indicating upward motion (no text or symbols present)

B. Maintenance

Take the filter rack apart from the machine according to the direction indicated in the figure at left side. Then take out the filter piece.

Line drawing of a mechanical device with an open lid and internal components, no text or symbols present

Take out the filter piece, cleaning in water and let it dry naturally.

- Importance

1. The filter piece should be cleaned twice a year. or if it is visibly dustied, clean it at once.
2. When operation, filter piece should be fit in.
3. Make sure it's dry before use. Check if the filter piece is fitted improperly or been damaged before use the machine once.

Line drawing of a car with a mesh grille and an arrow pointing to it (no text or symbols)

Open the wind outlet: pick up the wind outlet by pressing its buckle according to the direction indicated in the figure at left side.

- Importance

1. The HEPA should be cleaned twice a quarter. Or if it is visibly dustied, clean it at once.
2. When operation, HEPA should be fit in.
3. Check if the filter piece is fitted improperly or been damaged before use the machine once.

Line drawing of a vacuum cleaner device with an inset showing a close-up of its internal structure (no text or symbols)

IV. Trouble Shooting

Note: Cut off power and pull out the plug before starting to get rid of troubles.

If the vacuum power decreasing, and sounds abnormally, stop vacuuming or motor over heat.

Some vacuum components may be blocked.....dredge the blocked component.

Filter been blocked....clean or replace.

If the trouble still exists, please contact our maintenance service department.

V. Technical Data Require

Model	ORION
Power	Max.1600W
Suction Power 300W
Rated Voltage 230V~
Rated Frequency 50Hz
Noise	74db(A)
Dustbag volume 2,5L
Power cord length 5m
Net weight (without accessories) 4,5kg
Net weight (with accessories) 5,8kg
Gross weight (with accessories) 6,4kg
Body size 365x298x240mm
Box size 495x315x287mm
Approvals	CE,
Protection Class	Class II Electric Appliance

OVC-024

GS,

Extra information on ORION company web-site www.orion.ua

We take your opinion and offers by E-mail [e-mail]
