OVC-028 - Vacuum Cleaner ORION - Free user manual and instructions

Product Type	Dry Vacuum Cleaner
Model	OVC-028
Brand	Orion
Type	Upright
Dust Capacity	1.5 L
Filtration System	HEPA Washable Filter
Motor Power	1200 W
Voltage	220-240 V
Frequency	50 Hz
Cord Length	5 m
Weight	Approximately 5.5 kg
Dimensions (H x W x D)	110 x 28 x 26 cm
Suction Power	250 Air Watts
Noise Level	≤ 78 dB(A)
Bagless	Yes (Cyclonic)
Floor Types	Hard floors and carpets
Attachments	Crevice tool, dusting brush, upholstery tool
Cord Rewind	No
Filter Cleaning	Washable, recommended every 3 months
Dust Cup Emptying	One-touch release
Safety Features	Overheat protection, CE certified
Repairability	Replacement filters and accessories available
Package Contents	Vacuum cleaner, crevice tool, brush, manual

Frequently Asked Questions - OVC-028 ORION

How do I clean the filter?

The filter is washable. Remove it from the vacuum, rinse under lukewarm water, and let it dry completely for 24 hours before reinstalling. Clean every 3 months.

What is the dust capacity of the OVC-028?

The dust cup has a capacity of 1.5 liters, allowing for extended cleaning sessions without frequent emptying.

Can I use this vacuum on carpets?

Yes, the OVC-028 is designed for both hard floors and carpets. It comes with a floor head suitable for carpets.

How to store the vacuum cleaner?

Store the vacuum in a dry place with the cord loosely wrapped. Upright models can be stood vertically; attachments can be clipped onto the main body.

Is the filter washable or replaceable?

The HEPA filter is washable and reusable, but it is also replaceable if damaged. Replacement filters can be ordered from Orion or third-party sellers.

What is the warranty period?

The Orion OVC-028 comes with a 1-year limited warranty covering manufacturing defects. Terms may vary by region.

How to unblock the hose?

Disconnect the hose and check for obstructions. Use a long flexible tool or push a broomstick through to clear clogs. Do not use sharp objects.

Can I use the vacuum without a dust bag?

Yes, this model is bagless. It uses a cyclonic system and a washable filter. Simply empty the dust cup when full.

What attachments are included?

The package includes a crevice tool, dusting brush, and upholstery tool for cleaning different surfaces and tight spaces.

How to replace the brush roll?

Turn off and unplug the vacuum. Remove the bottom plate, take out the old brush, cut any tangled hair, and slide in a new brush roll. Reassemble the plate.

USER MANUAL OVC-028 ORION

Important safety instructions

The use of any electrical appliance requires the following common sense safety rules.

Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

Warning: Danger to the person!

IMPORTANT: Damage to the appliance! In addition we offer the following safety advice.

Location

• Do not use or keep this product outside when it is raining.
• Do not store the appliance near hot ovens or heating appliances.

Mains lead

• Do not allow the mains lead to become strained or run this appliance over it.
• If the electrical cable becomes damaged, the complete cable assembly must be replaced. Do not attempt this task yourself. Contact the local retailers.

Children

Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.

Personal safety

• The plug must be removed from the wall socket before cleaning or maintaining the appliance.
• Never modify the cleaner in any way.
  ● Never use in the presence of explosive liquids or vapors.
• Never pick up inflammable or poisonous liquids such as petrol, copier toner or other volatile substances. Never pick up acids, asbestos or asbestos dust.
  ● Repairs to electrical appliances are only to be undertaken by trained personnel.
  Unprofessional repairs can be dangerous for users.
  ● The appliance must never be left running when unsupervised.

Product safety

● Never use the appliance without the filters being installed.
● Never use the appliance to vacuum hot ashes, broken glass, sharp objects or liquids.
- To protect against fire, electric shock and personal injury do not immerse cord, plug or cleaner in water or other liquid.

Electrical requirements

Check that the voltage on the rating plate corresponds with your house electricity supply which must be A.C (alternating current)

If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

If you cut off the plug and let go of the cable it will rewind into the machine.

Therefore you must pull out a length of the cable and secure it before cutting off the plug and refitting a new one.

IMPORTANT: The plug removed from the mains lead. If severed, must be destroyed as a plug with a bared flexible cord is hazardous if engaged into a live socket outlet.

ILLUSTRATION

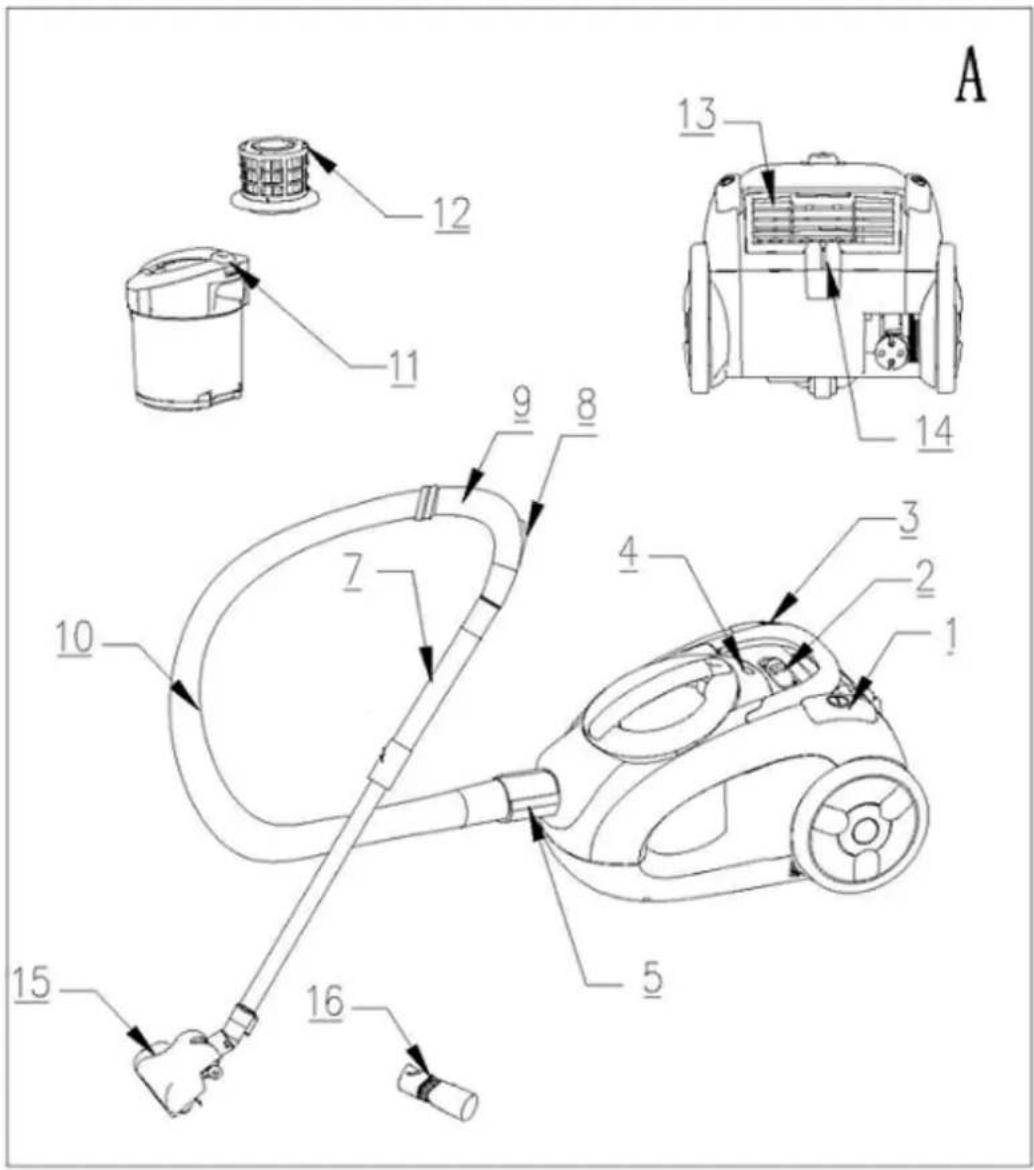

Features

1. On/off switch-button
2. Varies power button
3. Cable rewind button
4. Full dust indicator
5. Hose inlet
6. Metal compound tube
7. Airflow regulator
8. Hose handle
9. Hose
10. Dust container

11. Hepa filter

12. Air outlet cover

13. Floor brush storage clip
14. Floor brush
15. Crevice nozzle

Quick start

1. Assemble the nozzle, the tube and hose. A
2. Pull out the mains cable to its full length and plug into the mains supply.
3. Switch on by pressing the On/off switch-button.1

Accessories

Insert the flexible hose

Fit the hose to the cleaner by inserting the hose end into the hose inlet 5 until it clicks to the position.

To remove the flexible hose

When removing, squeeze the clips up side and pull it out.

Fitting the tubes and accessories

1. Attach the tube to the handle end of the hose.
   The hose handle features an airflow regulator 8 which allows suction to be reduced as required.
2. Attach the floor brush 15 to the tube.
3. Attach the crevice nozzle 16 to the tube.
   Turn the rotating nozzle as the arrowhead show; it can be used as the upholstery nozzle (for curtains and upholstery).
   Turn the rotating nozzle backwards to the home position; it can be used as the crevice nozzle (for awkward places, behind radiator; or for hard surfaces, pelmets, delicate objects etc).

Controls

Power

The on/off control is operated by On/off switch-button. 1

Variable power

A Variable power switch 2 varies the suction power as required. For example, maximum suction can be used for cleaning carpets, hard floors etc, and reduced suction for cleaning upholstery and curtains.

Suction can also be controlled using the airflow regulator 8 on the handle. Closed for maximum suction, open for reduced suction.

Automatic cable rewind

After use, unplug and press the cable rewind button 3 to retract the cable.

WARNING: When using the cable rewind, always hold the plug as the cable will rewind quickly.

Dust disposal

To obtain the best result from your cleaner, empty the dust container when the full dust indicator 3 is light, otherwise the airflow and cleaning power will be reduced.

1. Remove the dust container from the product by pressing the dust container button, and pulling the dust container away from the product. B

2. Holding the dust over a dustbin press the dust release button as shown, the bottom of the dust container will drop down to release the dirt. C

3. Close Push the dust container back into the product to refit.

4. The bottom of the dust container by pressing the base upwards until it clicks into place.

Cleaning the HEPA filter

To maintain the suction of the cleaner, the HEPA filter must be washed regularly.

After emptying any dirt into the dustbin.C

1. Remove the HEPA filter 12 from the dust container by turn the dust container back cover anticlockwise. Remove the HEPA filter cover by.D
2. Remove the filter cover from HEPA as shown E
3. Rinse the HEPA filter cover in the lukewarm water and DRY THE FILTER COVER COMPLETELY.

IMPORTANT: Do not use detergents to clean the filter. The HEPA filter must be thoroughly dry before the machine is used.

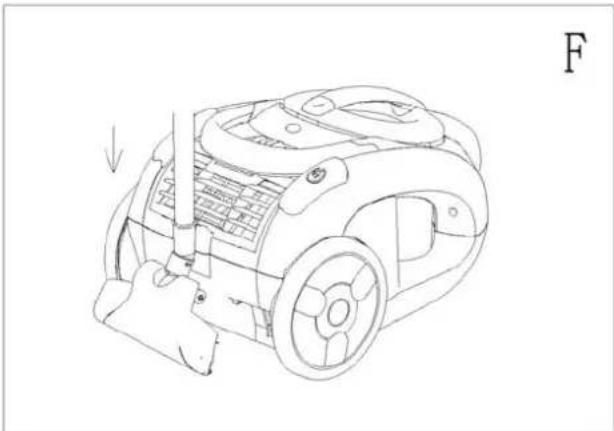

Storage position

When finished you can store the tube by locating the tube storage clip12 into the slot on the back of the cleaner as shown. F

Line drawing of a robotic vacuum cleaner with a valve mechanism, showing no text or symbols

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Simple line drawing of a trash bin with crossed x-marks and a circular symbol inside, no text or labels present.

Subject to change without notice
