USER MANUAL 646-049 Coline

White electric hand mixer with a black whisk resting on it, against a dark background (no text or symbols visible)

Art. No: Model. No:

34-7867 646-049

English 3

Svenska 6

Norsk 9

Suomi 12

Hand Mixer

Art.no: 34-7867 Model: 646-049

Please read the entire instruction manual before using the product and save it for future reference. We apologise for any text or photographic errors and any changes of technical data. If you have any questions concerning technical problems please contact our Customer Service Department (see address on reverse).

Safety

• The power lead should be regularly checked. Never use the device if the power lead or plug is damaged.
• The power lead must be changed if damaged in order to avoid the risk of chock or fire, but this should only be done by the manufacturer, qualified service station or professional.

Specific Safety Instructions for Hand Mixers

1. Make sure that the voltage used is suitable for the appliance. Refer to the manufacturer's specification label.
2. Always disconnect the appliance from the power supply if it is left unattended and before assembling, disassembling or cleaning.
3. To avoid electric shock, protect the appliance and its power lead from moisture or wetness.
4. Never let children use the appliance without adult supervision.
5. Never use accessories other than the ones included.
6. Never use the appliance for anything other than its intended use.

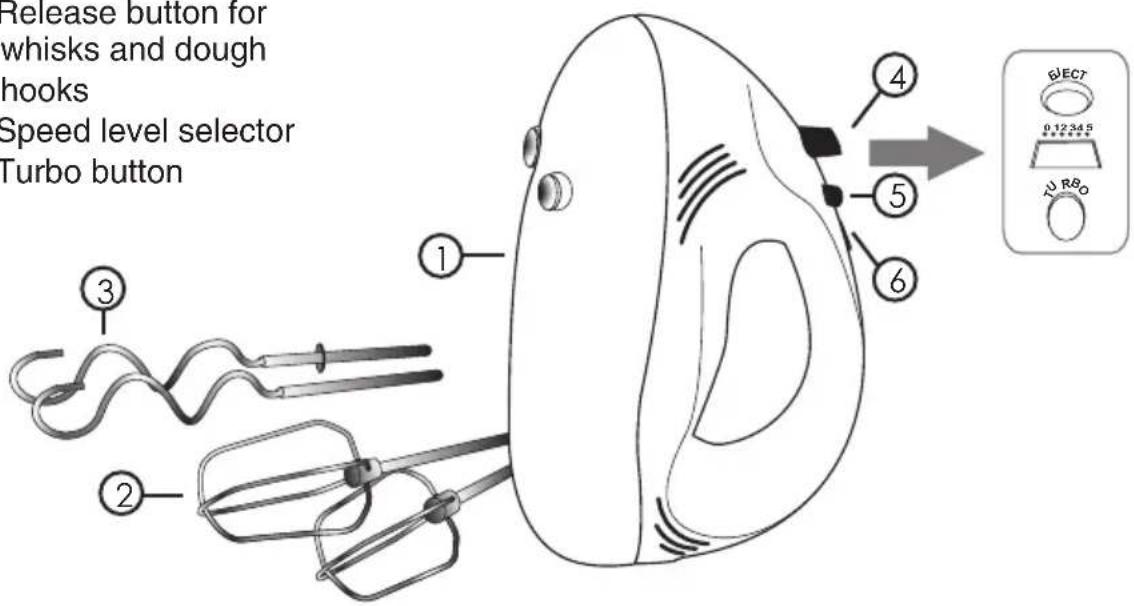

Product Description

1. Motor
2. Whisks
3. Dough hooks
4. Release button for whisks and dough hooks
5. Speed level selector
6. Turbo button

Release button for whisks and dough hooks Speed level selector Turbo button

Operating Instructions

NOTE: Clean whisks and dough hooks before the first use. Dishwasher safe.

• Make sure the plug is disconnected from the wall socket and the speed level selector is at "0"
• Insert the whisks/dough hooks to the holes on the bottom. When you hear a click sound they are properly inserted.
• Connect the transformer to a 230 V wall socket.
• Set the whisks in the type of food which is being whisked before you start the electric hand mixer.
• Choose desired speed with the speed selector.
• You can activate the turbo button at any speed to increase the speed somewhat.
• Keep in mind when working with heavier doughs such as rye that the hand mixers maximum capacity is 750 g.

Release whisks/dough hooks

1. Let the device stop completely.
2. Unplug from the wall socket.
3. Push the release button.

Care and Maintenance

• Always unplug the device from the wall socket before cleaning.
• Wash the whisks and dough hooks after use. Dishwasher safe.
• Do not expose the motor part to water. Clean it with a damp cloth instead.

Disposal

Follow local ordinances when disposing of this product. If you are unsure about the disposal of this product contact your municipality.

Specifications

Power Supply 230 V \~ 50 Hz

Power 220 W

Mains lead: 90 cm

Elvisp

Art.no: 34-7867 Model: 646-049
