USER MANUAL YBR125 YAMAHA

æ U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM d | & EAU45090 AN Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold. À 4

77 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM INTRODUCTION Eautoto2 Welcome to the Yamaha world of motorcyclingl! As the owner of the YBR125ED, you are benefiting from Yamaha's vast experience and newest technology regarding the design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability. Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YBR125ED. The Owner's Manual does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and others from trouble and injury. In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. lf you have any further questions, do not hesitate to contact your Yamaha dealer. The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first! Yamaha continually seeks advancemenits in product design and quality. Therefore, while this manual contains the most cur- rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and this manual. If there is any question concerning this manual, please consult a Yamaha dealer. À WARNING Please read this manual carefully and completely before operating this motorcycle. Eatoost

h _4 77 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM A

Eautotse Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to potential personal injury AN hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. A WARNING indicates a hazardous situation which, if not avoided, could result in EN WARNING death or serious injury. A NOTICE indicates special precautions that must be taken to avoid damage to the NOTICE vehicle or other property.

h _4 77 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM A

©2008 by Yamaha Motor Co., Ltd. 1st edition, October 2008 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in China.

a & U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

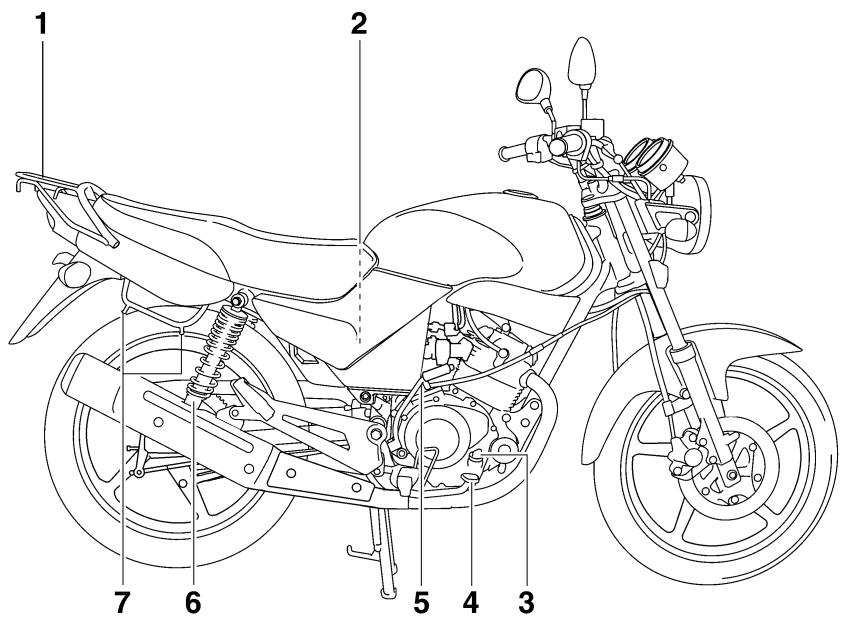

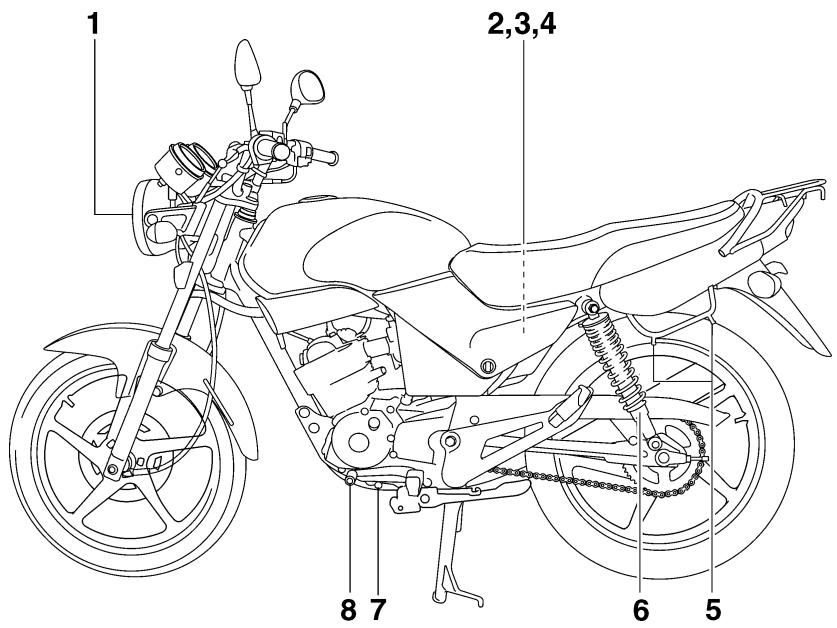

SAFETY INFORMATION ….. DESCRIPTION Left view . Right view Controls and instruments.

RIDING POINTS... Starting the engine . Shifting … Tips for reducing fuel consumption Engine break-in Parking

PERIODIC MAINTENANCE AND

ADJUSTMENT … Owner's tool kit … Periodic maintenance chart for the emission control system General maintenance and lubrication chart Removing and installing panels Checking the spark plug Engine oil .… Cleaning the air filter element Checking the engine idling speed … Adjusting the throttle cable free play …… Valve clearance Tires Cast wheels Adjusting the clutch lever free play …… Checking the front brake lever free play …… Adjusting the brake pedal free play …… Adjusting the rear brake light switch … … 6-17 Checking the front brake pads and rear brake shoes … .. Checking the front brake fluid level … Changing the brake fluid . Drive chain slack … Cleaning and lubricating the drive chain … Checking and lubricating the cables … Checking and lubricating the throttle grip and cable Checking and lubricating the brake and shift pedals Checking and lubricating the brake and clutch levers … Checking and lubricating the centerstand and sidestand . Lubricating the swingarm pivots … Checking the front fork . Checking the steering Checking the wheel bearings .

4 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM œ

7 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM À SAFETY INFORMATION EAU10283 Be a Responsible Owner As the vehicle’s owner, you are respon- sible for the safe and proper operation of your motorcycle. Motorcycles are single-track vehicles. Their safe use and operation are de- pendent upon the use of proper riding techniques as well as the expertise of the operator. Every operator should know the following requirements before riding this motorcycle. He or she should: e Obtain thorough instructions from a competent source on all aspects of motorcycle operation. e Observe the warnings and mainte- nance requirements in this Own- ers Manual. e Obtain qualified training in safe and proper riding techniques. e Obtain professional technical ser- vice as indicated in this Owners Manual and/or when made neces- sary by mechanical conditions. Safe Riding Perform the pre-operation checks each time you use the vehicle to make sure it is in safe operating condition. Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. See page 4-1 for a list of pre-operation checks. e This motorcycle is designed to car- ry the operator and a passenger. e The failure of motorists to detect and recognize motorcycles in traf- fic is the predominating cause of automobile/motorcycle accidents. Many accidents have been caused by an automobile driver who did not see the motorcycle. Making yourself conspicuous appears to be very effective in reducing the chance of this type of accident. Therefore: + Wear a brightly colored jacket. + Use extra caution when you are approaching and passing through intersections, since in- tersections are the most likely places for motorcycle accidents to occur. 1-1 + Ride where other motorists can see you. Avoid riding in another motorist's blind spot. e Many accidents involve inexperi- enced operators. In fact, many op- erators who have been involved in accidents do not even have a cur- rent motorcycle license. + Make sure that you are qualified and that you only lend your motorcycle to other qualified op- erators. + Know your skills and limits. Staying within your limits may help you to avoid an accident. + We recommend that you prac- tice riding your motorcycle where there is no traffic until you have become thoroughly famil- iar with the motorcycle and all of its controls. e Many accidents have been caused by error of the motorcycle opera- tor. À typical error made by the op- erator is veering wide on a turn

7 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM À SAFETY INFORMATION due to excessive speed or under- cornering (insufficient lean angle for the speed). + Always obey the speed limit and never travel faster than warrant- ed by road and traffic conditions. Always signal before turning or changing lanes. Make sure that other motorists can see you. The posture of the operator and passenger is important for proper control. - The operator should keep both hands on the handiebar and both feet on the operator foot- rests during operation to main- tain control of the motorcycle. + The passenger should always hold onto the operator, the seat strap or grab bar, if equipped, With both hands and keep both feet on the passenger footrests. Never carry a passenger unless he or she can firmly place both feet on the passenger footrests. Never ride under the influence of alcohol or other drugs. e This motorcycle is designed for on- road use only. It is not suitable for off-road use. Protective apparel The majority of fatalities from motor- cycle accidents are the result of head injuries. The use of a safety helmet is the single most critical factor in the pre- vention or reduction of head injuries. © Always wear an approved helmet. e Wear a face shield or goggles. Wind in your unprotected eyes could contribute to an impairment of vision that could delay seeing a hazard. e The use of a jacket, heavy boots, trousers, gloves, etc. is effective in preventing or reducing abrasions or lacerations. e Never wear loosefitting clothes, otherwise they could catch on the control levers, footrests, or wheels and cause injury or an accident. e Always wear protective clothing that covers your legs, ankles, and feet. The engine or exhaust sys- tem become very hot during or af- ter operation and can cause burns. 1-2

e A passenger should also observe the above precautions. Avoid Carbon Monoxide Poisoning All engine exhaust contains carbon monoxide, a deadly gas. Breathing car- bon monoxide can cause headaches, dizziness, drowsiness, nausea, confu- sion, and eventually death. Carbon Monoxide is a colorless, odor- less, tasteless gas which may be present even if you do not see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly ventilated areas. If you experience any symptoms of carbon monoxide poison- ing, leave the area immediately, get fresh air, and SEEK MEDICAL TREAT- MENT. e Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rap- idly reach dangerous levels.

7 U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM À SAFETY INFORMATION e Do not run engine in poorly venti- lated or partially enclosed areas such as barns, garages, or car- ports. Do not run engine outdoors where engine exhaust can be drawn into a building through openings such as windows and doors. Loading Adding accessories or cargo to your motorcycle can adversely affect stabili- ty and handling if the weight distribution of the motorcycle is changed. To avoid the possibility of an accident, use ex- treme caution when adding cargo or accessories to your motorcycle. Use extra care when riding a motorcycle that has added cargo or accessories. Here, along with the information about accessories below, are some general guidelines to follow if loading cargo to your motorcycle: The total weight of the operator, pas- senger, accessories and cargo must not exceed the maximum load limit. Operation of an overloaded vehicle could cause an accident. Maximum load: 196 kg (432 Ib) When loading within this weight limit, keep the following in mind: e Cargo and accessory weight should be kept as low and close to the motorcycle as possible. Se- curely pack your heaviest items as close to the center of the vehicle as possible and make sure to distrib- ute the weight as evenly as possi- ble on both sides of the motorcycle to minimize imbalance or instabili- ty. e Shifting weights can create a sud- den imbalance. Make sure that ac- cessories and cargo are securely attached to the motorcycle before riding. Check accessory mounts and cargo restraints frequenily. + Properly adjust the suspension for your load (suspension-ad- justable models only), and check the condition and pres- sure of your tires. + Never attach any large or heavy items to the handlebar, front fork, or front fender. These 1-3

items, including such cargo as sleeping bags, duffel bags, or tents, can create unstable han- dling or a slow steering re- sponse. e This vehicle is not designed to pull a trailer or to be attached to a sidecar. Genuine Yamaha Accessories Choosing accessories for your vehicle is an important decision. Genuine Yamaha accessories, which are avail- able only from a Yamaha dealer, have been designed, tested, and approved by Yamaha for use on your vehicle. Many companies with no connection to Yamaha manufacture parts and acces- sories or offer other modifications for Yamaha vehicles. Yamaha is not in a position to test the products that these aftermarket companies produce. Therefore, Yamaha can neither en- dorse nor recommend the use of ac- cessories not sold by Yamaha or modifications not specifically recom- mended by Yamaha, even if sold and installed by a Yamaha dealer.

7 U3D9E2E0.book Page 4 Thursday, November 6, 2008 10:54 AM À SAFETY INFORMATION Aftermarket Parts, Accessories, and Modifications While you may find aftermarket prod- ucts similar in design and quality to genuine Yamaha accessories, recog- nize that some aftermarket accessories or modifications are not suitable be- cause of potential safety hazards to you or others. Installing aftermarket prod- ucts or having other modifications per- formed to your vehicle that change any of the vehicle’s design or operation characteristics can put you and others at greater risk of serious injury or death. You are responsible for injuries related to changes in the vehicle. Keep the following guidelines in mind, as well as those provided under “Load- ing” when mounting accessories. e Never install accessories or carry cargo that would impair the perfor- mance of your motorcycle. Care- fully inspect the accessory before using it to make sure that it does not in any way reduce ground clearance or cornering clearance, limit suspension travel, steering travel or control operation, or ob- soure lights or reflectors. + Accessories fitted to the handle- bar or the front fork area can create instability due to improper weight distribution or aerody- namic changes. If accessories are added to the handlebar or front fork area, they must be as lightweight as possible and should be kept to a minimum. Bulky or large accessories may seriously affect the stability of the motorcycle due to aerody- namic effects. Wind may at- tempt to lift the motorcycle, or the motorcycle may become un- stable in cross winds. These ac- cessories may also cause instability when passing or being passed by large vehicles. Certain accessories can dis- place the operator from his or her normal riding position. This improper position limits the free- dom of movement of the opera-

tor and may limit control ability, therefore, such accessories are not recommended. e Use caution when adding electri- cal accessories. If electrical acces- sories exceed the capacity of the motorcycle’s electrical system, an electric failure could result, which could cause a dangerous loss of lights or engine power. Aftermarket Tires and Rims The tires and rims that came with your motorcycle were designed to match the performance capabilities and to provide the best combination of handling, brak- ing, and comfort. Other tires, rims, siz- es, and combinations may not be appropriate. Refer to page 6-13 for tire specifications and more information on replacing your tires.

77 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

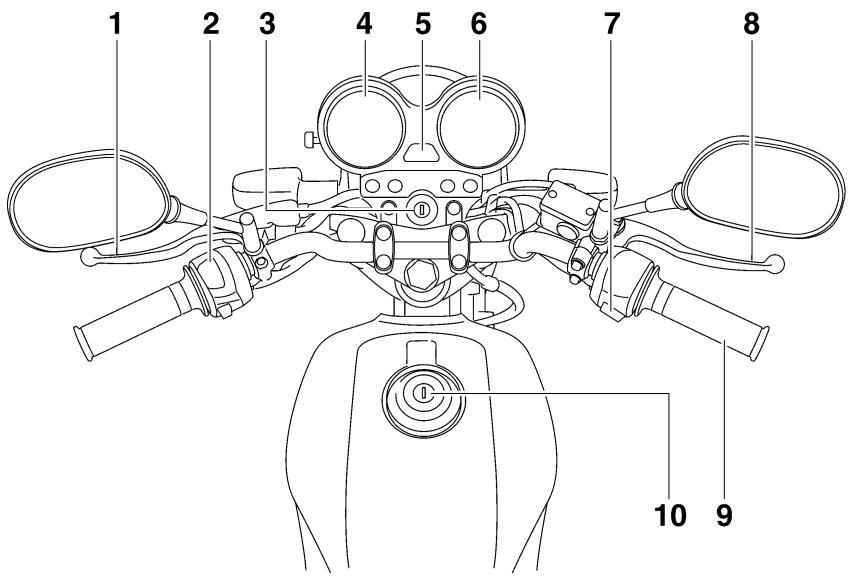

INSTRUMENT AND CONTROL FUNCTIONS

EAUT460 Main switch/steering lock The main switch/steering lock controls the ignition and lighting systems, and is used to lock the steering. The various positions are described below. EAUS3500

All electrical circuits are supplied with power; the meter lighting, taillight and auxiliary light come on, and the engine can be started. The key cannot be re- moved. TIP The headlight comes on automatically when the engine is started and stays on until the key is turned to “OFF”, even if the engine stalls. EAUtOGSt OFF All electrical systems are off. The key can be removed. Never turn the key to “OFF” or “LOCK” while the vehicle is moving. Otherwise the electrical systems will be switched off, which may result in loss of control or an accident. EWa1oo6t EaUastat LOCK The steering is locked, and all electrical systems are off. The key can be re- moved. 3-1 To lock the steering

1. Turn the handlebars all the way to A

2. Push the key in from the “OFF” po-

sition, and then turn it to “LOCK” while still pushing it.

7 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

| INSTRUMENT AND CONTROL FUNCTIONS

To unlock the steering

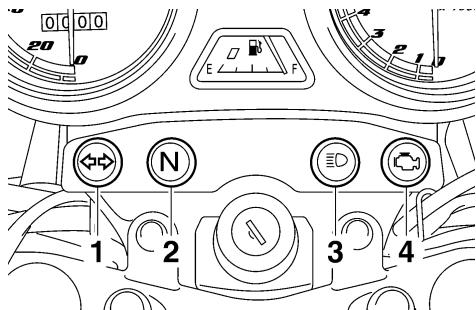

Insert the key and turn it to “OFF”. EAUT1008 Indicator and UE ": [ANS

1. Turn signal indicator light “<à >"

2. Neutral indicator light “ N

8. High beam indicator ligh

4. Engine trouble warning light “25 ”

EAUr1020 Turn signal indicator light “<< >” This indicator light flashes when the turn signal switch is pushed to the left or right. EAUT 1060 Neutral indicator light “ N” This indicator light comes on when the transmission is in the neutral position. 3-2 High beam indicator light “ 20" This indicator light comes on when the high beam of the headlight is switched on.

Engine trouble warning light “= ” This warning light comes on or flashes if a problem is detected in the electrical circuit monitoring the engine. If this oc- curs, have a Yamaha dealer check the self-diagnosis system. (See page 3-3 for an explanation of the self-diagnosis device.) The electrical circuit of the warning light can be checked by turning the key to “ON”. The warning light should come on for a few seconds, and then go off. If the warning light does not come on initially when the key is turned to “ON”, or if the warning light remains on, have a Yamaha dealer check the electrical circuit.

7 U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM

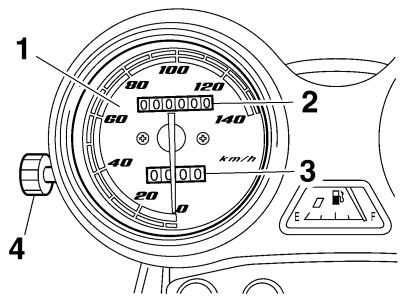

The speedometer unit is equipped with a speedometer, an odometer and a tripmeter. The speedometer shows riding speed. The odometer shows the total distance traveled. The tripmeter shows the distance traveled since it was last set to zero with the reset knob. The tripmeter can be used to estimate the distance that can be traveled with a full tank of fuel. This information will en- able you to plan future fuel stops. EAUT ES Tachometer

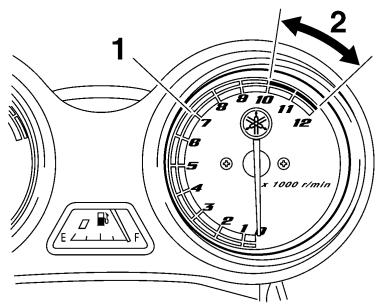

The electric tachometer allows the rider to monitor the engine speed and keep it Within the ideal power range. Ecarooet NOTICE Do not operate the engji chometer red zone. Red zone: 10000 r/min and above n the ta- 3-3 EAur200 Self-diagnosis device This model is equipped with a self-diag- nosis device for various electrical cir- cuits. If a problem is detected in any of those circuits, the engine trouble warning light will come on or flash. If this occurs, have a Yamaha dealer check the vehi- cle. Ecano NOTICE To prevent engine damage, be sure to consult a Yamaha dealer as soon as possible if this occurs.

æ | & U3D9E2E0.book Page 4 Thursday, November 6, 2008 10:54 AM

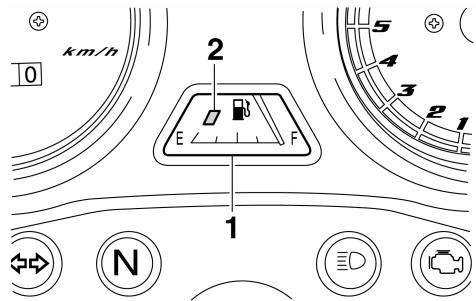

The fuel gauge indicates the amount of fuel in the fuel tank. The needle moves towards “E” (Empty) as the fuel level decreases. When the needle reaches the red zone, approximately 3.0 L (0.79 US gal, 0.66 Imp.gal) remain in the fuel tank. If this occurs, refuel as soon as possible. TIP The main switch must be turned to “ON” for the fuel gauge to display an accurate fuel level reading. EAUT2247 Handlebar switches

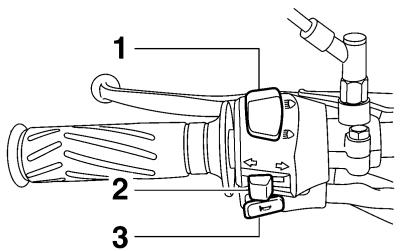

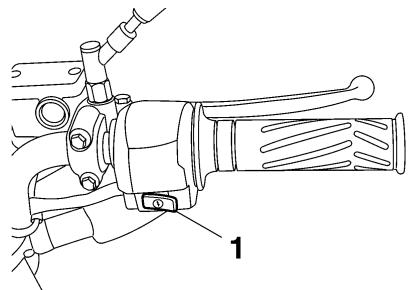

1. Dimmer switch “20/20”

2. Turn signal switch “<b/d>"

EAU+2400 Dimmer switch “20/20” Set this switch to “=0” for the high beam and to “20” for the low beam. EAUr2400 Turn signal switch “</2” To signal a right-hand turn, push this switch to“æ”. To signal a left-hand turn, push this switch to “<=”. When re- leased, the switch returns to the center position. To cancel the turn signal lights, push the switch in after it has re- turned to the center position. EAU+2500 Horn switch “>” Press this switch to sound the homn. Eure Start switch “@” Push this switch to crank the engine with the starter. See page 5-1 for start- ing instructions prior to starting the en- gine. EAusr7oo The engine trouble warning light will come on when the key is turned to “ON” and the start switch is pushed, but this does not indicate a malfunction.

æ | & U3D9E2E0.book Page S Thursday, November 6, 2008 10:54 AM

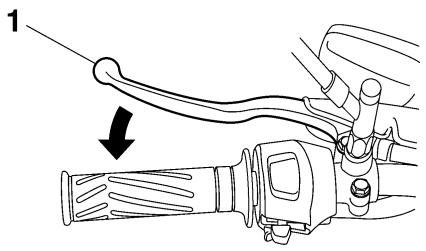

The cluich lever is located at the left handlebar grip. To disengage the clutch, pull the lever toward the handle- bar grip. To engage the clutch, release the lever. The lever should be pulled rapidly and released slowly for smooth clutch operation. The clutch lever is equipped with a cluich switch, which is part of the igni- tion circuit cut-off system. (See page 8-11.)

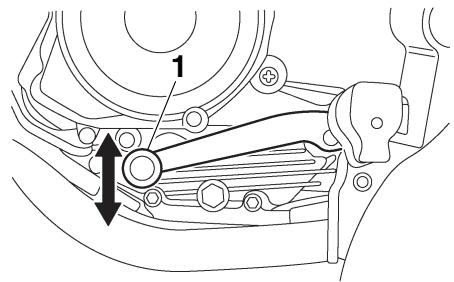

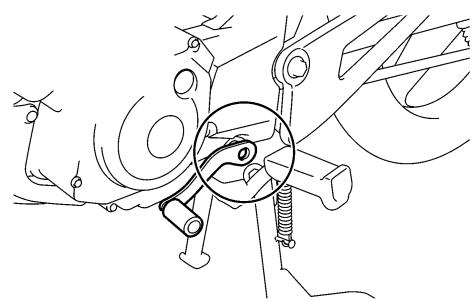

The shift pedal is located on the left side of the engine and is used in com- bination with the clutch lever when shifting the gears of the 5-speed con- stant-mesh transmission equipped on this motorcycle. 3-5

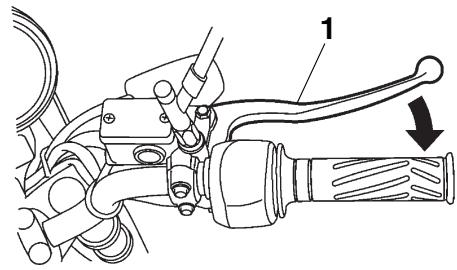

The brake lever is located at the right > handlebar grip. To apply the front 2 brake, pull the lever toward the handle- bar grip. S 2

7 U3D9E2E0.book Page 6 Thursday, November 6, 2008 10:54 AM

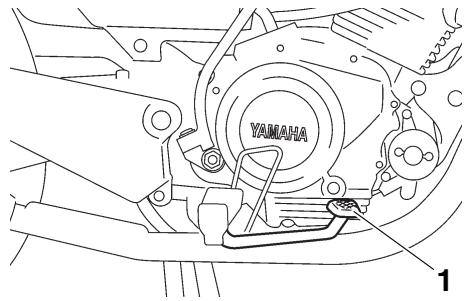

The brake pedal is on the right side of the motorcycle. To apply the rear brake, press down on the brake pedal. EAU+3002 Fuel tank cap

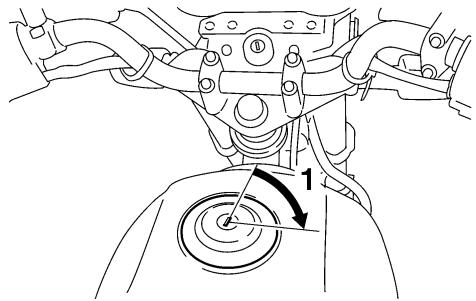

To remove the fuel tank cap Insert the key into the lock and turn it 1/4 turn clockwise. The lock will be re- leased and the fuel tank cap can be re- moved. To install the fuel tank cap

1. Push the fuel tank cap into position

with the key inserted in the lock.

2. Turn the key counterclockwise to

the original position, and then re- move it. TIP The fuel tank cap cannot be installed unless the key is in the lock. In addition, the key cannot be removed if the cap is not properly installed and locked. Make sure that the fuel tank cap is properly installed before riding. Leaking fuel is a fire hazard. EWariat

77 U3D9E2E0.book Page 7 Thursday, November 6, 2008 10:54 AM

INSTRUMENT AND CONTROL FUNCTIONS

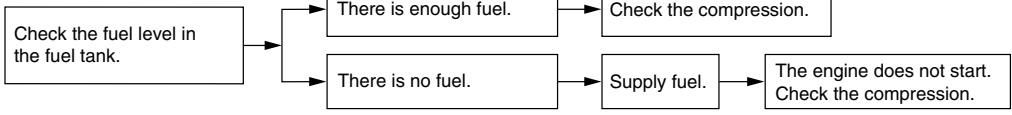

EAUt322 Fuel Make sure there is sufficient gasoline in the tank. À WARNING Gasoline and gasoline vapors are extremely flammable. To avoid fires and explosions and to reduce the risk of injury when refueling, follow these instructions. Ewatogst

1. Before refueling, turn off the en-

gine and be sure that no one is sit- ting on the vehicle. Never refuel while smoking, or while in the vi- cinity of sparks, open flames, or other sources of ignition such as the pilot lights of water heaters and clothes dryers.

2. Do not overiill the fuel tank. When

refueling, be sure to insert the pump nozzle into the fuel tank filler hole. Stop filling when the fuel reaches the bottom of the filler tube. Because fuel expands when it heats up, heat from the engine or the sun can cause fuel to spill out of the fuel tank.

ately. NOTICE: Immediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel may deteri- orate painted surfaces or plastic parts. iecaioo7t)

4. Be sure to securely close the fuel

tank cap. À WARNING Gasoline is poisonous and can cause injury or death. Handle gaso- line with care. Never siphon gaso- line by mouth. If you should swallow some gasoline or inhale a lot of gas- oline vapor, or get some gasoline in your eyes, see your doctor immedi- EWaisist 3-7

ately. If gasoline spills on your skin, wash with soap and water. If gaso- line spills on your clothing, change your clothes. EAUI3220 Recommended fuel:

REGULAR UNLEADED GASOLINE

ONLY Fuel tank capacity:

13.0 L (3.43 US gal, 2.86 Imp.gal)

Fuel reserve amount:

3.0 L (0.79 US gal, 0.66 Imp.gal)

ECAt1400 NOTICE Use only unleaded gasoline. The use of leaded gasoline will cause severe damage to internal engine parts, such as the valves and piston rings, as well as to the exhaust system. Your Yamaha engine has been de- signed to use regular unleaded gaso- line with a research octane number of 91 or higher. If knocking (or pinging) oc- curs, use a gasoline of a different brand

h _4 7" U3D9E2E0.book Page 8 Thursday, November 6, 2008 10:54 AM A

or premium unleaded fuel. Use of un- : EAUTS44S ECAño7ON leaded fuel will extend spark plug life Catalytic converters . __ NOTICE and reduce maintenance costs. This vehicle is equipped with catalVtic Use only unileaded gasoline. The use converters in the exhaust system. of leaded gasoline will cause unre- EWatosez À WARNING pairable damage to the catalytic converter. The exhaust system is hot after op- eration. To prevent a fire hazard or | s| burns: e Do not park the vehicle near possible fire hazards such as grass or other materials that easily burn. k e Park the vehicle in a place

where pedestrians or children are not likely to touch the hot exhaust system. e Make sure that the exhaust sys- tem has cooled down before do- ing any maintenance work. e Do not allow the engine to idle more than a few minutes. Long idling can cause a build-up of heat. 3-8 A

77 U3D9E2E0.book Page 9 Thursday, November 6, 2008 10:54 AM

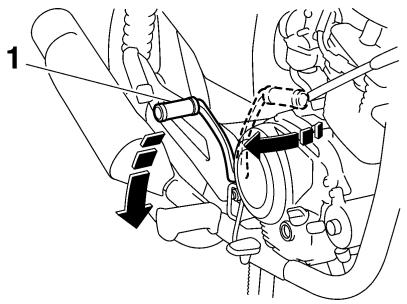

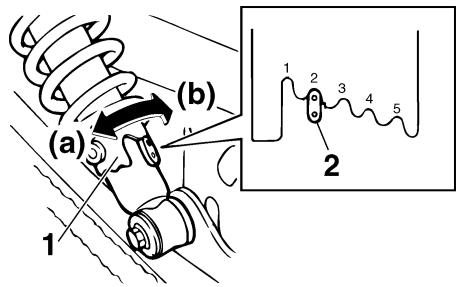

Eausssso Eauvase Ewatozo Kickstarter Adjusting the shock absorber assemblies Always adjust both shock absorber assemblies equally, otherwise poor handling and loss of stability may result. Adjust the spring preload as follows. To increase the spring preload and ES thereby harden the suspension, turn } N the adjusting ring on each shock ab- 1 AN sorber assembly in direction (a). To de-

. crease the spring preload and thereby Ifthe engine fails to start by pushingthe … !: SP'ing preload adjusting ring soften the suspension, turn the adjust- À start switch, try to start it by using the 2. Position indicator ing ring on each shock absorber as- Se? kickstarter. To start the engine, fold out Each shock absorber assembly is Sembly in direction (b). the kickstarter lever, move it down light- equipped with a spring preload adjust- Align the appropriate notch in the ad- ly with your foot until the gears engage, _ ing ring. justing ring with the position indicator and then push it down smoothly but ecae on the shock absorber. forcefully. This model is equipped with IMOTICE a primary kickstarter, allowing the en- To avoid damaging the mechanism, Spring preload setting: : : ; Minimum (soft): gine to be started in any gear if the do not attempt to turn beyond the 1 clutch is disengaged and the sidestand maximum or minimum settings. Standard: is up. However, shifting the transmis- 2 sion into the neutral position before Maximum (hard): starting is recommended. S 39 À

7 U3D9E2E0.book Page 10 Thursday, November 6, 2008 10:54 AM

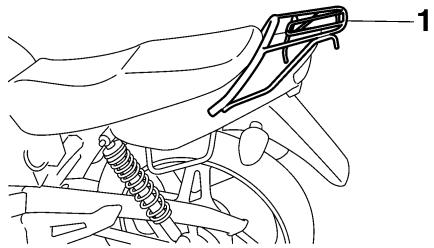

1. Luggage strap holder

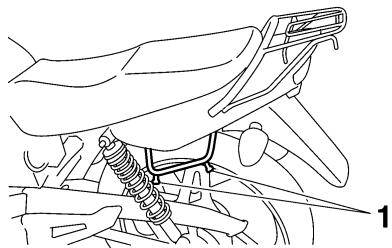

below the rear of the seat. 3-10 EAU1S190 There are four luggage strap holders EAursaot Sidestand The sidestand is located on the left side of the frame. Raise the sidestand or lower it with your foot while holding the vehicle upright. TIP The built-in sidestand switch is part of the ignition circuit cut-off system, which cuis the ignition in certain situations. (See further down for an explanation of the ignition circuit cut-off system.) À WARNING The vehicle must not be ridden the sidestand down, or if the side- stand cannot be properly moved up (or does not stay up), otherwise the sidestand could contact the ground and distract the operator, resulting in a possible loss of control. Yamaha’s ignition circuit cut-off system has been designed to assist the operator in fulfilling the respon- sibility of raising the sidestand be- fore starting off. Therefore, check this system regularly as described EWA10240

h _4 7 U3D9E2E0.book Page 11 Thursday, November 6, 2008 10:54 AM A INSTRUMENT AND CONTROL FUNCTIONS es below and have a Yamaha dealer re- ui : : pause pair it if it does not function proper- Ignition circuit cut-off system y. The ignition circuit cut-off system (com- prising the sidestand switch, cluich switch and neutral switch) has the fol- lowing functions. © _ltprevenis starting when the trans- mission is in gear and the side- stand is up, but the clutch lever is ES not pulled. © _ltprevenis starting when the trans- mission is in gear and the clutch le- ver is pulled, but the sidestand is still down. e _ltcuis the running engine when the transmission is in gear and the sid- estand is moved down. Periodically check the operation of the ignition circuit cut-off system according to the following procedure.

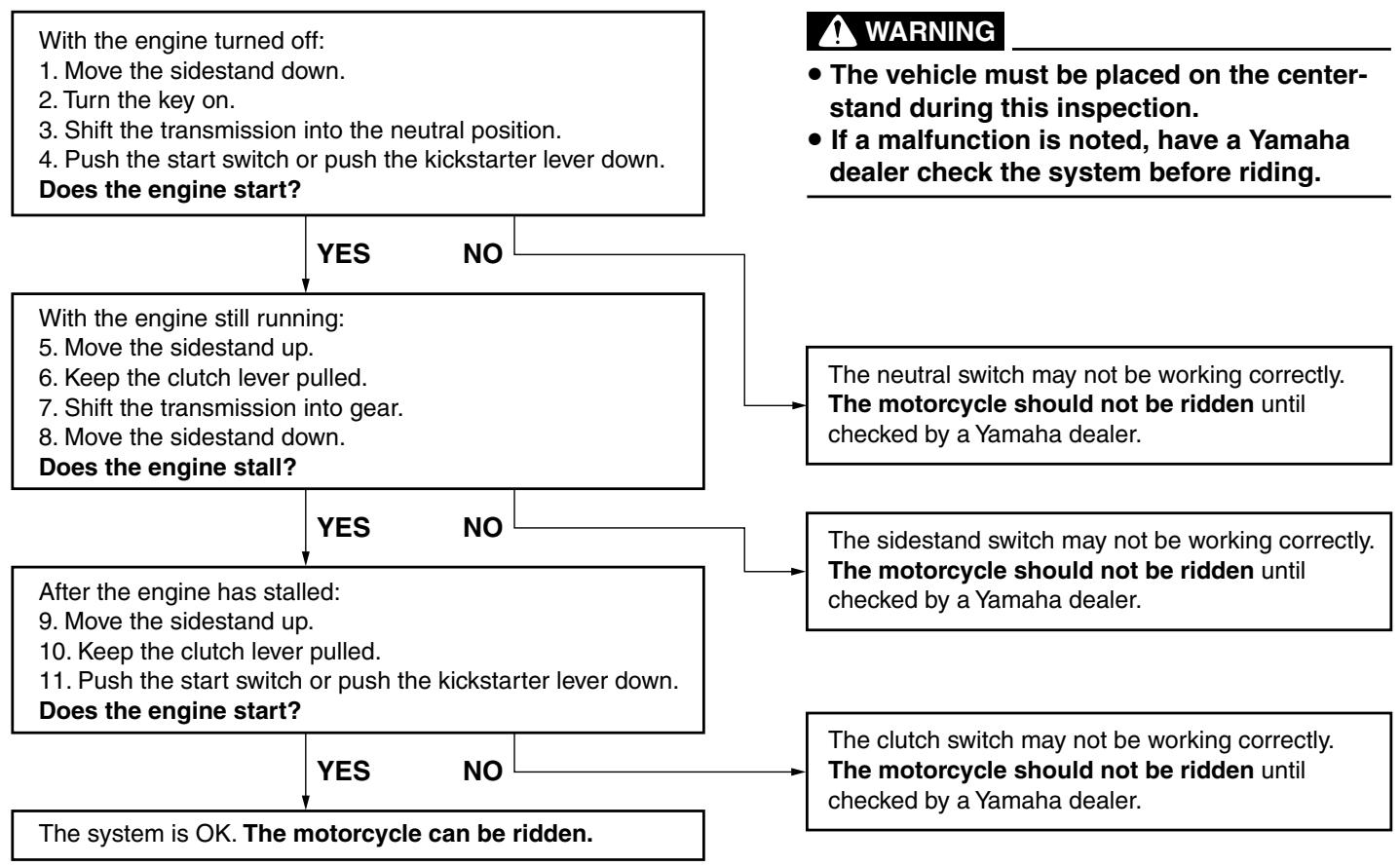

With the engine turned off: EN WARNING

1. Move the sidestand down. e The vehicle must be placed on the center-

2. Turn the key on. stand during this inspection.

3. Shift the transmission into the neutral position. e If a malfunction is noted, have a Yamaha

4. Push the start switch or push the kickstarter lever down. dealer check the system before riding

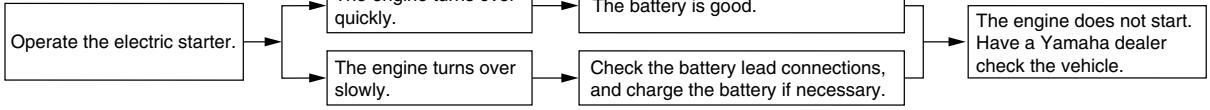

Does the engine start? | s| YES no With the engine still running:

5. Move the sidestand up.

6. Keep the clutch lever pulled. The neutral switch may not be working correctly.

7. Shift the transmission into gear. The motorcycle should not be ridden until

e > 8. Move the sidestand down. checked by a Yamaha dealer. ÎÏ Does the engine stall? YES NO The sidestand switch may not be working correctly. The motorcycle should not be ridden until After the engine has stalled: checked by a Yamaha dealer.

9. Move the sidestand up.

10. Keep the clutch lever pulled.

11. Push the start switch or push the kickstarter lever down.

Does the engine start? The clutch switch may not be working correctly. YES NO The motorcycle should not be ridden until checked by a Yamaha dealer. The system is OK. The motorcycle can be ridden. 3-12

4 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM œ

FOR YOUR SAFETY — PRE-OPERATION CHECKS

EAUISS06 Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection and maintenance procedures and schedules described in the Owners Manual. À WARNING Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. East Before using this vehicle, check the following points:

+ Check fuel level in fuel tank. Fuel + Refuel if necessary. 3-7 + Check fuel line for leakage. + Check oil level in engine. Engine oil + If necessary, add recommended oil to specified level. 6-9 + Check vehicle for oil leakage. + Check operation. + If soft or spongy, have Yamaha dealer bleed hydraulic system. + Check brake pads for wear. Front brake + Replace if necessary. 6-18, 6-18 + Check fluid level in reservoir. + necessary, add recommended brake fluid to specified level. + Check hydraulic system for leakage. + Check operation. Rear brake + Check pedal free play. 6-17, 6-18 + Adjust if necessary. + Check operation. + Lubricate cable if necessary, Clutch + Check lever free play. + Adjust if necessary.

77 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

OR YOUR S o ON CHECKS [

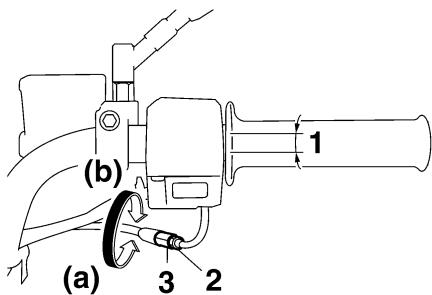

+ Make sure that operation is smooth. ; + Check cable free play. Throttle grip + lfnecessary, have Yamaha dealer adjust cable free play and lubricate cable and 6-12, 6-2 grip housing. Control cables + Make sure that operation is smooth. 62 + Lubricate if necessary. + Check chain slack. echo + Adjust if necessary. Drive chain + Check chain condition. 6-20, 6-21 + Lubricate if necessary. + Check for damage. wnesis and tires + Check lire condiion and tread depth. 13,615 + Check air pressure + Correct if necessary A u + Make sure that operation is smooth. Le Brake and shift pedals + Lubricate pedal pivoting points if necessary 6-23 + Make sure that operation is smooth. Brake and clutch levers + Lubricate lever pivoting points if necessary. 6-23 . + Make sure that operation is smooth. Centerstand, sidestand + Lubricate pivots if necessary, 6-24 - + Make sure that all nuts, bols and sorews are properly tightened Chassis fasteners + Tighten if necessary — Instruments, lights, signals | + Check operation. = and suwitches + Correct if necessary. . ; + Check operation of ignition circuit cut-off system Sidestand switch + If system is not working correclly, have Yamaha dealer check vehicle. 3-10 42 a

77 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

OPERATION AND IMPORTANT RIDING POINTS

EAUIS9S Read the Owners Manual carefully to become familiar with all controls. If there is a control or function you do not understand, ask your Yamaha dealer. À WARNING Failure to familiarize yourself with the controls can lead to loss of con- trol, which could cause an accident or injury. Eauasis Starting the engine In order for the ignition circuit cut-off system to enable starting, one of the following conditions must be met: e The transmission is in the neutral position. e The transmission is in gear with the clutch lever pulled and the sid- estand up. See page 3-11 for more informa- tion. . Turn the key to “ON”.

2. Shiftthe transmission into the neu-

tral position. (See page 5-2.) The neutral indicator light should come on. [f not, ask a Yamaha dealer to check the electrical circuit.

8. Start the engine by pushing the

start switch or by pushing the kick- starter lever down. NOTICE: For maximum engine life, never ac- celerate hard when the engine is cold! {caro If the engine fails to start when us- ing the start switch, release it, wait a few seconds, and then try again. Each starting attempt should be as short as possible to preserve the 5-1

battery. Do not crank the engine more than 10 seconds on any one attempt. lf the engine does not start with the starter motor, try us- ing the kickstarter.

ÎÏ OPERATION AND IMPORTANT RIDING POINTS

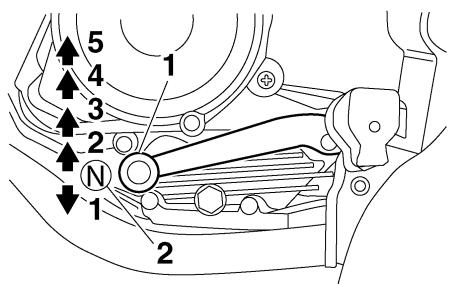

H EAUres71 Ecaæes) : Eaures:0 Shifting NOTICE Tips for reducing fuel con- e Even with the transmission in SUMPtion the neutral position, do not Fuel consumption depends largely on coast for long periods of time your riding style. Consider the following with the engine off, and do not tips to reduce fuel consumption: tow the motorcycle for long dis- e Shift up swiftly, and avoid high en- tances. The transmission is gine speeds during acceleration. properly lubricated only when e Donotrev the engine while shifting the engine is running. Inade- down, and avoid _ high engine quate lubrication may damage speeds with no load on the engine.

1. Shift pedal the transmission. © Tum the engine off instead of let-

| 5. 2. Neutral position © Always use the clutch while ting it idle for an extended length of il f ue time (e.g., in traffic jams, at traffic La & Shifting gears lets you control the changing gears to avold damag net railroad crossing) & ÎÏ amount of engine power available for a engine, nstsons : starting off, accelerating, climbing hills, ana drive train, which are not etc. designed to withstand the The gear positions are shown in the il- shock of forced shifting. lustration. TIP To shift the transmission into the neu- tral position, press the shift pedal down repeatedly until it reaches the end of its travel, and then slightly raise it. 1 5-2 A Ÿ SZ œ,e— —$— —+|®

7" U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM

OPERATION AND IMPORTANT RIDING POINTS

Eauresso Engine break-in There is never a more important period in the life of your engine than the period between 0 and 1000 km (600 mi). For this reason, you should read the follow- ing material carefully. Since the engine is brand new, do not put an excessive load on it for the first 1000 km (600 mi). The various parts in the engine wear and polish themselves to the correct operating clearances. During this period, prolonged full-throt- île operation or any condition that might result in engine overheating must be avoided. EAUS7252 0-500 km (0-300 mi) Avoid prolonged operation above 6000 r/min. After every hour of operation, stop the engine, and then let it cool for five to ten minutes. Vary the engine speed from time to time. Do not operate the engine at one set throttle position. 500-1000 km (300-600 mi) Avoid prolonged operation above 7500 r/min. Rev the engine freely through the gears, but do not use full throtile at any time. NOTICE: After 1000 km (600 mi) of operation, the engine oil must be changed. caro 1000 km (600 mi) and beyond The vehicle can now be operated nor- mally. Ecaroso NOTICE e Keep the engine speed out of the tachometer red zone. e If any engine trouble should oc- cur during the engine break-in period, immediately have a Yamaha dealer check the vehi- cle. 5-3 EAU7213 Parking When parking, stop the engine, and then remove the key from the main switch. À WARNING e Since the engine and exhaust system can become very hot, park in a place where pedestri- ans or children are not likely to touch them and be burned. e Do not park on a slope or on soft ground, otherwise the vehicle may overturn, increasing the risk of a fuel leak and fire. e Do not park near grass or other flammable materials which might catch fire. EWatoatt

77 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

EAUT7241 Periodic inspection, adjustment, and lu- brication will keep your vehicle in the safest and most efficient condition pos- sible. Safety is an obligation of the vehi- cle owner/operator. The most important points of vehicle inspection, adjust- ment, and lubrication are explained on the following pages. The intervals given in the periodic maintenance and lubrication chart should be simply considered as a gen- eral guide under normal riding condi- tions. However, depending on the weather, terrain, geographical location, and individual use, the maintenance in- tervals may need to be shortened. À WARNING Failure to properly maintain the ve- hicle or performing maintenance ac- tivities incorrectly may increase your risk of injury or death during service or while using the vehicle. If you are not familiar with vehicle ser- vice, have a Yamaha dealer perform service. Ewarsi2 Turn off the engine when performing maintenance unless otherwise specified. e A running engine has moving parts that can catch on body parts or clothing and electrical parts that can cause shocks or fires. e Running the engine while ser- vicing can lead to eye injury, burns, fire, or carbon monoxide poisoning — possibly leading to death. See page 1-1 for more in- formation about carbon monox- ide. 6-1 EAUTra4 Owner’s tool kit The owners tool kit is located behind panel B. (See page 6-6.) The service information included in this manual and the tools provided in the owners tool kit are intended to assist you in the performance of preventive maintenance and minor repairs. How- ever, additional tools such as a torque wrench may be necessary to perform certain maintenance work correctly. TIP If you do not have the tools or experi- ence required for a particular job, have a Yamaha dealer perform it for you.

®7 U3D9E2F0. book Page 2 Tuesday, November 11, 2008 11:07 AM

PERIODIC MAINTENANCE AND ADJUSTMENT l Eauiss7o TIP e The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a mileage-based maintenance, is performed instead. e From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi). © _ltems marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills. . : LL. EAisseo Periodic maintenance chart for the emission control system

7 U3D9E2E0.book Page 3 Tuesday, November 11, 2008 11:07 AM œ

®7 U3D9E2F0. book Page 4 Tuesday, November 11, 2008 11:07 AM

ODOMETER READING ANNUAL NO. ITEM CHECK OR MAINTENANCE JOB | 1900km | 6000km | 12000km | 18000 km | 24000km | CHECK (600 mi) | (3500 mi) | (7000 mi) | (10500 mi) | (14000 mi) + Check chain slack, alignment and condition. Ho! | Drive chain + Adjust and lubricate chain with a | Every 1000 km (600 mi) and after washing the motorcycle or riding in the rain special O-ring chain lubricant thoroughly. + Check bearing play and steering ! ! j ! j for roughness. à à à à Ÿ 11] * | Steering bearings cb RE Bus + Lubricate with lithium-soap-base : grease Every 24000 km (14000 mi) . . + Make sure that all nuts, bolts and ! j ! j y

2) ‘| Chassis fasteners |" is are properiy tightened \ \ \ \ \

ia] | Sidestand, center- | + Check operation. ; : ñ ; : SA stand + Lubricate. à “ “ \ “ 14|*| Sidestand switch + Check operation. Ÿ \ Ÿ Ÿ Ÿ Ÿ 15! «| Front tork + Check operation and for oil leak- \ \ V Ÿ age. el +| Shock absorber as- | + Check operation and shock ab- ! : ï ; semblies sorbers for oil leakage. à à à Ÿ + Change. . . 17] | Engine oi + Check oil level and vehicle for oil \ \ \ \ \ \ leakage. 4g| + | Frontandrear brake |, Check operation. \ J \ \ \ \ switches ho! | Moving parts and |, | Lbricate \ \ \ \ \ cables

h 4 Ÿ7 U3D9E2F0. book Page S Tuesday, November 11, 2008 11:07 AM

ODOMETER READING NO. ITEM CHECK OR MAINTENANCE JOB | 900km | 6000km | 12000 km | 18000 km | 24000 km RUE (600 mi) | (3500 mi) | (7000 mi) | (10500 mi) | (14000 mi) + Check operation and free play. Throttie grip hous- | * AUS! the throtle cable free play 2o|*|: if necessary. \ \ \ \ \ ing and cable + Lubricate the throtile grip housing and cable. Dal: | Lights, signals and | + Check operation. V \ V 4 \ V switches + Adjust headlight beam. EAU18660 À TIP

2] e The air filter needs more frequent service if you are riding in unusually wet or dusty areas. < > e Hydraulic brake service | 5. + Regularly check and, if necessary, correct the brake fluid level. + Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid. + Replace the brake hoses every four years and if cracked or damaged. 6-5 À

: & À æ | U3D9E2E0.book Page 6 Thursday, November 6, 2008 10:54 AM NZ

PERIODIC MAINTENANCE AND ADJUSTMENT

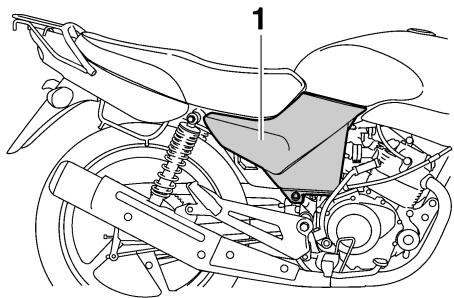

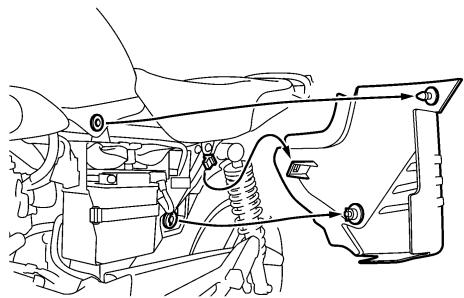

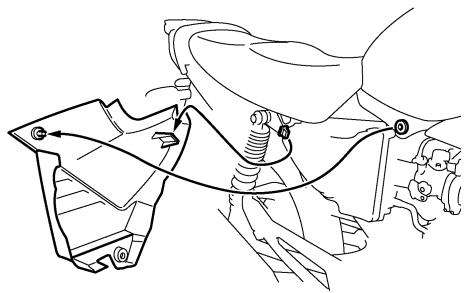

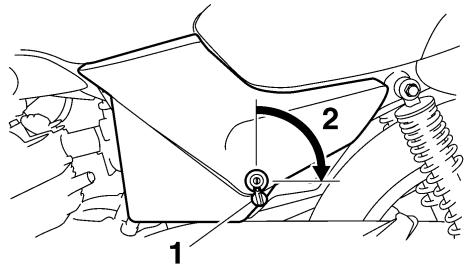

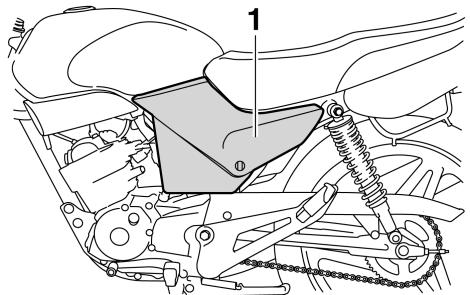

EAUS771 _ 2. Pull the front of the panel out, and } then slide the panel forward to re- lease it in the rear. Removing and installing pan- els The panels shown need to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time a panel needs to be removed and installed. EAU37070 Panel À To install the panel >

1. Secure the rear of the panel, and

then push the front of the panel in. To remove the panel

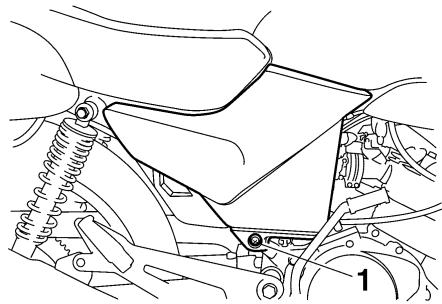

1. Remove the screw.

2. Install the screw.

æ | & U3D9E2E0.book Page 7 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

EAU3e96 Panel B To remove the panel

1. Slide the panel lock cover open, in-

sert the key into the lock, and then turn it 1/4 turn clockwise.

2. Pull the front of the panel out with

the key inserted in the lock, and then slide the panel forward to re- lease it in the rear. To install the panel

1. Secure the rear of the panel, and

then push the front of the panel in with the key inserted in the lock.

2. While pushing the panel inward,

turn the key counterclockwise to the original position, remove it, and then close the panel lock cover. 6-7 EAU19608 Checking the spark plug The spark plug is an important engine component, which is easy to check. Since heat and deposits will cause any spark plug to slowly erode, the spark plug should be removed and checked in accordance with the periodic mainte- nance and lubrication chart. In addition, the condition of the spark plug can re- veal the condition of the engine. To remove the spark plug

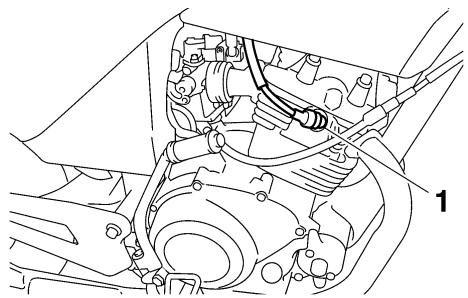

1. Remove the spark plug cap.

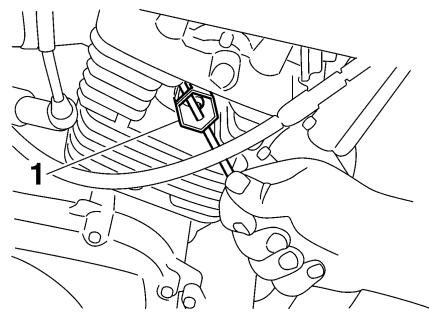

2. Remove the spark plug as shown,

with the spark plug wrench includ- ed in the owners tool kit.

7 U3D9E2E0.book Page 8 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

1. Spark plug wrench

To check the spark plug

1. Check that the porcelain insulator

around the center electrode of the spark plug is a medium-to-light tan (the ideal color when the vehicle is ridden normally).

TIP If the spark plug shows a distincily dif- ferent color, the engine could be oper- ating improperly. Do not attempt to diagnose such problems yourself. In- stead, have a Yamaha dealer check the vehicle.

erosion and excessive carbon or other deposits, and replace it if necessary. Specified spark plug:

To install the spark plug

1. Measure the spark plug gap with a

wire thickness gauge and, if nec- essary, adjust the gap to specifica- tion.

2. Clean the surface of the spark plug

gasket and its mating surface, and then wipe off any grime from the spark plug threads.

8. Install the spark plug with the

TIP If a torque wrenchis not available when installing a spark plug, a good estimate of the correct torque is 1/4-1/2 turn past finger tight. However, the spark plug should be tightened to the speci- fied torque as soon as possible.

æ | & U3D9E2E0.book Page 9 Thursday, November 6, 2008 10:54 AM

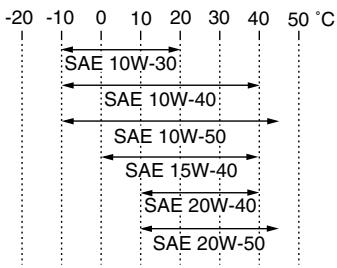

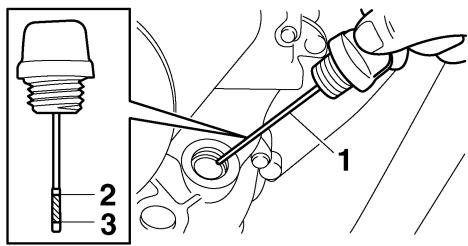

4. If the engine oil is at or below the

minimum level mark, add sufficient oil of the recommended type to raise it to the correct level. . Insert the dipstick into the oil filler hole, and then tighten the oil filler cap. Engine oil The engine oil level should be checked before each ride. In addition, the oil must be changed ai the intervals spec- ified in the periodic maintenance and lubrication chart. To check the engine oil level d To change the engine oil

1. Place the vehicle on the center-

1. Start the engine, warm it up for

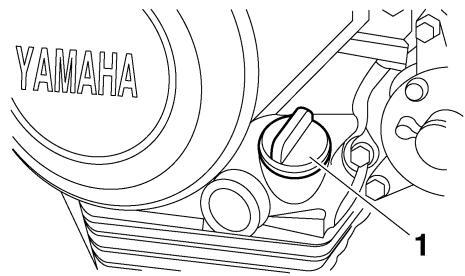

1. Engine oil filler cap

stand. A slight tilt to the side can result in a false reading. TIP several minutes, and then turn it off.

2. Start the engine, warm it up for il ji

/ several minutes and then turn it The engine oil should be between the 2. pce ou ol pen anal the engine c SA off. minimum and maximum level marks. 3 Rooeet ne “engine oi filer cap 7 | 5. 8. ai a few mes su the oil set- and drain bolt to drain the oil from les, remove the oil filler cap, wipe the crankcase. the dipstick clean, insert it back @ \ into the oil filer hole (without screwing it in), and then remove it again to check the oil level. 2LQ /

7 U3D9E2E0.book Page 10 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

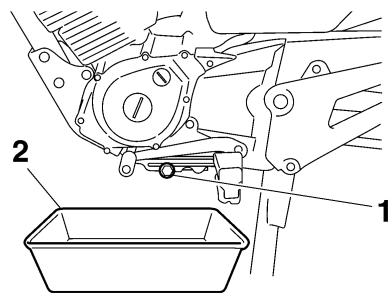

4. Install the engine oil drain bolt, and

then tighten it to the specified e Make sure that no foreign mate- rial enters the crankcase. torque. Tightening torque: Engine oil drain bolt: 20 Nm (2.0 mkgf, 14 ft-bf)

5. Refill with the specified amount of

the recommended engine oil, and then install and tighten the engine oil filler cap. Recommended engine oil: See page 8-1. bé Oil change quantity:

1.00 L (1.06 US at, 0.88 Imp.qt)

ECAT1620 NOTICE © In order to prevent clutch slip- page (since the engine oil also lubricates the clutch), do not mix any chemical additives. Do not use oils with a diesel speci- fication of “CD” or oils of a high- er quality than specified. In addition, do not use oils labeled “ENERGY CONSERVING Il” or higher.

6. Start the engine, and then let it idle

for several minutes while checking it for oil leakage. If oil is leaking, im- mediately turn the engine off and check for the cause.

7. Turn the engine off, and then

check the oil level and correct it if necessary. 6-10 Eausriee Cleaning the air filter element The air filter element should be cleaned at the intervals specified in the periodic maintenance and lubrication chart. Clean the air filter element more fre- quenily if you are riding in unusually wet or dusty areas.

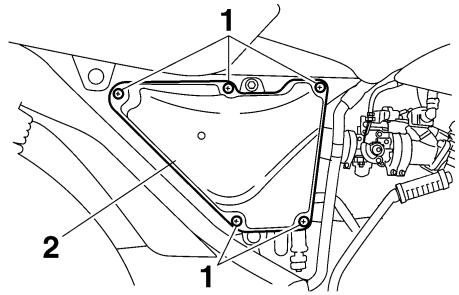

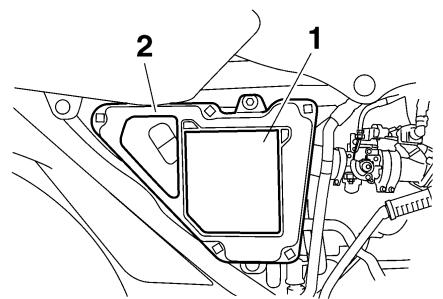

1. Remove panel A. (See page 6-6.)

2. Remove the air filter case cover by

removing the screws.

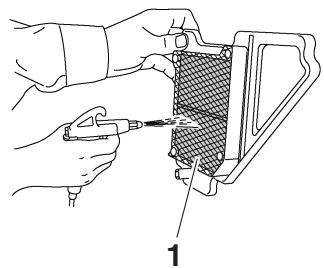

2. Air filter case cover

3. Remove the air filter element.

7 U3D9E2E0.book Page 11 Thursday, November 6, 2008 10:54 AM

. Remove the sponge material from the air filter element. . Lighily tap the air filter element to remove most of the dust and dirt, and then blow the remaining dirt out with compressed air on the mesh side as shown. If the air filter element is damaged, replace it.

1. Air filter element

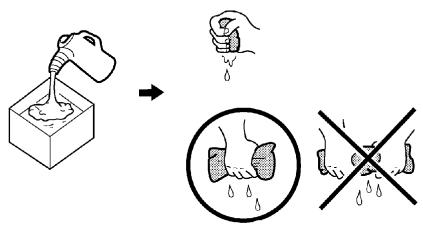

6. Clean the sponge material with

solvent, then squeeze the remain- ing solvent out, and be sure to let the sponge material dry before in- stalling it into the air filter element. Ifthe sponge material is damaged, replace it. WARNING! Use only a dedicated parts cleaning sol- vent. To avoid the risk of fire or explosion, do not use gasoline or solvents with a low flash point. mas NOTICE: To avoid damaging the sponge material, handle it gently and carefully, and do not twist it.rcaision 6-11

7. Install the sponge material into the

air filter element, and then install the air filter element into the air fil- ter case. NOTICE: Make sure that the air filter element is properly seated in the air filter case. The engine should never be operat- ed without the air filter element installed, otherwise the pis- ton(s) and/or cylinder(s) may become excessively worn. LECAtOaBN]

8. Install the air filter case cover by in-

stalling the screws.

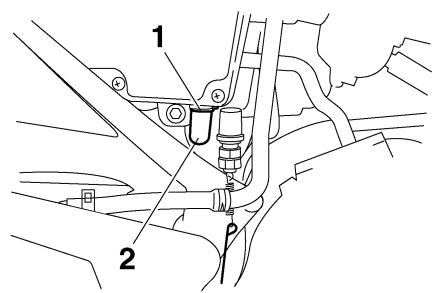

9. Check the hose at the bottom of

the air filter case for accumulated dust or water, and if necessary, drain it by removing the clamp, and then removing the plug.

7 U3D9E2E0.book Page 12 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

EAU Checking the engine idling speed Check the engine idling speed and, if necessary, have it corrected by a Yamaha dealer. Engine idling speed: 1300-1500 r/min

2. Air filter check hose plug

10. Install the plug into the check

hose, and then install the clamp.

11. Install the panel.

Adjusting the throttle cable free play

The throttle cable free play should mea- sure 3.0-7.0 mm (0.12-0.28 in) at the throttle grip. Periodically check the throttle cable free play and, if neces- sary, adjust it as follows. TIP The engine idling speed must be cor- rectly adjusted before checking and ad- justing the throttle cable free play.

7 USD9E2E0.book Page 13 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

2. To increase the throttle cable free

play, turn the adjusting nut in direc- tion (a). To decrease the throttle cable free play, turn the adjusting nut in direction (b).

8. Tighiten the locknut.

Eauzt4ot Valve clearance The valve clearance changes with use, resulting in improper air-fuel mixture and/or engine noise. To prevent this from occurring, the valve clearance must be adjusted by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart. 6-13 EAU?1562 Tires To maximize the performance, durabil- ity, and safe operation of your motor- cycle, note ïthe following points regarding the specified tires. Tire air pressure The tire air pressure should be checked and, if necessary, adjusted before each ride. À WARNING Operation of this vehicle with im- proper tire pressure may cause se- vere injury or death from loss of control. e The tire air pressure must be checked and adjusted on cold tires (i.e., when the temperature of the tires equals the ambient temperature). e Thetire air pressure must be ad- justed in accordance with the riding speed and with the total weight of rider, passenger, car- go, and accessories approved for this model. EWatosot

7 U3D9E2E0.book Page 14 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

• Total weight of rider, passenger, car- go and accessories EWatostt À WARNING Never overload your vehicle. Opera- tion of an overloaded vehicle could cause an accident. Tire inspection

The tires must be checked before each ride. If the center tread depth reaches the specified limit, if the tire has a naïl or glass fragments in it, or if the sidewall is cracked, have a Yamaha dealer re- place the tire immediately. Minimum tire tread depth (front and rear):

TIP The tire tread depth limits may differ from country to country. Always comply With the local regulations. 6-14 Tire information This motorcycle is equipped with cast wheels and tubeless tires. WARNING The front and rear tires should be of the same make and design, other- wise the handling characteristics of the vehicle may be different, which could lead to an accident. EWatoast After extensive tests, only the tires list- ed below have been approved for this model by Yamaha Motor Co. Ltd. Front tire: Size: 2.75-18 42P Manufacturer/model:

Rear tire: Size: 90/90-18 57P Manufacturer/model:

EWatosro À WARNING e Have a Yamaha dealer replace excessively worn tires. Besides being illegal, operating the vehi-

7 U3D9E2E0.book Page 15 Thursday, November 6, 2008 10:54 AM 4

PERIODIC MAINTENANCE AND ADJUSTMENT

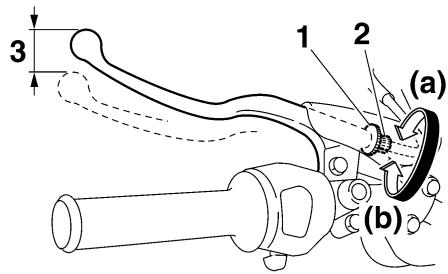

EAU21960 EAUz2043 Adjusting the clutch lever free play cle with excessively worn tires decreases riding stability and can lead to loss of control. e The replacement of all wheel and brake related parts, includ- ing the tires, should be left to a Cast wheels To maximize the performance, durabil- ity, and safe operation of your vehicle, note the following points regarding the specified wheels. Yamaha dealer, who has the necessary professional knowl- edge and experience. e The wheel rims should be checked for cracks, bends or warpage be- fore each ride. lf any damage is found, have a Yamaha dealer re- place the wheel. Do not attempt even the smallest repair to the wheel. À deformed or cracked wheel must be replaced. e The wheel should be balanced whenever either the tire or wheel has been changed or replaced. An unbalanced wheel can result in poor performance, adverse han- dling characteristics, and a short- ened tire life. e Ride at moderate speeds after changing a tire since the tire sur- face must first be “broken in” for it to develop its optimal characteris- tics. 6-15

The clutch lever free play should mea- sure 10.0-15.0 mm (0.39-0.59 in) as shown. Periodically check the clutch le- ver free play and, if necessary, adjust it as follows.

1. Slide the rubber cover back at the

play, turn the adjusting bolt in di- rection (a). To decrease the clutch lever free play, turn the adjusting bolt in direction (b).

7 USD9E2E0.book Page 16 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

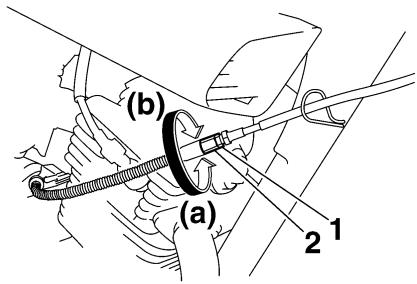

TIP If the specified clutch lever free play could be obtained as described above, skip steps 4-7.

4. Fully turn the adjusting bolt at the

clutch lever in direction (a) to loos- en the clutch cable.

5. Loosen the locknut at the crank-

2. Clutch lever free play adjusting nut (crank-

7. Tighten the locknut at the crank-

8. Tighten the locknut at the cluich le-

ver and then slide the rubber cover to its original position. 6-16 EAUTI221 Checking the front brake lever free play

1. Brake lever free play

The brake lever free play should mea- sure 0.0-7.0 mm (0.00-0.28 in) as shown. Periodically check the brake le- ver free play and, if necessary, have a Yamaha dealer check the brake sys- tem. À WARNING An incorrect brake lever free play in- dicates a hazardous condition in the brake system. Do not operate the ve- hicle until the brake system has been checked or repaired by a Yamaha dealer. EWatogst

7 USD9E2E0.book Page 17 Thursday, November 6, 2008 10:54 AM

Ï PERIODIC MAINTENANCE AND ADJUSTMENT

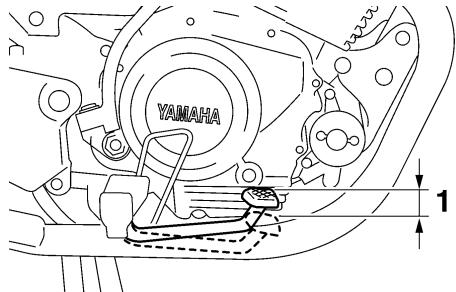

EAusser2 Adjusting the brake pedal free play

1. Brake pedal free play

The brake pedal free play should mea- | 5. sure 20.0-30.0 mm (0.79-1.18 in) at the brake pedal end as shown. Period- ically check the brake pedal free play and, if necessary, adjust it as follows. To increase the brake pedal free play, turn the adjusting nut at the brake rod in direction (a). To decrease the brake pedal free play, turn the adjusting nut in direction (b). ®4— EWa1ocso À WARNING e After adjusting the drive chain slack or removing and installing the rear wheel, always check the brake pedal free play. e lf proper adjustment cannot be obtained as described, have a Yamaha dealer make this ad- justment. e After adjusting the brake pedal free play, check the operation of the brake light. 6-17 EAU22292 Adjusting the rear brake light switch

1. Rear brake light switch

The rear brake light, which is activated by the brake pedal, should come on just before braking takes effect. If neces- sary, adjust the brake light switch as follows.

1. Remove panel A. (See page 6-6.)

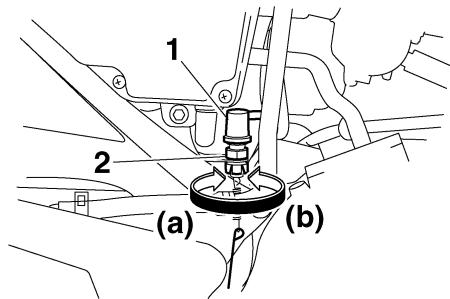

2. Turn the adjusting nut while hold-

ing the rear brake light switch in place. To make the brake light come on earlier, turn the adjusting nut in direction (a). To make the brake light come on later, turn the adjusting nut in direction (b).

æ | & U3D9E2E0.book Page 18 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

EAUP2Se0 Checking the front brake pads and rear brake shoes The front brake pads and the rear brake shoes must be checked for wear at the intervals specified in the periodic main- tenance and lubrication chart. EAU?240 Front brake pads

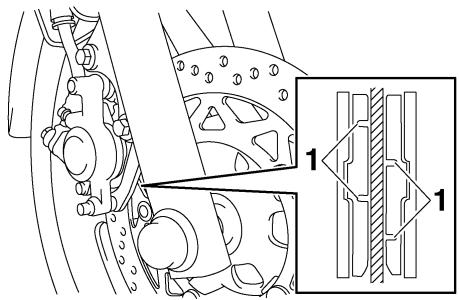

1. Brake pad wear indicator

Each front brake pad is provided with wear indicator grooves, which allow you to check the brake pad wear with- out having to disassemble the brake. To check the brake pad wear, check the wear indicator grooves. If a brake pad has worn to the point that the wear

indicator grooves have almost disap- peared, have a Yamaha dealer replace the brake pads as a set. Eaueerro Rear brake shoes

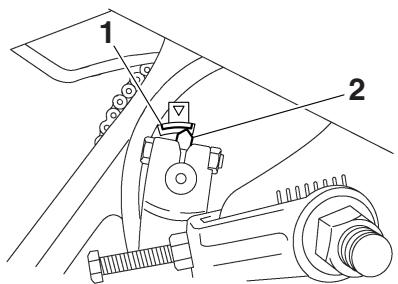

1. Brake shoe wear limit mark

2. Brake shoe wear indicator

The rear brake is provided with a wear indicator, which allows you to check the brake shoe wear without having to dis- assemble the brake. To check the brake shoe wear, check the position of the wear indicator while applying the brake. If a brake shoe has worn to the point that the wear indicator reaches the wear limit mark, have a Yamaha dealer replace the brake shoes as a set. EAUS70 Checking the front brake fluid level

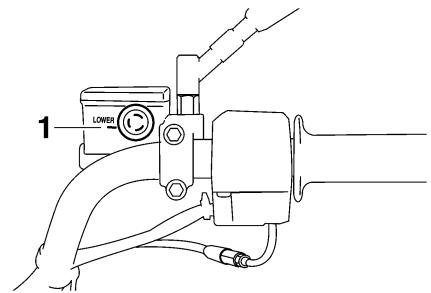

1. Minimum level mark

Insufficient brake fluid may allow air to enter the brake system, possibly caus- ing it to become ineffective. Before riding, check that the brake fluid is above the minimum level mark and replenish if necessary. A low brake fluid level may indicate worn brake pads and/or brake system leakage. If the brake fluid level is low, be sure to check the brake pads for wear and the brake system for leakage. Observe these precautions:

7 USD9E2E0.book Page 19 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

e When checking the fluid level, make sure that the top of the mas- ter cylinder is level by turning the handliebars. e Use only the recommended quality brake fluid, otherwise the rubber seals may deteriorate, causing leakage and poor braking perfor- mance. Recommended brake fluid: DOT 4 TIP If DOT 4 is not available, DOT 3 can be used. e Refill with the same type of brake fluid. Mixing fluids may result in a harmful chemical reaction and lead to poor braking performance. e Be careful that water does not en- ter the master cylinder when refill- ing. Water will significantly lower the boiling point of the fluid and may result in vapor lock. e Brake fluid may deteriorate paint- ed surfaces or plastic parts. Al- ways clean up spiled fluid immediately. e As the brake pads wear, it is nor- mal for the brake fluid level to grad- ually go down. However, if the brake fluid level goes down sud- denly, have a Yamaha dealer check the cause. 6-19 EAuzz721 Changing the brake fluid Have a Yamaha dealer change the brake fluid at the intervals specified in the TIP after the periodic maintenance and lubrication chart. In addition, have the oil seals of the brake master cylin- der and caliper as well as the brake hose replaced at the intervals listed be- low or whenever they are damaged or leaking. e Oil seals: Replace every two years. e Brake hose: Replace every four years.

7 U3D9E2E0.book Page 20 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

EAU22760 Drive chain slack The drive chain slack should be checked before each ride and adjusted if necessary. Eauzer To check the drive chain slack

1. Place the motorcycle on the cen-

2. Shift the transmission into the neu-

tral position. . Spin the rear wheel several times to locate the tightest portion of the drive chain.

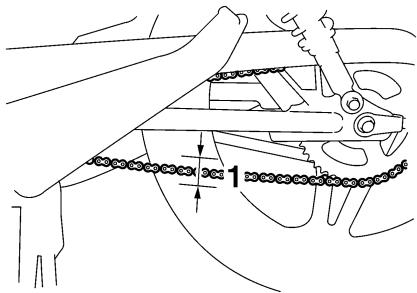

4. Measure the drive chain slack as

shown. Drive chain slack: 20.0-30.0 mm (0.79-1.18 in)

5. lfthe drive chain slack is incorrect,

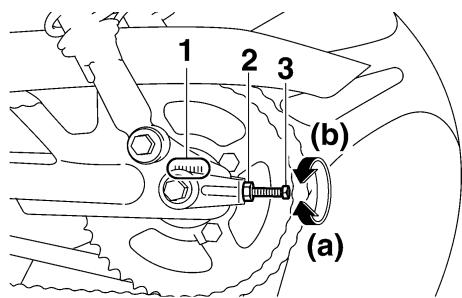

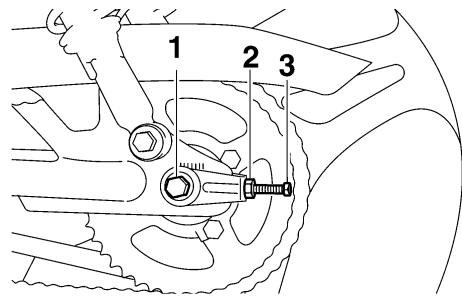

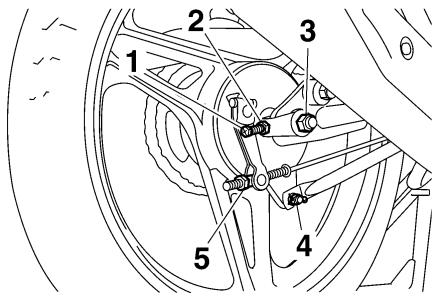

adjust it as follows. Eausrie To adjust the drive chain slack

2. Loosen the chain puller locknut at

each end of the swingarm. 6-20

8. To tighten the drive chain, turn the

drive chain slack adjusting bolt at each end of the swingarm in direc- tion (a). To loosen the drive chain, turn the adjusting bolt at each end of the swingarm in direction (b), and then push the rear wheel for- ward. NOTICE: Improper drive chain slack will overload the en- gine as well as other vital parts of the motorcycle and can lead to chain slippage or breakage. To prevent this from occurring, keep the drive chain slack with- in the specified limits. cas: TIP Using the alignment marks on each side of the swingarm, make sure that both chain pullers are in the same posi- tion for proper wheel alignment.

7 U3D9E2E0.book Page 21 Thursday, November 6, 2008 10:54 AM

4. Tighten both locknuts, and then

tighten the axle nut and brake torque rod nut to their specified torques. Tightening torques: Axe nut: 80 Nm (8.0 mkgf, 58 ft-Ibf) Brake torque rod nut: 19 Nm (1.9 mkgf, 13 ft-Ibf)

5. Adjust the brake pedal free play.

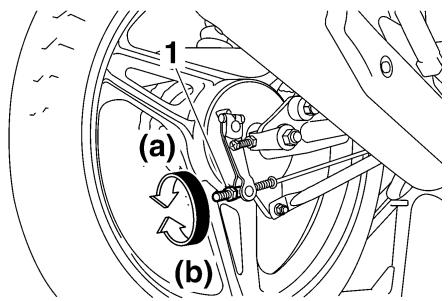

(See page 6-17.) EWa1oGso After adjusting the brake pedal free play, check the operation of the brake light. 6-21 EAUz2023 Cleaning and lubricating the drive chain The drive chain must be cleaned and lubricated at the intervals specified in the periodic maintenance and lubrica- tion chart, otherwise it will quickly wear out, especially when riding in dusty or wet areas. Service the drive chain as follows. Ecarosst NOTICE The drive chain must be lubricated after washing the motorcycle and riding in the rain.

1. Clean the drive chain with kero-

sene and a small soft brush. NOTICE: To prevent damaging the O-rings, do not clean the drive chain with steam cleaners, high-pressure washers or inap- propriate solvents. carie:

2. Wipe the drive chain dry.

3. Thoroughly lubricate the drive

chain with a special O-ring chain lubricant. NOTICE: Do not use engine oil or any other lubri- cants for the drive chain, as they

7 U3D9E2E0.book Page 22 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

may contain substances that the O-rings. could damage CONEN

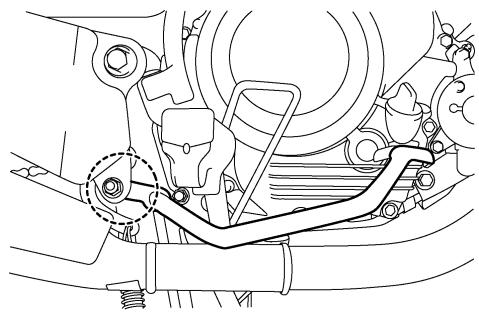

Eaurssot Checking and lubricating the cables The operation of all control cables and the condition of the cables should be checked before each ride, and the ca- bles and cable ends should be lubricat- ed if necessary. If a cable is damaged or does not move smoothly, have a Yamaha dealer check or replace it. WARNING! Damage to the outer Sheath may interfere with proper ca- ble operation and will cause the in- ner cable to rust. Replace a damaged cable as soon as possible to prevent unsafe conditions. waiozz1 Recommended lubricant: Engine oil 6-22 Eaurert Checking and lubricating the throttle grip and cable The operation of the throttle grip should be checked before each ride. In addi- tion, the cable should be lubricated at the intervals specified in the periodic maintenance chart.

æ | & U3D9E2E0.book Page 23 Thursday, November 6, 2008 10:54 AM

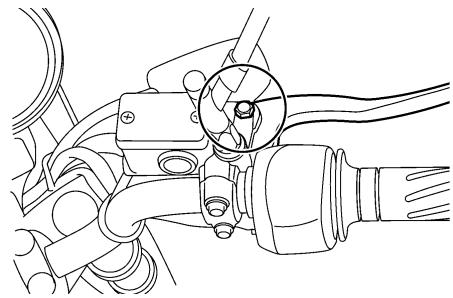

EAU&427I Checking and lubricating the brake and shift pedals The operation of the brake and shift pedals should be checked before each ride, and the pedal pivots should be lu- bricated if necessary. Recommended lubricant: Lithium-soap-based grease 6-23 EAUz3142 Checking and lubricating the brake and clutch levers Brake lever The operation of the brake and clutch levers should be checked before each ride, and the lever pivots should be lu- bricated if necessary.

7 U3D9E2E0.book Page 24 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

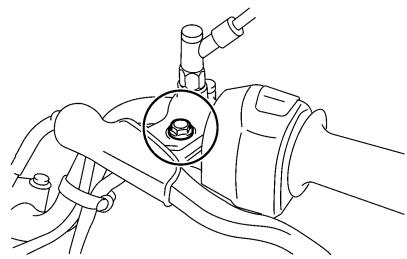

Recommended lubricants: Brake lever: Silicone grease Clutch lever: Lithium-soap-based grease EAUP313 Checking and lubricating the centerstand and sidestand The operation of the centerstand and sidestand should be checked before each ride, and the pivots and metal-to- metal contact surfaces should be lubri- cated if necessary. If the centerstand or sidestand does not move up and down smoothly, have a Yamaha dealer check or re- pair it. Otherwise, the centerstand or sidestand could contact the ground and distract the operator, resulting in a possible loss of control. EWatozat 6-24 Recommended lubricant: Lithium-soap-based grease

7 USD9E2E0.book Page 25 Thursday, November 6, 2008 10:54 AM

Ï PERIODIC MAINTENANCE AND ADJUSTMENT

Lubricating the swingarm piv- ots The swingarm pivots must be lubricat- ed at the intervals specified in the peri- odic maintenance and lubrication chart. Recommended lubricant: Lithium-soap-based grease

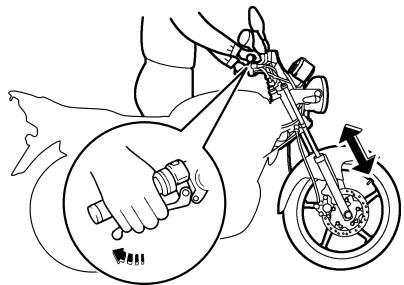

EAUz227e Checking the front fork The condition and operation of the front fork must be checked as follows at the intervals specified in the periodic main- tenance and lubrication chart. To check the condition Check the inner tubes for scratches, damage and excessive oil leakage. To check the operation

1. Place the vehicle on a level sur-

face and hold it in an upright posi- tion. WARNING! To avoid injury, securely support the vehicle so there is no danger of it falling OVEr.{snaiorsi)

2. While applying the front brake,

push down hard on the handlebars several times to check if the front fork compresses and rebounds smoothly. 6-25 ECA10590 NOTICE If any damage is found or the front fork does not operate smoothly, a Yamaha dealer check or re- it.

7 USD9E2E0.book Page 26 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

Eauassit Checking the steering Womn or loose steering bearings may cause danger. Therefore, the operation of the steering must be checked as fol- lows at the intervals specified in the pe- riodic maintenance and lubrication chart.

1. Place the vehicle on the center-

stand. WARNING! To avoid inju- ry, securely support the vehicle so there is no danger of it falling Over. (saiorst]

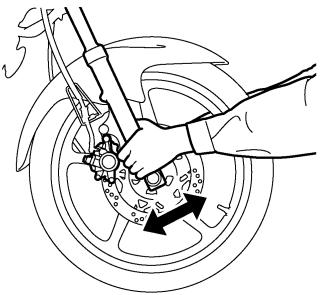

2. Hold the lower ends of the front

fork legs and try to move them for- ward and backward. If any free play can be felt, have a Yamaha dealer check or repair the steering. EAur2200 Checking the wheel bearings The front and rear wheel bearings must be checked at the intervals specified in the periodic maintenance and lubrica- tion chart. If there is play in the wheel hub or if the wheel does not turn smoothly, have a Yamaha dealer check the wheel bearings. 6-26 EAUPIES Battery

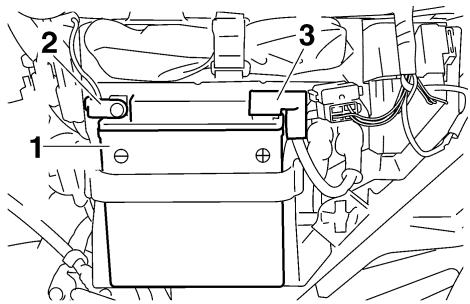

2. Negative battery terminal

3. Positive battery terminal

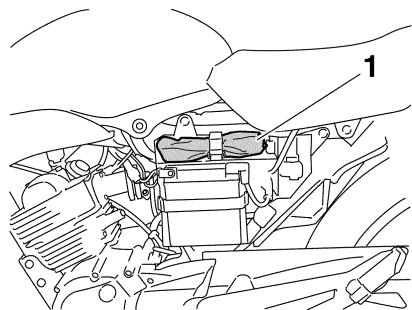

The battery is located behind panel B. (See page 6-6.) This model is equipped with a VRLA (Valve Regulated Lead Acid) battery. There is no need to check the electro- lyte or to add distilled water. However, the battery lead connections need to be checked and, if necessary, tightened. ECA10620 NOTICE Never attempt to remove the battery cell seals, as this would permanent- ly damage the battery.

7 USD9E2E0.book Page 27 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

EWa1076o e Electrolyte is poisonous and dangerous since it contains sul- furic acid, which causes severe burns. Avoid any contact with skin, eyes or clothing and al- ways shield your eyes when working near batteries. In case of contact, administer the fol- lowing FIRST AID. + EXTERNAL: Flush with plenty of water. INTERNAL: Drink large quan- tities of water or milk and im- mediately call a physician. EYES: Flush with water for 15 minutes and seek prompt medical attention. e Batteries produce explosive hy- drogen gas. Therefore, keep sparks, flames, cigarettes, etc., away from the battery and pro- vide sufficient ventilation when charging it in an enclosed space. e KEEP THIS AND ALL BATTER-

IES OUT OF THE REACH OF

CHILDREN. To charge the battery Have a Yamaha dealer charge the bat- tery as soon as possible if it seems to have discharged. Keep in mind that the battery tends to discharge more quickly if the vehicle is equipped with optional electrical accessories. Eca1es20 NOTICE To charge a VRLA (Valve Regulated Lead Acid) battery, a special (con- stant-voltage) battery charger is re- quired. Using a conventional battery charger will damage the battery. If you do not have access to a con- stant-voltage battery charger, have a Yamaha dealer charge your battery. To store the battery

1. If the vehicle will not be used for

more than one month, remove the battery, fully charge it, and then place it in a cool, dry place. NOTICE: When removing the 6-27

battery, be sure the key is turned to “OFF”, then discon- nect the negative lead before disconnecting the positive lead. 1ECAI62D2)

2. lfthe battery will be stored for more

than two months, check it at least once a month and fully charge it if necessary.

3. Fully charge the battery before in-

4. After installation, make sure that

the battery leads are properly con- nected to the battery terminals. EcA1esS0 NOTICE Always keep the battery charged. Storing a discharged battery can cause permanent battery damage.

: & À æ | U3D9E2E0.book Page 28 Thursday, November 6, 2008 10:54 AM DA

PERIODIC MAINTENANCE AND ADJUSTMENT

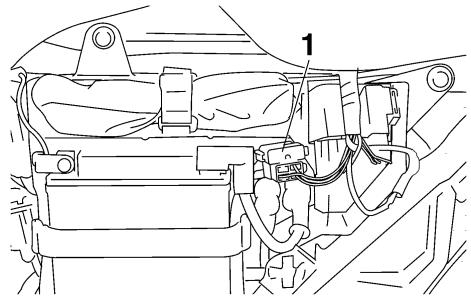

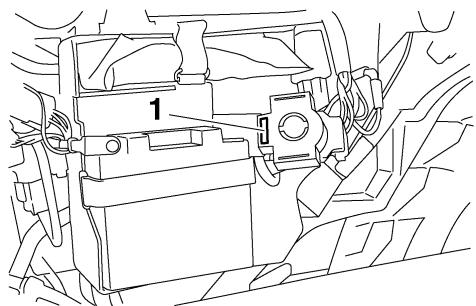

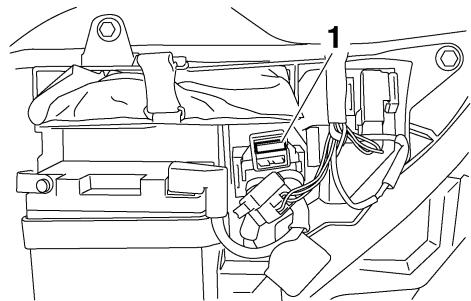

au The spare fuse is located on the rear of Specified fuse: the starter relay holder. 15.0 À To access the spare fuse, remove the starter relay (together with its holder) by 3. Turn the key to “ON” and turn on pulling it out, then turn the starter relay the electrical circuits to check if the over. devices operate.

4. If the fuse immediately blows

again, have a Yamaha dealer check the electrical system. Replacing the fuse The fuse is located behind panel B. (See page 6-6.) To access the fuse, remove the starter relay coupler. If the fuse is blown, replace it as fol- lows.

1. Turn the key to “OFF” and turn off

all electrical circuits.

2. Remove the blown fuse, and then

install a new fuse of the specified amperage. WARNING! Do not use a fuse of a higher amperage rating than recommended to avoid causing extensive dam- age to the electrical system and possibly a fire. was 6-28 A

æ | & U3D9E2E0.book Page 29 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

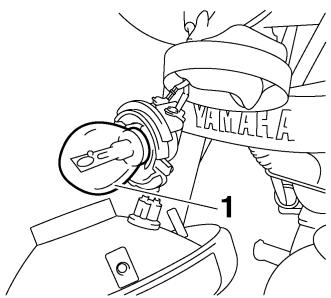

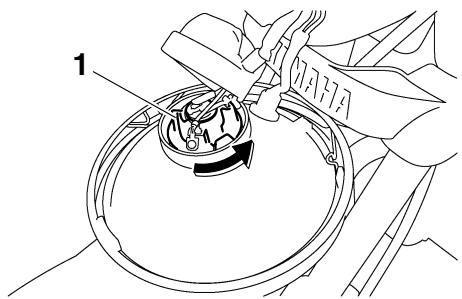

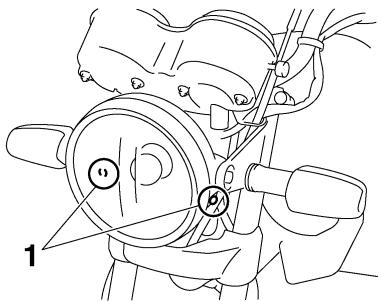

Eaussts Replacing the headlight bulb This model is equipped with a quartz bulb headlight. If the headlight bulb burns out, replace it as follows. ECA10860 NOTICE Do not touch the glass part of the headlight bulb to keep it free from oil, otherwise the transparency of the glass, the luminosity of the bulb, and the bulb life will be adversely af- 2. Remove the headlight bulb socket 4. Remove the burnt out bulb by

1. Screw 1. Headlight bulb socket

fected. Thoroughly clean off any dirt cover. pushing it in and turning it counter- L and fingerprints on the headlight clockwise. / SP bulb using a cloth moistened with al- F7 | 5. cohol or thinner.

1. Headlight bulb socket cover

3. Remove the headlight bulb socket 1: Headight bulb

(together with the bulb) by turning 5. Insert a new bulb into the socket,

1. Do not touch the glass part of the bulb. it counterclockwise. push it in, and then turn it clock-

1. Remove the headlight unit by re- wise until it stops.

moving the screws. 6-29 c S 2

d U3D9E2E0.book Page 30 Thursday, November 6, 2008 10:54 AM

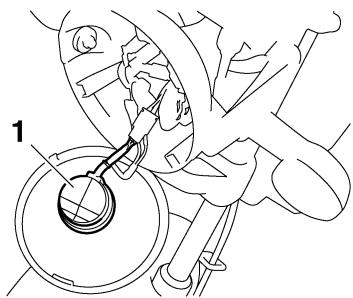

. Install the socket (together with the : : L EAU bulb) by tuning it clockwise. Replacing the tail/brake light . Install the headlight bulb socket bulb cover. 1. Remove the tail/brake light lens by . Install the headlight unit by install removing the screws. ing the screws. . Have a Yamaha dealer adjust the headlight beam if necessary.

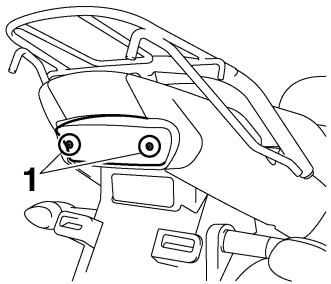

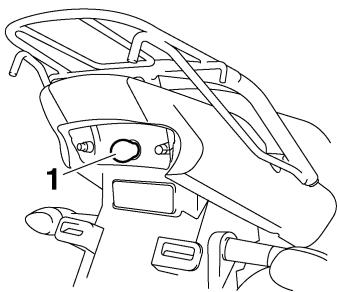

1. Tai/brake light bulb

8. Insert a new bulb into the socket,

push it in, and then turn it clock- wise until it stops. PS

4. Screw 4. Install the lens by installing the T

screws. NOTICE: Do not over- Es

2. Remove the burnt-out bulb by tighten the screws, otherwise

pushing it in and turning it counter- the lens may break. cross clockwise. 6-30 À ) @7

æ | & U3D9E2E0.book Page 31 Thursday, November 6, 2008 10:54 AM ai PERIODIC MAINTENANCE AND ADJUSTMENT EAU24204 Eau Replacing a turn signal light Replacing the auxiliary light bulb bulb

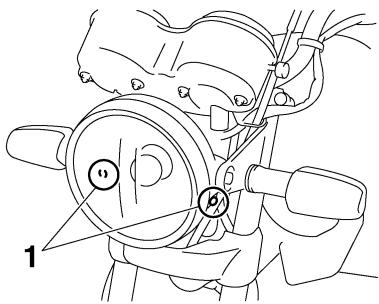

1. Remove the turn signal light lens lf the auxiliary light bulb burns out, re-

by removing the screw. place it as follows.

1. Remove the headlight unit by re-

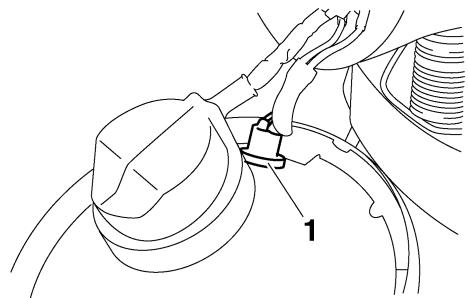

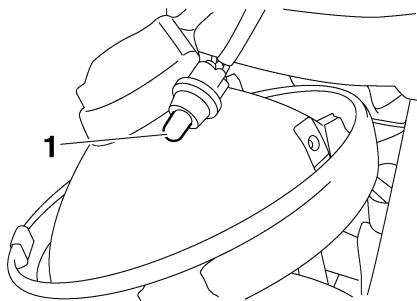

1. Auxiliary light bulb socket

3. Remove the burnt out bulb by pull-

2. Remove the burnt-out bulb by

ee eue 1. Screwr pushing it in and turning it counter- clockwise. 2. Remove the socket (together with

3. Insert a new bulb into the socket, the bulb) by pulling it out.

push it in, and then turn it clock- wise until it stops.

4. Install the lens by installing the : ce

screw. NOTICE: Do not over- 1- Aukllary light bulb tighten the screw, otherwise the 4. Insert a new bulb into the socket. lens may break. écaron 5. Install the socket (together with the bulb) by pushing it in.

6. Install the headlight unit by install-

ing the screws. 6-31 c S 2

: & À æ | U3D9E2E0.book Page 32 Thursday, November 6, 2008 10:54 AM DA

PERIODIC MAINTENANCE AND ADJUSTMENT

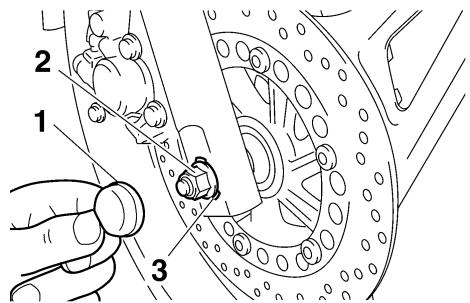

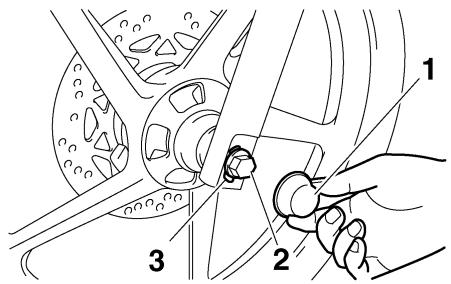

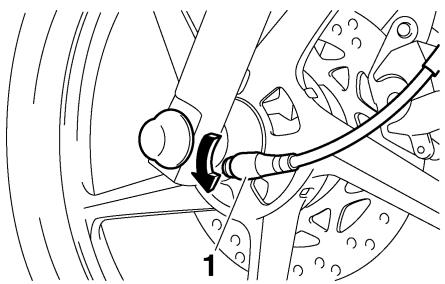

EAU24360 5. Pull the wheel axle out, and then Front wheel ;| x remove the wheel. NOTICE: Do Eaueroe 2 not apply the brake after the To remove the front wheel 1 \ wheel has been removed to- EWA1Og2 gether with the brake disc, oth- erwise the brake pads will be forced shut. caro: WARNING To avoid injury, securely support the vehicle so there is no danger of it “ EAUS700 falling over. To install the front wheel

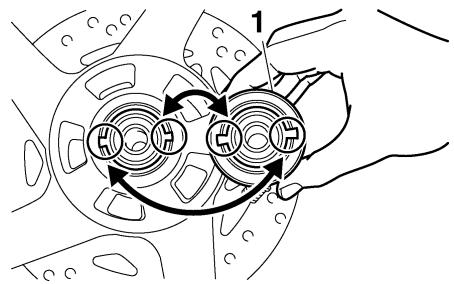

1. Place the motorcycle on the cen- 1. Rubber cap 1. Install the speedometer gear unit

terstand. 2. Axle nut into the wheel hub so that the pro-

2. Disconnect the speedometer ca- 8. Washer jections mesh with the slots.

L ble from the front wheel. 4. Remove the axle nut and the SP washer.

2. Lift the wheel up between the fork

8. Remove the rubber caps from the 1. Rubber cap legs.

: 2. Wheel axle ends of the wheel axle by pulling 3. Washer them off. 6-32

7 U3D9E2E0.book Page 33 Thursday, November 6, 2008 10:54 AM

Ï PERIODIC MAINTENANCE AND ADJUSTMENT

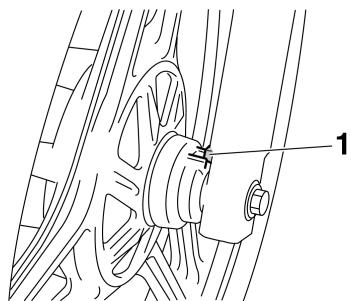

TIP Make sure that there is enough space between the brake pads before insert- ing the brake disc and that the slot in the speedometer gear unit fits over the retainer on the fork leg.

1. Speedometer gear unit retainer

3. Insert the wheel axle, making sure

the washer on the left side is in- stalled with the beveled side facing outward, and then install the axle nut.

4. Take the motorcycle off the center-

stand so that the front wheel is on the ground.

5. Tighten the axle nut to the speci-

fied torque, and then install both rubber caps so that they fit over the washers. Tightening torque: Axe nut: 59 Nm (5.9 m.kgf, 43 ft-bf)

6. While applying the front brake,

push down hard on the handlebars several times to check if the front fork compresses and rebounds smoothly.

7. Connect the speedometer cable.

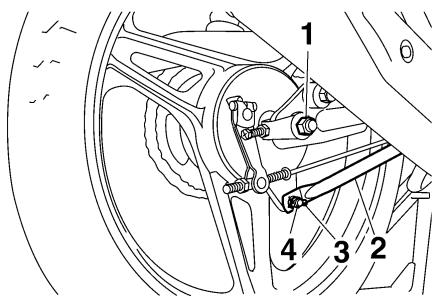

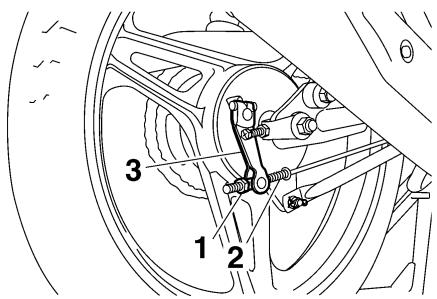

6-33 EAU25080 Rear wheel Eauaris To remove the rear wheel To avoid injury, securely support the vehicle so there is no danger of it falling over. EWatog2t

1. Loosen the axle nut and the brake

torque rod nut at the brake shoe plate.

2. Disconnect the brake torque rod

from the brake shoe plate by re- moving the cotter pin, the nut, and the boit.

: & À æ | U3D9E2E0.book Page 34 Thursday, November 6, 2008 10:54 AM DA

6. Remove the axle nut, and then pull

7. Push the wheel forward, and then

remove the drive chain from the rear sprocket. TIP The drive chain does not need to be disassembled in order to remove and install the wheel.

8. Remove the wheel.

5. Loosen the chain puller locknut To install the rear wheel c

7 3. Place the motorcycle on the cen- and the drive chain slack adjusting 1. Install the wheel by inserting the d terstand. bolt on both ends of the swingarm. wheel axle from the left-hand side. Es

2. Install the drive chain onto the rear

4. Remove the brake pedal free play

adjusting nut, and then disconnect the brake rod from the brake cam- shaîft lever.

camshaft lever, and then install the brake pedal free play adjusting nut onto the brake rod.

5. Connect the brake torque rod to

the brake shoe plate by installing the bolt and nut.

6. Adjust the drive chain slack. (See

7 U3D9E2E0.book Page 35 Thursday, November 6, 2008 10:54 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

7. Take the motorcycle off the center-

stand so that the rear wheel is on the ground.

9. Insert a new cotter pin.

10. Adjust the brake pedal free play.

(See page 6-17.) After adjusting the brake pedal free play, check the operation of the brake light. EWa1oGso EAuzsest Troubleshooting Although Yamaha motorcycles receive a thorough inspection before shipment from the factory, trouble may occur dur- ing operation. Any problem in the fuel, compression, or ignition systems, for example, can cause poor starting and loss of power. The following troubleshooting chart represents a quick and easy procedure for checking these vital systems your- self. However, should your motorcycle require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the motorcycle properly. Use only genuine Yamaha replace- ment parts. Imitation parts may look like Yamaha parts, but they are often inferi- or, have a shorter service life and can lead to expensive repair bills. À WARNING When checking the fuel system, do not smoke, and make sure there are no open flames or sparks in the ar- ea, including pilot lights from water Easter 6-35 heaters or furnaces. Gasoline or gasoline vapors can ignite or ex- plode, causing severe injury or property damage.

77 U3D9E2E0.book Page 36 Thursday, November 6, 2008 10:54 AM K œ

—»| There is enough fuel. >] Checkthe compression. Check he fuel level in the fuel tank = SET here is no fuel. engine does not 5! res no fuel Supply fuel. Check the compression.

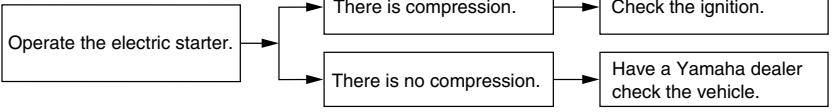

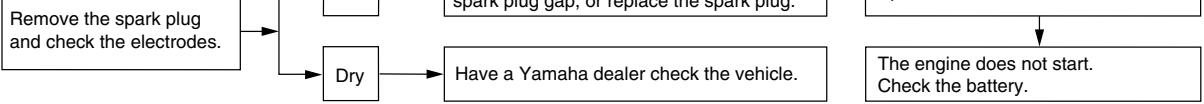

| There is compression. =] Check the ignition. Operate the electric starter. |» There is no com, Have à Yamaha dealer ere is no compression. TT check the vehicle. EN 3. Ignition « 7 Wipe off with a dry cloth and correct the 7 —æ| Wet Spark plug gap, or replace îhe spark plug. [| OPerate the electric starter. Remove the spark plug ï and check the electrodes. The engine does not start. LL Dry Have a Yamaha dealer check the vehicle. Check the battery

engine tums over Tne battery ls good quickly. The engine does not start. Operate the electric starter. | Have a Yamaha dealer The engine turns over Check the battery lead connections, check the vehicle. slowly. and charge the battery if necessary. 1 6-36 ,

77 U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM

MOTORCYCLE CARE AND STORAGE

Matte color caution ECaïst92 NOTICE Some models are equipped with matte colored finished parts. Be sure to consult a Yamaha dealer for advice on what products to use be- fore cleaning the vehicle. Using a brush, harsh chemical products or cleaning compounds when cleaning these parts will scratch or damage their surface. Wax also should not be applied to any matte colored fin- ished parts. EAU26004 Care While the open design of a motorcycle reveals the attractiveness of the tech- nology, it also makes it more vulnera- ble. Rust and corrosion can develop even if high-quality components are used. A rusty exhaust pipe may go un- noticed on a car, however, it detracts from the overall appearance of a motor- cycle. Frequent and proper care does not only comply with the terms of the warranty, but it will also keep your motorcycle looking good, extend its life and optimize its performance. Before cleaning

1. Cover the muffler outlet with a

plastic bag after the engine has cooled down.

2. Make sure that all caps and covers

as well as all electrical couplers and connectors, including the spark plug cap, are tighily in- stalled.

3. Remove extremely stubborn dirt,

like oil burnt onto the crankcase, with a degreasing agent and a brush, but never apply such prod-

ucts onto seals, gaskets, sprock- ets, the drive chain and wheel axles. Always rinse the dirt and de- greaser off with water. Cleaning Eca1o772 NOTICE e Avoid using strong a wheel cleaners, especially on spoked wheels. If such products are used on hard-to-remove dirt, do not leave the cleaner on the af- fected area any longer than in- structed. Also, thoroughly rinse the area off with water, immedi- ately dry it, and then apply a cor- rosion protection spray. e Improper cleaning can damage plastic parts (such as cowlings, panels, windshields, headlight lenses, meter lenses, etc.) and the mufflers. Use only a soft, clean cloth or sponge with wa- ter to clean plastic. However, if the plastic parts cannot be thor- oughly cleaned with water, di- luted mild detergent with water may be used. Be sure to rinse

77 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

MOTORCYCLE CARE AND STORAGE

off any detergent residue using plenty of water, as it is harmful to plastic parts. Do not use any harsh chemical products on plastic parts. Be sure to avoid using cloths or sponges which have been in contact with strong or abrasive cleaning products, solvent or thinner, fuel (gasoline), rust re- movers or inhibitors, brake flu- id, antifreeze or electrolyte. Do not use high-pressure wash- ers or steam-jet cleaners since they cause water seepage and deterioration in the following ar- eas: seals (of wheel and swing- arm bearings, fork and brakes), electric components (couplers, connectors, instruments, switches and lights), breather hoses and vents. For motorcycles equipped with a windshield: Do not use strong cleaners or hard sponges as they will cause dulling or scratching. Some cleaning com- pounds for plastic may leave scratches on the windshield. Test the product on a small hid- den part of the windshield to make sure that it does not leave any marks. If the windshield is scratched, use a quality plastic polishing compound after washing. After normal use Remove dirt with warm water, a mild detergent, and a soft, clean sponge, and then rinse thoroughly with clean water. Use a toothbrush or bottlebrush for hard-to-reach areas. Stubborn dirt and insects will come off more easily if the area is covered with a wet cloth for a few minutes before cleaning. After riding in the rain, near the sea or on salt-sprayed roads Since sea salt or salt sprayed on roads during winter are extremely corrosive in combination with water, carry out the following steps after each ride in the rain, near the sea or on salt-sprayed roads. 7-2 TIP Salt sprayed on roadbs in the winter may remain well into spring.

1. Clean the motorcycle with cold wa-

ter and a mild detergent, after the engine has cooled down. NOTICE: Do not use warm water since it increases the corrosive action of the salt. tecaioron

2. Apply a corrosion protection spray

on all metal, including chrome- and nickel-plated, surfaces to prevent corrosion. After cleaning

1. Drythe motorcycle with a chamois

or an absorbing cloth.

2. Immediately dry the drive chain

and lubricate it to prevent it from rusting.

3. Use a chrome polish to shine

chrome, aluminum and stainless- steel parts, including the exhaust system. (Even the thermally in- duced discoloring of stainless- steel exhaust systems can be re- moved through polishing.)

7" U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM

4. To prevent corrosion, it is recom- ECAosgo EAueæ

mended to apply a corrosion pro- IMOTICE Storage tection spray on all metal, e Apply spray oil and wax spar- including chrome- and nickel-plat- ingly and make sure to wipe off Short-term : ed, surfaces. any excess. Always store your motorcycle in a cool,

5. Use spray oil as a universal clean- e Never apply oil or wax to any dry place and, if necessary, protect it

er to remove any remaining dirt. rubber and plastic parts, but against dust with a porous cover. Ecarosio

6. Touch up minor paint damage treat them with a suitable care NOTICE

caused by stones, etc. product. A

7. Wax all painted surfaces. e Avoid using abrasive polishing © Storing the motorcycle in a

8. Let the motorcycle dry completely compounds as they will wear poorly ventilated room or cover-

before storing or covering it. away the paint. ing it with a tarp, while it is still ewatist wet, will allow water and humid- TIP ity to seep in and cause rust. A Contaminants on the brakes ortires © Consult a Yamaha dealer for ad © To prevent corrosion, avoid Ÿ can cause loss of control. vice on what products to use. damp cellars, stables (because e Make sure that there is no oil or e Washing, rainy weather or humid of the presence of ammonia) [7 wax on the brakes or tires. climates can cause the headlight and areas where strong chemi- e If necessary, clean the brake lens to fog. Turning the headlight cals are stored. discs and brake linings with a on for a short period of time will regular brake disc cleaner or ac- help remove the moisture from the Long-term etone, and wash the tires with lens. Before storing your motorcycle for sev- warm water and a mild deter- eral months: gent. Before riding at higher 1. Follow all the instructions in the speeds, test the motorcycle’s “Care” section of this chapter. braking performance and cor- 2. Fill up the fuel tank and add fuel nering behavior. stabilizer (if available) to prevent the fuel tank from rusting and the fuel from deteriorating. 73 A

®7 U3D9E2E0.book Page 4 Thursday, November 6, 2008 10:54 AM

MOTORCYCLE CARE AND STORAGE

8. Perform the following steps to pro-

tect the cylinder, piston rings, etc. from corrosion. a. Remove the spark plug cap and spark plug. b. Pour a teaspoonful of engine oil into the spark plug bore. c. Install the spark plug cap onto the spark plug, and then place the spark plug on the cylinder head so that the electrodes are grounded. (This will limit spark- ing during the next step.) d. Turn the engine over several times with the starter. (This will coat the cylinder wall with oil.) e. Remove the spark plug cap from the spark plug, and then install the spark plug and the spark plug cap. WARNING! To prevent damage or injury from sparking, make sure to ground the spark plug elec- trodes while turning the en- gine over. wars]

4. Lubricate all control cables and the

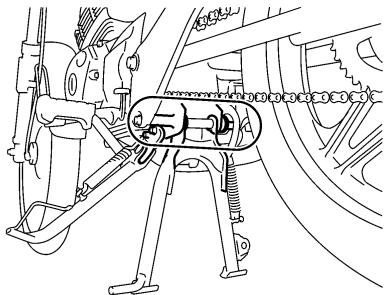

pivoting points of all levers and pedals as well as of the side- stand/centerstand. TIP Make any necessary repairs before storing the motorcycle.

5. Check and, if necessary, correct

the tire air pressure, and then lift the motorcycle so that both of its wheels are off the ground. Alterna- tively, turn the wheels a little every month in order to prevent the tires from becoming degraded in one spot.

6. Cover the muffler outlet with a

plastic bag to prevent moisture from entering it.

7. Remove the battery and fully

charge it. Store it in a cool, dry place and charge it once a month. Do not store the battery in an ex- cessively cold or warm place [less than 0 °C (30 °F) or more than 30 °C (90 ‘F)]. For more information on storing the battery, see page 6-26.

æ & U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM SPECIFICATIONS Dimensions: Overall length 1980 mm (78.0 in) Overall width: 745 mm (29.3 in) Overall height: 1080 mm (42.5 in) Seat height 780 mm (30.7 in) Wheelbase: 1290 mm (50.8 in) Ground clearance: 175 mm (6.89 in) Minimum tuning radius: 1750 mm (68.9 in) Weight: With oil and fuel:

Engine: Engine type: Air cooled 4-stroke, SOHC Cylnder arrangement: Forward-inclined single cylinder Displacement:

Starting system: Electric starter and kickstarter Lubrication system: Wet sump Engine oil: Type: SAE 10W-30, SAE 10W-40, SAE 15W-40, SAE 20W-40 or SAE 20W-50 20 10 0 10 20 30 40 50°C ÎSAË row-36! SAË 1OW-40 SAE 10W-50 7 SAE 15W-40 ISAË 20W-40 TSAE 20W-50" Recommended engine oil grade: API service SG type or higher, JASO standard MA Engine oil quantity: Periodic oil change:

1.00 L (1.06 US at, 0.88 Imp.qt)

Air filter: Air filter element: Dry element Fuel: Recommended fuel: Regular unleaded gasoline only Fuel tank capacity:

13.0 L (8.43 US gal, 2.86 Imp.gal)

Fuel reserve amount:

3.0 L (0.79 US gal, 0.66 Imp.gal)

8-1 Fuel injection: Throtile body: Type/quantity: AC26/1 Spark plug (s): Manufacturer/model:

Spark plug gap: 0.6-0.7 mm (0.024-0.028 in) Clutch: Clutch type: Wet, muliple-disc Transmis: d Primary reduction system: Helical gear Primary reduction ratio: 68/20 (3.400) Secondary reduction system: Chain drive Secondary reduction ratio: 45/14 (3.214) Transmission type: Constant mesh 5-speed Operation: Left foot operation Gear ratio: 1st 37/14 (2.643) and: 32/18 (1.778) 3rd: 25/9 (1.316) Ath: 23/22 (1.045)

æ & U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

Front tire: Type: Tubeless Size: 2.75-18 42P Manufacturer/model:

Rear tire: Type: Tubeless Size: 90/90-18 57P Manufacturer/model:

Loading: Maximum load: 196 kg (432 Ib) (Total weight of rider, passenger, cargo and accessories) Tire air pressure (measured on cold tires): Loading condition: 0-90 kg (0-198 Ib) Front: 175 kPa (1.75 kgflom®, 25 psi)

Rear suspension: Type: Swingarm Spring/shock absorber type: Coil spring/oil damper Wheel travel:

7" U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM SPECIFICATIONS | Auxiliary light: 12V,50W%x1 Meter lighting: 12V,17Wx4 Neutral indicator light: 14V,30W%x1 High beam indicator light: 14V,30W%x1 Turn signal indicator light: 14V,30W%x1 Engine trouble warning light: 14V,30W%x1 Fuse: Fuse:

d U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM CONSUMER INFORMATION Eaupssst Identification numbers Record the key identification number, vehicle identification number and mod- el label information in the spaces pro- vided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehi- cle is stolen. KEY IDENTIFICATION NUMBER:

The key identification number is stamped into the key tag. Record this number in the space provided and use it for reference when ordering a new key. 9-1

1. Vehicle identification number

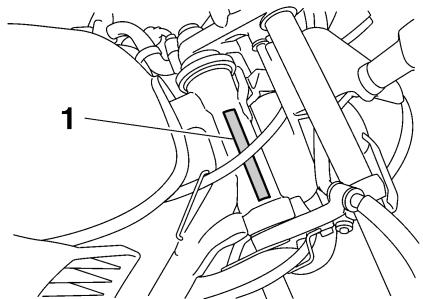

The vehicle identification number is stamped into the steering head pipe. Record this number in the space pro- vided. TIP The vehicle identification number is used to identify your motorcycle and may be used to register your motor- cycle with the licensing authority in your area.

7 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM

2 The model label is affixed to the frame

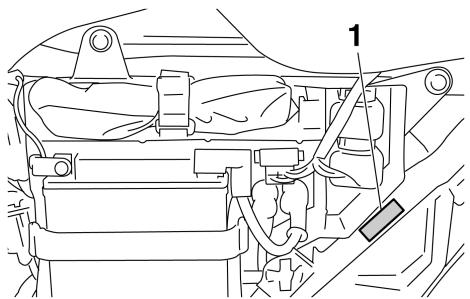

behind panel B. (See page 6-6. Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer. 92 À

æ & U3D9E2E0.book Page 1 Thursday, November 6, 2008 10:54 AM INDEX

Air fier element, cleaning . Auxiliary light bulb, replacing Battery … Brake and clutch levers, checking and lubricating. Brake and shift pedals, checking and lubricating . Brake fluid, changing Brake fluid level, checking . Brake lever .. Brake pads and shoes, checking. Brake pedal . Brake pedal free play, adjusting Cables, checking and lubricating.. Care Carrier. Catalytic converter Centerstand and sidestand, checking and lubricating . Clutch lever... Ciutch lever free play, adjusting Dimmer switch … Drive chain, cleaning and lubricating. Drive chain slack Engine break-in . Engine idiing speed, checking Engine oil. Engine trouble warning ligh Front brake lever free play, checking Front fork, checking. Fuel … Fuel consumption, tips for reducing Fuel gauge .… Fuel tank cal Fuse, replacin

Handiebar switches . Headlight bulb, replacing High beam indicator light. Hom switch .

Identification numbers . Ignition circuit cut-off system Indicator and warning lights .

Panels, removing and installing Parking . Part locations .

77 U3D9E2E0.book Page 2 Thursday, November 6, 2008 10:54 AM INDEX

Wheel bearings, checking Wheel (front) . Wheel (rear) Wheels. .6-26 6-32 .6-15

U3D9E2E0.book Page 3 Thursday, November 6, 2008 10:54 AM F da SA 7 Z A SA 7 Z A SA 7
