USER MANUAL TDM900 YAMAHA

Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.

YAMAHA

YAMAHA MOTOR ELECTRONICS CO., LTD.

1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan

DECLARATION of CONFORMITY

We

Company: YAMAHA MOTOR ELECTRONICS CO., LTD.

Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 Japan

Hereby declare that the product:

Kind of equipment: IMMOBILIZER

Type-designation: 5SL-00

is in compliance with following norm(s) or documents:

R&TTE Directive(1999/5/EC)

EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)

Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC)

Place of issue: Shizuoka, Japan

General manager of quality assurance div.

11/11/Mv/2007

Welcome to the Yamaha world of motorcycling!

As the owner of the TDM900/TDM900A, you are benefiting from Yamaha's vast experience and newest technology regarding the design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.

Please take the time to read this manual thoroughly, so as to enjoy all advantages of your TDM900/TDM900A. The Owner's Manual does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and others from trouble and injury.

In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any further questions, do not hesitate to contact your Yamaha dealer.

The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!

Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your motorcycle and this manual. If there is any question concerning this manual, please consult a Yamaha dealer.

EWA10031

Please read this manual carefully and completely before operating this motorcycle.

Particularly important information is distinguished in this manual by the following notations:

!	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
WARNING	A WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
NOTICE	A NOTICE indicates special precautions that must be taken to avoid damage to the vehicle or other property.
TIP	A TIP provides key information to make procedures easier or clearer.

EAU10200

TDM900/TDM900A

OWNER'S MANUAL

©2008 by Yamaha Motor Co., Ltd.

1st edition, August 2008

All rights reserved.

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

Printed in Japan.

SAFETY INFORMATION 1-1

DESCRIPTION 2-1

Left view 2-1

Right view 2-3

Controls and instruments. 2-5

INSTRUMENT AND CONTROL

FUNCTIONS 3-1

Immobilizer system 3-1

Main switch/steering lock 3-2

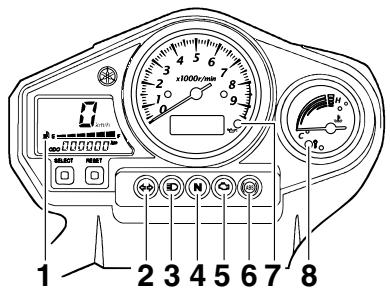

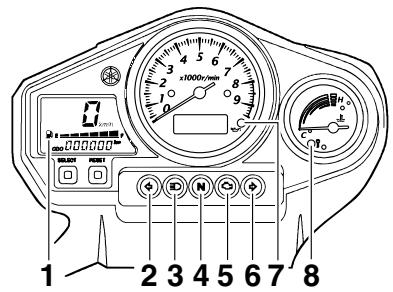

Indicator and warning lights 3-4

Tachometer unit 3-6

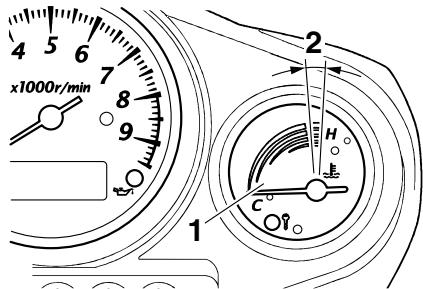

Coolant temperature gauge 3-7

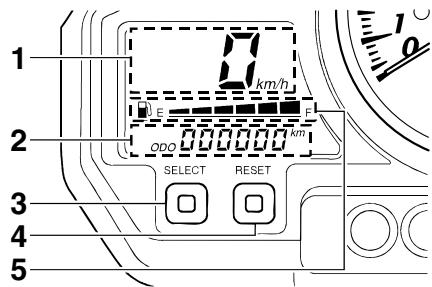

Multi-function display 3-7

Anti-theft alarm (optional) 3-9

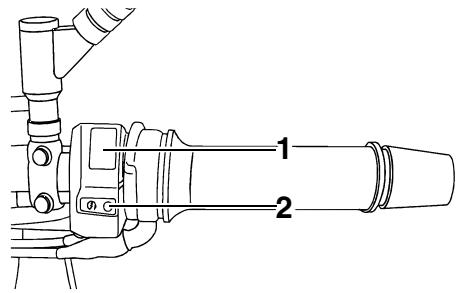

Handlebar switches 3-9

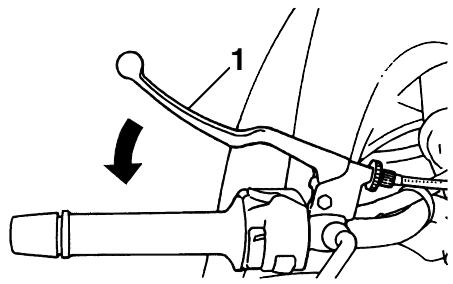

Clutch lever 3-10

Shift pedal 3-11

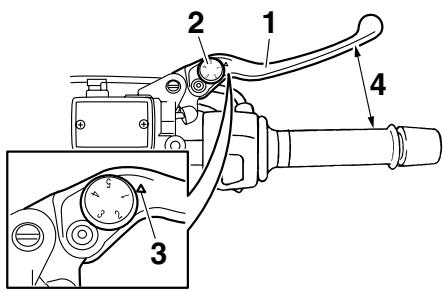

Brake lever 3-11

Brake pedal 3-12

ABS (for ABS models) 3-12

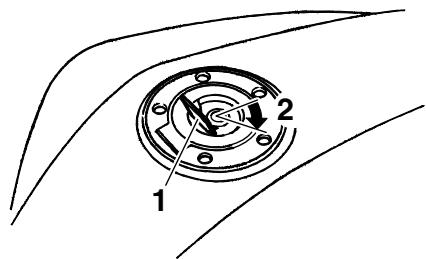

Fuel tank cap 3-13

Fuel 3-14

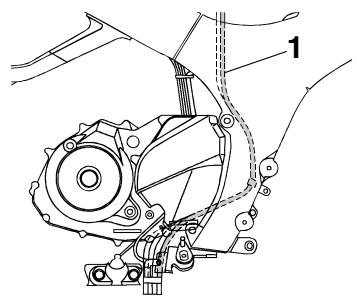

Fuel tank breather hose 3-15

Catalytic converters 3-15

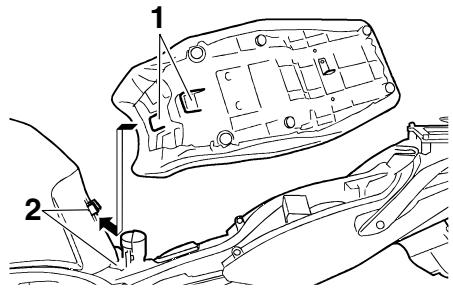

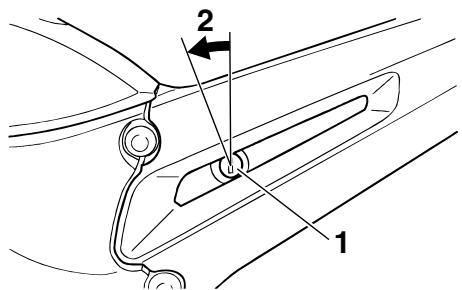

Seat 3-16

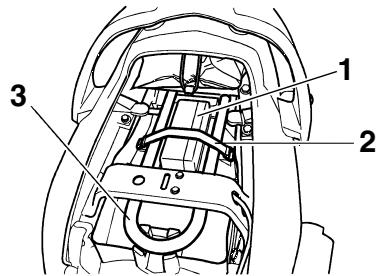

Storage compartment 3-17

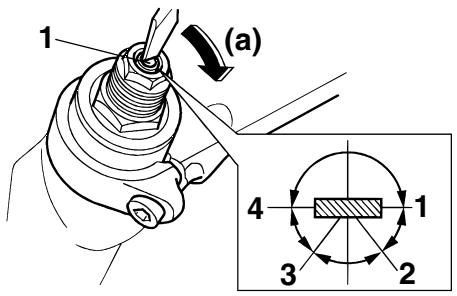

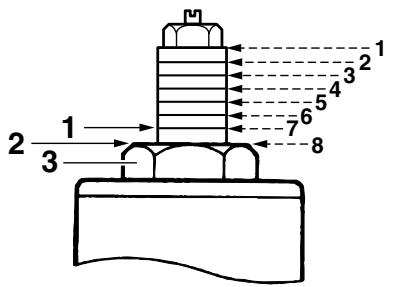

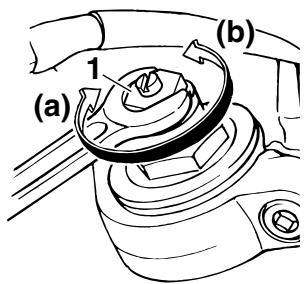

Adjusting the front fork 3-17

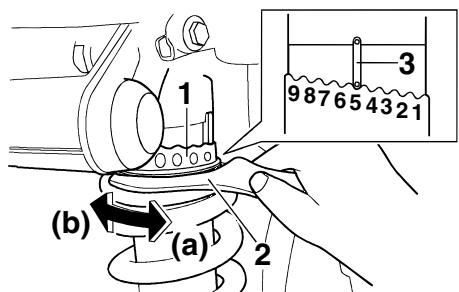

Adjusting the shock absorber assembly 3-19

Luggage strap holders 3-20

Sidestand 3-21

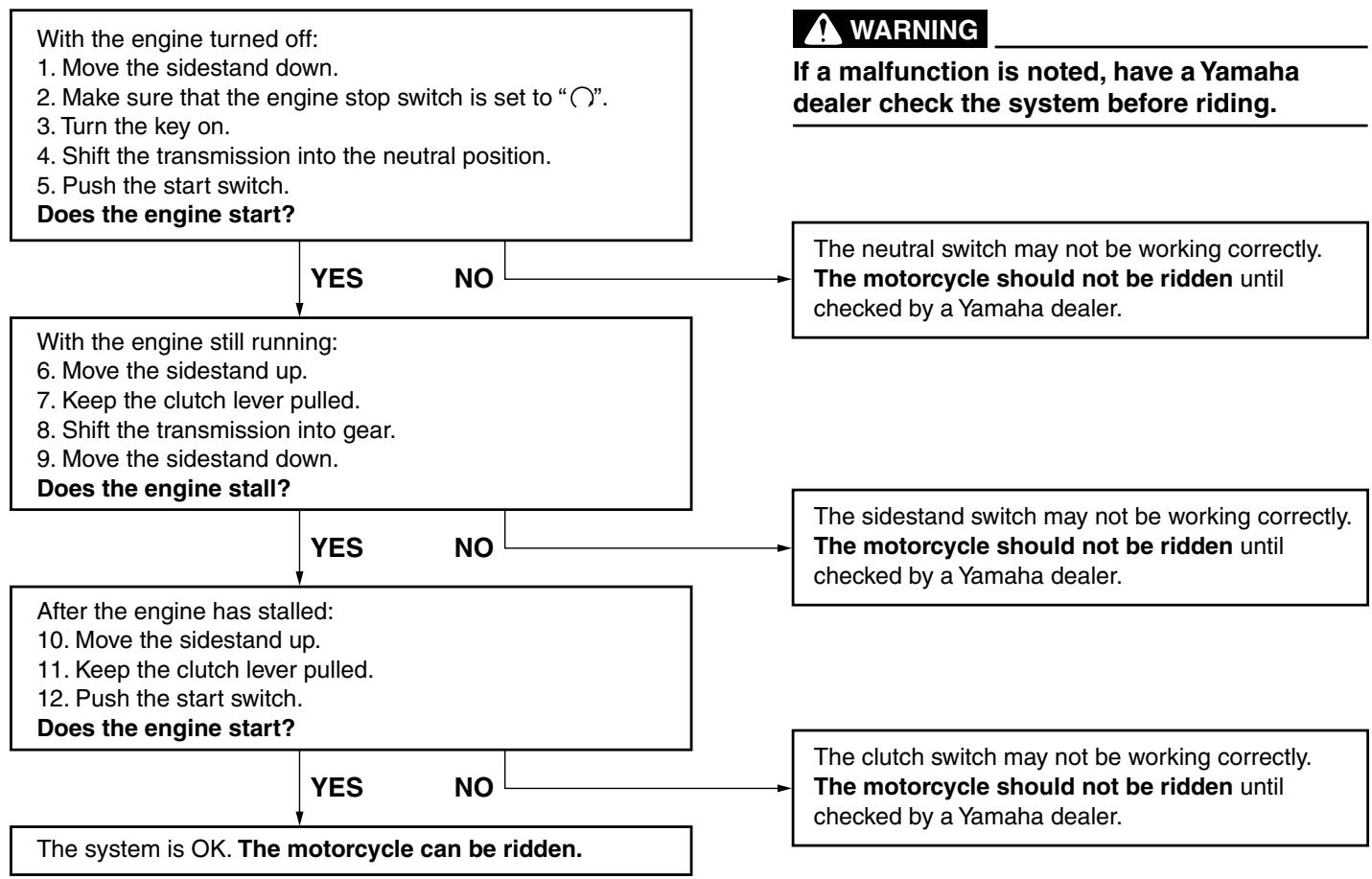

Ignition circuit cut-off system 3-21

FOR YOUR SAFETY -

Starting the engine 5-1

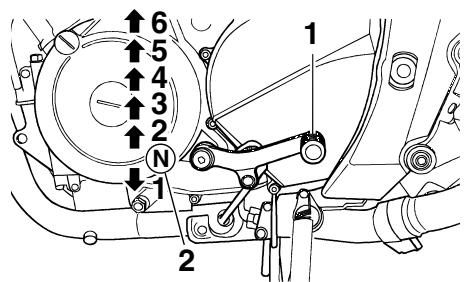

Shifting 5-2

Tips for reducing fuel consumption . 5-3

Engine break-in 5-3

Parking 5-4

PERIODIC MAINTENANCE AND

ADJUSTMENT 6-1

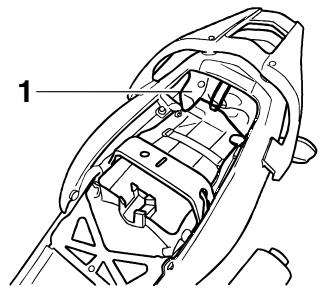

Owner's tool kit 6-1

Periodic maintenance and lubrication chart 6-2

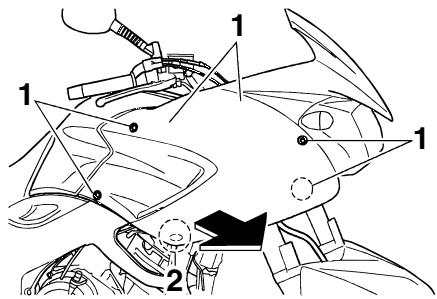

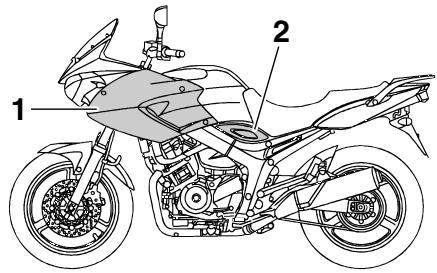

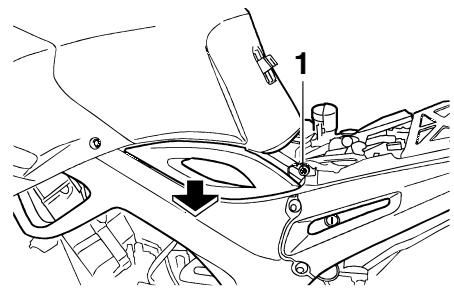

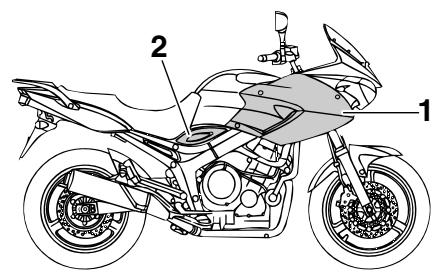

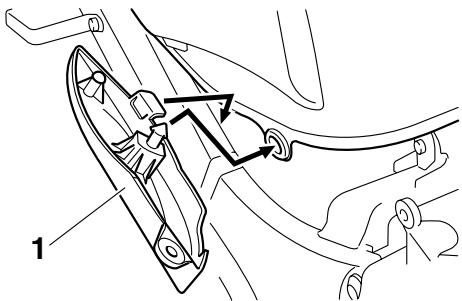

Removing and installing cowlings and panels 6-6

Checking the spark plugs 6-7

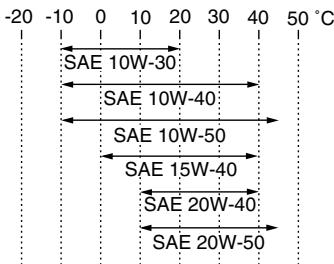

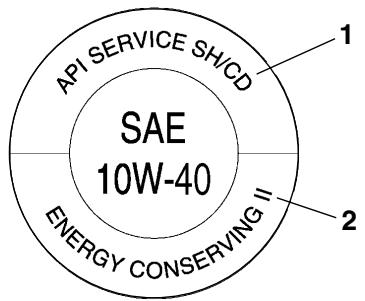

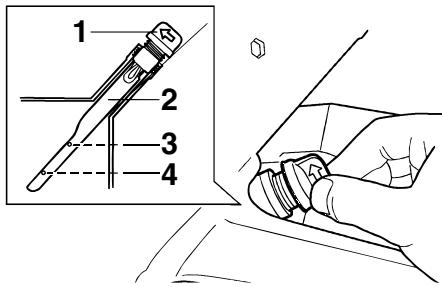

Engine oil and oil filter element 6-8

Coolant 6-11

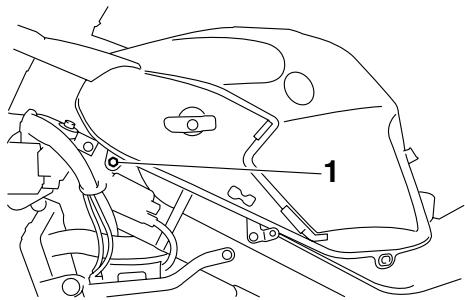

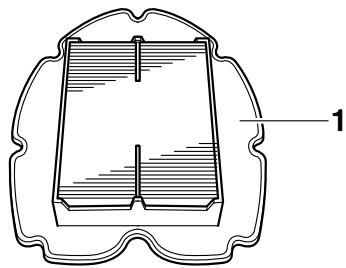

Replacing the air filter element ....6-12

Adjusting the engine idling speed 6-14

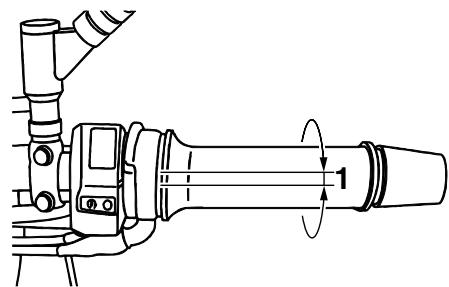

Checking the throttle cable free play 6-15

Valve clearance 6-15

Tires 6-15

Cast wheels 6-18

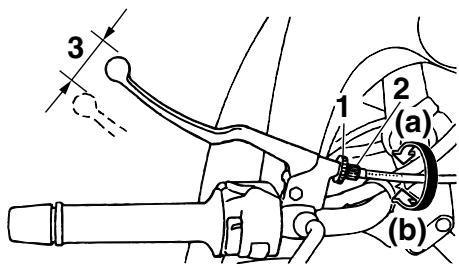

Adjusting the clutch lever free play 6-18

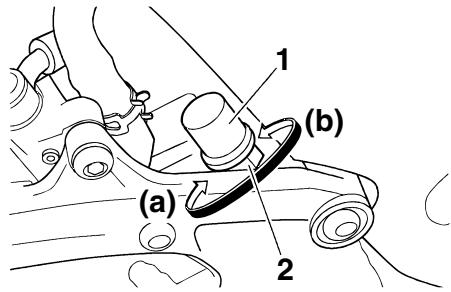

Adjusting the rear brake light switch 6-19

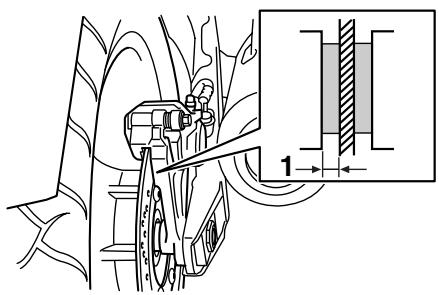

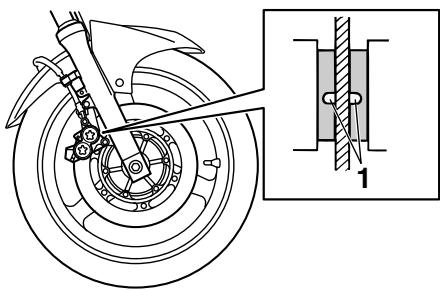

Checking the front and rear brake pads 6-19

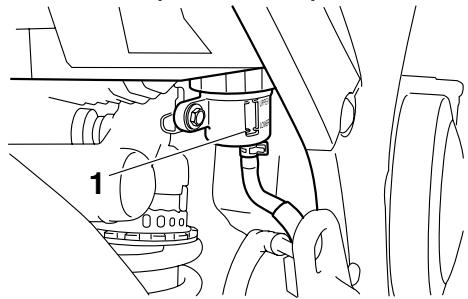

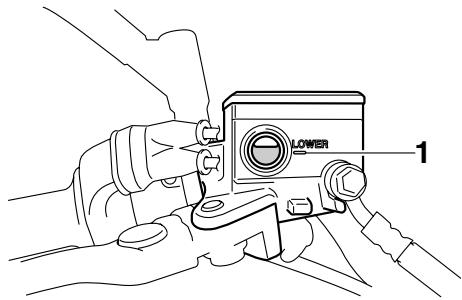

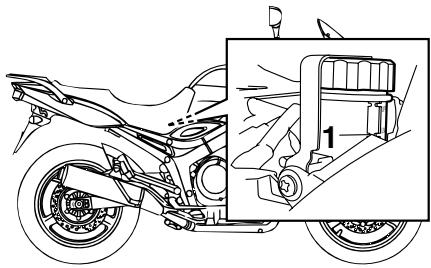

Checking the brake fluid level 6-20

Changing the brake fluid 6-21

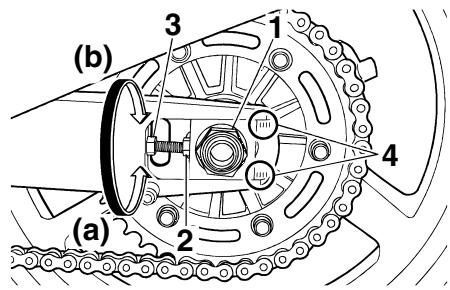

Drive chain slack 6-22

Cleaning and lubricating the drive chain 6-23

Checking and lubricating the cables 6-24

Checking and lubricating the throttle grip and cable 6-24

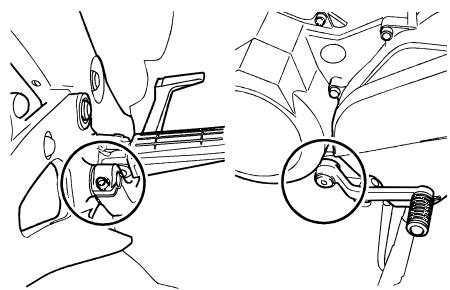

Checking and lubricating the brake and shift pedals 6-24

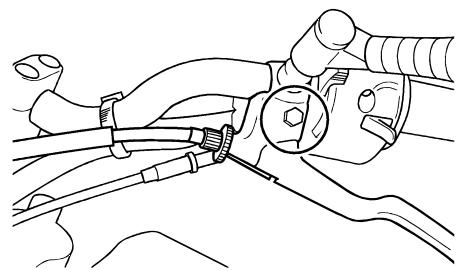

Checking and lubricating the brake and clutch levers 6-25

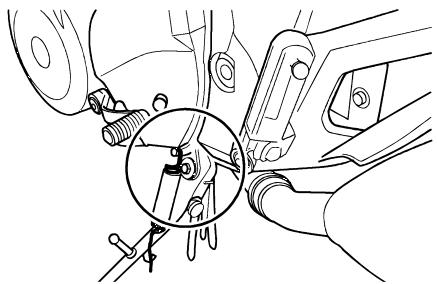

Checking and lubricating the sidestand 6-25

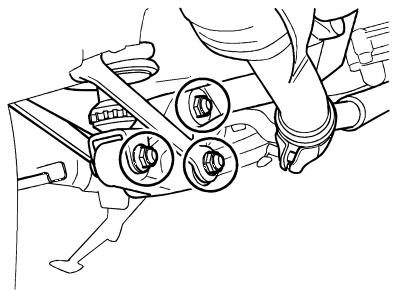

Lubricating the rear suspension .... 6-25

Checking the front fork 6-26

Checking the steering 6-26

Checking the wheel bearings 6-27

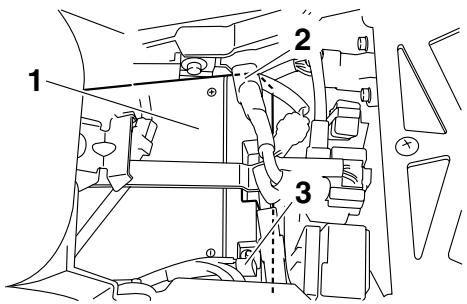

Battery 6-27

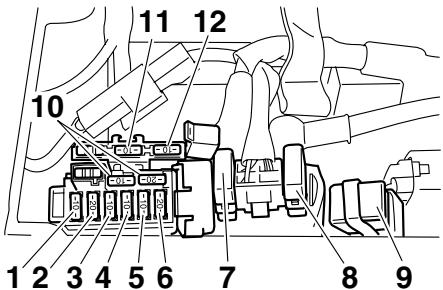

Replacing the fuses 6-28

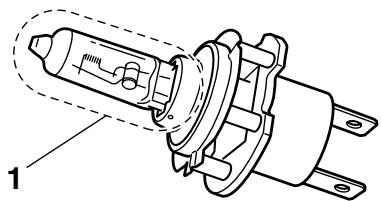

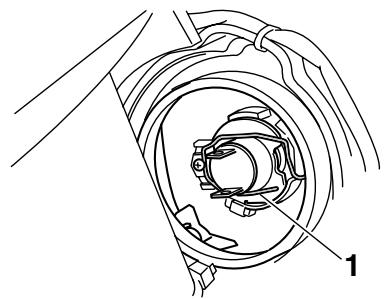

Replacing a headlight bulb 6-30

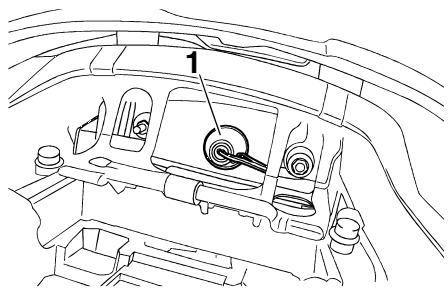

Replacing the tail/brake light bulb 6-31

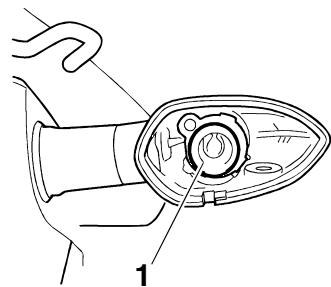

Replacing a turn signal light bulb 6-31

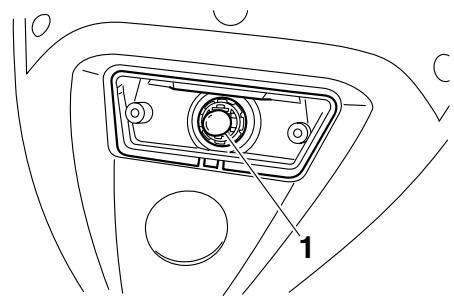

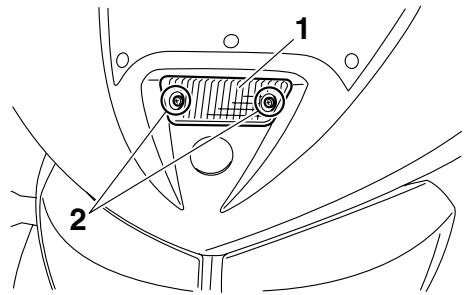

Replacing an auxiliary light bulb ....6-32

Supporting the motorcycle 6-32

Troubleshooting 6-33

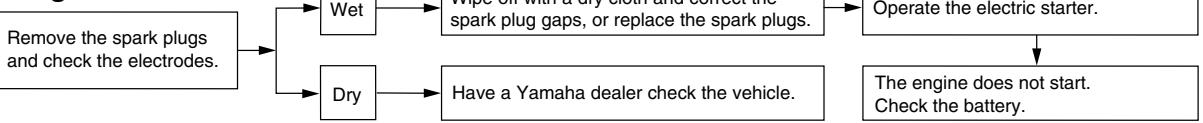

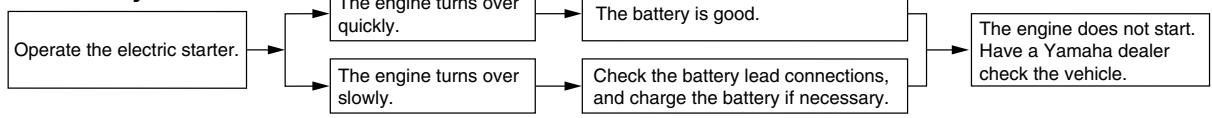

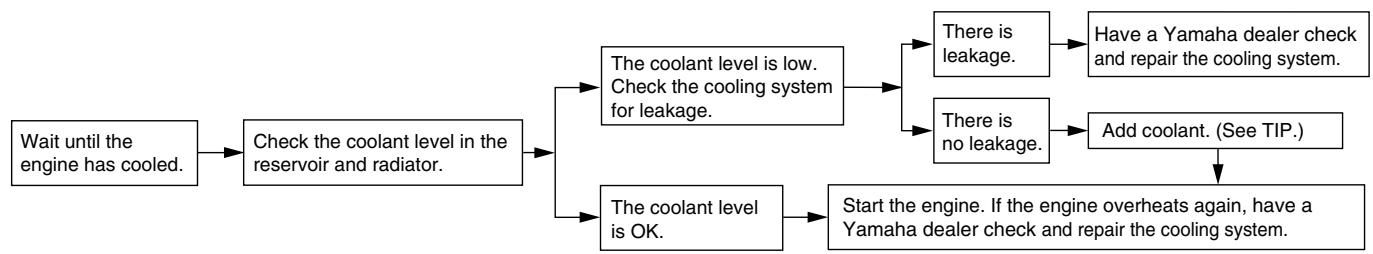

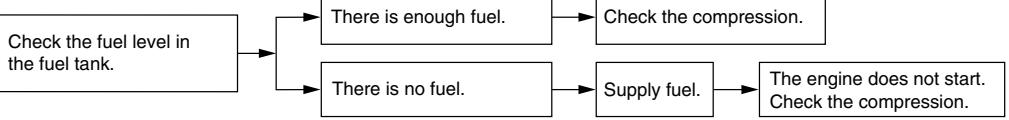

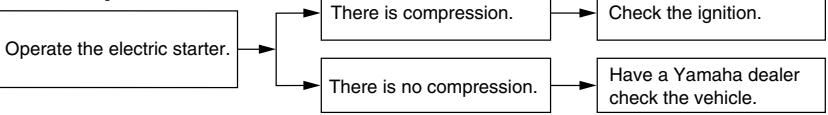

Troubleshooting charts 6-34

MOTORCYCLE CARE AND

STORAGE 7-1

Matte color caution 7-1

Care 7-1

Storage 7-3

SPECIFICATIONS 8-1

CONSUMER INFORMATION. 9-1

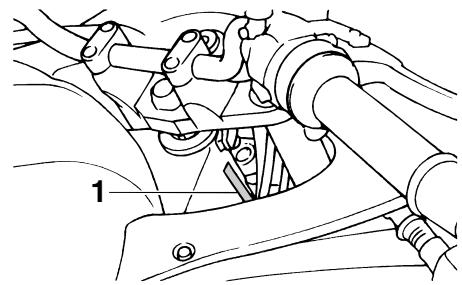

Identification numbers 9-1

EAU10283

Be a Responsible Owner

As the vehicle's owner, you are responsible for the safe and proper operation of your motorcycle.

Motorcycles are single-track vehicles. Their safe use and operation are dependent upon the use of proper riding techniques as well as the expertise of the operator. Every operator should know the following requirements before riding this motorcycle.

He or she should:

• Obtain thorough instructions from a competent source on all aspects of motorcycle operation.
• Observe the warnings and maintenance requirements in this Owner's Manual.
• Obtain qualified training in safe and proper riding techniques.
• Obtain professional technical service as indicated in this Owner's Manual and/or when made necessary by mechanical conditions.

Safe Riding

Perform the pre-operation checks each

time you use the vehicle to make sure it is in safe operating condition. Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. See page 4-1 for a list of pre-operation checks.

• This motorcycle is designed to carry the operator and a passenger.
• The failure of motorists to detect and recognize motorcycles in traffic is the predominating cause of automobile/motorcycle accidents. Many accidents have been caused by an automobile driver who did not see the motorcycle. Making yourself conspicuous appears to be very effective in reducing the chance of this type of accident.

Therefore:

• Wear a brightly colored jacket.
• Use extra caution when you are approaching and passing through intersections, since intersections are the most likely places for motorcycle accidents to occur.
• Ride where other motorists can see you. Avoid riding in another

motorist's blind spot.

• Many accidents involve inexperienced operators. In fact, many operators who have been involved in accidents do not even have a current motorcycle license.
  Make sure that you are qualified and that you only lend your motorcycle to other qualified operators.
• Know your skills and limits. Staying within your limits may help you to avoid an accident.
  We recommend that you practice riding your motorcycle where there is no traffic until you have become thoroughly familiar with the motorcycle and all of its controls.
• Many accidents have been caused by error of the motorcycle operator. A typical error made by the operator is veering wide on a turn due to excessive speed or undercornering (insufficient lean angle for the speed).
  Always obey the speed limit and never travel faster than warrant-

ed by road and traffic conditions.

Always signal before turning or changing lanes. Make sure that other motorists can see you.

• The posture of the operator and passenger is important for proper control.

• The operator should keep both hands on the handlebar and both feet on the operator footrests during operation to maintain control of the motorcycle.

• The passenger should always hold onto the operator, the seat strap or grab bar, if equipped, with both hands and keep both feet on the passenger footrests. Never carry a passenger unless he or she can firmly place both feet on the passenger footrests.
• Never ride under the influence of alcohol or other drugs.
• This motorcycle is designed for on-road use only. It is not suitable for off-road use.

Protective apparel

The majority of fatalities from motorcy

cle accidents are the result of head injuries. The use of a safety helmet is the single most critical factor in the prevention or reduction of head injuries.

Always wear an approved helmet.
- Wear a face shield or goggles. Wind in your unprotected eyes could contribute to an impairment of vision that could delay seeing a hazard.
- The use of a jacket, heavy boots, trousers, gloves, etc., is effective in preventing or reducing abrasions or lacerations.
- Never wear loose-fitting clothes, otherwise they could catch on the control levers, footrests, or wheels and cause injury or an accident.
Always wear protective clothing that covers your legs, ankles, and feet. The engine or exhaust system become very hot during or after operation and can cause burns.
- A passenger should also observe the above precautions.

Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon

monoxide, a deadly gas. Breathing carbon monoxide can cause headaches, dizziness, drowsiness, nausea, confusion, and eventually death.

Carbon Monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for hours or days in enclosed or poorly ventilated areas. If you experience any symptoms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MEDICAL TREATMENT.

• Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open windows and doors, carbon monoxide can rapidly reach dangerous levels.
• Do not run engine in poorly ventilated or partially enclosed areas such as barns, garages, or carports.
• Do not run engine outdoors where

engine exhaust can be drawn into a building through openings such as windows and doors.

1 Loading

Adding accessories or cargo to your motorcycle can adversely affect stability and handling if the weight distribution of the motorcycle is changed. To avoid the possibility of an accident, use extreme caution when adding cargo or accessories to your motorcycle. Use extra care when riding a motorcycle that has added cargo or accessories. Here, along with the information about accessories below, are some general guidelines to follow if loading cargo to your motorcycle:

The total weight of the operator, passenger, accessories and cargo must not exceed the maximum load limit.

Operation of an overloaded vehicle could cause an accident.

Maximum load:

TDM900 201 kg (443 lb)

TDM900A 198 kg (437 lb)

When loading within this weight limit,

keep the following in mind:

• Cargo and accessory weight should be kept as low and close to the motorcycle as possible. Securely pack your heaviest items as close to the center of the vehicle as possible and make sure to distribute the weight as evenly as possible on both sides of the motorcycle to minimize imbalance or instability.
• Shifting weights can create a sudden imbalance. Make sure that accessories and cargo are securely attached to the motorcycle before riding. Check accessory mounts and cargo restraints frequently.
• Properly adjust the suspension for your load (suspension-adjustable models only), and check the condition and pressure of your tires.
• Never attach any large or heavy items to the handlebar, front fork, or front fender. These items, including such cargo as sleeping bags, duffel bags, or tents, can create unstable han

dling or a slow steering response.

• This vehicle is not designed to pull a trailer or to be attached to a sidecar.

Genuine Yamaha Accessories

Choosing accessories for your vehicle is an important decision. Genuine Yamaha accessories, which are available only from a Yamaha dealer, have been designed, tested, and approved by Yamaha for use on your vehicle.

Many companies with no connection to Yamaha manufacture parts and accessories or offer other modifications for Yamaha vehicles. Yamaha is not in a position to test the products that these aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the use of accessories not sold by Yamaha or modifications not specifically recommended by Yamaha, even if sold and installed by a Yamaha dealer.

Aftermarket Parts, Accessories, and Modifications

While you may find aftermarket products similar in design and quality to genuine Yamaha accessories, recognize that some aftermarket accessories or modifications are not suitable because of potential safety hazards to you or others. Installing aftermarket products or having other modifications performed to your vehicle that change any of the vehicle's design or operation characteristics can put you and others at greater risk of serious injury or death. You are responsible for injuries related to changes in the vehicle.

Keep the following guidelines in mind, as well as those provided under "Loading" when mounting accessories.

• Never install accessories or carry cargo that would impair the performance of your motorcycle. Carefully inspect the accessory before using it to make sure that it does not in any way reduce ground clearance or cornering clearance, limit suspension travel, steering travel or control operation, or ob

scure lights or reflectors.

• Accessories fitted to the handlebar or the front fork area can create instability due to improper weight distribution or aerodynamic changes. If accessories are added to the handlebar or front fork area, they must be as lightweight as possible and should be kept to a minimum.

• Bulky or large accessories may seriously affect the stability of the motorcycle due to aerodynamic effects. Wind may attempt to lift the motorcycle, or the motorcycle may become unstable in cross winds. These accessories may also cause instability when passing or being passed by large vehicles.

• Certain accessories can displace the operator from his or her normal riding position. This improper position limits the freedom of movement of the operator and may limit control ability, therefore, such accessories are not recommended.

• Use caution when adding electrical accessories. If electrical accessories exceed the capacity of the motorcycle's electrical system, an electric failure could result, which could cause a dangerous loss of lights or engine power.

Aftermarket Tires and Rims

The tires and rims that came with your motorcycle were designed to match the performance capabilities and to provide the best combination of handling, braking, and comfort. Other tires, rims, sizes, and combinations may not be appropriate. Refer to page 6-15 for tire specifications and more information on replacing your tires.

EAU32220

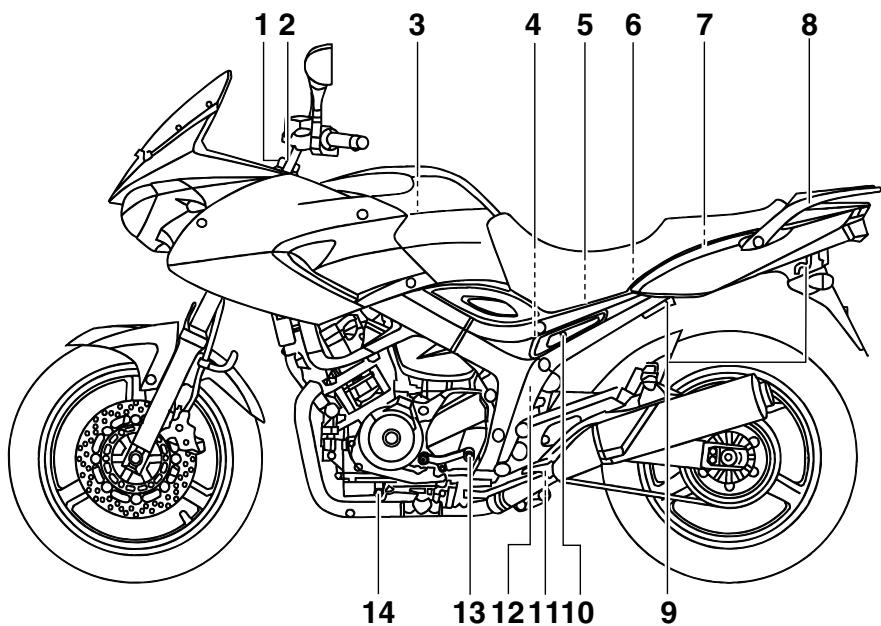

Left view TDM900

1. Front fork spring preload adjusting bolt (page 3-17)
2. Front fork damping adjusting screw (page 3-17)
3. Air filter element (page 6-12)
4. Shock absorber assembly compression damping force adjusting knob (page 3-19)
5. Battery (page 6-27)
6. Fuses (page 6-28)

7. Storage compartment (page 3-17)

8. Grab bar

9. Luggage strap holder (page 3-20)
10. Seat lock (page 3-16)
11. Shock absorber assembly rebound damping force adjusting knob (page 3-19)
12. Shock absorber assembly spring preload adjusting ring (page 3-19)
13. Shift pedal (page 3-11)
14. Engine oil drain bolt A (page 6-8)

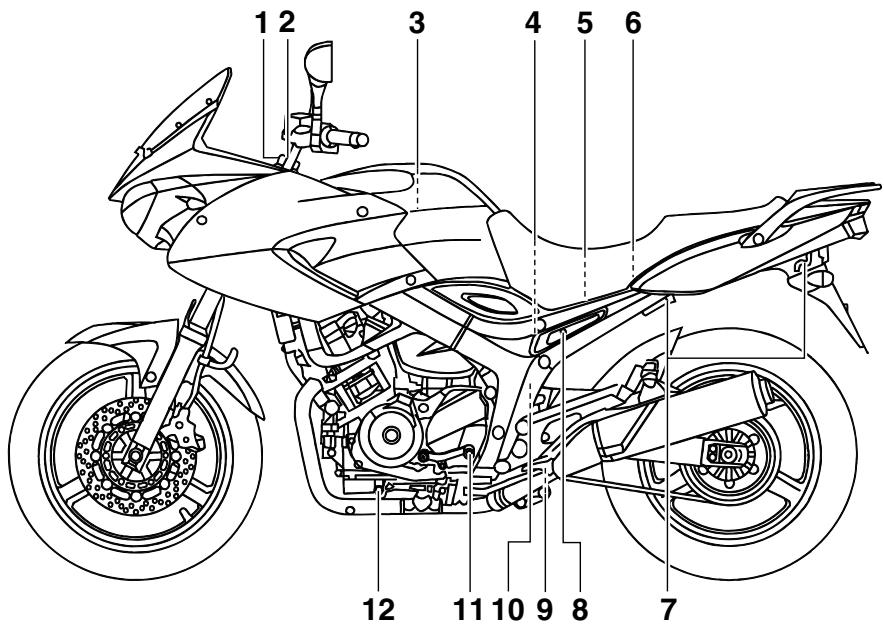

TDM900A

1. Front fork spring preload adjusting bolt (page 3-17)
2. Front fork damping adjusting screw (page 3-17)
3. Air filter element (page 6-12)
4. Coolant reservoir (page 6-11)
5. Battery (page 6-27)
6. Fuses (page 6-28)
7. Luggage strap holder (page 3-20)

8. Seat lock (page 3-16)

9. Shock absorber assembly rebound damping force adjusting knob (page 3-19)

10. Shock absorber assembly spring preload adjusting ring (page 3-19)
11. Shift pedal (page 3-11)
12. Engine oil drain bolt A (page 6-8)

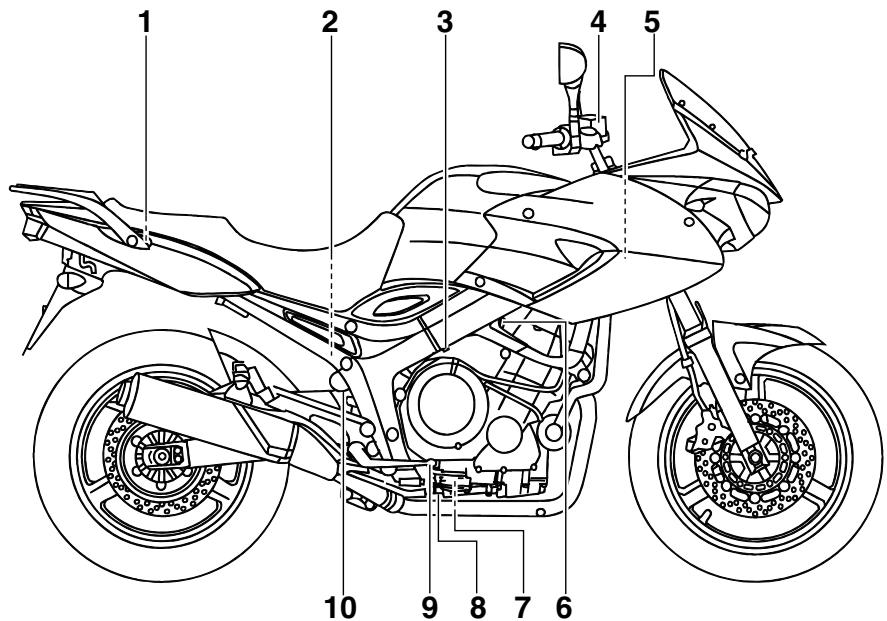

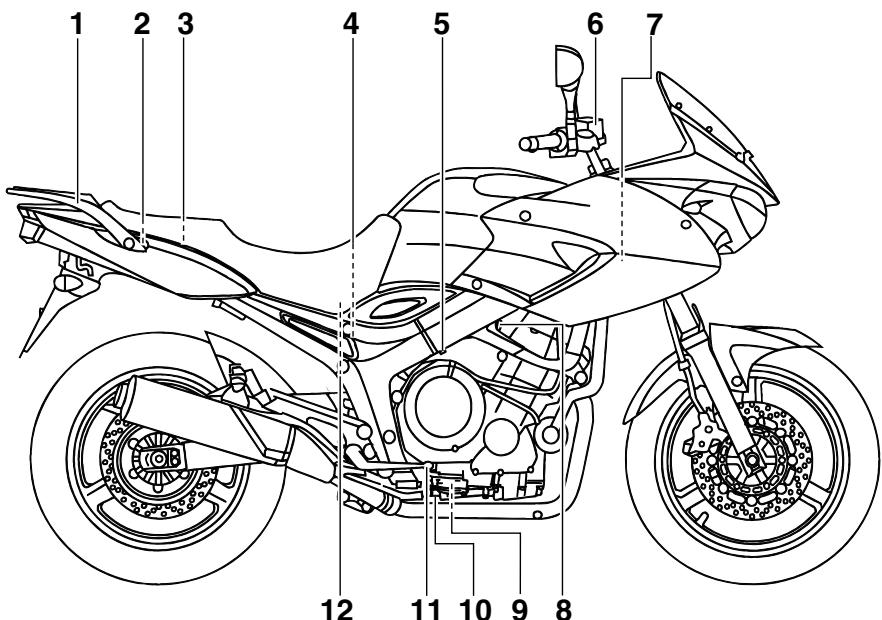

Right view

TDM900

EAU32230

1. Owner's tool kit (page 6-1)
2. Coolant reservoir (page 6-11)
3. Idle adjusting screw (page 6-14)
4. Front brake fluid reservoir (page 6-20)
5. Radiator cap (page 6-11)
6. Engine oil filler cap (page 6-8)

7. Engine oil filter element (page 6-8)

8. Engine oil drain bolt B (page 6-8)

9. Brake pedal (page 3-12)
10. Rear brake fluid reservoir (page 6-20)

TDM900A

1. Grab bar
2. Owner's tool kit (page 6-1)
3. Storage compartment (page 3-17)
4. Shock absorber assembly compression damping force adjusting knob (page 3-19)
5. Idle adjusting screw (page 6-14)
6. Front brake fluid reservoir (page 6-20)
7. Radiator cap (page 6-11)

8. Engine oil filler cap (page 6-8)

9. Engine oil filter element (page 6-8)

10. Engine oil drain bolt B (page 6-8)
11. Brake pedal (page 3-12)
12. Rear brake fluid reservoir (page 6-20)

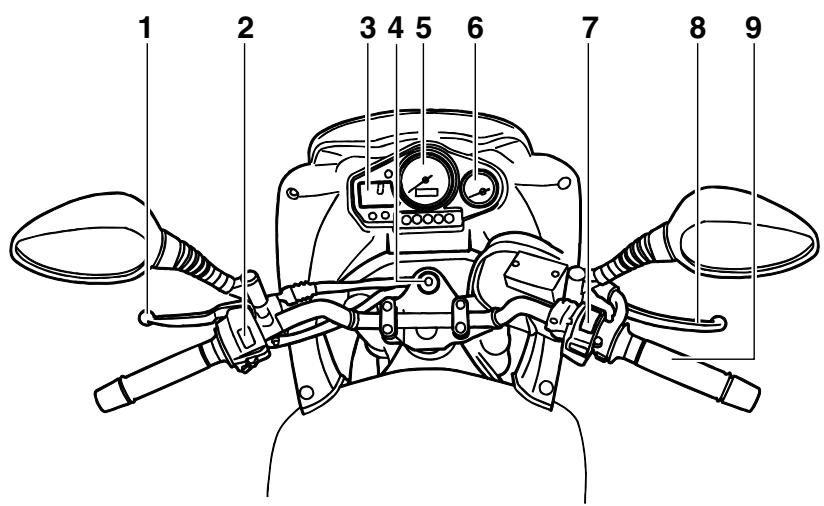

Controls and instruments

EAU10430

1. Clutch lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Multi-function display (page 3-7)
4. Main switch/steering lock (page 3-2)
5. Tachometer unit (page 3-6)
6. Coolant temperature gauge (page 3-7)
7. Right handlebar switches (page 3-9)

8. Brake lever (page 3-11)

9. Throttle grip (page 6-15)

EAU10974

Immobilizer system

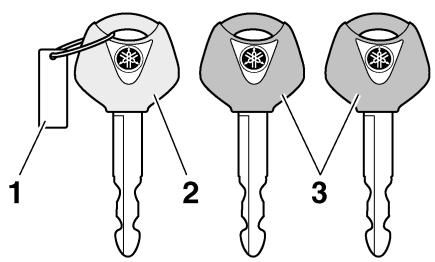

1. Code re-registering key (red bow)
2. Standard keys (black bow)

This vehicle is equipped with an immobilizer system to help prevent theft by re-registering codes in the standard keys. This system consists of the following.

• a code re-registering key (with a red bow)
• two standard keys (with a black bow) that can be re-registered with new codes
• a transponder (which is installed in the code re-registering key)
• an immobilizer unit

• an ECU (Electronic Control Unit)

• an immobilizer system indicator light (See page 3-4.)

The key with the red bow is used to register codes in each standard key. Since re-registering is a difficult process, take the vehicle along with all three keys to a Yamaha dealer to have them re-registered. Do not use the key with the red bow for driving. It should only be used for re-registering the standard keys. Always use a standard key for driving.

ECA11821

NOTICE

DO NOT LOSE THE CODE RE-REGISTERING KEY! CONTACT YOUR DEALER IMMEDIATELY IF IT IS LOST! If the code re-registering key is lost, registering new codes in the standard keys is impossible. The standard keys can still be used to start the vehicle, however if code re-registration is required (i.e., if a new standard key is made or all keys are lost) the entire immobilizer system must be replaced. Therefore, it is highly recommended to use either standard key and keep the code

re-registering key in a safe place.

• Do not submerge any key in water.
• Do not expose any key to excessively high temperatures.
• Do not place any key close to magnets (this includes, but not limited to, products such as speakers, etc.).
• Do not place items that transmit electrical signals close to any key.
• Do not place heavy items on any key.
• Do not grind any key or alter its shape.
• Do not disassemble the plastic part of any key.
• Do not put two keys of any immobilizer system on the same key ring.
• Keep the standard keys as well as keys of other immobilizer systems away from this vehicle's code re-registering key.
• Keep other immobilizer system keys away from the main switch

as they may cause signal interference.

EAU10471

Main switch/steering lock

The main switch/steering lock controls the ignition and lighting systems, and is used to lock the steering.

TIP

Be sure to use the standard key (black bow) for regular use of the vehicle. To minimize the risk of losing the code re-registering key (red bow), keep it in a safe place and only use it for code re-registering.

EAU10570

ON

All electrical circuits are supplied with power; the meter lighting, taillight and auxiliary light come on, and the engine

can be started. The key cannot be removed.

TIP

The headlight comes on automatically when the engine is started and stays on until the key is turned to "OFF".

EAU10661

OFF

All electrical systems are off. The key can be removed.

EWA10061

WARNING

Never turn the key to "OFF" or "LOCK" while the vehicle is moving. Otherwise the electrical systems will be switched off, which may result in loss of control or an accident.

EAU10691

LOCK

The steering is locked, and all electrical systems are off. The key can be removed.

To lock the steering

1. Push.

2. Turn.

3. Turn the handlebars all the way to the left or right.

4. Push the key in from the "OFF" position, and then turn it to "LOCK" while still pushing it.
5. Remove the key.

To unlock the steering

1. Push.
2. Turn.

Push the key into the main switch, and then turn it to "OFF" while still pushing it.

an extended length of time, otherwise the battery may discharge.

EAU33001

The steering is locked, and the taillight and auxiliary light are on. The hazard lights and turn signal lights can be turned on, but all other electrical systems are off. The key can be removed. The steering must be locked before the key can be turned to p ≤ .

ECA11020

NOTICE

Do not use the parking position for

EAU47040 Indicator and warning lights

For TDM900

1. Fuel level warning indicator "B"
2. Left turn signal indicator light
3. High beam indicator light “ O”
4. Neutral indicator light " N"
5. Engine trouble warning light “ ”
6. Right turn signal indicator light "
7. Oil level warning light
8. Immobilizer system indicator light

For TDM900A

1. Fuel level warning indicator "B"
2. Turn signal indicator light "◇◇"
3. High beam indicator light “ ”
4. Neutral indicator light " N"
5. Engine trouble warning light “ ”
6. Anti-lock Brake System (ABS) warning light “@”
7. Oil level warning light
8. Immobilizer system indicator light

EAU38572

Turn signal indicator lights “ ” and “ ” (For TDM900)/Turn signal indicator light “ ” (For TDM900A)

• For TDM900: The corresponding indicator light flashes when the turn signal switch is pushed to the

left or right.

• For TDM900A: This indicator light flashes when the turn signal switch is pushed to the left or right.

EAU11060

Neutral indicator light “ N ”

This indicator light comes on when the transmission is in the neutral position.

EAU11080

High beam indicator light “ 0 ”

This indicator light comes on when the high beam of the headlight is switched on.

EAU38601

Oil level warning light

This warning light comes on if the engine oil level is low.

The electrical circuit of the warning light can be checked by turning the key to "ON".

If the warning light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

TIP

Even if the oil level is sufficient, the

warning light may flicker when riding on a slope or during sudden acceleration or deceleration, but this is not a malfunction.

EAU11371

Fuel level warning indicator "P"

This fuel level warning indicator starts flashing when the fuel level drops below approximately 3.5 L (0.92 US gal, 0.77 Imp.gal).

EAU11503

Engine trouble warning light “H”

This warning light comes on or flashes if a problem is detected in the electrical circuit monitoring the engine. If this occurs, have a Yamaha dealer check the self-diagnosis system. (See page 3-7 for an explanation of the self-diagnosis device.)

The electrical circuit of the warning light can be checked by turning the key to "ON". If the warning light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

EAU11544

ABS warning light “ ” (for ABS models)

If this warning light comes on or flashes while riding, the ABS may not work correctly. If this occurs, have a Yamaha dealer check the system as soon as possible. (See page 3-12.)

EWA10081

WARNING

If the ABS warning light comes on or flashes while riding, the brake system reverts to conventional braking. Therefore, be careful not to cause the wheels to lock during emergency braking. If the warning light comes on or flashes while riding, have a Yamaha dealer check the brake system as soon as possible.

The electrical circuit of the warning light can be checked by turning the key to "ON".

If the warning light does not come on or remains on, have a Yamaha dealer check the electrical circuit.

EAU38611

Immobilizer system indicator light

The electrical circuit of the indicator

light can be checked by turning the key to "ON".

If the indicator light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

When the key is turned to "OFF" and 30 seconds have passed, the indicator light will start flashing indicating the immobilizer system is enabled. After 24 hours have passed, the indicator light will stop flashing, however the immobilizer system is still enabled.

TIP

This model is also equipped with a self-diagnosis device for the immobilizer system. If the immobilizer system is not working correctly, the indicator light will start flashing a pattern and the odometer/tripmeter will display a 2-digit code when the key is turned to "ON". When this occurs, have a Yamaha dealer check the self-diagnosis system. However, if the indicator light slowly flashes five times, and then quickly flashes two times repeatedly, error code 52 will be displayed. This error could be caused by signal interference.

If this occurs, try the following.

1. Use the code re-registering key to start the engine.

TIP

Make sure there are no other immobilizer keys close to the main switch, and do not keep more than one immobilizer key on the same key ring! Immobilizer system keys may cause signal interference, which may prevent the engine from starting.

1. If the engine starts, turn it off, and try starting the engine with the standard keys.
2. If one or both of the standard keys do not start the engine, take the vehicle, the code re-registering key and both standard keys to a Yamaha dealer and have the standard keys re-registered.

EAU11911

Tachometer unit

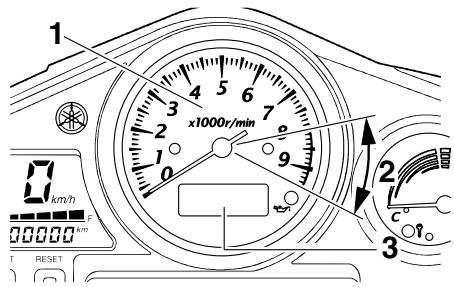

1. Tachometer
2. Tachometer red zone
3. Clock

The electric tachometer allows the rider to monitor the engine speed and keep it within the ideal power range.

When the key is turned to "ON", the tachometer needle will sweep once across the r/min range and then return to zero r/min in order to test the electrical circuit.

ECA10031

NOTICE

Do not operate the engine in the tachometer red zone.

Red zone: 8000 r/min and above

This tachometer unit is equipped with a clock.

To set the clock:

1. Push both the "SELECT" and "RESET" buttons for at least two seconds.
2. When the hour digits start flashing, push the "RESET" button to set the hours.
3. Push the "SELECT" button to change the minutes.
4. When the minute digits start flashing, push the "RESET" button to set the minutes.
5. Push the "SELECT" button to start the clock.

TIP

• After setting the clock, be sure to push the "SELECT" button before turning the key to "OFF", otherwise the clock will not be set.
• When the key is turned to "OFF", the clock display will remain on for 48 hours and then go off to prevent the battery from discharging.

EAU12182

Coolant temperature gauge

1. Coolant temperature gauge
2. Coolant temperature gauge red zone

With the key in the "ON" position, the coolant temperature gauge indicates the temperature of the coolant. When the key is turned to "ON", the coolant temperature gauge needle will sweep once across the temperature range and then return to "C" in order to test the electrical circuit. The coolant temperature varies with changes in the weather and engine load. If the needle reaches or enters the red zone, stop the vehicle and let the engine cool. (See page 6-34.)

ECA10021

NOTICE

Do not continue to operate the engine if it is overheating.

EAU36612

Multi-function display

EWA12312

WARNING

Be sure to stop the vehicle before making any setting changes to the multi-function display. Changing settings while riding can distract the operator and increase the risk of an accident.

1. Speedometer
2. Odometer/tripmeter
3. "SELECT" button
4. "RESET" button
5. Fuel gauge

The multi-function display is equipped with the following:

• a digital speedometer (which

shows riding speed)

• an odometer (which shows the total distance traveled)
• two trip meters (which show the distance traveled since they were last set to zero)
• a fuel reserve tripmeter (which shows the distance traveled on the fuel reserve)
  a fuel gauge
  a self-diagnosis device

TIP

• Be sure to turn the key to "ON" before using the "SELECT" and "RESET" buttons.
• For the U.K. only: To switch the speedometer and odometer/tripmeter displays between kilometers and miles, press the "SELECT" button for at least one second.

Odometer and tripmeter modes

Pushing the "SELECT" button switches the display between the odometer mode "ODO" and the tripmeter modes "TRIP 1" and "TRIP 2" in the following order:

$$ \mathrm {O D O} \rightarrow \mathrm {T R I P} 1 \rightarrow \mathrm {T R I P} 2 \rightarrow \mathrm {O D O} $$

If the fuel level warning indicator flashes (see page 3-4), the odometer display will automatically change to the fuel reserve tripmeter mode "TRIP F" and start counting the distance traveled from that point. In that case, pushing the "SELECT" button switches the display between the various tripmeter and odometer modes in the following order: TRIP F TRIP 1 TRIP 2 ODO TRIP F

To reset a tripmeter, select it by pushing the "SELECT" button, and then push the "RESET" button for at least one second. If you do not reset the fuel reserve tripmeter manually, it will reset itself automatically and the display will return to the prior mode after refueling and traveling 5 km (3 mi).

TIP

The display cannot be changed back to "TRIP F" after pushing the "RESET" button.

Fuel gauge

The fuel gauge indicates the amount of fuel in the fuel tank. The display segments of the fuel gauge disappear to

wards "E" (Empty) as the fuel level decreases. When only one segment is left near "E", the fuel level warning indicator and the last fuel gauge segment will flash. Refuel as soon as possible.

Self-diagnosis device

This model is equipped with a self-diagnosis device for various electrical circuits.

If any of those circuits are not working correctly, the odometer/tripmeter will indicate a two-digit error code.

If the odometer/tripmeter indicates such an error code, note the code number, and then have a Yamaha dealer check the vehicle.

ECA11520

NOTICE

If the odometer/tripmeter indicates an error code, the vehicle should be checked as soon as possible in order to avoid engine damage.

EAU12331

Anti-theft alarm (optional)

This model can be equipped with an optional anti-theft alarm by a Yamaha dealer. Contact a Yamaha dealer for more information.

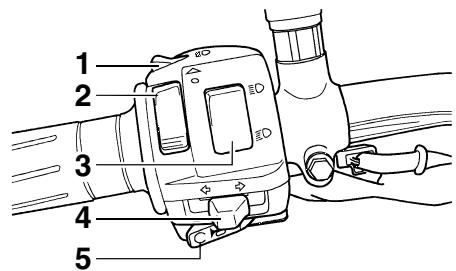

Handlebar switches

Left

EAU12347

Right

1.Pass switch
2. Hazard switch “ ”
3. Dimmer switch “ O/ O”
4. Turn signal switch /
5. Horn switch “▶”

1. Engine stop switch “ × ”
2. Start switch ()

EAU12350

Pass switch “ O”

Press this switch to flash the headlight.

EAU12400

Dimmer switch “ 0/ 0”

Set this switch to “ ” for the high beam and to “ ” for the low beam.

EAU12460

Turn signal switch 空 / 空

To signal a right-hand turn, push this switch to “ ”. To signal a left-hand turn, push this switch to “ ”. When released, the switch returns to the center

position. To cancel the turn signal lights, push the switch in after it has returned to the center position.

EAU12500

Horn switch “▶”

Press this switch to sound the horn.

EAU12660

Engine stop switch “O/×”

Set this switch to "O" before starting the engine. Set this switch to "X" to stop the engine in case of an emergency, such as when the vehicle overturns or when the throttle cable is stuck.

EAU12711

Start switch 空

Push this switch to crank the engine with the starter. See page 5-1 for starting instructions prior to starting the engine.

EAU44710

The engine trouble warning light and ABS warning light (ABS model only) will come on when the key is turned to "ON" and the start switch is pushed, but

this does not indicate a malfunction.

EAU12733

Hazard switch “ ”

With the key in the "ON" or P ≤ position, use this switch to turn on the hazard lights (simultaneous flashing of all turn signal lights).

The hazard lights are used in case of an emergency or to warn other drivers when your vehicle is stopped where it might be a traffic hazard.

ECA10061

NOTICE

Do not use the hazard lights for an extended length of time with the engine not running, otherwise the battery may discharge.

EAU12820

Clutch lever

1. Clutch lever

The clutch lever is located at the left handlebar grip. To disengage the clutch, pull the lever toward the handlebar grip. To engage the clutch, release the lever. The lever should be pulled rapidly and released slowly for smooth clutch operation.

The clutch lever is equipped with a clutch switch, which is part of the ignition circuit cut-off system. (See page 3-21.)

EAU12870

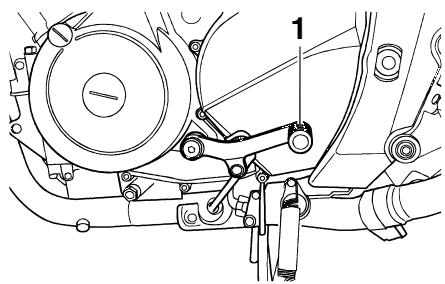

Shift pedal

1. Shift pedal

The shift pedal is located on the left side of the engine and is used in combination with the clutch lever when shifting the gears of the 6-speed constant-mesh transmission equipped on this motorcycle.

EAU26823

Brake lever

The brake lever is located at the right handlebar grip. To apply the front brake, pull the lever toward the handlebar grip.

on the adjusting dial is aligned with the " " mark on the brake lever.

1. Brake lever
2. Brake lever position adjusting dial
3. “ ”mark
4. Distance between brake lever and handlebar grip

The brake lever is equipped with a brake lever position adjusting dial. To adjust the distance between the brake lever and the handlebar grip, turn the adjusting dial while holding the lever pushed away from the handlebar grip. Make sure that the appropriate setting

EAU12941

Brake pedal

1. Brake pedal

The brake pedal is on the right side of the motorcycle. To apply the rear brake, press down on the brake pedal.

EAU26793

ABS (for ABS models)

The Yamaha ABS (Anti-lock Brake System) features a dual electronic control system, which acts on the front and rear brakes independently. The ABS is monitored by an ECU (Electronic Control Unit), which will have recourse to manual braking if a malfunction occurs.

EWA10090

WARNING

• The ABS performs best on long braking distances.
• On certain (rough or gravel) roads, the braking distance may be longer with than without the ABS. Therefore, always keep a sufficient distance to the vehicle ahead to match the riding speed.

TIP

• When the ABS is activated, the brakes are operated in the usual way. A pulsating action may be felt at the brake lever or brake pedal, but this does not indicate a malfunction.
• This ABS has a test mode which

allows the owner to experience the pulsating at the brake lever or brake pedal when the ABS is operating. However, special tools are required, so please consult your Yamaha dealer when performing this test.

ECA16120

NOTICE

Keep any type of magnets (including magnetic pick-up tools, magnetic screwdrivers, etc.) away from the front and rear wheel hubs, otherwise the magnetic rotors equipped in the wheel hubs may be damaged, resulting in improper performance of the ABS system.

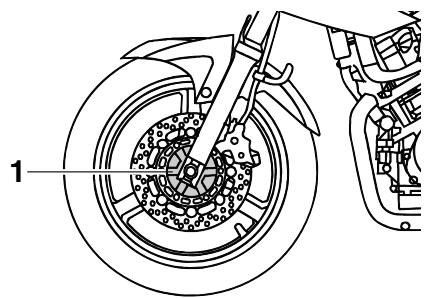

1. Front wheel hub

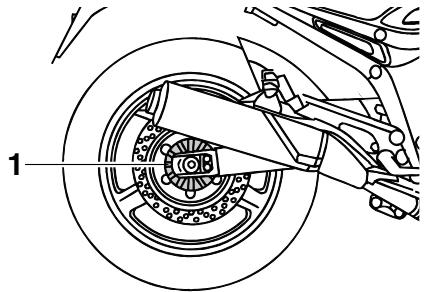

1. Rear wheel hub

Fuel tank cap

1. Fuel tank cap lock cover
2. Unlock.

To open the fuel tank cap

Open the fuel tank cap lock cover, insert the key into the lock, and then turn it 1/8 turn clockwise. The lock will be released and the fuel tank cap can be opened.

To close the fuel tank cap

1. Push the fuel tank cap into position with the key inserted in the lock.
2. Turn the key counterclockwise to the original position, remove it, and then close the lock cover.

EAU13091

TIP

The fuel tank cap cannot be closed unless the key is in the lock. In addition, the key cannot be removed if the cap is not properly closed and locked.

EWA11091

WARNING

Make sure that the fuel tank cap is properly closed after filling fuel. Leaking fuel is a fire hazard.

EAU13212

Fuel

Make sure there is sufficient gasoline in the tank.

EWA10881

Gasoline and gasoline vapors are extremely flammable. To avoid fires and explosions and to reduce the risk of injury when refueling, follow these instructions.

1. Before refueling, turn off the engine and be sure that no one is sitting on the vehicle. Never refuel while smoking, or while in the vicinity of sparks, open flames, or other sources of ignition such as the pilot lights of water heaters and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the bottom of the filler tube. Because fuel expands when it heats up, heat from the engine or the sun can cause fuel to spill out of the fuel tank.

1. Fuel tank filler tube
2. Fuel level
3. Wipe up any spilled fuel immediately. NOTICE: Immediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel may deteriorate painted surfaces or plastic parts.[ECA10071]
4. Be sure to securely close the fuel tank cap.

EWA15151

WARNING

Gasoline is poisonous and can cause injury or death. Handle gasoline with care. Never siphon gasoline by mouth. If you should swallow some gasoline or inhale a lot of gasoline vapor, or get some gasoline in

your eyes, see your doctor immediately. If gasoline spills on your skin, wash with soap and water. If gasoline spills on your clothing, change your clothes.

EAU13320

Recommended fuel:

REGULAR UNLEADED GASOLINE ONLY

Fuel tank capacity:

20.0 L (5.28 US gal, 4.40 Imp.gal)

Fuel reserve amount:

3.5 L (0.92 US gal, 0.77 Imp.gal)

ECA11400

NOTICE

Use only unleaded gasoline. The use of leaded gasoline will cause severe damage to internal engine parts, such as the valves and piston rings, as well as to the exhaust system.

Your Yamaha engine has been designed to use regular unleaded gasoline with a research octane number of 91 or higher. If knocking (or pinging) occurs, use a gasoline of a different brand

or premium unleaded fuel. Use of unleaded fuel will extend spark plug life and reduce maintenance costs.

EAU13412

Fuel tank breather hose

1. Fuel tank breather hose

Before operating the motorcycle:

• Check the fuel tank breather hose connection.
• Check the fuel tank breather hose for cracks or damage, and replace it if damaged.
  Make sure that the fuel tank breather hose is not blocked, and clean it if necessary.

EAU13445

Catalytic converters

This vehicle is equipped with catalytic converters in the exhaust system.

EWA10862

The exhaust system is hot after operation. To prevent a fire hazard or burns:

• Do not park the vehicle near possible fire hazards such as grass or other materials that easily burn.
• Park the vehicle in a place where pedestrians or children are not likely to touch the hot exhaust system.
• Make sure that the exhaust system has cooled down before doing any maintenance work.
• Do not allow the engine to idle more than a few minutes. Long idling can cause a build-up of heat.

ECA10701

NOTICE

Use only unleaded gasoline. The use of leaded gasoline will cause unre

pairable damage to the catalytic converter.

EAU13861

Seat

To remove the seat

Insert the key into the seat lock, turn it counterclockwise, and then pull the seat off.

1. Seat lock

2. Unlock.

To install the seat

Insert the projections on the front of the seat into the seat holders, push the rear of the seat down to lock it in place, and then remove the key.

1. Projection
2. Seat holder

TIP

Make sure that the seat is properly secured before riding.

Storage compartment

EAU14413

When washing the motorcycle, be careful not to let any water enter the storage compartment.

1. Yamaha CYCLELOK (optional)
2. Strap
3. CYCLELOK bar (optional)

This storage compartment is designed to hold an optional genuine Yamaha CYCLELOK. (Other locks may not fit.) When placing a CYCLELOK in the storage compartment, securely fasten it with the straps. When the CYCLELOK is not in the storage compartment, be sure to secure the straps to prevent losing them.

When storing the Owner's Manual or other documents in the storage compartment, be sure to wrap them in a plastic bag so that they will not get wet.

EAU14782

EWA10180

Adjusting the front fork

WARNING

Always adjust both fork legs equally, otherwise poor handling and loss of stability may result.

This front fork is equipped with spring preload adjusting bolts and damping force adjusting screws.

ECA10101

NOTICE

To avoid damaging the mechanism, do not attempt to turn beyond the maximum or minimum settings.

Spring preload

1. Spring preload adjusting bolt

To increase the spring preload and thereby harden the suspension, turn the adjusting bolt on each fork leg in direction (a). To decrease the spring preload and thereby soften the suspension, turn the adjusting bolt on each fork leg in direction (b).

Align the appropriate groove on the adjusting mechanism with the top of the front fork cap bolt.

1. Standard setting
2. Current setting
3. Front fork cap bolt

Spring preload setting:

Minimum (soft):

8

Standard:

7

Maximum (hard):

1

Damping force

1. Damping force adjusting screw

2. Turn the adjusting screw on each fork leg in direction (a) until the screw moves almost a 1/2 turn without clicking.

3. Continue turning the adjusting screw in direction (a) until it clicks. This is the minimum setting.
4. To increase the damping force,

continue turning the adjusting screw in direction (a). The third click after the minimum setting is the maximum setting. If the adjusting screw is turned further in direction (a), it will move half a turn before returning to the minimum setting.

TIP

Make sure that the adjusting screw is turned to one of the four settings.

Damping setting:

Minimum (soft):

1

Standard:

2

Maximum (hard):

4

EAU15032

Adjusting the shock absorber assembly

This shock absorber assembly is equipped with a spring preload adjusting ring and rebound and compression damping force adjusting knobs.

ECA10101

NOTICE

To avoid damaging the mechanism, do not attempt to turn beyond the maximum or minimum settings.

thereby harden the suspension, turn the adjusting ring in direction (a). To decrease the spring preload and thereby soften the suspension, turn the adjusting ring in direction (b).

Spring preload setting:

Minimum (soft):

1

Standard:

5

Maximum (hard):

9

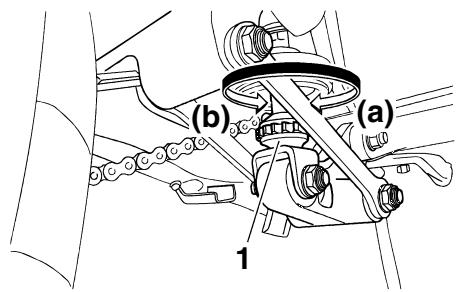

Spring preload

1. Spring preload adjusting ring
2. Special wrench
3. Position indicator

To increase the spring preload and

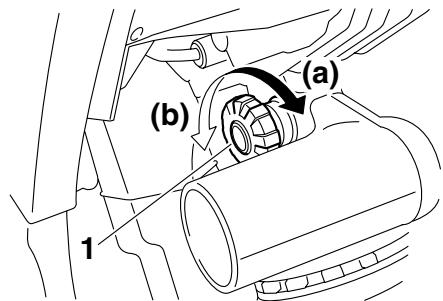

Rebound damping force

1. Rebound damping force adjusting knob

To increase the rebound damping force and thereby harden the rebound damping, turn the adjusting knob in direction

(a). To decrease the rebound damping force and thereby soften the rebound damping, turn the adjusting knob in direction (b).

Rebound damping setting:

Minimum (soft):

20 clicks in direction (b)*

Standard:

12 clicks in direction (b)*

Maximum (hard):

3 clicks in direction (b)*

• With the adjusting knob fully turned in direction (a)

Compression damping force

1. Compression damping force adjusting knob

To increase the compression damping

force and thereby harden the compression damping, turn the adjusting knob in direction (a). To decrease the compression damping force and thereby soften the compression damping, turn the adjusting knob in direction (b).

Compression damping setting:

Minimum (soft):

12 clicks in direction (b)*

Standard:

11 clicks in direction (b)*

Maximum (hard):

1 clicks in direction (b)*

• With the adjusting knob fully turned in direction (a)

TIP

To obtain a precise adjustment, it is advisable to check the actual total number of clicks or turns of each damping force adjusting mechanism. This adjustment range may not exactly match the specifications listed due to small differences in production.

EWA10221

WARNING

This shock absorber assembly contains highly pressurized nitrogen gas. Read and understand the fol

lowing information before handling the shock absorber assembly.

• Do not tamper with or attempt to open the cylinder assembly.
• Do not subject the shock absorber assembly to an open flame or other high heat source. This may cause the unit to explode due to excessive gas pressure.
• Do not deform or damage the cylinder in any way. Cylinder damage will result in poor damping performance.
• Do not dispose of a damaged or worn-out shock absorber assembly yourself. Take the shock absorber assembly to a Yamaha dealer for any service.

EAU15140

Luggage strap holders

1. Luggage strap holder

There are four luggage strap holders below the passenger seat, two of which can be turned out for easier access.

EAU15301

Sidestand

The sidestand is located on the left side of the frame. Raise the sidestand or lower it with your foot while holding the vehicle upright.

TIP

The built-in sidestand switch is part of the ignition circuit cut-off system, which cuts the ignition in certain situations. (See further down for an explanation of the ignition circuit cut-off system.)

EWA10240

WARNING

The vehicle must not be ridden with the sidestand down, or if the sidestand cannot be properly moved up (or does not stay up), otherwise the sidestand could contact the ground and distract the operator, resulting in a possible loss of control. Yamaha's ignition circuit cut-off system has been designed to assist the operator in fulfilling the responsibility of raising the sidestand before starting off. Therefore, check this system regularly as described below and have a Yamaha dealer re

pair it if it does not function properly.

EAU44892

Ignition circuit cut-off system

The ignition circuit cut-off system (comprising the sidestand switch, clutch switch and neutral switch) has the following functions.

• It prevents starting when the transmission is in gear and tmhe side-stand is up, but the clutch lever is not pulled.
• It prevents starting when the transmission is in gear and the clutch lever is pulled, but the sidestand is still down.
• It cuts the running engine when the transmission is in gear and the sidestand is moved down.

Periodically check the operation of the ignition circuit cut-off system according to the following procedure.

EAU15596

Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection and maintenance procedures and schedules described in the Owner's Manual.

EWA11151

WARNING

Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.

Before using this vehicle, check the following points:

ITEM	CHECKS	PAGE
Fuel	·Check fuel level in fuel tank. ·Refuel if necessary. ·Check fuel line for leakage.	3-14
Engine oil	·Check oil level in engine. ·If necessary, add recommended oil to specified level. ·Check vehicle for oil leakage.	6-8
Coolant	·Check coolant level in reservoir. ·If necessary, add recommended coolant to specified level. ·Check cooling system for leakage.	6-11
Front brake	·Check operation. ·If soft or spongy, have Yamaha dealer bleed hydraulic system. ·Check brake pads for wear. ·Replace if necessary. ·Check fluid level in reservoir. ·If necessary, add recommended brake fluid to specified level. ·Check hydraulic system for leakage.	6-19, 6-20

ITEM	CHECKS	PAGE
Rear brake	·Check operation. ·If soft or spongy, have Yamaha dealer bleed hydraulic system. ·Check brake pads for wear. ·Replace if necessary. ·Check fluid level in reservoir. ·If necessary, add recommended brake fluid to specified level. ·Check hydraulic system for leakage.	6-19, 6-20
Clutch	·Check operation. ·Lubricate cable if necessary. ·Check lever free play. ·Adjust if necessary.	6-18
Throttle grip	·Make sure that operation is smooth. ·Check cable free play. ·If necessary, have Yamaha dealer adjust cable free play and lubricate cable and grip housing.	6-15, 6-24
Control cables	·Make sure that operation is smooth. ·Lubricate if necessary.	6-24
Drive chain	·Check chain slack. ·Adjust if necessary. ·Check chain condition. ·Lubricate if necessary.	6-22, 6-23
Wheels and tires	·Check for damage. ·Check tire condition and tread depth. ·Check air pressure. ·Correct if necessary.	6-15, 6-18
Brake and shift pedals	·Make sure that operation is smooth. ·Lubricate pedal pivoting points if necessary.	6-24
Brake and clutch levers	·Make sure that operation is smooth. ·Lubricate lever pivoting points if necessary.	6-25
Sidestand	·Make sure that operation is smooth. ·Lubricate pivot if necessary.	6-25
Chassis fasteners	·Make sure that all nuts, bolts and screws are properly tightened. ·Tighten if necessary.	—
Instruments, lights, signals and switches	·Check operation. ·Correct if necessary.	—
Sidestand switch	·Check operation of ignition circuit cut-off system. ·If system is not working correctly, have Yamaha dealer check vehicle.	3-21

EAU15951

Read the Owner's Manual carefully to become familiar with all controls. If there is a control or function you do not understand, ask your Yamaha dealer.

EWA10271

WARNING

Failure to familiarize yourself with the controls can lead to loss of control, which could cause an accident or injury.

EAU45310

TIP

This model is equipped with a lean angle sensor to stop the engine in case of a turnover. To start the engine after a turnover, be sure to turn the main switch to "OFF" and then to "ON". Failing to do so will prevent the engine from starting even though the engine will crank when pushing the start switch.

EAU39893

Starting the engine

In order for the ignition circuit cut-off system to enable starting, one of the following conditions must be met:

The transmission is in the neutral position.
The transmission is in gear with the clutch lever pulled and the sidestand up.

See page 3-21 for more information.

1. Turn the key to "ON" and make sure that the engine stop switch is set to "O".

The following warning lights and indicator light should come on for a few seconds, then go off.

• Oil level warning light
• Engine trouble warning light
• Immobilizer system indicator light
  ABS warning light

ECA11831

NOTICE

If a warning or indicator light does not go off, see page 3-4 for the corresponding warning and indicator light circuit check.

1. Shift the transmission into the neu

tral position. (See page 5-2.) The neutral indicator light should come on. If not, ask a Yamaha dealer to check the electrical circuit.

1. Start the engine by pushing the start switch. NOTICE: For maximum engine life, never accelerate hard when the engine is cold![ECA11041]

If the engine fails to start, release the start switch, wait a few seconds, and then try again. Each starting attempt should be as short as possible to preserve the battery. Do not crank the engine more than 10 seconds on any one attempt.

EAU16671

Shifting

1. Shift pedal
2. Neutral position

Shifting gears lets you control the amount of engine power available for starting off, accelerating, climbing hills, etc.

The gear positions are shown in the illustration.

TIP

To shift the transmission into the neutral position, press the shift pedal down repeatedly until it reaches the end of its travel, and then slightly raise it.

ECA10260

NOTICE

Even with the transmission in

the neutral position, do not coast for long periods of time with the engine off, and do not tow the motorcycle for long distances. The transmission is properly lubricated only when the engine is running. Inadequate lubrication may damage the transmission.

Always use the clutch while changing gears to avoid damaging the engine, transmission, and drive train, which are not designed to withstand the shock of forced shifting.

EAU16810

Tips for reducing fuel consumption

Fuel consumption depends largely on your riding style. Consider the following tips to reduce fuel consumption:

• Shift up swiftly, and avoid high engine speeds during acceleration.
• Do not rev the engine while shifting down, and avoid high engine speeds with no load on the engine.
• Turn the engine off instead of letting it idle for an extended length of time (e.g., in traffic jams, at traffic lights or at railroad crossings).

EAU16841

Engine break-in

There is never a more important period in the life of your engine than the period between 0 and 1600km (1000 mi). For this reason, you should read the following material carefully.

Since the engine is brand new, do not put an excessive load on it for the first 1600km (1000 mi). The various parts in the engine wear and polish themselves to the correct operating clearances. During this period, prolonged full-throttle operation or any condition that might result in engine overheating must be avoided.

EAU17101

0-1000 km (0-600 mi)

Avoid prolonged operation above 4000 r/min. NOTICE: After 1000 km (600 mi) of operation, the engine oil must be changed, and the oil filter element replaced.[ECA11151]

1000-1600 km (600-1000 mi)

Avoid prolonged operation above 6000 r/min.

1600 km (1000 mi) and beyond

The vehicle can now be operated normally.

ECA10310

NOTICE

• Keep the engine speed out of the tachometer red zone.
• If any engine trouble should occur during the engine break-in period, immediately have a Yamaha dealer check the vehicle.

EAU17213

Parking

When parking, stop the engine, and then remove the key from the main switch.

EWA10311

WARNING

• Since the engine and exhaust system can become very hot, park in a place where pedestrians or children are not likely to touch them and be burned.
• Do not park on a slope or on soft ground, otherwise the vehicle may overturn, increasing the risk of a fuel leak and fire.
• Do not park near grass or other flammable materials which might catch fire.

EAU17241

Periodic inspection, adjustment, and lubrication will keep your vehicle in the safest and most efficient condition possible. Safety is an obligation of the vehicle owner/operator. The most important points of vehicle inspection, adjustment, and lubrication are explained on the following pages.

The intervals given in the periodic maintenance and lubrication chart should be simply considered as a general guide under normal riding conditions. However, depending on the weather, terrain, geographical location, and individual use, the maintenance intervals may need to be shortened.

EWA10321

WARNING

Failure to properly maintain the vehicle or performing maintenance activities incorrectly may increase your risk of injury or death during service or while using the vehicle. If you are not familiar with vehicle service, have a Yamaha dealer perform service.

EWA15121

WARNING

Turn off the engine when performing maintenance unless otherwise specified.

• A running engine has moving parts that can catch on body parts or clothing and electrical parts that can cause shocks or fires.
• Running the engine while servicing can lead to eye injury, burns, fire, or carbon monoxide poisoning – possibly leading to death. See page 1-1 for more information about carbon monoxide.

EAU17521

Owner's tool kit

1. Owner's tool kit

The owner's tool kit is located inside the storage compartment under the seat. (See page 3-16.)

The service information included in this manual and the tools provided in the owner's tool kit are intended to assist you in the performance of preventive maintenance and minor repairs. However, additional tools such as a torque wrench may be necessary to perform certain maintenance work correctly.

TIP If you do not have the tools or experience required for a particular job, have a Yamaha dealer perform it for you.

EAU1770A

Periodic maintenance and lubrication chart

TIP

• The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a mileage-based maintenance, is performed instead.
• From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
• Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.

NO.		ITEM	CHECK OR MAINTENANCE JOB	ODOMETER READING					ANNUAL CHECK
				1000 km(600 mi)	10000 km(6000 mi)	20000 km(12000 mi)	30000 km(18000 mi)	40000 km(24000 mi)
1	*	Fuel line	·Check fuel hoses for cracks or damage.		✓	✓	✓	✓	✓
2	*	Spark plugs	·Check condition. ·Clean and regap.		✓		✓
			·Replace.			✓		✓
3	*	Valves	·Check valve clearance. ·Adjust.	Every 40000 km (24000 mi)
4		Air filter element	·Replace.					✓
5		Clutch	·Check operation. ·Adjust.	✓	✓	✓	✓	✓
6	*	Front brake	·Check operation, fluid level and vehicle for fluid leakage.	✓	✓	✓	✓	✓	✓
			·Replace brake pads.	Whenever worn to the limit
7	*	Rear brake	·Check operation, fluid level and vehicle for fluid leakage.	✓	✓	✓	✓	✓	✓
			·Replace brake pads.	Whenever worn to the limit
8	*	Brake hoses	·Check for cracks or damage.		✓	✓	✓	✓	✓
			·Replace.	Every 4 years

PERIODIC MAINTENANCE AND ADJUSTMENT

NO.		ITEM	CHECK OR MAINTENANCE JOB	ODOMETER READING					ANNUAL CHECK
				1000 km(600 mi)	10000 km(6000 mi)	20000 km(12000 mi)	30000 km(18000 mi)	40000 km(24000 mi)
9	*	Wheels	·Check runout and for damage.		✓	✓	✓	✓
10	*	Tires	·Check tread depth and for damage. ·Replace if necessary. ·Check air pressure. ·Correct if necessary.		✓	✓	✓	✓	✓
11	*	Wheel bearings	·Check bearing for looseness or damage.		✓	✓	✓	✓
12	*	Swingarm	·Check operation and for excessive play.		✓	✓	✓	✓
			·Lubricate with lithium-soap-based grease.	Every 50000 km (30000 mi)
13		Drive chain	·Check chain slack, alignment and condition. ·Adjust and lubricate chain with a special O-ring chain lubricant thoroughly.	Every 1000 km (600 mi) and after washing the motorcycle or riding in the rain
14	*	Steering bearings	·Check bearing play and steering for roughness.	✓	✓	✓	✓	✓
			·Lubricate with lithium-soap-based grease.	Every 20000 km (12000 mi)
15	*	Chassis fasteners	·Make sure that all nuts, bolts and screws are properly tightened.		✓	✓	✓	✓	✓
16		Brake lever pivot shaft	·Lubricate with silicone grease.		✓	✓	✓	✓	✓
17		Brake pedal pivot shaft	·Lubricate with lithium-soap-based grease.		✓	✓	✓	✓	✓
18		Clutch lever pivot shaft	·Lubricate with lithium-soap-based grease.		✓	✓	✓	✓	✓
19		Shift pedal pivot shaft	• Lubricate with lithium-soap-based grease.		✓	✓	✓	✓	✓
20		Sidestand	• Check operation. • Lubricate.		✓	✓	✓	✓	✓
21	*	Sidestand switch	• Check operation.	✓	✓	✓	✓	✓	✓
22	*	Front fork	• Check operation and for oil leakage.		✓	✓	✓	✓
23	*	Shock absorber assembly	• Check operation and shock absorber for oil leakage.		✓	✓	✓	✓
24	*	Rear suspension relay arm and connecting arm pivoting points	• Check operation.		✓	✓	✓	✓
			• Lubricate with lithium-soap-based grease.			✓		✓
25	*	Fuel injection	• Adjust engine idling speed and synchronization.	✓	✓	✓	✓	✓	✓
26		Engine oil	• Change. • Check oil level and vehicle for oil leakage.	✓	✓	✓	✓	✓	✓
27		Engine oil filter element	• Replace.	✓		✓		✓
28	*	Cooling system	• Check coolant level and vehicle for coolant leakage.		✓	✓	✓	✓	✓
			• Change.	Every 3 years
29	*	Front and rear brake switches	• Check operation.	✓	✓	✓	✓	✓	✓
30		Moving parts and cables	• Lubricate.		✓	✓	✓	✓	✓

PERIODIC MAINTENANCE AND ADJUSTMENT

NO.		ITEM	CHECK OR MAINTENANCE JOB	ODOMETER READING					ANNUAL CHECK
				1000 km (600 mi)	10000 km (6000 mi)	20000 km (12000 mi)	30000 km (18000 mi)	40000 km (24000 mi)
31	*	Throttle grip housing and cable	·Check operation and free play. ·Adjust the throttle cable free play if necessary. ·Lubricate the throttle grip housing and cable.		✓	✓	✓	✓	✓
32	*	Air induction system	·Check the air cut-off valve, reed valve, and hose for damage. ·Replace the entire air induction system if necessary.		✓	✓	✓	✓	✓
33	*	Muffler and exhaust pipe	·Check the screw clamp(s) for looseness.	✓	✓	✓	✓	✓
34	*	Lights, signals and switches	·Check operation. ·Adjust headlight beam.	✓	✓	✓	✓	✓	✓

EAU18680

TIP

Air filter

• This model's air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with compressed air to avoid damaging it.

• The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.

• Hydraulic brake service

• Regularly check and, if necessary, correct the brake fluid level.

• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.

EAU18712

Removing and installing cowlings and panels

The cowlings and panels shown need to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time a cowling or panel needs to be removed and installed.

1. Cowling A
2. Panel A

1. Cowling B
2. Panel B

EAU18991

Cowlings A and B

To remove one of the cowlings Remove the cowling screws and the quick fastener, and then pull the cowling off as shown.

1. Screw
2. Quick fastener

TIP

The quick fastener is removed by pushing the center pin in with a screwdriver, and then pulling the fastener out.

1. Quick fastener (after removal)
2. Quick fastener (before installation)

To install the cowling

Place the cowling in the original position, and then install the screws and the quick fastener.

TIP

To install the quick fastener, push the center pin out so that it will protrude from the fastener head, insert the fastener into the cowling, and then push the protruding pin in until it is flush with the fastener head.

EAU19171

Panels A and B

To remove one of the panels

1. Remove the corresponding cowling A or B. (See page 6-6.)
2. Remove the seat. (See page 3-16.)
3. Remove the screw, and then take the panel off.

1. Screw

To install the panel

1. Place the panel in the original position, and then install the screw.
2. Install the seat and the cowling.

1. Panel A

EAU19642

Checking the spark plugs

The spark plugs are important engine components, which should be checked periodically, preferably by a Yamaha dealer. Since heat and deposits will cause any spark plug to slowly erode, they should be removed and checked in accordance with the periodic maintenance and lubrication chart. In addition, the condition of the spark plugs can reveal the condition of the engine.

The porcelain insulator around the center electrode of each spark plug should be a medium-to-light tan (the ideal color when the vehicle is ridden normally), and all spark plugs installed in the engine should have the same color. If any spark plug shows a distinctly different color, the engine could be operating improperly. Do not attempt to diagnose such problems yourself. Instead, have a Yamaha dealer check the vehicle.

If a spark plug shows signs of electrode erosion and excessive carbon or other deposits, it should be replaced.

Specified spark plug:

NGK/DPR8EA-9

DENSO/X24EPR-U9

Before installing a spark plug, the spark plug gap should be measured with a wire thickness gauge and, if necessary, adjusted to specification.

1. Spark plug gap

Spark plug gap:

0.8-0.9 mm (0.031-0.035 in)

Clean the surface of the spark plug gasket and its mating surface, and then wipe off any grime from the spark plug threads.

Tightening torque:

Spark plug:

17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)

TIP

If a torque wrench is not available when installing a spark plug, a good estimate of the correct torque is 1/4 - 1/2 turn past finger tight. However, the spark plug should be tightened to the specified torque as soon as possible.

EAU19835

Engine oil and oil filter element

The engine oil level should be checked before each ride. In addition, the oil must be changed and the oil filter element replaced at the intervals specified in the periodic maintenance and lubrication chart. A slight tilt to the side can result in a false reading.

To check the engine oil level

1. Place the vehicle on a level surface and hold it in an upright position.
2. Start the engine, warm it up for 15 minutes, and then turn it off.
3. Wait a few minutes until the oil settles, remove the oil filler cap, wipe the dipstick clean, insert it back into the oil filler hole (without screwing it in and with the arrow mark pointing upward as shown), and then remove it again to check the oil level. WARNING! Never remove the engine oil tank cap after high-speed operation, otherwise hot engine oil could

spout out and cause damage or injury. Always let the engine oil cool down sufficiently before removing the oil tank cap.[EWA10361] NOTICE: Do not operate the vehicle until you know that the engine oil level is sufficient.[ECA10011]

TIP

The engine oil should be between the minimum and maximum level marks.

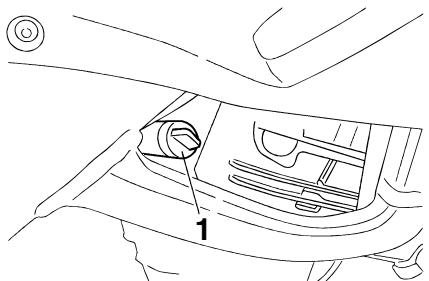

1. Engine oil filler cap

1. Engine oil filler cap
2. Dipstick
3. Maximum level mark

4. Minimum level mark

5. If the engine oil is below the minimum level mark, add sufficient oil of the recommended type to raise it to the correct level.

6. Install the oil filler cap.

TIP

• The engine oil tank is located behind the cylinders.
• The engine oil should be between the minimum and maximum level marks.

To change the engine oil (with or without oil filter element replacement)

1. Place the vehicle on a level surface.
2. Start the engine, warm it up for several minutes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap and drain bolts to drain the oil from the crankcase.

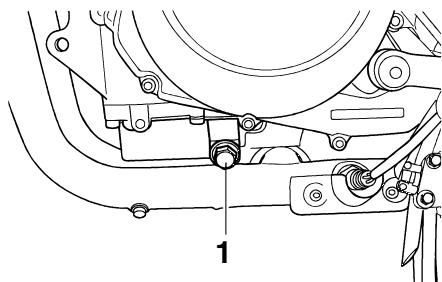

1. Engine oil drain bolt A

TIP

Skip steps 5-7 if the oil filter element is not being replaced.

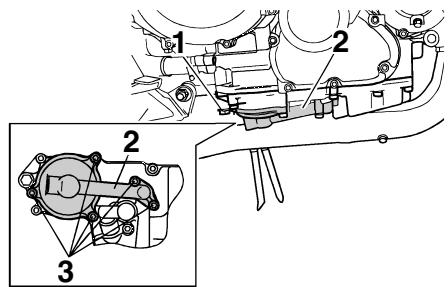

1. Remove the oil filter element cover by removing the bolts.

1. Engine oil drain bolt B
2. Oil filter element cover
3. Bolt
4. Remove and replace the oil filter element and O-rings.

1. Oil filter element

2. O-ring

3. Install the oil filter element cover by installing the bolts, then tightening them to the specified torque.

Tightening torque:

Oil filter element cover bolt: 10 Nm (1.0 m·kgf, 7.2 ft·lbf)

TIP

Make sure that the O-rings are properly seated.

1. Install the engine oil drain bolts, and then tighten them to the specified torques.

Tightening torques:

Engine oil drain bolt A: 35 Nm (3.5 m·kgf, 25 ft·lbf)

Engine oil drain bolt B: 30 Nm (3.0 m·kgf, 21.7 ft·lbf)

1. Refill with the specified amount of the recommended engine oil, and then install and tighten the oil filler cap.

Recommended engine oil:

See page 8-1.

Oil quantity:

Without oil filter element replacement:

3.80 L (4.02 US qt, 3.34 Imp qt)

With oil filter element replacement:

3.90 L (4.12 US qt, 3.43 Imp qt)

TIP

Be sure to wipe off spilled oil on any parts after the engine and exhaust system have cooled down.

ECA11620

NOTICE

• In order to prevent clutch slippage (since the engine oil also lubricates the clutch), do not mix any chemical additives. Do not use oils with a diesel specification of "CD" or oils of a higher quality than specified. In addition, do not use oils labeled "ENERGY CONSERVING II" or higher.

• Make sure that no foreign material enters the crankcase.

1. "CD" specification

2. "ENERGY CONSERVING II"

3. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil is leaking, immediately turn the engine off and check for the cause.

4. Turn the engine off, and then check the oil level and correct it if necessary.

EAU20070

Coolant

The coolant level should be checked before each ride. In addition, the coolant must be changed at the intervals specified in the periodic maintenance and lubrication chart.

EAU38583

To check the coolant level

1. Place the vehicle on a level surface and hold it in an upright position.

TIP

• The coolant level must be checked on a cold engine since the level varies with engine temperature.

• Make sure that the vehicle is positioned straight up when checking the coolant level. A slight tilt to the side can result in a false reading.

• Check the coolant level in the coolant reservoir.

TIP

The coolant should be between the minimum and maximum level marks.

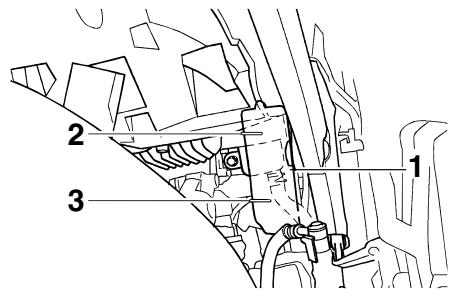

For TDM900

1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark

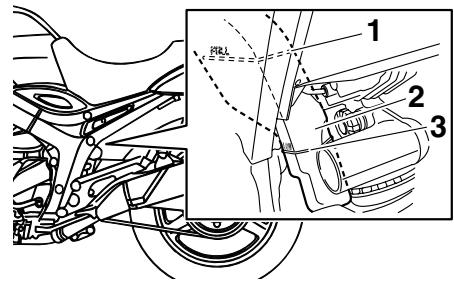

For TDM900A

1. Maximum level mark
2. Coolant reservoir

3. Minimum level mark

4. If the coolant is at or below the

minimum level mark, remove panel B for TDM900 or panel A for TDM900A (See page 6-6.), remove the reservoir cap, add coolant to the maximum level mark, and then install the reservoir cap and the panel. WARNING! Remove only the coolant reservoir cap. Never attempt to remove the radiator cap when the engine is hot.[EWA15161] NOTICE: If coolant is not available, use distilled water or soft tap water instead. Do not use hard water or salt water since it is harmful to the engine. If water has been used instead of coolant, replace it with coolant as soon as possible, otherwise the cooling system will not be protected against frost and corrosion. If water has been added to the coolant, have a Yamaha dealer check the antifreeze content of the coolant as soon as possible, otherwise the effectiveness of the coolant will be reduced.[ECA10472]

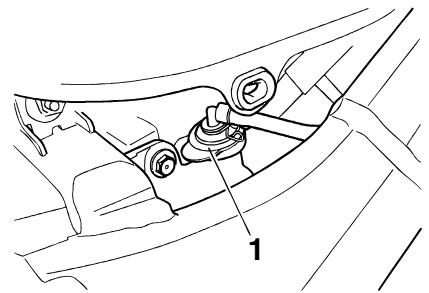

For TDM900

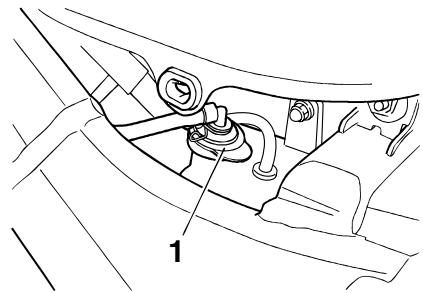

1. Coolant reservoir cap

For TDM900A
1. Coolant reservoir cap

Coolant reservoir capacity (up to the maximum level mark):

0.25 L (0.26 US qt, 0.22 Imp qt)

EAU27054

Replacing the air filter element

The air filter element should be replaced at the intervals specified in the periodic maintenance and lubrication chart. Replace the air filter element more frequently if you are riding in unusually wet or dusty areas.

1. Remove the seat. (See page 3-16.)
2. Remove cowlings A and B as well as panels A and B. (See page 6-6.)
3. Remove the fuel tank bolts.

1. Bolt

TIP

For TDM900, skip steps 4 and 12.

1. Remove the rear brake fluid reservoir holder by removing the bolt.

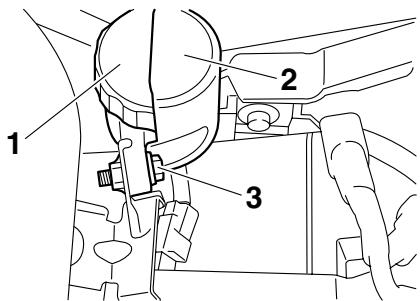

For TDM900A

1. Rear brake fluid reservoir
2. Rear brake fluid reservoir holder
3. Bolt
4. Lift the fuel tank away from the air filter case, but do not disconnect the fuel hoses.

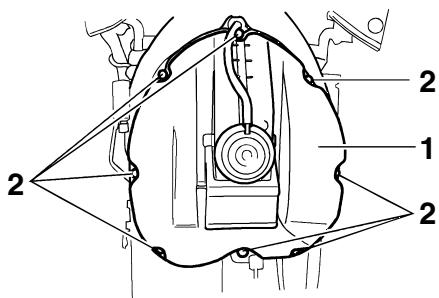

5. Remove the air filter case cover by removing the screws.

1. Air filter case cover
2. Screw
3. Pull the air filter element out.

1. Air filter element
2. Insert a new air filter element into the air filter case. NOTICE: Make sure that the air filter element is properly seated in the air filter

case. The engine should never be operated without the air filter element installed, otherwise the piston(s) and/or cylinder(s) may become excessively worn.[ECA10481]

1. Install the air filter case cover by installing the screws.
2. Place the fuel tank in its original position. Make sure that the fuel hoses are properly connected and routed, and are not pinched. Be sure to place the fuel tank breather/overflow hose in its original position. WARNING! Before installing the fuel tank, make sure that the fuel hoses are not damaged. If any fuel hose is damaged, do not start the engine but have a Yamaha dealer replace the hose, otherwise fuel may leak, creating a fire hazard.[EWA11331]

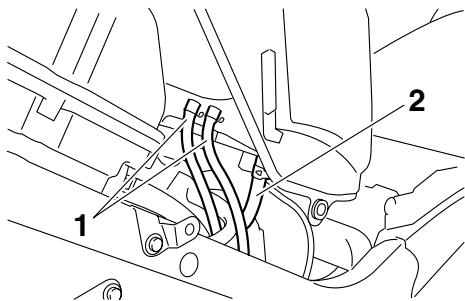

1. Fuel tank breather/overflow hose
2. Fuel hose

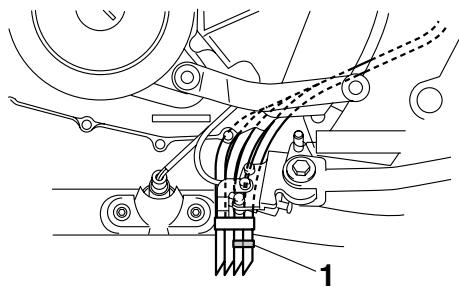

1. Original position (paint mark)
2. Install the fuel tank bolts.
3. Install the rear brake fluid reservoir holder by installing the bolt.
4. Install the panels and cowlings.
5. Install the seat.

EAU34301

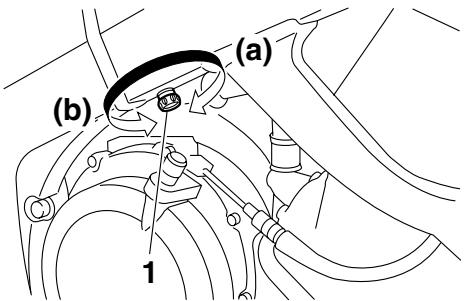

Adjusting the engine idling speed

The engine idling speed must be checked and, if necessary, adjusted as follows at the intervals specified in the periodic maintenance and lubrication chart.

The engine should be warm before making this adjustment.

Check the engine idling speed and, if necessary, adjust it to specification by turning the idle adjusting screw. To increase the engine idling speed, turn the screw in direction (a). To decrease the engine idling speed, turn the screw in direction (b).

1. Idle adjusting screw

Engine idling speed:

1100-1200 r/min

TIP

If the specified idling speed cannot be obtained as described above, have a Yamaha dealer make the adjustment.

EAU21382

Checking the throttle cable free play

1. Throttle cable free play

The throttle cable free play should measure 3.0-5.0 mm (0.12-0.20 in) at the throttle grip. Periodically check the throttle cable free play and, if necessary, have a Yamaha dealer adjust it.

EAU21401

Valve clearance

The valve clearance changes with use, resulting in improper air-fuel mixture and/or engine noise. To prevent this from occurring, the valve clearance must be adjusted by a Yamaha dealer at the intervals specified in the periodic maintenance and lubrication chart.

EAU33042

Tires

To maximize the performance, durability, and safe operation of your motorcycle, note the following points regarding the specified tires.

Tire air pressure

The tire air pressure should be checked and, if necessary, adjusted before each ride.

EWA10501

WARNING

Operation of this vehicle with improper tire pressure may cause severe injury or death from loss of control.

• The tire air pressure must be checked and adjusted on cold tires (i.e., when the temperature of the tires equals the ambient temperature).
• The tire air pressure must be adjusted in accordance with the riding speed and with the total weight of rider, passenger, cargo, and accessories approved

for this model.

Tire air pressure (measured on cold tires):

0-90 kg (0-198 lb):

Front:

$$ 2 2 5 \mathrm {k P a} (2. 2 5 \mathrm {k g f / c m} ^ {2}, 3 3 \mathrm {p s i}) $$

Rear:

$$ 2 5 0 \mathrm {k P a} (2. 5 0 \mathrm {k g f / c m ^ {2}}, 3 6 \mathrm {p s i}) $$

TDM900 90-201 kg (198-443 lb)

TDM900A 90-198 kg (198-437 lb):

Front:

$$ 2 2 5 \mathrm {k P a} (2. 2 5 \mathrm {k g f / c m ^ {2}}, 3 3 \mathrm {p s i}) $$

Rear:

$$ 2 9 0 \mathrm {k P a} (2. 9 0 \mathrm {k g f / c m ^ {2}}, 4 2 \mathrm {p s i}) $$

High-speed riding:

Front:

$$ 2 2 5 \mathrm {k P a} (2. 2 5 \mathrm {k g f / c m ^ {2}}, 3 3 \mathrm {p s i}) $$

Rear:

$$ 2 5 0 \mathrm {k P a} (2. 5 0 \mathrm {k g f / c m ^ {2}}, 3 6 \mathrm {p s i}) $$

Maximum load*:

TDM900 201 kg (443 lb)

TDM900A 198 kg (437 lb)

• Total weight of rider, passenger,

cargo and accessories

EWA10511

WARNING

Never overload your vehicle. Operation of an overloaded vehicle could cause an accident.

Tire inspection

1. Tire tread depth

2. Tire sidewall

The tires must be checked before each ride. If the center tread depth reaches the specified limit, if the tire has a nail or glass fragments in it, or if the sidewall is cracked, have a Yamaha dealer replace the tire immediately.

Minimum tire tread depth (front and rear):

1.6 mm (0.06 in)

TIP

The tire tread depth limits may differ from country to country. Always comply

with the local regulations.

EWA10470

WARNING

• Have a Yamaha dealer replace excessively worn tires. Besides being illegal, operating the vehicle with excessively worn tires decreases riding stability and can lead to loss of control.
• The replacement of all wheel and brake related parts, including the tires, should be left to a Yamaha dealer, who has the necessary professional knowledge and experience.

Tire information

1

2

3

1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal

This motorcycle is equipped with cast wheels and tubeless tires with valves.

EWA10901

WARNING

• The front and rear tires should be of the same make and design, otherwise the handling characteristics of the motorcycle may be different, which could lead to an accident.
  Always make sure that the valve caps are securely installed to prevent air pressure leakage.
• Use only the tire valves and

valve cores listed below to avoid tire deflation during a ride.

After extensive tests, only the tires listed below have been approved for this model by Yamaha Motor Co., Ltd.

Front tire:

Size: 120/70 ZR18M/C (59W)

Manufacturer/model: TDM900 METZELER/MEZ4 FRONT TDM900A DUNLOP/D220FSTJ TDM900 DUNLOP/D220FSTJ

Tire air valve: TR412

Valve core: #9100 (original)

Rear tire:

Size: 160/60 ZR17M/C (69W)

Manufacturer/model: TDM900 METZELER/MEZ4 TDM900A DUNLOP/D220STJ TDM900 DUNLOP/D220STJ

Tire air valve: TR412

Valve core: #9100 (original)

EWA10600

WARNING

This motorcycle is fitted with su

per-high-speed tires. Note the following points in order to make the most efficient use of these tires.

• Use only the specified replacement tires. Other tires may run the danger of bursting at super high speeds.
• Brand-new tires can have a relatively poor grip on certain road surfaces until they have been "broken in". Therefore, it is advisable before doing any high-speed riding to ride conservatively for approximately 100km (60 mi) after installing a new tire.
• The tires must be warmed up before a high-speed run.
  Always adjust the tire air pressure according to the operating conditions.

EAU21960

Cast wheels

To maximize the performance, durability, and safe operation of your vehicle, note the following points regarding the specified wheels.

• The wheel rims should be checked for cracks, bends or warpage before each ride. If any damage is found, have a Yamaha dealer replace the wheel. Do not attempt even the smallest repair to the wheel. A deformed or cracked wheel must be replaced.
• The wheel should be balanced whenever either the tire or wheel has been changed or replaced. An unbalanced wheel can result in poor performance, adverse handling characteristics, and a shortened tire life.
• Ride at moderate speeds after changing a tire since the tire surface must first be "broken in" for it to develop its optimal characteristics.

EAU22042

Adjusting the clutch lever free play

1. Locknut (clutch lever)
2. Clutch lever free play adjusting bolt
3. Clutch lever free play

The clutch lever free play should measure 10.0-15.0 mm (0.39-0.59 in) as shown. Periodically check the clutch lever free play and, if necessary, adjust it as follows.

1. Slide the rubber cover back at the clutch lever.
2. Loosen the locknut.
3. To increase the clutch lever free play, turn the adjusting bolt in direction (a). To decrease the clutch lever free play, turn the adjusting

bolt in direction (b).

TIP

If the specified clutch lever free play could be obtained as described above, tighten the locknut and skip the rest of the procedure, otherwise proceed as follows.

1. Fully turn the adjusting bolt at the clutch lever in direction (a) to loosen the clutch cable.
2. Loosen the locknut at the crankcase.

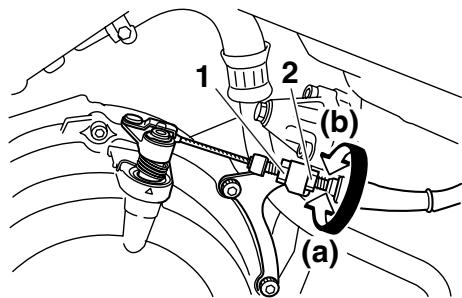

1. Locknut (crankcase)
2. Clutch lever free play adjusting nut (crankcase)
3. To increase the clutch lever free play, turn the adjusting nut in direction (a). To decrease the clutch le

ver free play, turn the adjusting nut in direction (b).

1. Tighten the locknut at the clutch lever and the crankcase.
2. Slide the rubber cover to its original position.

EAU22272

Adjusting the rear brake light switch

1. Rear brake light switch
2. Rear brake light switch adjusting nut

The rear brake light, which is activated by the brake pedal, should come on just before braking takes effect. If necessary, adjust the rear brake light switch as follows.

Turn the rear brake light switch adjusting nut while holding the rear brake light switch in place. To make the brake light come on earlier, turn the adjusting nut in direction (a). To make the brake light come on later, turn the adjusting nut in direction (b).

EAU22390

Checking the front and rear brake pads

The front and rear brake pads must be checked for wear at the intervals specified in the periodic maintenance and lubrication chart.

EAU22420

Front brake pads

1. Brake pad wear indicator groove

Each front brake pad is provided with a wear indicator groove, which allows you to check the brake pad wear without having to disassemble the brake. To check the brake pad wear, check the wear indicator groove. If a brake pad has worn to the point that the wear

indicator groove has almost disappeared, have a Yamaha dealer replace the brake pads as a set.

EAU22500

Rear brake pads
1. Lining thickness

Check each rear brake pad for damage and measure the lining thickness. If a brake pad is damaged or if the lining thickness is less than 0.8mm (0.03 in), have a Yamaha dealer replace the brake pads as a set.

EAU38640

Checking the brake fluid level

Front brake
1. Minimum level mark

Rear brake (for TDM900)
1. Minimum level mark

Rear brake (for TDM900A)

1. Minimum level mark

Insufficient brake fluid may allow air to enter the brake system, possibly causing it to become ineffective.

Before riding, check that the brake fluid is above the minimum level mark and replenish if necessary. A low brake fluid level may indicate worn brake pads and/or brake system leakage. If the brake fluid level is low, be sure to check the brake pads for wear and the brake system for leakage.

TIP

For TDM900A, the rear brake fluid reservoir is located under the seat. (See page 3-16.)

Observe these precautions:

• When checking the fluid level, make sure that the top of the brake fluid reservoir is level.
• Use only the recommended quality brake fluid, otherwise the rubber seals may deteriorate, causing leakage and poor braking performance.

Recommended brake fluid: DOT 4

• Refill with the same type of brake fluid. Mixing fluids may result in a harmful chemical reaction and lead to poor braking performance.
• Be careful that water or dust does not enter the brake fluid reservoir when refilling. Water will significantly lower the boiling point of the fluid and may result in vapor lock, and dirt may clog the ABS hydraulic unit valves.
• Brake fluid may deteriorate painted surfaces or plastic parts. Always clean up spilled fluid immediately.
• As the brake pads wear, it is nor

mal for the brake fluid level to gradually go down. However, if the brake fluid level goes down suddenly, have a Yamaha dealer check the cause.

EAU22731

Changing the brake fluid

Have a Yamaha dealer change the brake fluid at the intervals specified in the TIP after the periodic maintenance and lubrication chart. In addition, have the oil seals of the master cylinders and calipers as well as the brake hoses replaced at the intervals listed below or whenever they are damaged or leaking.

• Oil seals: Replace every two years.
• Brake hoses: Replace every four years.

EAU22760

Drive chain slack

The drive chain slack should be checked before each ride and adjusted if necessary.

EAU22773

To check the drive chain slack

1. Place the motorcycle on the side-stand.

TIP

When checking and adjusting the drive chain slack, there should be no weight on the motorcycle.

1. Shift the transmission into the neutral position.
2. Move the rear wheel by pushing the motorcycle to locate the tightest portion of the drive chain, and then measure the drive chain slack as shown.

Drive chain slack:

50.0-60.0 mm (1.97-2.36 in)

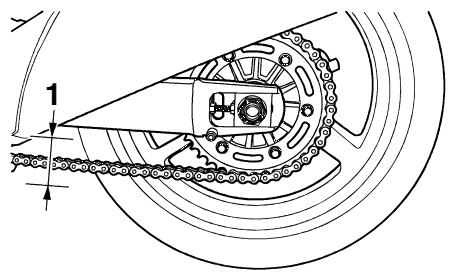

1. Drive chain slack
2. If the drive chain slack is incorrect, adjust it as follows.

1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
4. Alignment marks

EAU22952

To adjust the drive chain slack

1. Loosen the axle nut, the brake caliper bracket bolt and the locknut on each side of the swingarm.

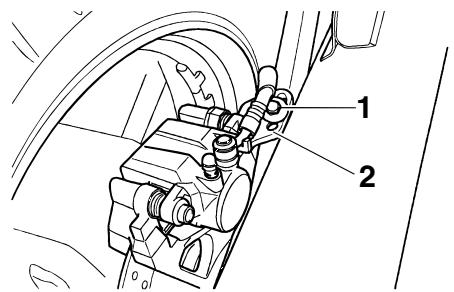

1. Brake caliper bracket bolt
2. Brake caliper bracket
3. To tighten the drive chain, turn the drive chain slack adjusting bolt on

each side of the swingarm in direction (a). To loosen the drive chain, turn the adjusting bolt on each side of the swingarm in direction (b), and then push the rear wheel forward. NOTICE: Improper drive chain slack will overload the engine as well as other vital parts of the motorcycle and can lead to chain slippage or breakage. To prevent this from occurring, keep the drive chain slack within the specified limits.[ECA10571]

TIP

Using the alignment marks on each side of the swingarm, make sure that both chain pullers are in the same position for proper wheel alignment.

1. Tighten the locknuts, and then tighten the axle nut and the brake caliper bracket bolt to the specified torques.

Tightening torque:

Axle nut: 150 Nm (15.0 m·kgf, 108.5 ft·lbf)
Brake caliper bracket bolt: 40 Nm (4.0 m·kgf, 29 ft·lbf)

EAU23023

Cleaning and lubricating the drive chain

The drive chain must be cleaned and lubricated at the intervals specified in the periodic maintenance and lubrication chart, otherwise it will quickly wear out, especially when riding in dusty or wet areas. Service the drive chain as follows.

ECA10581

NOTICE

The drive chain must be lubricated after washing the motorcycle and riding in the rain.

1. Clean the drive chain with kerosene and a small soft brush. NOTICE: To prevent damaging the O-rings, do not clean the drive chain with steam cleaners, high-pressure washers or inappropriate solvents.[ECA11121]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain lubricant. NOTICE: Do not use engine oil or any other lubricants for the drive chain, as they

may contain substances that could damage the O-rings.[ECA11111]

EAU23101

Checking and lubricating the cables

The operation of all control cables and the condition of the cables should be checked before each ride, and the cables and cable ends should be lubricated if necessary. If a cable is damaged or does not move smoothly, have a Yamaha dealer check or replace it. WARNING! Damage to the outer sheath may interfere with proper cable operation and will cause the inner cable to rust. Replace a damaged cable as soon as possible to prevent unsafe conditions.[EWA10721]

Recommended lubricant:

Engine oil

EAU23111

Checking and lubricating the throttle grip and cable

The operation of the throttle grip should be checked before each ride. In addition, the cable should be lubricated at the intervals specified in the periodic maintenance chart.

EAU44271

Checking and lubricating the brake and shift pedals

The operation of the brake and shift.
pedals should be checked before each
ride, and the pedal pivots should be lubricated if necessary.

Recommended lubricant:

Lithium-soap-based grease

EAU23142

Checking and lubricating the brake and clutch levers

The operation of the brake and clutch levers should be checked before each ride, and the lever pivots should be lubricated if necessary.

Recommended lubricants:

Brake lever:

Silicone grease

Clutch lever:

Lithium-soap-based grease

EAU23202

Checking and lubricating the sidestand

The operation of the sidestand should be checked before each ride, and the sidestand pivot and metal-to-metal contact surfaces should be lubricated if necessary.

EWA10731

WARNING

If the sidestand does not move up and down smoothly, have a Yamaha dealer check or repair it. Otherwise, the sidestand could contact the ground and distract the operator, resulting in a possible loss of control.

Recommended lubricant:

Lithium-soap-based grease

EAU23250

Lubricating the rear suspension

The pivoting points of the rear suspension must be lubricated at the intervals specified in the periodic maintenance and lubrication chart.

Recommended lubricant:

Lithium-soap-based grease

EAU23272

Checking the front fork

The condition and operation of the front fork must be checked as follows at the intervals specified in the periodic maintenance and lubrication chart.

To check the condition

Check the inner tubes for scratches, damage and excessive oil leakage.

To check the operation

1. Place the vehicle on a level surface and hold it in an upright position. WARNING! To avoid injury, securely support the vehicle so there is no danger of it falling over.[EWA10751]
2. While applying the front brake, push down hard on the handlebars several times to check if the front fork compresses and rebounds smoothly.

ECA10590

NOTICE

If any damage is found or the front fork does not operate smoothly, have a Yamaha dealer check or repair it.

EAU23283

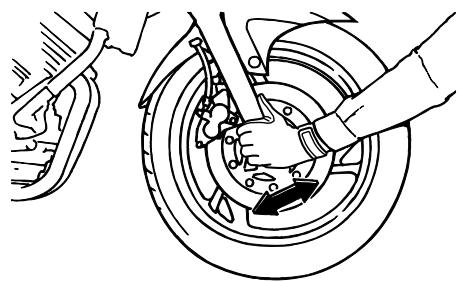

Checking the steering

Worn or loose steering bearings may cause danger. Therefore, the operation of the steering must be checked as follows at the intervals specified in the periodic maintenance and lubrication chart.

1. Place a stand under the engine to raise the front wheel off the ground. (See page 6-32 for more information.) WARNING! To avoid injury, securely support the vehicle so there is no danger of it falling over.[EWA10751]
2. Hold the lower ends of the front fork legs and try to move them forward and backward. If any free play can be felt, have a Yamaha dealer check or repair the steering.

EAU23290

Checking the wheel bearings

The front and rear wheel bearings must be checked at the intervals specified in the periodic maintenance and lubrication chart. If there is play in the wheel hub or if the wheel does not turn smoothly, have a Yamaha dealer check the wheel bearings.

EAU23374

Battery

1. Battery
2. Positive battery lead (red)
3. Negative battery lead

This model is equipped with a VRLA (Valve Regulated Lead Acid) battery. There is no need to check the electrolyte or to add distilled water. However, the battery lead connections need to be checked and, if necessary, tightened.

ECA10620

NOTICE

Never attempt to remove the battery cell seals, as this would permanently damage the battery.

EWA10760

WARNING

• Electrolyte is poisonous and dangerous since it contains sulfuric acid, which causes severe burns. Avoid any contact with skin, eyes or clothing and always shield your eyes when working near batteries. In case of contact, administer the following FIRST AID.

• EXTERNAL: Flush with plenty of water.

• INTERNAL: Drink large quantities of water or milk and immediately call a physician.
• EYES: Flush with water for 15 minutes and seek prompt medical attention.
• Batteries produce explosive hydrogen gas. Therefore, keep sparks, flames, cigarettes, etc., away from the battery and provide sufficient ventilation when charging it in an enclosed space.
• KEEP THIS AND ALL BATTERIES OUT OF THE REACH OF CHILDREN.

To charge the battery

Have a Yamaha dealer charge the battery as soon as possible if it seems to have discharged. Keep in mind that the battery tends to discharge more quickly if the vehicle is equipped with optional electrical accessories.

ECA16520

NOTICE

To charge a VRLA (Valve Regulated Lead Acid) battery, a special (constant-voltage) battery charger is required. Using a conventional battery charger will damage the battery. If you do not have access to a constant-voltage battery charger, have a Yamaha dealer charge your battery.

To store the battery

1. If the vehicle will not be used for more than one month, remove the battery, fully charge it, and then place it in a cool, dry place. NOTICE: When removing the battery, be sure the key is turned to “OFF”, then disconnect the negative lead before disconnecting the positive lead.[ECA16302]

2. If the battery will be stored for more than two months, check it at least once a month and fully charge it if necessary.

3. Fully charge the battery before installation.
4. After installation, make sure that the battery leads are properly connected to the battery terminals.

ECA16530

NOTICE

Always keep the battery charged. Storing a discharged battery can cause permanent battery damage.

EAU38592

Replacing the fuses

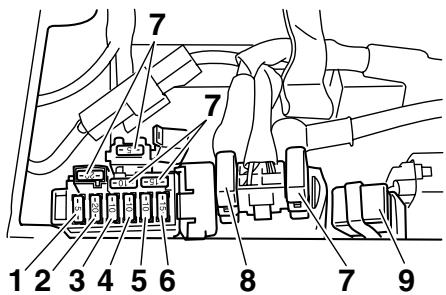

For TDM900

1. Backup fuse (for odometer and clock)
2. Radiator fan fuse
3. Turn signal light and hazard fuse
4. Ignition fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
8. Fuel injection system fuse
9. Main fuse

For TDM900A

1. Backup fuse (for odometer and clock)
2. Radiator fan fuse
3. Turn signal light and hazard fuse
4. Ignition fuse
5. Signaling system fuse
6. Headlight fuse
7. ABS motor fuse
8. ABS motor spare fuse
9. Main fuse
10. Spare fuse
11. Fuel injection system fuse
12. ABS control unit fuse

The main fuse and the fuse box, which contains the fuses for the individual circuits, are located under the seat. (See page 3-16.)

If a fuse is blown, replace it as follows.

1. Turn the key to "OFF" and turn off

the electrical circuit in question.

1. Remove the blown fuse, and then install a new fuse of the specified amperage. WARNING! Do not use a fuse of a higher amperage rating than recommended to avoid causing extensive damage to the electrical system and possibly a fire.[EWA15131]

Specified fuses:

Main fuse: 40.0 A

Headlight fuse: TDM900 15.0 A TDM900A 20.0 A

Radiator fan fuse: 20.0 A

Ignition fuse: 10.0 A

Signaling system fuse: 10.0 A

Backup fuse: TDM900 5.0 A TDM900A 10.0 A

Fuel injection system fuse: 10.0 A

Turn signal light and hazard fuse: 10.0 A

ABS motor fuse: TDM900A 30.0 A

ABS control unit fuse: TDM900A 10.0 A

1. Turn the key to "ON" and turn on the electrical circuit in question to check if the device operates.
2. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.

EAU23751

Replacing a headlight bulb

This model is equipped with two quartz bulb headlights. If a headlight bulb burns out, replace it as follows.

ECA10650

NOTICE

Take care not to damage the following parts:

• Headlight bulb

Do not touch the glass part of the headlight bulb to keep it free from oil, otherwise the transparency of the glass, the luminosity of the bulb, and the bulb life will be adversely affected. Thoroughly clean off any dirt and fingerprints on the headlight bulb using a cloth moistened with alcohol or thinner.

• Headlight lens

Do not affix any type of tinted film or stickers to the headlight lens.

Do not use a headlight bulb of a wattage higher than specified.

1. Do not touch the glass part of the bulb.

2. Disconnect the headlight coupler, and then remove the headlight bulb cover.

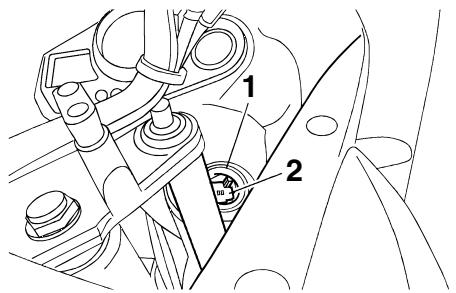

1. Headlight bulb cover
2. Headlight coupler
3. Unhook the headlight bulb holder, and then remove the burnt out bulb.

1. Headlight bulb holder

2. Place a new bulb into position, and then secure it with the bulb holder.

3. Install the bulb cover, and then connect the coupler.
4. Have a Yamaha dealer adjust the headlight beam if necessary.

EAU24081

Replacing the tail/brake light bulb

1. Remove the seat. (See page 3-16.)
2. Remove the socket (together with the bulb) by turning it counterclockwise.

1. Socket

2. Remove the burnt out bulb by pushing it in and turning it counterclockwise.

3. Insert a new bulb into the socket, push it in, and then turn it clockwise until it stops.
4. Install the socket (together with the bulb) by turning it clockwise.
5. Install the seat.

EAU24204

Replacing a turn signal light bulb

1. Remove the turn signal light lens by removing the screw.

1. Screw
2. Turn signal light lens
3. Remove the burnt-out bulb by pushing it in and turning it counterclockwise.

1. Turn signal light bulb

2. Insert a new bulb into the socket, push it in, and then turn it clockwise until it stops.

3. Install the lens by installing the screw. NOTICE: Do not over-tighten the screw, otherwise the lens may break.[ECA11191]

EAU36451

Replacing an auxiliary light bulb

1. Remove the auxiliary light lens by removing the screws.

1. Auxiliary light lens
2. Screw
3. Remove the burnt out bulb by pulling it out.

1. Auxiliary light bulb

2. Insert a new bulb into the socket.

3. Install the lens by installing the screws. NOTICE: Do not overtighten the screws, otherwise the lens may break.[ECA10681]

EAU24350

Supporting the motorcycle

Since this model is not equipped with a centerstand, follow these precautions when removing the front and rear wheel or performing other maintenance requiring the motorcycle to stand upright. Check that the motorcycle is in a stable and level position before starting any maintenance. A strong wooden box can be placed under the engine for added stability.

To service the front wheel

1. Stabilize the rear of the motorcycle by using a motorcycle stand or, if an additional motorcycle stand is not available, by placing a jack under the frame in front of the rear wheel.
2. Raise the front wheel off the ground by using a motorcycle stand.

To service the rear wheel

Raise the rear wheel off the ground by using a motorcycle stand or, if a motor-cycle stand is not available, by placing a jack either under each side of the

frame in front of the rear wheel or under each side of the swingarm.

EAU25871

Troubleshooting

Although Yamaha motorcycles receive a thorough inspection before shipment from the factory, trouble may occur during operation. Any problem in the fuel, compression, or ignition systems, for example, can cause poor starting and loss of power.

The following troubleshooting charts represent quick and easy procedures for checking these vital systems yourself. However, should your motorcycle require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the motorcycle properly.

Use only genuine Yamaha replacement parts. Imitation parts may look like Yamaha parts, but they are often inferior, have a shorter service life and can lead to expensive repair bills.

EWA15141

heaters or furnaces. Gasoline or gasoline vapors can ignite or explode, causing severe injury or property damage.

WARNING

When checking the fuel system, do not smoke, and make sure there are no open flames or sparks in the area, including pilot lights from water

EAU42361

Troubleshooting charts

Starting problems or poor engine performance

1. Fuel

2. Compression

3. Ignition

4. Battery

Engine overheating

WARNING

EWA10400

• Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
• After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.

TIP

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

EAU37833

Matte color caution

ECA15192

NOTICE

Some models are equipped with matte colored finished parts. Be sure to consult a Yamaha dealer for advice on what products to use before cleaning the vehicle. Using a brush, harsh chemical products or cleaning compounds when cleaning these parts will scratch or damage their surface. Wax also should not be applied to any matte colored finished parts.

Care

While the open design of a motorcycle reveals the attractiveness of the technology, it also makes it more vulnerable. Rust and corrosion can develop even if high-quality components are used. A rusty exhaust pipe may go unnoticed on a car, however, it detracts from the overall appearance of a motorcycle. Frequent and proper care does not only comply with the terms of the warranty, but it will also keep your motorcycle looking good, extend its life and optimize its performance.

Before cleaning

1. Cover the muffler outlets with plastic bags after the engine has cooled down.
2. Make sure that all caps and covers as well as all electrical couplers and connectors, including the spark plug caps, are tightly installed.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase, with a degreasing agent and a brush, but never apply such prod

EAU26044

ucts onto seals, gaskets, sprockets, the drive chain and wheel axles. Always rinse the dirt and degreaser off with water.

Cleaning

ECA10772

NOTICE

• Avoid using strong acidic wheel cleaners, especially on spiked wheels. If such products are used on hard-to-remove dirt, do not leave the cleaner on the affected area any longer than instructed. Also, thoroughly rinse the area off with water, immediately dry it, and then apply a corrosion protection spray.
• Improper cleaning can damage plastic parts (such as cowlings, panels, windshields, headlight lenses, meter lenses, etc.) and the mufflers. Use only a soft, clean cloth or sponge with water to clean plastic. However, if the plastic parts cannot be thoroughly cleaned with water, diluted mild detergent with water may be used. Be sure to rinse

off any detergent residue using plenty of water, as it is harmful to plastic parts.

• Do not use any harsh chemical products on plastic parts. Be sure to avoid using cloths or sponges which have been in contact with strong or abrasive cleaning products, solvent or thinner, fuel (gasoline), rust removers or inhibitors, brake fluid, antifreeze or electrolyte.
• Do not use high-pressure washers or steam-jet cleaners since they cause water seepage and deterioration in the following areas: seals (of wheel and swing-arm bearings, fork and brakes), electric components (couplers, connectors, instruments, switches and lights), breather hoses and vents.
• For motorcycles equipped with a windshield: Do not use strong cleaners or hard sponges as they will cause dulling or scratching. Some cleaning compounds for plastic may leave

scratches on the windshield. Test the product on a small hidden part of the windshield to make sure that it does not leave any marks. If the windshield is scratched, use a quality plastic polishing compound after washing.

After normal use

Remove dirt with warm water, a mild detergent, and a soft, clean sponge, and then rinse thoroughly with clean water. Use a toothbrush or bottlebrush for hard-to-reach areas. Stubborn dirt and insects will come off more easily if the area is covered with a wet cloth for a few minutes before cleaning.

After riding in the rain, near the sea or on salt-sprayed roads

Since sea salt or salt sprayed on roads during winter are extremely corrosive in combination with water, carry out the following steps after each ride in the rain, near the sea or on salt-sprayed roads.

TIP Salt sprayed on roads in the winter may remain well into spring.

1. Clean the motorcycle with cold water and a mild detergent, after the engine has cooled down.

NOTICE: Do not use warm water since it increases the corrosive action of the salt.[ECA10791]

1. After drying the motorcycle, apply a corrosion protection spray on all metal, including chrome- and nickel-plated, surfaces to prevent corrosion.

After cleaning

1. Dry the motorcycle with a chamois or an absorbing cloth.
2. Immediately dry the drive chain and lubricate it to prevent it from rusting.
3. Use a chrome polish to shine chrome, aluminum and stainless-steel parts, including the exhaust system. (Even the thermally induced discoloring of stainless-steel exhaust systems can be

removed through polishing.)

1. To prevent corrosion, it is recommended to apply a corrosion protection spray on all metal, including chrome- and nickel-plated, surfaces.
2. Use spray oil as a universal cleaner to remove any remaining dirt.
3. Touch up minor paint damage caused by stones, etc.
4. Wax all painted surfaces.
5. Let the motorcycle dry completely before storing or covering it.

EWA11131

WARNING

Contaminants on the brakes or tires can cause loss of control.

• Make sure that there is no oil or wax on the brakes or tires.
• If necessary, clean the brake discs and brake linings with a regular brake disc cleaner or acetone, and wash the tires with warm water and a mild detergent. Before riding at higher speeds, test the motorcycle's braking performance and cornering behavior.

ECA10800

NOTICE

• Apply spray oil and wax sparingly and make sure to wipe off any excess.
• Never apply oil or wax to any rubber and plastic parts, but treat them with a suitable care product.
• Avoid using abrasive polishing compounds as they will wear away the paint.

TIP

• Consult a Yamaha dealer for advice on what products to use.
• Washing, rainy weather or humid climates can cause the headlight lens to fog. Turning the headlight on for a short period of time will help remove the moisture from the lens.

EAU26202

Storage

Short-term

Always store your motorcycle in a cool, dry place and, if necessary, protect it against dust with a porous cover.

ECA10810

NOTICE

• Storing the motorcycle in a poorly ventilated room or covering it with a tarp, while it is still wet, will allow water and humidity to seep in and cause rust.
• To prevent corrosion, avoid damp cellars, stables (because of the presence of ammonia) and areas where strong chemicals are stored.

Long-term

Before storing your motorcycle for several months:

1. Follow all the instructions in the "Care" section of this chapter.
2. Fill up the fuel tank and add fuel stabilizer (if available) to prevent the fuel tank from rusting and the

fuel from deteriorating.

1. Perform the following steps to protect the cylinders, piston rings, etc. from corrosion.

a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then place the spark plugs on the cylinder head so that the electrodes are grounded. (This will limit sparking during the next step.)
d. Turn the engine over several times with the starter. (This will coat the cylinder walls with oil.) WARNING! To prevent damage or injury from sparking, make sure to ground the spark plug electrodes while turning the engine over.[EWA10951]
e. Remove the spark plug caps from the spark plugs, and then install the spark plugs and the spark plug caps.
4. Lubricate all control cables and the

pivoting points of all levers and pedals as well as of the sidestand/ centerstand.

1. Check and, if necessary, correct the tire air pressure, and then lift the motorcycle so that both of its wheels are off the ground. Alternatively, turn the wheels a little every month in order to prevent the tires from becoming degraded in one spot.
2. Cover the muffler outlets with plastic bags to prevent moisture from entering them.
3. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a month. Do not store the battery in an excessively cold or warm place [less than 0^ (30^) or more than 30^ (90^) ]. For more information on storing the battery, see page 6-27.

TIP

Make any necessary repairs before storing the motorcycle.

EAU2633P

Dimensions:

Overall length:

2180 mm (85.8 in)

Overall width:

800 mm (31.5 in)

Overall height:

1290 mm (50.8 in)

Seat height:

825 mm (32.5 in)

Wheelbase:

1485 mm (58.5 in)

Ground clearance:

160 mm (6.30 in)

Minimum turning radius:

2900 mm (114.2 in)

Weight:

With oil and fuel:

TDM900 223.0 kg (492 lb)

TDM900A 226.0 kg (498 lb)

Engine:

Engine type:

Liquid cooled 4-stroke, DOHC

Cylinder arrangement:

Forward-inclined parallel 2-cylinder

Displacement:

897.0 cm³

Bore × stroke:

92.0 × 67.5 ~mm (3.62 × 2.66 in)

Compression ratio:

10.40:1

Starting system:

Electric starter

Lubrication system:

Dry sump

Engine oil:

Type:

SAE 10W-30, SAE 10W-40, SAE 15W-40, SAE 20W-40 or SAE 20W-50

Recommended engine oil grade:

API service SG type or higher, JASO standard MA

Engine oil quantity:

Without oil filter element replacement:

3.80 L (4.02 US qt, 3.34 Imp qt)

With oil filter element replacement:

3.90 L (4.12 US qt, 3.43 Imp qt)

Cooling system:

Coolant reservoir capacity (up to the maxi

mum level mark):

0.25 L (0.26 US qt, 0.22 Imp qt)

Radiator capacity (including all routes):

1.75 L (1.85 US qt, 1.54 Imp qt)

Air filter:

Air filter element:

Oil-coated paper element

Fuel:

Recommended fuel:

Regular unleaded gasoline only

Fuel tank capacity:

20.0 L (5.28 US gal, 4.40 Imp.gal)

Fuel reserve amount:

3.5 L (0.92 US gal, 0.77 Imp.gal)

Fuel injection:

Throttle body:

Type/quantity:

38EIS/2

Spark plug (s):

Manufacturer/model:

NGK/DPR8EA-9

Manufacturer/model:

DENSO/X24EPR-U9

Spark plug gap:

0.8-0.9 mm (0.031-0.035 in)

Clutch:

Clutch type:

Wet, multiple-disc

Transmission:

Primary reduction system:

Spur gear

Primary reduction ratio:

67/39 (1.718)

Secondary reduction system:

Chain drive

Secondary reduction ratio:

42/16 (2.625)

Transmission type:

Constant mesh 6-speed

Operation:

Left foot operation

Gear ratio:

1st:

33/12 (2.750)

2nd:

37/19 (1.947)

3rd:

34/22 (1.545)

4th:

31/25 (1.240)

5th:

26/25 (1.040)

6th:

24/26 (0.923)

Chassis:

Frame type:

Diamond

Caster angle:

25.50°

Trail:

114.0 mm (4.49 in)

Front tire:

Type:

Tubeless

Size:

120/70 ZR18M/C (59W)

Manufacturer/model:

TDM900 METZELER/MEZ4 FRONT

TDM900A DUNLOP/D220FSTJ

Manufacturer/model:

TDM900 DUNLOP/D220FSTJ

Rear tire:

Type:

Tubeless

Size:

160/60 ZR17M/C (69W)

Manufacturer/model:

TDM900 METZELER/MEZ4

TDM900A DUNLOP/D220STJ

Manufacturer/model:

TDM900 DUNLOP/D220STJ

Loading:

Maximum load:

TDM900 201 kg (443 lb)

TDM900A 198 kg (437 lb)

• (Total weight of rider, passenger, cargo and accessories)

Tire air pressure (measured on cold tires):

Loading condition:

0-90 kg (0-198 lb)

Front:

225 kPa (2.25 kgf/cm2, 33 psi)

Rear:

250 kPa (2.50 kgf/cm2, 36 psi)

Loading condition:

TDM900 90-201 kg (198-443 lb)

TDM900A 90-198 kg (198-437 lb)

Front:

225 kPa (2.25 kgf/cm², 33 psi)

Rear:

290 kPa (2.90 kgf/cm², 42 psi)

High-speed riding:

Front:

225 kPa (2.25 kgf/cm², 33 psi)

Rear:

250 kPa (2.50 kgf/cm², 36 psi)

Front wheel:

Wheel type:

Cast wheel

Rim size:

18M/C x MT3.50

Rear wheel:

Wheel type:

Cast wheel

Rim size:

17M/C x MT5.00

Front brake:

Type:

Dual disc brake

Operation:

Right hand operation

Recommended fluid:

DOT4

Rear brake:

Type:

Single disc brake

Operation:

Right foot operation

Recommended fluid:

DOT4

Front suspension:

Type:

Telescopic fork

Spring/shock absorber type:

Coil spring/oil damper

Wheel travel: 150.0 mm (5.91 in)

Rear suspension:

Type:

Swingarm (link suspension)

Spring/shock absorber type:

Coil spring/gas-oil damper

Wheel travel:

133.0 mm (5.24 in)

Electrical system:

Ignition system:

TCI (digital)

Charging system:

AC magneto

Battery:

Model:

GT12B-4

Voltage, capacity:

12 V, 10.0 Ah

Headlight:

Bulb type:

Halogen bulb

Bulb voltage, wattage × quantity:

Headlight:

12V,55.0W×2

Tail/brake light:

12 V, 5.0 W/21.0 W × 1

Front turn signal light:

12 V, 10.0 W × 2

Rear turn signal light:

12V, 10.0 W×2

Auxiliary light:

12V,5.0W×1

Meter lighting:

14 V, 2.0 W × 2

Neutral indicator light:

14 V, 1.2 W × 1

High beam indicator light:

14 V, 1.4 W × 1

Oil level warning light:

LED

Turn signal indicator light:

TDM900 14 V, 1.2 W × 2

TDM900A 14 V, 1.2 W × 1

Engine trouble warning light:

14 V, 1.4 W × 1

ABS warning light:

TDM900A 14 V, 1.4 W × 1

Immobilizer system indicator light:

LED

Fuses:

Main fuse:

40.0 A

Headlight fuse:

TDM900 15.0 A

TDM900A 20.0 A

Signaling system fuse:

10.0 A

Ignition fuse:

10.0 A

Radiator fan fuse:

20.0 A

Turn signal light and hazard fuse:

10.0 A

Fuel injection system fuse:

10.0 A

ABS control unit fuse:

TDM900A 10.0 A

ABS motor fuse:

TDM900A 30.0 A

Backup fuse:

TDM900 5.0 A

TDM900A 10.0 A

EAU26351

Identification numbers

Record the key identification number, vehicle identification number and model label information in the spaces provided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehicle is stolen.

KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER:

MODEL LABEL INFORMATION:

9

EAU26381

Key identification number

1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)

The key identification number is stamped into the key tag. Record this number in the space provided and use it for reference when ordering a new key.

EAU26400

Vehicle identification number

1. Vehicle identification number

The vehicle identification number is stamped into the steering head pipe. Record this number in the space provided.

TIP

The vehicle identification number is used to identify your motorcycle and may be used to register your motorcycle with the licensing authority in your area.

EAU26540

Model label

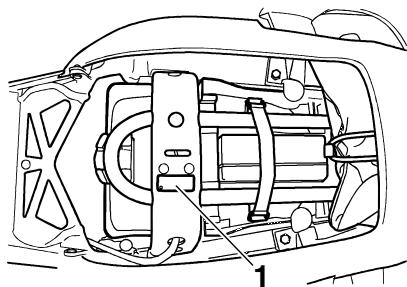

1. Model label

The model label is affixed to the frame under the seat. (See page 3-16.) Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer.

A

ABS (for ABS models) 3-12

ABS warning light (for ABS models) 3-5

Air filter element, replacing 6-12

Anti-theft alarm (optional) 3-9

Auxiliary light bulb, replacing 6-32

B

Battery. 6-27

Brake and clutch levers, checking and lubricating 6-25

Brake and shift pedals, checking and lubricating 6-24

Brake fluid, changing 6-21

Brake fluid level, checking 6-20

Brake lever. 3-11

Brake pedal. 3-12

C

Cables, checking and lubricating 6-24

Care 7-1

Catalytic converters 3-15

Clutch lever 3-10

Clutch lever free play, adjusting. 6-18

Coolant 6-11

Coolant temperature gauge 3-7

Cowlings and panels, removing and installing. 6-6

D

Dimmer switch 3-9

Drive chain, cleaning and lubricating...... 6-23

Drive chain slack. 6-22

E

Engine break-in. 5-3

Engine idling speed. 6-14

Engine oil and oil filter element 6-8

Engine stop switch 3-10

Engine trouble warning light 3-5

三

Front and rear brake pads, checking......6-19
Front fork, adjusting. 3-17
Front fork, checking 6-26
Fuel. 3-14
Fuel consumption, tips for reducing. 5-3
Fuel level warning indicator. 3-5
Fuel tank breather hose. 3-15
Fuel tank cap. 3-13
Fuses, replacing 6-28

+

Handlebar switches 3-9
Hazard switch. 3-10
Headlight bulb, replacing. 6-30
High beam indicator light 3-4
Horn switch. 3-10

Identification numbers 9-1
Ignition circuit cut-off system 3-21
Immobilizer system. 3-1
Immobilizer system indicator light. 3-5
Indicator and warning lights. 3-4

K

Key identification number 9-1

#

Luggage strap holders. 3-20

M

Main switch/steering lock. 3-2
Matte color, caution 7-1
Model label 9-2
Multi-function display 3-7

V

Neutral indicator light. 3-4

0

Oil level warning light 3-4

P

Parking 5-4
Part locations 2-1
Pass switch 3-9
Periodic maintenance and lubrication chart 6-2

R

Rear brake light switch, adjusting 6-19
Rear suspension, lubricating. 6-25

s

Safety information 1-1
Seat. 3-16
Shifting 5-2
Shift pedal 3-11
Shock absorber assembly, adjusting .... 3-19
Sidestand 3-21
Sidestand, checking and lubricating. 6-25
Spark plugs, checking 6-7
Specifications 8-1
Starting the engine 5-1
Start switch. 3-10
Steering, checking. 6-26
Storage. 7-3
Storage compartment. 3-17
Supporting the motorcycle 6-32

T

Tachometer unit 3-6
Tail/brake light bulb, replacing 6-31
Throttle cable free play, checking 6-15
Throttle grip and cable, checking and lubricating. 6-24
Tires 6-15
Tool kit. 6-1

Troubleshooting. 6-33

Troubleshooting charts 6-34

Turn signal indicator lights. 3-4

Turn signal light bulb, replacing. 6-31

Turn signal switch. 3-9

V

Valve clearance 6-15

Vehicle identification number. 9-1

W

Wheel bearings, checking 6-27

Wheels. 6-18
