Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number: ____

Serial Number: ____

Date of Purchase: ____

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

Simple black telephone handset icon inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

ELECTRICAL REQUIREMENTS

All wiring must comply with local and national codes and must be installed by a qualified electrician. Check the available power supply and resolve any wiring problems before installing and operating this appliance.

The rating plate located on the right side of the appliance just above the power cord contains electrical and other technical data.

This appliance is not designed for "through the wall" installation.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet.

Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

POWER SUPPLY CORD

The power cord contains a device that senses damage to the power cord. To test if the power cord is working properly:

1. Connect the power supply cord to an electrical outlet.
2. The power supply cord has two buttons located on the head of the plug. One button is marked "Test" and the other is marked "Reset". Press the "Test" button and the "Reset" button will pop out and click.
3. Press the "Reset" button and a click will sound as the button engages.
4. The power supply cord is now energized and supplying electricity to the appliance.

Notes:

• If the appliance looses power, the reset button may need to be reengaged when the power resumes.
• This button should not be used to turn the appliance on and off.
• The "Reset" button must always be pushed in for correct operation.
• The power supply cord must be replaced if it fails to reset when the "Test" button is pushed in.

POWER RECEPTACLES

These appliances require higher voltage receptacles than standard household receptacles. Consult the table below to find the required receptacle for your model number.

Model Number Voltage Receptacle
DAC150BGUWDB	125
DAC180BGUWDB	240
DAC250BGUWDB	240

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS

LOCATION

This air conditioner is designed for easy installation in single or double hung windows. Since window designs vary, it may be necessary to make some modifications for safe installation.

This air conditioner is not designed for vertical, slider type windows or "through the wall" installation.

Ensure that the window and frame are structurally sound and free from dry or rotted wood.

Install the air conditioner in a window on a side of the building which favors more shade than sunlight. If the appliance must be in direct sunlight, it is advisable to provide a shade awning over the appliance to ensure efficient functioning.

Do not install the appliance where leakage of combustible gas is suspected.

This appliance is designed to evaporate condensation under normal conditions. Under extremely hot or humid conditions, excess condensation may overflow to the outside. The appliance should be installed where condensation cannot drip on pedestrians or neighboring properties.

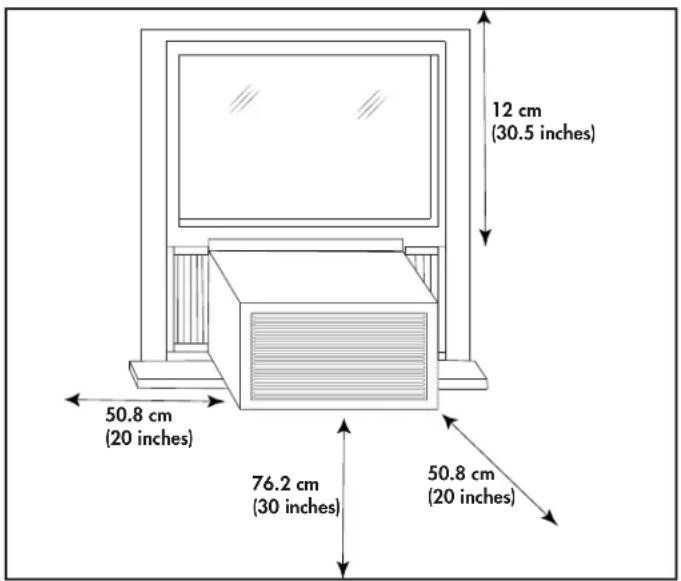

Provide sufficient clearance around the appliance to allow ample air circulation. The rear of the appliance should be outdoors, it should not be in a garage or another room. Keep the appliance away from obstacles and at least 76 cm (30 inches) above the ground. Ensure that curtains and other obstructions do not block air flow to the appliance.

12 cm (30.5 inches) 50.8 cm (20 inches) 76.2 cm (30 inches) 50.8 cm (20 inches)

REQUIRED TOOLS

• Screwdrivers: Phillips and fl at head.
  • Power Drill: 1/8" (3.2mm) diameter drill bit
• Pencil
• Measuring Tape
• Scissors
• Carpenter's Level

ACCESSORIES

The following accessories are included with the appliance and should be used during the installation.

1. 7/16" (11 mm) locking screw and fl at washer (x2)
2. 1/2" (13 mm) hex-head screw (x7)
3. 1/2" (13 mm) screw and locknut (x4)
4. 3/4" (19 mm) fl at head bolt and locknut (x2)
5. 3/4" (19 mm) screw (x2)
6. 5/16" (8 mm) hex-head locking screw (x10)
7. Safety lock (x1)
8. Sill angle bracket (x2)
9. Frame lock (x2)
10. Foam insert (x4)
11. Window sash foam seal (x1)
12. Weather stripping (x5)

①

5

⑨

②

6

10

③

⑦

11

④

⑧

12

INSTALLATION INSTRUCTIONS

INSTALLATION

Installation of this appliance will require removing the interior chassis, installing the cabinet in the window and then replacing the interior chassis in the cabinet. This process is done to minimize possible injury or property damage during installation.

It is recommended to use two people during the installation process.

Removing the chassis from the cabinet

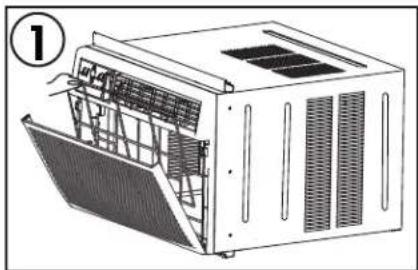

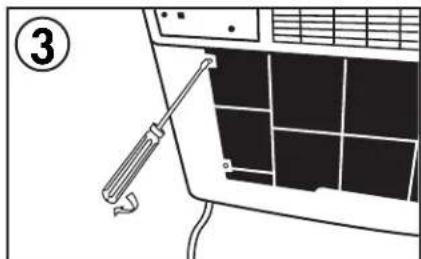

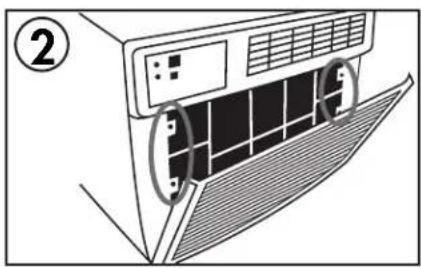

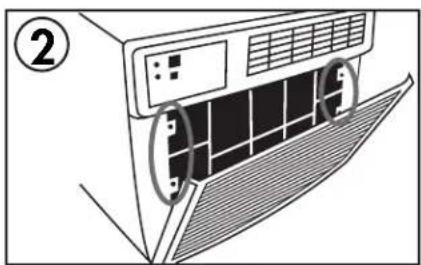

1. Open the front panel and remove the air filter, then remove the front panel. Set both the filter and the front panel aside for later use.

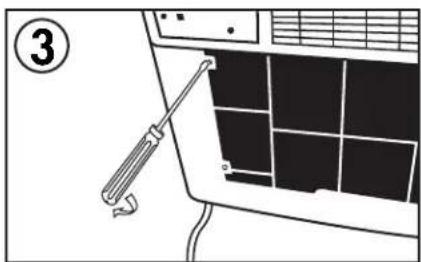

2. Locate the four screws securing the front face of the appliance.
3. Remove the four screws and set them aside for later use.

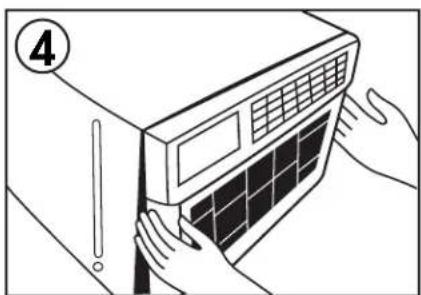

4. Remove the front face of the appliance and set aside for later use.
5. Remove the shipping screws on top of the cabinet.

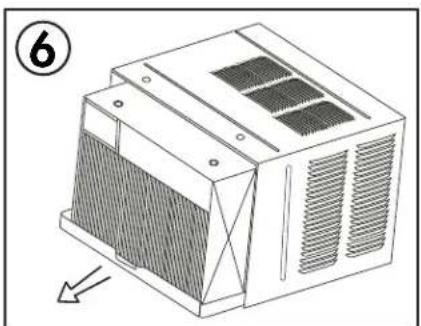

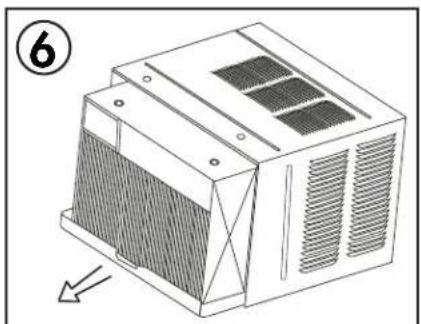

6. Pull outward on the base handle to remove the chassis from the cabinet.

Note: There may be packaging on the interior chassis. Ensure that it is removed before replacing the chassis in the cabinet.

Technical line drawing of a modular air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

Diagram of an air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Diagram of a car air conditioner unit with a screwdriver inserted, showing no text or symbols

Line drawing of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols present)

Simple line drawing of a lever with fulcrum and weights, no text or symbols present

Line drawing of a heat exchanger unit with cooling fins and ventilation slots (no text or symbols)

INSTALLATION INSTRUCTIONS

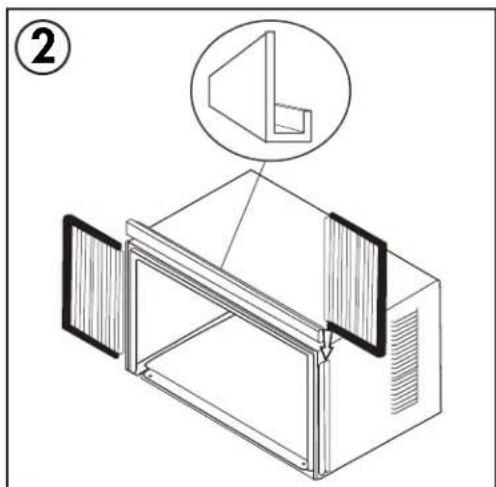

"L" and "U" Shaped Channel Brackets

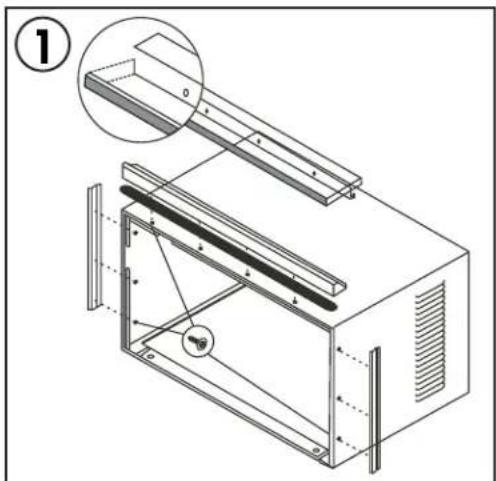

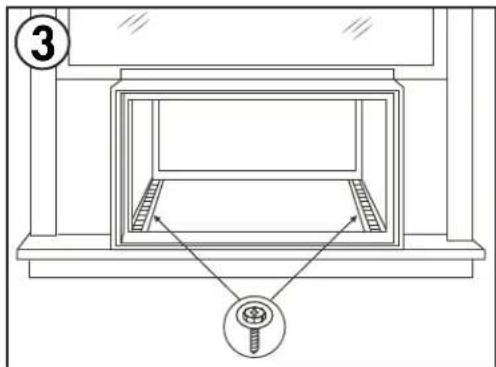

1. Attach the foam insert to the top of the cabinet above the screw holes. Install the "L" shaped mounting bracket to the top of the cabinet and the "U" shaped channels to the sides of the cabinet using the 5/16" (8 mm) hex-head screws provided.
2. Slide the side curtains into the channels created by the "L" and "U" shaped brackets on both sides of the cabinet.
3. Open the window and mark the center of the window sill. Place the cabinet in the window with the lower "U" channel firmly seated over the edge of the window sill. Close the window over the top of the cabinet behind the "L" shaped bracket to hold the cabinet in the window. Shift the cabinet to the left or right as required to line up the center of the cabinet with the center of the window sill. Fasten the cabinet to the window sill using the 3/4" (19 mm) hex-head screws provided.

Technical diagram of a device with labeled components and an inset showing a close-up view of a panel assembly.

Technical line drawing of a mechanical assembly with a magnified inset showing a component (no text or symbols)

③

INSTALLATION INSTRUCTIONS

Check the Tilt Angle

The air conditioner should be tilted downward towards the outside approximately 3^ to 4^ . This tilt will encourage any condensed water to drain to the outside. If any condensed water leaks to the inside of the house, check the tilt angle and adjust as necessary.

Measure the tilt angle from the front of the cabinet's edge. The difference in height between the front and the back of the appliance, labeled "A" on the image, should be approximately 19 mm - 2.5 cm (3/4 inch - 1 inch).

Technical line drawing of a mechanical component with internal spring and mounting base (no text or symbols)

Support Brackets

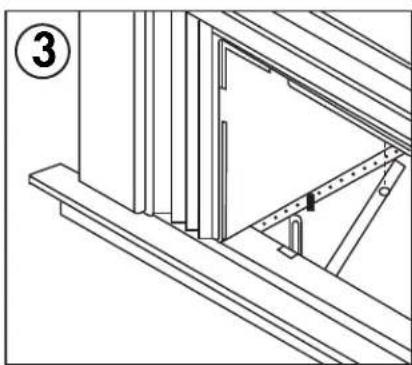

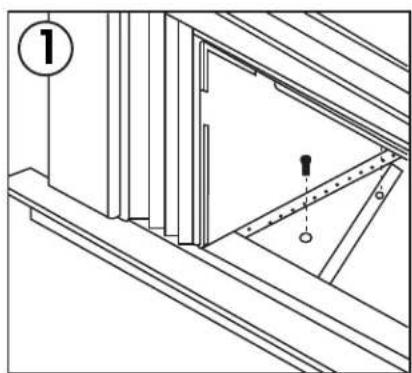

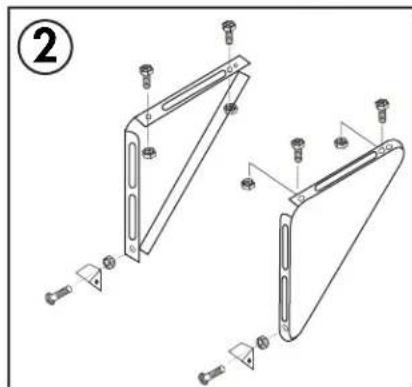

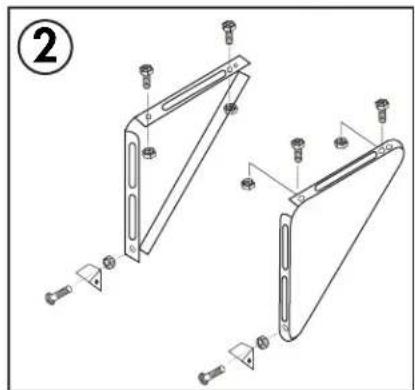

1. Hold each support bracket flush against the outside of the window sill and attach to the bottom of the cabinet using the 1/2" (13 mm) screws and lock nuts provided but do not fully tighten the screws. Mark the brackets at the top level of the window sill and then remove.
2. Assemble the sill anchor brackets to the outside support legs using the 3/4" (19 mm) fl at head bolts and lock nuts provided.
3. Install the support brackets with the sill anchor brackets attached to the correct hole in the bottom of the cabinet. Tighten all six bolts securely.

Architectural line drawing of a window frame with ladder and structural supports (no text or symbols)

Technical line drawing of a mechanical component with exploded view, showing parts like screws and fasteners (no text or symbols)

Technical line drawing of a structural frame with supports and a door, no text or symbols present

INSTALLATION INSTRUCTIONS

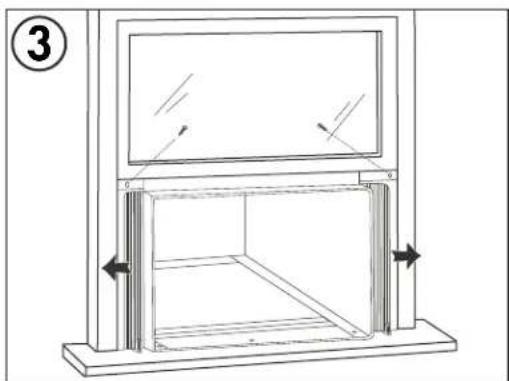

Extend the Window Filler Panels

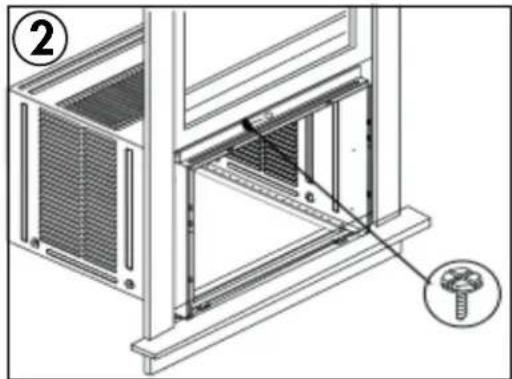

1. Raise the window to expose the fi ller panel locking screws. Loosen the screws so that the fi ller panels slide easily. Extend the panels to fi ll the window completely. Use two 7/16" (11 mm) locking screws and fl at washers to secure the fi ller panels and then close the window.
2. Secure the cabinet to the top window frame using one 1/2" (13 mm) hex-head screw.
3. Secure the window filler panels to the top window sill using two 1/2" (13 mm) hex-head screws. Attach the frame locks to the window sill using two 3/4" (19 mm) screws.

Technical line drawing of a structural assembly with mounting brackets and fasteners (no text or symbols)

Technical diagram of a mechanical assembly with a screw inserted into a housing (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Window Lock and Sash Seal

Place the adhesive foam seal into the opening between the inside and outside windows and attached the safety lock to the outside window frame using two 1/2" (13 mm) screws.

Technical line drawing of a window with a horizontal bar and vertical supports (no text or symbols)

INSTALLATION INSTRUCTIONS

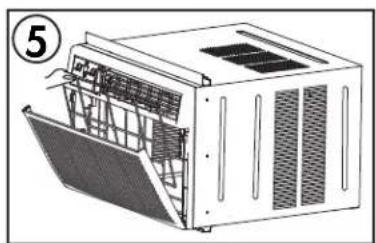

Install the chassis into the cabinet

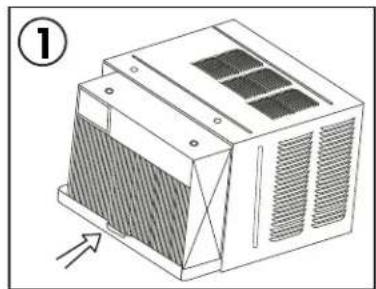

1. Carefully slide the chassis into the cabinet. Do not push on the controls or the coils. Ensure that the chassis is firmly seated toward the rear of the cabinet.
2. Replace the shipping screws on the top of the cabinet.
3. Replace the front face of the appliance.
4. Secure the front face of the cabinet with the four screws that were removed earlier.
5. Replace the front panel and the air filter.

Note: Do not operate the appliance without the air fi lter installed.

Technical line drawing of a heat exchanger unit with cooling fins and ventilation slots (no text or symbols)

Simple line drawing of a metal bracket with two bolts and a hatched base (no text or symbols)

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Diagram of a car air conditioner unit with a screwdriver inserted, showing internal grid layout (no text or symbols)

Technical line drawing of a modular air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

Install the Foam Inserts

The foam inserts can block any cracks or spaces in the side curtains and help maintain the energy efficiency of the appliance.

After the appliance is installed in the window, measure the width of the side curtains from the side of the appliance to the edge of the curtain.

If necessary, cut the foam insert to the correct size and then slide the foam insert into the slots in the side curtain. The supplied weather stripping can be used to block any other cracks or spaces as required.

Technical line drawing of a mechanical device with internal components and a close-up view of the component (no text or symbols)

OPERATING INSTRUCTIONS

FEATURES

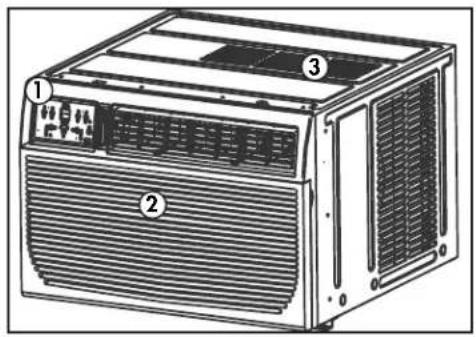

1. Control Panel
2. Air Inlet
3. Air Outlet
4. Air Filter (not pictured)

CONTROL PANEL

1. Ionizer Button: Used to set the ionizer function.
2. Energy Saver Button: Used to set the energy saver function.
3. Display Screen and Up and Down Buttons:

- Display screen shows the set temperature, the ambient temperature and the timer settings. To change the temperature scale being displayed, press the up and down buttons at the same time.

- Up and Down Buttons are used to adjust the set temperature and the timer function.

1. Sleep Button: Used to set the Sleep function.
2. Filter Button: The indicator light will illuminate as a reminder to check the fi lter. Once the fi lter has been cleaned, use this button to resume operation.

Line drawing of an air conditioning unit with labeled components (no text or symbols beyond labels)

1. Mode Button: Used to choose the operating mode.
2. Timer Button: Used to set the auto on and auto off timer.
3. Fan Button: Used to set the fan speed. The fan can be set to Low, Medium, High and Auto.
4. Follow Me indicator: Light will illuminate to indicate that the Follow Me feature is active.
5. Power Button: Used to turn the appliance on or off.
6. Remote Control Receiver: Ensure this receiver is not obscured by curtains or other items as it could impact remote control functioning.

Diagram showing 11 labeled icons with various symbols and labels, including directional arrows, mode, and power button icons.

OPERATING INSTRUCTIONS

REMOTE CONTROL

1. Mode Button: Used to choose the operating mode.
2. Energy Saver Button: Used to set the energy saver function.
3. Ionizer Button: Used to set the ionizer function.
4. Follow Me Button: Used to set the Follow Me function.
5. Sleep Button: Used to set the Sleep function.
6. LED Button: Press to turn the LED back light on or off.
7. Clock Button: Press and hold the button for 3 seconds in order to set the clock. Press the Up and Down Arrows to adjust the time in 10 minute intervals

Note: The clock feature is only available on the remote, the appliance does not have a clock. The remote clock is a 24 hour clock only.

1. Cancel Button: Cancels current Timer settings.
2. Timer Button: Used to set the auto on and auto off timer.
3. Fan Button: Used to set the fan speed. The fan can be set to Low, Medium, High and Auto.
4. Up and Down Arrows: Used to adjust the set temperature and the timer function.
5. Default Button: Press to restore the remote control default settings.
6. Lock Button: Press this button to lock the remote control and prevent the settings from being inadvertently changed.

① M ② ⑪ ③ ⑫ ④ ⑬ ⑭ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

OPERATING INSTRUCTIONS

REMOTE CONTROL BATTERIES

The remote control is powered by one button cell battery housed in the rear part of the remote and protected by a cover. Batteries should be replaced when:

a) No sound is heard when attempting to program the appliance.
b) The appliance does not respond to a command issued by the remote control.

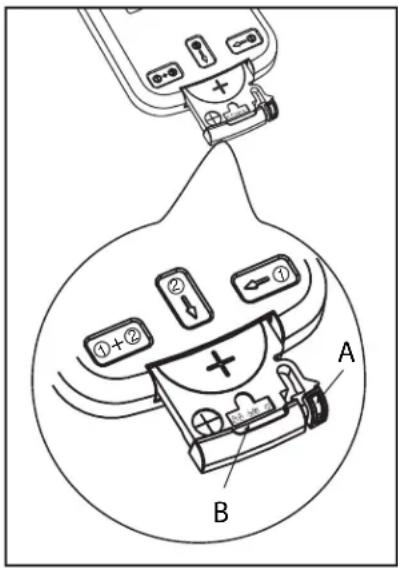

Battery replacement:

• Press the "A" and "B" positions at the same time and pull outward to expose the battery housing.
• The battery can be replaced with a standard coin cell battery, CR2025.

Diagram of a device with labeled components A and B, showing internal components like buttons and connectors.

Notes:

• Protect the remote control from high temperatures, and keep it away from radiation exposure.
• Keep the control panel receiver out of direct sunlight.
• The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main appliance. Any obstruction between the receiver and remote may cause signal interference, limiting the ability to program the appliance.

This Class B digital apparatus complies with the Canadian ICES-003 standard. CAN ICES-3 (B)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not approved by the party responsible for FCC compliance could void the user's authority to operate the equipment. This appliance complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

OPERATING INSTRUCTIONS

FUNCTION INSTRUCTION

Operating Modes

There are four operating modes to choose from. Press the Mode Button repeatedly to choose the desired mode. The adjacent indicator light will illuminate to show which mode has been selected.

- Cool Mode

Choose Cool Mode to set the cooling function. Use the Up and Down Arrows to choose the desired temperature. When Cool Mode is selected, the fan speed can be adjusted by pressing the fan button.

- Dry Mode

Choose Dry Mode to remove excess moisture from the air during periods of high humidity. All water pulled from the air will condense inside the appliance and drain out the back. The fan speed will be automatically set and cannot be modified in Dry Mode.

- Fan Mode

Choose Fan Mode to run the internal fan without engaging the cooling function. Press the fan button repeatedly to choose the fan speed, Low, Med, High or Auto.

- Auto Mode

Auto Mode is a pre-set factory program that automatically defines the mode (Cool or Dry) and fan speed based on the set temperature, the ambient temperature and the ambient humidity.

Up and Down Arrows

The Up and Down Arrows will modify the set temperature in 1^ increments.

The Up and Down Arrows will modify the set time of the timer function in 0.5 hour increments up to 10 hours and then in 1 hour increments up to 24 hours maximum.

Timer Function

The Timer Function can be used to turn the appliance on or off after a set period of time.

Auto On Function

1. Press the Timer Button once and the Auto On indicator light will illuminate.
2. Use the Up and Down Arrows to select the desired amount of time before the appliance should turn on.
3. Use the Mode Button to select the desired mode.
4. Use the Fan Button to select the desired fan speed.
5. The time selected will appear on the display panel and will count down until the appliance turns on.

Auto Off Function

1. Press the Timer Button twice and the Auto Off indicator light will illuminate.
2. Use the Up and Down Arrows to select the desired amount of time before the appliance should turn off.
3. The time selected will appear on the display panel and will count down until the appliance turns off.

Using Auto On and Auto Off Simultaneously

If there is a need for the appliance to turn on, run for a set period of time and then turn off, the Auto On and Auto Off functions can be used at the same time by fi rst setting one and then the other. Both indicator lights will illuminate and the display will count down to the appliance either turning off or on, whichever function was set fi rst.

Note: The timer will not cycle the appliance on and off indefinitely. The Auto On and Auto Off timers will function one time and then the appliance will return to regular functioning.

Turning the appliance off, pressing the default button on the remote or unplugging the appliance will clear all memory settings, including the timer.

OPERATING INSTRUCTIONS

Follow Me Function

There is a temperature sensor built into the remote control that will continuously collect the current room temperature. Keep the remote control with you and the appliance will automatically adjust the set temperature based on the current temperature where you are located to reach the most comfortable condition and temperature.

Press the Follow Me button to activate the Follow Me function. The remote will display the current temperature at its location. The remote will send a signal to the air conditioner every 3 minutes, so long as you remain within range of the appliance.

The Follow Me light on the control panel of the appliance will illuminate for 5 seconds every three minutes to indicate that it has received a signal from the remote. If the appliance does not receive a signal from the remote during any 7 minute interval, it will beep to indicate that the Follow Me mode has ended.

The maximum distance for the Follow Me feature is 8 meters (26 feet). This feature is available in Cool and Auto modes.

Sleep Function

The Sleep Function can be used to conserve energy during sleeping hours.

When selected, the set temperature will increase by 1^ C/ 2^ F every half hour for one full hour. The appliance will hold the new set temperature for 6 hours before automatically returning to normal operation.

The Sleep Function can be canceled at any time by pressing the Sleep Button.

Energy Saver Function

The Energy Saver Function will automatically cycle the fan on and off when the compressor is not in use to minimize how often the compressor needs to turn on. This function is available in Cool, Dry, Auto Cool and Auto Fan modes.

The fan will continue to run for 3 minutes after the compressor turns off. The fan will then cycle on for 2 minutes in 10 minute intervals until the ambient temperature is above the set temperature, at which point the compressor will turn on and cooling will resume.

Ionizer Function

The Ionizer Function is a form of air purification that negatively charges the air. Dust particles, pollen and other particles in the air cannot pass through the filter when they are negatively charged. This ensures that the maximum amount of dust and dirt are removed from the air. Additionally, the ionizer function helps to remove unwanted odors from the air.

ADJUSTING AIR FLOW

The louvers on the front of the appliance can be adjusted up and down or left and right to direct air flow throughout the room as required.

Note: When in cooling mode, ensure the louvers are pointed upward. If the appliance operates in cooling mode with the louvers pointed downward for an extended period of time, condensation can form on the louver and drip from the surface of the blades.

Diagram showing airflow direction and component placement on a car air conditioner panel, with arrows indicating movement.

CARE & MAINTENANCE

AIR FILTER

The air fi liter should be cleaned approximately every 2 weeks. The air fi liter may require more frequent cleaning if there is significant dander or fur in the air.

Approximately every two weeks, the fi Iter indicator light on the control panel will illuminate as a reminder to clean the fi Iter. Follow the steps below to clean the fi Iter and return the appliance to normal functioning.

1. The air fi liter is located behind the front intake grill. To remove the air fi liter, grasp the fi liter tab on the right side of the grill and slide it out to the right. If the front intake grill has two indents, pull the grill forward to remove the air fi liter.
2. Use a vacuum cleaner with a soft brush attachment to remove any large debris or dust build up from the air filter.
3. Wash the filter in lukewarm, soapy water, below 40^ C ( 104^ F), or use a neutral cleaning agent.
4. Rinse the filter with clean water and dry thoroughly before reinstalling in the appliance.
5. Press the filter button on the control panel to resume normal functioning.

Note: Do not operate the appliance without the air filter installed.

ERROR CODES

If the display panel shows any of the below error codes, unplug the appliance, let it stand for 5-10 minutes and then plug it back in. If the error persists, call for service.

AS - Room temperature sensor error

HI - Temperature sensor error

LO - Temperature sensor error

"." - Evaporator temperature sensor error

CLEANING

To avoid possible electric shock, ensure that the appliance is unplugged before performing any cleaning or maintenance.

The outside of the appliance can be wiped clean with a soft cloth or with a lukewarm, damp cloth if necessary.

Do not use gasoline, benzene, thinner or any other chemicals to clean this appliance as these substances can cause damage to the fi nish and deformation of plastic parts.

Never pour water directly onto the appliance as this will cause deterioration of electrical components and wiring insulation.

END OF SEASON CARE

Before removing the appliance from service for the year, operate the appliance on high fan mode for half a day to ensure the inside of the appliance is dry. This will help avoid the growth of mold or mildew inside the appliance. Ensure the filter is clean and dry. Store the appliance covered in a dry location.

Note: When installing or removing the appliance from the window, ensure that caution is taken to prevent it from falling backward. It is recommended that installation or removal is completed with assistance to prevent injury to persons or damage to property or the appliance.

DISPOSAL

Check for local regulatory compliance regarding approved and safe disposal of this appliance.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE
Appliance will not operate • Plug is not fully inserted into the wall outlet• Blown fuse or circuit breaker
Insufficient cooling	• Air filter is dirty• Blocked air flow• Appliance size is too small for application
Noise • Inadequate support in window installation
Odors • Formation of mold or mildew on internal wet surfaces• Place an algaecide tablet in base pan; push the tablet through the grill on either side of the appliance
Water dripping inside • Appliance is not properly angled to allow water to drain to the outside
Water dripping outside • On very hot or humid days dripping water from the back of the appliance is normal
Frost build up • When outdoor temperature are below 18.3°C (65°F) frost may form when the appliance is in cooling mode• Switch the appliance to fan only mode until the frost melts

LIMITED "IN HOME" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (i.e. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service

In Home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: |519| 837-0920 FAX: |519| 837-0449

1-800-263-2629

04/17

Danby Products Inc

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby

(1-800-263-2629)

12 numbered diagram showing various screw and component parts with numbered labels

INSTRUCTIONS D'INSTALLATION

INSTALLATION

Technical line drawing of a modular air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

Diagram of an air conditioner unit with a fan and ventilation slots, no text or symbols present

Diagram of a car air conditioner unit with a screwdriver inserted, no text or symbols present

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Simple line drawing of a lever with fulcrum and weights, no text or symbols present

Technical line drawing of a heat exchanger unit with ventilation grilles and cooling fins (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Technical line drawing of a mechanical assembly with a speaker icon and numbered label (no text or symbols on the diagram itself)

③

INSTRUCTIONS D'INSTALLATION

Technical line drawing of a mechanical component with internal spring and mounting base (no text or symbols)

Supports

Architectural diagram showing a window frame with diagonal braces and a key inserted into the door (no text or symbols)

Technical line drawing of a mechanical bracket assembly with bolted components (no text or symbols)

Technical line drawing of a structural frame assembly (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Technical line drawing of a window frame with vertical supports and horizontal bars (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Line drawing of an air conditioning unit with labeled components (no text or symbols beyond labels)

Diagram showing 11 labeled icons with symbols and numbers, including car, directional arrows, and a central checkmark.

INSTRUCTIONS D'UTILISATION

TÉLÉCOMMANDE

① M ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

INSTRUCTIONS D'UTILISATION

PILE DE LA TÉLÉCOMMANDE

Diagram of a device with labeled components A and B, showing electrical connections and switches inside a circular housing.

Remarques:

PROBLÈME CAUSE POSSIBLE

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26- Danby (1-800-263-2629)

Grid of 12 numbered mechanical parts with corresponding icons, likely for assembly or manufacturing instructions.

Technical line drawing of a modular air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

Diagram of an air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Diagram of a car air conditioner unit with a screwdriver inserted, showing internal grid layout (no text or symbols)

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Simple line drawing of a lever mechanism with pivot point and two hanging weights (no text or symbols)

Technical line drawing of a heat exchanger unit with cooling fins and ventilation slots (no text or symbols)

Technical diagram of a device with labeled components and an inset showing a cross-section view.

Technical line drawing of a mechanical assembly with a speaker icon and numbered label (no text or symbols on the diagram itself)

③

Technical line drawing of a mechanical component with internal spring and mounting base (no text or symbols)

Soportes

Architectural line drawing of a window frame with a door and diagonal bracing (no text or symbols)

Technical line drawing of a mechanical bracket assembly with bolted components (no text or symbols)

Technical line drawing of a structural frame with supports and a door, no text or symbols present

Technical line drawing of a structural frame with mounting holes and supports (no text or symbols)

Technical diagram of a mechanical assembly with a screw inserted, showing internal components and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a window frame with a horizontal bar and screw base (no text or symbols)

Line drawing of an air conditioning unit with labeled components (no text or symbols beyond labels)

Diagram showing 11 labeled icons with symbols and numbers, including car, directional arrows, and icons like 'Auto' and 'Mode'

① M ② ⑪ ③ ⑫ ④ ⑤ ⑥ ⑦ ⑦ ⑧ ⑧ ⑨ ⑨ ⑩

Diagram of a device with labeled components A and B, showing internal components like buttons and connectors.

Notas:

PROBLEMA CAUSA POSIBLE

Donby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

NOTES / REMARQUES / NOTAS :

NOTES / REMARQUES / NOTAS :

MODEL • MODÈLE • MODELO

DAC080BFCWDB

DAC100BFCWDB

DAC120BFCWDB
