USER MANUAL UFO 97-18 KATHREIN

KATHREIN UFO 19th Series I: UFO 19th Series 3 3 1 4 2 USB 1 USB 2 LAN1 LAN 2 Control Status Reset the

Merkmale

■ Stand-alone 19" head-end with 16 DVB-S(2) frontend and 2 DVB-S(2)/-T(2)/-C multi-standard frontend (combination of Standards not possible, no DiSEqC™ support for DVB-S (2) Output 9) and 18 output channels conforming to DVB-C (flexibly configurable)
■ Two wide range power supplies, redundancy mode
■ All functionalities and parameters can be set using the USW 800 configuration software
■ Comprehensive baseband signal processing such as program & PID filter, TSID, ONID, SID, PID remapping, NIT & LCN functionality
■ 8 Sat-IF inputs and 1 input for both multi-standard frontends. DiSEqC™ 1.0 functionality for flexible signal distribution across Sat multi-switches
■ Power supply for two LNB and one active antenna
■ Remote maintenance and configuration
■ Unlimited cascadability via IP and internal switch.
Common administration and configuration of the system network (NIT, LCN, channel assignment ...)
■ Flexible serial or parallel decoding of up to six CAMs per Unit ^1)
■ Hot-Swap for power supply and fan
■ SNMP preparation

Device elements

KATHREIN UFO 19th/PCI III UFO 19th-Series ① ② ③ ④ ⑤ ⑥ USB 1 USB 2 LAN 1 LAN 2 CONTROL Status reset

① 6 x Cl slot (PCMCIA) ^1)
② 2 x USB ports (Typ A)
③ 2 x Network ports (RJ45)
④ Test output, signal level -25 dB (F-connector)
⑤ Status LED
⑥ Reset button

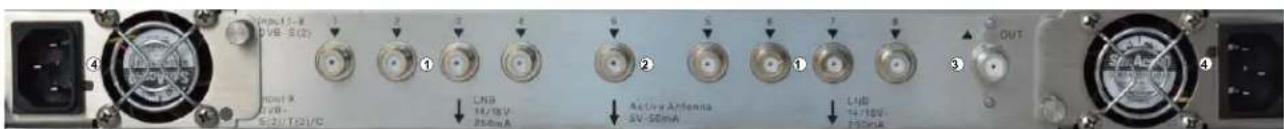

input 1 - E DVB - E(2) LNB 14/18 V- 250mA Active Antenna 3V-50mA 14-15V- 250mA OUT

① 8 x Sat-IF input | Input level: 45-90 dBμV (F-connector)
② 1 x sat/terrestrial/cable input | Input level: 55-100 dBμV (F-connector)
③ 1 x DVB-C Output | Output level: 107 dBμV | setting range -20 dB (in 0,5-dB steps) (F-connector)
④ 2 x Wide range Power supply
11 UFO 97-18/CI

LED and Reset button

Status-LED

green: OK

green, flashing: software update in progress

red: error

red, flashing: Fan or power supply faulty, check the power plug cable and fan

orange: head-end starting

orange, flashing: head-end is being identified by the USW 800 configuration software

Reset button

Press < 5 s ^1) : the head-end will reboot.

Press > 5 s ^1) : the head-end will reset to the factory setting and will reboot. Do not release the reset button until the status LED lights up orange

Press > 5 s ^1) : the head-end will look for an update on the connected USB stick, perform the update and reboot. ^2)

To prevent accidental activation, the reset button is recessed. To activate the reset button, use a tool such as a ball-point pen.
2) Pre-requirement: There is a valid update file on the USB stick. See the USW 800 configuration software for more info.

Configuring

1. Install and start the USW 800 configuration software on the computer.
2. Configure all the head-end parameters as required.

- The current version of the USW 800 and the user guide are available free of charge at www.kathrein-ds.com.

Installation

The UFO 19"-Series are only for mounting in 19" cabinets/housings. In order to ensure a safe installation it is mandatory to use additional guide rails for the left- and right-handside. These are not in the scope of delivery.

Scope of supply

• UFO 97-18 | UFO 97-18/CI
- User Instructions (You can find the current version of this document at www.kathrein-ds.com)
- Safety instructions
- 2 x power plug
- Captive nut set
