USER MANUAL JE60I-007544 Jocel

Exterior view of a modern stainless steel air purifier unit (no visible text or symbols)

Exterior view of a modern stainless steel air purifier with 'JOCEL' branding and ventilation grilles (no readable text beyond branding)

JE90I-007582

JE60I-007544

MANUAL DE INSTRUÇÕES

INSTRUCTION MANUAL

Line drawing of a rectangular electronic device with a circular top and side slots (no text or symbols)

[01] × 1

[02] 600mm x 2
900mm×3

[03] ×4

[04] × 1

[05] ×1

[06] x1

[07] x4
(4×36mm)

[08] ×2
(3.5×12mm)

SEGURANÇA

Simple line drawing of a wheel with three segments (no text or symbols)

RECIRCULAÇÃO

Diagram of a coiled cylindrical object with a single arrow indicating direction (no text or symbols)

EXTRAÇÃO

Technical line drawing of a mechanical device with an arrow indicating downward motion (no text or symbols present)

2

NOTA:

Line drawing of a person seated at a desk inside a rectangular frame (no text or symbols)

Line drawing of a kitchen appliance with a grid, basket, and plate (no text or symbols)

MAX.65°C

Diagram of a showerhead spraying water onto a grid-patterned surface (no text or symbols)

Diagram illustrating the process of a washing machine with labeled components and recycling mechanism

[03] x4 [0] x47 [07] [03] 2mm

Technical diagram showing a mechanical device with a close-up view of its internal components and a magnified detail.

Technical line drawing of a device interior with an arrow indicating direction (no text or symbols present)

[02] 600mm x 2 9 00mm x 3

[01] × 1

Substitua os filtros de alumínio.

Technical line drawing of a mechanical press or clamping device with a cylindrical component and lever (no text or symbols)

Vent Pack 2
(UK + IE) x 1

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

JOCEL®

SEDE:

Line drawing of a rectangular electronic device with ventilation slots and a circular vent (no text or symbols)

[01] × 1

Simple line drawing of a rectangular frame with a small rectangular clip on top (no text or symbols)

[02] 600mm x 2
900mm×3

[03] x4

[04] × 1

[05] x1

[06] x1

[07] ×4

(4×36mm)

[08] ×2

(3.5×12mm)

SEGURIDAD

Set of seven black-and-white icons representing different tools and components, including a screwdriver, ruler, measuring tape, tool, drill bit, screwdriver, and pencil.

Simple line drawing of a wheel with three segments (no text or symbols)

RECIRCULACIÓN

Diagram of a coiled cylindrical object with an arrow indicating direction (no text or symbols)

EXTRACCION

CINTA DE ALUMINIO AUTOADHESIVA

OPERACIÓN

Technical line drawing of a mechanical device with an arrow indicating downward motion (no text or symbols present)

2

NOTA:

Line drawing of a mechanical device with a person operating a platform (no text or symbols)

Line drawing of a kitchen appliance with a front sink, front shelves, and side dishes (no text or symbols)

MAX.65°C

Diagram of a square plate with a hose spraying through it, no text or symbols present

Diagram of a refrigerator interior showing hand-pulley mechanism with two circular buttons and wheels (no text or symbols)

Diagram showing a circular object being processed by a trash bin and recycling symbol, illustrating environmental waste disposal.

Safety warning sign showing correct and incorrect conditions for a person with a checkmark and a box

CABLEADO

EUR N (Azul) L (Marron) N (Azul) L (Marron)

Conexión directa

[04] x 1 [0] x6 1 [08] x2

[0] x5 1 [08] x2

Technical line drawings of a mechanical part, including a cylindrical rod, a pencil, and a measuring tape (no text or symbols)

[03] x4 [0] x47 [07] [03] 2mm

Technical diagram showing a mechanical device with a close-up view of its internal components, including a magnified detail and a directional arrow.

Technical line drawing of a mechanical device inside a cabinet, showing internal components and an external view (no text or symbols)

[02] 600mm x 2 9 00mm x 3

[01] × 1

Technical line drawing of a mechanical press or clamping device with a cylindrical component and lever (no text or symbols)

Vent Pack 2 (UK + IE) × 1

Telef. 00 34 914 879 573

http://www.jocel.es

JOCEL®

SEDE:

INFORMATION AND ADVICE

These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference.

INDEX

Safety....44

Before you start 46

Operation....47

Care and maintenance....47

Troubleshooting....50

Recycling and disposal....51

Technical specification 51

Wiring....52

Installation....53

General warranty terms....59

Declaration of conformity....60

Line drawing of a rectangular electronic device with a circular top and ventilation slots (no text or symbols)

[01] × 1

[02] 600mm x 2
900mm x 3

[03] x4

[04] × 1

[05] ×1

[06] ×1

[07] ×4
(4×36mm)

[08] ×2
(3.5×12mm)

SAFETY

These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference.

• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacture's.

- This appliance complies with all current European safety legislation, however, the Manufacturer must emphasize that this compliance does not prevent the surfaces of the appliance from heating up.

- Accessible parts may become hot during use. Young children should be kept away. Care should be taken to avoid touching the appliance.

- The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring,

- Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.

- Do not allow the electric cables to touch the hot parts of the appliance Make sure that the power cord is not caught under or in the appliance and avoid damage to the power cable.

- Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.

- Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Warning: When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 ^-5 bar).

- Please dispose of the packing material carefully.

- Do not use flammable sprays in close vicinity to the appliance.

- We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully.

- A steam cleaner is not intended to be operated by means of external timer or separated remote-control system.

- The appliance is for domestic use only.

• Warning: Consult local regulations regarding fumes outlets. Do not connect the hood to a fume. Ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities. Make sure the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar). The room must have adequate ventilation in an extractor hood is used simultaneously with appliances that run on gas or other fuels. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Regulations regarding air extraction must be complied with.
• Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.
• Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.
• To avoid the risk of fire or motor damage, clean the metal filter regularly and closely watch and regulate pans containing hot oil.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services.
• Flambe cooking must not be carried out underneath this appliance.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

  Gas hobs: 750mm
  Electric hobs: 650mm

• The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
• For information regarding installation, see the installation paragraph in this manual
• Regarding the information for replacing the bulb please see section "Care and maintenance".

Warning:

There is a risk of electric shock and fire if cleaning is not carried out in accordance with the instructions.

BEFORE YOU START

Things to check before you start

• To avoid the constant danger when using electrical appliances, it is important to properly install this range hood and read the safety instructions carefully to avoid misuse and danger. We recommend that you keep this instruction manual for future reference and pass it on to any future owners. After unpacking the range hood, check that the range hood is intact. When in doubt, do not use the device.
• Check the packaging and make sure you have all of the parts listed.
• Decide on the appropriate location for your product.
• If this product contains glass, please take care with fitting or handing to prevent personal injury or damage to the product.
• This specifications plate in available on this appliance. This plate displays all the necessary identification information for ordering replacement parts.
• If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the new owner can become familiar with the appliance and its safety warnings.

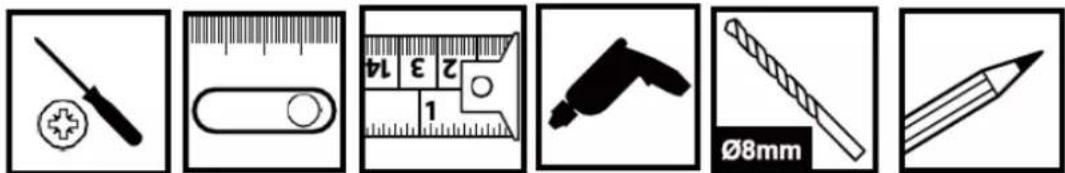

You will need

Accessories not supplied

Simple line drawing of a wheel with three blades and a central hub (no text or symbols)

RECIRCULATION

Diagram of a coiled cylindrical object with internal parallel grooves and an arrow indicating direction (no text or symbols)

EXTRACTION

SELF ADHESIVE ALUMINIUM TAPE

OPERATION

- Product functions

This appliance extracts the air of the kitchen to remove the odors and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area.

Control panel – Operation

This panel is located on the front part of the hood.

Press the panel buttons (mechanical button) that correspond to the need:

Power OFF

Speed level 1

Speed level 2

Speed level 3

Button for the lights

To obtain the best results from your cooker hood it is recommended that you leave it switched on for 15 minutes after you have finished cooking.

CARE AND MAINTENANCE

Warning

Always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact customer services.

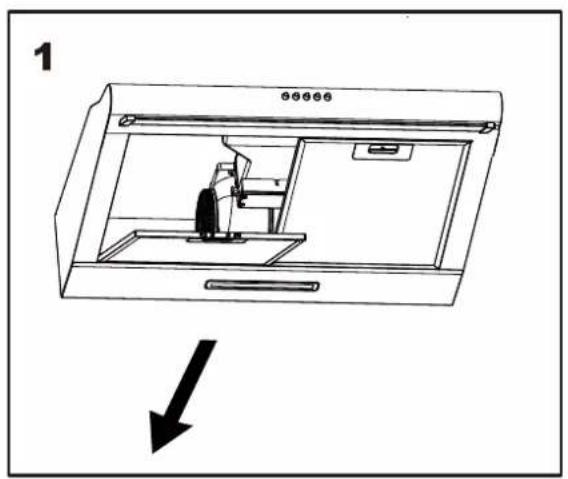

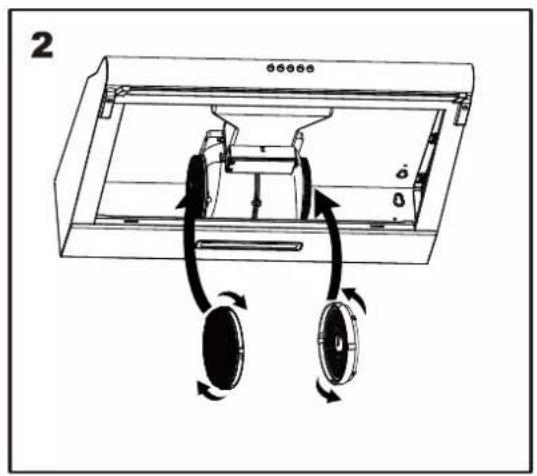

Active charcoal filter replacement (NOT SUPPLIED)

Technical line drawing of a mechanical device with an arrow indicating downward motion (no text or symbols present)

2

NOTE:

Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

1 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED).

Aluminum and active charcoal filters replacement

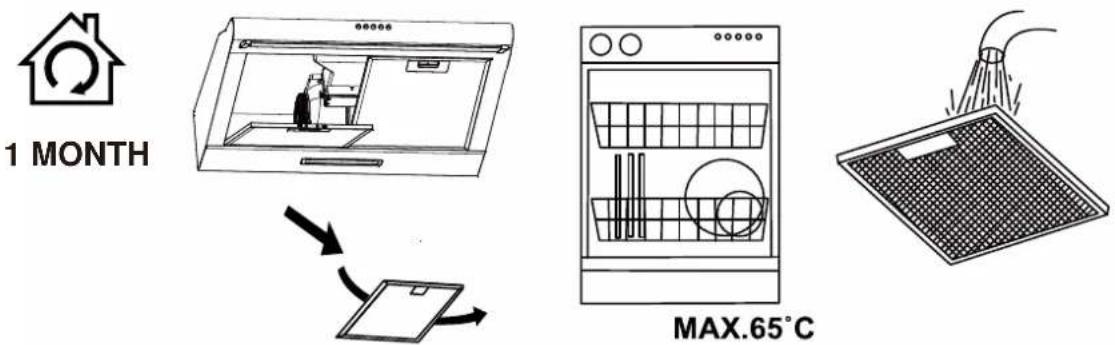

Aluminum filters:

To avoid fire or motor damage clean the filters once a month. To do so, remove the filters and soak in hot water and detergent for an hour. If using a dishwasher, position the filters vertically to improve the cleaning process. Motor damage due to not cleaning the filters or not using filters is not covered by the warranty.

1 MONTH MAX.65°C

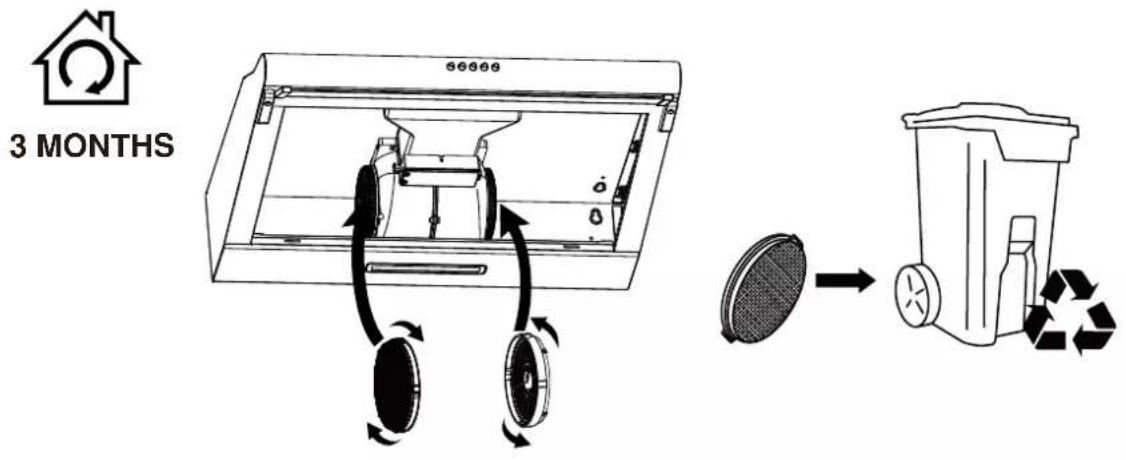

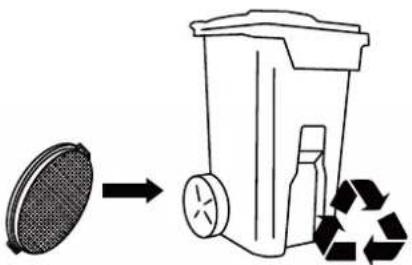

Active charcoal filters:

Replace every 3 months.

Note: Increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

TROUBLESHOOTING

Fault	Cause	Solution
Excessive Vibration	The appliance is not installed properly on the brackets.	Take down the appliance and check it is properly fixed.
	The fan Blade is damaged.	Switch off the appliance. Repair to be carried out by qualified service personnel only.
	The fan motor is not fixed tightly.
Light on, but motor does no work.	The fan Blade is jammed.
	The motor is damaged.
Both light and motor do not work.	Light bulb blown.	Replace with a bulb with correct rating.
	Power connection loose	Check power supply.
Soction performance reduced.	Speed may be too low.	Select a higher speed.
	Distance between the cooker Hood and the hob is too great.	Readjust the distance to: Gas hobs: 750mm Electric hobs: 650mm
	Aluminum grease filter is dirty.	Clean filters. See Care and maintenance section.
	Top vent might be obstructed.	Clear any obstruction.
	The activated carbon filter may be misplaced.	Ensure that the carbon filter is installed according to the manufacturer instructions.
Works normally but cooking smells linger.	Charcoal filter not fitted in recirculation mode or charcoal filter is full of grease.	Fit charcoal filter if recirculating or change the filter. See Care and maintenance section.

Note: If the lamp fail, replace it. Lamp not included in the warranty.

RECYCLING AND DISPOSAL

Environmental protection

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. This product must be handed over to an electric and electronic equipment collection point for recycling.

On ensuring that this product is disposed of correctly, you will help to avoid possible negative consequences for the environment and public health, which could occur if this product is not handled correctly. To receive more detailed information about recycling this product, contact your local government, domestic waste disposal services or the outlet where the product was bought.

TECHNICAL SPECIFICATION

Supply Voltage	220-240V-, 50Hz
Power consumption - Fan	65W
Power consumption - Luminary	1 x 1.5WMax
Power consumption - Total	66.5W
Protection class	II
Light bulb	Max.1.5W

WIRING

All installation work must be carried out by a competent person or qualified electrician.

Before connecting the mains, supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Mains Supply could be connected to the Mains Voltage by Direct Connection.

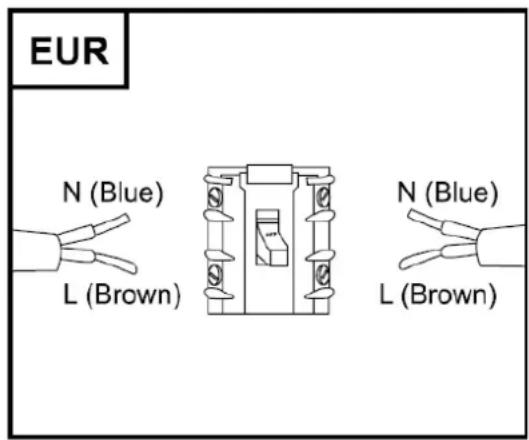

EUR N (Blue) L (Brown) N (Blue) L (Brown)

Direct Connection

If the appliance is being connected directly to the mains an omnipolar circuit breaker must be installed with a minimum opening of 3mm between contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced. Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance.

Electrical Requirements

Any permanent electrical installation must comply with the latest local legal requirements and local power company regulations. For safety, electrical installation should be performed by a qualified electrician or contractor.

Electrical Connection

Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the appliance.

INSTALLATION

1. You can choose two types of installation:

2. Ducted option

3. Recirculation option

Ø120mm

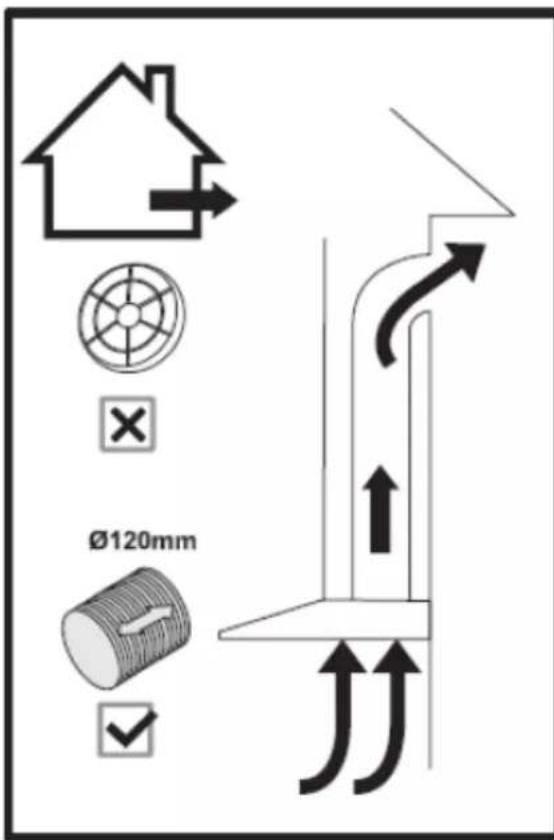

DUCTED OPTION

Ø120mm

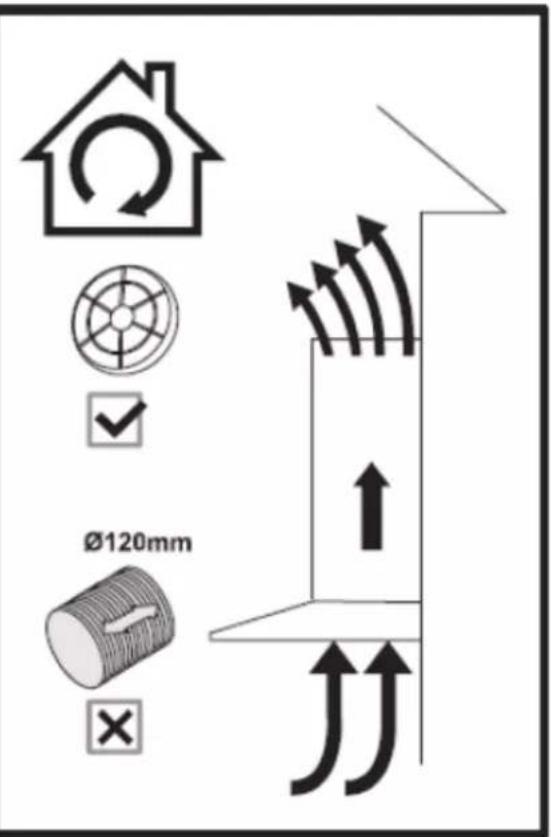

RECIRCULATION OPTION (CARBON FILTER NOT SUPPLIED)

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

[04] x 1 [0] x6 1 [08] x2

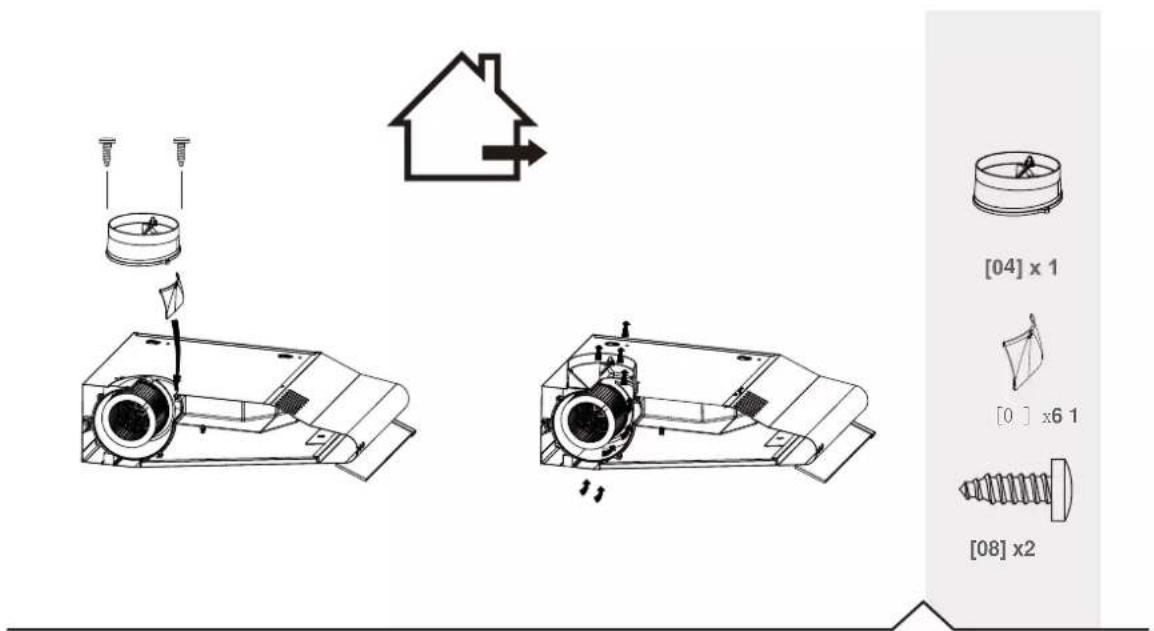

Exhaust mode: install damper (6) and outlet seat (4). This mode requires the installation of pipes.

[0] x5 1 [08] x2

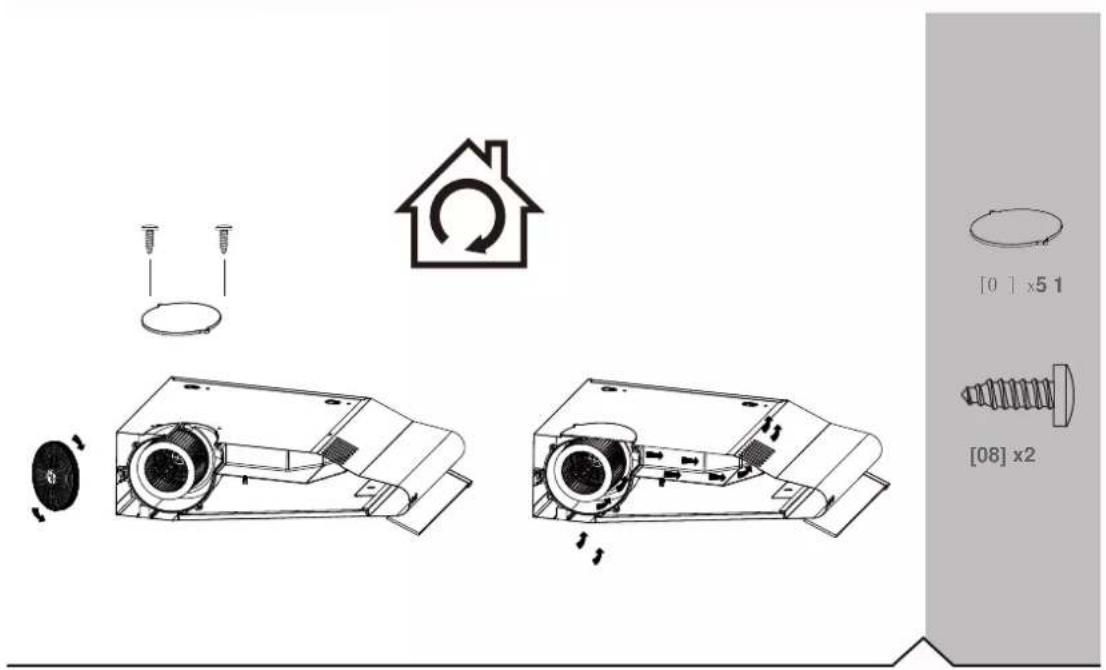

Internal circulation mode: install (5) plug and activated carbon. This mode does not need to install I pipes.

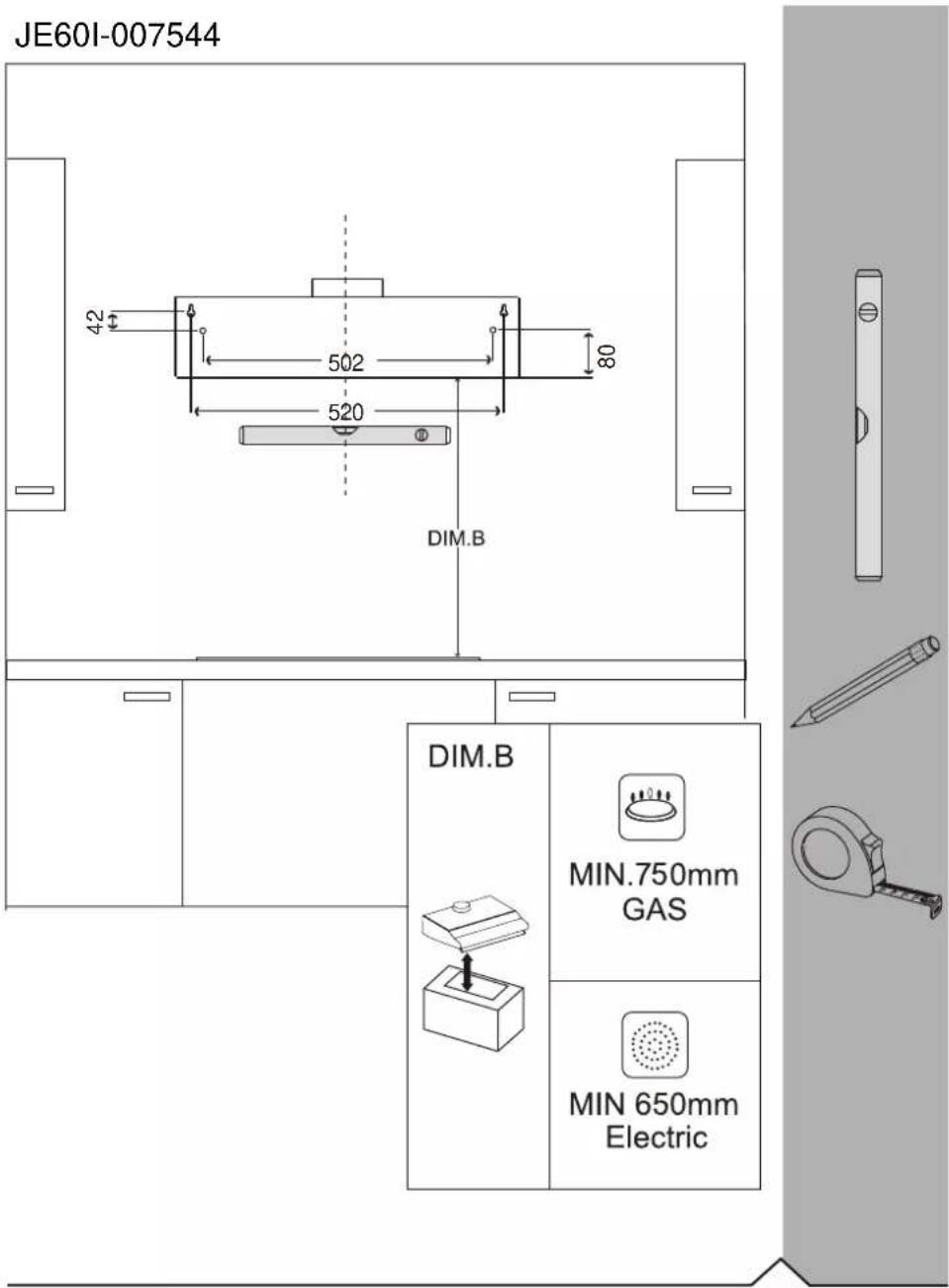

JE60I-007544 42 502 80 520 DIM.B DIM.B MIN.750mm GAS MIN 650mm Electric

Mark on the wall the hole positions as shown in diagram.

The wall plugs supplied are suitable for solid walls only. When fixing to any other type of wall use suitable alternative fixings.

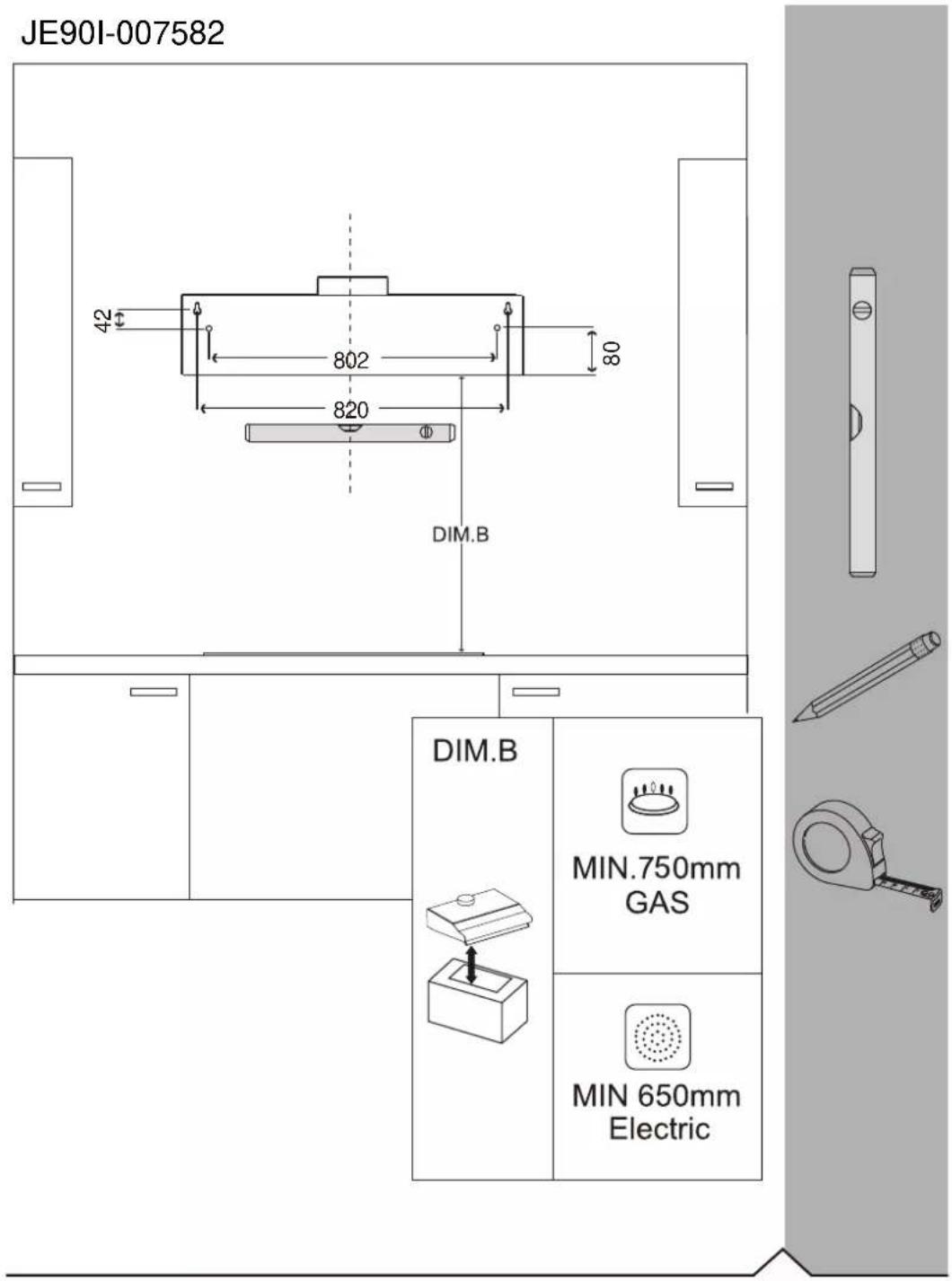

JE90I-007582 42 802 820 DIM.B DIM.B MIN.750mm GAS MIN 650mm Electric

Mark on the wall the hole positions as shown in diagram.

The wall plugs supplied are suitable for solid walls only. When fixing to any other type of wall use suitable alternative fixings.

[03] x4 [0] x47 [07] [03] 2mm

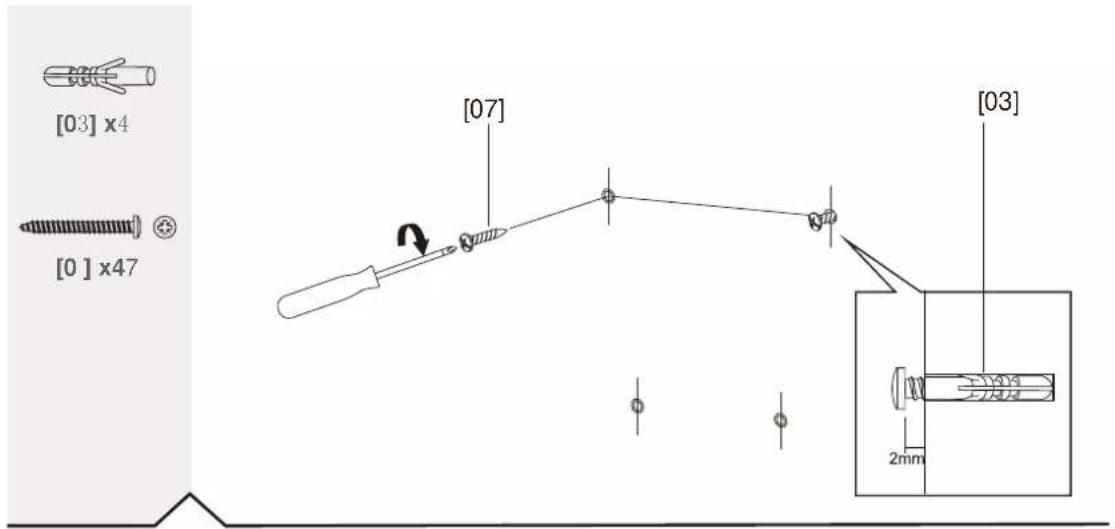

Drill the holes, insert the wall plugs in all 4 holes, then insert the lower four screws.

Technical diagram showing a mechanical device with a close-up view of its internal components and a magnified detail.

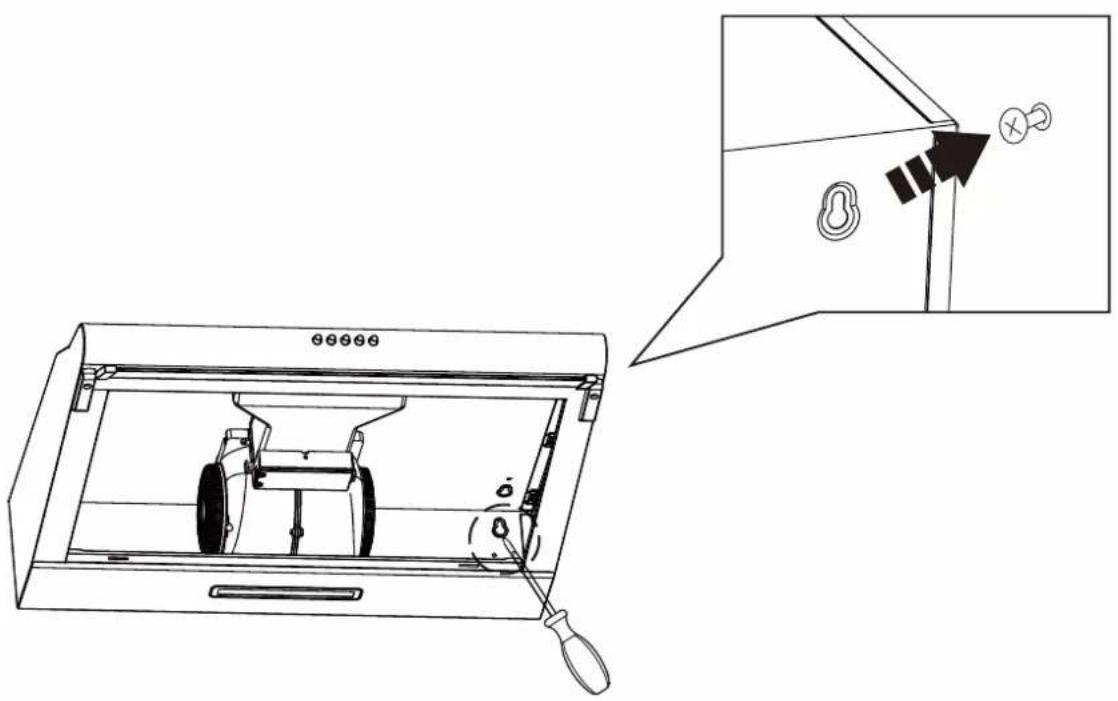

Position the hood over the lower four screws

Technical line drawing of a device interior with an arrow indicating direction (no text or symbols present)

[02] 600mm x 2 9 00mm x 3

[01] × 1

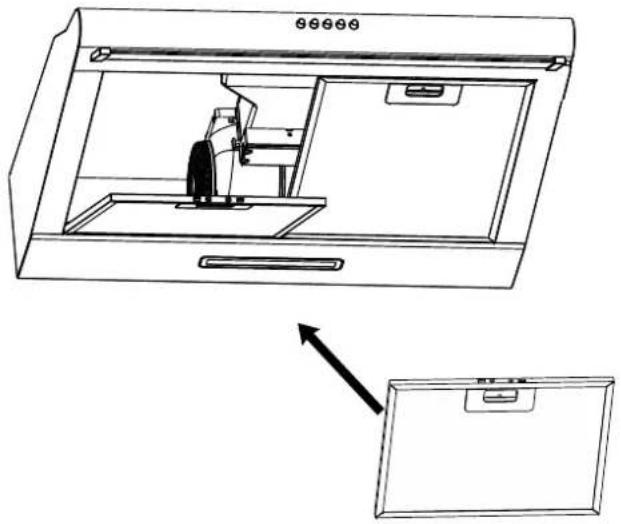

Replace the aluminium filter.

Technical line drawing of a mechanical press or clamping device with a cylindrical component and lever (no text or symbols)

Vent Pack 2
(UK + IE) × 1

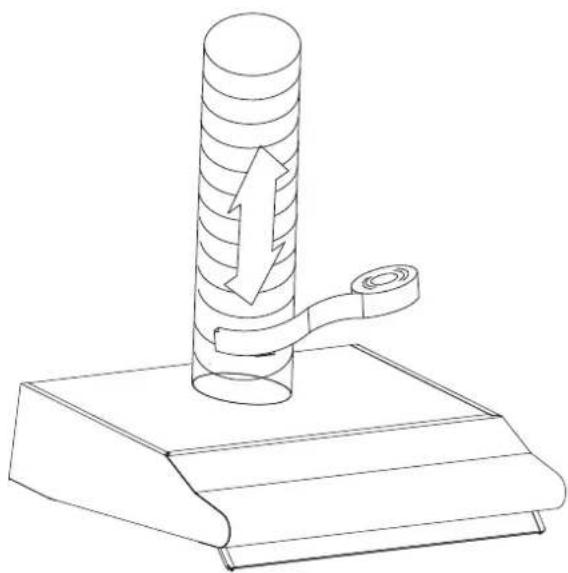

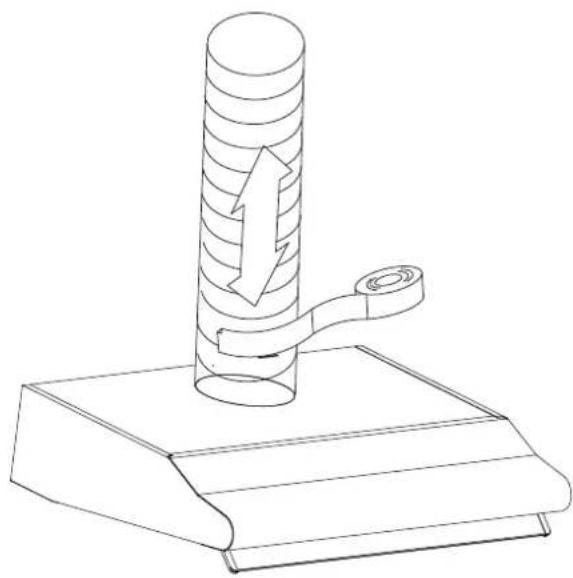

Fix the Ducting Tube 120 using tape or clamp.

WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. For repair, deliver the product to the store where you purchase it or to the JOCEL Technical Assistance Center.
3. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops. Does not include the lamp or the front protection glass.
4. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
5. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
6. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
7. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
8. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the period for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.
3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

Information about our technical services is available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

JOCEL®

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

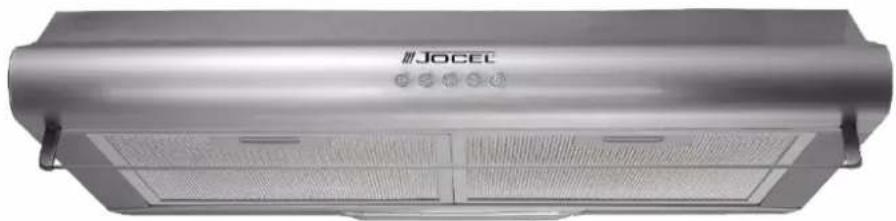

Product COOKER HOOD

Brand JOCEL

Model JE60I-007544

Complies with the following European directive and standards implementation

Low Voltage

2014/35/EU

EN 60335-2-31:2014

EN 60335-1: 2012+A11: 2014 +

A13: 2017 + A1: 2019 + A14:

2109 + A2:2019

EN 62233: 2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1: 2017

EN 55014-2:2015

EN 61000-3-3:2013+A1:2019

JOCEL®

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Product COOKER HOOD

Brand JOCEL

Model JE90I-007582

Complies with the following European directive and standards implementation

Low Voltage

2014/35/EU

EN 60335-2-31:2014

EN 60335-1: 2012+A11: 2014 +

A13: 2017 + A1: 2019 + A14:

2109 + A2:2019

EN 62233: 2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1: 2017

EN 55014-2:2015

EN 61000-3-3:2013+A1:2019
