JEGA007605 - Kitchen hood Jocel - Free user manual and instructions

Product Type	Kitchen Hood
Brand	Jocel
Model	JEGA007605
Dimensions (W x D x H)	60 cm x 50 cm x 30 cm
Weight	8 kg
Power Supply	220-240 V, 50/60 Hz
Motor Power	120 W
Number of Speeds	3
Extraction Capacity	400 m³/h
Noise Level	55 dB (max)
Grease Filter	Aluminum mesh, washable
Charcoal Filter	Optional, for recirculation mode
Lighting	2 x 1.5 W LED
Control Type	Push button
Ducting Diameter	150 mm
Energy Class	B
Installation Type	Wall mounted
Material	Stainless steel
Includes	Installation kit, user manual

Frequently Asked Questions - JEGA007605 Jocel

How to install the kitchen hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above gas hobs and 50 cm above electric hobs. Use the provided installation kit and follow the manual's instructions for ducting or recirculation setup.

How do I clean the grease filter?

The aluminum mesh grease filter can be removed and washed with warm soapy water or in a dishwasher at low temperature. Allow it to dry completely before reinstalling. Clean every month or more frequently for heavy use.

How to replace the charcoal filter?

For recirculation mode, the charcoal filter must be replaced every 3-6 months depending on usage. Release the filter clips, remove the old filter, insert a new one, and secure it back. Ensure the hood is switched off during replacement.

Can the hood operate in recirculation mode?

Yes, the Jocel JEGA007605 can work in recirculation mode by installing one or two charcoal filters (not included). This mode filters the air through the filters and returns it to the kitchen.

What is the noise level of the hood?

The noise level varies by speed. At maximum speed, it is around 55 dB, which is comparable to a normal conversation. Lower speeds are quieter.

How to change the light bulbs?

The hood uses LED lights (2 x 1.5 W). To replace, turn off power, remove the lamp cover or lens, gently pull out the LED module, and insert a compatible LED bulb. Avoid touching the new bulb with bare hands.

Why is the hood not working?

Check if the power cord is plugged in and the fuse is intact. Ensure the circuit breaker is not tripped. If it still doesn't work, the motor or control board might be faulty; contact customer service.

How to set the timer function?

The JEGA007605 model includes a timer that can be set to automatically turn off the hood after 15 or 30 minutes. Press the timer button (if available) until the desired time is selected. Refer to the manual for specific button combinations.

What is the warranty coverage?

Jocel typically offers a 2-year warranty covering manufacturing defects. Proof of purchase is required. The warranty does not cover damage from improper installation, misuse, or normal wear of filters.

How to adjust the speed settings?

Use the push buttons on the control panel to select from three speed levels (low, medium, high). Press the button corresponding to the desired speed. Some models may have a boost function for maximum extraction.

USER MANUAL JEGA007605 Jocel

Exterior view of a modern kitchen air purifier with a white panel and mesh grille (no text or symbols visible)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

Read the Instruction Manual Carefully.

Diagram showing a hand installing or adjusting a mesh panel on a wall, before and after assembly (no text or symbols present)

Technical line drawing of a mechanical component with a screwdriver inserted into a circular opening (no text or symbols)

Line drawing of a hand pressing down on a cylindrical component mounted on a two-tiered base (no text or symbols)

5

Instalação

3D diagram of a mechanical press or clamping device with a cylindrical component inserted into a base, against a brick wall background (no text or symbols)

Technical diagram of a mechanical or fluidic component with flow indicators and grid patterns, labeled '8' (no text or symbols on the diagram itself)

Informação

Hand holding a small object on a textured surface, no visible text or symbols

11

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Technical line drawing of a mechanical component with a screwdriver inserted into a circular opening (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

5

3D diagram of a mechanical press or clamping device with a cylindrical component inserted into a base, against a brick wall background (no text or symbols)

Technical diagram of a mechanical or fluidic device with flow indicators and grid pattern (no text or symbols)

Información

Lámpara de Repuesto

Hand holding a tool on a textured surface, no visible text or symbols

11

Information and advice

CAUTION: Accessible parts may become not when used with cooking appliances.

In certain circumstances electrical appliance may be a danger hazard.

1. There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
2. Do not check the status of the filters while the cooker hood is operating.
3. Do not touch the light bulb within half an hour after appliance has been use.
4. Do not light a flame under the cooker hood.
5. Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard.
6. Constantly check food frying to avoid overheated oil splashing and becoming a fire hazard.
7. Disconnect the electrical plug prior to any maintenance.
8. Regulations concerning the discharge of air have to be fulfilled.
9. When the range hood and appliances supplied with energy Other than electricity are simultaneously in operation. The negative pressure in the room must not exceed 4 Pa (4x10bar).
10. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
12. The range hood is inteded to be installed over a hob having no more than four hob elements.
13. Indoor use and household use only.
14. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
15. Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.
16. There is a fire risk if cleaning is not carried out in accordance with the instructions.

Information and advice

Check voltage and frequency given on the rating plate located on the inside of the hood.

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

2

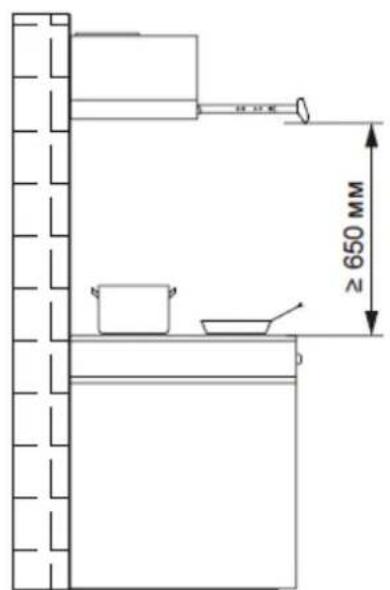

We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

3

Information

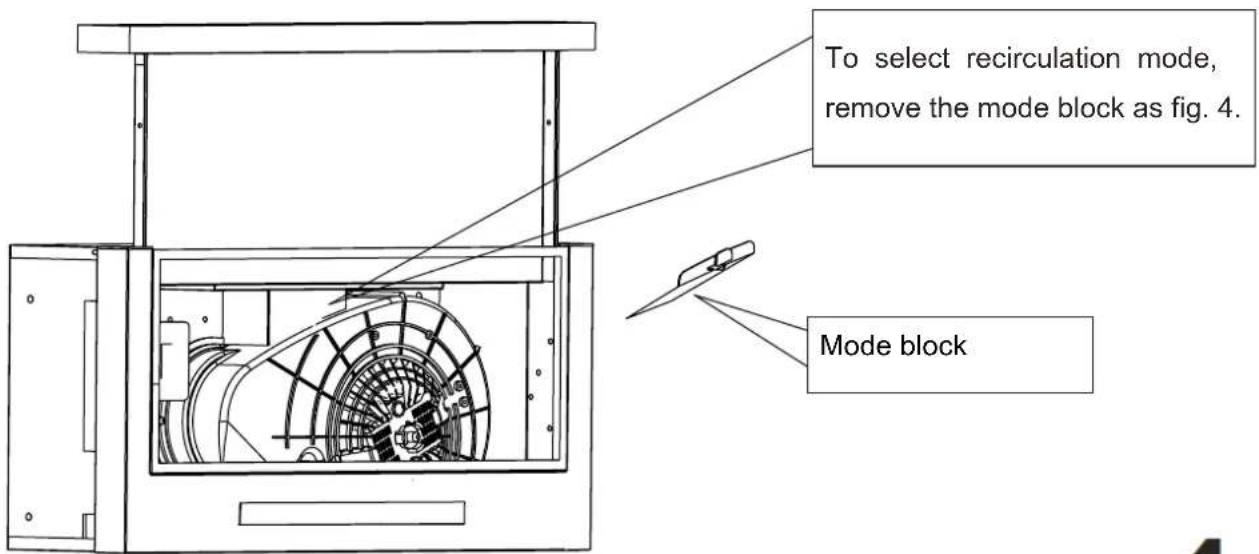

Fasten the screws on both side of recirculation vent baffle to avoid vibration when the hood is running.

4

Installation

Ensure the power has been turned off before beginning this installation.

Technical line drawing of a mechanical component with a screwdriver inserted into a circular opening (no text or symbols)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

5

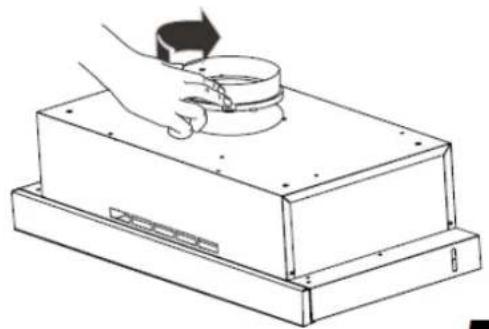

Before installing the cooker hood, please first fix the damper flap on the air outlet of the hoods.

Information

Connect universal hose, easy selecting the venting direction.

According to the Fig. 4, make sure the position of the hoods on the cabinet. Then use the stencil to drill four ∅7 holes on the cabinet. Fix four sets expanding plugs and screws aimed at the four holes.

The best distance between the bottom of machine and the cabinet on two sides should be less than 2mm. You should make sure that there is no distance between the upside and the cabinet, the gap to the back should be not more than 10mm, the plug should be easy to touch, then it will be easy to be assembled.

6

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

The cooker hood is fully convertible for different venting direction.

3D diagram of a mechanical press or clamping device with a cylindrical component inserted into a base, against a brick wall background (no text or symbols)

Connect the hose (not supplied) with the air duct.

Vertical is the most common. If your kitchen has an attic space above, the ducting may be run up through the cupboard and attic to a roof cap.

Technical diagram of a mechanical or fluidic device with flow indicators and grid pattern (no text or symbols)

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Controls:

The telescopic board controls electrical power, just pulling out of the telescopic board, the hood can get electronic power, pull into of the telescopic board, the hood has no power.

And then, both side and under the front panel is both switches for lamp and motor. The lamp switch: Press the switch button on "0", the lamp is not light; Press the switch button on "I", the lamp is light; The others side, it is the switch of motor: "0" is not working position; Press the switch button on "I", the motor runs at the low speed; Press the switch button on "II", the motor runs at the high speed.

Information

Do not touch the light bulb within half an hour after appliance use. The lamp shall not be covered with thermal insulation or other material.

If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard.

Replacing lamp

Close-up of a hand holding a small object over a textured surface, no visible text or symbols

11

It is recommendable to clean the metallic filter every three months by carrying out the following instructions:

• Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak.
• Rinse thoroughly with warm water and leave to dry.
• The metallic filter may also be washed in the dishwasher.
• The metallic filter may alter in color after several washes. This is not cause for customer complaint nor replacement of metallic filter.

Information

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Product COOKER HOOD

Brand JOCEL

Model JEGA007605

Complies with the following European directive and standards implementation

Low Voltage

2014/35/EU

EN 60335-2-31:2014

EN 60335-1:2012 + A11:2014

+ A13:2017

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2017

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55014-2:2015
