USER MANUAL 32FX5020F Finlux

Safety warning symbol showing a faucet above a monitor with crossed-out lines indicating prohibition or exclusion.

Havalandırma

Weather and household climate warning sign showing no protection, rainfall, and heat symbols

① ② DIHM2 DIHM1 SPDIF Coax.OUT VGA ANT. ③ ⑥ ⑤ ④ SCART

HDMI 2: HDMI Girişi1.

HDMI 1: HDMI Girişi 2.

USB 5Vdc Max:500mA

Diagram of a battery cell with an arrow indicating rotation (no text or symbols present)

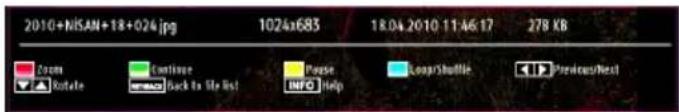

114.jpg 1600x1200 11.04.2010 17:28:53 403 KB Zoom Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndeler Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndel Dyndeler

01:05:42 13:24:36 SECAM D/K

01-05-42 13:24:43 SECAM D/K

13.5 01-05-42 13:24:50 SECAM D/K

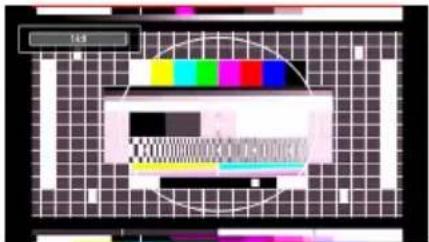

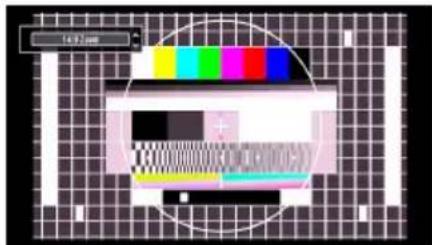

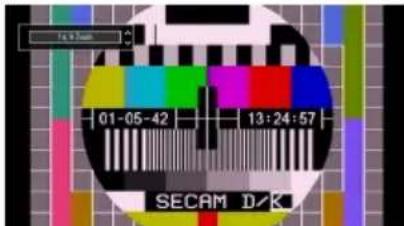

14:9 Zoom

14:30am 01-05-42 13:24:57 SECAM D/K

PAL/SECAM B/G D/K K' I/I' L/L'

ALINAN KANALLAR

VHF (BANT I/III)

UHF (U BANDI)

HYPERBAND

ÖNCEDEN AYARLANABİLEN KANAL SAYISI

1000

KANAL GÖSTERGESİ

Ekran Görüntüsü

RF ANTEN GİRİŞİ

75 Ohm (dengesiz)

ÇALIŞMA GERİLİMİ

220-240V AC, 50 Hz

SES

Alman + Nicam Stereo

SES ÇIKİŞ GÜCÜ (WRMS.) (%10 THD)

2 × 6

GÜÇ TÜKETİMİ (W)

135 W (maks.)

PANEL

Safety Precautions 34

Connection to a Television Distribution System

(Cable TV etc.) from Tuner 35

Repair Information 37

Remote Control Buttons 38

TV and Operating Buttons 39

Viewing the Connections - Back Connectors ..... 39

Viewing the Connections - Side Connectors ..... 40

Aerial Connection 40

Power Connection 40

USB Memory Connection 41

Using Side AV Connectors 41

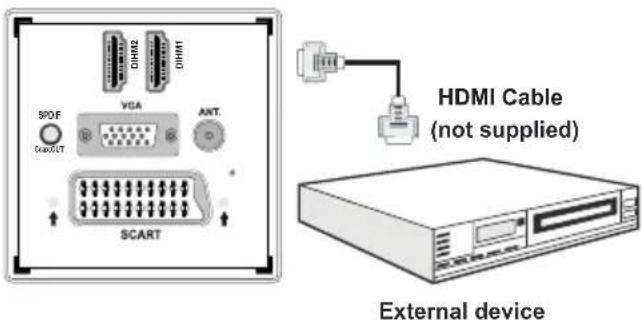

Connecting to a DVD Player via HDMI 42

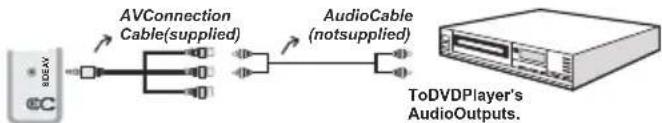

Connecting to a DVD Player.... 42

Remote Control Handset 42

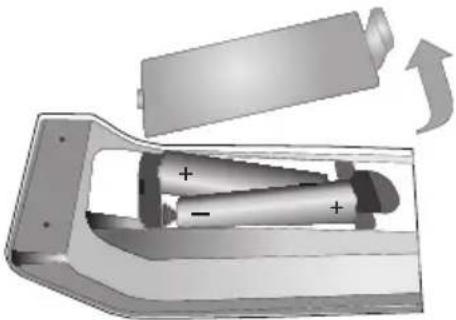

Inserting Batteries 42

To Switch the TV On 43

To Switch the TV Off 43

Basic Operations 43

Operation with the Buttons on the TV 43

Volume Setting 43

Programme Selection 43

Viewing Main Menu 43

AV Mode 43

Operation with the Remote Control 43

Volume Setting 44

Programme Selection (Previous or Next

Programme) 44

Programme Selection (Direct Access) ...... 44

Viewing Electronic Programme Guide (EPG) ..... 44

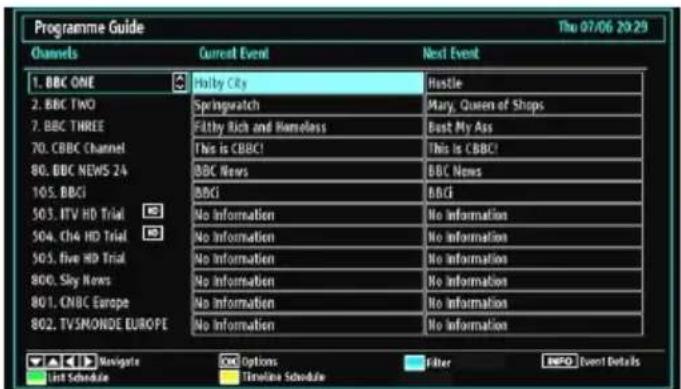

EPG Timeline Schedule 44

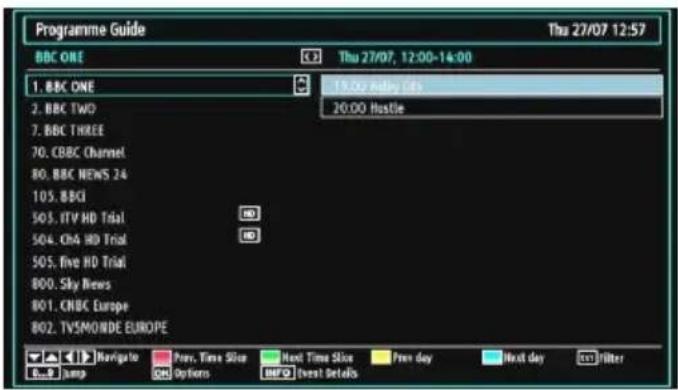

EPG Channel Schedule 44

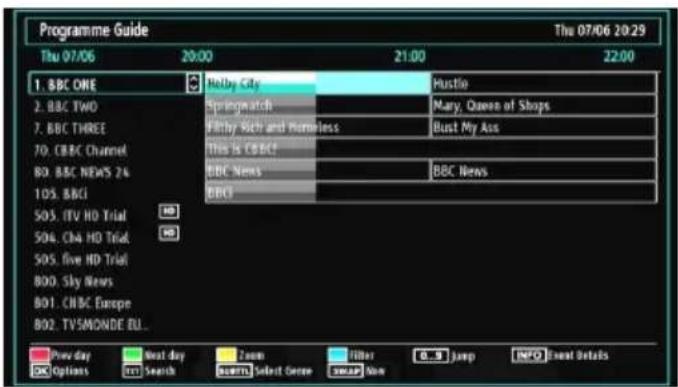

EPG Now and Next.... 44

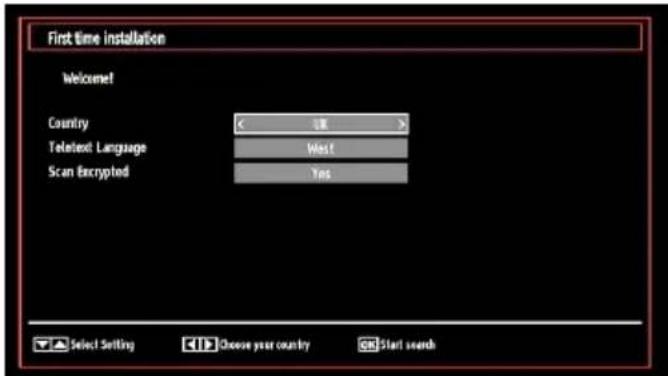

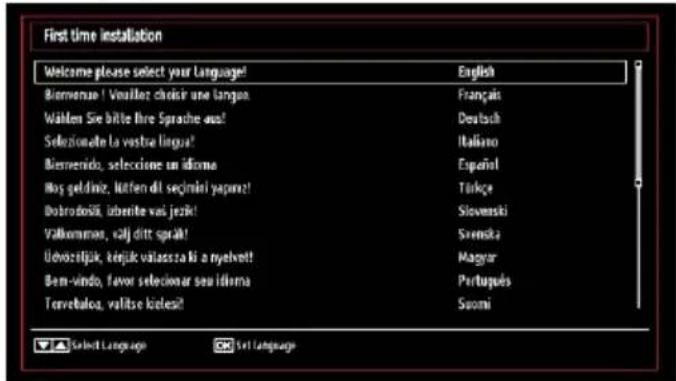

First Time Installation.... 45

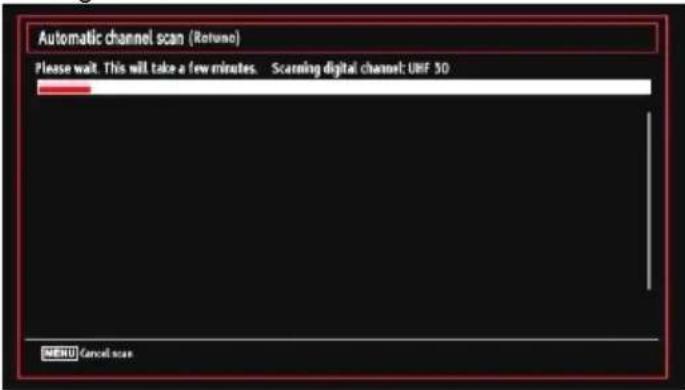

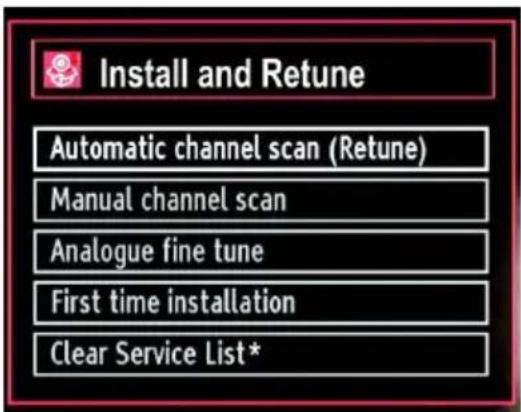

Auto Channel Scan (Retune) Menu Operation.46

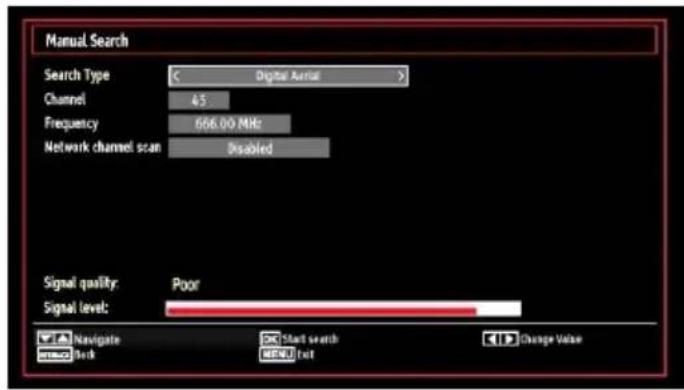

Manual Tuning 46

Digital Manual Search...... 46

Analogue Manual Search 46

Analogue Fine Tune 46

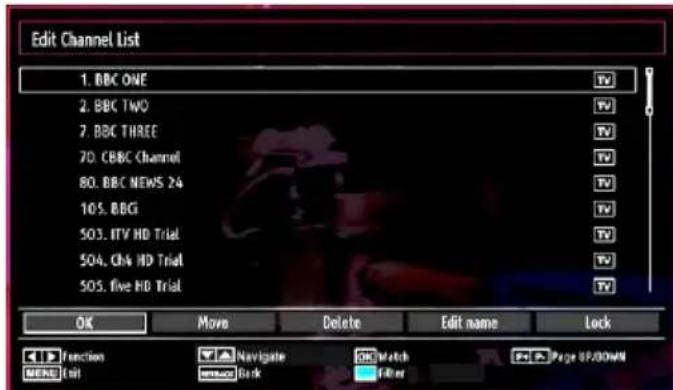

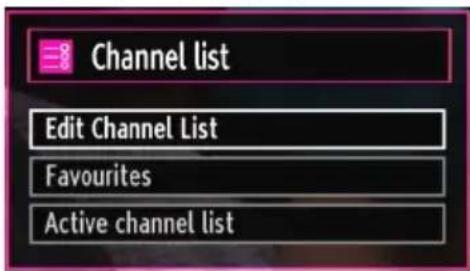

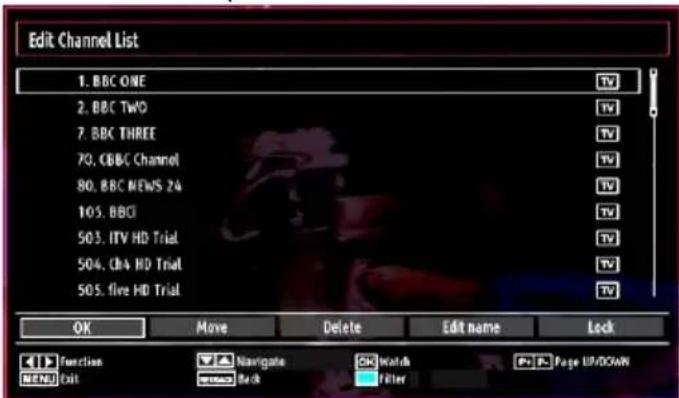

Operating the Channel List 47

Moving a Channel 47

Deleting a Channel 47

Renaming a Channel 47

Locking a Channel 47

Button Functions 48

Managing Stations: Sorting the Channel List ..... 48

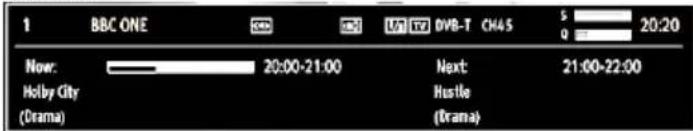

On-Screen Information 48

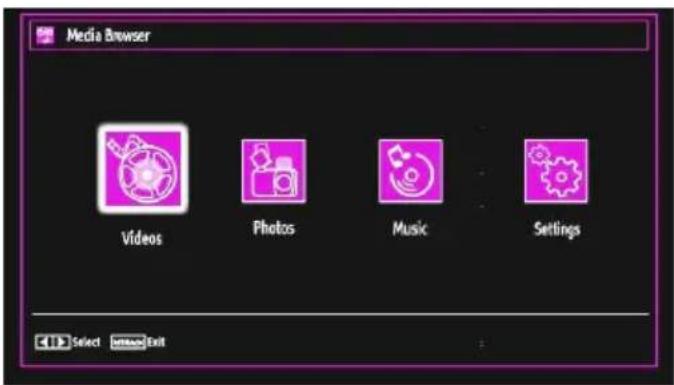

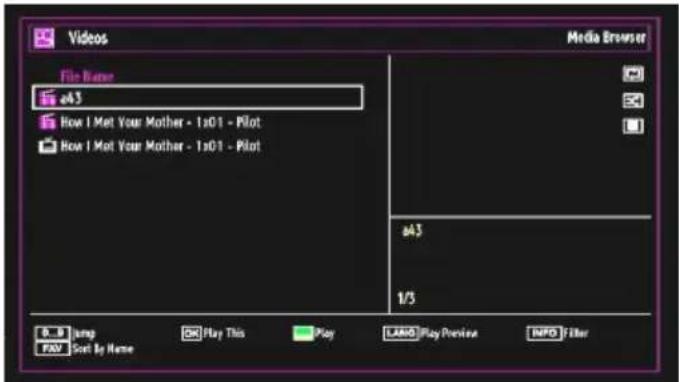

Media Playback Using Media Browser 48

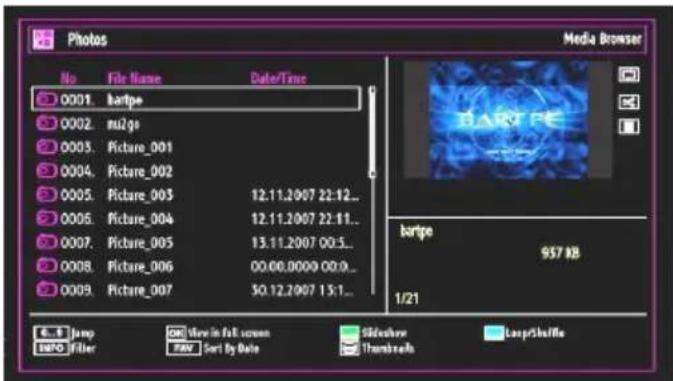

Viewing Photos via USB 49

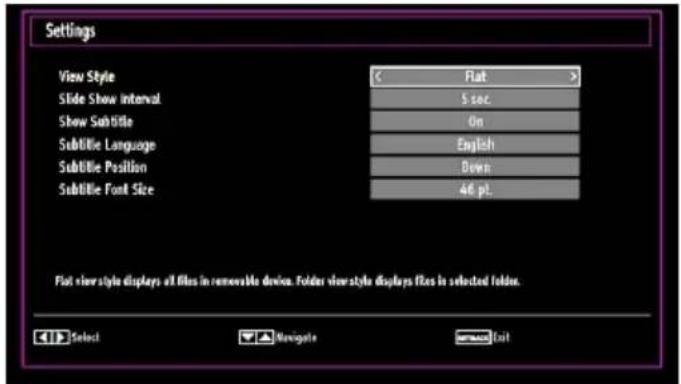

Media Browser Settings 50

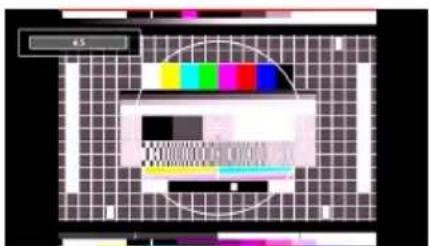

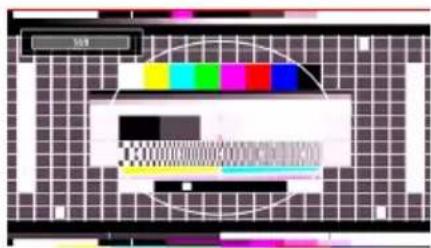

Changing Image Size: Picture Formats 50

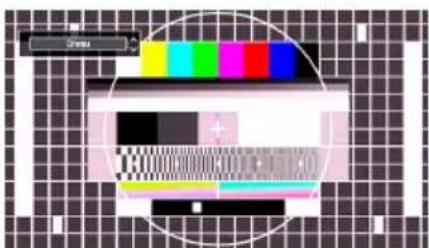

Cinema 51

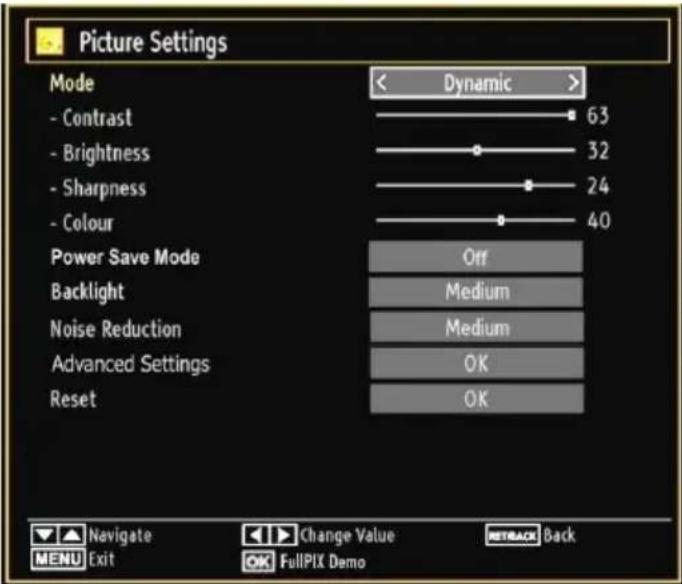

Configuring Picture Settings 51

Press OK to start Fullpix Demo Mode for experiencing Pixellence quality. Throughout

the demo mode, the screen is splitted into two

sections, one displaying the Pixellence II active

area; the other displaying the normal broadcast

Press OK button to quit the demo mode. ..... 51

Operating Picture Settings Menu Items 51

Picture Settings Menu Items 51

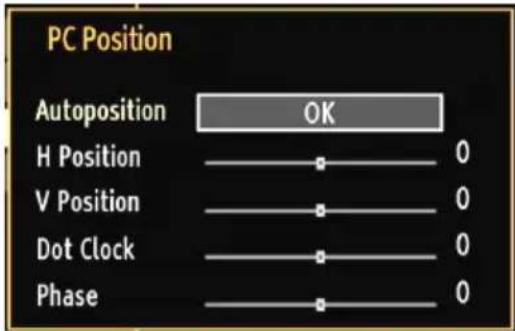

PC Picture Settings.... 52

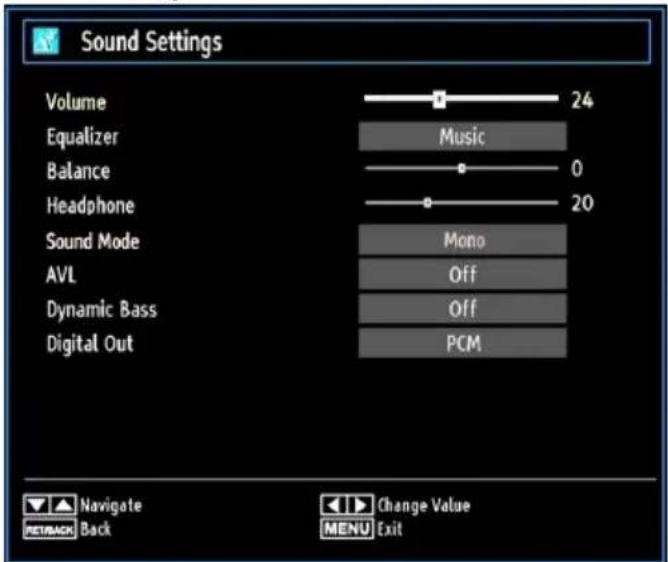

Configuring Sound Settings 52

Operating Sound Settings Menu Items 53

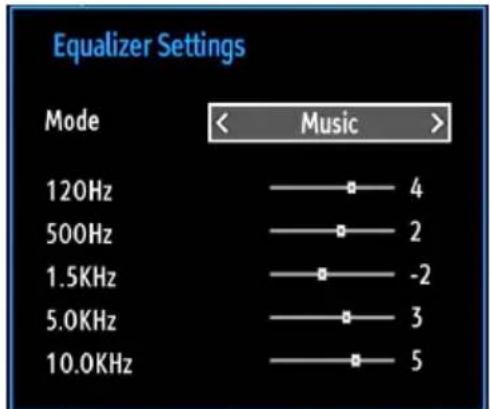

Sound Settings Menu Items.... 53

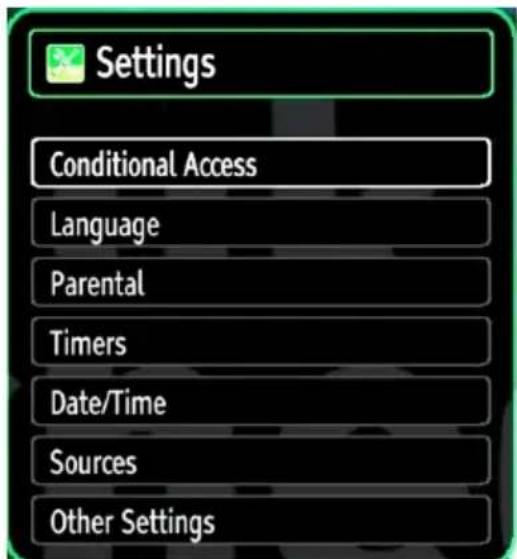

Operating Settings Menu Items 53

Settings Menu Items 53

Viewing Conditional Access Menu (*) 54

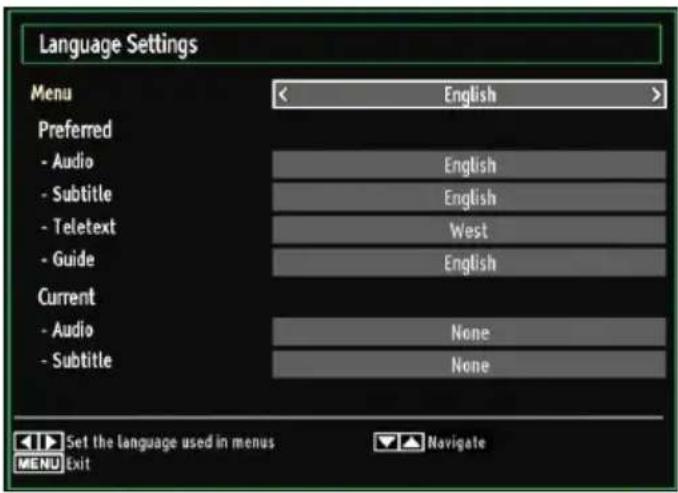

Language Settings 55

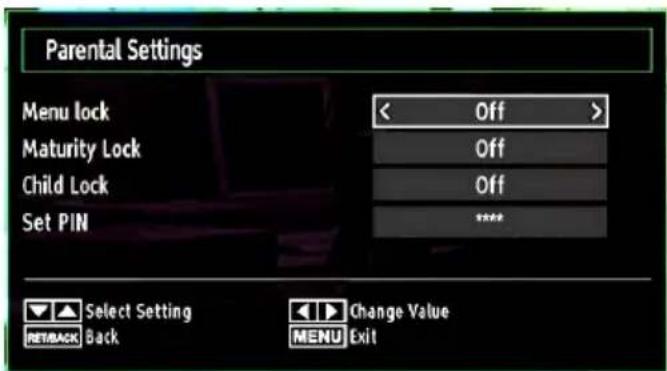

Parental Control.... 55

Parental Settings Menu Operation 55

Timers 55

Setting Sleep Timer 55

Setting Programme Timers 55

Adding a Timer 56

Editing a Timer 56

Deleting a Timer 56

Configuring Date/Time Settings 56

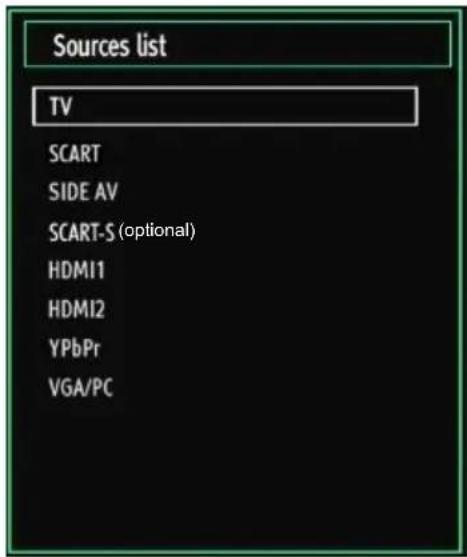

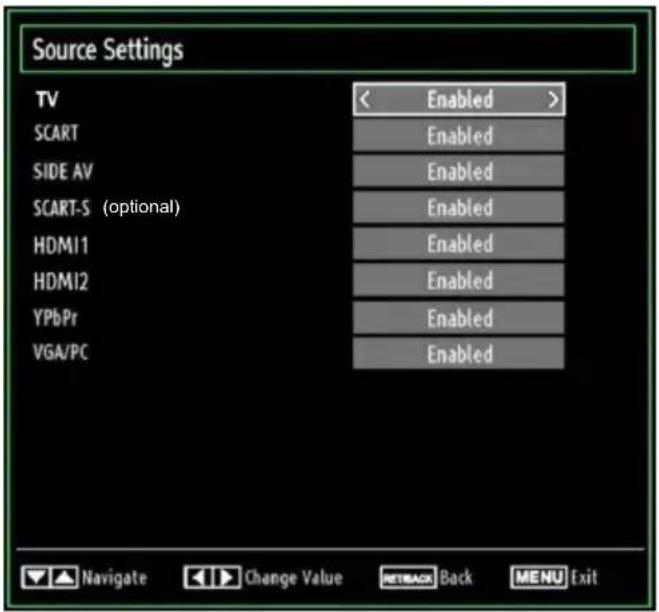

Configuring Source Settings 56

Operation 57

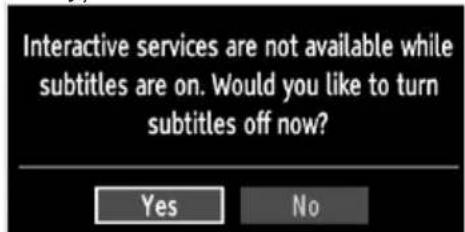

Other Features 57

Appendix A: PC Input Typical Display Modes ..... 59

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) 59

Appendix C: Supported DVI Resolutions...... 60

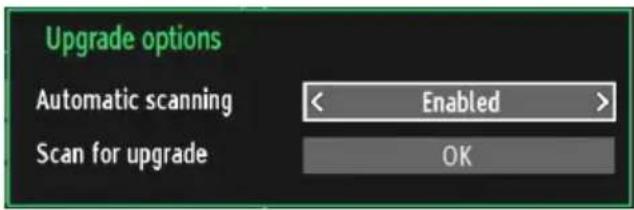

1) Software upgrade search via user interface.60

2) 3.AM search and upgrade mode 60

Specifications 62

Features

Remote controlled colour LED TV.

Fully integrated Terrestrial digital-cable TV (DVB-T MPEG2)

HDMI connectors for digital video and audio.

USB input.

1000 programmes (analogue+digital).

On Screen Display (OSD) menu system.

Integrated tuner DVB-T, MPEG2 compatible.

Scart socket for external devices.

Stereo sound system. (German+Nicam)•

Teletext, fastext, TOP text.

Headphone connection.

Automatic programming system.

Forward or backward manual tuning.

• Sleep timer / Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• Auto power down.
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
• Game Mode.
• Fullpix

Introduction

Thank you for choosing this product. This manual will guide you through the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please keep this manual in a safe place for future reference.

This device is intended to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.).

This device is only suitable for dry indoor use. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LED TV in extreme ambient conditions may cause the damage of the device.

Preparation

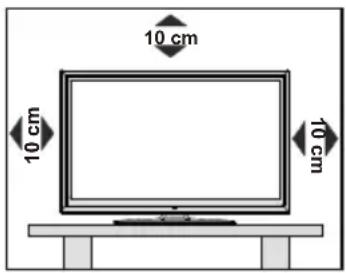

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.

10 cm 10 cm 10 cm

Safety Precautions

Read the following recommended safety precautions carefully.

Power Source

The TV set should be operated only from a 220-240V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cord should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen etc). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top.

Safety warning symbol showing a faucet above a monitor with crossed-out lines indicating prohibition or exclusion.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use a soft, dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames or sources of intense heat such as an electric heater. Ensure that no open flame sources, such as candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

- Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as a foil bag, must be kept away from children.

- Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used batteries in an environmentally friendly manner. Find out about the legal regulations which apply in your area.

Do not try to recharge batteries, there is a danger of explosion. Replace batteries only with the same or equivalent type.

Disconnecting the Device

The mains plug is used to disconnect the TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

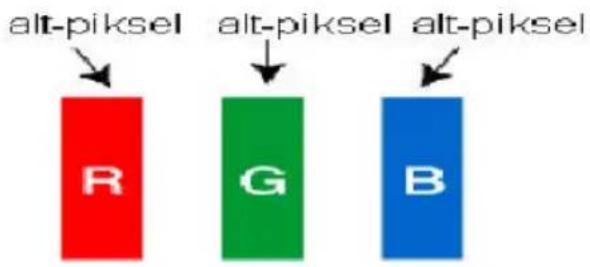

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning! Do not leave your TV in standby or operating mode when you leave your house.

Connection to a Television Distribution System (Cable TV etc.) from Tuner

Devices connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using a coaxial cable, may in some circumstances create a fire hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

Weather and storage symbols diagram showing solar, rain, water, and household items with crossed lines indicating prohibition or exclusion.

Electrical devices not in the hands of children

Never let children use electrical devices unsupervised. Children cannot always recognize properly any possible danger. Batteries / accumulators can be life threatening when swallowed. Store batteries out of the reach of small children. In case of swallowing a battery, medical aid has to be sought immediately. Also keep the packaging away from children as there is danger of suffocation.

The Standby button does not fully switch off this product. Moreover, the device continues to consume power in standby mode. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to the mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. During periods of prolonged non-use, the TV should be disconnected from the mains power supply.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DIGITAL PLUS

Licence Notification (Optional)

Manufactured under license from Dolby Laboratories.

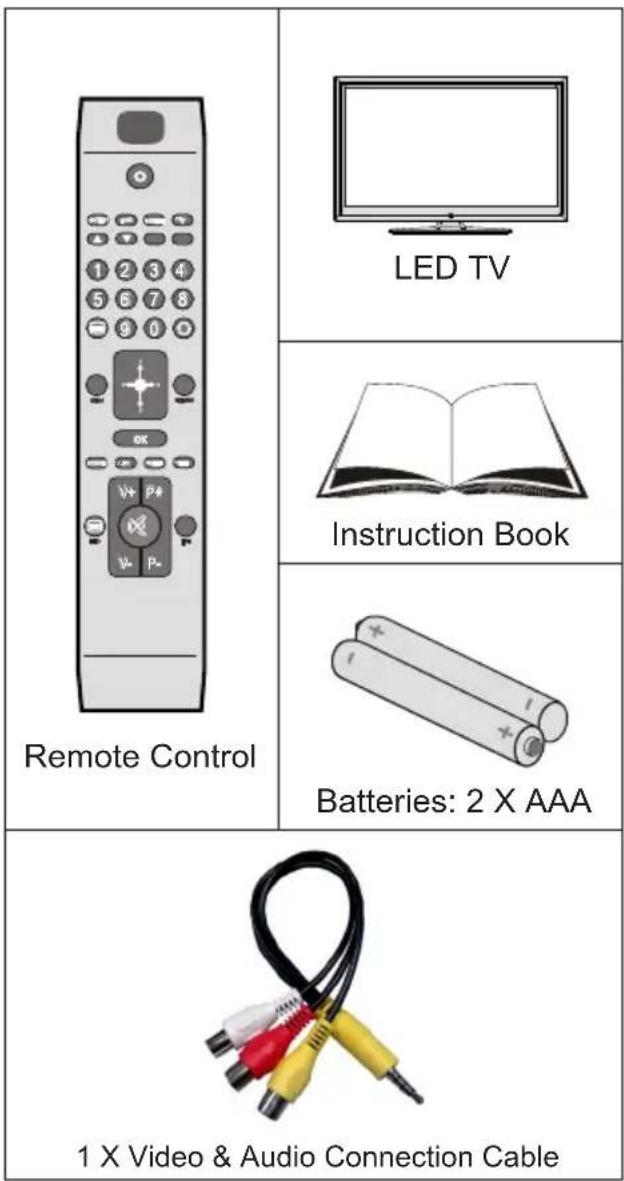

Package Contents

Remote Control LED TV Instruction Book Batteries: 2 X AAA 1 X Video & Audio Connection Cable

Note: You should check the contents after opening your purchase and make sure that every item is included.

Note: The HDMI connection between PC and TV may cause radio interference in which case it is recommended to use VGA(DSUB-15) connection.

Environmental Information

This television is designed to consume less energy to save the environment.

You not only help to save the environment but you can also save money by reducing electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps:

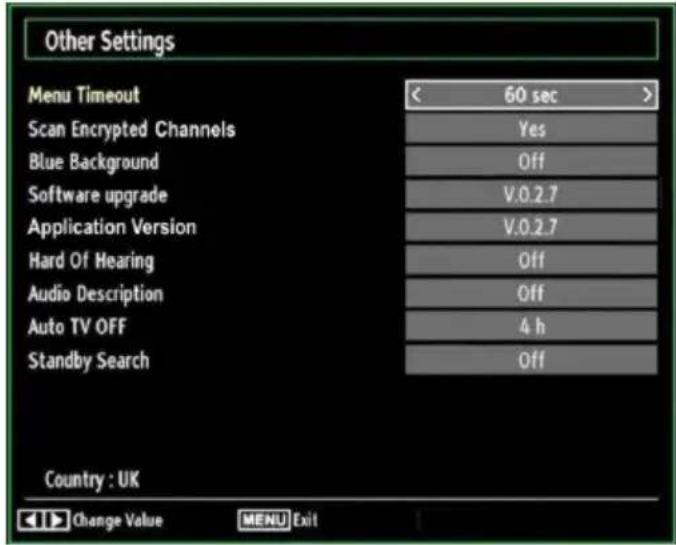

- You can use the Power Save Mode setting, located in the Other settings menu. If you set the Power Save Mode as On, the TV will switch to energy-saving mode and the luminance level of the TV set will be decreased to optimum level. Note that some picture settings will be unavailable when the TV is in Power Save Mode.

Power Save Mode

- When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Note that annually, using the TV set in Power Save Mode has more power efficiency than disconnecting • the TV from the mains plug instead of keeping stand-by mode. Therefore it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. And also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

- Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you purchased this TV for further information.

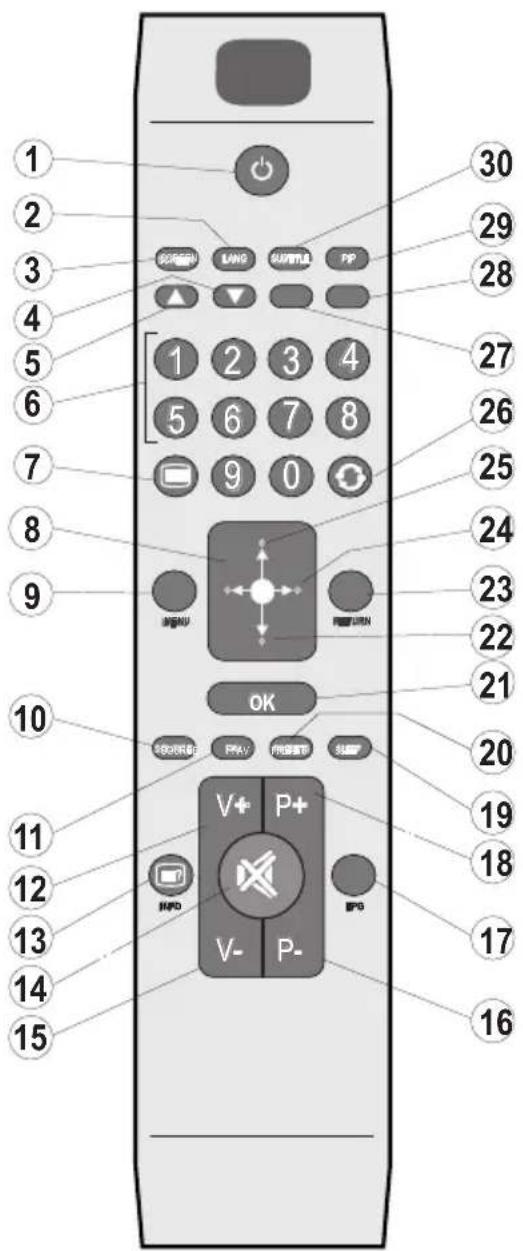

Remote Control Buttons

Standby1.

Mono/Stereo - Dual I-II / Current Language 2. (in DVB channels)

Image size 3.

Green button4.

Red button5.

Numeric buttons6.

Teletext / Mix(in TXT mode) 7.

Cursor Left 8.

Menu on-off9.

AV / Source selection10.

Favourite Mode Selection(in DVB channels)11.

Volume Up12.

Info / Reveal (in TXT mode)13.

Mute14.

1. Volume Down
2. Programme Down / Page up(in DVB channels)
3. Electronic programme guide(in DVB channels)
4. Programme Up / Page down(in DVB channels) Sleep Timer19.
5. Picture mode selection
6. Okay (Confirm) / Hold (in TXT mode)/ Edit Channel List Cursor Down22.
7. Exit / Return / Index page (in TXT mode)
8. Cursor Right / Subpage (in TXT mode)
9. Cursor Up
10. Previous programme
11. Yellow button
12. Blue button
13. No function

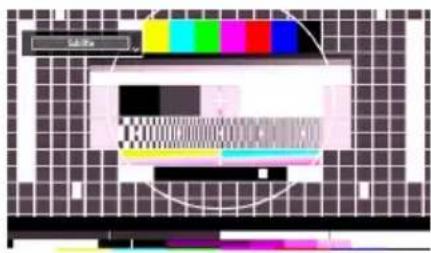

14. Subtitle on-off (in DVB channels)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 V+ P+ V- P- OK OK/OK/OK PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/PLAY/ SCREEN LUNG SWITCH PPP 1 2 3 4 5 6 7 8 9 0

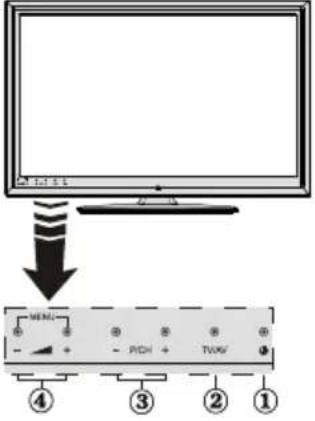

TV and Operating Buttons

FRONT and REAR VIEW	Control Buttons VIEW	Control Buttons
		Standby/On button1.TV/AV button2.Programme Up/Down buttons3.Volume Up/Down buttons4.Note: Press “” and “ ” buttons at the same time to view main menu.

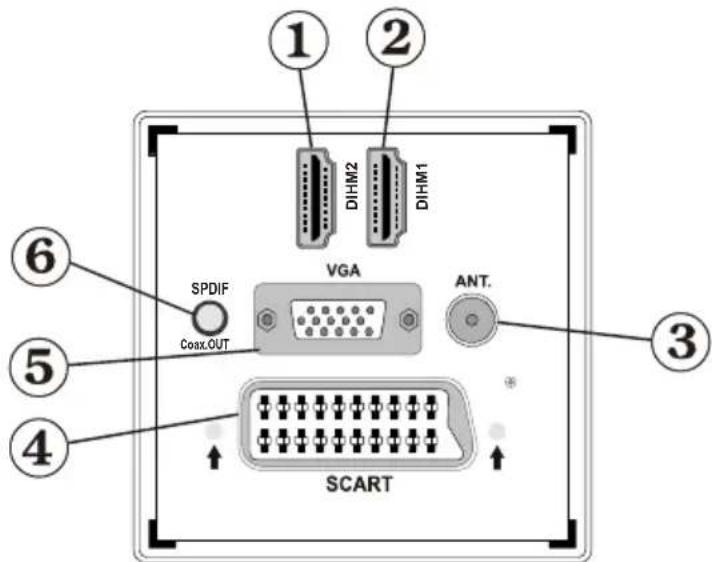

Viewing the Connections - Back Connectors

① ② ③ ④ ⑤ ⑥ SPDIF Coax.OUT. VGA ANT. SCART

HDMI 2: HDMI Input1.
HDMI 1: HDMI Input 2.
HDMI Inputs are for connecting a device that has a HDMI socket. Your TV is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for a HDMI to HDMI connection.

1. RF Input connects to an aerial antenna system.

Note: If you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

1. SCART input or output for external devices. Connect the SCART cable between the SCART socket on the TV and the SCART socket on your external device (such as a decoder, a VCR or a DVD player).

Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

VGA Input5. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

Note: You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input.

WARNING: You cannot use VGA and YPbPr at the same time.

SPDIF Out6. outputs audio signals of the currently watched source.

Use an SPDIF cable to trasfer audio signals to a device that has SPDIF input.

Viewing the Connections - Side Connectors

1. The CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see "Conditional Access" section.

Side USB input.2.

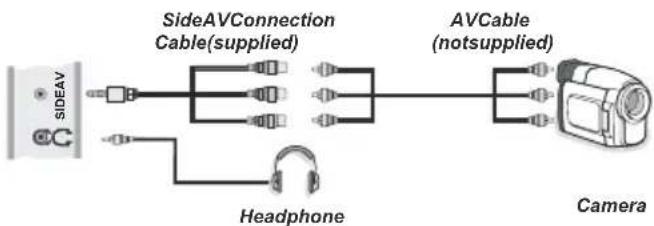

Side audio-video connection input is used for connecting video and audio signals of 3. external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV socket. Afterwards, insert your video cable's (not supplied) connector into the YELLOW input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match.

To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device's audio cable's connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match.

Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.

Headphone jack is used for connecting an external headphone to the system. Connect to 4. the HEADPHONE jack to listen to the TV from headphones (optional).

① ② ③ ④

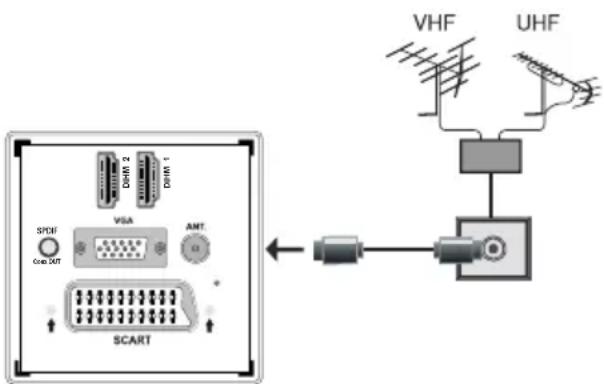

Aerial Connection

- Connect the aerial to the AERIAL INPUT (ANT) socket located at the rear of the TV.

VHF UHF SPDF DINH 2 DINH 1 AMT Core OUT SCART

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

- After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Using USB Media

You can connect USB devices to your TV by using the USB input of the TV. This feature allows you to display/play JPG, MP3 and video files stored on a USB stick.

It is possible that certain types of USB devices (e.g. MP3 Players) may not be compatible with this TV.

You should back up your files before making any • connections to the TV set in order to avoid any possible data loss. Note that the manufacturer will not be responsible for any file damage or data loss.

Do not pull out USB module while playing a file.

CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

USB 5Vdc Max:500mA

USB Memory Connection

IMPORTANT: The TV should be switched off while plugging or unplugging a USB device. Plug your USB devices to the USB input of the TV. You can connect a USB device to your TV by using the USB input of the TV.

Note: It is possible certain types of hard disk drives are not supported.

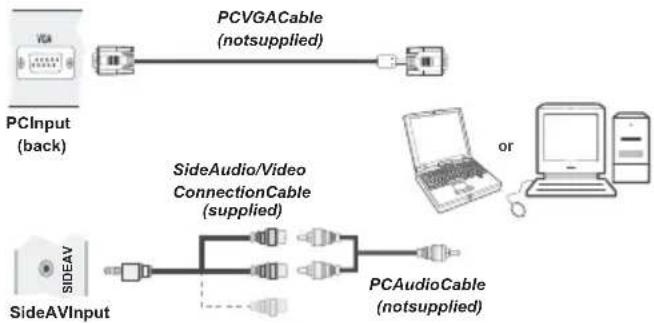

Connecting the TV to a PC

For displaying your computer's screen image on your TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use a 15-pin D-sub display cable to connect a PC to the TV. When the connection is made, switch to PC source. See the Input selection section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix.

Note: If you connect a PC to the TV using HDMI connection, radio interference may occur. Therefore this type of connection is not recommended. You should use VGA connection instead.

Using Side AV Connectors

You can connect a range of optional equipment to your LED TV using side connectors of the TV.

For connecting a camcorder or camera, you should use SIDE AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV's AV IN socket (side). Afterwards, insert your camera cable's (not supplied) connectors into the plural part of the video/audio connection cable. Colours of the connected jacks should match. See illustration below.

Afterwards, you should switch to Side AV source. • See the section Input selection in the following sections for more information.

To listen the TV sound from headphones, you should connect headphones to your TV by using the HEADPHONE jack as illustrated above.

Connecting to a DVD Player via HDMI

Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Not all cables shown in the illustration are supplied.

- If your DVD player has an HDMI socket, you can connect via HDMI for better video and audio quality.

SPOF DCADOT VGA DHMM2 DHMM1 ANT. SCART HDMI Cable (not supplied) External device

When you connect to DVD player as illustrated above, • switch to the connected HDMI source. See, Input Selection section for more information on changing sources.

Connecting to a DVD Player via Component Sockets (YPbPr) or Scart Cable

Some DVD players are connected through • COMPONENT SOCKETS (YPbPr). YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr cable is not supplied).

When the connection is made, switch to YPbPr source. See, "Input selection" section.

To enable audio connection, use the VGA/Component Audio cable. First, plug single jack of the cable to the TV. Afterwards, insert your DVD player's audio cable's connectors into the plural part of the VGA/ Component audio connection cable (see illustration below). Colours of the connected jacks should match (RED & WHITE).

When the connection is made, switch to YPbPr source. See, Input selection section.

You may also connect through the SCART input.

SPDF C:SB W:1 VGA ANT. SCART

Scart Cable (not supplied)

External device

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Remote Control Handset

Inserting Batteries

Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.

- Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

Diagram of a battery cell with an arrow indicating rotation (no text or symbols present)

Note: Remove the batteries from the remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

- Press STANDBY touch button. Then the standby LED lights up.

• To switch on the TV from standby mode either:
- Press the “☐” button, P+ or P- or a numeric button on the remote control.
- Press the -P/CH or P/CH+ touch button on the TV. The TV will then switch on.

Note: If you switch on your TV via P+ or P- buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

- Press the "⏻" button on the remote control or hold the on the TV until shut down, so the TV will switch to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

Digital Teletext

- Press the "☐" button.

• The digital teletext information appears.

- Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext.

Follow the instructions displayed on the digital teletext screen.

- When the "☐" button is pressed, the TV returns to television broadcasting.

•The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press "SOURCE" button on your remote control consecutively for directly changing sources.

Sources list TV SCART SIDE AV SCART-S (optional) HDMI1 HDMI2 YPbPr VGA/PC

Basic Operations

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

Press “-” button to decrease volume or “” button to increase volume, so a volume level scale (slid will be displayed on the screen.

Programme Selection

- Press "P/CH+" button to select the next programme or "P/CH-" button to select the previous programme.

Viewing Main Menu

- Press the “▲+”/“−▲” button at the same time to view main menu. In the Main menu select sub-menu using “AV” button and set the sub-menu using “▼” or “▼” buttons. To learn the usage of the menus, refer to the menu system sections.

AV Mode

- Press the "AV" button in the control panel on the TV to switch between AV modes.

Operation with the Remote Control

The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Volume Setting

- Press "V+" button to increase the volume. Press "V-" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

• Press "P-" button to select the previous programme.
• Press "P+" button to select the next programme.

Programme Selection (Direct Access)

Press the numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme.

Viewing Electronic Programme Guide (EPG)

You can view the electronic programme guide (EPG) to see information about available programmes. To view the EPG menu please press EPG button on the remote control.

• Press “▼”/“▲” buttons to navigate through channels.
• Press “◀”/“▶” buttons to navigate through the programme list.

Please note that event information is updated • automatically. If there is no event information data available for channels, the EPG will be displayed with blanks.

EPG Timeline Schedule

Programme Guide Thu 07/06 29:29 Channels Current Event Next Event 1. BBC ONE Holly City Hostle 2. BBC TWO Springwatch Mary, Queen of Shops 7. BBC THREE Fittly Rich and Homeloss Best My Ass 70. CBBC Channel This is CBBC! This is CBBC! 80. BBC NEWS 24 BBC News BBC News 105. BBCI BBCI BBCI 503. ITV HD Trial No Information No information No information No information No information No information 504. CH4 HD Trial No information No information No information 505. five HD Trial No information No information No information 800. Sky News No information No information 801. CNBC Europe No information No information 802. TVSNONDE EUROPE No information No information

OK (Options): Displays programme options including "Select Channel" option.

Blue button (Filter): Views filtering options.

INFO (Event Details): Displays the programmes in detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordane with timeline schedule

EPG Channel Schedule

Programme Guide Thu 27/07 12:57 BBC ONE Thu 27/07, 12:00-14:00 1. BBC ONE 13:00 After Close 2. BBC TWO 20:00 Hostile 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBQ 505. ITV HD Trial 504. CH4 HD Trial 505. Five HD Trial 800. Sky News 801. CHBC Europe 802. TV5MONDE EUROPE Navigate Prev. Time Slice Next Time Slice Prev day Next day Filter Jump Options Event Details

▼/▲/◄/►: Navigate

Red button (Prev Time Slice): Displays the programmes of previous time slice.

Green button (Next Time Slice): Displays the programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes of previous day.

Blue button (Next day): Displays the programmes of the next day.

TEXT button (Filter): Views filtering options.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): Displays programme options including "Select Channel" option.

INFO (Details): Displays the programmes in detail.

EPG Now and Next

Programme Guide Thu 07/06 20:29 Thu 07/06 20:00 21:00 22:00 1. BBC ONE 2. BBC TWO 3. BBC THREE 70. CBC Channel 80. BBC NEWS 24 105. BBCI 505. ITV HD Trial 504. CH4 HD Trial 505. five HD Trial 800. Sky News 801. CNBC Europe 802. TVSMDNDE ELL... New day Next day Forum Filter 0... Jump INFO Event Details Options Search Select Server SWAP Now

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Views filtering options.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

INFO (Details): Displays the programmes in detail.

OK (Options): Displays programme options including "Select Channel" option.

TEXT (Search): Displays "Guide Search" menu.

SUBTTL: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

SWAP(Now): Shows the current programme.

First Time Installation

IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the first time installation.

When the TV is operated for the first time, the installation wizard will guide you through the process. First, the language selection screen will be displayed:

First time installation Welcome please select your Language! English Biennoue! Venuillor choose une langue! Français Wahlen Sie bitte ihre Sprache aus! Deutsch Selezione le la vaste lingua! Italiano Biennido, selezione un iderna Españil Nos geldino, littén dlt seçimini yapune! Türkçe Dobrodosi, uberite vai jezik! Slovenski Valkommas, valj ditt språt! Svenska Udivozetjuk, kiejuk välasztä ki a nyelvet! Magyar Bem-vindo, favor seleccionar seu iderna Portugues Tervebalos, valitse kelesi! Suomi Select Language Sell Language

• Use “▼” or “▲” buttons to select your language and press OK button to set the selected language and continue.
• After selecting the language, "Welcome!" screen will be displayed, requiring you to set Country, Teletext Language and Scan Encrypted options.

First time installation Welcome! Country Telatext Language Scan Encrypted < 10 > Most Yes Select Setting Choose your country Start search

• By pressing “◀” or “▶” button, select the country you want to set and press “ ” button to highlight Teletext Language option. Use “◀” or “▶” button to select desired Teletext Language.
• Press "▼" button after setting Teletext Language option. Scan Encrypted will be then highlighted. You should set the Scan Encrypted as Yes if you want to scan coded stations. Afterwards select the desired Teletext Language.

- Press OK button on the remote control to continue and the following message will be displayed on the screen:

Do you want to start an automatic channel scan? Yes No

To select the "Yes" or "No" option, highlight the item by using "◀" or "▶" buttons and press OK button.

Afterwards the following OSD will be displayed on the screen and the TV will search for both digital and analogue TV broadcasts.

Automatic channel scan (Rotate) Please wait. This will take a few minutes. Scanning digital channel: URF 50 MENU Cancel scan

Note: You can press "MENU" button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN, please select "Yes" and then press "OK".

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBCI 503. ITV HD Trial 504. Chs HD Trial 505. fire HD Trial OK Move Delete Edit name Lock Function Navigate SkWatch FPage UP/DOWN MENU Exit Back Filler

- Press OK button to quit channel list and watch TV.

Installation

Press "MENU" button on the remote control and select Installation by using "◀or " ▶button. Press OK button and the following menu screen will be displayed.

Install and Retune Automatic channel scan (Retune) Manual channel scan Analogue fine tune First time installation Clear Service List*

Select Automatic Channel Scan (Retune) by using▼"/"▲button and press OK button. Automatic Channel Scan (Retune) options will be displayed. You can select options by using "▼/" ▲nd OK buttons.

Auto Channel Scan (Retune) Menu Operation

Analogue: Searches and stores analogue stations.

Digital & Analogue: Searches and stores both analogue and aerial DVB stations.

Whenever you select an automatic search type and press OK button, a confirmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using . " or " and OK button.

After the auto channel scan type is set and selected and confirmed, the installation process will start and the progress bar will move along. Press "M" button to cancel process. Located channels are not stored if the process is cancelled.

Manual Tuning

HINT: This feature can be used for direct broadcast entry.

- Select Manual Channel Scan from the Installation menu by using “▼” and OK buttons. Manual Scan options screen will be displayed.

- Select the desired Search Type using “◀” or “▶” button. Manual search options will change accordingly. Use “▼”/“▲” button to highlight an item and then press “◀” or “ ” button to set an option. You can press “MENU” button to cancel.

Digital Manual Search

Manual Search Search Type: < Digital Aerial > Channel 4.5 Frequency 666.00 MHz Network channel scan Disabled Signal quality: Poor Signal level: Navigate Start search Change Value Back Cancel

In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search.

Analogue Manual Search

Manual Search Search Type Analogue Band C TV System 1 Channel 01 Frequency 049.75 MHz Signal quality: None Signal level: Navigate Start search Change Value Back MENU Edit

After selecting search type as analogue, you can use "▼/” ▲button to highlight an item and then press “◀” or “▶” button to set an option.

- Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Analogue Fine Tune

- Select Analogue Fine Tune from the Installation menu by using “” or “” and OK buttons. The analogue fine tune screen will be displayed. The Analogue Fine Tune feature will not be available if there are no analogue channels, digital channels and external sources stored.

- Press OK button to proceed. Use “◀” or “▶” button to set Fine Tune. When finished, press OK button again.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or active stations to be listed by using the Channel List options.

- Press "MENU" button to view main menu. Select the Channel List item by using " " or " " button. Press OK to view menu contents.

Channel list Edit Channel List Favourites Active channel list

Select Edit Channel List to manage all stored channels. Use "◀or " ▶ and OK buttons to select Edit Channel List.

Operating the Channel List

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBG 503. ITV HD Trial 504. CHI HD Trial 505. five HD Trial OK Move Delete Edit name Lock Function Browse Edit Navigate Browse Back OKWatch Filter Page 8F/DOWN

Press “▼” or “▲” button to select the channel that will be processed. Press “◀” or “▶” button to select a function on Channel List menu.

• Use P+ or P- buttons to move page up or down.
  Press • BLUE button to view filtering options.
  Press • “MENU” button to exit.

Moving a Channel

First select the desired channel. Select Move option in the channel list and press the OK button.

Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK.

- Press the OK button to process. Selected channel is now moved.

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

• Select the channel that you want to delete and select t Delete option. Press the OK button to continue.
• A warning screen will appear. Select YES to delete, select No to cancel. Press the OK button to continue.

Renaming a Channel

Select the channel that you want to rename and • select Edit Name option. Press OK button to continue.

• Pressing “◀” or “▶” button moves to the previous/next character. Pressing “▼” or “ ” ▲button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “▼” and ‘c’ by “▲”. Pressing the numeric buttons ‘0...9’ replaces the highlighted character with the characters printed above the button one by one as the button is pressed.
• When finished, press the OK button to save. Press "MENU" to cancel.

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

• Select the channel that you want to lock and select Lock option. Press OK button to continue.
• You will be asked to enter parental control PIN. Default PIN is set as 0000. Enter the PIN number.

Enter PIN

- Press OK button when the desired channel is highlighted to lock/unlock the channel. The Lock symbol will be displayed next to the selected channel.

Managing Stations: Favourites

You can create a list of favourite programmes.

• Press "MENU" button to view the main menu. Select Channel List item by using "◀ or " ▶button. Press OK to view menu contents.
• Select Favourites to manage favourite list. Use “▼”/“▲and OK buttons to select Favourites.

You can set various channels as favourites so that only the favourite channels are navigated.

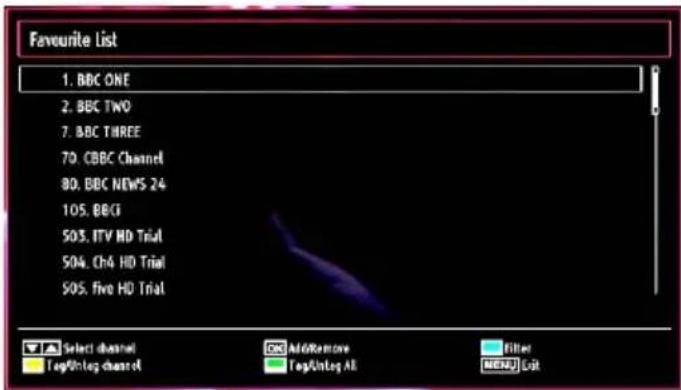

Favourite List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70. CBBC Channel 80. BBC NEWS 24 105. BBCI SOS. ITV HD Trial S04. Ch4 HD Trial SOS. Five HD Trial Select channel AddRemove Filter Top/Integ channel Top/Integ All Next Exit

Select a channel by using "▼" or "▲" button. Press OK button to add selected channel to favourites list. Press OK button again to remove.

Button Functions

OK• : Add/remove a station.

YELLOW• : Tag/untag a channel.

• GREEN: Tag/untag all channels.
- BDU5 plays filtering options.

Managing Stations: Sorting the Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use the Active channel list setting.

Select Active channel list from the Channel list menu by using “◀” or “▶” button. Press OK button to continue.

Active channel list ✓Show all Digital only Analogue TV only TV only Radio only Text only Favourites

You can select a broadcast type option from the list by using “▼/” ▲nd OK buttons.

On-Screen Information

You can press "INFO" button to display on-screen information. Details of the station and current programme will be displayed on the information banner.

1 BBC ONE 20:00-21:00 Next 21:00-22:00 Holly City (Drama) Hustle (Brama)

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number.

Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then the information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). "Enter PIN" will be displayed on the screen.

Media Playback Using Media Browser

If the USB stick is not recognized after power off/on or First Time Installation, unplug the USB device, turn the TV off and on again and re-insert the USB device.

To display the Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing "◀ or " ▶button. Press OK button to continue. Media Browser menu options will be displayed.

Also, when you plug USB devices, media browser screen will be displayed automatically:

Media Browser Videos Photos Music Settings Select < img src="Exit"

You can play music, picture and video files from the connected USB memory stick. Use "◀" or ▶" button to select Videos, Photos, Music or Settings.

Viewing Videos via USB

Videos Media Browser File Name a43 How I Met Your Mother - 1s01 - Pilot How I Met Your Mother - 1s01 - Pilot a43 1/5 0.3 Jump Play This Play CARS Play Preview INFO Filter PAX Sort by Home

When you select Videos from the main options, available video files will be filtered and listed on this screen. You can use ▼ or “▲button to select a video file and press OK button to play a video. If you select a subtitle file and press OK button, you can select or deselect that subtitle file. The following menu will be displayed while playing a video file:

Jump (Numeric buttons): The TV will jump to the file starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button): Plays the selected file.

Play (GREEN button): Plays all media files starting with the selected one.

Lang (Play Preview): Displays selected file in a small preview screen.

INFO: Changes filter options.

FAV: Sorts files by name.

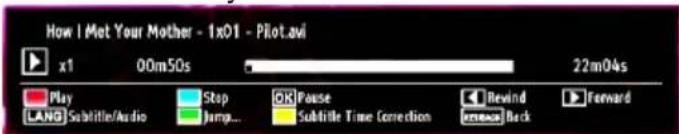

How I Met Your Mother - 1x01 - Piot.avi x1 00m50s 22m04s Play Stop Pause Behind Forward LAND Subtitle/Audio Jump... Subtitle Time Correction Enwith Back

Play (RED button): Starts the video playback.

Stop (BLUE button): Stops the video playback.

Pause (OK button): Pause the video playback.

Rewind (◀ button): Goes backward.

Forward (▶ button): Goes forward.

Subtitle/Audio (LANG. button): Sets subtitle/Audio.

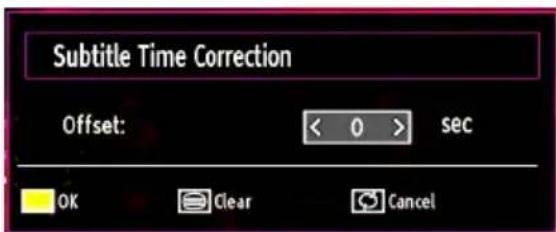

Yellow: Opens subtitle time correction menu.

Subtitle Time Correction Offset: < 0 > sec OK Clear Cancel

Press RETURN button to switch back to previous menu.

Viewing Photos via USB

When you select Photos from the main options, available image files will be filtered and listed on this screen.

Photos Media Browser No File Name Date/Time 0001. barpe 0002. nu2ge 0003. Picture_001 0004. Picture_002 0005. Picture_003 12.11.2007 22:12... 0006. Picture_004 12.11.2007 22:11... 0007. Picture_005 13.11.2007 00:5... 0008. Picture_006 00:00.0009 00:0... 0009. Picture_007 50.12.2007 15:1... BARPE 957 KB 1/21 Jump OK View in Full screen Slideshow LoopShuffle INFO Filter TAB Sort By Date Transverse

Jump (Numeric buttons): Jump to selected file using the numeric buttons.

OK: Views the selected picture in full screen.

Slideshow (GREEN button): Starts the slideshow using all images.

Loop/Shuffle (BLUE button): Press once to enable Loop. Press again to enable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to disable all. You can follow the disabled functions with the change of the icons.

FAV: Sorts files by date.

TEXT: Views images in thumbnails.

INFO: Changes filter options.

Slideshow Options

2010+NISAN+18+024.jpg 1024x683 18.04 2010.11:46:17 278 KB Zoom Rotate Continue Back to Site List Pause INFO Help Loop/Shuttle Previous/Next

Pause (YELLOW button): Pauses the slideshow.

Continue (GREEN button): Continues the slideshow.

Zoom (RED button): Zooms picture.

Note: If a picture is zoomed out/displayed in full screen, you cannot navigate the picture by using Up/Down/Left/Right buttons.

Previous/Next (Left/Right buttons): Jumps to previous or next file on slideshow.

Rotate (Up/Down buttons): Rotates the image using up/down buttons.

Loop/Shuffle (BLUE button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.

RETURN: Back to file list.

INFO: Displays help screen.

Viewing Music via USB

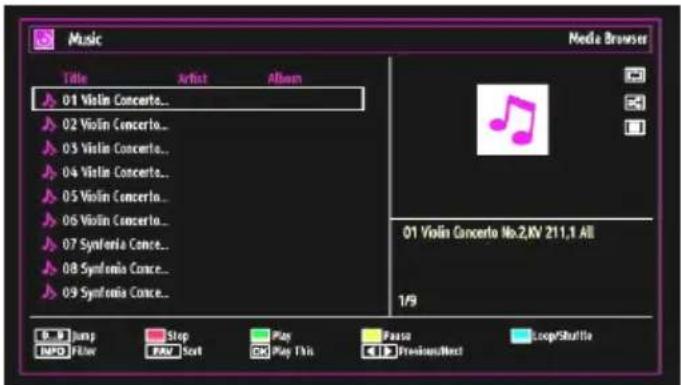

When you select Music from the main options, available audio files will be filtered and listed on this screen.

Music Media Browser Title Artist Album 01 Violin Concerto... 02 Violin Concerto... 03 Violin Concerto... 04 Violin Concerto... 05 Violin Concerto... 06 Violin Concerto... 07 Synfonia Conce... 08 Synfonia Conce... 09 Synfonia Conce... 01 Violin Concerto No.2,KV 211.1 All 1/9 Jump Stop Play Fasso Loop/Shuffle IMPO FLOW PAN Soft OK Play This Previous/Next

0..9 (Numeric buttons): The TV will jump to the file starting with the letter you input via the numeric buttons on your remote control.

Play This (OK button): Plays the selected file.

Play (GREEN button): Plays all media files starting with the selected one.

Stop (RED button): Stops playback.

Pause (YELLOW button): Pauses the selected playback.

Previous/Next (Left/Right buttons): Jumps to previous or next file to play.

FAV: Sorts files by Title, Artist or Album.

Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as sorted and there is no need to sort files again by pressing FAV button.

INFO: Changes filter options.

Loop/Shuffle (Blue button): Press once to disable Loop. Press again to disable both Loop and Shuffle. Press once more to enable only Shuffle. Press again to enable all. You can follow the disabled functions with the change of the icons.

Media Browser Settings

Settings View Style Slide Show Interval Show Subtitle Subtitle Language Subtitle Position Subtitle Font Size Flat view style displays all files in removable device. Folder view style displays files in selected folders. Flat view style displays all files in removable device. Folder view style displays files in selected folders. Select Navigate Exit

You can set your Media Browser preferences by using the Settings dialog. Press "▼ or " " button to highlight an item and use "◀ or " " button to set.

View Style: Sets default browsing mode.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Language: Sets supported subtitle language.

Subtitle Position: Sets subtitle position as up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

Changing Image Size: Picture Formats

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

- Press the "SCREEN" button repeatedly to change the image size. Available zoom modes are listed below.

Auto

When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source(if available)

Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

Digital display screen showing a color calibration interface with a grid of squares and a color swatch overlay

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Color calibration monitor with grid background and color palette (no readable text or symbols)

Note: You can shift to screen up or down by pressing "√" buttons while picture zoom is selected as, 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Digital display screen showing a color calibration tool with a grid of squares and a 'OK' button

14:9 Zoom

14.02 mm CHINA TECHNOLOGY

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Color calibration monitor interface showing grayscale grid and color palette (no readable text or symbols)

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Color test pattern with grid background and a circular overlay (no text or symbols)

Configuring Picture Settings

You can use different picture settings in detail.

Press "MENU" button and select the Picture icon by using "◀or " ” button. Press OK button to view Picture Settings menu.

Picture Settings Mode - Contrast - Brightness - Sharpness - Colour Power Save Mode Backlight Noise Reduction Advanced Settings Reset Dynamic > 63 32 24 40 Off Medium Medium OK OK Navigate Change Value RETRACK Back MENU Exit FullPIX Demo

Fullpix Demo Mode : While Mode option is highlighted in picture menu, Pixellence demo mode will be displayed bottom of the menu screen.

Fullpix Demo Mode function optimizes the TV's video settings and helps to acquire a better image quality. Pixellence Demo Mode thus includes

contrast, sharpness, colour enhancement and skin tone correction along with the skin tone detection.

Press OK to start Fullpix Demo Mode for experiencing Pixellence quality. Throughout the demo mode, the screen is splitted into two sections, one displaying the Pixellence II active area; the other displaying the normal broadcast. Press OK button to quit the demo mode.

Operating Picture Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

Use “◀” or “▶” button to set an item.

Press • “MENU” button to exit.

Picture Settings Menu Items

Mode: For your viewing requirements, you can set various screen modes. The Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.

Contrast: Sets the lightness and darkness values of the screen.

Brightness: Sets the brightness value for the screen.

Sharpness: Sets the sharpness value for the objects displayed on the screen.

Colour: Sets the colour value, adjusting the colors.

Power Save Mode: Use "▼or " " button to select Power Save Mode. Press ◀ or ► button to set Power Save Mode as On or Off. See the section, "Environmental Information" in this manual for further information on Power Save Mode.

Note: The backlight function will be inactive if Power Save Mode is set to on.

Backlight (optional): This setting controls the backlight level and it can be set to Auto, Maximum, Minimum, Medium and Eco Mode.

Note: Backlight can not be activate in VGA or Media Browser mode or while picture mode is set as Game.

Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

Advanced Settings

Colour Temp• : Sets the desired colour tone.

Setting Cool option gives white colours a slight blue stress.

For normal colours, select Normal option.

Setting Warm option gives white colours a slight red stress.

• Picture Zoom: Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3 or Cinema.

HDMI True Black (optional)• : While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture. You can set this feature as "On" for activating HDMI True Black mode.

Film Mode (optional)• : Films are recorded at different number of frames per second to normal television programmes. Press "▼ or " " buttons to select Film mode. Press "◀ or " " buttons to set this feature Auto or Off. Turn this feature to Auto when you are watching films to see the fast motion scenes clearly.

Colour Shift:• Adjust the desired colour tone.

Reset: Resets the picture settings to factory default settings.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PC Picture Settings

For adjusting PC picture items, do the following:

Press "◀or "▶button to select Picture icon. Picture menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and Picture Zoom settings in this menu are identical to settings defined in TV picture menu under "Main Menu System".

Sound, Settings and Source settings are identical to the settings explained in main menu system.

PC Position: Select this to display PC position menu items.

PC Position Autoposition OK H Position 0 V Position 0 Dot Clock 0 Phase 0

Autoposition: Automatically optimizes the display. Press OK to optimize.

H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.

V Position: This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error.

Configuring Sound Settings

Sound settings can be configured according to your apersonal preferences.

Press "MENU" button and select the Sound icon by using "◀or "▶button. Press OK button to view Sound Settings menu.

Sound Settings Volume 24 Equalizer Music Balance 0 Headphone 20 Sound Mode Mono AVL Off Dynamic Bass Off Digital Out PCM Navigate Back Change Value MENU Exit

Operating Sound Settings Menu Items

- Press “▼” or “▲” button to highlight a menu item.

- Use “◀” or “▶” button to set an item.

- Press "MENU" button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level.

Equalizer: Press OK button to view equalizer submenu.

Equalizer Settings Mode < Music > 120Hz —— ● 4 500Hz —— ● 2 1.5KHz —— ● -2 5.0KHz —— ● 3 10.0KHz —— ● 5

In the equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the "MENU" button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.

Balance: This setting is used for emphasizing left or right speaker balance.

Headphone: Sets headphone volume.

Sound Mode: You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.

AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.

Digital Out: Sets digital out audio type.

Configuring Your TV's Settings

Detailed settings can be configured to suit your personal preferences.

Press "MENU" button and select Settings icon by using "◀ or "▶button. Press OK button to view Settings menu.

Settings Conditional Access Language Parental Timers Date/Time Sources Other Settings

Operating Settings Menu Items

Press “▼” or “▲button to highlight a menu item.

- Press OK button to select an item.

- Press "MENU" button to exit.

Settings Menu Items

Conditional Access: Controls conditional access modules when available.

Language: Configures language settings.

Parental: Configures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source options.

Other Settings: Displays other setting options of the TV set.

Using a Conditional Access Module (not included)

IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.

In order to watch certain digital channels, a conditional access module (CAM) may be necessary. This mod must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.

Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.

The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Common Interface module detected” message appears on the screen.

Refer to the module instruction manual for details of the settings.

Viewing Conditional Access Menu (\*)

(*) These menu settings may change depending on the service provider.

Press "MENU" button and select the icon by using "◀or "▼button. Press OK button to view Settings menu. Use "▼or "▼button to highlight Conditional Access and press OK to view menu items.

Configuring Language Preferences

You can operate the TV's language settings using this menu.

- Press "MENU" button and select the Settings icon by using "◀or " ▶button. Press OK button to view Settings menu. Use ▼or "▲button to highlight Language and press OK to continue:

Language Settings Menu English Preferred - Audio English - Subtitle English - Teletext West - Guide English Current - Audio None - Subtitle None Set the language used in menus Navigate MENU Exit

Use "▼or " " Button to set an item. Settings are stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

• Audio: Sets the preferred audio language.
- Subtitle: Sets the subtitle language. Selected language will be seen in subtitles.
- Teletext: Sets teletext language.
• Guide: Sets the preferred Guide language.

Current (\*)

(*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed.
• Audio: Changes the audio language for the current channel.
- Subtitle: Sets the subtitle language for the current channel.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

Language Settings

Language Settings Preferred Menu English Primary Audio Language English Secondary Audio Language Swedish Primary Subtitle Language English Secondary Subtitle Language Swedish Primary Teletext Language Finnish Secondary Teletext Language Swedish Guide Finnish Set the language used in menus MENU Exit

In the configuration menu, highlight the Language Settings item by pressing “▼or “”▲buttons. Press OK and Language Settings submenu will be displayed on the screen:

Use “▼or “” buttons to highlight the menu item that will be adjusted and then press ◀ or “▶button to set.

Notes:

System Language determines the on-screen menu language.

Audio Language is used for selecting the soundtrack of a channels.

Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

Parental Control

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Press "MENU" button and select the Settings icon by using "◀or "▼button. Press OK button to view Settings menu. Use ▼" or "▲ button to highlight Parental and press OK to continue:

Enter PIN

To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000.

After coding the correct PIN number, parental settings menu will be displayed:

Parental Settings Menu lock << Off > Maturity Lock Off Child Lock Off Set PIN **** Select Setting Change Value REBACK Back MENU Exit

Parental Settings Menu Operation

Select an item by using “▼” or “▲button.

Use “◀ ▶” or “” button to set an item.

- Press OK button to view more options.

Menu Lock: Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.

Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.

Set PIN: Defines a new PIN number. Use numeric buttons to enter a new pin number. You will need to enter your new pin a second time for verification purposes.

IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Timers

To view Timers menu, press "MENU" button and select Settings icon by using◀" or ▶" button. Press OK button to view Settings menu. Use▼" or "▲" button to highlight Timers and press OK to continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after a certain time.

• Highlight Sleep Timer by using “▼” or “▲” button.
• Use “◀” or “▶” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular programme using this feature.

Press "▼button to set timers on an event. Programme timer function buttons will be displayed on the screen.

Adding a Timer

- Press YELLOW button on the remote control to add a timer. The following menu appears on the screen:

Channel: Changes network type by using "◀or "

Timer Type: This feature is unavailable to be set.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric buttons.

End: Enter an ending time using the numeric buttons.

Duration: Displays duration between the starting and ending time.

Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use "◀ or "▶ buttons to select an option.

- Press GREEN button to save the timer. Press RED button to cancel.

Change/Delete: Controls parental settings on timers.

Editing a Timer

• Select the timer you want to edit by pressing "▼" or "▲button.
• Press GREEN button. Edit Timer menu screen will be displayed.
• When finished with editing, press GREEN button to save. You can press "MENU" button to cancel.

Deleting a Timer

- Select the timer you want to delete by pressing “▼” or “▲button.

Press • RED button.

- Select YES by using “◀” or “▶” buttons to delete the timer. Select NO to cancel.

Configuring Date/Time Settings

Select Date/Time in the Settings menu to configure Date/Time settings. Press OK button.

Date/Time Settings Date 07/06/2007 Time 20:26 Time Settings Mode < Auto > Time Zone GMT + 01:00 Navigate Change Value REBACK Back MENU Exit

- Use “▼” or “▲” buttons to highlight Date/Time.

Date, Time, Time Settings Mode and Time Zone Setting will be available.

Use "▼ or " ▲" buttons to highlight the Time Settings Mode. Time Settings Mode is set using "◀ or "▶" buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

- By pressing “▼ or “ ▲ buttons select Time Zone.

Use “◀” or ▶” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.

- Changes are automatically stored. Press "MENU" to exit.

Configuring Source Settings

You can enable or disable selected source options. The TV will not switch to the disabled source options when "SOURCE" button is pressed.

Source Settings TV < Enabled > SCART Enabled SIDE AV Enabled SCART-S (optional) Enabled HDMI1 Enabled HDMI2 Enabled YPbPr Enabled VGA/PC Enabled Navigate Change Value RETBACK Back MENU Exit

• Select Sources in the Settings menu and press OK button.
• Press“▼” or “▲” buttons to select a source.
• Use “◀” or “▶” button to enable or disable the selected source. Changes are automatically stored.

Configuring Other Settings

To view general configuration preferences, select Other Settings in the Settings menu and press OK button.

Other Settings Menu Timeout < 60 sec > Scan Encrypted Channels Yes Blue Background Off Software upgrade V.0.2.7 Application Version V.0.2.7 Hard Of Hearing Off Audio Description Off Auto TV OFF 4 h Standby Search Off Country : UK Change Value Mali Exit

Operation

Press “▼” or “▲buttons to select an item.

Use “◀” or “▶” button to set an option.

Press• OK button to view a sub-menu.

Menu Timeout: Changes timeout duration for menu screens.

Scan Encrypted Channels: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.

Blue Background (Optional): Activates or deactivates blue background system when the signal is weak or absent.

Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.

Upgrade options Automatic scanning < Enabled > Scan for upgrade OK

You can enable or disable automatic upgrade by setting Automatic Scanning option.

You can manually search for new software by selecting Scan for upgrade.

Application version: Displays the current application version.

Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track.

Auto TV Off: You can set the timeout value of auto off feature. After the timeout value is reached and the TV is not operated for selected time, the TV will go off.

Standby Search (optional): Use “▼or “” button to select Standby Search and then press◀“” or “▶” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On.

Other Features

Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or "INFO" button is pressed.

Mute Function: Press "×" button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the first one is pressing the ×" button and the second one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game.

Displaying Subtitles: You can enable subtitles by pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function.

If "Subtitle" is On, pressing the "button causes the following warning message display on the screen ( ^** for UK only).

Interactive services are not available while subtitles are on. Would you like to turn subtitles off now? Yes No

Teletext

The teletext system transmits information such as news, sports and weather on your TV. Note that if the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

“teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO"Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀/” Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ or P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons (RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼” or “▲” commands will request the next or previous page respectively.

Tips

Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom of the unit.

Image Persistence: Please note that ghosting may occur while displaying a persistent image. On LED TVs' image persistence may disappear after a short time. Try turning the TV off for a while.

To avoid this, do not leave the screen in still picture for extended periods.

No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

Sound: If you cannot hear any sound, check to see if the 'button has been pressed. If sound is coming from only one speaker, check if the audio balance has been set to one extreme.

Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index	Resolution	Frequency
1	640x350 85	Hz
2	640x400 70	Hz
3	640x480	60Hz-66Hz-72Hz-75Hz-85Hz
4	800x600	56Hz-60Hz-70Hz-72Hz-75Hz-85Hz
5	832x624 75	Hz
6	1024x768	60Hz-66Hz-70Hz-72Hz-75Hz
7	1152x864	60Hz-70Hz-75Hz-85 Hz
8	1280x768 60	HzA
9	1280x768 60	HzB
10	1280x768 75	Hz-85Hz
11	1280x960	60Hz-75Hz-85Hz
12	1280x1024	60Hz-75Hz-85Hz
13	1360x768 60	Hz
14	1400x1050 60	HzA
15	1400x1050 60	HzB
16	1400x1050	75Hz-85Hz
17	1400x900	65Hz-75Hz
18	1600x1200 60	Hz
19	1680x1050 60	Hz
20	1920x1080 60	HzA
21	1920x1080 60	HzB
22	1920x1200 60	HzA
23	1920x1200 60	Hz

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source	Supported Signals		Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
YPbPr	480I 60Hz O
	480P	60Hz O
	576I 50Hz O
	576P	50Hz O
	720P	50Hz O
	720P	60Hz O
	1080I	50Hz O
	1080I	60Hz O
	1080P	50Hz O
	1080P	60Hz O
HDMI1HDMI2	480I 60Hz O
	480P	60Hz O
	576I 50Hz O
	576P	50Hz O
	720P	50Hz O
	720P	60Hz O
	1080I	50Hz O

(X: Not Available, O: Available)

In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI to HDMI cables (not supplied), you can refer to the following resolution information.

Index	Resolution	Frequency
1	640x400	70Hz
2	640x480	60Hz-66Hz-72Hz-75Hz
3	800x600	56Hz-60Hz-70Hz-72Hz -75Hz
4	832x624	75 Hz
5	1024x768	60Hz-66Hz-70Hz-72Hz -75Hz
6	1152x864	60Hz-70Hz-75Hz
7	1152x870	75Hz
8	1280x768	60 Hz
9	1280x768	75Hz
10	1280x960	60Hz-75Hz
11	1280x1024	60Hz-75Hz
12	1360x768	60 Hz
13	1400x1050	60 Hz
14	1400x1050	75Hz
15	1400x900	65Hz-75Hz
16	1600x1200	60 Hz
17	1680x1050	60 Hz
18	1920x1080	60 Hz
19	480i-480p	60Hz
20	576i-576p	50Hz

Appendix D: Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels.

For broadcast channels search, the TV looks at the available channels stored in your settings. So before the software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

It is possible to manually to check if there is a new • software upgrade for your TV set.

Simply navigate on your main menu. Choose • Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

In Upgrade Options menu select Scan for upgrade • and press OK button.

If a new upgrade is found, it starts to download the • upgrade. A progress bar indicates the remaining download progress. When the download completes successfully a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

If Automatic scanning in Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches the broadcast channels for new software upgrade. If new software is found and downloaded successfully, with the next power up the TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initializations. In the reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

If your TV fails to restart in 10 minutes, unplug power • for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While the LED is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-start again and can only be fixed by service personnel.

Appendix E : Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie	.mpg, .mpeg	MPEG1, 2 MPEG Layer	1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1, 2		MPEG2
	.vob MPEG2
	.avi	MPEG2 PCM/MP3		MAX 1920x1080 @ 30P 20Mbit/sec
		Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2	PCM
Music	.mp3 -		MPEG 1 Layer 1 / 2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG max WxH = 15360x8640 4147200bytes
		Progressive JPEG max WxH = 1024x768 6291456bytes
	.bmp - max WxH = 9600x6400 3840000bytes
Subtitle	.sub	-		-
	.srt

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER ( W_RMS ) (10% THD)

2×6

POWER CONSUMPTION (W)

135 W (max)

PANEL

16:9 display, 32" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 203 x 770 x 520

Weight (Kg): 10,10

DxLxH (Without foot): 40 x 770 x 480

Weight (Kg): 9,70

Digital Reception DVB-T	MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profile 1	for UKObject ca
	Frequency range: 474-850 MHz for UK models
	170-862 MHz for EU models
	Transmission standard: DVB-T. MPEG-2
	Demodulation: COFDM with 2K/8K FFT mode
	FEC: all DVB modes
	Video: MP@ML, PAL, 4:3/16:9
	Audio: MPEG Layer I&II 32/44.148kHz.

Dear Customer;

This appliance is manufactured with TFT LED Display technology.

An image is created with colour light points called pixels in TFT-LED appliances.

Each pixel consists of 3 sub-pixels [fixed colour (red, green, blue) light points].

alt-piksel alt-piksel alt-piksel R G B

RGB piksel

As a requirement of production technologies, the abovementioned sub-pixels may cause "sub-pixel errors" by way of lighting continuously or remaining dim continuously.

Please consider the following explanation about a possible sub-pixel error.

This problem can be encountered during the production phase as well as during use.

Sub-pixel errors are mainly 2 types.

Type 1 : The sub-pixel lighting continuously (may be red, green or blue)

Type 2 : The sub-pixel which is continuously dim (seems black)

The sub-pixel errors determined according to the ISO 13406-2 standard are given in the following table.

Type	Explanation	Quantity	Note
Type 1	Random (at 5 mm or higher intervals)	2	Within the compass of the criterion, not intervened
	Adjacent 2 pixels	1	Within the compass of the criterion, not intervened
	Adjacent 3 or more pixels		Off-criterion
Type 2	Random (at 5 mm or higher intervals)	7	Within the compass of the criterion, not intervened
	Adjacent 2 pixels	2	Within the compass of the criterion, not intervened
	Adjacent 3 or more pixels		Off-criterion
Type 1 and Type 2 Total		7	Within the compass of the criterion, not intervened

IMPORTANT WARNINGS

1. Rights reserved by the manufacturer:

The manufacturer reserves the right to change the features stated in the product or in the user's manual of the product without giving any information, when required by the improvements in technology.

2. Warnings about Screen Technology:

Due to TFT and Plasma technologies, there may be inactive or continuously shining white, red or blue pixels in the screen. This does not affect the performance of the product, and it is not a failure. The related details are given in the related pages of the user's manual. The manufacturer does not have any responsibility in the cases within the compass of the criteria.

3. A continuous fixed image on the screen:

Due to TFT and Plasma technologies, “burning” effect may arise in the screen after a continuous fixed image on the screen, displaying the same background continuously or watching a 4:3 video on a 16:9 television for a long time. In order to avoid this effect, it is highly recommended that you follow the followings.

Do not watch a fixed image continuously.

• Do not watch videos in the format of 4:3 in your television which supports the format of 16:9.
• Try to use contrast and brightness at a minimum level.

4. In Full HD products;

The expected performance may not be achieved in TV broadcasts and the broadcasts of satellite receivers which are not supported by other sources in terms of high definition, DVD players or cable television; and in these broadcasts, mosaic images may occur, sharpness and resolution of the image may be low; some effects may arise on the screen. This is not a failure. It is advisable to watch high definition broadcasts for your TV which supports high definition (1920x1080) to work with a high performance as a requirement of the Full HD technology. The expected performance may not be achieved in TV broadcasts and the broadcasts of satellite receivers which are not supported by other sources in terms of high definition, DVD players or cable television; and in these broadcasts, mosaic images may occur, sharpness and resolution of the image may be low; some effects may arise on the screen. This is not a failure. If your appliance supports high definition, it is recommended that you use high definition broadcast sources in order to achieve a high screen performance as a requirement of the high definition (HD) technology.

5. About Working Sound of the Appliance:

A working sound may be generated in the electronic circuits in your appliance as a requirement of its technology depending on the current on it while running or in standby status. This sound can sometimes be heard depending on the sensitivity of human ear and watching distance although it is within the compass of the standards. This sound does not affect the performance of your appliance and it is not a failure.

6. Make sure that the panel (screen) of your appliance is never subjected to any external mechanical impact:

The panels (screens) of the TFT-LCS televisions are not only a piece of glass; on the contrary they are composed of layers. If your appliance is damaged in its panel (screen) which is the front part by an external impact, the inner layer of the screen might be broken / cracked even when no break/crack arises in the layer of the screen which is the closest to the outer environment. This can be technically detected by the authorized service. Therefore, make sure that the panel (screen) of your appliance is never subjected to any external mechanical impact. Otherwise, as any damage “caused by an external hit” is considered as a usage error, the manufacturer will not have any legal responsibility.

7. About the use of the appliance:

The appliance you purchased was produced for home-type use, and it can be used only at home and for the specified purposes, not for commercial or collective use. Otherwise, the manufacturer and the dealer will not be responsible for the failures within the period of warranty and free repair, which is determined in the provisions of the Act on the Protection of Consumers.
