USER MANUAL 55S6040-M Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting (no visible text or symbols)

owner's manual

Contents

Package Contents 2

Features 2

Introduction....2

Preparation 2

Safety Precautions 3

Information for users in EU Countries 4

Environmental Information 5

Repair Information 5

Remote Control Handset 5

Inserting Batteries 5

Remote Control Buttons 6

LED TV and Operating Buttons 7

Viewing the Connections - Back Connectors ..... 7

Viewing the Connections - Side Connectors ..... 8

Aerial Connection 8

Power Connection 8

Switching On/Off 9

To Switch the TV On 9

To Switch the TV Off 9

First Time Installation....9

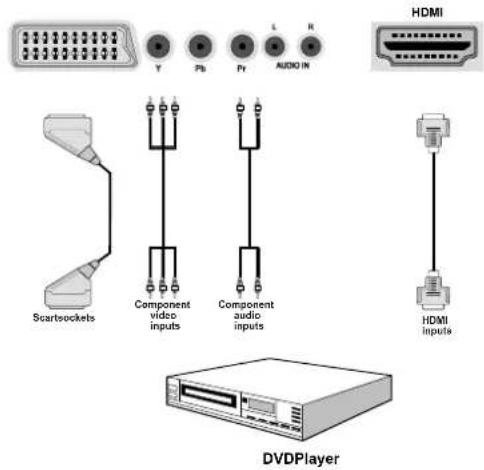

Connecting to a DVD Player.... 10

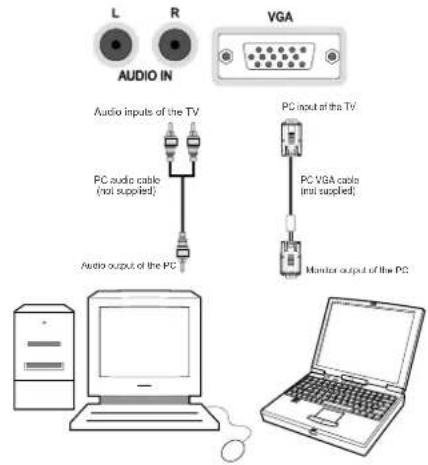

Connecting the LED TV to a PC 11

Side HDMI Connection 11

Using Side AV Connectors 11

Using Other Connectors 11

Using USB Inputs 12

Input Selection 13

Operation with the Buttons on the TV 13

Volume Setting 13

Programme Selection 13

Viewing Main Menu 13

AV Mode 13

Operation with the Remote Control 13

Volume Setting 13

Programme Selection (Previous or Next

Programme)....13

Programme Selection (Direct Access) ...... 13

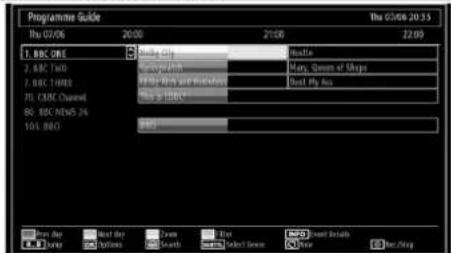

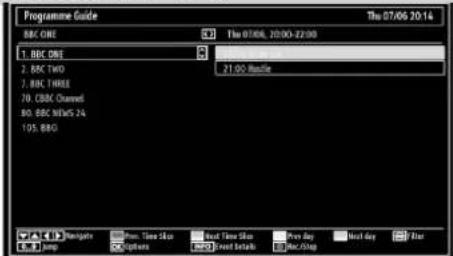

Viewing Electronic Programme Guide (EPG) ..... 14

EPG Screen One 14

EPG Screen Two 14

EPG Screen Three 14

Recording via EPG Screen 15

Programme Options.... 15

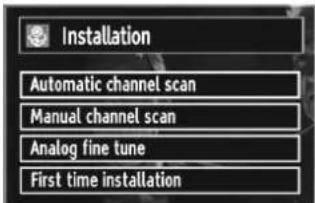

Installation 15

Auto Channel Scan Menu Operation 15

Manual Tuning 16

Digital Manual Search.... 16

Analogue Manual Search 16

Analog Fine Tune.... 16

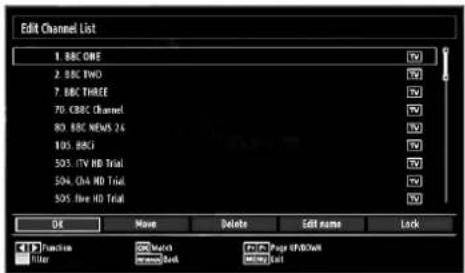

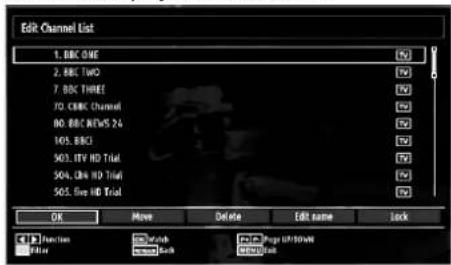

Managing Stations: Channel List 16

Operating the Channel List 16

Moving a Channel 16

Deleting a Channel 17

Renaming a Channel 17

Locking a Channel 17

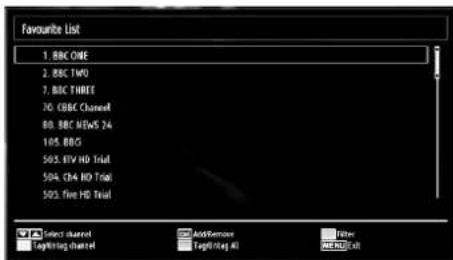

Managing Stations: Favourites 17

Button Functions 17

Managing Stations: Sorting Channel List 17

On-Screen Information 18

Media Playback Using Media Browser 18

Viewing Videos via USB 18

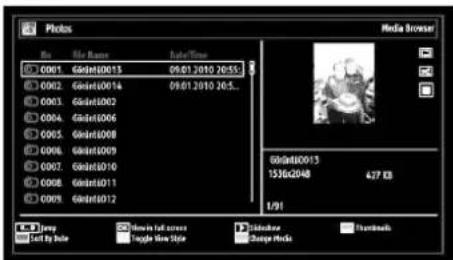

Viewing Photos via USB 19

Slideshow Options 19

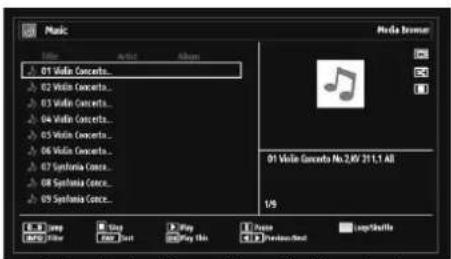

Playing Music via USB 19

Recordings Library....19

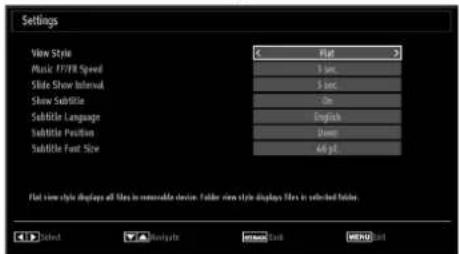

Media Browser Settings 20

Timeshift Recording 20

Instant Recording 20

Watching Recorded Programmes 21

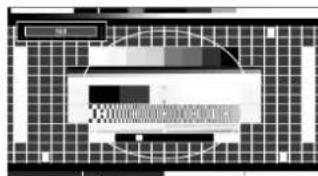

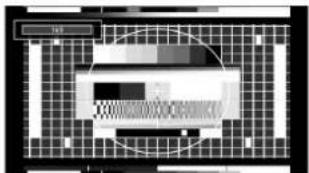

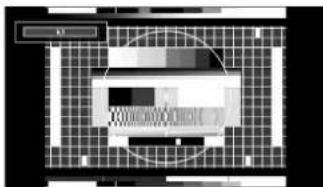

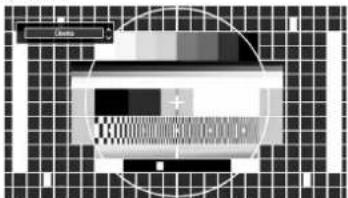

Changing Image Size: Picture Formats 21

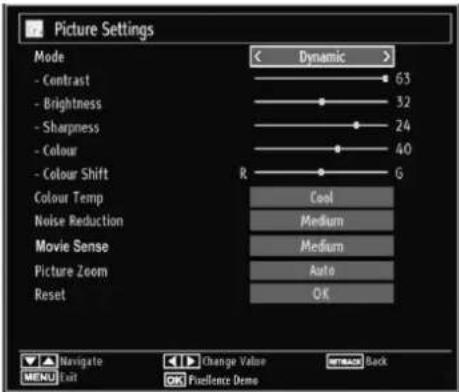

Configuring Picture Settings 22

Operating Picture Settings Menu Items 22

Picture Settings Menu Items 23

PC Picture Settings....23

Configuring Sound Settings 24

Operating Sound Settings Menu Items 24

Sound Settings Menu Items.... 24

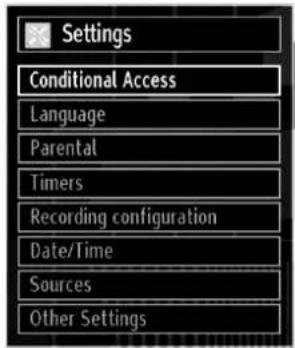

Configuring Your TV's Settings 24

Operating Settings Menu Items 24

Settings Menu Items 24

Using a Conditional Access Module 25

Viewing Conditional Access Menu (*) 25

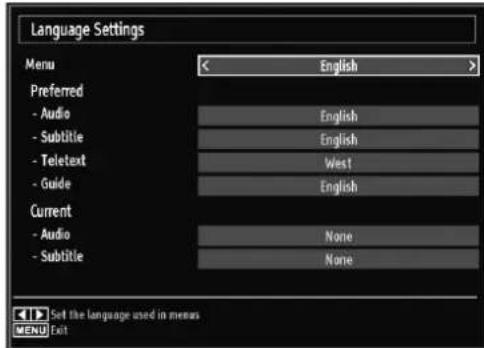

Configuring Language Preferences 25

Parental Control....26

Parental Settings Menu Operation (*) 26

Timers....26

Setting Sleep Timer 26

Setting Programme Timers 27

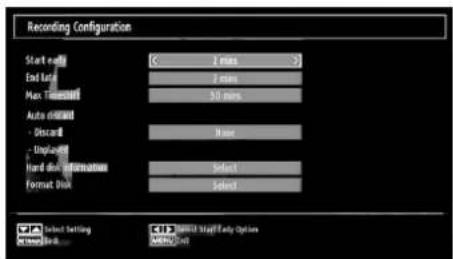

Recording Configuration 27

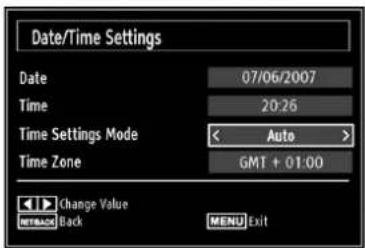

Configuring Date/Time Settings 28

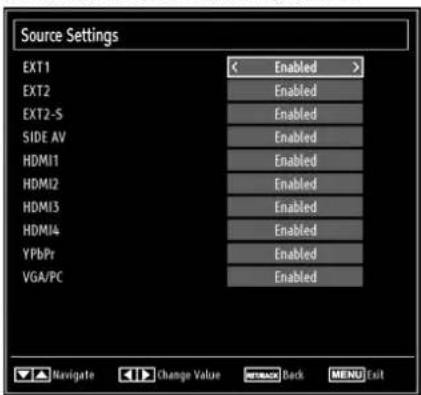

Configuring Source Settings 28

Configuring Other Settings 28

Operation....28

Other Features 29

Teletext 30

Tips 31

Appendix A: PC Input Typical Display Modes ..... 32

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) 32

Appendix C: Supported DVI Resolutions...... 33

Appendix D: Supported File Formats for USB

Mode....33

Appendix E: Software Upgrade 34

Specifications 35

Digital Reception (DVB-T) 35

Important Instruction 36

English - 1 -

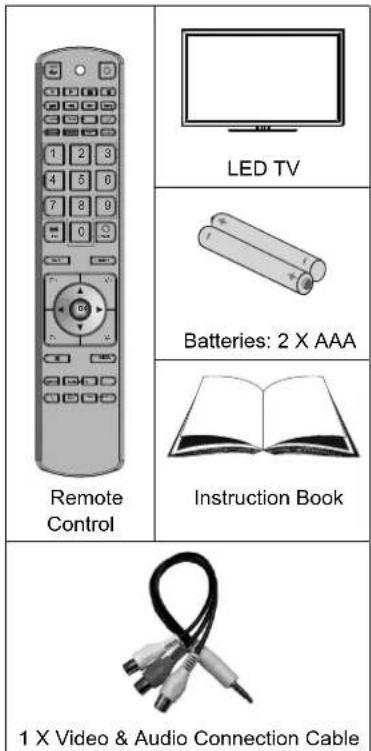

Package Contents

Note: You should check the accessories after purchasing. Make sure that each accessory is included.

Features

Remote controlled colour LED TV.

Fully integrated Terrestrial digital TV (DVB-T - MPEG2) (DVB-T- MPEG4).

HDMI connectors for digital video and audio. This connection is also designed to accept high definition signals.

USB input.

Programme recording•

Programme timeshifting•

1000 programmes (analogue+digital).

OSD menu system.

Integrated tuner DVB-T HD, MPEG 2 / MPEG 4 compatible.

Scart socket for external devices (such as video, video games, audio set, etc.).

Stereo sound system (SRS TruSurround HD)•

- Teletext, fastext, TOP text.

Headphone connection.

• Automatic programming system.
- Forward or backward manual tuning.
- Sleep timer / Child lock.
• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting).
- Auto power down.
- PLL (Frequency Search).
- PC input.

Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.

• Game Mode
  • SRS TruSurround HD
  • 100 Hz frequency scan.
• Movie Sense.

Introduction

Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references.

This device is intended to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for dry indoor use.

This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device.

Preparation

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates.

10 cm 10 cm 10 cm

English - 2 -

Safety Precautions

Read the following recommended safety precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.

Moisture and Water

Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Cleaning

Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Lightning

In case of a storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.

Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as a foil bag, must be kept away from children.
• Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used batteries in an environmentally friendly manner. Find out about the legal regulations which apply in your area.
• Don't try to recharge batteries, there is a danger of explosion. Replace batteries only with the same or equivalent type.

Information for users in EU Countries

This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or the dealer where you purchased the product.

Disconnecting the Device

The mains plug is used to disconnect the TV set from the mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).

LCD Screen

The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Warning! Do not leave your TV in standby or operating mode when you leave your house.

Connection to a Television Distribution System (Cable TV etc.) from Tuner

Devices connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a fi re hazard.

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).

Diagram showing crossed-out and unbroken symbols on a computer screen, likely indicating weather or safety restrictions.

Licence Notification (optional)

TruSurround HD is a trademark of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc.

Licence Notification(Optional)

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DIGITAL PLUS

The Standby / On button does not completely switch off this device, it will still consume power. In order to fully switch off this device, the Power should be switched off at the mains socket. Because of this the device should be set up in a way, that unobstructed access to the mains socket is guaranteed, so that in case of an emergency the mains plug can be pulled out immediately. To exclude the danger of fire, the power cord should be removed from the mains socket prior to a long period of non-use, i.e. during vacations.

Electrical device not in the hands of children

Never let children use any electrical device unsupervised. Children cannot always recognize possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries out of the reach of small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children as there is danger of suffocation.

Note: The HDMI connection between PC and TV may cause radio interference in which case it is recommended to use VGA(DSUB-15) connection.

English -4-

Environmental Information

• This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency features of this TV. To reduce energy consumption, you should take the following steps:
• You can use Power Save Mode setting, located in the Feature menu. If you set the Power Save Mode as On, the TV will switch to energy-saving mode and the luminance level of the TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

Off

- When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for an extended period of time.

- Note that annually, using the TV set in Power Save Mode has more power savings than disconnecting the TV from the mains plug instead of keeping in stand-by mode. Therefore it is highly recommended to activate the Power Save Mode setting to reduce your annual power consumption. It is also recommended to disconnect the TV from the mains plug to save more energy when you do not use the TV.

Please helps us to save the environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Remote Control Handset

Inserting Batteries

• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
• Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

Two black plastic electronic devices with internal components, no visible text or symbols

Note: Remove the batteries from the remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft.

English - 5 -

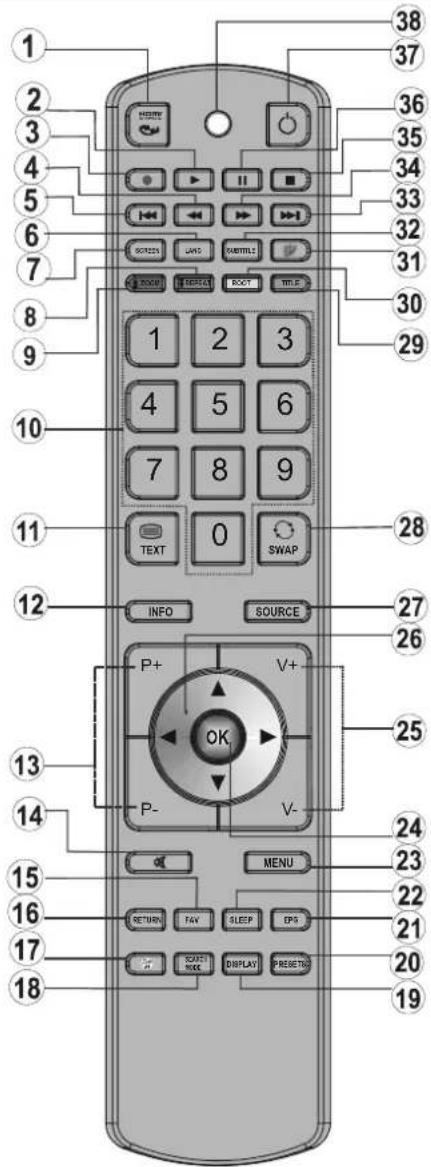

Remote Control Buttons

No function1.

Play (in Media Browser mode) 2.

Programme recording3.

Rapid reverse (in Media Browser mode)4.

No function5.

Mono/Stereo - Dual I-II / Current Language (*) / 6.

Play preview (in Media Browser mode)

Image size / Zooms videos (in Media Browser 7. video mode)

Green button / List Schedule(in EPG) / Tag/8.

Untag All (in favourite list)

Red button9.

Numeric buttons10.

Teletext / Mix 11.

Info / Reveal (in TXT mode)12.

Programme Down - Page up / Programme Up - 13.

Page down

Mute14.

Favourite mode selection15.

Exit (in DTV mode) / Return / Index page (in 16.

TXT mode)

No function17.

No function18.

1. Recordings Library

2. Picture mode selection / Changes picture mode (in Media Browser video mode)

3. Electronic Programme Guide Sleep timer22.

4. Menu on/off

5. OK / Select / Hold (in TXT mode) / Channel List

6. Volume up / down

7. Navigation buttons

8. AV / Source

9. Previous programme / Now (in EPG mode) Blue button29.

10. Yellow button / Timeline Schedule (in EPG)t No function31.

11. Subtitle on-off / TXT subtitle (analogue TV mode) / Subtitle (in Media Browser mode). No function33.

12. Rapid advance (in Media Browser mode)

13. Stop (in Media Browser mode)

14. Pause / Timeshift recording

15. Standby

16. Operation LED light

Diagram of a remote control with numbered keys and function buttons for navigation and display functions.

These buttons change according to the model:

MediaBrowser(optional) (**) or Angle/No function (**)

/ Web Browser(optional)(***) or Pip/ Pip (optional) (***)

LED TV and Operating Buttons

FRONT and REAR VIEW Control buttons VIEW Control Buttons

Front view of a blank flat-screen monitor (no text or symbols)

Top-down architectural floor plan showing room layouts and furniture layout (no text or labels)

Diagram showing a device with labeled components and an arrow indicating direction, likely illustrating a system or control interface.

1. Standby/On button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons

Note: Press "◀" and ▲+ buttons at the same time to view main menu.

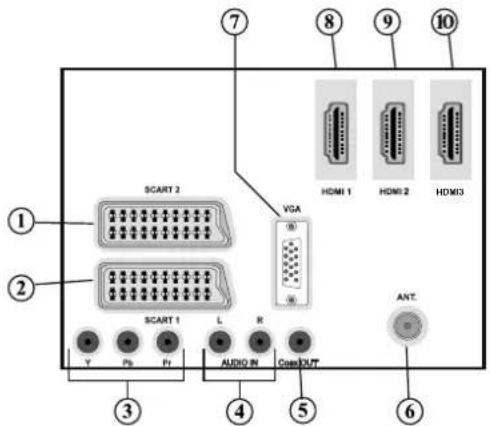

Viewing the Connections - Back Connectors

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ SCART 2 VGA HDMI 1 HDMI 2 HDMI3 SCART 1 L R AUDIO IN Control ANT.

SCART 21. inputs or outputs for external devices.

1. SCART 1 input or output for external devices. Connect the SCART cable between the SCART socket on TV and the SCART socket on your external device (such as a decoder, a VCR or a DVD player). Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.

Component Video Inputs (YPbPr)3. are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, "Y", "Pb", "Pr" correspond with your device's connectors.

1. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.
2. S/PDIF Coaxial Out outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to transfer audio signals to a device that has S/PDIF input

English -7-

RF Input6. connects to an aerial antenna system.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

PC Input7. is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC

HDMI 1: HDMI Input8.

HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD TV is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080p signals. No sound connection is needed for an HDMI to HDMI connection.

HDMI 2: HDMI Input9.

HDMI 3: HDMI Input10.

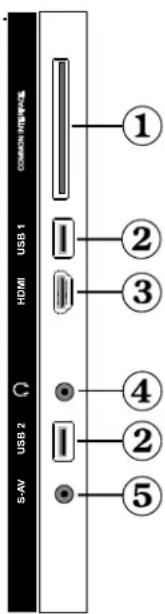

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the channels 1 that you subscribe to. For more information, see "Conditional Access" section.

USB Inputs. 2.

Note that programme recording feature is available via these USB inputs. You can connect external hard disk drives to this input.

Side HDMI Input is for connecting a device that has an HDMI socket.3.

Headphone jack is used for connecting an external headphone to the system. 4. Connect to the HEADPHONE jack to listen to the TV from headphones (optional

Side audio-video connection5. input is used for connecting video and audio signals of external devices. To make a video connection, you must use the supplied AV connection cable for enabling connection. First, plug singular jack of the cable to the TV's Side AV socket. Afterwards, insert your video cable (not supplied) connector into the YELLOW input (located on the side with several connectors) of the supplied AV connection cable. Colours of the connected jacks should match.

To enable audio connection, you must use RED and WHITE inputs of the side AV connection cable. Afterwards, insert your device's audio cable connectors into the RED and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match.

NOTE: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input (*You need a VGA to YPbPr cable, not supplied).

S-AV USB 2 USB 1 HDMI ① ② ③ ④ ② ⑤

Aerial Connection

Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

VHF UHF

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

- After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

English -8-

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC 50 Hz. Then the standby LED lights up. (The LED will blink during the standby On/Off)

To switch on the TV from standby mode either:

Press the "☐" button, P+ / P- or a numeric button on the remote control.

• Press the -P/CH or P/CH+ touch button on the TV. The TV will then switch on.
• When the mains power is first connected to the device the light on the front of the unit will start flashing for a few seconds, when it stops flashing and remains constant, the TV will be in standby mode.

Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.

By either method the TV will switch on.

Note: When the device is coming out of standby he light on the front of the unit will flash until the picture appears. If you activate the power operation again (before the light has stopped flashing) the device will turn off into standby mode again. This is normal operation and not a fault.

Note: The standby light will blink while the TV is powering up from Standby mode.

To Switch the TV Off

Press the "button" button on the remote control or press the STANDBY touch button on the TV, so the TV will switch to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

IMPORTANT: Ensure that the aerial is connected before switching on the TV for the first time installation.

- When the TV is operated for the first time, the installation wizard will guide you through the process. First, the language selection screen will be displayed:

First time installation Welcome please select your language? English Bismensar 'Vesiler' choice new language: Francs Waltien Sie bitte hier Spachea ans! Deutsch Selectimize la voca語歌? Italiano Bismensar, selecender un iderna: Español Hay gelatin, huttien di sevendini japonici: Türjese Debrekhali, chebita evi jueki: Sloveniki Kalkonam, valji ditt spatic: Svenska Debrekhali, heidik valessa hi a sychevi! Mayyar Ben-minta, favor selecender suadroma Portugues Tervistina, valibe lindai: Sumeri ✓ Select Language ✓ Best Language

• Use "▼" or "▲" buttons to select your language and press OK button to set the selected language and continue.
• After selecting the language, the "Welcome!" screen will be displayed, requiring you to set Country, Teletext Language and Scan Encrypted options.

First Time Installation Welcome! Country C UK 3 Telephone Language West Scan Encrypted Yes ✓ Select Setting ✓ Close your country ✓ Start walk

- By pressing the “◀” or “▶” button, select the country you want to set and press the “▼” button to highlight Teletext Language option. Use the “◀” or “▶” button to select desired Teletext Language.

Press the "▼" button after setting Teletext Language option. Scan Encrypted will be then highlighted. You can set Scan Encrypted as Yes if you want to scan coded stations. Afterwards select the desired Teletext Language.

- Press OK button on the remote control to continue and the following message will be displayed on the screen:

English -9-

To select the "Yes" or "No" option, highlight the item by using "◀or "▶buttons and press OK button.

Afterwards, the following OSD will be displayed on the screen and he television will search for digital terrestrial broadcasts.

Automatic channel scan Please wait. This will take a few minutes. Scanning digital channel: SNF 32 SUNION: sound wave

Note: You can press MENU button to cancel.

It is possible that the TV could find channels from more than one transmitter. In this case the available transmitters will be shown on screen. Use the navigation buttons to select the correct transmitter for your local region.

Choose region Multiple regional variants have been detected. Please choose your preferred region. Country UK Primary region Any Secondary region Any Tertiary region Any OK

After all the available stations are stored, Channel • List will be displayed on the screen.

Edit Channel List 1. BBC ONE 2. BBC TWO 3. BBC THREE 70. BBC Channel 80. BBC NEWS 24 105. BBC 503. ITV HD Trial 504. Like HD Trial 505. Live HD Trial OK Move Delete Edit name Lock In Section File Search Page Info/Show Search Help

Press • OK button to quit channel list and watch TV

Connecting to a DVD Player

If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.

Note: Cables shown in the illustration are not supplied.

If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to a DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.

Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, "Input selection" section.

You may also connect through the SCART 1 or • SCART 2. Use a SCART cable as shown below.

Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

Scartsockets Component video inputs Component audio inputs HDMI HDMI Inputs DVDPlayer

Connecting the LED TV to a PC

For displaying your computer's screen image on your LED TV, you can connect your computer to the TV set. Power off both computer and display before making any connections.

Use a 15-pin D-sub display cable to connect a PC to the LCD TV. When the connection is made, switch to PC source. See "Input selection" section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts.

L R AUDIO IN VGA Audio inputs of the TV PC audio cable (not supplied) Audio output of the PC PC input of the TV PC VGA cable (unt supplied) Monitor output of the PC

Note: The HDMI connection between PC and TV may cause radio interference in which case it is recommended to use VGA(DSUB-15) connection.

Side HDMI Connection

You can use side HDMI input to connect a device that has an HDMI connector to your TV. Use an appropriate HDMI cable to make such a connection. Note that you should switch to the HDMI source to view the content from the connected device. Power off both the TV and the device before making any connections. Side HDMI Input supports connections between HDMI devices such as DVD players. You can use side HDMI input of the TV to connect to an external HDMI device. Use an HDMI cable to connect.

You can connect a range of optional equipment to your LED TV using side connectors of the TV.

For connecting a camcorder or camera, you should use AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV's AV IN socket (side). Afterwards, insert your camera cable's (not supplied) connectors into the plural part of the video/audio connection cable. Colours of the connected jacks should match. See illustration below.

- Afterwards, you should switch to Side AV source. See the section Input selection in the following sections for more information.

To listen the TV sound from headphones, you should connect headphones to your TV by using the HEADPHONE jack as illustrated above.

Using Other Connectors

You can connect a range of optional equipment to your LED TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to enable sound connection.

ExternalSpeakers Adevicethat supports SPDIFsignal.

English - 11 -

Using USB Inputs

USB Connection

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive or record programmes.

2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

- To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

IMPORTANT!

- You may back up your files before making any connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not be responsible for any file damage or dataloss.

It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV.

IMPORTANT: The TV supports only FAT32 disk formatting. NTFS format is not supported. If you connect a USB disk with NTFS format, the TV will ask you to format the content. See the section, "Format Disk" in the following pages for more information on disk formatting.

Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 in such a case.

USB Disk Connection

- Plug your USB device to the USB input of the TV. Note: Plug or unplug your USB disk while the TV is switched off.

Note: If you are going to connect a USB hard disk drive to the TV set, USB connection cable used between the disk drive and the TV should have a USB logo and should be as short as possible.

Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process. In such a case, you should format the disk with your personal computer and the formatted disk type should be FAT32.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

Do not pull out USB module while playing or recording a file.

Programme Recording

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

To use the recording function, you should connect a USB disk or an external hard disk drive to the TV and connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Recorded programmes are saved into the connected USB disk in .TS format (MPEG-2 transport stream). If desirable, you can back up / copy these saved recordings into a personal computer.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

For more information on recording programmes, • see sections "Instant Recording", "Timeshifting", "Electronic Programme Guide", "Recordings Library" or "Recording Timers" in the following parts.

Recorded programmes are split into 4GB • partitions.

Recorded programmes are stored in the following directory of the connected USB disk: \DVR\RECS. All recordings are indicated with a number. A text (txt) file is created for each recording. This text file includes information such as broadcaster, programme, and recording time.

If the writing speed of the connected USB disk is not sufficient, recording may fail and timeshifting feaute may not be available.

Timeshifting may be stopped according to USB device • write speed. If the USB device speed is not enough for video stream bitrate, timeshifting may be stopped and recording may fail. If HD service bitrate is greater than 13 Mbp/sec, some freeze can be seen during timeshifting on both USB disk and on external HDD.

Do not unplug the USB/HDD during the recording. • This may harm the connected USB/HDD.

English - 12 -

Multipartiton support is available. Maximum 2 different partitions are supported. If disk have more then 2 partition, crash may occur. First partition of usb disk is used for PVR ready features. And also it must be formatted as primary partition to be used for PVR ready features.

Multipartition HDDs are supported; up to two partitions.

Some stream packets may not be recorded because of signal problems, in some circumstances the video may freeze during playback.

Record, Play, Pause, Display (for PlayListDialog) keys could not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is ongoing recording or playback.

Radio record is not supported.

The TV can record programmes up to ten hours.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press "SOURCE" button on your remote control consecutively for directly changing sources.

Sources list TV EXT1 EXT2 EXT2-S SIDE AV HDMI1 HDMI2 HDMI3 HDMI4 YPbPr VGA/PC

You can operate your TV using both the remote control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

Press "−" button to decrease volume or button to increase volume, so a volume level scale (slider) will be displayed on the screen.

Programme Selection

- Press "P/CH+" button to select the next programme or "P/CH-" button to select the previous programme.

Viewing Main Menu

- Press the “-”/“+” button at the same time to view main menu. In the Main menu select sub-menu using “AV” button and set the sub-menu using “-” or “” buttons. To learn the usage of the menus, refer to the menu system sections.

AV Mode

- Press the "AV" button in the control panel on the TV to switch between AV modes.

Operation with the Remote Control

The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Volume Setting

- Press "V+" button to increase the volume. Press "V-" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next Programme)

Press “• P -” button to select the previous programme. Press “• P +” button to select the next programme.

Programme Selection (Direct Access)

Press numeric buttons on the remote control to select • programmes between 0 and 9. The TV will switch to the selected programme. To select programmes in channels 10 and above press the numeric buttons of the channel you require consecutively. If you press only one button, that respective channel will be displayed.

English - 13 -

Viewing Electronic Programme Guide (EPG)

You can view the electronic programme guide (EPG) to view information about available programmes. To view the EPG menu please press GUIDE button on the remote control.

Press "▼"/▲buttons to navigate through channels.

- Press "◀/▼" buttons to navigate through the programme list.

EPG menu displays available information on all channels.

Please note that event information is updated automatically. If there are no event information data available for channels, EPG will be displayed with blanks.

EPG Screen One

Programme Guide The 07/06 20:55 Thu 07/06 20:00 21:00 12:00 1. BBC ONE 2. BBC TWD 3. BBC TRES 40. BBC Channel 80. BBC NEWS 24 101. BBC BFC Main Day Next day Down First Print Print Details Print Shag

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Views filtering options.

INFO (Event Details): Displays the programmes in detail.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): views/records or sets timer for future programs.

Text (Search): Displays "Guide Search" menu.

SUBTTL: Press SUBTITLE button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

© (Now) : Shows the current programme.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

EPG Screen Two

Programme Guide BRC ONE 1. BRC ONE 2. BRC TWO 3. BRC THREE 70. CBC Connected 80. BBC NEWS 24 105. BBO Thu 07/06 20:14 21:00: Readine Navigate Open Time Slot Next Time Slot Prev day Next day Enter Update Event Details MacStop

Red button (Prev Time Slice): Displays the programmes of previous time slice.

Green button (Next Time Slice): Displays the programmes of the next time slice.

Yellow button (Prev Day): Displays the programmes of previous day.

Blue button (Next day): Displays the programmes of the next day.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK (Options): views/records or sets timer for future programs.

Text button (Filter): Views filtering options.

INFO (Event Details): Displays the programmes in detail.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

EPG Screen Three

Programme Guide The 07/06 20:35 Channels Current Event Next Event 1. BBC ONE How to Live Hostile 2. BBC Two Sportswatch Mary, Games of Shops 3. BBC THREE FEIry Rich and Homeless Bast My Air 70. CBC Channel This is CBO? 80. CBC NEWS 24 BBC News BBL News 105. BBO BBC BBC

OK (Options): views/records or sets timer for future programs.

INFO (Event Details): Displays the programmes in detail.

Green button: Programme schedule will be listed

Yellow button: Display EPG data in accordance with timeline schedule

Blue button (Filter): Views filtering options.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

Recording via EPG Screen

IMPORTANT: To record a programme, you should fi rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

Note: Switching to a different broadcast or source is not available during the recording.

◀ / ▶▶age left / Page right.

Programme Options

In EPG menu, press the OK button to enter the "Event Options" menu.

Event Options Select Channel Record Set Timer on Event

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

IMPORTANT: To record a programme, you should fi rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.

Note: You cannot switch to any other channel or source while there is an active recording on the current channel.

Set Timer / Delete Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes.

To cancel an already set reminder, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record or set timer for two or more individual events at the same time interval.

Installation

HINT: Auto tuning feature will help you to retune the TV set in order to store new services or stations.

Press MENU button on the remote control and select Installation by using "◀" or "▶" button. Press OK button and the following menu screen will be displayed.

Installation Automatic channel scan Manual channel scan Analog fine tune First time installation

Select Automatic Channel Scan (Retune) by using "▼"/"▲" button and press OK button. Automatic Channel Scan (Retune) options will be displayed. You can select options by using "▼" and OK buttons.

Auto Channel Scan Menu Operation

Digital: Searches and stores aerial DVB stations.

Analogue: Searches and stores analogue stations.

Full: Searches and stores both analogue and aerial DVB stations.

Whenever you select an automatic search type and press OK button, a confirmation screen will appear on the screen. To start installation process, select Yes, to cancel select No by using .◀ or ▶ and OK button.

After auto channel scan type is set, selected and confirmed, the installation process will start and progress bar will move along. Press MENU button to cancel process. In such a case, located channels are not stored.

English - 15 -

Manual Tuning

HINT: This feature can be used for direct broadcast entry.

Select • Manual Channel Scan from the Installation menu by using “▼”/“▲and OK buttons. Manual Scan options screen will be displayed.

- Select the desired Search Type using "◀" or "▶" button. Manual search options will change accordingly. Use "▼" "▲" button to highlight an item and then press "◀" or "▶" button to set an option. You can press MENU button to cancel.

Digital Manual Search

Manual Search Search Type: 2 Digital 3 Channel: 65 Frequency: 466.00 MHz Network channel scan: Broadcast Signal quality: Poor Signal level: Start search Back Change Value Change with

In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search.

Analogue Manual Search

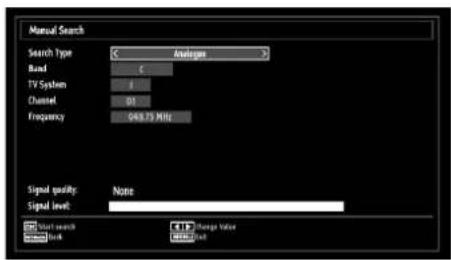

Manual Search Search Type: C Analogue > Band: C TV System: I Channel: 01 Frequency: 963.75 MHz Signal quality: Note Signal level: Start search Tunk E1 E2 Finger Value E3 E4

After selecting search type as analogue, you can use "▼" "▲ button to highlight an item and then press "◀" or "► button to set an option.

Enter the channel number or frequency using the numeric buttons. You can then press OK button to search. When the channel is located, any new channels that are not on the list will be stored.

Analog Fine Tune

- Select Analog Fine Tune from the Installation menu by using "▼" or "▲" and OK buttons. Analog fine tune screen will be displayed. Analog Fine Tune feature will not be available if there are no analog channels, digital channels and external sources stored.

Press • OK button to proceed. Use◀ " or ▶" button to set Fine Tune. When finished, press OK button again.

Managing Stations: Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

- Press MENU button to view main menu. Select Channel List item by using “◀” or “▶” button. Press OK to view menu contents.

Channel list Edit Channel List Favourites Active channel list

Select Edit Channel List to manage all stored channels. Use "◀or "▶and OK buttons to select Edit Channel List.

Operating the Channel List

Edit Channel List 1. BBC ONE 2. BBC TWO 7. BBC THREE 70: CBRC Channel 80: BBC NEWS 24 105: BAGI 505: ITV HD Trial 504: CH4 HD Trial 505: Live HD Trial OK Move Delete Edit name Lock FTP Function Filter Match Search Back Page OFF/Down Search Back

• Press “▼” or “▲” button to select the channel that will be processed. Press “◀” or “ ” button to select a function on Channel List menu.
• Use P+/P- buttons to move page up or down.
• Press BLUE button to view filtering options.
  Press • MENU button to exit.

Moving a Channel

• First select the desired channel. Select Move option in the channel list and press OK button.
• Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen will be displayed. Select Yes if you want to move the channel and press OK.

Press • OK button to process. Selected channel is now moved.

Deleting a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel.

Select the channel that you want to delete and select Delete option. Press OK button to continue.

- A warning screen will appear. Select YES to delete, select No to cancel. Press OK button to continue.

Renaming a Channel

Select the channel that you want to rename and select Edit Name option. Press OK button to continue.

Pressing "◀" or "▶" button moves to the previous/next character. Pressing "▼" or " "▲" button toggles the current character, i.e., 'b' character becomes 'a' by "▼" and 'c' by " " ▲" pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the button one by one as the button is pressed.

- When finished, press OK button to save. Press MENU to cancel.

Locking a Channel

You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel.

Select the channel that you want to lock and select Lock option. Press OK button to continue.

You will be asked to enter parental control PIN. Default PIN is set as 0000. Enter the PIN number.

- Press OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.

Managing Stations: Favourites

You can create a list of favourite programmes.

- Press MENU button to view main menu. Select Channel List item by using "◀" or "▶" button. Press OK to view menu contents.

- Select Favourites to manage favourite list. Use "▼"/'▲and OK buttons to select Favourites.

You can set various channels as favourites so that only the favourite channels are navigated.

Favourite List 1. BBC ONE 2. BBC TWO 3. BBC THREE 40. CBC Channel 80. BBC NEWS 24 105. BBC 505. RTV HD Trial 504. CH4 HD Trial 503. Five HD Trial Select channel Texting channel AddFormor Texting kit All Other AddFormor All

- Select a channel by using "▼" or "▲" button. Press OK button to add selected channel to favourites list. Press OK button again to remove.

Button Functions

• OK: Add/remove a station.
• YELLOW: Tag/untag a channel.
  • GREEN: Tag/untag all channels.
• BLUE: Displays filtering options.

Managing Stations: Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting.

Select Active channel list from the Channel list menu by using "◀" or "▶" button. Press OK button to continue.

Active channel list ✓Show all Digital Aerial only Analogue only TV only Radio only Text only Favourites

You can select a broadcast type option from the list by using "▼/" ▲nd OK buttons.

English - 17 -

On-Screen Information

You can press INFO button to display on-screen information. Details of the station and current programme will be displayed on the information banner.

1 BBC ONE 20:00-21:00 Next: 21:00-22:00 Holly City (Drama) Hostie (Drama)

The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number.

Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks.

If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). "Enter PIN" will be displayed on the screen in such a case:

Media Playback Using Media Browser

If the USB stick is not recognized after power off/on or First Time Installation, first, plug the USB device out and power off/on the TV set. Plug the USB device in again.

To display Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing "◀" or "▶" button. Press OK button to continue. Media Browser menu options will be displayed.

Also, when you plug USB devices, the media browser screen will be displayed automatically:

Media Browser Videos Photos Music Recordings Library Settings

You can play music, picture and video fi les from the connected USB memory stick. Use "◀or" ▶button to select Videos, Photos, Music, Recordings Library or Settings.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection osd will be displayed on the screen. The fi rst USB device connected to the TV will be named as USB Drive1.

USB Selection ← USB Drive 1 ← USB Drive 2

Select a device by using "▼or" "Button and press OK.

Viewing Videos via USB

Videos File Name How I Met Your Mother - 1x01 - Plot How I Met Your Mother - 1x01 - Plot Media Browser How I Met Your Mother - 1x01 - Plot 1/2 Play Play Title Single View Style Auto Play Preview Change Media Sort by Name

When you select Videos from the main options, available video files will be filtered and listed on this screen. You can use "▼or" "▼" button to select a video fi le and press OK button to play a video. If you select a subtitle file and press OK button, you can select or deselect that subtitle fi le. The following menu will be displayed while playing a video fi le:

How I Met Your Mother - 1x01 - Plot.avi x1 00m4s 22m04s Play CAN5 SubtileAudio Stop Pause Rewind Forward Jump Jump Substitute Time Correction Back

Play (▶button): Starts the video playback.

Stop (■ button): Stops the video playback. Pause (■ button): Pause the video playback

Rewind (◀ button): Goes backward. Forward (▶ button): Goes forward.

Subtitle/Audio (LANG. button): Sets subtitle/Audio. Jump (GREEN button): Jumps to time. Use numeric buttons to type the desired time and press GREEN button again to proceed.

Yellow: Opens subtitle time correction menu

Subtitle Time Correction Offset: < 0 > sec OK Clear Cancel

English - 18 -

Press RETURN (Exit) button to switch back to previous menu.

Viewing Photos via USB

When you select Photos from the main options, available image files will be filtered and listed on this screen.

Photos Media Browser File Name Date/Time 0001. GdGdt0015 09.01.2010 20:55 0002. GdGdt0014 09.01.2010 20:5... 0003. GdGdt002 0004. GdGdt006 0005. GdGdt008 0006. GdGdt009 0007. GdGdt010 0008. GdGdt011 0009. GdGdt012 60Gdt0015 1536c2048 47 KB L/91 Temp Send By Date Show in full access Single View Style Showbox Change Maps Thumbnails

Jump (Numeric buttons): Jump to selected file using the numeric buttons.

OK: Views the selected picture in full screen.

Slideshow (▶ button): Starts the slideshow using all images.

GREEN button: Views images in thumbnails.

RED button: Sorts fi les by date.

YELLOW button: Toggles viewing style.

BLUE button: Changes media type.

Slideshow Options

Pause (Button) : Pauses the slideshow.

Continue (▶ button) : Continues the slideshow.

Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffl e. Press once more to enable only Shuffl e. Press again to enable all. You can follow the disabled functions with the change of the icons.

Previous/Next (Left/Right buttons): Jumps to previous or next file on slideshow.

Rotate (Up/Down buttons): Rotates the image using up/down buttons.

RETURN (Exit): Back to fi le list.

INFO: Displays help screen.

Playing Music via USB

When you select Music from the main options, available audio files will be filtered and listed on this screen.

Music Media Browser 01 Video Concerts... 02 Video Concerts... 03 Video Concerts... 04 Video Concerts... 05 Video Concerts... 06 Video Concerts... 07 Synthia Conce... 08 Synthia Conce... 09 Synthia Conce... 01 Video Concerts No.2,0/ 21,1,1 All 1/3 Play Play Out Play This Play Print Play Shortlist

Play (▶ button) : Plays all media files starting with the selected one.

Stop (■ button) : Stops playback.

Pause (■ button) : Pauses the selected playback.

RED: Sorts fi les by Title, Artist or Album.

Loop/Shuffle (GREEN button): Press once to disable Loop. Press again to disable both Loop and Shuffl e. Press once more to enable only Shuffl e. Press again to enable all. You can follow the disabled functions with the change of the icons.

If you start the playback with the ▶ button and activate the ☐ symbol, the TV will play the next music/video fi le. The playback will proceed accordingly and when the end of the list is reached, it will be played again from the beginning (loop function).

If you start the playback with the OK button and activate the ☐ symbol, the same music or video fi le will be played in a loop (repeat function).

If you start the playback with ▶ or OK button and activate the 📄 symbol, music or video fi le will be played in a shuffle.

If you start the playback with ▶ or OK button and activate 📋 symbols, music or video file playback will continue randomly and the random playback will continue.

0..9 (Numeric buttons): Jumps to the selected file.

Play This (OK button) : Plays the selected file.

Previous/Next (Left/Right buttons) : Jumps to previous or next file to play.

YELLOW: Toggles viewing style.

BLUE: Changes media type.

Recordings Library

IMPORTANT: To view recordings library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings.

English - 19 -

Recordings Library The 22/01 06:20 Name Start Length Used: 1360 MB Reserved: 0 MB Free: 0 MB Delete Full Sell Play Options Resume RISC Details

All the recordings are kept in a list in the recordings library.

RED button (Delete) : Erases the selected recording.

GREEN button (Edit): Makes changes on the selected recording.

BLUE button (Sort): Changes the order of the recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu:

- Play from start: Plays the recording from the beginning.

- Resume: Recommences the recordings.

- Play from offset: Specific is a playing point.

Note: Viewing main menu and menu items will not ve available during the playback.

▶ (Resume): Recommences the recordings.

INFO (Details): Displays the short extended programmes in detail.

Media Browser Settings

Settings View Style Music FF/FFR Speed Slide Show Interval Show Subtile Subtile Language Subtile Position Subtile Font Size Flat view style displays all files in reasonable device. Folder view style displays files in selected folder. Select Binaryize Menu List MENU List

You can set your Media Browser preferences by using the Settings dialog. Press "▼or " "▲button to highlight an item and use "◀or " "▲button to set.

View Style: Sets default browsing mode.

Music FF/FR Speed: Sets forwarding/advancing speed.

Slide Show Interval: Sets slide show interval time.

Show Subtitle: Sets subtitle enabling preference.

Subtitle Position: Sets subtitle position as up or down.

Subtitle Font Size: Sets subtitle font size (max. 54pt).

Timeshift Recording

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Press || (PAUSE) button while watching a broadcast for switching to timeshifting mode.

In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk (*). Press ▶ (PLAY) button again to watch the paused programme from the stopped moment.

This playback is performed in x1 playback speed. • You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Use ◀◀ /▶(PREVIOUS/NEXT) buttons to move forward or backward on timeshift playback. When the timeshift is reached, timeshifting mode will be stopped and you will switch back to watching normal broadcast.

Press ■ (STOP) button to quit timeshifting mode. (*) Similtaneous timeshifting recording's duration depends on your connected USB disk's file size and defined Max. Timeshift in the Recordings Confi guration menu. See the section, "Recordings" for more information on setting Max. Timeshift.

Note: Switching to a different broadcast or source; and viewing main menu are not available during the timeshifting.

Lip Sync delay may occur during the timeshifting.

Instant Recording

IMPORTANT: To record a programme, you should fi rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Press • (RECORD) button to start recording an event instantly while watching a programme. The following OSD appears on the screen:

Recording BBC ONE Hobby City 4.2m Please wait...

Record OSD will then be displayed for a short time and the current event will be recorded.

- You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording.

Recording BBC ONE Holby City 42m Press record to add more events.

Press ■STOP) button to cancel instant recording. The following OSD will be displayed:

Stop recording on BBC ONE? Yes No

Select Yes by using "◀or "▶OK buttons to cancel instant recording.

Note: Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

Watching Recorded Programmes

In the main menu, use "◀ or "▶buttons to select Media Browser. Highlight Recordings Library item by using "◀ or "▶button and press OK button to enter.

Recordings Library will then be displayed.

IMPORTANT: To view recordings library, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

Recordings library Name Start Length Used: 1360 MB Reserved: 0 MB Free: 0 MB Delete Edit Text Pay Options Rename Add/Remove Add/Remove

Select a recorded item from the list (if previously recorded) by using “▼”/“▲” button. Press OK button to view Play Options. Select an option by using “▼ / “▲ or OK buttons.

Play options Play from start Resume Play from offset

Available playback options:

Play from start: Plays the recording from the beginning.

Resume: Recommences the recordings.

Play from offset: Specific is a playing point.

Note: Viewing main menu and menu items will not be available during the playback.

Press ■ (STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press || (PAUSE) button while watching recorded programmes, slow forward feature will be available. You can use ▶ button to slow forward. Pressing ▶ button consecutively will change slow forwarding speed.

Changing Image Size: Picture Formats

You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes.

- Press SCREEN button repeatedly to change the image size. Available zoom modes are listed below.

Auto

When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source(if available)

The format being displayed in AUTO mode is completely independent of WSS information which could be included in the broadcast signal or the signal from an external device.

Note: Auto mode only will be available in HDMI, YPbPr and DTV sources.

16:9

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fi ll the wide TV screen.

Pure electrical circuit lines without any symbols

For 16:9 aspect ratio pictures that have been • squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.

English - 21 -

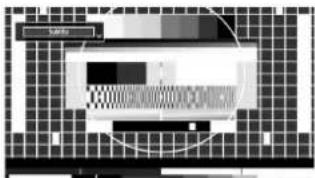

Subtitle

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

Pure electrical circuit lines without any symbols

Note: You can shift to screen up or down by pressing "▼/ " buttons while picture zoom is selected as panaromic, 14:9 Zoom, Cinema or Subtitle.

14:9

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Pure electrical circuit lines without any symbols

14:9 Zoom

CCTV CCTV

This option zooms to the 14:9 picture.

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original size.

Scanned document fragment with partially visible text and a circular diagram overlay, likely a technical or architectural schematic.

Panoramic

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

Abstract geometric pattern with grid and curved line (no text or symbols)

The top and bottom of the picture are slightly cut off.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

Pixelated abstract graphic with checkered pattern and circular overlay (no readable text or symbols)

Note: When the unit is in "Auto" mode and a 4:3 transmission is being received the picture may not fi ll the screen (i.e. there is a border on the top/bottom and left/right). To fi ll the screen select either 4:3 or 16:9 manually as required.

Configuring Picture Settings

You can use different picture settings in detail.

Press MENU button and select the Picture icon by using "◀" or "▶" button. Press OK button to view Picture Settings menu.

Picture Settings Mode - Contrast - Brightness - Sharpness - Colour - Colour Shift Colour Temp Noise Reduction Movie Sense Picture Zoom Reset Dynamic 63 32 24 40 R G Cool Medium Medium Auto OK Navigate Change Value onset Back MENU Exit OK Fixellence Demo

Operating Picture Settings Menu Items

Press "▼" or "▲button to highlight a menu item. Use "◀" or "▶" button to set an item.

Press · MENU button to exit.

Pixellence Demo Mode : While Mode option is highlighted in picture menu, Pixellence demo mode will be displayed bottom of the menu screen.

Pixellence Demo Mode function optimizes the TV's video settings and helps to acquire a better image quality. Pixellence Demo Mode thus includes contrast, sharpness, colour enhancement and skin tone correction along with the skin tone detection.

Press OK to start Pixellence Demo Mode for experiencing Pixellence quality. Throughout the demo mode, the screen is split into two sections, one displaying the Pixellence active area; the other

English - 22 -

displaying the normal broadcast. Press OK button to quit the demo mode.

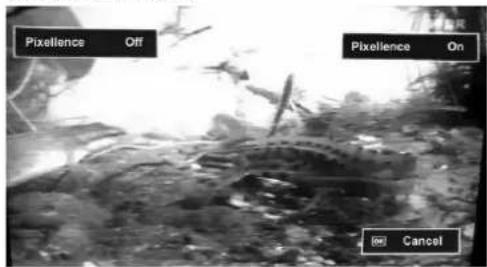

Pixelience Off Pixelience On Cancel

Picture Settings Menu Items

Mode: For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.

Contrast: Sets the lightness and darkness values of the screen.

Brightness: Sets the brightness value for the screen.

Sharpness: Sets the sharpness value for the objects displayed on the screen.

Colour: Sets the colour value, adjusting the colours.

Colour Shift: Adjust the desired colour tone. Hue (NTSC only): Adjusts the colour value.

Colour Temp: Sets the desired colour tone.

Setting Cool option gives white colours a slight blue stress.

For normal colours, select Normal option.

Setting Warm option gives white colours a slight red stress.

Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.

Movie Sense : Press "▼" or "▲" button to select Movie Sense. Use "◀" or "▼" to set Movie Sense Low, Med, High or Off. While Movie Sense is active, it will optimize the TV's video settings for motional images to acquire a better quality and readability.

When Movie Sense option is set to Low, Med or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen.

Game Mode: When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.

Note: When Game Mode is on, some items in the Picture Settings menu will be unavailable.

Picture Zoom: Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.

Reset: Resets the picture settings to factory default settings.

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PC Picture Settings

For adjusting PC picture items, do the following:

Press "◀" or "▶" button to select Picture icon. Picture menu appears on the screen.

Contrast, Brightness, Colour, Colour Temp and Picture Zoom settings in this menu are identical to settings defined in TV picture menu under "Main Menu System".

Sound, Settings and Source settings are identical to the settings explained in main menu system.

PC Position: Select this to display PC position menu items.

PC Position Autoposition OK H Position 0 V Position 0 Dot Clock 0 Phase 0

Autoposition: Automatically optimizes the display. Press OK to optimize.

H Position: This item shifts the image horizontally to right hand side or left hand side of the screen.

V Position: This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

English - 23 -

Configuring Sound Settings

Sound settings can be configured according to your personal preferences.

Press MENU button and select the Sound icon by using "◀" or "▶" button. Press OK button to view the Sound Settings menu.

Sound Settings Volume 1 Equalizer User Balance 0 Headphone 20 AVL Off Dynamic Bass Off SRS TruSurround HD On Digital Out PCM Navigate Deck Change Value MENU Exit

Operating Sound Settings Menu Items

Press "▼" or "▲button to highlight a menu item.

Use "◀" or "▶" button to set an item.

Press • MENU button to exit.

Sound Settings Menu Items

Volume: Adjusts volume level.

Equalizer: Press OK button to view the equalizer sub-menu.

Equalizer Settings Mode < Music > 120Hz —— ● 4 500Hz —— ● 2 1.5KHz —— ● -2 5.0KHz —— ● 3 10.0KHz —— ● 5

In the equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu.

Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User. Balance: This setting is used for emphasizing left or right speaker balance.

Headphone: Sets headphone volume.

- When headphones are connected to the device, the internal speakers of the TV will mute and the volume of the headphones can be adjusted via sound settings/headphones.

AVL: Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).

Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set.

SRS TruSurround HD: By pressing "▼" or "▲select SRS TruSurround HD. Press "◀" or "▶button to set SRS TruSurround HD as on or off.

Note: If you set SRS TruSurround HD as On, some features in the Sound menu can be unavailable to be set.

Digital Out: Sets digital out audio type.

Configuring Your TV's Settings

Detailed settings can be configured to suit your personal preferences.

Press MENU button and select Settings icon by using "◀or "▼" button. Press OK button to view the Settings menu.

Settings Conditional Access Language Parental Timers Recording configuration Date/Time Sources Other Settings

Operating Settings Menu Items

Press "▼" or "▲button to highlight a menu item.

Press • OK button to select an item.

Press • MENU button to exit.

Settings Menu Items

Conditional Access: Controls conditional access modules when available.

Language: Configures language settings.

Parental: Configures parental settings.

Timers: Sets timers for selected programmes.

Date/Time: Sets date and time.

Sources: Enables or disables selected source options.

English - 24 -

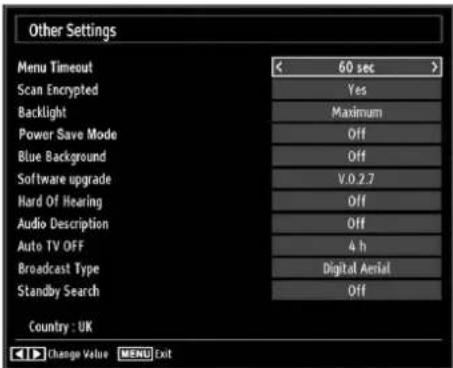

Other Settings: Displays other setting options of the TV set.

Using a Conditional Access Module

IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF.

In order to watch certain digital channels, a conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV.

Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert both into the TV using the following procedure.

Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV.

The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.

When no module is inserted, “• No Common Interface module detected” message appears on the screen.

Refer to the module instruction manual for details of the settings.

Viewing Conditional Access Menu (\*)

(*) These menu settings may change depending on the service provider.

Press MENU button and select the icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "■" button to highlight Conditional

Access and press OK to view menu items.

Confi guring Language Preferences

You can operate the TV's language settings using this menu.

Press MENU button and select the Settings icon by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight Language and press OK to continue:

Language Settings Menu English Preferred - Audio English - Subtitle English - Teletext West - Guide English Current - Audio None - Subtitle None Set the language used in menus MENU Exit

Use "▼" or "▲" button to set an item. Settings are stored automatically.

Menu: displays the system language.

Preferred

These settings will be used if available. Otherwise the current settings will be used.

Audio• : Sets the preferred audio language.

Subtitle• : Sets the subtitle language. Selected language will be seen in subtitles.

Teletext: Sets teletext language.

Guide: Sets the preferred Guide language.

Current (\*)

(*) These settings can be changed only if the broadcaster supports. Otherwise, settings will not be available to be changed.

Audio·: Changes the audio language for the current channel.

- Subtitle: Sets the subtitle language for the current channel.

Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:

English - 25 -

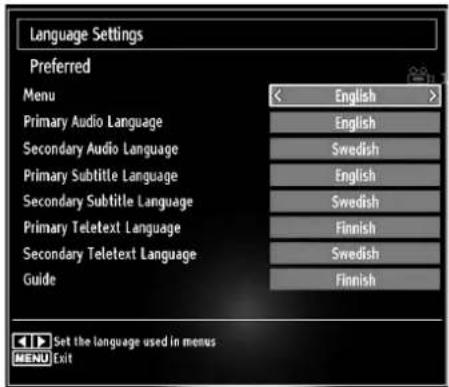

Language Settings

Language Settings Preferred Menu English Primary Audio Language English Secondary Audio Language Swedish Primary Subtitle Language English Secondary Subtitle Language Swedish Primary Teletext Language Finnish Secondary Teletext Language Swedish Guide Finnish Set the language used in menus MENU Exit

In the configuration menu, highlight the Language Settings item by pressing "▼ or " " buttons. Press OK and Language Settings submenu will be displayed on the screen:

Use "▼" or "▲" buttons to highlight the menu item that will be adjusted and then press "◀" or "▼" button to set.

Notes:

System Language determines the on-screen menu language.

Audio Language is used for selecting the soundtrack of a channels.

- Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

Parental Control

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

This function enables or disables the menu protection system and allows the PIN code to be changed.

Press the MENU button and select the Settings by using "◀" or "▶" button. Press OK button to view Settings menu. Use "▼" or "▲" button to highlight Parental and press OK to continue:

To display the parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, the parental settings menu will be displayed:

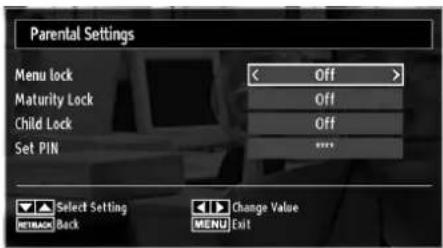

Parental Settings Menu lock < Off > Maturity Lock Off Child Lock Off Set PIN **** Select Setting Change Value RETRACK Back MENU Exit

Parental Settings Menu Operation (\*)

Select an item by using "▼" or "▲button.

Use "◀" or "▶" button to set an item.

Press• the OK button to view more options.

(*) If you set Country option as UK in the first time installation, Maturity Lock and Child Lock options will not be visible. This setting is available only for EU countries.

Menu Lock: Menu lock setting enables or disables the menu access. You can disable access to the installation menu or the whole menu system.

Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby On/Off button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby On/Off button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible.

Set PIN: Defines a new PIN number. Use the numeric buttons to enter a new pin number. You will need to code your new pin a second time for verification purposes.

IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.

Timers

To view Timers menu, press MENU button and select Settings icon by using "◀ or " ▶button. Press OK button to view Settings menu. Use "▼or " " ▶button to highlight Timers and press OK to continue:

Setting Sleep Timer

This setting is used for setting the TV to turn off after a certain time.

- Highlight Sleep Timer by using "▼" or "▲button.

Use “◀” or “▶” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes.

Setting Programme Timers

You can set programme timers for a particular programme using this feature.

Press "▼" button to set timers on an event. Programme timer function buttons will be displayed on the screen.

Adding a Timer

- Press YELLOW button on the remote control to add a timer. The following menu appears on the screen:

Network Type: This feature is unavailable to be set. Timer Type: You can select timer type as Record or Timer.

Channel: Changes channel by using "◀" or "▶".

Record Type: This item is unavailable to be set.

Date: Enter a date using the numeric buttons.

Start: Enter a starting time using the numeric buttons.

End: Enter an ending time using the numeric buttons.

Duration: Displays duration between the starting and ending time.

Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use "◀" or "▶" buttons to select an option.

Change/Delete: Sets the change/delete permission.

Playback: Sets the playback permission and parental settings.

- Press GREEN button to save the timer. Press RED button to cancel.

Editing a Timer

Select the timer you want to edit by pressing "▼" or "▲button.

Press • GREEN button. Edit Timer menu screen will be displayed.

- When finished with editing, press GREEN button to save. You can press MENU button to cancel.

Deleting a Timer

- Select the timer you want to delete by pressing "▼" or "▲button.

Press · RED button.

- Select YES by using "◀" or "▶" buttons to delete the timer. Select NO to cancel.

Recording Configuration

Select Recording Configuration item in the Settings menu to configure recording settings. The following menu is displayed for recording configuration.

Recording Configuration Start end: 0 mins End end: 2 mins Max Time: 50 mins Auto divided Discard: None Display: Hard disk information: Select Format Risk: Select Select Setting: C:\DATA\Stray\Body Options Network Back... METH-Off

The following options are available for adjustments: Start Early (*)

You set recording timer's starting time to start earlier by using this setting.

(*) Available only for EU country options.

End Late (\*)

You set recording timer's end time to end later by using this settings.

(*) Available only for EU country options.

Max Timeshift

This setting allows you to set the maximum time allowed for timeshifting. Duration options are approximate and can change accordingly, depending on the broadcast received.

Format Disk

IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature.

- If you want to delete all fi les on the connected USB hard disk drive or memory stick, you can use Format Disk option.

- Also, if your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

- Press OK button while the Format Disk option is highlighted. A menu will appear on the screen, requiring you to enter a pin number. If you have not changed the pin number, the factory default is 0000. After you enter the pin, a pop-up menu appears on the screen to ensure that the hard disk should be formatted, select "YES" and press OK to format the hard disk. Select "NO" and press OK to cancel. Ensure you back up important recordings before you format the USB disk unit.

English - 27 -

Hard Disk Info

To view the details about the USB disk, highlight Hard Disk Info by using "▼" or "▲key and press OK. USB disk information will be displayed:

Configuring Date/Time Settings

Select Date/Time in the Settings menu to configure Date/Time settings. Press OK button.

Date/Time Settings Date 07/06/2007 Time 20:26 Time Settings Mode < Auto > Time Zone GMT + 01:00 Change Value Back Mali Exit

- Use "▼" or "▲" buttons to highlight Date/Time.

Date, Time, Time Settings Mode and Time Zone Setting will be available.

Use "▲" or "▼buttons to highlight the Time Settings Mode. Time Settings Mode is set using "◀ or "▶ buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

- By pressing "▲" or "▼buttons select Time Zone.

Use "◀" or "▶" buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone.

Changes are automatically stored. Press • MENU to exit.

Configuring Source Settings

Allows you to enable or disable selected source options. The TV will not switch to the disabled source options when SOURCE button is pressed.

Source Settings EXT1 EXT2 EXT2-S SIDE AV HDMI1 HDMI2 HDMI3 HDMI4 YPbPr VGA/PC Enabled Enabled Enabled Enabled Enabled Enabled Enabled Enabled Navigate Change Value Back MENU Exit

• Select Sources in the Settings menu and press OK button.
• Press"▼" or "▲buttons to select a source.

Use "◀" or "▶" button to enable or disable the selected source. Changes are automatically stored.

Configuring Other Settings

To view general configuration preferences, select Other Settings in the Settings menu and press OK button.

Other Settings Menu Timeout Scan Encrypted Backlight Power Save Mode Blue Background Software upgrade Hard Of Hearing Audio Description Auto TV OFF Broadcast Type Standby Search Country : UK 60 sec Yes Maximum Off Off V.0.2.7 Off Off 4 h Digital Aerial Off

Operation

• Press "▼" or "▲buttons to select an item.
• Use “◀” or “▶” button to set an option.
• Press OK button to view a sub-menu.

Menu Timeout: Changes timeout duration for menu screens.

English - 28 -

Scan Encrypted: When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.

Backlight (optional): This setting controls the backlight level and it can be set to Maximum, Minimum, Medium and Eco Mode (optional).

Power Save Mode: Use "▼" or "▲button to select Power Save Mode. Press "◀" or "▶button to set Power Save Mode as On or Off.

See the section, "Environmental Information" in this manual for further information on Power Save Mode.

Note : Backlight function will be invisible if Power Save Mode is set to on.

Blue Background: Activates or deactivates blue background system when the signal is weak or absent.

Software Upgrade: To ensure that your TV always has the most update information, you can use this setting.

Upgrade options Automatic scanning Scan for upgrade Enabled OK

You can enable or disable automatic upgrade by setting Automatic Scanning option.

You can manually search for new software by selecting Scan for upgrade.

Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.

Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional narration track.

Auto TV Off: You can set the timeout value of auto off feature. After the timeout value is reached and the TV is not operated for selected time, the TV will go off.

Broadcast Type (optional): When you set the desired broadcast type by using “◀” or “▶” button, the TV will display the related channel list. If the related source has does not include any stored channels, “No channels for this type have been found.” message will be displayed on the screen. Standby Search (optional)

Use "▼or " "▲ button to select Standby Search and then press "▼or " "▲ button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On.

Other Features

Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or "INFO" button is pressed.

Mute Function: Press "X" button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; the first one is pressing the button and the second one is increasing the volume level.

Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game.

Displaying Subtitles: You can enable subtitles by pressing the SUBTITLE button of the remote control. Press the SUBTITLE button again to disable the subtitle function.

If "Subtitle" is On, pressing the "☐" button causes the following warning message display on the screen (** for UK only)

Interactive services are not available while subtitles are on. Would you like to turn subtitles off now? Yes No

English - 29 -

Teletext

The Teletext system transmits information such as news, sports and weather on your TV. Note that if the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.

Teletext function buttons are listed below:

“” Teletext / Mix : Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO" Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀”/“▶ Subcode Pages : Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Coloured Buttons (RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing "▼or" "▲ommands will request the next or previous page respec tively.

Digital Teletext ( ^** for UK only)

- Press the "button.

• The digital teletext information appears.

- Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext.

Follow the instructions displayed on the digital teletext screen.

- When the "Press "OK" button" or similar message appears on the screen, press the OK button.

- When the "button" button is pressed, the TV returns to television broadcasting.

- With digital broadcasting (DVB), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.

- The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.

- When you press the "☐" button again, the digital teletext screen will be displayed.

Tips

Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom.

Image Persistence: Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while.

To avoid this, do not leave the screen on a still picture image for extended periods.

No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet.

Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please return the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

Sound: If you cannot hear any sound check if the ✗ button has been pressed or check if there are any headphones plugged into the TV. If sound is coming from only one of the speakers check if the balance is set to one extreme. See Sound Menu.

Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV.

Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available. If you cannot perform recording, try switching off the TV and then re-inserting the USB device while the TV is switched off.

USB Is too Slow: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

English - 31 -

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1360 x 768. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.

Index Resolution Frequency
1 640x400 70 Hz
2 640x480 60 Hz
3 640x480 75 Hz
4 800x600 60 Hz
5 800x600 75 Hz
6 1024x768 60 Hz
7 1024x768 70 Hz
8 1024x768 75 Hz
9 1152x864 75 Hz
10 1280x768 60 Hz
11 1280x1024 60 Hz
12 1360x768 60 Hz

Appendix B: AV and HDMI Signal Compatibility (Input Signal Types)

Source Supported Signals Available
EXT-1(SCART 1)	PAL 50/60 O
	NTSC 60	O
	RGB 50	O
	RGB 60	O
EXT-2(SCART-2)	PAL 50/60 O
	NTSC 60	O
	RGB 50	X
	RGB 60	X
SIDE AV	PAL 50/60 O
	NTSC 60	O
YPbPr	480I	60Hz O
	480P	60Hz O
	576I	50Hz O
	576P	50Hz O
	720P	50Hz O
	720P	60Hz O
	1080I	50Hz O
	1080I	60Hz O
	1080P	50Hz O
	1080P	60Hz O
HDMI1HDMI2HDMI3HDMI4	480I	60Hz O
	480P	60Hz O
	576I	50Hz O
	576P	50Hz O
	720P	50Hz O
	720P	60Hz O
	1080I	50Hz O
	1080I	50Hz O
	1080P	60Hz O
	1080P	24Hz O

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Appendix C: Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables (not supplied), you can refer to the following resolution information.

	24Hz 25Hz 30Hz 50Hz 60Hz
480i					☑
480p					☑
576i				☑
576p				☑
720p				☑	☑
1080i				☑	☑
1080p	☑	☑	☑	☑

Appendix D: Supported File Formats for USB Mode

Media	File Extension	Format Remarks
		Video Audio (Maximum resolution/Bit rate etc.)
Movie	.mpg, .mpeg	MPEG1, 2 MPEG Layer	1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1, 2		MPEG2
	.vob MPEG2
	.mkv H.264, MPEG1,2,4 EAC3 / A		C3
	.mp4	MPEG4, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM/MP3
	.avi	MPEG2, MPEG4 PCM/MP3		MAX 1920x1080 @ 30P 20Mbit/sec
		Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM
Music .mp3 -			MPEG 1 Layer 1 / 2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG max WxH = 15360x8640 4147200bytes
		Progressive JPEG		max WxH = 1024x768 6291456bytes
	.bmp	-		max WxH = 9600x6400 3840000bytes
Subtitle	.sub	-		-
	.srt

English - 33 -

Appendix E: Software Upgrade

• Your TV is capable of finding and updating new software upgrades over broadcast channels.
• For broadcast channels search, the TV looks at the available channels stored in your settings. So the before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

- It is possible manually to check if there is a new software upgrade for your TV set.

- Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open the Upgrade Options menu.

- In Upgrade Options menu select Scan for upgrade and press the OK button.

- If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When the download completes successfully a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for a new software upgrade. If new software is found and downloaded successfully, when next turned on the TV will use the latest software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During the reboot the TV makes final initializations. In the reboot sequence panel power is closed and the front led indicates the activity by blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. The TV should open with new software safely. If you still cannot get the TV working, please repeat the unplug and plug sequence a few more times. If your set still cannot operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Battery

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

English - 34 -

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

1000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

SRS TruSurround HD

AUDIO OUTPUT POWER (W _RMS. ) (10% THD)

2 × 12

POWER CONSUMPTION (W)

200 W (max)

PANEL

16:9 display, 55" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 330 x 1307 x 819,5

Weight (Kg): 31,5

DxLxH (Without foot): 39,9 x 1307 x 778,5

Weight (Kg): 26,8

Digital Reception (DVB-T)

Transmission Standards:

DVB-T, MPEG2,DVB-T, MPEG4 HD

i. DEMODULATION

-Symbol rate: COFDM with 2K/8K FFT mode.

-Modulation: 16-QAM - 64-QAM FEC for all DVB • modes (automatically found)

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 • UK engine Profi le (UK only)

Object carousel support compliant with ISO/IEC • 135818-6 and UK DTT profil (UK only)

Frequency range: 474-850 MHz for UK models•

ii. VIDEO

- -H.264 (MPEG-4 part 10) main and high profile level 4.1/MPEG-2 MP@HL video decoder.

-HD display multi format capable (1080i, 720p, •576p)

-CVBS analogue output.(In HD channels, this will not be available

iii. AUDIO

-MPEG-1 layer I/II, MPEG-2 layer II, AAC, HEAAC, AC3, E-AC3

-Sampling frequencies supported are 32, 44.1 & • 48 kHz

English - 35 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

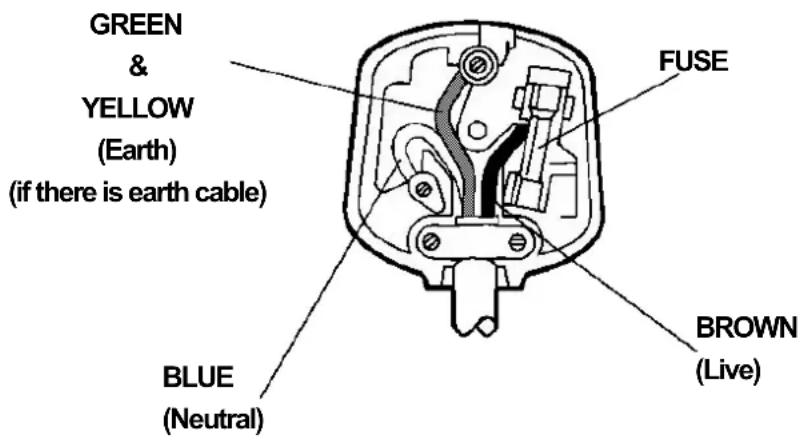

The wires in the mains lead are coloured in accordance with the following code :

GREEN & YELLOW (Earth) (if there is earth cable) BLUE (Neutral) FUSE BROWN (Live)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red.

For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

www.finluxdirect.com

Customer helpline: 0845 459 5282
