USER MANUAL DGX-205 YAMAHA

This product utilizes batteries or an external power supply (adapter). DO NOT connect this product to any power supply or adapter other than one described in the manual, on the name plate, or specifically recommended by Yamaha. This product should be used only with the components supplied or, a cart, rack, or stand that is recommended by Yamaha. lf a cart, etc., is used, please observe all safety markings and instructions that accom- pany the accessory product. SPECIFICATIONS SUBJECT TO CHANGE: The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or mod- ify any of the specifications without notice or obligation to update exist- ing units. This product, either alone or in combination with an amplifier and head- phones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. IMPORTANT: The louder the sound, the shorter the time period before damage occurs: NOTICE: Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturers warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service. ENVIRONMENTAL ISSUES: Yamaha strives to produce products that are both user safe and envi- ronmentally friendly. We sincerely believe that our products and the pro- duction methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following: Battery Notice: This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes neces- sary, contact a qualified service representative to perform the replace- ment. This product may also use “household" type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged. When installing batteries, do not mix batteries with new, or with batter- ies of a different type. Batteries MUST be installed correctiy. Mis- matches or incorrect installation may result in overheating and battery case rupture.

Do not attempt to disassemble, or incinerate any battery. Keep all bat- teries away from children. Dispose of used batteries promptiy and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information Disposal Notice: Should this product become damaged beyond repair, or for some rea- son its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact Yamaha directiy. NAME PLATE LOCATION: The name plate is located on the bottom of the product. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as à permanent record of your purchase. Model Serial No. Purchase Date

PLEASE KEEP THIS MANUAL

92-BP (bottom) @ DGX-205/203, PSR-295/293 Owner's Manual

This product, when installed as indicated in the instructions con- tained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/

or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the

requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reason- able level of assurance that your use of this product in a residential environment wil not result in harmful interference with other elec- tronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. 1f this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to elimi- nate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line fiter/s. In the case of radio or TV interference, relocate/reorient the antenna. the antenna lead-in is 800 ohm ribbon lead, change the lead-in to co-axial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. f you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620 The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

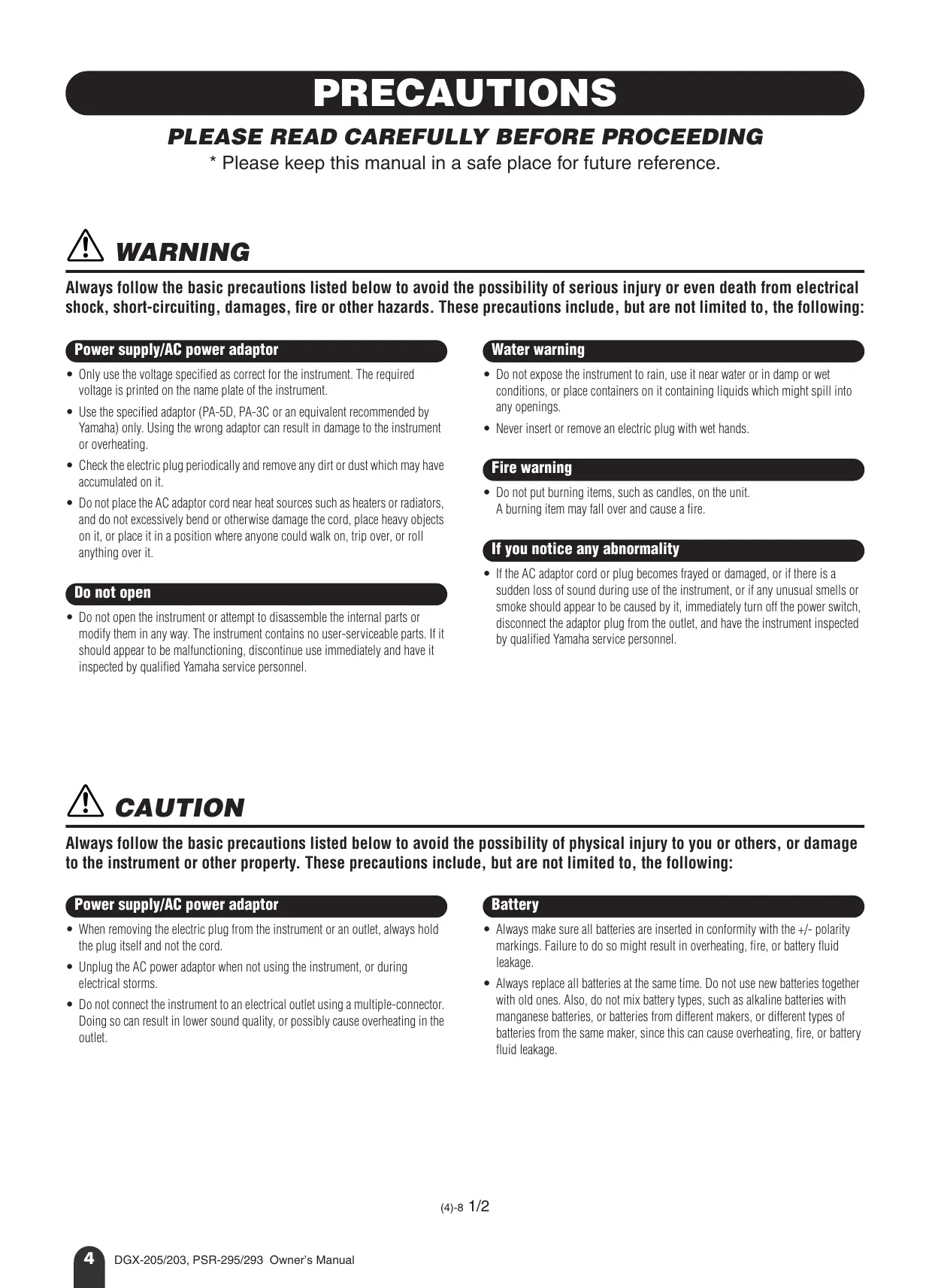

• Please keep this manual in a safe place for future reference. À WARNING Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following: Power supply/AC power adaptor + Only use the voltage specified as correct for the instrument. The required voltage is printed on the name plate of the instrument. + Use the specified adaptor (PA-5D, PA-3C or an equivalent recommended by Yamaha) only. Using the wrong adaptor can result in damage to the instrument or overheating. + Check the electric plug periodically and remove any dirt or dust which may have accumulated on it + Do not place the AC adaptor cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it. < Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. lf it Should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel À CAUTION + Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings. e Never insert or remove an electric plug with wet hands. Fire warning < Do not put burning items, such as candles, on the unit. À burning item may fall over and cause a fire. If you notice any abnormality _lfthe AC adaptor cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the adaptor plug from the outlet, and have the instrument inspected by qualified Yamaha service personnel Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following: Power supply/AC power adaptor + When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord. + Unplug the AC power adaptor when not using the instrument, or during electrical storms. < Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet. Battery < Always make sure all batteries are inserted in conformity with the +/- polarity markings. Failure to do so might result in overheating, fire, or battery fluid leakage. < Always replace all batteries at the same time. Do not use new batteries together with old ones. Also, do not mix battery types, such as alkaline batteries with manganese batteries, or batteries from different makers, or different types of batteries from the same maker, since this can cause overheating, fire, or battery fluid leakage. {a)-8 1/2 a DGX-205/203, PSR-295/293 Owner's Manual

e Do not dispose of batteries in fire. e Do not attempt to recharge batteries that are not intended to be charged e When the batteries run out, or ifthe instrument is not to be used for a long time, remove the batteries from the instrument to prevent possible leakage of the battery fluid. e Keep batteries away from children. e lfthe batteries do leak, avoid contact with the leaked fluid. lf the battery fluid should come in contact with your eyes, mouth, or skin, wash immediately with water and consult a doctor. Battery fluid is corrosive and may possibly cause loss of sight or chemical burns. e Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components. + Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio may generale noise. e Do not place the instrument in an unstable position where it might accidentally fall over. < Before moving the instrument, remove all connected adaptor and other cables. < Use only the stand specified for the instrument. When attaching the stand or rack, use the provided screws only. Failure to do so could cause damage to the internal components or result in the instrument falling over. + Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level e When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths. Handling caution Do not insert a finger or hand in any gaps on the instrument. Never insert or drop paper, metallic, or other objects into the gaps on the panel or keyboard. If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualified Yamaha service personnel Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard. Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors. Do not operate the instrument for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. lf you experience any hearing loss or ringing in the ears, consult a physician. ETUTTET Saving and backing up your data + The panel settings and some other types of data (page 42) will be lost if the power is turned off before they are saved. Be sure to save data you want to keep to the internal Flash Memory (page 42) before turning off the power. Saved data may be lost due to malfunction or incorrect operation. Save the important data to your computer. For information on sending the data, see page 64 (FUNCTION Bulk Send item) Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed. Always turn the power off when the instrument is not in use. When using a power adaptor, even when the power switch is in the “STANDBY” position, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long time, make sure you unplug the AC power adaptor from the wall AC outlet. Make sure to discard used batteries according to local regulations. instrument + Theillustrations and LCD screens as shown in this owners manual are for instructional purposes only, and may be different from the ones on your + Unless otherwise indicated, the example panel control illustrations, Keyboard illustrations and LCD screenshots are taken from the DGX-205. < Please note that the DGX-205/203 and PSR-295/293 have different numbers of keys: the DGX-205/203 has 76 keys, and the PSR-295/293 has 61 keys. © Trademarks + Windows is the registered trademark of Microsoft® Corporation. + All other trademarks are the property of their respective holders. {4-8 2/2 DGX-205/203, PSR-295/293 Ouners Manual P

Copyright Notice The followings are the titles, credits and copyright notices for three (3) of the songs pre-installed in this electronic keyboard: Don’t Know Why Words and Music by Jesse Harris Copyright© 2002 Sony/ATV Songs LLC and Beanly Songs AIL Rights Administered by Sony/ATV Music Publishing, 8 Music Square West, Nashville, TN 37203 International Copyright Secured_AIl Rights Reserved My Favorite Things from THE SOUND OF MUSIC Lyrics by Oscar Hammerstein II Music by Richard Rodgers Copyright© 1959 by Richard Rodgers and Oscar Hammerstein II Copyright Renewed WILLIAMSON MUSIC owner of publication and allied rights throughout the world International Copyright Secured_AIl Rights Reserved Killing Me Softly With His Song ‘Words by Norman Gimbel Music by Charles Fox Copyright © 1972 Rodali Music and Fox-Gimbel Productions, Inc. (PO. Box 15221, Beverly Hills, CA 90209 USA) Copyright Renewed AI Rights on behalf of Rodali Music Administered by Sony/ATV Music Publishing, 8 Music Square West, Nashville, TN 37203 International Copyright Secured _AIl Rights Reserved AIl Rights Reserved, Unauthorized copying, public per- formance and broadeasting are strictly prohibited regard- ing the above three songs pre-installed. COPYRIGHT NOTICE This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use others’ copyrights. Such copyrighted materials include, with- out limitation, all computer software, styles files, MIDI files, WAVE data and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES. Copying of the commercially available software is strictly prohibited except for your personal use. GENERAL GM System Level 1 Min “GM System Level Lis an addition to the MIDI standard which ensures that any GM-compatible music data can be accurately played by any GM-compatible tone generator, regardless of manufacturer, The GM mark is affixed to all software and hardware products that support GM System Level. XGlite

As its name implies, “XGlite” is a simplified version of Yamaha”s high-quality XG tone generation format, Naturally, you can play back any XG song data using an XGlite tone generator. However, keep in mind that some songs may play back differently compared to the original data, due to the reduced set of control parameters and effects. Long USB USB is an abbreviation for Universal Serial Bus. I is a serial interface for connecting a computer with peripheral Devices. It allows “hot swapping” (connecting peripheral devices while the power to the computer is on). Q DGX-205/203, PSR-295/293 Owner's Manual

Congratulations and thank you for purchasing the Yamaha DGX-205/203 Portable Grand or PSR-295/293 PortaTone! Please read this owner’s manual carefully before using the instrument in order to take full advantage of its various features. Make sure to keep this manual in a safe and handy place even after you finish reading, and refer to it often when you need to better understand an operation or function. The DGX-205/203, PSR-295/293 package includes the following items. Please check that you have them all. + Music rest - Accessory CD-ROM + Owner's manual (this book) + Song book © About the Supplied CD-ROM The following software which facilitates data transfer between a computer and the instrument is provided on the sup- plied CD-ROM. This software is compatible with Windows operating systems only. + USB driver + Musicsoft Downloader The USB Driver enables data communication with the computer via USB. The Musicsoft Downloader application allows you to transfer songs downloaded from the Internet, as well as songs provided on the Accessory CD-ROM, to the instruments flash memory. For details refer to the Accessory CD-ROM Installation Guide (page 70) and to the online help provided for each program. À\ CAUTION + Never attempt to play the supplied CD-ROM on an audio CD player. Doing so can result in damage to your audio system and speakers, and potentially to your hearing! © Music Rest Insert the music rest into the slots as shown. DGX-205/203, PSR-295/293 Ouners Manual @

== Special features of the DG-205/203, PSR-295/293 =? EH Performance assistant technology » page 14 Play along with a song on the instrument’s keyboard and produce a perfect 4 performance every time … even if you play wrong notes! AIl you have to do l IT T! is play on the keyboard — alternately on the left- and right-hand ranges of the [LL | ] Il keyboard, for example — and you’ll sound like a pro as long as you play in \17 time with the music. H Play a Variety Of Instrument Voices » page 18 The instrument voice that sounds when you play the keyboard can be changed to violin, flute, harp, or any of an extensive range of voices. You can change EU < the mood of a song written for piano, for example, by using violin to play it instead. Experience a whole new world of musical variety.

EH Learning music is fun » page 32 This instrument includes a range of songs covering a variety of genres that are enjoyable to listen to, or to play along with. You can start practicing with just one hand, and you can even practice at your own tempo, one note at a time as slowly as you like, until you are able to play at full speed. Song playback will automatically follow your tempo. You can also use songs you have down- loaded from the Internet for lessons, so your musical resources are essentially unlimited! The instrument will even evaluate and grade your performance for you! H Play Along With Styles » page 24 Want to play with full accompaniment? Try the auto-accompaniment Styles. The accompaniment styles provide the equivalent of a full backing band cov- ering wide variety of styles from waltzes to 8-beat to euro-trance … and much more. Select a style that matches the music you want to play, or experiment with new styles to expand your musical horizons. @ DGX-205/203, PSR-295/293 Owner's Manual

Contents Copyright Notice Panel logos .… Supplied Accessories. Special features of the DGX-205/203, PSR-295/293. Setting Up Power Requirements … Connecting headphones (PHONES/OUTPUT jack) … Connecting a footswitch (SUSTAIN JACK)... Connecting to a computer (USB terminal) . Turn on the power... Panel Controls and Terminals Front Panel … Rear Panel... Quick Guide The Easy Way To Play Piano 14 Play With Both Hands... Change the Song Tempo. Play the Demo Song. Try Playing a Variety Of Instrument Voices 18 Select and Play a Voice — MAIN Play Two Voices Simultaneously — DUAL . Play Different Voices With the Left and Right Play the Grand Piano Voice. Pitch Bend (DGX-205/203 only) Touch Response. Reference Handy Performance Features 46 Adding Reverb . Adding Choi The Metronome. Touch Response Sensitivity. One Touch Adjusting th Adjusting th Panel Sustain

Setting Up Be sure to do the following operations BEFORE turning on the power. Power Requirements Although the instrument will run either from an optional AC adaptor or batteries, Yamaha recommends use of an AC adaptor whenever possible. An AC adaptor is more environmentally friendly than batteries and does not deplete resources. H Using an AC Power Adaptor © Make sure that the [STANDB Y/ON] switch of the instrument is set to STANDBY. À WARNING + Use ONLY a Yamaha PA-5D or PA-3C AC Power Adaptor (or other adaptor specifically recommended by Yamaha) to power your instrument from the AC mains. The use of other adaptors may result in irreparable damage to both the adaptor and the instrument. @ Connect the AC adaptor (PA-5D, PA-3C or other adaptor specifically recommended by Yamaha) to the power supply jack. @ Plug the AC adaptor into an AC outlet. À caAuTION Unplug the AC Power Adaptor when not using the instrument, or during electrical storms. PA-D or PAG [D AC outiet H Using Batteries © Open the battery compartment cover located on the instrument’s bottom panel. @ Insert the six new batteries, being careful to follow the polarity markings on the inside of the compart- ment. @ Replace the compartment cover, making sure that it locks firmly in place. [NOTE + Connecting the AC power adaptor automatically supplies power from the adaptor and overrides battery power, even when batteries are installed. @ DGX-205/203, PSR-295/293 Owner's Manual For battery operation the instrument requires six 1.5V “D” size, R20P (LR20) or equivalent batteries. (Alkaline batteries are recommended.) When battery power becomes too low for proper operation, the battery exchange indication flashes in the display. As soon as this message appears, make sure to replace all batter- ies, following the precautions listed below. If necessary, also make sure to save all important User data (see page 42), since custom panel settings are lost when the batteries are removed. À CAUTION + Use only manganese or alkaline batteries for this instrument. Other types of batteries (including rechargeable batteries) may have sudden drops of power when battery power becomes low, possibly resulting in loss of data in the flash memory. + Make sure to install the batteries in the same direction, maintain- ing the correct polarity (as shown). incorrect battery installation may result in heat, fire and/or leaking of corrosive chemicals. + When the batteries run down, replace them with a complete set of six new batteries. NEVER mix old and new batteries. Do not use different kinds of batteries (e.g. alkaline and manganese) at the same time. + Ifthe instrument is not to be in use for a long time, remove the bat- teries from it, in order to prevent possible fluid leakage from the battery. + Please use the power adaptor when transferring data to flash memory. Batteries (including rechargeable types) can be drained rapidly by this type of operation. If the batteries do become drained during a data transfer, both the data being transerred and the data currently in the transfer destination will be lost.

Setting Up Make all necessary connections BEFORE turning the power on. Connecting headphones (PHONES/OUTPUT jack) PHONES/ OUTPUT The DGX-205/203, PSR-295/293 speakers are automat- ically shut off when a plug is inserted into this jack. The PHONES/OUTPUT jack also functions as an exter- nal output. You can connect the PHONES/OUTPUT jack to a key- board amplifier, stereo system, mixer, tape recorder, or other line-level audio device to send the instrument’s output signal to that device. À WARNING + Avoid listening with the headphones at high volume for long peri- ods of time; doing so may not only result in ear fatigue, it may be damaging to your hearing. À caurion + To prevent damage to the speakers, set the volume of the external devices at the minimum setting before connecting them. Failure to observe these cautions may result in electric shock or equipment damage. Also, be sure to set the volumes of all devices at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level. Connecting a footswitch (SUSTAIN JACK) SUSTAIN The sustain function lets you produce a natural sustain as you play by pressing an optional footswitch. Plug the Yamaha FC4 or FCS footswitch into this jack and use it to switch sustain on and off. NOTE j + Make sure that the footswitch plug is properly connected to the SUS- TAIN jack before turning on the power. + Do not press the footswitch while turning the power on. Doing this changes the recognized polarity of the footswitch, resulting in reversed footswitch operation. Connecting to a computer (USB terminal) Connect the instrument’s USB terminal to the USB ter- minal of a computer, and you can transfer performance data and song files between the two (page 66). To use the USB data-transfer features you’Il need to do the following: + Connect the USB terminal of the computer to the USB terminal on the instrument using a standard USB cable. + Install the USB MIDI driver on your computer. Installation of the USB MIDI driver is described on page 71. With this capability you can, for example, use the Musicsoft Downloader software provided on the sup- plied CD-ROM to transfer songs from your computer to the instrument’s flash memory. + Make sure to purchase a quality USB cable at a musical instrument store, computer store or electrical appliance store. Turn on the power Turn down the volume by turning the [MASTER VOL- UME] control to the left and press the [STANDB Y/ON] switch to turn on the power. Pressing the switch again turns the power off. Backup data in the flash memory (page 42) is loaded to the instrument when the power is turned on. If no backup data exists on flash memory, all instrument set- tings are restored to the initial factory defaults when the power is turned on. À cAUTION + Even when the switch is in the “STANDBY" position, a small amount of electricity is still being consumed by the instrument. When you are not using the instrument for a long time, make sure you unplug the AC power adaptor from the wall AC outlet, and/or remove the batteries from the instrument. À caurIon + Never attempt to turn the power off when a “WBITING!” message is shown in the display. Doing so can damage the flash memory and result in a loss of data. DGX-205/203, PSR-295/293 Ouners Manual @

t ]® Lemon + | = db 1 48] [>= @ DGX-205/203, PSR-295/293 Owner's Manual sm | Ca ue) (e) (e)

The Easy Way To Play Piano ON This instrument includes a performance assistant technology feature that lets you play along with a song and sound like a great pianist (even though you might be making lots of mistakes)! In fact, you can play any notes and still sound good! So even if you can't play piano and can't read a note of music, you can have some musical fun. The secret to the performance assistant technology’s ability to turn random playing into music is divulged on page 16. Enjoy the feature for a while first, then read about how its done. DT Play With Both Hands To use the performance assistant technology you must be playing a song that includes chord data. Oo Press the [SONG] button. The song number and name will be displayed. You can use the dial or other NOTE selection controls to select a different song. + For details on Chords, see pages 53, 54. SONG rer Song name Sue Song number VOICE _- r2) Select a song. Rotate the dial and watch the displayed song names — for this example we”’Il select song “026 Twinkle Star.” + MIDI songs included on the sup- plied Accessory CD-ROM can also be transferred to the instru- ment and used with the pertor- mance assistant technology. (age 16, 68) The song displayed here will be played. Q Press the [PERFORMANCE ASSISTANT] button. This turns on the performance assistant technology feature. Icon will appear after displaying “PERFORMANCE ASSISTANT”. @ DGX-205/203, PSR-295/293 Owner's Manual

Press the [PERFORMANCE ASSISTANT] button to turn the function on or off. Icon will appear when performance assistant technology is on. [4] Press the [START/STOP] button. Song playback will begin. Use the [MASTER VOLUME] control to adjust the overall volume. STYLE MASTER

Nérs D St ebiou ANOUL sranr/sron

JU) (we) pe se “ < > nu Ÿ Adjust volume (5 Play on the keyboard. To begin, try to feel the rhythm of the song. Then, with your hands spread as shown in the illustration, simply play the keyboard alternately with your left and right hands (any notes will do).

s Z __— FF You will get even

L (il Sounds ie yourà BG better results if you | 7 ayingtne night match your left-hand Î TI notes! rhythm to the rhythm ee E ns of the chord indica- tor in the display. How does it sound? You’Il get acceptable results no matter where you play thanks to performance assistant technology! Next try the three playing methods illustrated below. Different ways of playing produce different results. © Play with the left and right hands © Play withthe left andright hands © Play alternately with the left at the same timing — type 1. at the same timing — type 2. and right hands — type 3. LL LL Ve nenden Nm Play 3 notes at once with your right hand hand (for example: index finger — with your right hand, middle finger - ring fingen) Once you get a feel for it, try playing chords with your left hand and a melody with your right … or any other combination. Song playback will stop automatically when the song has played all the way through. You can also stop playback at any time by pressing the [START/STOP] button. When you want to end performance assistant technology operation press the [PERFORMANCE ASSISTANT] button. DGX-205/203, PSR-295/293 Ouners Manual LE

Quick Guide The Easy Way To Play Piano

— The Secret Of performance assistant technology — How It Creates Music From Random Notes Performance assistant technology reads the chord data from the song and only assigns notes that will “work” at that moment to the keyboard. Since the chords of a song are constantly changing, different notes and chords will be pro- duced even if you repeatedly play the same keys. Song + Melody data + Chord data + Rhythm data V Playback performance assistant technology Chord tones and other usable notes are assigned to the keyboard. You produce a harmoni- ous group of notes no matter where you play. © Songs That Can Be Used With the performance assistant technology Performance assistant technology can only be used with songs that include chord data. Preset Songs can be used with performance assistant technology since the songs include chord data. © External Songs and the performance assistant technology In addition to the instrument’s internal songs, the 70 songs provided on the Accessory CD-ROM (page 70) can be used with performance assistant technology. A list of the MIDI songs included on the Accessory CD-ROM is provided on page 85. Songs downloaded from the Internet can also be used with performance assistant technology as long as they include the required chord data. Transfer song files you want to use from your computer to the instrument’ flash memory (page 68). Fm DGX-205/203, PSR-295/293 Owner's Manual

The Easy Way To Play Piano Quick Guide DT Change the Song Tempo When using the performance assistant technology or in other situations in which the tempo of the song is too fast or too slow for you, you can change the tempo as required. Press the [TEMPO/TAP] button. The tempo display will appear and you can use the dial, the [+] and [-] buttons, or the [0] — [9] number buttons to set to tempo to anywhere from 032 and 280 quarter-note beats per minute.

Le) Current Tempo value You can also set the tempo by simply tapping the [TEMPO/TAP] button at the required tempo — 4 times for time sig- natures in 4, and three times for time signatures in 3. You can change the tempo during song playback by pressing the button just twice. TEMPO” pes PET LA b You can return to the original tempo by simultaneously pressing the [+] and [-] buttons. About the Beat Display The arrow marks in the beat display flash in time with the rhythm of the song or style.

Third beat Second beat Fourth beat First beat of measure D" | Play the Demo Song DGX-205/203 and PSR-295/293 are packed with a total of 30 songs, including three Demo songs — listen to some of the outstanding instrument voices provided! You can use the performance assistant technology with the demo songs. Oo Press the [DEMO] button. The demo songs will start playing. The song playback sequence will repeat: 001 — 002 — 003 — 001 … You can stop demo playback at any time by pressing the [START/STOP] button.

riety Of Instrument Voices In addition to piano, organ, and other “standard” keyboard instruments, this instrument has a large range of voices that includes guitar, bass, strings, sax, trumpet, drums and percussion, sound effects … a wide variety of musical sounds. D” Select and Play a Voice — MAIN This procedure selects the main voice you will play on the keyboard. The voice is known as the “main voice.” Oo Press the [VOICE] button. The voice number and name will be displayed. You can use the dial or other selection controls to select a different song. SONG

12] Select the voice you want to play. While watching the displayed voice name rotate the dial. The available voices will be selected and displayed in sequence. The voice selected here becomes the + You can also select the voice LC using the CATEGORY button main voice. IÀ1. [5 ] after pressing the For this example select the 090 Flute voice. IVOICE] button. Select 090 Flute [3] Play the keyboard. IL il Try selecting and playing a variety of voices. @ DGX-205/203, PSR-295/293 Owner's Manual

Try Playing a Variety Of Instrument Voices Quick Guide DL Play Two Voices Simuitaneously — DU You can select a second voice which will play in addition to the main voice when you play the keyboard. The second voice is known as the “dual” voice. Oo Press the [DUAL] button. The [DUAL] button turns the dual voice on or off. When turned on the dual voice icon will appear in the display. The currently + The dual voice festure cannot . : : . La be used during a song lesson selected dual voice will sound in addition to the main voice when you play the (page 32). keyboard. roucu_ 2 HARMONY Z ouai _7 É DUAL Et Dual voice icon "2 Press and hold the [DUAL] button for longer than a second. “D. VOICE” appears in the display for a few seconds, then the currently selected dual voice will be displayed. + You can also select the Dual Voice display by pressing the IFUNCTION] button and then roucu # using the CATEGORY buttons ms to select the ‘D. Voice" item. Hold for longer The currently selected dual voice than a second 3] Select the desired dual voice. Watch the displayed dual voice and rotate the dial until the voice you want to use is selected. The voice selected here becomes the dual voice. For this example try selecting the 107 Vibraphone voice. DGX-205/203, PSR-295/293 Ouners Manual pis

Quick Guide Try Playing a Variety Of Instrument Voices [4] Play the keyboard. Two voices will sound at the same time. Try selecting and playing a range of dual voices. 7] Play Different Voices With the Left and Right Hands — SPLIT In the split mode you can play different voices to the left and right of the keyboard “split point.” The main and dual voices can be played to the right of the split point, while the voice played to the left of the split point is known as the “split voice”. The split point setting can be changed as required (page 51). Ts ÿ Main voice and dual voice Oo Press the [SPLIT] button. The [SPLIT] button turns the split voice on or off. When turned on the split voice icon will appear in the display. The currently + The split voice feature cannot Lo : E be used during a song lesson selected split voice will sound to the left of the keyboard split point. (page 32). rouca Z HarMONY 2 ou 7 seur £ SPLIT K Split voice icon 12] Press and hold the [SPLIT] button for longer than a second. “S. VOICE” appears in the display for a few seconds, then the currently selected split voice will be displayed. + You can also select the Split Voice display by pressing the vous 2 IFUNCTION] button and then É using the CATEGORY buttons to select the “S. Voice” item. HARMONY Z pua 2 seur 2 Ÿ The currently selected SPLIT voice Hold for longer than a second Æ DGX-205/203, PSR-295/293 Owner's Manual

Try Playing a Variety Of Instrument Voices Quick Guide Q Select the desired split voice. Watch the displayed split voice and rotate the dial until the voice you want to use is selected. The voice selected here becomes the split voice which will play to the left of the keyboard split point. For this example try selecting the 031 Folk Guitar voice. Try selecting and playing a range of split voices. DGX-205/203, PSR-295/293 Ouners Manual @

Quick Guide Try Playing a Variety Of Instrument Voices DT Play the Grand Piano Voice ‘When you just want to play piano, all you have to do is press one convenient button. Press the [PORTABLE GRAND] button. The “001 Grand Piano” voice will be selected. + When you press the [PORTA- BLE GRAND) button all settings other than touch sensitivity are turned off. The dual and split voices will also be turned off, so only the Grand Piano voice will play over the entire keyboard. PORTABLE

7] ch Bend (DGX-205/203 only) The pitch bend wheel provided on the DGX-205/203 can be used to add smooth pitch variations to notes you play on the keyboard. Roll the wheel upward to raise the pitch, or downward to lower the pitch. If you use this feature with a voice such as the “038 Overdriven” guitar voice (page 18), you can produce remarkably realistic string-bending effects. D" | Touch Response ‘When touch response is on you can control the volume of notes according to how hard you play the keys — much like a real piano responds to subtle touch nuances. When touch response is off the same volume will be produced no mat- ter how hard you play the keys. Press the [TOUCH] button. The [TOUCH] button turns touch response on or off. Touch response is normally on. When touch response is on the touch response icon will appear in the display. + Touch response sensitivity can be adjusted in three steps — page 49. roue 2 sur 2 Touch response icon @ DGX-205/203, PSR-295/293 Owner's Manual

Fun Sounds This instrument includes a range of drum kits and unique sound effects you can use for entertainment. Laughter, babbling brooks, jet fly-bys, eerie effects, and much more.These sounds can be a great way to enhance the mood at parties. e Drum Kits e Drum kits are collections of drum and percussion instruments. When you select a violin or other normal instrument main voice, for example, all keys produce the sound of the same violin, only at different pitches. If you select a drum kit as the main voice, however, each key produces the sound of a different drum or percus- sion instrument. + Drum Kit Selection Procedure + (refer to steps 1 and 2 on page 18) Press the [VOICE] button. 2 Use the dial to select “115 Std. Kit”. S Try out each key and enjoy the drum and percussion sounds! Dont forget the black keys! You’l hear a trian- gle, maracas, bongos, drums . a comprehen- sive variety of drum and percussion sounds. For details on the instruments included in the drum kit voices (voice numbers 115 — 126), see the “Drum kit List” on page 82. e Sound Effects e The sound effects are included in the drum kit voice group (voice numbers 125 and 126). When either of these voices are selected you will be able to play a range of sound effects on the keyboard. + Sound Effect Selection Procedure = (refer to steps 1 and 2 on page 18) 4 Press the [VOICE] button from the MAIN display. 2 _ Use the dial to select “126 5FX Ki S Try out each key and enjoy the sound effects! As you try out the various keys you’Il hear the sound of a submarine, a telephone bell, a creaking door, laughter, and many other useful effects. “125 5F# Kit 1” includes light- ning, running water, dogs barking, and others. Some keys do not have assigned sound effects, and will therefore produce no sound. For details on the instruments included in the SEX kit voices, see “SEX Kit 1” and “SEX Kit 2” in the “Drum kit List” on page 83. DGX-205/208, PSR-295/293 Ouner's Manual

c) Styles (Auto Accompaniment) This instrument includes an auto-accompaniment feature that plays appropriate “styles” (rhythm + bass + chord accompaniment) when you play left-hand chords. 135 different styles covering a wide range of musical genres are provided (see page 84 for a complete style list). Here’s how you can use the auto-accompaniment feature. 7] Play Along With Auto Accompaniment — STYLE Oo Press the [STYLE] button. The currently selected style number and name will be displayed. You can now use the dial to select the desired style STYLE (mr à VOICE Ce) "2 Select a style. Use the dial to select a style. For this example try selecting the “080 PopBossa” style. The currentiy selected style number and name [3] Press the [START/STOP] button. Rhythm-only playback of the selected style will begin. [NOTE j + Since style number 112 and the a ——— pianist category styles (124 - AD Vu sranr/sror 138) have no rhythm parts, no sound will be produced if you ==} Style rhythm start! Start rhythm-only playback. To use these styles turn on the auto-accompaniment and play on the keyboard as described on page 28 (the bass and chord accompaniment parts will 14] Press the [START/STOP] button again. sound). The style rhythm will stop. Q Press the [ACMP ON/OFF] button. This turns auto-accompaniment on. Check that “ACMP ON” appears in the dis- DNOTE j play. + If*ACMP ON"is not showing in : the display press the [ACMP SE ON/OFF] button so that it rs FN SR ebom ANOL srmar/sron appears. The [ACMP ON/OFF] = mr button alternately turns auto- ()C)(e] Con) accompaniment on and of. T a F = Ÿ ACMP ON “ACMP ON" appears when auto-accompaniment is on. @ DGX-205/203, PSR-295/293 Owner's Manual

Styles (Auto Accompaniment) Quick Guide © When Auto-accompaniment Is On + The auto-accompaniment range The left-hand section of the keyboard becomes the “accompaniment range” in of the keyboard can be changed ” as required by changing the which you will play the chords that define the accompaniment. split point (page 51) Split point

gr Accompaniment range -Ÿ If you press the [START/STOP] button at this point rhythm-only playback will begin. Then if you play a chord in the accompaniment range bai accompaniment will also begin. You can start style playback in a number of ways see page 28. @ Press the [INTRO/ENDINGr/rit.] button. “INTRO-—A" or “INTRO-—B” will appear in the display. Style playback will then start with an introduction, which will lead to either the MAIN A or MAIN B accompaniment pattern, accordingly. STYLE EC PE RE AE LA ONorrs SO Sir enDNOm Auto sranr/srop Cfrercelis [ul Ces]

SONG o Press the [SYNC START] button. The beat display will begin flashing, indicating that the synchro-start standby mode has been engaged. STYLE

ONGrs SO _ SR ENDNO AUOHU sranr/srop ] rs AB CL CIGICG © The Synchro-start Standby Mode Is When the synchro-start standby mode is engaged style playback will begin as soon as you play a chord in the accompaniment range of the keyboard. You can disengage the synchro-start standby mode by pressing the [SYNC START] button again. Synchro-start standby mode Start style playback by playing a chord in the accompani- ment range of the keyboard. Not sure how to play chords? No problem! This instrument is capable of playing chords even if you only play one key — refer to page 53 for detailed instructions for playing chords. There’s even a “Chord Dictionary” that will show you the fingerings for chords you specify by name (page 55). Split point AGcompaniment range IR ==} Style start DGX-205/203, PSR-295/293 Ouners Manual À

Quick Guide Styles (Auto Accompaniment) Q Play along with the style. Play a melody with right hand while playing cords in the accompaniment range of the keyboard with your left hand. The beat display will flash at the current playback tempo. Accompani- —— ment range —— TT my ([chords ) {Melody ) 7 Flashes atthe L ) L … current tempo Each style has two main patterns - MAIN A and MAIN B. If you press the [MAIN/AUTO FILL] button during playback a fill-in will play and then playback will switch to the other MAIN pattern. © An example of how you might play a pattern: Siyie preparation =D] INTRO À |-—+[ main ol FILLE }-f{ ans }-f envie ES sie stop at à e à ntm (2 | KL KL ) oo Press the [INTRO/ENDING/rit.] button to end. Style playback will stop after an appropriate ending. STYLE HET IS HE NN M one CII) EE [re] Lea] = s a sons This feature adds harmony notes to the main voice. When you press the [HARMONY] button to turn this feature on, the appropriate harmony type for the currently selected main voice is automatically selected. 26 different harmony types are provided. You can select a different har- mony type by following the procedure outlined below. The effect and operation of each harmony type is different — refer to the Harmony Type List on page 86 for details. Oo Press the [HARMONY] button. The [HARMONY] button turns the harmony feature on and off. NOTE | When harmony is on the harmony icon will appear in the display. + Harmony cannot be turned on or off during a song lesson. rouca Z Hamon À mŸ \ (ne GTIHARMONY) sur 2 Harmony icon F DGX-205/203, PSR-295/293 Owner's Manual

Styles (Auto Accompaniment) a Press and hold the [HARMONY] button for longer than a second. “HarmType” appears in the display for a few seconds, and the currently selected harmony type will be displayed. Use the dial to select a different harmony type. roucu 2 HARMONY À EX) CR Hoi or longer seur {than a second The currently selected har- mony type @ Select a harmony type. Rotate the dial to select a harmony type from 01 through 26. Select “03 (Block)” for this example. “03 (Block)” selected 14] Perform steps 1,2, 3, and 5 on page 24. Auto-accompaniment will be on. Check that “ACMP ON” appears in the display. If “ACMP ON” is not showing in the display press the [ACMP ON/OFF] button so that it appears. Q Play a chord in the accompaniment range of the keyboard. Style playback will begin. Split point

[6] Play the keyboard. Harmony notes will be added to a melody you play in the right-hand section of the keyboard. L Accompaniment range - (Melody ) KL D Quick Guide + You can also select the Har- mony Type item after pressing the [FUNCTION!] button (page 62). + Harmony types 01 — 05 only function when auto-accompani- ment is on and a style is being played. Harmony notes are added to the right-hand melody based on the chords played in the accompaniment range ofthe keyboard. + Harmony types 06 - 26 can be used when auto-accompani- ment is off. After Step 4, try play- ing these harmony types after checking the operating condi- tions listed in the Harmony type list on page 86. “ACMP ON" appears [NOTE + The Harmony feature produces litle or no effect with drum kit or sound effect voices. Use the Harmony feature with pitched instrument voices. DGX-205/203, PSR-295/293 Ouners Manual @

Quick Guide Styles (Auto Accompaniment) EH A Variety Of Ways To Start and Stop Style Playback EH Ways To Start Style Playback. .ssosossosoososoee There are four different ways to start style playback, listed below. In all cases you will need to press the [ACMP ON/OFF] button to turn auto-accompaniment on before actually starting style playback. Whichever method you choose, you can press the [INTRO/ENDING/rit.] before start- ing playback. To begin your performance, an introduction will play automatically, then will automatically switch to the MAIN section when finished. © Immediate Start Press the [START/STOP] button to begin rhythm-only playback of the selected style. The bass and chords will begin playing as soon as you play a chord in the accompaniment range of the keyboard. STYLE

© Chord Start Press the [SYNC START] button and the beat display will begin flashing, indicat- ing that the synchro start “standby”’ mode has been engaged. The style will begin playing as soon as you play a chord in the accompaniment range of the keyboard. Accompani- — ment range — Nisitelles] RIRES =) Il Style playback begins when you play a chord STYLE

RUE. nn ONG 2 SO NO HAN ENDNG/a AUTO LL START/STOP Synchro-start standby © Synchro Stop When this function is selected the accompaniment style will only play while you are playing chords in the accompaniment range of the keyboard. Style playback will stop when you release the keys. Press the [SYNC STOP] button. The synchro-start standby mode will be engaged and the beat display will begin flashing. Style playback will begin as soon as you play a chord in the accompaniment range of the keyboard, but then style playback will stop (the synchro start standby mode will be re-engaged) when you release the left-hand keys. Style playback will continue only while you are actually playing in the keyboard’s accompaniment range. Accompani- STYLE _. — ment range

Nez NS SN on AOL smnyero The style will play ] d sn | [48 CL » [LL al | while you are playing nn NE — the keys Style playback will stop when you release [T1 the keys YNC. STOP) ; Synchro-stop indicator Synchro-start standby Press the [SYNC STOP] button to disengage the synchro-stop mode. F DGX-205/203, PSR-295/293 Ouner's Manual

Styles (Auto Accompaniment) Quick Guide @Tap Start You can supply a count-in at any tempo you like to start playback. Simply tap the [TEMPO/TAP] button at any tempo — 4 times for time signatures in 4, and 3 times for time signatures in 3 — and the selected style will begin playing at the tapped tempo. TEMPO” | LÉ LE ==} Start at the tapped tempo HE Ways To Stop Style Playback . + + The following three methods can be used to stop style playback. © Immediate Stop Playback will stop as soon as you press the [START/STOP] button. STYLE SonG © Stop and Enter Synchro Start Mode If you press the [SYNC START] button during style playback, playback will stop immediately and the synchro-start standby mode will be engaged (the beat display will flash). STYLE

bre HS SU RQ aMOVu sranvero ] AB ==} Stop immediately and enter the Synchro Start mode SonG Synchro-start standby © Play the Ending and Stop Press the [INTRO/ENDING/rit.] button to begin playing ending section. Playback will stop when the ending has played all the way through. STYLE SN SN NN Mrs ME EDRS/n ANS srart/sror (E) CE s] RER Cm) un} Stop after ending plays

If you press the [INTRO/ENDINGrit.] button a second time (while the ending is playing) the ending will play ritardando (the tempo will gradually get slower). H Changing the Voice .e During style playback the voice you play on the keyboard is the currently selected main/dual/split voices. Select an appropriate voice for the style you are using in the normal way (page 18). DGX-205/203, PSR-295/293 Ouners Manual @

c 27 Using Songs NS This instrument has 30 built in songs that you can simply listen to and enjoy, or use with a range of other features. Use the songs with the les- son features described on page 32 and you have an advanced learning tool that will let you learn playing techniques. The internal songs aren’t the only ones you can use, however. Songs you have downloaded from the Internet can also be used with many of the instrument’s features. The term “SONG” refers to a data file including both melody and auto-accompaniment data. | Select and Listen To a Song Oo Press the [SONG] button. The song number and name will be displayed. You can now use the dial to select a different song. SONG

STYLE VOICE The currentiy selected song and number are displayed "2 Select a song. NOTE_ | Select a song after referring to the preset song category list on page 31. + In addition to the dial you can Rotate the dial to select the song you want to listen to. also use the [+] and [-] buttons or the number buttons [0] - [9] 10 directly select songs. + You can also listen to songs you have recorded yourself (page

38) and songs transferred from

computer into the instruments flash memory (page 68). The song displayed here can be played [3] Listen to the song. Press the [START/STOP] button to begin playback of the selected song. You can stop playback at any time by pressing the [START/STOP] button again.

| Com Em} songstart F3 DGX-205/203, PSR-295/293 Owner's Manual

Using Songs Quick Guide DL Types Of Songs The following three types of songs can be used by the DGX-205/203 and PSR-295/293. © Preset Songs (the 30 songs built into the instrument)... .. Song numbers 001 — 030. © User Songs (recordings of your own performances) …. . Song numbers 031 — 035. © External song files (song data transferred from a computer*) … Song numbers 036 —.

• The Accessory CD-ROM includes a selection of 70 MIDI songs. See page 68 for instructions on how to transfer the songs to the instrument. The different types of songs can be saved to different song numbers. The chart below shows the basic DGX-205/203 and PSR-295/293 processes flow for using the preset songs, user songs, and external song files — from storage to play- back. Computer Your own performance External song file Record Transfer (page 39) (page 68) { External song files can be saved to flash | À. memory (036 -). DGX-205/203, PSR-295/293 Song Storage locations Preset Songs User Songs Flash Memory (001 — 030) (031 — 035) (036 — 134) + Different flash memory areas are used to store user songs The 30 songs Stored in the Save to inter- and external song files trans- buit into the internal flash nal flash mem- ferred from a computer. User instrument. memory. ory. Currentiy songs cannot be directly available. transferred to the external song file flash memory area, | and vice versa. © Preset Song Categories The 30 preset songs have been organized into 8 categories that make it easier to select appropriate songs for lessons. Refer to this chart when selecting songs. Play Category Number Ideal for … Favorites 001-003 | Popular songs, for people who want to play pops. Easy Play 004-008 | Right-hand melody songs. Ideal for beginner lessons. Pianist 009-013 FoK songe arangec for piano. For people who want to play in a Organist 014-016 | Players who enjoy the rich resonance of organ pieces. Advanced 017-021 | Lively tunes … when its time to move up from one-hand lessons. Band Play 022-024 | Slow ballads. Experience the role of the pianist in an ensemble. Duet 025-027 | Songs made up of two right-hand melodies. Holidays 028-030 | Songs for anyone who wants to expand their repertoire. DGX-205/203, PSR-295/293 Ouners Manual F

Select a Song For a Lesson Yamaha Education Suite 4 You can select any song you like and use it for a left-hand, right-hand, or both-hands lesson. You can also use songs (only SMF format 0) downloaded from the Internet and saved to flash memory. During the lesson you can play as slowly as you like, and you can even play wrong notes. Song playback will slow down to a speed you can handle. It's never too late to start learning! The lesson procedure is as follows: Select the song you want to learn. (Refer to the category list on page 31) Select the part you want to work on (right hand, left hand, both hands) (Refer to step 2 below) Select lesson 1,2, or 3. (Refer to step 3 on page 33) @ Lesson 1 @Lesson 2 . (Learn to play the correct notes): The song will wait until you play the right note. . (Learn to play the correct notes with the correct timing): Song playback tempo will vary to match the speed you are playing at. The song will slow down when you play wrong notes, so you can learn at your own pace. {Learn to play the correct notes at the correct timing along with the song): here’s where you can perfect your technique. Only songs in SMF Format 0 can be used for practice. You need to specify which channels are to be played back as the right/left-hand parts when you practice using songs downloaded from the Internet (page 69). DT Lesson 1: Waiting Oo Select a song for your lesson. @ Lesson 3... + Song numbers 004 - 008 (Sim- Press the [SONG] button so that the song number and name are displayed. Use ple melodies) are intended for : : use as right-hand lessons, and the dial to select the song you want to use for your lesson. As listed on page 31 ‘cannot be used for left-hand or there are a variety of song types. For this example select “011 Londonderry Air” both-hands lessons. from the “PIANIST” category (009 — 013). SONG STYLE VOICE _; a Select the part you want to practice. Press the [LESSON L/R] button to select the part you want to practice. Each time you press the [LESSON L/R] button the parts are selected in sequence: right hand — left hand — both hands — right hand .….. The currently selected part is shown in the display. pEuo LuODE rem _L/R Right Right-hand lesson

Ecrit HiHaricl | Both-hands lesson LL] @ DGX-205/203, PSR-295/293 Owner's Manual

Select a Song For a Lesson Quick Guide @ Use the [LESSON MODE] button to select Lesson 1. Press the [LESSON MODE] button to select Lesson 1. Each time the [LESSON MODE] button is pressed the lesson modes are selected _ in sequence: Lesson 1 > Lesson 2 Lesson 3 > Off > Lesson 1 …. The cur- at umper ah comer de rently selected mode is shown in the display. plays mean Aion | Lef | Bon Hand | Hand | nands F7 Dessnt [ri [ir Lesson 2 re Le r ns Lesson 3 r3 L3 [er Love ven UR Waiting à — ri Your Temr | (Lesson 2) Lesson 1) Lesson 3) (Song Lesson off) Song playback will begin automatically when you select Lesson 1. mn Start the lesson! Play the note shown in the display. When you play the correct note, the next note you need play is shown. The song will wait until you play the correct note. — ” 2 sessses HEIN LL Il JL CLONE L ELLE Le" 4 p— Lefrhand part , Right-hand part {in the case of a right-hand lesson) DGX-205/203, PSR-295/293 Ouners Manual Æ

Quick Guide Select a Song For a Lesson H See How You’ve Done. ..ssssossosessosossesece Excellent MSNM When the lesson song has played all the way Very Good BE through your performance will be evaluated in 4 levels: OK, Good, Very Good, or Excellent. Good pi) “Excellent’is the highest evaluation OK LL The evaluation will appear after you have played all the way through the song. After the evaluation display has appeared, the lesson will start again from the beginning. + The evaluation feature can be : turned off via the FUNCTION Press the [START/STOP] button to exit from the lesson mode. Grade item (page 64). Once you’ve mastered Lesson 1, move on to Lesson 2. DT Lesson 2: Your Tempo Select the song and part you want to practice (steps 1 and 2 on page 32). 12] Press the [LESSON MODE] button twice to start Lesson 2. Each time the [LESSON MODE] button is pressed the lesson modes are selected in sequence: Lesson 1 — Lesson 2 — Lesson 3 — Off — Lesson 1 … Demo LMODE Ur

In this case the icons “- 2” indicate that right-hand lesson 2 has been selected. Song playback will begin automatically when Lesson 2 is selected. ==} Start the lesson! Play the note shown in the display. Try to play the notes at the correct timing. As you learn to play the right notes at the right timing the tempo will increase until eventually you’Il be playing at the song’s original tempo. Left-hand part Right-hand part

Un the case of a right-hand Issson) The evaluation display will appear when the song has played all the way through. Press the [START/STOP] button to exit from the lesson mode. Once you've mastered Lesson 2, move on to Lesson 3. F DGX-205/203, PSR-295/293 Owner's Manual

Select a Song For a Lesson Quick Guide DT Lesson 3: Minus One Select the song and part you want to practice (steps 1 and 2 on page 32). a Press the [LESSON MODE] button three times to start Lesson 3. Each time the [LESSON MODE] button is pressed the lesson modes are selected in sequence: Lesson 1 — Lesson 2 — Lesson 3 — Off — Lesson 1 … Demo In this case the icons “- 3” indicate that right-hand lesson 3 has been selected. Song playback will begin automatically when Lesson 3 is selected. ==} Start the lesson! The song will play at the normal tempo, minus the part you have chosen to play. Play along while listening to the song. Left-hand part Right-hand part

The evaluation display will appear when the song has played all the way through. Press the [START/STOP] button to exit from the lesson mode. | Practice Makes Perfect — Repeat and Learn Use this feature when you want to start again just ahead of a section on which you made a mistake, or to repeatedly practice a section you find difficult. Press the [LESSON REPEAT & LEARN] button during a lesson. The song location will move back four measures from the point at which you pressed the button, and playback will begin after a one-measure count-in. Playback will continue up to the point at which you pressed the [LESSON REPEAT & LEARN] button, and then jump back four measures and begin again after a count-in. This process will repeat, so all you have to do is press [LESSON REPEAT & LEARN] when you make a mistake in order to repeat practice of that section until you get it right. [NOTE + You can change the number of measures the Repeat and learn function jumps back by pressing a number button [0] - [9] during repeat playback. © Jump back 4 measures and repeat playback Song playback __A@

’ NS Press immediately K nepe RP een Ca Oops! Ni A mistake! mise) | DGX-205/203, PSR-295/293 Ouners Manual À

Change a Song's Style In addition to each song's default style, you can select any other style to play the song with the Easy Song Arranger feature.This means that you can play a song that is normally a ballad, for example, as a bossa nova, as a hip-hop tune, etc. Since songs are combinations of a melody and a style, you can create totally different arrangements by changing the style with which a song is played. You can also change the song's mel- ody voice and the keyboard voice for a complete change of image. 7] Using the Easy Song Arranger Oo Press the [EASY SONG ARRANGER] button. The song number and name will be displayed. You can now use the dial to select a different song.

STYLE Y 12] Select a song. Use the dial to select the song you want to arrange. For this example select “004 Down By The River.” | The currently selected song number and name Q Listen to the song. Press the [START/STOP] button to begin playback of the song. Move on to the next step while the song is playing. + When playing song numbers

022 - 024 while using the Easy

Song Arranger, melody tracks will be automatically muted and TO EL no melody will sound. In order to hear the melody tracks you ==} Song start! will need to press the SONG MEMORY buttons [5] - [5]. 14] Press the [EASY SONG ARRANGER!] button. The style number and name will be displayed. You can now use the dial to select a different style. Eas souc AnraNcER STYLE Ÿ The currently selected mn“ style number and name re] DGX-205/203, PSR-295/293 Owner's Manual

Change a Song's Style Quick Guide 5] Select a style. Rotate the dial and listen to how the song sounds with different styles. As you select different styles the song will remain the same while only the styles * Because the Easy Song : . Arranger uses song data you change. When you have selected a suitable style move on to the next step while can't specify chords by playing is sti ine G © i i i in the accompaniment range of the song is still playing (if you have stopped the song, start it again by pressing ho keyboard, The [AMP ON/ the [START/STOP] button). OFF] button will not function. + Ifthe time signature of the song and style are different, the time signature of the song will be used. @ Press the [VOICE] button. The currently selected voice number and name will be displayed. You can now use the dial to select a different voice. SONG

STYLE The currently selected voice number and name VOICE _:

© Select a voice. Rotate the dial until the voice you want to use is selected. @ Press and hold the [VOICE] button for longer than a second. After MELODY VOICE CHANGE appears on the display the voice you selected in step 7 becomes the song’s melody voice. SONG

STYLE VOICE _/ Hold for longer than a second DGX-205/203, PSR-295/293 Ouners Manual F?

Record Your Own Performance You can record up to 5 of your own performances and save them as user songs 031 through 035. You can also record performances using the performance assistant technology feature. E Recordable Data You can record to a total of 6 tracks: 5 melody tracks and 1 style (chord) track. Each track can be recorded individually. © Melody Track [1] -[5] © Style Track [A] … . Record the melody parts. . Records the chord part. © Data Recorded On the Melody Tracks [1] — [5] + Note on/off (keys pressed and released) + Velocity (keyboard dynamics) + Voice number + Reverb type* + Chorus type* + Harmony note + Sustain on/off + Tempo*/time signature* (only when the style track is not recorded) + Pitch bend (DGX-205/203 only) + Pitch bend range (DGX-205/203 only) + Dual voice on/off + Panel sustain on/off + Main/Dual voice — Voice volume, Octave, Pan, Reverb send level, Chorus send level © Data Recorded On the Style Track [A] + Chord changes and chord timing + Style pattern changes + Style number* + Reverb type* COTE + A maximum of 5 user songs can be recorded. lf you record a 6th song after recording to the 5 available user song locations, choose a song number (031 —

035) containing a song that you

don't mind erasing so that you can overwrite the internal user song memory without perma- nently losing your song data. Up to approximately 10,000 notes can be recorded if you record only to the melody tracks. Up to approximately 5,500 chord changes can be recorded if you record only to the Style track. + Chorus type* + Tempo + Time signature* + Style volume*

• These data items are recorded at the beginning of the track. Changes made during the song will not be recorded. DT Track Configuration To record your own performance, first use the SONG MEMORY [1] - [5] and [A] buttons to specify the track(s) you want to record on. The track you record on determines the part that plays back later. Melody Chords AAA EE

l12mmmia) Tax |[ Track

The parts played by each track when a user song is played back. F DGX-205/203, PSR-295/293 Owner's Manual + Track [1] Will play back as the right-hand melody part (MELODY R) + Track [2] — Will play back as the left-hand mel- ody part (MELODY L) + Tracks [3] [5] — Will play back as “other” performance data. + Track [A] — Will play back as the Style (auto- accompaniment) part. Specity track(s) and record + The Difference Between MELODY R and MEL- ODYL... Songs are a combination of a melody and an auto- accompaniment style. Normally ‘melody”"refers to the right-hand part, but in this instrument “melodÿy” parts are provided for both the right and left hands. MELODY R is the melody part played by the right hand, and MELODY L is the melody part played by the left hand.

Record Your Own Performance Quick Guide D" Recording Procedure Press the [SONG] button, then use the dial to select the oO user song number (031 — 035) you want to record to. SONG = pere | STYLE VOICE 7 Select the track(s) you want to record to and confirm your selection on the display. + Record a Melody Track and the Accompaniment Track Together Press the melody track button [1]- [5] you want to record to while holding the [REC] button. Next, press the [A] button while holding the [REC] button. The selected tracks will flash in the display. Feu rEc FE INSEE SONG MEMORY pa naraé V DA xD», us

+ Record a Melody track Press the melody track button [1]- [5] you want to record to while holding the [REC] button. The selected track will flash in the display. RIGHT er ET), (7 Ÿs MEMORY Rotate the dial to select a song number between 031 and 035. À caurion + I you record to a track that contains previousiy-recorded data the previous data will be overwritten and lost. [NOTE j + Style accompaniment is auto- matically turned on when you select the style track [A] for recording. + Style accompaniment cannot turned on or off while recording is in progress. + If you use a split voice for recording, notes played to the left of the split point will not be recorded. [NOTE + If style accompaniment is on and track [A] has not yet been recorded, the style track [A] will automatically be selected for recording when a melody track is selected. lf you only want to record a melody track, be sure Lo turn the Style track [A] off. + To cancel recording to a selected track, press that track button a second time. Style accompaniment cannot be turned on or off while recording is in progress. DGX-205/203, PSR-295/293 Ouners Manual F

Quick Guide Record Your Own Performance [3] Recording will start when you play on the keyboard. You can also start recording by pressing the [START/STOP] button. The current measure will be shown on the display during recording. TURN mm) |ÉcE 2) measure Recording starts Stop recording by pressing the [START/STOP] or [REC] button. sranr/sroe

If you press the [INTRO/ENDING/rit.] button while recording the style track an appropriate ending pattern will play and then recording will stop. When record- ing stops the current measure number will return to 001 and the recorded track numbers in the display will light. © To Record Other Tracks Repeat steps 2 through 4 to record any of the remaining tracks. By selecting an unrecorded track - SONG MEMORY buttons [1]- [5], [A]- you can record the new track while listening to previously recorded tracks (the playback tracks will appear in the display). You can also mute previously recorded tracks (the muted tracks will not appear in the display) while recording new tracks. © To Re-record a Track Simple select the track you want to re-record for recording in the normal way. The new material will overwrite the previous data. Q When the recording is done … + To Play Back a User Song User songs are played back in the same way as regular songs (page 30). 4 Press the [SONG] button. 2 The current song number/name will be displayed — use the dial to select the user song (031 — 035) you want to play. 3 Press the [START/STOP] button to start playback. F DGX-205/203, PSR-295/293 Owner's Manual + Ifthe memory becomes full dur- ing recording a warning mes- sage will appear and recording will stop automatically. Use the song clear or track clear (page

41) function to delete unwanted

data and make more room avail- able for recording, then do the recording again.

Record Your Own Performance Quick Guide EH Song Clear — Deleting User Songs This function clears an entire user song (all tracks). + lfyou only want to clear a spe- cific track from a user song use Press the [SONG] button, then select the user song (031 — the Track Clear function.

035) you want to clear.

Press and hold the SONG MEMORY [1] button for longer than a second while holding the SONG MEMORY [A] button. A confirmation message will appear on the display. BEC j BIOS SONG MEMORY Da for longer Press and hold than a second [3] Press the [+] button. A confirmation message will appear on the display. + To execute the Song Clear func- You can cancel the clear operation by pressing the [-] button. tion press the [+] button Press [:] to cancel the Song Clear operation. 14] Press the [+] button to clear the song. The clear-in-progress message will appear briefly on the display while the song is being cleared. | Track Clear — Deleting a Specified Track From a User Song This function lets you delete a specified track from a user song. Press the [SONG] button, then select the user song (031 —

035) you want to clear.

Press and hold the SONG MEMORY track button ([1]-[5], [AI) corresponding to the track you want to clear for longer than a second. A confirmation message will appear on the display. CNE) GER / ONG MEMORY Hold for longer than a second [3] Press the [+] button. A confirmation message will appear on the display. + To execute the Track Clear func- You can cancel the clear operation by pressing the [-] button. tion press the [+] button. Press IL] to cancel the Track Clear operation. 14] Press the [+] button to clear the track. The clear-in-progress message will appear briefly on the display while the track is being cleared. DGX-205/203, PSR-295/293 Ouners Manual @

Backup and Iinitialization

Some internal DGX-205/203 and PSR-295/293 parameters will revert to their default values if not saved before the power is turned off. In order to backup these parameters press and hold the [FUNCTION] button for longer than a sec- ond. FUNCTON _Z Ÿ Hold for longer than a second © The Backup Parameters + User songs. + Touch response on/off. + Registration memory. + The following FUNCTION settings: Tuning, Split Point, Touch Sensitivity, Style Volume, Song Volume, Metronome Volume, Grade, Demo Cancel, Panel Sustain. D | initialization This function erases all backup data in the instrument’s flash memory and restores the initial default settings. The fol- lowing initialization procedures are provided. H Backup Clear « To clear data backed up to the internal flash memory — panel user setting, registration memory (page 60), user songs (page 39) — turn the power on by pressing the [STANDBY/ON] switch while holding the highest white key on the keyboard. The backed up data will be erased and the default values restored. DGX-205/203 PSR-295/293 me) me | / DR / DAT TT Ÿÿ 0 Ô H Flash Clear .. To clear song data that has been transferred to the internal flash memory from a com- À CAUTION puter, turn the power on by pressing the [STANDBY/ON] switch while simulta- - When you execute the Flash h i i i Clear operation, song data neously holding the highest white key on the keyboard and the three highest black you have purchased will also keys. be cleared. Be sure to save data you want to keep to a DGX-205/203 PSR-295/293 computer. D | [ul @ DGX-205/203, PSR-295/293 Owner's Manual

Basic Operation and Displays DL Basic Operation Overall DGX-205/203 and PSR-295/293 control is based on the following simple operations. 7 Press a button to select a basic function. 2 Use the dial to select an item or value. S Start a function. 3 Start a function. (CB Seiect an item or value.) ([ 1 Select a basic tunction. ) Display (page 45) CITE CITE), = RER © Volume Adjustment Adjusts the volume of the sound heard via the The “Press & Hold” Symbol instruments speakers or a pair of headphones . plugged into the PHONES jack. mer D > symbol that appears PAST next to some buttons indicates that TOUCH _Z VOLUME the button can be pressed and held Rotate counter- Rotate clockwise or longer than a second to call up a clockwise to lower to increase the related function. This provides the volume. volume. convenient direct access to a range of functions. 7 Press a button to select a basic function. SONG Ce Z_— Select a song you want to listen to or a song you want to use for a lesson.

STYLE —— Select an auto-accompaniment style. VOICE ___z ———— Select a voice you want to play on the keyboard. DGX-205/203, PSR-295/293 Ouners Manual F

Basic Operation and Displays 2 Use the dial to select an item or value. TE]

@ Dial Rotate the dial clockwise to increase the value of the selected item, or coun- terclockwise to decrease it's value. Rotate the dial continuously to contin- uously increase or decrease the value. Decrease Increase @ [+] and [-] Buttons Press the [+] button briefly to incre- ment the value by 1, or press the [-] button briefly to decrement the value by 1. Press and hold either button to

continuously increment or decrement Press Press the value in the corresponding direc- briefly to briefly to decrement. | increment. tion. © Number Buttons [0] - [9] The number buttons can be used to directly enter a song num- ber or parameter value. Hundreds or tens digits that are “0” below). can be omitted (see Example: Song number “003” can be entered in three ways. [0] — [0] — [3]

SN) ra 8 9 H Changing Valuese oooooosoeoce When you select a basic function, the item corresponding to that function will be displayed. You can then use the dial or the number buttons [0] — [9] to select the desired item. {This portion ofthe display indi-_ | cates the name and number of the currently selected song, voice and style. It also displays the name and current setting/ {| value of other functions. e CATEGORY Buttons [À], [Y] When selecting a song, style, or voice, you can use these buttons to (Æ) jump to the first item in the next or ‘h Jump to the previous category First em in the next or The CATEGORY buttons are useful (&) Previous for selecting categorized items, as in category. the example below. Example: VOICE SELECT ‘The first voice in the selected category is selected In a display in which a category appears, selection is easy if you first use the CATEGORY [ À ] and [] buttons to select the category containing the desired item, then use the dial or [+] and [-] buttons to select the item. This can be particularly handy when you have to select from a large number of voices. In most procedures described throughout this owners manual the dial is recommended for selection simply because it is the easiest and most intuitive selection method. Please note how- ever, that most items or values that can be selected using the dial can also be selected using the [+] and [-] buttons. [0] — [3] 1 = 0 + C003" will appear on the dis- = play after a brief delay) RES (‘003" will appear on the dis- Press number buttons play after a brief delay) [O), [O, (31. «3 Start a function. START/STOP

>/m This is the [START/STOP] button. Press the [START/STOP] button after pressing the [SONG] or [STYLE] button to start playback of the selected song or style (rhythm). Q DGX-205/203, PSR-295/293 Owner's Manual

Basic Operation and Displays DT Display items The display shows all of the current basic settings: song, style, voice. It also includes a range of indicators that show the on/off status of a range of functions.

Notation Measure and Tempo Displays the melody and chord êve Indicates the current measure dur- ro xs notes of a song when the Easy — ing playback of a song or style, and 690 |00 Performer function is in use, or = the currently set Tempo value forthe “H3E LE ? the notes of chords you specify song or style. (see page 17) when the Dictionary function is in use. At other times the notes + Chord Display you play on the keyboard are SE displayed. Indicates the name of the chord cur- = rently being played back, or the name of F the chord being played on the keyboard. + Any notes occurring below or above the staff are indicated by SONG TRACK DISPLAY “&va”in the notation. Information related to the song tracks is shown here. (see + For a few specific chords, not all notes may be shown in the page 57) notation section of the display. This is due to space limita- tions in the display. [12225] ACMP Battery Level Indicator Indicates battery power is too low to ensure proper oper- ation. (see page 10) j n LILI 17 —— |h exr Le, — »»»» Havssas Dur TENUE

Beat Display Indicates the current style or song beat with flashing BEAT » »») arrows. (see page 17) DUAL Indicates that the Dual voice is turned on. (see page 19) ENDUAL Performance assistant technology SPLIT Indicates that performance TM Indicates that the Split voice assistant technology is PK” is turned on. (see page 20) EUX SPLIT turned on. (see page 15) ACMP ON TOUCH | : Indicates that Touch Indicates ie AccompanE Ÿ ACMP ON response is turned on. (see ZI TOUCH 2 is turned on. (68 page page 22) YNC STOP

: ; Indicates that SYNC STOP is Indicates that Harmony is turned on. (see page 28) YNC. STOP turned on. (see page 26) ŒTIHARMONY DGX-205/203, PSR-295/293 Ouners Manual F

ere», chere, Handy Performance Features Adding Reverb Reverb lets you play with a rich concert hall type ambience. ‘When you select a style or song the optimum reverb type for the voice used is automatically selected. If you want to select a different reverb type, use the procedure described below. Refer to the Effect Type List on page 86 for informa- tion about the available reverb types. T Press the [FUNCTION] button. 3 Use the dial to select a reverb type. You can check how the selected reverb type sounds EUNCTON by playing on the keyboard. 2 Use the CATEGORY [4] and [3] buttons to HE] | select the Reverb Type item. “Reverb” appears in the display for a few seconds, Selected reverb type then the currently selected reverb type will be displayed. © Adjusting the Reverb Send Level & You can individually adjust the amount of reverb that is applied to the main, dual, and split voices. If you press the CATEGORY [# ] or [% ] button a number of times in step 2 of the above procedure, the items listed below will appear. You can then use the dial to adjust the reverb send level for the selected voice (refer to page 62 for details). + M. Reverb Main voice reverb send level. - D. Reverb Dual voice reverb send level. +S. Reverb Split voice reverb send level. The currently selected Reverb Type F2 DGX-205/203, PSR-295/293 Owner's Manual

Handy Performance Features Adding Chorus The chorus effect creates a thick sound that is similar to many of the same voices being played in unison. When you select a style or song the optimum chorus type for the voice used is automatically selected. If you want to select a dif- ferent chorus type, use the procedure described below. T Press the [FUNCTIONI] button. EuNcToN

2 Use the CATEGORY [£] and [%] buttons to select the Chorus Type item. “Chorus” appears in the display for a few seconds, then the currently selected chorus type will be displayed. The currently selected Chorus Type 3 Use the dial to select a chorus type. You can check how the selected chorus type sounds by playing on the keyboard. Selected chorus type © Adjusting the Chorus Send Level You can individually adjust the amount of chorus that is applied to the main, dual, and split voices. If you press the CATEGORY [£ ] or [ Y] button a number of times in step 2 of the above procedure, the items listed below Will appear. You can then use the dial to adjust the cho- rus send level for the selected voice (refer to page 62 for details). + M. Chorus Main voice chorus send level. + D. Chorus Dual voice chorus send level. +S. Chorus Split voice chorus send level. DGX-205/203, PSR-295/293 Ouners Manual @

LÉETIZD Handy Performance Features The Metronome The metronome can be set for up to 15-beat time signatures. À chime will sound on the first beat of each measure, while a metronome “click” will sound on all others. You can also set the time signature to “00,” in which case the chime will not sound and the “click” sound will be heard on all beats. The metronome will automatically be set to match the time signature and tempo of the selected song or style, but you can also change the tempo and time signature yourself. Î Press the [METRONOME] button to start the metronome. Ê meronowe _7 TEMPO | MEASURE J= tE [A ! Indicates the beat num- ber in the measure You can stop the metronome by pressing the [MET- RONOME] button a second time. 2 Press the [TEMPO/TAP] button to call up the TEMPO setting. TEMPO/

3 Use the dial or the [0] - [9] number buttons to select a tempo from 032 to 280 quarter- note beats per minute. 4 Press and hold the [METRONOME] button for longer than a second so that the Time Signature item appears. À mernonoue _Z Ÿ Hold for longer than a second F2 DGX-205/203, PSR-295/293 Owner's Manual NOTE_ | + You can also access the Time Signature item by pressing the IFUNCTION] button and using the CATEGORY [£ ] and [Y ] buttons to locate the item (page 62). 5 Use the dial or the [0] — [9] number buttons to select a time signature between 00 and 15 beats per measure. H Adjusting the Metronome Volumeeoooooe 6 Press the [FUNCTION] button. FuncroN _# Z Use the CATEGORY [£]and[%] buttons to select the Metronome Volume item.

8 Use the dial or the [0] — [9] number buttons to set the metronome volume as required.

Handy Performance Features Touch Response Sensitivity ‘When touch response is on you can adjust the sensitivity of the keyboard in response to keyboard dynamics in three steps. T Press the [TOUCHI] button to turn touch response on. The touch response icon will appear in the display when touch response is on (pages 22, 45). roucs 2

Touch Response icon 2 Press and hold the [TOUCHI] button for longer than a second so that the Touch Sen- sitivity item appears. “TouchSns” appears in the display for a few seconds, then the cur- rently selected Touch Sensitivity will be dis- played. One Touch Setting roucu

Hold for longer than a second Touch Sensitivity 3 Use the dial to select a touch sensitivity set- ting between 1 and 3. Higher values produce greater (easier) volume variation in response to keyboard dynamics — i.e. greater sensitivity. [NOTE + The initial default touch sensitivity setting is “2." + You can also access the Touch Sensitivity item by pressing the IFUNCTION] button and using the CATEGORY [£ | and [% ] buttons to locate the item (page 62). Sometimes selecting the ideal voice to play with a song or style can be confusing. The One Touch Setting feature automatically selects a well-balanced voice for you when you select a style or song. Simply select voice number “000” to activate this feature. T1 Select voice number “000” (steps 1-2 on page 18). VOICE Use the dial to select voice number 000. 2 Select and play back any song (steps 1 -3 on page 30). 3 Play the keyboard and remember the sound of the voice. \ A

If you have stopped playback at some point during this procedure press the [START/STOP] button to start playback again. 4 Use the dial to change songs, then play the keyboard and listen to the voice. You should hear a different keyboard voice than you played in step 3. If you select a different song the keyboard voice will also change accordingly. DGX-205/203, PSR-295/293 Ouners Manual @

LÉETIZD Handy Performance Features Adjusting the Voice Parameters Reverb send level, pan, and a variety of other parameters can be individually adjusted for the main, dual, and split voices. Press the [FUNCTION] button and then use the CATEGORY [#] and [ #] buttons to locate any of the follow- ing parameters. Once you have selected an appropriate parameter you can use the dial to adjust its value. © Main Voice Parameters (page 63) © Split Voice Parameters (page 63) + M. Volume Main voice volume. + S. Volume Split voice volume. +M.Octave Main voice octave. + S. Octave Split voice octave. + M. Pan Main voice pan. +S. Pan Split voice pan. + M.Reverb Main voice reverb send level. + S. Reverb Split voice reverb send level. + M. Chorus Main voice chorus send level. +S. Chorus Split voice chorus send level. © Dual Voice Parameters (page 63) + D. Volume Dual voice volume. + D. Octave Dual voice octave. + D. Pan Dual voice pan. - D. Reverb Dual voice reverb send level. - D. Chorus Dual voice chorus send level. Adjusting the Harmony Volume The harmony volume level can be adjusted for harmony types 01 (Duet) through 05 (octave). T Press the [FUNCTIONI] button. EuNcToN — À 2 Use the CATEGORY [4] and [Y] buttons to 3 Use the dial or the [0] - [9] number buttons select the Harmony Volume item. to set the harmony volume from 000 through 127 as required. Panel Sustain This function adds sustain to the keyboard voices. Use it when you want to add sustain to the voices at all times, regardless of footswitch (optionally-available) operation. Press the [FUNCTION] button and then use the CATEGORY [ # | and [ ] buttons to locate the Sustain item. You can then use the [+] and [-] buttons to turn panel sustain on or off. CNOTE + The sustain of some voices may not be markedly affected when the panel sustain function is turned on. F DGX-205/203, PSR-295/293 Owner's Manual

Style (Auto-accompaniment) Functions Basic operation of the Style (auto-accompaniment) feature is described on page 24 of the Quick Guide. Here are some other ways you can play the styles, the style volume adjustment procedure, how you can play chords using the styles, and more. Setting the Split Point The initial default split point is key number 54 (the F#2 key), but you can change it to another key using the procedure described below. T Press the [STYLE] button or the [EASY SONG ARRANGER] button. 2 Press and hold the [ACMP ON/OFF] for longer than a second so that the FUNCTION Split point item appears. STYLE

ONors SOS Sr EnDNO AUOHL sranr/srop CET TCS TS) Lee] Com

SONG à NS) " Hold for longer than a second VOTE __ || The FUNCTION Split point item can only be accessed by pressing and holding the [ACMP ON/OFF] button when either the [STYLE] button or the [EASY SONG ARRANGER] is engaged and lt. Play Only the Style Rhythm 3 Use the dial or the [0] -— [9] number buttons to set the split point to any key from 000 (C-

LL spiit voice ——— Main voice 1 [NOTE j + When you change the split point the auto-accompaniment split point also changes. + The split point cannot be changed during a song lesson. + The split voice sounds when the split-point key is played. NOTE _ | + You can also access the Split Point item by pressing the [FUNCTION] button and using the CATEGORY [£ ] and [Y ] buttons to locate the item (page 62). Auto-accompaniment is alternately turned on and off each time the [ACMP ON/OFF] button is pressed. If you use the [ACMP ON/OFF] button to turn auto-accompaniment off, only the rhythm (percussion) parts will play when the style is started. Press the [STYLE] button to engage the style function. STYLE AE NE NC NN NA APérz Sos SA ebNe ANOHL sranr/sroP AB CI

CYTELsItnj tue) Ces = Ÿ [NOTE + Since style numbers 112 and 124 — 135 (Pianist) have no rhythm parts, no rhythm will play when you start these styles. DGX-205/203, PSR-295/293 Ouners Manual Fi

LEÉETID Style (Auto-accompaniment) Functions Play a Style With Chords but No Rhythm (Stop Accompaniment) ‘When auto accompaniment is on (the ACMP ON icon is showing) and Synchro Start is off, you can play chords in the left-hand accompaniment range of the keyboard while the style is stopped and still hear the accompaniment chords. This is “Stop Accompaniment,” and any of the chord fingerings recognized by the instrument can be used (page 53). The chord root and type will be shown on the display. You can also use the Harmony effects with Stop Accompani- ment. Press the [STYLE] button to engage the style function. se Là

3 Use the dial or the [0] — [9] number buttons to set the style volume between 000 and 127 as required. Ee DGX-205/203, PSR-295/293 Owner's Manual

Style (Auto-accompaniment) Functions Playing Auto-accompaniment Chords There are two ways of playing auto-accompaniment chords: @ Easy Chords © Standard Chords The instrument will automatically recognize the different chord types. This function is called Multi Fingering. Press the [ACMP ON/OFF] button to turn auto-accompaniment on (page 24). The keyboard to the left of the split point (default: 54/F#2) becomes the “accompaniment range.” Play the accompaniment chords in this area of the keyboard. Split point (default: 54/F#2) — Accompaniment —| range Root notes and the corresponding keys M Easy ChordsSeooosoooecce . HE Standard Chordse This method lets you easily play chords in the accompa- This method lets you produce accompaniment by play- niment range of the keyboard using only one, two, or ing chords using normal fingerings in the accompani- three fingers. ment range of the keyboard. © How to play Standard Chords [Example for “C” chords]

+ To play a major chord (0) e] LL Press the root note of the chord. ce _ Ce - Ge ci Cm DRBRE BEBRE LELLLIE LE + To play a minor chord Cur ci} chi" ct Press the root note together with the T T Û nearest black key to the left of it. LL C7 CS | + To play a seventh chord Car _ Csusa _ Curaug Press the root note together with the LT] nearest white key to the left of it. à Cm7 . Cm co Cr + To play a minor seventh chord T T He Press the root note together with the OÙ nearest white and black keys to the Je le COR left of it (three keys altogether). PRO) _ l cn? __ Cm?

• Notes enclosed in parentheses (£ ) are optional: the chords wi be recognized without them DGX-205/203, PSR-295/293 Ouners Manual F

LEÉETID Style (Auto-accompaniment) Functions H Recognized Standard Chords .esoosssoosssesssoccsscsssseccsecscce AI chords in the chart are “C-root” chords. Chord Name/[Abbreviation] Normal Voicing Chord (C) | Display Major [M] 1-3-5 c c Add ninth [(9)] 1-2-8-5 c® ce) Sixth [6] 1-(8)-5-6 Cs cs Sixth ninth [6(9)] 1-2-3-(5)-6 cé Cele) + Major seventh [M7] un o G7er Cur C7 Major seventh ninth [M7(9)] 1-2-3-(5)-7 cf Cmy(®) * Major seventh add sharp eleventh {M7(#t17 | 17(2):3254 & 179 oi CNE Flatted fifth [(L5)] 1-3-b5 ct cb5+ Major seventh flatted fifth [M75] 1-8-b5-7 ch? Cu7'5 * Suspended fourth [sus4] 1-4-5 Csust Csus4 Augmented [aug] 1-3-#5 Caug Caug Major seventh augmented [M7aug] 1-(8)-#5-7 Curaus | CMzaug” Minor [m] 1-b3-5 Cm Cm Minor add ninth [m(9)] 1-2-b3-5 c® Cme Minor sixth [m6] 1-L3-5-6 Cms Cms Minor seventh [m7] 1-b3-(5)-27 Cm? Cm7 Minor seventh ninth [m7(9)] 1-2-b8-(5)-b7 c& Cm7(9) Minor seventh add eleventh [m7(11)] 1-(2)-b3-4-5-(b7) ch? Cm7(11) * Minor major seventh [mM?] 1-b3-(5)-7 Cmu7 CmM7 Minor major seventh ninth [mM7(9)] 1-2-b3-(5)-7 Cm} Cmmyl®) + Minor seventh flatted fifth [m7b5] 1-b3-b5-b7 ch? Cm7?5 Minor major seventh flatted fifth [mM75] 1-b3-b5-7 Cm Cmmb5 * Diminished [dim] 1-b3-b5 Cüim Céim Diminished seventh [dim7] 1-b3-b5-6 Cüim7 Caim7 Seventh [7] 1 & 9 7 or cz c7 Seventh flatted ninth [7(b9)] 1-b2-3-(5)-b7 cf c769) Seventh add flatted thirteenth [7(L13)] 1-3-5-L6-b7 c£'® ©7183) Seventh ninth [7(9)] 1-2-3-(5)-b7 c# cz) Seventh add sharp eleventh [7(#11)] 1:0:3:#4 g7 ler cat Seventh add thirteenth [7(13)] 1-3-(5)-6-b7 ci? c713) Seventh sharp ninth [7(#9)] 1-#2-3-(5)-b7 cé? c79) Seventh flatted fifth [745] 1-3-b5-b7 Cas cr5* Seventh augmented [7aug] 1-3-#5-b7 Czaug Czaug Seventh suspended fourth [7sus4] 1-4-(5)-b7 Crus | Crsusa One plus two plus five [1+2+5] 1-2-5 Cuaus |c*

• These chords are not shown in the Dictionary function. AE | [NOTE + Notes in parentheses can be omitte. + inversion of the 7sus4 and m7(11) chords are not recognized if the + Playing two same root keys in the adjacent octaves produces accompa- notes shoun in parentfisees are omiied. niment based only on the root. + The auto accompaniment will sometimes not change when related + A perfect fifth (1 + 5) produces accompaniment based only on the root chords are played in sequence (e.g. some minor chords followed by the and fifth which can be used with both major and minor chords. minor seventh). + The chord fingerings listed are all in “root” position, but other inversions * mro-note fingerings will produce a chord based on the previously played choi can be used — with the following exceptions: m7, m75, 6, m6, sus4, aug, dim7, 745, 6(9), 1+245. F DGX-205/203, PSR-295/293 Owner's Manual

Style (Auto-accompaniment) Functions Looking Up Chords Using the Chord Dictionary The Dictionary function is essentially a built-in “chord book” that shows you the individual notes of chords. It is ideal when you know the name of a certain chord and want to quickly learn how to play it. T1 Press and hold the [LESSON MODE] button for longer than a second. DEMO 2MODE ven LR

Hold for longer than a second 2 As an example, we’ll learn how to play a GM7 (G major seventh) chord. Press the “G” key in the section of the keyboard labeled “CHORD ROOT.” (The note doesn't sound.) The root note you set is shown in the dis- play. LELI

3 Press the “M7” (major seventh) key in the section of the keyboard labeled “CHORD TYPE.” (The note doesn't sound.) The notes you should play for the specified chord (root note and chord type) are shown in the dis- play, both as notation and in the keyboard diagram. ms US Notation of chord Chord name (root and type) Individual notes of chord (keyboard) + To call up possible inversions of the chord, press the [+Y[-] buttons. [NOTE j + About major chords: Simple major chords are usually indicated only by the root note. For example, “C" refers to C major. However, when specifying major chords here, make sure to select ‘M (major) after pressing the root note. 4 Try playing a chord in the auto accompani- ment section of the keyboard, checking the indications in the display. When you've played the chord properly, a bell sound sig- nals your success and the chord name in the display flash. DGX-205/203, PSR-295/293 Ouners Manual F2

LEÉETID Style (Auto-accompaniment) Functions EH Chord Basics Two or more notes played together constitute a “chord.”

The most basic chord type is the “triad” consisting of three notes: the root, third, and ne fifth degrees of the corresponding scale. À C major triad, for example, is made up of o ES the notes C (the root), E (the third note of the C major scale), and G (the fifth note of e) < the C major scale). 8rd Rhot 8rd In the C major triad shown above, the lowest note is the “root” of the chord (this is the chord’s “root position” … using other chord notes for the lowest note results in “inversions”). The root is the central sound of the chord, which supports and anchors the other chord notes. The distance (interval) between adjacent notes of a triad in root position is either a major or minor third. Major third — four half steps (semitones) Minor third — three half steps (semitones)

The lowest interval in our root-position triad (between the root and the third) determines whether the triad is a major or minor chord, and we can shift the highest note up or down by a semitone to produce two additional chords, as shown below. Major chord Minor chord Augmented chord Diminished chord Cu 2 Cm A Caug A Cam 172 ÿ ÿZ 6 A 7. (6 (6 F {5 7 L KO KO TE LP an n° Se D] SK DI SA D] S- Minor $rd Major 3rd Major 3rd Minor 3rd Major 3rd Major 3rd Minor 3rd Minor 3rd The basic characteristics of the chord sound remain intact even if we change the order of the notes to create different inversions. Successive chords in a chord progression can be smoothly connected, for example, by choosing the appropri- ate inversions (or chord “voicings”). © Reading Chord Names Chord names tell you just about everything you need to know about a chord (other C / N than the inversion/voicing). The chord name tells you what the root of the chord is, whether it is a major, minor, or diminished chord, whether it requires a major or flatted seventh, what alterations or tensions it uses … all at a glance. Root note Chord type © Some Chord Types (These are just some of the “Standard” chord types recognized by the DGX-205/203 and PSR-295/ 293.) Suspended 4th nl Minor 7th Major 7th A Csuss À C7 A Cm? À Cwr f. /. f. D /. ant FO. {ss Fan 16. KT PK) KT T KT Be T KT J D) Le-1 D] LS o /T'S1 D] Les Pertect 51h Perfect 4th Flatted 74 Major chord Flatted 71 Minor chord Major 7 Major chord Minor/major 7!" 71h, flatted 5th Minor 71h, flatted 5th 71h, suspended 4th

carecoRy !__ Song Volume item — Song Volume You can specify a section of a song — “A” is the start point and “B” is the end point — for repeat playback. ï 5 1 Play the song (page 30) and press the [AB] button at the beginning of the sec- tion you want to repeat (the “A” point). acue , sync ONOr 2 SOS.

Muting Independent Song Parts Each “track” of a song plays a different part of the song — melody, percussion, accompaniment, etc. You can mute individual tracks and play the muted part on the keyboard yourself, or simply mute tracks other than the ones you want to listen to. Use the SONG MEMORY [1]- [5] and [A] buttons to mute or un-mute the corre- sponding tracks. The track number in the display disap- pears when that track is muted. Refer to page 38 for information about the song track configuration. 3 Use the dial or the [0] -— [9] number buttons to set the song volume between 000 and 127 as required. E_À + Song volume can be adjusted while a song is selected. 2 Press the [A=B] button a second time at the end of the section you want to repeat (the “B” point). 3 The specified A-B section of the song will now play repeatedly. You can stop repeat playback at any time by pressing the [Az=B |] button. [NOTE j + The repeat start and end points can be specified in one-measure increments. + The current measure number is shown in the display during play- back. + If you want to set the start point ‘A’ at the very beginning of the song press the [AB ] button before Starting playback of îhe song. CNAB BE, SONG MEMORY Track number on — Track will play back. e 6 em Track number off — Track is muted or contains no data DGX-205/203, PSR-295/293 Ouners Manual F

LEETIZD Song Settings Change the Key Of a Song + Large Pitch Changes (Transpose) The overall pitch of the instrument can by shifted up or down by a maximum of 1 octave in semitone incre- ments. T Press the [FUNCTIONI] button. EUNCToN 2 Use the CATEGORY [£] and [%] buttons to select the Transpose item. 3 Use the dial or the [0] - [9] number buttons to set the transpose value between -12 and +12 as required. [NOTE + The pitch of Drum Kits voices cannot be changed. + Small Pitch Changes (Tuning) The overall tuning of the instrument can by shifted up or down by a maximum of 100 cents in 1-cent increments (100 cents = 1 semitone). T1 Press the [FUNCTION] button. FUNcToN # 2 Use the CATEGORY [£]land[%] buttons to select the Tuning item. 3 Use the dial or the [0] — [9] number buttons to set the tuning value between -100 — +100 as required. ENOTE + The pitch of Drum Kits voices cannot be changed. Song Fast Forward, Fast Reverse, and Pause These are just like the transport controls on a cassette deck or CD player, letting you fast forward [» ], rewind [44] and pause [ 1] playback of the song. STYLE

Orz HO A emo ANOUUL sranr/sro RENBIENEOIET En Tr = F D] SONG [ À e \ ù Press the Press the fast | | Press the fast pause button reverse button | | forward button to pause play- | | to rapidly to rapidly skip (back. ) | return to an ahead to a — |earierpointin | | laterpointin the song. the song. L J J F DGX-205/203, PSR-295/293 Owner's Manual [NOTE + When an A-B repeat range is specified the fast reverse and forward tunction will only work within that range.

Song Setings Change the Melody Voice You can change a song’s melody voice to any other voice you prefer. NOTE 3 Press the [VOICE] button for longer than a + You cannot change the melody voice of a user song. second. “MELODY VOICE CHANGE” appears in the display for a few seconds, indicating that 1 . the voice selected in step #2 has replaced Select the song and play it. the song's original melody voice. 2 Rotate the dial to select the song you want VOICE _7 to listen to after pressing the [VOICE] but- ton. Hold for longer than a second DGX-205/203, PSR-295/293 Ouners Manual F2

ere, Memorize Your Favorite Panel Settings This instrument has a Registration Memory feature that lets you save your favorite settings for easy recall whenever they’re needed. Up to 16 complete setups can be saved (8 banks of two setups each).

8 Banks Memory 1 Memory 2 Up to 16 presets (eight banks of two each) can be memorized. Saving Settings to the Registration Memory H Settings That Can be Saved to the Registration Memory + + Style settings* Style number, Auto Accompaniment ON/OFF, Split Point, Style settings (Main A/B), Style Volume, Tempo + Voice settings Main Voice setting (Voice number, Volume, Octave, Pan, Reverb Send Level, Chorus Send Level), Dual Voice settings (Dual ON/OFF, Voice number, Volume, Octave, Pan, Reverb Send Level, Chorus Send Level), Split Voice settings (Split ON/OFF, Voice number, Volume, Octave, Pan, Reverb Send Level, Chorus Send Level) + Effect settings Reverb Type, Chorus Type, Panel Sustain ON/OFF + Harmony settings Harmony ON/OFF, Harmony Type, Harmony Volume + Other setti Transpose, Pitch Bend Range (DGX-205/203 only)

• Style settings are not available for Registration Memory when using the Song features. É DGX-205/203, PSR-295/293 Owner's Manual EH Saving to the Registration Memory + T1 Set the panel controls as required — select a voice, accompaniment style, etc. 2 Press the [@] (MEMORY/BANK) button. A bank number will appear in the display when you release the button.

Bank number 3 Use the dial or the [1] - [8] number buttons to select a bank number from 1 to 8. [NOTE j + Data cannot be saved to the registration memory during song play- back.

Memorize Your Favorite Panel Settings 4 Press the REGIST. MEMORY [1] or [2] button while holding the [@] (MEMORY/BANK) but- ton to store the current panel settings to the specified registration memory. GaJ ENT) Dix Bank number [NOTE + If you select a Registration Memory number that already contains data, the previous data is deleted and overwritten by the new data. À caurIon + Do not turn off the power while saving settings to the registra- tion memory, otherwise the data may be damaged or lost. H Recalling a Registration Memory o e » T Press the [@] (MEMORY/BANK) button. A bank number will appear in the display when you release the button. Bank number 2 Use the dial or the [1] - [8] number buttons to select bank you want to recall. 3 Press the REGIST. MEMORY button, [1] or [2], containing the settings you want to recall. The panel controls will be instantly set accordingly. REGIST. "VE DGX-205/203, PSR-295/293 Ouners Manual El

Function settings The Function settings include detailed settings for the instruments voices, effects, split point, tuning, and more. Button shortcuts can be used to quickly access commonly used settings: hold a shortcut button for longer than a second to directly access the related setting. Locating and Editing the Function Settings T Press the [FUNCTIONI] button. EUNCTON 2 Use the CATEGORY [£] and [%] buttons to select the required item. For details on individual settings refer to the FUNC- TION Setting List on page 63.

Current item É DGX-205/203, PSR-295/293 Owner's Manual 3 Set the value as required using the dial, the [+] and [-] buttons, or the [0] — [9] number buttons. For ON/OFF settings use the [+] button to turn the function ON and the [-] button to turn the function OFF. Use the [+] button to begin execution of opera- tions, or the [-] button to cancel the selected opera- tion. AI these settings can be conveniently reset to their initial default values by pressing the [+] and [-] buttons simultaneously. (The exception to this is Ini- tial Setup Send and Bulk Send, which is an opera- tion, not a setting.) CES )— oc enr numeric values 7 8 E = o Æ [e IC IC ] _ ES - + Decrease a — —— + Increase a value by 1 value by 1 + Turn a setting + Tum a setting OFF Reset a value to ON + Cancel an its default setting + Execute an operation operation 41 necessary, hold the [FUNCTION] button for longer than a second to save your settings to flash memory. Although all settings are retained by the instrument while the power is on, your custom settings will be lost when the power is turned off unless you save them to flash memory. Simply save the settings to flash memory by holding the [FUNCTION] button for more than a second, and your settings will be retained in flash memory even while the power is off and will be recalled the next time the instrument is turned on. EUNcToN

Hold for longer than a second À cAUTION + Do not turn off the power while saving settings, otherwise the data may be damaged or lost.

Function settings Function Setting List Category Setting Item title Range/Settings Description VOLUME Style Volume 000 - 127 Determines the volume of the Style. Song Volume 000 — 127 Determines the volume of the Song. OVERALL Transpose 12-12 Determines the pitch of the instrument by semitone increments. Tuning Tunins -100 — 100 Sets the pitch of the instruments sound in 1-cent increments. Pitch Bend Range PERanSe 01-12 Sets the pitch bend range in semitone increments. (DGX-205/203 only) Split Point TitPnt |000-127(C-2-G8) | Determines the highest key for the Split voice and sets the Split “point” — in other words, the key that separates the Split (lower) and Main (upper) voices. The Split Point setting and Accompaniment Split Point setting are automatically set to the same value. Touch Sensitivity TouchE 1 (Soñt)/2 (Medium) | When Touch Response is on, this determines the 3 (Hard) Sensitivity of the feature. MAIN VOICE Volume M. Uolume [000-127 Determines the volume of the Main voice. Octave H. Octave -2-—+2 Determines the octave range for the Main voice. Pan M. Pan 000 (left) —64 (center) | Determines the pan position of the Main voice in the — 127 (right) stereo image. The value “0” results in the sound being panned full left; the value “127” results in the sound being panned full right. Reverb Send Level m.Reuerb [000-127 Determines how much of the Main voice’ signal is sent to the Reverb effect. Chorus Send Level M, Chorus |000-127 Determines how much of the Main voice’s signal is sent to the Chorus effect. DUAL VOICE Voice BUoice 001-487 Selects the Dual voice. Volume B.Uolume [000-127 Determines the volume of the Dual voice. Octave B.Üctaue -2-—+2 Determines the octave range for the Dual voice. Pan B.Pan 000 (left) — 64 (center) | Determines the pan position of the Dual voice in the — 127 (right) stereo image. The value “O" results in the sound being panned full left, the value “127" results in the sound being panned full right. Reverb Send Level D.Reverb [000-127 Determines how much of the Dual voice's signal is sent to the Reverb effect. Chorus Send Level B.Chorus [000-127 Determines how much of the Dual voice's signal is sent to the Chorus effect. SPLIT VOICE Voice S.Uoice 001-487 Selects the Split voice. Volume Uolume [000-127 Determines the volume of the Split voice. Octave Octave -2-—+2 Determines the octave range for the Split voice. Pan Fan 000 (left) —64 (center) | Determines the pan position of the Split voice in the — 127 (right) stereo image. The value “0” results in the sound being panned full left, the value “127" results in the sound being panned full right. Reverb Send Level S,Reverb [000-127 Determines how much of the Split voice's signal is sent to the Reverb effect. Chorus Send Level horus [000-127 Determines how much of the Split voice's signal is sent to the Chorus effect. EFFECT Reverb Type Reverb 01-10 Determines the Reverb type, including off (10). (See the list on page 86) Chorus Type Chorus 01-05 Determines the Chorus type, including off (05). (See the list on page 86) Panel Sustain Sustain ON/OFF Determines whether or not panel sustain is always applied to the MAIN/DUAL/SPLIT voices. Panel sus- tain is applied continuously when ON, or not applied when OFF. (page 50) HARMONY Harmony Type HarnTure |01-26 Determines the Harmony type. (See the list on page Harmony Volume HsrnUol 000 — 127 Determines the volume of the Harmony effect when Harmony type 1-5 is selected. DGX-205/203, PSR-295/293 Ouners Manual FE

LÉETUD Function settings Category Setting Item title Range/Settings Description PC MODE PC mode FC mode PC1/PC2/OFF Optimizes the MIDI settings when you connect to a computer (page 67). PC1 sets local off and external clock on for use with an external sequencer or similar device. The PC2 setting allows the instrument to use Digi- tal Music Notebook content on the connected computer. OFF turns local control on, external clock off, key- board out on, style out on, and song out on. MIDI Local On/Off Local ON/OFF Determines whether the instruments keyboard con- trols the internal tone generator (ON) or not (OFF). (page 66) External Clock ON/OFF Determines whether the instrument synchronizes to the internal clock (OFF) or an external clock (ON). (page 66) Keyboard Out Kbdüut. ON/OFF Determines whether keyboard performance data of the instrument is transmitted (ON) or not (OFF). Style Out Stylelut ON/OFF Determines whether Style data is transmitted (ON) via USB or not (OFF) during Style playback. Song Out Sonsüut ON/OFF Determines whether Song data is transmitted (ON) via USB or not (OFF) during Song playback. Initial Setup Send InitSend YES/NO Lets you send the data of the panel settings to a com- puter. Press [+] to send, or press [-] to cancel. Use the [+] button to transmit the data. Use the [-] button to stop the transmission. Buk Send EulkSend | YESNO User song and registration memory data can be transmitted as bulk data to sequence software run- ning on your computer, where it can be stored for later retrieval and use. The instrument must be con- nected to a computer on which the appropriate USB MIDI driver is installed. With Bulk Send showing on the instruments display, press [+] to begin bulk data transmission. Press [-] to cancel the transmission. Refer to page 67 for information on connecting the instrument to a computer, and to page 71 for informa- tion on installing the USB MIDI driver. METRONOME Time Signature TineSig [00-15 Determines the time signature of the Metronome. Metronome Volume MérUol 000 - 127 Determines the volume of the Metronome. LESSON Lesson Track (R) R-Part GuideTrack 1 — 16 Determines the guide track number for your right hand lesson. The setting is only effective for songs in SMF format 0 transferred from a computer. Lesson Track (L) L-Part GuideTrack 1 — 16 Determines the guide track number for your left hand lesson. The setting is only effective for songs in SMF format 0 transterred from a computer. UTILITY Grade Grade ON/OFF Determines whether the Grade function is on or off. Demo Cancel B-Csncel [ONOFF Determines whether Demo cancel is enabled or not. When this is set to ON, the Demo Song will not play, even if the [DEMO] button is pressed.

• Allthese settings can be conveniently reset to their initial default values by pressing the [+] and [- buttons simultaneously. (The exception to this is Initial Setup Send and Bulk Send, which is an operation, not a setting.) F DGX-205/203, PSR-295/293 Owner's Manual

Connecting To a Computer Nearly all of the electronic musical instruments made today -— particularly synthesizers, sequencers and computer music related devices — use MIDI. MIDI is a worldwide standard that allows these devices to send and receive performance and setting data. Naturally, this instru- ment lets you save or send your keyboard performance as MIDI data, as well as the songs, styles and panel settings. The potential MIDI holds for your live performances and music creation/production is enor- mous — simply by connecting this instrument to a computer and transmitting MIDI data. In this section, you’ learn the basics of MIDI and the specific MIDI functions provided by this instru- ment. What Is MIDI? No doubt you have heard the terms “acoustic instru- ment” and “digital instrument.” In the world today, these are the two main categories of instruments. Let’s consider a grand piano and a classical guitar as repre- sentative acoustic instruments. They are easy to under- stand. With the piano, you strike a key, and a hammer inside hits some strings and plays a note. With the gui- tar, you directly pluck a string and the note sounds. But how does a digital instrument go about playing a note? © Acoustic guitar note production { Tone Generator L é R\ KZ Smping | (Electronic circuit) Sampmg *? ) Note Note OT AE TT

Based on playing information from the keyboard, a sampling note stored in the tone generator is played through the speakers. As shown in the illustration above, in an electronic instrument the sampling note (previously recorded note) stored in the tone generator section (electronic circuit) is played based on information received from the key- board. So then what is the information from the key- board that becomes the basis for note production? For example, let’s say you play a “C” quarter note using the grand piano sound on the instrument. Unlike an acoustic instrument that puts out a resonated note, the electronic instrument puts out information from the key- board such as “with what voice,” “with which key,” “about how strong,” “when was it pressed,” and “when was it released.” Then each piece of information is changed into a number value and sent to the tone gener- ator. Using these numbers as a basis, the tone generator plays the stored sampling note. Example of Keyboard Information Voice number (with what voice) 1 (grand piano) Note number (with which key) 60 (C3) Note on (when was it pressed) and | Timing expressed numerically note off (when was it released) (quarier note) Velocity (about how strong) 120 (strong) Your keyboard performance and all panel operations of this instrument are processed as MIDI data. The songs, auto accompaniment (styles), and User songs are also made up of MIDI data. MIDI is an acronym that stands for Musical Instrument Digital Interface and it allows different musical instru- ments and devices to instantly communicate with each other, via digital data. The MIDI standard is used all over the world and was designed to transmit perfor- mance data between electronic musical instruments (or computers). Thanks to MIDI, you can control one instrument from another and transmit performance data between the devices-taking your creative and perfor- mance potential to even higher levels. MIDI messages can be divided into two groups: Chan- nel messages and System messages. © Channel Messages This instrument is capable of handling 16 MIDI chan- nels simultaneously - meaning it can play up to sixteen different instruments at the same time. Channel mes- sages transmit information such as Note ON/OFF, Pro- gram Change, for each of the 16 channels. Message Name Note ON/OFF Instrument Operation/Panel Setting Performance data of the keyboard (contains note number and velocity data) Instrument selection (including bank select MSB/LSB, if necessary) Instrument settings (volume, pan, etc.) Program Change Control Change © System Messages This is data that is used in common by the entire MIDI system. System messages include messages like Exclu- sive Messages that transmit data unique to each instru- ment manufacturer and Realtime Messages that control the MIDI device. Message Name Exclusive Message Realtime Messages DGX-205/203, PSR-295/293 Ouners Manual Ê Instrument Operation/Panel Setting Reverb/chorus settings, etc. Start/stop operation

LEÉETUD Connecting To a Computer USB Connection This instrument can be connected to a computer to allow transfer of MIDI data. Connect a standard USB cable between the instrument’s rear-panel USB connector and the USB connector on your computer (USB cable sold separately). Itis also necessary to install the USB driver provided on the supplied CD-ROM on your computer. Refer to the “Accessory CD-ROM Installation Guide” on page 70 for details. The supplied CD-ROM also includes a Musicsoft Downloader application that allows you to transfer song files from your computer to the instrument’s flash mem- ory. DGX-205/203 PSR-295/203 Failure to do so can cause the instrument and/or the computer to hang up (freeze), possibly causing corrup- tion or loss of data. If the instrument or computer does hang up, turn the power to both devices off and then on again, and restart the computer. À CAUTION + Wake the computer from a sleep/suspended/standby mode before connecting the USE cable. + Connect the USE cable to the instrument and computer before turning power to the instrument on. + Check the following points before turning the instrument's power on or off, and before plugging or unplugging the USE cable. + Qui all applications. + Make sure that no data transfer is in progress (data is trans- ferred whenever you play on the keyboard or play a song). + Allow at least 6 seconds between turning the instruments power on and off, and between plugging and unplugging the USB cable.

• Directiy connect the instrument to the computer using a single USB cable. Do not use a USE hub. USB cable

E USB Precautions Please observe the following precautions when connect- ing the instrument to a computer via a USB cable. MIDI Settings NOTE | + The Musicsoft Downloader application may not be able to access the instrument in the following cases: + During a MIDI bulk dump. + During style playback. + During song playback. These settings pertain to MIDI data transmission and reception. H Local ON/OFF. ee Local control determines whether or not notes played on the instrument are sounded by its internal tone generator system: the internal tone generator is active when local control is on, and inactive when local control is off. ON This is the normal setting in which notes played on the instrument's keyboard are sounded by the internal tone generator system. Data received via the instruments USB connector will also be played by the internal tone generator. OFF With this setting the instrument itself produces no sound (keyboard performance, harmony, or style playback), but the performance data is transmitted via the USB con- nector. Data received via the instrument's USB connec- tor will also be played by the internal tone generator. Local control can turned on or off via the FUNCTION Local item (page 64). [NOTE j + If you can't get any sound out of the instrument, this may be the most likely cause. Playing the keyboard results in no sound when Local is set 10 OFF. DGX-205/203, PSR-295/293 Owner's Manual H External Clock ON/OFF..0009000e These settings determine whether the instrument is syn- chronized to its own internal clock (OFF), or to a clock signal from an external device (ON). ON The instrument's time based functions will be synchro- nized to the clock from an external device connected to the USB connector. OFF The instrument uses its own internal clock (default). External clock control can turned on or off via the FUNCTION External Clock item (page 64). [NOTE j + If External Clock is ON and no clock signal is being received from an external device, the song, style, and metronome functions will not start.

Connecting To a Computer MIDI (PC Mode) Settings For Computer Connection À number of MIDI settings need to be made when you connect the instrument to a computer. The PC Mode item can conveniently make multiple settings for you in one operation. Three settings are available: PCI, PC2, and OFF. Press the [PC] button to call up the PC Mode item, and select PCI or PC2, as required. The setting you choose will set parameters such as Local ON/OFF, External Clock ON/OFF, and others for optimum opera- tion with a sequencer application on your computer, for example. Refer to page 64 for details about the MIDI settings. [NOTE j + Set the PC mode to PC2 when using Digital Music Notebook“ in the supplied CD-ROM. igital Music Notebook" is a software application for handling songs and scores on your computer. Refer to the applications online help file for more information. PCI PC2 PC Mode = OFF Local OFF OFF ON External Clock ON OFF OFF Keyboard Out OFF ON ON Style Out OFF OFF ON Song Out OFF OFF ON Remote Control Of MIDI Devices You can also use this instrument as a remote control device for the Digital Music Notebook application on your computer (via the USB connection) — controlling playback, stop and transport functions from the panel. H Remote control kKeyseoooee . DGX-205/203: To use the remote control functions, simultaneously hold down the lowest two keys on the keyboard (E0 and F#0) and press the appropriate key (shown below). F#0 E0 G6: Fast forward F6: Start EG: Stop D6: Rewind C6: Top (move to the beginning of the song) B5: Metronome ON/OFF EH Setting the PC Mode 1 Press the [PC] button so that the FUNCTION display PC Mode item appears. 2 Use the dial or the [+] and [-] buttons to select PC1, PC2, or OFF. [NOTE + When the PC2 setting is selected the instrument style, song, demo, song recording, and lesson features cannot be used. CNOTE j + You can also access the PC Mode item by first pressing the [FUNC- TION] button and then using the CATEGORY [£ ] and [3 ] buttons to locate it (page 62). PSR-295/293: To use the remote control functions, simultaneously hold down the lowest two keys on the keyboard (C1 and C#1) and press the appropriate key (shown below). c#t c1 C6: Fast forward B5: Start A5: Stop G5: Rewind F5: Top (move to the beginning of the song) E5: Metronome ON/OFF [NOTE j Remote control of MIDI devices will function independently of the PC2 mode. DGX-205/203, PSR-295/293 Ouners Manual F?

LEÉETUD Connecting To a Computer Transferring Song Files From a Computer This instrument can access flash memory for storage and retrieval of song data: When song files are trans- ferred to flash memory media from your computer they can be used with the instrument’s performance assistant technology or Lesson functions. In order to transfer songs between your computer and the instrument you will need to install the Musicsoft Downloader application and the USB-MIDI Driver included on the Accessory CD-ROM on your computer. Refer to the Accessory CD-ROM Installation Guide on page 70 for installation details. + A USB cable is required in order to transfer song files to the instruments 1lash memory. USB cables can be purchased at an electrical goods or computer Sup ply store. © Data That Can be Transferred From a Computer To This Instrument + Song Capacity (max.) Flash memory 99 songs {Song numbers 036 — 134) Flash memory 373 kb SMF format 0/1 + Data Capacity + Data Format © What is SMF (Standard MIDI File)? The SMF (Standard MIDI File) format is one of the most common and widely compatible sequence formats used for storing sequence data, There are two variations: Format 0 and Format 1. A large number of MIDI devices are compatible with SMF Format 0, and most commer- cially available MIDI sequence data is provided in SMF Format 0. EH With the Musicsoft Downloader You Can © Transfer MIDI songs you have downloaded from the Internet or created on your computer from the com- puter to the instrument’s flash memory. — Refer to the step #1 — #9. The procedure for transferring songs included on the Accessory CD-ROM from your computer to the instrument is given as an example. Use the Musicsoft Downloader application with Internet Explorer 5.5 or higher. Ë DGX-205/203, PSR-295/293 Owner's Manual HE Use Musicsoft Downloader To Transfer Songs From the Accessory CD-ROM To the Instrument’s Flash Memory coooe0000000000000e [NOTE j + Ifa song or style is being played, stop playback before proceeding. T installthe Musicsoft Downloader application and the USB-MIDI driver on your computer (page 71 - 73). 2 Insert the supplied CD-ROM into your com- puter's CD-ROM drive. The start window should appear automatically, and close the window. 3 Double-click the Musicsoft Downloader shortcut icon that is created on the desktop. This will launch the Musicsoft Downloader application and the main window will appear. NOTE _| The instrument cannot be operated while the Musicsoft Downloader is running. Æ Click the “Add File” button and the Add File window will appear. 5 Clickthe [V1] button to the right of “Look in” and select the CD-ROM drive from the drop- down menu that appears. Double-click the “SongCollection” Folder on the window. Select the file you want to transfer to the instrument, and click “Open.” © Click the CD-ROM drive Look ir: [E3 My Decunents leèdE. \Chacror DOM 7 ny Corouter CIO 43 3H FlopnelAl CMS <é LoralDist(E] (C)5ond < LoralDist (D) CUS) <e LoralDist (E]

8 B— Flenane: | Gpan Flee ofupe: [UFR Fiet id 2] | Carmel

@ Double-click “SongCollection” © Click “Open” Folder. Double-click “for_CD” Folder and click a song file.

Connecting To a Computer 64 copy of the selected MIDI song file will appear in the “List of files stored tempo- © To Use transferred Songs For Lessons rarily” at the top of the window. The flash In order to use songs (only SMF format 0) trans- memory medium will also be displayed at ferred from a computer for lessons it is necessary the bottom of the window to specify the des- to specify which channels are to be played back as tination for the transfer. Click the flash mem- the right-hand and left-hand parts. The procedure ory. for setting the “guide track” is as follows: À Musicsoft Downloader, EX 4 Press the [SONG] button and select the song born [285 |] (036 —) residing in flash memory for which you Éceno Fans Nane a Ce want to set the guide track. 2 Press the [FUNCTION] button. 3 Use the CATEGORY [# ] and [% ] buttons to select the R-Part or L-Part item. - Es Æ Use the dial to select the channel you want to Fhene Toogte Île 5x] play back as the specified right- or left-hand FERRER [A ene À Ah enoy part. 3 4 Cons We recommend that you select channel 1 for the right-hand part and channel 2 for the left-hand part. Phi | Comecioncex | _Hek © Click the “Flash Memory” 7 After selecting the file in the “List of files stored temporarily”, click the downward [Move] button and a confirmation message will appear. Click [OK] and the song will be transferred from the “List of files stored tem- porarily” to the instrument's flash memory. 8 Close the window to end the Musicsoft Downloader. [NOTE À + Quit the Musicsoft Downloader to play back the song transferred from your computer. 9 Tv play back a song stored in flash memory, press the [SONG] button. Use the dial to select the song you want to play, then press the [START/STOP] button to start playback. À CAUTION + Do not unplug the USB cable during a data transfer. Not only will the data not be transferred and saved, but operation of the memory media may become unstable and its contents may disappear com- pletely when the power is turned on or off. À CauTION + Stored data can be lost due to equipment malfunction or improper operation. For safety we recommend that you keep a copy of all important data stored on your computer. + We recommend that you use a power adaptor rather than batteries when transferring data. The data can be corrupted if the batteries fail during the transfer. DGX-205/203, PSR-295/293 Ouners Manual Â

? Accessory CD-ROM Installation Guide SPECIAL NOTICES The software and this Installation Guide are exclusive copyrights of Yamaha Corporation. Use of the software and this guide is governed by the SOFTWARE LICENSING AGREEMENT which the purchaser fully agrees to upon breaking the seal of the software packaging. (Please read the AGREEMENT at the end of this guide carefully before installing the appli- cation.) Copying of the software or reproduction of this guide in whole or in part by any means is expressly forbidden without the written consent of the manufacturer. Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this guide and the software. This disc is a CD-ROM. Do not attempt to play the disc on an audio CD player. Doing so may result in irrepara- ble damage to your audio CD player. CD-ROM Contents + Copying of commercially available music data prohibited except for your personal use. The company names and product names in this Installa- tion Guide are the trademarks or registered trademarks of their respective companies. Future upgrades of application and system software and any changes in specifications and functions will be announced separately. Software such as the USB MIDI driver may be revised and updated without prior notice. Make sure to check and download the latest version of the software from the following site. http://music.yamaha.com/download/ Depending on the version of your operating system, the screen shots and messages shown in this guide may dif- fer to those that you see on your computer screen. s strictly The data on this CD-ROM is compatible with computers running the Windows® operating system. À CAUTION tially cause hearing damage or damage your CD player and speakers. | Do not attempt to play this CD-ROM on an audio CD player. The result high-volume noise can poten- Folder Name Application/Data Name Contents This application can be used to download MIDI song data from the Internet MSD_ Musicsoft Downloader *1 *2 and transfer it from the computer to memory media supported by the instru- ment (eg. flash memory). DMN_ Digital Musie Notebook ‘2 Digital Music Notebook is a major new multimedia platform for music tuition and performance. USBdrv_ USB Driver For Windows 98/Me This driver software is necessary to connect MIDI devices to your computer via USBdrv2k USB Driver For Windows 2000/XP USB. for CD The “SongCollection” folder contains two folders. The “for_CD” folder contains the 70 MIDI songs and the corresponding 70 notation PDF files. These songs SongCollection can be transferred to the instrument for listening and/or lessons. The for_Preset (Only Score) “or_Preset (Only Score)" folder contains the notation PDF filles of the 30 songs provided with the instrument (not including copyrighted songs).

• 1° The software cannot be used when the instrument is in the follow- ing state: + During style or song playback. + During a lesson. EH Using the CD-ROM 0009000000 Please read the Software License Agreement on page 74 before opening the CD-ROM package. +2 This software includes an online manual +3 This software is not supported by Yamaha Corporation 3 Connect the instrument to the computer. The connection procedure is described on page 66. 4 install the driver on your computer and make the necessary settings. Refer to “Installing the USB-MIDI Driver” on page 71 for installation and setup instructions. 1 Checkthe system requirements to make sure that the software will run on your com- puter. 2 insert the Accessory CD-ROM into your computer’s CD-ROM drive.The start window should appear automatically. Fe DGX-205/203, PSR-295/293 Owner's Manual

Accessory CD-ROM Installation Guide 5 Install the software. - Digital Music Notebook and Musicsoft Down- loader: 6 Launch the software. For further software operation refer to the online help supplied with the software. Refer to page 73. + YAMAHA USB-MIDI Driver: Refer to page 71. System Requirements Application/Data os CPU Memory Hard Disk Display Windows 98SE/Me/2000/ | 233 MHz or higher: Intel® | 64 MB or more Fee space (ar legnt 800 x 600 Musicsoft Downloader XP Home Edition/ Pentium®/Celeron® (256 MB ormore | fr9e Space (at last | HighColor XP Professional processor family is recommended) | S'cammendege | (16-bi) USB Driver for Windows 98Me | Windows 98/98SE/Me 166 MHz or higher: Intel® | 32 MB ormore (64 | 4 oact 2 MB oftree USB Driver for Windows Windows 2000/XP Home Pentium®/Celeron® MB or more is rec- | Space — 2000/XP Edition/XP Professional processor family ommended) 300MHZ or higher: Intel® i 128 MB Digital Music Notebook Windows® XP Professional _ | Pentium®/Celeron® (856 MB or more Edition, SPa more Processor famiy (1GHz | CEE ncnneg) io x 768 Windows® XP Home or more is recommended) atleast 60 MB offree | Hé Color Edition, SP1a more TGHZ or higher: Intel® space ÿ Digital Music Notebook Windows 2000 Professional, | Pentume/Celeron® (16-bit) (Réquirements for playing | SP4 more RO aGtz | 256 MB or more content with video included.) D ee LRO EG Software Installation © Uninstall (Removing the Software) Installed software can be removed from your computer follows: From the Windows Start menu select Start — Settings —> Control panel — Add or Remove Applications — Install and Uninstall. Select the item you want to remove and click [Add or Remove]. Follow the on-screen instruc- tions to remove the selected software. CNOIE + The actual names of the menu items and buttons will depend on the OS version you are using. EH Installing the USB-MIDI Driver e ee In order to be able to communicate with and use MIDI devices connected to your computer, the appropriate driver software must be properly installed on your com- puter. The USB-MIDI driver allows sequence software and similar applications on your computer to transmit and receive MIDI data to and from MIDI devices via a USB cable. Computer software | Sequerce PEU was | + Windows 98/Me installation + page 72. + Windows 2000 installation + page 72. + Windows XP installation > page 73. Check the drive name of the CD-ROM drive you will be using (D:, E:, Q: ete.) The drive name is displayed beside the CD-ROM icon in your “My Computer” folder. The root directory of the CD-ROM drive will be D\ EX or QA respectively. DGX-205/203, PSR-295/293 Ouners Manual

LÉETIZD Accessory CD-ROM Installation Guide Installing the driver on Windows 98/Me Installing the driver on Windows 2000 1 Startthe computer. 2 insert the supplied CD-ROM into the CD- ROM drive. A start window will appear auto- matically. Close the window. 3 First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the USB terminal of the computer to the USB connector of the instrument. When the instrument is turned on, the computer automatically displays the “Add New Hardware Wizard.” If the Add New Hardware Wizard does not appear, click “Add New Hardware” in the Control Panel. For Windows Me users, check the radio button to the left of “Automatic search for a better driver (Recom- mended)” and click [Next]. The system automati- cally starts searching and installing the driver. Proceed to Step 8. If the system does not detect the driver, select “Specify the location of the driver (Advanced)” and specify the CD-ROM drive’s “USBdrv_” folder to install the driver and click [Next]. Execute the installation by following the onscreen instructions and proceed to Step 8. NOTE _ À + If you are using Windows Me, skip Step 4 7. 4 Click [Next]. The window that appears enables you to select the search method. 5 Check the radio button to the left of “Search for the best driver for your device. (Recom- mended).” Click [Next]. The window that appears enables you to select a location in which to install the driver. 6 Check the “Specify a location” box, click “Browse”, then specify the USBdrv direc- tory of the CD-ROM drive (such as D:\USBdrv_\) and continue the installation. Z When the system detects the driver on the CD-ROM and is ready for installation, an appropriate message will appear on the screen. Make sure that the “YAMAHA USB MIDI Driver” is listed, and click [Next]. The installation process will begin. 8 When installation is complete, a message indicating so appears. Click [Finish]. [NOTE À + Some computers may take about ten seconds to show this screen after the installation is complete. The driver has been installed. @ DGX-205/203, PSR-295/293 Owner's Manual 1 Startthe computer and use the “Administra- tor” account to log into Windows 2000. 2 Select [My Computer] + [Control Panel] > [System] > [Hardware] + [Driver Signing] > [File Signature Verification], and check the radio button to the left of “Ignore — Install all files, regardless of file signature” and click [OK]. 3 Insert the supplied CD-ROM into the CD- ROM drive. A start window will appear auto- matically. Close the window. 4 First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the USB connector of the computer to the USB connector of the instrument. When the instrument is turned on, the computer automatically displays “Found New Hardware Wizard. Click [Next]. 5 Check the radio button to the left of “Search for a suitable driver for my device. (Recom- mended).” Click [Next]. The window that appears enables you to select a location in which to install the driver. 6 Check the “CD-ROM drives” box and uncheck all other items. Click [Next]. NOTE _ À + The system may ask you to insert a Windows CD-ROM while it checks for the driver. Specify the ‘USBdrv2k_" directory of the CD- ROM drive (such as D:\USBdrv2k |) and continue the installation. Z When the installation is complete, the sys- tem displays “Completing the Found New Hardware Wizard.” Click [Finish]. [NOTE j + Some computers may take about ten seconds to show this screen after the installation is complete. 8 Restart the computer. The driver has been installed.

Accessory CD-ROM Installation Guide Installing the driver on Windows XP 1 Start the computer. 2 Select [Start] + [Control Panel]. If the con- trol panel appears as “Pick a category”, click “Switch to Classic View” in the upper left of the window. All control panels and icons will be displayed. 3 Goto [System] + [Hardware] = [Driver Sign- ing Options] and check the radio button to the left of “Ignore” and click [OK]. 4 Click the [OK] button to close System Prop- erties, and then click “X” in the upper right of the window to close the Control Panel. 5 insert the supplied CD-ROM into the CD- ROM drive. A start window will appear auto- matically. Close the window. 6 First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the USB connector of the computer to the USB connector of the instrument. When the instrument is turned on, the computer automatically displays the “Found New Hardware Wizard.” CRE + Some computers may take a few minutes to show this screen. Z Check the radio button to the left of “Install the software automatically. (Recom- mended).” Click [Next]. The system starts the installation. 8 When the installation is complete, the sys- tem displays “Completing the Found New Hardware Wizard.” Click [Finish]. [NOTE | + Some computers may take about a few minutes to show this screen after the installation is complete. 9 Restart the computer. The driver has been installed. The driver has been installed. EH Installing the Musicsoft Downloader and Digital Music Notebook Appli- cations + D IMPOR! + You will need to log in with administrator (root) privileges in order to install Musicsoft Downloader on a computer running Windows 2000 or XP. + You will need to log in with administrator (root) privileges in order to install Digital Music Notebook on a computer running Windows 2000 or XP. LIMPORTANT i] + When installing the Digital Music Notebook, make sure that Inter- net Explorer 6.0 (with SP1) or higher is installed to your computer. LIMPORTANT i] + Credit card settlement is required to purchase Digital Music Note- book content. Credit card processing may not be possible for some areas, so please check with your local authorities to make sure that your credit card can be used. NOTE _ À + Use of the DMN (Digital Music Notebook, is governed by the SIBELIUS SCORCH LICENSE AGREEMENT, which the purchaser fully agrees to when using the application. Please read carefully the AGREEMENT at the end of this manual before using the application. T insert the Accessory CD-ROM into your computer’s CD-ROM drive. The start window will appear automatically showing software applications. [NOTE j + Ifthe start window does not appear automatically, double click your “My Computer” folder to open it. Right-click the CD-ROM icon and select “Open"from the pop-up menu. Double click “Start.exe” and proceed to step 2, below. 2 Click [Musicsoft Downloader] or [Digital Music Notebook]. 3 Click the [install] button, and follow the on- screen instructions to install the software. For Digital Music Notebook operating instructions see the help menu: launch the Digital Music Note- book application and click “Help”. For Musicsoft Downloader operating instructions see the Help menu: launch the Musicsoft Down- loader application and click “Help”.

• You can obtain the latest version of the Musicsoft Downloader at the following Internet URL. http://music.yamaha.com/download/ DIMPORT: + Only Musicsoft Downloader can be used to transfer files between this instrument and a computer. No other file transfer application can be used. DGX-205/203, PSR-295/293 Owner's Manual

The following is a legal agreement between you, the end user, and Yamaha Corporation (“Yamaha”). The enclosed Yamaha software program is licensed by Yamaha to the original purchaser for use only on the terms set forth herein. Please read this licensing agreement with care. Opening this package indicates that you accept all terms outlined herein. If you do not agree to the terms, return this package unopened to Yamaha for à full refund. In the event that you obtained the enclosed Yamaha software program(s) as a part of a software package or software bundled with a hardware product, you may not return the enclosed Yamaha software program(s) to Yamaha.

1. GRANT OF LICENSE AND COPYRIGHT

Yamaha grants you, the original purchaser, the right to use one copy of the enclosed software program and data (“SOFTWARE”) on a sin- gle-user computer system. You may not use it on more than one com- puter or computer terminal. The SOFTWARE is owned by Yamaha and is protected by Japanese copyright laws and all applicable inter- national treaty provisions. You are entitled to claim ownership of the media in which the SOFTWARE is included. Therefore, you must treat the SOFTWARE like any other copyrighted materials.

The SOFTWARE program is copyrighted. You may not engage in reverse engineering or reproduction of the SOFTWARE by other con- ceivable methods. You may not reproduce, modify, change, rent, lease, resell, or distribute the SOFTWARE in whole or in part, or cre- ate derivative works from the SOFTWARE. You may not transmit or network the SOFTWARE with other computers. You may transfer ownership of the SOFTWARE and the accompanying written materi- als on a permanent basis provided that you retain no copies and the recipient agrees to the terms of the licensing agreement. @ DGX-205/203, PSR-295/293 Owner's Manual

The licensing condition of the software program becomes effective on the day that you receive the SOFTWARE. If any one of the copy- right laws or clauses of the licensing conditions is violated, the licensing agreement shall be terminated automatically without notice from Yamaha. In this case, you must destroy the licensed SOFT- WARE and its copies immediately.

Yamaha warrants to the original purchaser that if the SOFTWARE, when used in normal conditions, will not perform the functions described in the manual provided by Yamaha, the sole remedy will be that Yamaha will replace any media which proves defective in materi- als or workmanship on an exchange basis without charge. Except as expressly set forth above, the SOFTWARE is provided “as is,” and no other warranties, either expressed or implied, are made with respect to this software, including, without limitation the implied warranties of merchantability and fitness for a particular purpose.

5. LIMITED LIABILITY

Your sole remedies and Yamaha's entire liability are as set forth above. In no event will Yamaha be liable to you or any other person for any damages, including without limitation any incidental or con- sequential damages, expenses, lost profits, lost savings or other dam- ages arising out of the use or inability to use such SOFTWARE even if Yamaha or an authorized dealer has been advised of the possibility of such damages, or for any claim by any other party.

This license agreement shall be interpreted according to and gov- erned by Japanese laws.

Troubleshooting H For the DGX-205/203, PSR-295/293 Problem Possible Cause and Solution When the instrument is turned on or off, a popping sound is temporarily produced. This is normal and indicates that the instrument is receiving electrical power. When using a mobile phone, noise is produced. Using a mobile phone in close proximity to the instrument may produce inter- ference. To prevent this, turn off the mobile phone or use it further away from the instrument. There is no sound even when the keyboard is played or when a song or style is being played back. Check that nothing is connected to the PHONES/OUTPUT jack on the rear panel. When a set of headphones is plugged into this jack, no sound is out- put. Check the Local Control on/off. (See page 66.) Playing keys in the right hand area of the keyboard does not produce any sound. When using the Dictionary function (page 55), the keys in the right hand area are used only for entering the chord root and type. + The volume is too soft. + The sound quality is poor. + The rhythm stops unexpectedly or will not play. + The recorded data of the song, etc. does not play cor- rectiy. + The LCD display suddenly goes dark, and all panel set- tings are reset. The batteries are low or dead. Replace all six batteries with completely new ones, or use the optional AC adaptor. The style or song does not play back when the [START/ STOP] button is pressed. Is External Clock set to ON? Make sure External Clock is set to OFF: refer to “External Clock” on page 66. The style does not sound properly. Make sure that the Style Volume (page 63) is set to an appropriate level. Is the split point set at an appropriate key for the cords you are playing? Set the split point at an appropriate key (page 51). Is the “ACMP ON"indicator showing in the display? If it is not showing press the [ACMP ON/OFF] button so that it does show. No rhythm accompaniment plays when the [START/ STOP] button is pressed after selecting style number 112 or a style between 124 and 135 (Pianist). This is not a malfunction. Style number 112 and style numbers 124 — 135 {Pianist) have no rhythm parts, so no rhythm will play. The other parts will begin playing when you play a chord in the accompaniment range of the key- board if style playback is turned on. Not all of the voices seem to sound, or the sound seems to be cut off. The instrument is polyphonic up to a maximum of 32 notes. If the Dual voice or Split voice is being used and a style or song is playing back at the same time, some notes/sounds may be omitted (or “stolen') from the accompani- ment or song. The footswitch (for sustain) seems to produce the oppo- site effect. For example, pressing the footswitch cuts off the sound and releasing it sustains the sounds. The polarity of the footswitch is reversed. Make sure that the footswitch plug is properly connected to the SUSTAIN jack before tuning on the power. The sound of the voice changes from note to note. This is normal. The AWM tone generation method uses multiple recordings (samples) of an instrument across the range of the keyboard: thus, the actual sound of the voice may be slightly different from note to note. The wrong notes sound when the keyboard is played. Perhaps the performance assistant technology is turned on. Press the [PERFORMANCE ASSISTANT] button to turn it off. The ACMP ON indicator does not appear when the [ACMP ON/OFF] button is pressed. Is the [STYLE] button lit? Always press the [STYLE] button first when you are going to use any style-related function. There is no harmony sound. The harmony effects (01 — 26) behave differentiy according to their type. Types 01 — 05 function when style playback is on, chords are played in the accompaniment range of the keyboard, and a melody is played in the right- hand range. Types 06 — 26 wi function whether style playback is on or off. For types 06 = 12 you need to play two notes at the same time. DGX-205/203, PSR-295/293 Owner's Manual

Troubleshooting E For the included software The driver cannot be installed. -+ Is the USB cable connected correctly? Check the USB cable connection. Disconnect the USB cable, then connect it again. Is the USB function enabled on your computer? ‘When you connect the instrument to the computer for the first time, if the “Add New Hardware Wizard” does not appear, the USB function on the computer may be dis- abled. Perform the following steps. T° Select [Control Panel] + [System] > [Device Manager] for Windows 98/Me), or select [Control Panel]* > [Sys- tem] + [Hardware] > [Device Manager] (for Windows 2000/XP).

• Classic View only in Windows XP. 2 Make sure that no “!” or “x” marks appear at “Universal serial bus controller” or “USB Root Hub” If you see an “1” or “x” mark, the USB controller is disabled. Is any unknown device registered? If driver installation fails, the instrument will be marked as an “Unknown device,” and you will not be able to install the driver. Delete the “Unknown device” by fol- lowing the steps below. T° Select [Control Panel] + [System] > [Device Manager] for Windows 98/Me), or select [Control Panel]* > [Sys- tem] + [Hardware] > [Device Manager] (for Windows 2000/XP).

• Classic View only in Windows XP. 2 Look for “Other devices” in the menu “View devices by type” 3 if you find “Other devices,” double-click it to extend the tree to look for “Unknown device." If one appears, select it and click the [Remove] button. Æ Remove the USB cable from the instrument, and make the connection again. 5 install the driver again. + Windows 98/Me users. + Windows 2000 users. + Windows XP users . When controlling the instrument from your computer via USB, the instrument does not operate correctly or no sound is heard. Did you install the driver? (page 71) Is the USB cable connected correctly? Are the volume settings of the instrument, playback device, and application program set to the appropri- ate levels? Have you selected an appropriate port in the sequence software? à DGX-205/203, PSR-295/293 Owner's Manual + Are you using the latest USB MIDI driver? The latest driver can be downloaded from the following web site. http://music.yamaha.com/download/ Playback response is delayed. Does your computer satisfy the system requirements? Is any other application or device driver running? Cannot suspend or resume the computer cor- rectly. Do not suspend the computer while the MIDI appli- cation is running. If you are using Windows 2000, you may not be able to suspend/resume normally, depending on the particular environment (USB Host Controller, etc.). Even so, sim- ply disconnecting and connecting the USB cable will allow you to use the instrument functions again. | How can | delete or re-install the driver? Windows Me/98 T_ When the instrument is recognized correctly, double- ick “System” in the Control Panel to open the System window. 2 Double-click the “Device Manager” tab, select “YAMAHA USB MIDI Driver” and delete it. 3 Use the MS-DOS prompt or Explorer to delete the fol- lowing three files. NOTE + To delete these files using Explorer, select “Folder Options” from the Tool (View) menu, and select "Show al files (and folders)."

PORTABLE GRAND, DEMO, FUNCTION, TOUCH, HAR-

MONY, DUAL, SPLIT, TEMPO/TAP, [0] — [9], [+], [-1, CAT- EGORY, Dial, ACMP ON/OFF, SYNC STOP, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, REGIST. MEMORY ([@] (MEMORY/BANK), [1], [2)), SONG MEMORY (REC, [1] - [5], [A]) Realtime Control + Pitch Bend Wheel (DGX-205/203 only) Voice + 114 panel voices + 12 drum kits + 359 XGlite voices + 2 XGlite optional voices + Polyphony: 32 + DUAL + SPLIT Style + 135 Preset Styles + Style Control: ACMP ON/OFF, SYNC STOP, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL + Fingering: Multi fingering + Style Volume Education Feature + Dictionary + Lesson 1-3, Lesson Repeat & Learn Registration Memory + 8 banks x 2 types Function + VOLUME: Style Volume, Song Volume

• OVERALL: Tuning, Transpose, Split Point, Touch Sensi- tivity, Pitch Bend Range (DGX-205/203 only) + MAIN VOICE: Volume, Octave, Pan, Reverb Send Level, Chorus Send Level + DUAL VOICE: Voice, Volume, Octave, Pan, Reverb Send Level, Chorus Send Level + SPLIT VOICE: Voice, Volume, Octave, Pan, Reverb Send Level, Chorus Send Level + EFFECT: Reverb Type, Chorus Type, Panel Sustain + HARMONY: Harmony Type, Harmony Volume + PC: PC4/PC2/Of + MIDI: Local On/Of, External Clock, Initial Setup Send, Keyboard Out, Style Out, Song Out, Bulk Send + METRONOME: Time Signature, Metronome Volume + LESSON: Lesson Track (R), Lesson Track (L) + UTILITY: Grade, Demo Cancel Effects + Reverb: 9 types + Chorus: 4 types + Harmony: 26 types Song + 30 Preset Songs + 5 User Songs + Accessory CD-ROM Songs (70) + Song Clear, Track Clear + Song Volume Performance assistant technology Recording + Song User Song: 5 Songs Recording Tracks: 1,2, 3, 4,5, STYLE MIDI + Local On/Off + Initial Setup Send + External Clock + Keyboard Out » Style Out + Song Out + Bulk Send Auxiliary jacks + PHONES/OUTPUT, DC IN 12V, USB, SUSTAIN Amplifier

+ DGX-205/203: 6W + 6W

+ PSR-295/293: 3W + 3W

Speakers +12mx2+3cmx2 Power Consumption + DGX-205/203: 20W (When using PA-5D power adaptor) + PSR-295/293: 16W (When using PA-3C power adaptor) Power Supply + Adaptor: Yamaha PA-5D AC power adaptor (DGX-205/203) Yamaha PA-3C AC power adaptor (PSR-295/293) - Batteries: Six “D” size, R20P (LR20) or equivalent batteries Dimensions (W x D x H) + DGX-205/203: 1,178 x 412 x 150 mm (46-3/8" x 16-1/4" x 5-7/8") + PSR-295/293: 952 x 388 x 146 mm (87-1/2" x 15-1/4" x 5-3/4") Weight + DGX-205/203: 8.8kg (19 lbs. 6 oz.) (not including batteries) + PSR-295/293: 7.0kg (15 lbs. 7 oz.) (not including batteries) Supplied Accessories + Music Rest - Accessory CD-ROM + Owners Manual + Song Book Optional Accessories + AC Power Adaptor: PA-5D/PA-5C (DGX-205/203) PA-3C (PSR-295/293) FC4/FC5 LW-15/LW-16 (DGX-205/203) L-2C/L-2L (PSR-295/293) + Footswitch: + Keyboard Stand:

• Specifications and descriptions in this owner's manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or op- tions may not be the same in every locale, please check with your Yamaha dealer. DGX-205/203, PSR-295/293 Ouners Manual

Drum Kit List Voice No. Tr 77 127 T2 T7 7 T2

Effect Type List © Harmony Types No. Harmony Type Description 01 Duet Harmony types 01 — 05 are pitch-based and add one-, two- or three-note harmonies to CEA the single-note melody played in the right hand. These types sound when chords are played in the auto accompaniment range of the keyboard. These Harmony types will also 03 | Block work when playing songs that contain chord data. 04 | Country 05 |Octave 06 | Trill 1/4 note Types 6 — 26 are rhythm-based effects and add embellishments or delayed “ repeats in time with the auto accompaniment. These types sound whether the 07 | Tillt/6 note TIT auto accompaniment is on or not; however, the actual speed of the effect + _| depends on the Tempo setting (page 17). The individual note values in each 08 |Tilt&note type let you synchronize the effect precisely to the rhythm. Triplet settings are also available: 1/6 = quarter-note triplets, 1/12 = eighth-note triplets, 1/24 = six- 09 Till 1/12 note teenth-note triplets. 2 2_| + The Till effect Types (06 — 12) create two-note trills (alternating notes) when 10 |Tillt/16 note À two notes are held. == | + The Tremolo effect Types (13 — 19) repeat all held notes (up to four). 11 _|Tril124note + The Echo effect Types (20 — 26) create delayed repeats of each note played. 12 | Trill 1/82 note À 13 | Tremolo 1/4 note J 14 | Tremolo 1/6 note TJ] 15 | Tremolo 1/8 note pi] 16 | Tremolo 1/12 note 17 | Tremolo 4/16 note À 18 | Tremolo 1/24 note 19 | Tremolo 1/32 note À 20 | Echo t/4 note J 21 Echo 1/6 note 1j] 22 | Echo 1/8note à 23 | Echo 1/12 note 24 | Echo t/6 note 25 | Echo 1/24 note 26 | Echo 1/32 note Reverb Types No. Reverb Type Description 01-03 |Hali—3 Concert hall reverb. 04-05 | Room 1-2 Small room reverb. 06-07 | Stage 1-2 Reverb for solo instruments. 08-09 | Plate 1-2 Simulated steel plate reverb. 10 [of No effect. Chorus Types No. Chorus Type Description 01-02 | Chorus 1-2 Conventional chorus program with rich, warm chorusing. 03-04 | Flanger 1-2 Pronounced three-phase modulation with a slight metallic sound 05 [oi No effect. Q DGX-205/203, PSR-295/293 Owner's Manual

MIDI Data Format NOTE: 1 By default (factory settings) the instrument ordinarily functions as a 16-channel multi-timbral tone generator, and incoming data does not affect the panel voices or panel settings. How- ever, the MIDI messages listed below do affect the panel voices, auto accompaniment, and Songs. + MIDI Master Tuning + System exclusive messages for changing the Reverb Type and Chorus Type. 2 Messages for these control change numbers cannot be trans- mitted from the instrument itself. However, they may be trans- mitted when playing the accompaniment, song or using the Harmony effect. 3 Exclusive <GM System ON> FOH, 7EH, 7FH, 09H, O1H, F7H + This message automatically restores all default settings for the instrument, with the exception of MIDI Master Tuning. <MIDI Master Volume> FOH, 7FH, 7FH, 04H, O1H, I, mm, F7H + This message allows the volume of all channels to be changed simultaneously (Universal System Exclusive). + The values of ‘mm' is used for MIDI Master Volume. (Values for “l”'are ignored.) <MIDI Master Tuning> FOH, 43H, 1nH, 27H, 30H, OOH, OOH, mm, ll, cc, F7H + This message simultaneously changes the tuning value of all channels. + The values of ‘mm"and ‘ll are used for MIDI Master Tuning. + The default value of ‘mm" and ‘Il are 08H and 00H, respec- tively. Any values can be used for “n” and “cc.” H Effect map <Reverb Type> FOH, 48H, 1nH, 4CH, O2H, O1H, 00H, mmH, IH, F7H + mm : Reverb Type MSB + 11: Reverb Type LSB Refer to the Effect Map (page 88) for details. <Chorus Type> FOH, 48H, 1nH, 4CH, 02H, O1H, 20H, mmH, IH, F7H + mm : Chorus Type MSB + 11: Chorus Type LSB Refer to the Effect Map (page 88) for details. When the accompaniment is started, an FAH message is trans- mitted. When accompaniment is stopped, an FCH message is transmitted. When the clock is set to External, both FAH (accompaniment start) and FCH (accompaniment stop) are recognized. Local ON/OFF <Local ON> Bn, 7A, 7F <Local OFF> Bn, 7A, 00 Value for ‘n”is ignored.

• When a Type LSB value is received that corresponds to no effect type, a value corresponding to the effect type {coming the closest to the specified value) is automatically set. *_ The numbers in parentheses in front of the Effect Type names correspond to the number indicated in the display. © REVERB

DGX-205/203, PSR-295/293 Owner's Manual

Panel Sustain . PC Mode . performance assistant technology Pitch Bend Range . Power Adaptor Preset Song . DGX-205/203, PSR-295/293 Ouners Manual Â

By using this Product you (an individual or legal entity) agree with the Licensor to be bound by the terms of this License which will govern your use of the Product. If you do not accept these terms, do not use this Product. This Product is copyright (c) Sibelius Software Limited and its licensors 1987-2005.

4. Disclaimer of Liability

In this License the following words and expressions have the following meanings : "License": this agreement between you and the Licensor and, if permitted by the context, the conditional license granted to you in this agreement. "’Licensor": Sibelius Software Limited, an English company (registered no. 3338819) of The Old Toy Factory, 20-22 City North, Fonthill Road, London N4 3HN, UK. "Product": the Software and the Documentation. "Software": the Sibelius Scorch web browser plug-in, Opus and Inkpen2 font families, any other programs or files supplied by the Licensor which are included in or with the Sibelius Scorch installer, and the Sibelius Scorch installer. "Documentation": any documentation in any form relating to the Software supplied to you with the Software or by the Licensor.

2.1 The Licensor grants to you a non-exclusive non-transferable

license to use this Software in accordance with the Documentation on a single terminal of a single computer in a single location. Any further use is prohibited. Title to the Product is not transferred to you. Ownership of the Product remains vested in the Licensor, subject to the rights granted to you under this License. AIl other rights are reserved. 22 You may make one printout for your own use of any part of the Documentation provided in electronic form. You shall not make or permit any third party to make any further copies of any part of the Product whether in eye or machine-readable form. 2.3. You shall not, and shall not cause or permit any third party to,(1) translate, enhance, modify, alter or adapt the Product or any part of it for any purpose (including without limitation for the purpose of error correction); (2) create derivative works based on the Product, or cause the whole or any part of the Product to be combined with or incorporated into any other program, file or product, for any purpose; or (3) use the Software to create files in any format (other than temporary files created and required by your computer's operating system), including without limitation screen capture files, files generated from the Software's playback, graphics files and print files, for any purpose, except for creating MIDI files (if permitted by the Software) for private non-commercial use. 24 You shall not, and shall not cause or permit any third party to, decompile, decode, disassemble or reverse engineer the Software in whole or in part for any purpose.

2.5 You shall not, and shall not cause any third party to, translate,

convert, decode or reverse engineer any file capable of being read by any copy or version of the Software or any data transmitted to or from any copy or version of the Software, in whole or in part for any purpose.

2.6 The Product or any part of it must not be used to infringe any

right of copyright or right of privacy, publicity or personality or any other right whatsoever of any other person or entity.

3.1 You acknowledge that copyright in the Product as a whole and

in the components of the Product as between you and the Licensor belongs to the Licensor or its licensees and is protected by copyright laws, national and international, and all other applicable laws.

4.1 In consideration of the fact that the Product is licensed

hereunder free of charge, (a) the Licensor disclaims any and all warranties with respect to the Product, whether expressed or implied, including without limitation any warranties that the Product is free from defects, will perform in accordance with the Documentation, is merchantable, or is fit for any particular purpose, and (b) the Licensor shall not have or incur any liability to you for any loss, cost, expense or claim (including without limitation any liability for loss or corruption of data and loss of profits, revenue or goodwill and any type of special, indirect or consequential loss) that may arise out of or in connection with your installation and use of the Product.

destruction of the Product. In addition, the Licensor may elect to terminate this License in the event of a material breach by you of any condition of this License or of any of your representations, warranties, covenants or obligations hereunder. Upon notification of such termination by the Licensor, you will immediately delete the Software from your computer and destroy the Documentation.

6.1. No failure to exercise and no delay in exercising on the part of the Licensor of any right, power or privilege arising hereunder shall operate as a waiver thereof, nor shall any single or partial exercise of any right, power or privilege preclude any other or further exercise thereof or the exercise of any other right, power or privilège. The rights and remedies of the Licensor in connection herewith are not exclusive of any rights or remedies provided by law.

6.2 You may not distribute, loan, lease, sub-license, rent or

otherwise transfer the Product to any third party.

6.3 You agree to the use of your personal data in accordance with

the Licensor's privacy policy (available from the Licensor or on www:sibelius.com) which may change from time to time. 64 This License is intended by the parties hereto to be a final expression of their agreement with respect to the subject matter hereof and a complete and exclusive statement of the terms of such agreement. This License supercedes any and all prior understandings, whether written or oral, between you and the Licensor relating to the subject matter hereof.

6.5 (This section only applies if you are resident in the European

Union:) This License shall be construed and govemed by the laws of England, and both parties agree to submit to the exclusive jurisdiction of the En,

6.6 (This section only applies if you are not resident in the European

Union:) This License shall be construed and enforced in accordance with and govered by the laws of the State of California. Any suit, action or proceeding arising out of or in any way related or connected to this License shall be brought and maintained only in the United States District Court for the Northern District of California, sitting in the City of San Francisco. Each party irrevocably submits to the jurisdiction of such federal court over any such suit, action or proceeding. Each party knowingly, voluntarily and irrevocably waives trial by jury in any suit, action or proceeding (including any counterclaim), whether at law or in equity, arising out of or in any way related or connected to this License or the subject matter hereof. (License v2.8, 10 Jan 2005) DGX-205/203, PSR-295/293 Owner's Manual @

Yamaha Corporation of America, hereafter referred to as Yamaha, warrants to the original consumer of a product included in the categories listed below, that the product will be free of defects in materials and/or workmanship for the periods indicated. This warranty is applicable to all models included in the following series of products: Fetabl Gand, PSR SERIES OF ELECTRONIC KEYBOARDS If during the first 90 days that immediately follows the purchase date, your new Yamaha product covered by this warranty is found to have a defect in material and/or workmanship, Yamaha and/or its authorized representative will repair such defect without charge for parts or labor. If parts should be required after this 90 day period but within the one year period that immediately follows the purchase date, Yamaha will, subject to the terms of this warranty, supply these parts without charge. However, charges for labor, and/or any miscellaneous expenses incurred are the consumers responsibility. Yamaha reserves the right to utilize reconditioned parts in repairing these products and/or to use reconditioned units as warranty replacements. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY WHICH YAMAHA MAKES IN CONNECTION WITH THESE PROD- UCTS. ANY IMPLIED WARRANTY APPLICABLE TO THE PRODUCT, INCLUDING THE WARRANTY OF MERCHANT ABILITY IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY. YAMAHA EXCLUDES AND SHALL NOT BE LIABLE IN ANY EVENT FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations that relate 10 implied warranties and/or the exclusion of incidental or consequential damages. Therefore, these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. CONSUMERS RESPONSIBILITIES If warranty servi ssary that the consumer assume certain responsibilities: hould be required, it is ne 1. Contact the Customer Service Department of the retailer selling the product, or any retail outlet authorized by Yamaha to sell the product for assistance. You may also contact Yamaha directly at the address provided below. 2. Deliver the unit to be serviced under warranty to: the retailer selling the product, an authorized service center, or to Yamaha with an explanation of the problem. Please be prepared to provide proof purchase date (sales receipt, credit card copy, etc.) when requesting service and/or parts under warranty. 3. Shipping and/or insurance costs are the consumers responsibility.* Units shipped for service should be packed securely. *Repaired units will be returned PREPAID if warranty service is required within the first 90 days. IMPORTANT: Do NOT ship anything to ANY location without prior authorization. A Return Authorization (RA) will be issued that has a tracking number assigned that will expedite the servicing of your unit and provide a tracking system if needed. 4. Your owners manual contains important safety and operating instructions. It is your responsibility to be aware of the contents of this manual and to follow all safety precautions. EXCLUSIONS This warranty does not apply to units whose trade name, trademark, and/or ID numbers have been altered, defaced, exchanged removed, or 10 fail- ures and/or damages that may occur as a result of:

1. Neglect, abuse, abnormal strain, modification or exposure to extremes in temperature or humidity.

2. Improper repair or maintenance by any person who is not a service representative of a retail outlet authorized by Yamaha to sell the product, an authorized service center, or an authorized service representative of Yamaha. 3. This warranty is applicable only to units sold by retailers authorized by Yamaha to sell these products in the U.S.A., the District of Columbia, and Puerto Rico. This warranty is not applicable in other possessions or territories of the U.S.A. or in any other country. Please record the model and serial number of the product you have purchased in the spaces provided below. Model Serial # Sales Slip # Purchased from. Date (Retailer)

YAMAHA CORPORATION OF AMERICA

Electronic Service Division 6600 Orangethorpe Avenue Buena Park, CA 90620 KEEP THIS DOCUMENT FOR YOUR RECORDS. DO NOT MAIL!
