USER MANUAL CBXK1XG YAMAHA

This product utilizes batteries or an external power supply (adapter). DO NOT connect this product to any power supply or adapter other than one described in the manual, on the name plate, or specifically recommended by Yamaha.

This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. IMPORTANT: The louder the sound, the shorter the time period before damage occurs.

NOTICE:

Service charges incurred due to lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer's warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

This product may also use "household" type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged.

When installing batteries, do not mix old batteries with new, or with batteries of a different type. Batteries MUST be installed correctly. Mismatches or incorrect installation may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Model CBX-K1XG

Serial No.

Purchase Date

FCC INFORMATION (U.S.A.)

IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

IMPORTANT:

When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

NOTE:

This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the user's manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

• Relocate either this product or the device that is being affected by the interference.
• Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
• In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park CA, 90620

• This applies only to products distributed by Yamaha Corporation of America.

Precautions

Your CBX-K1XG will give you years of reliable service if you follow the simple precautions below:

• LOCATION

Keep the instrument away from locations where it is likely to be exposed to high temperatures (such as direct sunlight) or humidity. Also avoid locations which are subject to excessive dust accumulation or vibration which could damage the instrument.

USE THE CORRECT POWER ADAPTOR

Use only the designated Power Adaptor for supplying power. Use of another adaptor may cause serious damage to the instrument or the adaptor itself. Also avoid using a multipleplug adaptor; plug the adaptor directly into a wall outlet.

• MAKE SURE POWER IS OFF WHEN MAKING OR REMOVING CONNECTIONS

To prevent damage to the instrument and other connected equipment, always turn off the power prior to connecting or disconnecting cables. Also, turn the power off when the instrument is not in use, and disconnect the power adaptor during electric storms.

• NO MEMORY BACKUP

The CBX-K1XG has no internal memory backup. As a result, all settings are returned to the factory default when turning the power off.

• HANDLE THE INSTRUMENT WITH CARE

Although the instrument has been constructed to withstand the rigors of normal use for optimum sturdiness and reliability,

avoid subjecting it to strong physical shocks (such as dropping or hitting it). Since the CBX-K1XG is a precision-made electronic device, also avoid applying excessive force to the various controls. When moving the instrument, first unplug the power adaptor and all other cables to prevent damage to cords and jacks. Always unplug cables by gripping the plug firmly, not by pulling on the cable.

• CLEAN WITH A SOFT, DRY CLOTH

Never use solvents such as benzine or thinner to clean the instrument, since these will damage the cabinet finish or dull the keys. Wipe clean with a soft, dry cloth. If necessary, use a soft, clean, slightly moistened cloth — making sure to wipe the instrument off again with a dry cloth. Do not leave vinyl on the panel as this may stick to and discolor the surface.

ELECTROMAGNETIC INTERFERENCE

Avoid using the unit near televisions, radios or other equipment generating electromagnetic fields. Proximity to such equipment may cause the unit to malfunction, and may generate interference noise in the other appliance as well.

DO NOT OPEN THE CASE OR TRY REPAIRING THE INSTRUMENT YOURSELF

The instrument contains no user-serviceable parts. Never open the case or tamper with the internal circuitry in any way, since doing so may result in damage to the instrument. Refer all servicing to qualified Yamaha service personnel.

Yamaha is not responsible for damage caused by improper handling or operation.

Welcome to the CBX-K1XG

Congratulations and thank you for purchasing the Yamaha CBX-K1XG MIDI Sound Keyboard.

The CBX-K1XG is a sophisticated, yet compact MIDI keyboard controller and tone generator, for use with computers and MIDI music systems.

The tone generator section features 737 high-quality Voices and 22 drum Voices, with full General MIDI compatibility—including Yamaha's new XG-MIDI. It provides 16-Part multistimbral capacity and full 32-note polyphony for playback of even the most sophisticated song data. Three independent digital effect sections can be used simultaneously and give you enormous versatility in “sweetening” the sound.

As a MIDI keyboard controller, the CBX-K1XG not only allows you to play the internal tone generator, but also external tone generators and rhythm machines, as well as enter performance data to sequencers and computers. It features a sophisticated touch-sensitive keyboard that can be adjusted to cover the full 128-note MIDI range. It also provides a wealth of MIDI controls that allow you to send virtually any MIDI message directly from the keyboard. Moreover, the CBX-K1XG has a versatile ASSIGNABLE Wheel that lets you control a wide variety of parameters on the internal tone generator or external device in real time.

The CBX-K1XG also features a built-in host computer interface along with the MIDI terminals, allowing you to directly connect it to your computer—eliminating the need of installing a special MIDI interface to your computer.

What It Is

The CBX-K1XG is a compact, highly portable 37-key MIDI keyboard, designed especially for use with computers and MIDI music systems. It also has a built-in high-quality GM- and XG-compatible tone generator, with 737 Voices and 22 drum Voices (percussion sets). The tone generator can be played either from an external MIDI device (such as a sequencer) or from the keyboard itself. Since the keyboard is touch-sensitive and its octave range can be changed to cover the full 128-note MIDI range, the CBX-K1XG is ideal for entering MIDI data to sequencers and computers.

The CBX-K1XG features a built-in host computer interface, allowing you to directly connect it to your Macintosh or IBM PC/AT (and compatible) computer—eliminating the need of installing a special MIDI interface to your computer. With the proper sequencing software on the computer, the CBX-K1XG can be used for both recording and playing back of sequencer data.

The true power and flexibility of the CBX-K1XG is in its comprehensive MIDI controls. The CBX-K1XG allows you to send virtually any type of MIDI message to connected devices. Pre-programmed commands provide easy control of basic sequencer/rhythm machine functions such

as Start, Stop, Tempo and Song Select, while comprehensive program change commands let you easily select program banks and voices.

The CBX-K1XG also has a convenient ASSIGNABLE Wheel that can be set for control of any controller number. This means that you can use the ASSIGNABLE Wheel to control a wide variety of parameters—such as Volume, Pan, Brightness, and the Depth of various effects—in real time. This gives you expressive control over different aspects of the sound in live performance. The internal tone generator also features comprehensive control over all Voice and effect parameters—via incoming system exclusive messages, transmitted from a sequencer or other MIDI device.

The CBX-K1XG is also the latest instrument in the Yamaha line to support the XG format, a new addition to the General MIDI standard. In short, XG provides for more instrument sounds and variations, and greater expressive control over voices and effects. With the use of the ASSIGNABLE Wheel on the CBX-K1XG, you have direct real-time control over many of these newly supported functions and parameters. Naturally, the internal tone generator is fully XG-compatible and responds to all these controls.

How to Use This Manual

By and large, the CBX-K1XG is very easy to use and this manual is self-explanatory. However, we strongly recommend that you take time to read the manual—especially before trying some of the more sophisticated MIDI functions.

The following conventions are used throughout this manual:

• Panel buttons and controls are indicated as they appear on the actual instrument. (For example, SHIFT and OCTAVE SHIFT).
• The functions and features assigned to the keyboard are shown like this: BANK SELECT and MIDICH.
• Unless indicated otherwise, ENTER refers to either of the ENTER keys, HEXADECIMAL ENTER or DECIMAL ENTER. However, when you wish to enter a decimal value, make sure to press DECIMAL ENTER. Likewise, when entering a hexadecimal number, make sure to press HEXADECIMAL ENTER.

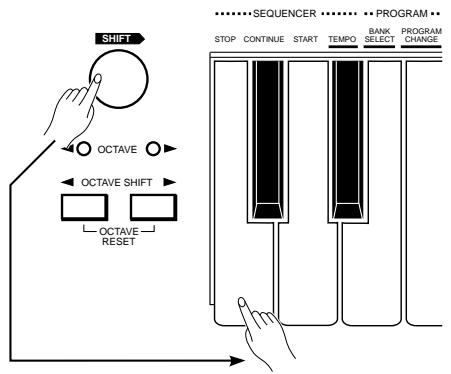

• Operation steps are indicated as follows:

Example	Actual Operation

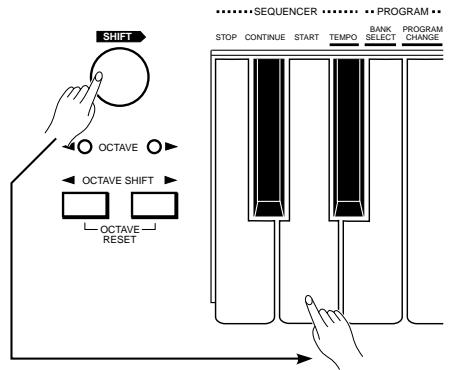

SHIFT + START	While holding down the SHIFT button, press START (D2).
SHIFT + GM ON → ENTER	While holding down the SHIFT button, first press GM ON (F#2), then press ENTER (either HEXADECIMAL ENTER or DECIMAL ENTER).

Panel Controls and Terminals 5

Front Panel 5
Note Range of the CBX-K1XG (with Octave Shift) 6
- Default Settings of the CBX-K1XG 7

Rear Panel 8

Guided Tour

Power Supply 9

Using a Power Adaptor 9
Using Alkaline Batteries 9
When to Replace the Batteries 9

Connections 10

Computers 10

1. Serial Port — TO HOST Terminal 10
2. Serial Port — MIDI Interface — MIDI Terminals . 12

MIDI Devices 13

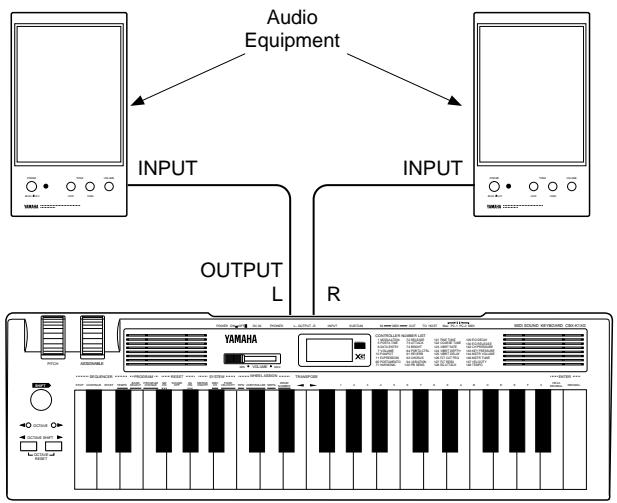

Audio Equipment 13

Playing and Using Your CBX-K1XG 14

Playing the Demo Song 14
Selecting and Playing Voices 15
Selecting Voices From Other Voice Banks 16
Selecting Drum Voices 16
Changing the Octave Range 17
Using the PITCH and ASSIGNABLE Wheels 18
Re-assigning the ASSIGNABLE Wheel 18
Changing the Touch Sensitivity of the Keyboard 19
Using the INPUT Jack 19

Reference

About the Tone Generator of the CBX-K1XG 20
About MIDI & The CBX-K1XG 22
Using the SHIFT-Related Functions 24

Basic Operations 25

Setting the Functions 26

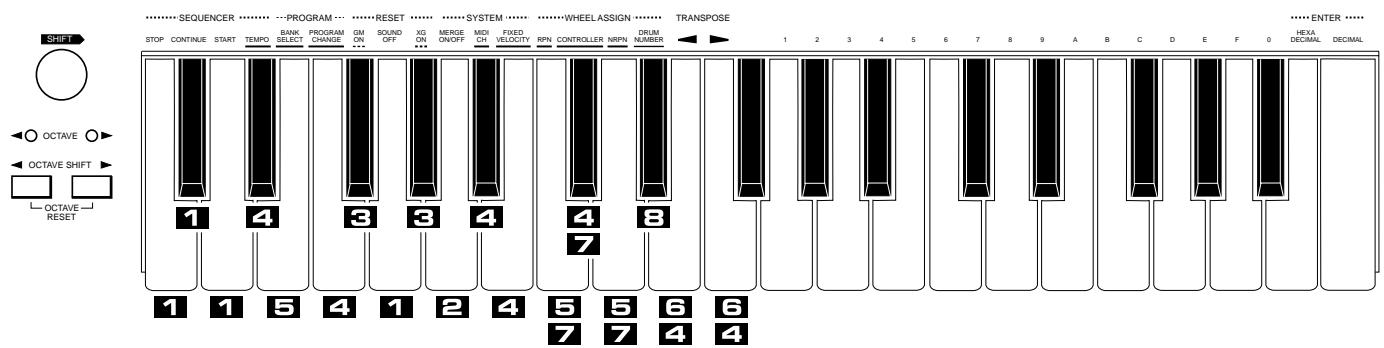

Group A Operations 26

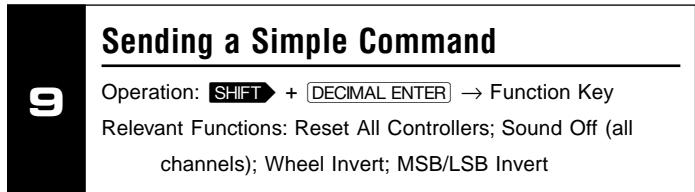

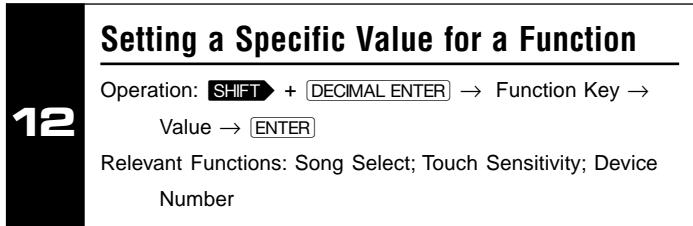

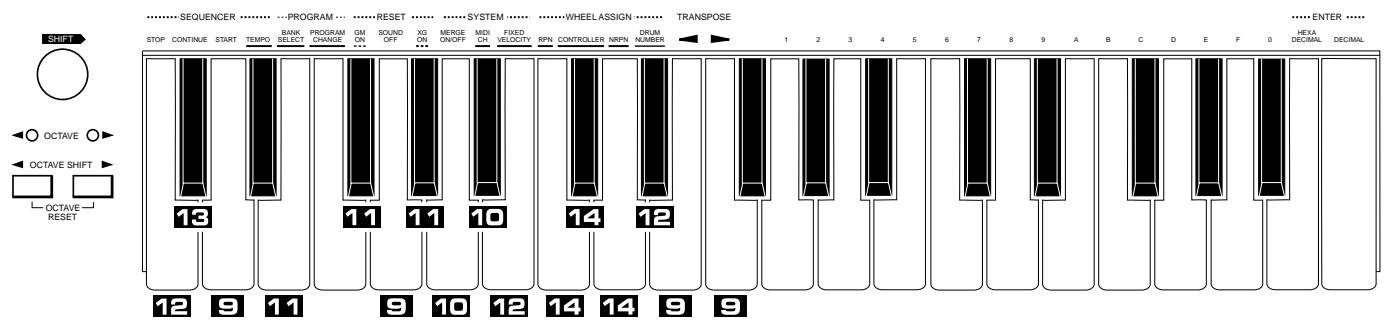

Group B Operations 28

Group A Functions - List 30
Group B Functions - List 32
ASSIGNABLE Wheel — Controller Number List 34
Troubleshooting 35
Specifications 37
Index 38

Appendix

MIDI Data Format App-2
MIDI Data Tables App-12
MIDI Implementation Chart App-16
XG Normal Voice List App-17
TG300B Normal Voice List App-19
C/M Normal Voice List App-21
DOC Noraml Voice List App-22
XG Drum Voice List App-23
TG300B Drum Voice List App-24
C/M Drum Voice List App-25
DOC Drum Voice List App-25
Effect Type List App-26
Effect Parameter List App-27
Effect Data Value Assign Table App-30

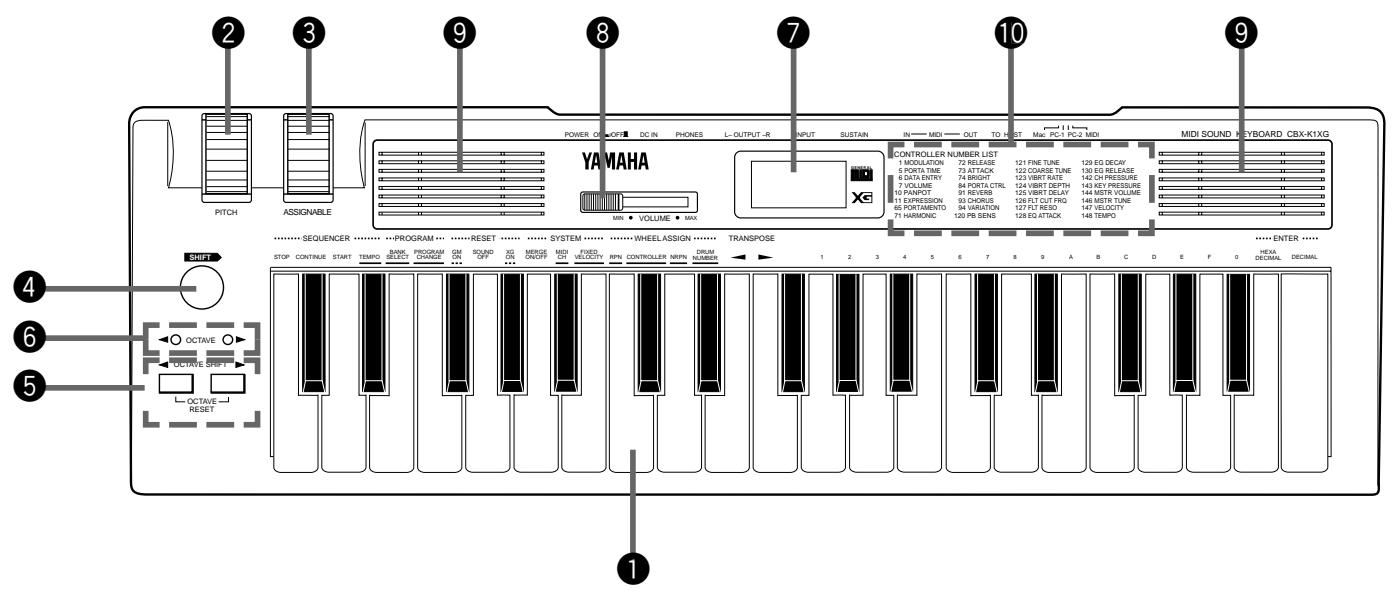

Front Panel

Keyboard

The CBX-K1XG has a 37-key, 3-octave keyboard (C2 to C5), featuring initial touch (velocity) control. All note on, note off and velocity data is sent both to the internal tone generator and the connected MIDI device. When used with the SHIFT button, the keys are used for changing various settings and sending special MIDI messages. (See page 24.)

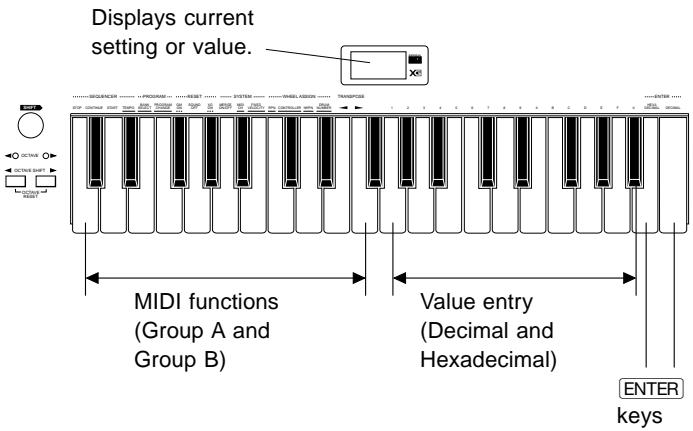

About the Functions of the CBX-K1XG: The functions are divided into two groups: Group A and Group B. The Group A functions are shown on the panel, above the left section of the keyboard. The Group B functions are "hidden" and are listed on pages 32 - 33. Several functions can be used by pressing only the relevant key; in other words, pressing ENTER is not necessary. These functions, such as Sequencer Stop and Start, are shown on the panel without underline. The right section of the keyboard serves as value entry and is used for those functions whose names are underlined on the panel and require value entry, such as Program Change and Tempo. Functions whose names appear with a dashed underline on the panel (for example, GM ON and XG ON) require pressing ENTER. Value entry on the CBX-K1XG can be done in two number systems: Decimal and Hexadecimal. The keys labeled A through F are for Hexadecimal entry.

NOTE The normal (default) velocity range of the CBX-K1XG is from 16 to 127. The range differs according to the Touch Sensitivity setting (see page 32).

2 PITCH Wheel (Pitch Bend)

This spring-loaded Wheel controls Pitch Bend. The Wheel's operation can be reversed. (See page 32.)

3 ASSIGNABLE Wheel

When the CBX-K1XG is turned on, this Wheel (with center detent) is set to control Modulation Depth of the internal tone generator and the connected MIDI device. It can be set to control other functions; see pages 18 and 30 for details. The Wheel's operation can be reversed. (See page 32.) Turning the Wheel will momentarily show the currently assigned controller number on the LED.

4 SHIFT>Button

This button is used to access the "hidden" functions of the CBX-K1XG. Used with the OCTAVE SHIFT / OCTAVE SHIFT buttons, it allows you to step up or down through program numbers. (See page 15.) Whenever turned on, the program number is set to 001 . Used with the keys of the keyboard, it allows you to access the sophisticated MIDI control functions. (See page 24.)

OCTAVE SHIFT / OCTAVE SHIFT Buttons

These buttons are used to change the octave range of the keyboard, allowing you to play across the entire range of MIDI notes (C-2 to G8). When the octave setting is modified, the current octave setting is momentarily displayed on the LED. (See page 17.) Press both of these buttons together to restore the normal octave setting (C2 to C5).

OCTAVE/OCTAVE Lamps

These lamps provide several indications:

• During normal playing conditions, these (along with the LED display) indicate the octave setting of the keyboard, up (OCTAVE▶) or down (▲OCTAVE). Both light together for the normal octave setting. When changing the octave setting, these flash to indicate the number of octaves, up or down. (See page 17.)
• When using some of the "hidden" functions, these flash when a MIDI message is transmitted or when a function is executed.
• The right lamp flashes quickly when a MIDI buffer full error happens. The lamp flashes until you turn the power off and on again, or until you set MIDI Merge to ON. (See page 30.)

LED Display

In normal playing conditions, this displays the currently selected program number.

When moving the ASSIGNABLE Wheel, this flashes the currently active Controller number. (The default is 001, Modulation.)

When changing the octave setting, this momentarily indicates the number of octaves, up or down, from the normal octave setting. The range is -4 (4 octaves down) to 0 (normal) to 4 (4 octaves up).

The display also indicates the status of the MIDI control operations. Depending on the operation performed, the display may:

• Flash rapidly, indicating the selected MIDI message has been sent. (Ex.: When pressing SHIFT + STOP.)
• Show the current condition or value. (Ex.: When pressing SHIFT + TEMPO.) It also displays the entered value when changing a function's setting.

VOLUME Control

This controls the overall volume of the CBX-K1XG — its internal Voices and the signal received via the INPUT jack. This affects all outputs: PHONES, OUTPUT jacks, and built-in speakers.

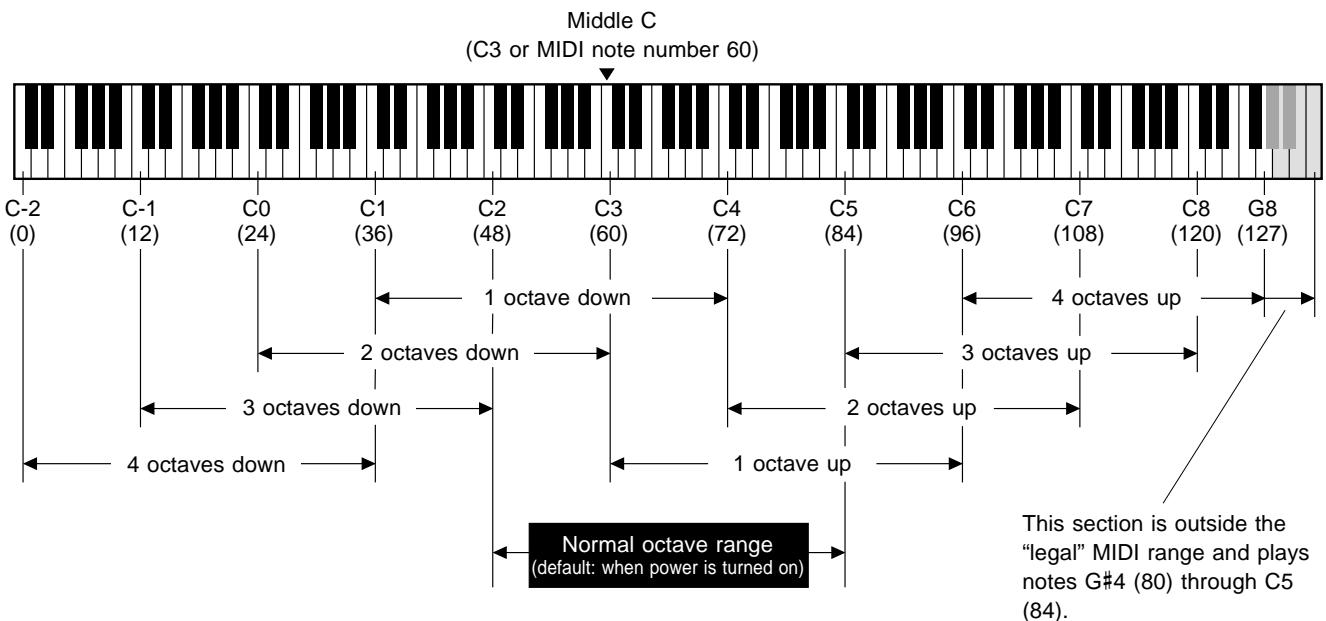

Note Range of the CBX-K1XG (with Octave Shift)

Built-in Speakers

The sounds of the internal tone generator, as well as the audio signals input via the INPUT jack, can be heard through the built-in speaker system.

NOTE Since the built-in speakers do not completely reproduce the full dynamic and frequency range of the internal tone generator, for best sonic results please use the OUTPUT jacks (with an appropriate amplifier/ speaker system) or a set of stereo headphones (connected to the PHONES jack).

10 CONTROLLER NUMBER LIST

This is a list of some of the main controller numbers (and their names) that can be used with the ASSIGNABLE Wheel. (For a complete list, see page 34.)

Default Settings of the CBX-K1XG

The CBX-K1XG has no internal memory backup. As a result, all settings are returned to the factory default when turning the power off. The basic factory default settings are listed below.

• Internal tone generator:
  XG mode, with program number 001 of Bank 0 (Grand Piano) selected, and all settings at their defaults.
• Merge: off
• Local: on
  MIDI transmit channel: 1
• Octave range: C2-C5
• Transpose: normal (no transposition)
• Fixed velocity: off (keyboard is velocity sensitive)
• ASSIGNABLE Wheel: Modulation

■ User-configurable Defaults:

You can change certain power-on default settings of the CBX-K1XG. These include:

• Reversing the PITCH Wheel and ASSIGNABLE Wheel operation. Hold down & & and turn the power on. (See page 32.)

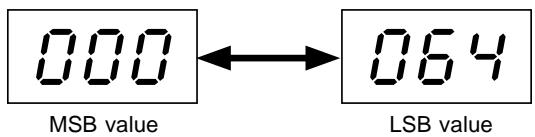

• Reversing the MSB, LSB order. Hold down OCTAVE SHIFT▶ and turn the power on. (See page 32.)

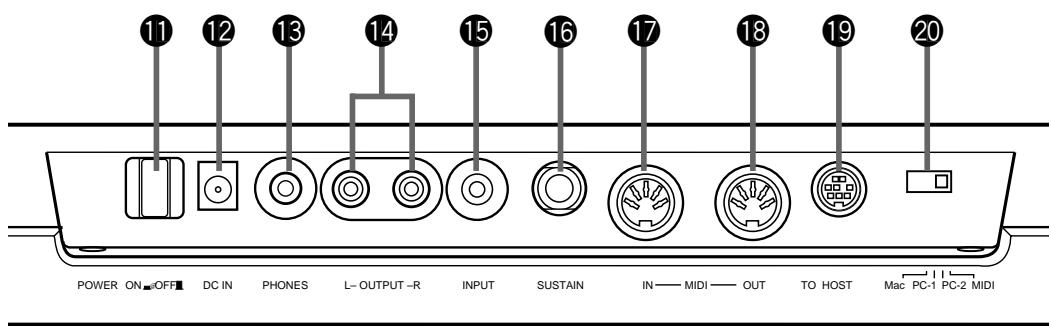

Rear Panel

1 POWER Switch

Push this switch in to turn on the power. Each time the power is turned on, the CBX-K1XG returns to the default condition. (See boxed section on page 7.)

DC IN Terminal

This is for connection to a PA-3B, PA-1207 or an equivalent AC power adaptor.

13 PHONES Jack (stereo mini-pin)

This is for connection to a set of stereo headphones.

L/R OUTPUT Jacks (RCA pin)

This is for connection to a stereo amplifier/speaker system.

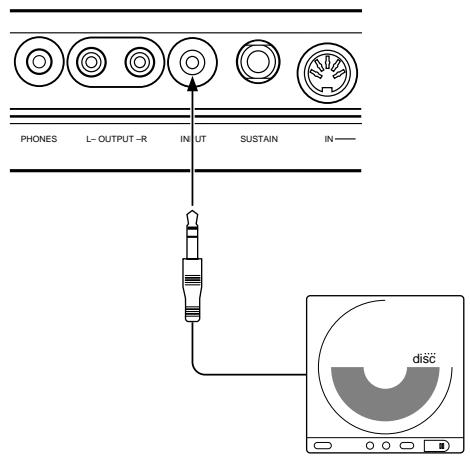

15 INPUT Jack (stereo mini-pin)

This is for connection of an external audio source. The volume control also affects the output signal input via this jack.

SUSTAIN Jack (1/4” phone)

This is for connection of a pedal switch (such as the optional Yamaha FC4 or FC5). When connected, the switch controls sustain on/off (Controller no. 64), both for the internal tone generator and for a connected MIDI device.

17 MIDI IN Terminal

This is for connection to the MIDI OUT terminal of another MIDI device (such as a MIDI keyboard, sequencer or computer that has a MIDI interface), for input of that device's data. By using the MIDI Merge function, that data can be combined with the data generated by the CBX-K1XG and transmitted via the MIDI OUT terminal.

13 MIDI OUT Terminal

This is for connection to the MIDI IN terminal of another MIDI device (such as a MIDI tone generator, sequencer or computer that has a MIDI interface), for sending MIDI messages to that device. By using the MIDI Merge function, data received at MIDI IN can be combined with the data generated by the CBX-K1XG and transmitted via this terminal.

TO HOST Terminal

This is for direct connection to a host computer. (See page 10.)

20 Host Select Switch

This is for selection of the type of host computer, or (when set to MIDI) normal MIDI operation. The available settings are: Mac (Macintosh computers), PC-1 (NEC PC 98 computers; for use in Japan), PC-2 (IBM PC/AT and compatible computers), and MIDI. When using the MIDI terminals, this should be set to MIDI. (See pages 12 and 13.)

Guided Tour

Setting Up the CBX-K1XG in Your Music System

Whatever your system, you should follow the basic instructions below when setting up your CBX-K1XG. Use the example illustrations as a general guide when making the connections with your own system.

Power Supply

Your CBX-K1XG will run from the included power adaptor, PA-3B, PA-1207 or an equivalent. Alkaline batteries can also be used (see below). However, we strongly recommend that you use the power adaptor, since the CBX-K1XG runs only for a short time on battery power.

NOTE Before making any connections, make sure that all equipment to be connected is turned off, and unplugged.

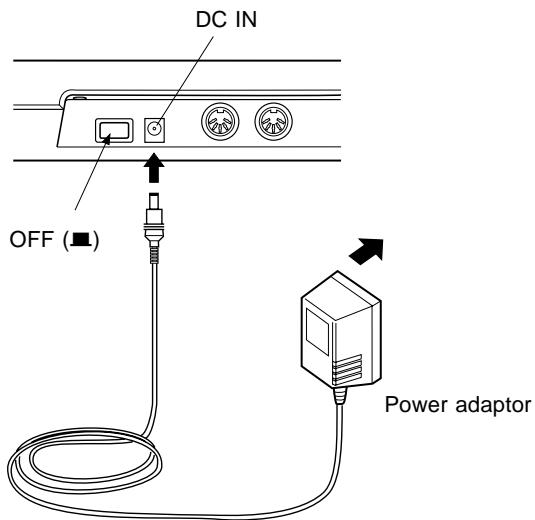

Using a Power Adaptor

Connect one end of the power adaptor (PA-3B, PA-1207 or an equivalent) to the DC IN jack on the rear panel, and the other end to a suitable electrical outlet.

CAUTION!

■ Do not attempt to use a power adaptor other than those specified above. The use of an incompatible adaptor may result in irreparable damage to the CBX-K1XG, and even pose a serious shock hazard.
■ Be sure to disconnect the power adaptor from the outlet when the CBX-K1XG is not in use.

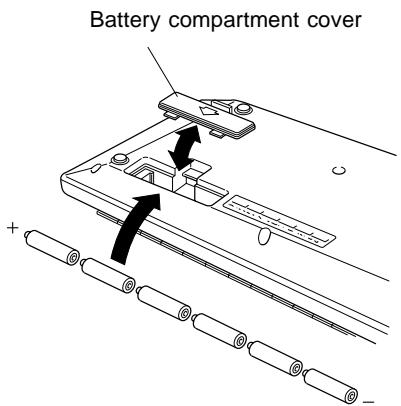

Using Alkaline Batteries

To use the CBX-K1XG on battery power, remove the battery compartment cover (as shown below) and insert six 1.5V LR6 size alkaline batteries in the battery compartment. Make sure to follow the polarity indications on the bottom case.

Securely replace the battery compartment cover when done installing the batteries.

When to Replace the Batteries

When the battery power runs too low to properly operate the CBX-K1XG, an “ _r - r ” message appears in the LED display. When this happens, replace all batteries with a complete set of six new alkaline batteries of the same type.

CAUTION! NEVER mix old and new batteries or different types of batteries! Also, to prevent possible damage due to battery leakage, remove the batteries from the instrument if it is not to be used for an extended period of time.

All the devices must be turned off and unplugged before making connections.

Computers

There are two ways to connect the CBX-K1XG with your computer:

Computer

1. Serial Port TO HOST Terminal
2. Serial Port MIDI Interface MIDI Terminals

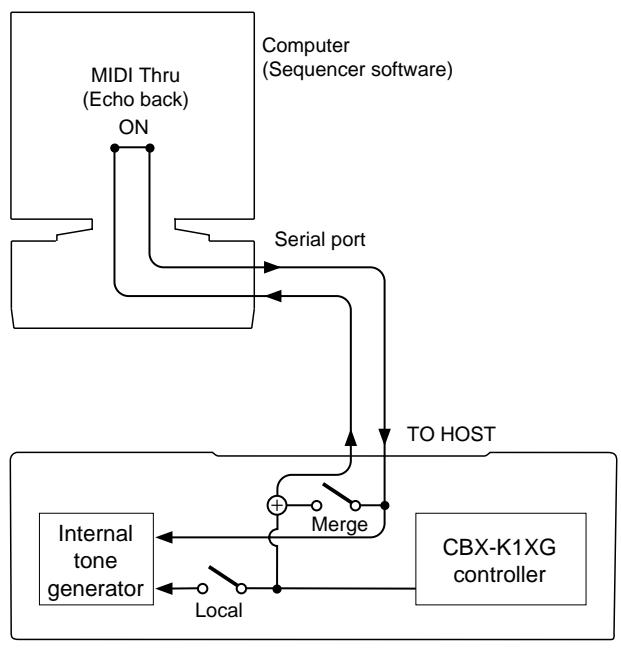

1. Serial Port — TO HOST Terminal

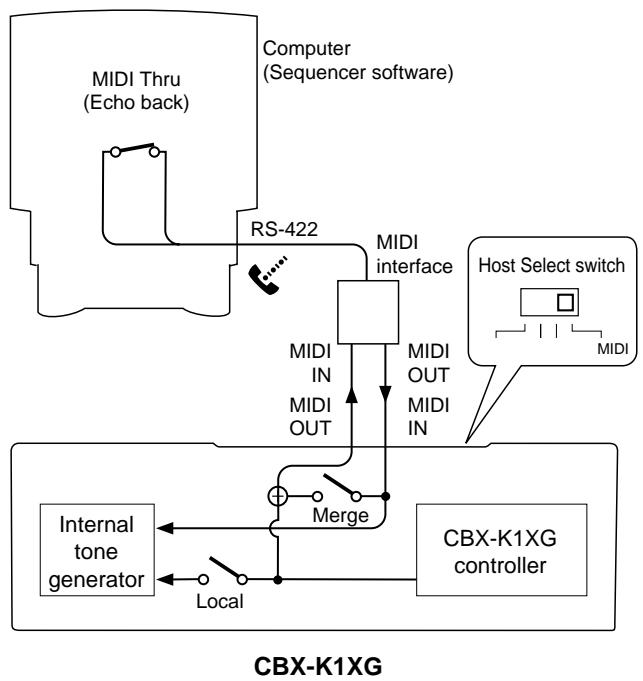

Whichever computer you use, the connections are basically the same. However, the position of the Host Select switch depends on the computer type since the serial port type and its clock may differ.

CBX-K1XG

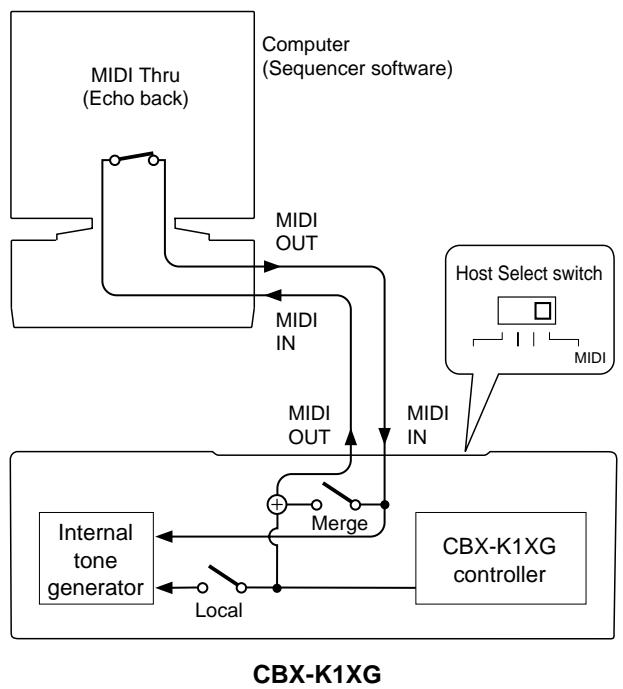

CAUTION! If the MIDI Thru (or Echo Back) setting on the sequencer software is set to ON, be sure to set the MIDI Merge and Local functions on the CBX-K1XG to OFF, to avoid a MIDI data "loop." (See pages 30 and 32.)

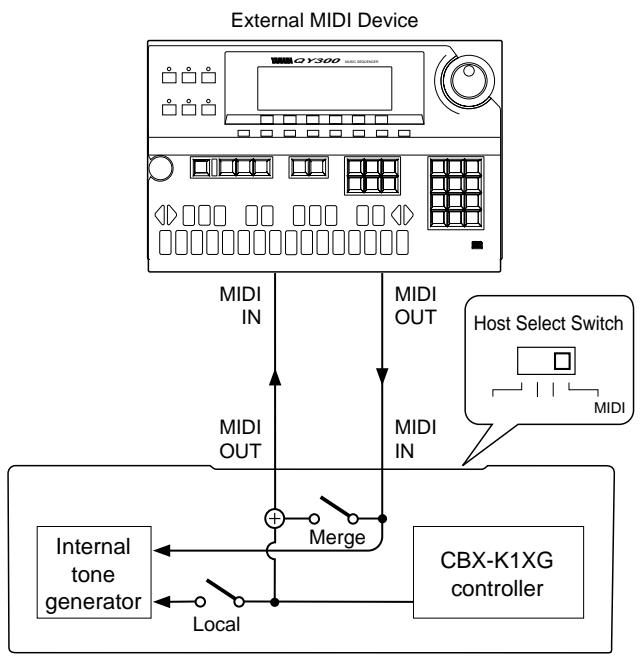

MIDI Merge On/Off

Determines whether the messages received at MIDI IN are mixed with the CBX-K1XG's internal data and sent via MIDI OUT (ON), or not (OFF).

When the power is turned on, MIDI Merge is set to OFF.

- Local On/Off

Determines whether the note related messages and the control data such as assignable wheel will be sent to the internal tone generator (ON), or not (OFF). When set to ON, the messages will be sent to both internal tone generator and the connected MIDI device.

When the power is turned on, Local is set to ON.

NOTE When incoming active sensing messages <> exceed that allowed by the MIDI standard, the sound will automatically be cut off.

NOTE If you are using an external MIDI instrument, this introductory section assumes that the MIDI transmit channel of the CBX-K1XG and the MIDI receive channel of the connected device match. When the CBX-K1XG is turned on, the MIDI transmit channel is automatically set to 1.

Mac — Macintosh

Connect the TO HOST Terminal of the CBX-K1XG to the Modem (or Printer) port of the computer with an optional Apple Macintosh peripheral cable (M0197), then select Mac

(31,250 bps) with the Host Select switch.

• Set the MIDI interface clock in the Apple MIDI Driver to 1MHz.
• Apple Macintosh Peripheral cable (M0197). Maximum length 2 meters.

PC-1 PC98

Connect the TO HOST Terminal of the CBX-K1XG to the serial port of the PC98 computer with an optional 8-pin MINI DIN to D-SUB 25-pin cable, then select PC-1 (31,250 bps) from

the Host Select switch.

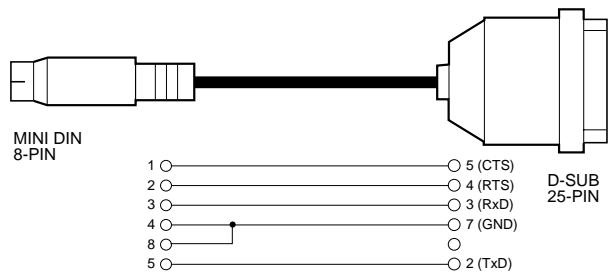

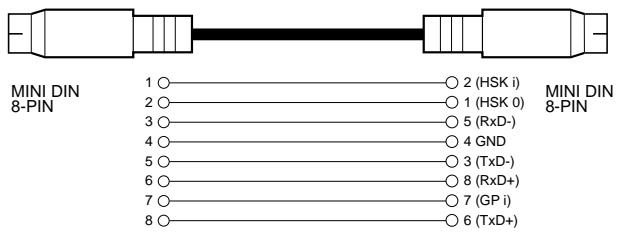

• 8-pin MINI DIN to D-SUB 25-pin cable. If your PC-1 type computer has a 9-pin serial port, use the PC-2 type cable. Maximum length 1.8 meters.

PC-2 IBM PC/AT

Connect the TO HOST Terminal of the CBX-K1XG to the serial port of the IBM PC/AT (or compatible) computer with an optional 8-pin MINI DIN to D-SUB 9-pin cable, then select

PC-2 (38,400 bps) with the Host Select switch.

If the computer serial port is a D-SUB 25-pin type, use an 8-pin MINI DIN to D-SUB 25-pin cable with plug adapter (9-pin — 25pin).

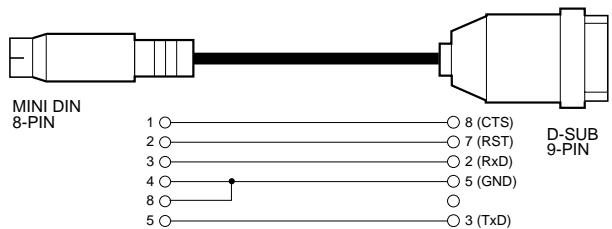

• 8-pin MINI DIN to D-SUB 9-pin cable. Maximum length 1.8 meters.

- MIDI — Via MIDI connection (see next page).

• Set the MIDI Thru (or Echo Back) setting on the sequencer software to ON, and be sure to set the MIDI Merge and Local functions on the CBX-K1XG to OFF, to avoid a MIDI data "loop."
• Depending on the computer you use, you may need to select the different Select switch(PC-1[31,250 bps] or PC-2[38,400 bps]). Please refer to your computer's manual.
• As to the required MIDI settings for the computer/sequencing software, refer to the respective manuals.

2. Serial Port MIDI Interface MIDI Terminals

- Connecting to a computer with a MIDI interface:

Connect the MIDI IN/OUT Terminals of the CBX-K1XG to the MIDI OUT/IN Terminals of the computer with an appropriate MIDI cable as illustrated below, then select MIDI (31,250 bps) from the Host Select switch.

• Set the MIDI Thru (or Echo Back) setting on the sequencer software to ON, and be sure to set the MIDI Merge and Local functions on the CBX-K1XG to OFF, to avoid a MIDI data "loop."

- Connecting to a Macintosh with a MIDI interface:

Connect the MIDI IN/OUT Terminals of the CBX-K1XG to the MIDI OUT/IN Terminals of the MIDI interface extended from the Macintosh with an appropriate MIDI cable as illustrated below, then select MIDI (31,250 bps) from the Host Select switch.

• You may need to set the MIDI interface clock in the Apple MIDI Driver to an appropriate value. Please refer to your computer's manual.
• Set the MIDI Thru (or Echo Back) setting on the sequencer software to ON, and be sure to set the MIDI Merge and Local functions on the CBX-K1XG to OFF, to avoid a MIDI data "loop."

NOTE

• When the Host Select switch is set to MIDI, the TO HOST terminal is inactive.
• When connecting the instrument to other MIDI devices, be sure to use only high quality MIDI cables. Also, avoid using cables longer than 15 meters, since long cables can result in data errors.

MIDI Devices

Connect the MIDI IN/OUT Terminals of the CBX-K1XG to the MIDI OUT/IN terminals of an external device (such as a sequencer or tone generator) with MIDI cables and set the Host Select switch to MIDI. You can control the connected device with the CBX-K1XG, and have the sequencer control and play the CBX-K1XG's internal tone generator.

• When the Host Select switch is set to Mac, PC-1 or PC-2, the MIDI IN/OUT terminals are inactive.

CBX-K1XG

Audio Equipment

The CBX-K1XG has a set of built-in stereo speakers. However, you can use an external audio device for optimum sound reproduction by connecting the OUTPUT jacks of the CBX-K1XG to the extenal audio device's INPUT jacks.

CBX-K1XG

After making connections, switch on the power of each device in the following order: external MIDI device (or computer) first, CBX-K1XG and then external audio device. MAKE SURE TO TURN DOWN THE VOLUME LEVELS OF ALL THE RELATED DEVICES.

When turning off the power of each device, simply reverse the process.

This section of the manual guides you through some of the basic features and functions of the CBX-K1XG. It also provides some advanced operation examples, so that you can get a feel for what the CBX-K1XG is capable of, and how you can best use it. Master the basics in this section, and you'll have the experience and know-how to easily and confidently use any of the more advanced functions covered later in the Reference section.

In this section, you'll learn how to:

• Play the special Demo Song.
• Select and play the Voices of the internal tone generator.
• Select Voices from other Voice Banks.
• Select drum Voices.
• Change the octave setting of the keyboard.
• Use the PITCH and ASSIGNABLE Wheels.
• Re-assign the controller for the ASSIGNABLE Wheel.
• Change the Touch Sensitivity of the keyboard.
• Connect and use an external audio source with the CBX-K1XG.

Playing the Demo Song

Once you've set up the CBX-K1XG properly, try playing the built-in Demo Song. This specially recorded song showcases the high-quality Voices and the AWM2 (Advanced Wave Memory 2) tone generation system of the CBX-K1XG. It also demonstrates the multi-timbral capacity and the use of effects and MIDI control. Though the CBX-K1XG has no sequence recording capabilities of its own, the Demo Song shows what can be done by using only a sequencer and a single CBX-K1XG.

For optimum sound, connect the CBX-K1XG to an amplifier/speaker system.

Operation

1. Simultaneously press SHIFT, , and OCTAVE SHIFT.

The OCTAVE lamp lights and the following pattern appears in the LED display, indicating Demo Song standby:

1. To start playback of the Demo Song, hold down SHIFT and press the key corresponding to SEQUENCER START (the lowest D), or CONTINUE (Db)

The OCTAVE lamps and LED display flash as the Demo Song plays back. Playback repeats indefinitely until stopped (in step 4 below).

NOTE During Demo Song playback, the keyboard cannot be played and no other operations can be performed (with the exception of the STOP, CONTINUE, and START commands, and the VOLUME control).

1. Adjust the volume with the VOLUME control.

1. To stop playback of the Demo Song, hold down SHIFT and press the key corresponding to STOP (the lowest C).

To continue playing the Demo Song from the stopped point, hold down SHIFT and press CONTINUE. To start from the beginning, hold down SHIFT and press START.

1. To exit from the Demo Song function, simultaneously press SHIFT, , and OCTAVE SHIFT again.

Selecting and Playing Voices

The CBX-K1XG features a total of 737 high-quality Normal Voices, created with the AWM2 tone generation system. The default Voice Bank contains 128 different Voices, and you can easily select these Voices in two ways: stepping up or down through the Voice numbers, or directly selecting a specific Voice number. (For a list of the available Voices, see page App-17.) When the CBX-K1XG is turned on, Bank 0 is automatically selected, and operation is set to GM Level 1.
- To step up or down through the Voice numbers: Simultaneously hold down SHIFT and press OCTAVE SHIFT (to advance one program number), or press OCTAVE SHIFT (to go back one program number).

The program number in the LED display changes accordingly, and the OCTAVE SHIFT lamps quickly flash on and off. Release SHIFT, and play the keyboard to hear the newly selected Voice.

To quickly move up or down through the Voice numbers, continuously hold down SHIFT and the appropriate OCTAVE SHIFT button.

When the CBX-K1XG is turned on, the starting point for program change is 001. This means that when you first hold down SHIFT and press OCTAVE SHIFT, program number 002 will be selected.

IMPORTANT! Always release SHIFT before playing the CBX-K1XG keyboard. Holding down SHIFT accesses the secondary or "hidden" functions, and you may inadvertently execute one of these functions by playing the keyboard while continuing to hold down SHIFT.

NOTE This function does not "wrap around." In other words, you cannot go back to program number 128 when at 001, or advance to program number 001 when at 128.

• To directly select a specific Voice number: Simultaneously hold down SHIFT, press the keys corresponding to the desired Voice number, then the DECIMAL ENTER key.

For example, to select Voice number 017, continue holding down SHIFT and press 1, 7, then DECIMAL ENTER. Release SHIFT, and play the keyboard to hear the newly selected Voice.

Selecting Voices From Other Voice Banks

In addition to the default Voice Bank, the CBX-K1XG has many other Voice Banks, from which you can select many Voice variations. When turned on, the CBX-K1XG is set to XG mode and Bank 0 is automatically selected. In the XG mode there are 45 Banks from which you can choose. Though not all of the Banks have a completely different set of Voices, altogether there are 737 Normal Voices and 22 Drum Voices available in the various Banks.

IMPORTANT! For the sake of the operation example below, you may want to select Voice number 17 (see Selecting and Playing Voices above). This particular Voice has many variations, and lets you clearly hear the difference between Voices in different Banks.

Operation

1. Simultaneously hold down SHIFT and press BANK SELECT.

The LED display indicates the current Bank setting by alternately flashing the MSB and LSB values. (In this case, the default setting, both of these values are 000.)

000

1. While continuing to hold down SHIFT, enter the number 64 (press 6, then 4), then press DECIMAL ENTER.

The display alternately flashes the MSB and LSB values.

This sets the Bank to 064 (LSB value). The LED display alternately flashes the MSB and LSB values, 000 and 064. If you've selected Voice number 17 before changing banks, the newly selected Bank's Voice should sound different from the original Voice.

NOTE For the internal tone generator, only the LSB value need be set. For information on setting both the MSB and LSB, see page 27.

To restore the original Bank (or select other Banks), hold down SHIFT, press BANK SELECT, 0 (or another number for a different Bank), and DECIMAL ENTER. (Alternatively, simply turn the CBX-K1XG off and on again to reset the instrument to its default settings; see page 7.) For a list of the other Banks and their Voices, see page App-17.

Selecting Drum Voices

The CBX-K1XG also features 22 different drum Voices, and each contains various drum and percussion sounds assigned individually to the keys. (For a list of the available drum Voices and their individual drum/percussion sounds, see page App-23.)

■ Normal Voices and Drum Voices

The CBX-K1XG has two types of Voices—Normal Voices and Drum Voices. (In this Owner's Manual, in general the word Voice refers to a Normal Voice.) The distinction between a Normal Voice and a Drum Voice is as follows:

• A Normal Voice is simply a pitched Voice which can be played on a musical scale from low to high, such as a piano or trumpet. The CBX-K1XG has 737 Normal Voices.
• A Drum Voice is a complete set of drum and other percussion sounds, each sound having a fixed pitch. Each sound is assigned to a specific MIDI Note number (which also corresponds to a key on a MIDI keyboard). The CBX-K1XG has 22 Drum Voices.

Operation

1. First select MIDI channel 10 (the default drum channel). To do this, simultaneously hold down SHIFT and press the following keys in order:

MIDI CH
-1
0
- DECIMAL ENTER

Finally, release SHIFT. The MIDI channel should now be set to 10. Play the keyboard now to hear the various drum sounds. Try also changing the octave setting (see Changing the Octave Range below) and playing the other sounds as well.

2. To select different drum Voices, hold down SHIFT and use the OCTAVE SHIFT/ OCTAVE SHIFT but-tons.

To select and play normal Voices again, set the MIDI channel to a value other than 10. For example, hold down SHIFT and press MIDICH, 1, and DECIMAL ENTER. (Or, simply turn the CBX-K1XG off and on again—doing this resets the instrument to its default settings; see page 7.)

Changing the Octave Range

The range of the 3-octave keyboard can be easily shifted up or down to cover the full 10-1/2-octave (128-note) range of MIDI notes. (See page 6 for the note range.)

Operation

To shift the keyboard up one octave, press OCTAVE SHIFT. To shift the keyboard down one octave, press OCTAVE SHIFT.

When the octave range is changed, the LED display briefly indicates the new setting. The OCTAVE SHIFT lamps also rapidly flash one or more times, according to the selected octave range. For example, when the setting is changed to two octaves below normal, the left lamp flashes twice.

You can instantly restore the normal octave range by pressing both OCTAVE SHIFT / OCTAVE SHIFT buttons simultaneously.

NOTE At the highest octave setting, keys outside the legal MIDI note range will repeat a previous octave.

Using the PITCH and ASSIGNABLE Wheels

These two wheels let you control different aspects of the sound in realtime as you play. These controls affect both the internal tone generator and any connected MIDI instrument.

Move the PITCH Wheel as you play to change the pitch of the sound. Moving the wheel away from you bends the pitch up, though this can be reversed if desired (see page 32). The PITCH Wheel is spring-loaded for returning to center (normal pitch).

Move the ASSIGNABLE Wheel as you play to change the modulation of the sound (MIDI Controller #1). Moving the wheel away from you increases the modulation, though this can be reversed if desired (see page 32). The ASSIGNABLE Wheel can also be set to control other functions; see the section below for details.

Re-assigning the ASSIGNABLE Wheel

As mentioned above, the ASSIGNABLE Wheel can be used to control a variety of different functions. The default setting is for modulation control (MIDI Controller #1); however, it can be set to control volume, pan position, attack or release time, coarse or fine tuning, and reverb or chorus depth, among other Controllers. (For a complete list of the available Controllers and their numbers, see page 34.)

Operation

1. Simultaneously hold down SHIFT and press CONTROLLER.

The LED display indicates the current ASSIGNABLE Wheel's Controller number.

1. While continuing to hold down SHIFT, enter the number 93 (press 9, then 3), then press DECIMAL ENTER.

This sets the ASSIGNABLE Wheel to Controller number 93 (Chorus). Play the keyboard and move the ASSIGNABLE Wheel as you play, and hear how a Chorus effect comes in as you move the wheel to the maximum position. As you move the Wheel, the currently assigned Controller number appears in the LED display.

Try entering other Controller numbers, repeating steps 1 and 2 above. (A short list of Controllers is printed on the panel. Try entering some of these; many—but not all—of these will have an obvious effect on the sound as you move the wheel.)

• You can also assign RPN and NRPN numbers to the ASSIGNABLE Wheel. (See page 30.)

Changing the Touch Sensitivity of the Keyboard

The Touch Sensitivity function lets you change how the Voices respond to your playing strength. (This affects both the internal tone generator and any connected MIDI instrument.)

NOTE Touch Sensitivity is a "Group B" function. The "Group A" functions (such as Program Change, Bank Select, and Controller, which were covered above) are shown on the panel and explained in detail on pages 30 - 31. The Group B functions (listed and explained on pages 32 - 33) are not shown on the panel and are accessed differently than Group A functions.

Operation

1. Simultaneously hold down SHIFT, press DECIMAL ENTER, then FIXED VELOCITY.

Pressing DECIMAL ENTER first (before any function key) calls up the Group B functions. Touch Sensitivity corresponds to the FIXED VECOCITY key. The LED display indicates the current Touch Sensitivity value.

1. While continuing to hold down SHIFT, enter the number 1, then press DECIMAL ENTER.

This sets Touch Sensitivity to 1 (easy). Now, when you play the keyboard, even playing softly results in a reasonably loud sound.

Try entering other values (the range is 1-10), and hear how they affect the response of the keyboard. The default value is 5, and can also be restored by simply turning the CBX-K1XG off and on again.

NOTE ■ When Fixed Velocity is set to a value other than 0 (off), the Touch Sensitivity setting has no effect.

For more information on Touch Sensitivity, see footnote #2 on page 32.

Using the INPUT Jack

Built into the CBX-K1XG is an INPUT jack, which allows you to connect an external audio source (such as a CD player, portable tape deck, or electric musical instrument) and mix that source with the Voices of the CBX-K1XG—without the need for an external mixer. For example, you can connect a CD player and play the CBX-K1XG along with your favorite CD. Or you can connect another keyboard and have its output mixed along with the CBX-K1XG's Voices.

NOTE The built-in effects of the CBX-K1XG are not applied to the INPUT signals.

Operation

1. Turn off the CBX-K1XG.
2. Connect the audio source to the INPUT jack.

The INPUT jack accepts stereo mini-pin plugs.

1. Turn the CBX-K1XG back on and gradually turn up the VOLUME control on the CBX-K1XG (and the output level of the source, if necessary) until the level is appropriate.

This concludes the basic tour of some of the important functions of the CBX-K1XG. To find out more about how to use your CBX-K1XG, look through the Reference section that follows and try out some of the functions and operations that interest you.

About the Tone Generator of the CBX-K1XG

General MIDI (GM)

General MIDI (GM) is a new addition to the worldwide MIDI standard. The main feature of GM is in the standardization of instrument sounds, ensuring that song data recorded in the GM format can be played back on GM-compatible tone generators of any manufacturer, and sound as the composer or programmer intended.

XG

XG is a major new enhancement to the GM format developed by Yamaha, and it provides for more instrument sounds and variations, as well as greater expressive control over voices and effects. XG-compatible instruments feature full compatibility with GM, while ensuring forward compatibility with future instruments and software.

The CBX-K1XG features four different performance modes: XG, TG300B, C/M and DOC. Normally the CBX-K1XG plays in XG mode. However, since it automatically recognizes which mode to select based on incoming MIDI data, you can easily change the performance mode from the MIDI control functions of the CBX-K1XG itself. (Refer to the following function explanations on pages 30 - 33 : GM Mode On, XG System On, C/M Mode On, and TG300B Reset.) You can also change the mode by MIDI System Exclusive messages that you program in sequencer data, at the head of your composition.

• The DOC mode is a special mode used for playback of Yamaha's Disk Orchestra Collection song data. DOC mode is automatically selected when playing back such song data; however, the mode cannot be selected from the CBX-K1XG itself.

Please note the following:

• Starting up your computer will automatically initialize all CBX-K1XG settings, or parameter values.
• Since the CBX-K1XG requires about half a second to change modes when it receives a mode change message, be sure to insert at least one blank measure at the top of the song in order to allow enough time for the mode to change before your actual music data begins.

XG Mode

In XG mode the CBX-K1XG will play XG-compatible multitimbral data, as well as multitimbral data created for the GM System Level 1 format.

In XG mode the CBX-K1XG can:

• Play up to 16 Parts.
• Choose from 480 Normal Voices and 11 Drum Voices.

- TG300B Mode

In TG300B mode the CBX-K1XG will play multitimbral music data created for TG300B-compatible tone generators. TG300B mode also provides compatibility with the GM System Level 1 format.

In TG300B mode the CBX-K1XG can:

• Play up to 16 Parts.
• Choose from 579 Normal Voices and 10 Drum Voices.

C/M Mode

The C/M mode provides semi-compatibility with song data recorded for computer music systems preceding the GM Level 1 standard.

In C/M mode the CBX-K1XG can:

• Play up to 16 Parts.
• Choose from 192 Normal Voices and 1 Drum Voices.

NOTE When set to C / M mode, reception over MIDI channel 1 is turned off, and the tone generator Voices will not sound for that channel.

Voices and Elements

A CBX-K1XG Voice can be made up of one or two elements (i.e., sounds), depending on the complexity of the Voice. Many Voices are made up of only one element. Two-element Voices are made up of two one-element Voices, and may be configured in a variety of ways.

The number of elements in use determines the maximum number of simultaneous notes (polyphony) which the CBX-K1XG can play at any given time, depending on the amount of incoming MIDI Note data. For details about the number of elements used in each Voice, see the XG Normal Voice List on page App-17.

Maximum Polyphony

The CBX-K1XG can play a maximum of 32 notes polyphony at once. However, the actual number of notes that will play at any given time is determined by the number of elements in use across the 16 Parts.

For example, if you use only one-element Voices, you can achieve the full 32 notes maximum polyphony. If you use one or more two-element Voices, however, maximum polyphony will be reduced accordingly.

The CBX-K1XG is a last-note-priority tone generator, which means that if it receives more than 32 notes of MIDI Note data at any time, earlier (first) notes will automatically be cut off to accommodate the most recent (last) incoming notes.

Part Priority

Each of the CBX-K1XG's 16 Parts corresponds to each of the 16 MIDI channels (1 - 16). If incoming Note data exceeds the maximum polyphony, the CBX-K1XG will prioritize which Parts are played first, in the following order, from higher priority to lower:

• Channel 10 (Drum Part), 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 16.

Therefore, if you are creating your own music data using sequencer software, you should assign your most important Parts (such as melody and bass) to higher priority MIDI channels (i.e., lower MIDI channel numbers) in order to preserve the integrity of your composition. Note that with the GM System Level 1, the Drum Part is always assigned to MIDI channel 10.

Element Reserve

The CBX-K1XG has an Element Reserve feature that lets you reserve a specified number of notes for certain Parts, in order to keep notes from being “stolen” from those Parts by other Parts if incoming MIDI Note data exceeds maximum

available polyphony.

For example, if you specify an Element Reserve value of "10" for Part 1, then Part 1 will always keep 10 elements for itself. You can set Element Reserve values with MIDI System Exclusive messages (refer to the MIDI Data Format section: XG Native Parameter Change on pages App-9 - 10, and Table 1-5 on pages App-13 - 15).

Selecting Voices

The CBX-K1XG not only contains the 128 basic GM Voices and GM drum set, but many variation Voices as well—to give you access to a total of 737 Normal Voices and 22 Drum Voices.

Voices are selected by specifying a Bank number and a Voice (program) number. Bank numbers and Voice numbers can be selected directly from the keyboard of the CBX-K1XG. (See pages 15 and 16.)

■ Effect Types

The CBX-K1XG features dozens of extremely versatile digital effects generated by Yamaha's advanced Digital Signal Processing (DSP) technology.

There are three distinct effect types, or effect sections, each of which include a variety of individual effects. There are 11 Reverb type effects, 11 Chorus type effects, and 42 Variation type effects. For a complete list of effects, see the Effect Type List on page App-26.

Reverb, Chorus and Variation effect types are configured, or routed, in one of two ways—to be either a System Effect or an Insertion Effect. The difference is as follows:

SYSTEM EFFECT

• Applies the designated effect to all 16 Parts.

- INSERTION EFFECT

• Applies the designated effect to only one specific Part.

Reverb and Chorus effect types are dedicated System Effects, and therefore are applied to the overall "mix". The Variation effect type, however, can be configured as either a System Effect or an Insertion Effect. To designate effect types and parameter values via MIDI messages, see XG Native Parameter Change, pages App-9 - 10.

What is MIDI?

MIDI is an acronym that stands for Musical Instrument Digital Interface, which allows electronic musical instruments to "communicate" with each other, by sending and receiving compatible Note, Control Change, Program Change and various other types of MIDI data, or messages.

■ MIDI Messages Received by the CBX-K1XG

The CBX-K1XG is controlled by various types of incoming MIDI messages which automatically determine play mode, select MIDI channels, Voices and effects, change parameter values, and of course play the Voices specified for the various Parts—complete with all the subtle nuances and powerful dynamics of expression that the composer originally intended. Below are short explanations of the more important MIDI messages which the CBX-K1XG can transmit and receive. These messages can be transmitted/ received via the MIDI IN/OUT terminals or the TO HOST terminal. Most of the messages can also be "played" or sent to the tone generator directly from the keyboard and controllers of the CBX-K1XG itself.

Key On/Key Off

Key On/Key Off messages, also called Note messages, tell the CBX-K1XG which notes to play, the Velocity value (depending on how hard the keys are struck) at which to play them, and how long to play them—i.e., when to start (On) and stop (Off) playing each note.

Control Change

Control Change messages let you select a Voice bank, control volume, panning, modulation, portamento time, brightness and various other controller parameters, through specific Control Change numbers which correspond to each of the various parameters.

- Program Change

Program Change messages tell the CBX-K1XG which Voice to select for each Part. You can insert Program Change messages at any desired location in a song. Combining Bank Select numbers lets you select various Voices from the hundreds of Voices available in the CBX-K1XG.

Pitch Bend

Pitch Bend messages are continuous controller messages that allow the pitch of designated notes to be raised or lowered by a specified amount over a specified duration.

- Channel After Touch

Channel After Touch is a pressure sensing function which lets you control various functions by how hard you press the keys, over the entire channel.

NOTE The keyboard of the CBX-K1XG does not transmit After Touch messages. However, they can be transmitted from the ASSIGNABLE Wheel (when set to controller number 142 or 143).

- Polyphonic After Touch

Polyphonic After Touch is a pressure sensing function which lets you control various functions by how hard you press the keys, for each individual key.

- System Exclusive

System Exclusive messages control various functions of the CBX-K1XG, including master volume and master tuning, play mode (XG, CM, or TG300B), effect type and various other parameters specifically related to the CBX-K1XG.

NOTE The CBX-K1XG is capable of sending any type of System Exclusive message (via the MIDI OUT or TO HOST terminals). The tone generator likewise can respond to any relevant System Exclusive message (see the MIDI Data Format section for details). However, when the tone generator is controlled directly from the panel and keyboard, it only responds to certain System Exclusive messages.

■ MIDI Data Transmission/Reception Indications

When MIDI data is transmitted or received, the following indications appear in the LED display.

• When a MIDI message is transmitted from the CBX-K1XG:

LED flashes briefly to indicate MIDI message is sent.

• When receiving note on data:

One dot flashes.

• When receiving system exclusive data:

Two dots flash.

• When receiving mode change messages (such as XG, DOC, etc.):

Three dots flash.

NOTE For the above three receive conditions (note on, system exclusive, and mode change), the corresponding dot or dots do not flash when SHIFT is being held down.

Response of the CBX-K1XG During MIDI Buffer Full Errors

When a MIDI buffer full error occurs, the CBX-K1XG responds as follows:

1. Merge is set to OFF.
2. Hold 1 Off, All Note Off, All Sound Off messages are transmitted over all channels.
3. The OCTAVE lamp flashes, indicating a MIDI buffer full error.

Merge-related Notes

When MIDI Merge is set to ON, MIDI messages received from an external device are merged with the data generated by the CBX-K1XG, and are transmitted as is from MIDI OUT. However, there are some exceptions, as listed below:

• All Note Off messages (<>) will not be merged.
• When the CBX-K1XG is set to send <<F8>> messages, <<F8>> messages from an external device will not be merged.
• When the CBX-K1XG is not set to send <<F8>> messages, <<F8>> messages from an external device can be merged.
• <> will not be merged.
• With the exception of System Exclusive data, messages not conforming to the legal byte format will not be merged. System Exclusive data that doesn't conform to the legal byte format can be merged.

• When Merge is set to on, and RPN/NRPN messages are sent from both the CBX-K1XG and an external device connected to MIDI IN, the resulting messages will be mixed and corrupted.

• When Merge is turned off while a key is held, a stuck note results. This is because the CBX-K1XG simply turns Merge off, without changing the Note On status.

• Running Status bytes are not used. However, incoming Running Status messages are added and transmitted.
• If the incoming Note Off messages include <<8n>> status, the <<8n>> status is merged and output as is. (The CBX-K1XG transmits Note Off messages as <<9n>> status with a velocity of 0.)

During merging of System Exclusive data, all operations from the CBX-K1XG are ignored, and <<FE>> and <<F8>> messages from the CBX-K1XG will be stopped. This may cause some problems, as listed below:

• Any operations executed from the CBX-K1XG, in the middle of a System Exclusive message () sent from an external device, are ignored. CBX-K1XG operations that start before or end after the System Exclusive message will be incomplete. To avoid this problem, be careful not to execute operations from both the CBX-K1XG and the external device at the same time. Also:
• If the Merge function is not needed, turn Merge off or disconnect the MIDI cable.

• Do not operate the CBX-K1XG during reception of large System Exclusive messages, such as bulk dumps.

• Decimal - Hexadecimal Conversion Chart

Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex
0	00	16	10	32	20	48	30	64	40	80	50	96	60
1	01	17	11	33	21	49	31	65	41	81	51	97	61
2	02	18	12	34	22	50	32	66	42	82	52	98	62
3	03	19	13	35	23	51	33	67	43	83	53	99	63
4	04	20	14	36	24	52	34	68	44	84	54	100	64
5	05	21	15	37	25	53	35	69	45	85	55	101	65
6	06	22	16	38	26	54	36	70	46	86	56	102	66
7	07	23	17	39	27	55	37	71	47	87	57	103	67
8	08	24	18	40	28	56	38	72	48	88	58	104	68
9	09	25	19	41	29	57	39	73	49	89	59	105	69
10	0A	26	1A	42	2A	58	3A	74	4A	90	5A	106	6A
11	0B	27	1B	43	2B	59	3B	75	4B	91	5B	107	6B
12	0C	28	1C	44	2C	60	3C	76	4C	92	5C	108	6C
13	0D	29	1D	45	2D	61	3D	77	4D	93	5D	109	6D
14	0E	30	1E	46	2E	62	3E	78	4E	94	5E	110	6E
15	0F	31	1F	47	2F	63	3F	79	4F	95	5F	111	6F

Many MIDI messages listed in the MIDI Data Format section, beginning on page App-1, are expressed in hexadecimal numbers. The chart lists the corresponding decimal number for each hexadecimal number. (Hexadecimal numbers may include the letter "H" as a suffix.) When entering/transmitting MIDI messages directly from the CBX-K1XG, be sure to press DECIMAL ENTER to send a decimal value and HEXADECIMAL ENTER to send a hexadecimal value.

The enormous flexibility and power of the CBX-K1XG is in its "hidden" or SHIFT-related functions — allowing you to send virtually any kind of MIDI message directly from the keyboard or use the ASSIGNABLE Wheel for real-time control change.

Many of the functions can be done with one or two keystrokes, while others require you to enter a number value and press one of the ENTER keys to execute the function. All functions can be accessed or executed by using one of the operations described below.

The MIDI functions can be generally divided into three types, according to their operation.

1) Holding SHIFT and pressing the function's key. For these functions, such as Sequencer Stop and Start, pressing ENTER is not necessary. These functions are shown on the panel without underline.

2) Holding SHIFT, pressing the function's key and then ENTER. These functions are indicated with a dashed underline on the panel (for example, GM ON and XG ON) and require pressing ENTER to execute.
3) Holding SHIFT, pressing the function's key, entering a value and then pressing ENTER. These functions are indicated with an underline on the panel (for example, PROGRAM CHANGE and TEMPO), and require that a value (Decimal or Hexadecimal) be entered. When changing a function, the LED display indicates the on/off status or the value of the function.

• In using the SHIFT-related functions, remember: Keep holding down SHIFT until the end of the operation. If SHIFT is released in mid-operation, you'll have to start the operation all over again.

In the instructions that follow, "ENTER" refers to either of the ENTER keys, HEXADECIMAL ENTER or Decimal ENTER. In other words, this means that either key can be used, unless indicated otherwise.

NOTE The LED display and the OCTAVE/OCTAVE lamps flash briefly when a function is executed or a message is sent.

• Functions Assigned to the Keyboard

Panel Name	Group A Function	Group B Function
STOP	Stop	Song Select
CONTINUE	Continue	Song Position Pointer
START	Start	Reset All Controllers
TEMPO	Tempo	—
BANK SELECT	Bank Select	Bulk Dump Out
PROGRAM CHANGE	Program Change	—
GM ON	GM Mode On	C/M Mode On
SOUND OFF	All Sound Off (each channel)	All Sound Off (all channels)
XG ON	XG System On	TG300B Reset
MERGE ON/OFF	Merge On/Off (each channel)	Local On/Off
MIDI CH	MIDI Channel	Merge On/Off (each channel)
FIXED VELOCITY	Fixed Velocity	Touch Sensitivity
RPN	Wheel Assign (RPN)	Controller Direct Data Send (RPN)
CONTROLLER	Wheel Assign (controller numbers 1-148)	Controller Direct Data Send (controller numbers 1-148)
NRPN	Wheel Assign (NRPN)	Controller Direct Data Send (NRPN)
DRUM NUMBER	Drum Number	Device Number
TRANSPose ▲	Transpose Down	Wheel Invert
TRANSPOSE ▲	Transpose Up	MSB/LSB Invert

Basic Operations

Selecting Group A and Group B Functions

Selecting Group A Functions:

Hold down SHIFT and press the appropriate key. (See pages 30 - 31 for specific Group A functions and how to use them.)

Selecting Group B Functions:

Hold down SHIFT and press DECIMAL ENTER. The

Group B functions are available as long as you continue to hold down SHIFT. (See pages 32 - 33 for specific Group B functions and how to use them.)

Entering Values

Value entry on the CBX-K1XG can be done in two number systems: Decimal and Hexadecimal. The keys labeled A through F are for Hexadecimal entry.

- Entering a decimal value:

Hold down SHIFT, press the appropriate function key, enter the desired value in decimal format, then press DECIMAL ENTER.

- Entering a hexadecimal value:

Hold down SHIFT, press the appropriate function key, enter the desired value in hexadecimal format, then press HEXADECIMAL ENTER.

Example — Setting the MIDI Transmit Channel to 12:

Decimal:

SHIFT + MIDICH → 1 → 2 → DECIMAL ENTER

Hexadecimal:

SHIFT + MIDICH → C → HEXADECIMALENTER

• Also see the Decimal-Hexadecimal Conversion Chart on page 23.)

Value Entry — Some Specific Examples and Anomalies

Using DECIMAL ENTER

Examples:

^1 2 ~ENTER : results in a value of 12.
: results in a value of 10.
^2 : results in a value of 210.
^ 2 : results in a value of 102.
3 ENTER : results in a value of 310, which is ignored since it is outside the legal value range (0-255).

• Entering MSB/LSB Values with DECIMAL ENTER (3 digit bytes for MSB, 3 digit bytes for LSB; 6 digits total message). For messages beginning with zeroes, the first zeroes can be omitted.

Examples:

• 3 ENTER : results in a value of MSB = 000, LSB = 003.
  0 3 ENTER : results in a value of MSB = 000, LSB = 003.
  [ \begin{array}{c} \boxed{1} \rightarrow \boxed{0} \rightarrow \boxed{0} \rightarrow \boxed{3} \rightarrow \boxed{\text{DECIMAL ENTER}} \end{array} ] results in a value of MSB = 001, LSB = 003.
  0 1 0 3 ENTER : results in a value of MSB = 001, LSB = 003.

• Entering MSB/LSB Values with HEXADECIMAL ENTER (2 digit bytes for MSB, 2 digit bytes for LSB; 4 digits total message). For messages beginning with zeroes, the first zeroes can be omitted.

Examples:

• 3 ENTER : results in a value of MSB = 00, LSB = 03.
  0 3 ENTER : results in a value of MSB = 00, LSB = 03.
  1 0 3 : results in a value of MSB = 01 ,LSB = 03
  0 1 0 3 ENTER : results in a value of MSB = 01, LSB = 03.

When entering MSB and LSB values, the LED display alternately flashes the MSB and LSB values.

NOTE The order of MSB and LSB entry can be reversed. (See page 32.)

■ If you inadvertently press two or more function keys while performing a function, the last pressed key has priority.
■ If, after entering a value, you press another function key before pressing ENTER, the value will be cancelled.
If you enter a value that is outside of a function's range, it will be ignored. Legal messages can be one byte in length (a value from 0 - 255).

This section shows by example the operations for the basic functions.

• Unless indicated otherwise, ENTER refers to either of the ENTER keys, HEXADECIMAL ENTER or

DECIMAL ENTER. However, when you wish to enter a decimal value, make sure to press DECIMAL ENTER. Likewise, when entering a hexadecimal number, make sure to press HEXADECIMAL ENTER.

Group A Operations

• Numbers 1 - 3 in the illustration correspond to the operation numbers below.

1

Sending a Simple Command

Operation: SHIFT Function Key

Relevant Functions: Sequencer Stop/Continue/Start; Sound Off

• Example: Sending a Start command to a sequencer or rhythm machine

SHIFT+ START

You can use the STOP and CONTINUE keys in the same way, to stop the sequencer or continue playback from the stopped point.

2

Setting a Simple Command (on/off)

Operation: SHIFT + Function Key

Relevant Functions: Merge On/Off

• Example: Switching the MIDI Merge function of the CBX-K1XG on or off

SHIFT + MERGE ON/OFF

3

Sending a Simple Command with ENTER

Operation: SHIFT + Function Key ENTER

Relevant Functions: GM Mode On; XG System On

• Example: Setting the tone generator to XG Mode

SHIFT + XG ON → ENTER

NOTE Either ENTER key can be used for these commands.

4

Setting a Specific Value for a Function

Operation: SHIFT + Function Key Value ENTER

Relevant Functions: Tempo; Program Change; MIDI

Channel; Fixed Velocity; Controller; Drum Number;

Transpose Down/Up

• Example: Changing the tempo value on a sequencer or rhythm machine

SHIFT + [TEMPO] → [1] → [4] → [0] → [DECIMAL ENTER]

5

Setting a Specific Value for a Function (MSB, LSB)

Operation: SHIFT + Function Key MSB value LSB

value ENTER

Relevant Functions: Bank Select; RPN; NRPN

• Example: This example shows how to use the Bank Select function to select different banks. This example also shows you how to use the functions that require entry of two values: MSB and LSB.

In this example, we'll enter a value of 012 (MSB) 034 (LSB)

NOTE Decimal values of MSB and LSB are 3 digits each (6 digits total); hexadecimal values are 2 digits each. Zeroes must be entered, unless they occur at the beginning of the value. For example, for the decimal value of 001 (MSB) 012 (LSB), the first two zeroes may be omitted, but the third must be entered. In other words, the value could be entered as 1 0 1 2 .

6

Transpose Setting

Operation: SHIFT + TRANSPose / TRANSPose

To transpose up one semitone, use the TRANSPOSE key

(F3). To transpose down one semitone, use the

TRANSPose key (E3). Each repeated pressing of the key while holding SHIFT transposes the pitch by an additional semitone. To restore the normal default transpose setting, hold down SHIFT and press both

TRANSPOSE /TRANSPOSE keys simultaneously.

NOTE You can also enter transpose values directly by using operation 4 above.

7

Setting a Specific Value for a Specific Controller

Operation: SHIFT + Function Key Controller Number

ENTER Value(s) ENTER

Relevant Functions: RPN*; Controller; NRPN*

Functions marked with an asterisk (*) above require that you enter two values: an MSB (Most Significant Byte) and an LSB (Least Significant Byte).

• Example: Changing the Portamento Time of the tone generator's voice to 25.

The operation steps enclosed in brackets () can be repeated or re-entered as long as SHIFT is held.

NOTE This operation assigns a controller number for the ASSIGNABLE Wheel and sends a specific value for that controller number. You can also send a specific value for the controller (in the Group B functions) without altering the controller assignment.

8

Selecting a Drum Number (when editing a specific drum number with controller numbers 131 - 141)

You can use operation 4 above to set the drum number for editing a specific drum number with controller numbers 131 - 141. However, the following operation lets you set the Drum number by playing it from the keyboard. This allows you to hear the drum sound you'll be editing, since the last note played on the keyboard determines the drum sound to be changed.

Without pressing SHIFT, find the desired drum number by sound — by pressing keys on the keyboard. Next, hold down SHIFT, press DRUM NUMBER, then ENTER. This sets the drum number to the last key pressed. Then (to set the controller number for that drum sound), hold down

SHIFT and press CONTROLLER, then enter the controller number (131 through 141). This sets the Controller Number for the Drum parameter you wish to control with the ASSIGNABLE Wheel.

• Unless indicated otherwise, ENTER refers to either of the ENTER keys, HEXADECIMAL ENTER or Decimal ENTER. However, when you wish to enter a

decimal value, make sure to press DECIMAL ENTER. Likewise, when entering a hexadecimal number, make sure to press HEXADECIMAL ENTER.

Group B Operations

Group B function names are not shown on the panel. For the list and explanations of Group B functions, refer to pages 32 - 33.

• Numbers 3 - 14 in the illustration correspond to the operation numbers below.

Example: Sending a Reset All Controllers command to a sequencer or tone generator & DECIMALENTER START (Reset All Controllers)

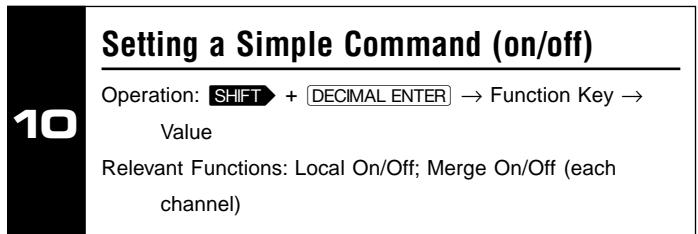

Example 1: Switching Local control on or off SHIFT + DECIMAL ENTER → MERGE ON/OFF (Local On/Off)
Example 2: Switching the MIDI Merge function of the CBX-K1XG on or off for MIDI channel 12
SHIFT + DECIMAL ENTER → MIDI (Merge On/Off for each channel) → C (for MIDI channel 12)

Keys 1 - and 0 correspond to MIDI channel 1- 15 and 16, respectively. Pressing each key toggles the on/ off status of each channel.

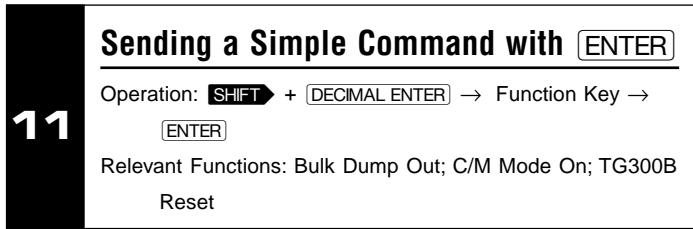

Example: Sending the current CBX-K1XG settings to a MIDI storage device or sequencer with the Bulk Dump Out function
SHIFT + DECIMAL ENTER → BANK SELECT (Bulk Dump Out) → ENTER

Example: Changing the touch sensitivity of the CBX-K1XG to 10
SHIFT + DECIMAL ENTER → FIXED VELOCITY (Touch Sensitivity) →
1 → 0 → ENTER

13

Setting a Specific Value for a Function (MSB, LSB)

Operation: SHIFT + DECIMAL ENTER → Function Key →

Values ENTER

Relevant Function: Song Position Pointer

• Example: Changing the song position pointer setting on a sequencer to MSB = 12 , LSB = 34

SHIFT + DECIMAL ENTER → CONTINUE (Song Position Pointer) →

0 → 1 → 2 → 0 → 3 → 4 → DECIMAL ENTER

NOTE Decimal values of MSB and LSB are 3 digits each (6 digits total); hexadecimal values are 2 digits each. Zeroes must be entered, unless they occur at the beginning of the value. For the example above, the first zero may be omitted, but the second must be entered. In other words, the value could be entered as

1 2 0 3 4.

14

Setting a Specific Value for a Specific Controller

Operation: SHIFT Decimal ENTER Function Key

Controller Number ENTER Value(s) ENTER

Relevant Functions: RPN Direct Data Send*; Controller

Direct Data Send; NRPN Direct Data Send*

Functions marked with an asterisk (*) above require

that you enter two values: an MSB (Most Significant

• Example: Changing the Portamento Time of the tone generator's voice to 25.

SHIFT + DECIMAL ENTER → CONTROLLER → (Portamento

Time) ENTER {2 5 ENTER}

The operation steps enclosed in brackets () can be repeated or re-entered as long as SHIFT is held.

NOTE This operation assigns a controller number for the ASSIGNABLE Wheel without altering the controller assignment.

Sending a Single-Byte Data Message

This function allows you to quickly and easily send a non-standard MIDI message of a single byte. The effective range of this function is from 0-255; values outside of this range will be ignored.

Operation: SHIFT + DECIMAL ENTER → Value → ENTER

15

Example: Sending a (decimal) value of 252

SHIFT + DECIMAL ENTER → {2 → 5 → 2 →

DECIMALENTER}

The operation steps enclosed in brackets () can be repeated or re-entered as long as SHIFT is held.

Press and hold SHIFT while performing the operation steps for the desired Group A function.

For detailed explanations on the basic operations, refer to

pages 25 - 27. The numbered footnotes that follow these charts provide additional details on certain operations.

Key	Panel Name	Function	Operation Steps	Operation Examples(see page 26)
C2	STOP	Stop	SHIFT+STOP	1
C#2	CONTINUE	Continue	SHIFT+CONTINUE	1
D2	START	Start	SHIFT+START	1
D#2	TEMPO	Tempo	SHIFT+TEMPO→[Value]→[ENTER]	4
E2	BANK SELECT	Bank Select *1	SHIFT+BANK SELECT→[MSB]→[LSB]→[ENTER]	5
F2	PROGRAM CHANGE	Program Change *2	SHIFT+PROGRAM CHANGE→[Value]→[ENTER]	4
F#2	GM ON	GM Mode On	SHIFT+GMON→[ENTER]	3
G2	SOUND OFF	All Sound Off(each channel)	SHIFT+SOUND OFF	1
G#2	XG ON	XG System On	SHIFT+XG ON→[ENTER]	3
A2	MERGE ON/OFF	Merge On/Off *3 *4(all channels)	SHIFT+MERGE ON/OFF	2
A#2	MIDI CH	MIDI Channel *5	SHIFT+MICICH→[Value]→[ENTER]	4
B2	FIXED VELOCITY	Fixed Velocity	SHIFT+FIXED VELOCITY→[Value]→[ENTER]	4
C3	RPN	Wheel Assign (RPN)*6	SHIFT+RPN→[MSB]→[LSB]→[ENTER]	5 7
C#3	CONTROLLER	Wheel Assign controller number)*6	SHIFT+CONTROLLER→[Value]→[ENTER]	4 7
D3	NRPN	Wheel Assign (NRPN)*6	SHIFT+NRPN→[MSB]→[LSB]→[ENTER]	5 7
D#3	DRUM NUMBER	Drum Number	Before executing the operation below, use the keyboard to select the desired drum sound (see page 27).SHIFT+DRUM NUMBER→[ENTER]	3
E3	TRANSPose←	Transpose Down *7	SHIFT+TRANSPose←→···	6 4
F3	TRANSPose→	Transpose Up *7	SHIFT+TRANSPose→···	6 4

Footnotes

1 When entering Bank numbers, the internal tone generator ignores invalid Bank numbers (even if the Bank on a connected tone generator has changed).
2 The actual program change number transmitted by the CBX-K1XG is the displayed number minus 1. For example, program number 001 on the display is actually transmitted as 000.

When entering program numbers, the internal tone generator ignores invalid program numbers (even if the

program on a connected tone generator has changed). When stepping up or down through program numbers, "empty" programs or Voices in a Bank are skipped, and the next available program is automatically selected. Program numbers can also be selected without pressing PROGRAM CHANGE (by entering only the value and pressing ENTER).

*3 When a MIDI buffer full error message results, MIDI Merge is automatically set to OFF.

• MIDI: MIDI OUT and TO HOST, Int.: Internal tone generator.

	Explanation	Transmitted to*		Range (Hexadecimal in parentheses)	Default Setting	MIDI Code
		MIDI	Int.
	Stop command for sequencer/rhythm machine.	Y	N	—	—	<<FC>>
	Continue command for sequencer/rhythm machine.	Y	N	—	—	<<FB>>
	Start command for sequencer/rhythm machine.	Y	N	—	—	<<FA>>
	Tempo entry for sequencer/rhythm machine. Setting this to 0 disables the MIDI clock transmission. When ASSIGNABLE Wheel is set to Tempo (cntrl. no. 148), this is inactive.	Y	N	0, 20-300 (0, 14-12C) (0: MIDI clock off)	0 (off)	<<F8>>
	This allows selection of voice banks on the tone generator. The bank select message must include both MSB and LSB values.	Y	Y	MSB: 000-127 (00-7F) LSB: 000-127 (00-7F)	—	<<Bn 00 msb, Bn 20 lsb, Cn pp>>
	This allows entry of program numbers. Stepping up or down through program numbers is also possible by holding down SHIFT and using the [OCTAVE SHIFT] / [OCTAVE SHIFT] buttons; see page 15.	Y	Y	1-128 (1-80)	1	<<Cn pp>>
	This resets the tone generator to General MIDI operation. WARNING: Be careful when using this, since it automatically changes whatever settings you've made on the tone generator. (Only GM-compatible tone generators respond to this message.)	Y	Y	—	—	<<F0 7E 7F 09 01 F7>>
	This turns all sounds off over the current MIDI channel. To turn all sounds off for all MIDI channels, use All Sound Off in Group B.	Y	Y	—	—	<<Bn 78 00>>
	This resets the tone generator to XG operation. WARNING: Be careful when using this, since it automatically changes whatever settings you've made on the tone generator. (Only XG-compatible tone generators respond to this message.)	Y	Y	—	—	<<F0 43 Is 4C 00 00 7E 00 F7>>
	When set to ON, this merges all data received at MIDI IN with the data generated by the CBX-K1XG. Merge can be set independently for each channel in the Group B functions.	—	—	on,off	off	—
	This determines the MIDI transmit channel for the CBX-K1XG. This should be set to match the MIDI receive channel of the connected MIDI device.	—	—	1-16 (1-10)	1	—
	This sets a fixed velocity value for the keyboard; in other words, playing the keyboard at any strength results in a certain velocity value. When this is set to 0 (initial touch on), Touch Sensitivity can be set in the Group B functions. When ASSIGNABLE Wheel is set to Velocity (147), this is inactive.	—	—	0, 1-127 (0, 1-7F)	0 (off)	—
	This determines the RPN (Registered Parameter Number) for the ASSIGNABLE Wheel. This function should be used for all RPN's not listed on the panel. The message must include both MSB and LSB values.	—	—	MSB: 000-127 (00-7F) LSB: 000-127 (00-7F)	—	<<Bn 64 lsb, Bn 65 msb, Bn 06 w>>
	This determines the Controller Number for the ASSIGNABLE Wheel. Though not all are listed on the panel, any of the standard Control Change numbers (0 -119) can be assigned. (For a complete list of the available Controllers and their numbers, see page 34.)	—	—	0-148 (0-94)	1	<<Bn gg w>>
	This determines the NRPN (Non-Registered Parameter Number) for the ASSIGNABLE Wheel. This function should be used for all NRPN's not listed on the panel. The message must include both MSB and LSB values.	—	—	MSB: 000-127 (00-7F) LSB: 000-127 (00-7F)	—	<<Bn 62 lsb, Bn 63 msb, Bn 06 w>>
	This determines the drum number for use with the drum-related controller numbers (131-141).	—	—	0-127 (00-7F)	0	—
	This lowers the key transposition by the specified amount (in semitones).	—	—	0-12 (0-C)	0	—
	This raises the key transposition by the specified amount (in semitones).	—	—	0-12 (0-C)	0	—

4 Using system exclusive messages to turn Merge on or off can only be done for all channels (as in the corresponding Group A function).
5 Incoming MIDI data is ignored during the operation.
*6 To send a specific value for the current control number assignment of the Wheel, hold down SHIFT, enter the desired value, and press ENTER. However, this cannot be done with controller numbers 143 (Polyphonic Key Pressure), 147 (Velocity), or 148 (Tempo).

When MSB and LSB values are entered, the LED display alternately flashes the MSB and LSB values. When no values have been entered, “- - -” appears in the LED display.

*7 Transpose can be done in two ways: by repeatedly pressing the appropriate TRANSPOSE key or by entering the transpose value directly after pressing the appropriate TRANSPOSE key. To restore the normal transpose setting, hold SHIFT and press both TRANSPOSE / TRANSPose keys simultaneously.

To select the Group B functions, hold down SHIFT and press DECIMAL ENTER. Continue holding SHIFT while performing the operation steps for the desired Group B function.

For detailed explanations on the basic operations, refer to pages 25 and 28 - 29. The numbered footnotes that follow these charts provide additional details on certain operations.

Key	Panel Name	Function	Operation Steps	Operation Examples(see page 28)
C2	STOP	Song Select	SHIFT+ (DECIMAL ENTER) → STOP → [Value] → ENTER	12
C#2	CONTINUE	Song Position Pointer	SHIFT+ (DECIMAL ENTER) → CONTINUE → [MSB] → [LSB] → ENTER	13
D2	START	Reset All Controllers	SHIFT+ (DECIMAL ENTER) → START	9
D#2	TEMPO	—	—	—
E2	BANK SELECT	Bulk Dump Out	SHIFT+ (DECIMAL ENTER) → BANK SELECT → ENTER	11
F2	PROGRAM CHANGE	—	—	—
F#2	GM ON	C/M Mode On	SHIFT+ (DECIMAL ENTER) → GMON → ENTER	11
G2	SOUND OFF	All Sound Off (all channels)	SHIFT+ (DECIMAL ENTER) → SOUND OFF	9
G#2	XG ON	TG300B Reset	SHIFT+ (DECIMAL ENTER) → XGON → ENTER	11
A2	MERGE ON/OFF	Local On/Off	SHIFT+ (DECIMAL ENTER) → MERGE ON/OFF	10
A#2	MIDI CH	Merge On/Off(each channel)*1	SHIFT+ (DECIMAL ENTER) → MIDICH → [Value]	10
B2	FIXED VELOCITY	Touch Sensitivity *2	SHIFT+ (DECIMAL ENTER) → FIXED VELOCITY → [Value] → ENTER	12
C3	RPN	Controller Direct Data Send(RPN)*3	SHIFT+ (DECIMAL ENTER) → RPN → [MSB] → [LSB] → ENTER →[Value] → ENTER	14
C#3	CONTROLLER	Controller Direct Data Send controller numbers on panel)*3	SHIFT+ (DECIMAL ENTER) → CONTROLLER → [Value] → ENTER →[Value] → ENTER	14
D3	NRPN	Controller Direct Data Send(NRPN)*3	SHIFT+ (DECIMAL ENTER) → NRPN → [MSB] → [LSB] → ENTER →[Value] → ENTER	14
D#3	DRUM NUMBER	Device Number *4	SHIFT+ (DECIMAL ENTER) → DRUM NUMBER → [Value] → ENTER	12
E3	TRANSPOSE←	Wheel Invert *5	SHIFT+ (DECIMAL ENTER) → TRANSPOSE←	9
F3	TRANSPOSE→	MSB/LSB Invert *6	SHIFT+ (DECIMAL ENTER) → TRANSPOSE→	9
--		Single-Byte Data Send	SHIFT+ (DECIMAL ENTER) → [Value] → ENTER	13

Footnotes

1 Using system exclusive messages to turn Merge on or off can only be done for all channels (as in the corresponding Group A function).
2 When Fixed Velocity (in Group A) is set to a value other than 0, the Touch Sensitivity function is inactive. The following table shows the velocity range for the minimum, medium, and maximum Touch Sensitivity settings.

Touch Sensitivity Value	1 (1)	5 (5)	10 (A)
Velocity Range	32-127 (20-7F)	16-127 (10-7F)	1-127 (01-7F)

*3 To send a specific value for the current control number assignment of the Wheel, hold down SHIFT, enter the desired value, and press ENTER. However, this cannot be done with controller numbers 143 (Polyphonic Key Pressure), 147 (Velocity), or 148 (Tempo).

• MIDI: MIDI OUT and TO HOST, Int.: Internal tone generator.

	Explanation	Transmitted to*		Range (Hexadecimal in parentheses)	Default Setting	MIDI Code
		MIDI	Int.
	Song Select command for sequencer/rhythm machine.	Y	N	0-127 (0-7F)	—	<<F3 SS>>
	Song Position Pointer for sequencer/rhythm machine.	Y	N	MSB: 000-127 (00-7F)LSB: 000-127 (00-7F)	—	<<F2 lsb msb>>
	This resets all MIDI controller values to their reset values (minimum or center).	Y	Y	—	—	<<Bn 79 00>>
	—	—	—	—
	This sends various current settings of the CBX-K1XG as a system exclusive bulk data dump.Dashes flash in the LED display while the operation is in progress. Data saved to a MIDI storage device in this fashion can be restored by simply sending it back to the CBX-K1XG. Incoming MIDI data is ignored during the operation.	Y	N	—	—	—
	—	—	—	—	—	—
	This sets the internal tone generator to the C/M mode. When set to C/M mode, reception over MIDI channel 1 is turned off, and the tone generator Voices will not sound for that channel.	N	Y	—	—	—
	This turns all sounds off over all MIDI channels. To turn all sounds off for one specific MIDI channel, use SOUND OFF in Group A.	Y	Y	—	—	<<B0 78 00, B1 78 00,..., BF 78 00>>
	This performs a TG300B reset on the tone generator.	Y	Y	—	—	<<F0 41 10 42 12 40 00 7F 00 41 F7>>
	This enables (on) or disables (off) keyboard control over the internal tone generator. When set to off, the internal Voices do not sound when playing the keyboard; only an external connected tone generator responds to keyboard/controller data.	—	—	on,off	on	—
	This merges all data received over the selected MIDI channel with the data generated by the CBX-K1XG. This function can be set independently for each channel.	—	—	on,off	on	—
	This determines the relative velocity sensitivity of the CBX-K1XG keyboard. The lower the Touch Sensitivity value, the higher the output velocity becomes. In other words, when this is set to a value near 0, the less playing strength that is needed to get a louder sound from the tone generator.	—	—	1-10 (1-A)1: easy-10: hard	5	—
	This allows you to directly send a specific value for a selected RPN controller number, without altering the current controller assignment of the ASSIGNABLE Wheel.	Y	Y	MSB: 000-127 (00-7F)LSB: 000-127 (00-7F)Value: 0-127 (0-7F)	—	<<Bn 64 lsb,Bn 65 msb,Bn 06 vv>>
	This allows you to directly send a specific value for a selected Control Change controller number, without altering the current controller assignment of the ASSIGNABLE Wheel.	Y	Y	Controller number:0-148 (0-94)Value: 0-127 (0-7F)	—	<<Bn gg vv>>
	This allows you to directly send a specific value for a selected NRPN controller number, without altering the current controller assignment of the ASSIGNABLE Wheel.	Y	Y	MSB: 000-127 (00-7F)LSB: 000-127 (00-7F)Value: 0-127 (0-7F)	—	<<Bn 62 lsb,Bn 63 msb,Bn 06 vv>>
	This determines the Device Number when independently transmitting certain messages (such as XG On and Master Tuning) to more than one connected MIDI devices.	—	—	0,1-16 (0,1-10)	0 (RL L)	—
	This inverts the operation of both Wheels, for ease in playing the CBX-K1XG as a hand-held keyboard. An alternate way to change this setting is to simultaneously hold down OCTAVE SHIFTand turn on the power.	—	—	—	Maximum value is toward rear panel.	—
	This inverts the MSB/LSB entry (so that LSB precedes MSB). An alternate way to change this setting is to simultaneously hold down OCTAVE SHIFT and turn on the power.	—	—	—	MSB precedesLSB	—
	This sends a data message of a single byte. (See page 29.)	Y	N	0-255 (0-FF)	—	<<xx>>

4 The 0() setting applies only to the internal tone generator. When this is set to 0, a device number of 1 is sent via MIDI or TO HOST.
5 In normal wheel operation, pitch is bent upward (for the PITCH Wheel) and maximum values result (for the ASSIGNABLE Wheel) when the wheel is moved toward the rear panel. When changing the setting, the LED display indicates the direction selected: upward flashing segments indicate normal operation, and downward flashing indicates inverted operation.

*6 When the MSB/LSB entry order is changed, the LED display appears as follows to indicate the data order:
