USER MANUAL

Preface

Thank you for buying the MID. We wish you enjoy using it.

Please read and retain all the operating instructions before operating the unit, we do not assume any liability arising out of improper operation or incidental damages.

For better services, the content of this operation manual may be changed.

If the actual setup and usage of the unit are different from this operation manual, please view the website of our company to inquire about the latest product information.

Do not allow water or foreign objects to enter the unit.

I. Note:

1. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual.
2. Do not use metal object to touch the device to prevent it from short circuit.
3. Please backup your data in case your important data is lost, especially before you upgrade the firmware. The company will not take charge in any loss that caused by lost of data.
4. Do not disassemble. Do not wipe the surface of the unit by alcohol, thinner or benzene.
5. Do not disconnect the unit while it is formatting or uploading/downloading, or the procedures may lead to errors
6. We do not take responsibility to the flash damage caused by product broken, repair or other reasons. Please operate strictly as per the user guide.
7. Avoid water or foreign objects enter the unit.
8. Do not use the unit in places that are extremely hot, cold, dusty, or humid.
9. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual.
10. Specifications are subject to change and improvement without notice

II. Introduction of cover:

1. Volume+
2. Volume-
3. Power on/off
4. Front Camera Reset
5. Indicator
6. HDMI interface
7. SD card interface
8. MINI USB interface
9. DC charger interface
10. Earphone Jack
11. MIC
12. Loudspeaker
13. Loudspeaker
14. Back Camera

Technical diagram of a tablet device with numbered components for identification

3

III. Operation Instruction

1. Basic Operation

1.1. Power on/Power off

Power on:

Press and hold the power switch for 5 seconds; the unit displays the start-up logo and enters the working mode.

Power off:

Press and hold the power switch for 3 seconds to turn the unit off.

Sleep:

While the device is at working status, press the power switch, it enters the sleeping mode, and the screen will be off then. Press the power switch again, it shift to the normal mode. You may use this function when you don't' use the device temporary to save power.

1.2. Charging

When the device prompts low battery, please charge it by provided charger.

Note:

To improve the longevity of the battery, you may charge for another 15 minutes after it prompts the battery is full.

1.3. Main menu

Click the 📄️ icon in the main interface, the main menu is appeared. It including the system setting, music playback, video playback, web browser and other applications you installed in the main menu.

2. Settings

Click “Settings” in the main interface to enter the setting interface. Click the corresponding setting items to operate.

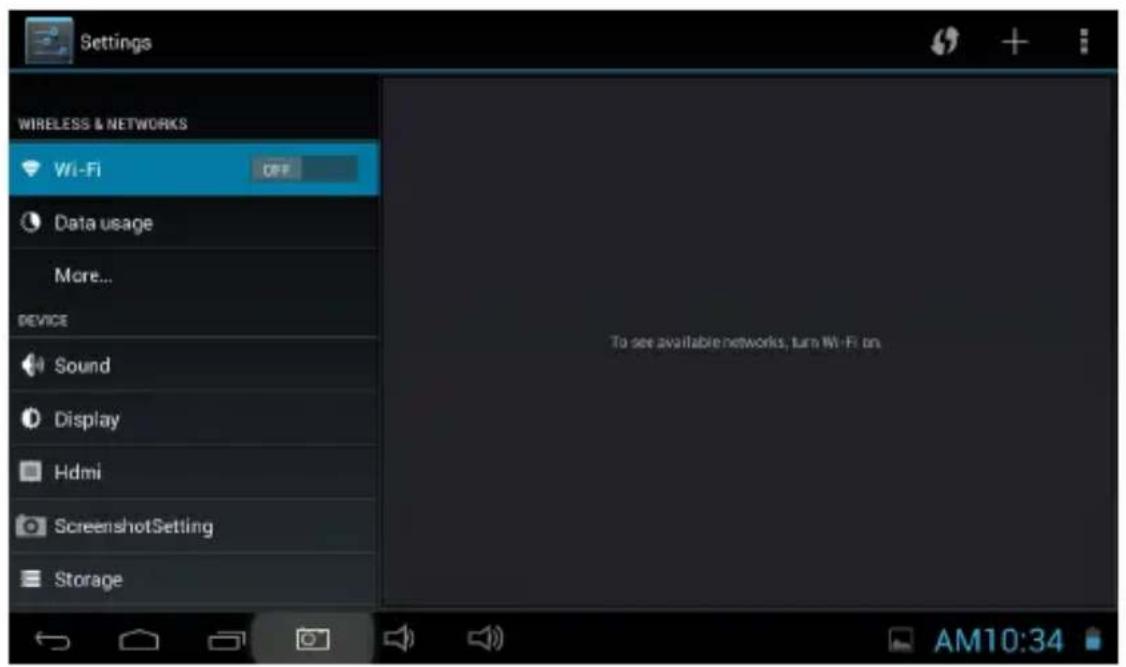

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Hdmi ScreenshotSetting Storage To see available networks, turn Wi-Fi on. AM10:34

2.1. Date and Time Setting

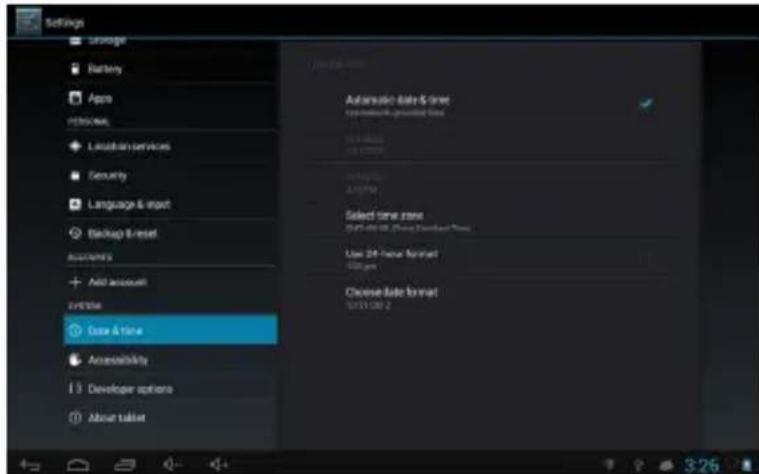

Click “Date & Time” in the setting interface to set the date and time. You may set the date, time zone, time, time format and date format etc. in the menu.

Settings Storage Battery Apps Retiree Location services Security Language & insert Backup & reset Accessories Add account Get time Date & time Accessibility Developer options About table Automatic date & time September 2016 (granted time) January 2015 February 2014 September 2013 Select time range DATE: 08/08 (Change Download Time) Use 24-hour format 100 dpi Cheese date format 10/11/09 2

2.2. Brightness

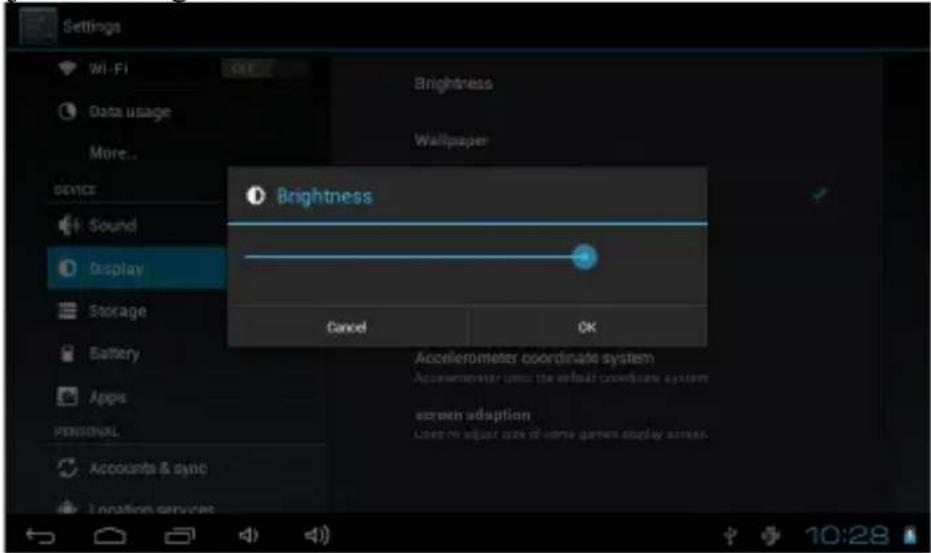

Select “Display” in the setting interface. Click “Brightness” to enter, and slide the bar to adjust the brightness.

Settings Wi-Fi Data usage More... device Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services OK Brightness Wallpaper Brightness Cancel OK Accelerometer coordinate system Accelerometer uses the default coordinate system screen adaption Use on adjust size of some games display access.

3. Wi-Fi connection

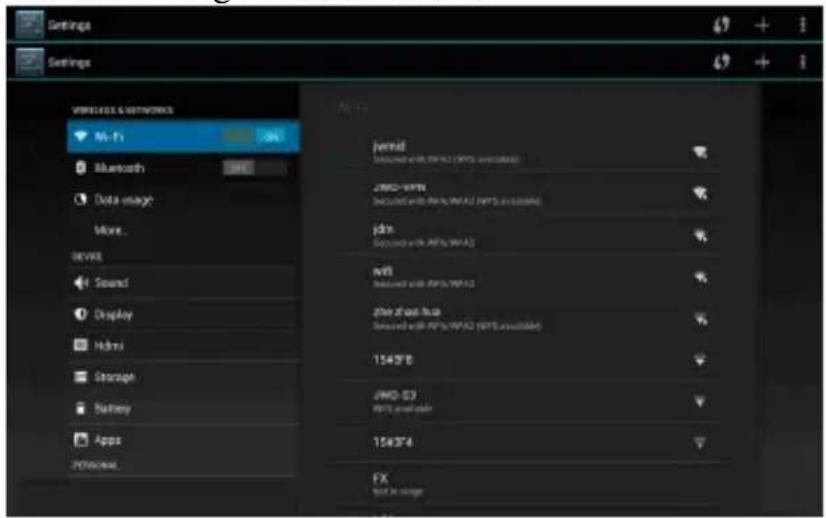

Click “Settings” in the main interface and click “Wireless & network” to enter the wireless and network setting interface. Click Wi-Fi to turn on the WIFI. Click Wi-Fi setting to set and manage wireless access.

Settings Settings VIRLEDS & NETWORKS No. 1 Bluetooth Data image More... DEVER Sound Display Hybrid Storage Battery Apps PERSONAL JPMID Decided with MP3/MP4 (MP3 available) JPMID-879 Decided with MP3/MP4 (MP3 available) jdm Decided with MP3/MP4 MTI Decided with MP3/MP4 200x 200x 200x Decided with MP3/MP4 (MP3 available) 154378 JPMID-63 MP3 available 154374 FX Select for range

Click “Network Notification”, it lists the open network it searched. Click the name of the network; it pops up the setting window. You may connect it to WIFI according to the prompts. You need to input the user name and password if networks are encrypted.

3.1 Ethernet configuration

The Unit support USB-Net-Card.

4. Install, Uninstall and Run applications

4.1 Install

There are many ways to install applications under Android, such as via USB, by third party program. We introduce installation by Apps Installer here.

Click the “Explorer” or “Apkinstaller” in the main interface.

Select the APK file you want and enter the application installation interface. Click “Install” to install the application automatically. After installation, it prompts “Open”

and “Finish”. Click “Open” to open the application. Click “Finish” to exit.

4.2 Uninstall

You may use the corresponding third party software management tool or the installed application management software of the device to install applications.

Select “Setting/Applications/Manage applications” to select the installed applications and check the attribute of it or uninstall it.

5. Connect to internet

5.1. After connecting with WIFI, open the browser and input the web address, you can browse the web then.
5.2. Click the ★ icon to enter the bookmark to view the browse history. Click the web page you want to open it.

To save the web page into bookmark, you may click “add” to save it.

to enter and click

6. Audio and video playback

6.1. Audio playback

Click the “Music” in the main menu to enter the audio playback interface. It lists the audio files in the device, and you may click the file name to play it. in the audio playing interface, click the icons to play/pause/ increase volume/ decrease volumem/ FF/ REW....

Colline Shock A New York Times F Outlook

6.2. Video Playback

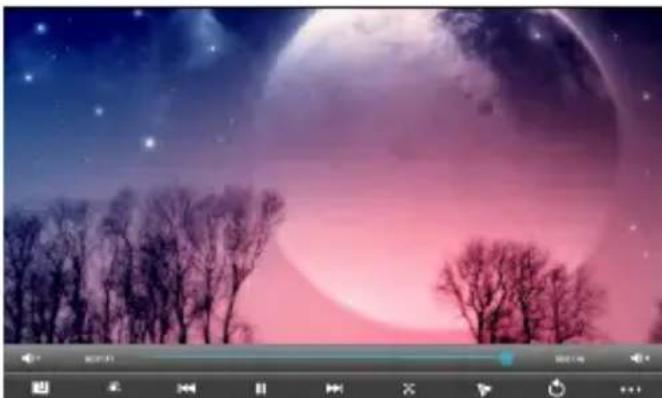

Click the “Video” in the main menu to enter the video playback interface. It lists the video files in the device, and you may click the file name to play it. in the video playing interface, touch the screen to pop-up the operation icons and click the icons to play/pause/ increase volume/ decrease volume/ skip to next file/skip to previous file....

Night sky with a full moon and silhouetted trees, no text or symbols visible

7. Picture viewing

Click “Gallery” in the main menu to enter the picture folder list. Select and click the folder you want to enter, it displays the . click the thumbnail of the picture to view it.

Touch the screen to pop-up the operation icons while viewing the picture, you may zoom in/zoom out/ skip to next picture/skip to previous picture/ rotate/ delete the picture...

Grid of 12 colorful and organic imagery including fruits, kiwiffruits, watermelon slices, and a sprouting seed (no text or symbols)

Close-up of fresh fruits including oranges, kiwi, and a whole citrus (no text or symbols visible)

8. 3G DONGLE

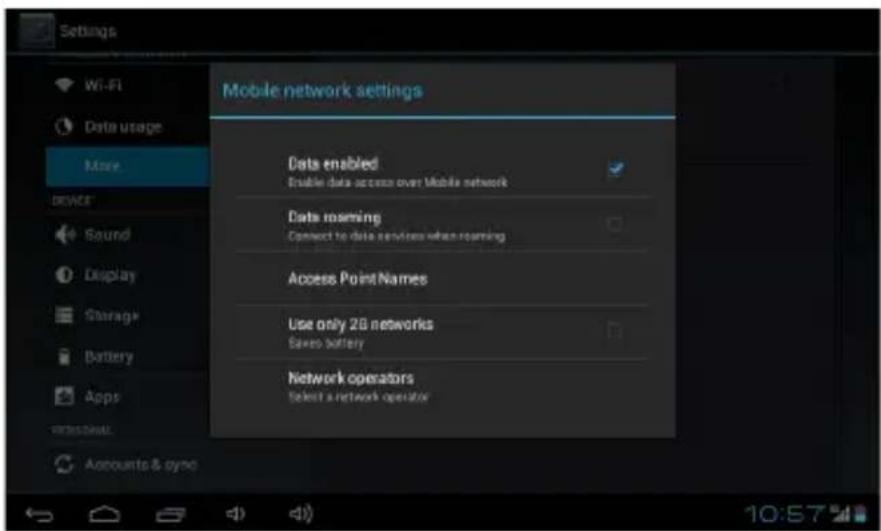

The device supports external 3G Dongle, connect the 3G dongle to the device via the external transfer cable, after the dongle indicator lights, you may use the 3G network normally.

Settings Wi-Fi Data usage Move Device Sound Display Storage Battery Apps Accounts & sync Mobile network settings Data enabled Enable data access over Mobile network Data roaming Connect to data services when roaming Access Point Names Use only 28 networks Savings battery Network operators Select a network operator 10:57

9. Camera

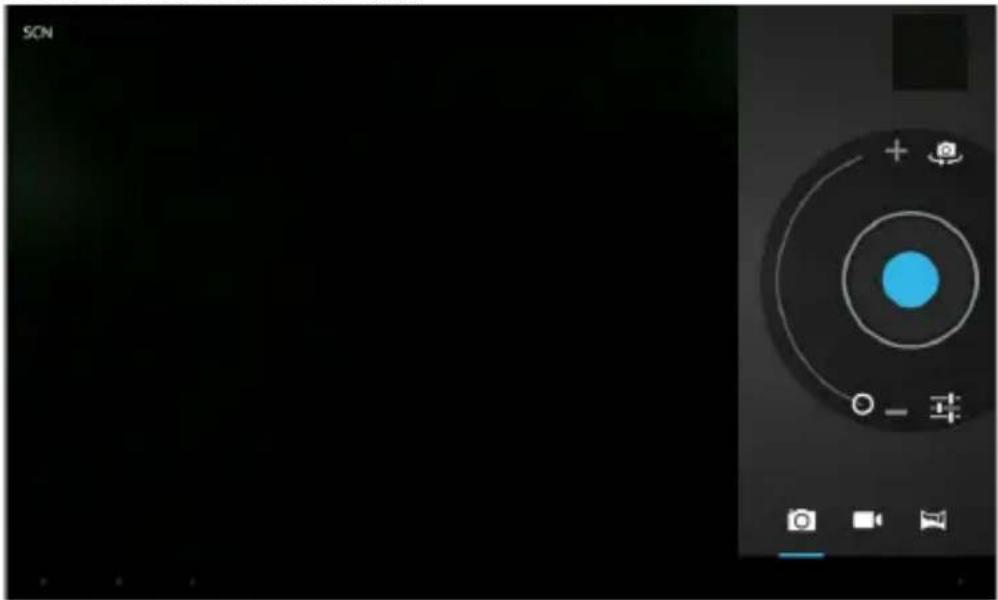

Click "Camera" in the main interface.

Close-up of a camera control panel with concentric rings and a blue center, no visible text or symbols on the main screen.

9.1 Camera

If the cursur is at □ position, the device is at Camera mode.

Click

Click

to take picture.

Click

to set the scene mode, Picture size, Picture quality, and color effect.

Click

to set white balance.

Click

to select back or front camera.

9.2 DV If the cursur is at position, the device is at DV mode.

Click

to take picture.

Click 📁 to set the color effect or restore to default settings. Click 📄 to select back or front camera.

10. Connect with external device

10.1. Connect with PC

Connect the device with the PC via the USB cable. The PC appears two new disk symbols after connected successfully. One is the TF card, and the other is the built-in flash.

USB mass storage USB connected You've connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android if a SSD used Turn on USB storage

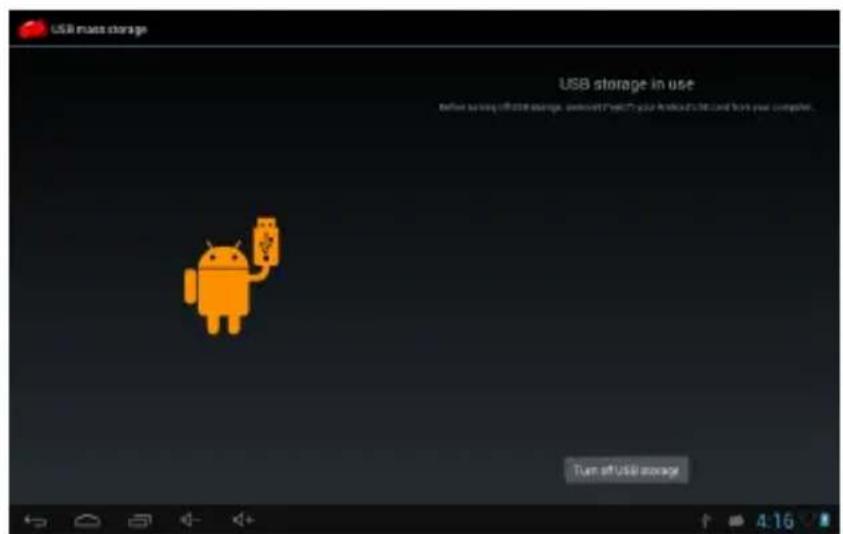

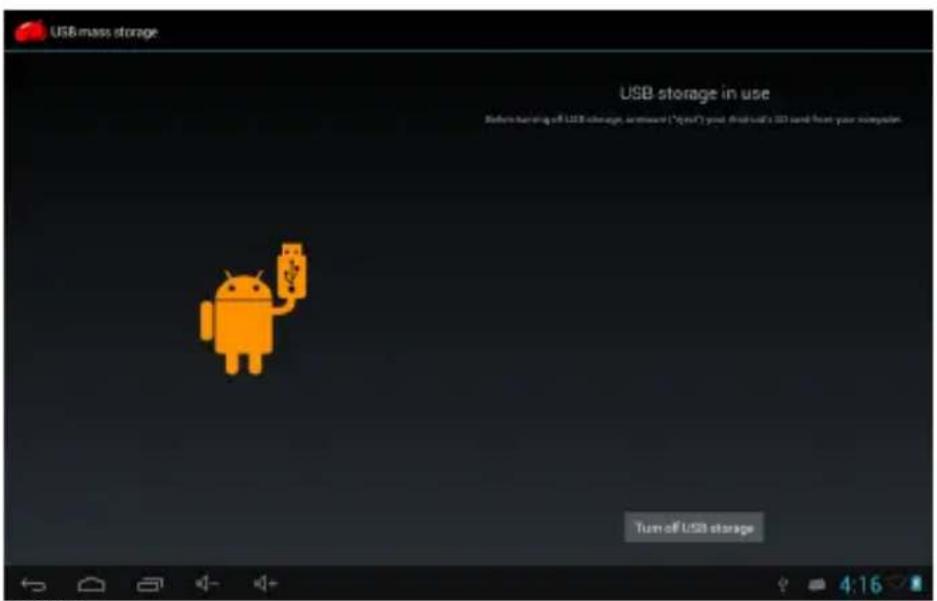

USB mass storage USB storage in use Take up to USB storage, account (You) your USB drive / have your computer Turn off USB storage

10.2. Use of OTG and USB host

It supports the movable device with FAT32 format, such as U disk and MP3. Connect the movable device to the MID. (Note: only OTG could support USB mouse and keyboard, USB HOST only support USB2.0 High speed device)

Explorer Name LoadUp Auth Delete UnifView Back Next SD Card Internal Memory USB

10.3. Applications

For convenient usage, we installed some third party software in the MID. For detailed operation methods, please check the corresponding instruction. Some of the software may be able to be used in some area because of network service.

IV. Troubleshooting

1. What if the device is abnormal during operation?

Answer: 1). Reboot the device to see if it works OK.

2). Charge the device by the charger to activate the battery. Make sure it has power before you operate it.
3). It is suggested to upgrade the OS of the device by professional.

2. Why the standby time is so short sometimes?

Answer: the use time of the battery is all depend on the temperature and use instance. If the temperature is too high or too low, the use time of the battery might be effected. It is suggest using the device in normal temperature.

The using time is also affected by increased volume and frequently operation.

VI. Specifications

Item NVR-TAB101 S2 (8GB)
Display 10.1” (25,65cm)	TFT touch panel
OS	Android 4.1
Input method Soft keypad
Capacity	8GB
External Capacity TF card, up to 32GB
Audio	MP3,WMA,FLAC,APP,OGG......
Video	mpeg4-sp,asp,divx,WMV,RMVB,H.264/720P
E-book	Support
Wireless network Support WIFI
Language	Multi-language
USB	USB2.0 high speed
OTG	Support
Temperature	-20°C to 60°C
Power supply AC 100~240V	50/60Hz; DC 5V/2A
Battery 6000mAh poly-lithium battery

Note: The pictures list in the manual are for reference only! The design and the specification of the unit are subject to change without notice.

This symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling. By separating this products from other household-type waste, the volume of waste sent to incinerators or land fields is reduced and natural resources will thus be conserved.

"In order to fulfill ruling UNE EN-60065, we indicate that if the flexible wire is damaged, it can only be substituted by a technical service recognized by NEVIR, S.A., as per special tooling is required"

CE R ROHS
