Product Type	Facial Sauna
Brand	Panasonic
Model	EH-TSA3F
Dimensions (approx.)	200 x 200 x 300 mm
Weight (approx.)	1.2 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	450 W
Water Tank Capacity	80 ml
Steam Temperature	Approx. 40-45 °C
Timer Setting	Adjustable (up to 15 minutes)
Auto Shut-off	Yes
Key Functions	Deep pore cleansing, moisturizing, relaxing steam
Maintenance & Cleaning	Wipe with soft damp cloth; descale regularly
Safety Features	Overheat protection, automatic power-off
Spare Parts Available	Steam nozzle, water tank, filter
Color	White / Pink
Warranty	2 years (may vary by region)

Frequently Asked Questions - EH-TSA3F PANASONIC

How do I clean the facial sauna?

Unplug the device and let it cool. Wipe the exterior with a soft, damp cloth. For the water tank, rinse with clean water and dry thoroughly. Descale monthly using a mixture of water and white vinegar to prevent mineral buildup.

Can I use essential oils in the water tank?

No, adding essential oils or any additives can damage the device and void the warranty. Only use clean, cold tap water or distilled water for best results.

How often should I use the facial sauna?

For optimal results, use 2-3 times per week. Avoid overuse as it may dry out the skin. Always follow your skincare routine after steaming.

Why is the steam output low?

Low steam output may be due to insufficient water, a clogged steam nozzle, or mineral deposits. Check the water level, clean the nozzle with a pin, and descale the tank.

Is the facial sauna safe for sensitive skin?

The steam temperature is gentle (approx. 40-45 °C), but if you have sensitive skin, start with shorter sessions (5 minutes) and keep a distance of at least 20 cm from the nozzle.

Does the device shut off automatically?

Yes, the Panasonic EH-TSA3F has an automatic shut-off feature that activates after 15 minutes of continuous use or when the water tank is empty, ensuring safety.

Can I use the sauna without water?

No, never operate the device without water. Doing so can damage the heating element and pose a fire hazard. Always fill the tank to at least the minimum level.

What type of water should I use?

Use clean tap water or distilled water. Avoid using hot water, as it may affect the steam generation. For areas with hard water, distilled water is recommended to reduce scaling.

How do I store the device?

After use, empty the water tank and let all parts dry completely. Store the device in a cool, dry place away from direct sunlight. Do not wrap the cord tightly around the unit.

Where can I find replacement parts?

Replacement parts such as the steam nozzle, water tank, and filter can be purchased from Panasonic authorized service centers or online retailers. Use only genuine Panasonic parts.

USER MANUAL EH-TSA3F PANASONIC

Operating Instructions

使用说明书

使用說明書

取扱説明書

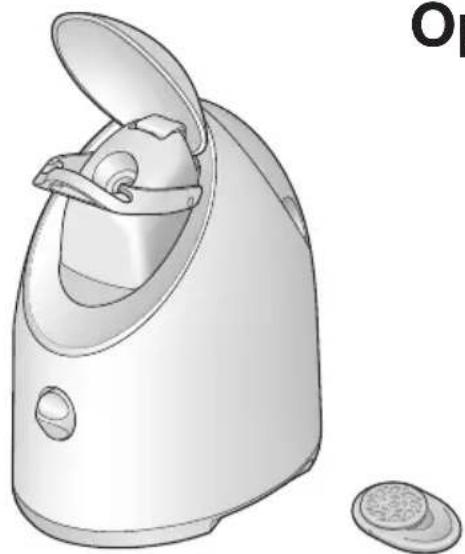

Illustration of a white portable air purifier with lid open, showing internal compartments and a separate circular base (no text or symbols)

Facial Ionic Steamer Household

离子蒸汽美容器 家用

奈米離子美顏器 家用型

スチーマー ナノケア 家庭用

Model No. EH-TSA3F

Thank you for purchasing the Panasonic product.

• This product is intended for household use only.
- Please read these instructions carefully to use the product correctly and safely.
- Before using this product please give your special attention to “Safety Precautions” (P. EN2–EN5).
- Please keep these Operating Instructions and the warranty for future use.
感谢您购买Panasonic产品。
· 本产品仅限家庭使用。
- 请仔细阅读这些说明，正确、安全地使用本产品。
- 使用本产品前，请特别注意“安全注意事项”（第C2-第SC5页）。
- 请将保修证与本使用说明书一起妥善保管。

感謝您購買Panasonic產品。

How to Use the Steamer....EN10

After Use....EN11

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN13

Before Requesting Repair....EN15

Specifications....EN17

目次

安全注意事项 .... SC2

部件名称.....SC6

使用须知.....SC7

使用前.....SC8

使用中.....SC10

使用后.....SC11

清洁方法.....SC13

故障排除.....SC15

额定值、规格 .... SC17

目錄

安全須知....TC2

各部名稱....TC6

建議使用方法....TC7

使用前.....TC8

歡迎使用本產品....TC10

使用結束後....TC11

清理的方式....TC13

送修前....TC15

額定及規格....TC17

もくじ

安全上のご注意 JP2

各部のなまえ JP6

おすすめの使いかた JP7

ご使用の前に JP8

使いましょう JP10

使い終わったら，JP11

掃除のしかた JP13

修理を依頼される前に，JP15

定格·仕様，JP17

Safety Precautions

Please take these precautions strictly

For safety sake and in order to prevent property damage and the hazards to users and others, please read the following instructions strictly.

■ The signals indicate harm and damage when the product is used wrongly.

WARNING

Indicating "it may cause severe injuries and death".

CAUTION

Indicating "the user may get injured or the product may cause property damage".

The symbols indicate specified items that must be followed.

This symbol indicates prohibition.

nbol indicates mandatory.

WARNING

To prevent problems with your skin or body

- Do not use if you are pregnant or menstruating.

(Your hormone balance is unstable, and using the product could cause skin problems.)

- Do not use if:

• You have allergies or sensitive skin
• You have a skin disease or atopic dermatitis
• You have epilepsy or blood pressure abnormalities

● Do not use in the following cases:

• If you have scratches, rashes or swellings on your skin
• If you have dermatitis, strong sunburn or other skin abnormalities

(Using the product could cause problems to your skin or body)

● People who do not sense heat should not use the product.

(Doing so could cause burns.)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(Failure to do so may cause an accident or injury.)

- If you feel pain or other abnormalities on your skin or body, stop using the product immediately.

(Continued use could cause problems to your skin or body.)

Safety Precautions Please take these precautions strictly

WARNING

Main unit

- Store out of the reach of children, and do not let children use the product.

(Children could be burned, electrically shocked or injured, and could accidentally swallow the aroma tablets or otherwise be harmed.)

- Do not let anyone lick the connection plug.

(Licking it could cause bums, electric shocks or injury.)

- Do not use near inflammable products (alcohol, benzene, thinner, sprays, hairdressing products, nail polish remover, etc.). (Doing so could cause explosion or fire.)

- Do not drop or bump.

(Doing so could cause electric shock or fire.)

● Always use the water supply tank to add water. Do not get water on the unit or power switch.

(Doing so could cause electric shocks, burns or fire due to short circuit.)

- Do not use with wet hands.

(Doing so could cause electric shocks or fires due to short circuit.)

- Do not use or store in bathrooms or other places where humidity is high, and do not set in places where the product could get wet (on washstands, etc.).

(Doing so could cause electric shocks or fire.)

- Do not insert pins, wires or other metallic or foreign objects into the steam outlet or obstruct the steam outlet. (Doing so could cause electric shocks.)

● Never disassemble, repair or modify the unit.

(Doing so could cause fire or injury due to malfunction.)

For repairs, contact an authorized service center (as described in the warranty).

● After use, the appliance should be cleaned to avoid the accumulation of grease and other residues.

(Doing so could cause skin and body discomfort.)

In case of problems or malfunction

- In case of problems or malfunction, stop using immediately and unplug the power cord.

(Failure to do so could cause burns, shock or injury.)

• Damaged power cord

- Main unit deformed or smells of something burning

→ Contact an authorized service center (as described in the warranty) immediately for inspection or repair.

EN3 EN4

WARNING

Power cord

- Do not damage the power cord.

Do not scratch, alter, strongly bend, pull on, bundle, twist or place heavy objects on the cord, squeeze it between two objects, etc.

- Do not attach pins to the power plug or connection plug and do not let the plugs get dirty.

(Doing so could cause electric shocks or fire due to short circuit.)

● Do not use if the power cord is damaged or hot.

● Do not use if the power plug is loose in the power outlet.

(Doing so could cause bums, electric shocks, or fire due to short circuit.)

- Only use power cords specifically designed for this product. Do not use power cords specifically designed for this product with other products. (Doing so could cause burns or fire due to short circuit.)

- Do not use in ways exceeding the ratings of the power outlet or connecting devices.

(Exceeding ratings due to connection of multiple devices to the same power outlet could cause fire due to overheating.)

- Do not connect or disconnect the power plug or appliance plug from the power outlet or main unit with wet hands.

(Doing so could cause electric shocks or injury.)

- Do not wind the power cord around the main unit when putting it away. (Doing so could place an excessive load on the power cord, damaging it and leading to shocks, fire due to short circuit, etc.)

● Always use with an AC 220 V power supply.

- Insert the power plug and appliance plug securely and all the way in. (Failure to do so could cause fire or electric shocks.)

- Keep dust off the power plug and connection plug by cleaning them regularly. (Humidity, etc., could cause faulty insulation, leading to fire.)

→ Unplug the power plug and wipe off the power cord with a dry cloth.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person in order to avoid a hazard. (Failure to do so may cause an accident or injury.)

Aroma tablets

Store out of the reach of children, and do not let children use the product. (Children could accidentally swallow the aroma tablets or otherwise be harmed.)

- Do not use aroma tablets near flames. (Doing so could cause fires.) - Never disassemble.

- Do not drip aromatic oil, etc., onto the aroma tablets from above. (Doing so could cause accidents or other problems.)

- Be sure to use the specified aroma tablets.

(Using other tablets could cause problems with your skin or body.)

Safety Precautions

Please take these precautions strictly

CAUTION

To prevent problems with your skin or body

- Do not use for any purposes other than facial care. (Doing so could cause burns.)

Power cord

- When disconnecting the power plug or appliance plug, always do so while holding the power plug or appliance plug. Do not pull on the cord. (Doing so could place an excessive load on the power cord, damaging it and leading to burns, electric shocks, fire due to short circuit, etc.)

- When not using, turn off the power and unplug the power cord from the power outlet. (Failure to do so could lead to electric shocks, electric leaks or fire due to deteriorated insulation.)

Also be careful of the following:

- Do not put anything other than distilled water or purified water into the water supply tank. - Never put your face or anything else within 20 cm of the edge of the lid. - When using steam, do not wipe off the water droplets that may get on the aroma tablet or aroma holder. - Do not put your hands, face, etc. too close to the steam outlet, as invisible steam continues to be emitted for about 1 minute after the power is turned off. - Do not touch the steam at the following times:

- When operating the power switch - When opening and closing the lid

(Doing so could cause burns.)

- Do not close the lid when using steam.

(The hot steam will escape from around the lid and could cause bums.)

- Do not move the main unit or insert/remove the water supply tank while using steam and for 10 minutes afterwards. (Large amounts of steam may escape from the steam outlet and the hot water could be spilled, causing burns.) When using, place the unit on a flat surface. Do not hold it in your hands. (Doing so could cause accidents or injury.)

- Do not shake the unit with water inside other than when cleaning. (Droplets of hot water could escape from the steam outlet, causing burns.)

- Do not insert or remove aroma tablets during use.

(Doing so could cause burns.)

- Do not use aroma tablets in rooms where small animals are present. (They may adversely affect the animals.)

- When draining after using, hold the unit in such a way as to keep the hot water from getting on your hands.

● The water in the water supply tank is hot after using the unit. Be careful. (Failure to do so could cause burns.)

- Be sure to set the aroma tablets in the aroma holder when using them. (Failure to do so could cause burns.)

Parts Identification

Front
Steam outlet
Aroma holder
Power switch
Lid

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

Back

Bottom

Inclination switch

Water supply tank
Water supply cap

Full mark

When using the first time, there may be water droplets on the unit or inside the water supply tank. These are from the water used for inspection, and do not present any problems in terms of hygiene.

Power cord
Cord

Power plug Appliance plug

Accessories

Aroma tablets (samples for trial)

Genuine lavender 2pcs.

[1 - lasts approximately 15 sessions

(using steam for 12 minutes)]

Storage pouch
Aroma tablet

EN5 EN6

Recommended Uses

Heed the following to protect your skin:

• Excessive steam care is not good for your skin. When first starting, use the steamer about once a day for two or three days a week, then after about a month use it about once daily. Adjust the number of uses and the usage time according to the condition of your skin.
• If problems arise with your skin while using the steam, stop using it and consult a physician.
  ● After steam care, apply your regular basic skin-care products to trap the moisture in your skin.

Enjoy the scent of the aroma while using the steamer.

■To thoroughly replenish moisture and achieve skin with a sense of tension

■Care to easily replenish moisture when you don't have much time

For deep cleansing

Apply steam as you cleanse (approx. 3 minutes)

• When using a cleanser of the type used without applying water to your hands or face, use a tissue, etc., to wipe off the moisture before cleansing.
  The cleanser or makeup may be hard to remove, depending on the type used.
• Do not operate the main unit or add water with cleanser on your hands. Do not leave any traces of cleanser or makeup on the main unit. Doing so could mar the plastic, causing discoloration or cracks.

EN7 EN8

Preparation

What water can be used?

Use only distilled water or purified water.

Since the service life of the appliance may be shortened depending on water quality, the use of distilled water or purified water is recommended. Distilled water and purified water are usually available at supermarkets, etc.

Do not use the following types of water :

Mineral water, ground water, geothermal water, ionized alkaline water, physiological saline, slightly acidic water. Using these type of water may cause shorten life of the main unit.

Do not mix with anything.

Do not mix the water with any other substance, such as lotion, aromatic oil, etc. Doing so may cause burns, malfunctions, or shorten the life of the main unit.

What aroma tablets can be used?

Panasonic aroma tablets (package of four)

● Genuine lavender: (EH-4S11)

The refreshing floral scent of lavender

● Bergamot: (EH-4S12)

The crisp and invigorating scent of citrus

● Geranium: (EH-4S13)

A faint rose-like scent based on a sweet mint

◆ The product numbers indicated here are as of August 2015.
Please note that they are subject to change without notice.
Because the aroma tablets use natural essential oils, there may be slight differences in scent and color, but these do not affect quality. Only use the designated aroma tablets. Using other tablets may damage the steamer.

When you use aroma tablets

Enjoy the scent of the aroma while using the steamer.

● Be sure to use only Panasonic aroma tablets. (P. EN8)

● The aroma tablets are expendables.

Actual aroma varies depending on personal taste and the environment where it is used.

Replace them when the scent changes or weakens. (P. EN8)

[1 - lasts approximately 15 sessions (using steam for 12 minutes)]

Continued on P. EN9

● Thoroughly ventilate the room after using the aroma tablet.

- Use the aroma tablets by the date indicated on their storage pouch.

- The usage date indicated is for when the pouch is closed.

• After opening, use the tablets as quickly as possible.

When not using, store in the storage pouch.

To enjoy the scent as long as possible, place the tablets in the storage pouch, remove as much air as possible from the pouch and close the zipper securely before storing.

- Store in a cool, dark place, avoiding places exposed to flames or direct sunlight and hot or humid environments. (These may change the tablet's scent.)

● Some of the aroma material may adhere to the tablet.

1. Place the main unit on a flat, level surface.

Set it in a place not affected by the wind from an air-conditioner, etc.

2. Remove the water supply tank from the main unit.

3. Fill the water supply tank with water.

① Turn and open the water supply cap.

② Fill the water supply tank with water.

• Thorough moisture replenishing:

12 (water tank full, steam for about 12 minutes)

- Easy moisture replenishing:

6 (steam for about 6 minutes)

- Deep cleansing:

3 (steam for about 3 minutes)

③ Close the water supply cap.

④ Wipe away any water on the surface of the water supply tank.

4. Attach the water supply tank to the main unit.

Push the water supply tank into the main unit until it clicks.

- When the water supply tank is set, water is supplied to the interior and the level of water in the tank lowers.

● Water may leak from the water drain port if the water supply tank is set and removed repeatedly.

How to Use the Steamer

1. Insert the appliance plug into the main unit.

2. Plug in the power plug into the power outlet (220 V).

3. Open the lid all the way to the top.

When not using the skip to step 5.

4. Set the aroma tablet in the aroma holder.

Grasp the aroma tablet's grip and set in the direction of the arrow on the diagram.

Place it in the aroma holder so that it will not come loose.

Set it in so that it lines up with the marks.

Set it in place from the left side as well.

With the aroma tablet, the strength of the scent can be selected according to whether the tablet is set with the front or back facing up.

For a stronger aroma, set it in the aroma holder with the front side facing upward.

Stop using the aroma tablet if its scent make you feel queasy or you should sense something wrong.

Front (scent strength: strong)

Back (weak)

»Continued on P. EN11

EN9 EN10

5. Slide the power switch upwards to turn on the appliance.

● The steam is released after about 1 minute.
● The hissing sound is due to electrical discharge. The sound may be intermittent, depending on how the steam is produced.

6. Use with your face at least 20 cm from the tip of the lid.

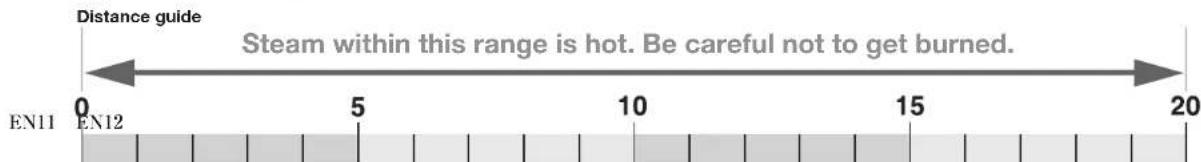

• If you cannot judge the distance, use the distance guide below.
  ● To apply steam to your entire face, point at just above the chin.

- If you have trouble adjusting the position of the steam on your face, try adjusting the height of the table, chair or cushion.

When the remaining water is low, the way that the steam is emitted changes.

7. After using, switch the power to OFF.

After steam care, apply your regular basic skin-care products to trap the moisture in your skin.

After Use

1. With the power turned off, let the steamer cool down for at least 10 minutes.

Do not move the main unit

2. Unplug the power cord from the power outlet and the appliance plug from the main unit.

Bundle up the power cord for storage. Do not wrap it around the steamer.

When not using the skip to step 5.

Note

If there are water droplets on the front main body, wipe them off with a tissue or the like.

Failure to do so may cause discoloration.

3. Remove the aroma tablet and wipe off any water droplets with a tissue.

4. Place the aroma tablet in the storage pouch and close the zipper securely. Remove as much air as possible.

5. Close the lid and remove the water supply tank from the main unit. Remove the tank in a water-safe location as water droplets may drip from the tank.

6. Discard the water in the water supply tank.

Wipe away any water on the surface of the water supply tank.

Note

After using the steamer, be sure to throw out the water remaining in the water supply tank and in the steamer.

If not, water droplets may get mixed in with the steam, limescale may form and unpleasant odors may be produced.

7. Discard the water in the main unit.

While pressing the inclination switch, drain the water from the water outlet along the arrow.

Even after draining the water, some water remains in the appliance. This does not cause any sanitary problems since the water is boiled when used the next time.

8. Attach the water supply tank to the main unit. Push the water supply tank into the main unit until it clicks.

9. Use a towel, etc., to wipe any water droplets off the main unit, then store the main unit in a dry place.

When not planning to use it for a long period of time (several weeks or more), dry the steamer off thoroughly before storing it.

EHTSA3F.indb 11-12

2015/08/07 12:02:57

Cleaning

Note

• Disconnect the power cord from the steamer before cleaning.
• Do not wash or soak the appliance in water.

Cleaning inside the main unit

(Clean once a month.)

To remove limescale and prevent it from forming,
clean the inside of the steamer using the procedure below.
● After using, always let the main unit cool down for at least 10 minutes.

1. Pour water into the tank up to the 12 mark (full) and close the water supply cap.

1. Attach the water supply tank to the main unit.
   Push the water supply tank into the main unit until it clicks.
2. Shake the appliance horizontally 3 to 4 times.
   Shake the appliance gently without tilting it.
3. Remove the water supply tank from the main unit.

4. While pressing the inclination switch on the bottom, discard the water from inside the main unit. Set the steamer back to the horizontal, then repeat this 2 or 3 times.

5. Repeat steps 2 to 5 (within ) 2 or 3 times.

6. Throw out the water in the water supply tank, then use a towel, etc., to wipe any water droplets off the main unit and water supply tank.

EN13 EN14

Shake with a circular motion.

Cleaning the main unit (if it seems dirty)

Wipe the appliance with a cloth moistened with soapy water.

Never use alcohol, thinner, benzine, enamel remover, etc.
Doing so may result in malfunction or part cracks or discoloration.

Cleaning the power cord (Clean once a month.)

Remove the power plug from the power outlet and the appliance plug from the main unit, and then wipe away any dust, etc., using a dry cloth.

If the lid is off

Line up the hooks in the lid with the grooves in the steamer's hook receiver and press in.

Press down on both sides at the same time from straight above.

If the water supply cap seal detaches

1. Push up the center of the water supply cap.

Use your index finger to press on the center of the water supply cap.

1. Line up the angle of the water supply cap with that of the water supply cap's packing and press the packing in.

Water supply cap seal

Before Requesting Repair

Before calling a service supplier, please check the following possible causes.

Symptom Poss	cause Remedy
No steam is produced even about 1 minute or more after the power switch is set to ON.	The power plug or appliance plug is not plugged all the way in.	Plug the power plug and appliance plug securely all the way in.
	There is no water in the water supply tank.	Let the steamer cool down for at least 10 minutes, then supply water. (P. EN9)
	The steamer is not on a level surface. The steamer is tilted.	Place the steamer on a desk or other flat surface.
	The lid is off. Attach the lid.	(P. EN14)
The way the steam is emitted fluctuates.	The way the steam is emitted is not constant and may fluctuate somewhat, but this is not a problem.
	The steamer is being affected by the wind from an air-conditioner, etc.	Move the steamer to a place where it will not be affected.
The steam has stopped.	There is no more water in the water supply tank.	Let the steamer cool down for at least 10 minutes, then supply water. (P. EN9)
The amount of steam has decreased.	There are calcium carbonate or limescale deposits inside the steamer.	Contact an authorized service center (as described in the warranty).
While the steam is being produced, its color gets lighter and it is hard to see.There are hot water droplets flying out with the steam.	You are using something else mixed in with the water.	Let the steamer cool down for at least 10 minutes, then clean the inside of the steamer. (P. EN13)
There is a gurgling sound while the steam is being is produced.	This is the sound of the water boiling inside the steamer. It is not a problem.

Symptom Poss	cause Remedy
There is a hissing sound while the steam is being is produced.	The sound is due to electrical discharge and is not a problem.
Water leaks from the water outlet.	The water supply tank has been attached and removed repeatedly.	Throw out the water inside the steamer, then press down on the water supply tank with the water in it until a click is heard.
	The steamer is tilted.	Set the steamer so that it is flat.
The scent of the aroma is too weak. ^1	The aroma tablet is set with the back side (weak side) facing up.	Turn the power off, let the steamer cool down, then set the aroma tablet with the front side (strong side) facing up.
	The use-by date has passed. Storage conditions were poor.	Use a new aroma tablet. (P. EN8)
	The tablet has been used the maximum number of times. Approximately 15 times (when using the steam for 12 minutes each time)
The scent of the aroma is too strong. ^1	The aroma tablet is set with the front side (strong side) facing up.	Turn the power off, let the steamer cool down, then set the aroma tablet with the back side (weak side) facing up.
The power plug is abnormally hot.	The power plug is not firmly inserted into the outlet.	Use an outlet in which the power plug fits snugly.
A click is heard during use.	This is the sound of the steamer's protection circuit being activated. It is not a problem.

*1 Perception of scents differs from person to person, as well as from scent to scent.

EN15 EN16

Specifications

Power type AC Steam production Approx. 6 mL/min.
Power supply AC 220 V, 50–60 Hz		Steam production time	Approx. 12 min.(with full tank)
Power consumption	290 W Steam temperature		Approx. 40 °C(at a distance of approx. 20 cm from tip of lid)
Length of power cord	Approx. 1.5 m	Time until steam is produced	Approx. 1 min.
Weight	Main unit: Approx. 700 gPower cord: Approx. 85 g	Water supply tank capacity	Approx. 90 mL

Loving Inspection	Inspect the Facial Ionic Steamer you have been using for so many years!
	Are these symptoms present?The power cord is abnormally hot.The main unit is deformed or produces the smell of something burning.	Stop usingTo prevent accidents, unplug the power cord from the power outlet and be sure to contact an authorized service center (as described in the warranty) for an inspection.

EN17

安全注意事项 请务必遵守

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

背面

也可以从左侧放置。

Pure geometric lines and crosshair symbols without any text, numbers, or labels

Panasonic Corporation

Web site: http://www.panasonic.com

© Panasonic Corporation 2015
