USER MANUAL Iris 349 LAVA

➢ Congratulaons on your purchase of the LAVA mobile phone. Your phone provides many funcons which are praccal for daily use, such as a hands-free loudspeaker, camera, MP3 player, Ultra clear video

You can read the manual to understand how to use LAVA mobile phone and experience the well-established funcons and simple operaon method. Please use the original accessory in order to achieve the best use of eects. Lava shall not be responsible for any damage in machinery due to use of non-original components.

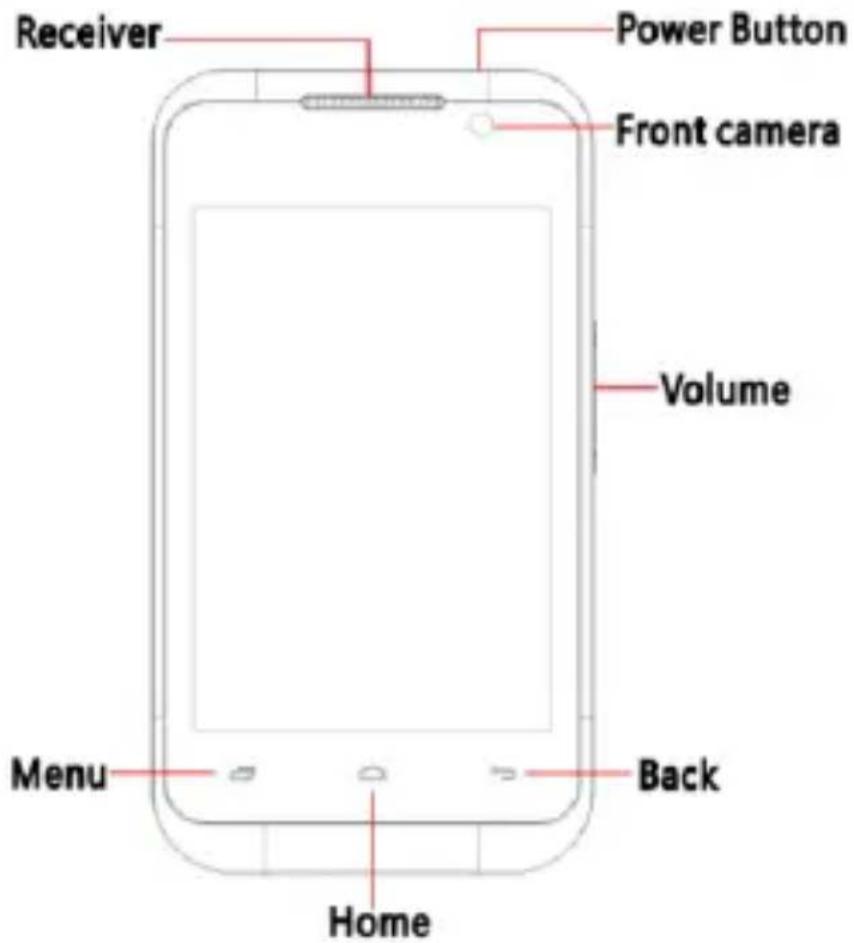

YOUR PHONE-FRONT VIEW

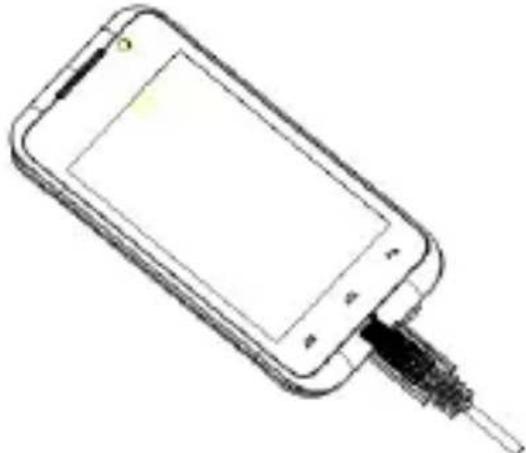

CHARGE THE BATTERY

Line drawing of a smartphone with a cable inserted, showing no text or symbols

Connect this end to phone's USB port.

Tip: Be sure to charge your phone's baery for 4 hours aer inserng it in the phone for the rst me.

INSERT SIM AND MicroSD CARD

Please insert the SIM card(s) according to the label on the phone.Make sure that the clipped corner of the SIM card and the metallic contacts are facing the correct direcon.Slide the SIM card into the unl it doesn't

move up any further.

On the right most side(refer diagram above)is the micro SD card slot. The direcon in which the microSD card has to be inserted into the designated slot is shown by an arrow in the above diagram

Pure electrical circuit lines without any symbols

Tip: For additional media storage insert a microSD card.

TURN THE PHONE ON& OFF

Simple circular diagram with horizontal lines and a central oval, no text or symbols present

Hold down the power buon to turn the phone on.

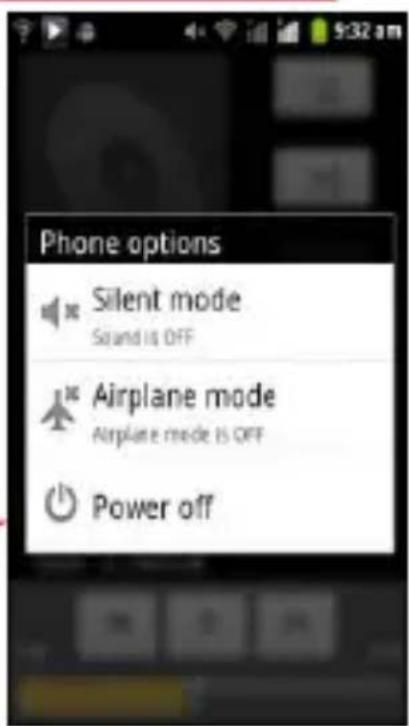

Hold down the power buon, then touch Power o to turn the phone o

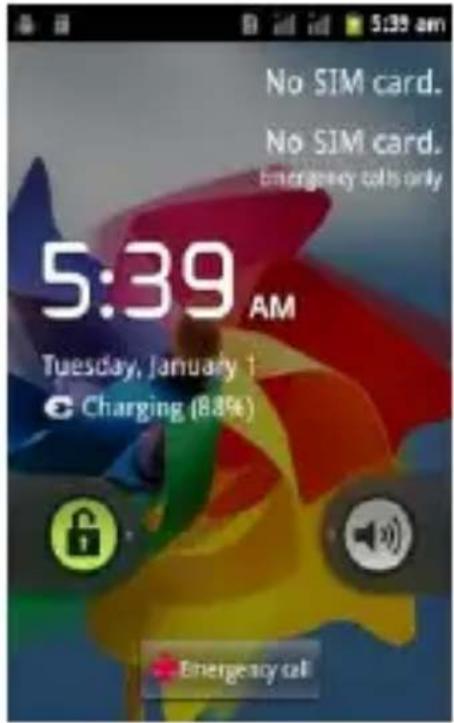

DIM LOCK & WAKE THE PHONE

When the power is on and you want to dim the screen, press the power buon.

when the screen is dimmed and you want to wake the phone, press the power buon and then drag the lock to the right.

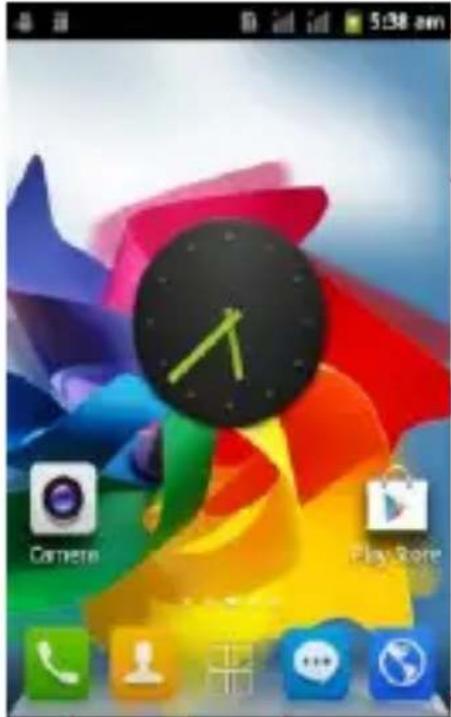

HOME SCREEN

Phone status bar and nocaons.

Touch and hold an empty spot to change the wallpaper

Slide le or right to see more panels

Touch it to enter message

Touch it to enter contacts interface

Touch it to enter dial pad interface

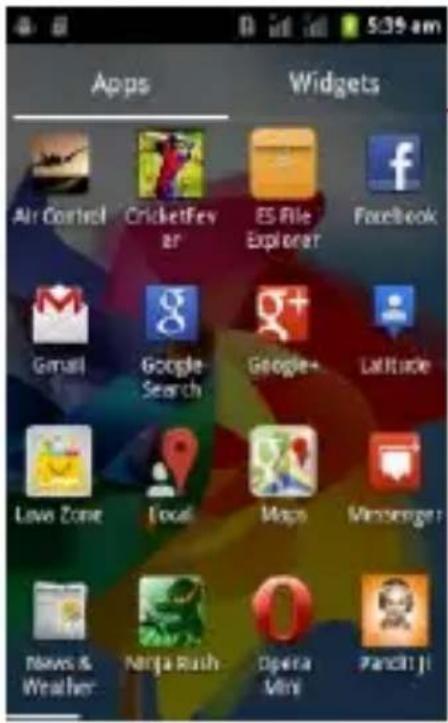

APPS

Row of five colored square icons representing communication and information (no text or symbols)

-1. Touch it to enter app tray.

1. Touch an app to launch it

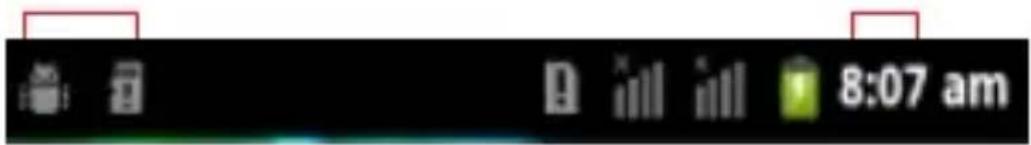

STATUS BAR

The status bar shows your phone's status and nocaons. (Nocaons are described on the next page.)

Nocaon icons

Status icons

Status icons

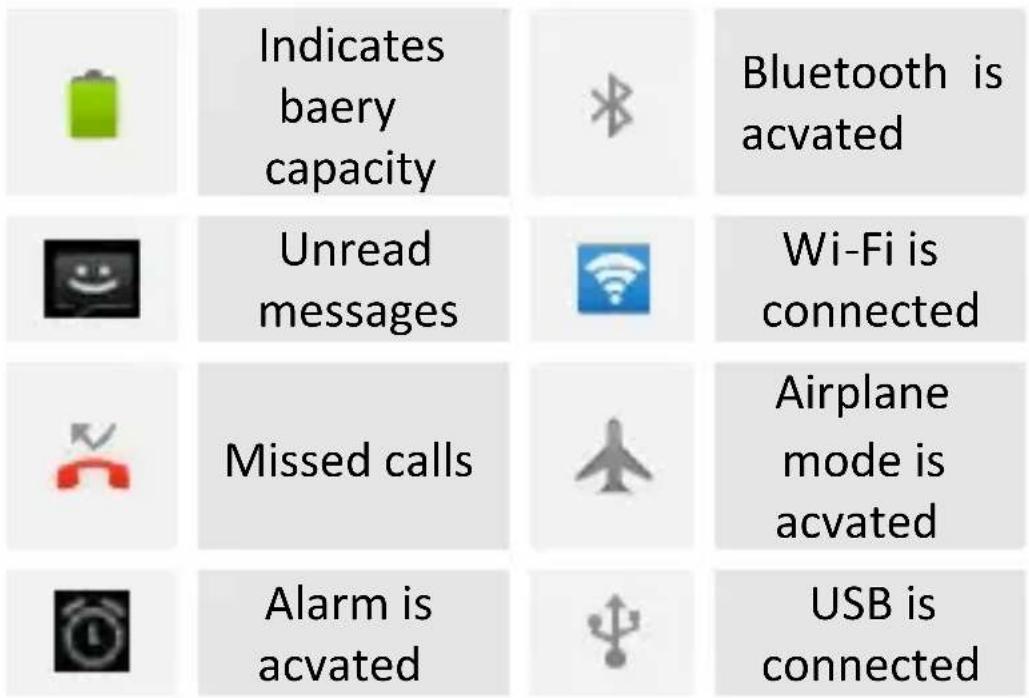

The following status icons may appear on your screen:

Icon

Statement

SIM Network signal level

Icon

Statement

Headset is inserted

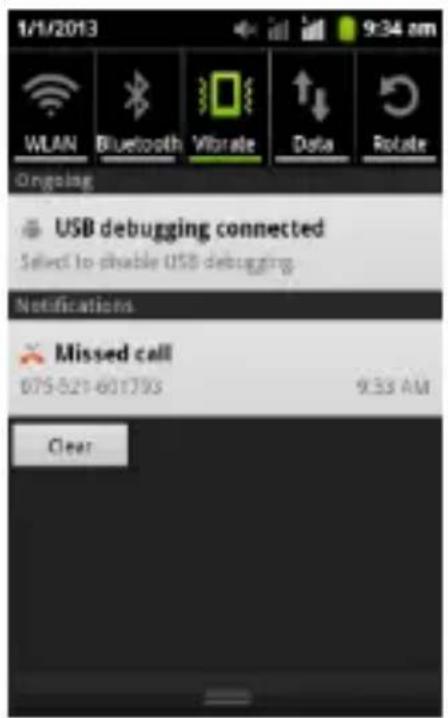

NOTIFICATION PANEL

The nocoon panel is your center for new events:like new e-mail,voicemail,updates,and more.

Drag down to display nocaons

Touch a nocaon to respond

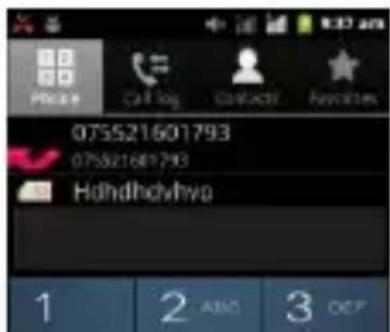

1. From the Hom screen.touch
2. Dial a number using the dial pad.
   3.Touch to initiate the call

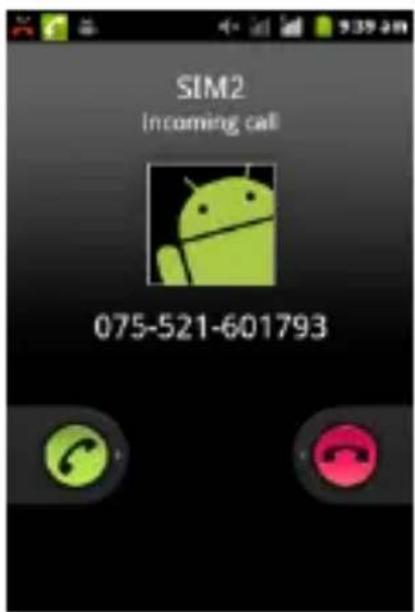

Answer a call

Drag

Decline a call

Drag

SEND A TEXT

1. From the Home screen,touch
2. Touch New message
3. Touch the To eld, then enter a recipient.
4. Touch the Type message eld, then enter a message
5. Touch Send the message

SETTINGS

the sengs for various features of the phone

Get to know the sengs in your phone so that you can personalize them to your own requirements. Go to Sengs to congregate how your phone looks, sounds, communicaon, privacy, and operaons in a variety of ways:

Dual SIM sengs

Set preferences on how you use SIMs inserted in your phone.

Wireless & networks	Manage your wireless connconcs and connconcs sengs. Let you congregate and manage connconcs to networks and devices by Using Wi-Fi, Bluetooth, and mobile networks.
Call sengs	Let you congregate phone call sengs, such as call forwarding, call barring, and other special features oered by your carrier.
Audio proles	Congure how your phone rings, vibrates, or alerts you in other ways when you receive communicaons, etc.
Display	Let you set the screen brightness, select to switch orientaon when you rotate your phone, and congregate other screen sengs.
Locaon & Security	Set locaon preferences. Protect your phone by seng up dierent locks and passwords.
Applicaons	Manage installed applicaons.
Accounts & sync	Let you add, remove and manage supported accounts.
Privacy	Let you manage your personal informaon, restore your sengs and other data when you install an applicaon, and erase all of your personal data from internal phone storage.
Storage	Let you check out available space on your phone's internal storage and on your T-Flash card.
Language & keyboard	Let you select the language for the text on your phone and for conguring the onscreen keyboard.
Voice input & output	Congure the voice input feature to enter text by speaking.
Accessibility	Enable your installed accessibility applicaons and adjust related sengs.
Data & me	Let you choose preferences such as format and me zones.
Timer Switch Machine	Schedule automac powering on/o of the phone.
About phone	View informaon about your phone, such as system updates, status, and baery use.

SET A RINGTONE

Press

want to set, you can customize the ringtone and volume of incoming call, nocaon ringtone in this interface.

MULTIMEDIA

listen it, watch it, capture it, enjoy it!

FM RADIO

1. Insert earphone, then Tap the Power icon to stop or play FM.
2. Tap the forward by 0.1 MHz or scroll the knob icon to change channel frequency. Press volume key to adjust the volume.
3. Tap Auto search, Sengs, Record and Favorites icon to adjust.

MUSIC PLAYER

Now playing: Touch to open the current playlist.

Touch

Shue: Touch to shue the current playlist.

Touch

Repeat: Touch to repeat the current playlist; touch again to repeat the current track.

Touch

TAKE A PICTURE

1. Press and hold the camera buon and then release
2. In the camera app, tap the screen to focus on a specific area.
3. Press the camera buon all the way down to take a

picture.

TIP: Also launch the camera by pressing the camera icon on the home screen, capture the photo using on the screen camera buon.

SHOOT A VIDEO

1. Press and hold the camera buon until it vibrates then release.

2. In the Camera app, select video

1. Press the camera buon to begin lming, and press again to stop lming.

SHARE A PHOTO

1. From the Home screen, touch

then touch

1. Touch an album to open it, then touch the picture you want to share.

3.Now touch

1. Select a medium for sending the photo(Such as Gmail to mail the photo, or Message to send the photo via messaging).

CONNECT TO Wi-Fi NETWORKS

Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to 100 meters, depending on the Wi-Fi router and your surroundings.

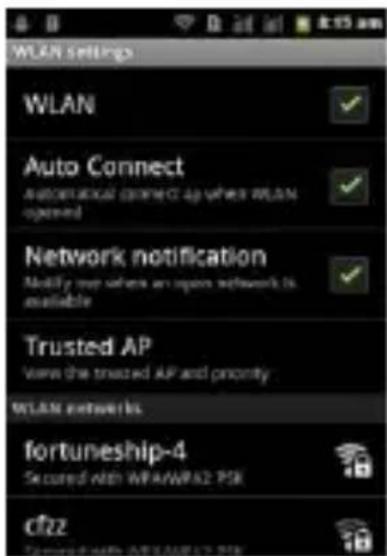

Touch Sengs>Wireless & networks > WLAN sengs. Check Wi-Fi to turn it on. The phone scans for available Wi-Fi networks and displays the names of those it nds. Secured networks are indicated with a Lock icon.

SAR declaraon

The highest SAR value for this mobile phone is < 1.6 W/Kg, in accordance with the requirements of the ICNIRP, which recommended the limit for exposure to radio waves is 1.6 was/kilogram (W/kg) averaged over 1 gram of ssue. For more informaon, please visit (www.lavamobiles.com) to query

Safety precautions:

a. Use a wireless hands-free system (Headphone, headset) with a low power Bluetooth emier b. Make sure the cell phone has a low SAR
c. Keep your calls short or send a text message (SMS) instead. This advice applies especially to children, adolescents and pregnant women
d. Use cell phone when the signal quality is good e. People having acve medical implants should preferably keep the cell phone at least 15cm away from the implant.

All the conguraons menoned in this user manual is only for reference; please refer to the actual phone.

E-waste Disposal Mechanism

'E-waste' means waste electrical and electronic equipment (WEEE). In other words E-waste is a popular, informal name for electronic products nearing the end of their "useful life". For more details

about e-waste please refer e-waste rules, 2011 www.moef.nic.in

Do's and Don'ts for disposal e-waste

Do's:

a. Ensure that an Authorized Person repairs your Lava

products

b. Call Our Local Authorized Collecon Centers to Dispose Lava products

c. Always drop your used electronic products, baeries or any accessories thereof aer the end of their life at nearest Authorized Collecon Point or Collecon Center.

d. Separate the packaging material according to responsible waste disposal opons and sorng for recycling.

e. Always remove the baery from the product, when you do not intend to use the product anymore it in future.

Don'ts:

a. Do not Dismantle your Lava Product on your own b. Do not give your e-waste to Kabbadi Wala / Scrap Dealer/ Rag Pickers.

c. Do not dispose-o the e-waste in landlls.

d. Never dump E-waste in garbage bins.

e. Do not dispose of your product at municipal waste bins or rooms. f. Do not throw used baeries into household waste.

g. Consequences of improper handling and disposal of E-Waste

h. Improper disposal of waste prevents natural resources from being re-used.

i. Some waste contains hazardous chemicals and if not disposed of

properly may release toxins into the soil and water, and also releases greenhouse gases into the environment j. If e-waste is not properly disposed of, it can threat to the health and well-being of humans and animals and it also has adverse effect on the environment.

k. Placing of baeries or devices on or in heang devices, such as microwave, ovens, stoves, or radiators and improper disposal of baeries may lead to explosion.

I. If the baery terminals are in contact with metal objects, it may cause a re.

m. For more details on how to dispose of your Lava products at the end of life, Please refer the list of our Services Centers on Pan India basis on our website www.lavamobiles.com or please view this link for the details of Service Centers

hp://www.lavamobiles.com/support-services.
