USER MANUAL IR1160S-2 Applica

Accessories/Parts (USA)

1-800-738-0245

For online customer service

and to register your product, go to

www.prodprotect.com/applica

Black and Decker steam iron with visible branding and control buttons (no text-heavy elements)

WHEN USING YOUR IRON FOR THE FIRST TIME, YOU MAY NOTICE WATER RESIDUE INSIDE THE UNIT. THIS IS NORMAL.

CUANDO USE SU PLANCHA POR PRIMERA VEZ, NOTARÁ QUE HAY AGUA ADENTRO DE LA PLANCHA. ESTO ES NORMAL.

MODEL/MODELO

IR1160S

Please Read and Save this Use and Care Book

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

- READ ALL INSTRUCTIONS BEFORE USING.

○ Use iron only for its intended use.
To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
The iron should always be turned to the minimum (min) setting before plugging or unplugging from outlet. Never yank cord to disconnect from the outlet; instead grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
○ Always disconnect iron from electrical outlet when filling with water or emptying, and when not in use.
Do not operate iron with a damaged cord, or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to a qualified service person for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
○ Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down or use the surge of steam; there may be hot water in the reservoir. Avoid rapid movement of iron to minimize hot water spillage.
- The iron must be used and rested on a stable surface.
When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
☐ The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

- The iron must be used and rested on a stable surface.

• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• The iron is not to be used if it has been dropped, if there is visible signs of damage or if it is leaking.

SPECIAL INSTRUCTIONS

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a cord rate at 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

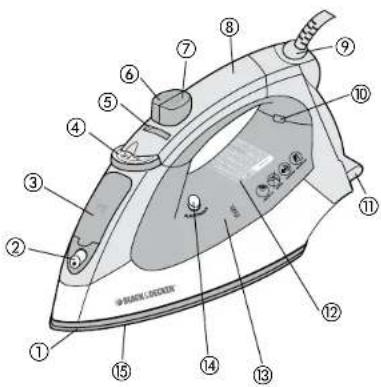

Labeled diagram of a steam iron with numbered parts for identification

A

1. Slender soleplate tip
2. Spray nozzle
3. Water-fill cover
4. Fabric select dial
5. Variable steam selector
6. Spray button
7. Steam button
8. Comfort Grip ^® handle
9. 360° pivoting cord
10. Power indicator light
11. Heel rest
12. Fabric guide
13. Water tank
14. Auto Clean ^® button
15. Nonstick soleplate

Fabric guide

1 ▶ Synthetic
2 ▶ Nylon • Silk
3 ▶ Polyester • Rayon

4 Cotton Blends
5 Wools
6 Cotton • Linen

How to Use

This appliance is intended for household use only.

GETTING STARTED

• Remove all labels, tags and stickers attached to the body, cord or soleplate of the iron.
• Remove and save literature.
• Please go to www.prodprotect.com/applica to register your warranty.
• If ironing dry, place iron on its heel rest on a stable ironing board. (To iron with steam, see instructions for FILLING THE WATER TANK.)
• Use scissors to remove the plastic tie lock on the plug of the iron. Uncoil cord and plug into standard electrical outlet.

PREHEATING THE IRON

Note: When the iron is plugged in, the red power indicator light will come on and stay on until the iron is unplugged or the automatic shutoff is activated. [See below for instructions on the automatic shutoff.]

Note: This iron heats quickly. For optimum performance, allow the iron to stand on heel rest about 2 minutes before beginning to iron.

FILLING WATER TANK

1. With iron on a flat surface with soleplate down or tilted at a 45-degree angle, open the water-fill cover.

1. Using a clean measuring cup, pour water into opening until water reaches the MAX level mark on the side of the water tank (B). The water tank holds about 1½ cups of water. Do not overfill.

Note: This iron can be filled with ordinary tap water; if your water is hard or soft, you may want to use distilled water. Do not use water processed through a home softening system.

1. Close the water-fill cover securely.
2. Stand the iron up on the heel rest.

Tip: To refill iron at any time during ironing session, unplug iron and follow above procedure.

3-WAY AUTOMATIC SHUTOFF

1. The iron will automatically turn to stand by mode after 30 seconds of inactivity if left on its soleplate or on its side. If left vertically on its heel rest, it will turn off after 8 minutes (C).
2. The red power indicator light starts blinking to let you know the iron has stopped heating.

Important: The iron will have turned off but will still be hot.

1. Once the iron is picked up, an internal motion sensor is activated and the iron starts heating again.

2. Allow iron to reheat completely before resuming ironing.

SELECTING FABRIC SETTING

1. Read fabric labels to help determine fabric type to be ironed.

Tip: If unsure of fabric's fiber, test a small area (on the inside seam or hem) before ironing.

Tip: When ironing a garment with mixed fabrics, select the fabric setting for the most delicate fabric. For example, when ironing a shirt that is 65% cotton and 35% polyester, use setting for polyester.

1. Once you determine the fabric type, turn the fabric select dial at the front of the handle clockwise to select the appropriate fabric setting (D).

2. Whenever the fabric setting is changed to a higher or lower setting, allow the iron to stand a minute or so to allow the iron to heat up or cool down. Test garment by pressing a small hidden area to make sure setting of iron is correct.

Tip: Iron garments that require lower setting first, then move on to higher setting.

Important: Always stand the iron on its heel when powered on but not in use.

SUGGESTIONS FOR EACH SETTING

Setting Fabric Common Garments & Cloths Notes
1 Synthetic scarves, blouses, knits iron on the wrong side
2 Nylon · Silk lingerie, robes, sleepwear,raincoats			iron on the wrongside
3 Polyester · Rayon knits, dresses, blouses, skirts,travel wear			iron on the wrongside
4 Cotton Blends shirts, blouses, knits, uniforms,bed & table linens
5 Wools trousers, slacks, jackets, silkscarves, blouses
6 Cotton · Linen 100% cotton or linen blouses,shirts, table linens, slacks,summer wear, jackets

DRY IRONING

Note: Ironing without steam (dry ironing) can be performed at any setting.

1. It is not necessary to empty the water tank; simply move the variable steam selector to the far left to dry ⚙ (E). Note: If you wish to empty the water tank, follow the directions on page 8.

2. To select desired setting refer to directions under SELECTING FABRIC SETTING.

3. When finished ironing, turn the fabric select dial to the lowest setting.

4. Stand the iron on its heel rest and allow it to cool off.

Important: Always stand the iron on its heel rest when powered on but not in use.

Note: This iron features a steam surge option on settings 4 through 6. Push the variable steam selector to the right to select the amount of steam desired; this will help remove set in creases and wrinkles. When ironing dry, you can use the steam button to get a surge of steam. To use this button when dry ironing:

• make sure there is water in the water tank

- push the variable steam selector to the lowest setting for steam

- press the steam button

Note: For best performance, leave an interval of 5 seconds between bursts.

USING VARIABLE STEAM

Note: Be sure the water tank if filled.

1. This iron produces steam at settings 4 through 6. Turn the fabric select dial to the appropriate setting for your fabric.

1. Push the variable steam selector steam at the front of the handle to select the amount of steam you would like to use (F). The higher the setting selected, the more powerful the steam.

Note: For no steam, the variable steam selector should be set to the far left ⚙.

STEAM BUTTON

Tip: Use to make creases and remove tough wrinkles. The steam button can be used at any time and on any setting whether ironing dry or with steam.

Note: Be sure the water tank is filled.

1. With the water tank filled to the MAX mark, turn the fabric select dial to appropriate setting (between 4 and 6) and let iron stand on its heel rest about 90 seconds.

2. Press the steam button to generate a burst of steam. For best performance, leave an interval of 5 seconds between bursts.

Note: On first use, pump the steam ♣ button several times.

SPRAY BUTTON

Tip: Use to dampen tough wrinkles and creases at any setting.

Note: Be sure the water reservoir is filled.

1. Press the spray ✕ button to generate a spray of water.

Note: On first use, pump the spray ✕ button several times.

Important: Do not spray silk.

HORIZONTAL STEAM IRONING

1. Fill water reservoir to MAX line.
2. Turn the fabric select dial to select desired setting. See SELECTING FABRIC SETTING on page 5 and read label on the garment to help you determine fabric type.
3. Set the variable steam selector on the front of the handle to select the amount of steam desired.
4. Allow the iron to heat.
5. When finished ironing, turn the fabric select dial to the lowest setting. Make sure the variable steam selector is set to the far left to dry and unplug the iron.
6. Stand the iron on its heel rest and allow it to cool off.

Important: Always stand the iron on its heel rest when powered on but not in use.

VERTICAL STEAMING

Tip: Use to remove wrinkles or creases from hanging garments or drapes.

1. Turn the fabric select dial to select desired setting for the fabric to be ironed.
2. Hold iron close to, but not touching fabric.
3. Pull fabric taut with your free hand and pump the steam ♣ button as you move the iron over the fabric.

Important: Do not bring iron too close to hand holding fabric to avoid heat.

1. For best performance, leave an interval of 5 seconds between bursts.

EMPTYING WATER TANK AFTER IRONING

Note: It is suggested, but not necessary, to empty the water after each use.

1. When finished ironing, turn the fabric select dial to the lowest setting. Make sure the variable steam selector is set to the far left to dry ⚙ and unplug the iron.
2. Stand the iron on its heel rest and allow it to cool off.

1. To release the water, open the water-fill cover and empty the iron over a sink with the tip pointing down (G).

2. Hold the iron in that position until all the water is emptied from the tank.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely.
2. Wipe the soleplate and outer surfaces with a soft cloth dampened with water. Add mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.
3. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

AUTO CLEAN® SYSTEM

To keep the steam vents free of any buildup, follow these instructions about once a month.

1. Fill the water tank well below MAX line. Plug in the iron.
2. Select fabric setting 6 on the fabric select dial and stand the iron on its heel rest.
3. Wait 2 minutes for the iron to heat fully, then unplug the iron.
4. Hold iron over a sink with the soleplate facing down.
5. Press the Auto Clean® button.

Important: Be careful, as after several seconds, hot water and steam will come out of the steam vents.

1. Continue to hold Auto Clean® button until all the water has emptied. If necessary, move iron side-to-side and front-to-back.
2. When finished, release the button, stand the iron on its heel rest and plug it in. Heat for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.
2. Check that the fabric-select dial is set to the minimum setting and that the variable steam selector is set to dry ☑.
3. Store vertically on its heel to prevent water leaking from the soleplate.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

- Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER: is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made and Printed in People's Republic of China
