Product Type	Car Radio Receiver
Brand	Hyundai
Model	H-CMD4027
Dimensions (W x H x D)	180 x 50 x 160 mm (1 DIN)
Weight	~1.2 kg
Power Supply	12V DC (negative ground)
Max Power Output	4 x 50W (Peak)
Radio Bands	FM (87.5-108 MHz), AM (530-1710 kHz)
Playback Media	CD, CD-R/RW, MP3 (via USB/SD), USB flash drive, AUX input
Display	LCD with backlight (variable colors)
Bluetooth	Built-in for hands-free calling and audio streaming
Audio Features	EQ presets, bass/treble control, loudness, fader/balance
Connectivity	USB (2.0), SD card slot (up to 32GB), AUX (3.5mm), antenna, ISO connectors
Remote Control	Included (wired remote optional)
Steering Wheel Control	Compatible (via adapter)
Fuse	10A blade type
Operating Temperature	-10°C to 60°C
Installation	DIN slot mount, included sleeve and trim ring
Security	Detachable face panel with carry case
Spare Parts / Repair	Contact Hyundai or authorized service centers
Maintenance	Clean with soft dry cloth; avoid solvents

Frequently Asked Questions - H-CMD4027 HYUNDAI

How do I reset the Hyundai H-CMD4027 radio?

Press the reset button located on the front panel (usually a small recessed button) using a pen tip. This restores factory settings.

Can I connect my phone via Bluetooth?

Yes, enable Bluetooth on your phone, search for 'H-CMD4027' and pair. The default PIN is 0000.

How do I set the clock?

Press and hold the volume knob (or CLK button) for 2 seconds, then rotate to adjust hours/minutes. Press again to confirm.

What file formats are supported via USB?

MP3 and WMA files are supported. USB must be FAT32 formatted, up to 32GB.

Why is there no sound?

Check if the unit is muted (MUT button), volume is up, and speaker wires are properly connected. Ensure the fuse is intact.

Does it have an AUX input?

Yes, there is a 3.5mm AUX input on the front panel. Select AUX mode to use.

How do I remove the front panel?

Press the REL (release) button on the top left and pull the panel outward. Store in the provided case when not in use.

The display shows 'PROTECT' – what does that mean?

This indicates a short circuit or speaker overload. Check speaker wiring impedance (4-8 ohms) and ensure no bare wires touch metal.

Can I connect a backup camera?

This model does not have a dedicated video input for a backup camera. It is only an audio unit.

How do I improve FM reception?

Ensure the antenna is fully extended and the connection is secure. You may need an antenna booster if reception is weak.

USER MANUAL H-CMD4027 HYUNDAI

Exterior view of a Hyundai motorcycle display showing its dashboard and control panel (no readable text or symbols on the device itself)

MULTIMEDIA DVD/CD/MP3

RECEIVER WITH BUILT-IN

3.5" TFT DISPLAY AND TV TUNER

МУЛЬТИМЕДИЙНЫЙ

DVD/CD/MP3-РЕСИВЕР

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 4

Utilization of the product 4

Important safeguards 4

Installation/Connection 5

Installation 5

General notes 5

Din Front/Rear-Mount 5

1. DIN front-mount (Method A) 5

Dismantling the unit 6

Trim frame installation 6

1. DIN rear-mount (Method B) 6

Detachable control panel 6

Anti-theft system 6

Connection 7

Connection diagram 7

ISO connection table 7

Using the ISO connector 8

Parking wire connection 8

Operation 9

Control elements 9

Front panel 9

Inner panel 9

Remote controller 10

Changing battery 10

General operations 11

Reset the unit 11

Turning the unit on/off 11

Mode selection 11

Mute function 11

Volume control 11

Setting the sound characteristics ..... 11

System setup 11

Subwoofer 12

AV in jack 12

Radio operations 12

Band selection 12

Manual/Automatic tuning 12

Programming stations 12

Auto memory store/preset scan 12

Stereo/mono reception 13

On-screen display 13

RDS background 13

AF (Alternative Frequencies) function ... 13

TA (Traffic Alarm)/TP function 13

PTY (Program Type) 13

Other functions 13

TV tuner operation 14

Disc/USB/SD/MMC operations 14

USB/SD/MMC notes 14

Insert/Eject disc 14

Inserting a memory card/USB device ... 14

Play/pause 15

MP3/DivX/JPEG file playback 15

Stop playback 15

Selecting tracks 15

Fast forward/rewind 15

A-B segment repeat 15

Repeat playback 15

Intro playback 15

Goto 16

Random playback 16

Programming playback 16

OSD function 16

Zooming in/out 16

PBC function 16

Changing angle 16

Selecting audio language 16

Selecting subtitle language 16

Selecting sound channel 16

Menu navigation 16

ID3 tag information 17

System setup.... 17

System setup 17

Language setup 17

Audio setup 18

Video setup 18

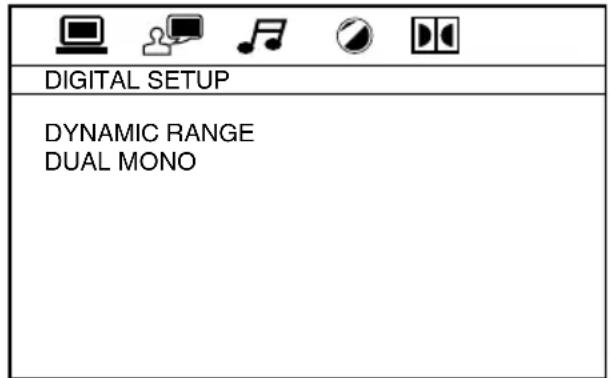

Digital setup 18

General information 19

Handling compact discs 19

Cleaning discs 19

Cleaning the unit body 19

Accessories 19

Troubleshooting guide 20

Specification 21

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

• Read carefully through the manual to familiarize yourself with this unit.
• Keep this manual handy as a reference for operating procedures and precautions. Do not allow persons who have not read through this manual to use this unit.

- "CLASS 1 LASER PRODUCT"

This product contains a laser diode of higher class than 1. Laser beams from the optical pickup are dangerous to the eyes. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

- Do not allow this unit to come into contact with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids or dust. Protect this unit from moisture.

- Make sure that foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure.

- The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature.

• Using the unit with the temperature that goes beyond the operation temperature greatly

decreases the operation resource of the screen and other components of the unit and can result in an outage.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal. Please ensure it before installation.
• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.
• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.
• Make sure you disconnect the power supply and aerial if you will not be using the system for a long period or during a thunderstorm.
• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Let a qualified technician check the system.

• Always keep the volume low enough so that you can hear sounds from outside the vehicle.

- Should this product fail to operate properly, contact your dealer or nearest service center.

Installation

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring and make sure that the unit works properly.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30^ from horizontal, the unit may not perform properly.
• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

Din Front/Rear-Mount

This unit can be properly installed either from 'Front' (conventional DIN Front-mount) or 'Rear' (DIN Rear-mount installation, utilizing threaded screw Holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

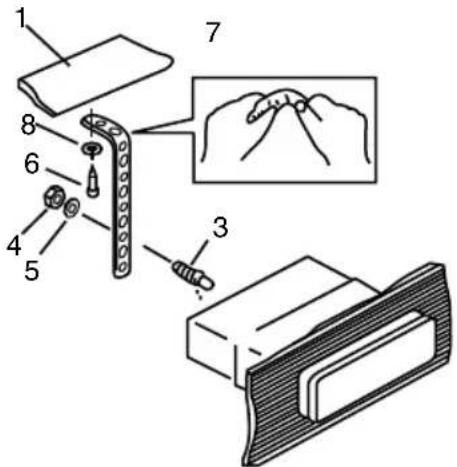

1. DIN front-mount (Method A)

1. Car dashboard
2. Sleeve
3. Screw
4. Nut (5 mm)
5. Spring washer
6. Screw (5 x 25 mm)
7. Metal strap
8. Flat washer

1 182 53 2 3

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture. You can bend the strap to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

Dismantling the unit

a - Trim frame
b – Frame uninstall direction
c – Release key insertion

Technical diagram illustrating a mechanical process with labeled parts and directional arrows, including section B showing tool insertion.

1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click, as shown in the picture. To extract the unit from the dashboard, pull the release keys or the unit body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

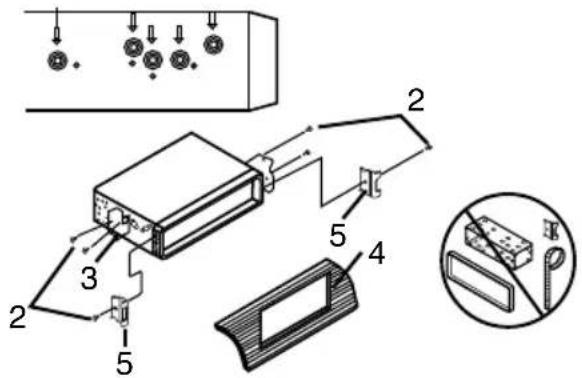

2. DIN rear-mount (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets.

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).

The outer trim frame and mounting sleeve are not used for method of installation.

Technical diagram of a device with labeled components and an inset showing a close-up view of a component.

Detachable control panel

Insert the left locker on the receiver into the left groove of the panel, and then insert the right locker into the right groove. Lift the panel and press on the upper part of the panel until a click. Ensure the panel is fixed properly.

To detach the front panel, press OPEN button. When the panel is in horizontal position, detach the left part of the panel from the locker, and then detach the right part.

The control panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in the included protective case when not in used and carried away when you leave the vehicle to deter theft.

Switch off the power of the unit. Detach the front panel, then put it to the protective case and take it with you.

Connection

Connection diagram

Video out (yellow) Subwoofer out Parking wire (brown) Line out RCA (red=right) Line out RCA (white=left) TV antenna Antenna jack B ISO connector 1 3 5 7 2 4 6 8 Fuse 15 A A 2 4 6 8

ISO connection table

Location Function
	Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Power antenna/Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition key (+12V)/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black

Power antenna wire is intended for power supply of the antenna and for remote control of an additional amplifier.

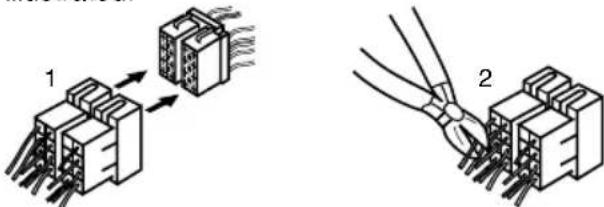

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

Diagram showing two stages of connector pinning: one with internal components and the other with wire being inserted.

1. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table above for speaker and power cable connections.

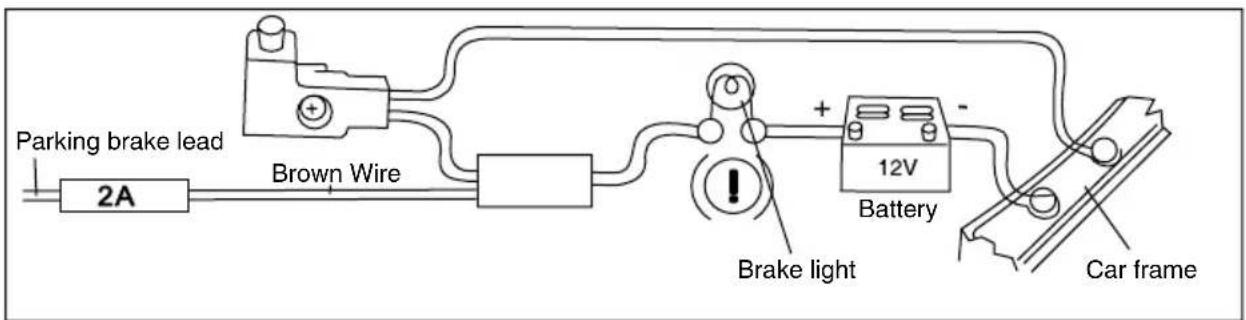

Parking wire connection

Parking brake lead 2A Brown Wire 12V Battery Brake light Car frame

If Parking cable is connected to hand brake switch, the video display of the TFT monitor will be controlled by driving status. When the car is moving ahead, if the video disc is played, the screen shows worning and blank screen. The warning screen will prevent the driver from watching images.

Control elements

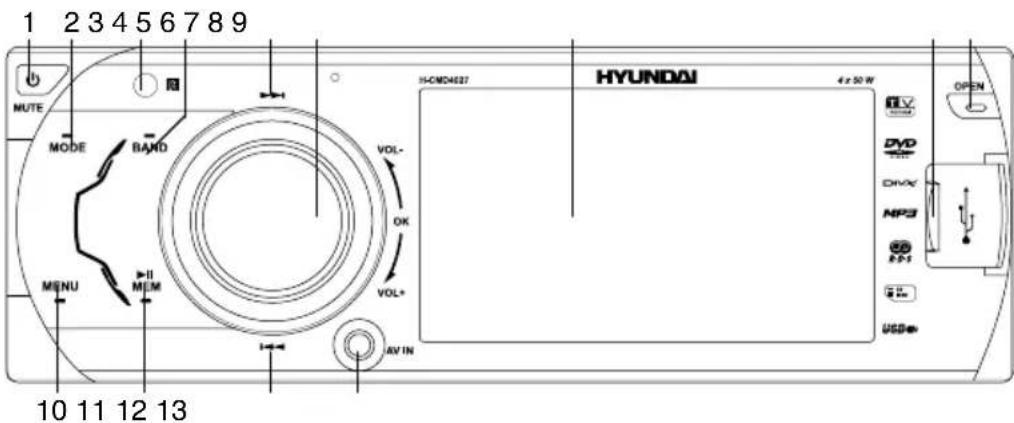

Front panel

1. POWER/MUTE button
2. MODE button
3. IR sensor
4. BAND button
5. SEEK+ button
6. OK button/VOLUME knob

7. Display

8. USB port

9. OPEN button
10. MENU button
11. MEM▶ button
12. SEEK-Button
13. AV input

1 23456789 MUTE MODE BAND VOL- OK VOL* MENU MEM 10 11 12 13 HYUNDAI 4 x 50 W DVD DRVX MP3 RSF USB

Inner panel

1 2 3 4 5 ← RESET

1. Memory card slot
2. Eject button
3. Panel status indicator
4. RESET button (hole)
5. Disc loading slot

Pressing RESET hole will erase the clock setting and stored stations.

Panel status indicator lights up when you flip down the panel and flashes when you remove the panel.

Remote controller

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MODE BND RDM ENTER STEPO VONO P.SCN RPT PTY PROG ASEK- TA OSD VOL+ SEL VOL- AUDIO GOTO 1 2 3 4 5 6 7 8 9 0 HYUNDAI 16 17 18 19 Sub-T 20 21 22 23 24 25 26 27 28 29

1. POWER button
2. MODE button
3. UP cursor button
4. BND/RDM button
5. ENTER button
6. LEFT cursor button
7. DOWN cursor button
8. STEREO/MONO button
9. PTY/PROG button
10. P.SCN/RPT button
11. SEEK- button
12. AF/TA button
13. OSD button

14. PBC button

15. Number buttons

16. ▶ button
17. MUTE button
18. MENU button
19. SUB-T button
20. RIGHT cursor button
21. SETUP button
22. ANGLE button
23. INT button
24. VOL+ button
25. A-B/ZOOM button
26. SEL button
27. SEEK+ button
28. VOL- button
29. AUDIO/GOTO button

Changing the battery

1. Press the catch and at the same time pull out the battery tray.
2. Insert the 1 x lithium battery, type CR 2025 3 V with (+) mark facing up. Insert the battery tray into the remote control.

- Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose it in a fire.
• Do not expose or bring into contact the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may give off heat, crack or start a fire.
• Please direct the Remote controller to the IR sensor of the front panel.

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RESET button (hole) with a pointed object (such as a ballpoint pen) to set the unit to initial state.

When some errors occur, you can also press RESET button to resume to normal, and it will erase the clock setting and some memorized functions.

Turning the unit on/off

Press any button on the panel or the RC (except OPEN button) to turn on the unit. Press and hold POWER/MUTE button on the panel or press POWER button on the RC to turn off the unit.

Mode selection

Repeatedly press MODE button on the RC or on the panel to select a mode: Tuner => DVD => USB => Card => TV => AV IN.

The DVD, Card and USB modes are only available when corresponding storages are inserted into the unit.

Mute function

Press MUTE button on the RC or POWER/MUTE button on the panel to turn off the sound. "MUTE" appears on the display. Press the button again or adjust volume to resume the sound output.

Volume control

Press VOL+/VOL- buttons on the RC or rotate VOLUME knob on the panel to decrease or increase sound volume level.

Setting the sound characteristics

Press SEL button on the RC to select the audio setting menu: BASS => TREBLE => BALANCE => FADER => EQ. Press UP/ DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select the audio setting item. Press ENTER button or RIGHT cursor button on the RC or OK button on the panel to enter the selected item.

Press LEFT/RIGHT buttons on the RC or rotate VOLUME knob on the panel to adjust the audio setting. Press SEL button on the RC again to save the setting and return to current mode.

If turn off the power, all the settings of each mode will be saved. If turn off the ACC power, all the settings will be clear and become factory default setting. If you don't adjust setting within several seconds after selecting the desired setting item, the unit will automatically return to the current mode.

System setup

Press MENU button on the panel or RC to enter Setting Menu. Press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select a menu page. Press ENTER button or RIGHT cursor button on the RC or press OK button on the panel to enter the page. Press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select an item, then press ENTER button on the RC or OK button on the panel to adjust the setting.

Press MENU button to return to the last setting list.

AUDIO MENU

• Bass: Support 10 levels. Default level is 0.
• Treble: Support 10 levels. Default level is 0.
  • Balance: Support 10 levels for each left and right channel. Default is left equal to right.
• Fader: Support 10 levels for each front and rear channel. Default is front equal to rear.
• EQ DSP: FLAT => CLASSICS => POP => ROCK => DSP OFF.

PICTURE MENU (available in DVD/USB/Card modes only)

• Red: Adjust level of red color. Support 50 levels. Default level is 25.
• Green: Adjust level of green color. Support 50 levels. Default level is 25.
• Blue: Adjust level of blue color. Support 50 levels. Default level is 25.
• Brightness: Adjust level of screen

brightness. Support 50 levels. Default level is 25.

• Contrast: Adjust level of screen contrast.
  Support 50 levels. Default level is 25.
• Sharpness: Adjust level of screen sharpness. Support 15 levels. Default level is 10.

- Screen: Adjust screen aspect: 16:9 => 4:3 => FULL.

- Color reset: Resume color default status. (Select YES or NO with cursor buttons, press ENTER button on the RC or OK button on the panel to confirm).

EXPERT MENU

• DX: Set search radio station by DX or LOCAL mode. DX => LOCAL.
• Stereo: Set radio audio at STEREO or MONO mode, STEREO => MONO.
• Beep: Set press button sound. 2ND => ALL => OFF.
• Loud: Set loudness on or off. OFF => ON.
• Subwoofer: Set dubwoofer ON or OFF.
• Backlight: Set OSD backlight: HIGH => LOW => MID.
• OSD color: Set OSD color: DARK BLUE => VIOLET => LIGHT BLUE.

CLOCK MENU

- Clock: Set CLOCK display time or not. OFF/ON.

- Clock Hour: set clock 12H/24H.

- Clock adjust: Set CLOCK ADJUST time.

Subwoofer

Connect a subwoofer to this unit using the Subwoofer output of this unit. For subwoofer operation an external amplifier is required.

AV in jack

AV jack is intended to receive audio and video signals by connecting to external device.

Radio operations

Band selection

Press BND/RDM button on the RC or BAND button on the panel to switch to the bands in the following order: FM1 - FM2 - FM3 (OIRT) – MW (AM).

Manual/automatic tuning

• Manual tuning: Press and hold SEEK-▶◀ SEEK+▶◀ buttons on the RC to enter manual tuning mode. MANUAL will be displayed. Press these buttons repeatedly to change the frequency upward or downward step by step.
• Automatic tuning: Press repeatedly SEEK- ◀◀/SEEK+ ▶Buttons on the RC or press and hold these buttons on panel to start automatic seeking for an available radio station downward or upward. After being found the station will be played. To stop seeking, press one of these buttons again.

Programming stations

• There are 6 numbered preset buttons on the RC, with which you can store and recall stations for each band (18 FM, 6 AM). Select a station, then press and hold a preset button. The station will be saved in the memory under the corresponding number. To recall a stored station, press the corresponding preset button.
• You also can save stations in the memory with MEM▶ button on the front panel. When the needed frequency is found, press MEM▶, then rotate VOLUME knob to select a memory position (PRESET 1 - 6) and press OK button to confirm saving.

Auto memory store/Preset scan

Auto store: Select a band, press and hold P.SCN/RPT button on the RC to enter auto store mode. The radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto store, press the button again.

During auto station preset, the unit will search and store stations with the strong signal first, and then weaker signal stations until the memories are full.

Preset scan: Select a band, press P.SCN/RPT button on the RC to scan all preset stations in the memories of the current band. To stop preset scan, press the button again.

Stereo/Mono reception

In FM mode, press STEREO/MONO button on the RC to select stereo or mono signal reception mode.

On-screen display

Press OSD button on the RC to show enabled PTY function icon.

RDS background

RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.

AF (Alternative frequencies) function

Press and hold AF/TA button on the RC or MENU button on the panel to enable AF function. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength.

AF indicator on the display will flash until RDS information is received. If RDS service is not available in your area, turn off the AF mode.

TA (Traffic alarm) function

Press AF/TA button on the RC or press and hold OK button on the panel to activate the traffic alarm function.

When TA function is activated, it will search the station with TA information automatically. If there is no TA information, it will search the station with TP information automatically, if there is no TP information either, it will return to the previous station after searching.

When receiving the station with TP information but without TA information, TP icon is on and TA icon keeps blinking; when receiving the station with TP and TA information, both TP and TA icons are on.

When playing in other mode and TA information is received, it will change to the radio mode automatically. After playing over, it will return to the previous mode. Press AF/TA button on the RC once to ignore the received TA information, do it twice to turn off the function.

PTY (Program type) function

Press PTY/PROG button on the RC to open PTY program type list, and repeat pressing PTY/PROG button to select a PTY type. After selecting the program type you want, press number buttons 1 - 6 on the RC to start search. Press it again to stop the PTY search. If PTY code is different or not available, "PTY NONE" blinks on the display.

Other functions

Press MENU button on the panel or RC to enter Setting Menu. Press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select RDS SETUP page. Press ENTER button or RIGHT cursor button on the RC or press OK button on the panel to enter the page. Press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select an item, and then press SEL button on the RC or Ok button on the panel to adjust the setting.

Press ENTER button on the RC or OK button on the panel to confirm, press MENU button to return to last settings list.

RDS SETUP

- TA ALARM/SEEK: In TA SEEK mode, the unit will seek for traffic announcement program; in TA ALARM mode, the alarm is set off.

- PI SOUND/MUTE: Choose either PI sound or PI mute. PI sound refers to the reception noise when the AF function tries to scan alternative frequency.

- RETUNE S/L: RETUNE refers to the time period the unit allows for radio scan when reception is interrupted. SHORT represents a time period of 30 seconds and LONG represents a time period of 90 seconds.

- MASK DPI/ALL: During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

• EON TA DX/LOCAL: EON (Enhanced

Other Networks) - This unit is equipped with the latest technology of EON control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station. Then it will receive the station, turn up the volume, or interrupt the playback for the duration of the announcement. At the end of the announcement the radio will return to its previous state ready for the next announcement.

• REG ON/OFF: When REG is available (On), the receiver accepts regional variants of the tuned station display. When REG is unavailable (Off), the receiver ignores regional variants.
• TA VOL: You can set the default volume of TA announcement. Support 50 levels. Default level is 15.

TV tuner operations

• Connect the TV antenna to the TV antenna jack on the rear of the unit. Select TV mode.
• To access the TV mode menu, press MENU button. To select a menu page (Auto Program or Manual Program) press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel. To enter the selected page press OK button on the panel or ENTER button on the RC. Press UP/DOWN cursor buttons on the RC or rotate VOLUME knob on the panel to select an item, and then press ENTER button on the RC or OK button on the panel to adjust the setting. Press MENU button to return to last settings list.

AUTO PROGRAM

• System: select TV system (SECAM1/SECAM2/PAL).
  • Audio: select sound system (DK/BG/I).
• Search: select to start automatic search and storing of TV channels.

MANUAL PROGRAM

• Storage: select the storage number of the channel.
• System: select TV system (SECAM1/SECAM2/PAL).

• Audio: select sound system (DK/BG/I).
- Channel: Select the number of the channel.
- Fine: perform fine tuning of picture quality.
- Memory: select on (memorize the found channel) or off (not memorize).

TV image cannot be displayed on the external monitor.

Disc/USB/SD/MMC operations

USB/SD/MMC notes

USB format supports 2.0. Capacity: up to 8 Gb.

For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 8 Gb.

Insert/Eject disc

• Open the front panel and insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit. The first file in the root folder will be played. Close the front panel.
• Open the front panel and press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within several seconds, it will be automatically loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to another mode.

Inserting an SD/MMC card/USB device

Open the front panel and insert an SD/MMC memory card into the card slot. Open the USB slot cover on the front panel and insert a USB into the USB slot. Then the playing mode will be changed into Card or USB mode automatically. The first card/USB device track playback will start.

When SD/MMC card and USB device are both inserted, the playing mode will be changed into the mode of the device inserted later.

Play/pause

The unit will automatically play from the first sound track recorded on a disc/SD/MMC/USB device. To ensure good system performance, wait until the unit finishes reading the disc/device information before proceeding. Press ▶ button on the RC or MEM/▶ button on the panel to pause playback, press it again to resume playback.

MP3/DivX/JPEG file playback

When you insert a storage containing MP3/DivX/JPEG file, the screen will show following interface:

1 2 3 4 5 01. Track.WMA 01. TEST WMA 01. Track.WMA 02. Track.WMA 03. Track.WMA 04. Track.WMA 05. Track.WMA 06. Track.WMA 6 7 8

1. Storage folder list
2. Scroll bar
3. Current playback info
4. Current folder content (current file is highlighted)
5. Scroll bar
6. Audio track selection
7. Image file selection
8. Video file selection

Use cursor buttons to navigate in the interface and press ENTER button to confirm your selection.

Some AVI files cannot be played due to their parameters and recording conditions. Video files more than 2 Gb having AVI extension can be played partially.

Stop playback

During playback of a disc/USB/SD/MMC card, press ■PBC button on the RC or press and hold MEM/▶ on the panel to stop the playback. Press ▶ button on the RC or on the unit to start playback again. Playback will resume from the point it was stopped at. If you press ■PBC button on the RC or press and hold MEM/▶ in the panel twice, playback will stop completely and can be resumed only from the beginning of the disc.

Selecting tracks

During playback press SEEK- button to play the

beginning of current track, press it again to play the previous track. Press SEEK+▶▶ button to play the next track. Press number buttons (0-9) on the RC to select the desired track/chapter.

Fast forward/rewind

Press and hold SEEK- ◀SEEK+ ▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶>

When fast backward/forward playback reaches the previous or next track, the unit will resume normal playback.

A-B segment repeat

Press A-B/ZOOM button to set point A, press one more time to set point B and start A-B repeating. Press this button one more time to cancel the repeating function.

Repeat playback

Press P.SCAN/RPT button repeatedly for repeat playing in different modes: track/chapter repeat, folder repeat, disc repeat, repeat cancel (depending on the format used).

Intro playback

Press INT button on the RC to activate

introduction function. Several initial seconds of each track will be played. Press the button again to cancel intro playback.

GOTO

Press and hold AUDIO/GOTO button to show the playback parameters for the current chapter/track/time (track/title/chapter number or time). Press cursor buttons to navigate between the parameters and use number buttons to input needed settings. Press OK button on the panel or ENTER button on the RC to start playback from the set number or time.

Random playback

Press BND/RDM button on the RC to activate random playing mode. Press one more time to return to normal playing.

Programming the playback

• Press PTY/PROG button to open program menu.
• Use cursor buttons to select the program position and use number buttons to input the desired track/title/chapter (depending on the disc type).
• Press ▶ button on the RC or MEM/▶ button on the panel to start program play, or move the cursor to select PLAY and press ENTER button on the RC or OK button on the panel to play.
• Move the cursor to CLEAR, press ENTER button on the RC or OK button on the panel to delete the programmed list. Press PTY/PROG button to quit programming.

OSD (On Screen Display) function

Press and hold OSD button on the RC repeatedly to show current playback information, such as number of track/chapter/title, current track/chapter/title elapsed/remaining, total track/chapter/title time remaining (depending on the disc type).

Zooming in/out

During playback of video or images on disc/ USB/SD/MMC, press and hold repeatedly A-B/ZOOM button on the RC, the picture will be zoomed in the sequence: X2 =>X3 =>X4 =>X1/2 => X1/3 => X1/4 => Normal.

PBC (Playback Control) function (for VCD only)

This function is only available for the VCD with PBC function.

Press and hold ■/PBC button on the RC to set PBC on/off; when PBC is off, the screen will show PBC menu if you switch PBC on. If the menu consists of a list of titles, you can select a desired one using number buttons on the RC.

Changing angle (for DVD only)

Press ANGLE button on the RC to playback images at different camera angles. If a disc doesn't support multi-angle playback, this function will not work.

Selecting audio language (for DVD only)

During DVD disc playback, press AUDIO/GOTO button on the RC repeatedly to select the audio language to listen. This function will not work if a disc does not support multi-language audio.

Selecting subtitle language (for DVD only)

If your DVD disc supports multi-language subtitle, press SUB-T button on the RC repeatedly to switch among disc-supported languages.

Selecting sound channel (for VCD only)

During VCD disc playback press AUDIO/GOTO button on the RC to select the channel: Mono L => Mono R => MIX Mono => Stereo.

Menu navigation (for DVD only)

Press and hold MENU button on the RC to activate the disc menu list on the screen. Choose the desired item. Press ENTER button or ▶ button on the RC or OK button on the panel to confirm the selected item and start

playing.

Title and menu are only available if the disc has these functions.

ID3 Tag function

If a MP3 file has ID3 tag information in the supported ID3 format, such information will be displayed on the LCD while playback

System setup

Press SETUP button on the RC to display setup screen, use LEFT/RIGHT cursor buttons and ENTER button to select the desired setup page: System, Language, Audio, Video, Digital. In the selected page select an option using UP/DOWN cursor buttons, then press RIGHT cursor button to go to setting list. Use UP/DOWN cursor buttons to select the needed setting. Press ENTER button on the RC or OK button on the panel to confirm.

System setup

SYSTEM SETUP

TV SYSTEMSCREEN SAVERVIDEOTV TYPEPASSWORDDRATINGDEFAULT

TV system

Select the TV system in the setting menu (NTSC, PAL, PAL-60, AUTO).

Screen saver

The screen saver appears if disc stops for more than 3 minutes. Original setting: On.

Video

Interlace-S-Video

TV type

Select TV type to watch wide screen movies.

4:3 PS: For 4:3 TV, left and right edges will be cut.

4:3 LB: For 4:3 TV, black bars will appear on top and bottom.

16:9: For 16:9 wide screen TV.

Password

Original password is 0000.

Rating

The rating of the disc is from 1 to 8:

1 (KID SAFE) with the most limits when playing.

8 (ADULT) with the least limits when playing. Original setting: 8.

The rating can be selected only under the password unlocked status, and the limits can be worked only under the password locked status.

Default

If this item is selected, the unit will return to original setting.

Language setup

LANGUAGE SETUP

OSD LANGUAGEAUDIO LANGSUBTITLE LANGMENU LANGDIVX [R] VOD

OSD language

Select the language to be used for the on-screen display.

Audio language

Select the language to be used for the audio. You can select a preferred audio from those included on the DVD video disk.

Subtitle language

Select the language to be used for the Subtitles. You can select a preferred subtitle from those included in the DVD Video disk.

Menu language

Select the language to be used for the Menu. You can select a preferred audio from those

included on the DVD.

Audio setup

AUDIO SETUP KEY

Key

Select key up/down according to your preference.

Video setup

VIDEO SETUP BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

Set a parameter with UP/DOWN cursor buttons: Brightness, Contrast, Hue, Saturation, Sharpness.

Digital setup

DIGITAL SETUP DYNAMIC RANGE DUAL MONO

Dynamic range

When you select the compressed mode as "line out", select it to adjust the compression proportion and get the different compressed effect. When select FULL, the audio signal is minimum; when select OFF, the audio signal is maximum.

Dual mono

Select the audio channel from STEREO, MONO L, MONO R and MIX MONO.

Handling compact discs

• Do not insert anything other than a CD into the CD loading slot.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player.
• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.
  • Store discs in their cases when not in use.
• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature (such as leaving the discs in your car during summertime) can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use shaped discs.

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Illustration of a hand holding a small object with two crossed arrows indicating direction (no text or symbols)

Cleaning the unit body

Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean.

Accessories

1. Receiver 1 pc
2. Front panel 1 pc
3. Protective case 1 pc
4. Remote controller 1 pc
5. ISO connector set (A+B) 1 pc
6. Mounting parts: Nut 1 pc
   Spring washer.... 1 pc
   Flat washer 1 pc
   Bolt 1 pc
   Screw 4 pcs
   Metal strap 1 pc
   Release key 2 pcs
   Trim frame 1 pc
   Rubber cushion 1 pc
7. Instruction manual.... 1 pc
8. Warranty card 1 pc
9. Consumer information 1 pc

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause $	Solution
No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”.
No sound Volume is in minimum. Adjust volume to a desired level.
Bad sound quality The installation angle is more than 30 degrees.		Adjust the installation angle to less than 30 degrees.
Disc cannot be loaded or ejected	The unit already contains a disc.	Remove the disc in the player then put a new one.
	Moisture condensation. Leave the unit idle for an hour, then retry.
Disc cannot be read	The disc is inserted upside down.	Insert the compact disc with the label side facing upward.
	Compact disc is extremely dirty or defective.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off until the ambient temperature returns to normal.
Buttons do not work	The built-in microcomputer is not operating properly.	Reset the unit with the help of RESET button.
	Front panel is not properly fix into its place.	Install the front panel properly.
The radio does not work	The antenna cable is not connected.	Insert the antenna cable properly.
The radio station automatic tuning does not work	The signals are too weak. Select stations manually.

Specifications

General

Power supply 12 V DC

Maximum power output 4 x 50 W

Unit dimensions/Net weight 178 x 50 x 178 mm/1.55 kg

Gift box dimensions/Gross weight 280 x 103 x 225 mm/2.25 kg

Temperature range -20 ^ C - +60 ^ C

Discplay

Display Built-in 3.5" TFT

Aspect ratio 16:9

Resolution 320 (RGB) x 240

Brightness 250 cd/m ^2

Contrast 500:1

View angle 120

FM stereo radio

Frequency range 65.0 - 74.0/87.5 - 108.0 MHz

Presettable stations 18

Usable sensitivity <15 dB

MW Section

Frequency range 522 kHz - 1620 kHz

Presetable stations 6

TV-tuner

TV system SECAM/PAL

Disc player

System Compact disc audio system

Storage support DVD/DVD±R/DVD±RW, CD/CD-R/CD-RW, USB, SD/MMC

Format support DVD-video/DVD-audio/SVCD/VCD/HDCD/MP3/CDDA/

CD/Picture-CD/Photo-CD/JPEG/MPEG4 (DivX/XviD)

ESP 8 sec. DVD, 40 sec. for Audio-CD, 120 sec for MP3

Mounting angle 0 - +/-30

Specifications are subject to change without notice. Dimensions are approximate.

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations and magnified detail view

Снятие устройства

Technical diagram of a device with numbered components and exploded view, including labeled parts 2 through 5.

Diagram of two connected electrical connectors with arrows indicating flow direction (no text or symbols)

Illustration of a hand connecting pins to an electrical connector (no text or symbols)
